How to Clean your iPhone's Lightning Port
This document provides instructions for maintaining the cleanliness of the charging connector on iPhone models from the first generation through the fourteenth.The connector, commonly referred to as the "Lightning port," can accumulate debris, leading to inconsistent or absent charging.Accumulation of contaminants within the charging port can obstruct proper charger alignment, which this cleaning procedure aims to resolve.
The process utilizes readily available household implements for execution.
- Alternatively, a "Precision Cleaning Kit", containing specialized miniature brushes and probes, is available for purchase to simplify the cleaning task.
- The kit's components are designed to effectively remove obstructions from the connector's interior.Employing the correct tools is crucial for successful port cleaning and preventing further damage.Addressing a dirty charging port through this procedure can often restore reliable charging functionality to your iPhone.

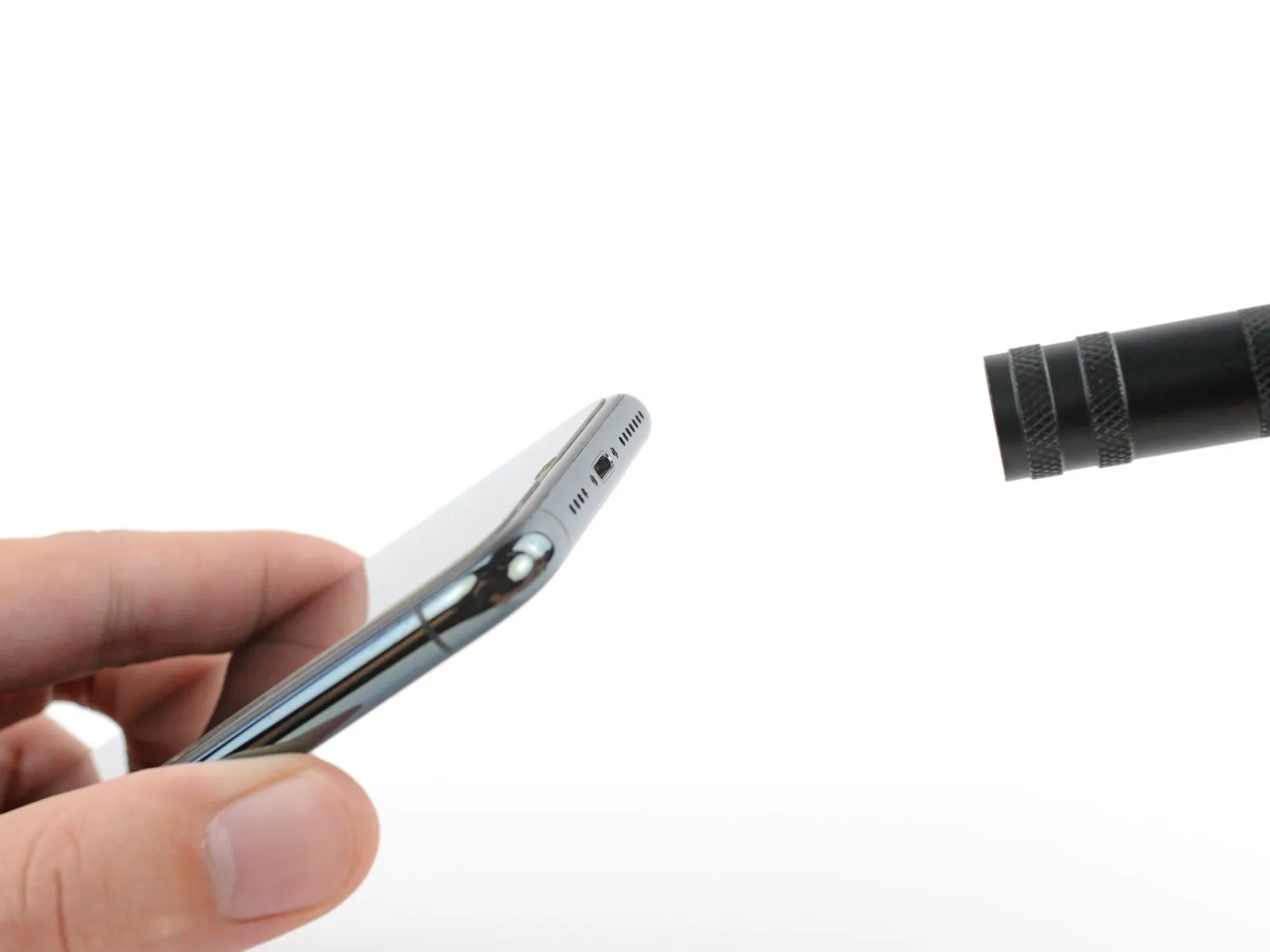

Step 1 | Inspect your charging port

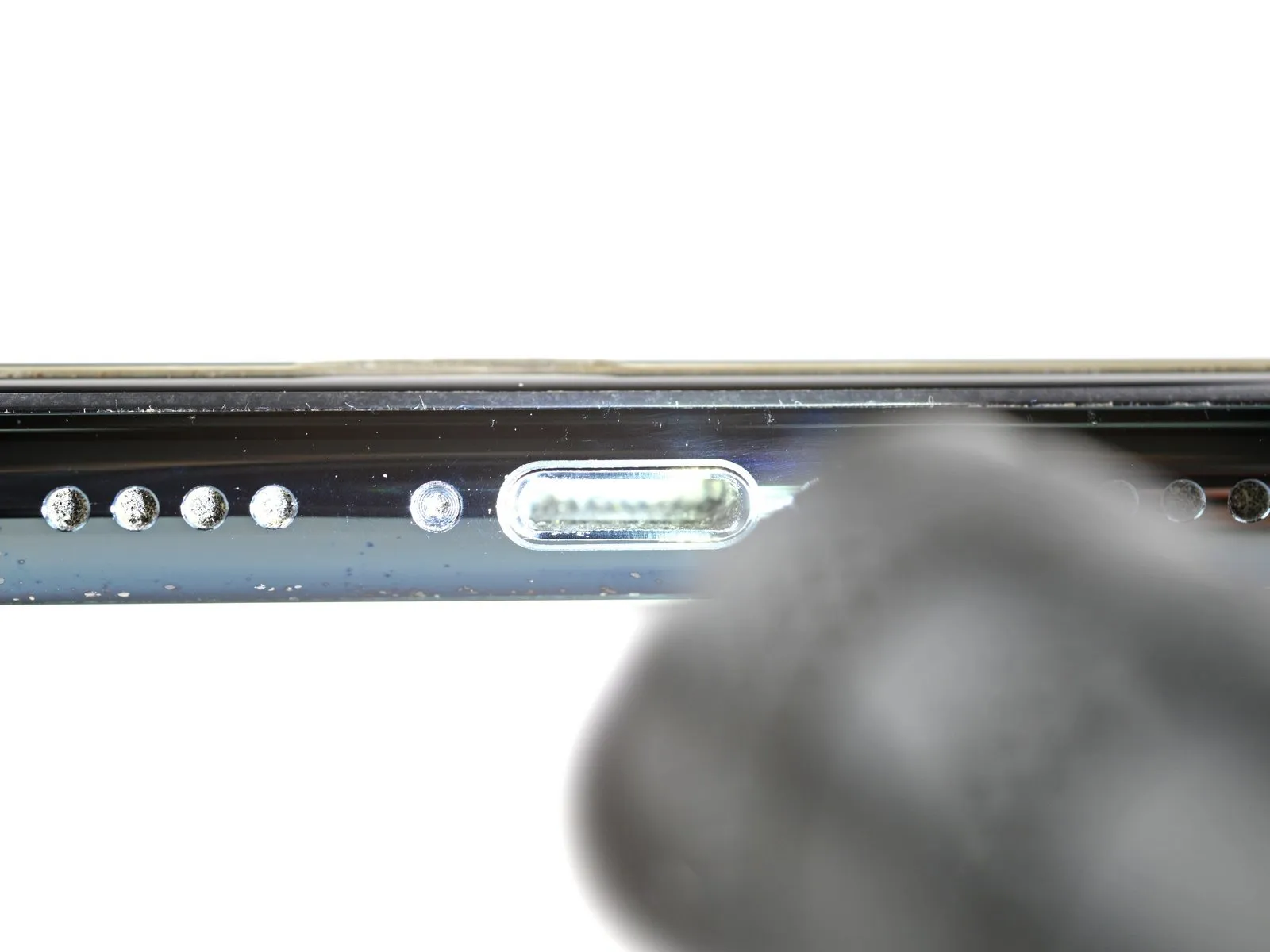

- Employ a flashlight to illuminate the charging port's interior, carefully examining it for obstructions.
Accumulated debris, including dust, grime, and lint, can impede proper connector insertion. - Proceed with the detailed cleaning procedure outlined in this guide; specific techniques are accessible via the provided links.
- A dust blower can be utilized to dislodge particulate matter from the port.
- A specialized brush is effective for removing stubborn debris from the charging port's surface.
- Isopropyl alcohol, applied cautiously, serves as a solvent to dissolve residue within the port.

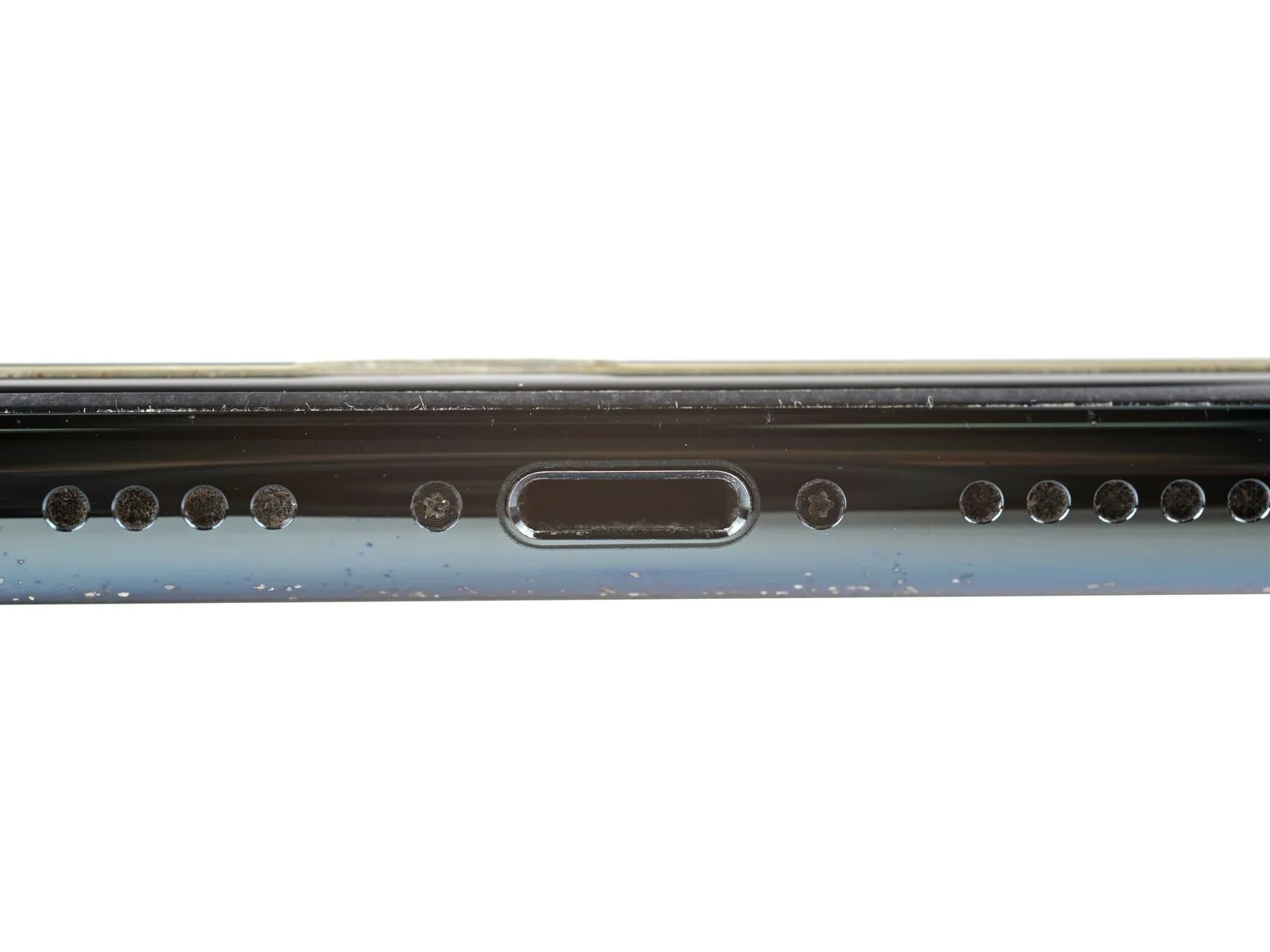

- After each cleaning step, re-examine the charging port to ensure complete removal of all obstructions and any overlooked areas.
Step 2 | Blow air into the charging port
- Refrain from utilizing oral exhalation to direct airflow into the charging port, as the resulting moisture may compromise the electrical contact integrity.

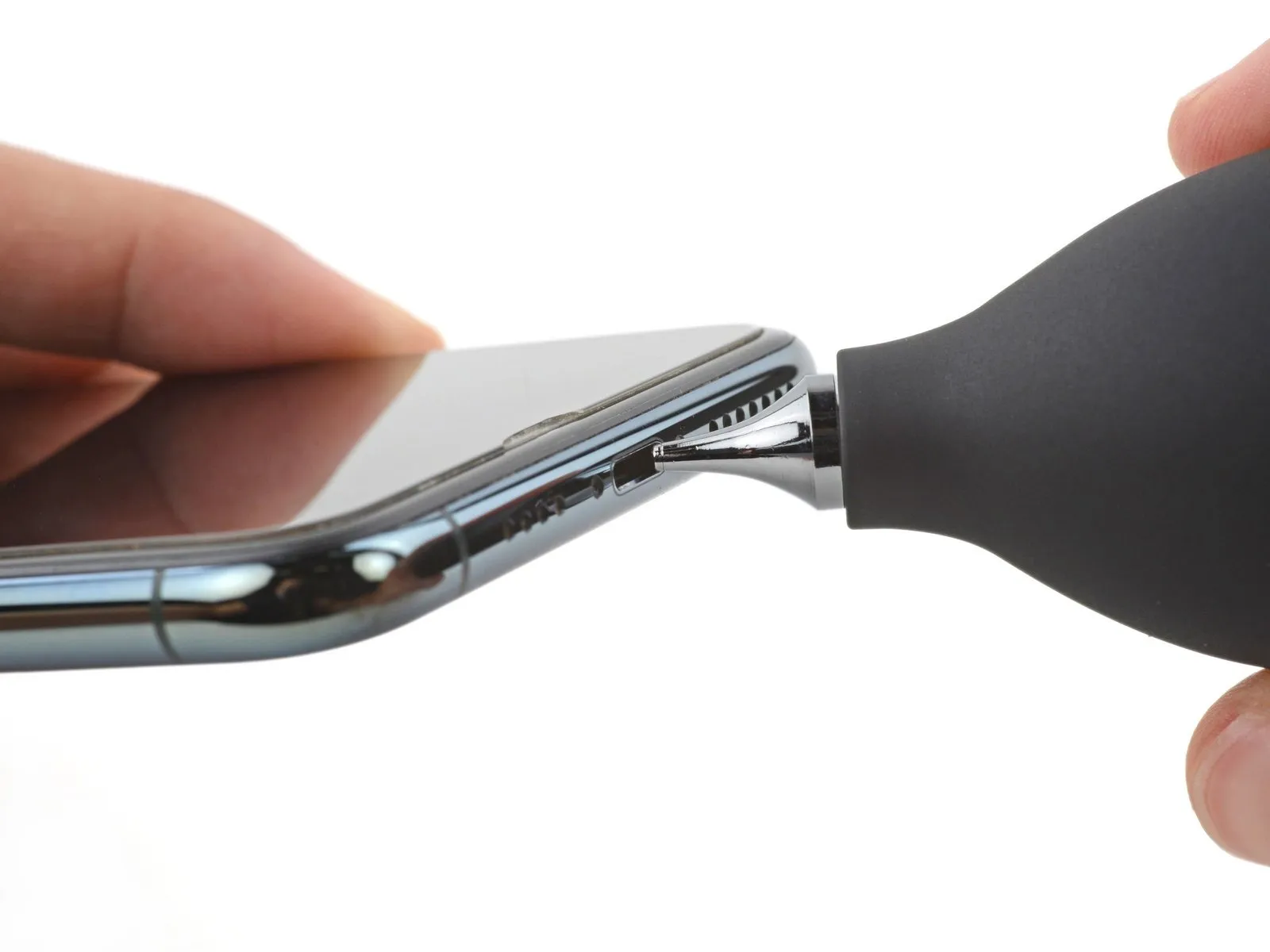

Direct the nozzle of a compressed air device towards one edge of the charging port to facilitate the expulsion of accumulated particulate matter. - Apply short bursts of compressed air into the charging port to dislodge any obstructions.

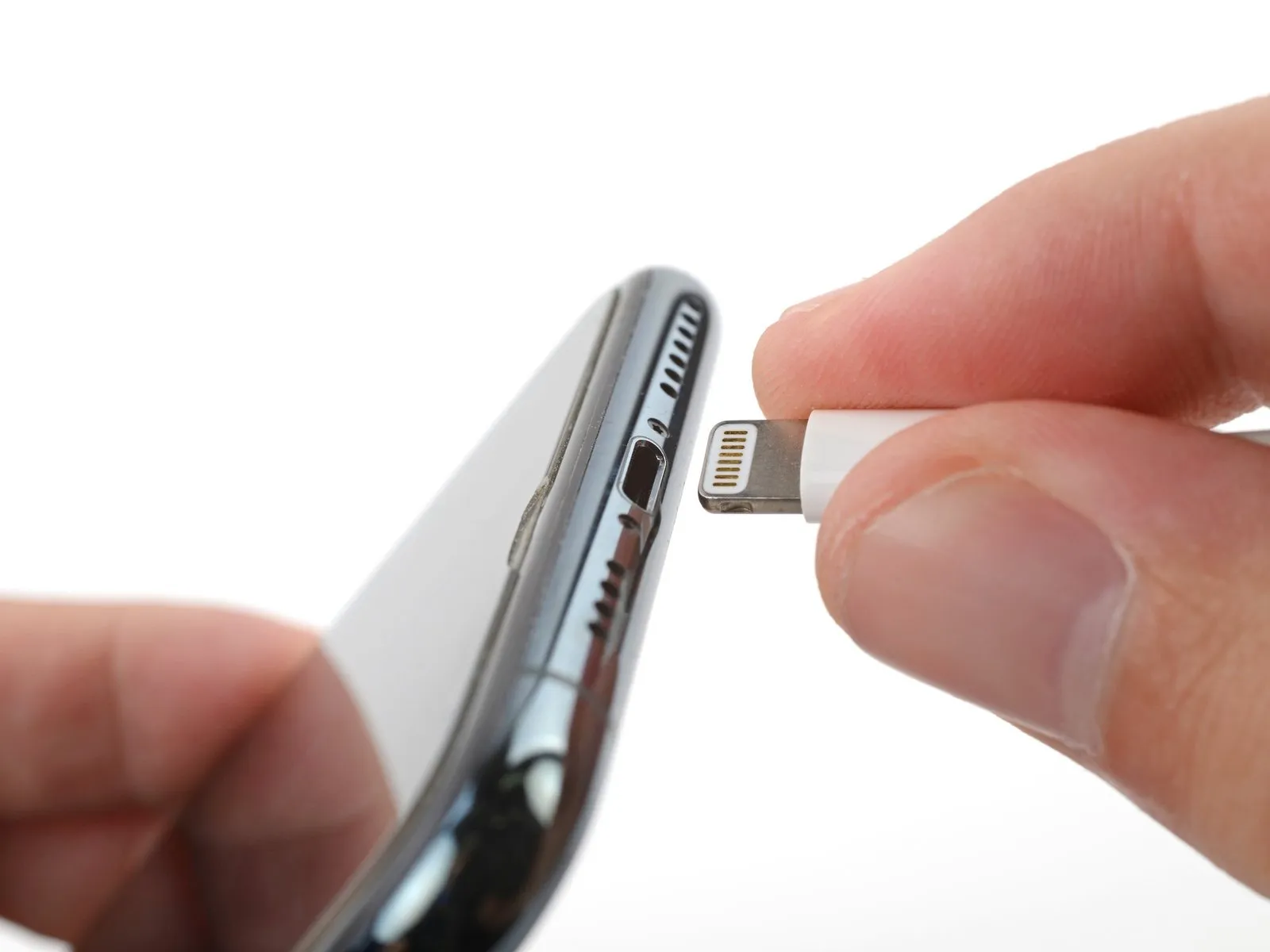

Connect your iPhone to a power source to verify charging functionality and ensure the charger is firmly engaged. - Should charging issues or improper charger seating persist, disconnect the charger and repeat the compressed air cleaning procedure.
If charging problems or seating inconsistencies remain unresolved following repeated cleaning attempts, proceed to the subsequent troubleshooting step.
Step 3 | Brush your charging port
- Employing metallic implements for port cleaning is prohibited, due to the potential for causing damage.

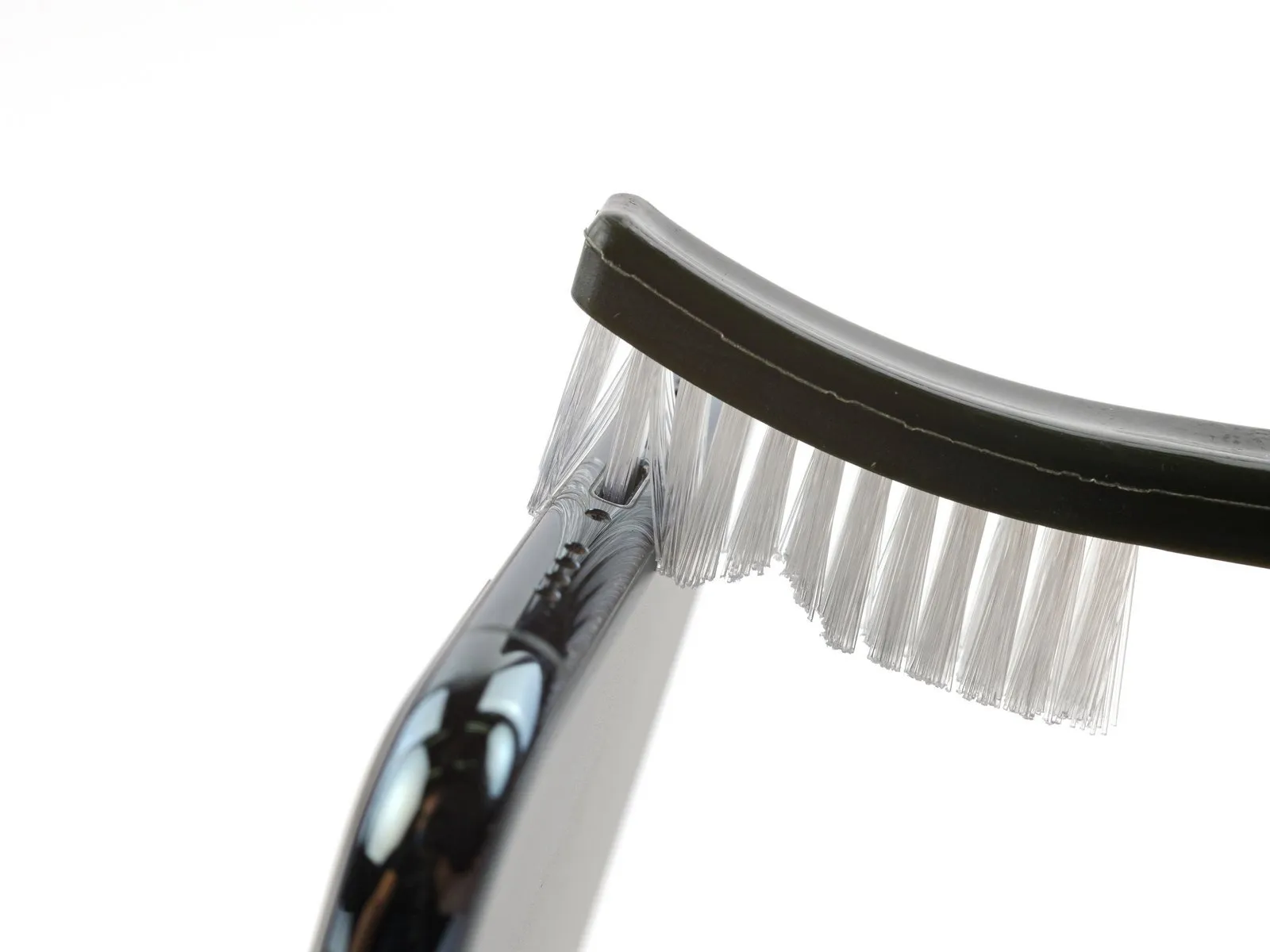

Introduce the brush's tip—such as a toothbrush without moisture—into the charging port's opening.
Execute gentle rotational movements with the brush, using minimal sweeps, to disintegrate any accumulated obstructions. - Withdraw the brush and utilize a compressed air duster to expel any remaining particulate matter.
Should any obstructions persist, reintroduce the brush and rotate it to leverage the bristles for dislodging the debris. - Connect your iPhone to a power source and verify charging functionality; if charging remains unsuccessful, proceed to the subsequent troubleshooting step.

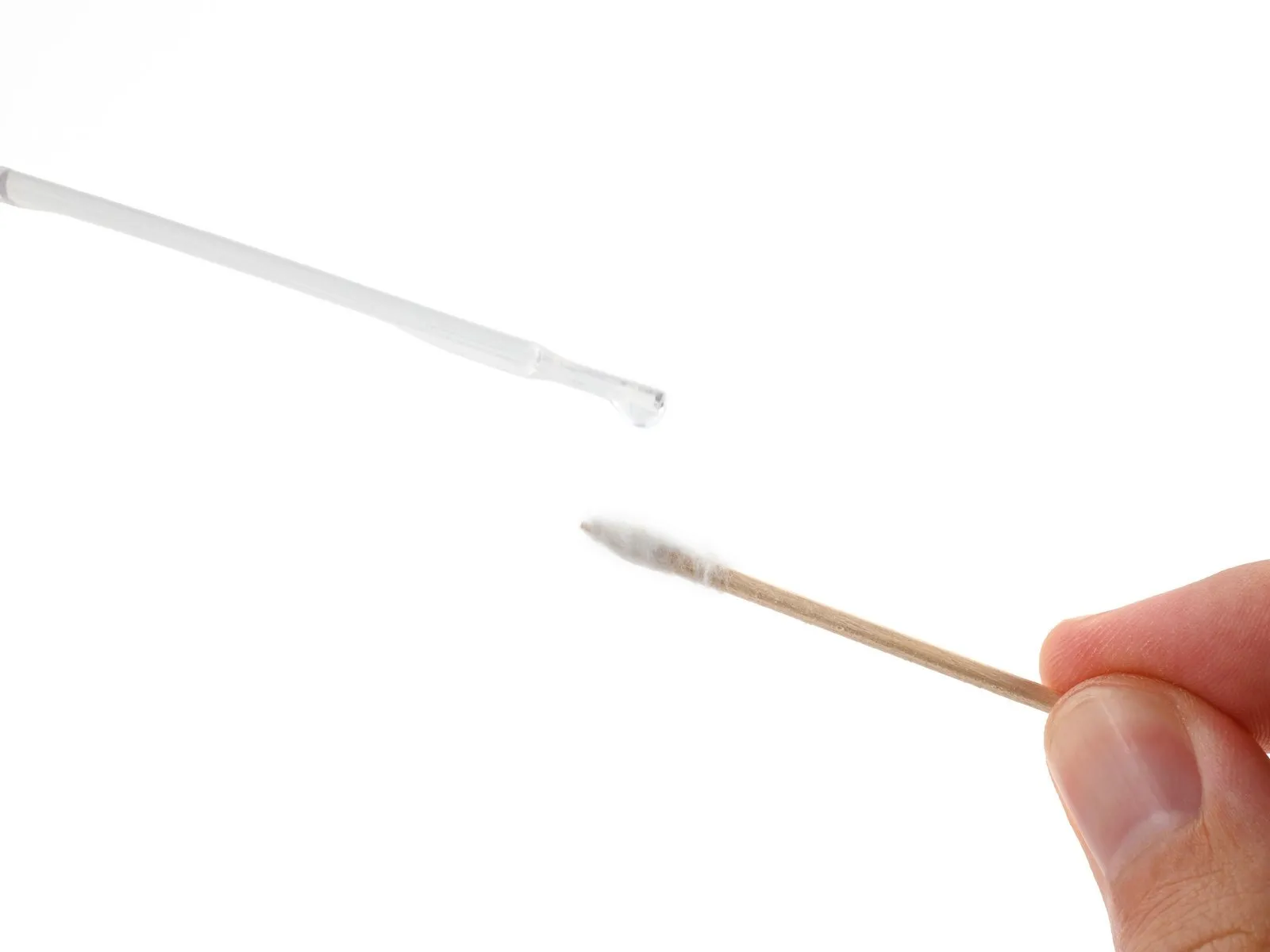

Step 4 | Clean the charging port with isopropyl alcohol
- Constructing a personalized cleaning applicator using the instructions provided is an option.
As a substitute, consider employing dental picks featuring barbed ends (ensure they are unflavored).
Standard cotton swabs may present an issue due to their potential thickness and the possibility of cotton fibers becoming lodged on the connector pins. - Saturate the cotton material with a small quantity of isopropyl alcohol possessing a concentration exceeding 90%.

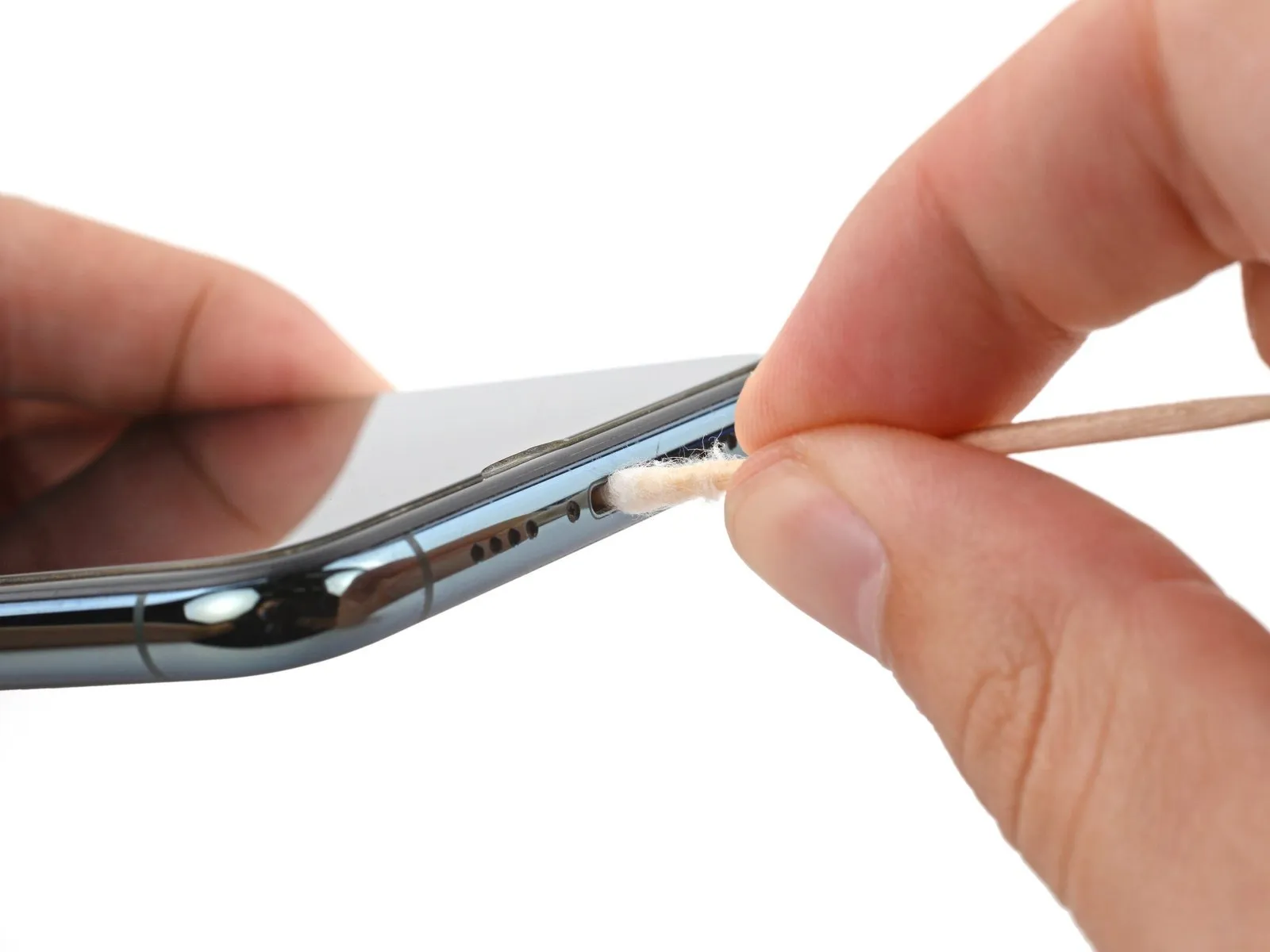

Carefully introduce your chosen cleaning implement into the device's charging port.

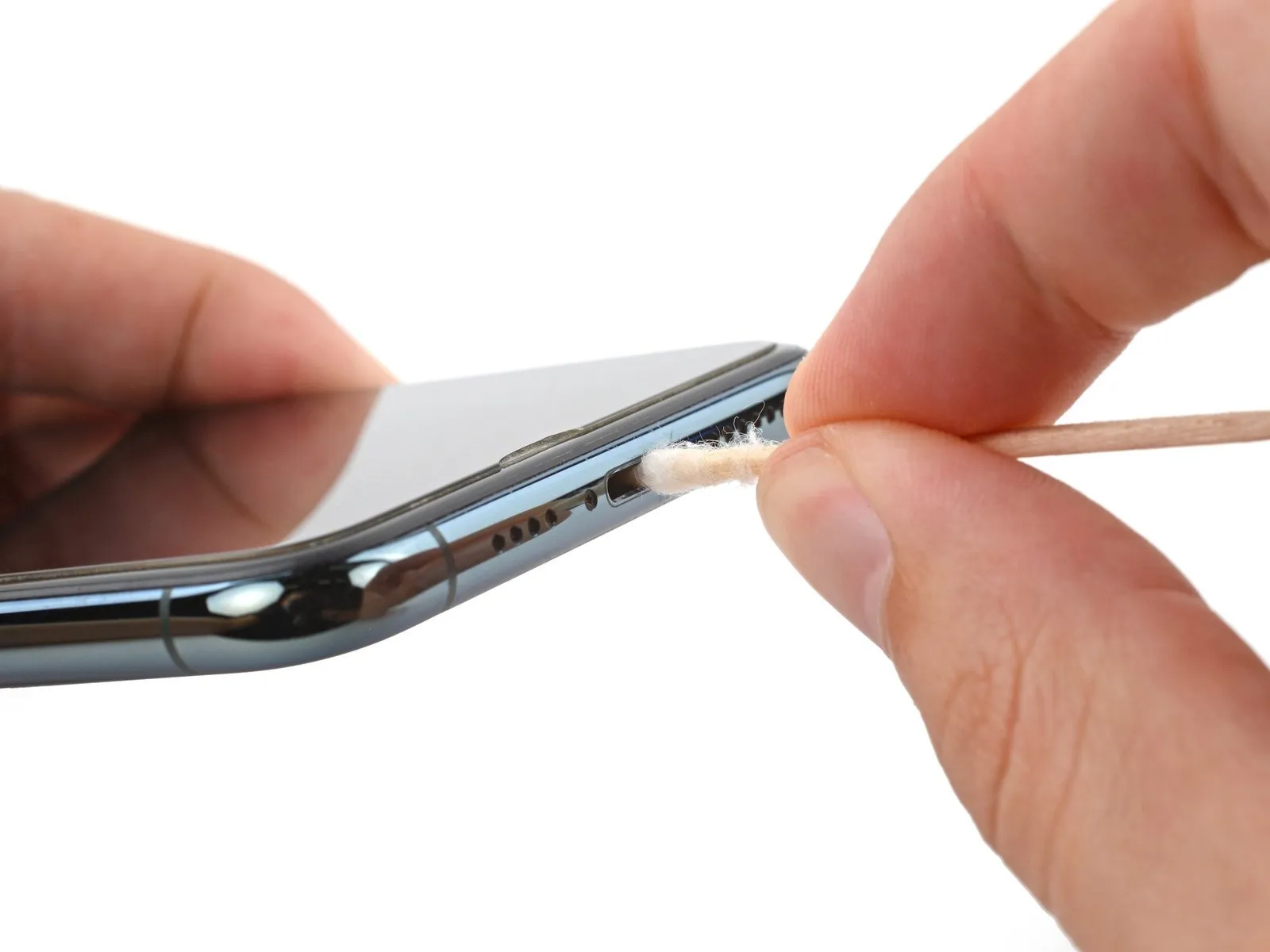

Avoid applying excessive pressure during insertion to prevent potential damage or bending of the internal pins. - Gently move the cleaning tool in a reciprocating motion across the charging port's surface to remove debris.
Allow several minutes for the isopropyl alcohol to fully dissipate before reconnecting your iPhone and verifying functionality.

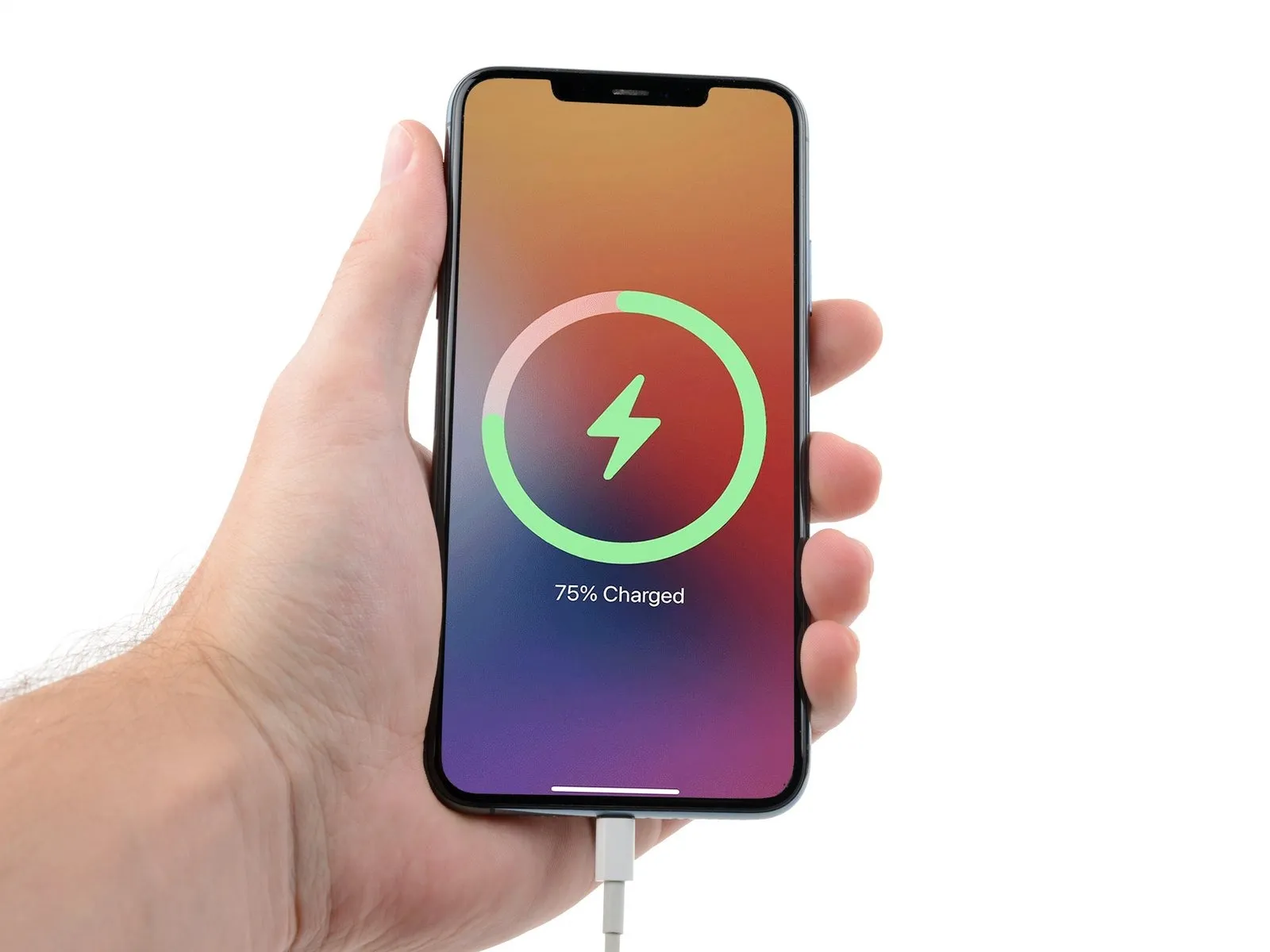

Step 5 | Test your iPhone
- Connect the power adapter to your iPhone and verify charging functionality.Should your iPhone indicate a charging state, the issue is resolved.If the iPhone fails to charge, reiterate the isopropyl alcohol cleaning procedure.
Persistent charging failure, even after repeated cleaning and visual inspection with a light source to rule out obstructions, suggests a necessary charging port replacement.To proceed with charging port replacement, consult the designated guide for your specific iPhone model.Locate your iPhone's model on the referenced page to access the appropriate repair instructions.
Detailed instructions for charging port replacement are available within the model-specific guide.Ensure the power adapter is correctly connected to a functioning power outlet.A visual inspection using a flashlight can help identify any physical obstructions within the charging port.
Isopropyl alcohol is recommended for cleaning the charging port contacts.Multiple cleaning attempts may be required to fully restore charging functionality.Debris within the charging port can prevent proper electrical contact.The charging port is a critical component for power delivery to the iPhone.Replacement of the charging port requires careful disassembly and reassembly. - Refer to the model-specific guide for detailed steps and precautions.Following the guide ensures proper alignment and secure connection of the new charging port.Incorrect installation can lead to further damage or malfunction.The charging port guide provides necessary diagrams and part identification.Always disconnect the battery before commencing any repair work on the iPhone.
