iPhone Hardware Isolation
- Unexpected system restarts, persistent boot loops, and complete power failures can occur on iPhones.Diagnosing the faulty part requires a systematic troubleshooting approach.
This procedure aims to pinpoint the source of the malfunction.Although the accompanying visuals demonstrate the process using an iPhone XR, the underlying techniques are universally applicable to all iPhone models and similar mobile devices.
The visual aids provided are intended to guide the user through the diagnostic steps.Understanding that these principles extend beyond the iPhone XR is crucial for successful application to other devices.
Step 1 | iPhone Hardware Isolation
- To begin the repair process, meticulously access the interior of your iPhone, adhering strictly to the model-specific repair instructions.
- Prior to detaching any additional parts, it is essential to first disconnect the battery; if you lack confidence in handling the battery connector, consult themodel-appropriate "battery replacement guide"to ensure proper procedure.
Step 2
- Disconnecting the battery allows for screen removal, which facilitates improved access to the device's internal components.
- Document the existing configuration with a photograph prior to continuing the disassembly process; this serves as a reference for the positioning of any connector-securing brackets.
Step 3

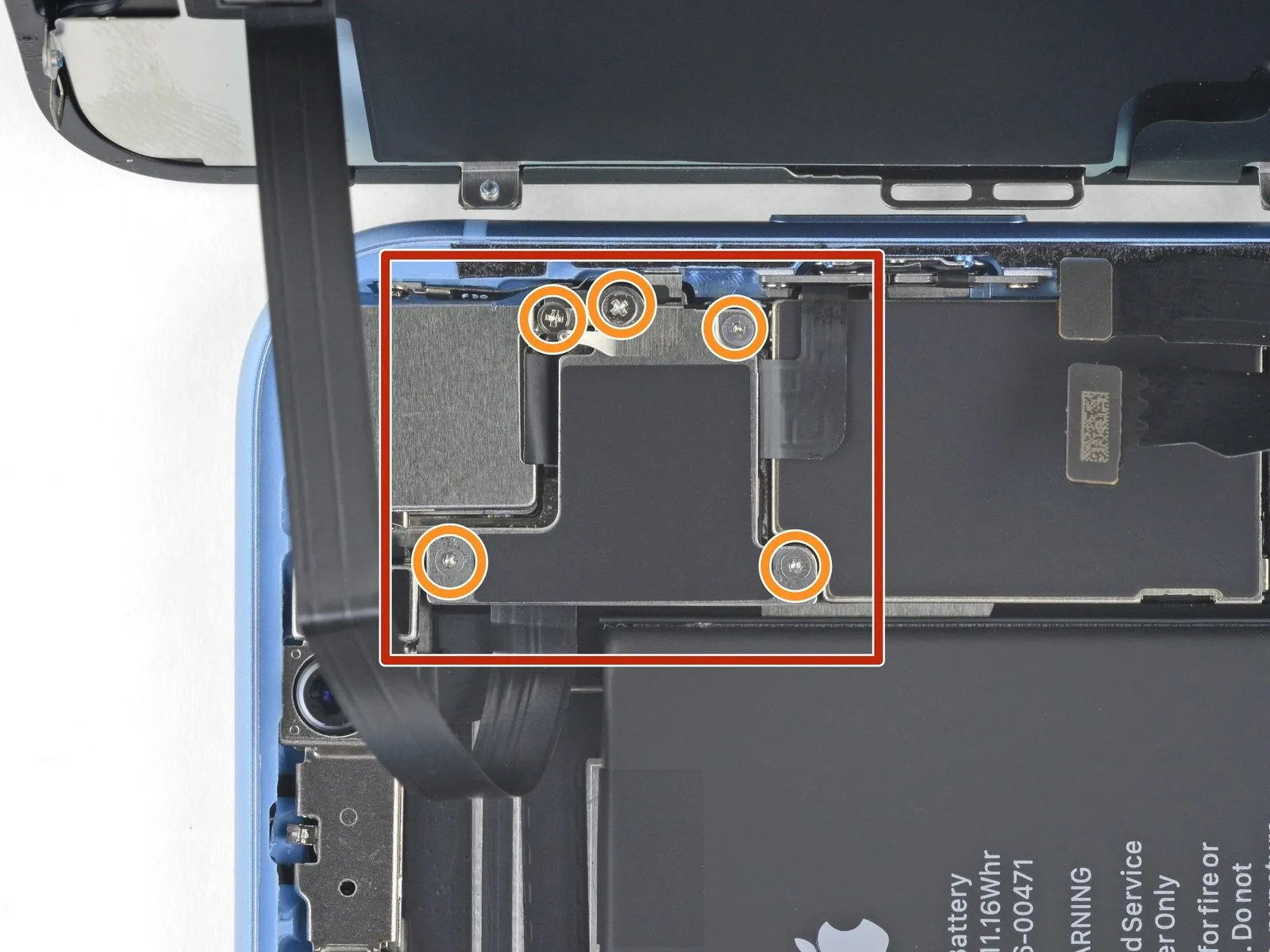

- Thoroughly examine the main circuit board, documenting the position of any metallic retaining clips (cowlings) securing connector assemblies.
- Employ a Y000 screwdriver and a Phillips 000 screwdriver for screw removal.The Y000 screwdriver is specifically for certain screw types.Phillips 000 screwdrivers are required for securing other components.Detach the screws from these brackets using the appropriate screwdrivers.Gently disengage the brackets from the connectors, utilizing ESD-safe tweezers to prevent static discharge damage.
- Maintaining an organized inventory of screws and cowling components is strongly advised to prevent misplacement.
- Proper organization of fasteners and cowling pieces minimizes the risk of losing them during the repair process.
Step 4
- Carefully detach each connector from the logic board, utilizing a slight flex in the connecting cables to ensure they no longer interact with any contacts.
- Extract components as necessary to facilitate access to those located deeper within the device, however, limit the extent of disassembly to streamline the reassembly process.
- Prioritize maintaining a small quantity of detached parts to avoid unnecessary complexity when reconstructing the telephone.
Step 5
- After disconnecting all cables and connectors, establish only the fewest necessary connections to initiate the device's startup sequence and verify a successful boot.
- For iPhone models later than the X, maintaining connections to specific components containing sensors is crucial to avoid automatic restarts occurring after a three-minute interval.
- Consult the documentation dedicated to the "SMC Panic Assertion failed" error for a detailed enumeration of the essential connections needed for each individual device model.A complete listing of the required connections, tailored to each device model, can be found within the referenced documentation.To isolate the root cause, reproduce the problem while the phone has only the absolutely necessary components attached.
- If the problem disappears after minimizing connections, incrementally reattach components while temporarily disconnecting the battery between each addition, observing for the return of the fault.
