Repairing iPhone Liquid Damage

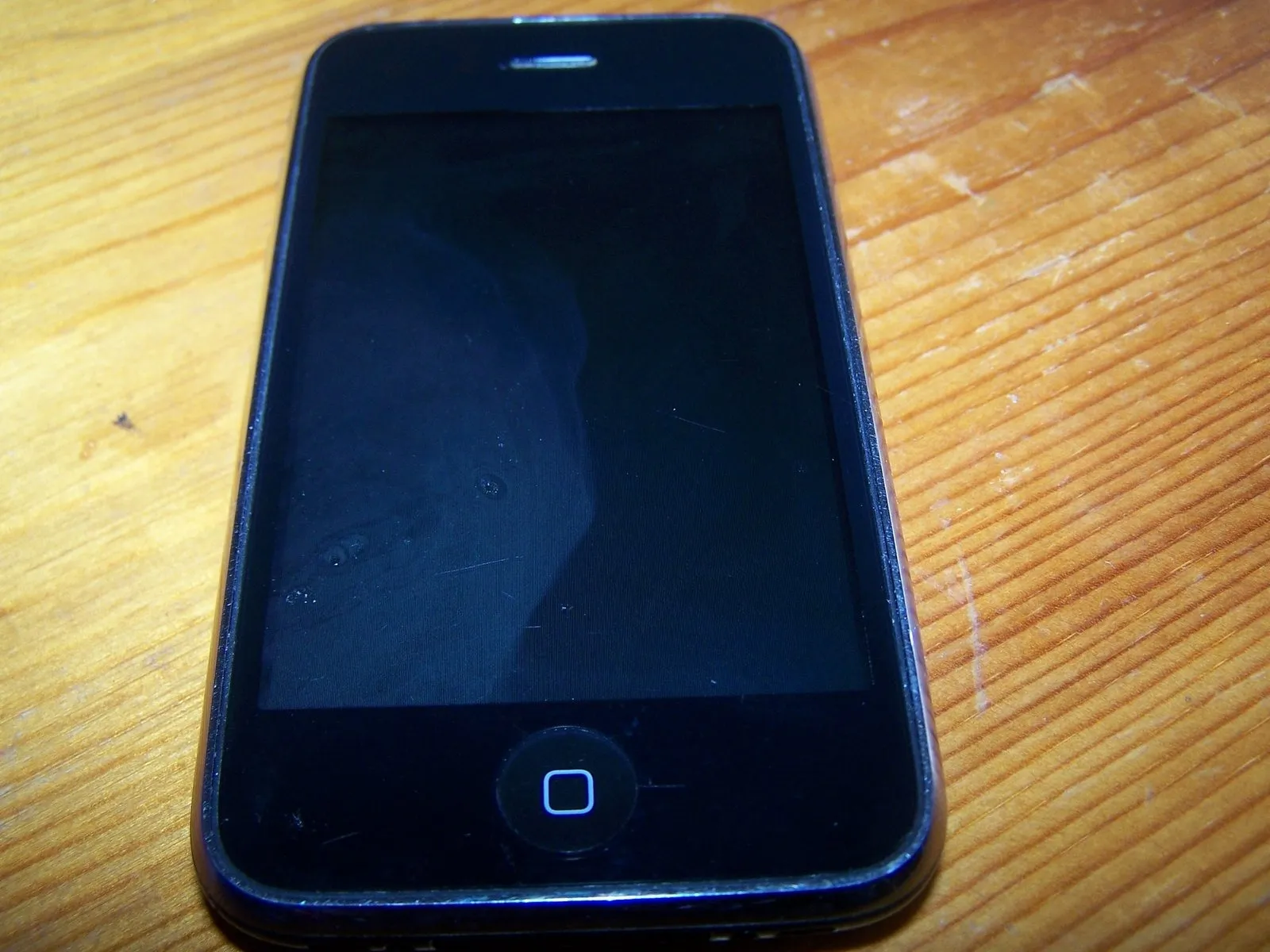

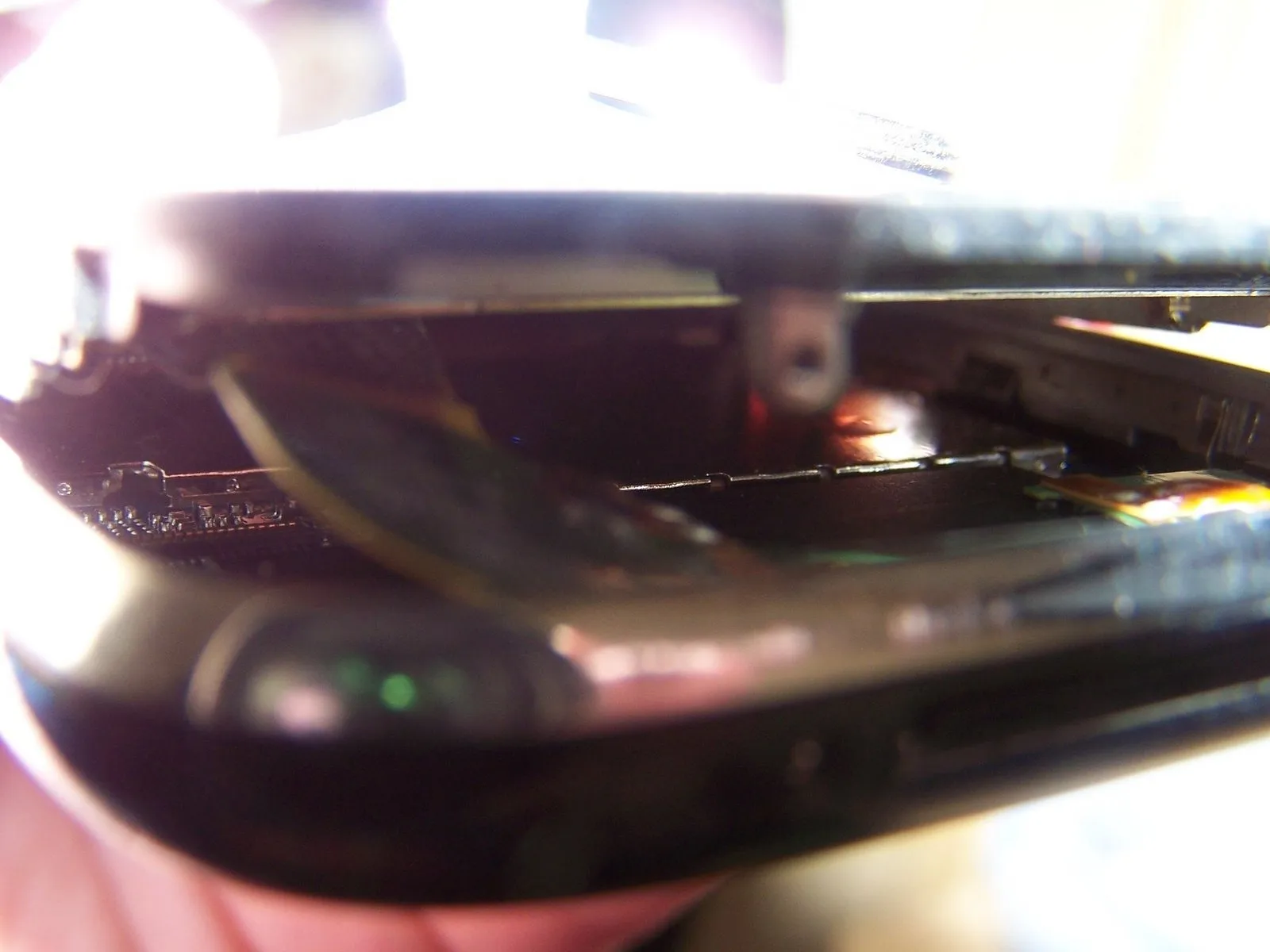

• Carefully inspect the space separating the touchscreen assembly and the LCD panel to identify any liquids or deposits, as indications of water ingress, such as internal moisture accumulation, are present.

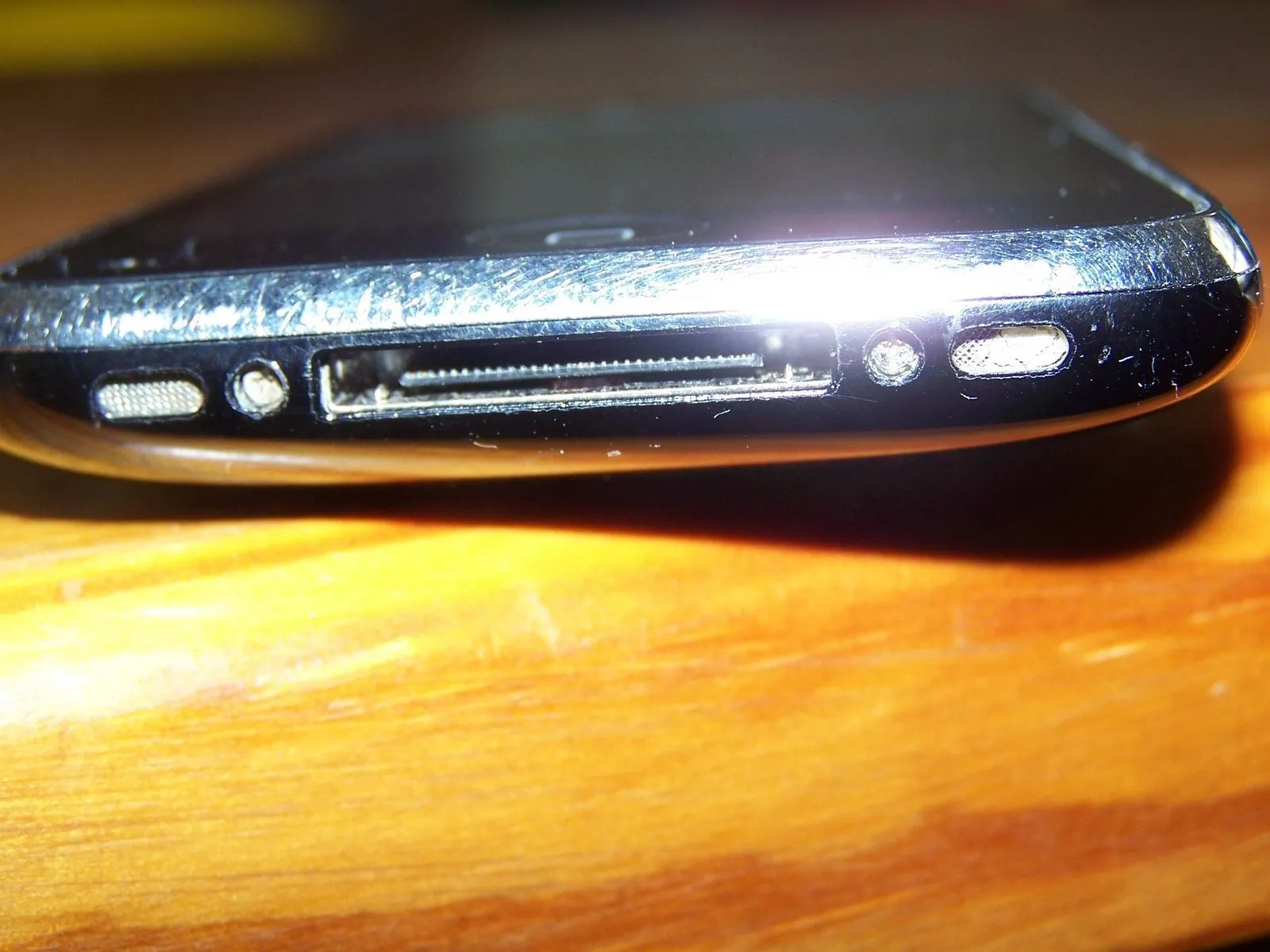

  A thorough examination of the exterior dock connector reveals no apparent physical damage or signs of corrosion.

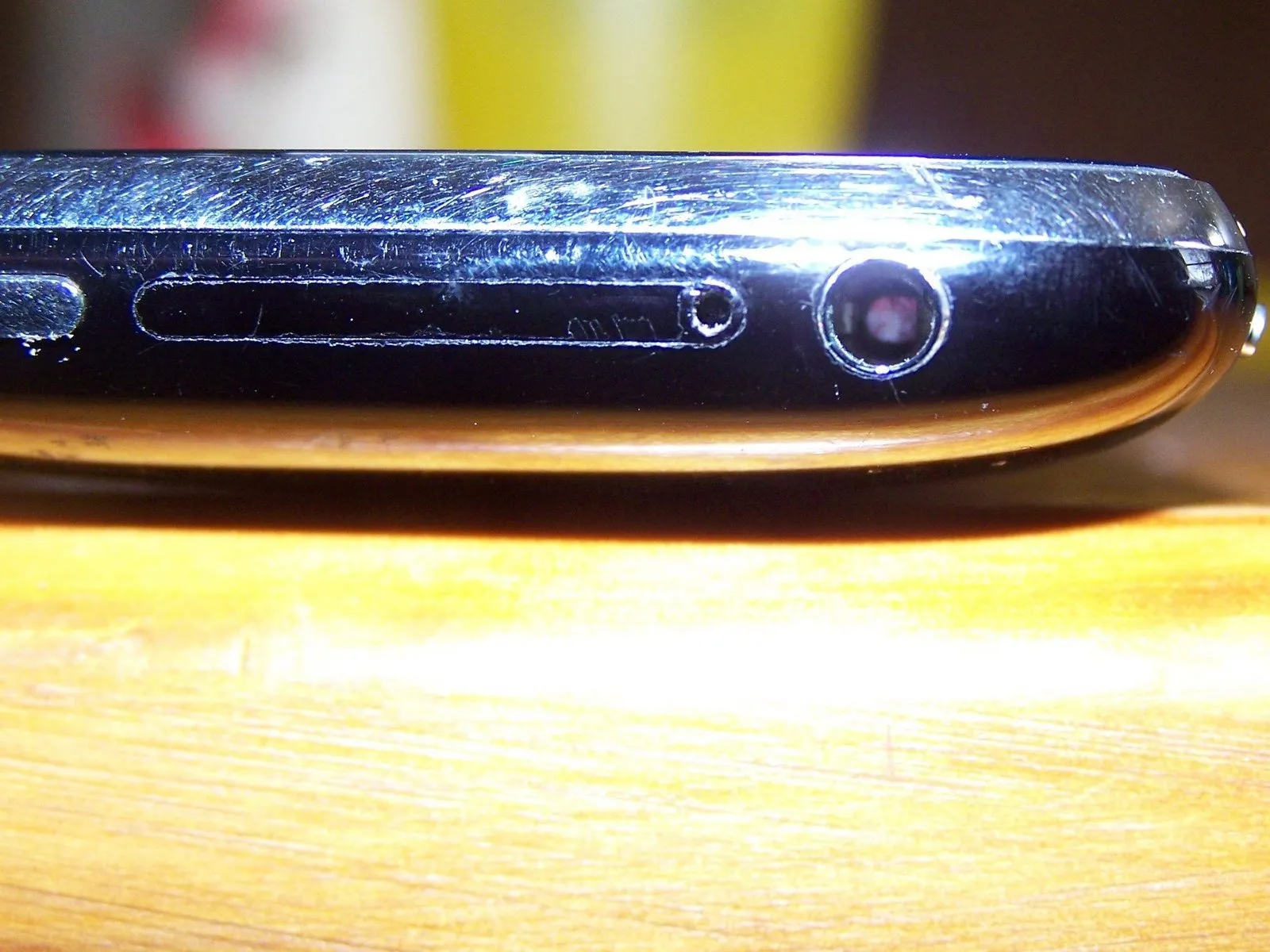

  The audio jack presents as structurally sound, exhibiting no visible defects.

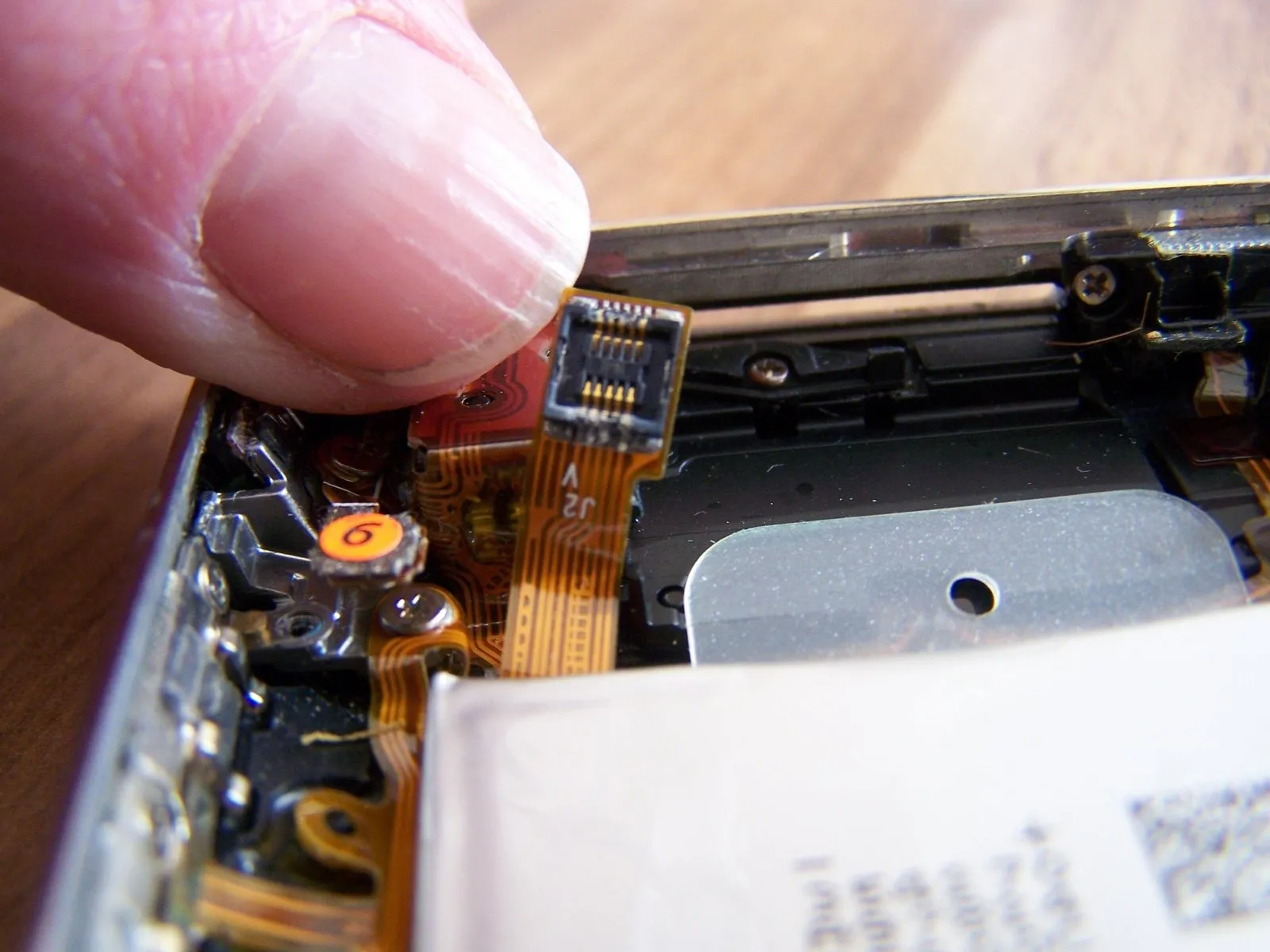

• The presence of liquid inside the device can hinder the disassembly process, potentially causing cables and connectors to become affixed.Raising the front panel revealedthe flexible cable connecting to the dock connector, which was adhered to the internal midframe structure.
  An inspection of the external dock connector did not show any signs of physical damage or corrosion.

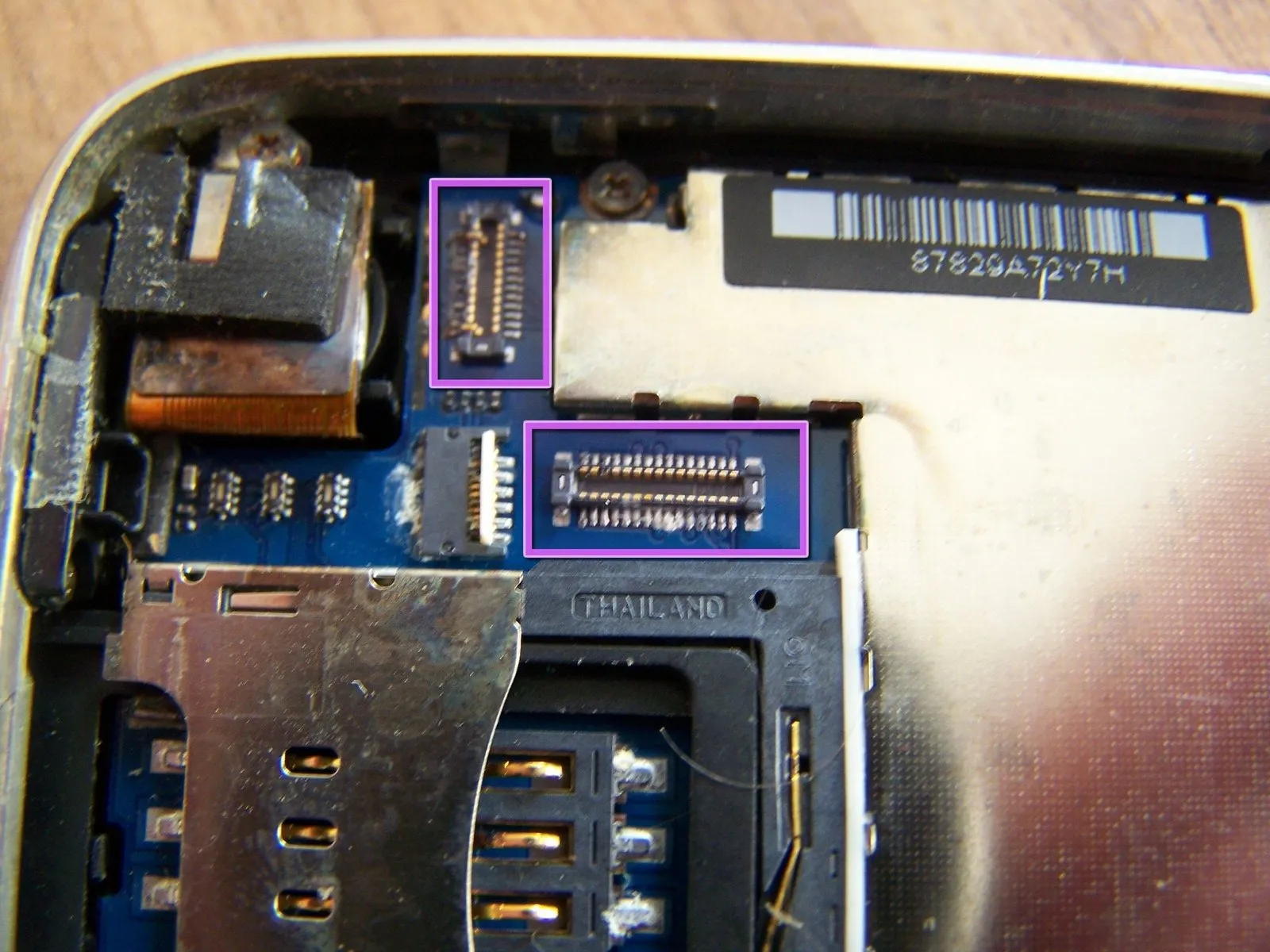

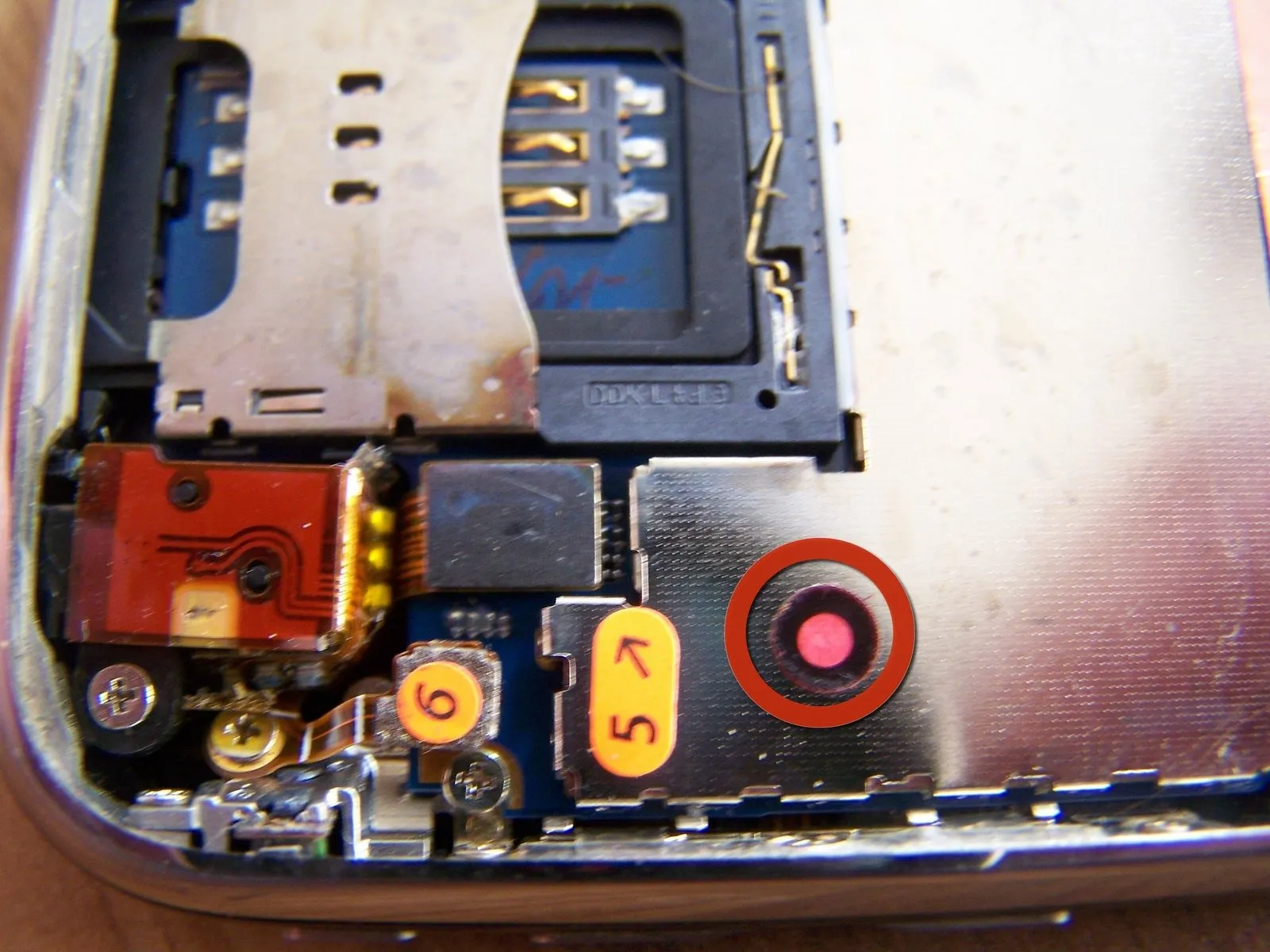

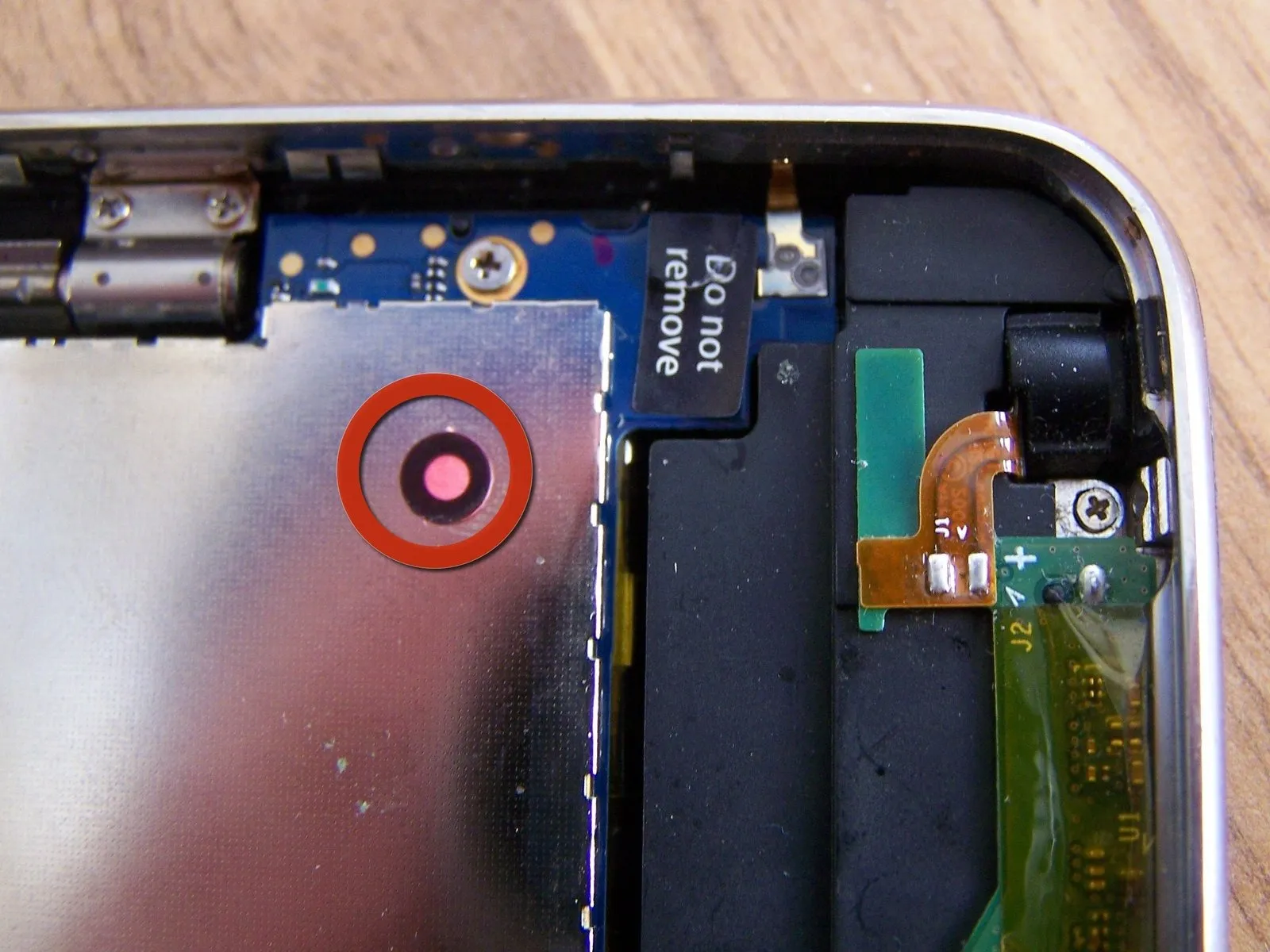

• The presence of a pink-colored damage indicator label implies that liquid ingress has occurred within the device's internal components.Observable deposits and electrochemical degradation are found on the surfaces of the LCD, digitizer, proximity sensor, camera module, and SIM card slot connectors.These connectors exhibit signs of contamination and corrosion, potentially impacting their electrical functionality.

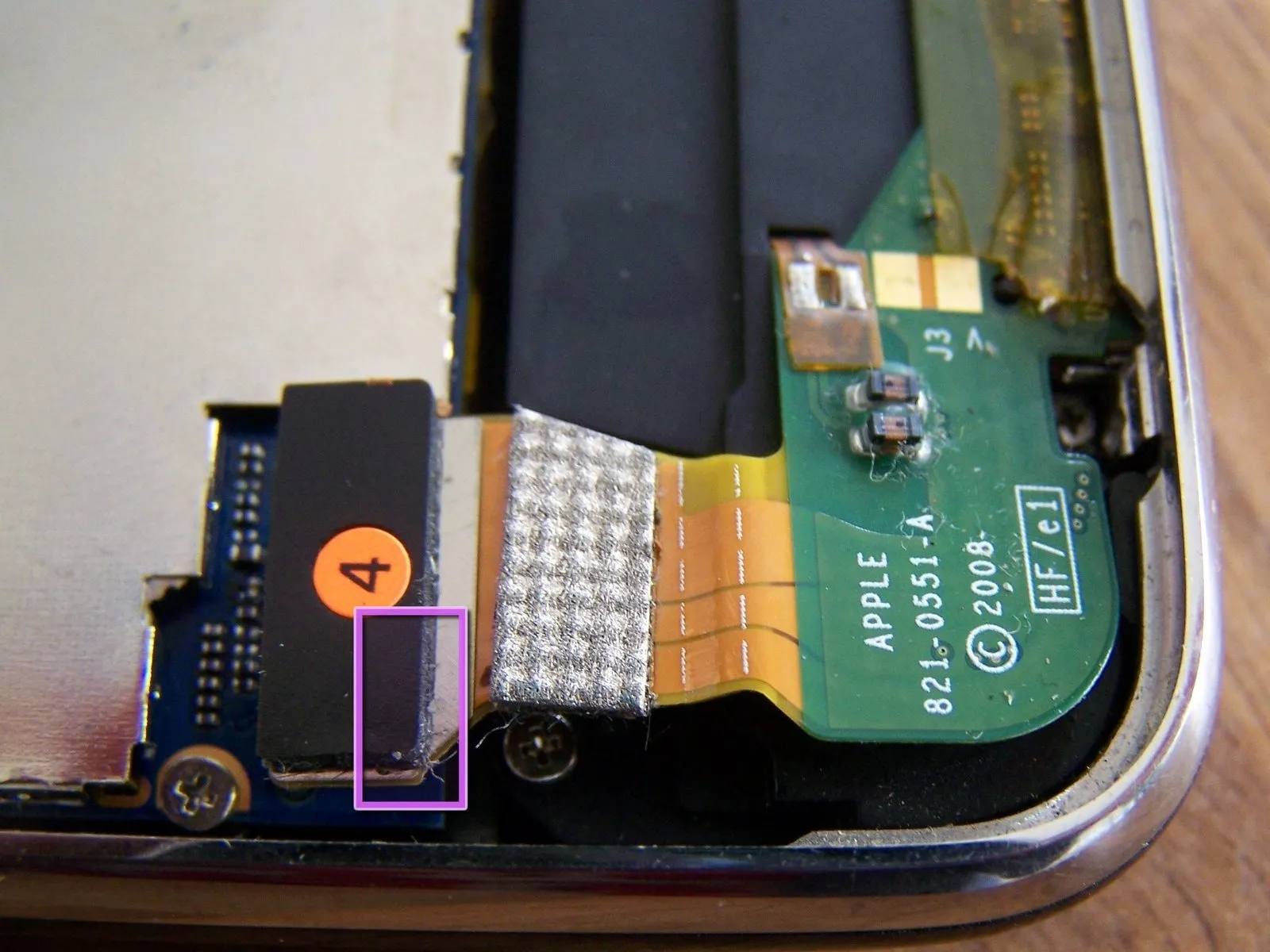

• A color change to pink on the dock connector's water sensor sticker indicates the presence of liquid intrusion at this location.Visual inspection of the dock connector's upper surface reveals a generally clean condition.Slight green discoloration, indicative of corrosion, is observed in the vicinity of connector pin 4.

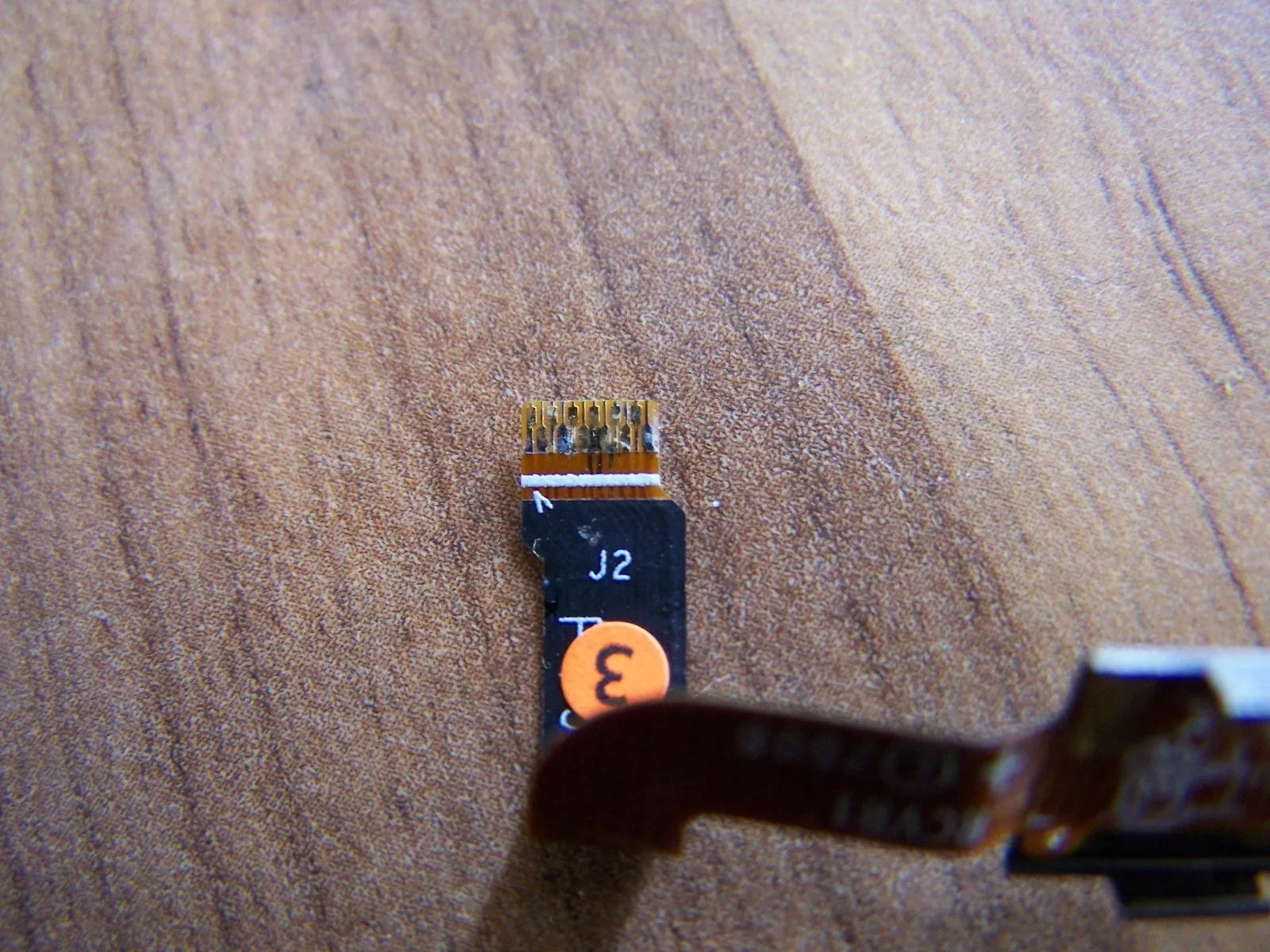

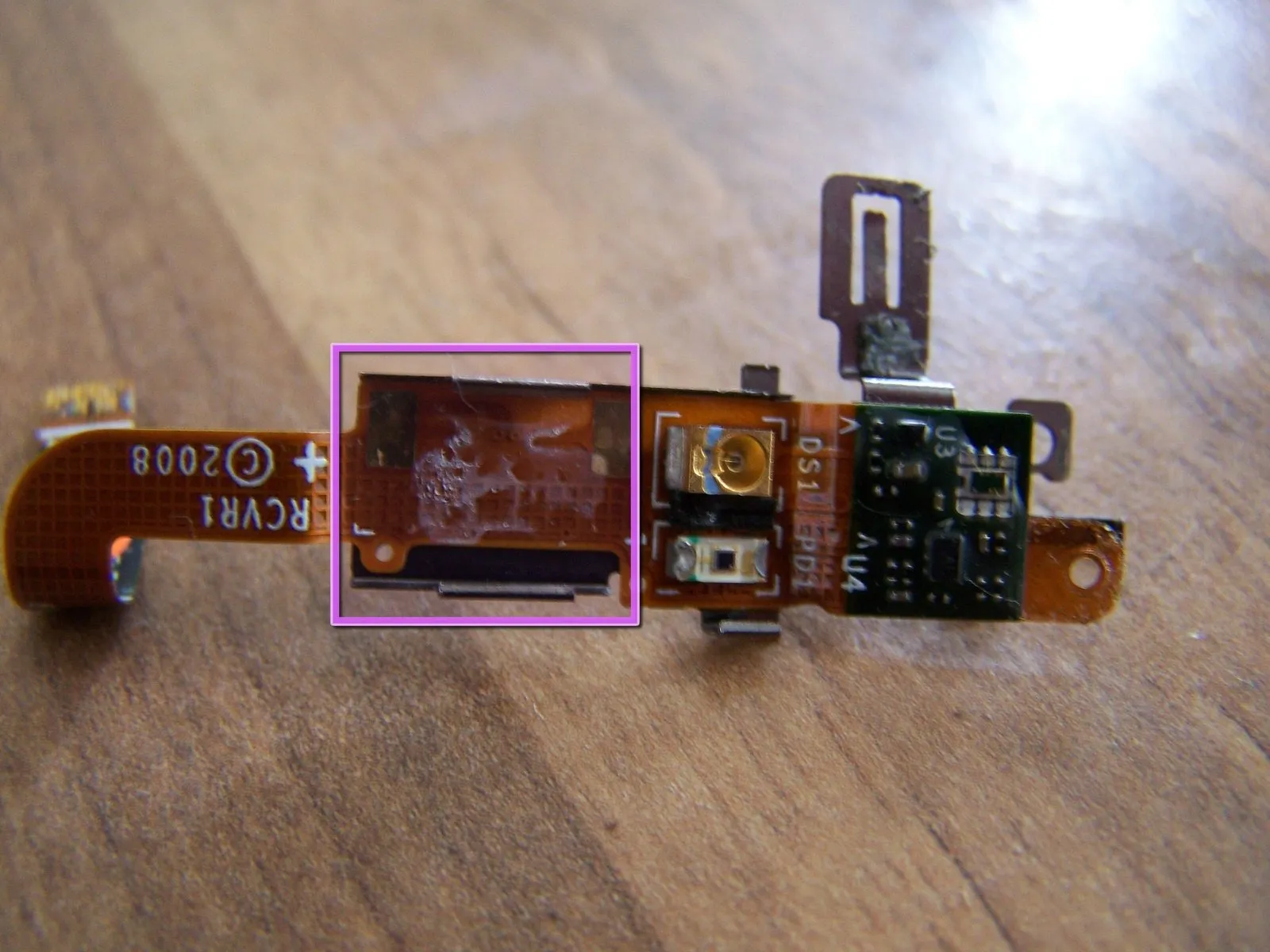

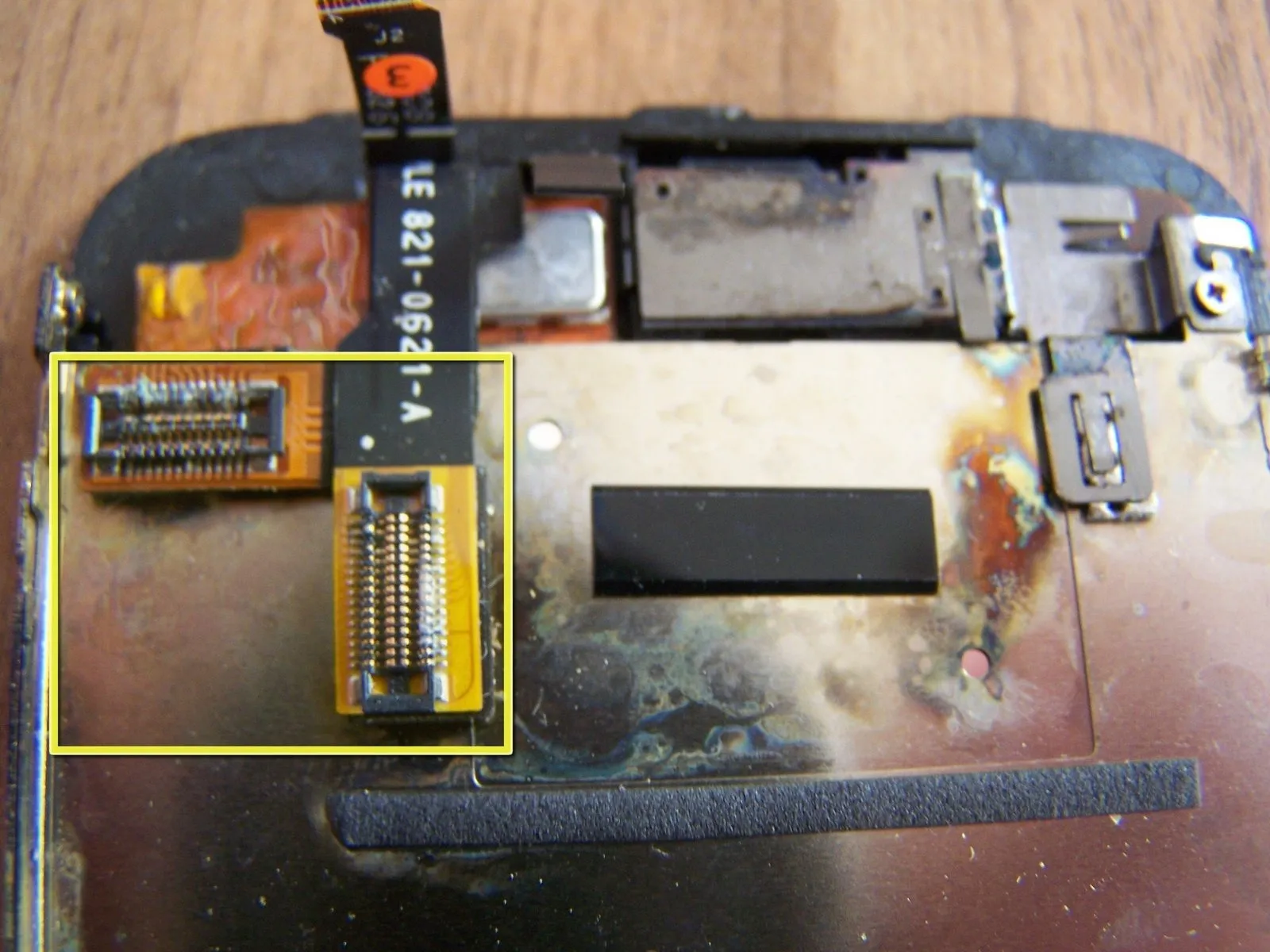

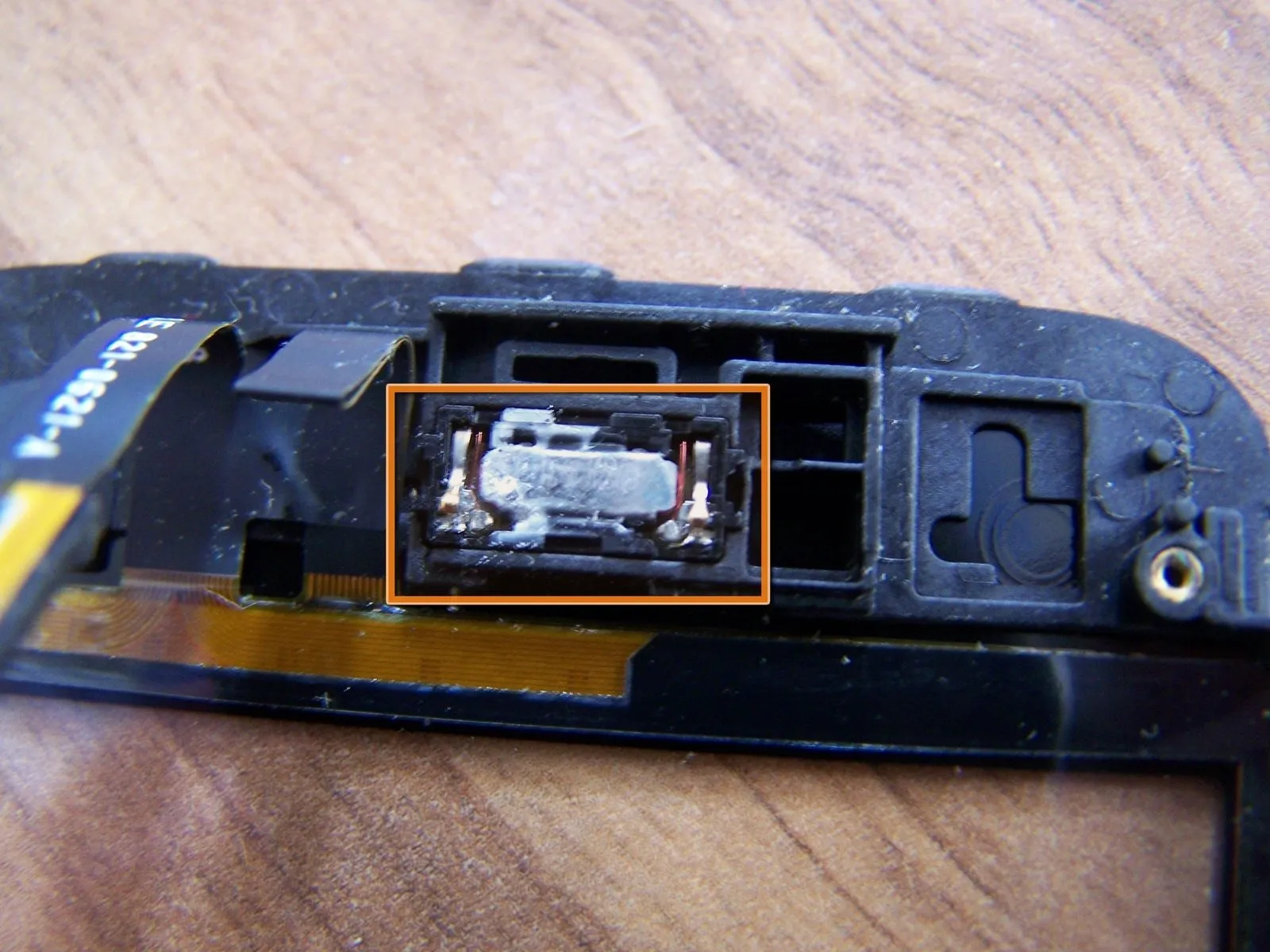

• Significant green corrosion and particulate matter are visible on the LCD and digitizer connector interfaces located at the rear of the display assembly.Separating the LCD panel and rear cover exposes the ear speaker and proximity sensor assembly.Inspection of the ear speaker and proximity sensor assembly following removal of the back cover indicates liquid intrusion affecting the speaker.
  The proximity sensor exhibits minor damage, suggesting a limited impact from the incident.

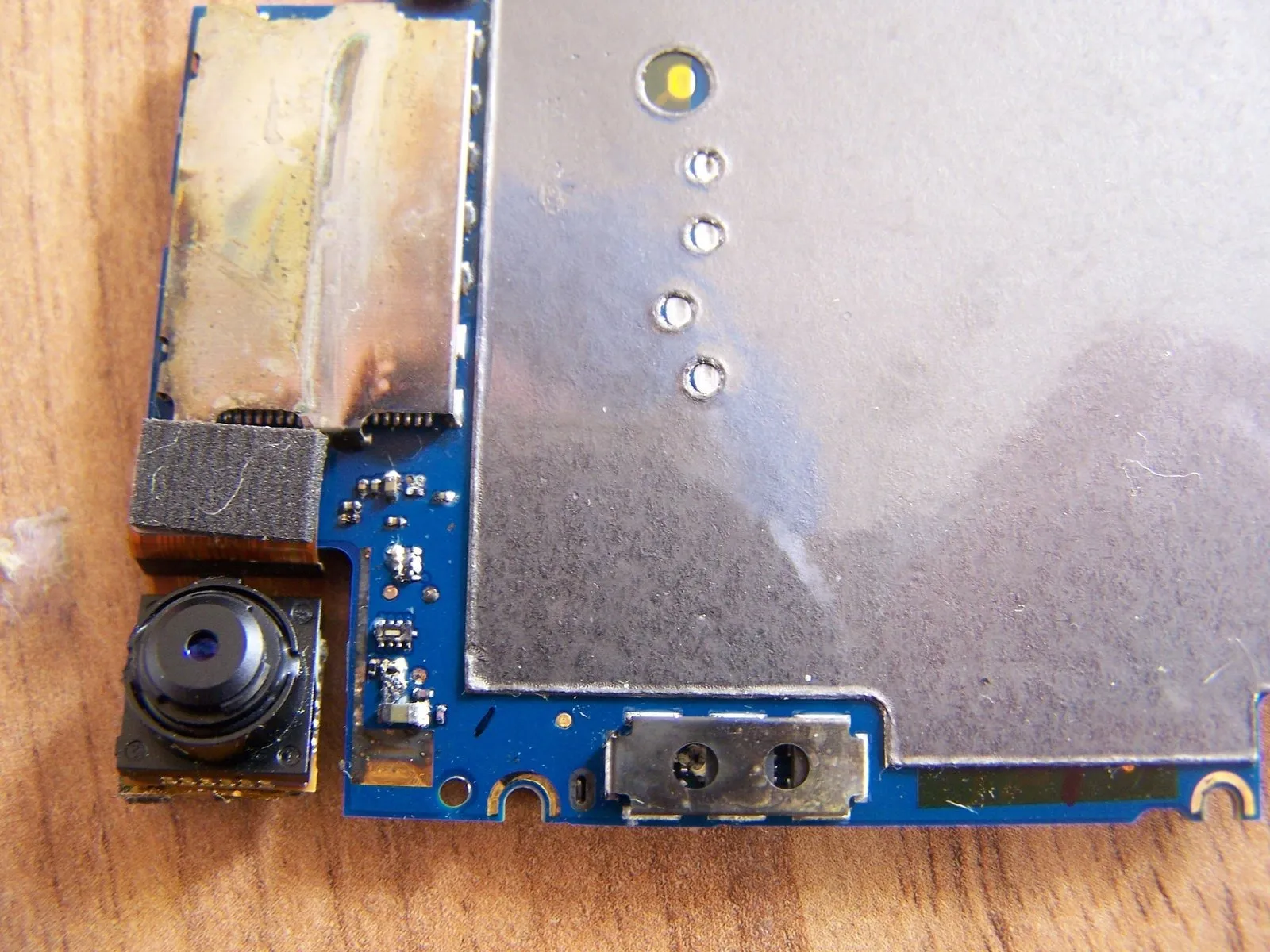

• Upon separating the main circuit board from the device, previously obscured evidence of liquid exposure is revealed.

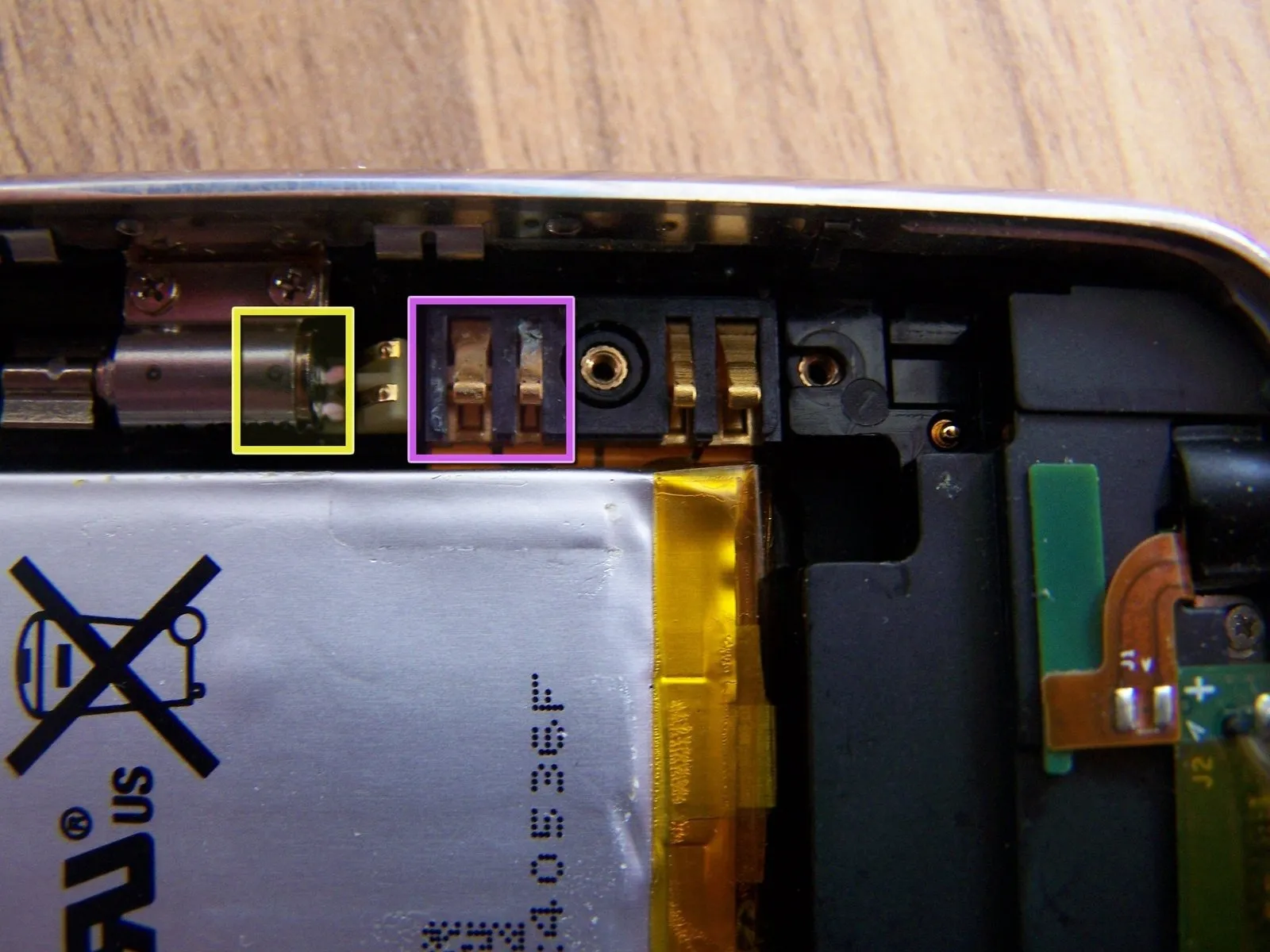

• The oscillatory actuator demonstrates the presence of oxidized iron deposits.
• Corrosive material accumulation is visible on the electrical contacts of the rechargeable power cell.

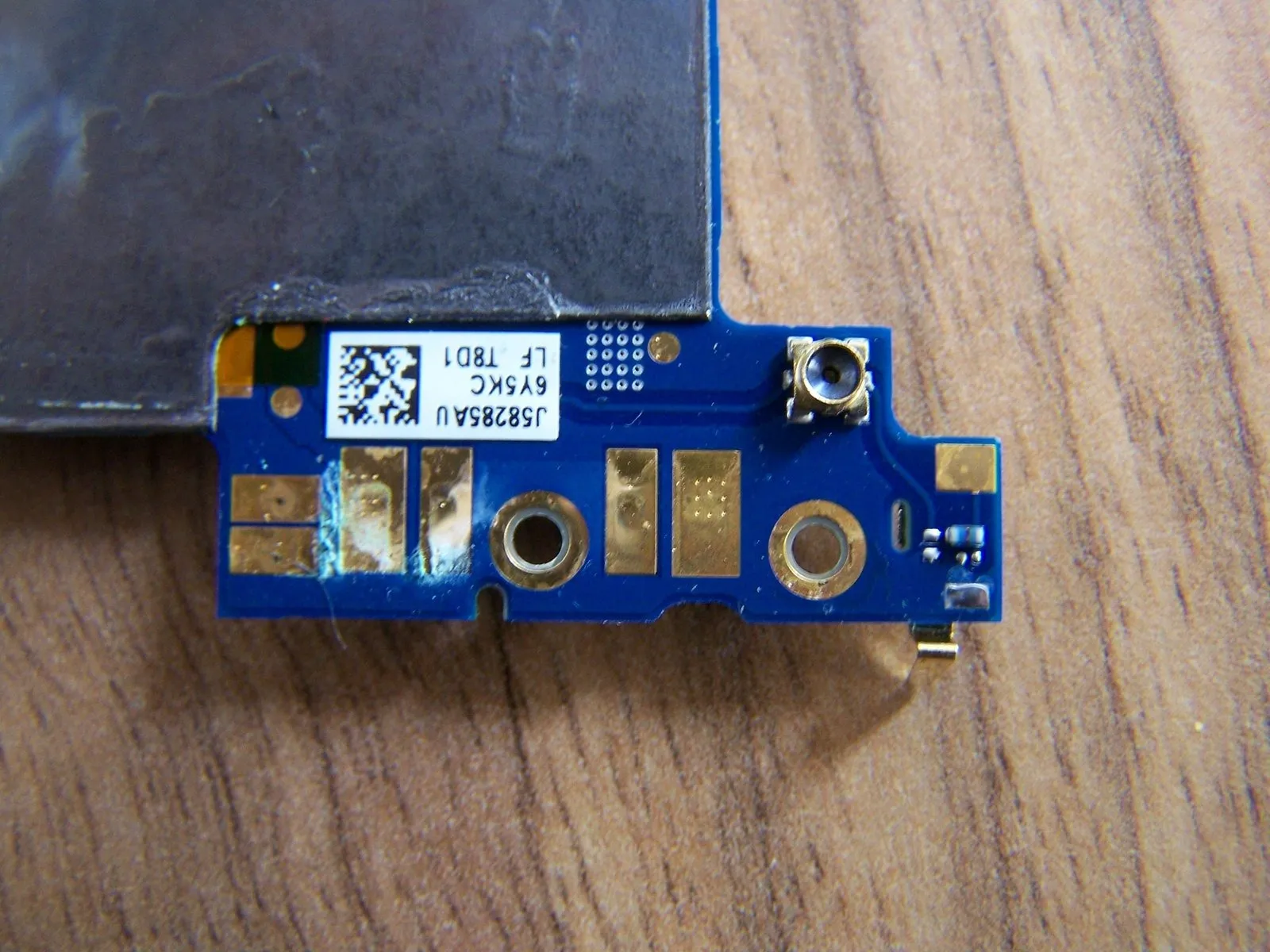

• Evidence of corrosion is visible on the headphone jack connector (part number 5), the vibration motor, and the illumination light associated with the volume switch.

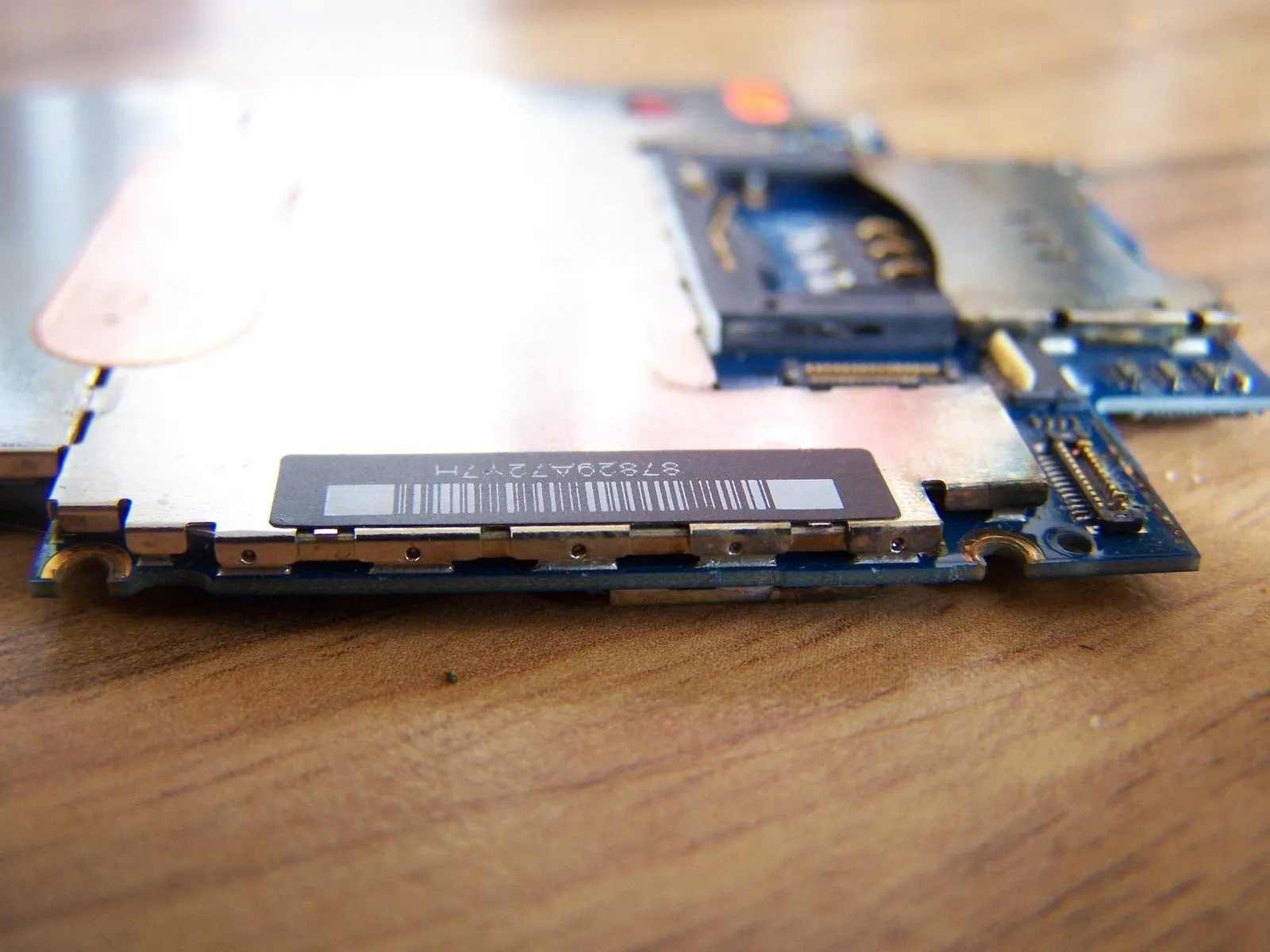

The necessity of shield removal hinges on the severity of the liquid exposure, as attempting its removal carries a risk of harming delicate components affixed to the logic board.
Should shield removal become essential, exercise extreme care employing a non-conductive instrument like a spudger or plastic opening tool to prevent component damage.

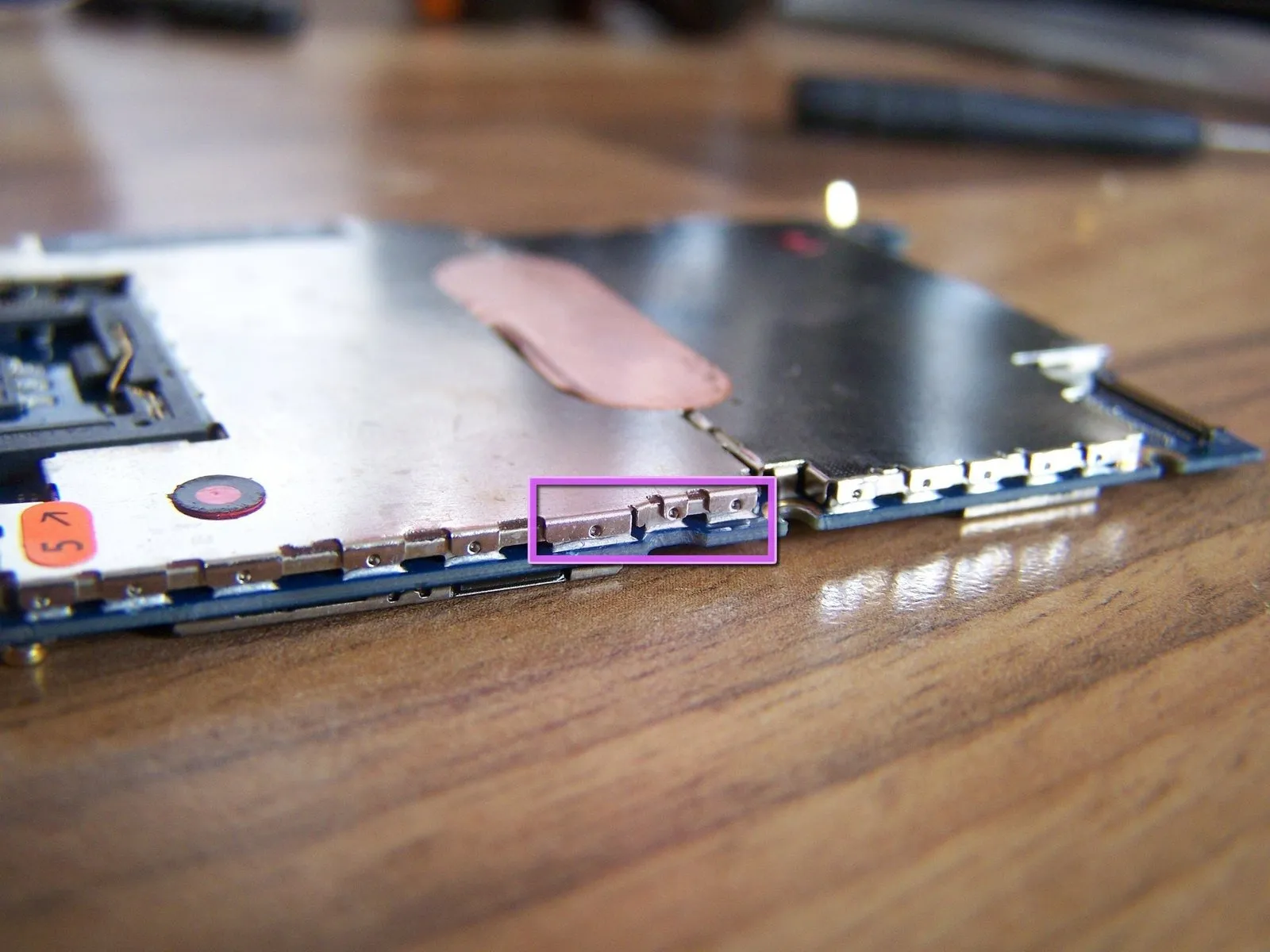

Identify the recessed tabs situated on the shield's surface and apply gentle upward force to disengage them from the logic board.
Exercise vigilance near the shield's perimeter to safeguard the integrity of the minuscule surface-mount components.No further instructions are provided.

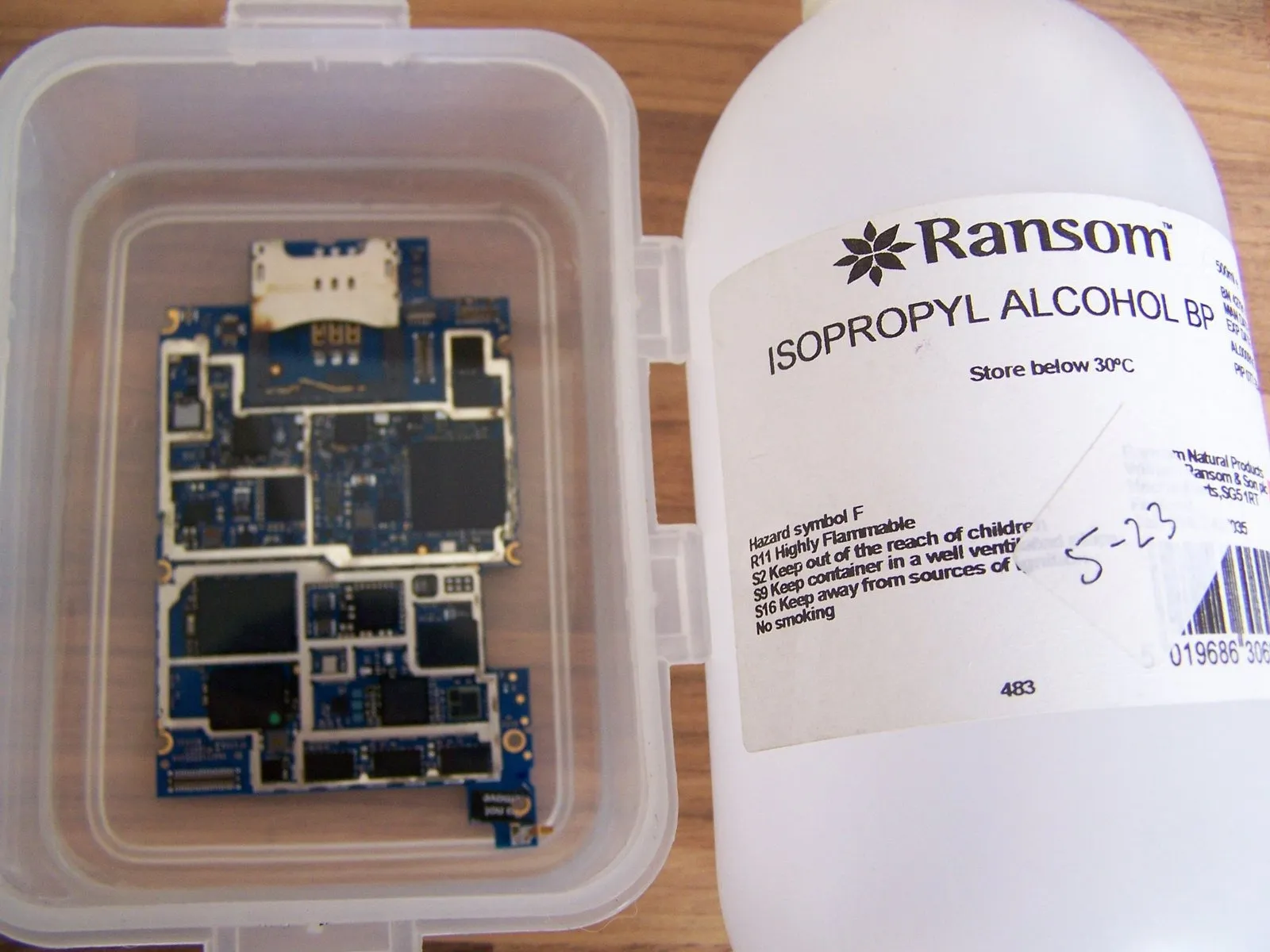

• Submerge the logic board within isopropyl alcohol to facilitate the breakdown of deposits and the removal of any lingering fluids.Employ a delicate brushing action to eliminate any observable corrosion and residue.Utilize a soft brush to meticulously cleanse the terminations of flexible circuits, battery terminals, all connectors, integrated circuits, and fuses located on the motherboard.

• Should residue remain or the cleaning is incomplete, repeat the cleaning procedure.

• Confirm the complete absence of moisture from all components prior to reassembling the device.

• The use of isopropyl alcohol is essential for dissolving contaminants and removing fluids from the logic board's surface.

• Visible corrosion and residue should be carefully removed with a gentle brushing technique to ensure proper functionality.

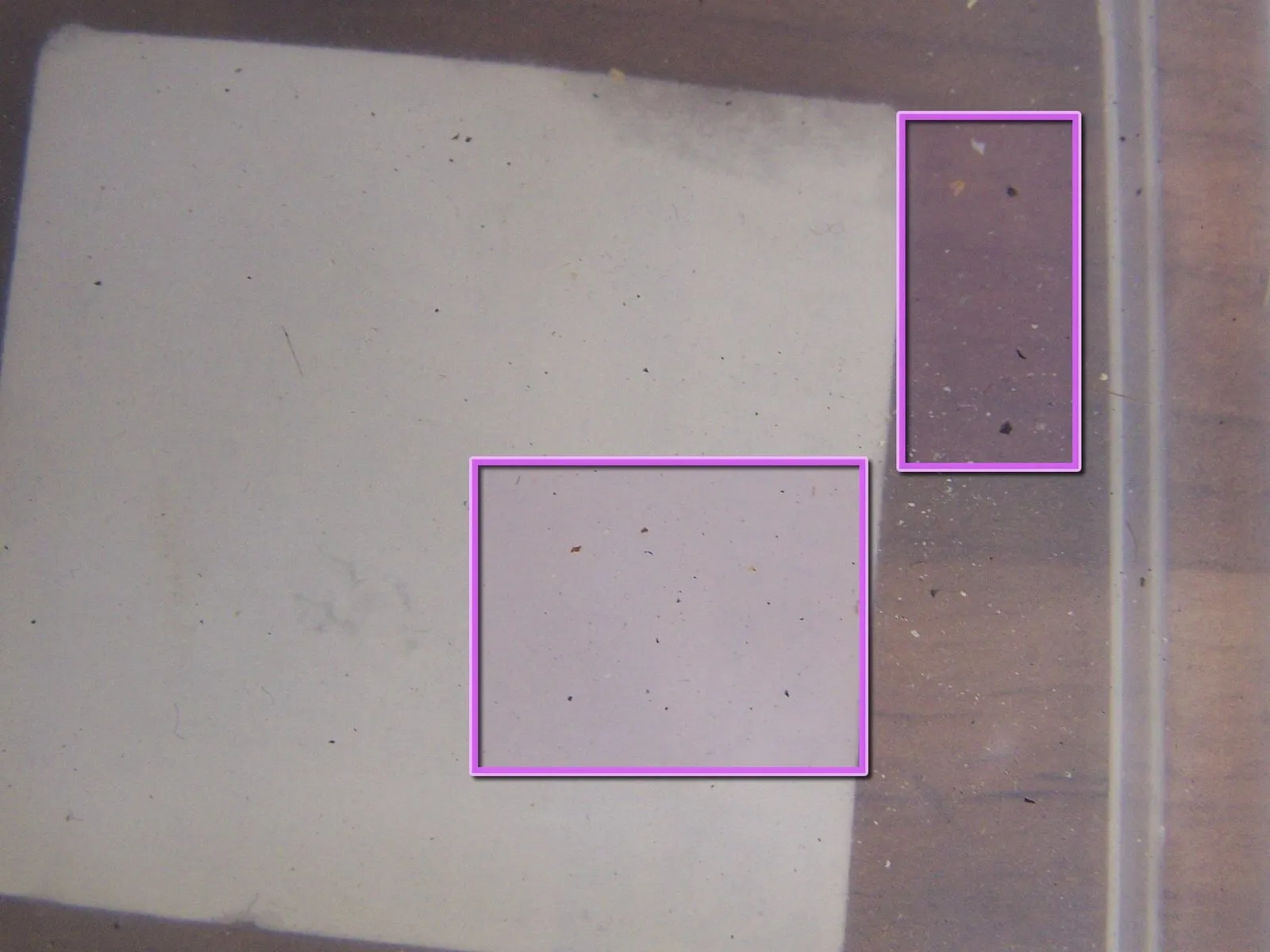

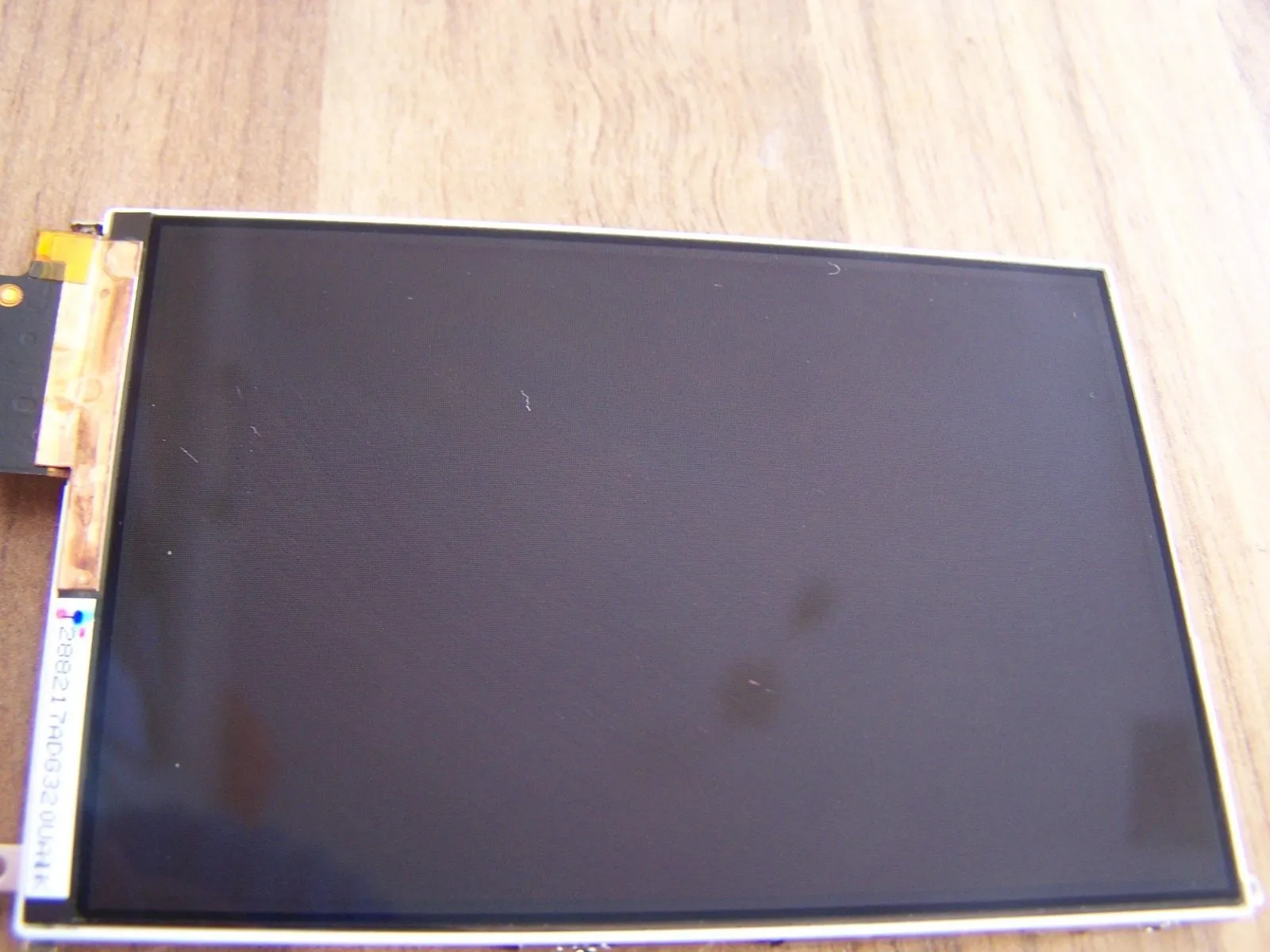

• Utilize a cleaning cloth slightly moistened with isopropyl alcohol to remove any residue from the LCD panel's surface.Isopropyl alcohol serves as the recommended cleaning agent for the LCD screen.Prevent liquid penetration into the screen's edges by avoiding full submersion, which could result in undesirable water spotting.

• Verify the absence of any watermarks on the display surface following the cleaning procedure.

• A thorough inspection of the LCD screen is necessary to ensure complete removal of any water residue.
