iPhone 11 SIM Card Reader Replacement

• To ensure safety prior to commencing the repair, allow the iPhone's battery to deplete to a state of charge below 25%.Due to the inherent risks associated with lithium-ion technology, a fully charged battery presents a fire or explosion hazard if it sustains accidental physical damage.Accidental penetration of a charged lithium-ion battery may result in combustion and/or a forceful rupture.
• Deactivate the iPhone's power supply before starting the disassembly process.
• The two screws securing the lower edge of the iPhone, each measuring 6.7 mm in length and utilizing a pentalobe P2 profile, must be removed.
• Disassembly of the iPhone's display assembly will irreversibly damage the integrated waterproof barriers; therefore, acquire replacement seals beforehand or exercise extreme caution to prevent moisture ingress during reassembly if new seals are not installed.

• Excessive insertion of a prying tool poses a risk of device damage; implement the following procedure to identify a safe insertion depth.
• Using a precise measuring tool, determine a distance of3 millimetersfrom the tool's distal end, then clearly label the prying tool with a permanent marking instrument.
• For enhanced precision, consider marking the tool's other corners with varying measurement values.
• As an alternative method, affix a coin to the prying tool's tip, positioning it3 millimetersfrom the distal end.

• To minimize additional damage and potential injury while repairing a fractured iPhone display, secure the broken glass with adhesive tape.
• Apply successive layers of transparent packing tape across the iPhone's screen surface, ensuring complete coverage of the entire front panel.
• Protect your vision by utilizing safety eyewear, guarding against potential glass fragments that may become dislodged during the repair process.
• Should the suction cup fail to maintain adhesion during subsequent procedures, create a handle by folding a robust adhesive strip, like duct tape, and employ it to elevate the screen assembly.
• As a last resort, secure the suction cup to the screen's surface using a small amount of superglue to facilitate lifting.

• The subsequent three actions illustrate the Anti-Clamp's function, a specialized tool developed to simplify the initial separation process; if this tool is unavailable, proceed to the alternative instructions located three steps further down.
• Detailed guidance regarding the Anti-Clamp's operation can be found in a separate, comprehensive instructional document.
• Grasp the blue handle and move it in a rearward direction to disengage the Anti-Clamp's gripping arms.
• Carefully position the arms across either the left or right side of the iPhone's frame.
• Place the suction cups in close proximity to the iPhone's lower edge, ensuring one is situated at the top and the other at the bottom.
• Apply pressure by compressing the cups together to generate a secure vacuum seal on the intended surface.
• Should the iPhone's exterior exhibit excessive slipperiness, hindering the Anti-Clamp's ability to maintain adhesion, applying adhesive tape can provide a more textured surface for improved grip.

• To secure the arm assembly, advance the blue handle.Rotate the handle a full 360-degree circle, observing when the cups begin to deform.Maintain proper alignment among the suction cups throughout the process.
• Should the suction cups deviate from their intended position, a minor adjustment is necessary.Slightly release the pressure on the suction cups to permit realignment of the arms.The arms must be repositioned to ensure consistent contact.
• Re-establish the intended geometry of the arm structure.A complete rotation of the handle is required for proper engagement.Observe the deformation of the cups as an indicator of securement.The blue handle serves as the primary locking mechanism for the arms.Maintaining proper suction cup alignment is crucial for effective operation.

• Employing a heated iOpener, carefully guide it between the Anti-Clamp’s securing arms.Alternative heating methods, such as hair dryers, heat guns, or hot plates, are permissible; however, exercise caution to prevent damage to the display assembly or internal battery due to excessive temperatures.Position the iOpener’s folded end against the lower edge of the iPhone’s chassis.
  Allow a sixty-second interval to permit the adhesive bond to weaken and create a separation.
• Introduce an opening tool into the newly formed space beneath the screen and the surrounding plastic frame, ensuring it does not contact the display surface directly.Should the Anti-Clamp fail to produce an adequate separation, increase the localized heat and rotate the handle by ninety degrees.Incremental handle rotations, limited to ninety-degree increments, are recommended, with a sixty-second pause between adjustments.
• Rely on the Anti-Clamp’s mechanism and the passage of time to achieve the necessary separation.
• Proceed past the following three procedural steps.
• A heated iOpener should be maneuvered to pass between the Anti-Clamp’s arms.To avoid potential damage to delicate components, use alternative heat sources with restraint.The iOpener's position should be aligned with the iPhone's lower edge.
  A one-minute pause allows the adhesive to soften and create a visible gap.
• A specialized opening pick should be inserted into the gap formed beneath the screen and plastic bezel.

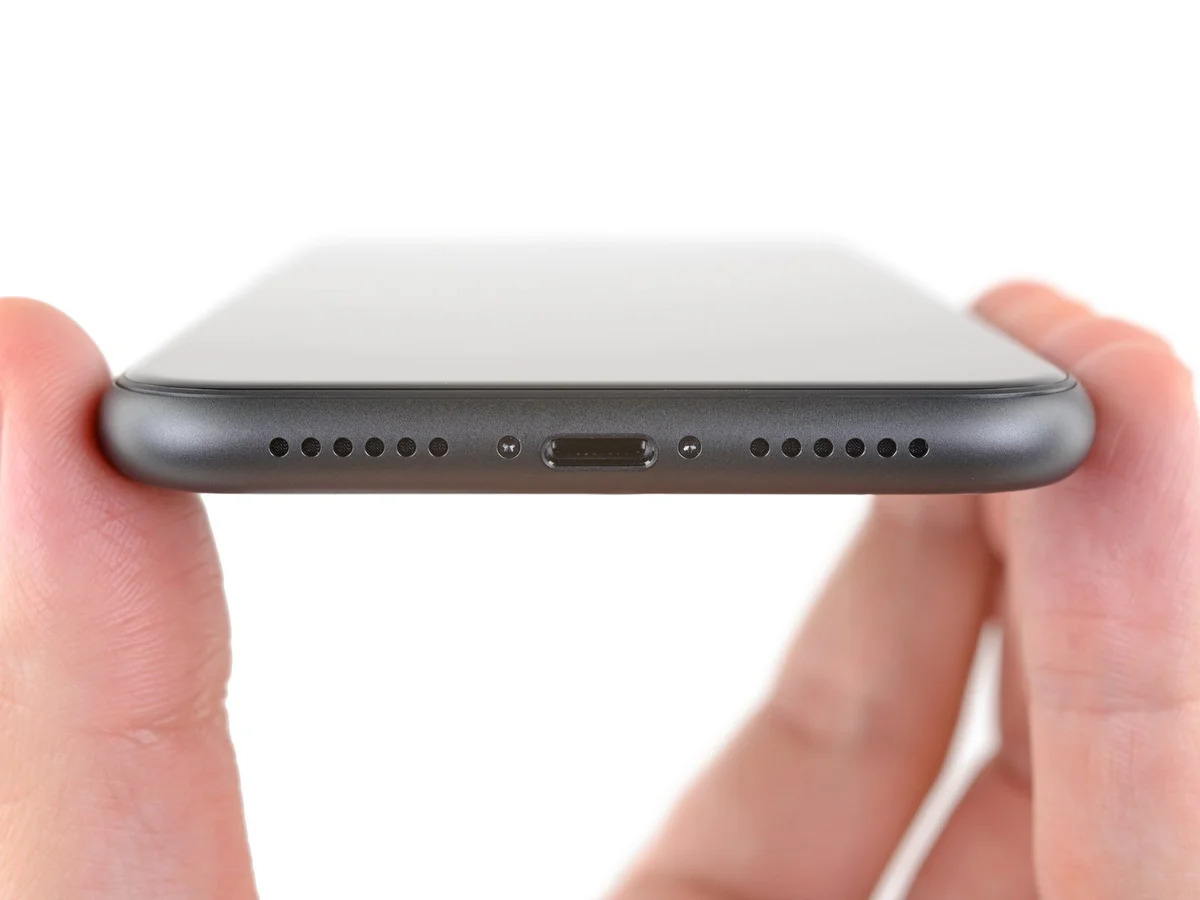

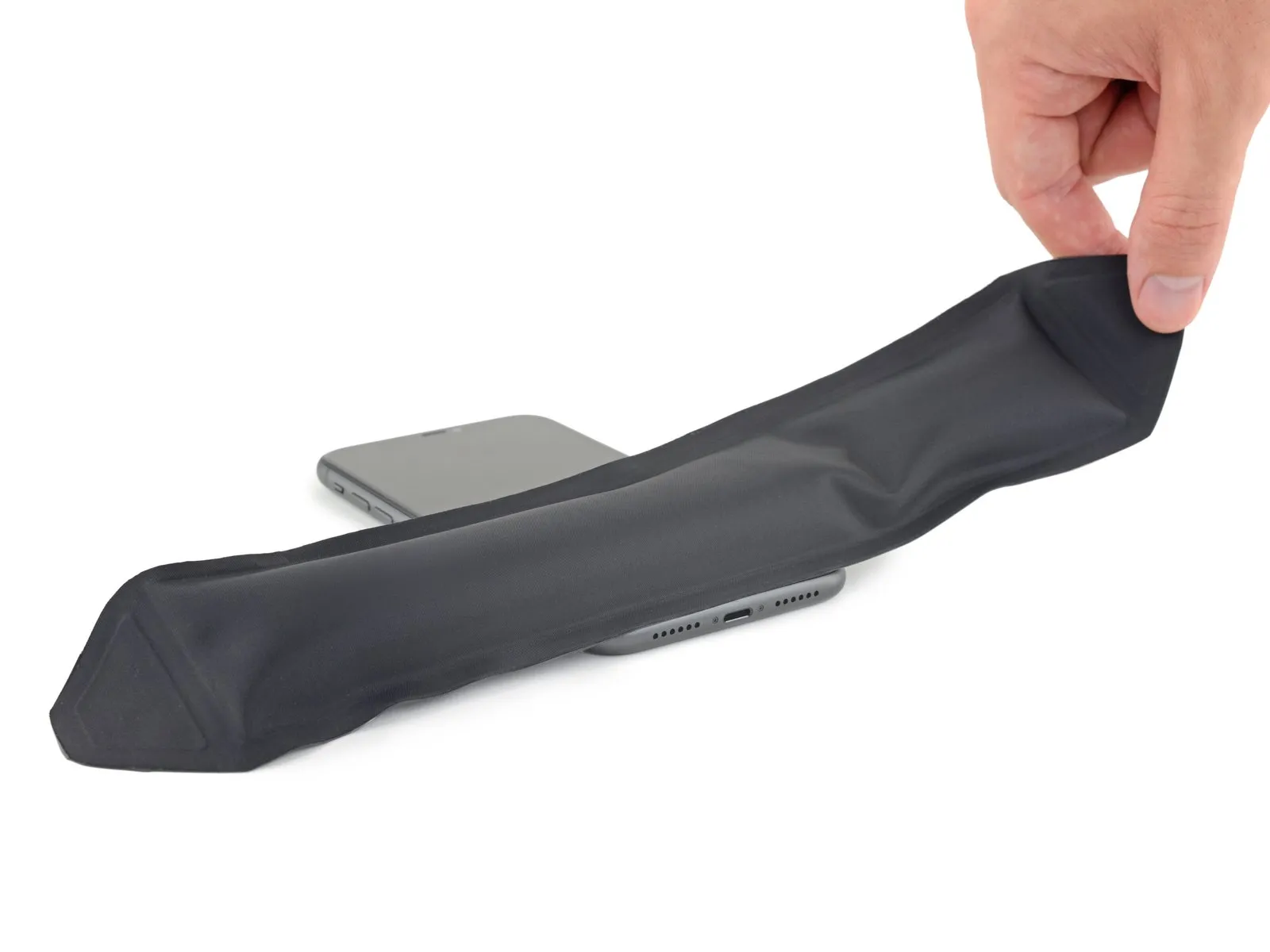

Applying warmth to the iPhone's bottom perimeter facilitates separation of the display from its frame by reducing the adhesive's hold.
A hairdryer can be utilized for this process.Alternatively, a heat gun is suitable for the task.An iOpener provides another method for localized heat application.Direct the heat source towards the lower edge of the iPhone's casing.Maintain the heat application for approximately sixty seconds.The objective is to reduce the adhesive's viscosity, not to damage the device's components.Care should be taken to avoid excessive heat, which could harm internal parts.

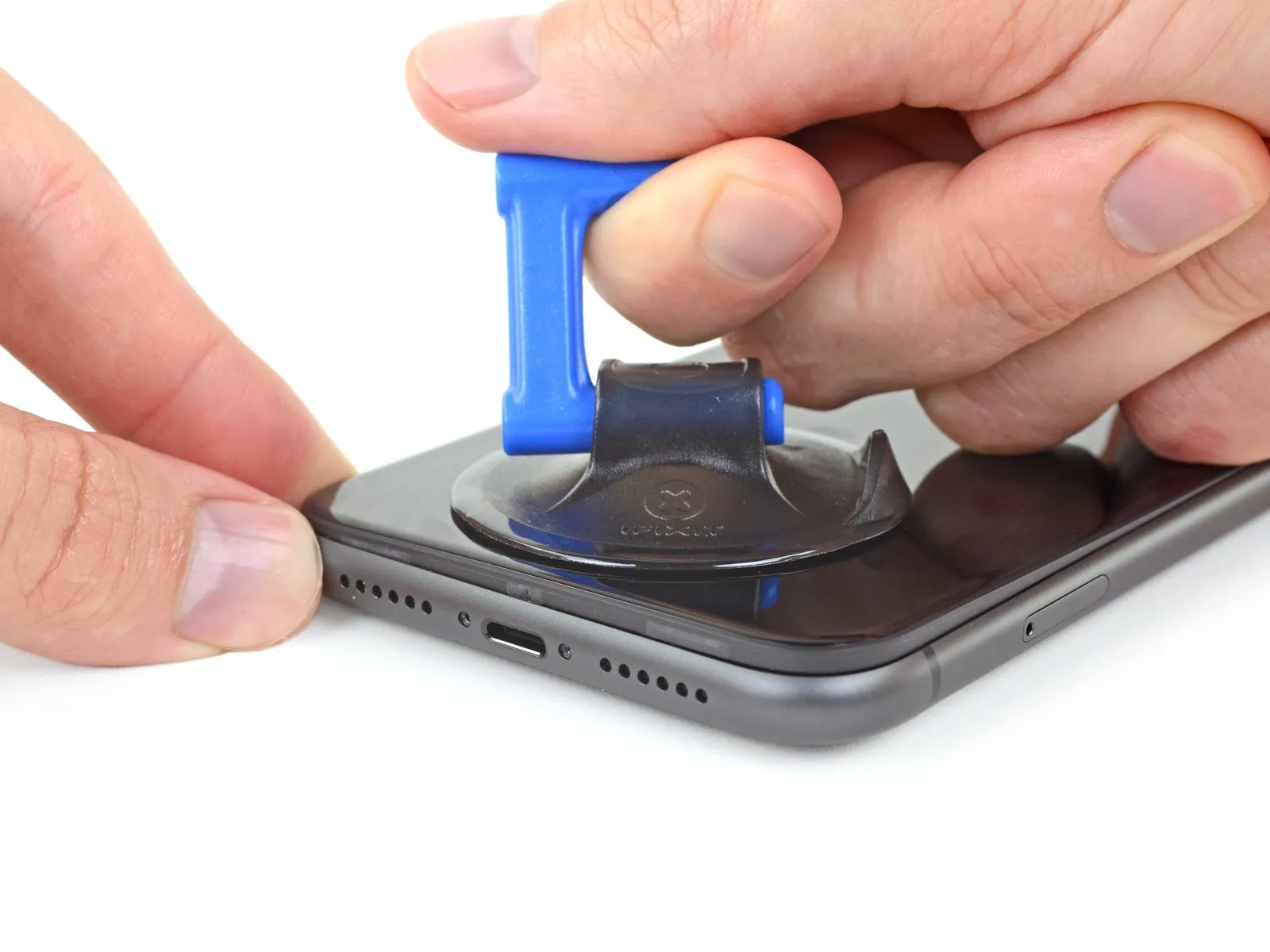

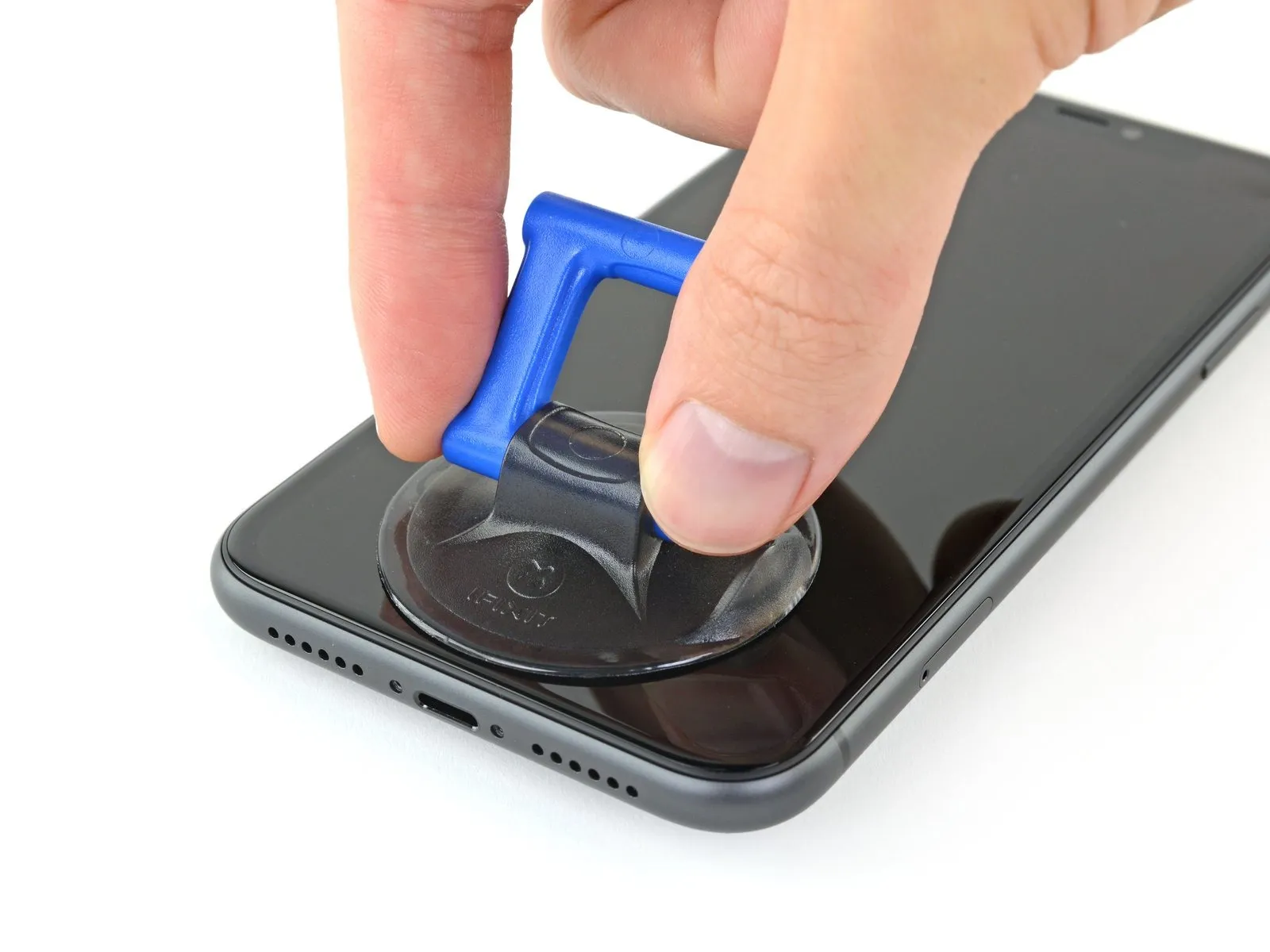

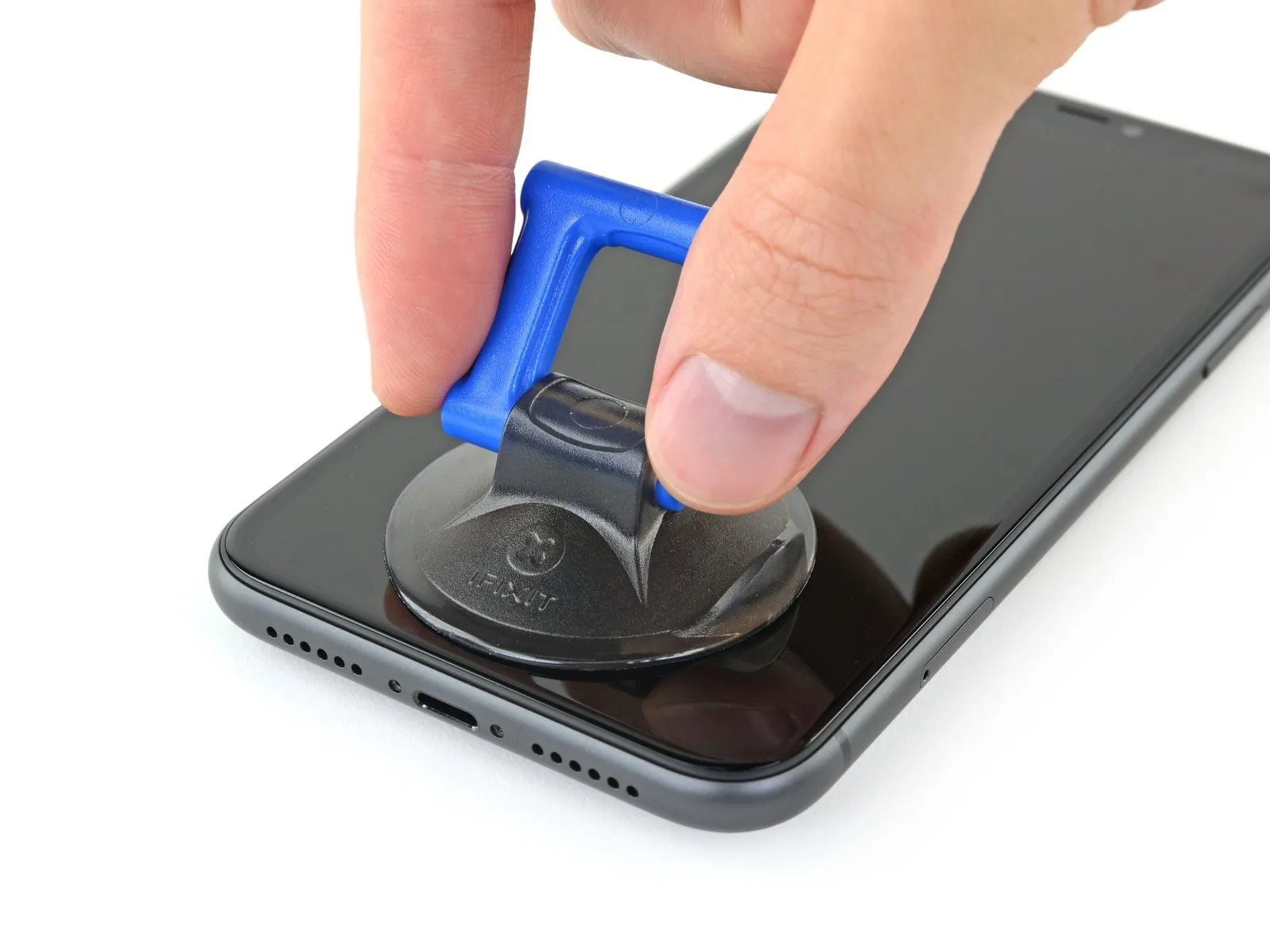

When employing a solitary suction handle, position it against the lower perimeter of the device's frame, ensuring it does not contact the rounded glass surface.Carefully avoid the curved glass area during suction handle placement to prevent damage.The bottom edge of the phone is the correct location for applying the single suction handle.

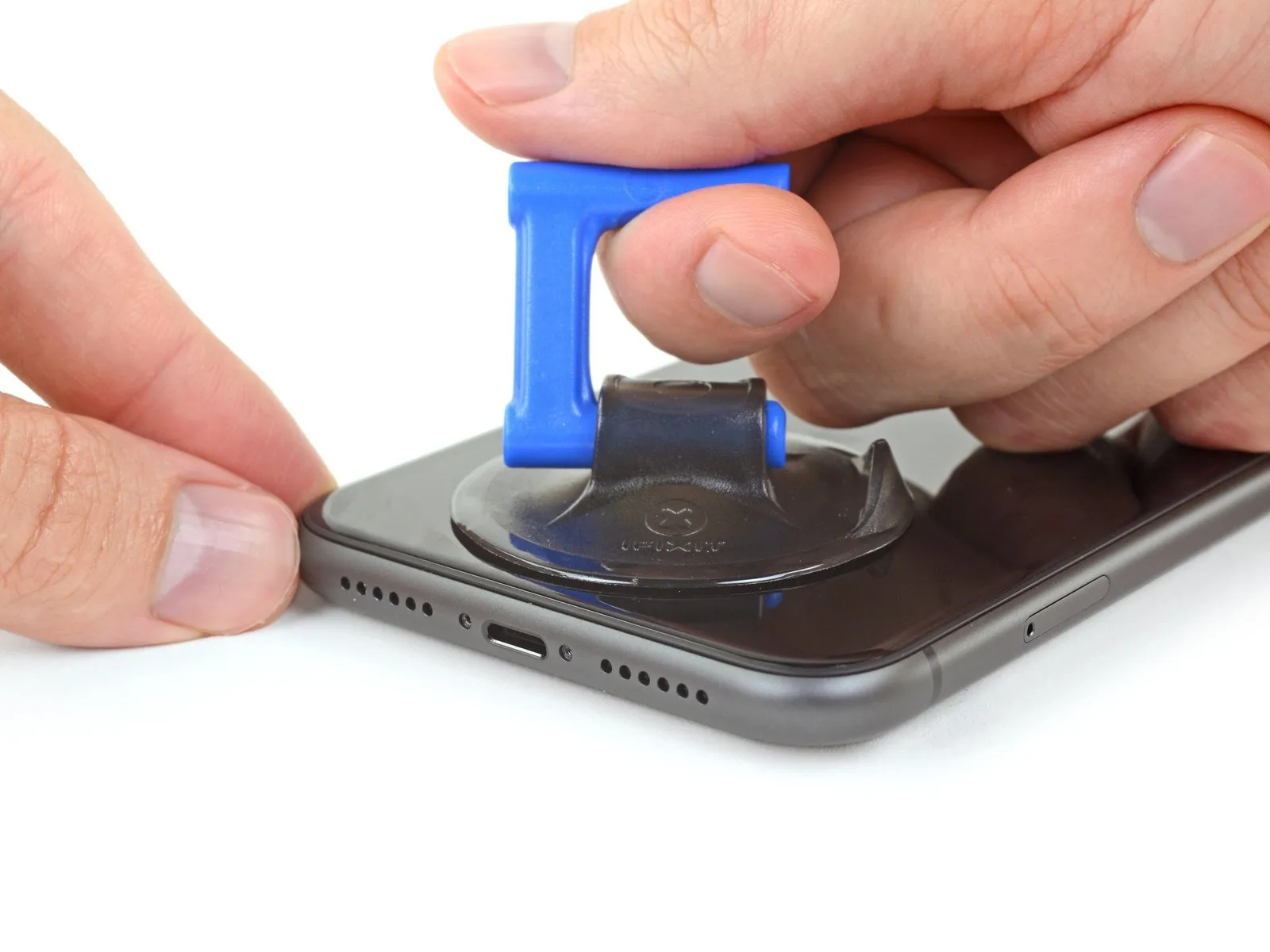

• Maintain consistent, forceful upward pressure on the suction cup to generate a minimal separation between the device's front panel and its rear casing.

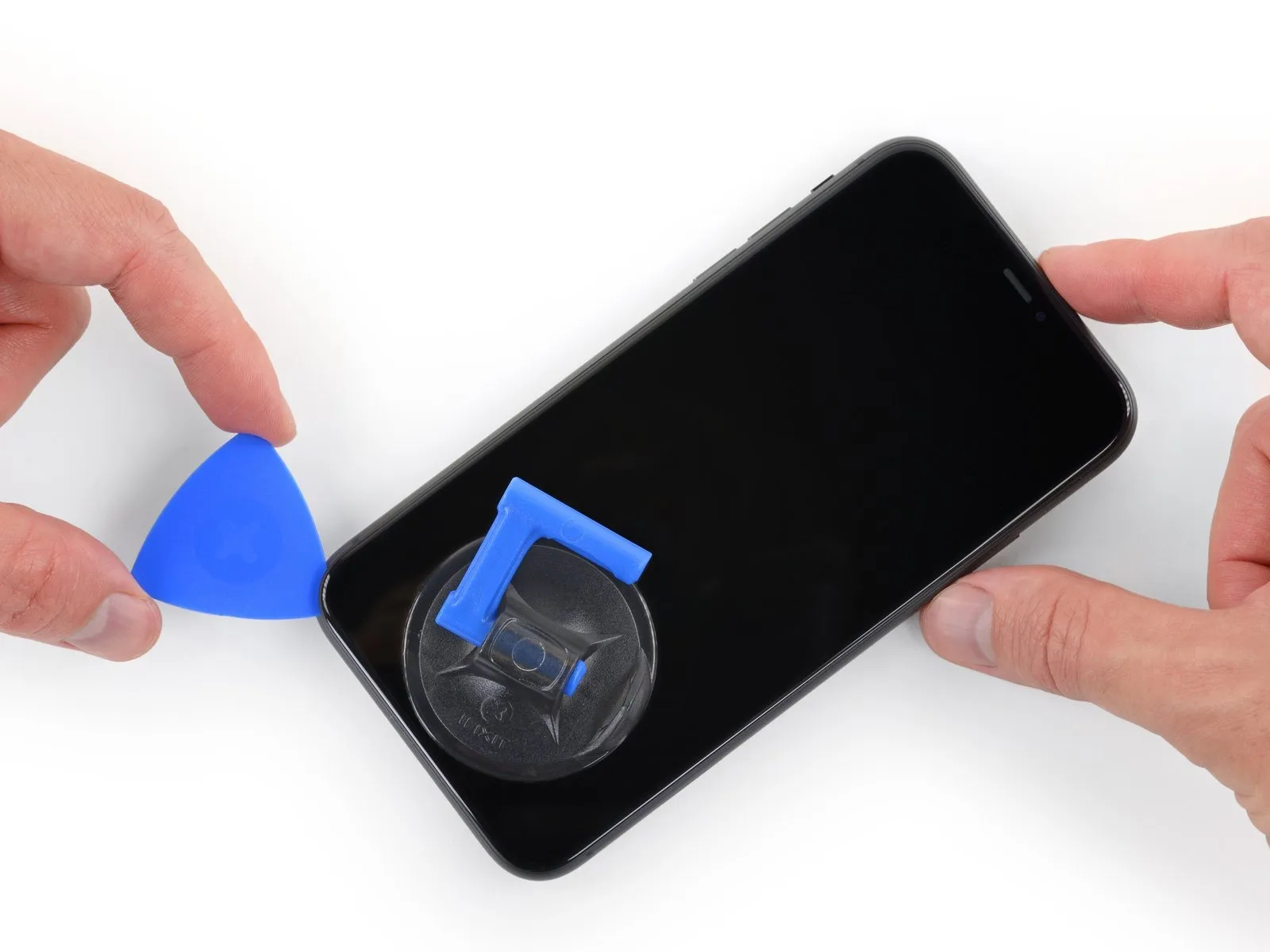

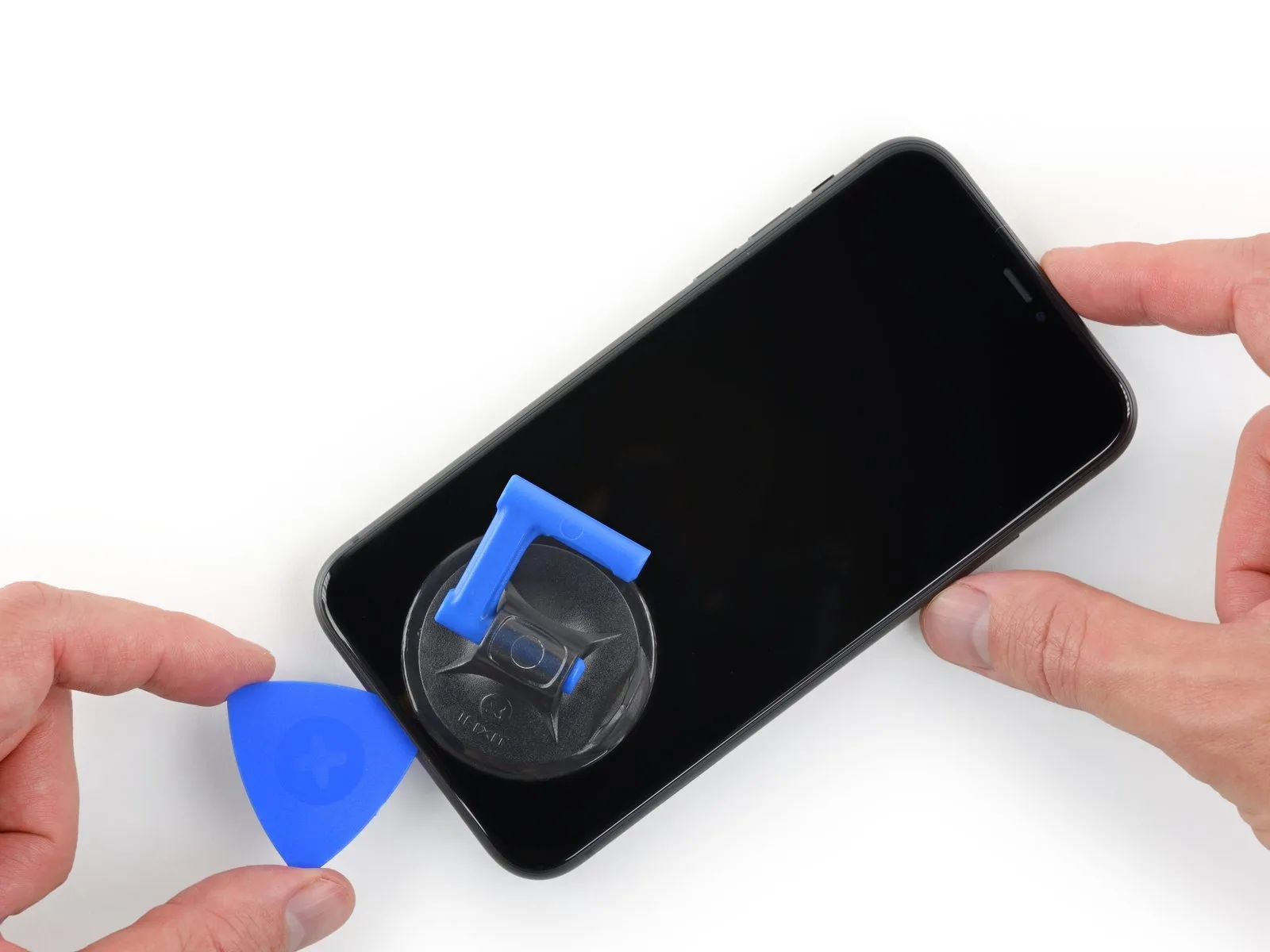

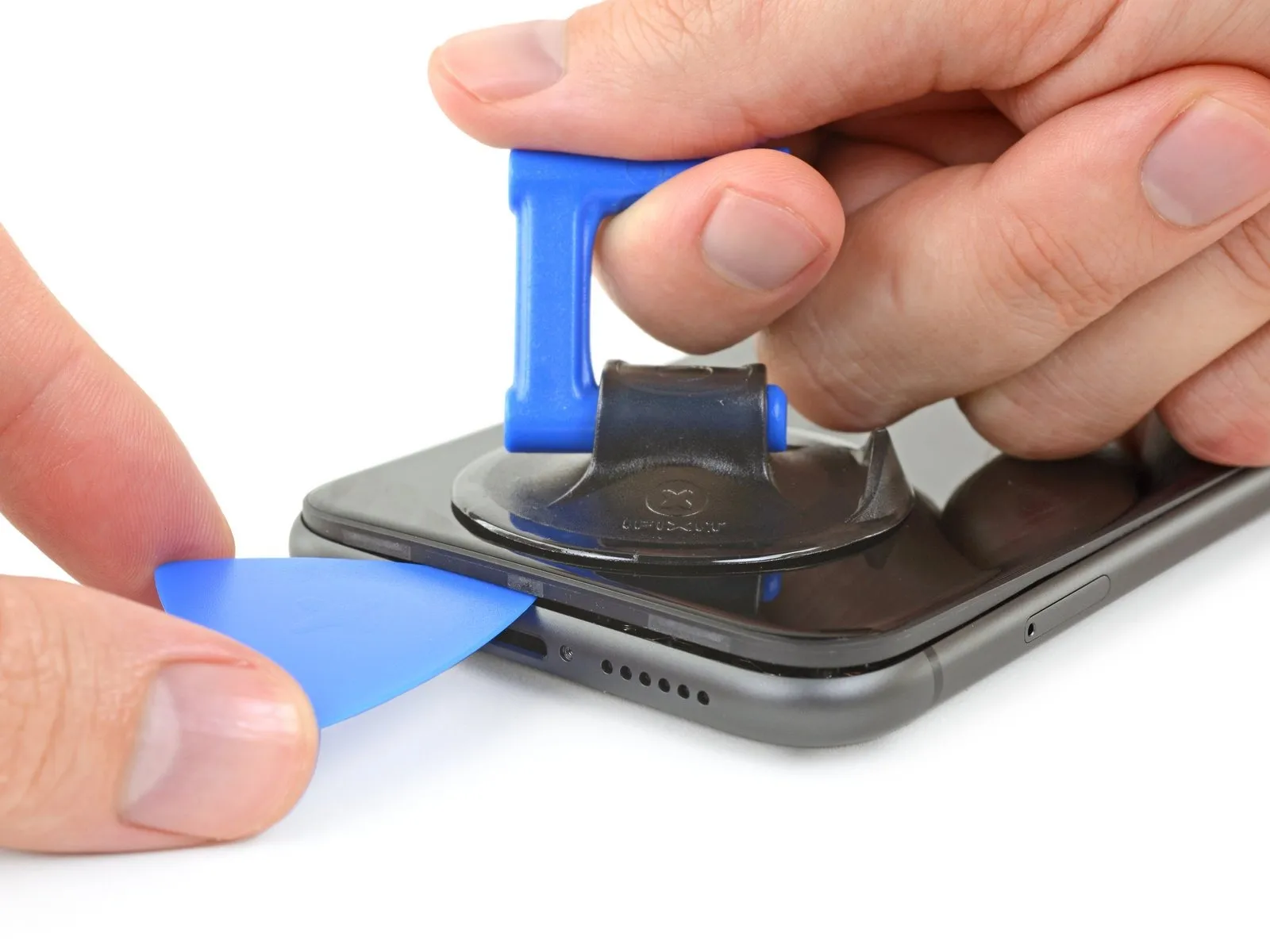

• Carefully slide an opening tool into the space formed beneath the display screen and the surrounding plastic frame, ensuring it does not contact the screen's surface.
• Due to the robust nature of the waterproof sealant securing the display, a considerable amount of force may be required to initially create this separation; if experiencing difficulty, apply additional heat and gently oscillate the screen to reduce adhesive strength until a sufficient gap is achieved for tool insertion.

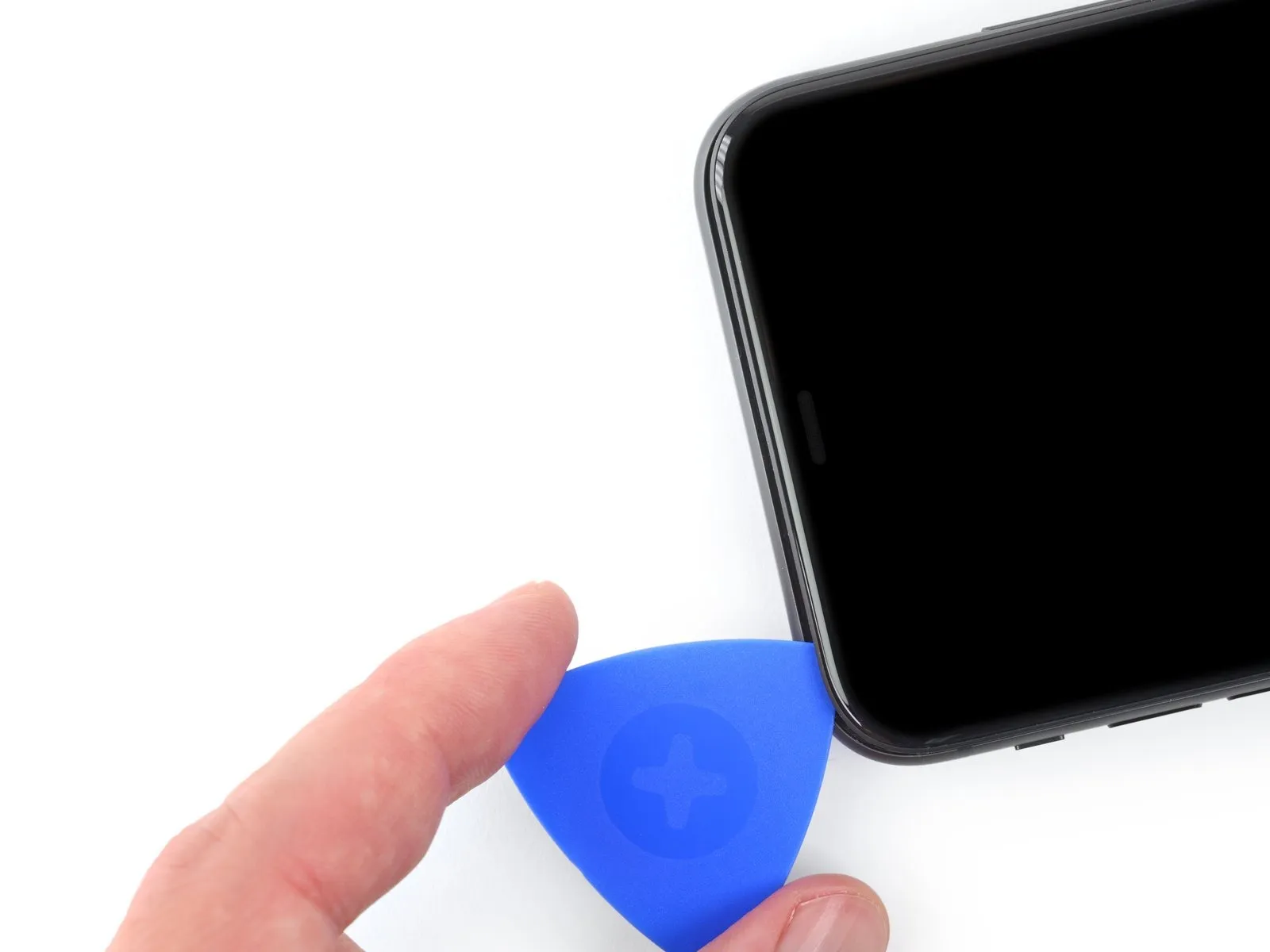

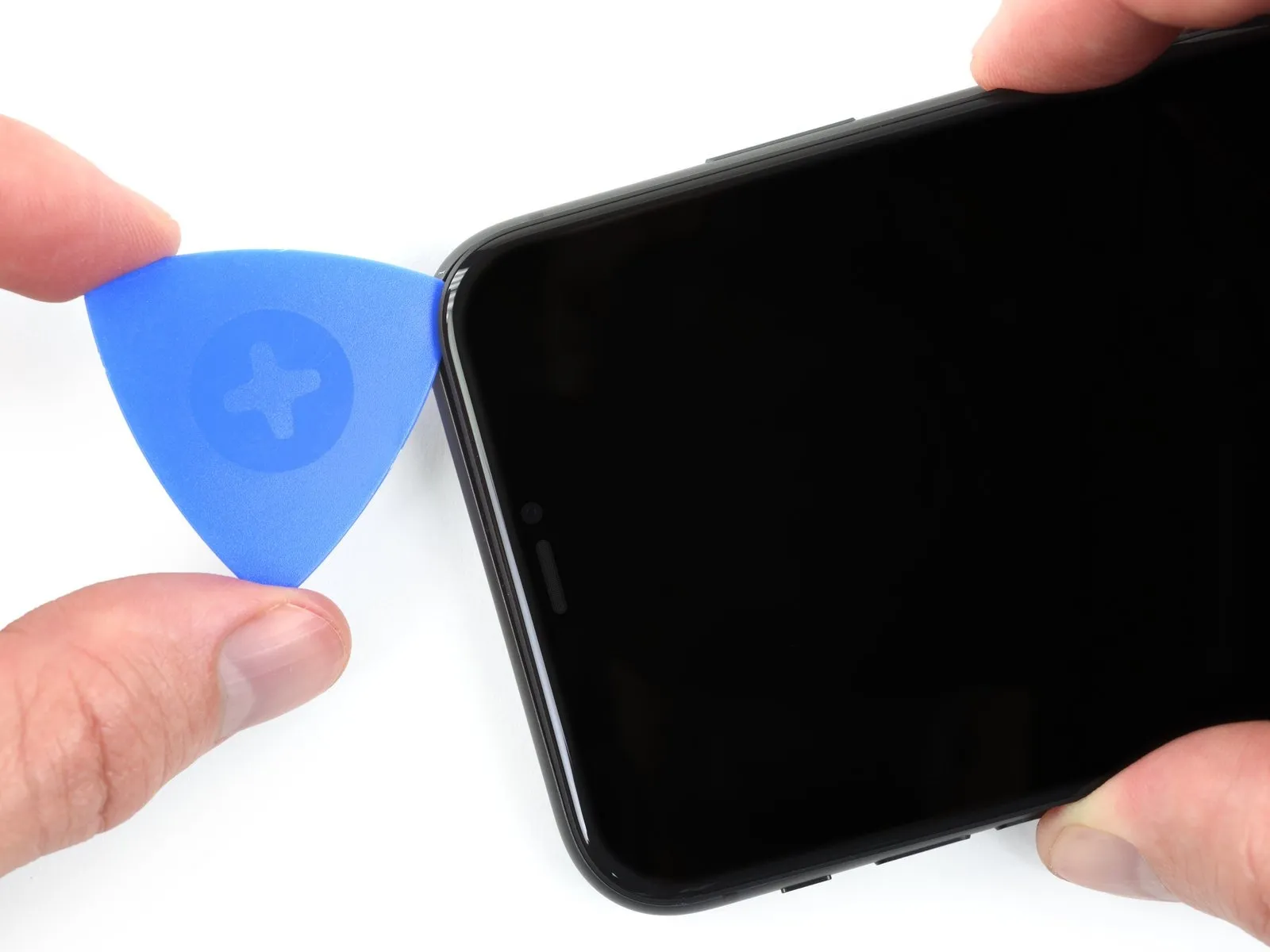

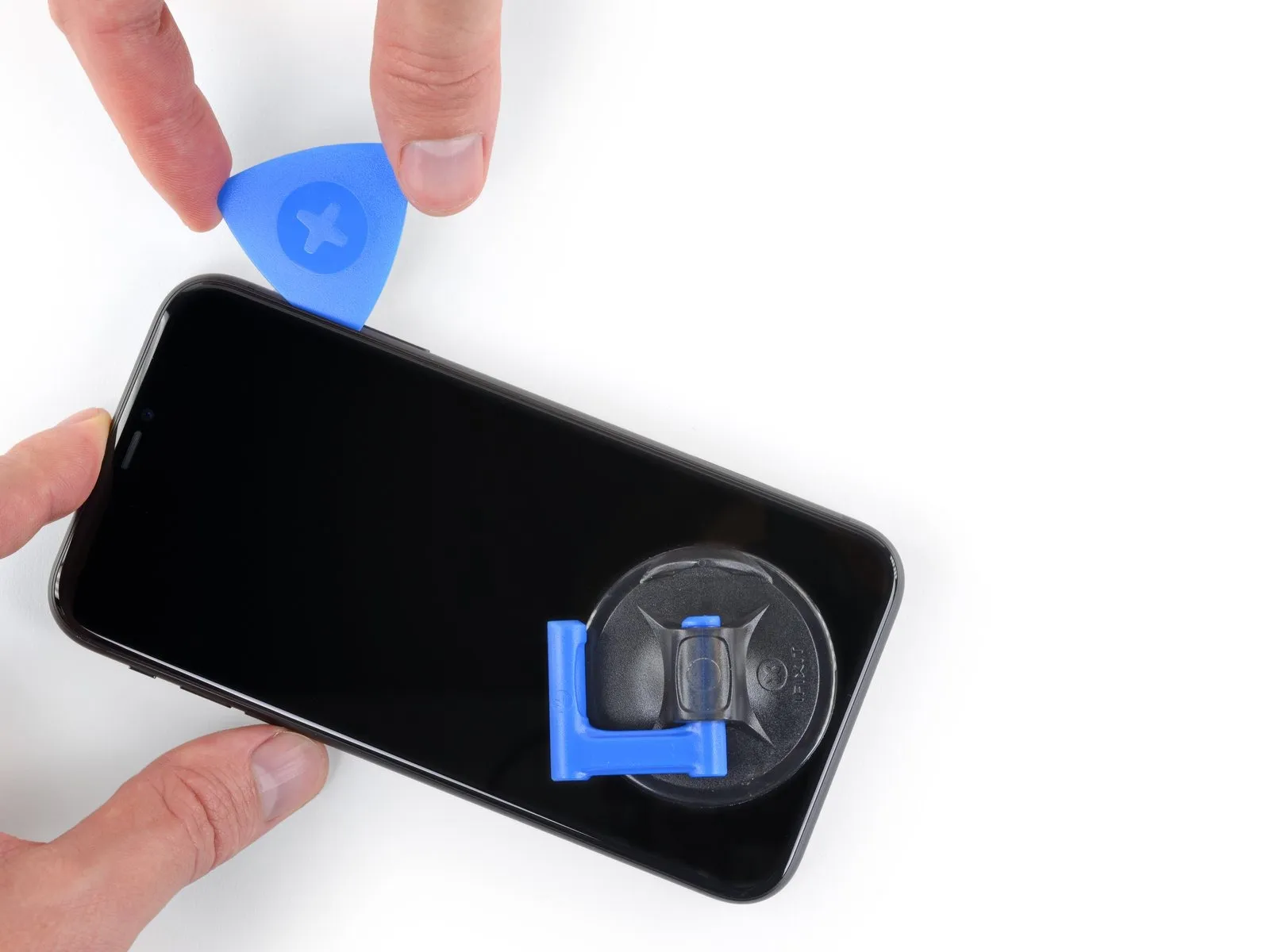

• Employ an opening pick to maneuver along the lower-left perimeter of the iPhone, progressing upwards along the left side to sever the adhesive securing the display assembly.

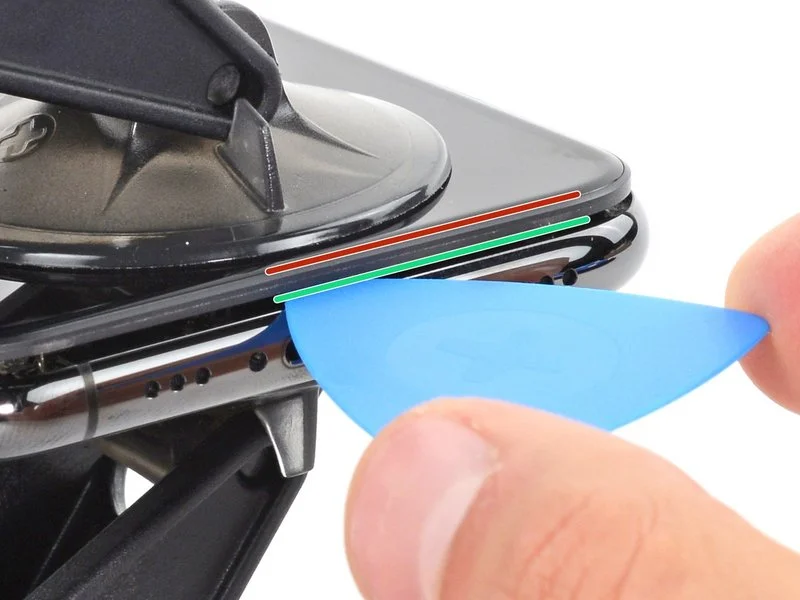

• Ensure the pick's insertion depth remains below 3 mm to prevent potential harm to delicate internal components.

Fragile wiring is situated along the iPhone's right-hand side; avoid inserting any tools in this area to prevent cable damage.

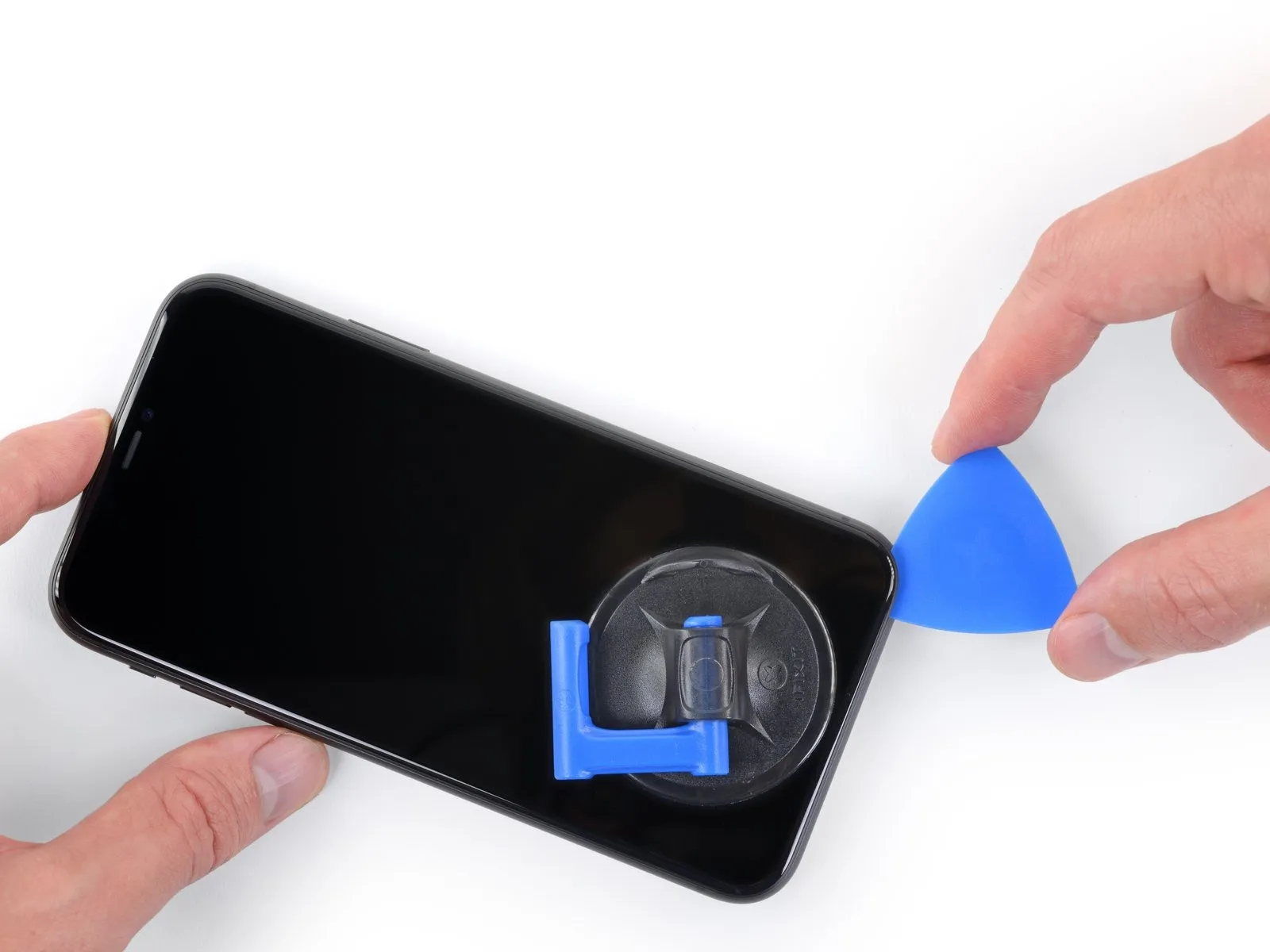

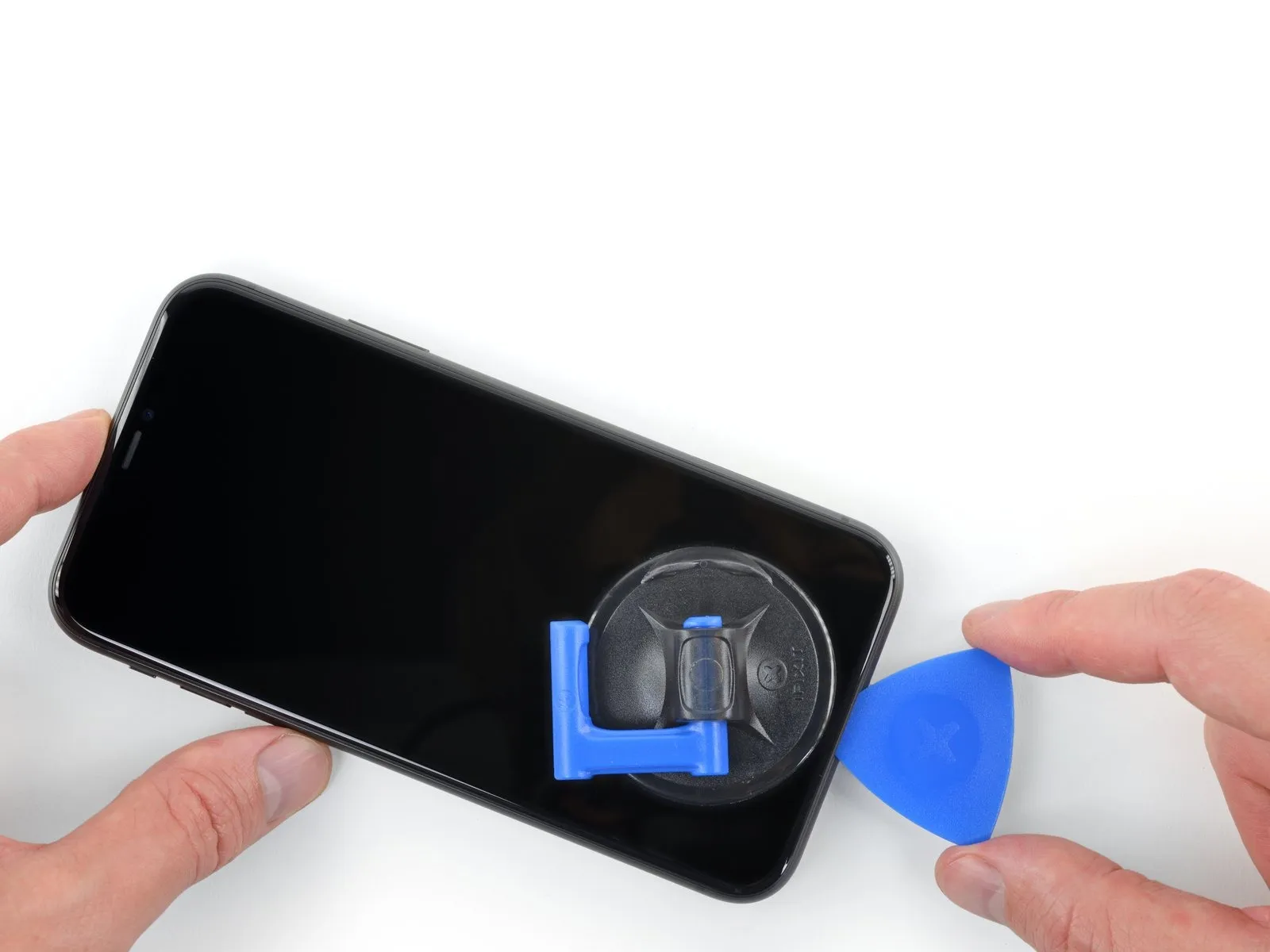

• To proceed with the separation of the adhesive, re-position your opening pick along the lower edge of the iPhone's display and advance it upwards along the right side.
• Ensure the pick's insertion depth remains limited to a maximum of 3 millimeters to prevent potential harm to the delicate display cable connections.Exceeding this 3-millimeter depth presents a risk of damage to the internal display cabling.Carefully manage the pick's position during separation to avoid contact with and possible injury to the display cables.

• Adhesive and retaining clips both fasten the display's upper boundary.

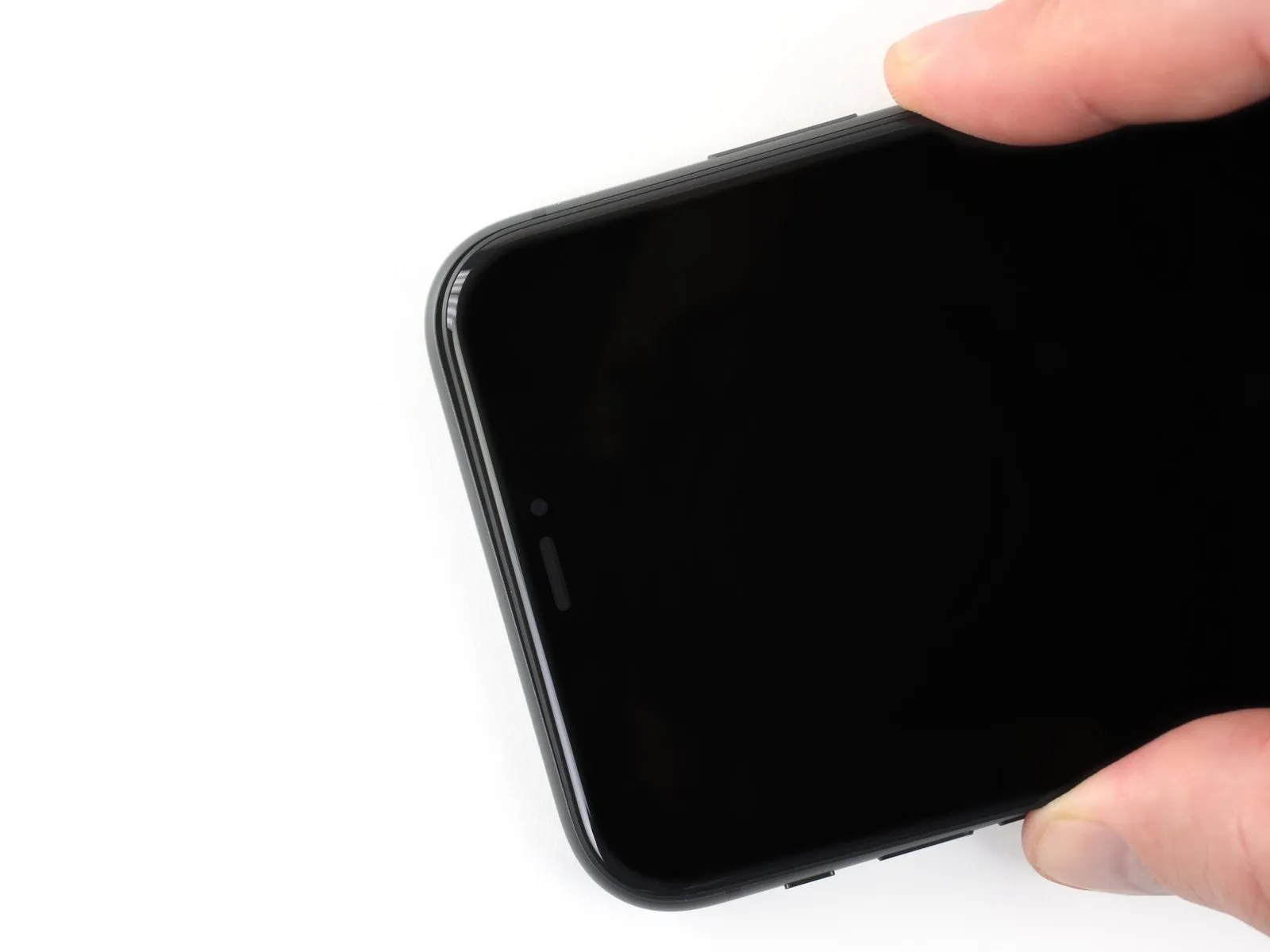

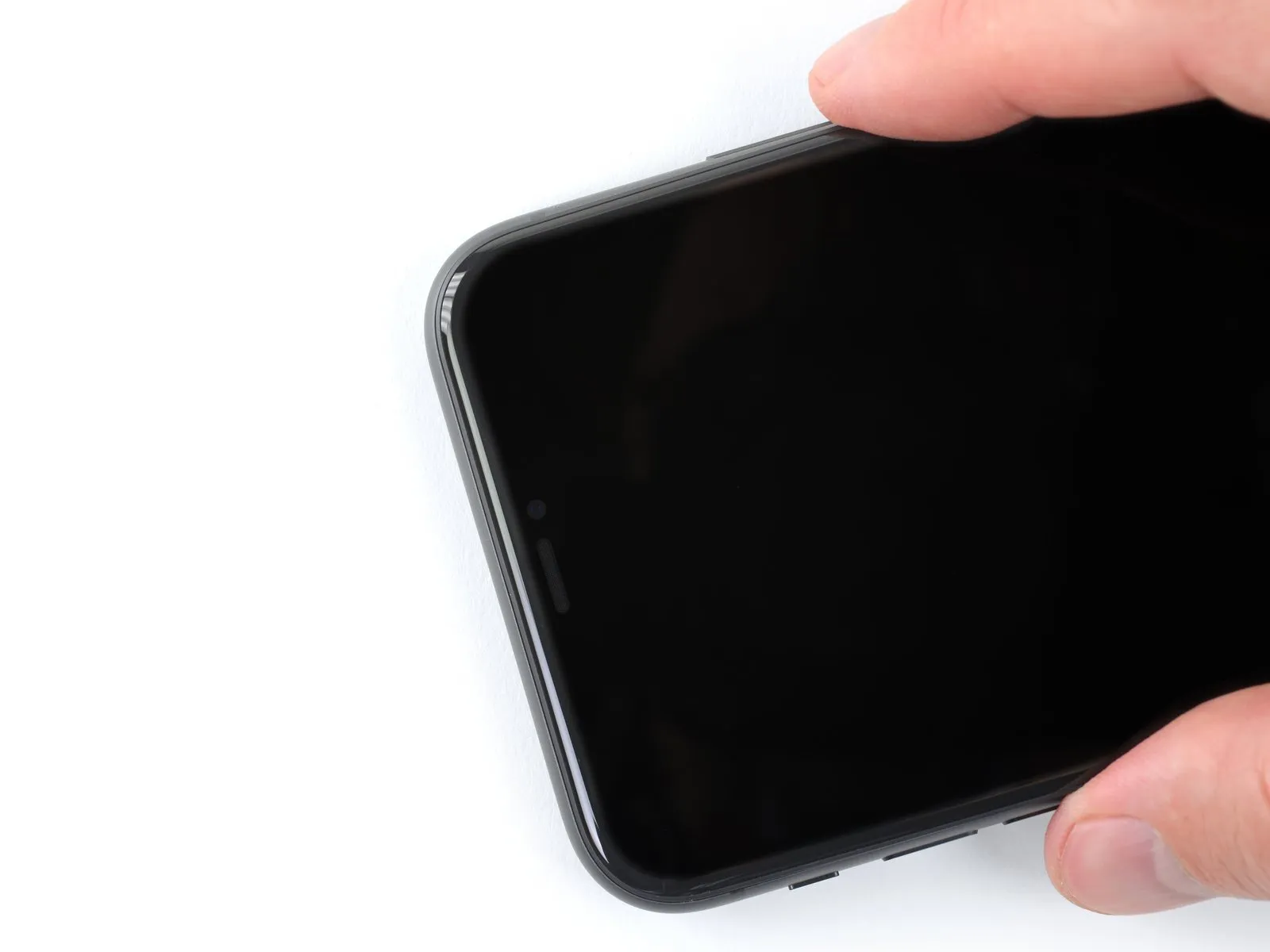

• Exercise caution while applying a slight downward force to the display's right side, orienting the movement toward the Lightning connector.
• Position a specialized opening tool within the upper-rightmost section of the device's casing.

• As necessary, maintain downward traction on the display assembly, directing it towards the Lightning connector to create a sufficient separation for tool insertion.

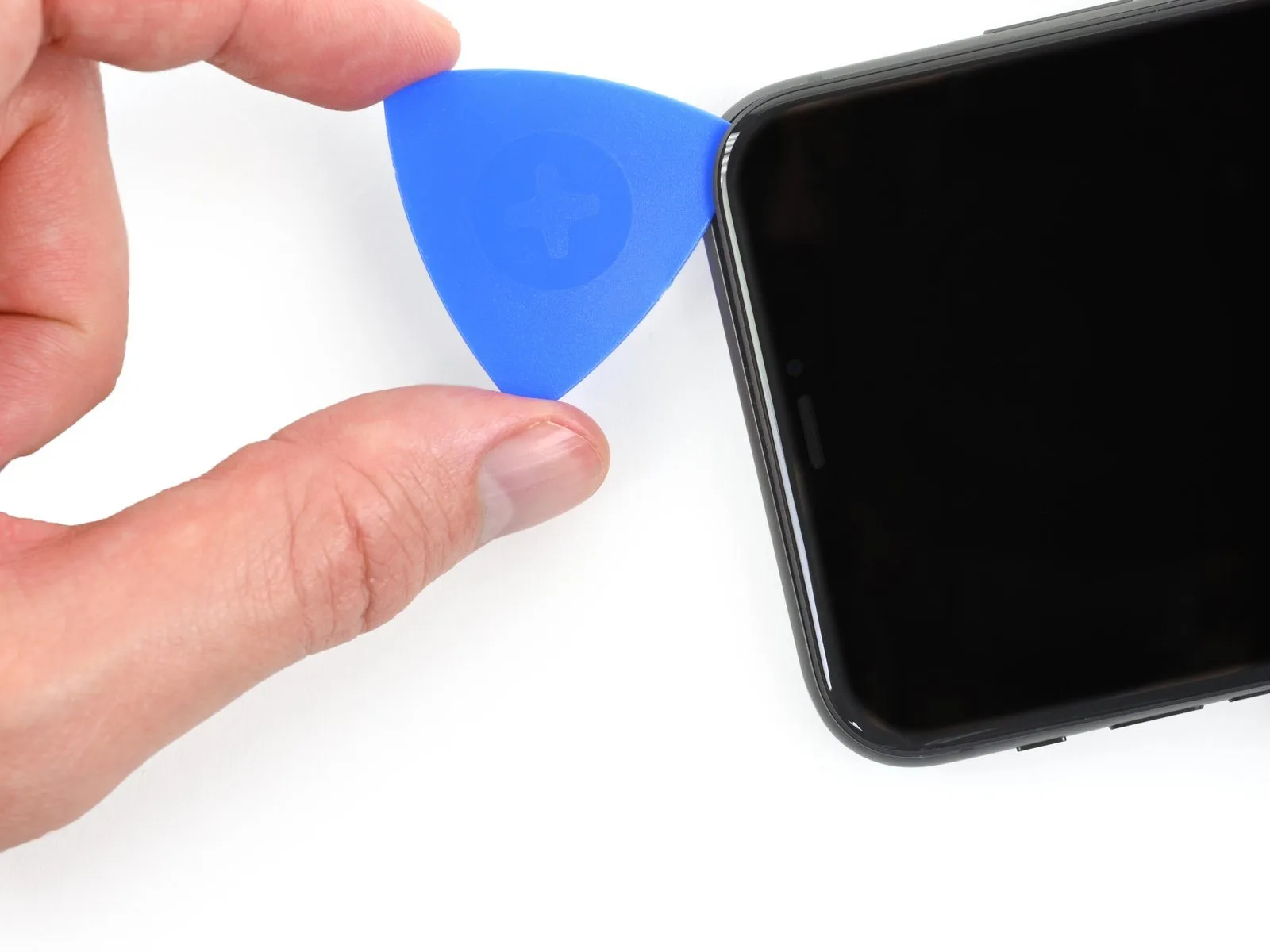

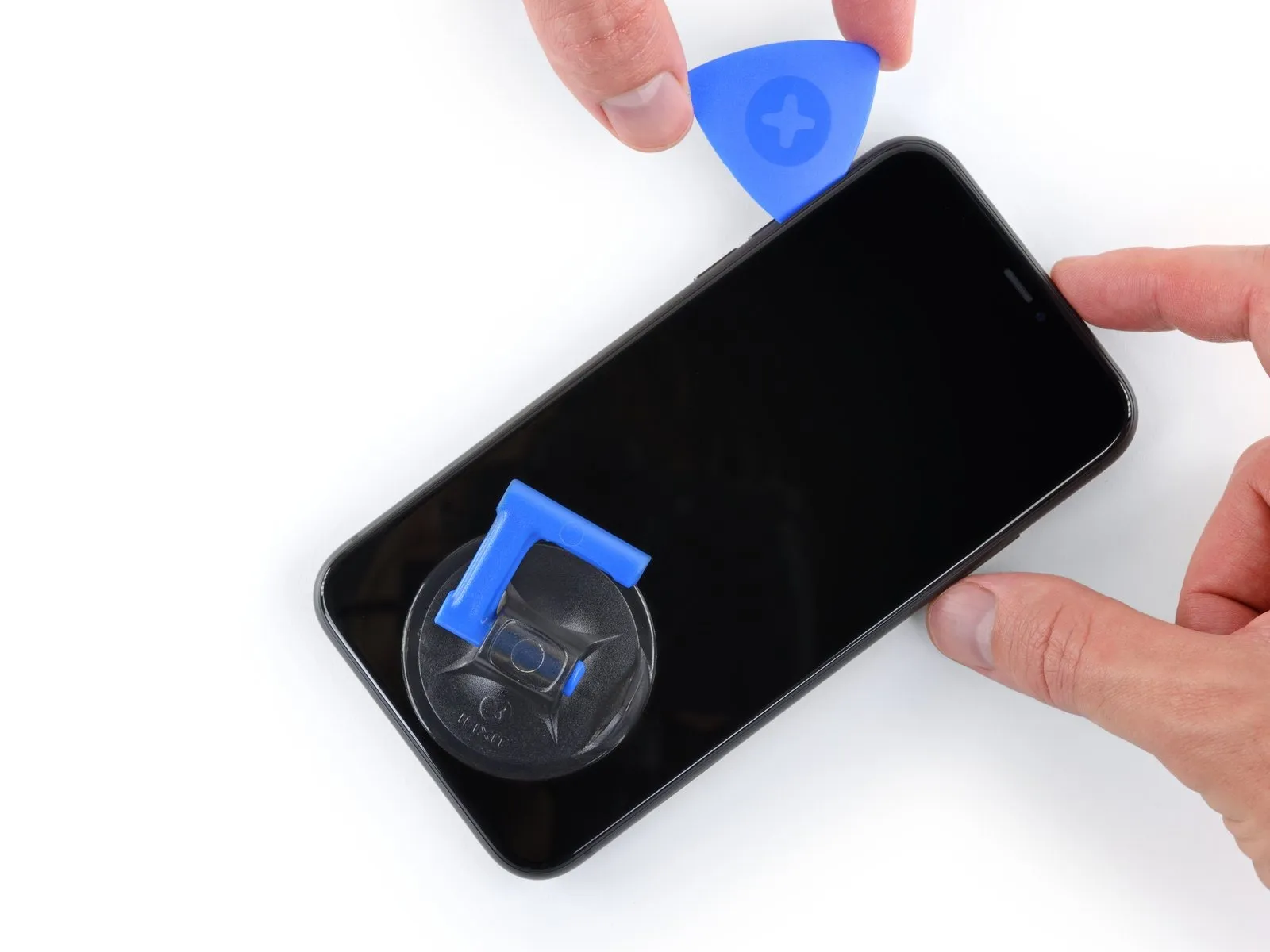

• Employ the pick to traverse the upper-left edge, severing any residual adhesive bonds that retain the display.
• Limit pick insertion depth to a maximum of 3 millimeters to prevent potential harm to the Face ID sensor array.

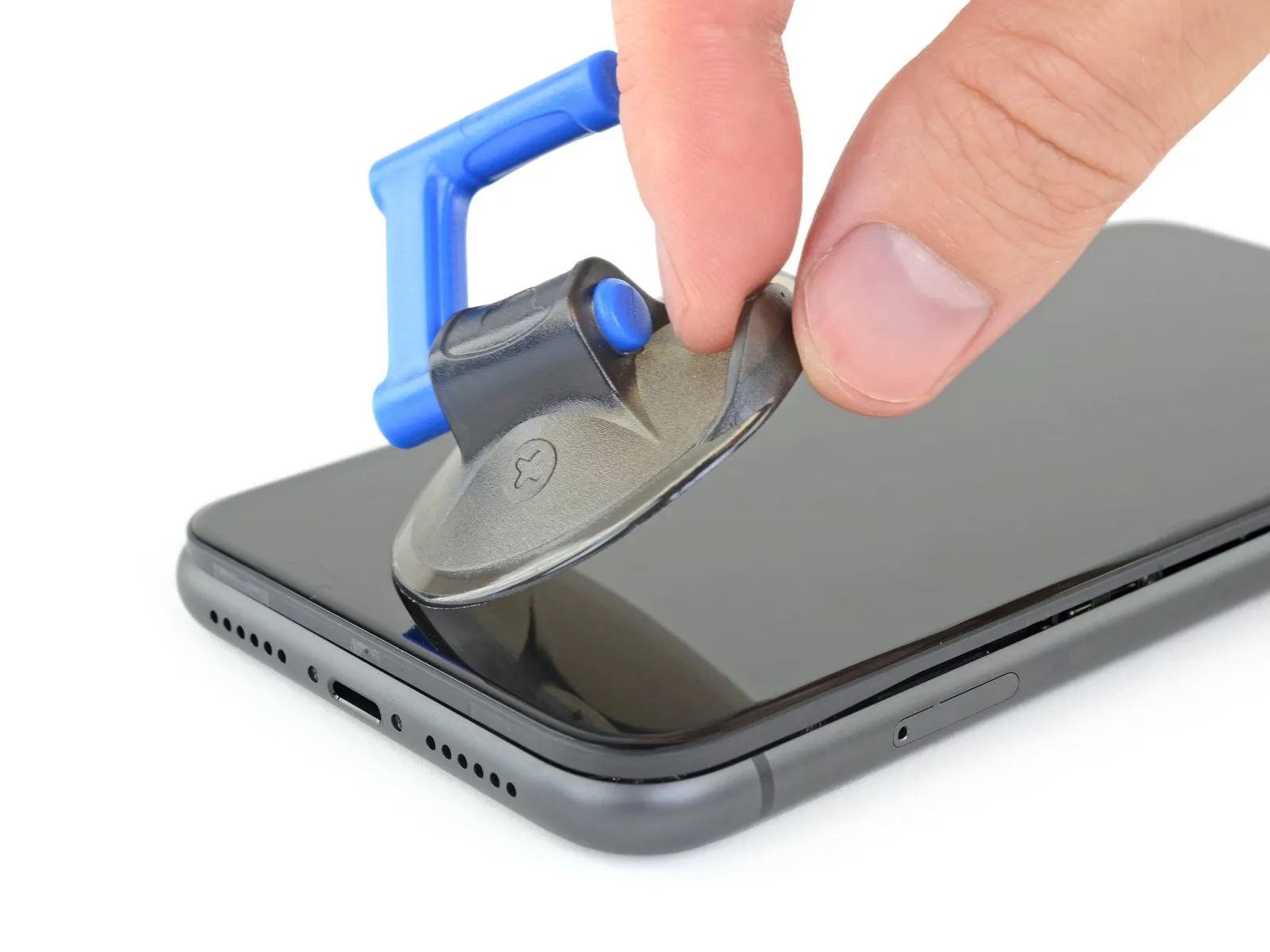

To release the suction cup and separate it from the front panel, apply traction by grasping the diminutive protrusion.

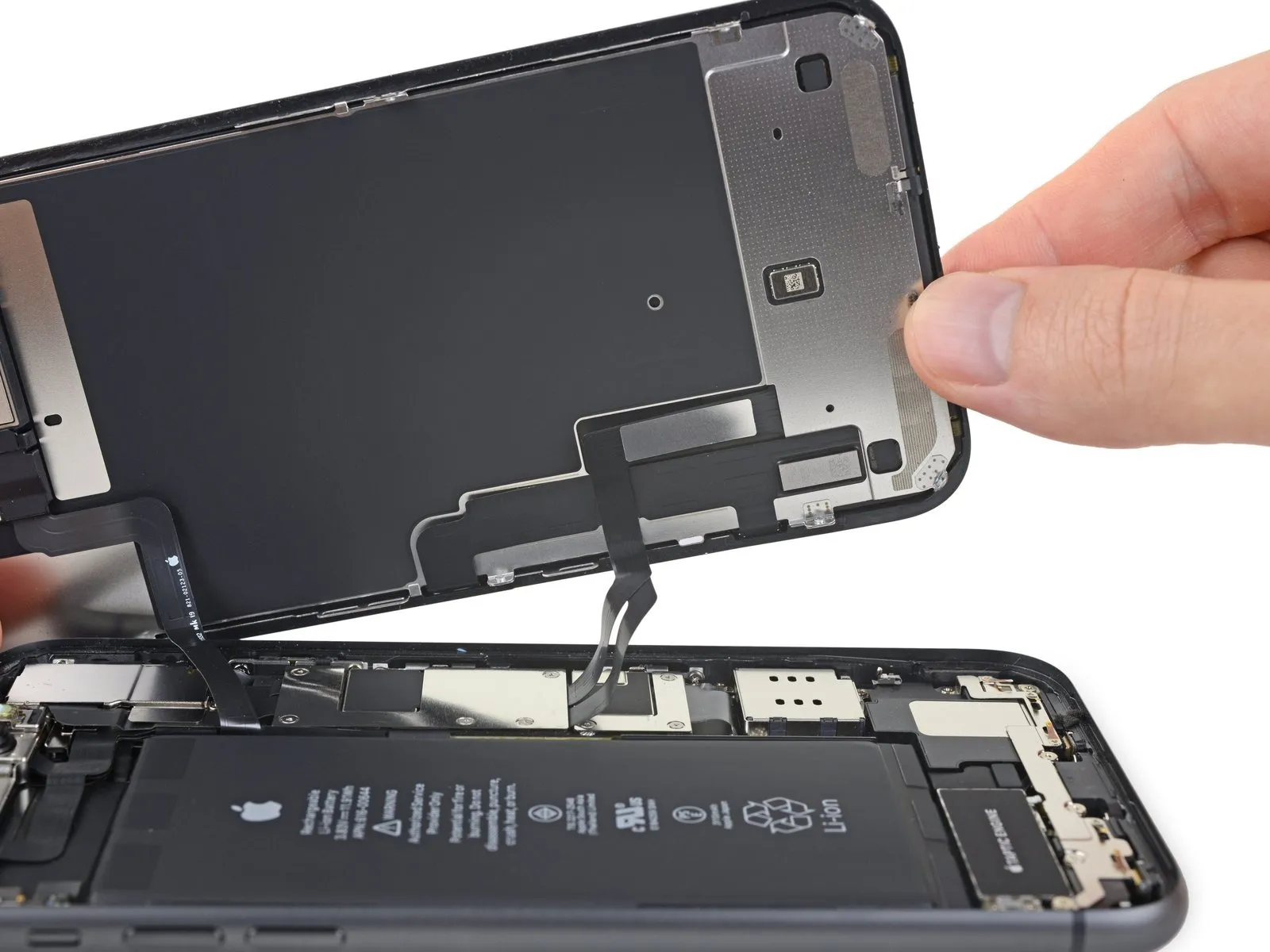

• Exercise caution to prevent damage or separation of the display’s internal wiring harnesses.

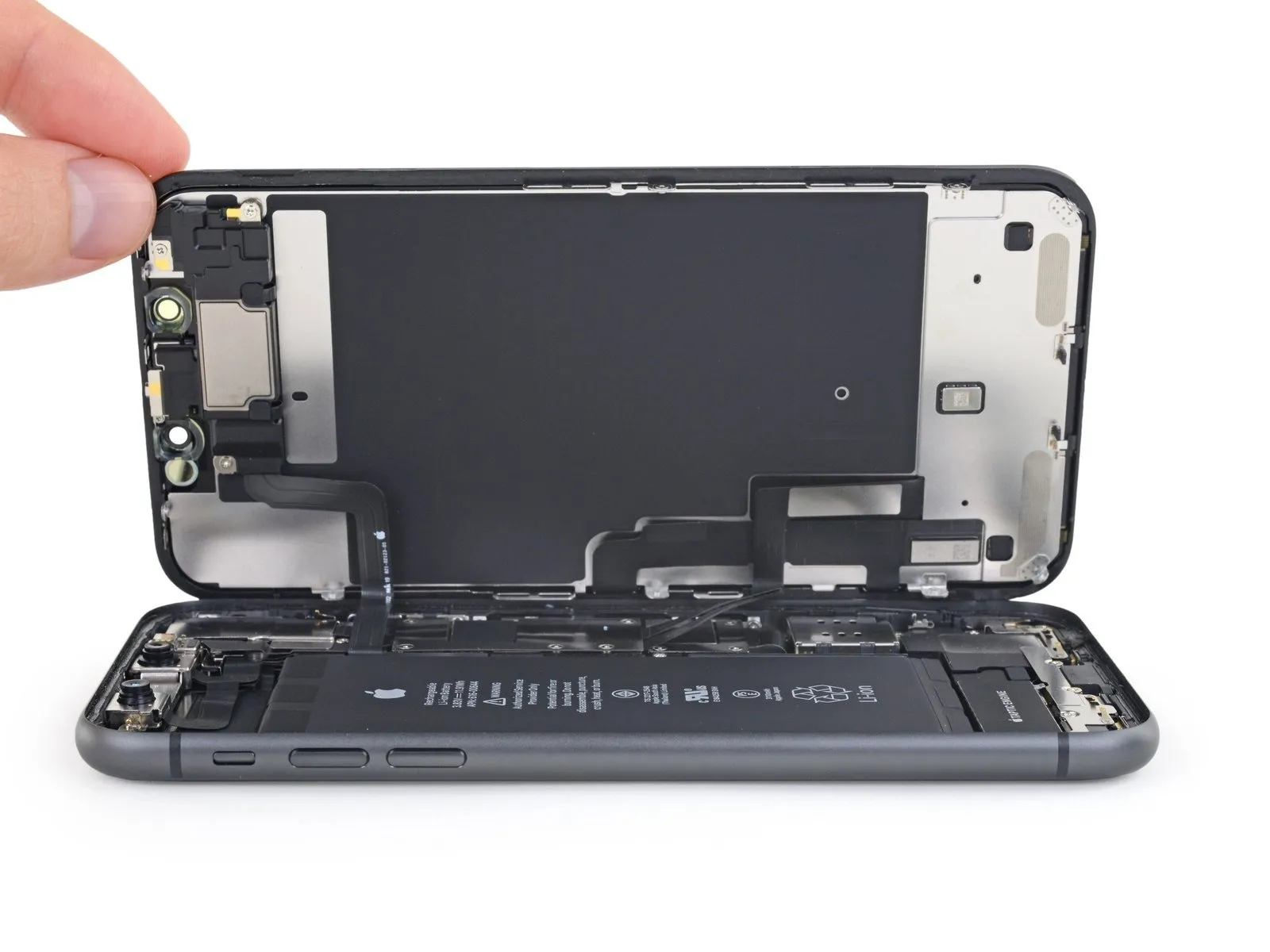

• This functional verification step allows for troubleshooting before the final assembly.
• Proper screw management is crucial to avoid future issues and maintain the device's integrity.

• Exercise caution to avoid harming the black silicone sealant that surrounds this connector and others, as it safeguards the device against water and dust ingress.
• Slightly deflect the connector outward from the logic board to inhibit unintended reconnection.

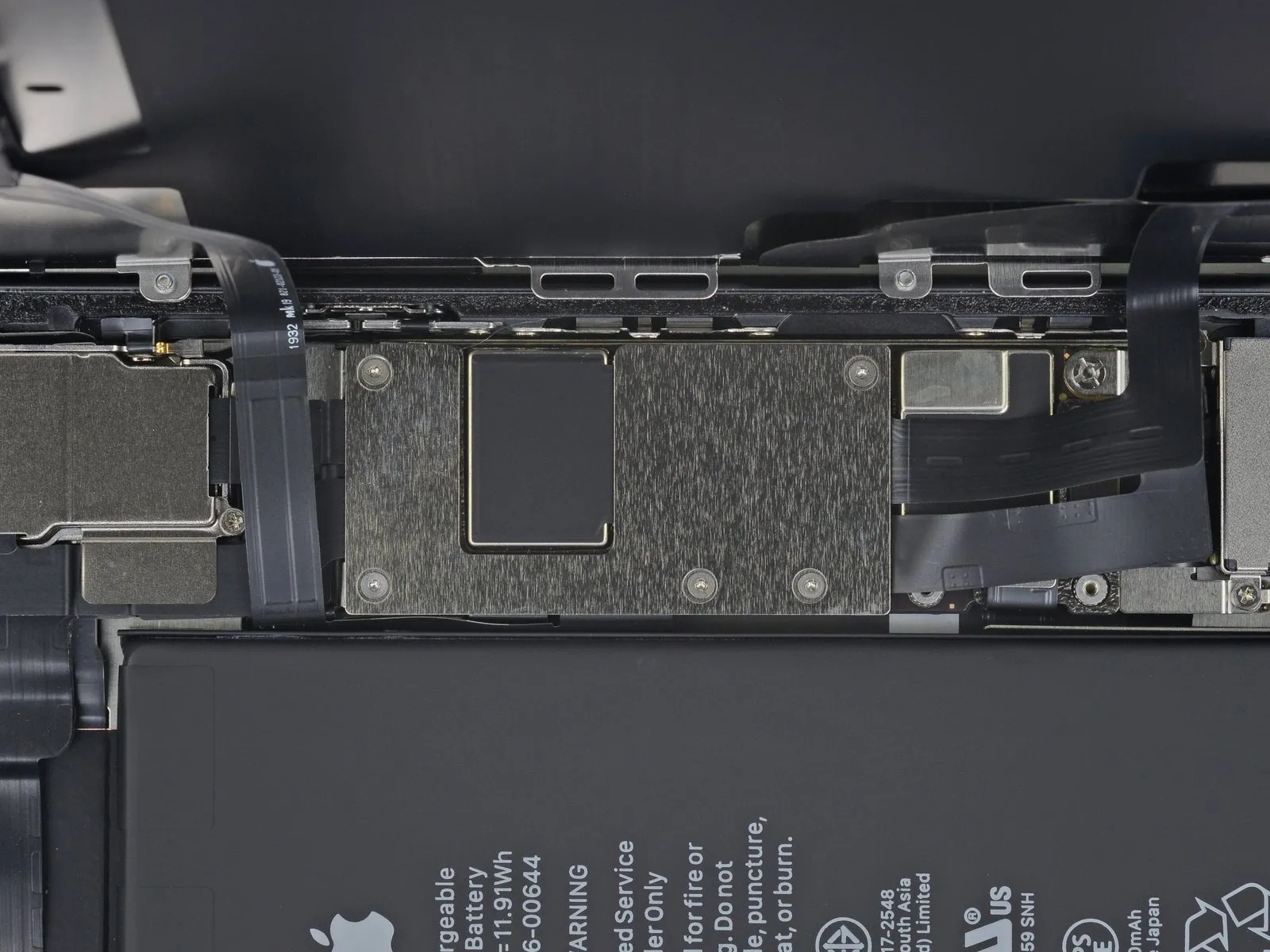

Employ a Y000 driver for the extraction of the five screws.The screws, each measuring 1.1 mm in diameter, fasten the logic board cover bracket.These fasteners hold the bracket in place, requiring removal with the appropriate tool.A Y000 driver is specifically suited for disengaging these small screws.Carefully unscrew the bracket's fasteners using the Y000 driver to avoid damage.

Detach the mounting bracket.

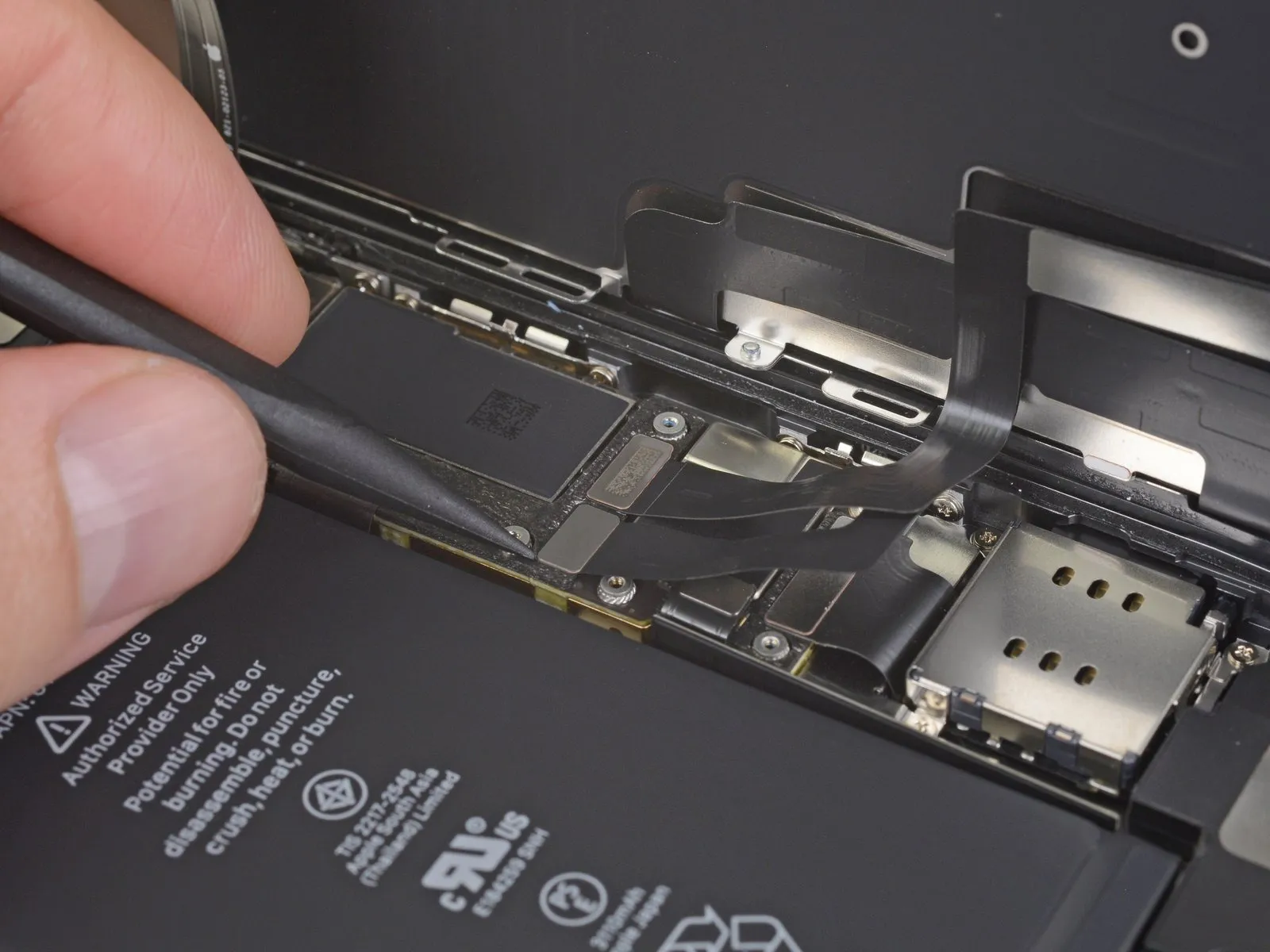

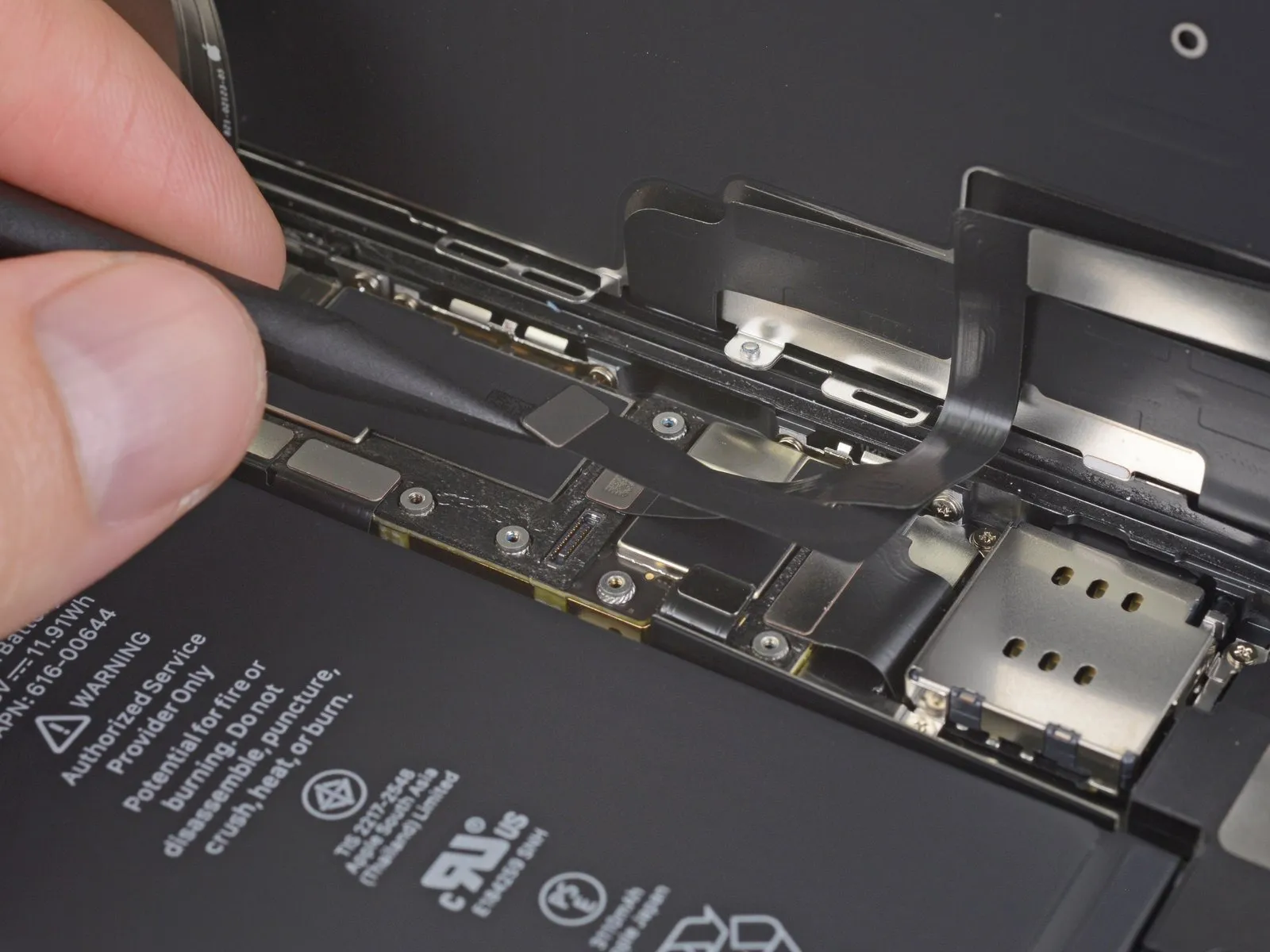

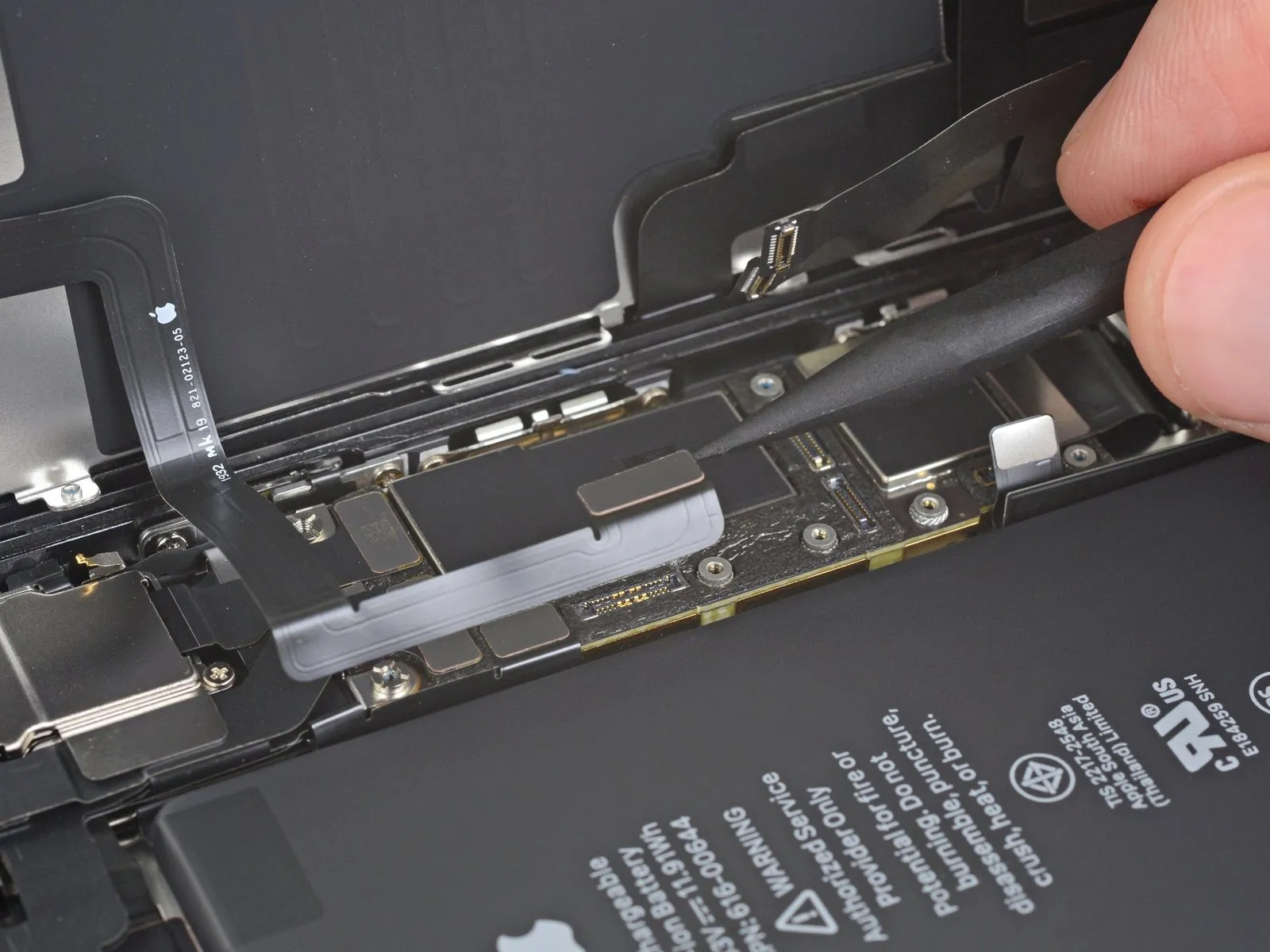

• Employing a spudger tool, or carefully utilizing a fingernail, facilitates separation of the LCD panel cable's connector.The connector responsible for the digitizer functionality, situated in close proximity, should also be detached.Carefully pry the LCD panel cable connector free from its socket using the specified tools.Adjacent to the LCD panel connector, locate and disengage the digitizer connector.A spudger or fingernail can be used to release the LCD panel cable connector, ensuring no damage occurs.

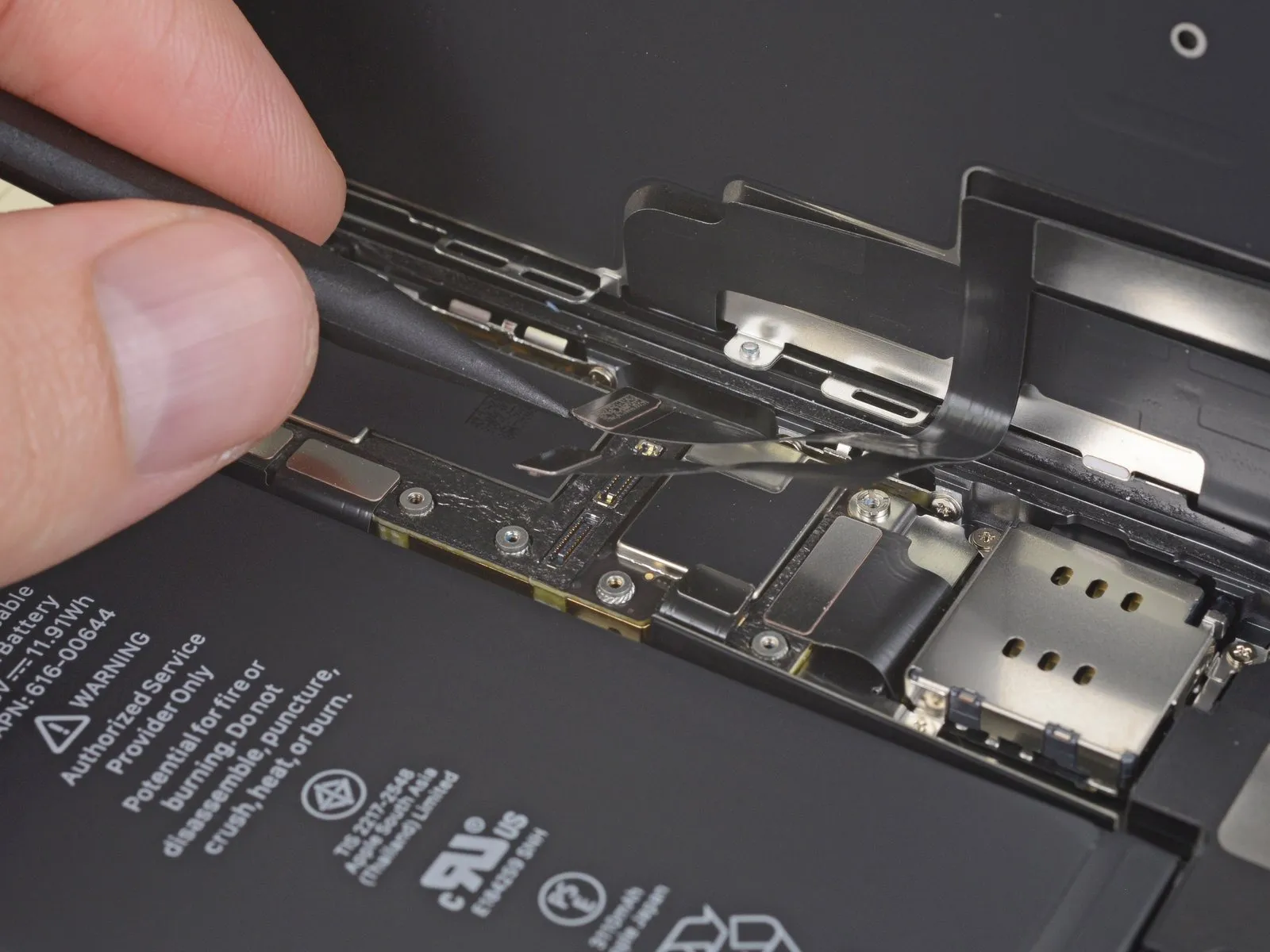

• Following the LCD panel cable disconnection, proceed to release the digitizer connector which is positioned nearby.

To release the front panel sensor assembly connector, employ the tip of a spudger tool or a fingernail.A spudger's pointed end, or a fingernail, can be utilized for separating the connector's attachment.The connector linking the front panel sensor assembly can be detached by carefully using a spudger point or fingernail.Employing a spudger or fingernail, gently pry the front panel sensor assembly connector free from its socket.For disconnecting the front panel sensor assembly's connector, a spudger's tip or a fingernail provides a suitable separation method.

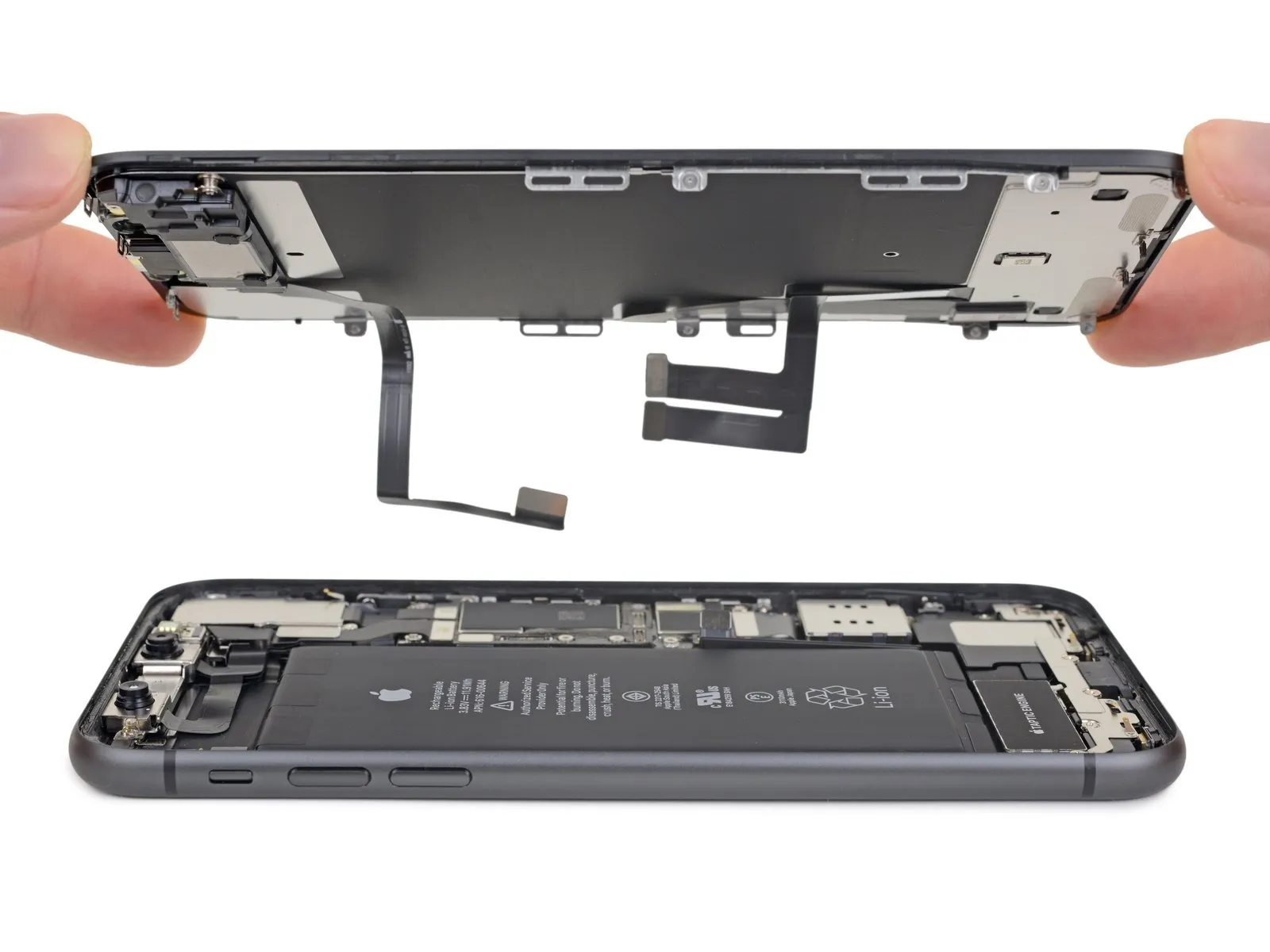

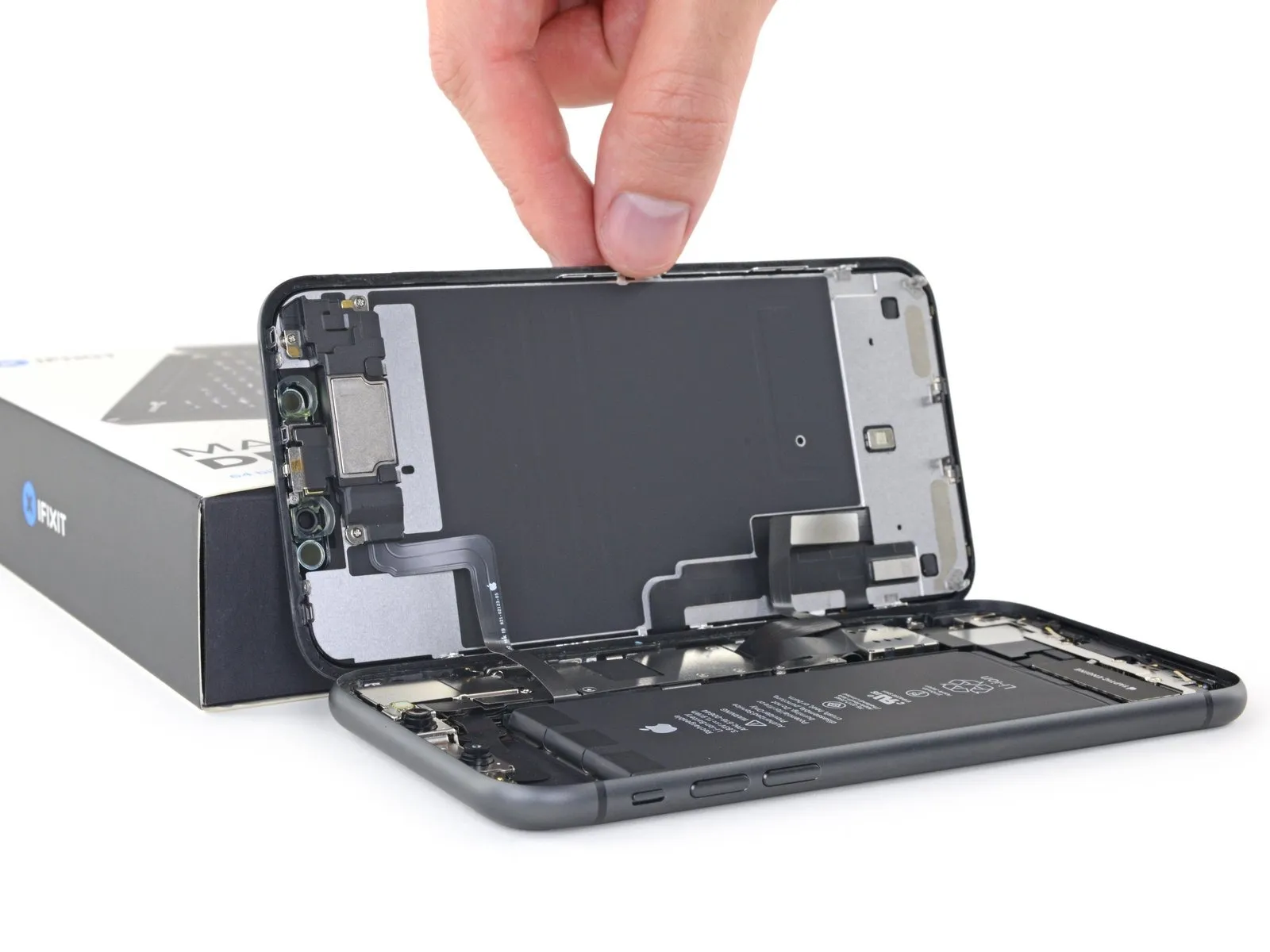

• Detach the display unit from the device.
• If you intend to substitute the waterproof sealant bordering the display's perimeter during reassembly, halt the process at this stage.

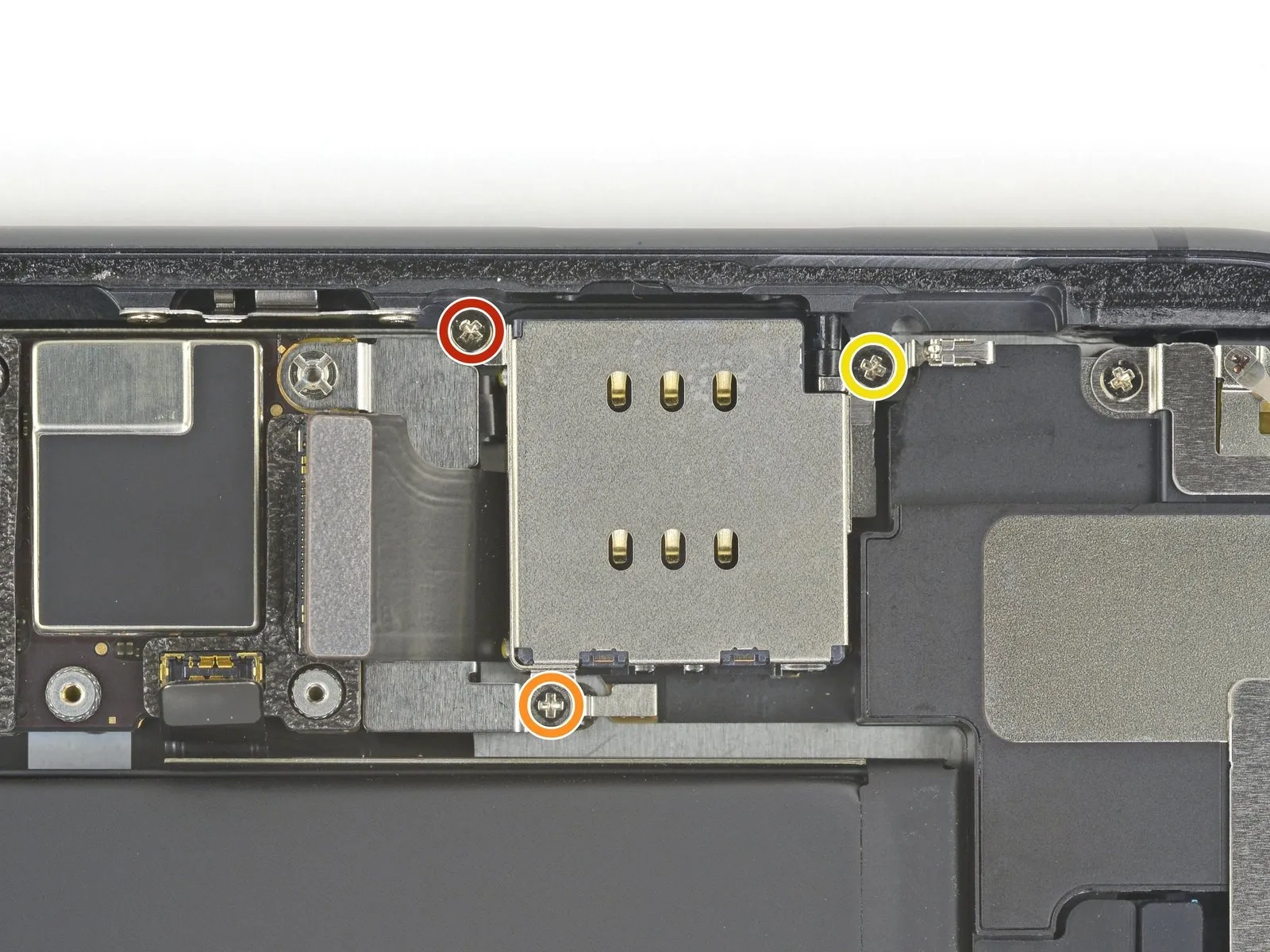

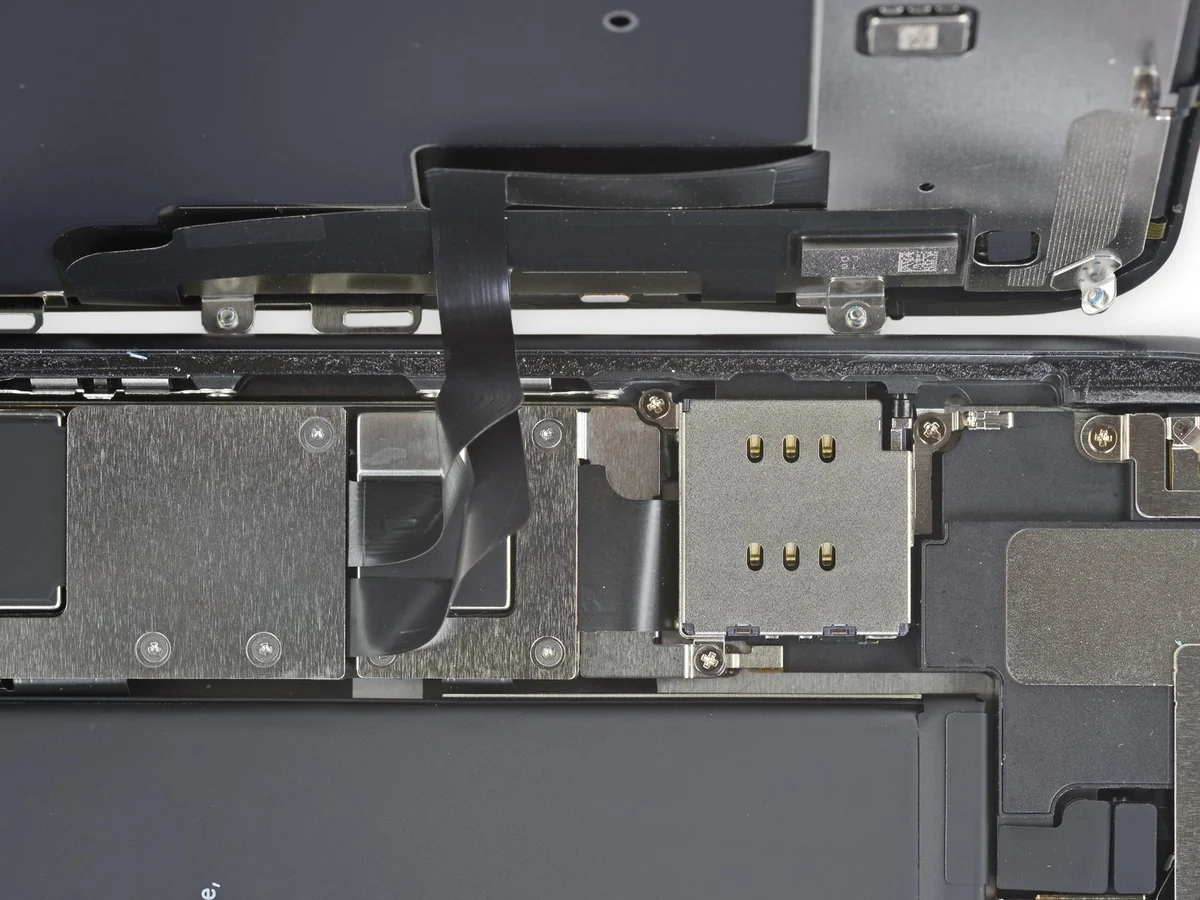

• To detach the SIM card reader, first eliminate the three Phillips head fasteners positioned around its perimeter.
  A single fastener, measuring 1.5 millimeters in diameter, is present.Another fastener, with a diameter of 1.9 millimeters, is also required for removal.
  A third fastener, measuring 1.6 millimeters in diameter, must be taken out.These screws secure a grounding bracket to the device.
  The grounding bracket is held in place by the final screw.Eliminating this last screw releases the grounding bracket.The bracket's removal is necessary for subsequent SIM card reader disassembly.
  Ensure careful handling of all small components to prevent loss or damage.

• Employ a standoff driver to detach the 3.1 mm screw that holds the SIM card reader connector bracket in place.If a standoff driver isn't available, a small flathead screwdriver can be substituted, exercising heightened care to prevent slippage and potential harm to adjacent parts.The 3.1 mm screw's removal is necessary for accessing the SIM card reader connector bracket.
  Careful manipulation is essential when using a flathead screwdriver as a substitute, minimizing the risk of accidental damage to surrounding components.

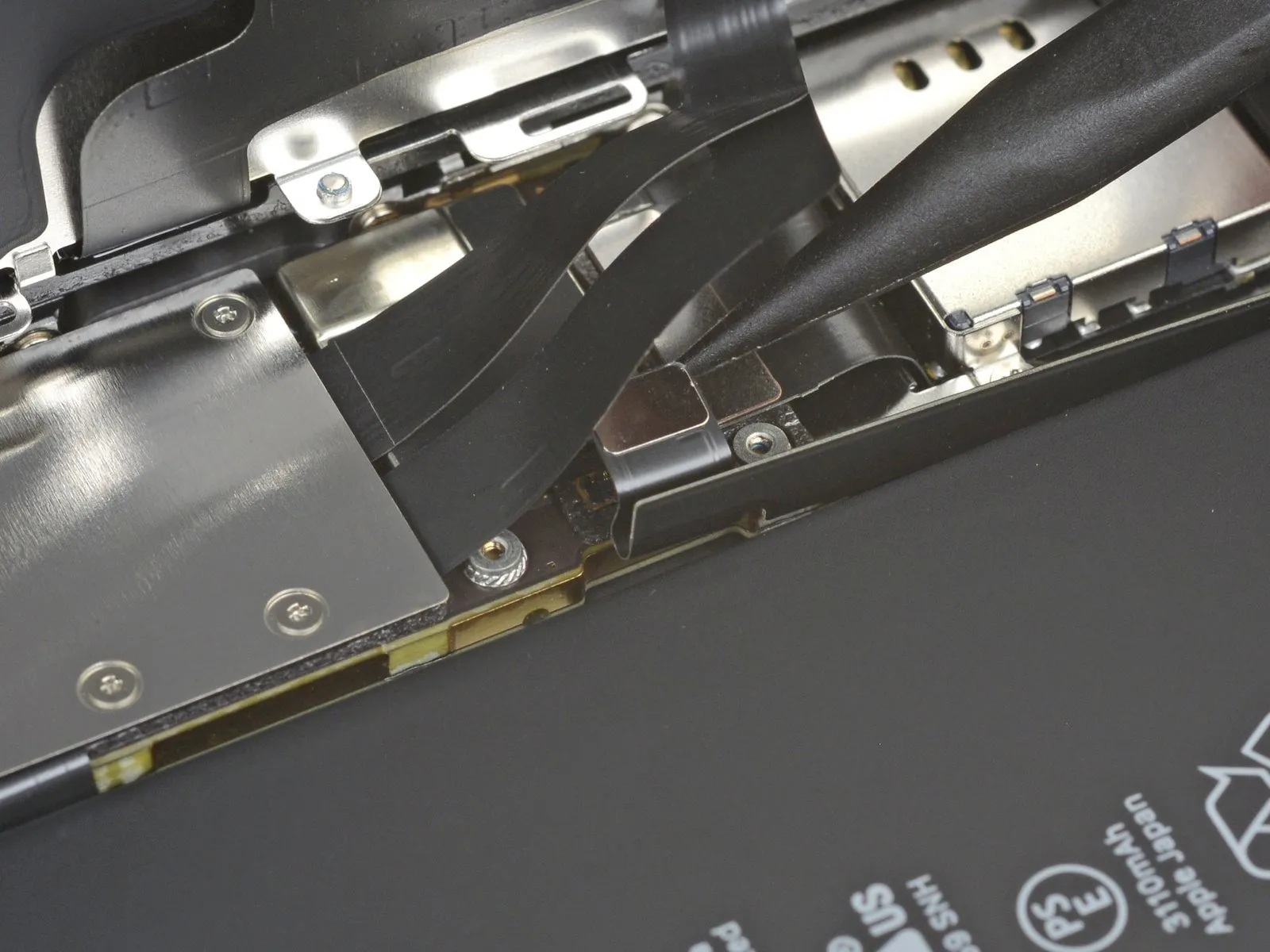

• Carefully raising the Lightning connector flex cable to provide access, proceed with the subsequent step.
• Employing the tip of a spudger, elevate and detach the SIM card reader flex cable.

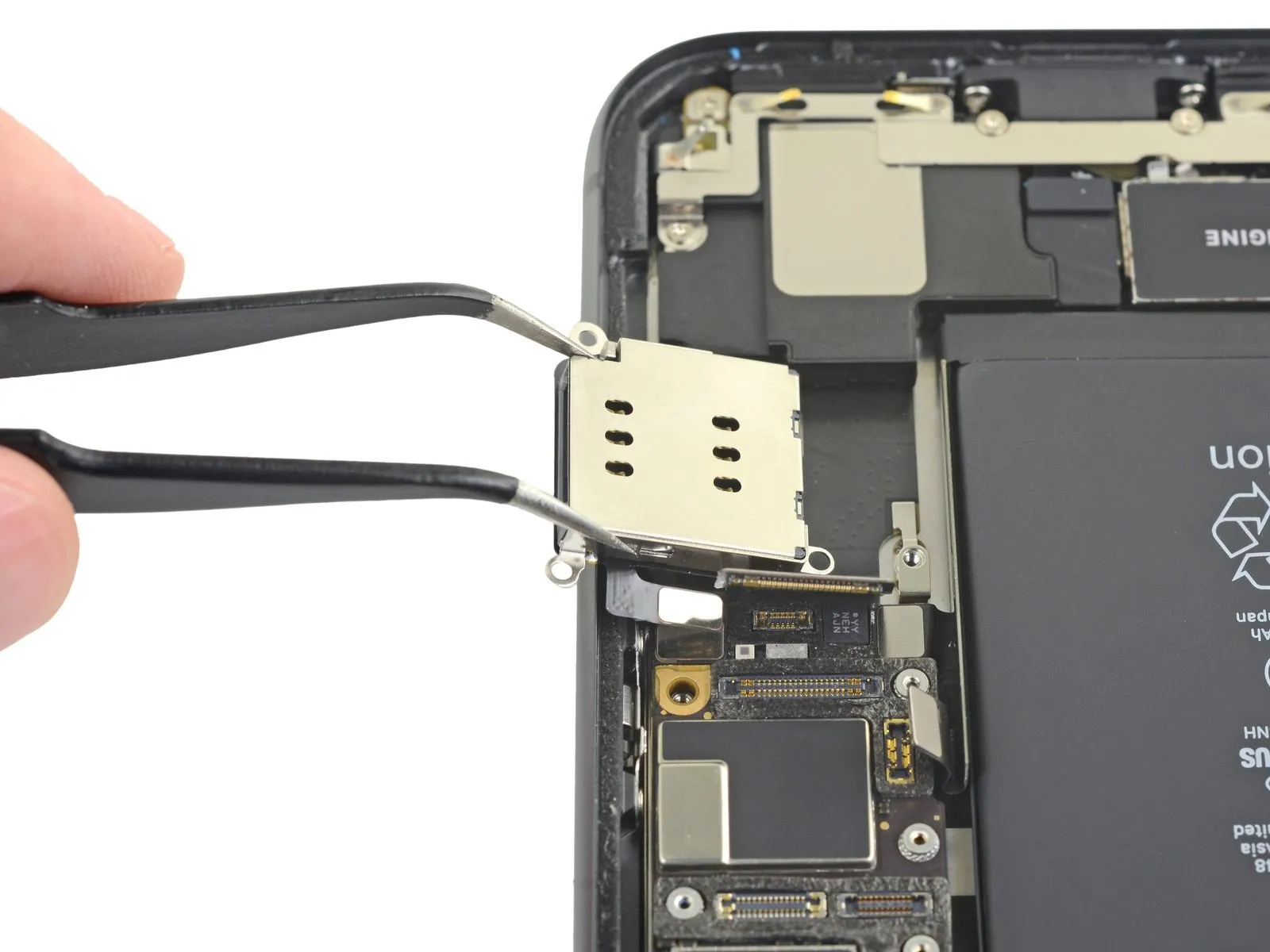

• To access the SIM card compartment, elevate the reader and advance it along the exterior perimeter of the iPhone.
• Extract the SIM card reader from its housing.
