iPhone 11 Pro Battery Replacement

The iPhone battery's capacity is specified asAchieve a charge level of eighty percent.They can hold a maximum volumeThe battery is designed to maintain its performance for 500 complete charge-discharge cycles.Its operational lifespan is approximatelyReplace the filter cartridge every 18 to 24 months.Following this procedure, anticipate a need for more frequent charging and potential iOS notifications indicating diminished performance, which manifests as reduced operational speed; this guide details the battery replacement process to return your iPhone to its original performance level.

Due to the potential for hazards, handle a battery exhibiting swelling with extreme care.

Following the repair process, it's possible for your iPhone to show a message indicating the battery's authenticity, despite the use of original Apple components. If the device operates as expected, this notification poses no risk and can be disregarded.

  • To ensure peak functionality, complete the following calibration procedure for the battery once this installation process is finished.
  1. Fully replenish the battery's charge and continue the charging process for a minimum of 120 minutes.
  2. Allow the device to power down completely by continuing normal operation until the battery is depleted.
  3. Ensure a complete charge cycle, maintaining power until the indicator displays a full 100% capacity.

Step 1 | Remove the pentalobe screws

Step 1 image
Thumbnail 1
Thumbnail 2
  • To start the repair, ensure the iPhone's battery level is depleted to less than 25% to prevent potential issues.A lithium-ion battery must be fully charged.Accidental puncture presents a fire and/or explosion hazard.
  • Prior to starting the repair process, ensure the iPhone is completely de-energized.
  • Using appropriate tools, detach the two pentalobe screws, each measuring 6.7 mm in length, located along the iPhone's lower border.
  • Removing the display assembly will damage the iPhone's water resistance; ensure replacement seals are available for installation before continuing, or prevent moisture contact during reassembly if new seals are not used.

Step 2 | Mark your opening picks

Step 2 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  • To avoid potential damage to your device, ensure the opening pick does not extend beyond a safe depth; to assist with this, mark the pick at the appropriate insertion point.
  • Determine the dimension using an appropriate measuring tool.Three millimeters.Using a permanent marker, clearly indicate the opening point on the pick.
  • Alternative corner markings, using the same measurement tools, can be applied to the remaining corners of the pick.
  • Securely affix a coin to the tip of a pick using adhesive tape.Three millimeters.Beginning at the very end.

Step 3 | Tape over any cracks

Step 3 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  • To minimize additional damage and protect yourself from injury while working on a cracked iPhone screen, apply tape across the affected glass area.
  • Apply strips of transparent packing tape across the iPhone screen, ensuring complete coverage by layering them.
  • To safeguard your eyes from potential glass fragments released during the repair process, always use safety glasses.
  • Should the suction cup fail to adhere during the subsequent procedures, create a handle by folding a durable tape—like duct tape—and use this improvised handle to raise the screen.
  • As a last resort, apply a small amount of superglue to secure the suction cup directly to the screen.

Step 4 | Anti-Clamp instructions

Step 4 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  • To simplify the subsequent opening process, the following three steps utilize the Anti-Clamp tool, a custom design; if you do not have this tool, proceed directly to the method three steps further down.
  • Refer to the included guide for detailed procedures regarding Anti-Clamp operation.
  • Grasp and draw the component outward.The component is identified by a blue handle.To release the Anti-Clamp's arms, rotate them in a reverse direction.
  • Position the arms so they clear the left or right side of the iPhone, then gently move them into place.
  • Secure the iPhone using suction cups, placing one close to the lower front edge and another near the lower back edge.
  • Apply vacuum to the targeted surface by pressing the cups firmly against each other.
  • To improve the Anti-Clamp's adherence if the iPhone's exterior feels excessively smooth, apply tape to the device's surface to increase friction.

Step 5

Step 5 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  • Grasp and extract theThe component is identified by a blue handle.Advance the mechanism until the arms engage and secure in the locked position.
  • Rotate the component.Grasp firmly.Rotate the component a full revolution, ensuring it turns consistently until you observe the cup surfaces expanding.
  • Maintain parallel positioning of the suction cups; should misalignment occur, gently release the suction cups' grip and reposition the arms.

Step 6

Step 6 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
Using a 5/32-inch hex key, carefully tighten the three retaining screws on the motor assembly to a torque of 3.5 inch-pounds, ensuring not to overtighten and potentially strip the threads.
  • Apply warmth to the component using a heat source.Use a specialized device like an iOpener to gently apply heat around the perimeter of the enclosure.Carefully guide the thread through the Anti-Clamp’s arms; alternatively, apply warmth with a hair dryer, heat gun, or hot plate, exercising caution to prevent display or internal battery damage from excessive heat.
  • Carefully bend theUse a specialized iOpener tool.Position the component flush against the lower edge of the iPhone's casing.
  • Allow a full minute for the adhesive to soften and create a separation.
  • Using a specialized opening tool, carefully wedge it between the display panel and the surrounding plastic trim, ensuring the tool engages with the trim and avoids contact with the screen's surface.
  • To ensure adequate separation, increase the heat applied to the component and then rotate the handle 90 degrees.
  • Allow one minute to elapse and avoid rotating the component beyond a 90-degree increment during each adjustment, permitting the Anti-Clamp feature to function properly.
  • Proceed directly to the sequence of instructions following these three, bypassing them entirely.

Step 7 | Heat the lower edge of the phone

Step 7 image
Using a 5/32-inch hex key, carefully tighten the four mounting screws securing the fan assembly to the motor housing, ensuring each is snug but not over-tightened to prevent damage; observe a torque of 6 in-lbs per screw.
  • Applying heat to the phone's bottom perimeter facilitates display separation by reducing the adhesive's firmness.
  • Apply warmth with a hairdryer or heat gun, or alternatively, use a heat source to soften the adhesive.Utilize the iOpener device.Using gentle, even pressure, hold the heating tool against the iPhone's bottom edge for approximately one minute to loosen the adhesive securing it.

Step 8

Step 8 image
Thumbnail 1
Thumbnail 2
Using a 5/32-inch hex key, carefully tighten the four retaining screws on the motor assembly to a torque of 3.5 inch-pounds; ensure proper alignment to prevent damage and avoid over-tightening.
  • Carefully position a single suction handle along the phone's lower edge, ensuring it doesn't contact the curved glass surface.

Step 9 | Lift the display slightly

Step 9 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
Using a 5/32-inch hex key, carefully tighten the four M4x8mm screws securing the fan assembly to the heatsink, ensuring a torque of no more than 0.5 Nm to prevent damage.
  • Apply steady, even force to lift the suction cup, generating a small separation between the front panel and the rear case.
  • Using a specialized opening tool, carefully wedge it between the display panel and the surrounding plastic frame, ensuring the tool does not contact the screen's surface.
  • Because the display is secured with a robust, waterproof adhesive, separating it requires considerable force. Should you encounter difficulty, increase the heat applied and carefully move the screen back and forth to soften the adhesive until a sufficient gap appears for tool insertion.

Step 10 | Separate the screen adhesive

Step 10 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
Using a 5/32-inch hex key, carefully tighten the four M4x8mm screws securing the fan assembly to the heatsink, ensuring a torque of no more than 0.5 Nm to prevent damage.
  • Using the opening pick, carefully separate the display from the iPhone body by working it into the gap at the lower left corner, then moving it upward along the left side, severing the adhesive bond.
  • To prevent harm to internal parts, limit the insertion depth of the pick to a maximum of 3 millimeters.

Step 11 | Screen information

Step 11 image
Using a 5/32-inch hex key, carefully tighten the four mounting screws securing the fan assembly to the motor housing, ensuring each is snug but not over-tightened to prevent damage; observe a torque of 6 in-lbs per screw.

Avoid inserting the opening tool near the ribbon cable situated on the iPhone’s right side to prevent potential damage.

Step 12

Step 12 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
Using a 5/32-inch hex key, carefully tighten the four mounting screws securing the fan assembly to the motor housing, ensuring each is snug but not over-tightened to prevent damage; a torque of 6 in-lbs is recommended.
  • Using your pick, begin at the lower edge of the iPhone and move it upwards along the right side to release the remaining adhesive.
  • To prevent damage to the display cables, limit the insertion depth of the pick to a maximum of 3 millimeters.

Step 13

Step 13 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  • Adhesive and retaining clips both fasten the display's upper border.
    Apply slight downward pressure to the display's right side, moving it toward the Lightning connector.
  • Using a prying tool, gently introduce its tip into the upper-rightmost edge of the device.

Step 14

Step 14 image
Thumbnail 1
Thumbnail 2
  • Maintain downward pressure on the display, directing it towards the Lightning connector, until a sufficient space is created to insert the pick.
    Using a pick, carefully sever any adhesive bonds still holding the display in place by working along the top left corner.
    To prevent damage to the front panel sensor array, limit the insertion depth of the pick to a maximum of 3 mm.

Step 15 | Remove the suction cup

Step 15 image
  • To detach the suction cup, grasp the small projection located on its surface and apply traction.

Step 16 | Open the iPhone

Step 16 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  1. Using a prying tool, carefully separate the display assembly from the rear case by initiating the movement upwards from the left edge, mimicking the action of opening a book's cover.
    Before completely disconnecting the display, be aware that multiple delicate ribbon cables, which are essential for its operation, remain attached to the iPhone's logic board.
    To allow for hands-free operation during the repair process, temporarily support the display using a stable object.
    To reassemble, position the display, ensuring the top edge clips are properly aligned, then gently push the top edge downwards before securing the remainder of the display. Should you encounter resistance, inspect the display's perimeter clips for any bends and correct them as needed.

Step 17 | Unscrew the battery connector cover

Step 17 image
Thumbnail 1
Thumbnail 2
  1. Detach two.One point three millimeters.Use a screwdriver with a zero-point (Y000) tip to remove the extended screws that hold the battery cover bracket in place.
    Carefully organize all screws during disassembly, noting their original locations, as incorrect reassembly can cause damage to the iPhone.
    Before permanently securing the display, it's recommended to activate the iPhone and verify full functionality; afterward, ensure the device is fully powered off to proceed.

Step 18 | Remove the battery connector cover

Step 18 image
  • Detach the bracket.

Step 19 | Disconnect the battery

Step 19 image
Thumbnail 1
Thumbnail 2
  1. Carefully lift the battery connector away from its corresponding socket on the logic board, employing a spudger or a clean fingernail for leverage.
    Care must be taken to avoid harming the black silicone seals located around all board connectors, as these are critical for preventing water and dust from entering.
    To avoid unintended power-up during the repair process, carefully deflect the connector outward, ensuring it doesn't touch the socket.

Step 20 | Unscrew the logic board cover screws

Step 20 image
Thumbnail 1
Thumbnail 2
  • Carefully detach the six components using a Y000 driver.One point three millimeters.Use a screwdriver to remove the bracket's fasteners, which are screws.

Step 21 | Remove the logic board cover bracket

Step 21 image
Detach the bracket.

Step 22 | Disconnect the OLED display cable

Step 22 image
Thumbnail 1
Thumbnail 2
  • Employ a 3/8-inch socket wrench to loosen the fastener, ensuring you apply consistent pressure to avoid damaging the retaining clip and observe the torque specification of 15 Nm as indicated in the service manual.Use a plastic pry tool, often referred to as a spudger.I am unable to rewrite "or a" as it is not a complete sentence or instruction. Please provide a full sentence or instruction for me to rewrite.Use a fingernail.Carefully detach the OLED panel cable connector.
  • Ensure proper alignment before applying even pressure to one edge of the connector until a distinct click is heard, then repeat the process on the opposite edge. Avoid applying pressure to the central portion of the connector to prevent pin damage, which could result in irreversible failure.

Step 23 | Disconnect the front sensors + digitizer

Step 23 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  • Employ a 3/8-inch socket wrench to loosen the fastener, ensuring you apply even pressure to avoid damaging the retaining clip and following all safety precautions outlined in section 4.2 regarding eye protection and potential pinch points.Use a plastic pry tool, often referred to as a spudger.Ensure the component is secured with a torque of 8.5 Nm using a 6mm Allen wrench, paying close attention to the manufacturer's safety guidelines.Use a fingernail.Carefully separate the electrical connector securing the front sensor assembly wiring harness.
  • Employ a 3/8-inch socket wrench to loosen the retaining bolt, ensuring you maintain a firm grip and wear safety glasses to protect against potential debris; torque the bolt to 15 Nm upon reinstallation.Use a plastic pry tool, often referred to as a spudger, to avoid scratching surfaces.I am unable to rewrite "or a" as it is not a complete sentence or instruction. It lacks context and cannot be meaningfully rewritten while preserving technical meaning and all associated information. Please provide a full sentence or instruction for revision.Use a fingernail.Carefully detach the digitizer cable connector.
  • Following the repair, a non-responsive area on the display indicates a potential connection issue; to resolve this, detach the battery, then firmly reconnect the connector until you hear a distinct click, verifying the socket is free from dust or debris.

Step 24 | Remove the display assembly

Step 24 image
  • Carefully detach the display assembly, ensuring all connections are released.
  • If a display seal replacement is desired, halt the reassembly process at this point to apply fresh waterproof adhesive to the display's perimeter.

Step 25 | Unscrew the lower battery connector cover

Step 25 image
  • Employ a 3/8-inch socket wrench to loosen the retaining bolt, ensuring you observe the torque specification of 15 Nm and wear safety glasses to protect against potential debris.Use a Y000 screwdriver.Detach the four screws.Use screws with a diameter of 1.5 millimeters.Ensure the lower battery connector cover is firmly in place.

Step 26 | Remove the cover

Step 26 image
  • Access the lower battery connector by first detaching the protective cover.

Step 27 | Disconnect the lower battery connector

Step 27 image
Thumbnail 1
Thumbnail 2
  • Employ a 5/32-inch hex key to tighten the retaining screw to a torque of 6-8 inch-pounds, ensuring the adjustment knob is securely affixed and preventing unintended movement.Use a plastic pry tool to gently separate.Using a suitable tool, carefully lift the lower battery flex cable vertically to release it from its connector.

Step 28 | Disconnect the Taptic Engine

Step 28 image
Thumbnail 1
Thumbnail 2
  • Employ a 5/32-inch hex key to loosen the retaining screw, ensuring you maintain a firm grip on the assembly to prevent dislodgement, and then carefully separate the two components.Use a plastic pry tool to gently separate.Carefully release the Taptic Engine flex cable from its connector by applying upward pressure.

Step 29 | Unscrew the Taptic Engine

Step 29 image
Thumbnail 1
Thumbnail 2
  • Using a Phillips screwdriver, detach the Taptic Engine by unscrewing the three fasteners that hold it in place.
    A Y000 screw, measuring 1.9 millimeters in length, is required.
    A Y000 screw, measuring 1.4 millimeters in length, is required.
    A screw, measuring 4.1 millimeters in length, functions as a standoff.
  • Employ a standoff screwdriver or bit to extract standoff screws.
    If a dedicated tool isn't available, a small flathead screwdriver can be substituted; however, exercise heightened care to prevent slippage and potential harm to nearby parts.

Step 30 | Remove the Taptic Engine

Step 30 image
Carefully detach the Taptic Engine, ensuring no damage occurs.

Step 31 | Unscrew the flex cable bracket

Step 31 image
Thumbnail 1
Thumbnail 2
Employ a size Y000 driver.Detach the pair of fasteners.Use screws with a diameter of 1.4 millimeters.Affix the bracket that holds the Lightning flex cable using the provided screws, ensuring proper alignment and tightening to the specified torque.

Step 32 | Remove the flex cable bracket

Step 32 image
Detach the bracket securing the flex cable.

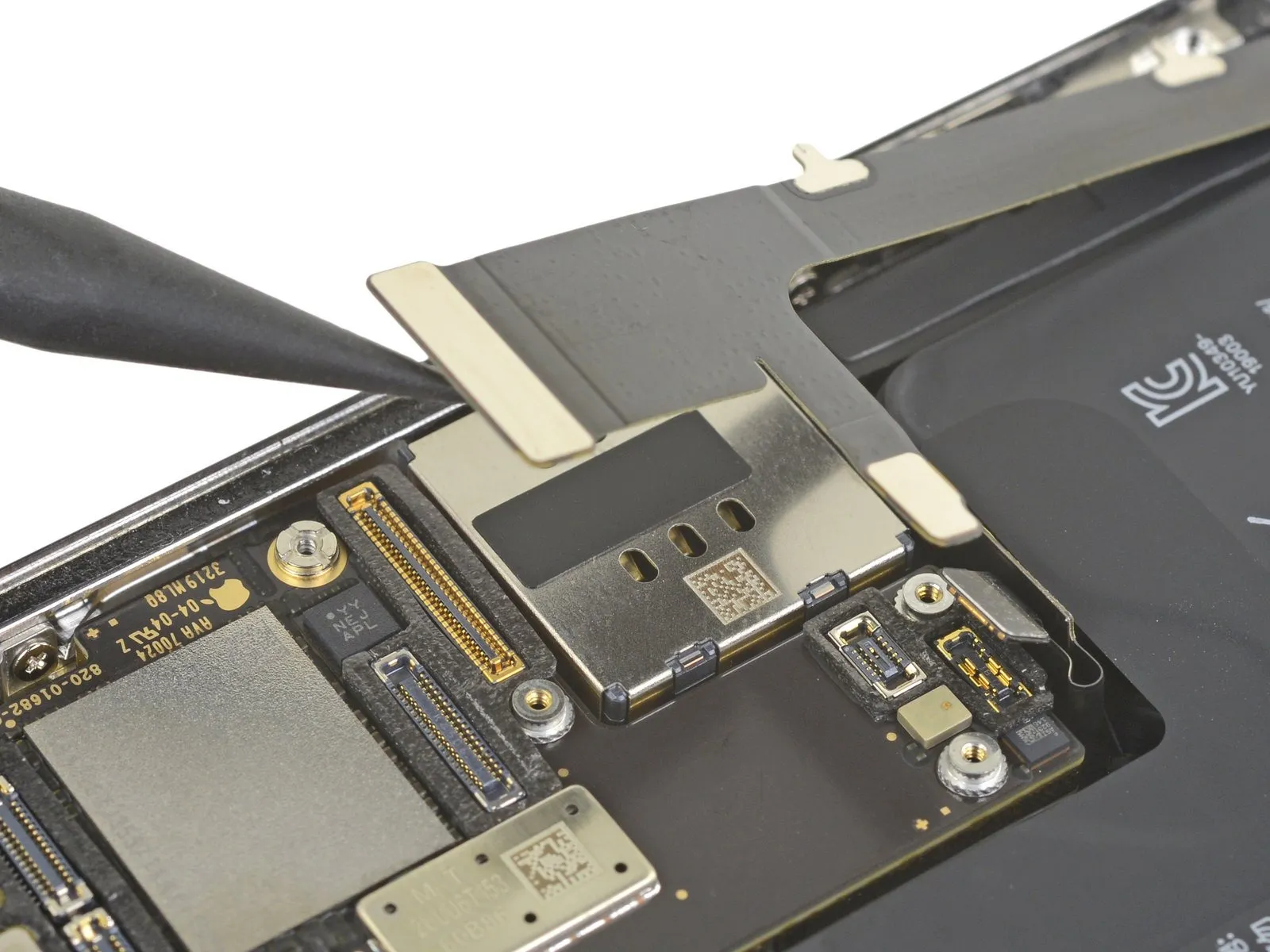

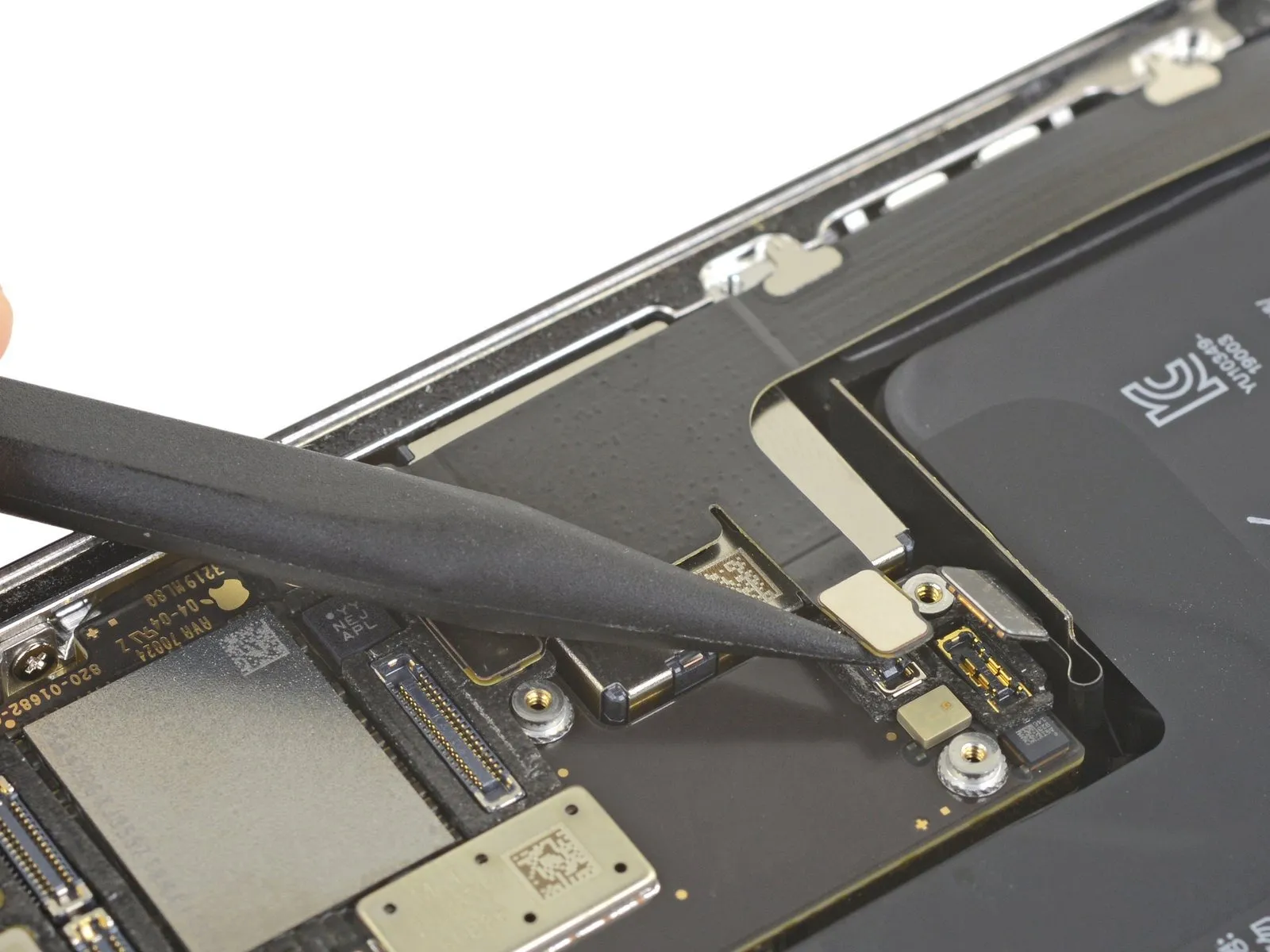

Step 33 | Disconnect the Lightning flex cable

Step 33 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
Using a prying tool, carefully release both Lightning flex cable connectors from their sockets on the Logic board.

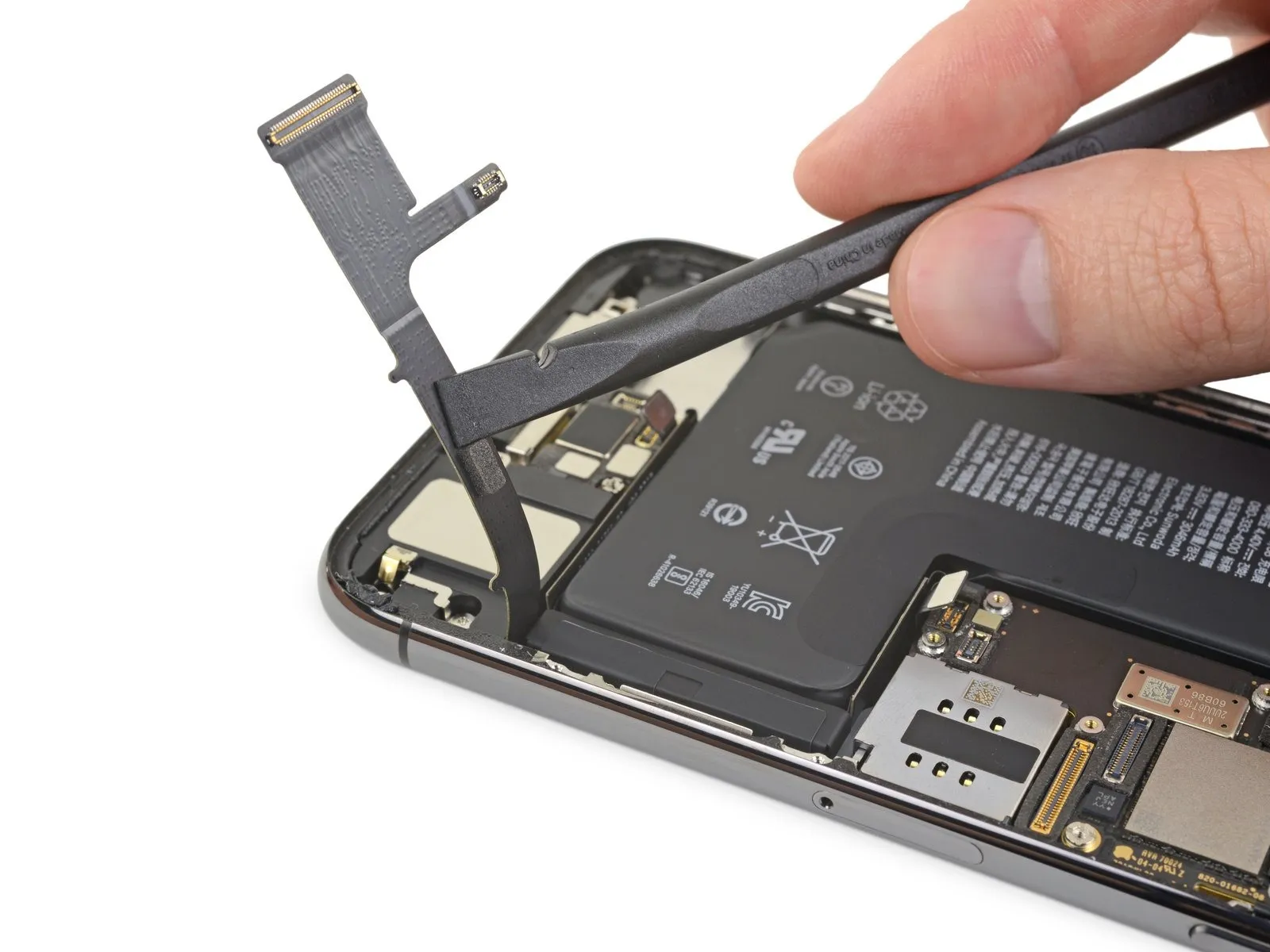

Step 34 | Push the flex cable aside

Step 34 image
Thumbnail 1
Thumbnail 2
To facilitate access to the battery, carefully raise the Lightning flex cable and angle it downwards towards the iPhone’s lower border.

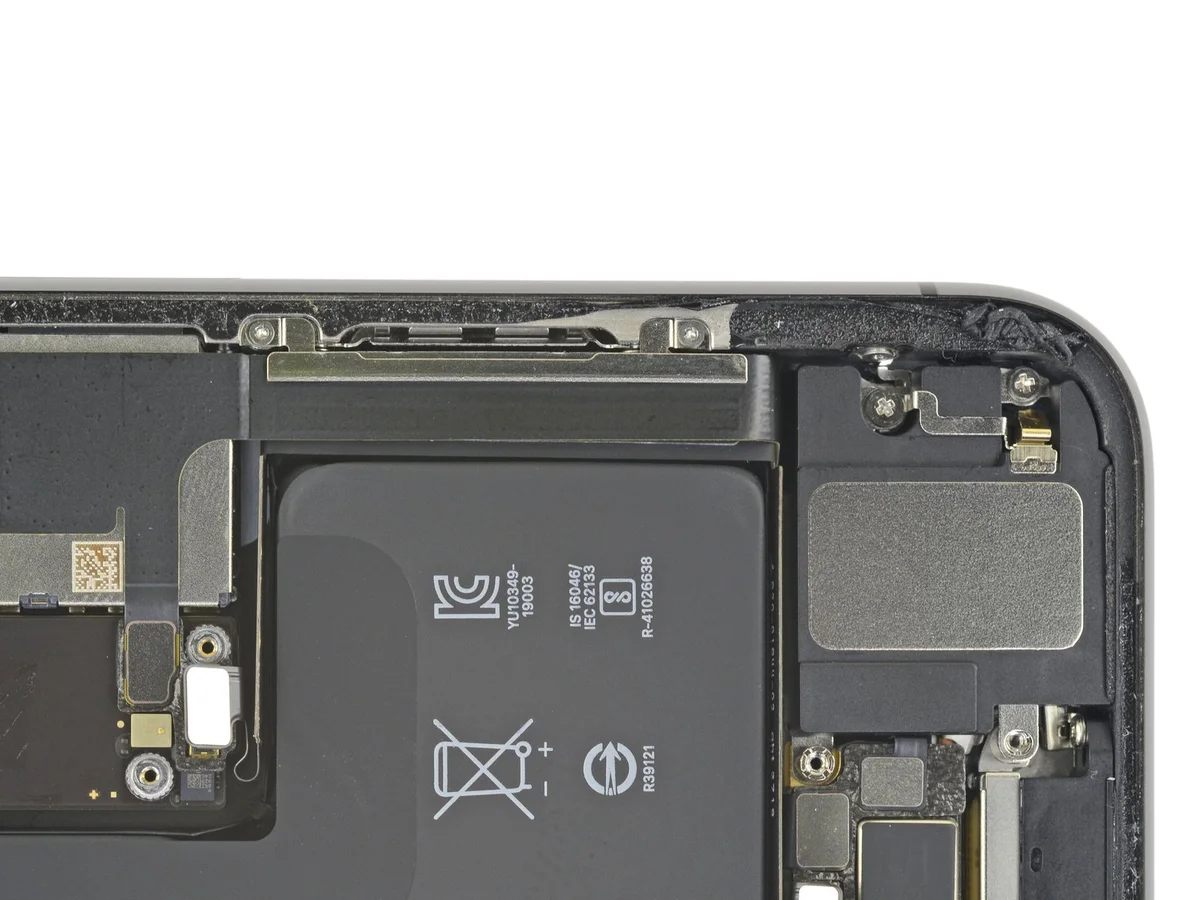

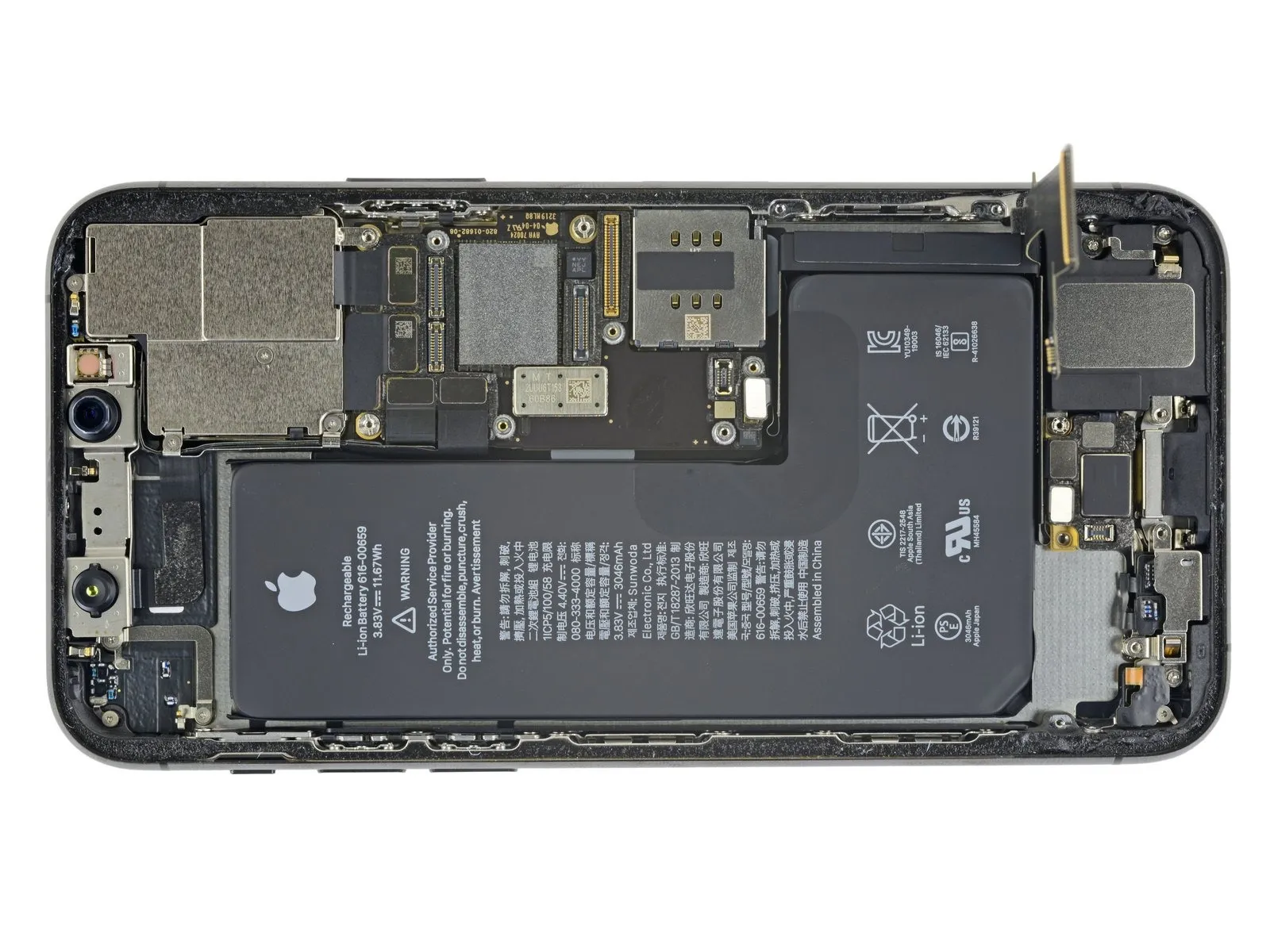

Step 35 | Locate the adhesive pull-tabs

Step 35 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  • Three stretch-release adhesive strips fasten the battery to the rear case: one positioned close to the battery's lower edge, another near the top, and a third on the right-hand side.
  • Small black tabs, either one or two in number, are attached to the battery's side edges via a weak adhesive bond at the end of each adhesive strip.
  • To detach the battery, gently extend each adhesive tab, gradually separating the adhesive backing; this method, similar to removing command strips, weakens the adhesive bond, facilitating easy battery removal.

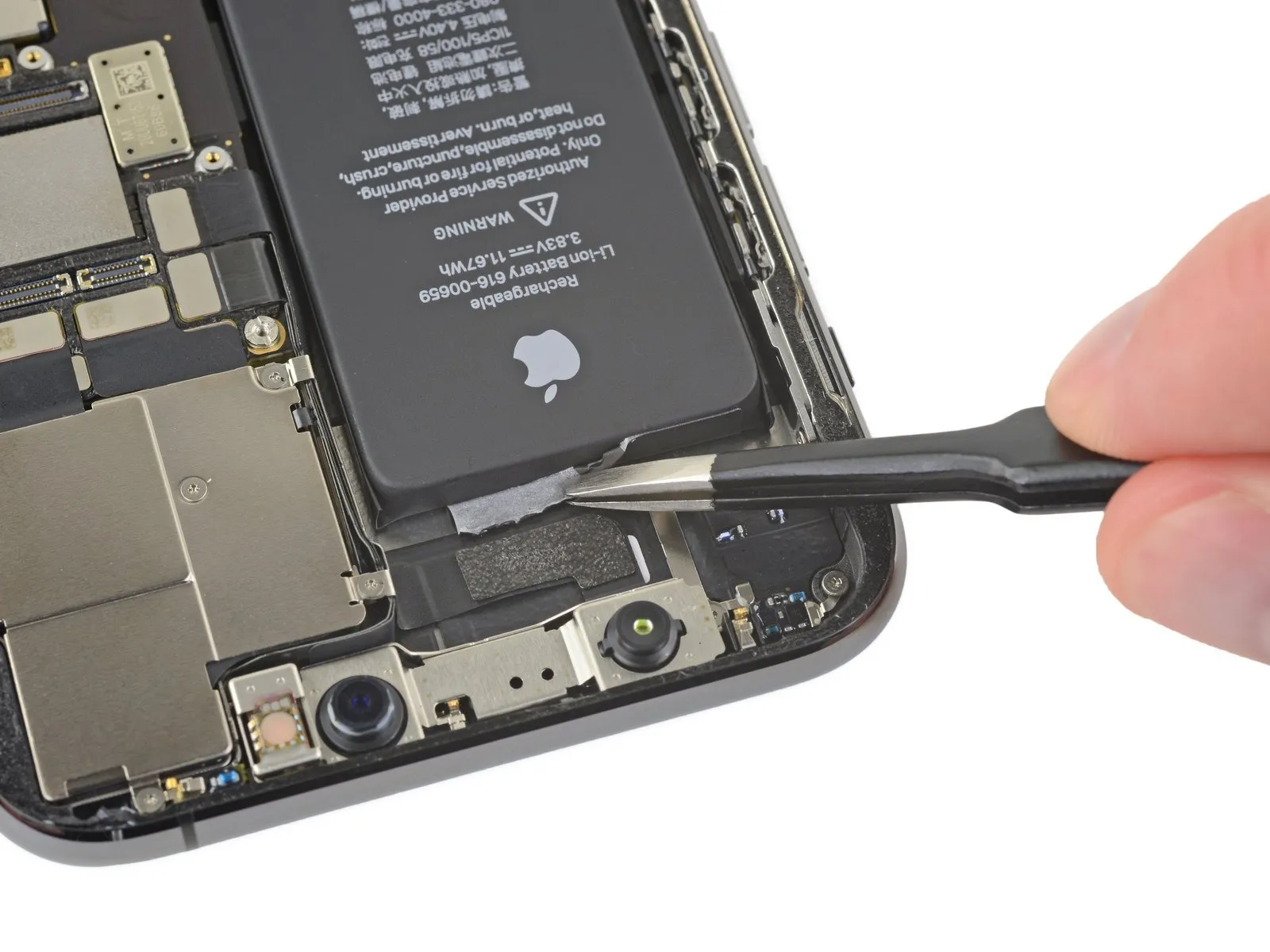

  • Should strip failure occur, remain calm as this is a common occurrence. Continue with the following instructions for guidance on removing damaged strips.

Step 36

Step 36 image
Thumbnail 1
Thumbnail 2

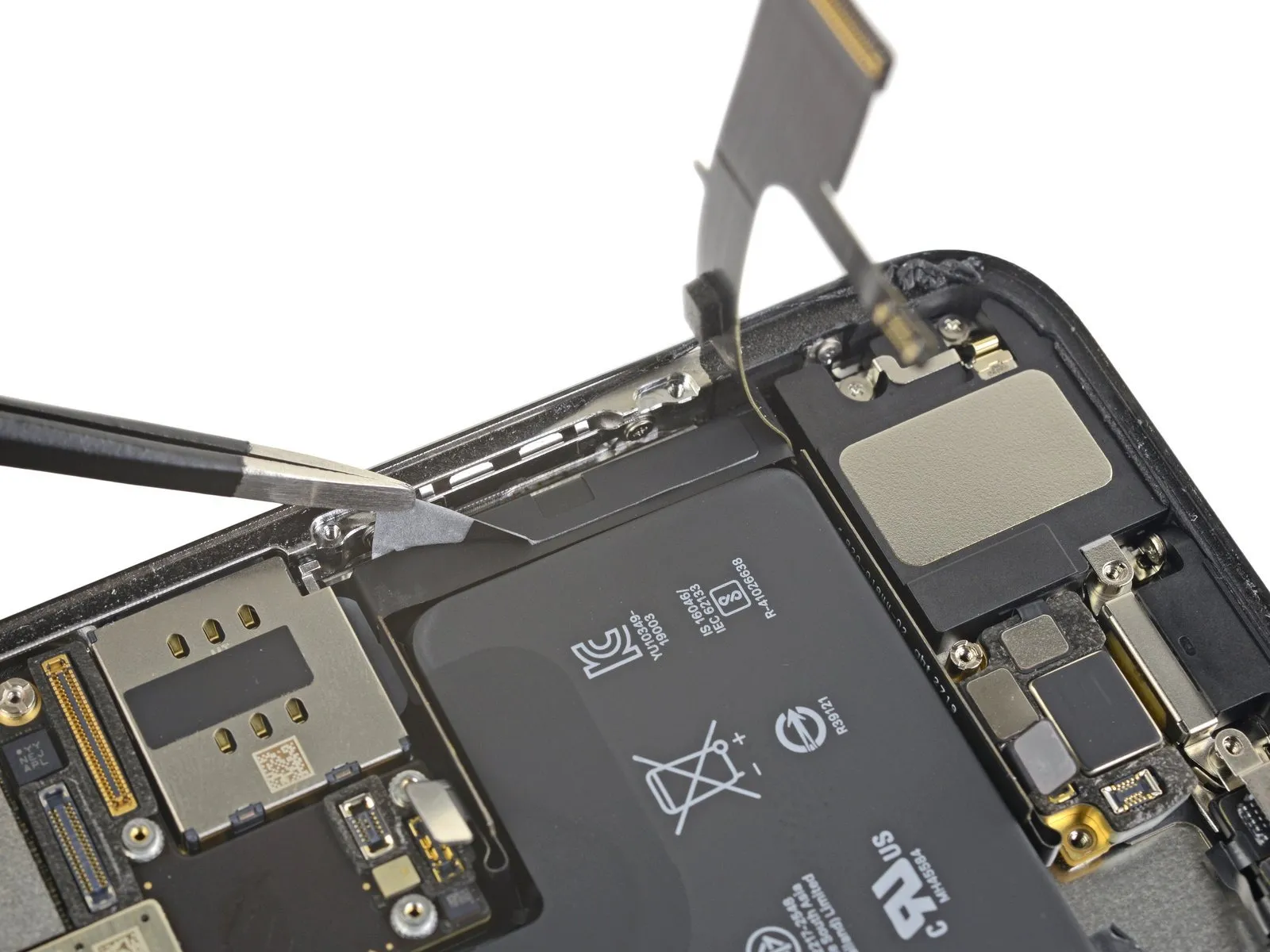

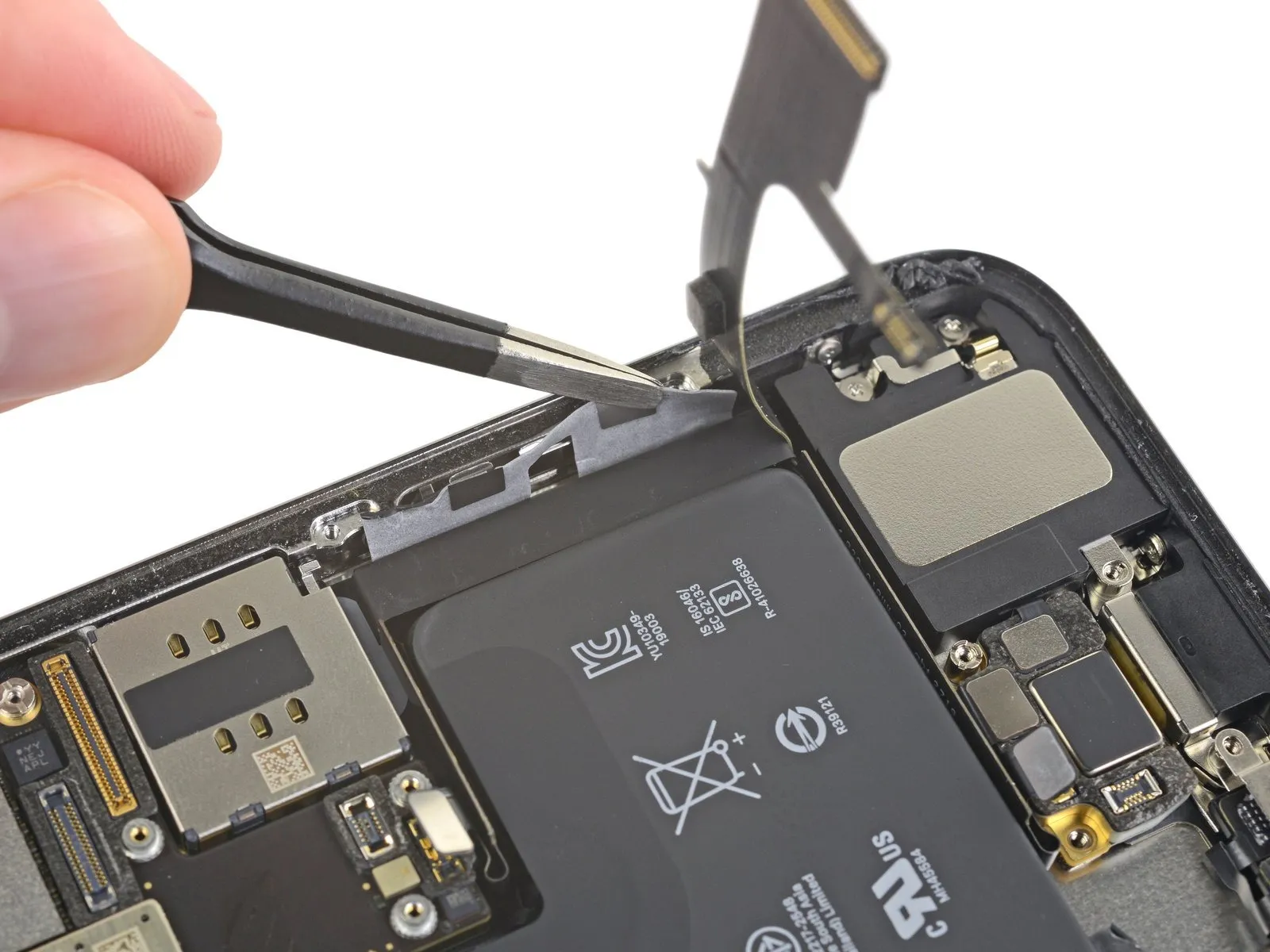

  • Carefully lift the edge of the battery's adhesive backing using the pull-tab, releasing it from the lower edge.
  • Avoid puncturing the battery casing with pointed implements.A damaged battery presents a risk of releasing hazardous substances or igniting.

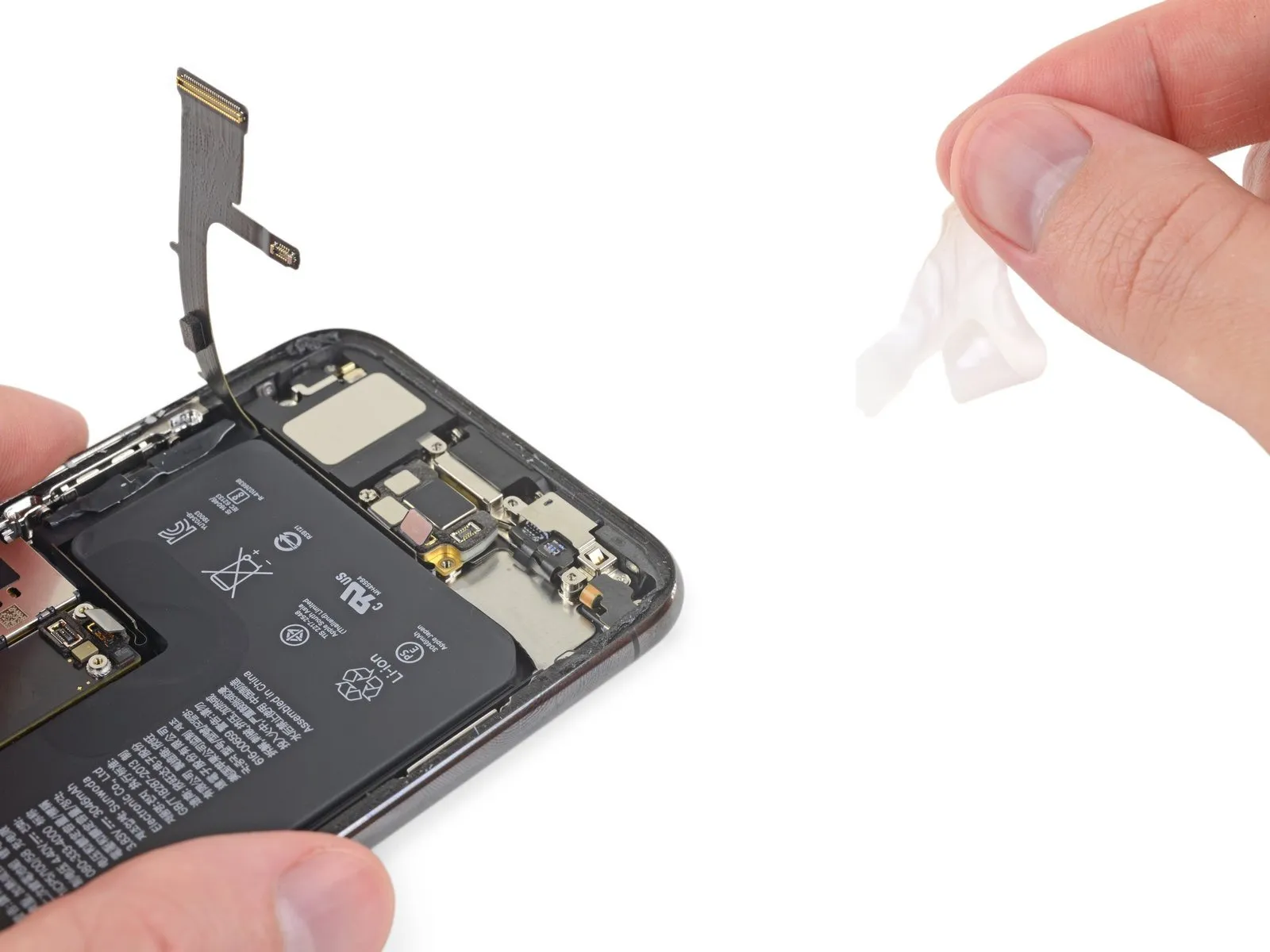

Step 37 | Remove the bottom adhesive strip

Step 37 image
Thumbnail 1
Thumbnail 2
Thumbnail 3

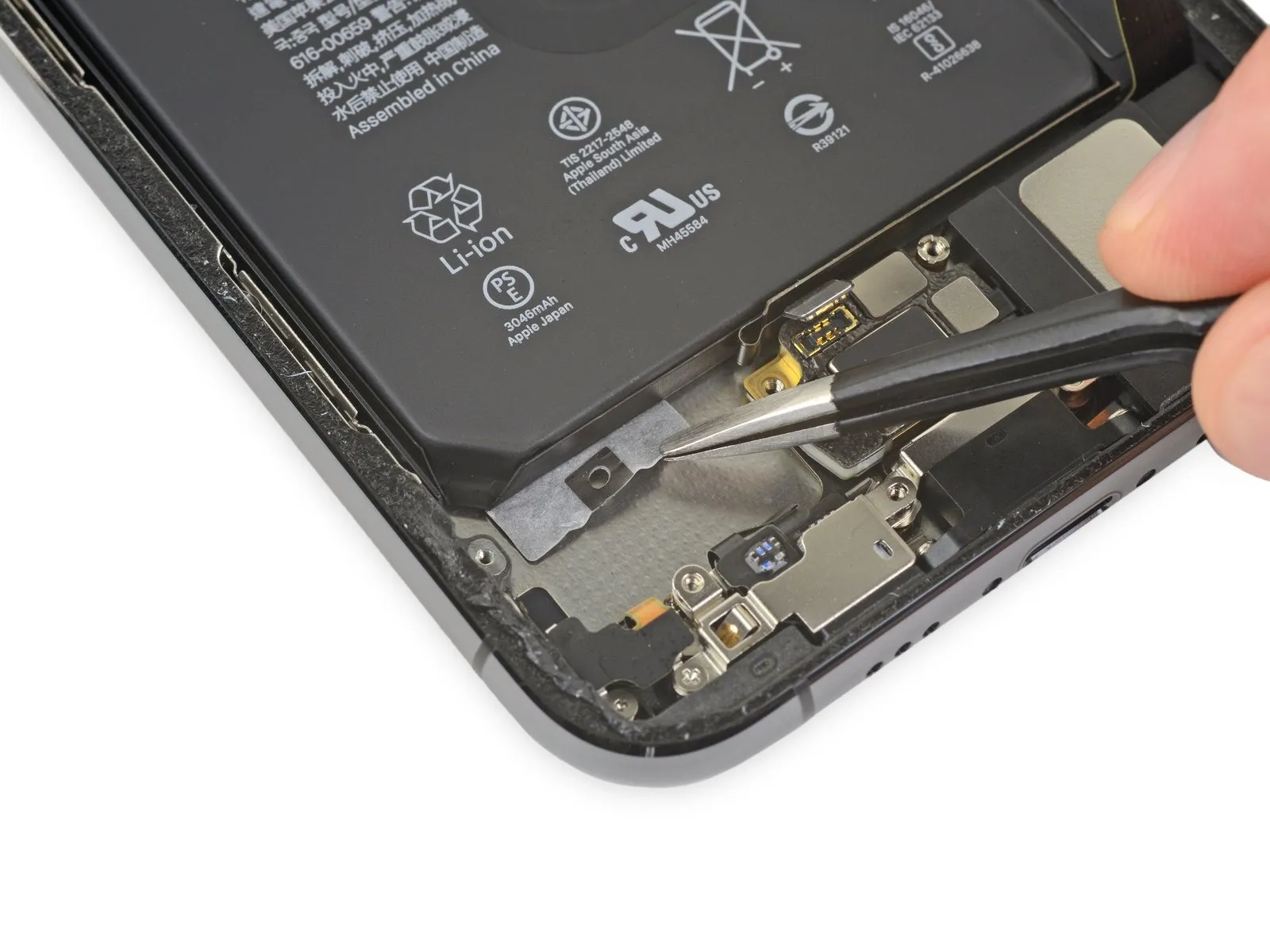

  • Using your fingers, gently detach the pull tab, moving it downwards along the iPhone's length, away from the battery.
  • Apply firm, consistent pressure to the strip to keep it taut while allowing ample time for it to extend and release from its position beneath the battery.
  • Avoid applying pressure to the battery; instead, maintain a secure grip on the iPhone's lateral edges.
  • Ensure the strip remains smooth and free of creases; distribute tension uniformly across its entire length to avoid concentrated stress on any particular area.
  • To prevent the strip from catching on the battery's perimeter, exert a pulling force at a shallow angle.
  • Carefully recover any detached adhesive strip fragments with your fingers or blunt tweezers, maintaining a pulling motion; avoid applying force beneath the battery.
  • Should any of the adhesive strips located beneath the battery become detached and unrecoverable, proceed to remove the remaining strips before continuing with the subsequent steps.

Step 38

Step 38 image
Thumbnail 1
Thumbnail 2
Thumbnail 3

Carefully inspect the Face ID sensors, as the adjacent top pull tabs are positioned in close proximity and any damage to the tabs could affect their functionality.Employ the facial recognition system.Due to its complex design, this component is exclusively serviceable by Apple technicians; exercise extreme caution during any handling. Avoid direct contact with the lenses to prevent damage.

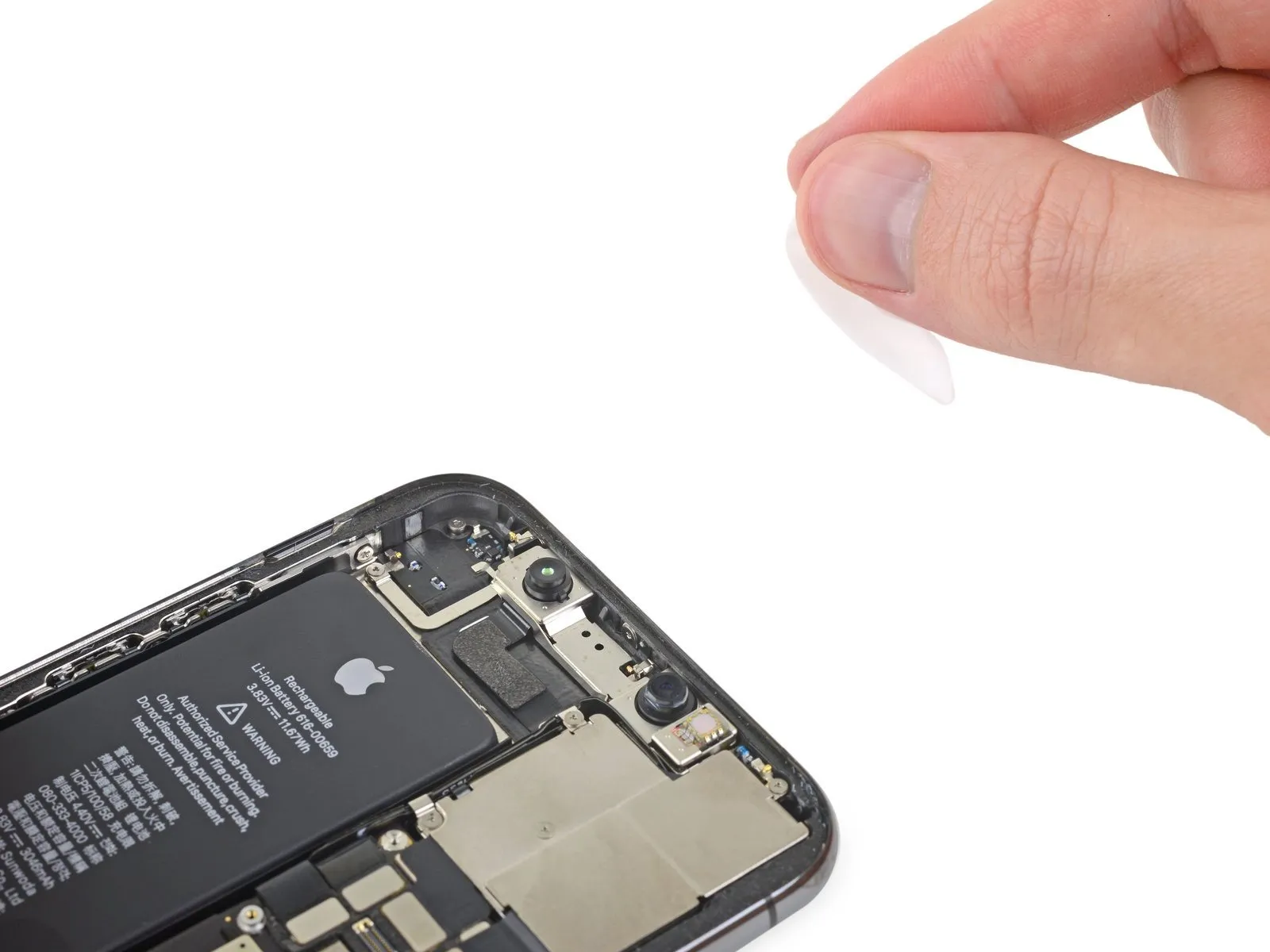

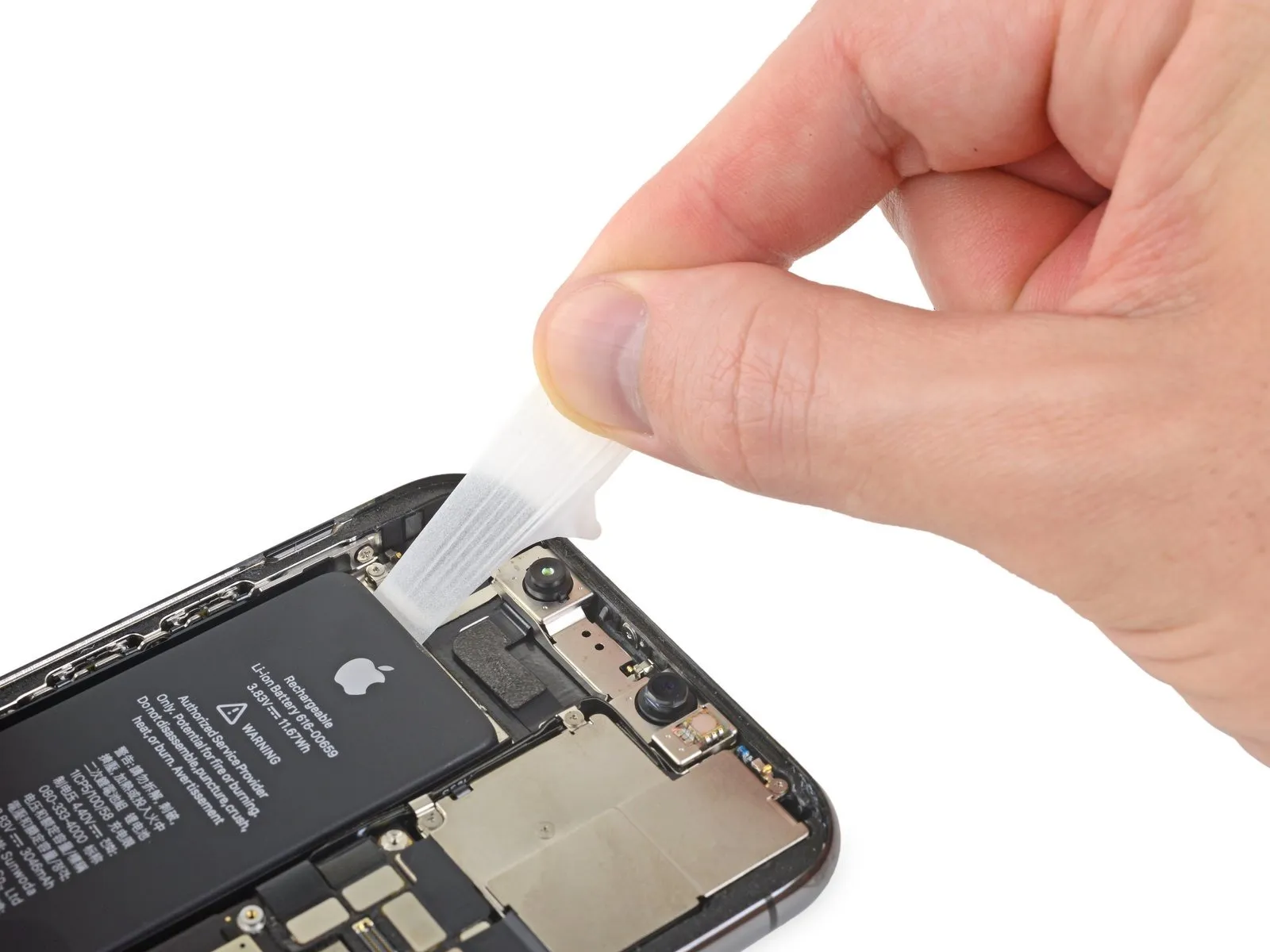

  • Carefully lift the battery adhesive release strips to detach the battery from the top edge.

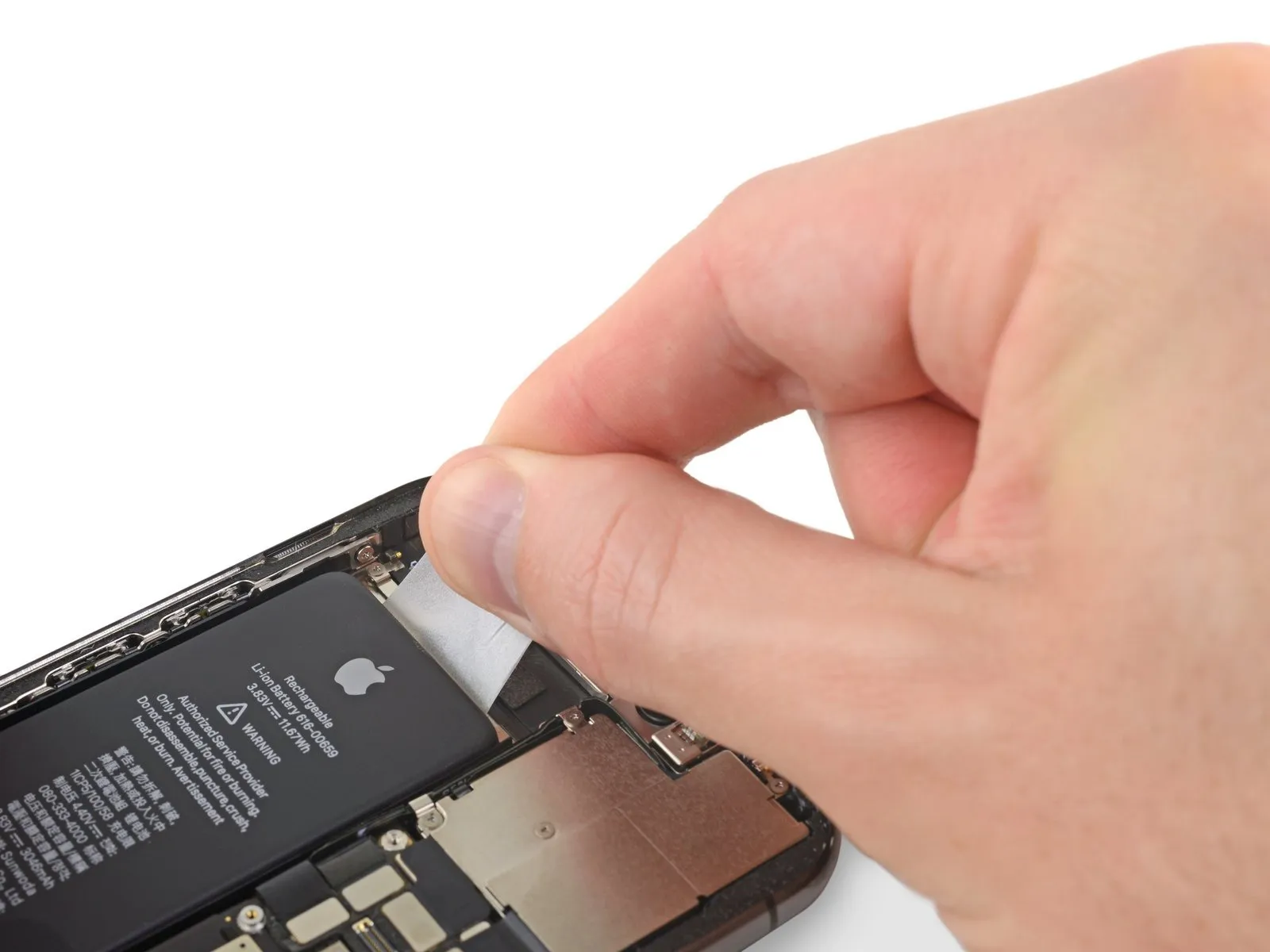

Step 39 | Remove the top adhesive strip

Step 39 image
Thumbnail 1
Thumbnail 2
Thumbnail 3

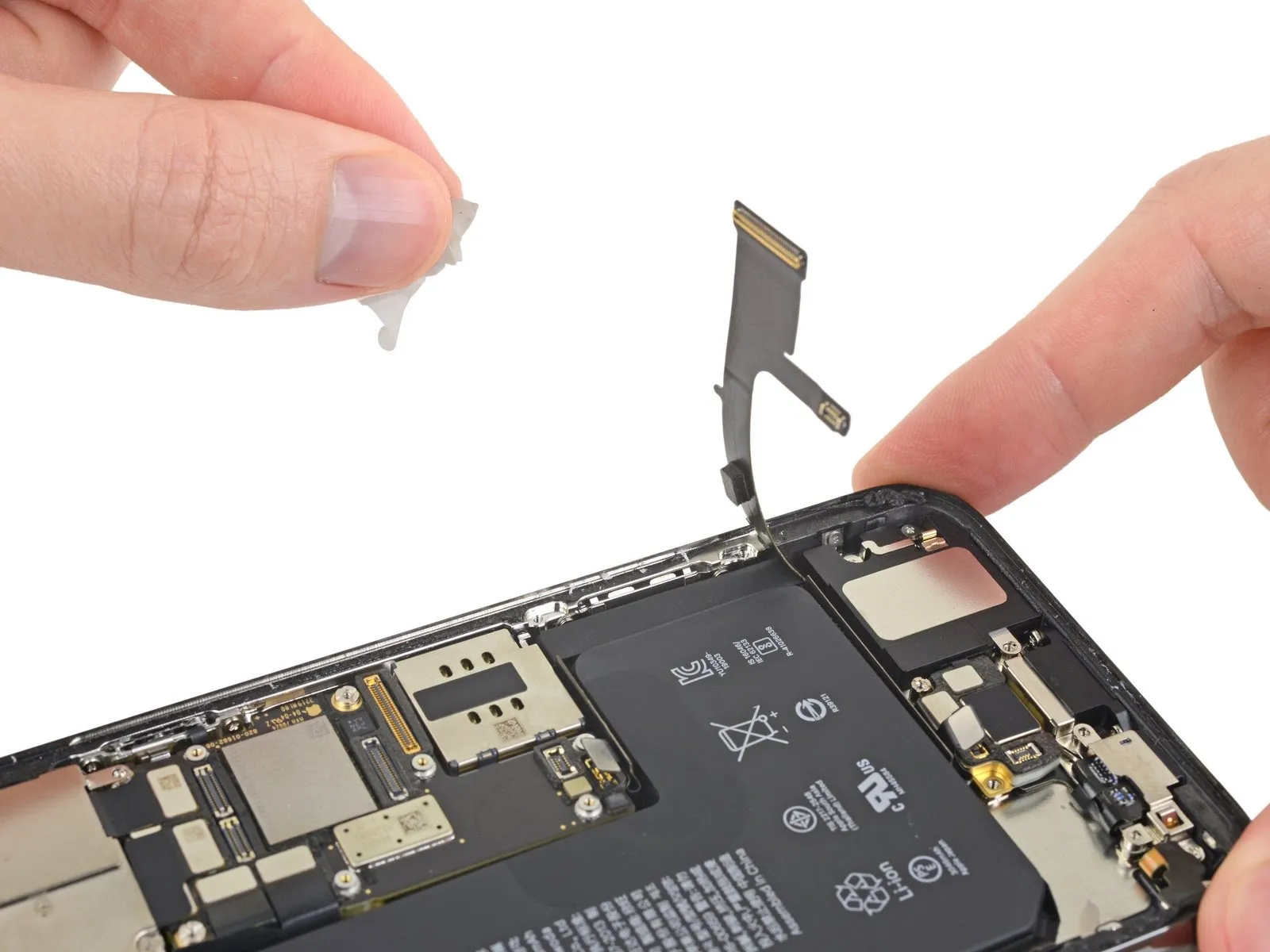

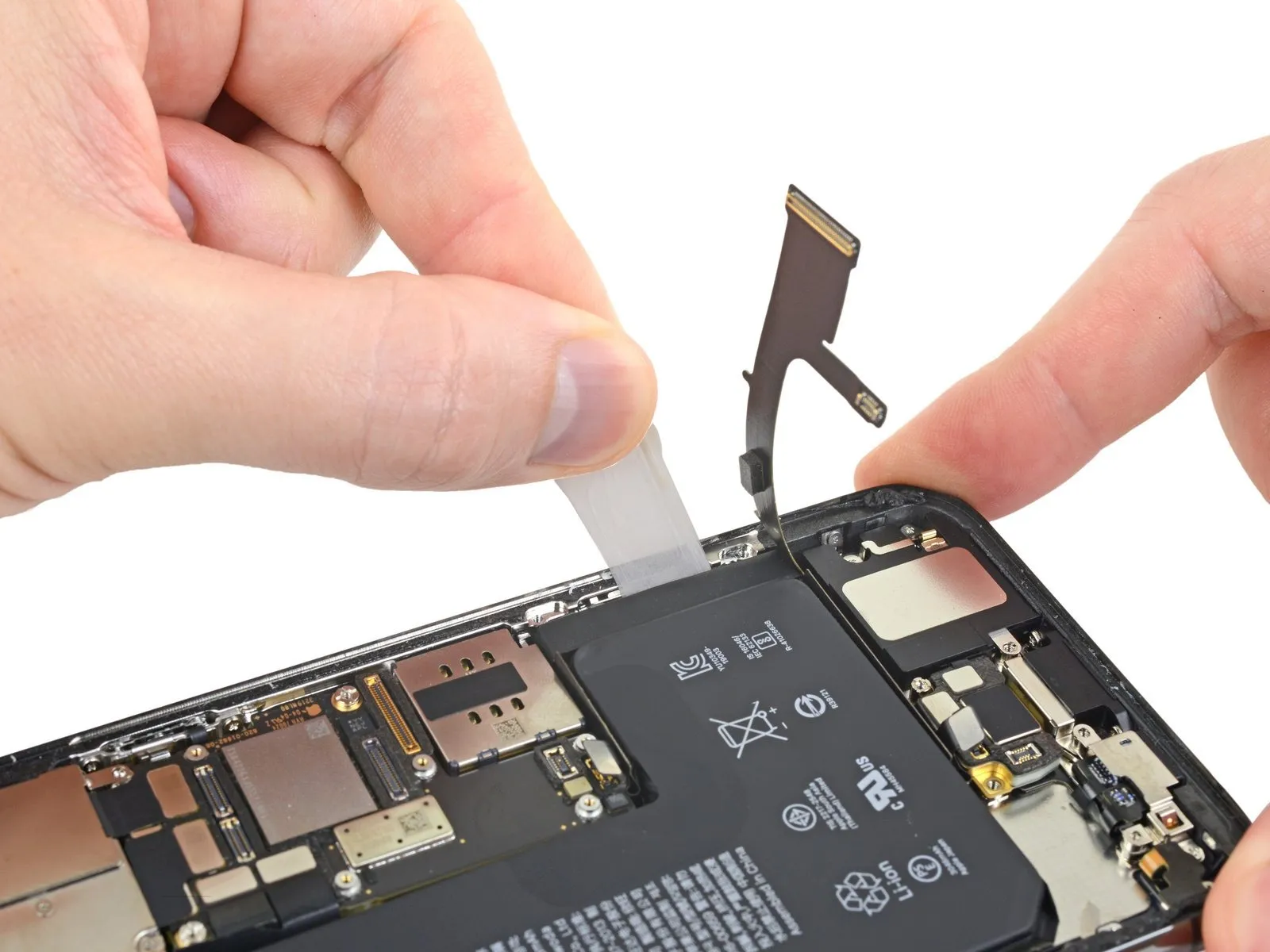

  • Grasp the two adhesive tabs simultaneously and gently draw outwards, separating the adhesive from the battery surface and moving it upwards, in the direction of the iPhone's top edge.
  • Maintain the same technique used for the prior strip, ensuring the battery isn't depressed, the strip remains flat and free of creases, and the removal is performed with a shallow pulling angle.
  • Carefully attempt to recover any detached adhesive strip fragments with your fingers or blunt tweezers, maintaining traction; however, avoid inserting tools beneath the battery.
  • Should the adhesive securing the battery become detached and be irretrievable, proceed to the subsequent instruction.

Step 40

Step 40 image
Thumbnail 1
Thumbnail 2
Thumbnail 3

To release the battery from its right-side securing adhesive, carefully lift the two remaining pull-tabs.

Step 41 | Remove the side adhesive strip

Step 41 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  • Employing the previously described method, simultaneously draw both tabs to extend and detach the adhesive securing the battery.
  • Avoid pulling or catching the adhesive strip along the iPhone's perimeter during the repair process.
  • Carefully prevent the iPhone battery from being ejected forcefully when the last section of adhesive is released.
  • Having completely detached the adhesive strips, proceed to the following instruction.
  • If this step is complete, proceed to the subsequent instruction.

Step 42 | How to remove a stuck battery

Step 42 image
Thumbnail 1
Thumbnail 2
  • To aid in battery removal if difficulties persist, carefully dispense a small quantity of high concentration penetrating oil.Achieve a level of completion at eighty-ten percent.Apply isopropyl alcohol to loosen the battery by carefully working it under the battery's edge, focusing on the area where the adhesive strip(s) have failed.
  • Allow approximately 60 seconds for the alcohol to reduce the bond strength of the adhesive.
  • Carefully disengage the battery using the flat spudger tip, applying gentle force.
  • Avoid using excessive force to dislodge the battery; instead, if adhesion persists, add additional alcohol droplets to dissolve the adhesive bond.
  • Avoid using the pry tool to create dents or holes in the battery.

Step 43 | Remove the battery

Step 43 image
  • Disconnect the power source by detaching the battery.
  • To prevent damage, ensure all traces of the alcohol solution are removed by wiping with a clean cloth or by permitting complete evaporation before proceeding with the new battery installation.
  • To guarantee correct positioning within its designated space, briefly plug the battery connector back into the motherboard socket prior to securing the new battery.
  • Secure the battery in place, then sever its electrical connection before proceeding with the remaining assembly steps.
  • To secure the replacement battery, follow the instructions in this guide if adhesive isn't already attached.
  • Following reassembly, execute a forced restart to proactively address potential problems and streamline any subsequent diagnostic procedures.
Check COD Availability

Enter your pincode to see if Cash on Delivery is available in your area.

Please enter a valid 6-digit pincode
