iPhone 11 Pro Max Rear-Facing Cameras Replacement

Employ this instructional document for the procedure of detaching and substituting the rear-facing camera assembly on the iPhone 11 Pro Max.iPhone 11 Pro MaxThe complete set of three camera lenses is exchanged concurrently, functioning as an integrated component.

Step 1 | Remove the pentalobe screws

Step 1 image
Thumbnail 1
Thumbnail 2
  • To start the repair process, ensure your iPhone's battery has been depleted to a level below 25%.A fully charged lithium-ion batteryposes a fire hazard and potential explosion risk if it is accidentally damaged.
  • Deactivate your iPhone by powering it down prior to commencing the disassembly process.
  • Utilize a screwdriver to extract the pair of pentalobe screws, each measuring 6.7 mm in length, located along the iPhone's lower edge.
  • Separating the iPhone's display assembly will damage the integrated waterproof barriers; therefore, prepare replacement seals beforehand, or exercise extreme caution to prevent moisture ingress if you intend to reassemble the iPhone without new seals.

Step 2 | Mark your opening picks

Step 2 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  • To avoid potential harm to your device, ensure the opening pick isn't inserted beyond its intended depth; this procedure details how to mark the pick to safeguard against such damage.
  • Determine the measurement of3 mmfrom the pick's leading edge and use a permanent marker to create a visible indicator on the opening pick.
  • For enhanced precision, consider marking the other corners of the pick with varying measurements as well.
  • As another option, affix a coin to the pick's shaft,3 mmaway from its tip.

Step 3 | Tape over any cracks

Step 3 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  • To minimize additional damage and potential injury while repairing a fractured iPhone display, secure the glass fragments with adhesive tape.
  • Apply multiple layers of transparent packing tape across the iPhone's screen surface, ensuring complete coverage of the entire front face.
  • Always utilize protective eyewear to guard against glass shards that may become dislodged during the repair process.
  • Should the suction cup fail to maintain adhesion during subsequent procedures, create a handle by folding a robust adhesive strip, like duct tape, and employ this to gently raise the screen.
  • As a last resort, secure the suction cup to the display surface using superglue to ensure a firm grip.

Step 4 | Anti-Clamp instructions

Step 4 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  • The following three actions showcase the Anti-Clamp, a specialized tool developed to simplify the initial opening process; if you choose not to utilize this tool, proceed past three steps to find an alternative approach.
  • Detailed instructions regarding the operation of the Anti-Clamp are available in a separate, dedicated guide.
  • Grasp theblue handleand move it in a rearward direction to release the Anti-Clamp's gripping arms.
  • Carefully position the arms across either the left or right side of your iPhone.
  • Place the suction cups close to the lower edge of the iPhone, ensuring one is situated on the front surface and the other on the rear.
  • Apply pressure by compressing the cups together to establish a secure suction hold on the intended area.
  • Should the iPhone's surface prove excessively slick, preventing the Anti-Clamp from maintaining a firm grip, applying adhesive tape can generate a more textured surface for improved adhesion.

Step 5

Step 5 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  • To engage the locking mechanism, draw theblue handlein a forward direction.
  • Rotate thehandlethrough a complete rotation of 360 degrees, or continue until you observe the suction cups beginning to deform.
  • Maintain proper alignment of the suction cups with one another; should they become misaligned, gently release the suction cups and reposition the arms.

Step 6

Step 6 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  • Employ heat using aniOpenerand carefully guide it between the iPhone's side components of the Anti-Clamp.
    Alternative heat sources, such as a hair dryer, heat gun, or hot plate, are acceptable; however, exercise caution as excessive temperatures may compromise the display or internal battery.
  • Position theiOpenerin a folded position, ensuring it rests along the lower edge of the iPhone's casing.
  • Allow a sixty-second interval to permit the adhesive to soften and create a separation.
  • Introduce an opening pick into the newly formed space located beneath the display and the plastic frame, being careful to avoid direct contact with the screen's surface.
  • Should the Anti-Clamp not generate a satisfactory separation, increase the heat applied to the area and rotate the handle by ninety degrees.
    Limit handle rotations to increments of ninety degrees, and observe a sixty-second pause between each adjustment, allowing the Anti-Clamp and time to facilitate the separation process.
  • Proceed past the following three instructions.

Step 7 | Heat the lower edge of the phone

Step 7 image

Applying warmth to the iPhone's bottom perimeter assists in loosening the adhesive that holds the display in place, which simplifies the opening process.
Employ ahairdryerorheat gunor alternatively, utilize aniOpenerand direct its heat towards the iPhone's lower edge for approximately one minute to reduce the adhesive's tackiness.

Step 8

Step 8 image
Thumbnail 1
Thumbnail 2

When employing a solitary suction handle, position it against the lower perimeter of the device's frame, ensuring you do not contact the rounded glass surface.

Step 9 | Lift the display slightly

Step 9 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  • Apply steady, consistent upward force to the suction cup to generate a small separation between the front panel assembly and the device's rear casing.
  • Introduce an opening tool into the newly formed separation.
  • The display is secured by a robust, waterproof adhesive; establishing this initial separation requires considerable force. Should you encounter difficulty, apply additional heat and gently oscillate the screen in an upward and downward motion to reduce the adhesive's strength, enabling sufficient gap creation for tool insertion.

Step 10 | Separate the screen adhesive

Step 10 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  • Carefully maneuver the opening pick along the bottom-left perimeter of the iPhone, progressing upwards along the left side, to sever the adhesive securing the display assembly.
  • Ensure the pick's insertion depth remains limited to3 mmto prevent potential harm to delicate internal components.

Step 11 | Screen information

Step 11 image

A fragile cable runs along the right side of your iPhone; avoid inserting your opening tool in this area to prevent potential cable damage.

Step 12

Step 12 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  • To proceed with separating the adhesive, re-position your opening pick along the lower edge of the iPhone's casing, then slide it upwards along the right side.
  • Ensure your pick's insertion depth remains limited to3 mmto prevent potential harm to the delicate display cable connections.

Step 13

Step 13 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  • Adhesive and retaining clips together fasten the display's uppermost border.
    Carefully exert a slight downward force on the display's right side, moving it toward the Lightning connector.
  • Position a specialized opening tool within the upper-right corner of the device's casing.

Step 14

Step 14 image
Thumbnail 1
Thumbnail 2
  • As necessary, maintain downward pressure on the display, directing it towards the Lightning port, to create a sufficient separation for tool insertion.
    Employ the pick to move towards the upper left corner, severing any residual adhesive that is holding the display in place.
    Ensure the pick's insertion depth remains under 3 millimeters to prevent potential harm to the front panel sensor array.

Step 15 | Remove the suction cup

Step 15 image
  • To detach the suction cup from the front panel, grasp and exert force on the small protrusion located on its surface.

Step 16 | Open the iPhone

Step 16 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  1. To access the internal components of the iPhone, initiate the opening process by pivoting the display upwards from the left side, employing a motion similar to opening a book's cover.
    Refrain from completely disconnecting the display at this stage, because multiple delicate ribbon cables remain attached, linking it to the iPhone's main circuit board.
    Secure the display in an upright position by resting it against a support to maintain access to the device's interior during the repair.
    When reassembling the iPhone, position the display, ensuring the clips along the upper edge are properly aligned, and then gently apply pressure to the top edge to secure it before engaging the remaining clips around the perimeter. Should the display not easily snap into place, inspect the condition of the clips surrounding the display's border to verify they are not deformed.

Step 17 | Unscrew the battery connector cover

Step 17 image
Thumbnail 1
Thumbnail 2
  1. Detach the battery cover bracket using two Y000 screws, each measuring 1.3 mm in length.1.3 mmEnsure each screw is carefully cataloged during disassembly and reinstalled in its original location to prevent potential damage to your iPhone.
    As part of the reassembly process, it's advisable to activate your iPhone and verify all features are operating correctly prior to permanently affixing the display. Following this test, completely de-energize your iPhone before proceeding with further repairs.
    Throughout this repair, keep track of each screw and make sure it goes back exactly where it came from to avoid damaging your iPhone.

Step 18 | Remove the battery connector cover

Step 18 image
  • Detach the bracket from its existing position.

Step 19 | Disconnect the battery

Step 19 image
Thumbnail 1
Thumbnail 2
  1. Employ a spudger tool or a meticulously clean fingernail to carefully lift the battery connector away from its corresponding receptacle on the logic board.
    Exercise caution to avoid compromising the integrity of the black silicone seals that encircle this connector and others on the board, as they offer supplemental defense against water and dust penetration.
    Slightly deflect the connector outward from the logic board's surface to ensure it remains disconnected from the socket, thus preventing unintended power delivery to the device during the repair process.

Step 20 | Unscrew the logic board cover screws

Step 20 image
Thumbnail 1
Thumbnail 2
  • Employ a Y000 driver to detach the six screws that hold the logic board cover bracket in place.The screws measure 1.3 mm in length.These fasteners secure the bracket to the logic board cover.

Step 21 | Remove the logic board cover bracket

Step 21 image
Detach the bracket from its existing position.

Step 22 | Disconnect the OLED display cable

Step 22 image
Thumbnail 1
Thumbnail 2
  • Employ aspudgeror afingernailfor detaching the OLED panel cable connector.
  • When reconnecting, ensure proper alignment and apply pressure to each side of the connector sequentially until a distinct click is heard; avoid applying pressure to the central portion. Incorrect alignment risks bending the internal pins, which could result in irreversible damage.

Step 23 | Disconnect the front sensors + digitizer

Step 23 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  • Employ aspudgerora fingernailfor separating the front sensor assembly cable connector.
  • Utilize aspudgerora fingernailto release the digitizer cable connector.
  • Should any portion of the screen fail to register touch input following the repair procedure, remove the battery and then reattach this connector, ensuring a secure, audible click and verifying the absence of dust or debris within the socket.

Step 24 | Remove the display assembly

Step 24 image
  • Detach the display unit from the device.
  • When putting the device back together, halt at this stage should you intend to substitute the water-resistant adhesive that seals the display's perimeter.

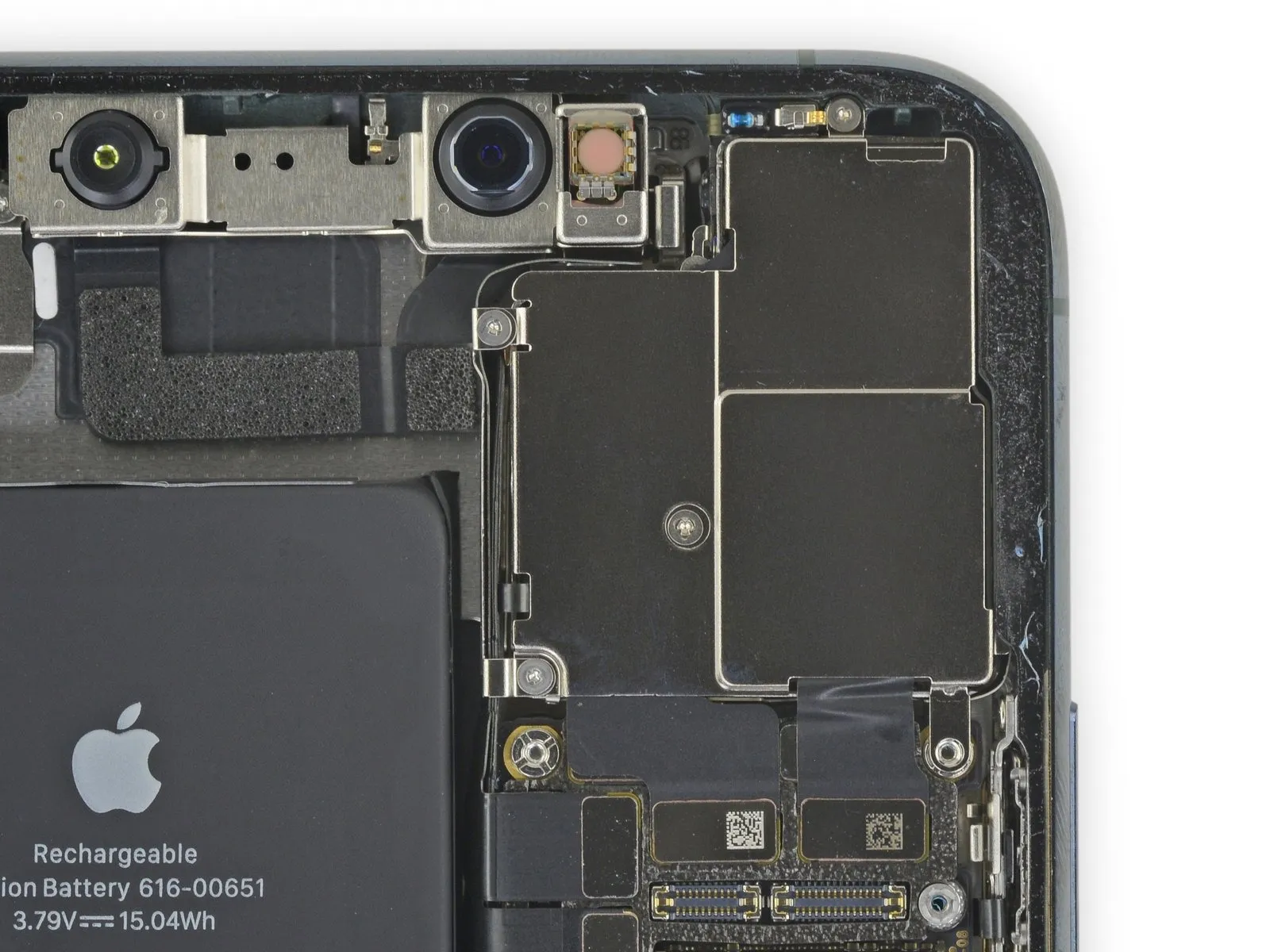

Step 25 | Unscrew the Face ID flex cable bracket

Step 25 image
Thumbnail 1
Thumbnail 2

Employ a Y000 driver to detach the pair of 1.5 mm screws situated on the left-hand portion of the rear camera cover.

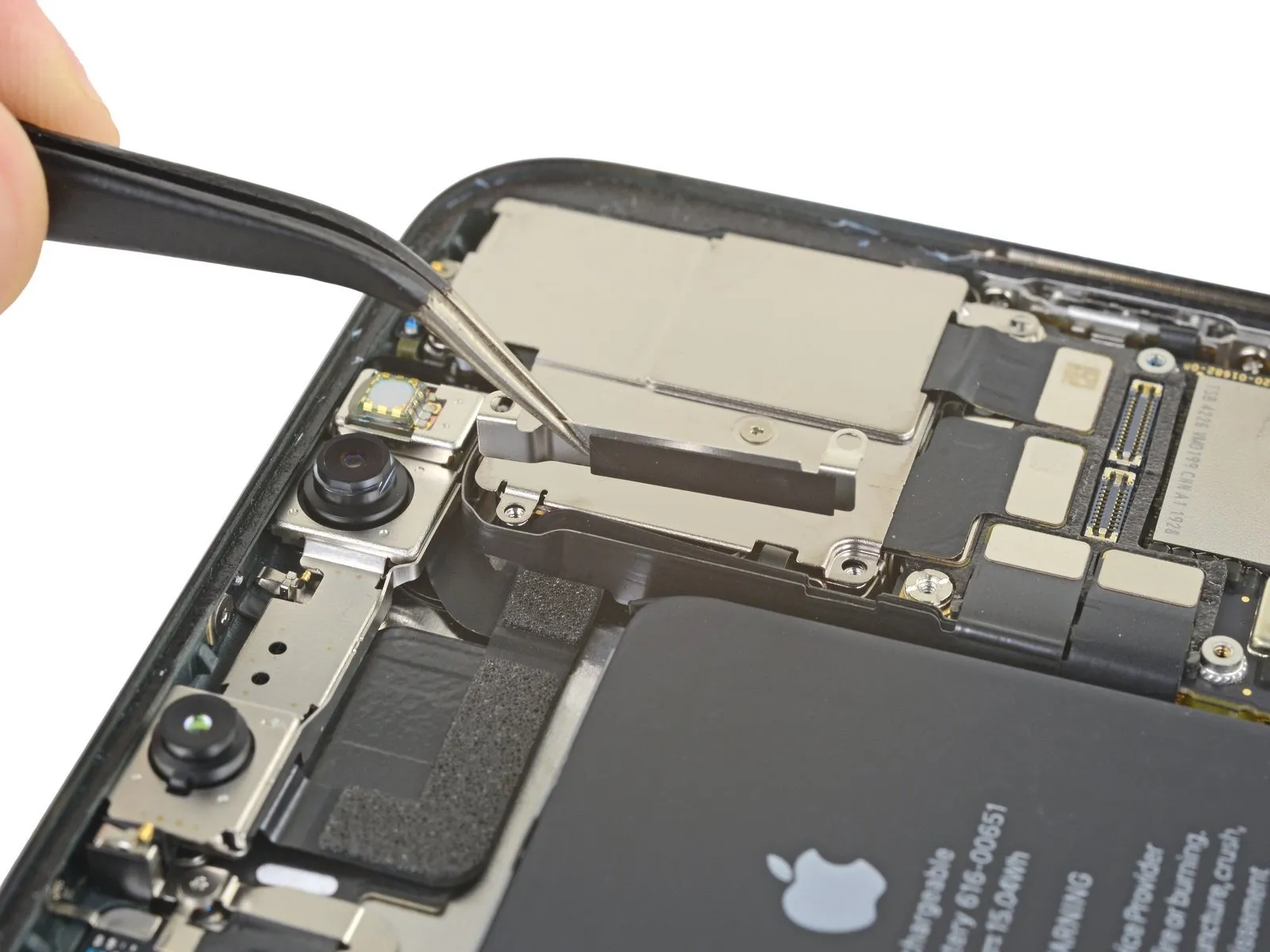

Step 26 | Remove the bracket

Step 26 image
Thumbnail 1
Thumbnail 2
  • Detach the bracket securing the Face ID flex cable.
  • When reassembling the device, ensure the bracket is positioned to prevent the flex cables from contacting the battery, avoiding placement between the flex cables and the logic board or camera assembly.

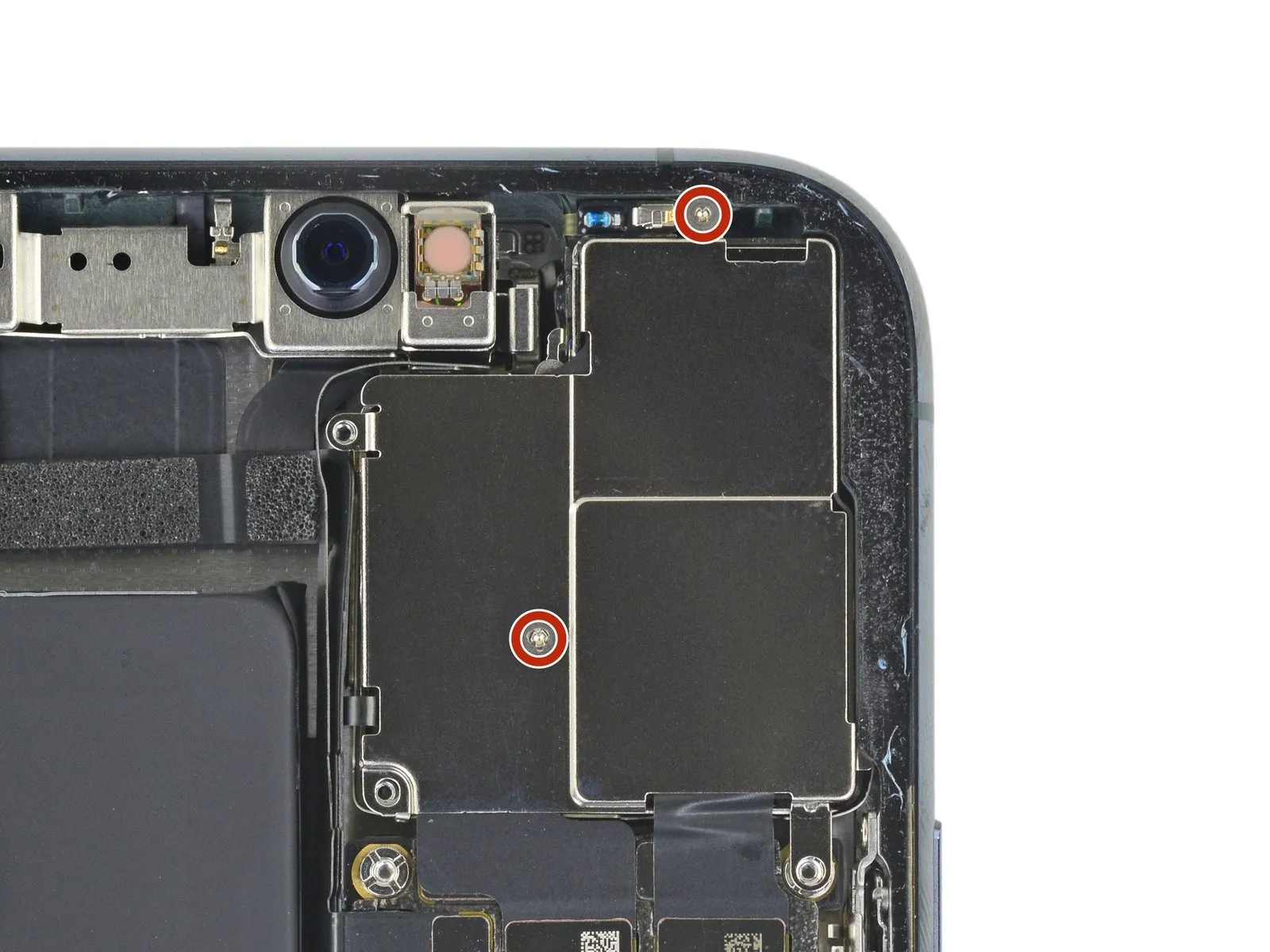

Step 27 | Unscrew the rear camera cover

Step 27 image
Thumbnail 1
Thumbnail 2

Employ a Y000 driver to detach the pair of 1.2 mm screws that hold the rear camera cover in place.

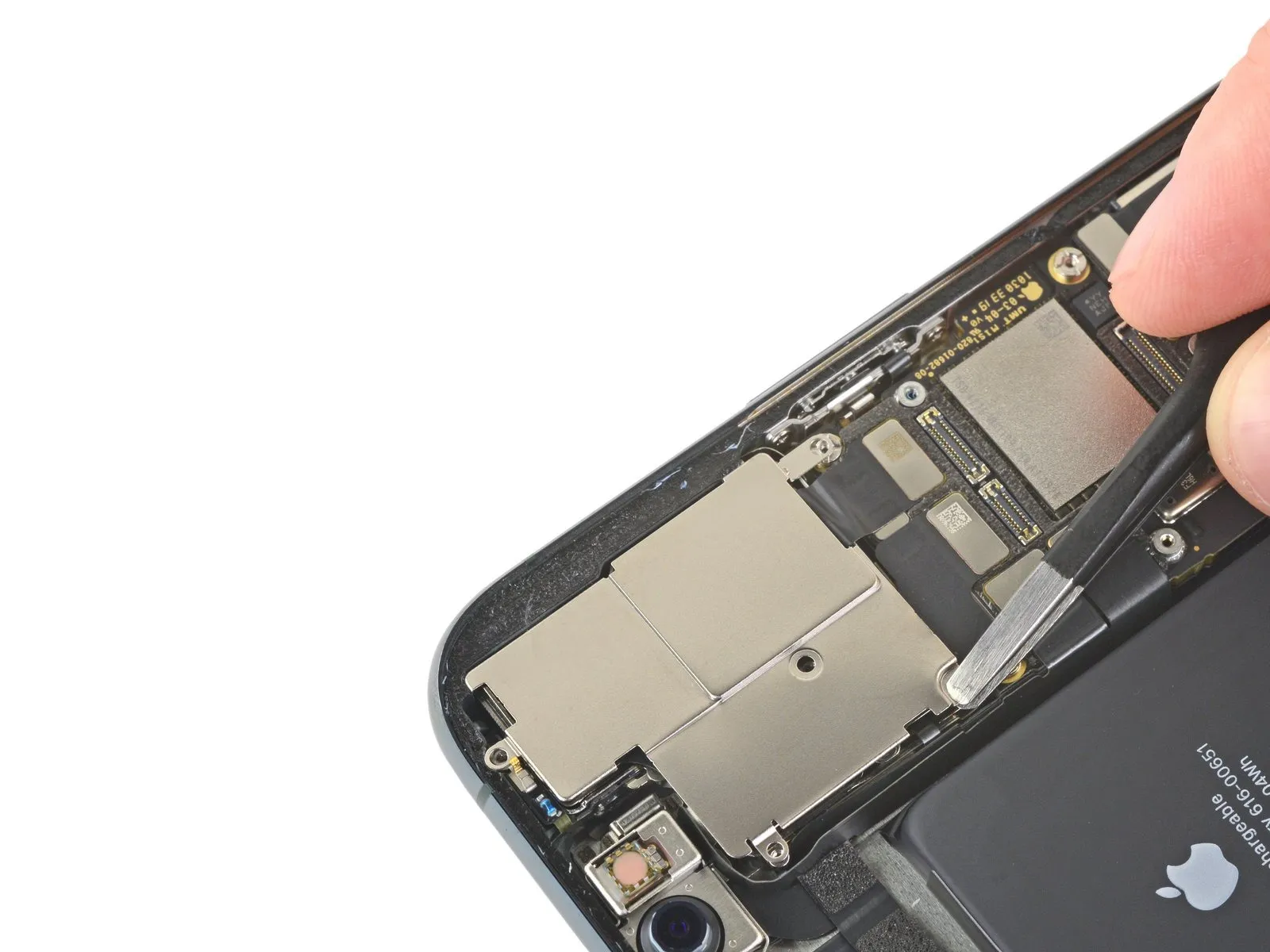

Step 28 | Remove the camera cover

Step 28 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  • Carefully detach the camera cover by lifting it from the side nearest the battery compartment, ensuring its complete removal.
  • Reattaching the camera cover requires precise reversal of the disassembly steps, as illustrated: initially, position the outer edge downward, allowing the two projecting tabs on the cover to engage firmly within the corresponding bracket located on the camera module's exterior edge. Subsequently, close the cover using the hinge mechanism.
  • A failure to properly align the tabs will result in an uneven surface, preventing the cover from resting flush.

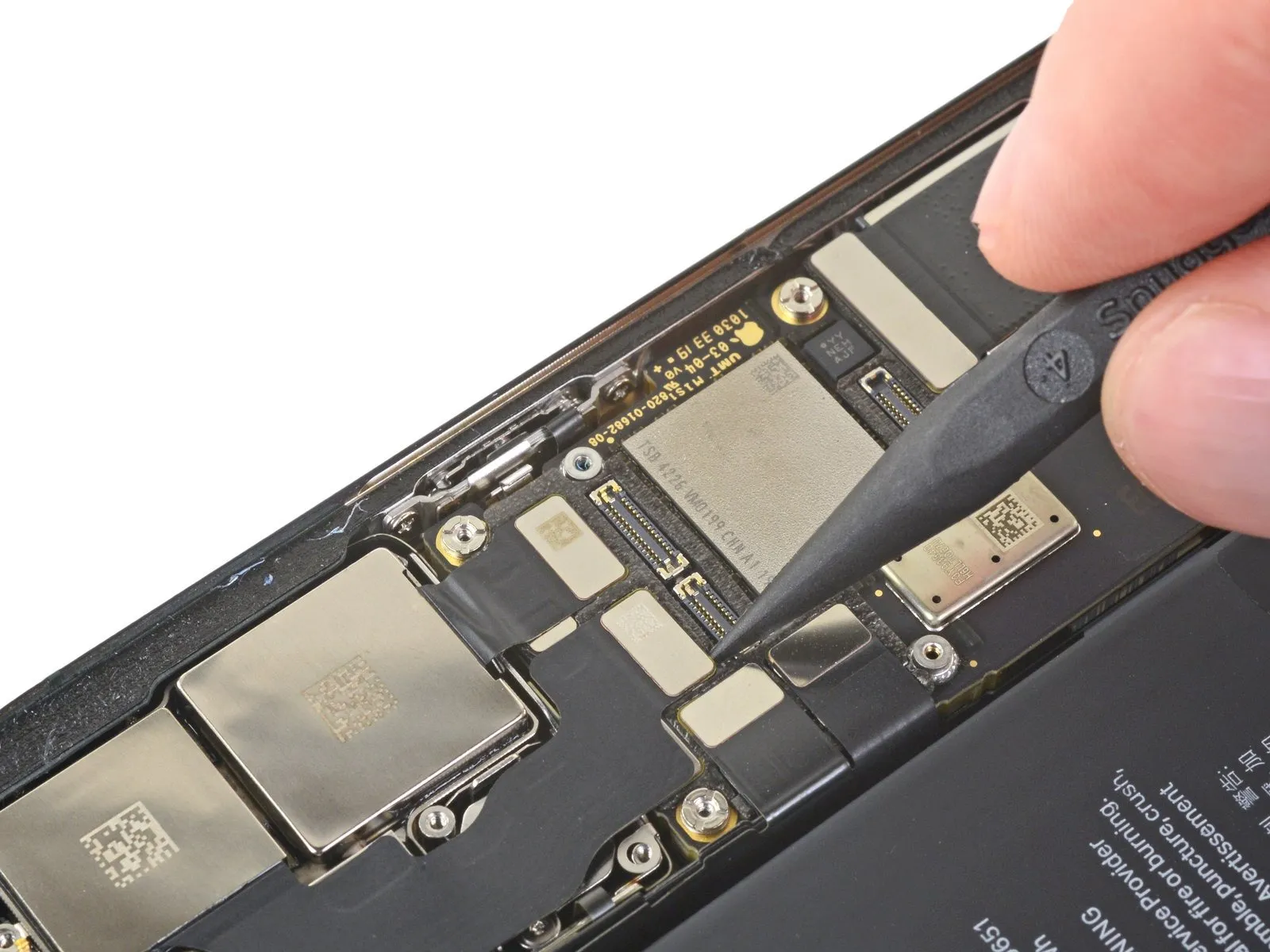

Step 29 | Disconnect two cameras

Step 29 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  • Employ a spudger or a fingernailto release the initial two camera cable connectors, lifting them vertically away from their respective receptacles.

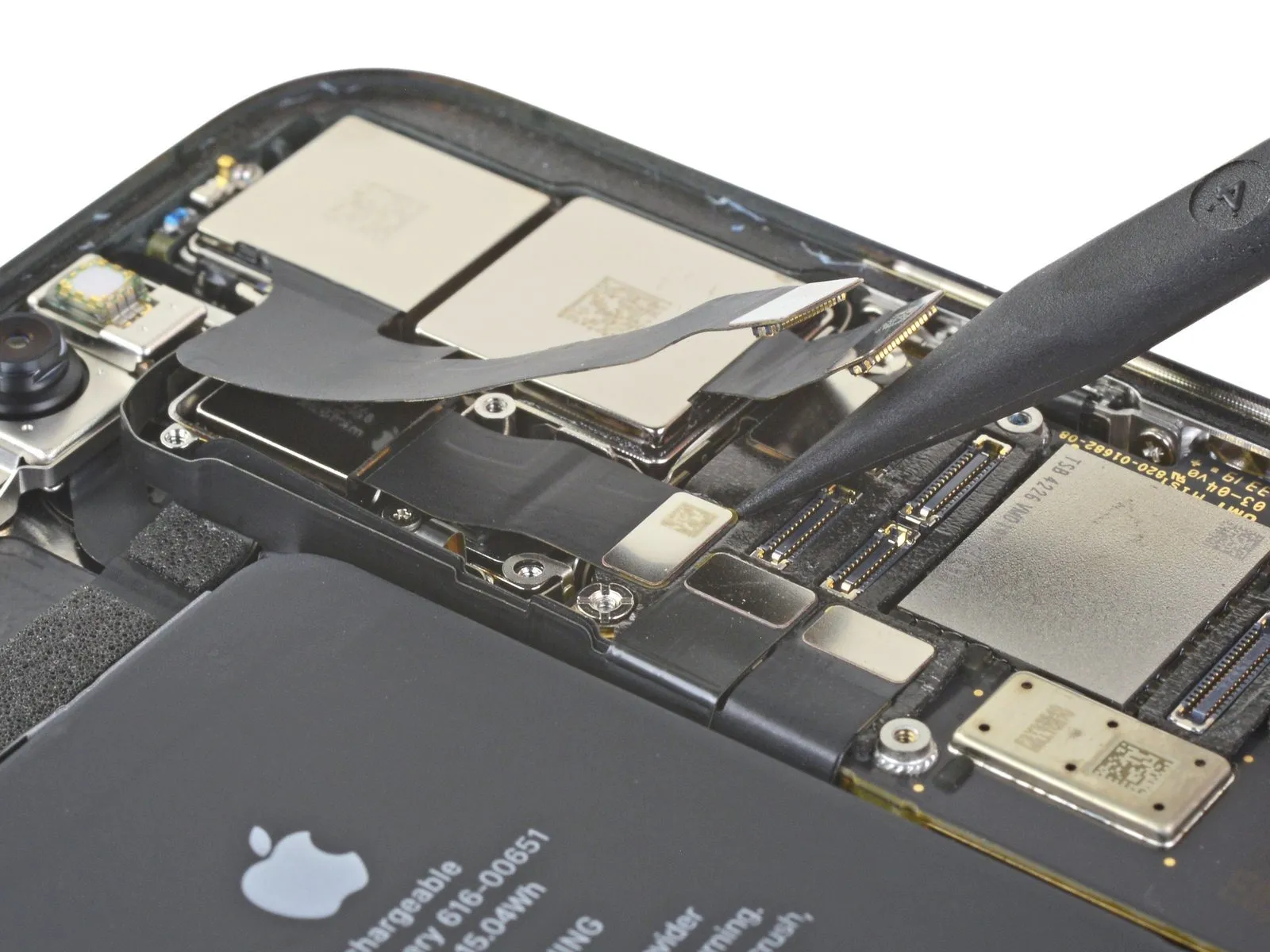

Step 30 | Disconnect the third camera

Step 30 image
Thumbnail 1
Thumbnail 2
  • Employ a spudgerto carefully separate the third camera's connection; its connector is situated below the cable that was previously detached.

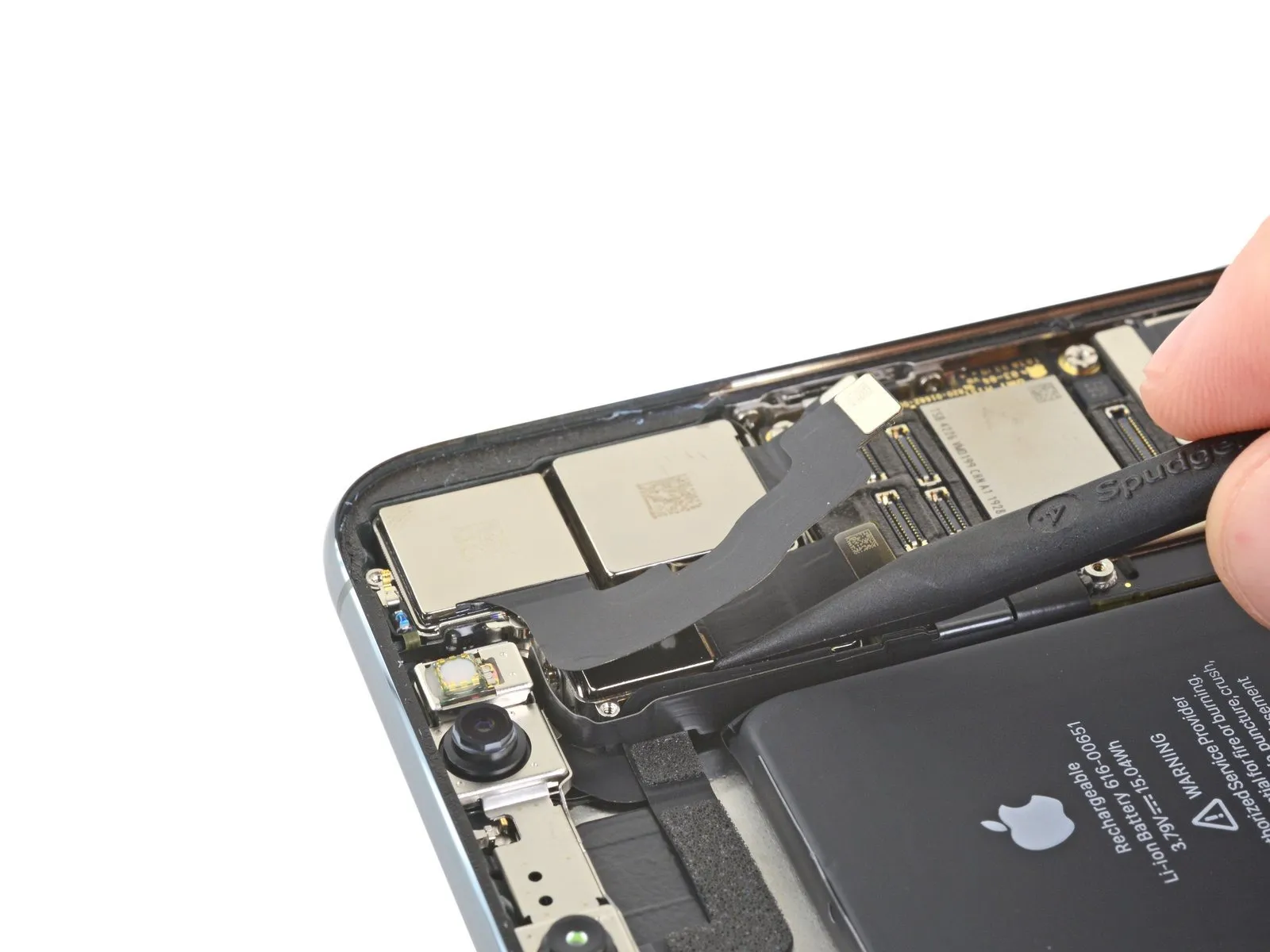

Step 31 | Loosen the camera assembly

Step 31 image
Thumbnail 1
Thumbnail 2
Procedure 31:
  • Utilizing the tip of your spudger insert it beneath the left side of the camera component.
  • Apply a slight upward force to carefully pry the cameras from the iPhone.

Although the camera assembly lacks adhesive, it is securely held in position via a press-fit design.

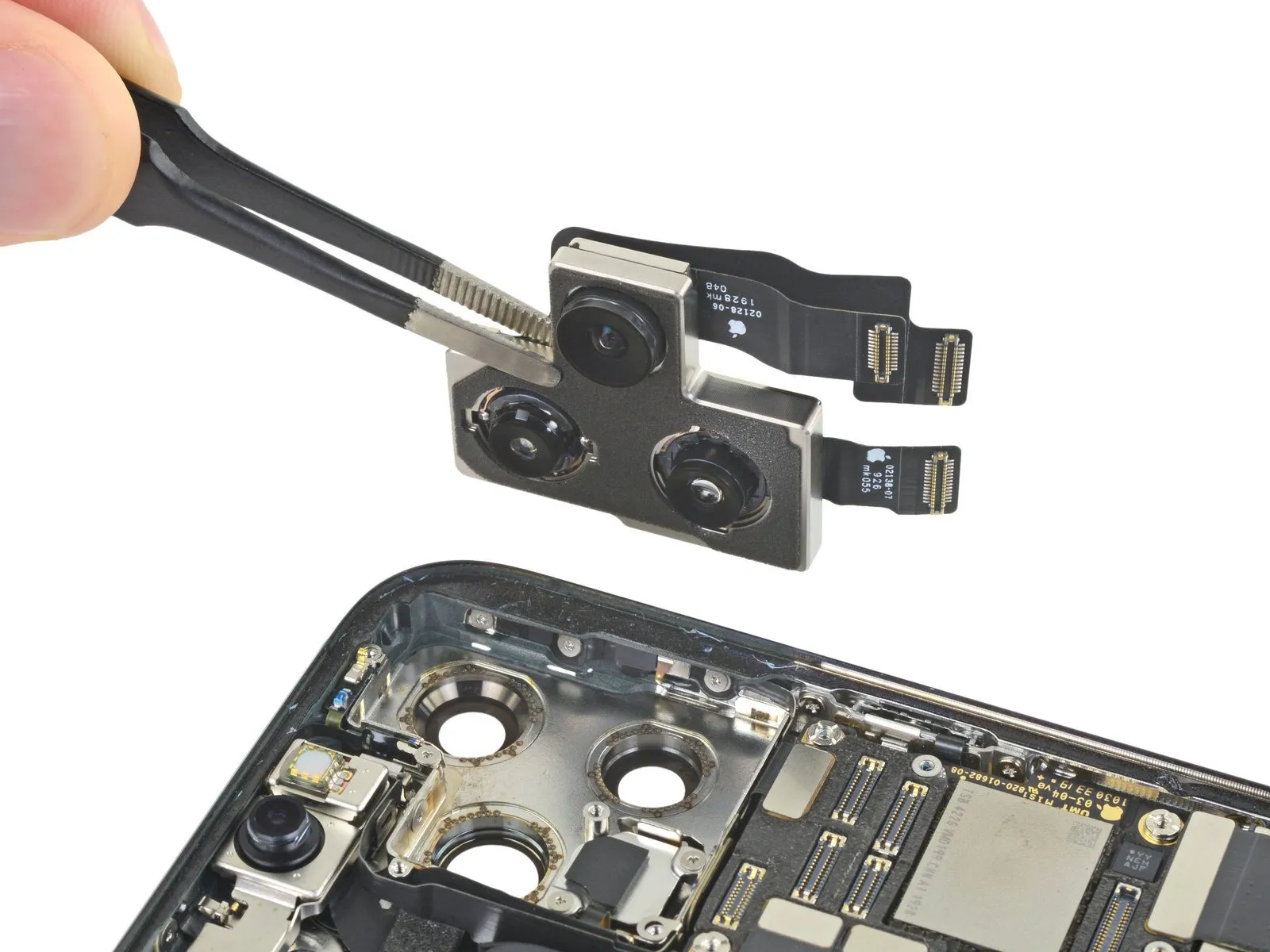

Step 32 | Remove the camera assembly

Step 32 image
Procedure 32:
  • Detach the rear camera unit.
