iPhone 12 Pro Taptic Engine Replacement

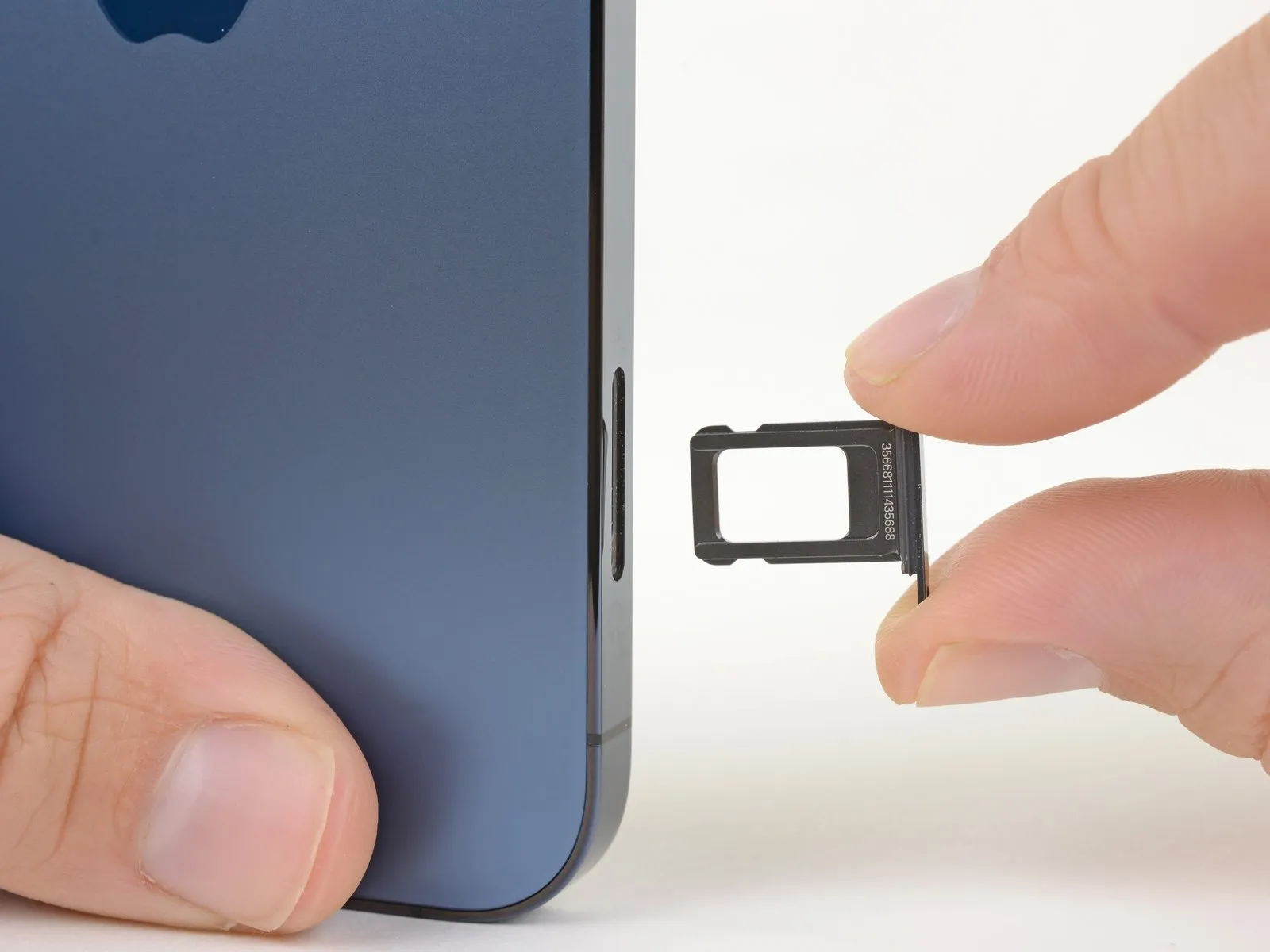

• Ensure the tray is fully extracted from the iPhone's chassis.

• Using a measuring tool, determine a distance of precisely 3 millimeters.Employing a permanent marker, create a visible indicator on the opening pick at the 3 mm measurement point.For enhanced precision, consider marking the pick's other corners with varying measurement values.
• As an alternative method, affix a coin to the pick's tip, ensuring a 3 mm separation.
• This marking procedure safeguards against potential harm to the device resulting from over-insertion.

• Always utilize safety glasses to shield your eyes from potential glass shards that may detach during the repair procedure.
• Should the suction cup fail to adhere adequately in subsequent steps, create a handle by folding a durable tape, like duct tape, and employ it to carefully lift the screen.
• As a last resort, if adhesion problems persist, consider using a small amount of superglue to temporarily secure the suction cup to the screen’s surface.
• Addressing a fractured display necessitates immediate action to restrain fragmentation and safeguard against physical harm while performing the repair.

• Detailed instructions regarding the Anti-Clamp's usage are available in a separate, dedicated guide.
• To release the locking mechanism, retract the blue handle, which will disengage the Anti-Clamp's gripping arms.
• Carefully position the arms across either the left or right side of the iPhone's frame.
• Place the suction cups in proximity to the lower edge of the iPhone, ensuring one is situated on the front surface and the other on the rear.
• Apply pressure by compressing the cups together, establishing a secure vacuum seal on the intended area.
• Should the iPhone's surface exhibit excessive slipperiness, hindering the Anti-Clamp's ability to maintain adhesion, applying adhesive tape can improve grip.

• Rotate the handle a full 360-degree circle, or continue until visible deformation of the suction cups is observed.
• Maintain parallel positioning of the suction cups; should misalignment occur, marginally reduce suction cup pressure and readjust the arm positioning.

• Employ a hair dryer to apply warmth along the iPhone’s lower edge, ensuring the screen reaches a temperature just beyond comfortable touch.
• Refer to a dedicated guide for detailed instructions on the proper operation of a hair dryer.
• Allow a sixty-second period for the adhesive to soften and create a discernible separation.
• Introduce an opening pick into the space between the screen and the plastic bezel once the Anti-Clamp has generated a noticeable gap.
• Should the Anti-Clamp fail to produce an adequate separation, increase the heat application and rotate the handle incrementally, in quarter-turn increments.
• Avoid rotating the handle beyond a quarter-turn at any point, and observe a sixty-second pause between rotations, allowing the Anti-Clamp and time to facilitate the separation.

• Employ a hair dryer or heat gun to apply warmth to the lower perimeter of the iPhone.Continue heating the iPhone's bottom edge until its surface temperature reaches a level of slight discomfort upon touch.
• Avoid prolonged, concentrated heat application from the hair dryer to prevent localized overheating.This precaution is necessary to protect the device's components from heat damage.

• When employing a solitary suction handle, position it against the phone's lower border, ensuring a space from the glass perimeter.To prevent damage, maintain clearance from the extreme outer rim of the glass surface during suction handle application.

• Begin by applying steady, consistent force to the suction cup to generate a minimal separation between the display assembly and the device's surrounding structure.
• Introduce an opening tool into the newly formed space, maintaining a pronounced inclination.
• To prevent potential screen damage, ensure the opening tool is positioned beneath the substantial plastic border during insertion.
• A visible separation should be apparent, and the tool should move freely without obstruction; if a gap isn't visible, increased upward screen movement is necessary.
• The robust, waterproof sealant securing the display requires considerable effort to initially disengage; if resistance is encountered, apply supplemental heat and gently oscillate the screen to reduce adhesive strength and facilitate tool insertion.

• Proceed to step 12.
• Ensure the initial insertion depth of the opening pick remains no greater than 3 millimeters from the lower border.
• Employ a reciprocating motion of the pick across the lower edge to sever the adhesive bond.
• Maintain the pick's position within the lower-right corner to inhibit adhesive re-adhesion.

• The application of heat with a hair dryer should be directed toward the right edge of the iPhone's enclosure, targeting the area adjacent to the power button, to achieve a slight increase in surface temperature suitable for screen detachment.

• Progressively move the tool along the right side of the device, advancing upwards until the upper-right corner is reached.
• Exercise caution to limit the tool's insertion depth to a maximum of 3 millimeters to prevent potential harm to delicate internal components.
• Maintain the tool's position at the upper-right corner, ensuring it remains engaged, before proceeding with subsequent steps.
• The adhesive bond between the iPhone's housing and internal assembly should be released through this controlled separation technique.

• The application of heat via a hair dryer should be focused on the iPhone's top edge, raising the screen's temperature to a level just beyond comfortable tactile perception.

• Utilize a specialized opening tool to carefully release the adhesive securing the iPhone's top edge, focusing on the upper-right area.
• Maintain the positioning of the opening tool within the top-left corner of the device to facilitate subsequent steps.
• Restrict the insertion depth of the opening tool to a maximum of 3 millimeters to prevent potential harm to the delicate sensors located at the top of the iPhone.

Apply warmth to the iPhone's left side utilizing a hair dryer, continuing until the screen's surface temperature reaches a point where it is noticeably uncomfortable to the touch.

• To prevent harm to the two screen cables that connect to the phone, ensure the pick's insertion depth remains no greater than 2 millimeters along the left side.Employ a rotational motion with the pick, focusing on the upper-left corner of the screen's perimeter.Move the pick along the screen's bottom left edge to release the adhesive bond.
• Should adhesive separation prove difficult, apply heat to the left edge to soften its binding properties.
• The adhesive should be released by sliding the pick from the top left to the bottom left corner.
• Maintaining a shallow insertion depth of 2 mm prevents potential damage to the two cables linking the display to the device's mainboard.

Orient the iPhone, positioning the right side within your field of view.
Initiate the opening process by pivoting the display upwards from the right side, mimicking the action of opening a book's cover.
Refrain from completely detaching the display at this stage, because delicate ribbon cables remain connected to the logic board.
Secure the display in an elevated position using a support to maintain access to the internal components.
When reassembling, position the display, ensuring the top edge clips are aligned, and apply gentle pressure to the top edge before securing the remainder of the display; if resistance is encountered, inspect the perimeter clips for any deformation.

• Detach the battery and display connector cover by unscrewing two Y000 screws, each measuring 1.1 mm in length.Carefully organize all screws during disassembly, ensuring each is returned to its original location to prevent potential iPhone damage.To verify proper functionality, briefly power on the iPhone and test all features at this stage of the repair process.
• Prior to securing the display during reassembly, completely shut down the iPhone to avoid any electrical issues.
• Confirming all functions through a power-on test is recommended before permanently affixing the display assembly.

• Employ a spudger tool, or a similarly non-marring item like a clean fingernail, to lift the battery connector's retaining clip from its corresponding receptacle on the main circuit board.Exercise caution to avoid harming the black silicone sealant that surrounds this connector and others, as it offers an additional layer of defense against water and particulate contamination.Slightly deflect the connector away from the logic board's surface to ensure it remains disconnected and avoids inadvertently supplying power to the device during the repair process.
• The silicone seals are critical for maintaining the device's environmental protection, so damage can compromise its resistance to water and dust.
• Careful manipulation of the connector is essential to prevent accidental re-engagement with the socket, which could lead to unexpected power delivery during the repair.

• Employing a spudger or fingernail, carefully separate the display cable connector.For reattachment, align the connectors meticulously, initiating pressure on one edge until a distinct click is heard, then mirroring the process on the opposing edge.Avoid applying pressure to the central portion of the connector during reattachment to prevent damage.
• Misalignment during reattachment may result in pin bending and irreversible damage to the connector.

• Employ a spudger tool, or a fingernail, to carefully separate the digitizer cable's connector.Should any portion of the display fail to register touch input following the repair procedure, first remove the battery and then reconnect the digitizer cable connector.Ensure the connector securely locks into position with an audible click during re-seating.
• Thoroughly inspect the connector socket for any debris or obstructions that may impede proper contact.

• Employ a Y000 driver to detach the four screws that fasten the front sensor connector cover in place.The front sensor connector cover is secured with four screws, requiring a Y000 driver for removal.Specifically, three screws, each measuring 1.1 millimeters in length, are used to hold the cover.
• In addition to the three shorter screws, a single screw with a length of 1.4 millimeters is also present.To access the front sensor connector, the cover must first be detached using a Y000 driver.
• The cover's attachment relies on a combination of three 1.1 mm screws and one 1.4 mm screw.A Y000 driver is essential for loosening and removing the four screws that retain the front sensor connector cover.

• Move the cover upwards, originating from the left side, to release the small clip located on the right.
• Detach the cover from the device.
• When reattaching the cover, initially position the right-side clip into its designated slot, subsequently pivoting the remainder of the cover into its final position.

Employing a spudger tool, or a fingernail, facilitates the separation of the front sensor assembly's cable connector.The connector securing the front sensor assembly cable must be detached using a spudger or a fingernail.To release the front sensor assembly cable connector, a spudger or fingernail can be utilized.A spudger, or alternatively a fingernail, is necessary for disconnecting the cable connector associated with the front sensor assembly.Disconnecting the front sensor assembly cable connector is best achieved with a spudger or a fingernail.

• Detach the display unit from the device.
• If a replacement of the waterproof adhesive sealant bordering the display is desired, halt the reassembly process at this stage.

• Employ a Phillips head screwdriver to detach the four fasteners.The screws, each measuring 1.6 millimeters in diameter, hold the loudspeaker in place.These fasteners must be removed to access the loudspeaker.A Phillips driver is the appropriate tool for this task.Carefully unscrew the four 1.6 mm screws to release the loudspeaker.

• Detach the loudspeaker assembly.

• Employ a Y000 driver to detach the cover protecting the SIM card reader connector.The SIM card reader connector cover is fastened with two screws, each measuring 1.4 millimeters in length.Carefully unscrew the fasteners using the appropriate driver.Ensure the Y000 driver is properly seated on the screw heads to prevent damage.Removal of the cover exposes the SIM card reader connector, allowing for further inspection or repair.

• To access the SIM card reader cable connector, detach the protective cover.

• Employ a Y000 driver to detach the SIM card reader, which is held in place by three screws.
• The SIM card reader is fastened with two screws, each measuring 1.4 millimeters in length.
• A single screw, with a length of 1.1 millimeters, is also utilized in the assembly.

• For optimal results, utilize a standoff screwdriver or a compatible bit to remove standoff screws.
• If a standoff screwdriver is unavailable, a small flathead screwdriver can be substituted, but exercise heightened care to prevent slippage and potential harm to nearby parts.

• Verification of the SIM eject plunger's retracted position, flush with the phone's side edge, is essential prior to reassembly.
• Ensure the SIM eject plunger is fully depressed towards the phone's perimeter to prevent operational issues.

• Three screws of a specific type are involved in this process.These include two standoff screws, each measuring 2.8 millimeters in length.Additionally, a single Phillips screw with a length of 1.8 millimeters is required.
• Carefully note the dimensions and head type of each screw for reassembly.Ensure proper identification of all screw types to avoid incorrect installation.
