iPhone 13 Pro Full Chip ID

Complete identification of every integrated circuit within our initial iPhone 13 Pro disassembly proved challenging.For those desiring a more comprehensive examination of the components present, a detailed analysis of the chips is provided.This expanded exploration focuses specifically on the integrated circuits mounted on the iPhone 13 Pro's logic board.Our appreciation extends to Chunglin Chin, a valued member of our community, for their significant contribution to this documentation.The intricacies of each chip's function and placement are now presented with greater detail.

  • A more exhaustive investigation reveals a wider range of integrated circuits than initially documented.The logic board's complexity is further illuminated by this expanded component listing.This supplementary material offers a deeper understanding of the iPhone 13 Pro's internal architecture.We acknowledge Chunglin Chin's assistance in enriching this detailed view of the device’s internal components.

Step 1 | iPhone 13 Pro Full Chip ID

Step 1 image

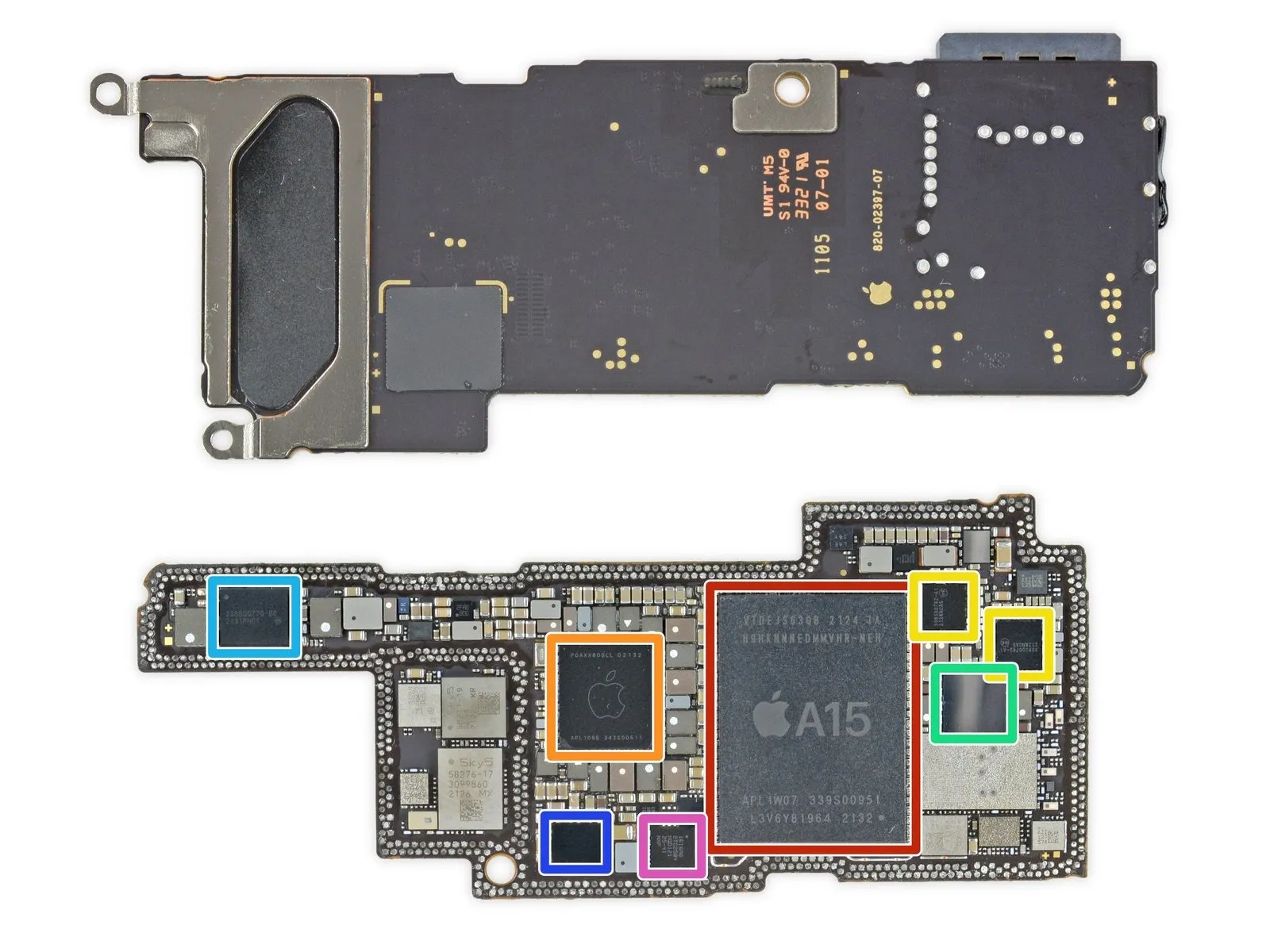

  • The primary circuit board, designated side 1, incorporates the Apple APL1W07 A15 Bionic SoC.Integrated within the logic board's construction is a substantial 6 GB of SK Hynix LPDDR4X SDRAM.
    Power regulation is managed by the Apple APL1098 integrated circuit.Further power management functions are handled by the Apple 338S00762-A1 component.The STMicroelectronics STB601A05 also contributes to the power delivery system.
  • Apple's 338S00770-B0 integrated circuit provides additional power control.
  • Display power is regulated by the Texas Instruments TPS65657B0.
  • The display output signal is routed through the NXP Semiconductor CBTL1616A0.
  • This component facilitates the multiplexing of the display port signals.
  • The Apple APL1W07 A15 Bionic SoC is a critical element of the board's functionality.
  • The SK Hynix LPDDR4X SDRAM provides the necessary memory capacity for system operations.

Step 2

Step 2 image
  • The main circuit board, specifically its first lateral aspect, incorporates a Texas Instruments CD3710A1 VCSEL array driver.A Texas Instruments dual repeater for USB 2.0 signals is also present on the logic board's side 1.
    Power regulation is achieved through an ON Semiconductor DC-DC converter integrated into the circuit board's design.
  • An NXP Semiconductor power management integrated circuit may be included as a component.
  • It is possible that a further NXP Semiconductor load switch is present within the logic board's circuitry.
  • The components listed are integral to the functionality of the logic board’s side 1.These components contribute to the overall operational capabilities of the device.
  • The identification of these parts aids in targeted troubleshooting and repair procedures.Careful examination of these components is crucial for accurate diagnosis of failures on the logic board.

Step 3

Step 3 image

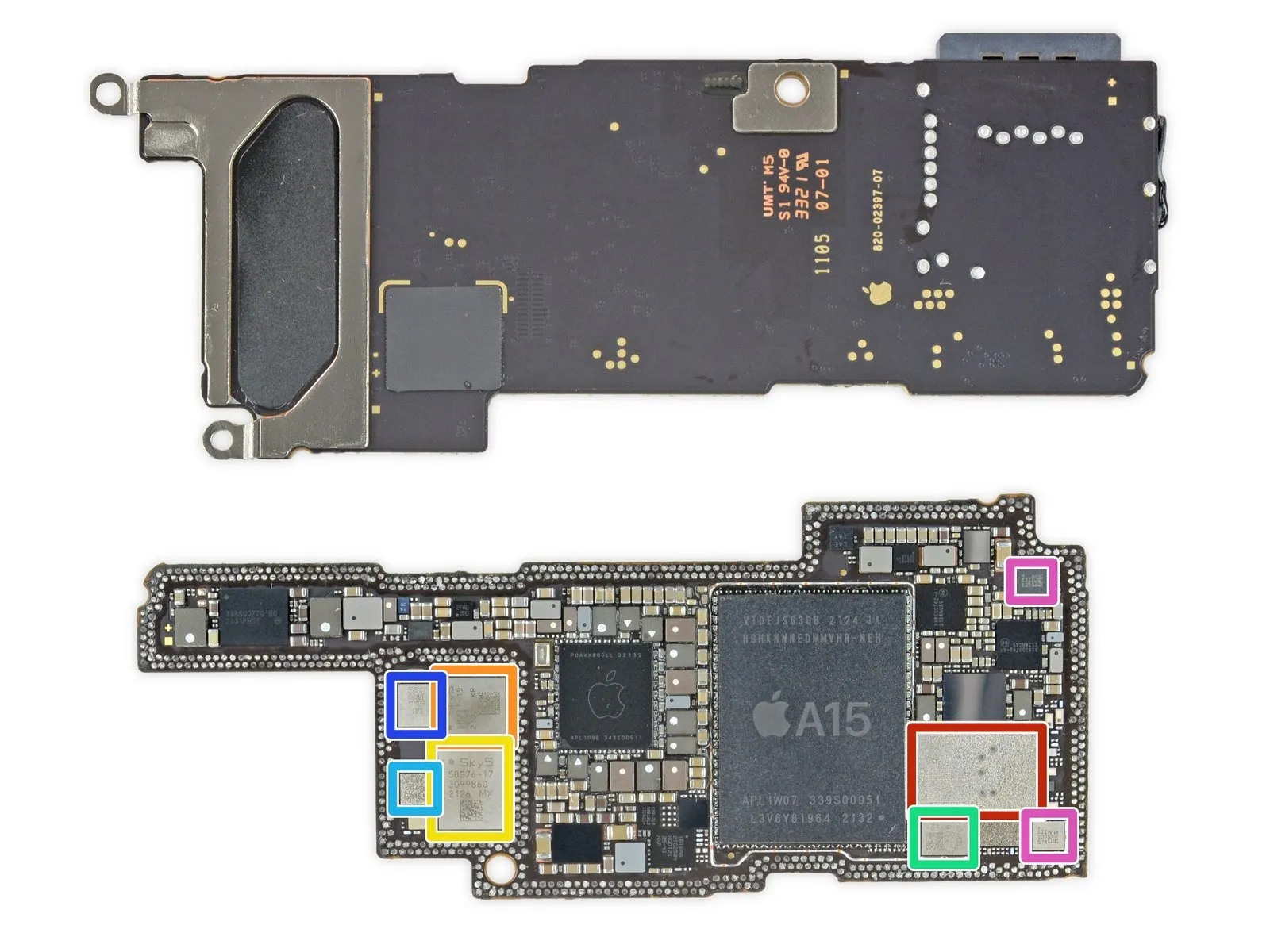

  • The logic board's first side continues with the following components.An Apple/USI U1 ultra-wideband chip is present.
    A Skyworks SKY58271-19 front-end module is incorporated.
  • The device includes a Skyworks SKY58276-17 front-end module.
  • It appears that a Broadcom AFEM-8225 front-end module is also utilized.
  • A Broadcom filters component is identified.A Skyworks SKY59723 power amplifier module is probably installed.
  • It seems a Broadcom filters component is present.A Murata 141 RF switch module is likely found.
  • It is probable that Broadcom filters are used.The logic board contains a Skyworks SKY58271-19 front-end module.
  • The device incorporates an Apple/USI U1 ultra-wideband chip.A Skyworks SKY58276-17 front-end module is included.

Step 4

Step 4 image

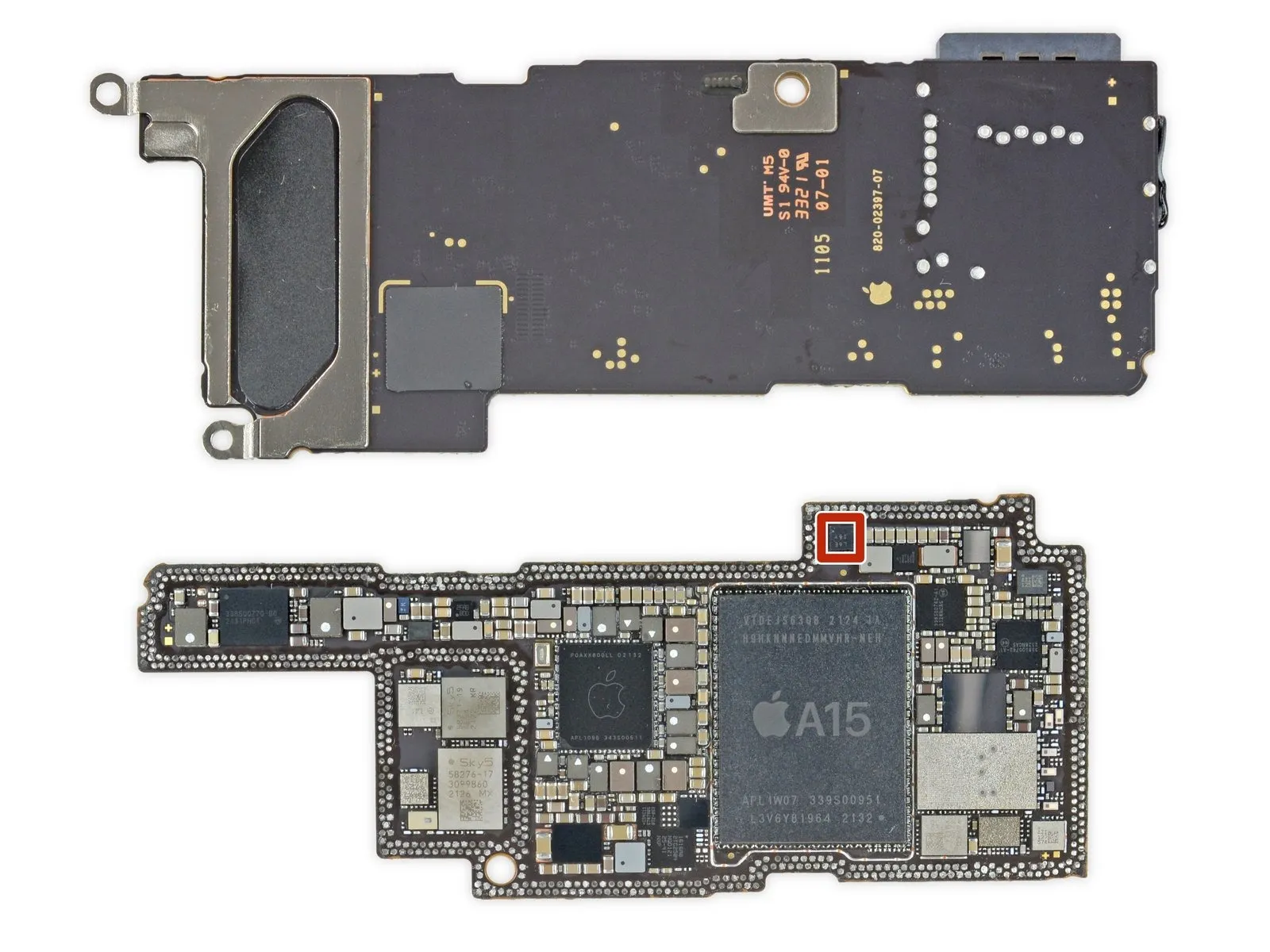

  • Continuing the examination of the main circuit board, focusing on the initial side's components.The electronic compass, identified as an Alps HSCDTD00xA model, is located on the described portion of the logic board.
    This specific compass component is a critical element for maintaining device orientation and navigational functionality.

Step 5

Step 5 image
  • The logic board incorporates sections two and three.
  • A Kioxia NAND flash memory module provides 128 gigabytes of storage capacity.
  • A secure microcontroller from STMicroelectronics, identified as the ST33Jxxx series and including eSIM functionality, is present.
  • A component, potentially an Apple/Cirrus Logic 338S00817, functions as an audio processor.The audio signal processing is further managed by an Apple/Cirrus Logic 338S00739 audio codec.
  • Audio output is amplified by an Apple/Cirrus Logic 338S00537 audio amplifier.
  • Wireless power transfer is facilitated by a Broadcom BCM59365 receiver.
  • A probable Apple/Cirrus Logic component is involved in the system's operation.
  • An Analog Devices device is responsible for controlling the haptic feedback system.This system utilizes a dedicated haptic driver for tactile responses.

Step 6

Step 6 image

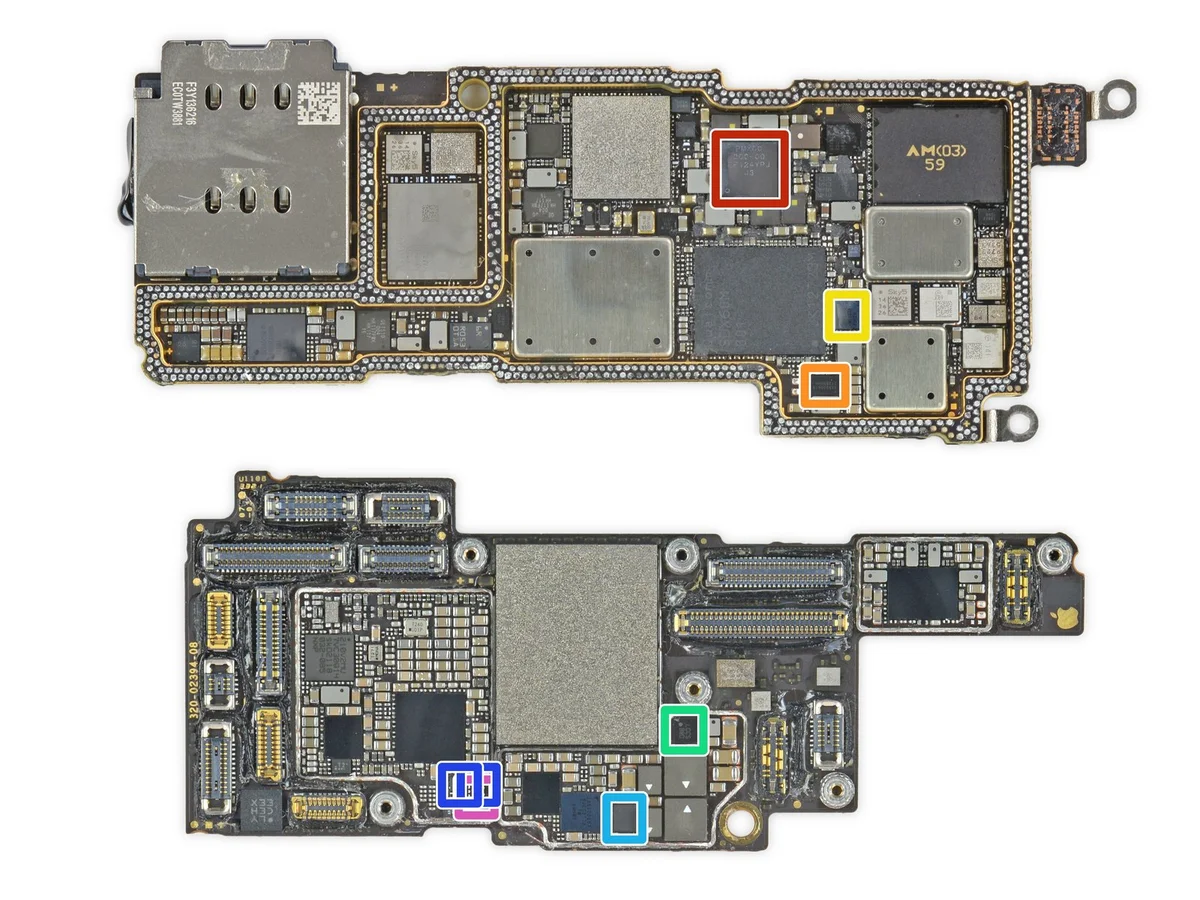

  • Continuing with the logic board's lateral sections two and three:
  • The device incorporates a Qualcomm PMX60 integrated circuit responsible for power management.
  • An Apple 338S00616 component serves as the power management IC.
  • A Texas Instruments LM3567A1 manages the LED flash illumination.
  • Power delivery is facilitated by an ON Semiconductor DC-DC converter.
  • A probable failure point is one of these components.An STMicroelectronics DC-DC converter also contributes to power distribution.
  • Signal integrity is maintained through a Nexperia 74AVC1T45, functioning as a 3-state voltage level translator and transceiver.
  • Voltage level translation is further handled by a Nexperia LSF0101, a 1-bit bidirectional voltage level translator.

Step 7

Step 7 image

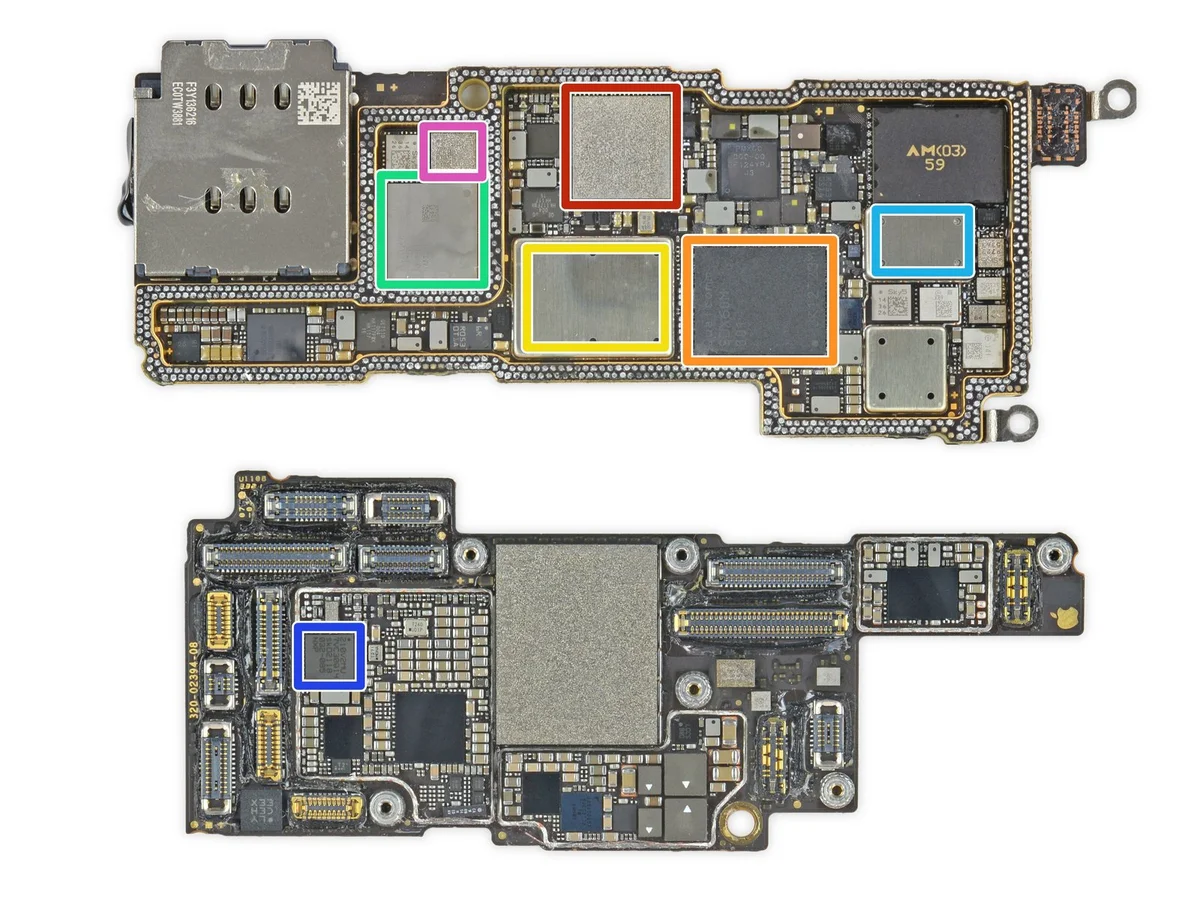

  • Continuing with the logic board's sides two and three:
  • The device incorporates a USI 339S00761 module, which handles both WiFi and Bluetooth functionalities.
  • A Qualcomm SDX60M serves as the 5G modem component.
  • It is probable that a Qualcomm SDR868 is utilized as the 5G radio frequency transceiver.
  • The Broadcom AFEM-8215 manages the front-end module requirements.
  • A Skyworks SKY53838-17 is probably present as another front-end module.An NXP Semiconductor SN210V facilitates Near Field Communication (NFC) operations, including secure element features.
  • Another probable component is a
  • Skyworks SKY57217, which functions as the power amplifier module.This module is responsible for amplifying the radio frequency signal.

Step 8

Step 8 image

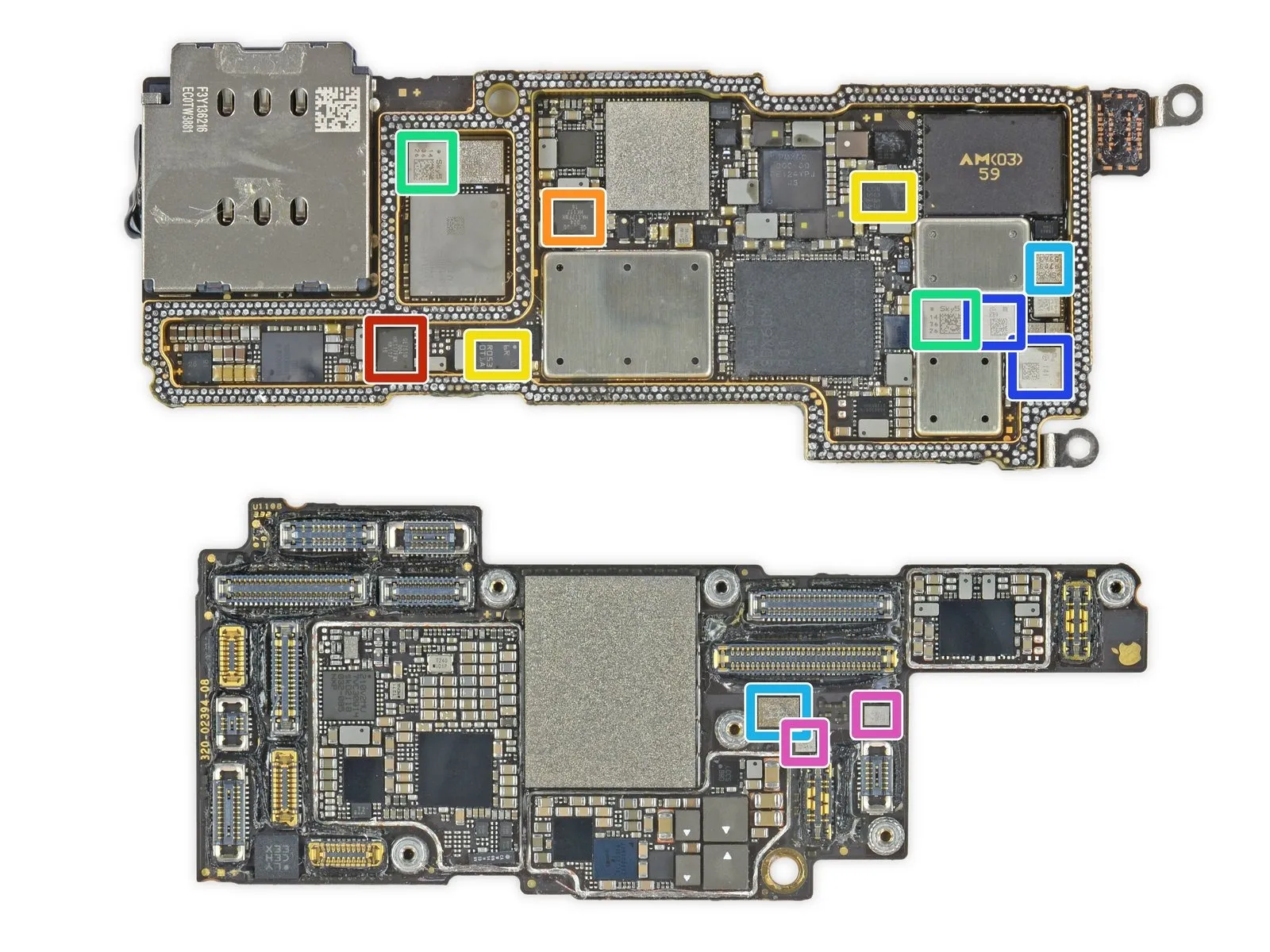

  • Continuing with the logic board's lateral sections two and three:
  • The Qualcomm QET510 component manages envelope tracking functionality.
  • The Qualcomm QET5100 also performs envelope tracking operations.
  • A probable failure point involves the Qorvo envelope tracker.Another potential source of malfunction is a Qorvo envelope tracker.
  • The Skyworks SKY514xx module facilitates RF switching operations.A Skyworks RF switch is a likely contributor to the problem.
  • The Murata antenna switch module is another component to investigate.
  • An antenna tuning switch may also be the cause of the issue.
  • Assessment of the antenna tuning switch is recommended.

Step 9

Step 9 image
Continuing the repair instructions for the logic board, specifically addressing sections two and three.
  • The component in question is manufactured by Bosch Sensortec.This part integrates both accelerometer and gyroscope functionality, measuring motion in six axes.
