iPhone 13 Pro Max Loudspeaker Replacement

• Caution: Before you begin, discharge your iPhone battery below 25%. A charged lithium-ion battery can catch fire and/or explode if accidentally punctured.
• Power off your iPhone before beginning disassembly.
• Remove the two 6.8 mm-long pentalobe P2 screws at the bottom edge of the iPhone.
• Opening the iPhone's display will compromise its waterproof seals. Have replacement seals ready before you proceed past this step, or take care to avoid liquid exposure if you reassemble your iPhone without replacing the seals.

• If inserted too far, an opening pick can damage your device. Follow this step to mark your pick and prevent damage.
• Measure 3 mm from the tip and mark the opening pick with a permanent marker.
• You can also mark the other corners of the pick with different measurements.
• Alternatively, tape a coin to a pick 3 mm from the tip.

• If your iPhone has a cracked screen, keep further breakage contained and prevent bodily harm during your repair by taping over the glass.
• Lay overlapping strips of clear packing tape over the iPhone's screen until the whole face is covered.
• Wear safety glasses to protect your eyes from any glass shaken free during the repair.
• If you can't get the suction cup to stick in the next few steps, fold a strong piece of tape (such as duct tape) into a handle and lift the screen with that instead.
• If all else fails, you can superglue the suction cup to the screen.

• The next three steps demonstrate the Anti-Clamp, a tool we designed to make the opening procedure easier. If you aren't using the Anti-Clamp, skip down three steps for an alternate method.
• For complete instructions on how to use the Anti-Clamp, check out this guide.
• Pull the blue handle backwards to unlock the Anti-Clamp's arms.
• Slide the arms over either the left or right edge of your iPhone.
• Position the suction cups near the bottom edge of the iPhone-one on the front, and one on the back.
• Squeeze the cups together to apply suction to the desired area.
• If you find that the surface of your iPhone is too slippery for the Anti-Clamp to hold onto, you can use tape to create a grippier surface.

• Push the blue handle away from the hinge to engage opening mode.
• Turn the handle clockwise until you see the cups start to stretch.
• Make sure the suction cups remain aligned with each other. If they begin to slip out of alignment, loosen the suction cups slightly and realign the arms.

• Support your iPhone on something sturdy such as a hardcover book so it rests hands-free and parallel to the ground; this makes it easier to work with in the following steps.
• Use a hair dryer to heat along the bottom edge of the iPhone. The screen should feel slightly too hot to touch.
• For complete instructions on how to use a hair dryer, check out this guide.
• Wait one minute to give the adhesive a chance to release and present an opening gap.
• Insert an opening pick under the screen's plastic bezel when the Anti-Clamp creates a large enough gap.
• If the Anti-Clamp doesn't create a sufficient gap, apply more heat to the area and rotate the handle a quarter turn.
• Don't crank more than a quarter turn at a time, and wait one minute between turns. Let the Anti-Clamp and time do the work for you.
• Skip the next three steps.

• Use a hair dryer or a heat gun to heat the bottom edge of the iPhone for 90 seconds or until the screen is slightly too hot to touch.
• Never leave your hair dryer in one spot for an extended period of time.

• Apply a suction handle to the bottom edge of the phone, while avoiding the very edge of the glass.
• Pull up on the suction cup with firm, constant pressure to create a slight gap between the screen and the frame.
• Insert an opening pick into the gap under the screen's plastic bezel.
• The watertight adhesive holding the screen in place is very strong; creating this initial gap takes a significant amount of force. If you're having a hard time opening a gap, apply more heat, and gently rock the screen up and down to weaken the adhesive until you create enough of a gap to insert your tool.

• Use a hair dryer to heat the right edge of the iPhone (the edge with the power button) for 90 seconds or until the screen is slightly too hot to touch.

• Slide the opening pick around the bottom right corner of the iPhone to separate its adhesive.
• Continue sliding up the right edge of the iPhone until you reach the top right corner.
• Don't insert your pick more than 3 mm, as you may damage internal components.
• Leave the pick in the top right corner before continuing.

• Use a hair dryer to heat the top edge of the iPhone for 90 seconds or until the screen is slightly too hot to touch.

• Slide the opening pick around the top right corner of the iPhone to separate the top adhesive.
  Do not insert your pick more than 3 mm, as you may damage the top sensors.
  Leave the pick in the top left corner before continuing.

Use a hair dryer to heat the left edge of the iPhone for 90 seconds or until the screen is slightly too hot to touch.

There are delicate cables along the left edge of your iPhone. Do not insert your pick here, as you may damage the cables.

• Insert a second opening pick in the bottom left corner of the iPhone.
• Twist both picks simultaneously until the left edge clips release.
• Apply the twisting force gradually.
• If you're having trouble separating the adhesive, reheat the left edge.

1. Remove your suction handle from the screen.
2. Rotate your iPhone so the right edge faces you.
3. Open your iPhone by swinging the display up from the right side, like the front cover of a book.
4. Don't try to fully separate the display yet, as several fragile ribbon cables still connect it to the iPhone's logic board.
5. Lean the display against something to keep it propped up while you're working on the phone.
6. During reassembly, lay the display in position, align the clips along the top edge, and carefully press the top edge into place before snapping the rest of the display down. If it doesn't click easily into place, check the condition of the clips around the perimeter of the display and make sure they aren't bent.

• Use a Y000 screwdriver to remove the three 1.3 mm screws securing the battery connector cover.
• Throughout this repair, keep track of each screw and make sure it goes back exactly where it came from to avoid damaging your iPhone.
• During reassembly, this is a good point to power on your iPhone and test all functions before you seal the display in place. Be sure to power your iPhone back down completely before you continue working.

• Remove the battery connector cover.

• Use the pointed end of a spudger or a clean fingernail to pry the battery connector up from its socket on the logic board.
• Try not to damage the black silicone seal surrounding this and other board connections. These seals provide extra protection against water and dust intrusion.
• Bend the connector slightly away from the logic board to prevent it from accidentally making contact with the socket and providing power to the phone during your repair.

• Use the pointed end a spudger or a clean fingernail to pry the display connector up from its socket on the logic board.
• To re-attach press connectors like this one, carefully align and press down on one side until it clicks into place, then repeat on the other side. Do not press down on the middle. If the connector is misaligned, the pins can bend, causing permanent damage.

• Use a Y000 screwdriver to remove two 1.1 mm screws from the front sensor connector cover.
• Use a Phillips screwdriver to remove the remaining two screws from the front sensor connector cover:
  • One 1.5 mm screw
  • One 1.8 mm screw

Remove the display assembly.
During reassembly, pause here if you wish to replace the waterproof adhesive around the edges of the display.

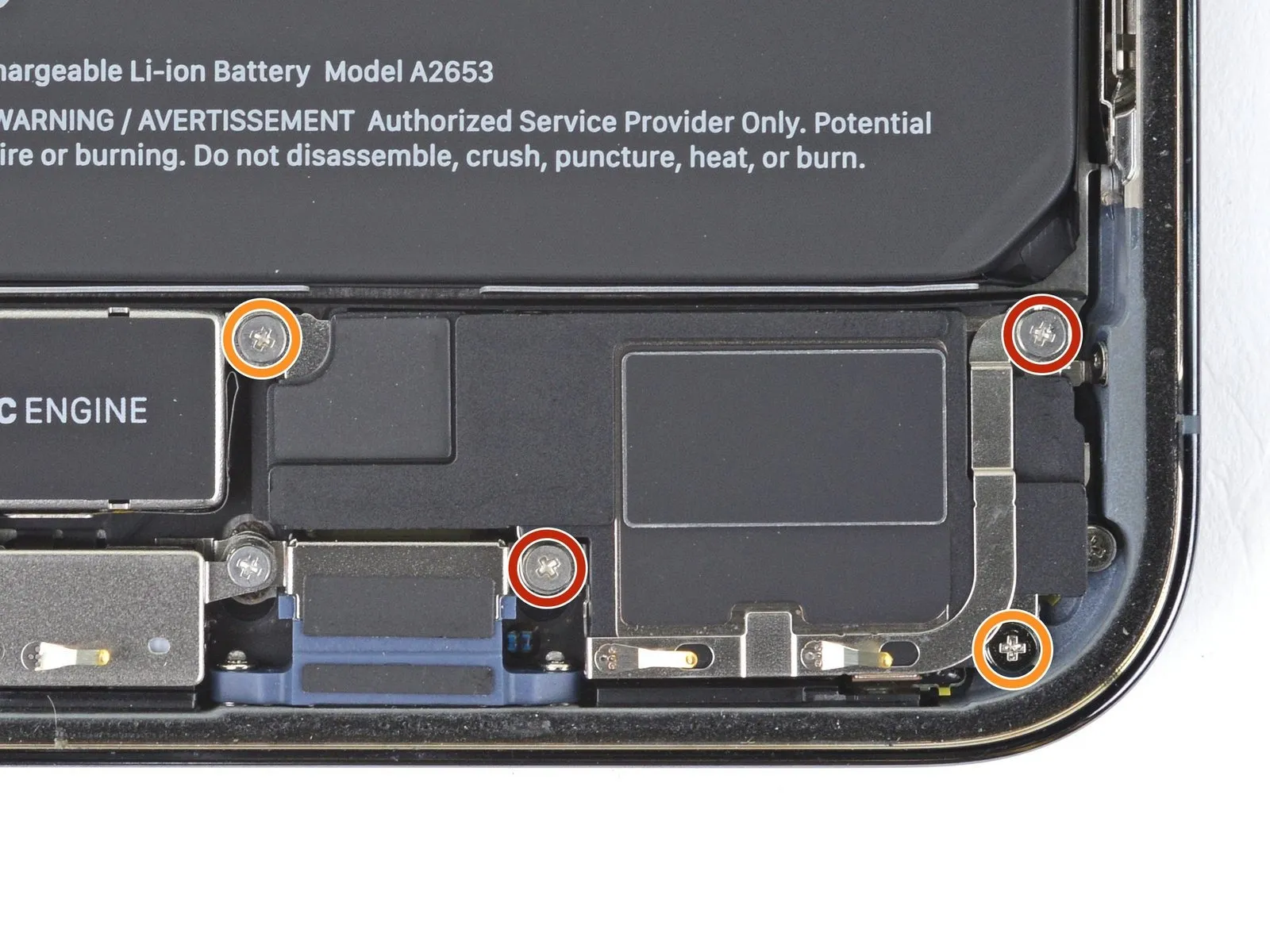

1. Use a Phillips driver to remove the four 1.5 mm screws securing the loudspeaker:
   • Two larger-headed screws
   • Two smaller-headed screws

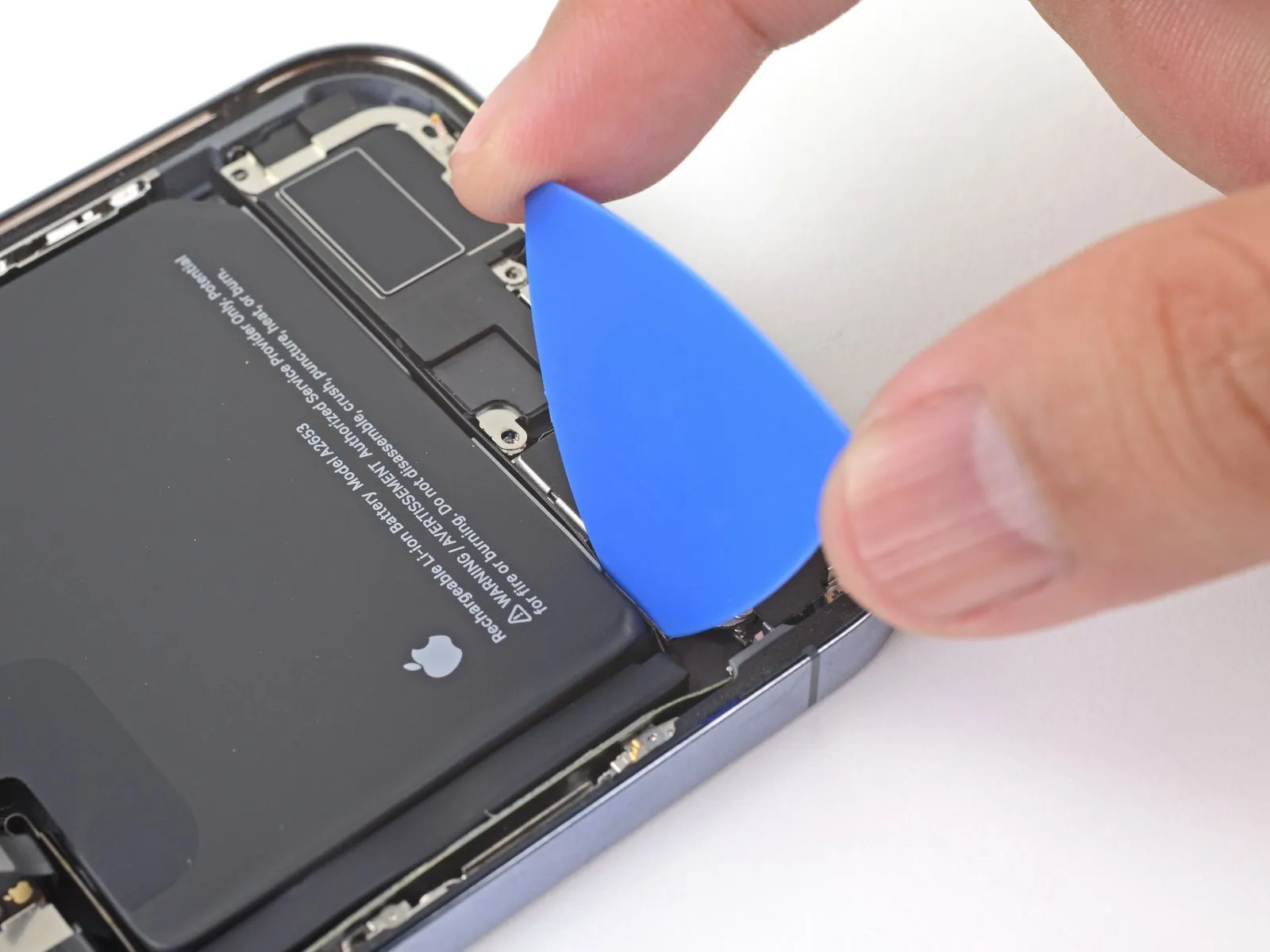

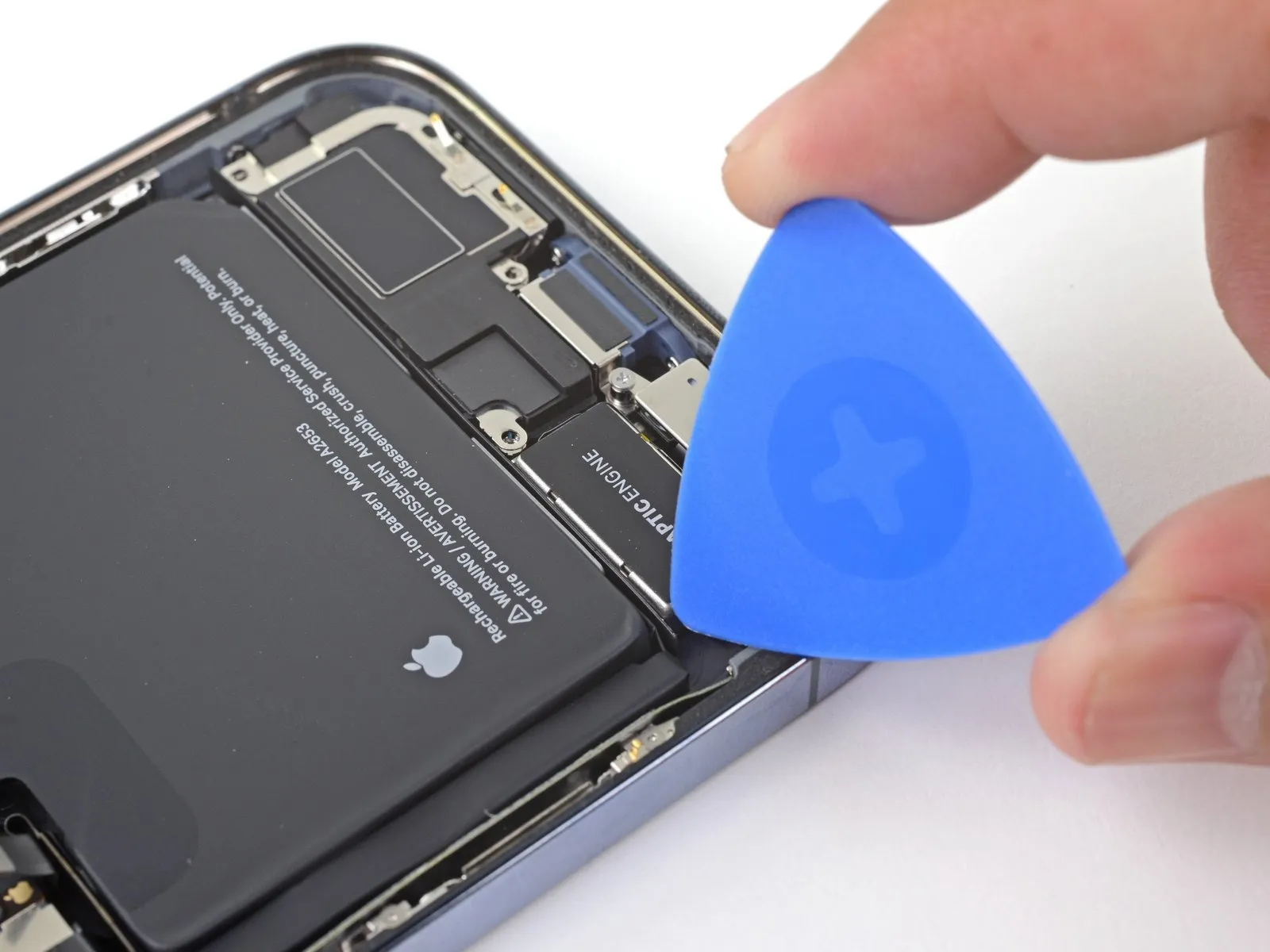

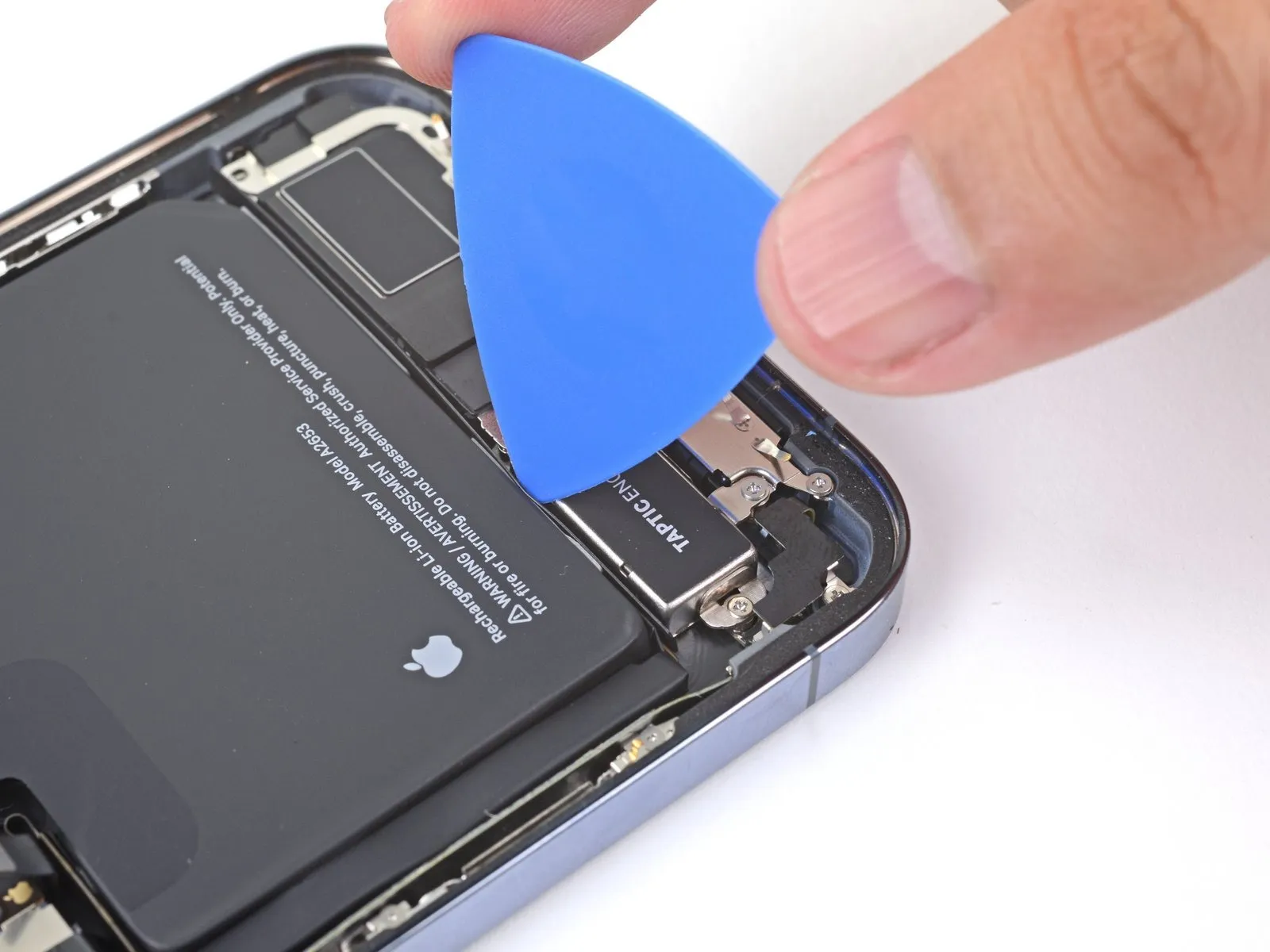

• Slide an opening pick between the top edge of the taptic engine and the adhesive-backed strip.

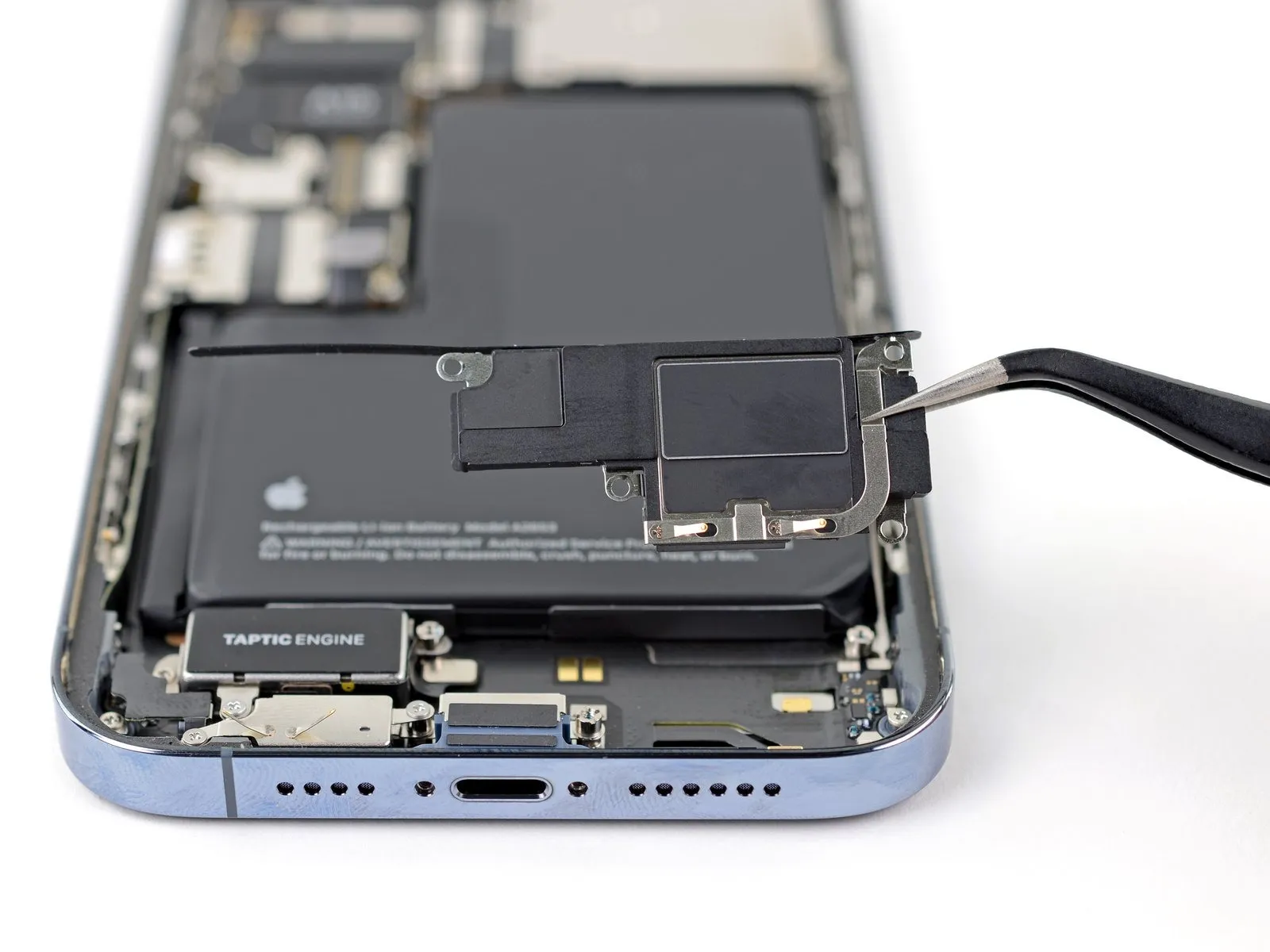

• Remove the loudspeaker.

• If your replacement part didn't come with the plastic strip along the top of the loudspeaker, you'll need to transfer it to your replacement part.
  Use your fingers to gently peel the adhesive-backed strip off of the loudspeaker.

• Only the loudspeaker remains.
