iPhone 14 Front-Facing Camera Assembly Replacement

This document provides instructions for the removal and replacement of the front camera module on an iPhone 14.

The creation of this guide was based on the A2882 (international) iPhone 14 variant; while the steps remain generally applicable to other models, minor visual differences may be observed.

  • New adhesive is essential for resecuring the display during reassembly.
  • The device's water and dust resistance (IP rating) will likely be compromised after this repair.

The front-facing camera and Face ID components are integrated into a single assembly, with the sensors permanently linked to the device's logic board.Important considerations follow.Replacing this component will disable the Face ID functionality.

While this repair will resolve issues with the front-facing camera, Face ID functionality can only be restored by Apple or an Apple-certified technician on iOS 17.6 and earlier versions; iOS 18 and later versions allow for recalibration of genuine replacement cameras using Apple's Repair Assistant.

Step 1 | Remove the pentalobe screws

Step 1 image
Thumbnail 1
Thumbnail 2
  • Prior to commencing the iPhone's disassembly process, ensure the device is completely powered down.
  • The process requires the removal of two screws, each measuring 6.8 millimeters in length.These screws are of the pentalobe P2 type and are located along the iPhone's lower edge.Carefully unscrew these fasteners to proceed with the subsequent repair steps.

Step 2 | Mark your opening picks

Step 2 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  • Excessive insertion of a prying tool carries a risk of device damage; therefore, implement a marking procedure to safeguard against such incidents.
    Accurately determine a distance of3 mmfrom the tool's leading edge and use a permanent marker to create a visible indication on the prying tool.
  • For enhanced precision, consider applying distinct markings at other points on the tool, each representing a different measurement.
  • As an alternative method, secure a coin to the prying tool's tip using adhesive tape, positioning it3 mmaway from the foremost edge.

Step 3 | Tape over any cracks

Step 3 image
Thumbnail 1
Thumbnail 2
  • To limit additional damage and potential injury while repairing a rear glass that is fractured on your iPhone, secure the glass with adhesive tape.
    Completely cover the iPhone’s rear glass surface by applying successive layers of transparent packing tape, ensuring they overlap.
  • Protect your vision by using safety eyewear, as shards of glass may become dislodged during the repair process.
  • Should the suction cup fail to maintain adhesion during subsequent procedures, create a handle from a durable tape, like duct tape, and utilize it to elevate the rear glass.
  • As a last resort, if other methods prove unsuccessful, secure the suction cup to the rear glass using superglue.

Step 4 | Heat the bottom edge

Step 4 image
  • Apply warmth to the lower perimeter of the iPhone's casing utilizing a hair dryer or heat gun, ensuring the rear glass panel reaches a temperature just beyond comfortable touch.
    Avoid prolonged, localized heat application with the heat gun to prevent damage.

Step 5 | Insert an opening pick

Step 5 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  • Secure a suction handle to the lower perimeter of the back glass, ensuring it's positioned away from the glass's extreme boundary.
  • Maintain steady, consistent upward force on the suction cup to generate a minimal separation between the rear glass and the device's housing.
  • Introduce an opening tool into the newly formed space.
  • Due to the robust nature of the adhesive securing the rear glass, considerable force may be necessary to initially create this separation; if difficulty arises, apply additional heat and gently oscillate the rear glass to reduce adhesive strength until a sufficient gap is achieved for tool insertion.

Step 6 | Heat the left edge

Step 6 image

To facilitate separation, apply heat to the left side of the iPhone's enclosure, ensuring the rear glass reaches a temperature just beyond comfortable touch.

Step 7 | Slice the left edge adhesive

Step 7 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  • Using a specialized opening pick, carefully maneuver it along the lower-left perimeter of the iPhone and vertically along the left side, severing the adhesive securing the rear glass assembly.
  • To prevent potential harm to delicate internal components, ensure the pick's insertion depth remains limited to a maximum of 3 millimeters.Maintaining this depth restriction is crucial to avoid unintended damage during the separation process.Adhesive disruption should be achieved with controlled movements and limited pick penetration.

Step 8 | Rear glass information

Step 8 image

A fragile wiring harness is situated on the device's right side, proximate to the volume increase button.Avoid inserting any tools into this area to prevent potential harm to the specified cable.Damage to the cable may occur if a tool is inserted in the described location.

Step 9 | Heat the right edge

Step 9 image

Apply heat to the iPhone's right-hand side, specifically the area bordering the volume controls, until the temperature of the rear glass reaches a point just beyond comfortable touch.The targeted area for heating is the right edge of the iPhone, which is identifiable by the presence of the volume buttons.Elevating the rear glass temperature to a level where it becomes noticeably uncomfortable to the touch is the desired outcome of the heating process.

Step 10 | Slice the right edge adhesive

Step 10 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  • To proceed with separating the adhesive, re-position your opening pick along the lower edge of the iPhone's casing, then advance it upwards along the right side.
  • Ensure the pick's insertion depth remains limited to a maximum of 3 millimeters to prevent potential damage to the charging coil cable.Exceeding this 3-millimeter limit carries a risk of compromising the delicate charging coil cable's integrity.Maintaining a shallow insertion depth, no greater than 3 mm, is crucial for safeguarding the charging coil cable during the separation process.

Step 11 | Heat the top edge

Step 11 image

Apply warmth to the upper portion of the iPhone's casing to achieve a temperature on the rear glass that is noticeably uncomfortable upon brief contact.The targeted area for heating is the top edge of the iPhone's frame.This temperature indicates sufficient softening of the adhesive securing the rear glass panel, facilitating its removal.

Step 12 | Slice the top edge adhesive

Step 12 image
Thumbnail 1
Thumbnail 2
Thumbnail 3

Position a prying tool beneath the uppermost right corner of the device's casing.Carefully move the tool along the top-right contour, extending it approximately halfway along the upper edge.This action initiates separation of the enclosure.

Step 13

Step 13 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  • Position a specialized opening tool beneath the upper-left corner of the device's casing.
  • Maneuver the tool along the top-left contour and across the upper edge to a point marking the midpoint.Limit insertion depth to a maximum of 3 millimeters to prevent potential harm or distortion of the camera module.Avoid complete separation of the rear glass panel at this stage, because a delicate flexible connector remains attached to the iPhone's main circuit board.
  • This ribbon cable's sensitivity necessitates a staged separation process to mitigate risk of damage.

Step 14 | Open the iPhone

Step 14 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  • Detach the vacuum handle from the rear glass assembly.
  • Carefully separate the iPhone's rear glass by pivoting it upwards from the left edge, mimicking the action of opening a book's cover.
  • Exercise caution to prevent damage to the brief charging coil flex cable.
  • Support the rear glass with a stable object to maintain its position during the repair process; alternatively, the suction handle can serve this purpose.

Step 15 | Unfasten the battery connector cover screws

Step 15 image
Thumbnail 1
Thumbnail 2
  • Employ a Y000 screwdriver to detach the two screws, each measuring 1.3 mm in length, which hold the battery connector cover in position.Meticulously document the location of each screw during disassembly to ensure correct placement during reassembly, preventing potential damage to the iPhone.Prior to permanently securing the display, it is advisable to activate the iPhone and verify the operational status of all features at this stage.
  • Ensure a complete power-off of the iPhone before proceeding with the remaining repair steps after performing the functional test.
  • The battery connector cover is fastened with two screws, each precisely 1.3 mm long, and requires a Y000 screwdriver for removal.

Step 16 | Remove the battery connector cover

Step 16 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  • Using tweezers, secure the battery connector cover and advance it vertically, in the direction of the 'A15' marking, to release the upper retaining clip.
  • Detach the battery connector cover from the device.

Step 17 | Disconnect the battery

Step 17 image
Thumbnail 1
Thumbnail 2
  • Employ the tapered end of a spudger to release the battery connector, lifting it vertically from its receptacle.Exercise caution to avoid harming the black silicone sealant situated around this and other board interfaces, as it safeguards against water and dust penetration.A slight outward deflection of the connector, away from the main circuit board, is recommended to preclude unintended power delivery to the device during the repair process.
  • The battery cable's disconnection necessitates a straight-upward lifting motion of the connector relative to its socket.
  • Maintaining the integrity of the silicone seals is crucial for continued protection against environmental contaminants.

Step 18 | Unfasten the charging coil connector cover screw

Step 18 image
Thumbnail 1
Thumbnail 2
  • Employ a Y000 screwdriver for the task of detaching the charging coil connector cover.A single screw, measuring 1.0 mm in length, holds the cover in place and requires removal.The Y000 screwdriver is specifically needed to engage the screw head properly.Carefully unscrew the fastener to avoid damaging the surrounding components.The charging coil connector cover is secured by this single, small screw.

Step 19 | Remove the charging coil connector bracket

Step 19 image
Thumbnail 1
Thumbnail 2
  • Employing tweezers, detach the cover that protects the charging coil connector.

Step 20 | Disconnect the charging coil

Step 20 image
Thumbnail 1
Thumbnail 2
  • Employ the tapered tip of a spudger to release the charging coil cable's connector, lifting it vertically away from its receptacle.Carefully separate the charging coil cable connector from its socket utilizing the pointed end of a spudger, ensuring a straight upward motion.To detach the charging coil cable, apply the pointed spudger tip and elevate the connector directly out of its socket.

Step 21 | Remove the rear glass assembly

Step 21 image
Thumbnail 1
Thumbnail 2
  • Detach the rear glass component from the device.
  • Following a thorough cleaning of the surfaces with isopropyl alcohol possessing a concentration exceeding 90%, apply fresh adhesive as required.
  • Should you intend to substitute the existing adhesives securing the rear glass, halt the reassembly process at this stage.

Step 22 | Unfasten the front camera assembly cable bracket screws

Step 22 image

Employ a Y000 screwdriver for the disassembly process.Two screws, each measuring 1.3 millimeters in length, must be removed.These screws are responsible for fastening the front camera assembly cable bracket.Carefully detach the screws using the appropriate screwdriver.The front camera assembly cable bracket is held in place by these fasteners.

Step 23 | Remove the front camera assembly cable bracket

Step 23 image
Thumbnail 1
Thumbnail 2

To detach the securing bracket for the front camera assembly cable, employ tweezers or your fingertips.

Step 24 | Disconnect the camera and sensor cable

Step 24 image
Thumbnail 1
Thumbnail 2
Thumbnail 3

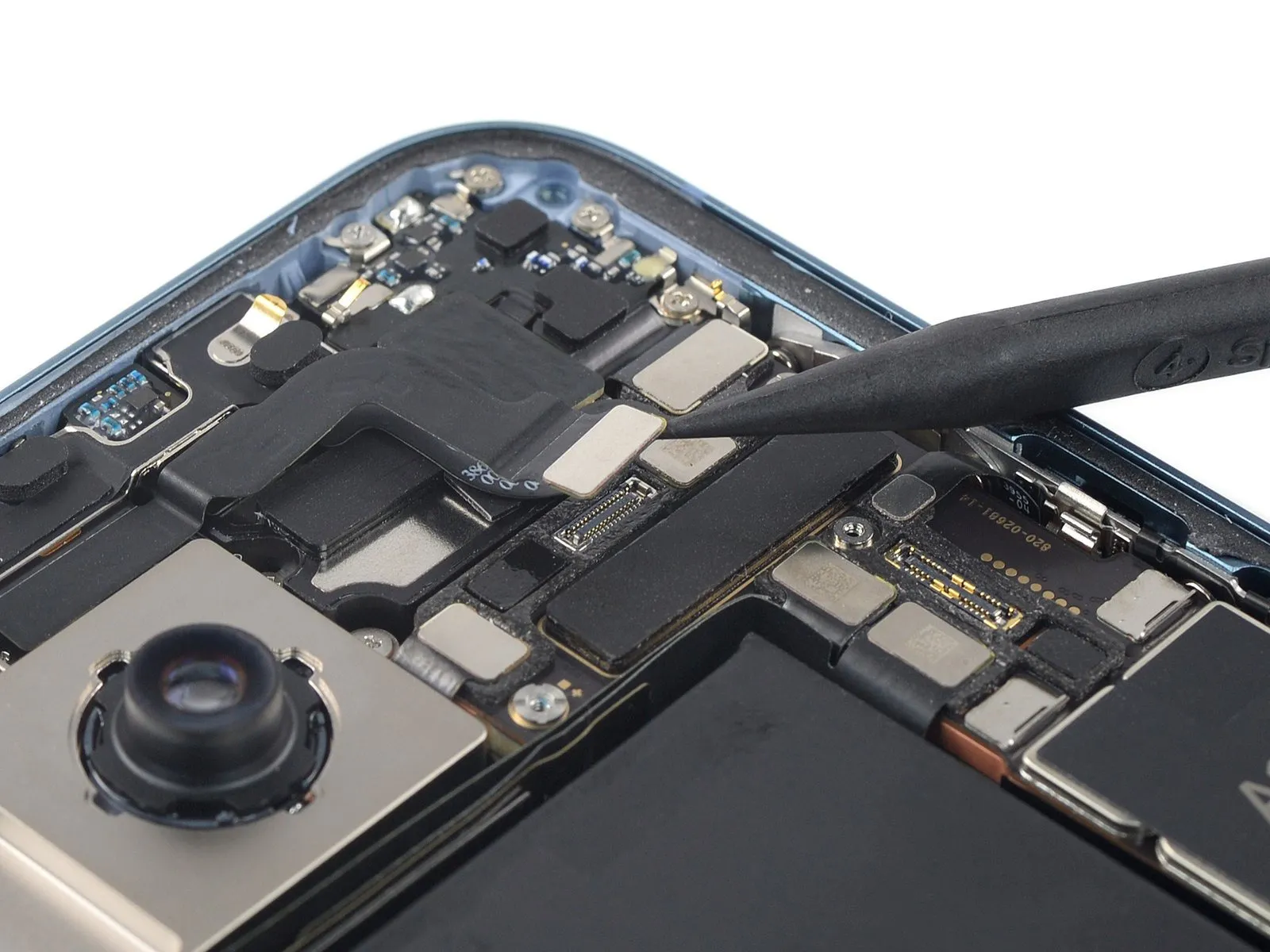

Employ a spudger to detach the camera and sensor cable connectors, lifting them vertically away from their respective receptacles.

Step 25 | Remove the front-facing camera assembly

Step 25 image
Thumbnail 1
Thumbnail 2
  • To detach the front camera and associated sensor unit, employ either a set of tweezers or direct manual manipulation.A precise gripping action is required for component separation, achievable with specialized tools or careful finger placement.The front-facing camera and sensor assembly necessitates careful removal to prevent damage to surrounding components.Employing tweezers allows for a more controlled detachment, minimizing the risk of unintended force application.Alternatively, manual extraction utilizing fingertips can be performed, provided sufficient dexterity and caution are exercised.
