iPhone 14 Plus Loudspeaker Replacement

• Prior to commencing the iPhone's disassembly process, ensure the device is completely powered down.
• The two pentalobe P2 screws, each measuring 6.8 millimeters in length, must be extracted.These screws are located on the lower perimeter of the iPhone's casing.Utilize appropriate tools to carefully remove the screws, preventing damage to surrounding components.

• Excessive insertion of a prying tool carries the risk of device damage; implement the following procedure to safeguard against this.
  Using a precise measuring tool, determine a distance of3 millimetersfrom the tool's distal end and visibly indicate this point on the prying tool with a durable, permanent marker.
• For enhanced reference, consider marking the tool's other corners with varying measurement values.
• As an alternative method, affix a coin to the prying tool's tip, positioning it3 millimetersfrom the distal end.

• To mitigate additional damage and potential injury while repairing a rear glass fracture on your iPhone, secure the broken area with adhesive tape.
  Completely cover the iPhone's rear glass surface by applying successive layers of transparent packing tape, ensuring substantial overlap between each strip.
• Protect your vision by utilizing safety eyewear, as shards of glass may become dislodged during the repair process.
• Should the suction cup fail to maintain adhesion during subsequent procedures, create a handle from a robust adhesive tape, like duct tape, to facilitate lifting the rear glass.
• As a last resort, secure the suction cup directly to the rear glass using superglue to achieve the necessary grip.

• Apply warmth to the lower perimeter of the iPhone's casing utilizing a hair dryer or heat gun, ensuring the rear glass panel reaches a temperature just beyond comfortable touch.
  Avoid prolonged, concentrated heat application with the heat gun to prevent damage.

• Secure a suction handle to the lower border of the back glass, ensuring it's positioned away from the perimeter's edge.
• Maintain consistent, substantial upward force on the suction cup to generate a minimal separation between the rear glass and the device's frame.
• Introduce an opening tool into the newly formed space.
• Due to the robust nature of the adhesive securing the rear glass, considerable force may be necessary to initially separate the glass; if separation proves difficult, apply additional heat and gently oscillate the rear glass vertically to reduce adhesive strength until a sufficient gap is achieved for tool insertion.

To facilitate separation, apply heat to the left side of the iPhone's enclosure, ensuring the rear glass reaches a temperature just beyond comfortable touch.

• Employ the opening pick to maneuver along the lower-left perimeter of the iPhone's rear enclosure, progressing upwards along the left side to sever the adhesive securing the rear glass assembly.
• Ensure the pick's insertion depth remains limited to a maximum of 3 millimeters to prevent potential harm to delicate internal components.The adhesive bond securing the rear glass is designed to be robust; therefore, careful and deliberate pick manipulation is essential.Exceeding the recommended 3-millimeter insertion depth carries a risk of compromising the integrity of internal components, potentially leading to malfunction.

To initiate separation, apply heat to the right-hand side of the iPhone's enclosure, specifically the perimeter containing the power button, until the temperature of the rear glass panel reaches a point where it becomes noticeably uncomfortable to the touch.

• Position a repair tool at the lower edge of the iPhone's enclosure.
• Advance the tool upwards along the right side to further release the adhesive sealant.

• Position a prying tool beneath the upper-leftmost perimeter of the device's casing.
• Maneuver the tool along the upper-left corner, extending it to the midpoint of the top edge.Limit insertion depth to a maximum of 3 millimeters to prevent potential harm or contamination of the camera module.Refrain from complete separation of the rear glass panel at this stage, due to the presence of a delicate ribbon cable linking it to the iPhone's main circuit board.
• This ribbon cable necessitates caution to avoid accidental disconnection during the initial separation phase.

• Detach the vacuum handle from the rear glass assembly.
• Carefully separate the iPhone's rear glass by pivoting it upwards from the left edge, mimicking the action of opening a book's cover.
• Exercise caution to prevent damage to the brief charging coil flex cable.
• Support the rear glass in an upright position during the repair process; alternatively, the suction handle can serve this purpose if a dedicated support is unavailable.

• Employ a Y000 screwdriver for the removal of the two screws, each measuring 1.3 mm in length, which fasten the battery connector cover.Carefully note the location of each screw during disassembly, ensuring proper placement upon reinstallation to prevent potential damage to the iPhone.To guarantee correct reassembly, meticulously organize all screws, referencing their original positions.
• Prior to securing the display, it is advisable to activate the iPhone and verify all operational functions at this stage of the repair process.
• Completely de-energize the iPhone by powering it off before proceeding with the subsequent steps of the reassembly.

• Using tweezers, secure the battery connector cover and advance it vertically, in the direction of the 'A15' marking, to release the upper retaining clip.
• Detach the battery connector cover.

• Employ the tapered end of a spudger to release the battery cable's connector, lifting it vertically from its receptacle.Exercise caution to avoid harming the black silicone seals located around this and other board interfaces, as they safeguard against water and dust ingress.To inhibit unintended electrical connections and power delivery to the device during the repair process, slightly deflect the connector away from the logic board's socket.
• The battery cable is disconnected by applying upward force directly to the connector's body using the spudger's pointed tip.
• Maintaining the integrity of the silicone seals is critical for preserving the device's environmental protection against water and particulate contamination.

• Employ a Y000 screwdriver for the purpose of detaching the charging coil connector cover.The fastener in question is a 1.0 mm screw.This screw serves as the sole means of securing the cover.Carefully remove the screw using the appropriate screwdriver.Ensure the Y000 screwdriver is properly engaged to prevent damage during removal.

• Employing tweezers, detach the protective cover that secures the charging coil connector.

• Employ the tapered tip of a spudger to release the charging coil cable's connector, lifting it vertically away from its receptacle.Carefully separate the charging coil cable connector from its socket utilizing the pointed end of a spudger, ensuring a straight upward motion.To detach the charging coil cable, apply the pointed spudger tip and elevate the connector directly out of its associated socket.

• Detach the rear glass component from the device.
• Following a thorough cleaning of the surfaces with isopropyl alcohol exceeding 90% purity, apply fresh adhesive to the required locations.
• If a rear glass adhesive replacement is desired, halt the reassembly process at this stage.

• Employ a Phillips screwdriver for the disassembly of the four screws that hold the Taptic Engine in place.Four screws, each measuring 1.7 millimeters in length, must be removed.A single screw with a length of 1.4 millimeters is also present and requires removal.
• Additionally, a screw measuring 1.8 millimeters in length needs to be detached.
• The Taptic Engine is fastened by these screws, necessitating their careful removal with the appropriate screwdriver.
• Ensure the Phillips screwdriver is correctly sized to avoid damaging the screw heads during the removal process.

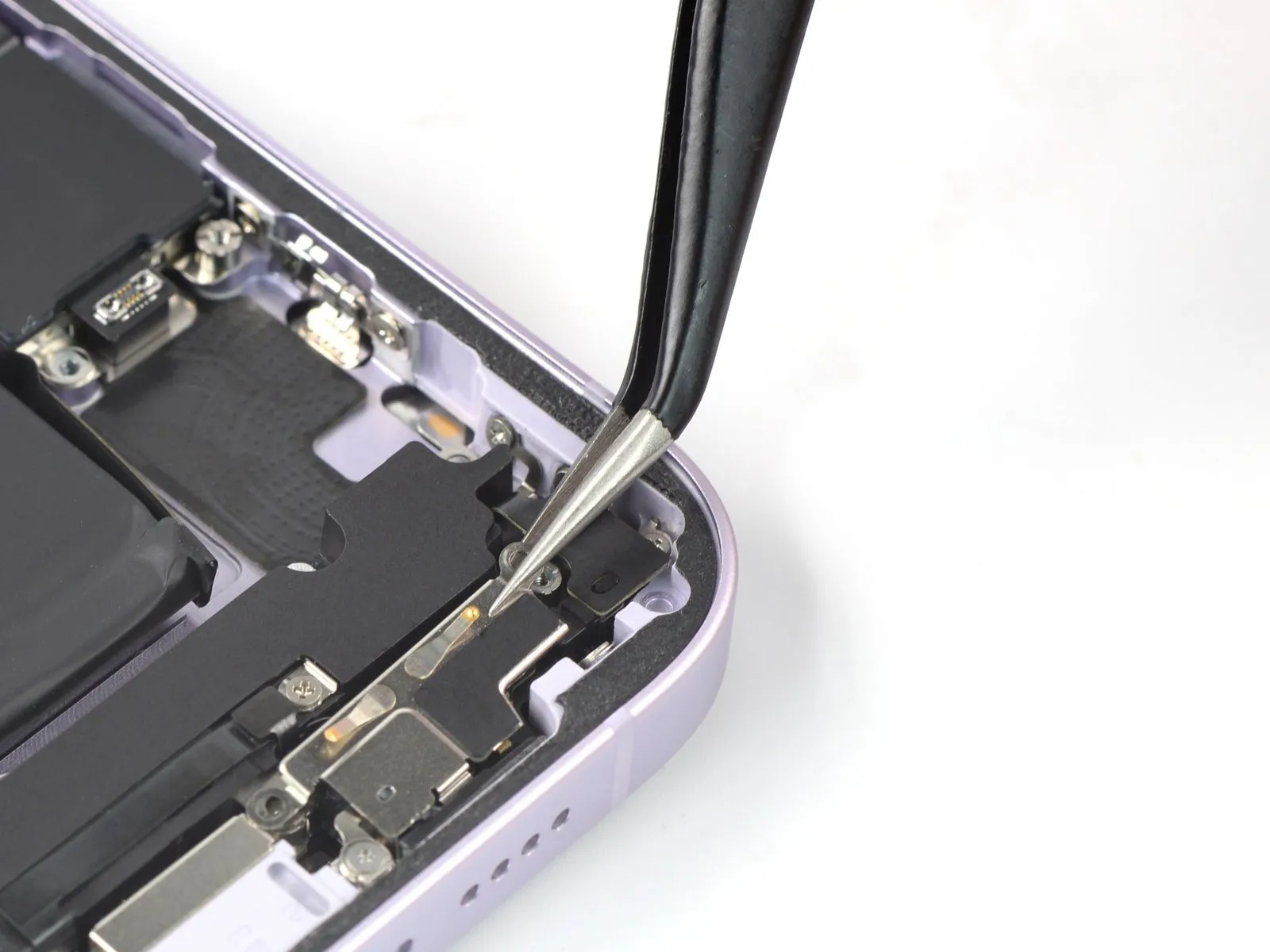

• Employ tweezers to detach the bracket securing the Taptic Engine connector.

• To release the Taptic Engine, employ the tapered tip of a spudger and lift the connector vertically away from its receptacle.

• Employ a standoff driver for optimal results.The 3.1 mm standoff screw must be detached.A specialized standoff driver is the preferred tool for screw removal.Alternatively, a small flathead screwdriver can be utilized, but with heightened care.

Damage to nearby components is possible if the tool slips during operation.Standoff screws necessitate careful removal to prevent component compromise.

• Employing tweezers, or alternatively, your fingertips, facilitates the extraction of the Taptic Engine.The Taptic Engine can be dislodged using either a pair of tweezers or direct manual manipulation.For removal of the Taptic Engine, utilize either tweezers for precision or carefully employ your fingers.To detach the Taptic Engine, a pair of tweezers provides a suitable tool, or manual dexterity can be used.

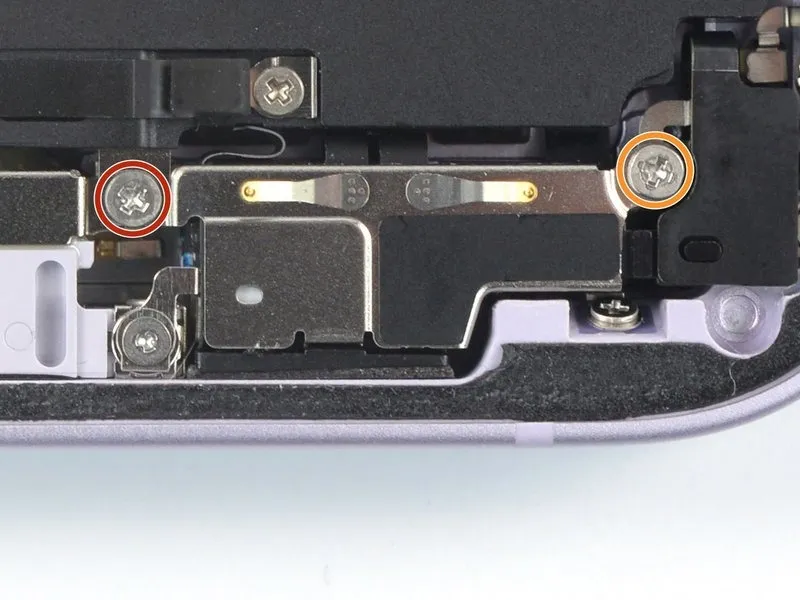

• Employ a Phillips head screwdriver for disassembly.The metal bracket is fastened with two screws, necessitating their removal using the screwdriver.

• A screw measuring 1.4 millimeters in length is required.Additionally, a screw with a length of 1.5 millimeters is needed.
• Note the dimensions of each fastener for accurate replacement.These screws secure the bracket and must be handled with care to avoid damage.

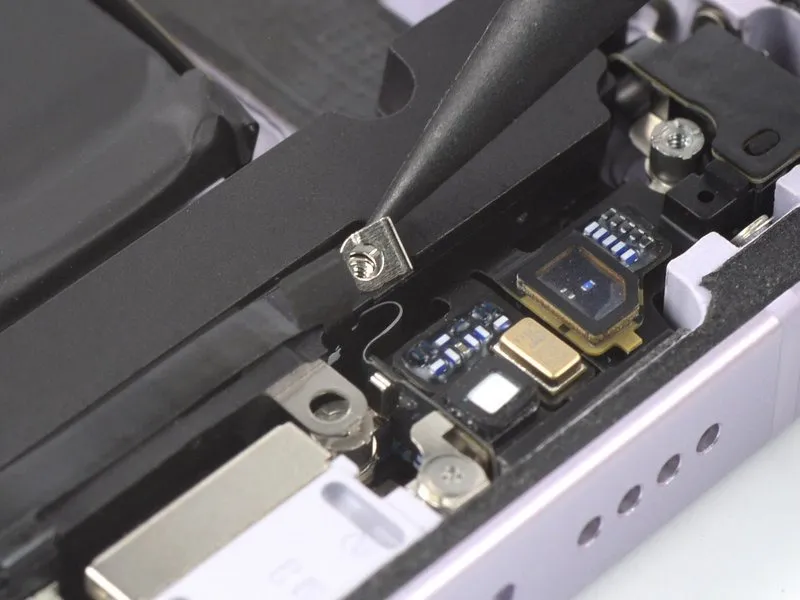

Multiple fasteners are affixed to the underside of the metal bracket, serving to attach it to the frame's structure.

• Employing tweezers is necessary for the delicate task of manipulating the components.To disengage the metal bracket, gently elevate it while applying force to release the clips from the frame's interface.

• Ensure proper alignment of the bracket during reinstallation, then apply pressure to seat the metal clips within their designated cavities on the frame.
• Detach the metal bracket from its mounting position.

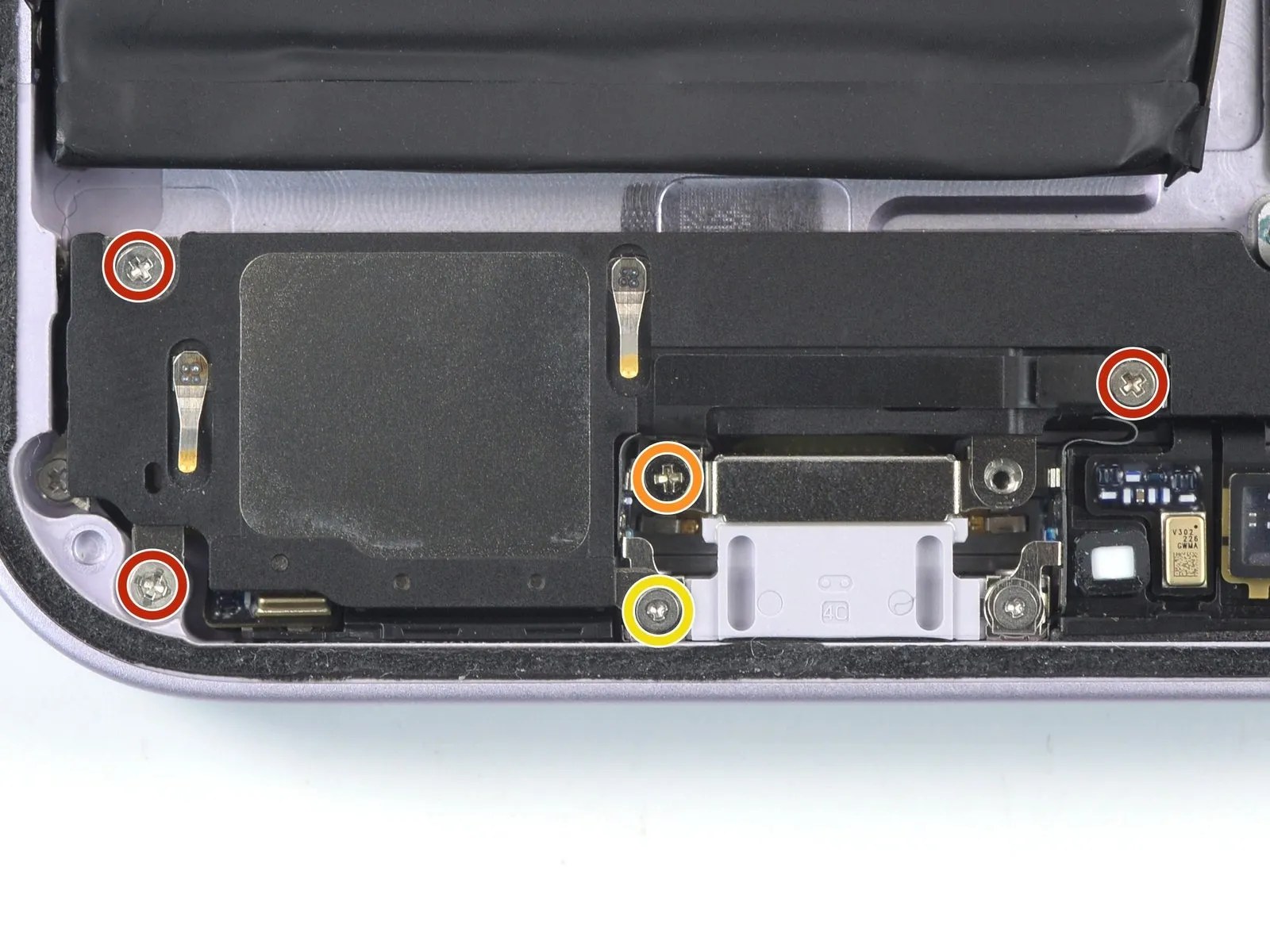

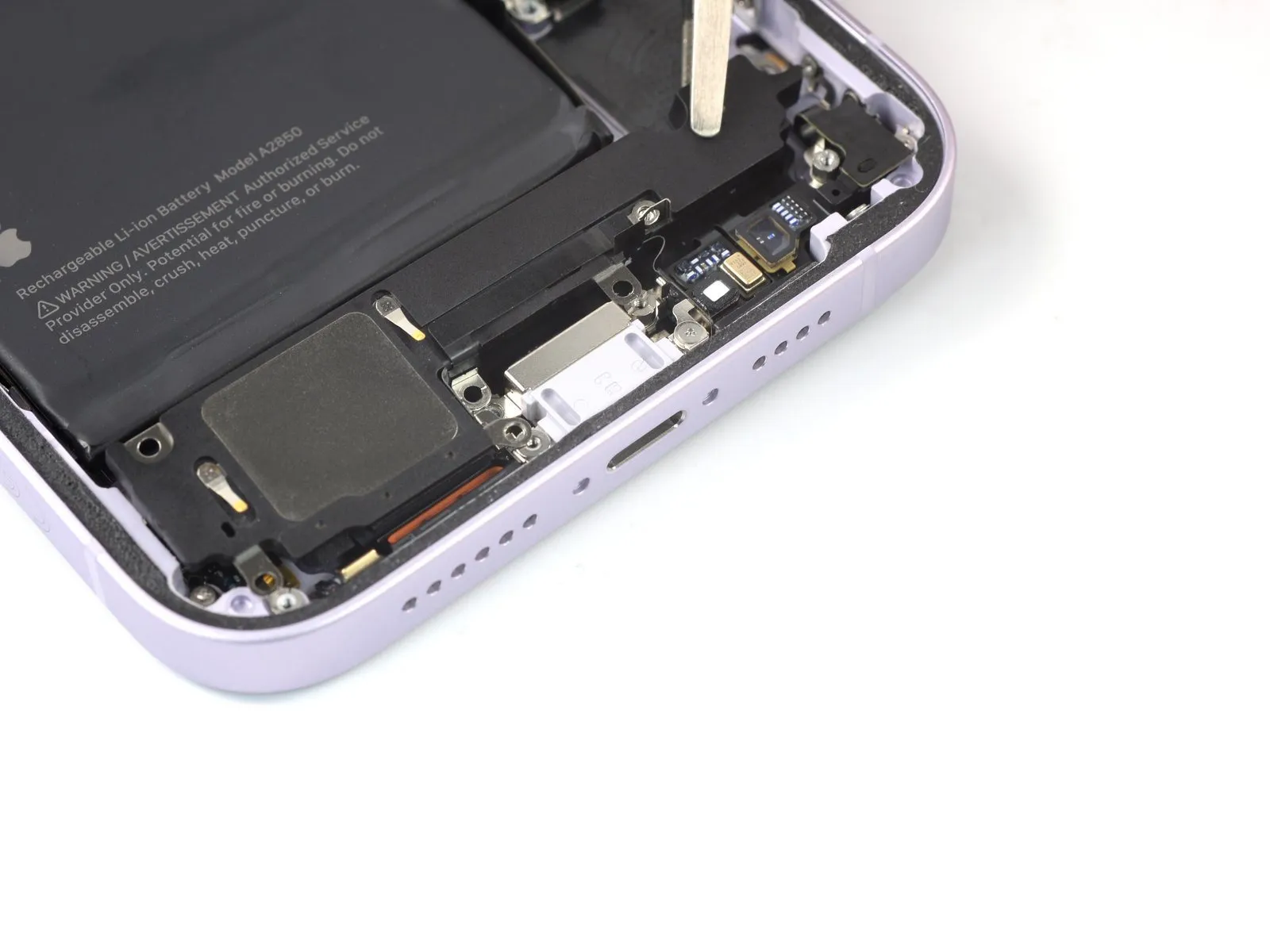

• Detach the loudspeaker by unscrewing the five fasteners that hold it in place.
• Employ a Phillips screwdriver for the subsequent steps.A Phillips screwdriver is the appropriate tool for this task.Three screws, each measuring 1.5 millimeters in length, must be removed.The next step involves utilizing a Phillips screwdriver again.A Phillips screwdriver is required to extract the following screw.
• The screw to be removed now has a length of 1.9 millimeters.A Y000 screwdriver is necessary for the next removal.The final screw, with a length of 1.2 millimeters, will be detached using the Y000 screwdriver.The five screws that retain the loudspeaker must be taken out.A Phillips screwdriver is the correct tool for the task at hand.
• To proceed, a Phillips screwdriver is needed.The three screws, each with a length of 1.5 mm, should be removed.A Phillips screwdriver is the appropriate tool for the next step.The screw, measuring 1.9 mm, requires a Phillips screwdriver for removal.A Y000 screwdriver is needed to remove the 1.2 mm screw.

• Detach the loudspeaker assembly.
