iPhone 14 Pro Earpiece Speaker Replacement

• Prior to commencing the device's separation, ensure the iPhone's power is completely deactivated.
• The process requires the extraction of two screws, each measuring 6.8 millimeters in length, located along the iPhone's lower border.These screws are of the pentalobe P2 type.Carefully unscrew these fasteners to proceed with the subsequent repair steps.

• Excessive insertion of a prying tool poses a risk of device damage; therefore, marking the tool is crucial to avoid such incidents.
  Using a precise measuring tool, determine a distance of3 mmfrom the tool's tip and clearly indicate this point on the prying tool with a permanent marker.
• For enhanced precision, consider marking additional corners of the tool with varying measurement distances.
• As an alternative method, securely affix a coin to the prying tool using adhesive tape, positioning it3 mmfrom the tool's tip.

• To mitigate additional damage and potential physical injury when addressing a cracked iPhone display, secure the fragmented glass with adhesive tape.
  Apply successive layers of transparent packing tape across the iPhone's screen surface, ensuring complete coverage of the display's front.
• Protect your vision by utilizing safety eyewear, as shards of glass may become dislodged during the repair process.
• Should the suction cup fail to maintain adhesion during subsequent procedures, create a handle from a robust adhesive strip, like duct tape, to carefully elevate the screen.
• As a last resort, secure the suction cup to the screen's surface using a small amount of superglue to facilitate lifting.

The subsequent three actions showcase the Anti-Clamp, a custom-built instrument intended to simplify the initial opening process; should you choose not to utilize this tool, proceed to the instructions three steps later for an alternative approach.
Detailed guidance regarding the Anti-Clamp's operation can be found in a separate, dedicated instructional document.

• Grasp the blue handle and move it in a rearward direction to disengage the Anti-Clamp's clamping arms.
• Carefully position the arms across either the left or right side of your iPhone's casing.
• Locate the suction cups and place them adjacent to the lower edge of the iPhone, ensuring one is situated on the front surface and the other on the rear.
• Apply pressure by compressing the suction cups together to establish a secure bond with the intended area.
• In cases where the iPhone's surface exhibits excessive slipperiness, hindering the Anti-Clamp's ability to maintain adhesion, applying adhesive tape can enhance the surface's grip.

• Advance the blue handle to secure the clamping arms in a locked position.
• Rotate the handle a full 360-degree circle, or continue until the suction cups begin to deform.
• Maintain parallel alignment between the suction cups; should misalignment occur, slightly release the suction cups and readjust the arms.

• The targeted heating should elevate the screen's temperature to a level just beyond comfortable tactile perception, as indicated by a slight sensation of heat on the right edge, which incorporates the power button.

• Utilize the opening pick to release the adhesive securing the iPhone's lower-right perimeter.
• Progress the pick's movement along the right side of the device's frame, advancing upwards.
• Exercise caution to prevent the pick from penetrating beyond a depth of 3 millimeters, to avoid potential harm to the internal components.
• Maintain the pick's position at the upper-right corner of the iPhone prior to proceeding with subsequent actions.

• The objective of this heating process is to facilitate screen separation; achieve this by warming the top edge of the iPhone until the surface temperature is just beyond the threshold of comfortable touch.

• Utilize a separation tool to release the adhesive securing the iPhone's upper-right edge by gently sliding it into the gap.
• To prevent potential harm to the proximity and other sensors located at the top of the device, ensure the tool's insertion depth remains under 3 millimeters.
• Maintain the separation tool's position within the top-left corner of the iPhone as preparation for the subsequent actions.

• Fragile wiring is situated along the iPhone's left side; insertion of a tool beyond a depth of 2 millimeters risks cable damage.
• Perform a rotational motion with your tool around the screen's upper-left quadrant.
• Advance your tool downward along the left edge to release the adhesive bond.
• Should adhesive separation prove difficult, apply supplemental heat to the left edge to soften the adhesive.

• Detach the suction handle from the display assembly.
• Orient your iPhone, ensuring the right-hand side is visible.
• Initiate the display separation by pivoting the screen upwards from the right side, mimicking the action of opening a book's cover.
• Secure the display in an upright position using a support to maintain access to the internal components.
• Alternatively, the suction handle can be utilized to brace the display if a separate support is unavailable.

When reattaching the display, position it correctly, match the top edge clips, and gently apply pressure to secure the upper portion before fully engaging the remaining screen perimeter.

• Employ a Y000 screwdriver to detach the eight screws that hold the battery connector cover in place.
  • A quantity of five screws, each measuring 1.3 millimeters in length, are present.Two screws, each with a length of 1.6 millimeters, are also included.A single screw, measuring 1.9 millimeters in length, completes the set.
  • Carefully monitor the location of all screws throughout the repair process.Ensure that each screw is reinstalled in its original position to prevent potential damage to the iPhone.As a verification step during reassembly, it's advisable to briefly activate your iPhone.
  • Test all operational features at this stage to confirm proper functionality.Completely deactivate your iPhone before resuming the repair procedure.This testing phase should occur before the screen is permanently reattached.

Confirming functionality now can prevent issues later in the process.

Secure the screen after verifying all systems are operating as expected.

• To permit the passage of the flexible cables, advance the connector cover in a downward motion.
• Detach the connector cover from its position.

• The connector should be disengaged by applying upward force, ensuring a linear trajectory relative to its receptacle.
• Exercise caution to avoid compromising the integrity of the black silicone sealant that encases this and other board interfaces, as it safeguards against ingress of water and particulate matter.
• To preclude unintended electrical engagement, gently deflect the connector away from the logic board's surface.

• Re-establishment of the connection requires meticulous alignment; apply pressure to one lateral edge of the connector to secure it, followed by repetition of this process on the opposing side, ensuring an audible 'click' indicates proper seating; avoid central pressure.
• Should misalignment occur during re-attachment, the delicate pins within the connector are susceptible to bending, potentially resulting in irreversible component failure.

• To detach the second display cable, utilize the pointed end of a spudger, carefully levering the connector vertically out of its socket.

• Detach the display panel from the device's housing.
• Following a thorough cleaning of the contact surfaces utilizing isopropyl alcohol exceeding 90% purity, apply fresh adhesive material as required.
• If screen adhesive replacement is desired, halt the reassembly process at this stage.

Employ a Phillips screwdriver for the disassembly process.Two screws, each measuring 1.6 millimeters in length, are utilized for retention.These fasteners hold the earpiece speaker in place.Removal of these screws is necessary to proceed with the repair.The Phillips screwdriver is the appropriate tool for this task.

• Utilize a spudger, inserting its tapered tip beneath the right lateral border of the earpiece speaker assembly.
• Apply upward force with the spudger to disengage the earpiece speaker from its adhesive bond.
• A rubber gasket is affixed to the upper right perimeter of the earpiece speaker; ensure proper alignment within its designated frame recess during reinstallation.

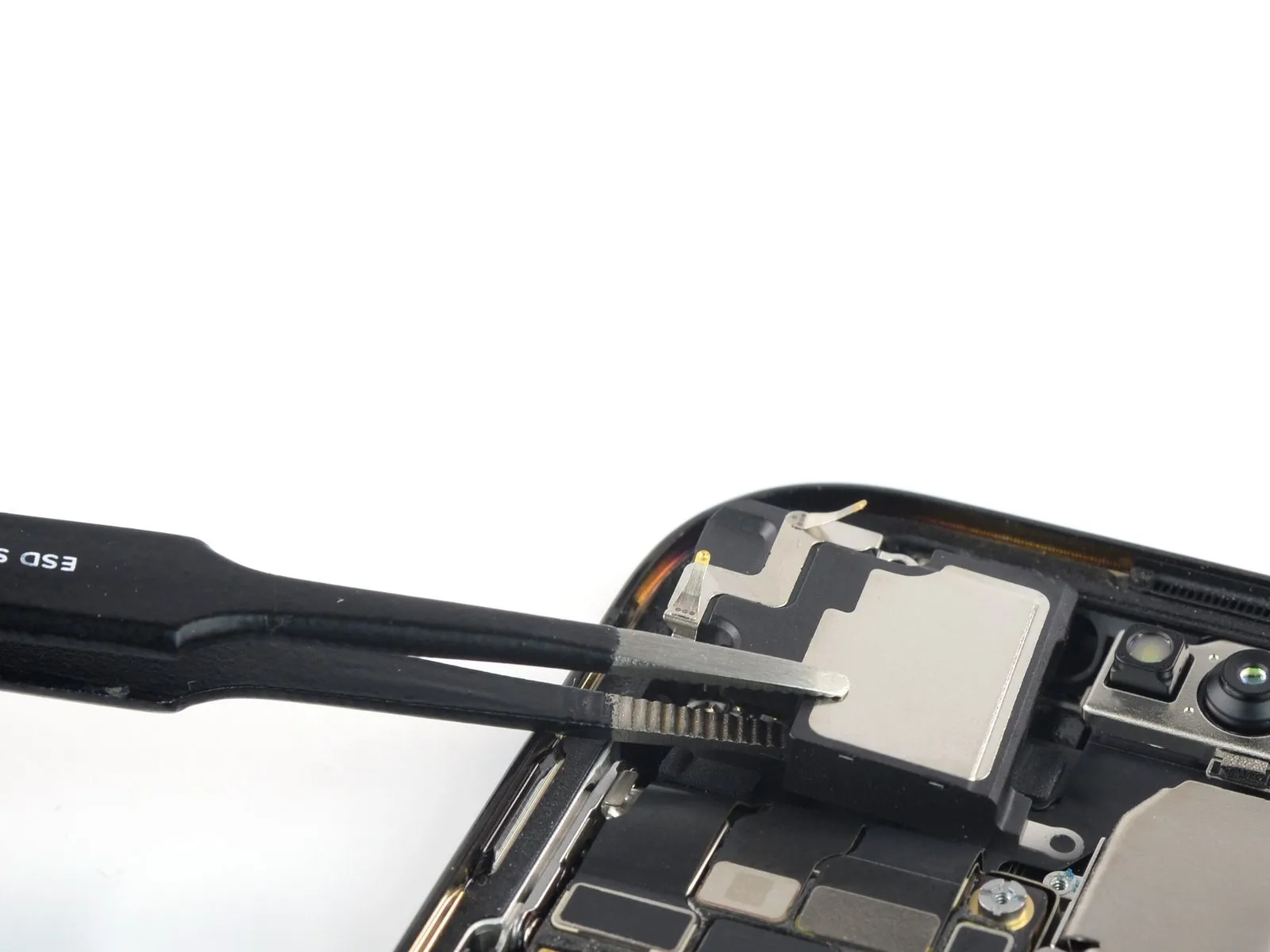

Employ tweezers or your fingertips to extract the earpiece speaker component.
