iPhone 14 Pro Rear-Facing Camera Assembly Replacement

• Prior to commencing the iPhone's disassembly process, ensure the device is completely powered down.
• The two screws, each measuring 6.8 millimeters in length and utilizing a pentalobe P2 head, must be detached.These screws are situated along the lower perimeter of the iPhone's casing.Careful removal of these fasteners is essential for proceeding with the repair.

• Excessive insertion of a picking tool poses a risk of device harm; therefore, marking the tool is crucial to avoid such damage.
  Using a measuring tool, determine a distance of3 millimetersfrom the distal end of the opening pick and clearly indicate this point with a permanent marker.
• For enhanced precision, consider marking the remaining corners of the pick with varying measurement distances.
• As an alternative method, affix a coin to the pick's tip, ensuring a separation of precisely 3 millimeters.

• To minimize additional damage and potential injury while servicing a device with a fractured display, secure the broken glass with adhesive tape.
  Apply successive layers of transparent packing tape across the iPhone's display surface, ensuring complete coverage of the entire front face.
• Protect your vision by utilizing safety eyewear, as shards of glass may become dislodged during the repair process.
• Should the suction cup fail to maintain adhesion during subsequent procedures, create a handle from a durable tape (like duct tape) and employ it to elevate the screen.
• As a last resort, a small amount of cyanoacrylate adhesive can be used to temporarily secure the suction cup to the display.

The following three actions illustrate the Anti-Clamp's function, a specialized tool created to simplify the initial separation process; if this tool is unavailable, proceed to the instructions three steps later for an alternative approach.
Detailed guidance regarding the Anti-Clamp's operation can be found in a separate instructional document.

• Grasp the blue handle and move it in a rearward direction to release the Anti-Clamp's gripping arms.
• Position the arms across either the left or right side of your iPhone's frame.
• Place the suction cups close to the lower edge of the iPhone, ensuring one is on the front face and the other on the rear.
• Apply pressure by compressing the cups together to establish a secure hold on the intended surface.
• Should the iPhone's surface prove excessively smooth, preventing adequate adhesion by the Anti-Clamp, applying adhesive tape can enhance the grip.

• Advance the blue handle to engage the locking mechanism on the arms.
• Rotate the handle a full 360 degrees, or continue until the cups exhibit signs of deformation.
• Maintain the parallel orientation of the suction cups; should misalignment occur, slightly release the suction cups and readjust the arms.

• This localized heating process should elevate the screen's temperature to a point where it becomes marginally too warm for comfortable contact.

• Progressively move the tool upwards along the right side of the device's exterior until the top-right corner is reached.
• Exercise caution to prevent the tool's insertion depth from exceeding 3 millimeters, mitigating potential harm to delicate internal parts.
• Maintain the tool's position at the upper-right corner, ensuring it remains engaged before proceeding with subsequent actions.
• The adhesive bond should be released by carefully maneuvering the separation tool around the perimeter, starting with the bottom-right area.

• The objective of this heating process is to soften the adhesive securing the screen, facilitating its subsequent separation; avoid excessive heat that could damage internal components.

• Utilize a separation tool to maneuver along the upper-right edge of the iPhone, releasing the adhesive bond.
• To prevent potential harm to the proximity and other sensors located at the top, restrict the tool's insertion depth to a maximum of 3 millimeters.
• Maintain the separation tool's position within the upper-left corner as you advance to the subsequent steps.

• Fragile wiring is situated along the iPhone's left side; insertion of a tool should not exceed 2 millimeters to prevent cable damage.
• Perform a rotational movement with your tool around the screen's upper-left quadrant.
• Advance your tool along the left edge, reaching the lower corner, to release the adhesive bond.
• Should adhesive separation prove difficult, apply heat to the left edge to soften the bonding agent.

• Detach the suction handle from the display assembly.
• Orient your iPhone, ensuring the right-hand side is visible.
• Separate the iPhone's display from its body by pivoting the screen upwards from the right side, mimicking the action of opening a book's cover.
• Secure the display in an upright position using a support to maintain access to the internal components.
• Alternatively, the suction handle can be utilized to prop the display if a separate support is unavailable.

When reattaching the display, position it correctly, match the clips on the upper edge, and gently apply pressure to secure the top edge before fully engaging the remaining portion of the display; if resistance is encountered, inspect the clips around the display's perimeter for any deformation.

• Employ a Y000 screwdriver to detach the eight screws that fasten the battery connector cover.
  • A quantity of five screws, each measuring 1.3 millimeters in length, are present.Two screws, with a length of 1.6 millimeters, are also included.A single screw, measuring 1.9 millimeters in length, completes the set.
  • Maintain careful organization of all screws during this repair, ensuring each is reinstalled in its original location to prevent potential iPhone damage.As a verification step during reassembly, it's advisable to briefly activate your iPhone and confirm the operational status of all features.Prior to securing the display assembly, completely deactivate your iPhone.
  • This functional test allows for early detection of any issues before final assembly.Proper screw placement is crucial for maintaining the device's integrity.The Y000 screwdriver is specifically required for this operation.

Accurate screw tracking prevents component misplacement and potential damage.

Powering down the iPhone before continuing prevents data loss and ensures safe operation.

• Using tweezers, carefully move the connector cover in a downward direction to allow the flexible cables to pass freely.
• Detach the connector cover from its position.

• The connector should be disengaged by applying upward force, ensuring a straight trajectory from its receptacle.
• Exercise caution to avoid compromising the integrity of the black silicone seals that encircle this and other board interfaces, as they are crucial for safeguarding against water and particulate contamination.
• To preclude unintended electrical connection and power delivery to the device during the repair process, gently deflect the connector away from the logic board.

• To reestablish the connection, position the connectors precisely, then apply downward pressure sequentially to each side until an audible click confirms secure engagement, avoiding pressure on the central portion.
• Misalignment during reattachment can result in pin deformation, potentially leading to irreversible component failure; therefore, meticulous alignment is critical.

• To detach the second display cable, utilize the pointed end of a spudger, carefully levering the connector vertically out of its socket.

• Detach the display panel from the device’s housing.
• Following a thorough cleaning of the contact surfaces utilizing isopropyl alcohol exceeding 90% purity, apply fresh adhesive material to the required locations.
• Should you intend to substitute the existing screen adhesives during the reassembly process, it is advisable to temporarily halt at this stage.

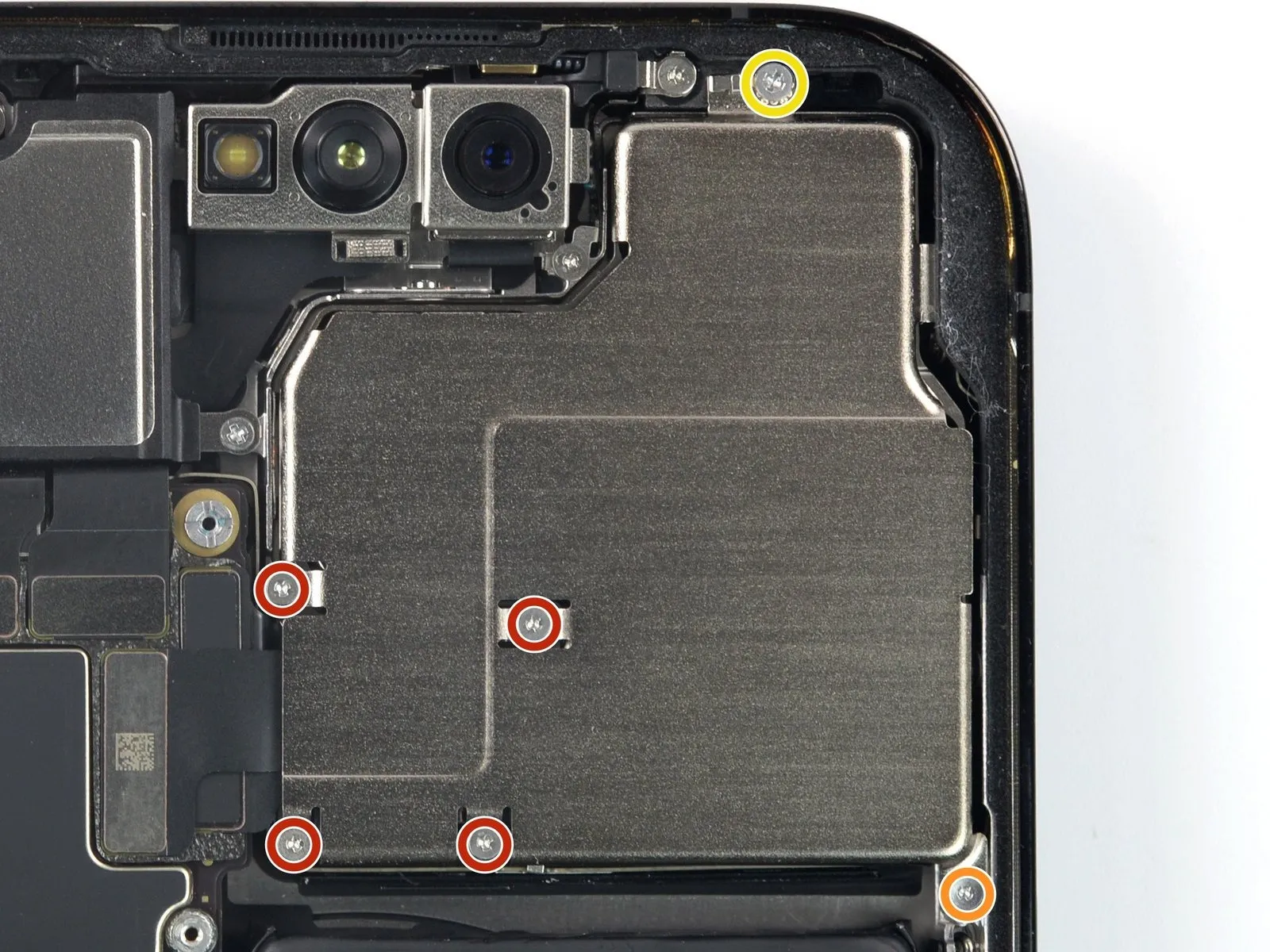

• Employ a Y000 driver for the removal of the rear-facing camera assembly cover's securing screws.Five screws, each measuring 1.5 millimeters in length and requiring a Y000 driver, hold the cover in place.A single Y000 screw, with a length of 1.3 millimeters, also contributes to the cover's retention.

  • To detach a single screw with a length of 1.7 millimeters, a Phillips screwdriver is necessary.The rear camera assembly cover is fastened with a combination of screw types and sizes.
  • Carefully unscrew the five Y000 screws to avoid damaging the surrounding components.Ensure the Y000 driver fits snugly into the screw heads to prevent stripping.
• The Phillips screwdriver should be properly sized to avoid damaging the screw head.The 1.3 mm Y000 screw is positioned differently than the others.Maintain consistent pressure while turning the screws to prevent slippage.The cover's removal requires precise manipulation of the specified tools.Properly store the removed screws in a secure location to prevent loss.

A tiny metallic lip exists on the upper right side of the rear camera cover, held in place by the device's frame.

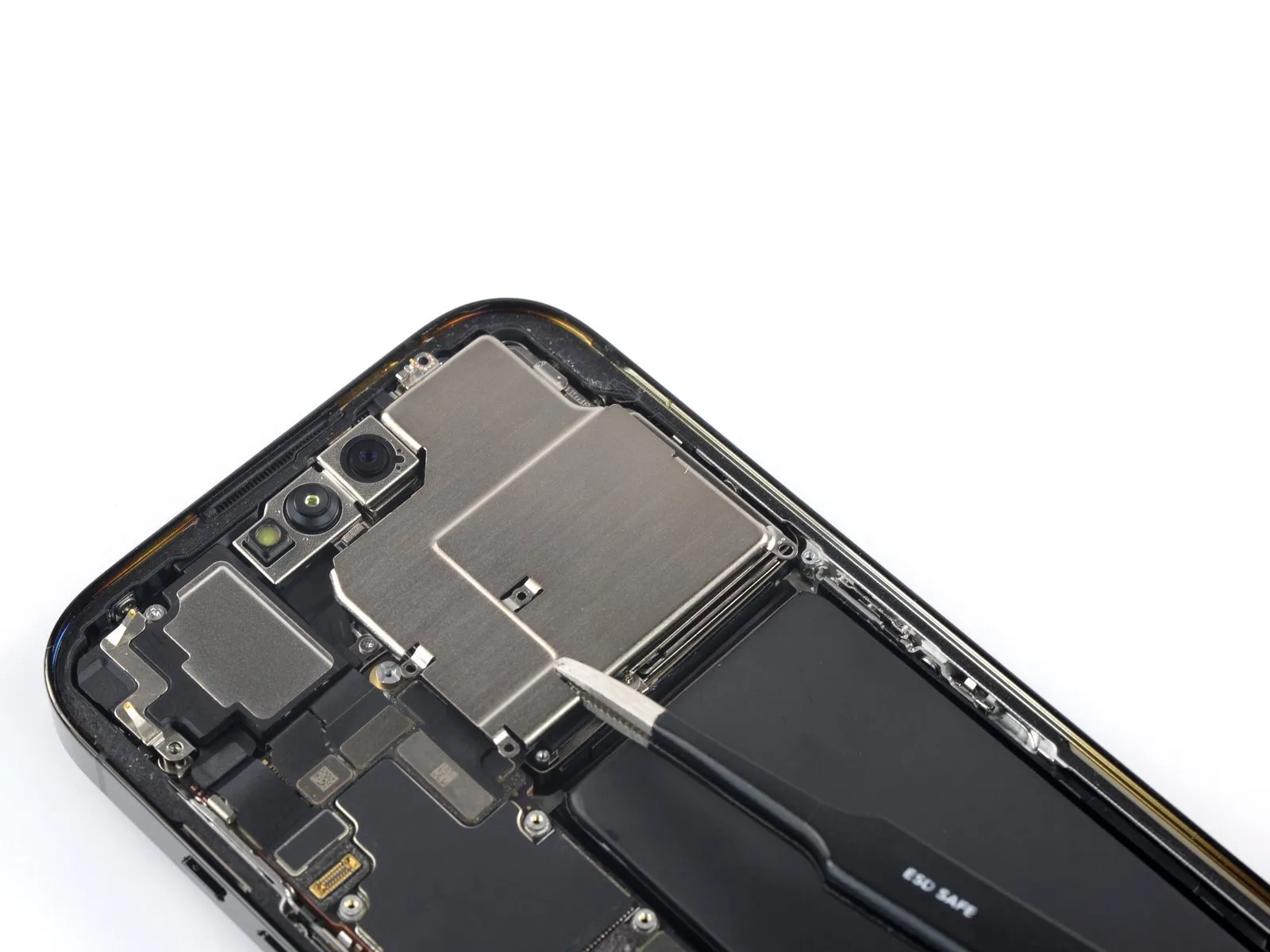

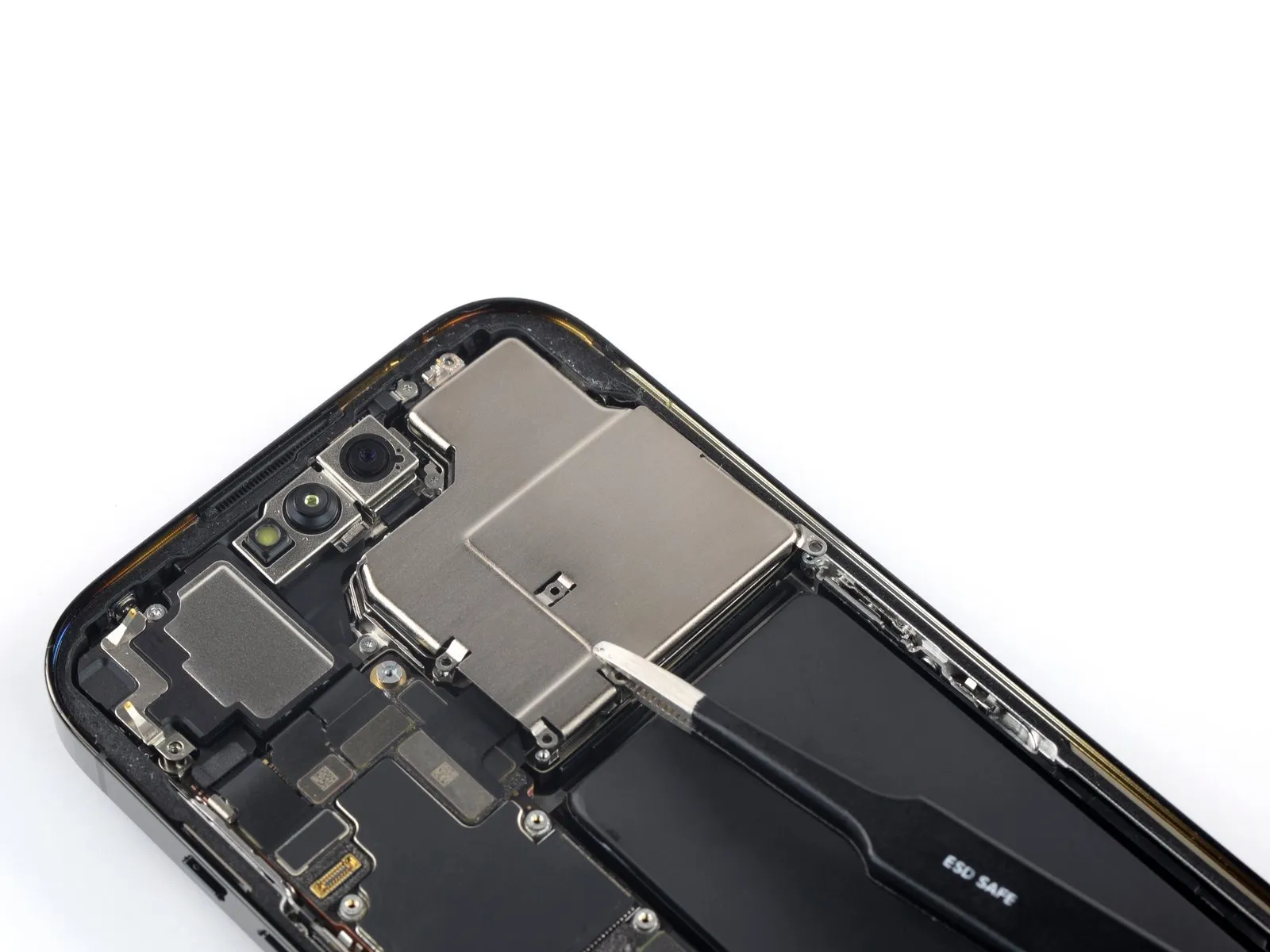

Employing tweezers, carefully grasp the rear-facing camera assembly cover.

Shifting the camera cover in the direction of the volume controls will disengage the small metal edge from the frame’s retention.

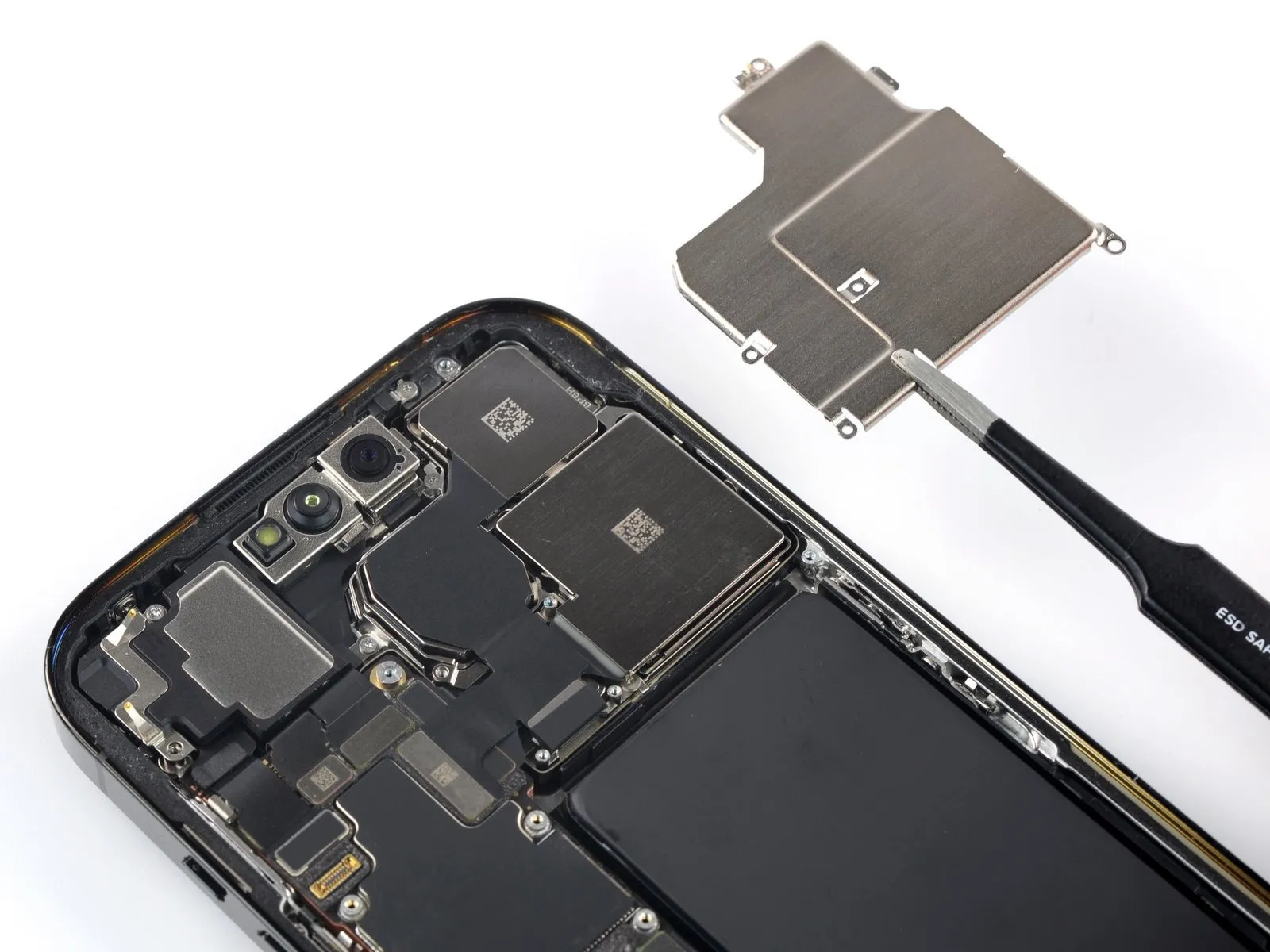

Detach the rear-facing camera assembly cover from the device.

When reassembling, ensure proper alignment of the rear-facing camera assembly cover and re-seat the small metal edge within its designated recess in the frame.

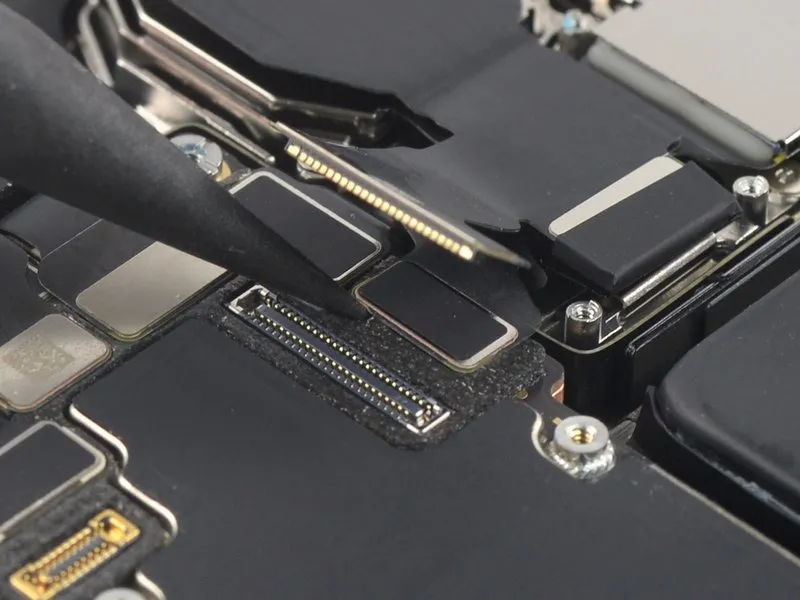

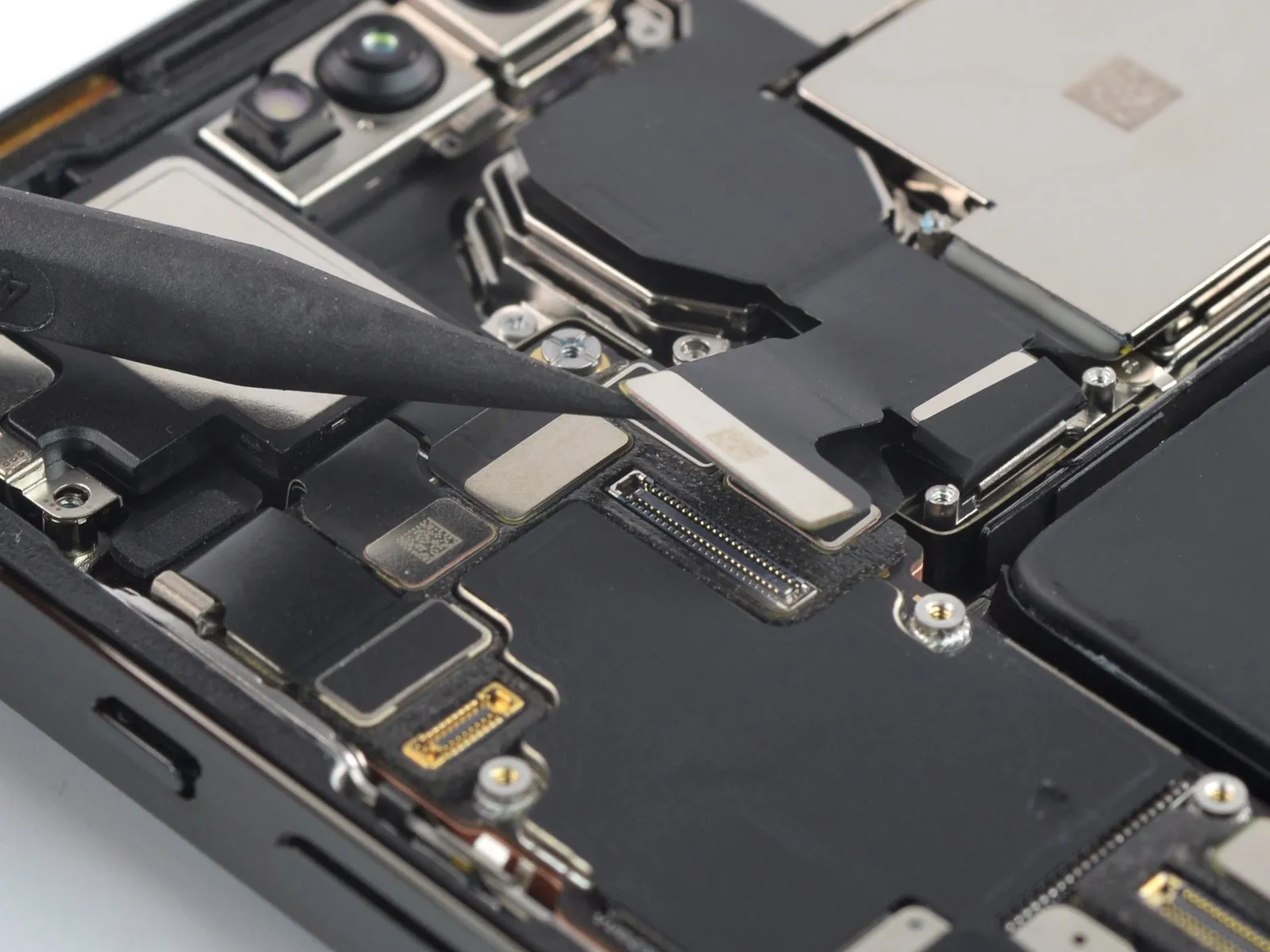

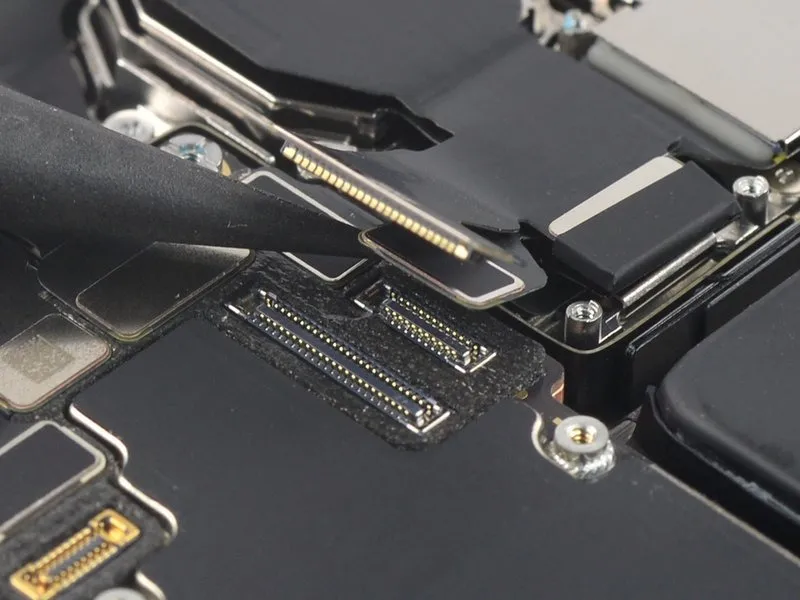

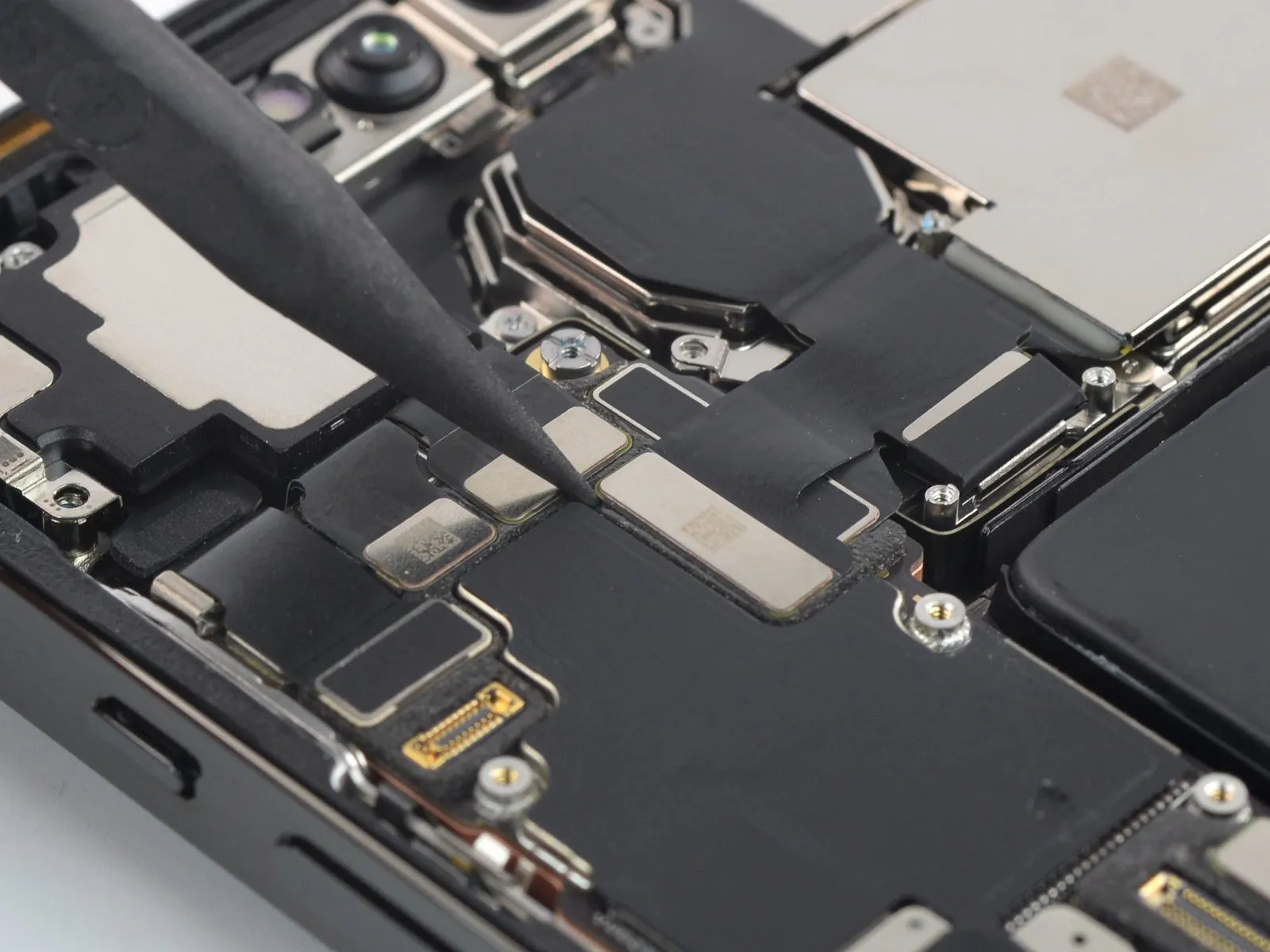

Employ a spudger tool to release the ultra wide and telephoto lens cable connectors, lifting them vertically from their respective receptacles.The disconnection process requires applying force directly upwards on the connectors to overcome the retention mechanism.Carefully manipulate the spudger to avoid damaging the connector pins or the surrounding socket during the separation of the lens cables.

• Proceed to step 26.

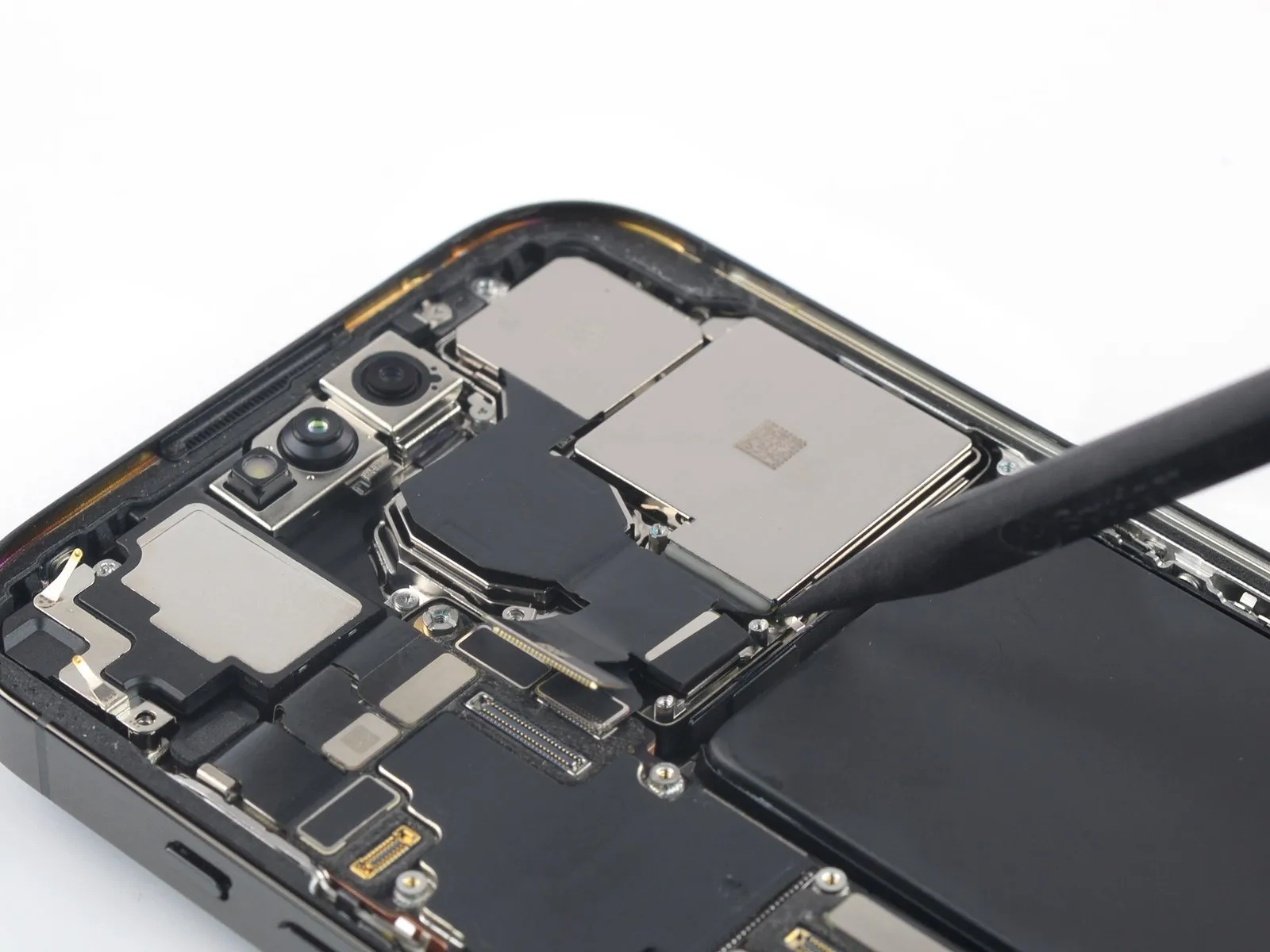

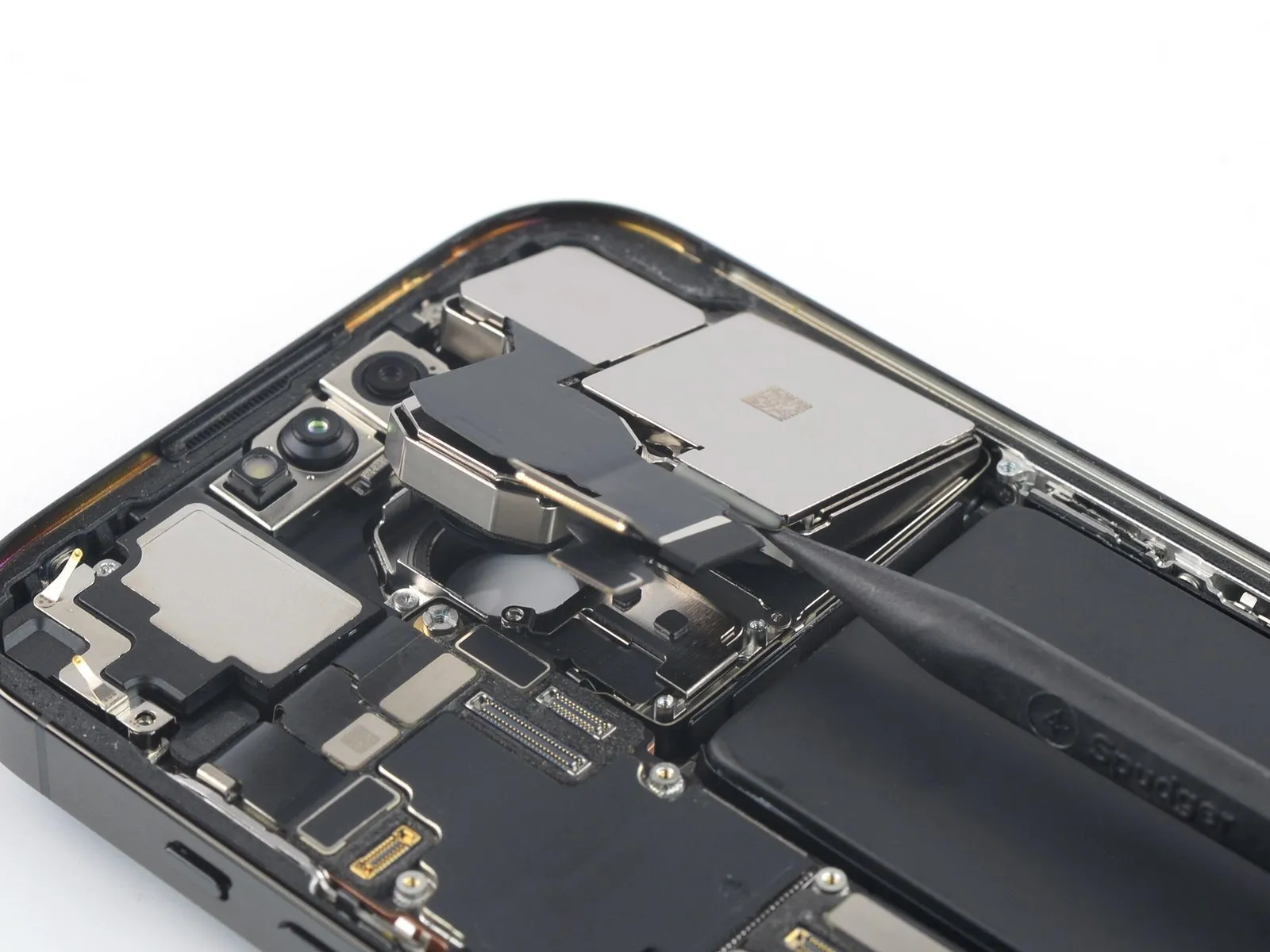

• Carefully slide the tapered end of a spudger tool beneath the lower perimeter of the rear camera module.The spudger's pointed tip facilitates access.Apply upward force using the spudger to release the adhesive securing the rear-facing camera assembly.
• This action separates the camera module from the device's chassis.Maintain a consistent, gentle pressure to avoid damaging surrounding components.The rear-facing camera assembly will detach as the adhesive releases.

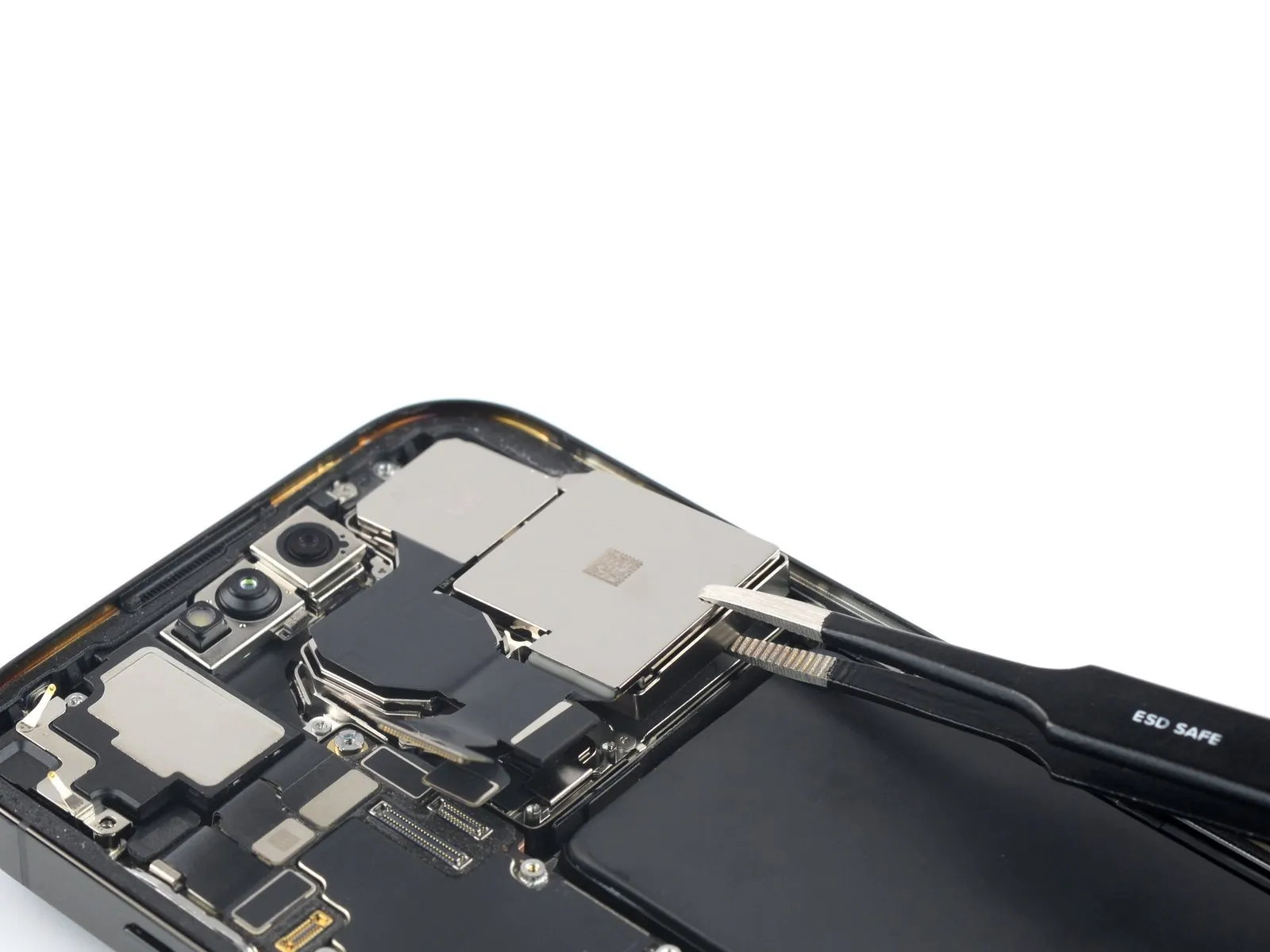

• To detach the rear camera module, employ tweezers or your fingertips.

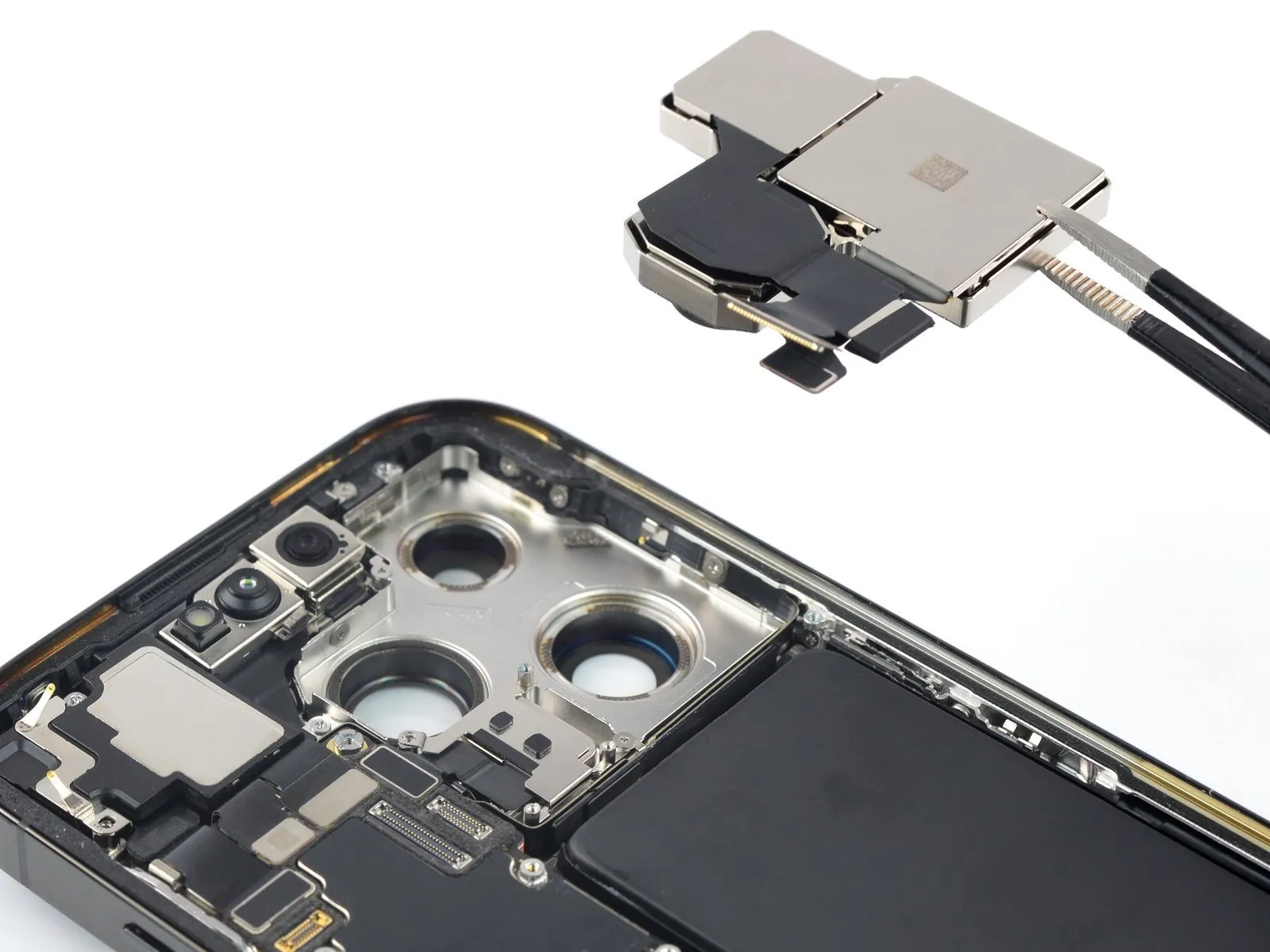

• Carefully extract the rear-facing camera assembly using tweezers or manual manipulation.
