iPhone 15 Plus Taptic Engine Replacement

• To optimize battery health, permit the battery's charge level to descend to a minimum of 25%.A lithium-ion battery that maintains a charge presents a potential safety risk.Disconnect all connected cables from the device.
• Simultaneously depress the power button and either volume button, subsequently swipe to initiate the power-off sequence.
• This action will properly shut down the phone's operating system.

• To mitigate the risk of injury and simplify the subsequent disassembly process when the display or rear glass exhibits severe cracking, apply strips of packing tape, ensuring they overlap, across the damaged glass surfaces.
• Confirm the presence of a sufficiently sized, uninterrupted surface area proximate to the lower edge, suitable for achieving a secure adhesion of a suction cup.

• Excessive insertion of a prying tool poses a risk of device harm; therefore, implement a marking procedure to mitigate potential damage.

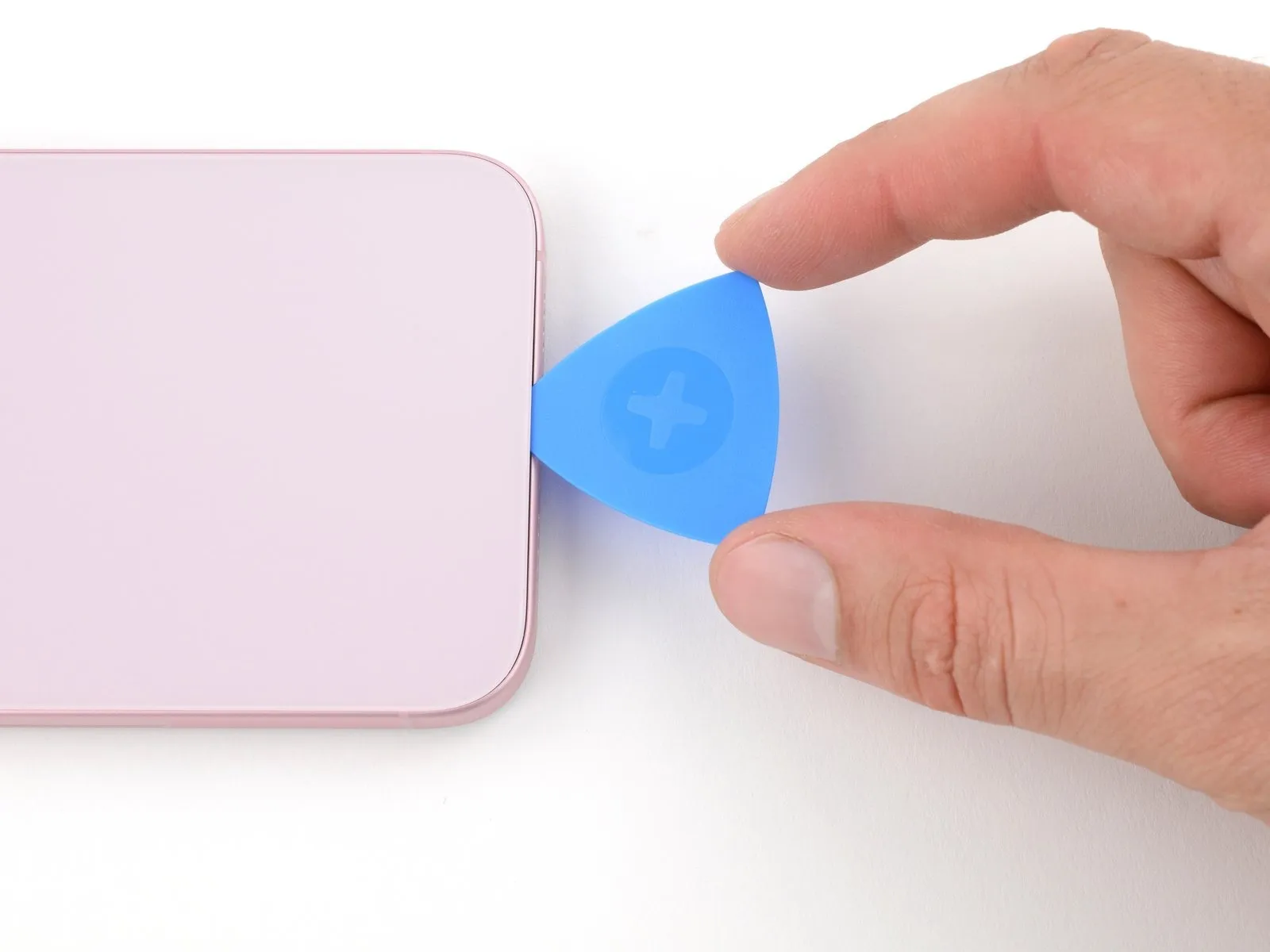

• Utilize a measuring tool to determine a distance of3 mmfrom the tool's distal end, then apply a permanent marker to the prying tool to create a visual indicator.
• For enhanced precision, consider marking the remaining corners of the tool with varying measurement values.
• As an alternative method, affix a coin to the prying tool using adhesive tape, positioning it3 mmfrom the tip to serve as a depth gauge.

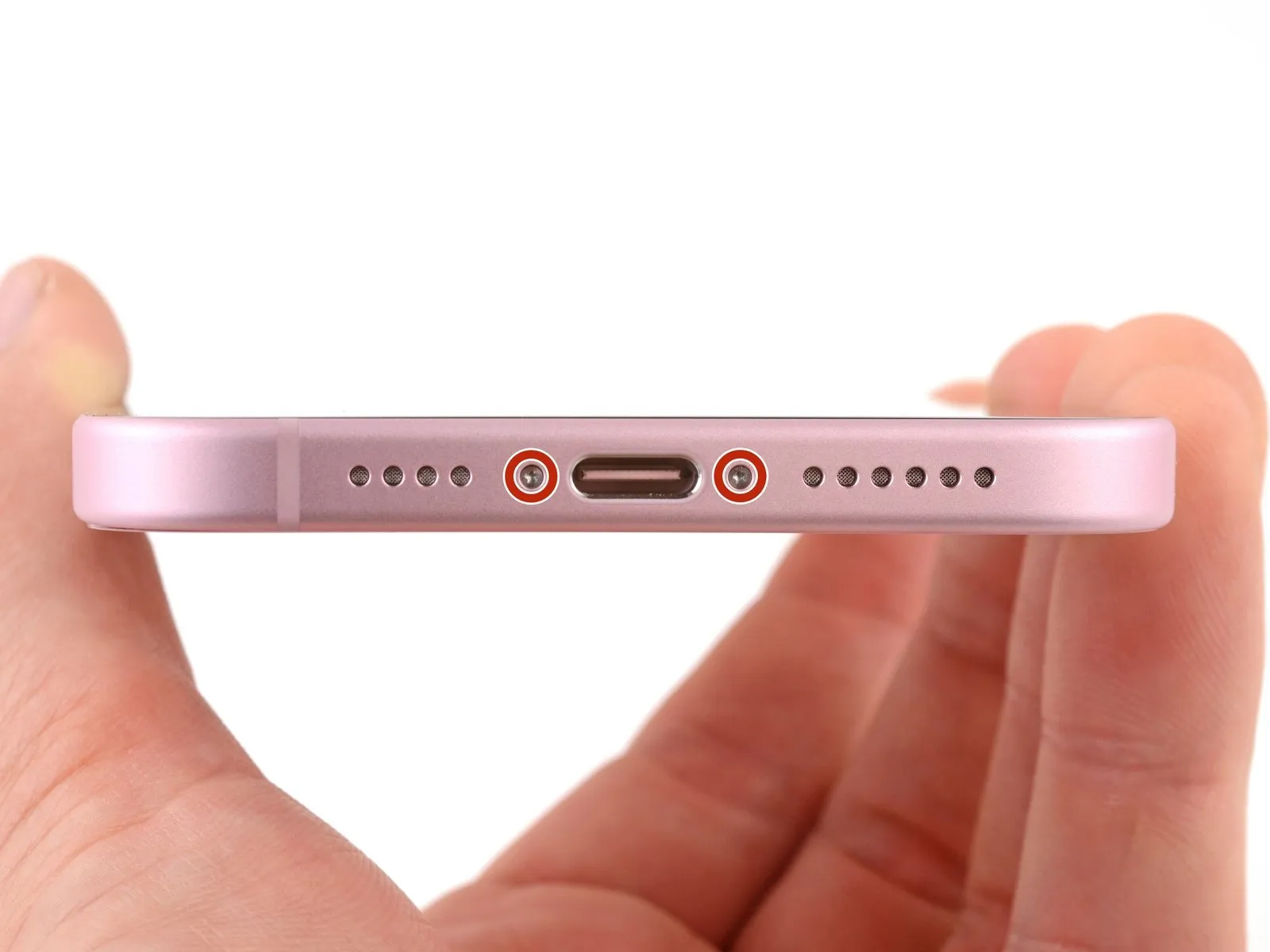

Employ a P2 pentalobe screwdriver to detach the pair of screws.The screws securing the charging port are each 7.7 millimeters in length.These fasteners are located laterally, one on each side, of the charging port.

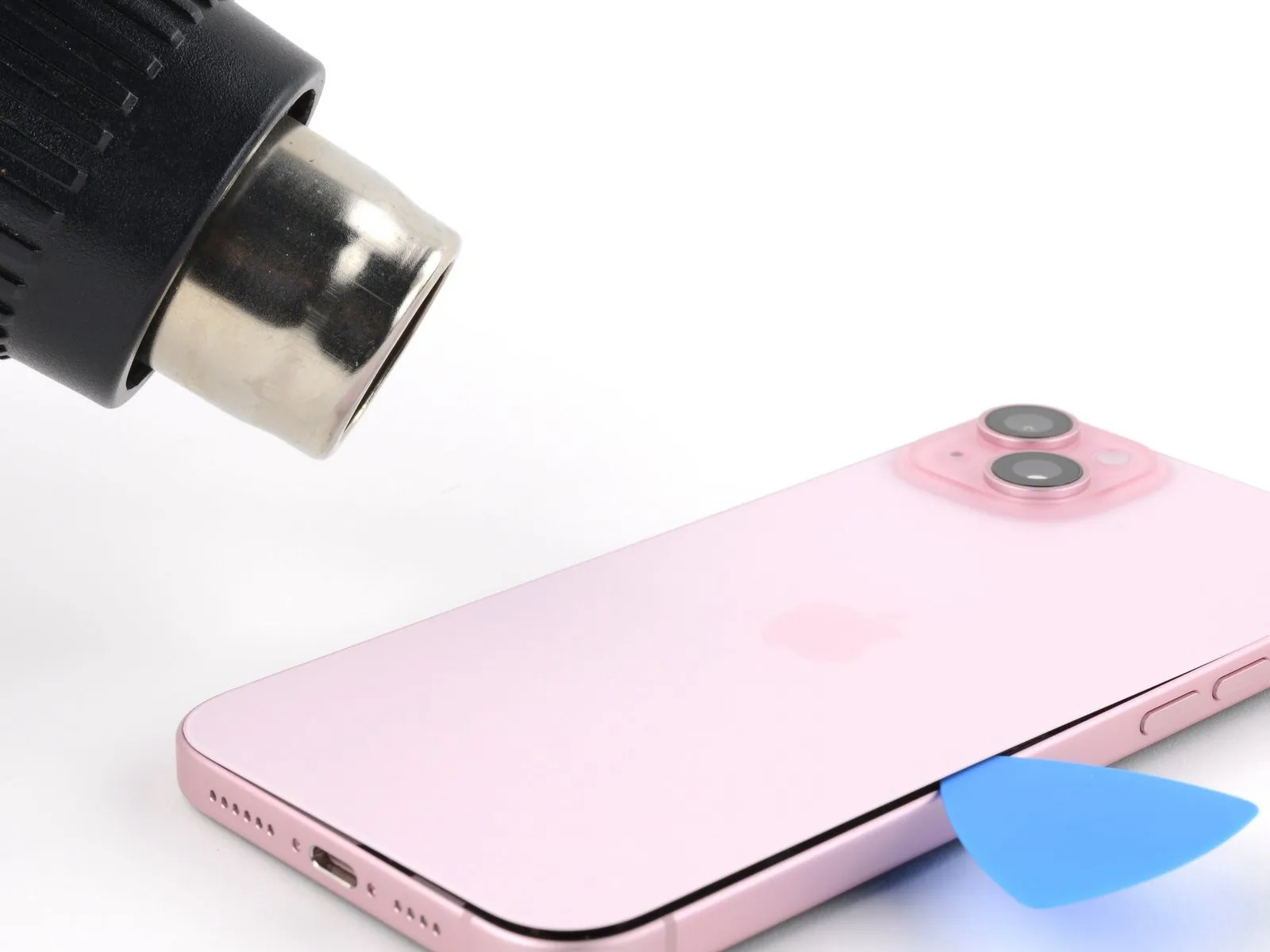

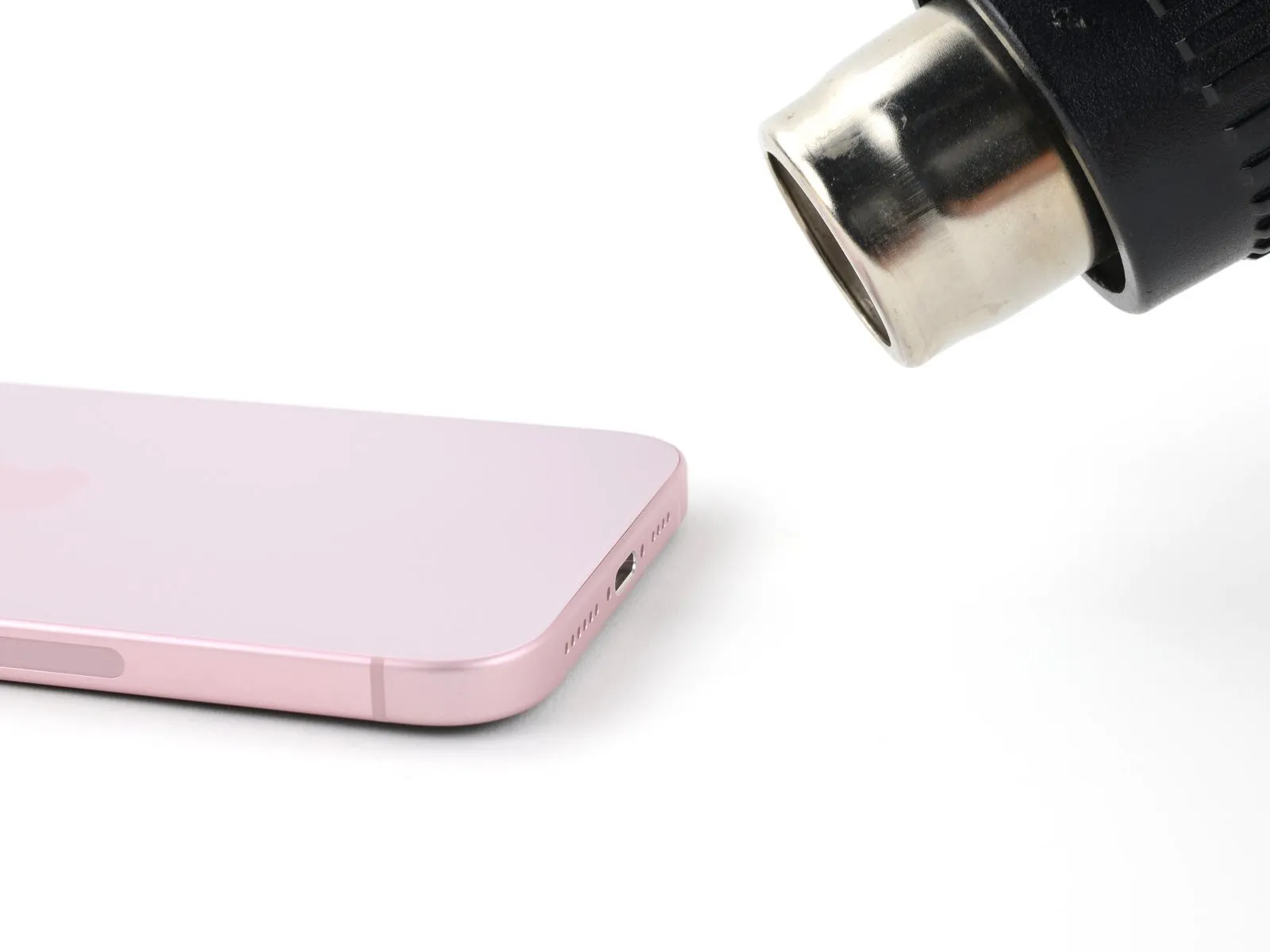

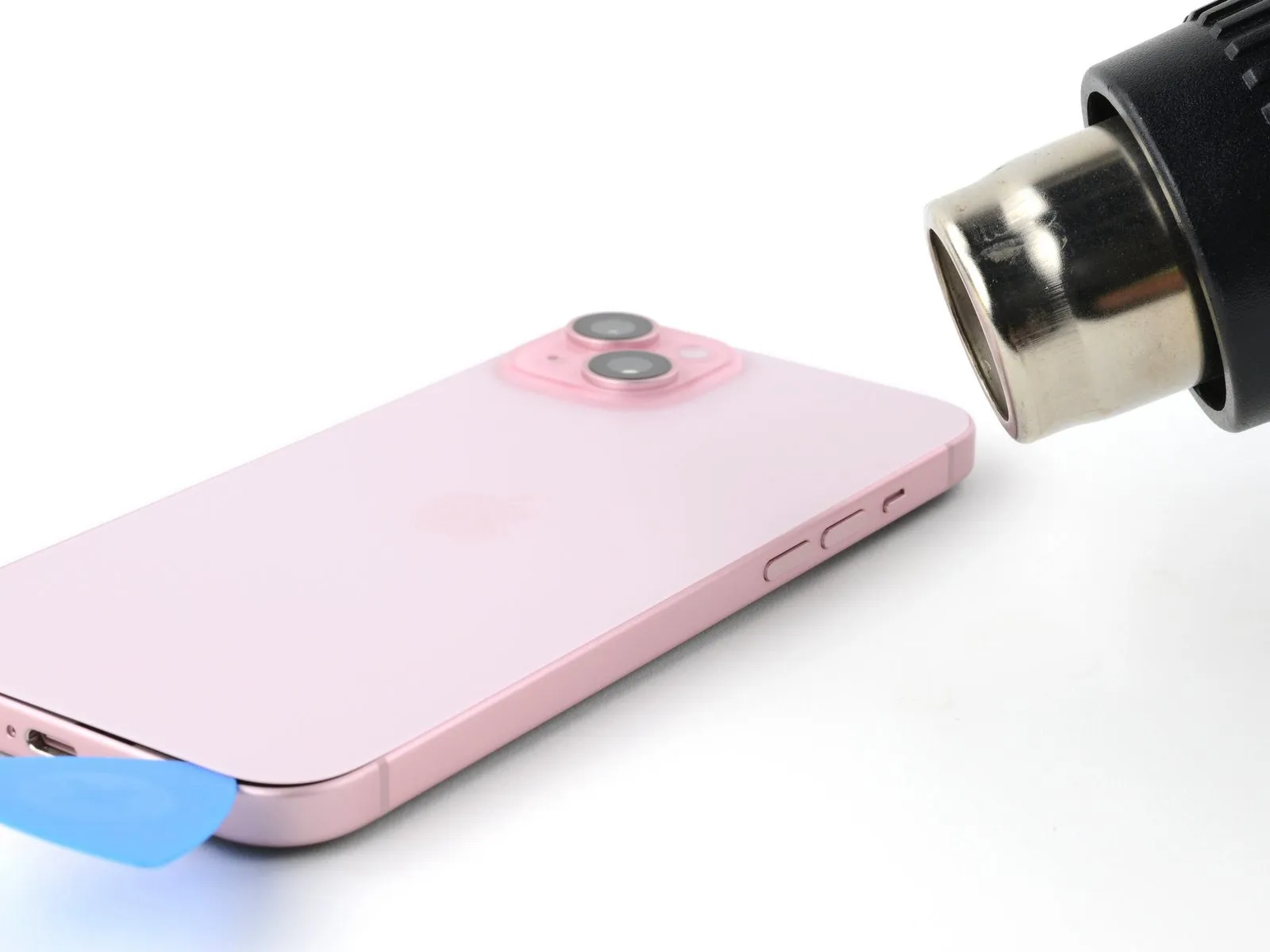

• Apply warmth to the lower perimeter of the rear glass panel utilizing a hair dryer or heat gun until the surface reaches a temperature that is perceptible to the touch.
• Avoid exceeding a safe temperature during the heating process, as the internal battery is vulnerable to thermal degradation.

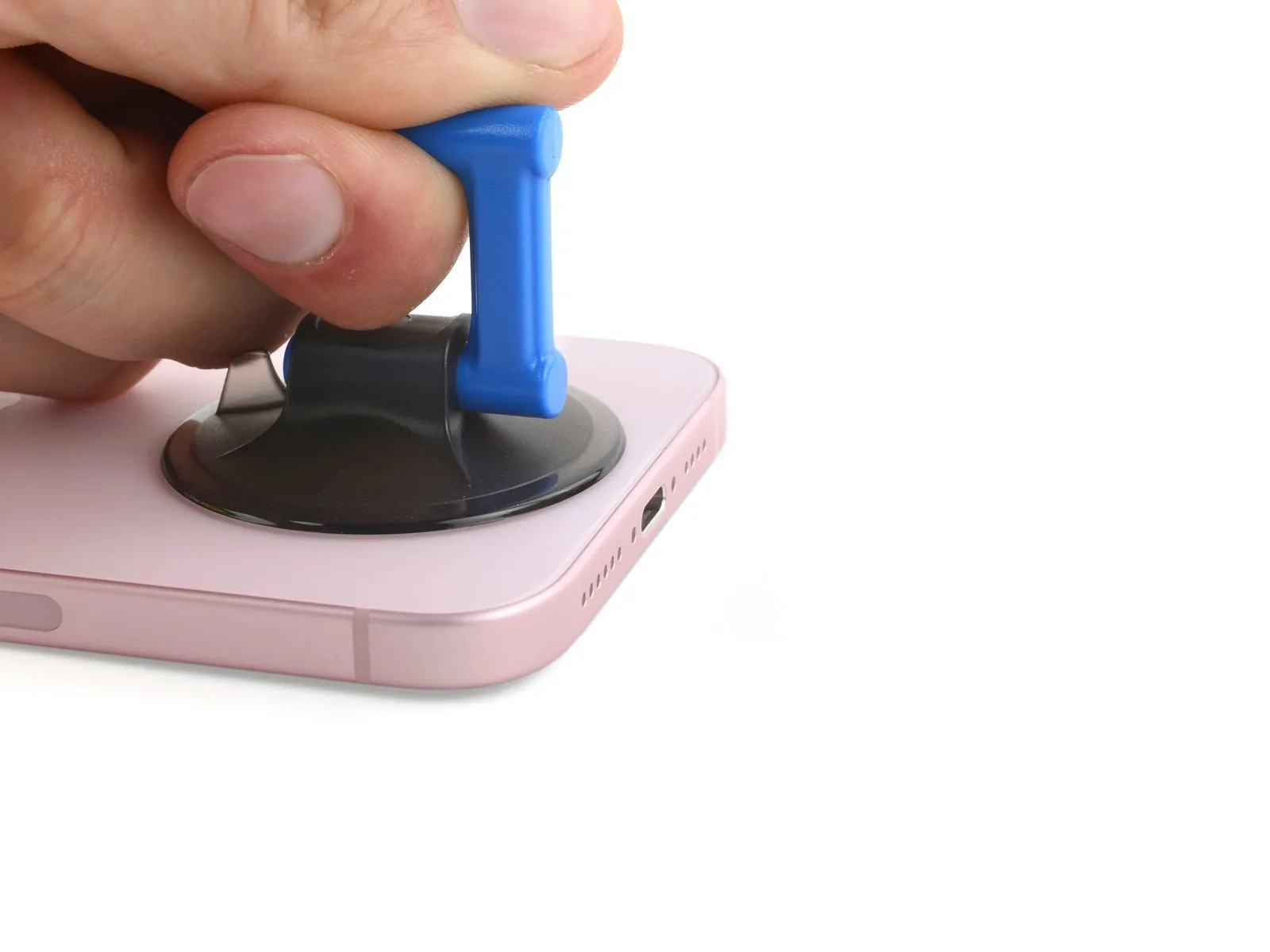

• Securely attach a suction cup to the lower border of the rear glass assembly.
• Exert a consistent, powerful upward traction on the suction cup to generate separation between the rear glass and the device's frame.

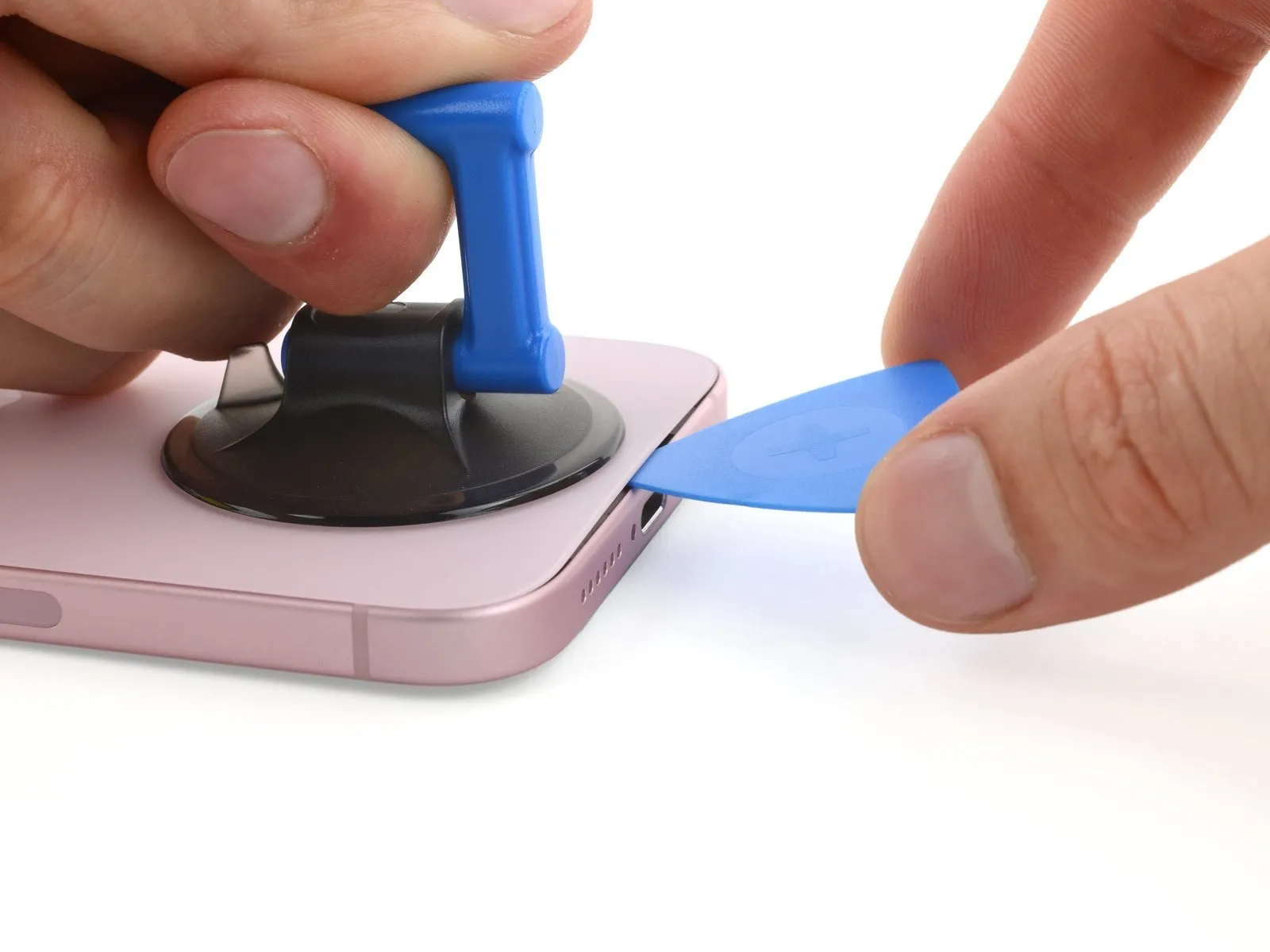

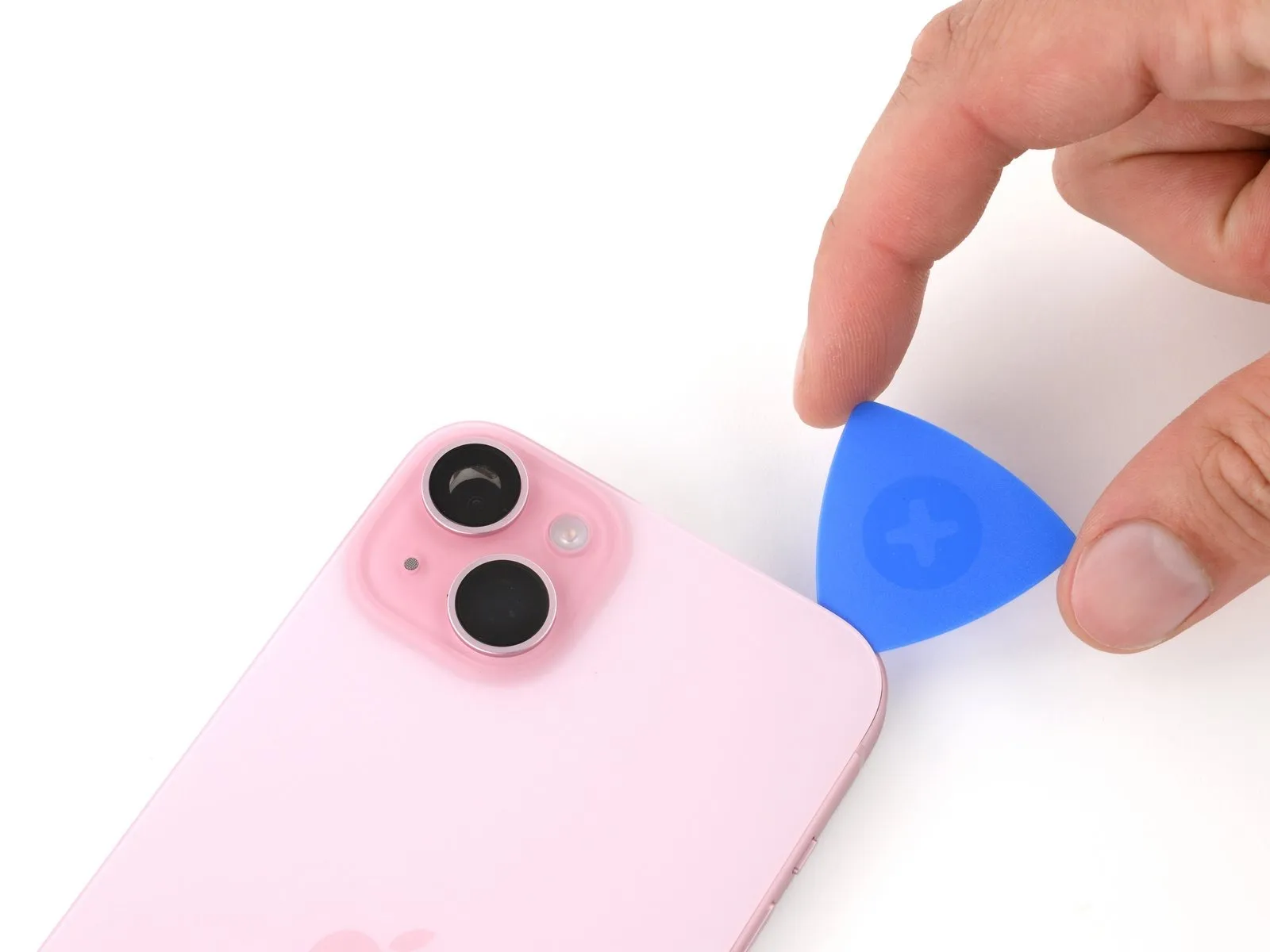

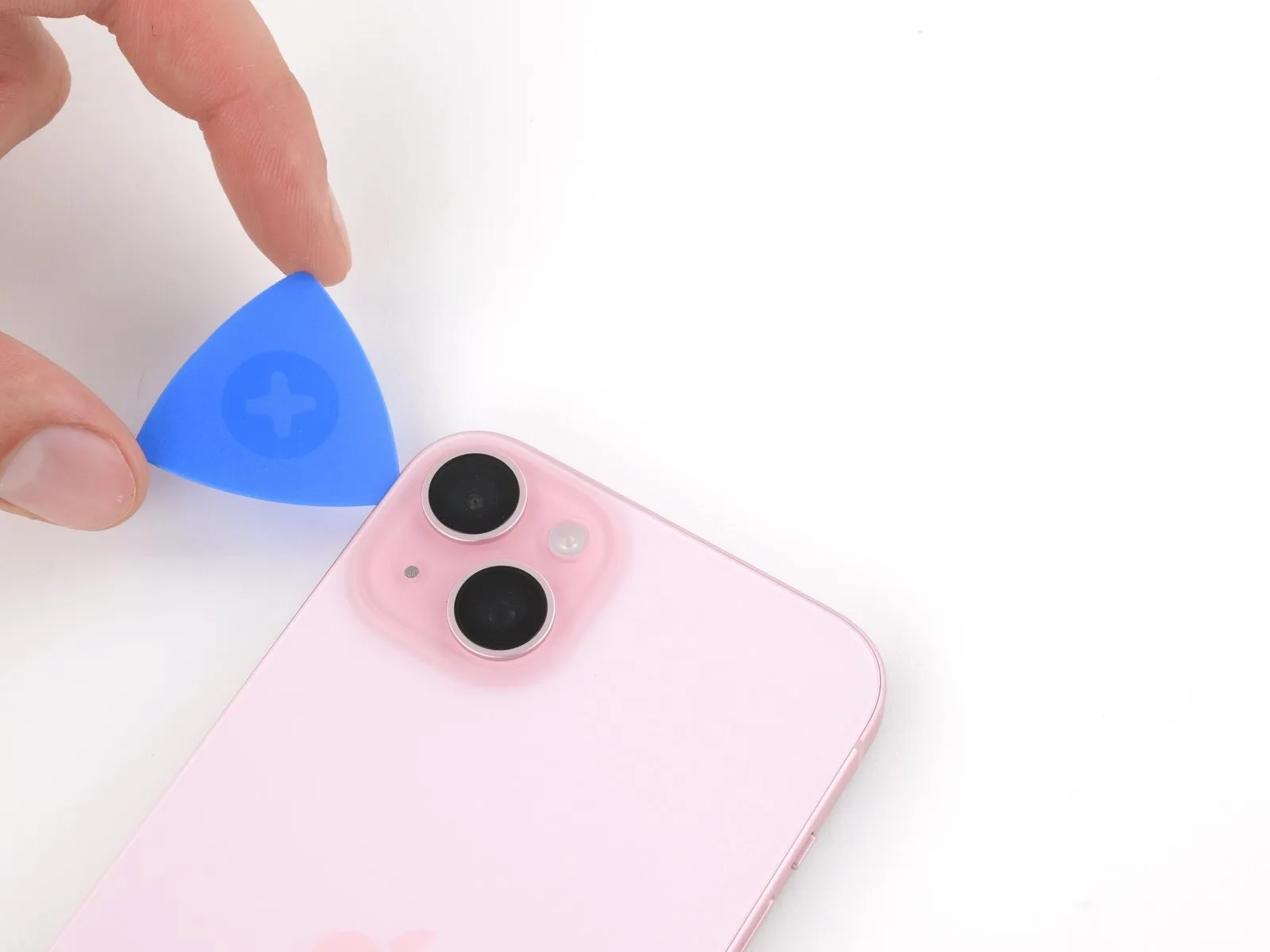

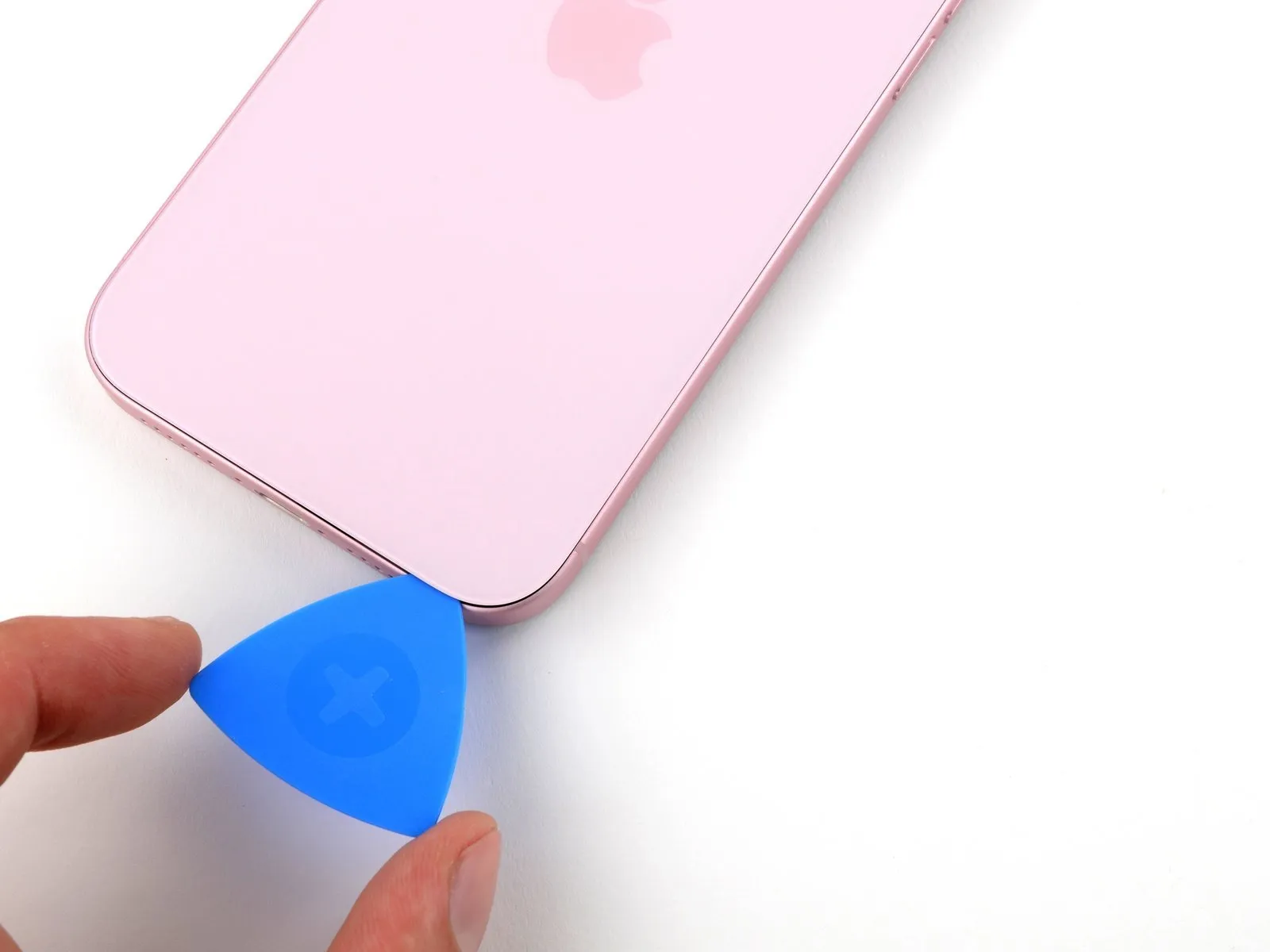

• Carefully introduce the pointed end of a prying tool into the newly formed space.

Exercise caution during the subsequent adhesive separation process, paying close attention to the areas detailed below.

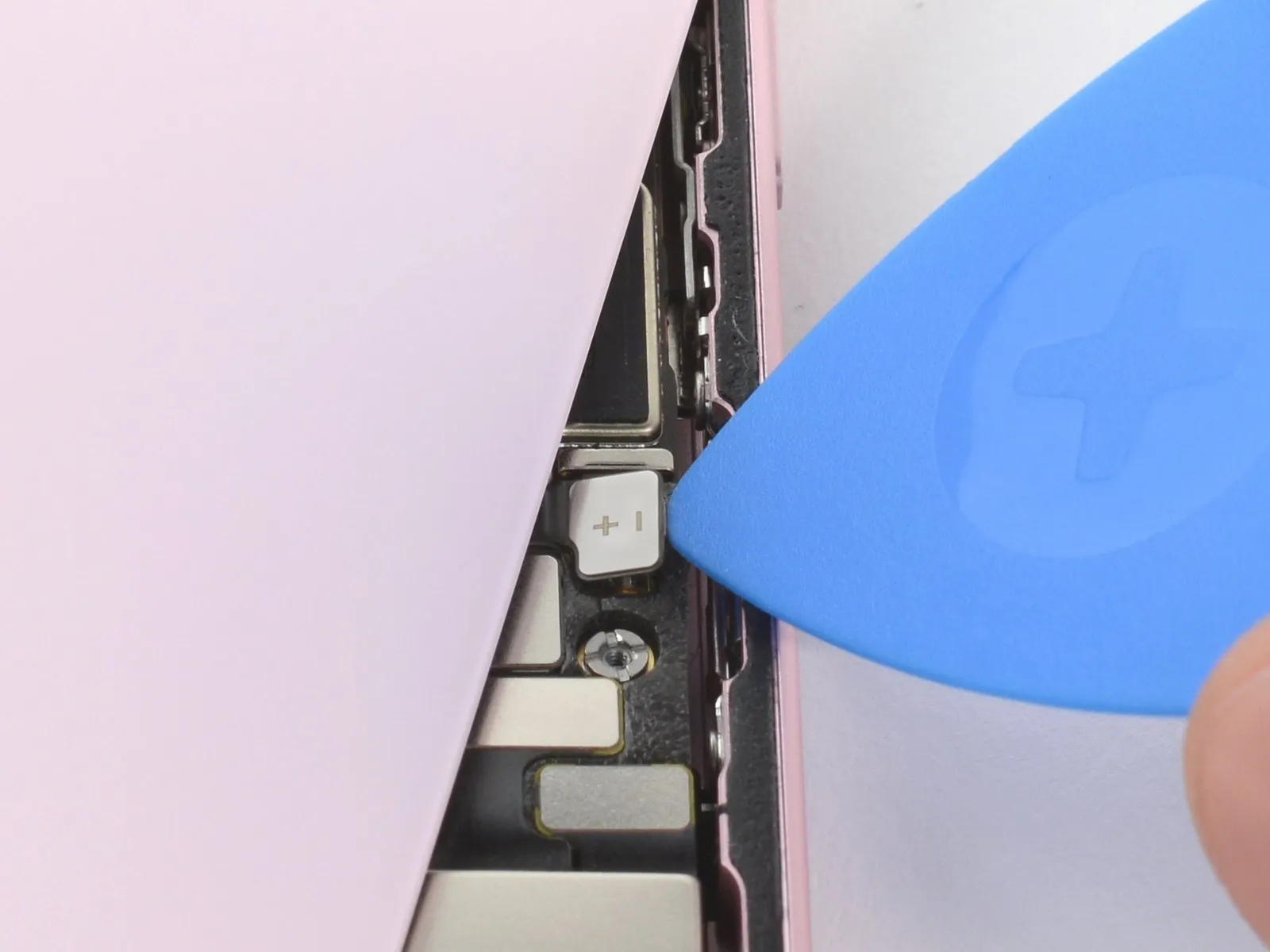

• A fragile cable, essential for back glass functionality, is situated near the volume up button; prevent damage by refraining from tool insertion in this location.
• Numerous spring contacts are positioned along the device's edges; adhere to the recommended insertion depth in each procedure to prevent deformation of these components.

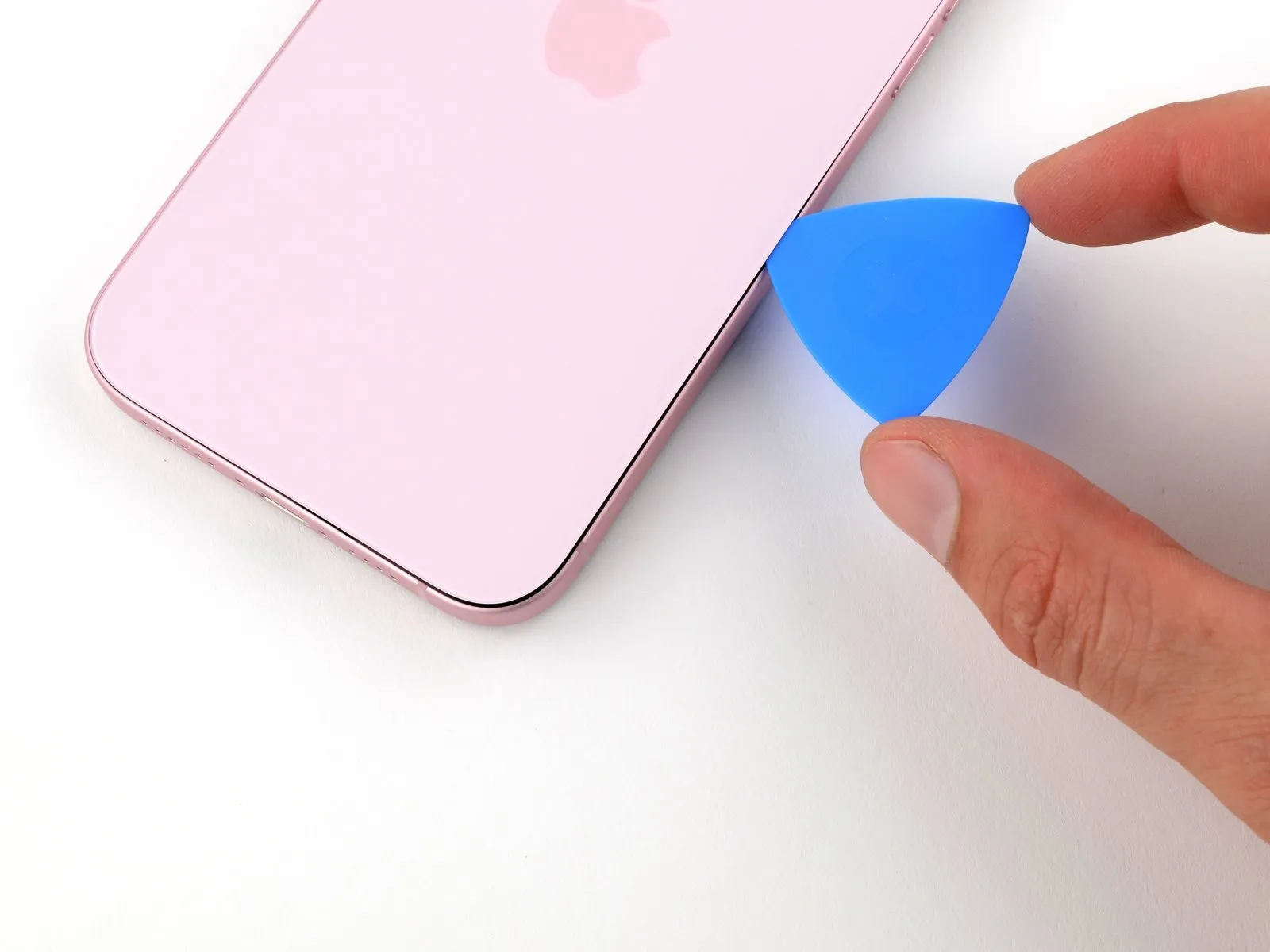

Ensure the initial insertion depth of the opening pick remains at or below a 5 mm measurement from the lower border.

Employ a reciprocating motion, moving the pick back and forth, to sever the adhesive bond situated along the lower edge.

Maintain the pick's position within the lower-right corner to inhibit the adhesive's reformation.

• Limit pick insertion depth to a maximum of 7 millimeters along the right-hand side to prevent component damage.
• Pivot the pick around the lower-right corner, advancing it upwards along the right edge until resistance is encountered, indicating a securing clip for the rear glass.
• Exercise caution and avoid cutting close to the volume buttons, as this area houses the wireless charging cable and potential damage could occur.
• Maintain the pick's position during subsequent steps to inhibit the adhesive from re-bonding.

• To avoid damage, limit the insertion depth of the opening tool to a maximum of 5 millimeters along the left border.

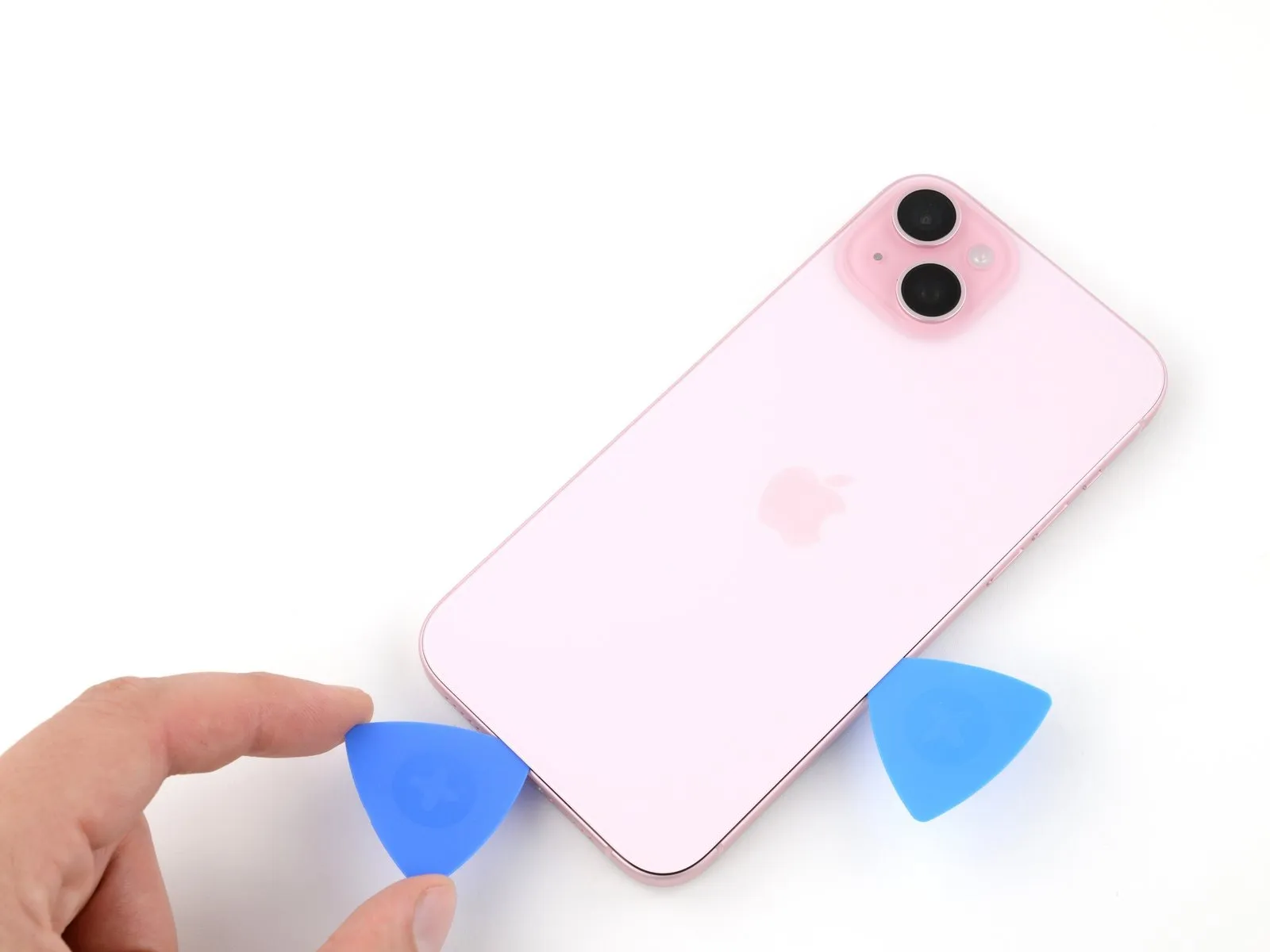

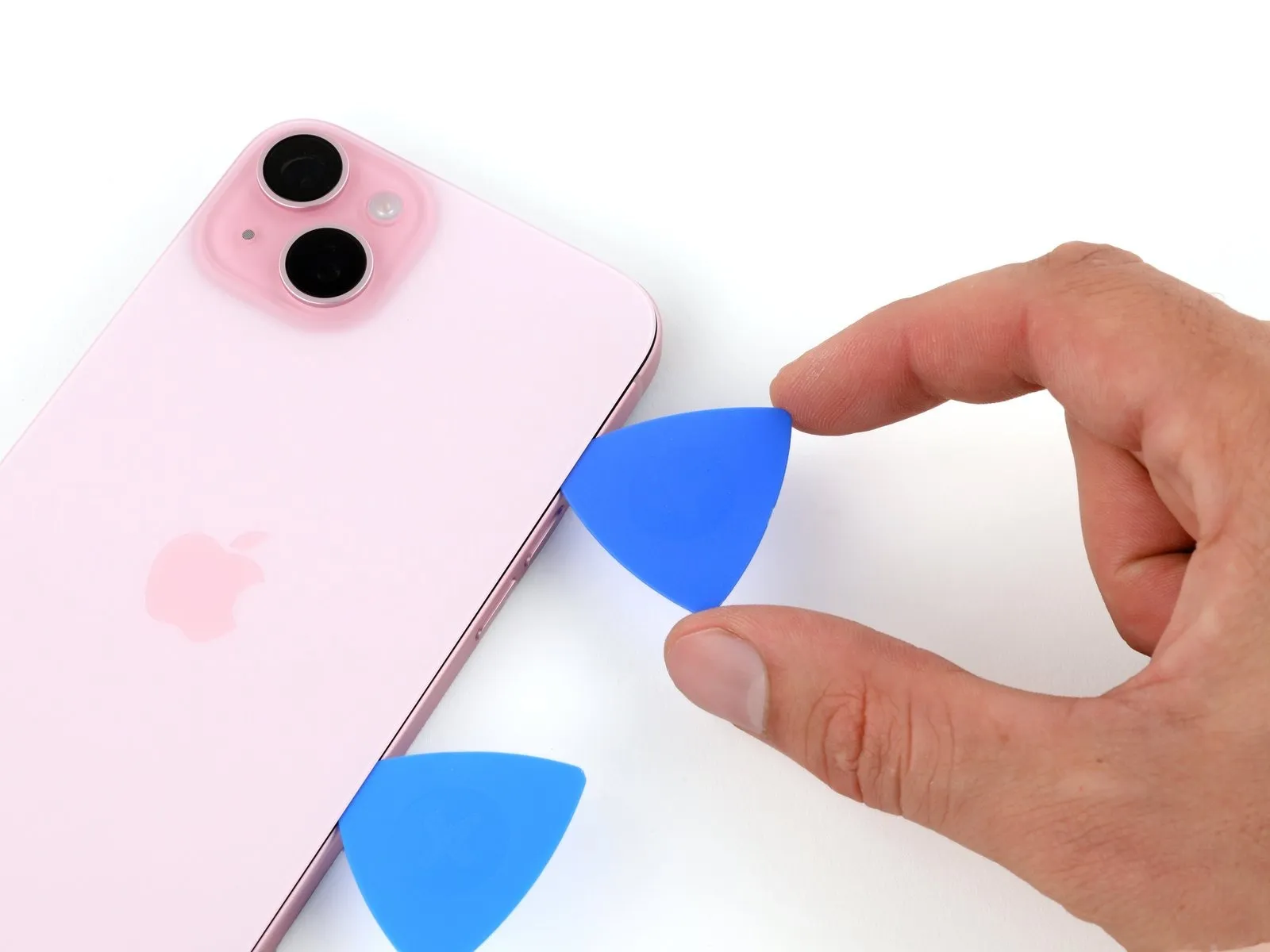

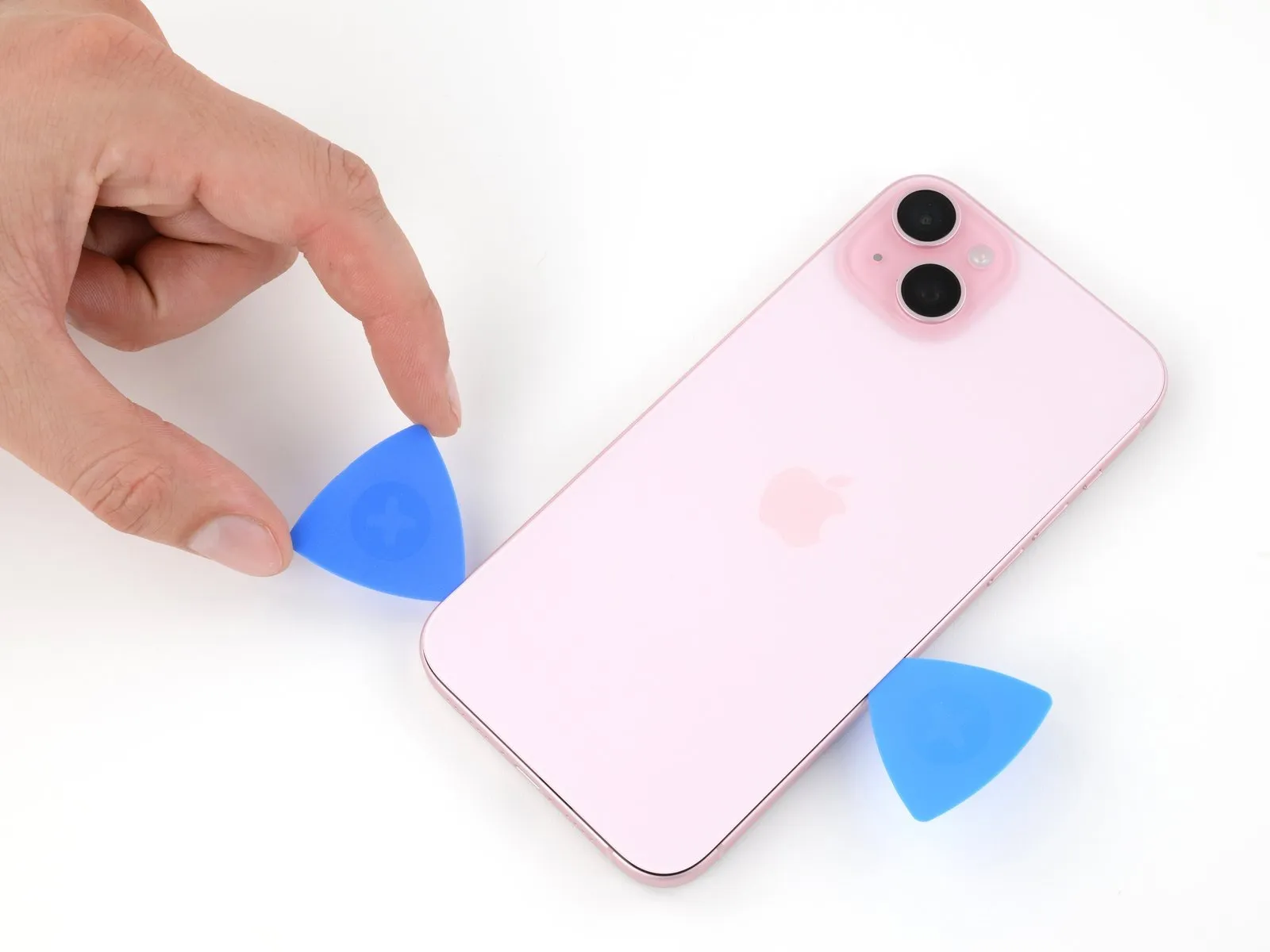

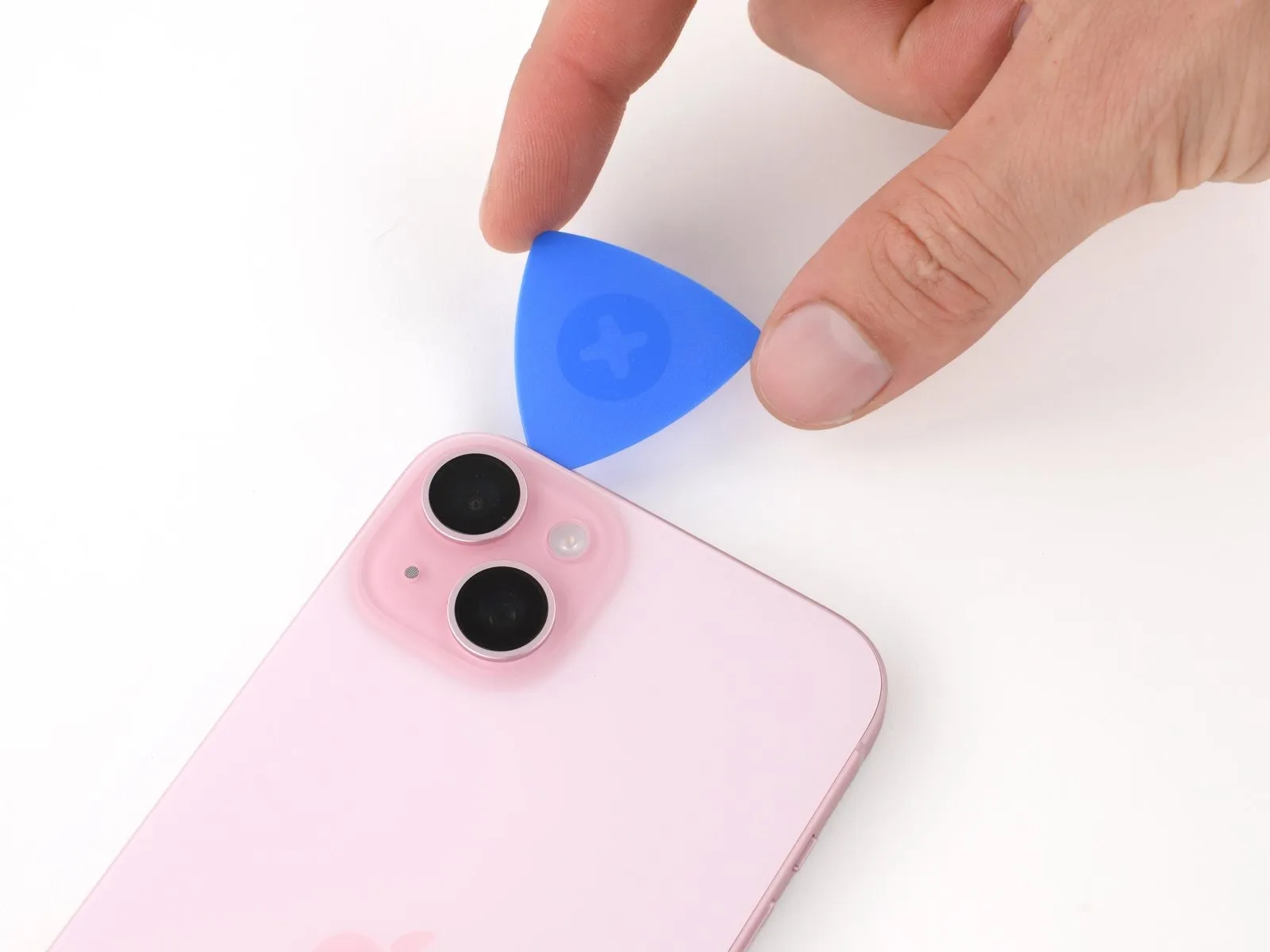

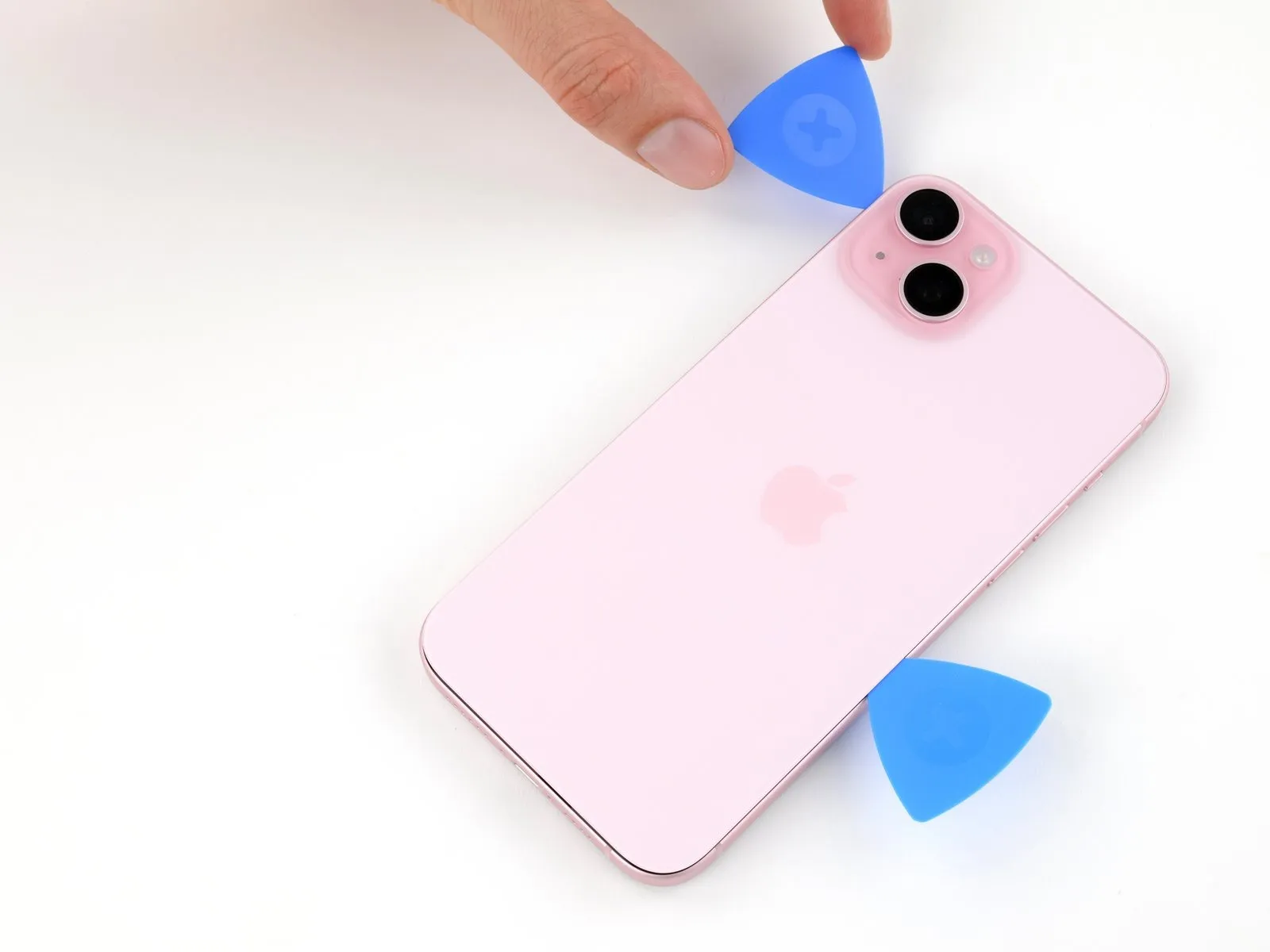

• Introduce a supplementary opening tool at the lower perimeter.
• Pivot the second opening tool around the lower-left corner to maneuver it.
• Advance this opening tool upwards toward the upper-left corner, facilitating adhesive separation.
• Maintain the position of this opening tool to inhibit adhesive re-bonding.

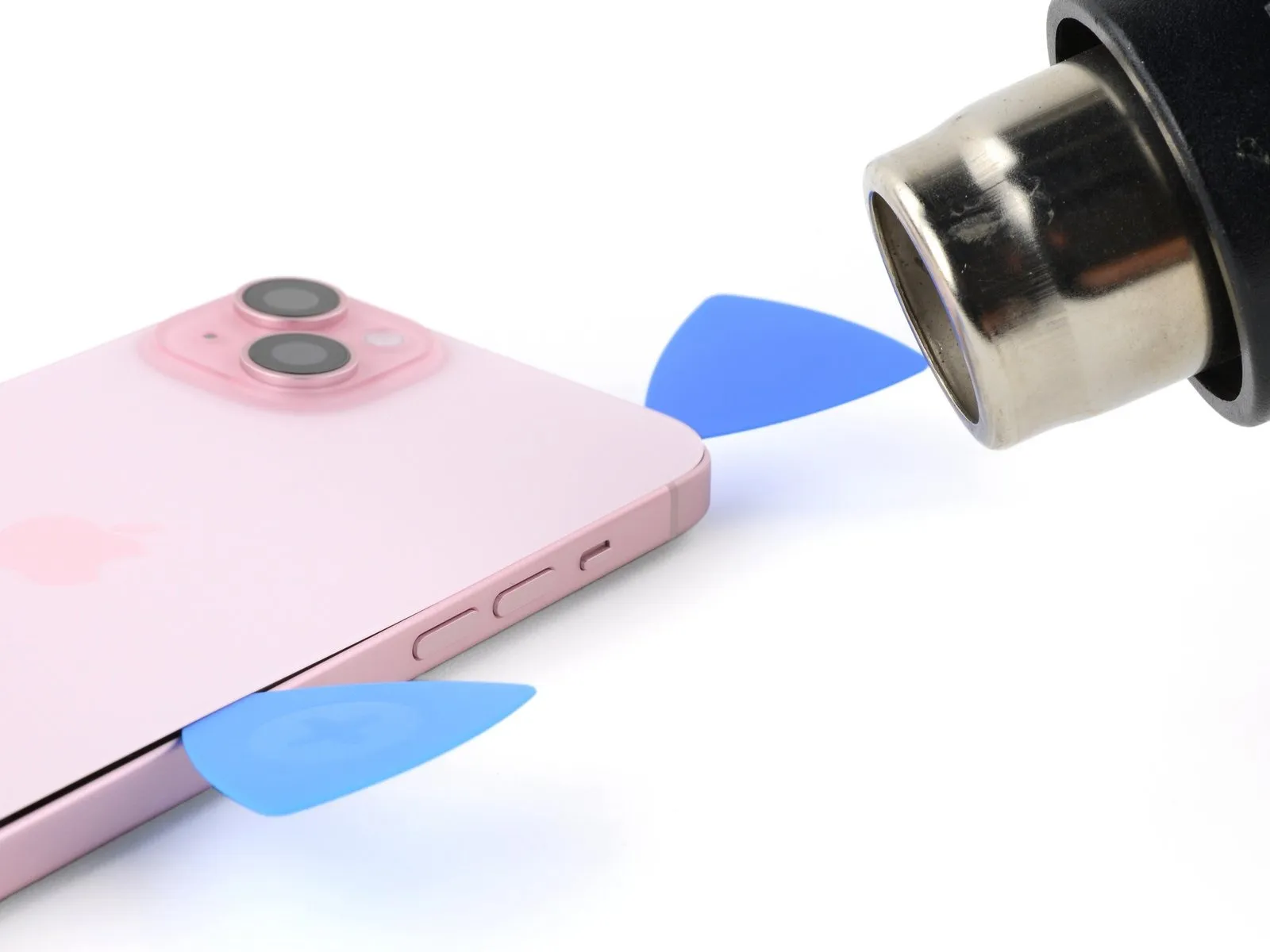

To facilitate separation, apply heat to the upper perimeter of the rear glass panel until its surface temperature is high enough to be felt by hand.

• Ensure the prying tool's insertion depth remains limited to a maximum of 3 millimeters near the upper border.Employing a second prying tool, perform a rotational maneuver around the upper-left corner, subsequently sliding it towards the upper-right corner to break the adhesive bond.Audible and tactile clicks may indicate the release of the upper retaining clips.
• Maintain the position of the initial prying tool to inhibit the adhesive from re-adhering.
• The adhesive separation is achieved through a sweeping motion with the second tool.
• The maximum allowable insertion depth of the prying tool is strictly 3 mm to avoid component damage.

Apply heat to the upper right quadrant of the rear glass panel until its surface temperature is high enough to be felt by hand.

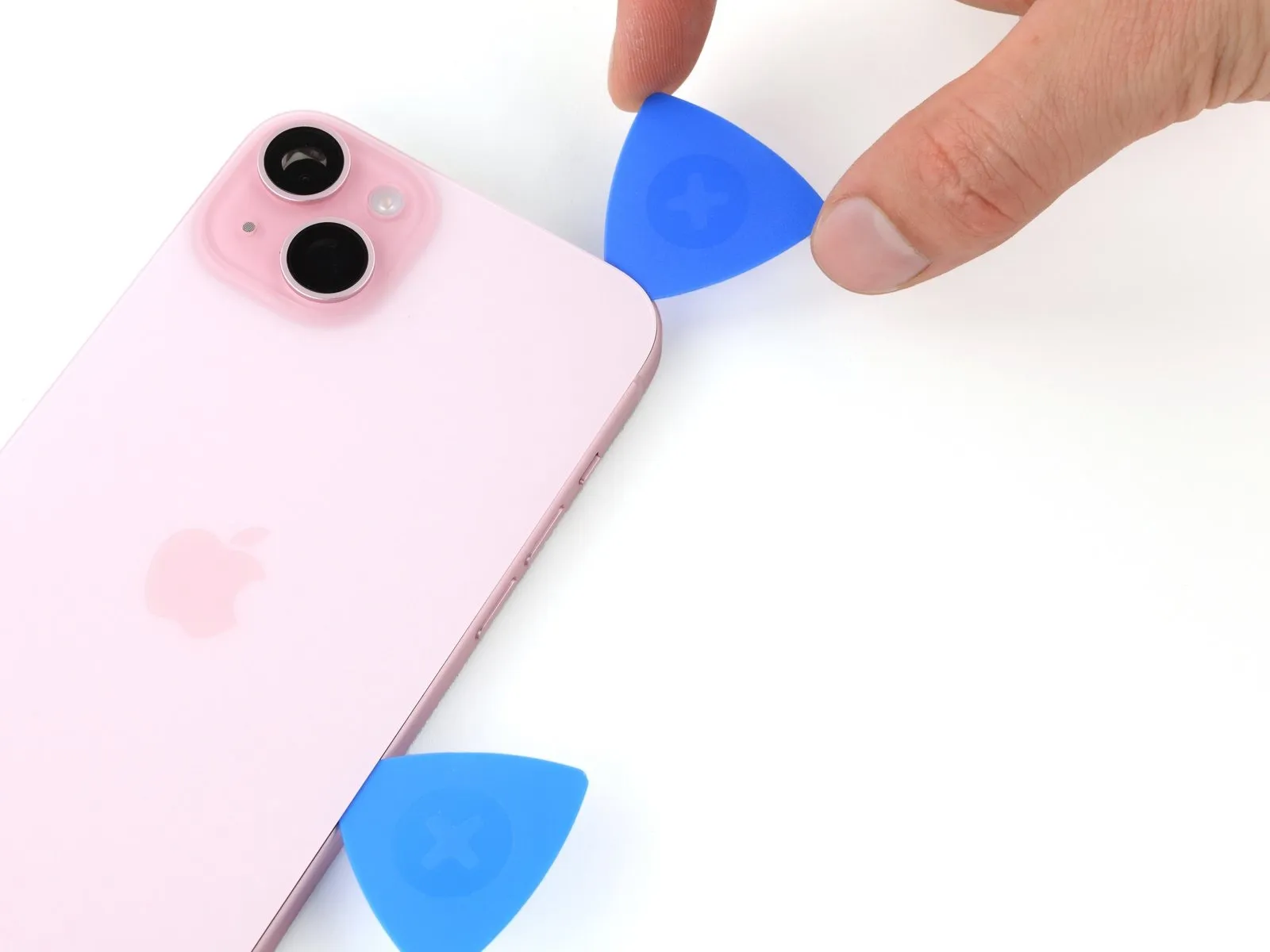

• To prevent damage, ensure the repair tool's insertion depth remains no greater than 4 millimeters near the device's right side.Employing a second tool, carefully pivot it around the upper-right corner, guiding it towards the volume increase button.This maneuver facilitates the separation of the adhesive bond securing the components.
• The controlled movement of the second tool is crucial for effectively releasing the adhesive without causing further stress to the device.

• Carefully pivot the rear glass cover away from the device's right side.
• Should the rear glass exhibit resistance during separation, re-examine the entire edge to identify any remaining adhesive or secured clips.
• Support the detached rear glass on an elevated platform to prevent stress on the connecting cable.

• Carefully organize all screws during the repair process, ensuring each is reinstalled in its original location.
• Employ a specialized tool, specifically a tri-point Y000 driver, for the subsequent steps.The two screws, each measuring 1.3 millimeters in length, must be detached using the aforementioned driver.Removal of the lower connector cover is achieved by unscrewing the two fasteners with the tri-point Y000 driver.

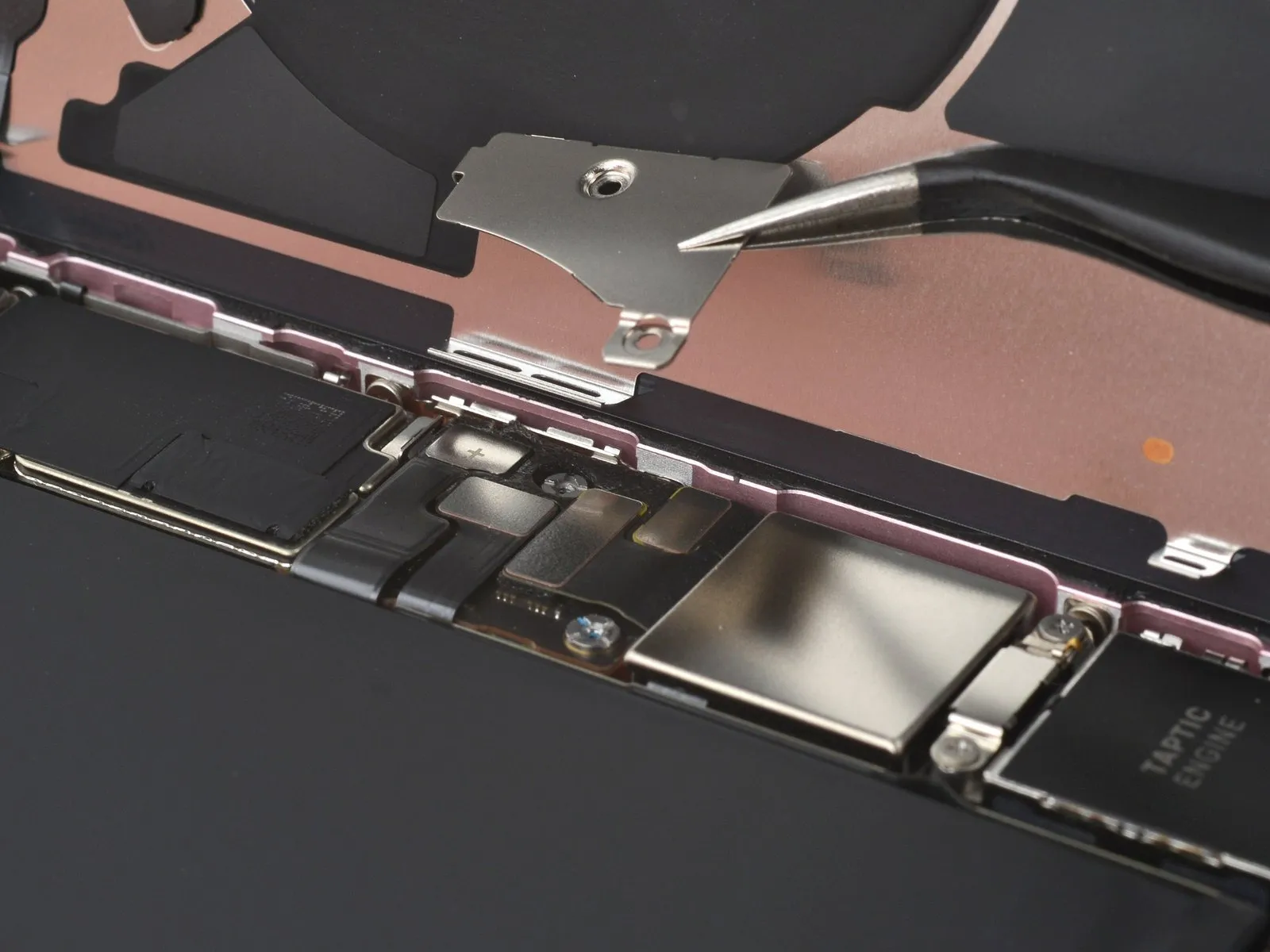

• Employing tweezers, maneuver the cover upwards along the phone's surface to release its connection from the logic board's securing mechanism.
• Detach the cover from its position.

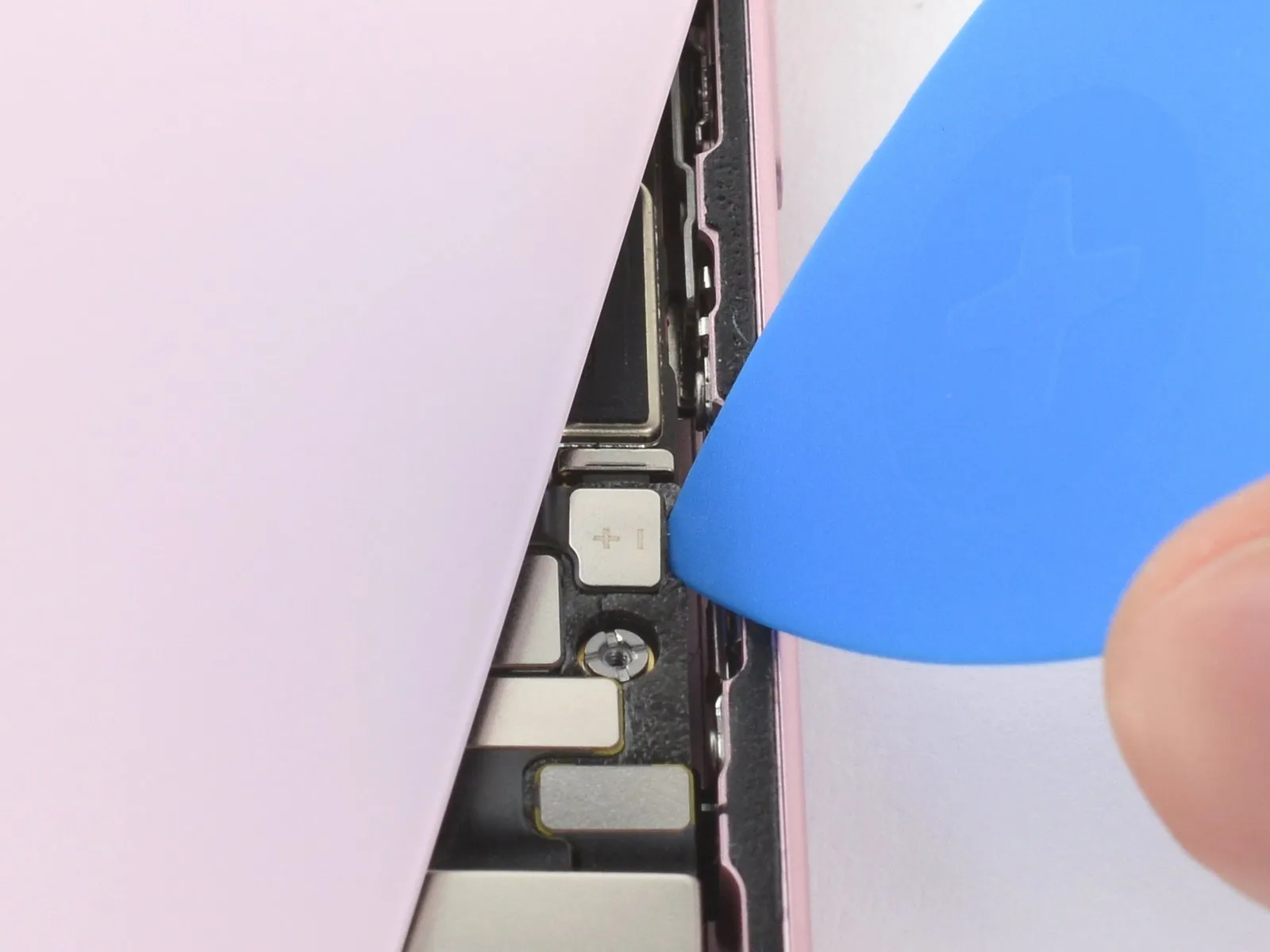

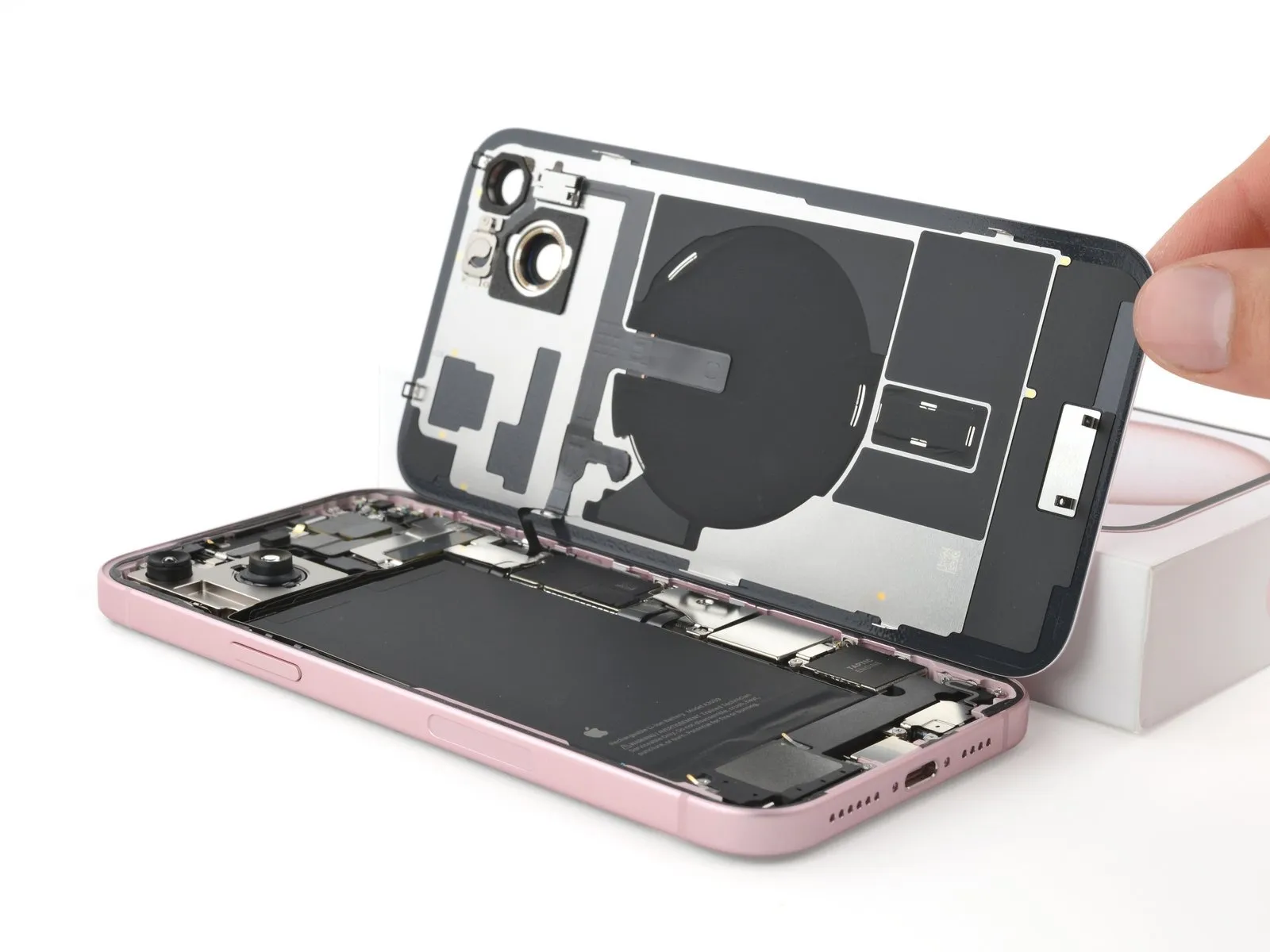

• Maintain the back glass in a vertical position using one hand, then pivot its lower section towards the left to expose the battery press connector, situated directly beneath the volume buttons.
• Employ the pointed end of a prying tool to lift and detach the battery press connector from the logic board.
• The head of this connector features markings indicating positive and negative polarity.
• When reattaching a press connector, position it precisely over its corresponding socket and apply downward pressure on one side until a click is heard, subsequently applying pressure to the opposite side; ensure it remains level, as the insulating rubber surrounding the sockets could impede full connection.

• Employ a Phillips #000 driver for the disassembly process.The Taptic Engine and its associated connector cover are fastened with four screws, necessitating their removal.A screw measuring 1.4 millimeters in length is among those securing the components.
  • One screw, characterized by a larger screw head, possesses a length of 1.9 millimeters.Another screw, distinguished by a smaller screw head, also measures 1.9 millimeters in length.
  • A final screw, differing in length, measures 2.1 millimeters.The four screws collectively hold the Taptic Engine and its protective cover in place.
  • Carefully unscrew the fasteners to detach the Taptic Engine and its cover.Ensure the Phillips #000 driver fits snugly within the screw heads to prevent damage.
  • Note the precise length of each screw for reassembly purposes.The screws' lengths are 1.4 mm, 1.9 mm (large head), 1.9 mm (small head), and 2.1 mm.

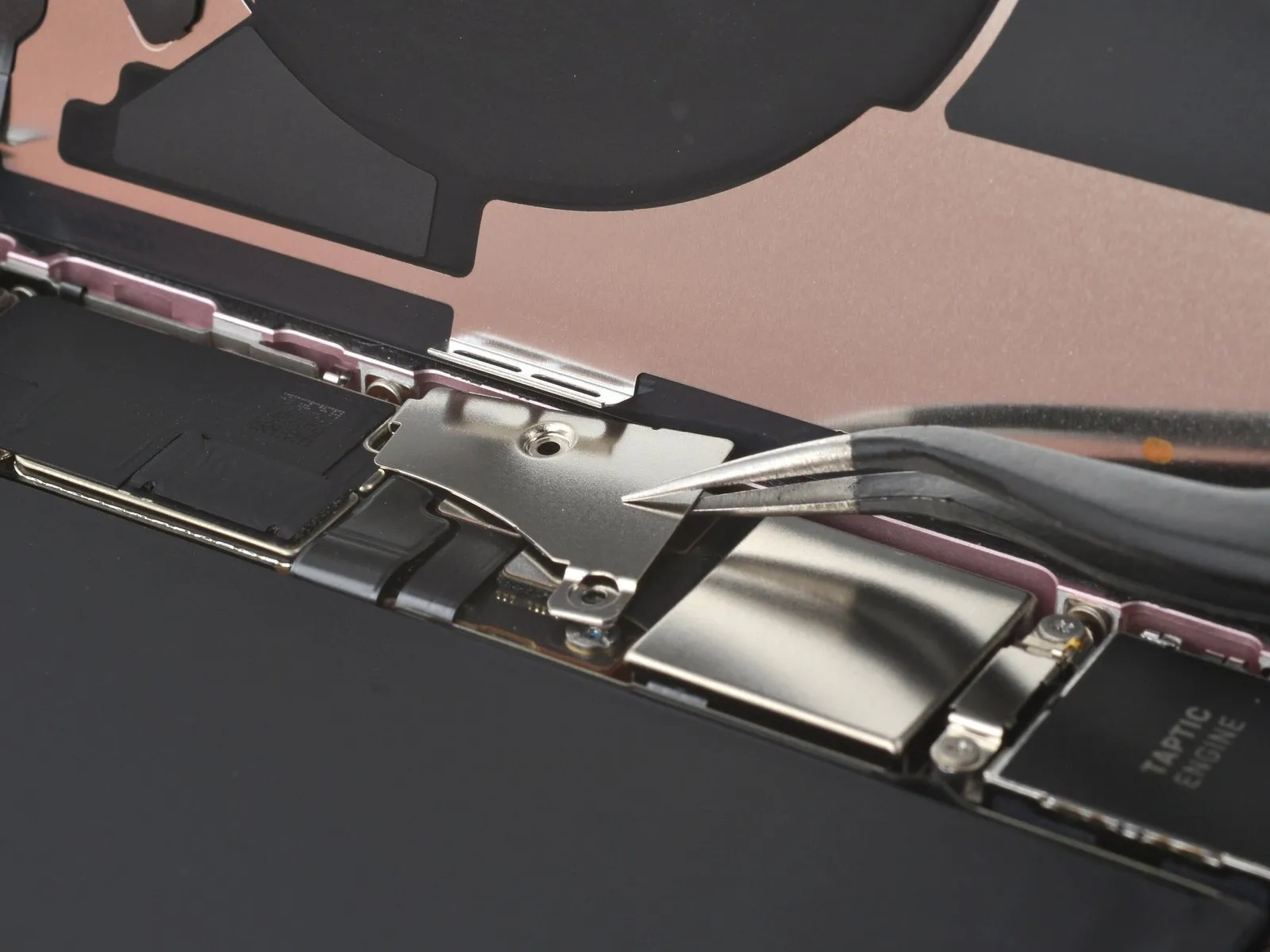

• Employ tweezers for the removal of the Taptic Engine connector cover.
• When reassembling, position the cover ensuring the gold spring contact faces the frame's edge.

• Employ the tip of the spudger to carefully lift and detach the Taptic Engine press connector.The connector must be separated from its socket using the spudger's pointed end.To release the Taptic Engine press connector, apply gentle upward force with the spudger.

• Employ a standoff driver for the removal process of the 3.3 mm screw located on the top left side of the Taptic Engine.Alternatively, a thin flathead driver can be utilized if a standoff driver is unavailable, exercising caution to prevent damage to the screw head recesses.The 3.3 mm screw holds the Taptic Engine in place, necessitating its removal using a standoff driver.Damage to the screw heads is possible when using a thin flathead driver, so meticulous care is essential.A standoff driver is the preferred tool for disengaging the screw securing the Taptic Engine's upper left corner.
• The shallow screw head notches are susceptible to stripping, demanding a careful approach when substituting a flathead driver.To detach the Taptic Engine, the 3.3 mm screw must be removed with a standoff driver.Should a standoff driver not be accessible, a thin flathead driver can be cautiously employed to avoid stripping the screw head features.

• Employing tweezers or fingertips, carefully detach the Taptic Engine.The Taptic Engine can be dislodged using either a pair of tweezers or by manually manipulating it.For removal of the Taptic Engine, utilize either tweezers or your fingers with precision.To extract the Taptic Engine, a tool such as tweezers or direct manual manipulation is appropriate. Carefully separate the Taptic Engine from its position by using tweezers or your fingers.Manual extraction of the Taptic Engine is possible, alternatively, tweezers can be used for this purpose.The Taptic Engine is removed by employing tweezers or by using your fingers to gently disengage it.Detach the Taptic Engine by applying force with tweezers or by utilizing your fingers.
