iPhone 15 Pro Max Battery Replacement

• To optimize battery health, permit the power cell to discharge to a level below 25 percent capacity.A lithium-ion battery that is fully charged presents a potential safety risk.The possibility of hazards exists with a fully charged lithium-ion battery.
• Disconnect all connecting wires and cords from the device before proceeding.
• Simultaneously depress the power button and one of the volume buttons, then swipe across the screen to initiate the shutdown sequence.

• To prevent injury and simplify the subsequent separation of components, apply multiple layers of adhesive packing tape across the fractured screen or rear glass surface.
• Ensure a sufficiently sized, uninterrupted section of the lower edge is present, allowing for secure adhesion of a suction cup.

• Excessive insertion of a prying tool carries the risk of device harm; therefore, implement a marking procedure to mitigate potential damage.
• Accurately determine a distance of3 mmfrom the tool's distal end and utilize a permanent marker to create a visible indicator on the opening pick.
• To further enhance precision, consider marking the remaining corners of the pick with varying measurement distances.
• As an alternative method, affix a coin to the pick's tip, positioning it3 mmfrom the foremost edge.

Employ a P2 pentalobe driver for the disassembly of the two screws.The screws securing the charging port are each 7.2 millimeters in length.These fasteners are positioned laterally on both sides of the charging port.

• Apply warmth to the screen's lower border utilizing a hair dryer or heat gun.The screen's bottom edge should reach a temperature that is noticeable upon contact when heated.Exercise caution to prevent the device from exceeding safe operating temperatures.Excessive heat exposure poses a risk of damage to the internal battery.The battery's construction makes it vulnerable to degradation from high temperatures.
• Avoid overheating the phone to safeguard the battery's integrity.Heat application should be limited to the screen's lower edge to minimize potential harm.

• Securely attach a suction cup to the lower border of the display assembly.
• Exert a consistent, considerable upward pull on the suction cup to generate separation between the display and its surrounding chassis.
• Carefully introduce the pointed end of a prying tool into the newly formed space.

• Exercise caution while separating the screen from its adhesive bonds during the subsequent procedures, paying close attention to vulnerable regions.
• Two fragile cables establish the screen's connection to the device; one is situated directly above the action button, and the second is located close to the central portion of the left side.The phone's edges incorporate several spring contacts, demanding meticulous care to prevent deformation; do not exceed recommended insertion depths with your repair tool.Avoid excessive pick insertion at these points to safeguard the integrity of the spring contacts, which are distributed around the phone's border.
• Careful handling is essential to prevent damage to the spring contacts, which are positioned around the device's circumference.

• Ensure the initial insertion of your opening tool does not exceed a depth of 3 millimeters from the lower border.Employ a reciprocating motion with your opening tool across the lower edge to sever the adhesive bond.The adhesive layer's adhesion can be disrupted by gently moving the tool back and forth.
• Maintain the opening tool's position within the lower-right corner to inhibit the adhesive from reforming a seal.
• Positioning the tool in the lower right corner provides a mechanical barrier, preventing the adhesive surfaces from rejoining.

Apply warmth to the screen's right lateral border, ensuring it reaches a temperature detectable by touch.The screen's right edge must be heated to a point where tactile sensation confirms its elevated temperature.

• Ensure the separation tool's insertion does not exceed a depth of 5 millimeters near the device's right side.To release the display assembly, maneuver the separation tool along the lower right corner, progressing towards the power button, noting the resistance of a retaining clip.The clip's securement will be felt as a distinct point of contact, indicating the limit of the tool's travel.
• Reorient the separation tool so that its planar surface is positioned beneath the display panel.
• This rotation allows for effective leverage to disengage the adhesive securing the screen.

Employ a prying tool and rotate it to widen the separation between the display assembly and the device's chassis, facilitating the detachment of the right-side retaining clip.Introduce a supplementary opening tool positioned to the right of the initial tool.
The purpose of the second tool is to maintain the separation achieved by the first.This widening of the gap allows for the release of the securing clip.Maintaining this separation prevents re-engagement of the clip during subsequent steps.

Guide the initial pick towards the lower-right area of the display surface.Move the subsequent pick to the upper-right corner to break the adhesive bond.
Maintain the position of both picks within the screen to inhibit adhesive re-adhesion.Separation of the adhesive layer is achieved by repositioning the second pick.
The initial pick's placement should direct it along the bottom-right diagonal of the screen.

Apply warmth to the screen's upper border, ensuring it reaches a temperature comfortable enough to be sensed through contact.

• To prevent damage, ensure the repair tool's insertion depth remains no greater than 3 millimeters near the upper boundary.The maximum allowable penetration for the tool is precisely 3 millimeters, measured from the top edge's surface.Employ a prying motion around the upper-right corner, maintaining contact with the top edge to disengage the fasteners.
• By maneuvering the tool along the top edge and around the upper-right corner, you will separate the two clips and dissolved adhesive that hold the component in place.

Applying warmth to the screen's left border, until it reaches a temperature that is noticeable upon contact, is necessary.

To prevent potential harm to the two screen-to-phone cables, ensure the opening of your tool does not exceed a depth of 2 mm near the left side.Employ a rotating motion with your tool around the screen's upper-left quadrant.Advance your tool along the left edge, moving it towards the bottom corner to release the adhesive bond.
Separation of the adhesive layer is achieved by sliding the tool from the top-left to the bottom-left corner of the display.
Exercise caution to avoid cable damage by limiting tool insertion to a maximum of 2 mm along the left perimeter.

• Carefully pivot the display assembly to the left side of the device.
• Should resistance be encountered during screen separation, re-examine the device's edges to identify any remaining adhesive or obstructed retaining clips.
• Support the display with a stable object, such as a box, to prevent undue stress on the internal connectors.

• Carefully organize all screws during the repair process, noting their original locations for correct reinstallation.
• Employ a specialized tool, specifically a tri-point Y000 driver, for the subsequent steps.The six screws holding the logic board cover in place must be detached using the tri-point Y000 driver.A single screw, measuring 2.1 millimeters in length, is among those to be removed.

  • Five screws, each with a length of 1.5 millimeters, also require removal.Accurate screw placement is essential for proper device reassembly; ensure each screw returns to its original position.
  • The tri-point Y000 driver is the only appropriate tool for safely removing the specified screws without damage.Maintaining an organized record of screw sizes and locations prevents incorrect assembly and potential malfunctions.

• Employ tweezers or your fingertips to grasp and advance the logic board cover downwards, disengaging it from the sensor cable's connection.
• Detach the logic board cover entirely.

• Employ the pointed end of a specialized opening pick to release the battery press connector's retention.Reattachment of a press connector necessitates precise alignment with its corresponding socket, followed by a controlled downward pressure on one lateral aspect until an audible click confirms secure engagement, then repeat on the opposing side.Verification of complete seating is crucial; ensure the connector lies flush, recognizing that the surrounding rubber insulation may impede full connection.
• Proper function depends on the connector's even distribution of pressure, achieved by sequentially applying downward force to both sides until a distinct click indicates a secure lock.

• Detach the display panel from the device.
• Prior to continuing the reassembly process, pause at this stage and consult this documentation for proper application of replacement adhesive strips.
• Exercise caution to prevent any harm to the delicate spring contacts while cleaning the device's frame.

• A single screw with a 2.9 mm diameter is also part of the loudspeaker's fastening mechanism.To detach the loudspeaker, utilize a Phillips #000 driver and carefully unscrew the fasteners.The loudspeaker's attachment involves a combination of screw sizes, specifically 2.1 mm and 2.9 mm.
• For disassembly, the four screws holding the loudspeaker must be removed using a Phillips #000 driver.The fastening hardware includes three screws with a 2.1 mm diameter and one screw with a 2.9 mm diameter.A Phillips #000 driver is essential for loosening and extracting the four screws that hold the loudspeaker in place.

• Adhesive tape secures the superior borders of the Taptic Engine and loudspeaker assembly.
• Utilize an opening pick, inserting it into the minimal space existing between the Taptic Engine and the loudspeaker.
• Advance the pick laterally towards the phone's left side to release the adhesive bond from the Taptic Engine.

1. Employ the planar extremity of a spudger to create separation between the loudspeaker's right border and the device's structural casing.Apply leverage with the spudger until the loudspeaker becomes accessible for manual grasping.Secure a firm hold on the loudspeaker utilizing your fingertips.
2. Detach the loudspeaker component from its mounting position.
3. Complete the removal process for the loudspeaker assembly.

1. Employ the pointed end of a spudger to carefully lift and detach the Taptic Engine press connector.The connector's release necessitates utilizing a spudger tip for leverage and separation.To release the Taptic Engine press connector, apply the spudger's tip with sufficient force to disengage it.

1. To detach the grounding clip, first eliminate the two fasteners that hold it in place.
   A 1.2 mm Phillips head screwdriver, size #000, is required for one of these screws.The other screw necessitates a 1.9 mm tri-point screwdriver, specifically a Y000 type.
   Employing tweezers will facilitate the removal of the grounding clip itself.Carefully manipulate the clip with the tweezers to avoid damage to surrounding components.
2. The fasteners are small; ensure proper tool selection to prevent stripping or cross-threading.

• To detach the Taptic Engine, first eliminate the fasteners that hold it in place.
  • A Phillips #000 screwdriver, sized at 2.9 mm, is required for one of the screws.
  • A standoff screw, measuring 3.8 mm, represents the second fastener to be removed.
• Should a standoff driver not be available, a slender flathead screwdriver can be cautiously employed, ensuring the screw head recesses remain undamaged.

• Utilize the planar extremity of a spudger to create separation between the Taptic Engine's left side and the device's frame.
• Elevate the component with a prying motion until the Taptic Engine becomes accessible for manual grasping.
• Detach the Taptic Engine from its installed position.

• The subsequent instructions detail the process of extracting each tab from beneath the battery.
• As these adhesive strips are extended, they will detach; however, breakage can occur during removal, particularly with the strip along the top edge, and this is acceptable.
• Should any strip fragment during the separation process, proceed with the alternative battery removal method described later in this guide.

• Avoid creating holes or indentations in the battery's casing with your tools, because damage could result in the release of hazardous substances or ignition.Employ the pointed end of a prying tool to delicately separate a pull tab's edge from the battery's perimeter.
• Securely grasp the pull tab's edge with blunt-nosed tweezers, then extract it entirely from the battery's edge.
• Replicate this process for the remaining two pull tabs to achieve complete removal.
• Structural integrity is critical; any compromise to the battery's form may trigger the emission of harmful chemicals or a combustion event.

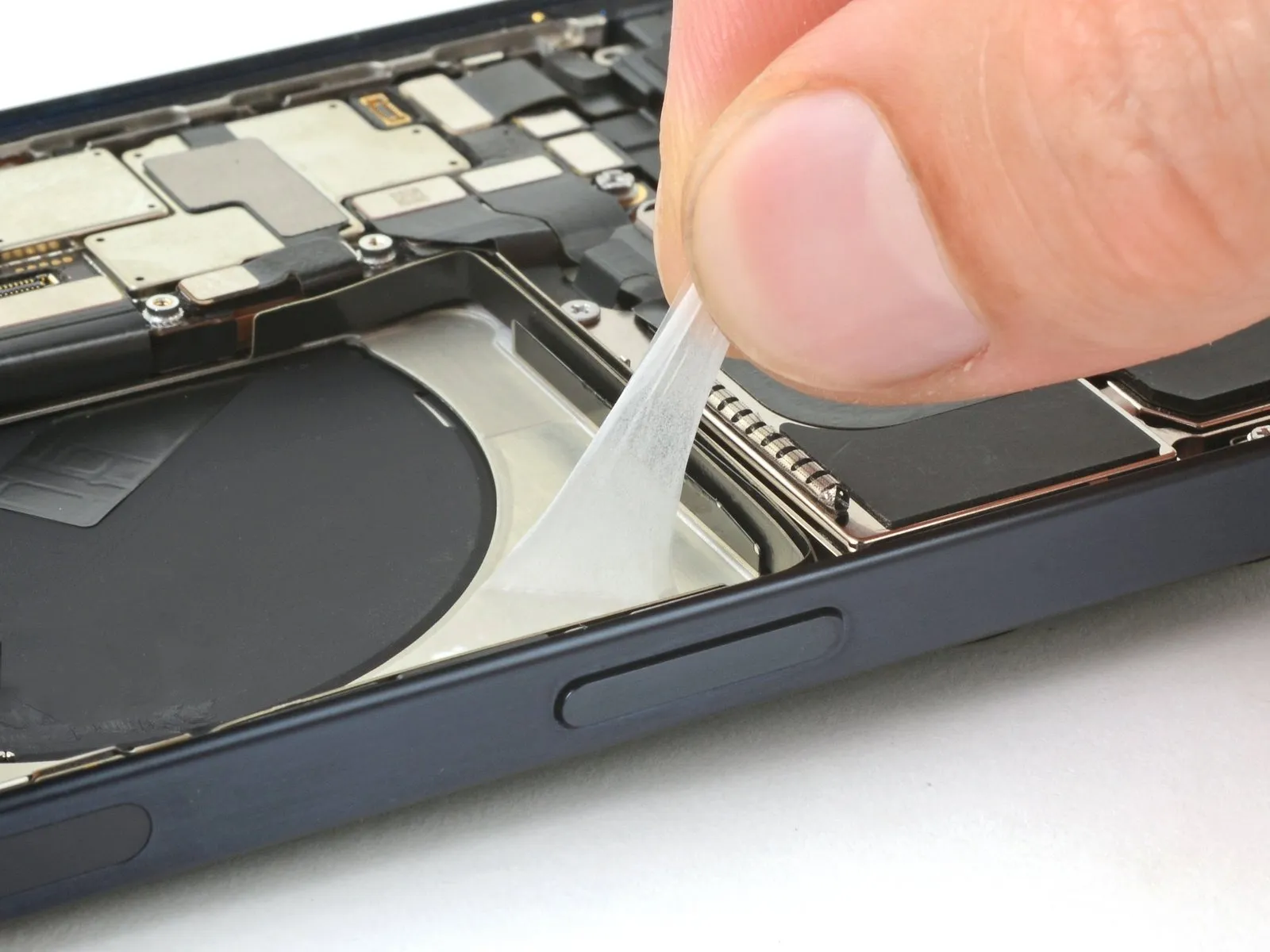

• Extract a pull tab by sliding it out from beneath the battery until it's accessible for manual grasping or tool manipulation.Maintain the device's stability by applying pressure to the frame's edges, avoiding direct force on the battery itself.
• Extract the adhesive strip gradually, ensuring consistent tension and a shallow angle to prevent snagging on surrounding parts.
• Sustain the extraction process, periodically adjusting your grip or wrapping the strip around a tool to maintain control.
• Proceed with the pulling action until the entire strip detaches completely from its position under the battery.
• Should the strip fracture during removal, attempt recovery; if subsurface gripping proves impossible, advance to the subsequent procedure.
• Replicate this extraction procedure for the remaining two adhesive strips.

Upon successful removal of all three stretch release adhesive strips, proceed to battery removal; otherwise, continue to the subsequent instructions to dissolve the adhesive using isopropyl alcohol and a plastic card.Maintain the phone's upper edge in an elevated position when the topmost adhesive strip is still attached.

• Elevate the left edge of the device, which houses the volume buttons, if either of the lower adhesive strips are still present.

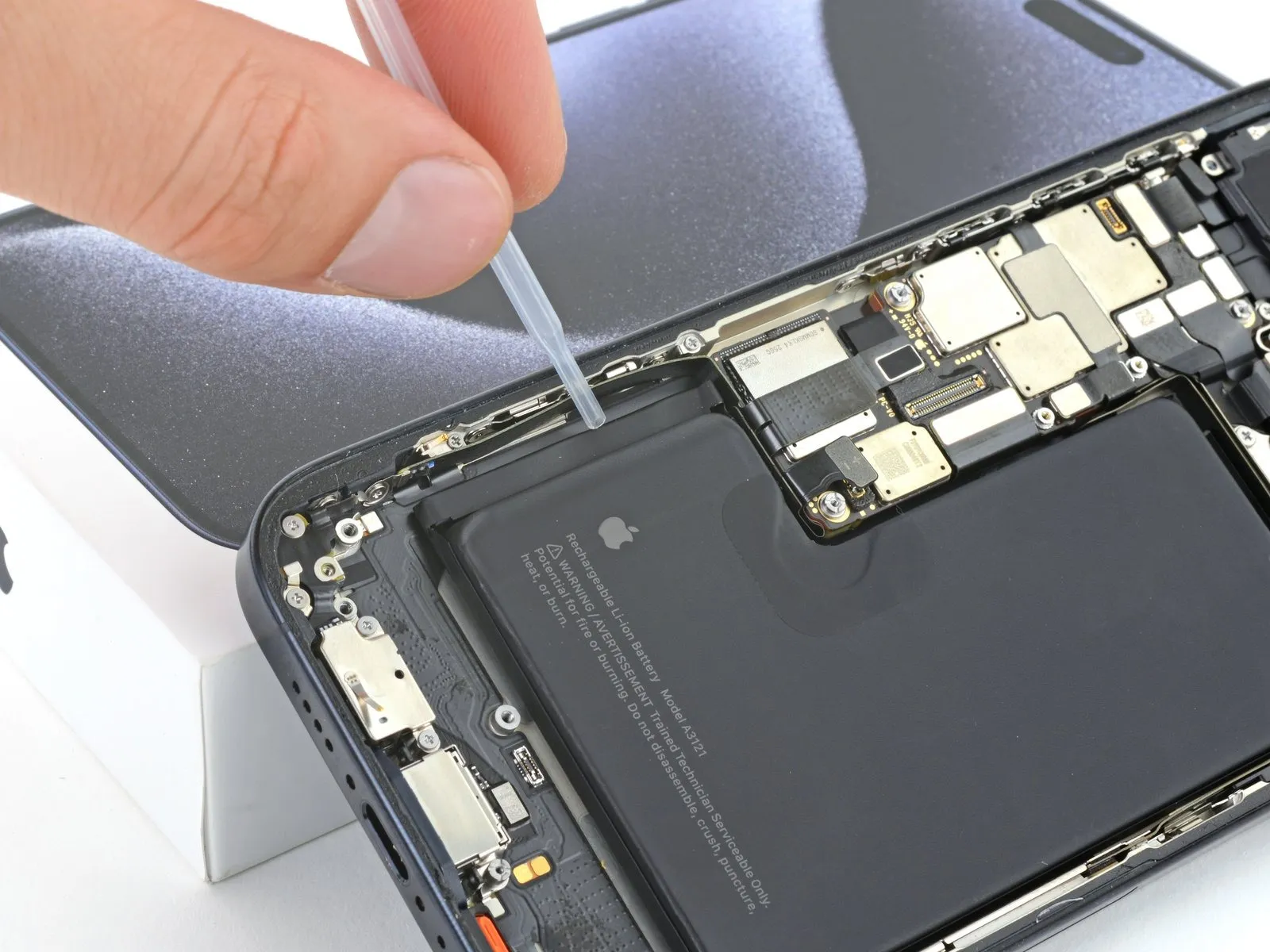

• Administer a small quantity of highly-concentrated isopropyl alcohol (a purity exceeding 90%) to the raised edge of the battery using a pipette or syringe.

Allow a sixty-second period for the isopropyl alcohol to permeate beneath the battery and reduce the adhesive's binding strength.

• Avoid any deformation or folding of the battery's physical structure.Should the battery adhesive prove difficult to release, additional applications of isopropyl alcohol can be used to facilitate separation, followed by another attempt.

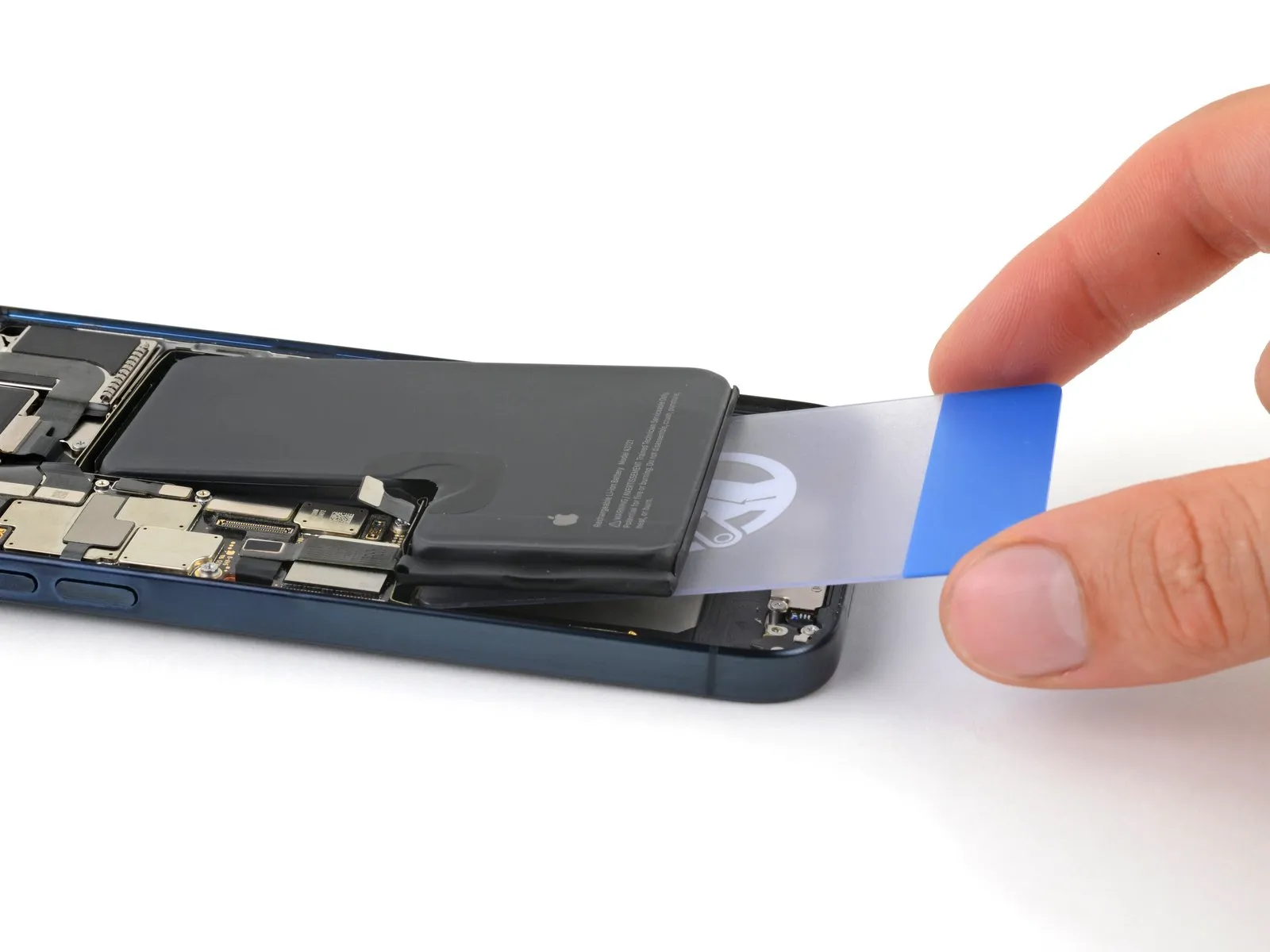

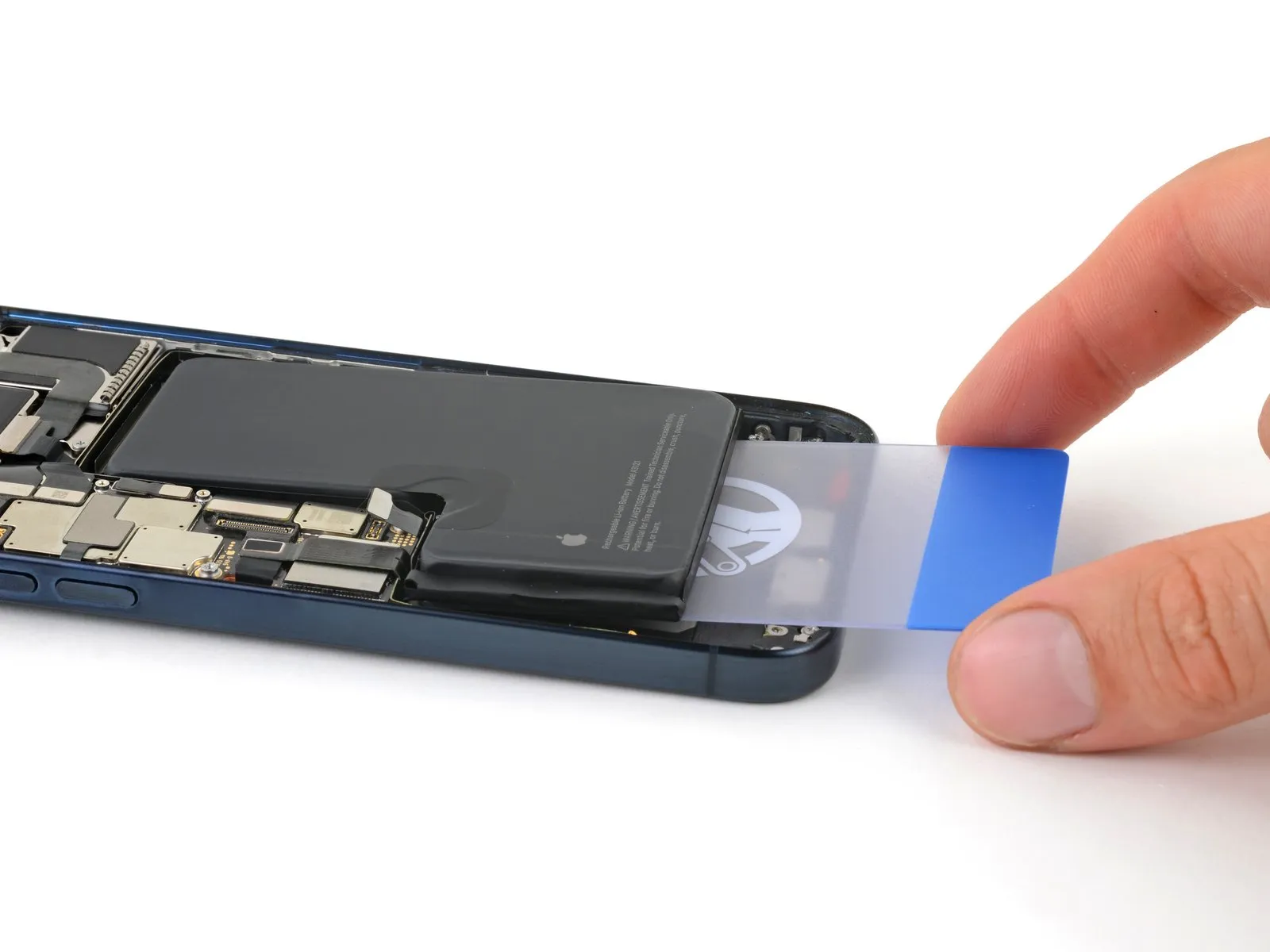

• Utilize the shorter dimension of a plastic card to create a gap between the battery's lower edge and the device's chassis.
• Exercise caution to prevent damage to the frame's surface, as the wireless charging coil is located directly beneath the battery, near the central region.
• Apply controlled upward force to the battery, ensuring complete detachment from the adhesive bond.
• The duration required for adhesive release can vary; sustained pressure, potentially lasting up to sixty seconds, might be necessary to weaken the bond.

Proceed to step 36.

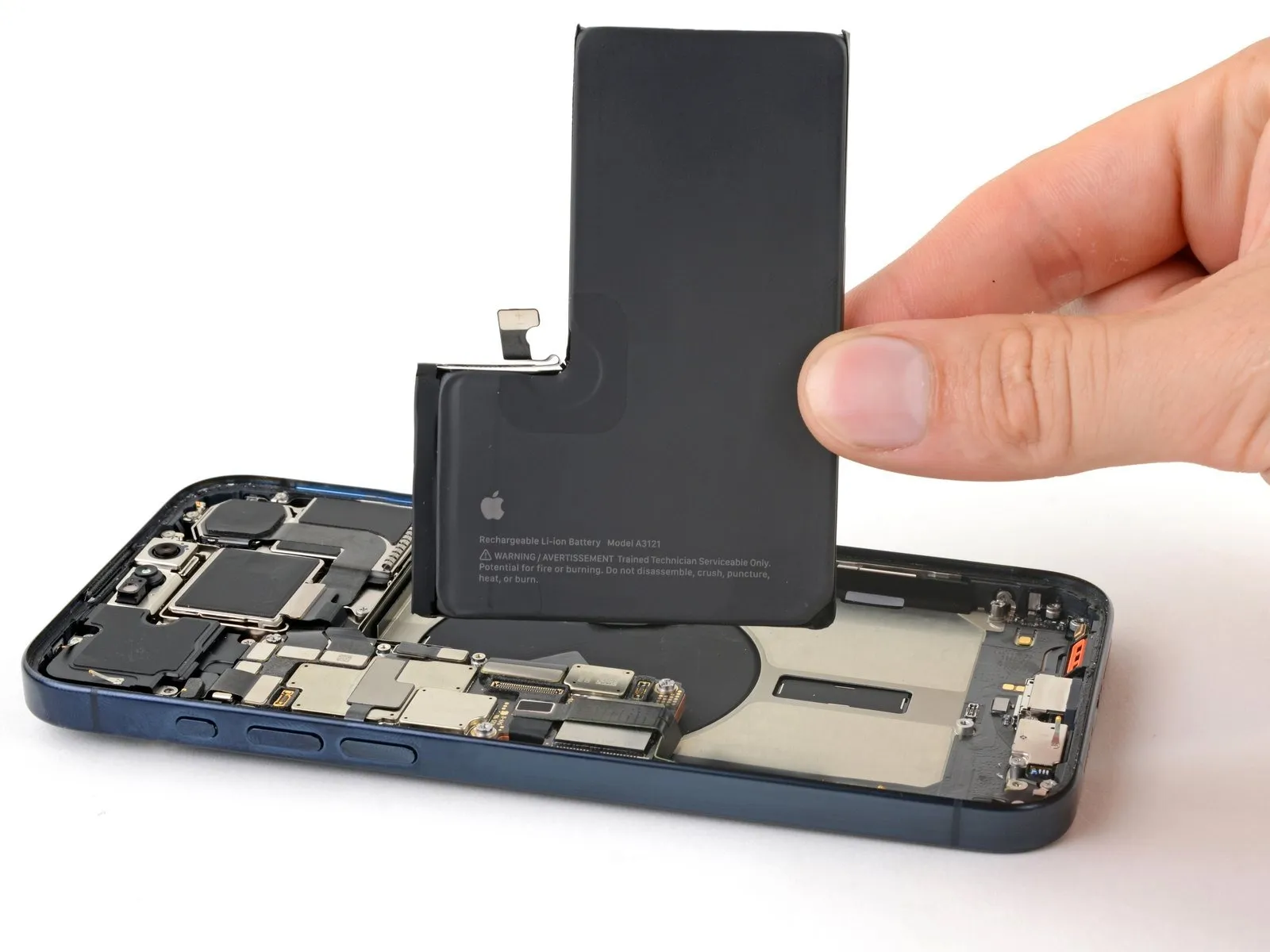

• Detach the battery from the device.
• For the installation of a replacement battery:
  • Utilize isopropyl alcohol and a lint-free or microfiber cloth to thoroughly clean the frame's surface.
  • Prior to applying any adhesive, briefly reconnect the new battery and position it within its designated recess to verify proper fit and cable reach to the logic board's connector; ensure disconnection before proceeding further.
  • Consult this instructional guide for the application of stretch release adhesive strips to the battery, should it lack pre-applied adhesive.
  • In the absence of stretch release adhesive, secure the battery using thin, double-sided adhesive tape.
