iPhone 15 Pro Max Earpiece Speaker Replacement

• To optimize battery health, permit the battery's charge level to decrease to a minimum of 25%.A lithium-ion battery that maintains a charged state presents a potential safety risk.Disconnect all connected cables from the device.
• Simultaneously depress the power button and one of the volume buttons, subsequently moving the power control to deactivate the phone.
• Deactivating the device using the described method ensures a controlled shutdown.

• To prevent injury and simplify the subsequent separation of components, apply several layers of adhesive packing tape across the fractured screen or rear glass surface.
• Ensure a sufficiently sized, uninterrupted section exists close to the lower perimeter, allowing for secure adhesion of a suction cup.

• Excessive insertion of a pick can potentially harm the device; therefore, it's crucial to implement a marking procedure to avoid such incidents.
• Using a measuring tool, determine a distance of3 mmfrom the pick's leading edge and clearly indicate this point with a permanent marker.
• For enhanced precision, consider marking the pick's other corners with varying measurement values.
• As an alternative method, affix a coin to the pick's shaft, positioning it3 mmaway from the tip.

Employ a P2 pentalobe screwdriver to detach the two screws.The screws securing the charging port are each 7.2 millimeters in length.These fasteners are located on both lateral sides of the charging port.

• Apply warmth to the screen's lower border utilizing a hair dryer or heat gun.The lower edge of the display should reach a temperature that is noticeable upon contact.Avoid excessive heat application, as the internal battery is vulnerable to thermal degradation.Overheating the device beyond a safe temperature presents a risk of battery damage.A hair dryer or heat gun can be employed to gently warm the display's lower edge.
• Maintain caution to prevent the device from reaching temperatures that could compromise the battery's integrity.

• Securely attach a suction cup to the lower border of the display assembly.
• Exert a consistent, considerable upward pull on the suction cup to generate separation between the display and its surrounding structure.
• Carefully introduce the pointed end of a prying tool into the newly formed space.

Exercise caution while separating the adhesive that holds the display assembly in place during the subsequent procedures, paying close attention to the areas detailed below.

• Two fragile cables establish the connection between the display and the device's internal components; one is situated directly above the action button, while the other is located on the central portion of the left side.
• Numerous spring contacts are positioned along the phone's outer boundary; prevent contact bending by restricting the depth of your tool's insertion to the recommended limits in these areas.

• Ensure the initial insertion of your separating tool does not exceed a depth of 3 millimeters from the lower border.Employ a reciprocating motion with the tool across the lower edge to sever the adhesive bond.Maintain the tool's position within the lower-rightmost corner to inhibit adhesive re-adhesion.
• The adhesive must be fully disengaged by the oscillating movement of the separation tool.
• A maximum insertion depth of 3 mm is crucial to avoid damage during the separation process.

Apply warmth to the screen's right lateral border, ensuring it reaches a temperature that is perceptible upon contact.Elevate the temperature of the display's right-hand side to a level where tactile sensation confirms the heat.

• Ensure the depth of pick insertion remains limited to a maximum of 5 millimeters.Proceed along the right-hand border of the device.
• Maneuver the pick's tip around the lower-right corner, directing it towards the power button; you will encounter resistance indicating a retaining clip's position securing the screen.This clip firmly holds the screen in place.Reposition the pick so that its planar surface is situated beneath the screen's edge.
• This orientation facilitates separation.The flat edge of the pick will be used to leverage the screen.Maintain caution to prevent damage during this process.

Utilize a prying tool to widen the separation between the display assembly and the device's chassis.The release of the right-side securing clip will occur as the gap expands.The display is referred to as the 'screen' in this procedure.Position a second prying tool adjacent to the initial tool, on the right-hand side.
This second tool facilitates maintaining the separation while the clip disengages.

Using a prying tool, reposition the initial pick towards the lower-right section of the display panel.The lower-right corner of the screen's surface serves as the target location for the pick's movement.Employ a second prying tool and maneuver it to the upper-right corner of the screen's surface.The upper-right corner of the screen is the designated area for the second pick's placement.
This action of moving the second pick is intended to break the adhesive bond.The adhesive holding the screen in place will be released through this separation process.Maintaining the picks in their current positions is crucial to avoid the adhesive re-attaching.The inserted picks act as a barrier, preventing the adhesive from reforming a seal.
This prevents the adhesive from re-bonding the screen to the device's frame.

To facilitate separation, apply heat to the screen's upper border until its surface reaches a temperature comfortable enough to be touched.

• To prevent damage, ensure the repair tool's insertion depth remains limited to a maximum of 3 millimeters near the upper boundary.The upper edge should be carefully examined to maintain structural integrity during the separation process.Employ a prying action around the upper-right corner, extending along the top edge, to disengage the two retaining clips and the adhesive bond.
• This maneuver effectively breaks the adhesive seal and releases the clips that hold the component in place.

Apply warmth to the screen's left border, continuing until surface temperature is high enough to be felt upon contact.

• To prevent damage to the two screen-to-phone cables, ensure the opening of your tool does not exceed 2 millimeters along the left side.Carefully maneuver your opening tool around the upper-left corner of the display assembly to begin separating the adhesive.Continue the separation process by sliding the tool along the left edge, progressing towards the lower corner.
• The adhesive bond between the screen and the device's frame will be released as the tool is moved.
• Avoid inserting the tool beyond the specified depth to safeguard the delicate cable connections.

• Carefully pivot the display assembly to the left side of the device.
• Should resistance be encountered during screen separation, re-examine the device's edges to identify any remaining adhesive or secured clips.
• Secure the display panel against a supporting structure, such as a box, to prevent undue stress on the internal connectors.

• Carefully monitor the location of every screw during the repair process, ensuring each is reinstalled in its original position.
• Employ a specialized tool, specifically a tri-point Y000 driver, for the subsequent steps.The six screws holding the logic board cover in place must be detached using the tri-point Y000 driver.A single screw, measuring 2.1 millimeters in length, is among those that require removal.

  • Five screws, each with a length of 1.5 millimeters, are also part of the fastening assembly.Accurate screw placement is crucial for proper reassembly and functionality.
  • Maintaining an organized record of screw types and locations prevents incorrect installation.The specified driver size is essential to avoid damage to the screw heads during removal.

• Employ tweezers or your fingertips to grasp and move the logic board cover downwards, disengaging it from the sensor cable's connection.
• Detach the logic board cover completely.

• Employ the pointed end of a specialized opening tool to release the battery press connector and detach it.When reattaching a press connector, ensure proper alignment with its corresponding receptacle, subsequently applying gentle downward pressure on one lateral aspect until an audible click confirms secure engagement, followed by similar pressure on the opposing side.Verify the connector’s even contact with the receptacle surface following reconnection.
• A full connection may be hindered by the insulating rubber surrounding the sockets; therefore, careful observation is necessary to guarantee complete engagement.

• Detach the display panel from the device.
• Prior to continuing the reassembly process, pause at this stage and consult this document for proper installation of replacement adhesive strips.
• Exercise caution to prevent any harm to the delicate spring contacts while cleaning the frame assembly.

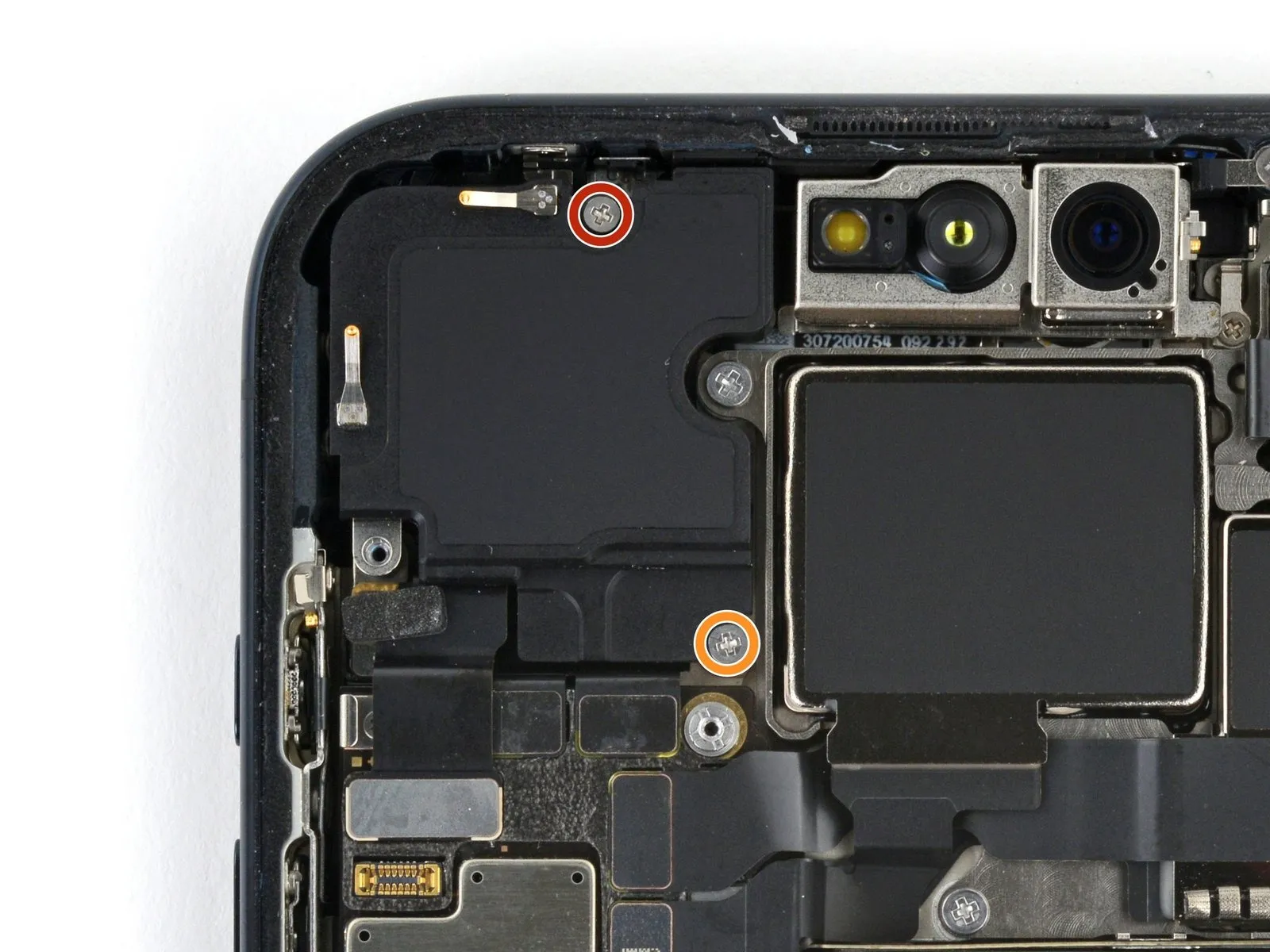

• The other screw used to fasten the earpiece speaker measures 2.4 mm in length.Carefully utilize the Phillips #000 driver to avoid damage during screw removal.
• Ensure the Phillips #000 driver is properly seated on the screw head before applying torque.The two screws, both 1.8 mm and 2.4 mm in length, must be removed with a Phillips #000 driver to access the earpiece speaker.

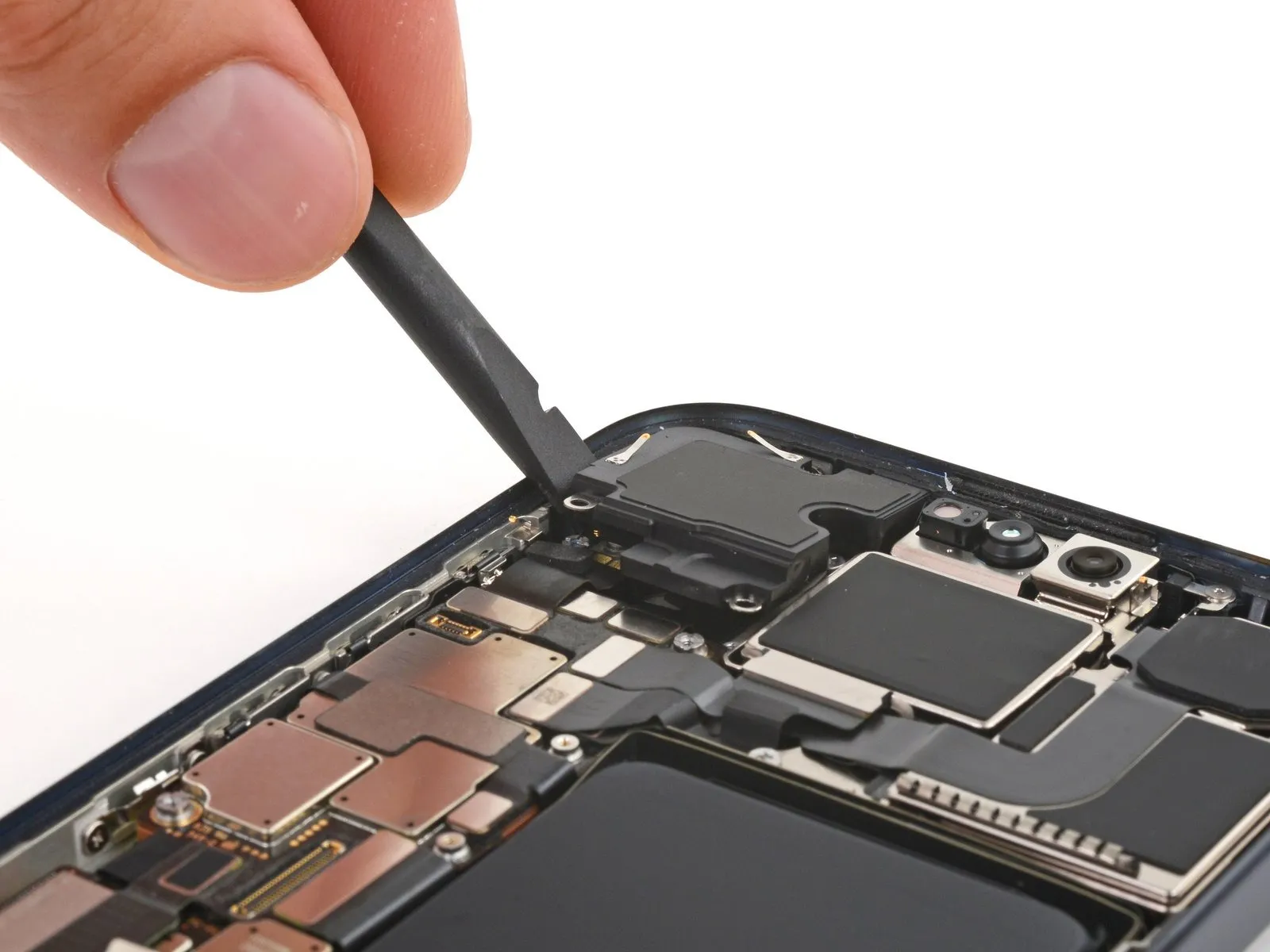

• Utilize the planar extremity of a spudger to create separation between the earpiece speaker's left border and the device's chassis.Apply gentle leverage until the speaker becomes accessible for manual grasping.Detach the earpiece speaker from the assembly.
• When reattaching the speaker, position it at a downward inclination to ensure proper seating of the gasket within the corresponding recess located on the frame's superior edge.
• The gasket's placement is critical for maintaining a secure and sealed connection.
• This angled insertion facilitates correct alignment and prevents damage to the gasket during reassembly.
