iPhone 15 Pro Max Rear Cameras Replacement

• Allow your phone's battery to drain below 25%. A charged lithium-ion battery can be a safety hazard.
• Unplug any cables from your phone.
• Hold the power and either volume buttons, then slide to power off your phone.

• If your screen or back glass is badly cracked, lay overlapping strips of packing tape over the glass to protect yourself and make disassembly easier.
• Make sure there's a smooth area near the bottom edge that's big enough for a suction cup to stick to.

• If inserted too far, an opening pick can damage your device. Follow this step to mark your pick and prevent damage.
• Measure 3 mm from the tip and mark the opening pick with a permanent marker.
• You can also mark the other corners of the pick with different measurements.
• Alternatively, tape a coin to a pick 3 mm from the tip.

Use a P2 pentalobe driver to remove the two 7.2 mm-long screws on either side of the charging port.

• Use a hair dryer or heat gun to heat the bottom edge of the screen until it's hot to the touch.
• Be careful not to heat the phone hotter than this-the battery is susceptible to heat damage.

• Apply a suction handle to the bottom edge of the screen.
• Pull up on the handle with a strong, steady force to create a gap between the screen and the frame.
• Insert the tip of an opening pick into the gap.

• As you slice the adhesive securing the screen in the next steps, be careful of the following areas:
• There are two delicate cables connecting the screen to the phone: one just above the action button, and the other near the middle of the left edge.
• There are multiple spring contacts around the perimeter of the phone. Be extra careful not to insert your pick deeper than suggested in these locations to avoid bending the contacts.

• Do not insert your opening pick deeper than 3 mm along the bottom edge.
• Slide your pick back and forth along the bottom edge to separate the adhesive.
• Leave your pick inserted in the bottom right corner to prevent the adhesive from re-sealing.

Heat the right edge of the screen until it's hot to the touch.

• Do not insert your pick deeper than 5 mm along the right edge.
• Slide your pick around the bottom right corner of the screen and toward the power button until you feel a hard stop at a clip securing the screen.
• Rotate your pick so the flat edge is under the screen.

Twist the pick to increase the gap between the screen and the frame until the right clip releases.
Insert a second opening pick to the right of the first pick.

Slide the first pick back to the bottom right corner of the screen.
Slide the second pick to the top right corner of the screen to separate the adhesive.
Leave these picks inserted to prevent the adhesive from resealing.

Heat the top edge of the screen until it's hot to the touch.

• Don't insert your pick deeper than 3 mm along the top edge.
• Slide your pick around the top right corner and along the top edge to release the two clips and adhesive securing it.

Heat the left edge of the screen until it's hot to the touch.

• Don't insert your pick deeper than 2 mm along the left edge to avoid the two cables connecting the screen to the phone.
• Rotate your pick around the top left corner of the screen.
• Slide your pick to the bottom left corner of the screen to separate the adhesive.

• Gently swing open the screen to the left of the phone.
• If the screen feels stuck, go back around the perimeter to check for missed sections of adhesive or stuck clips.
• Rest the screen against a box or similar object so it doesn't strain the cables.

• Throughout this repair, keep track of each screw and make sure it goes back exactly where it came from.
• Use a tri-point Y000 driver to remove the six screws securing the logic board cover:

  • One 2.1 mm-long screw
  • Five 1.5 mm-long screws

• Use tweezers or your fingers to grab and slide the logic board cover toward the bottom of the phone to clear the sensor cable.
• Remove the cover.

• Use the tip of an opening pick to pry up and disconnect the battery press connector.
• To reconnect a press connector, align it over its socket and gently press down on one side until it clicks into place, then press down on the other side. Make sure it sits flat, as the insulating rubber around the sockets might prevent it from connecting fully.

• Use the point of a spudger to pry up and disconnect the ambient light sensor press connector from the top left of the logic board.

• Disconnect the screen press connector.

• Remove the screen.
  During reassembly, stop here and use this guide to install new screen adhesive.
  Be careful not to damage any of the spring contacts as you clean the frame.

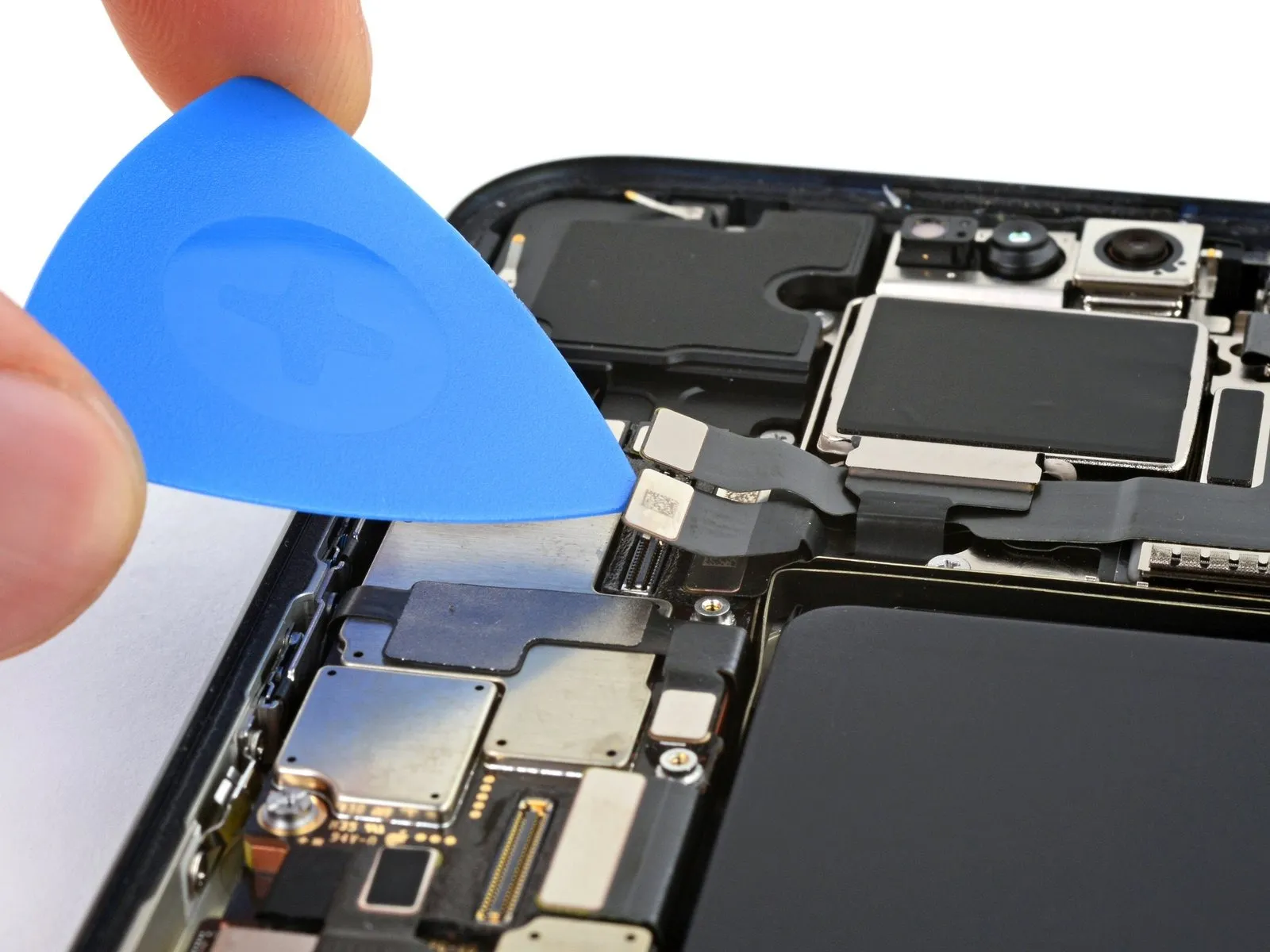

• Use the tip of an opening pick to pry up and disconnect the three rear camera press connectors from the top right of the logic board.

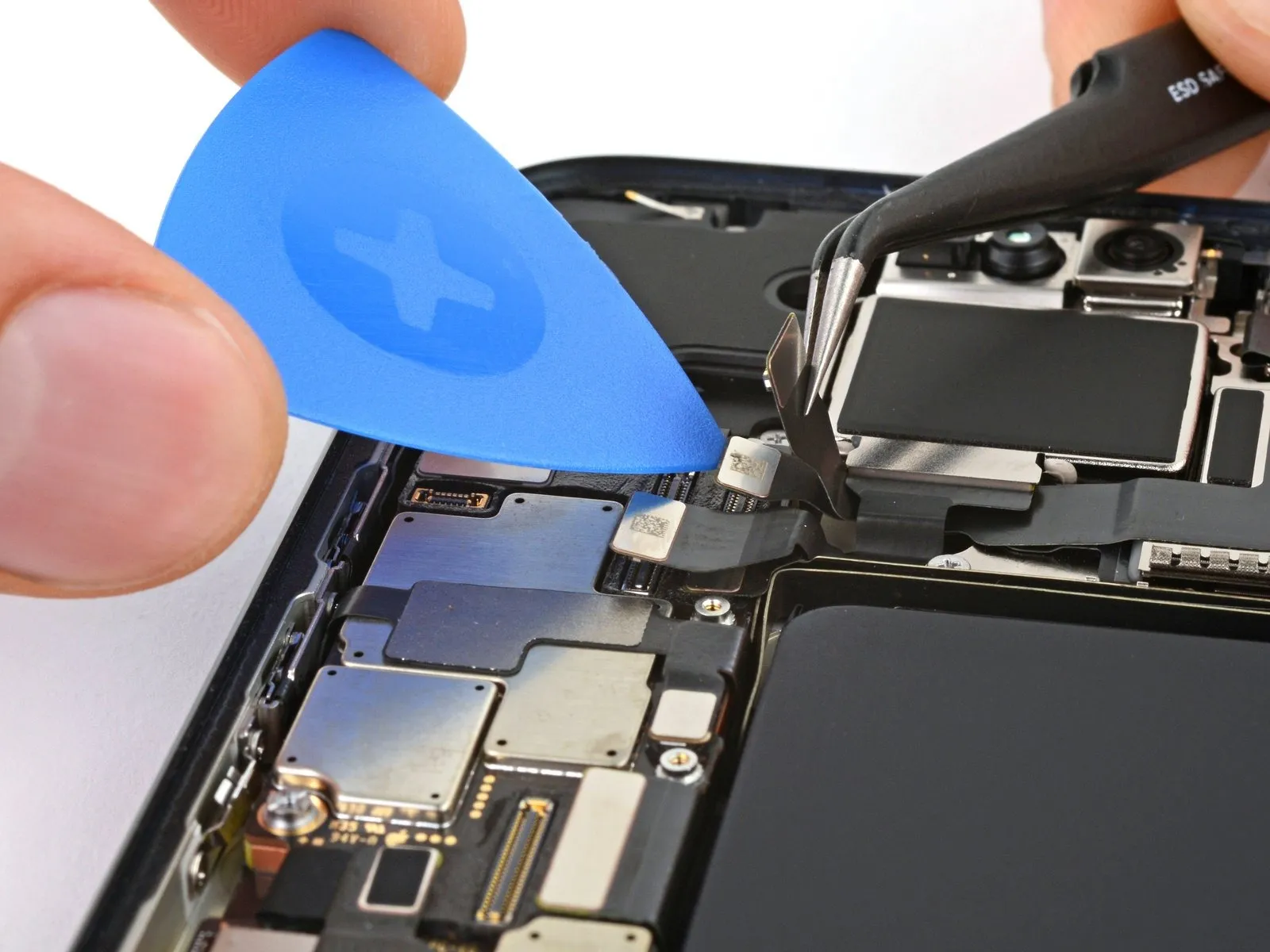

  The third connector is hidden beneath the top one-lift the top cable slightly to reveal the third connector.

• Use your Phillips #000 driver to remove the three screws securing the rear cameras:
  One 3.2 mm screw
  One 2.8 mm screw
  One 3.7 mm screw

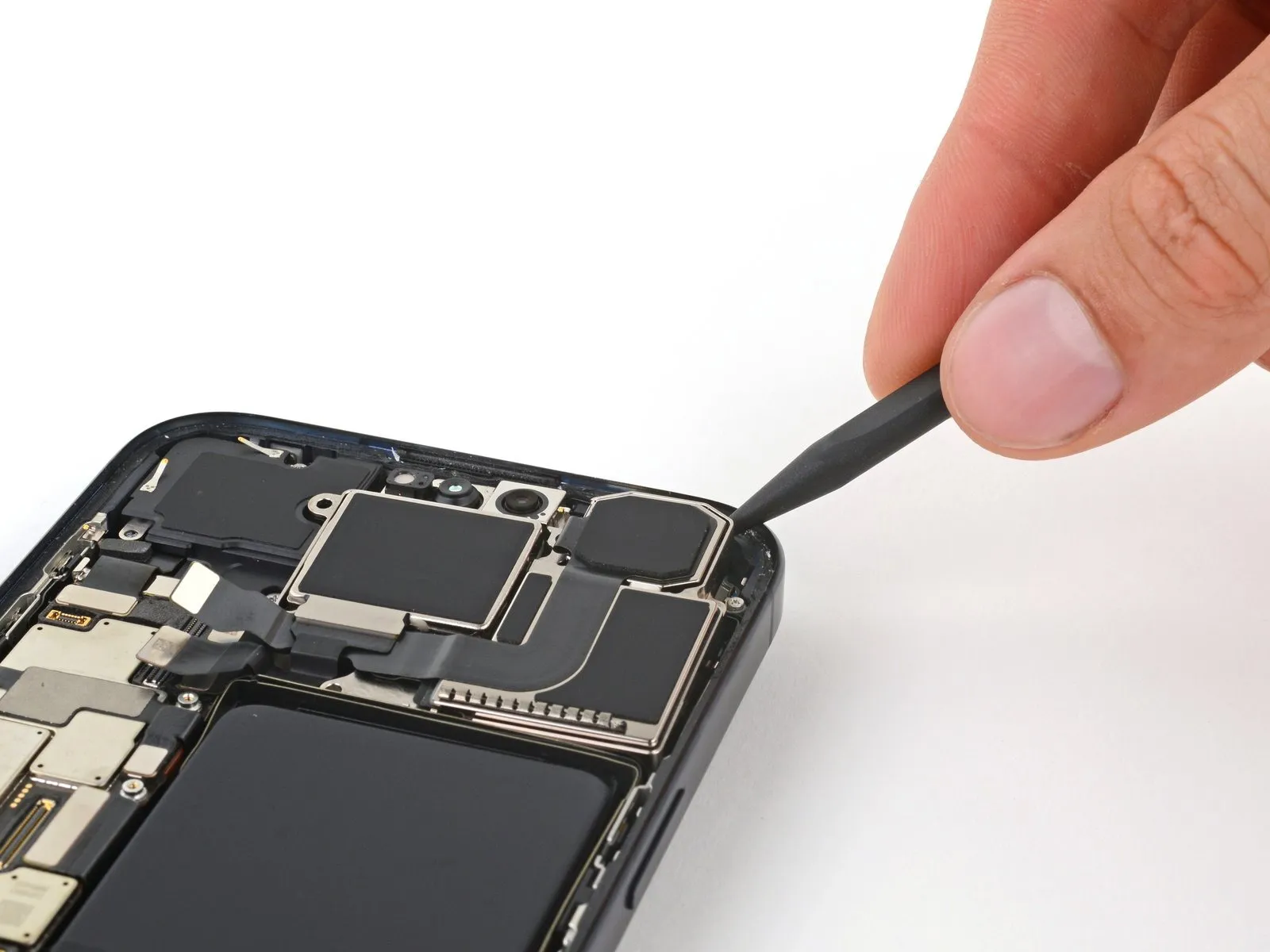

• Insert the tip of your spudger between the top right corner of the rear cameras and the frame.

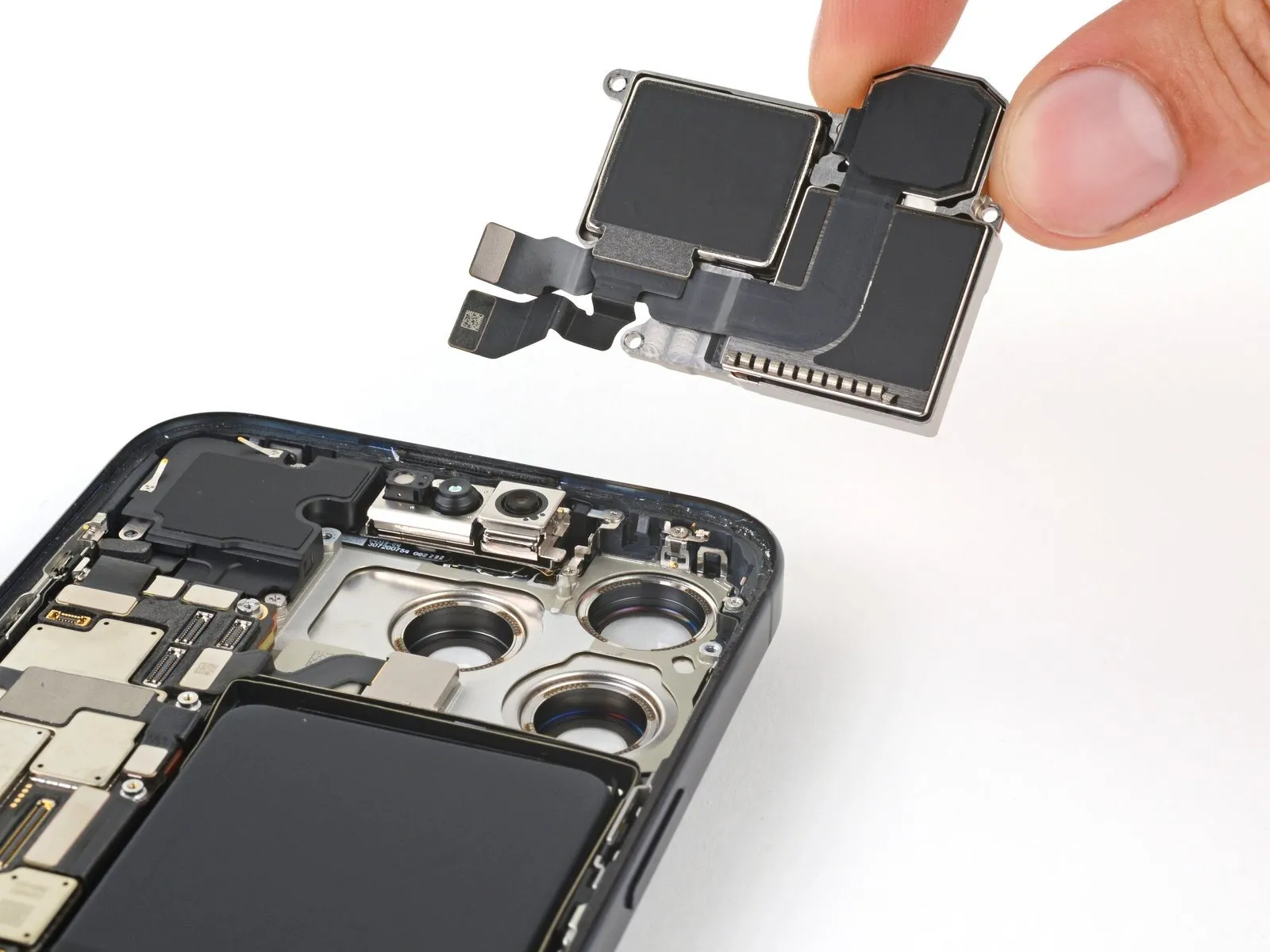

• Pry up until you can grab the rear cameras with your fingers.
