iPhone 15 Pro Max Taptic Engine Replacement

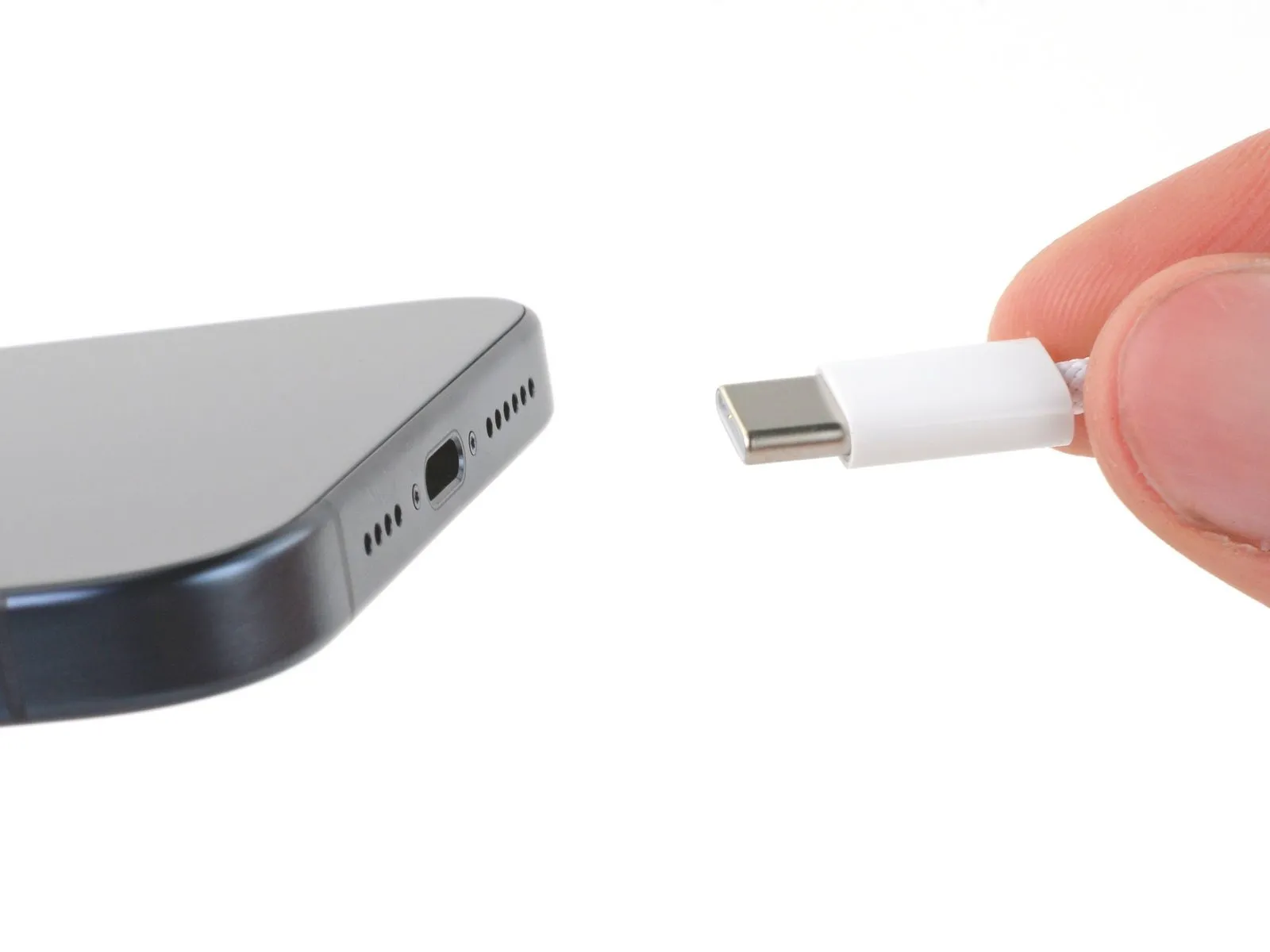

• To optimize battery health, permit the power cell to discharge to a level below 25 percent capacity.A lithium-ion battery that is fully charged presents a potential safety risk.Disconnect all connected wires and cords from the device to ensure safe handling.

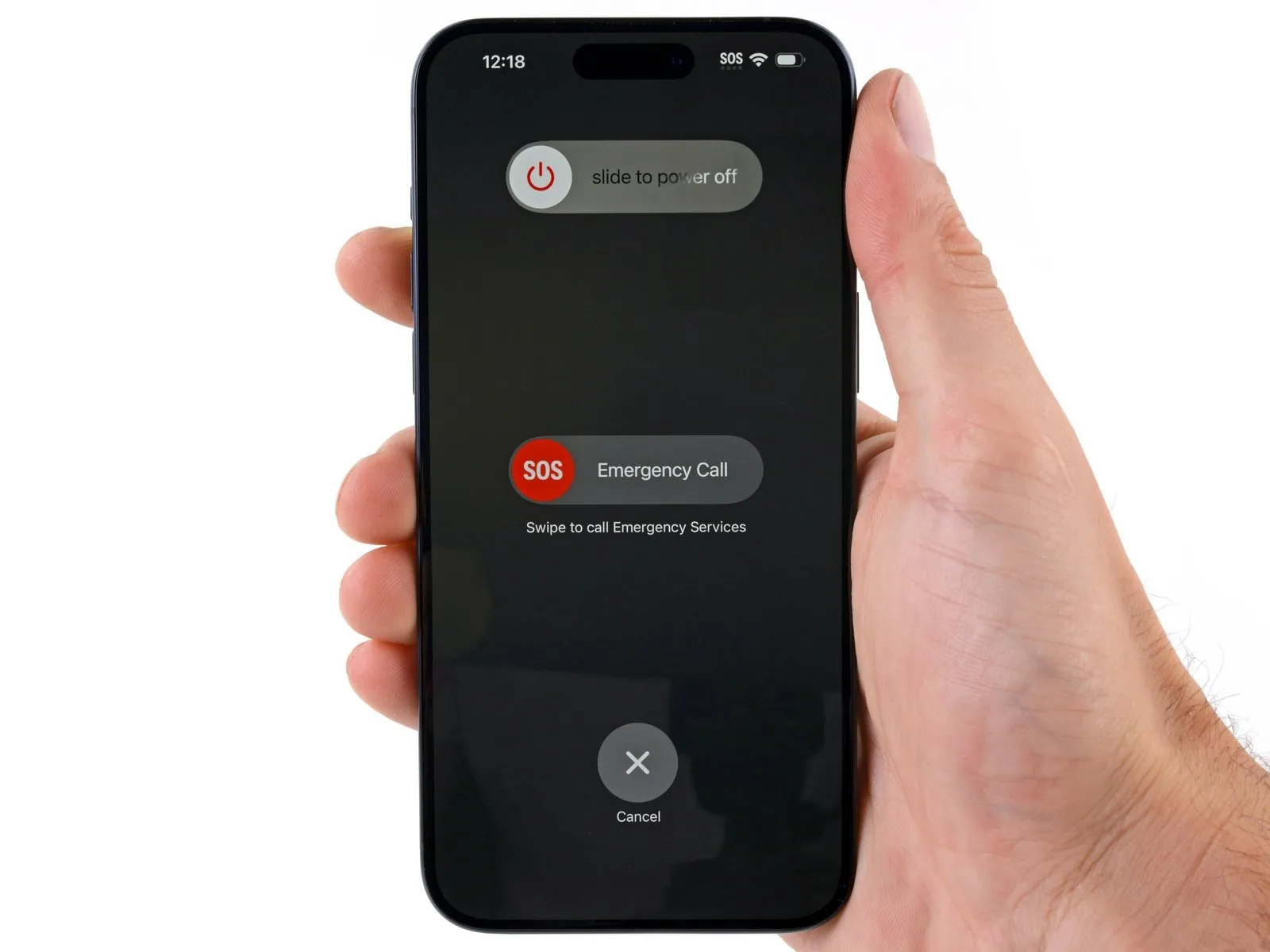

• Simultaneously press and maintain the power button along with either volume button, then utilize the sliding motion to deactivate the phone.
• Depletion of the battery below the 25% threshold is recommended for preserving its longevity.

• To prevent injury and simplify the subsequent separation of components, apply multiple layers of adhesive packing tape across the fractured screen or rear glass surface.
• Ensure a sufficiently sized, uninterrupted region exists close to the lower perimeter, allowing for secure adhesion of a suction cup.

• Excessive insertion of a prying tool poses a risk of device damage; implement the subsequent procedure to identify your tool and mitigate potential harm.
• Using a precise measuring instrument, determine a distance of3 mmfrom the tool's distal end, then utilize a permanent marker to create a visible indicator on the tool.
• For enhanced precision, consider marking the tool's other corners with varying measurement distances.
• As an alternative method, affix a coin to the tool's tip, positioning it3 mmfrom the distal end.

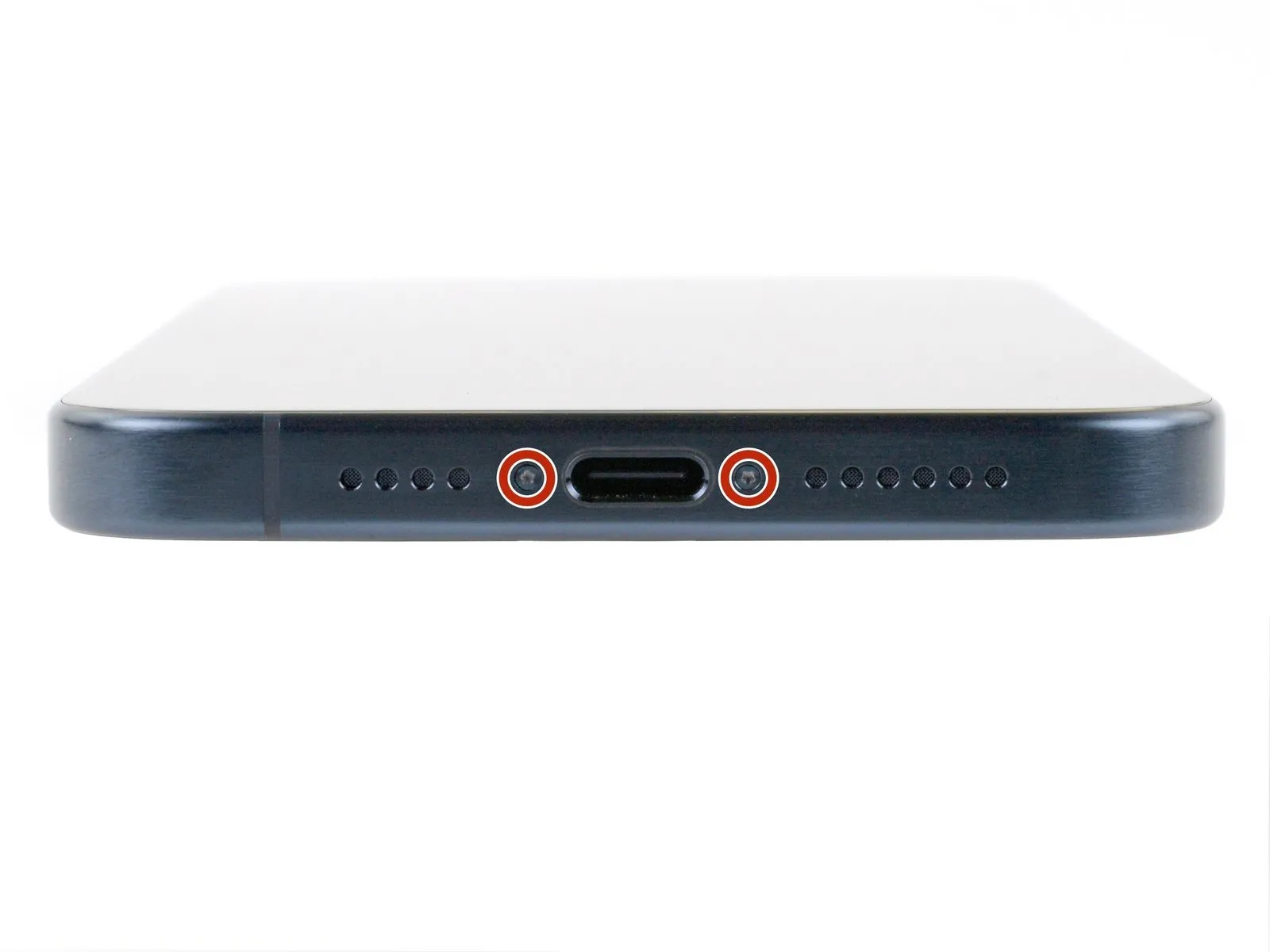

Employ a P2 pentalobe screwdriver to detach the two screws.The screws securing the charging port are each 7.2 millimeters in length.These fasteners are positioned laterally on both sides of the charging port.

• Employing a hair dryer or heat gun, apply warmth to the screen's lower perimeter until surface temperature is noticeably elevated.Ensure the applied heat reaches a point where the surface feels warm to the touch, but avoid excessive temperatures.The device's battery is vulnerable to thermal degradation, necessitating caution during the heating process.Overheating the phone presents a risk of damage to the battery due to its sensitivity to high temperatures.Maintaining a moderate temperature is crucial to prevent potential harm to the battery's internal components.
• The battery's susceptibility to heat damage requires careful temperature regulation during this procedure.Applying heat with a hair dryer or heat gun should be done with the understanding that excessive heat can compromise the battery's integrity.

• Securely attach a suction cup to the lower border of the display assembly.
• Exert a consistent, considerable upward pull on the suction cup to generate separation between the display and its surrounding structure.
• Carefully introduce the pointed end of a prying tool into the newly formed space.

• Exercise caution while separating the screen from its adhesive bonds during the subsequent procedures, paying close attention to the areas detailed below.
• Two fragile cables establish the screen's connection to the device; one is situated directly above the action button, and the second is located on the left side, approximately in the middle.The screen's connection relies on two sensitive cables: one positioned just above the action button, and the other near the central point of the left edge.Numerous spring contacts are distributed around the phone's outer edge; therefore, avoid inserting tools beyond the recommended depth to prevent contact deformation.
• To prevent damage to the spring contacts, limit the insertion depth of your tools to the suggested amount during the repair process, as these contacts are located around the device's perimeter.

• Ensure the initial insertion of your opening tool does not exceed a depth of 3 millimeters from the lower border.Employ a reciprocating motion with your tool across the lower edge to sever the adhesive bond.Maintain the tool's position within the lower-right corner to inhibit adhesive re-adhesion.
• The adhesive must be fully detached by oscillating the tool along the lower edge.
• A maximum insertion depth of 3 mm is crucial when initiating separation along the bottom edge.

Apply warmth to the screen's right lateral border, ensuring it reaches a temperature comfortable to the hand's touch.Elevate the temperature of the display's right-hand side to a point where tactile sensation indicates warmth.

• Ensure the separation tool's insertion does not exceed a depth of 5 millimeters near the device's right side.Maneuver the separation tool along the lower-right corner, directing it towards the power button, until resistance is encountered indicating a retaining clip's presence.The flat portion of the separation tool should be positioned beneath the display assembly during this process.
• This clip secures the screen assembly to the chassis.
• Carefully observe the depth limitation to prevent damage to internal components.

Employ a prying tool and rotate it to widen the separation between the display assembly and the chassis, facilitating the disengagement of the right-side retaining clip.Introduce a supplementary opening tool positioned to the right of the initial tool.
The manipulation of the tool will create sufficient space to allow the clip to detach.A second tool is needed to maintain separation.Position the second tool directly adjacent to the first.

Move the initial pick towards the lower-right area of the display surface.Position the subsequent pick towards the upper-right corner to break the adhesive bond.
Maintain the placement of both picks to inhibit the adhesive layer from re-attaching.Separation of the adhesive is achieved by repositioning the second pick to the top right.
The picks should remain in place, serving as a barrier against adhesive re-bonding.

Apply heat to the screen's upper border until its surface reaches a temperature that is comfortable to touch.

• To prevent damage, limit the pick's insertion depth to a maximum of 3 millimeters adjacent to the upper border.The upper edge should be utilized as a guide for the pick's limited insertion.Employing a prying motion, maneuver the pick around the upper-right corner, maintaining contact with the top edge.
• This maneuver will disengage the two retaining clips and the adhesive bond that holds the component in place.

Applying warmth to the screen's left border, until a tactile sensation of heat is perceived, is necessary.

To prevent potential harm to the two screen-to-phone cables, ensure the opening of your prying tool does not exceed a depth of 2 millimeters along the left side.Carefully maneuver your prying tool in a circular motion around the upper-left corner of the display assembly.Advance the prying tool along the left edge, reaching the lower corner, to release the adhesive bond.
The adhesive securing the screen will begin to detach as the tool is moved downwards.
Maintaining caution is crucial during this process to safeguard the delicate internal cabling.

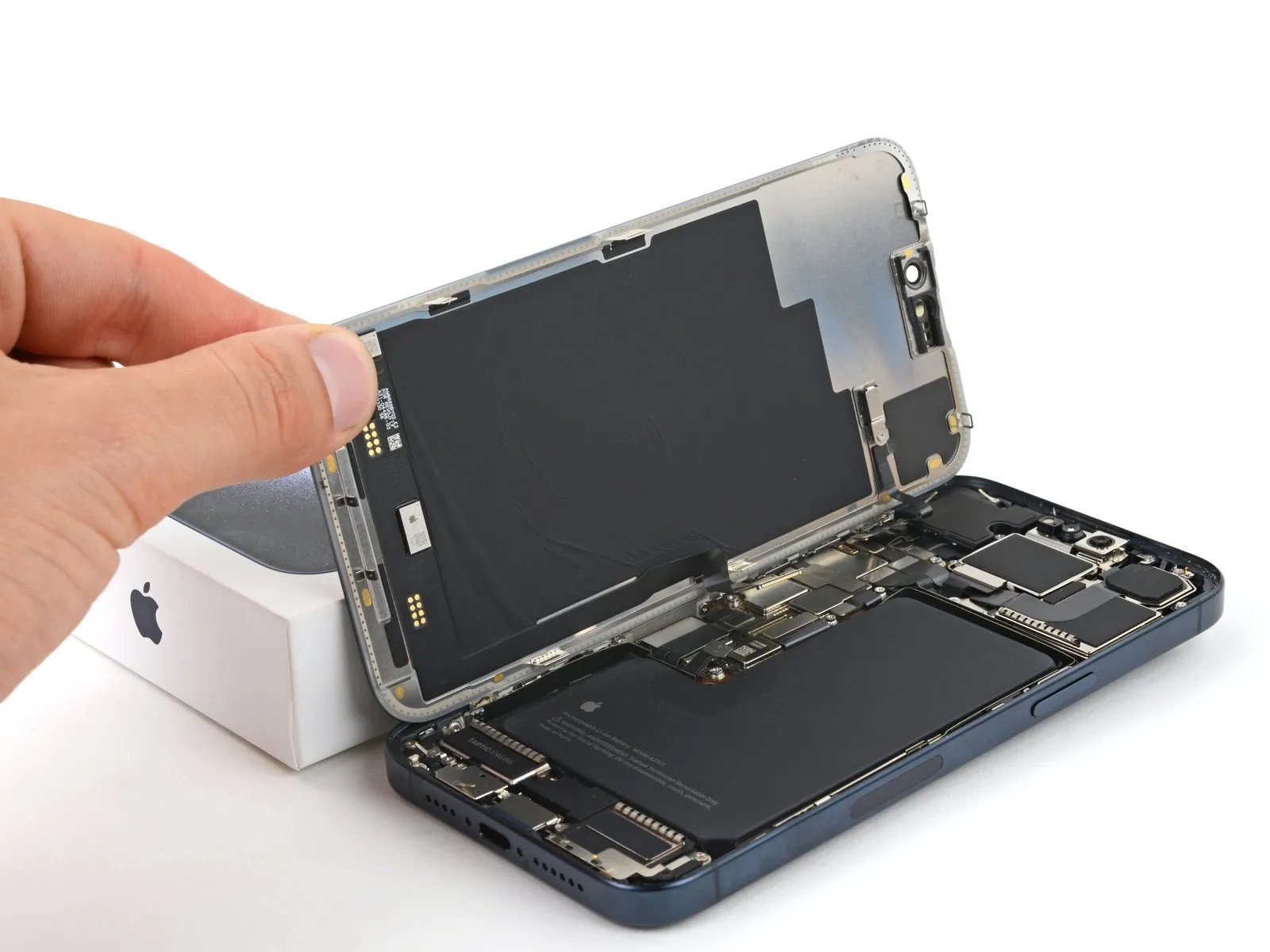

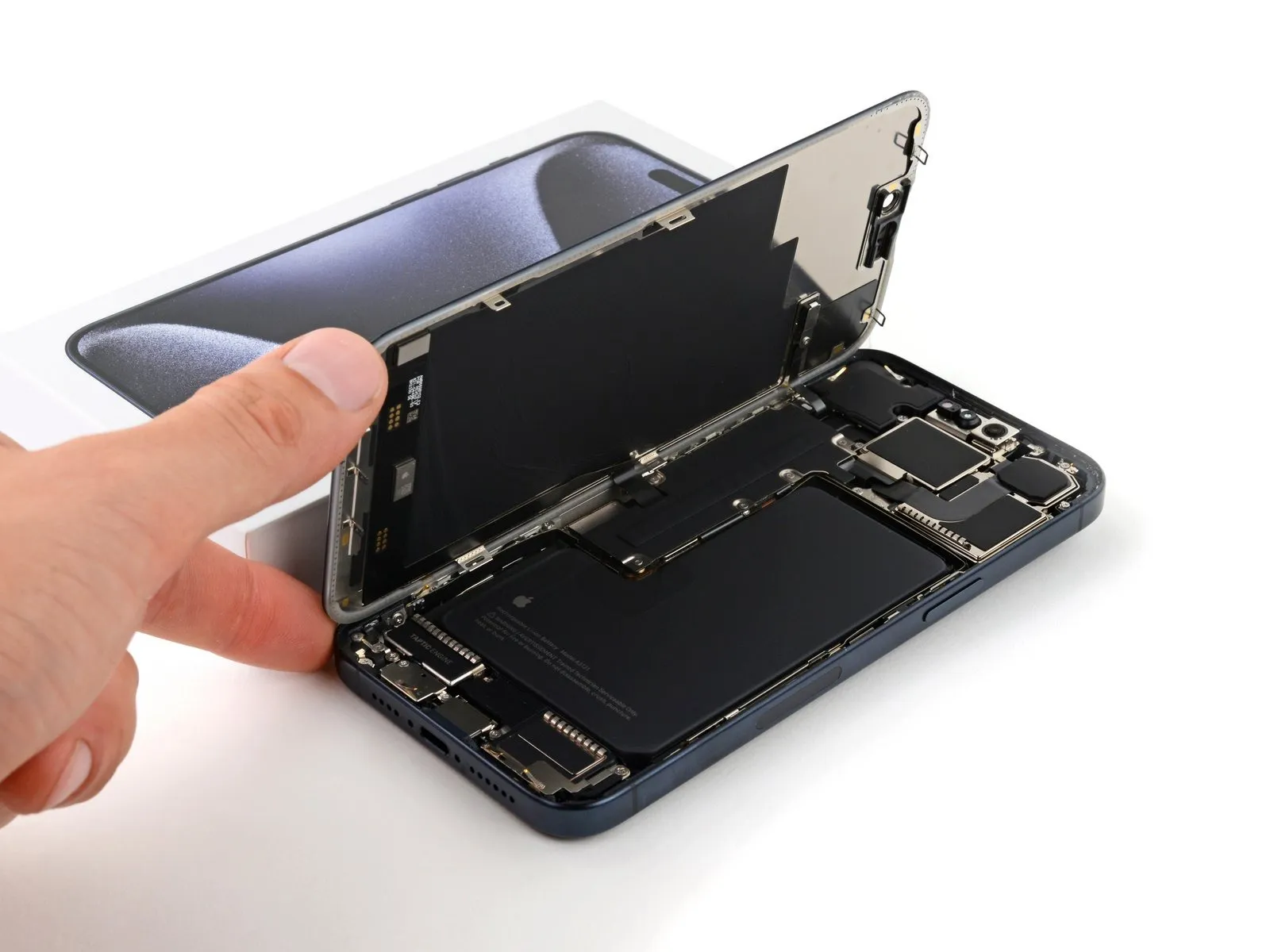

• Carefully pivot the display assembly to the left side of the device.
• Should resistance be encountered during screen separation, re-examine the device's edges to identify any remaining adhesive or obstructed retaining clips.

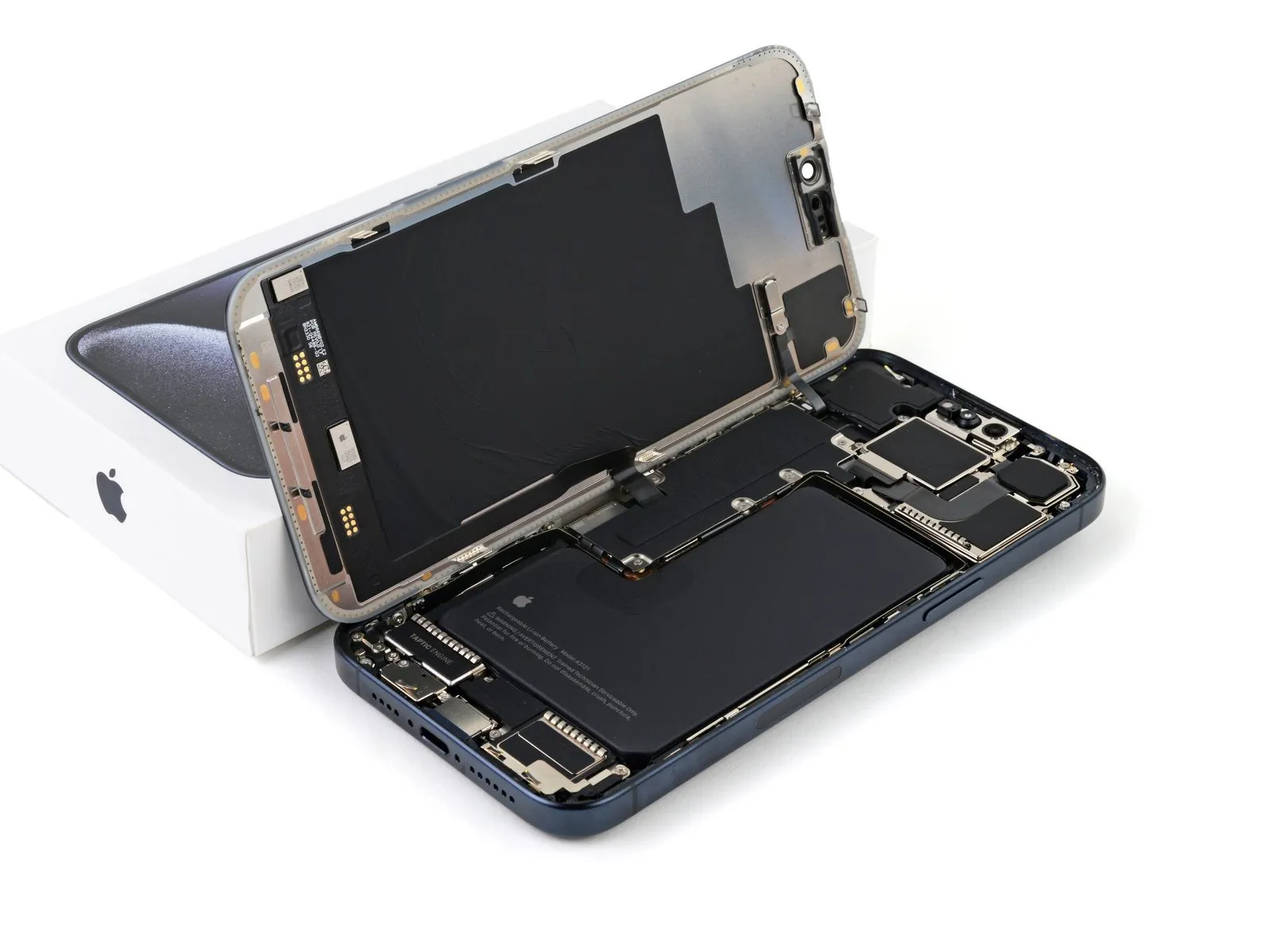

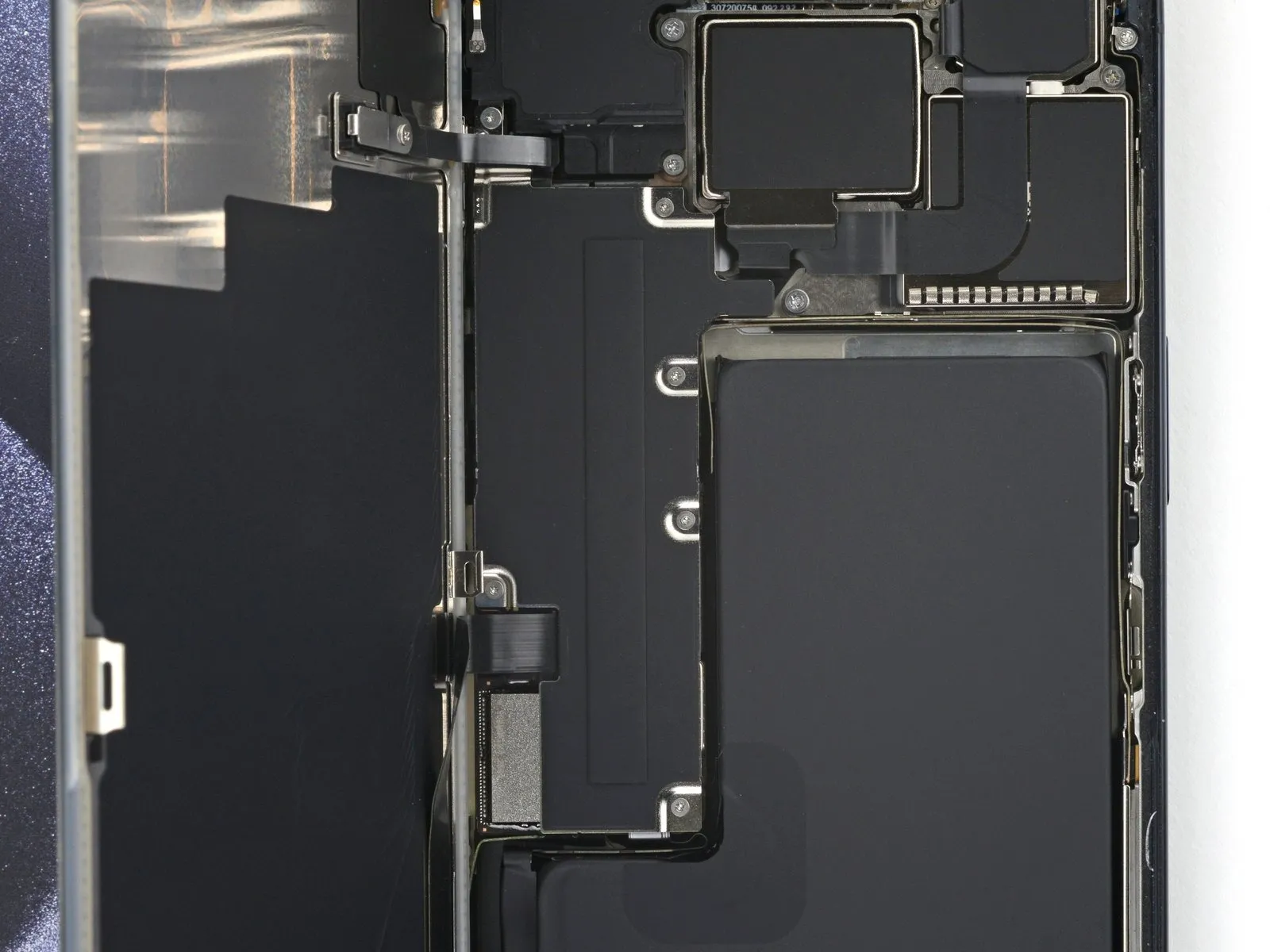

• To prevent stress on the internal connectors, prop the display open using a support, such as a box.

• Carefully organize all screws during the repair process, ensuring each is reinstalled in its original location.
• Employ a specialized tool, specifically a tri-point Y000 driver, for the subsequent steps.The logic board cover is fastened with screws that require a tri-point Y000 driver for removal.A single screw, measuring 2.1 millimeters in length, is used in the assembly.

  • Five screws, each with a length of 1.5 millimeters, are also part of the securing mechanism.
  • Properly identifying and matching screw lengths is crucial for correct reassembly.

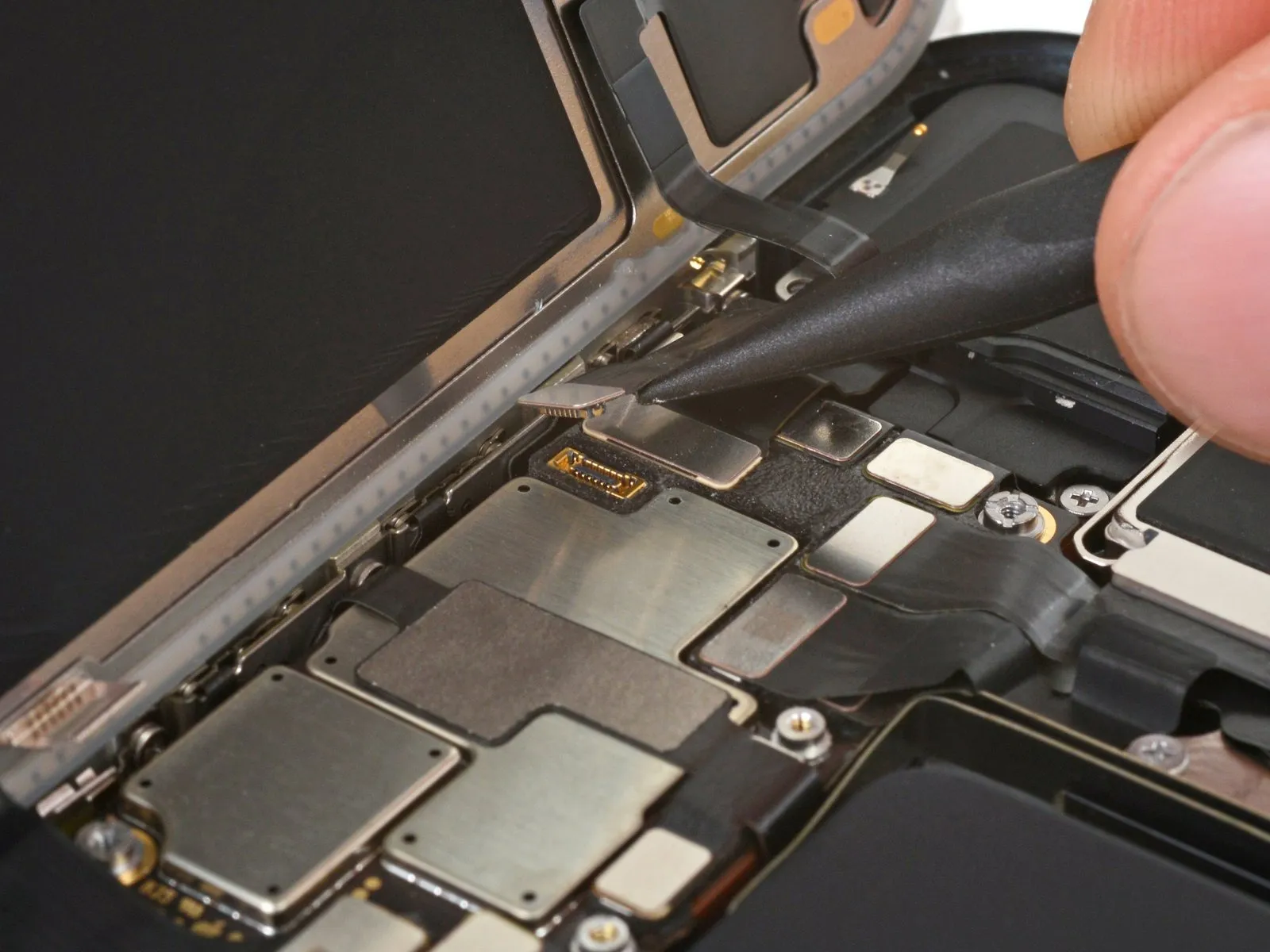

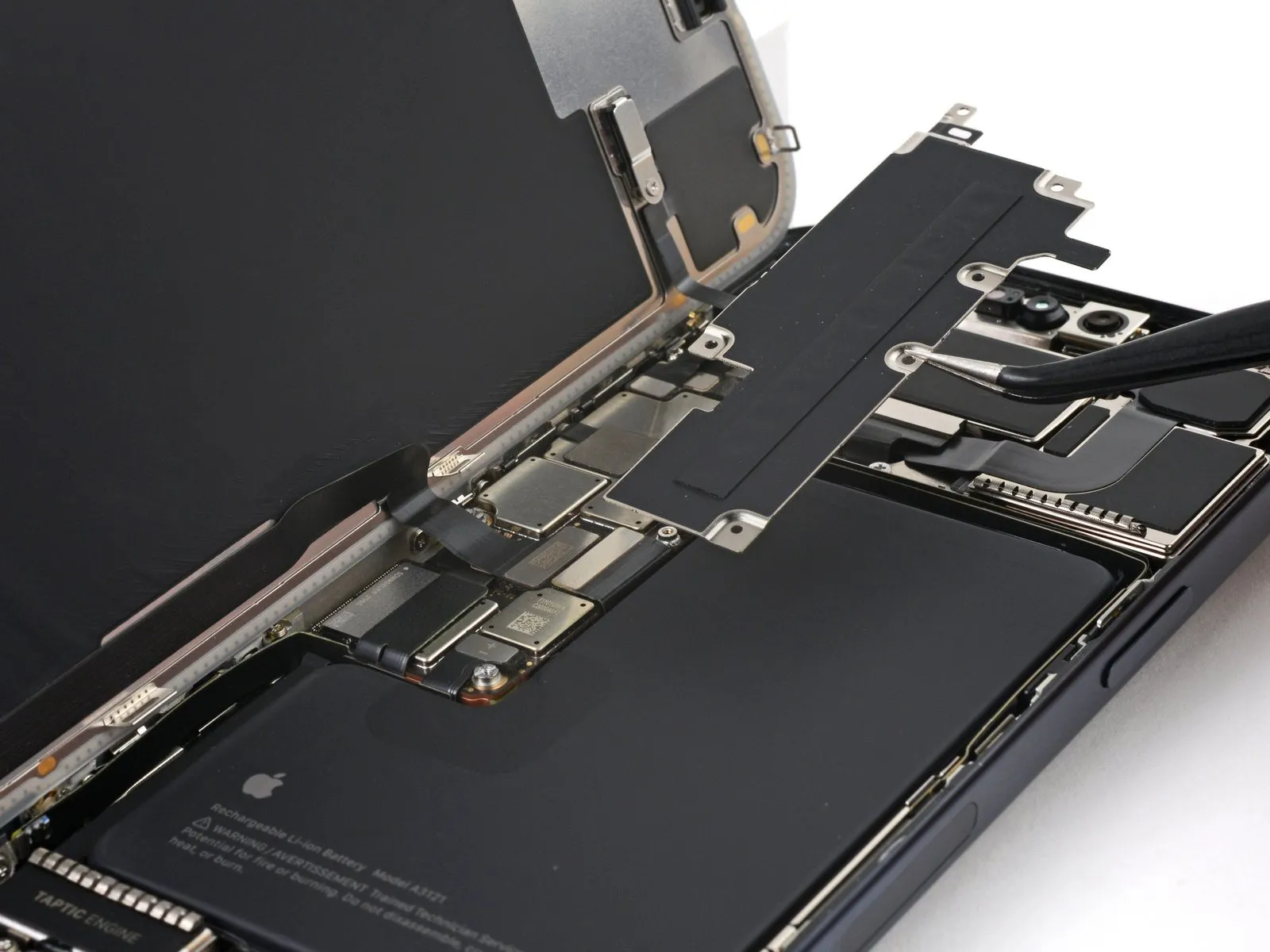

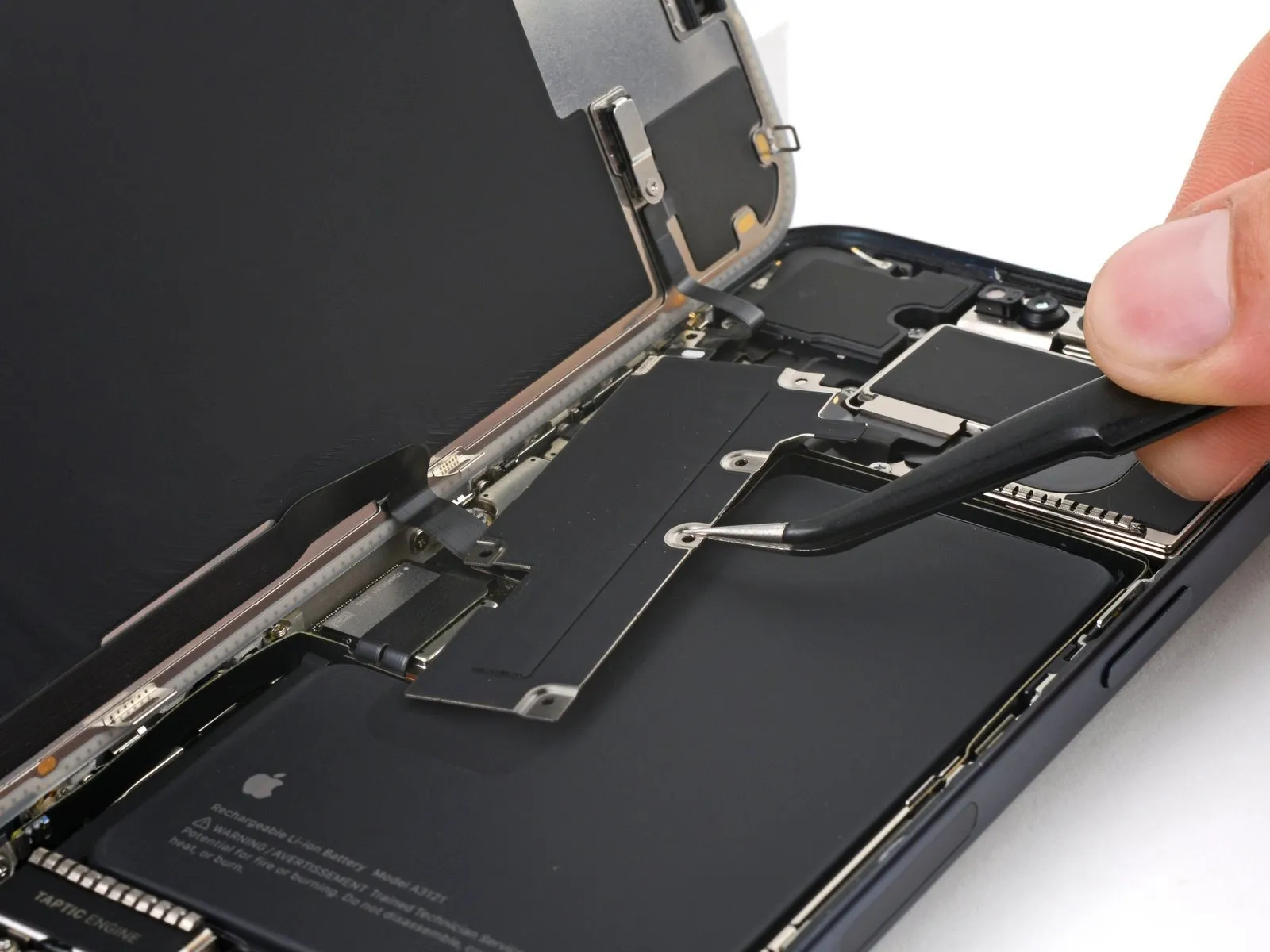

• Employ tweezers or your fingertips to grasp and move the logic board cover downwards, disengaging it from the sensor cable's connection.
• Detach the logic board cover from the device.

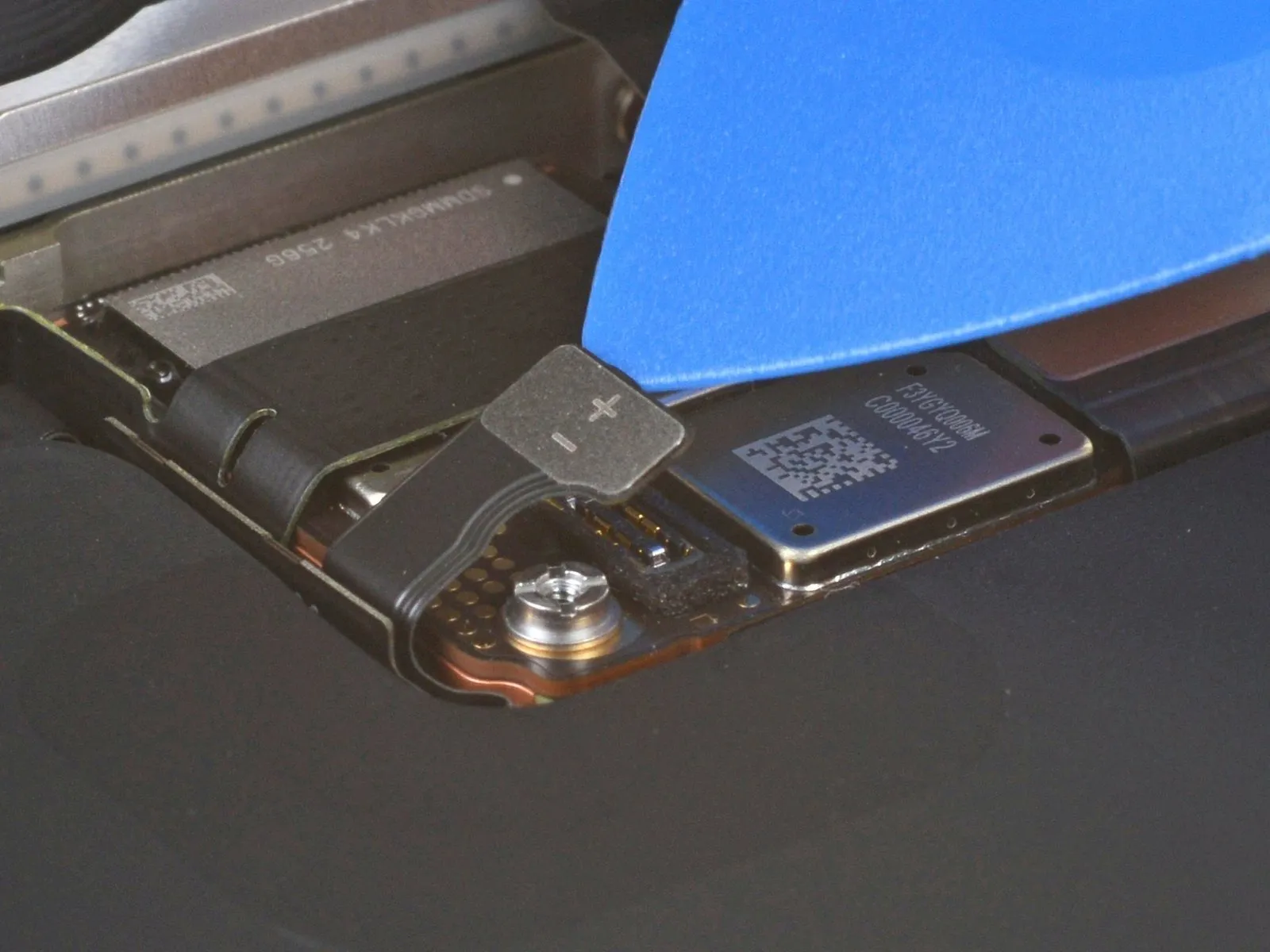

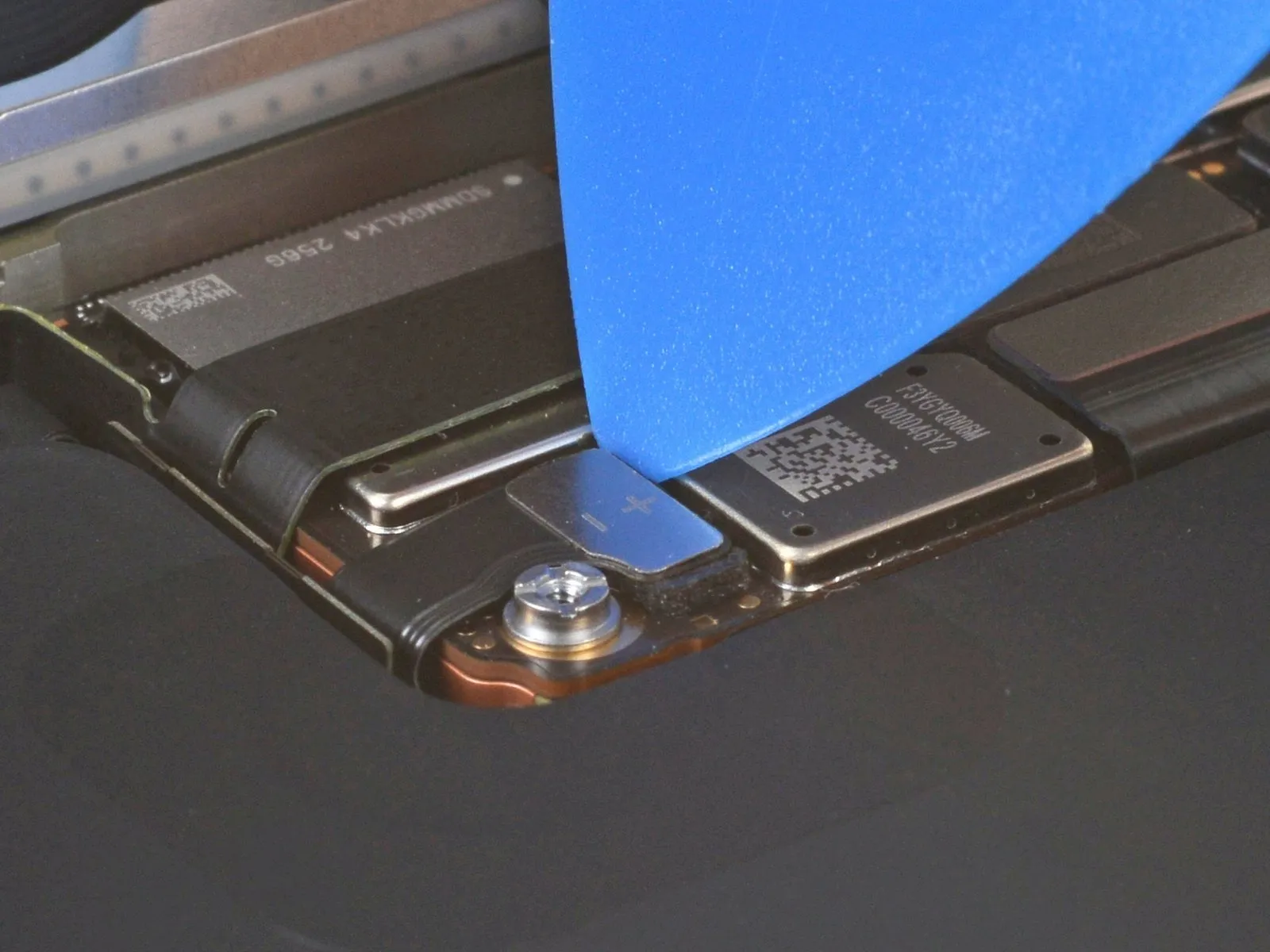

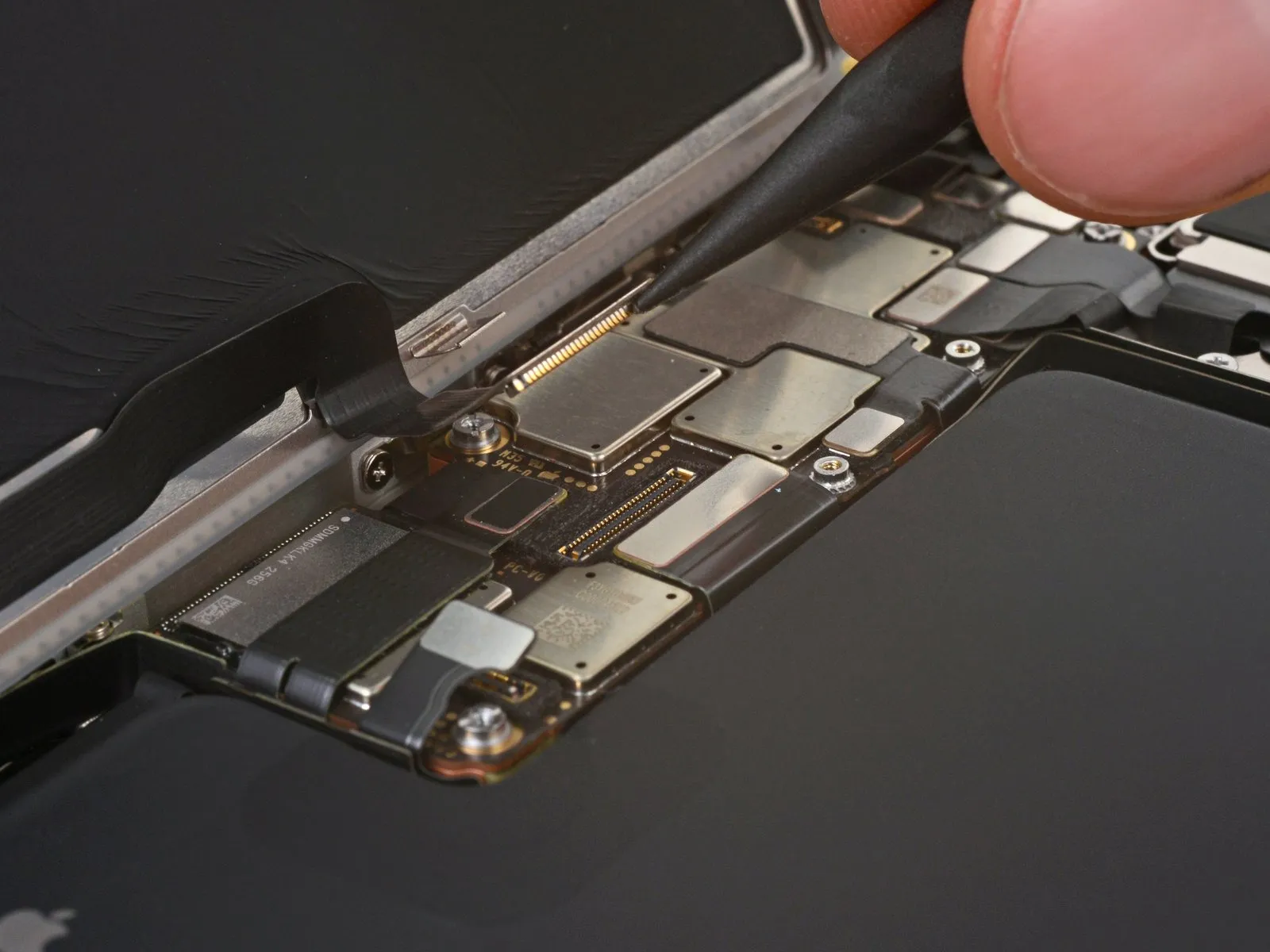

• Employ the pointed end of a specialized opening tool to release the battery press connector's retention, subsequently detaching it.When reattaching a press connector, ensure proper alignment with its corresponding receptacle, then apply gentle downward pressure to one lateral aspect until an audible click confirms secure engagement, followed by similar pressure on the opposing side.Verification of a flush seating is crucial during reconnection, as the surrounding insulating rubber material within the sockets could impede complete connection.
• Proper functionality necessitates that the connector lies completely flat against the socket after the clicking sound is heard.

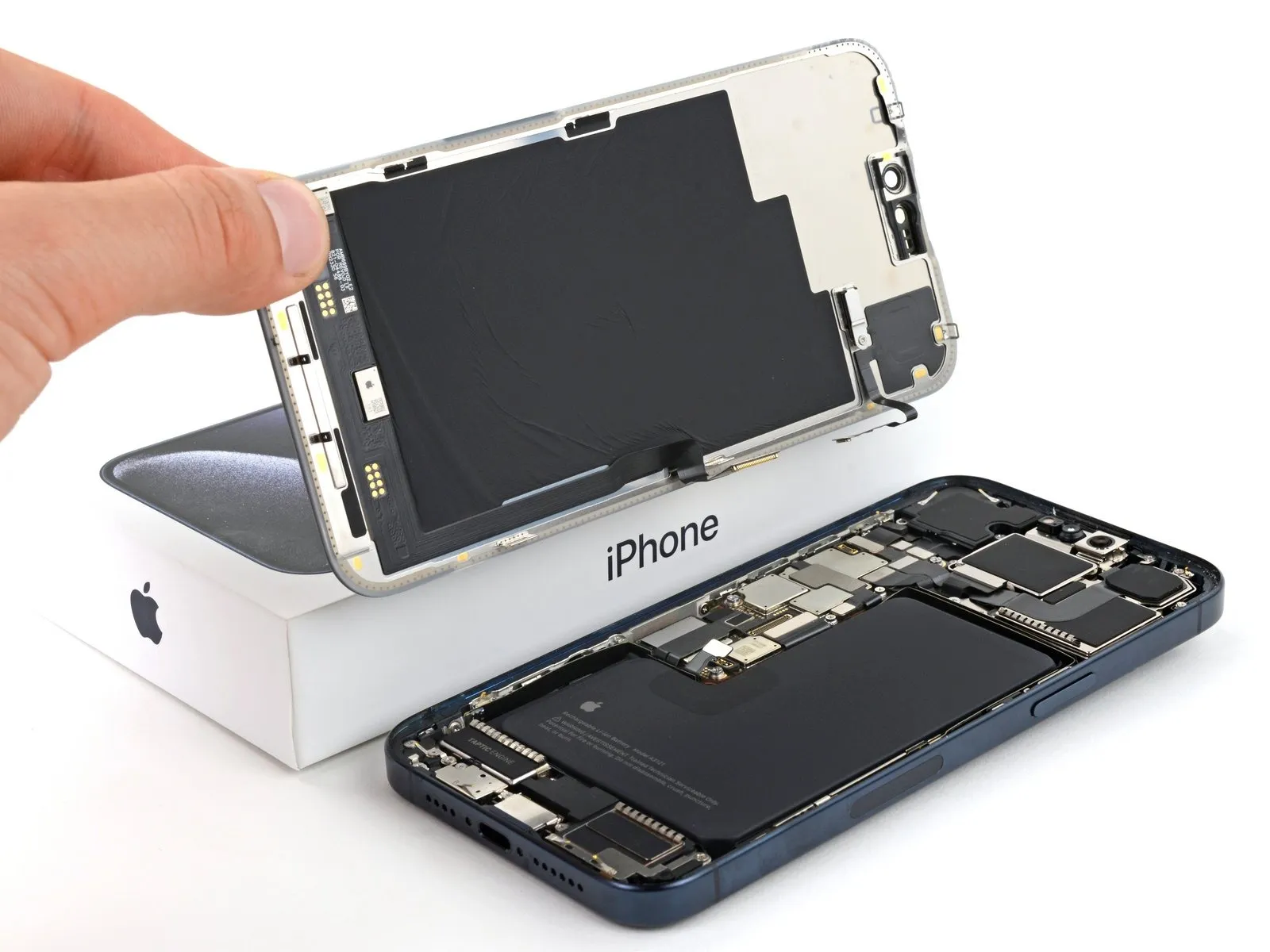

• Detach the display panel from the device.
• Prior to proceeding with reassembly, pause at this juncture and consult this instructional document for the proper application of replacement adhesive strips.
• Exercise caution to prevent any harm to the delicate spring contacts while performing frame cleaning procedures.

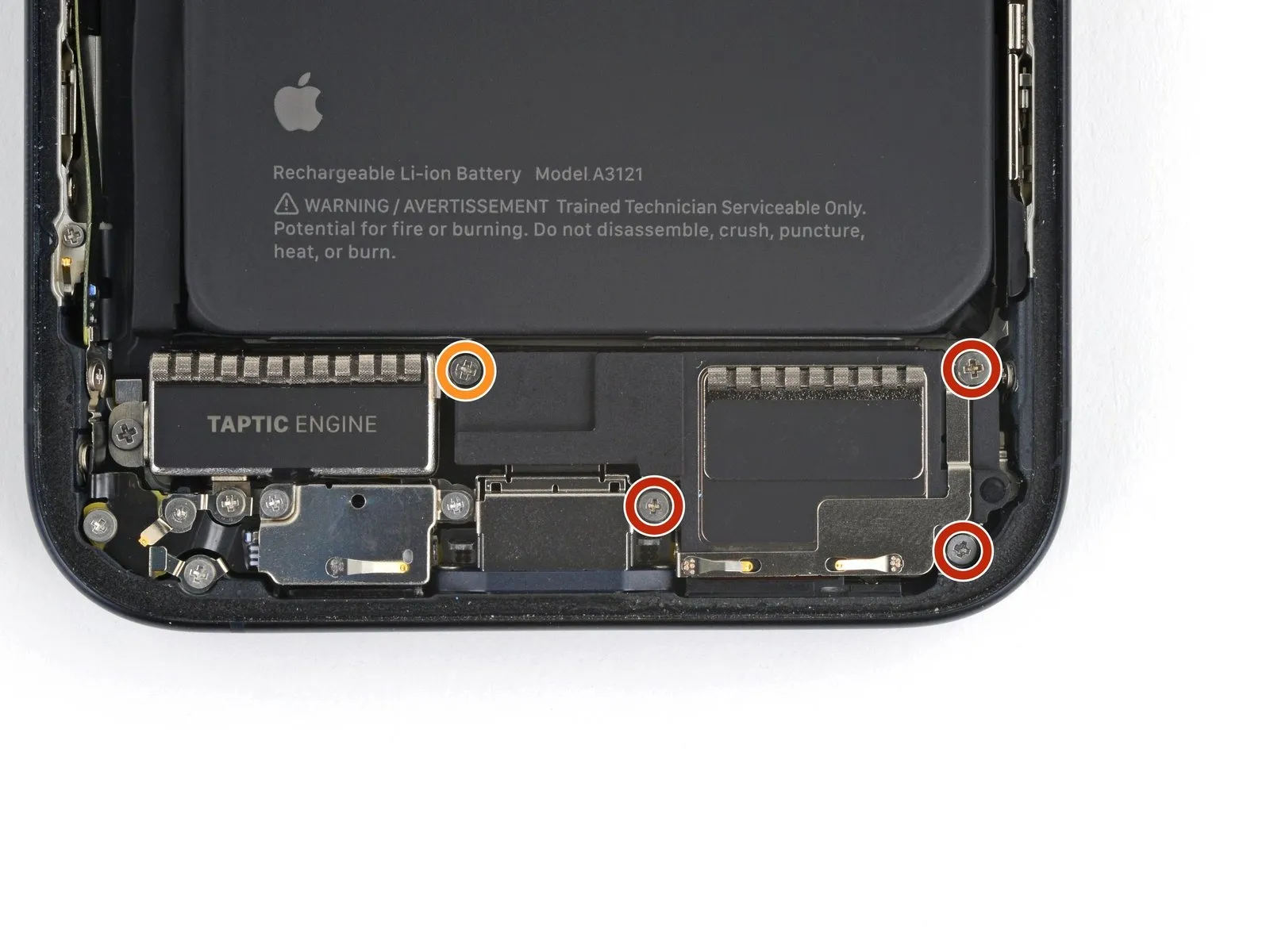

• Employ a Phillips #000 driver for the disassembly process.The loudspeaker is affixed with four screws that require removal.Specifically, three screws with a 2.1 mm head size are present.
• Additionally, a single screw with a 2.9 mm head size is used in the assembly.
• Carefully unscrew these fasteners to release the loudspeaker.

• Adhesive tape secures the upper surfaces of both the Taptic Engine and the loudspeaker assembly.

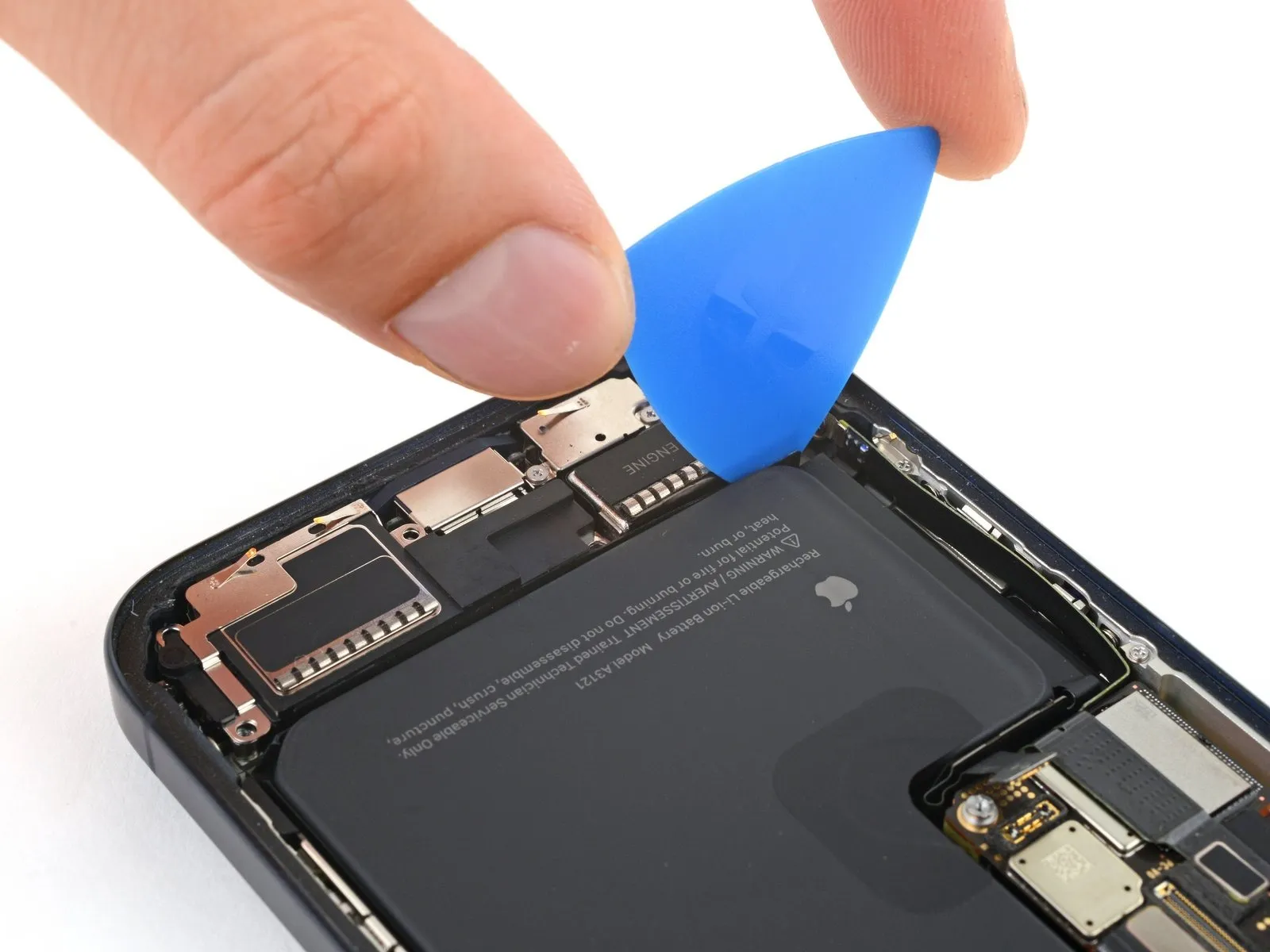

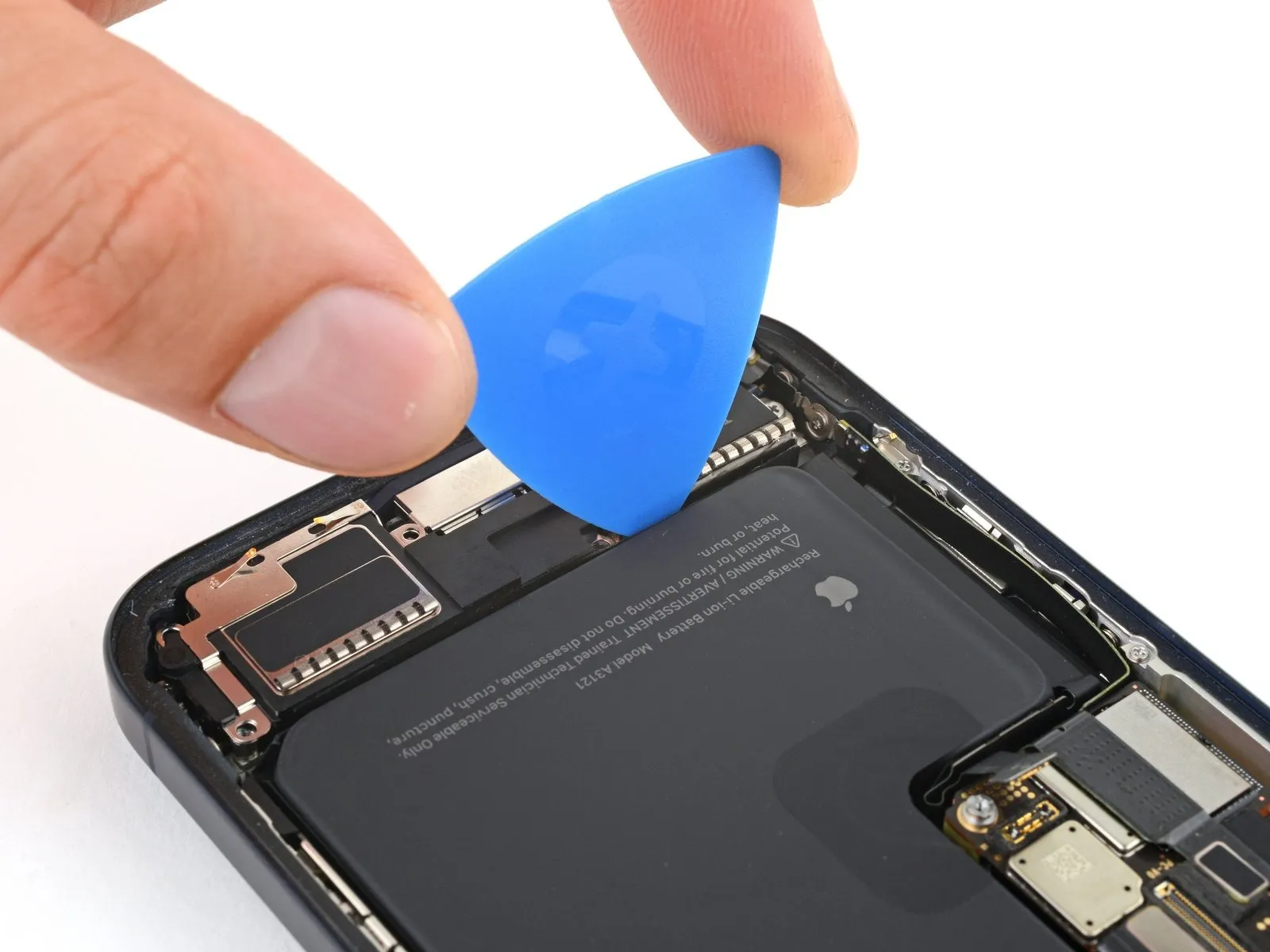

• Utilize an opening pick, inserting it into the minimal space existing between the Taptic Engine and the loudspeaker.

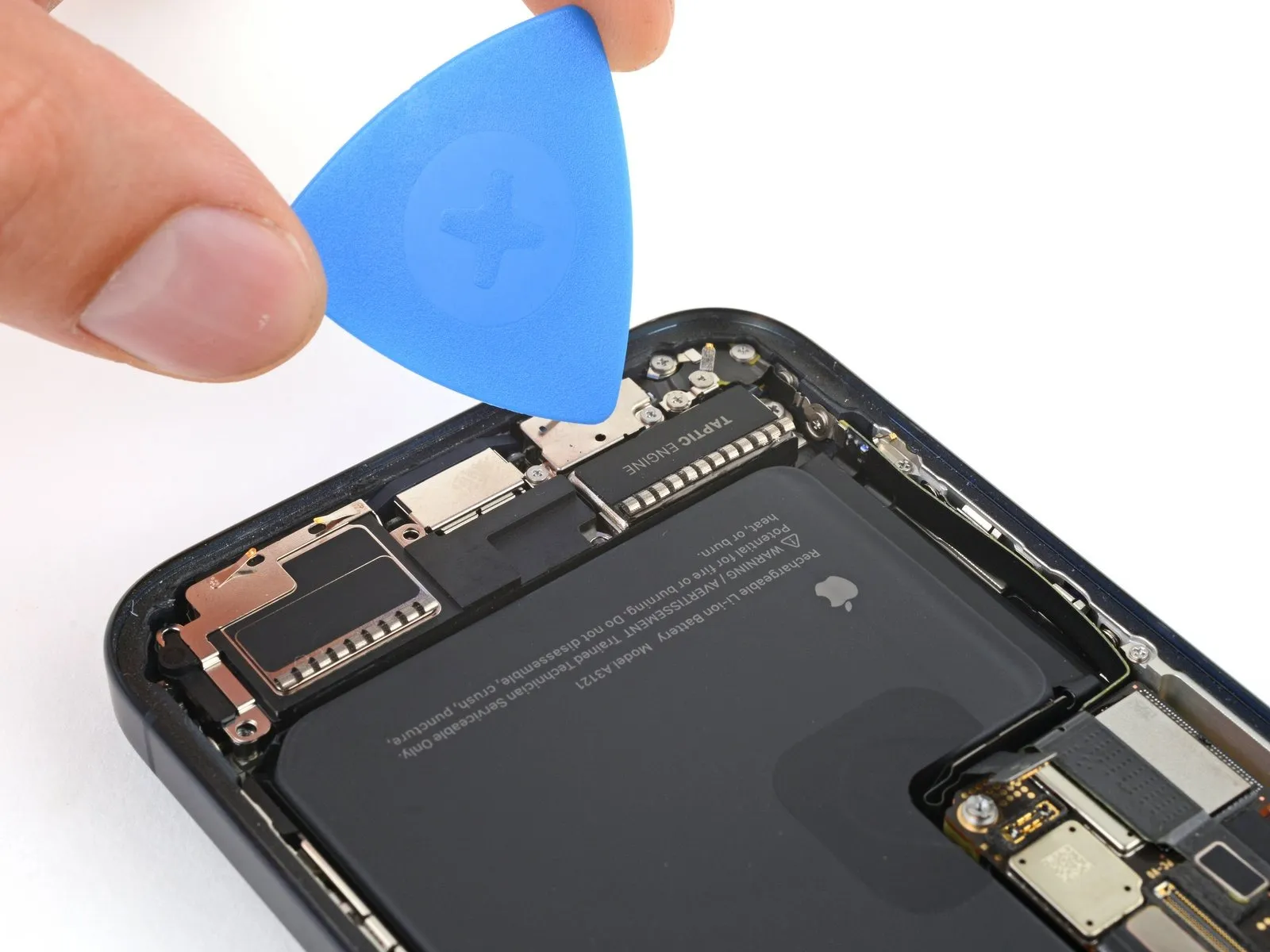

• Move the pick laterally towards the phone's left side to release the adhesive bond from the Taptic Engine.

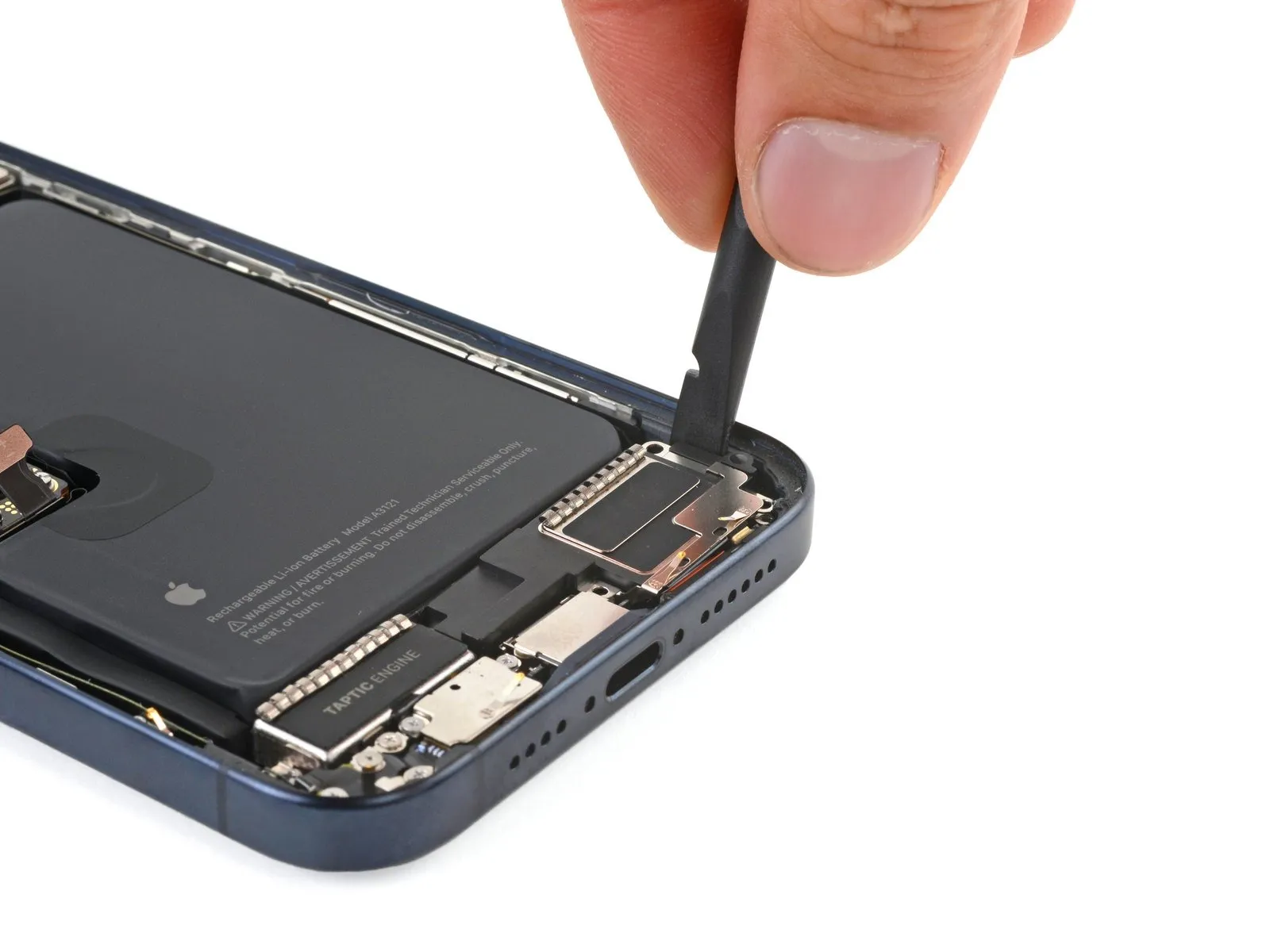

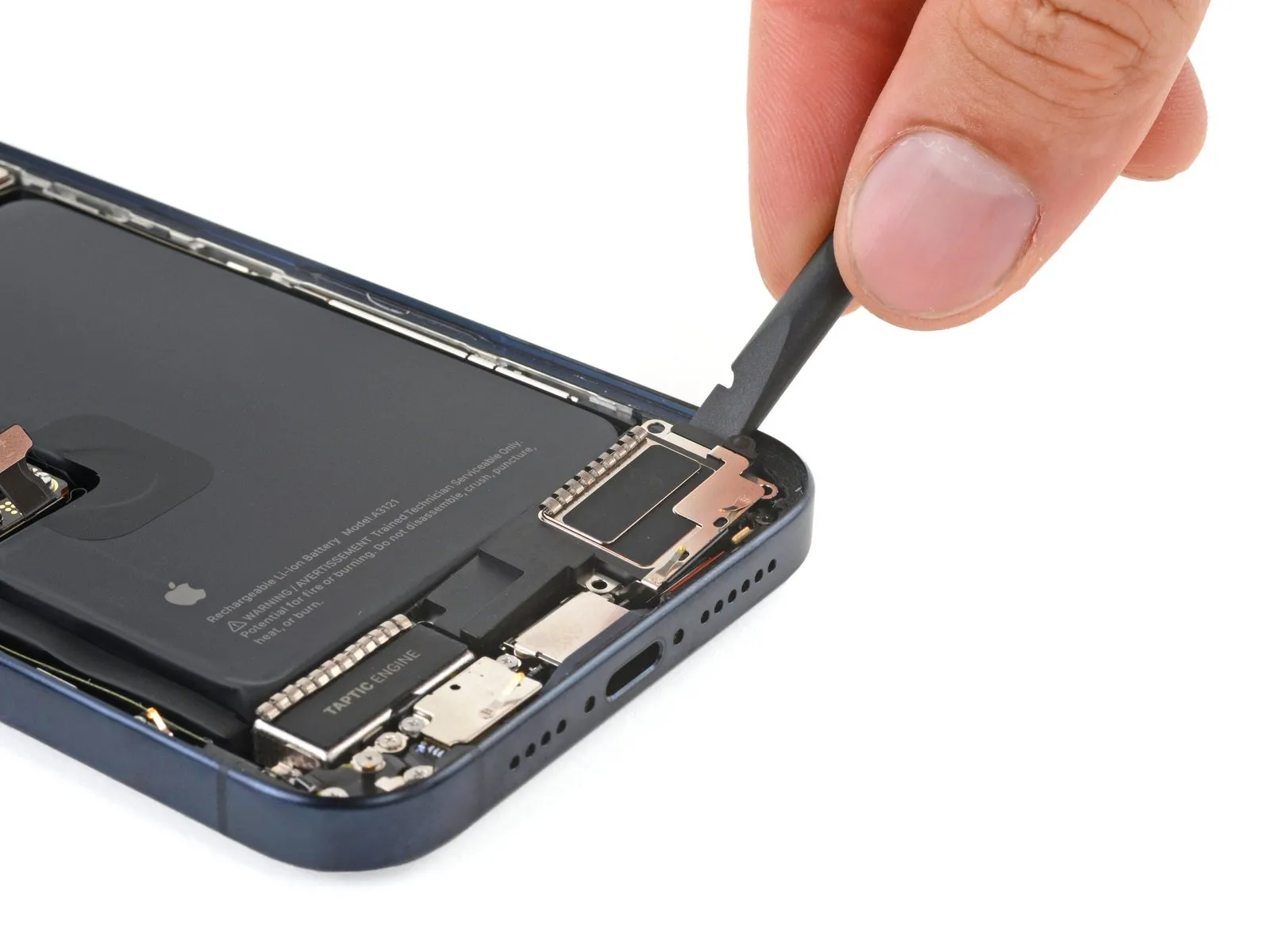

1. Utilize the planar extremity of a spudger to create separation between the loudspeaker's right border and the device's structural frame.Apply gentle leverage with the tool, continuing until the loudspeaker becomes accessible for manual grasping.Employ your fingertips to secure a hold on the loudspeaker assembly.

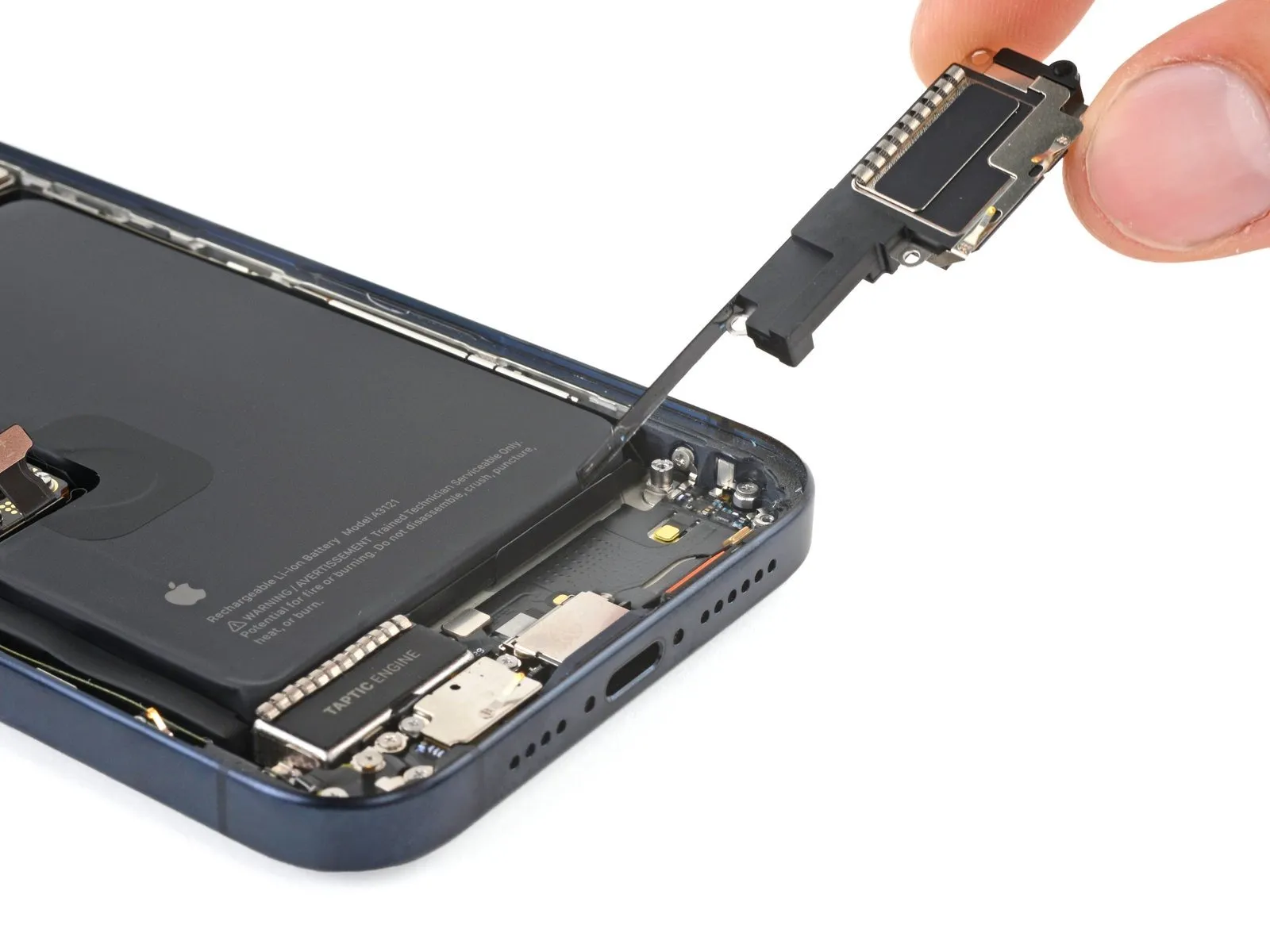

2. Disengage the loudspeaker from its mounting position within the frame.
3. Complete the removal of the loudspeaker component.

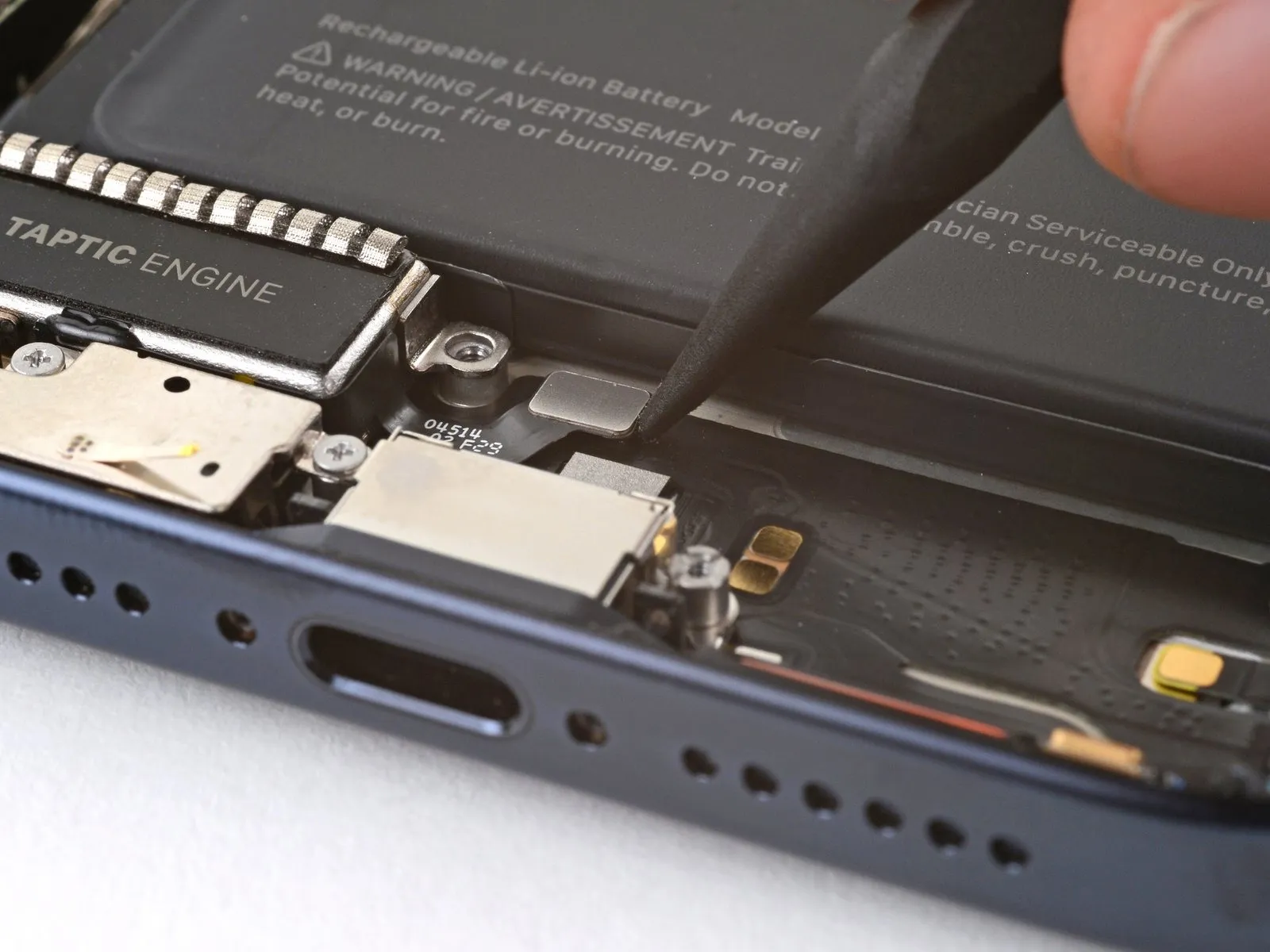

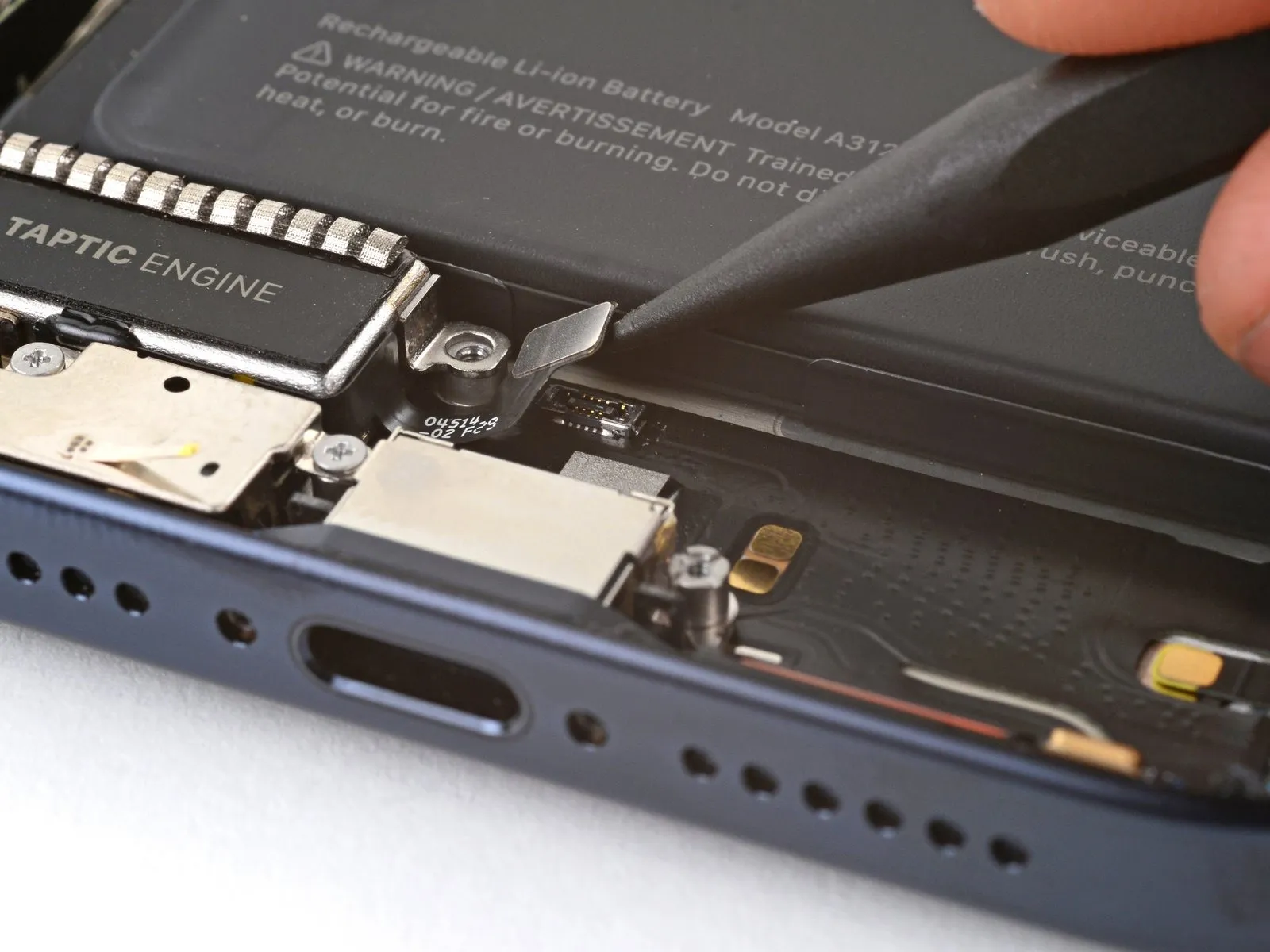

1. Employ the pointed end of a spudger to elevate and detach the Taptic Engine press connector.Carefully leverage the spudger's tip to release and separate the Taptic Engine press connector's connection.Utilize the spudger's pointed tip for prying and disconnecting the Taptic Engine press connector.

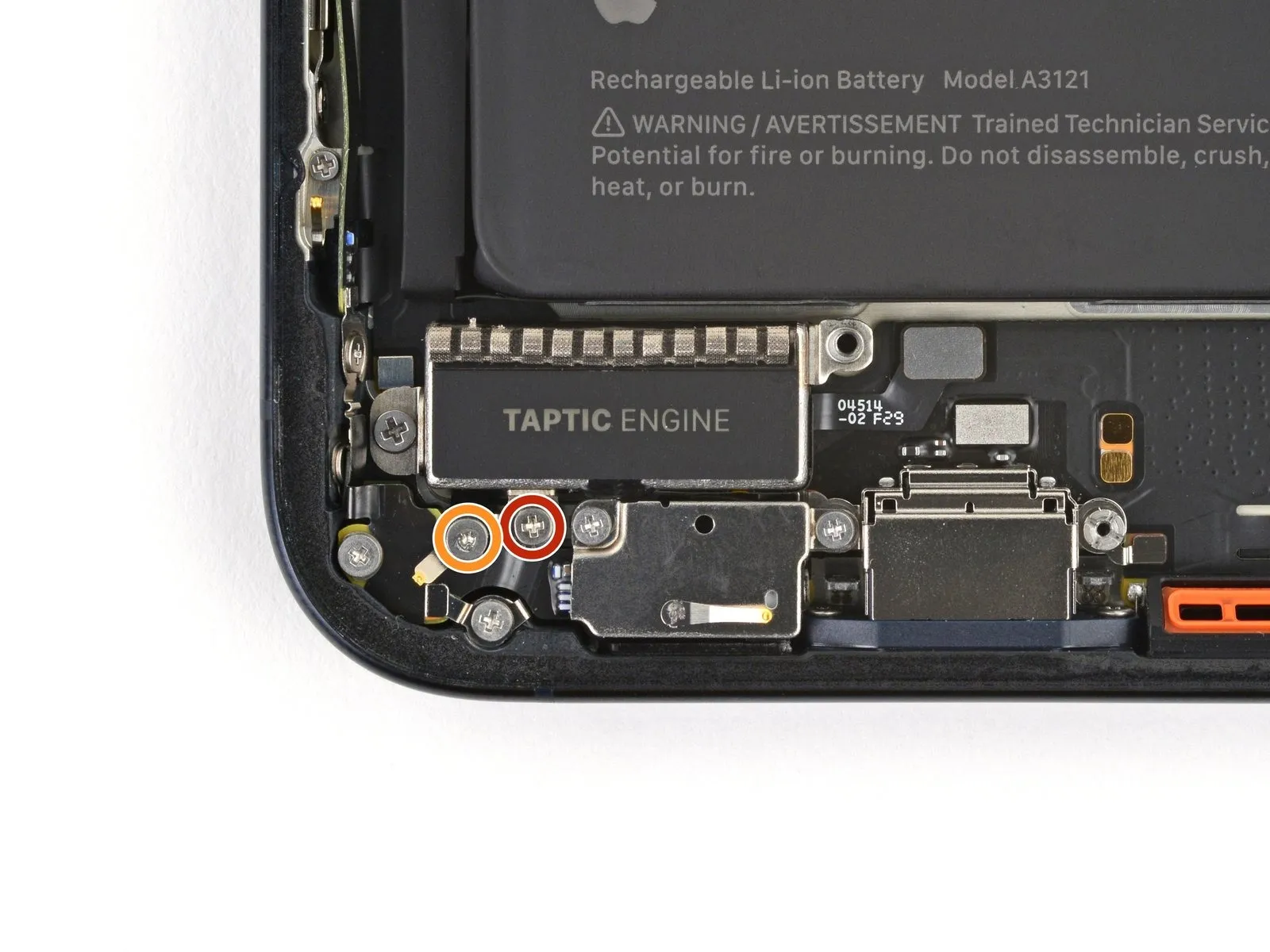

1. To detach the grounding clip, first eliminate the two fasteners holding it in place.
   A 1.2 mm Phillips head screwdriver, specifically a #000 size, is required for one of these screws.The second screw necessitates a 1.9 mm tri-point screwdriver, designated as a Y000.

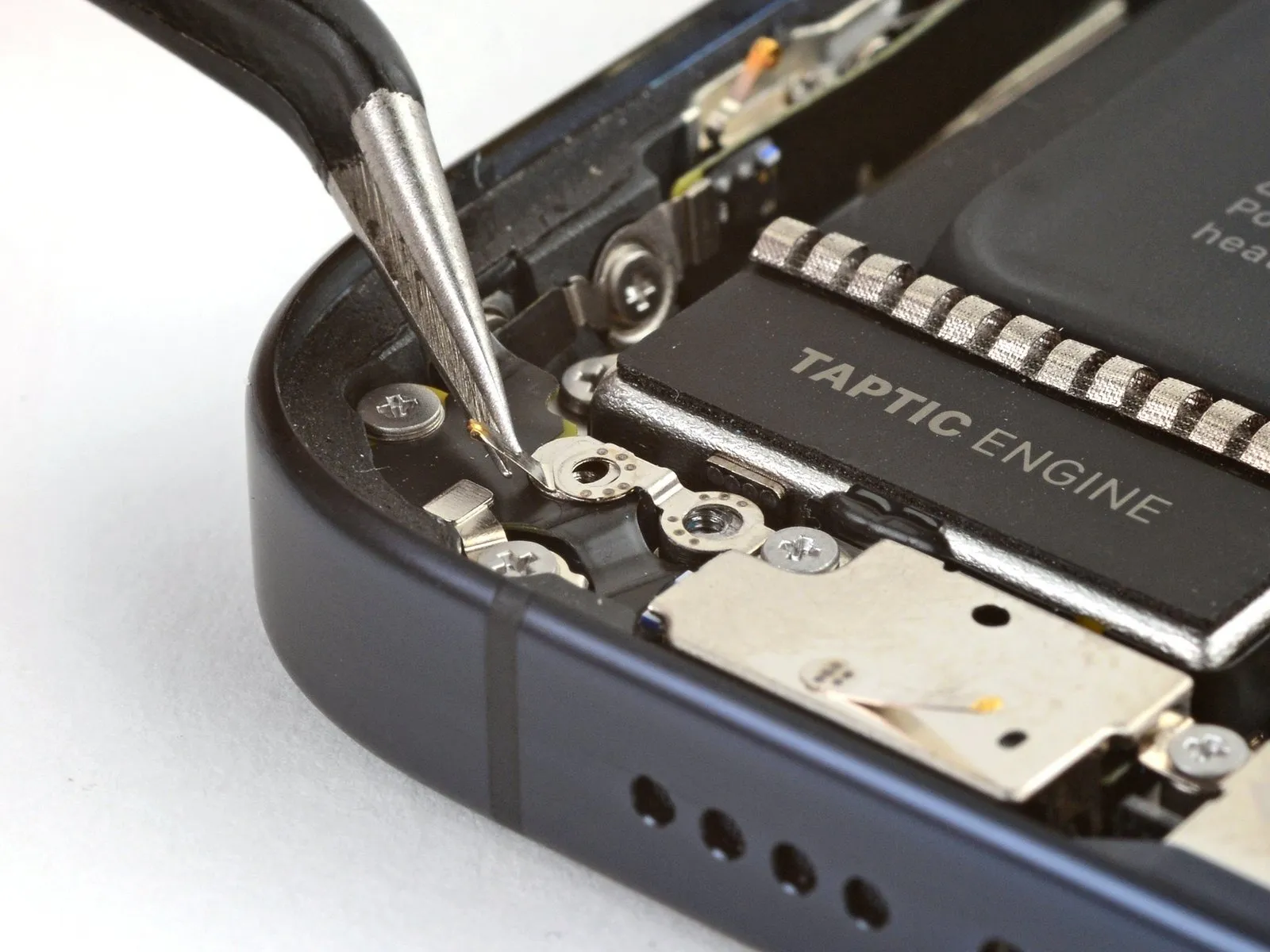

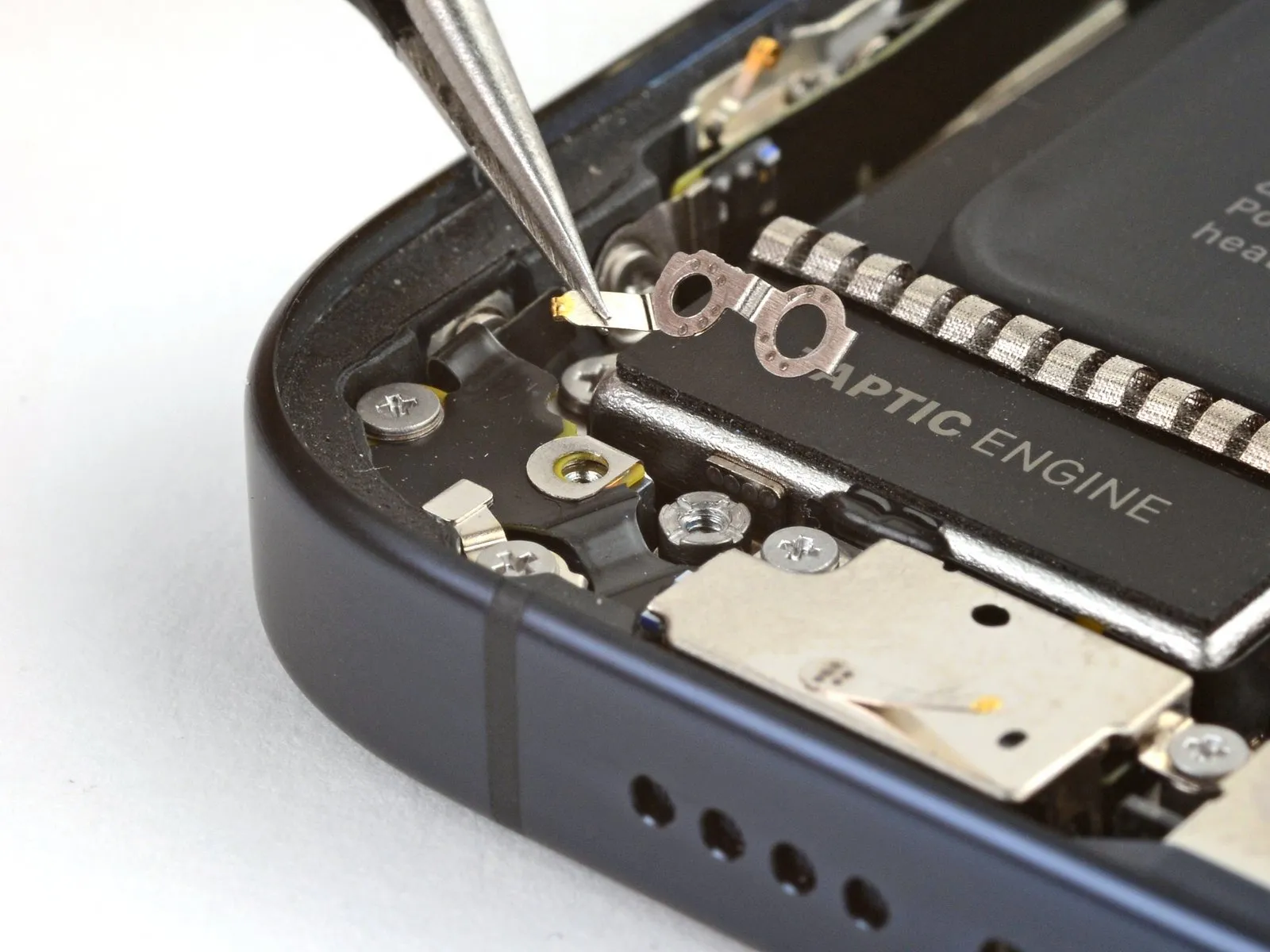

   Employing tweezers will facilitate the removal of the grounding clip itself.The specified Phillips screw measures 1.2 millimeters in diameter and utilizes a #000 tip.
2. For the tri-point screw, its dimensions are 1.9 millimeters and it is identified as a Y000 type.

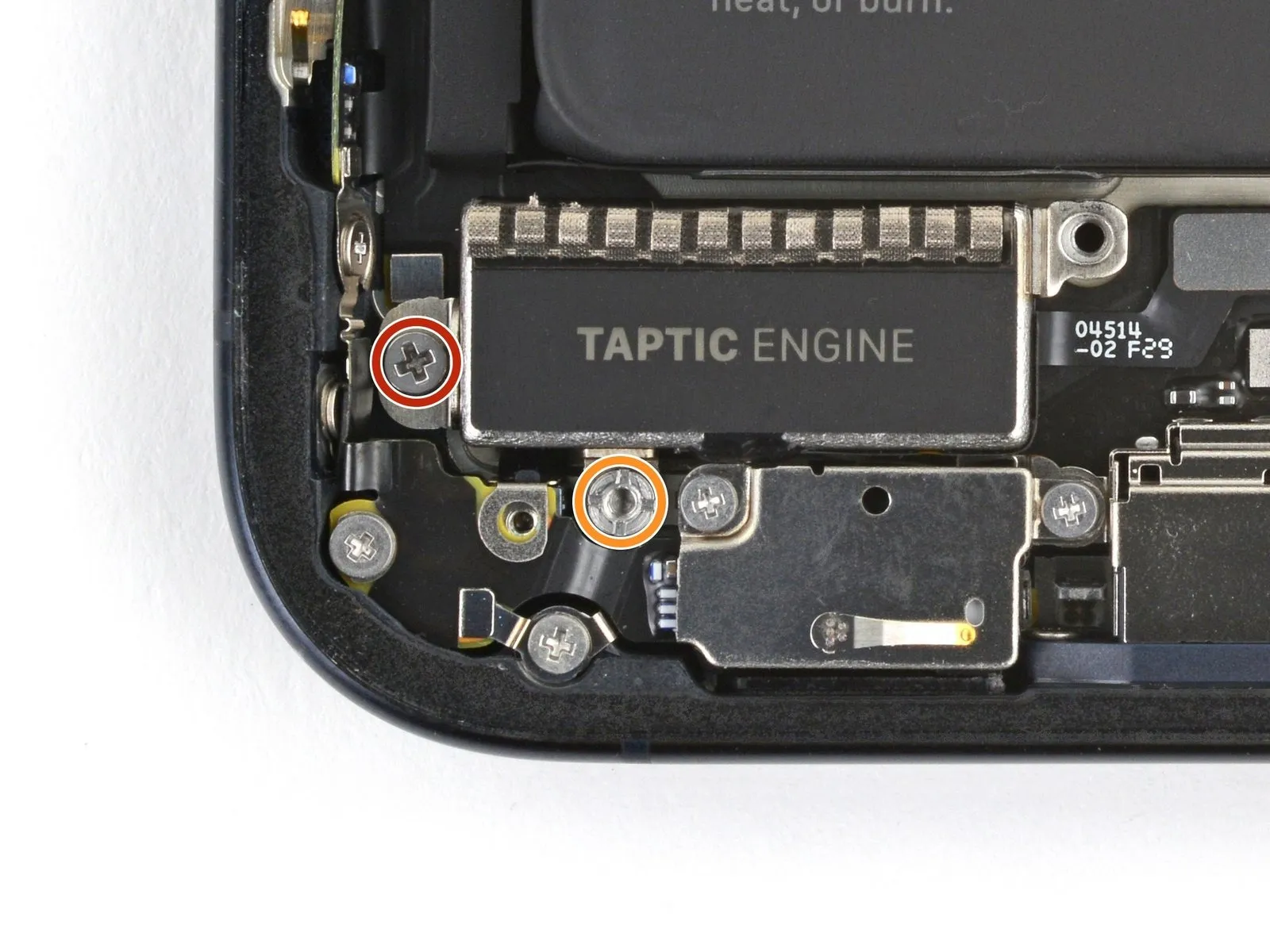

• Detach the two fasteners that hold the Taptic Engine in place.The securing hardware consists of a 2.9 mm Phillips #000 screw and a 3.8 mm standoff screw.A specialized standoff driver is the recommended tool for removal.
  In the absence of a standoff driver, a thin flathead screwdriver can be cautiously employed.Exercise extreme care to prevent damage to the screw head recesses when using a flathead driver.
  The shallow notches on the standoff screw are easily stripped.Damage to the screw heads will complicate subsequent reassembly.
• Proper tool selection minimizes the risk of component damage.Ensure the screwdriver tip fully engages the screw head before applying torque.Carefully observe the screw orientation during removal to facilitate correct reinstallation.

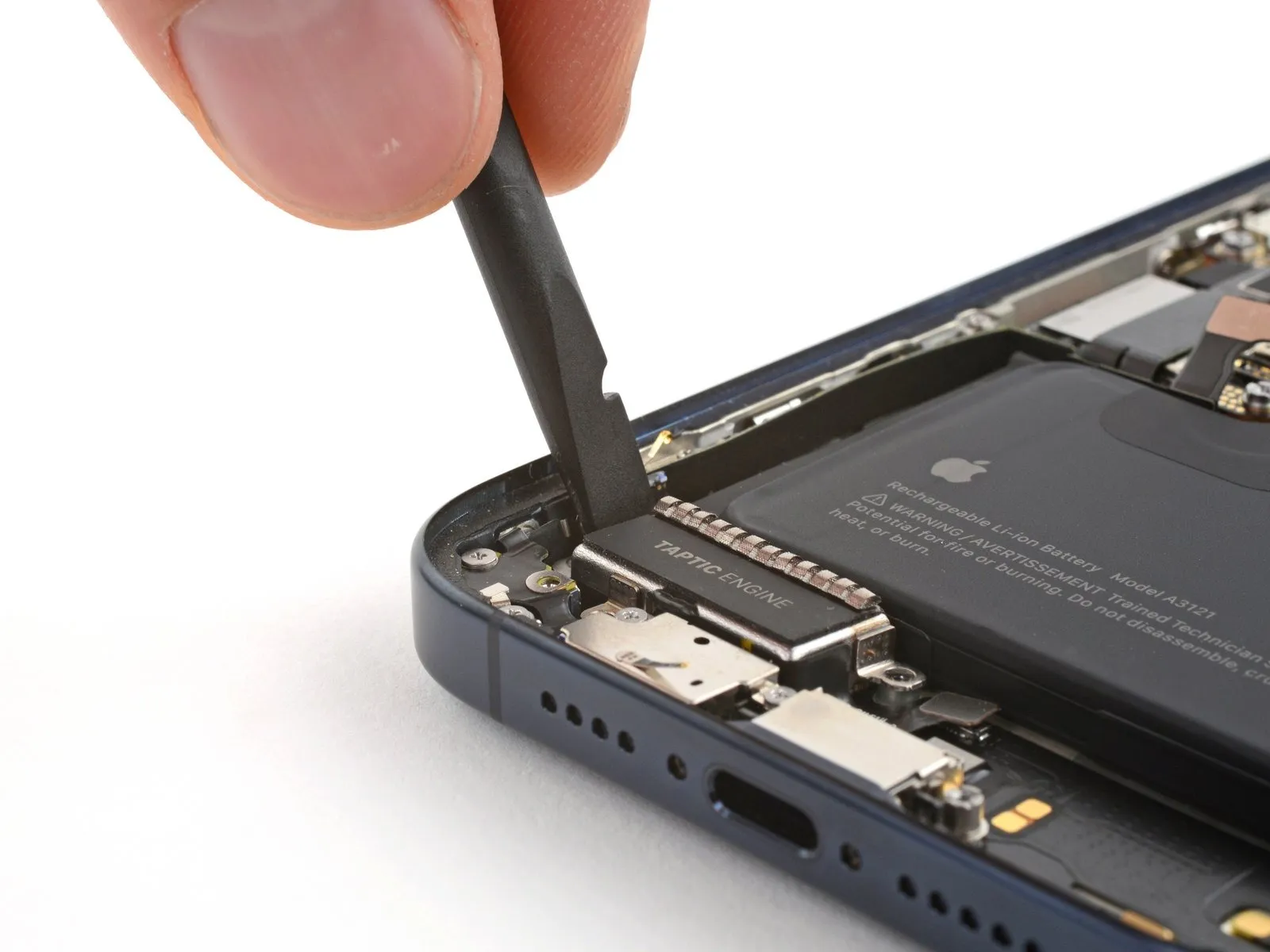

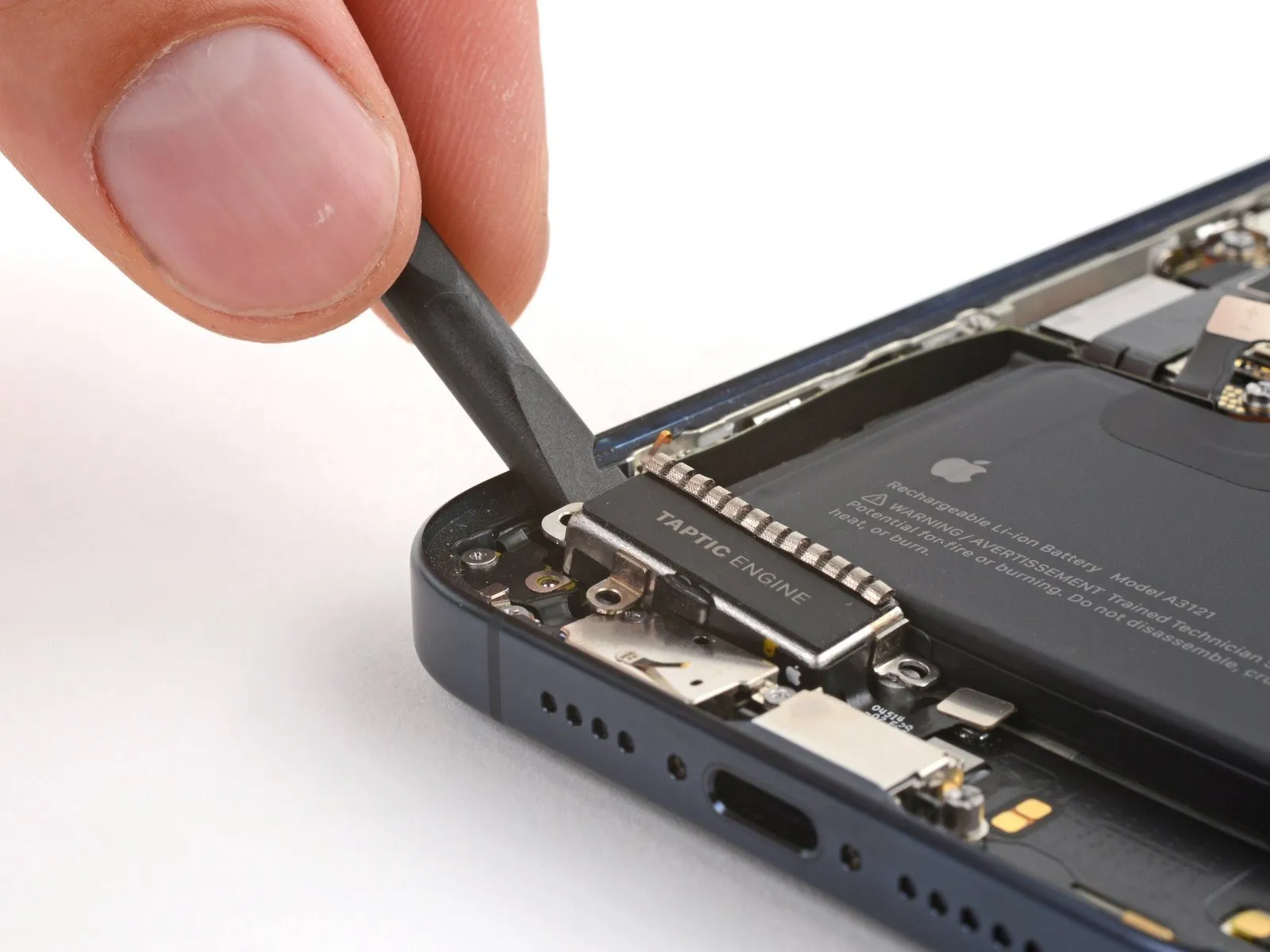

• Employing a spudger's flat tip, carefully wedge it into the space located on the left side of the Taptic Engine, adjacent to the device's frame.Apply gentle upward pressure with the spudger to create separation, facilitating manual grasping of the Taptic Engine.Once sufficient clearance is achieved, use your fingers to secure a firm grip on the Taptic Engine.

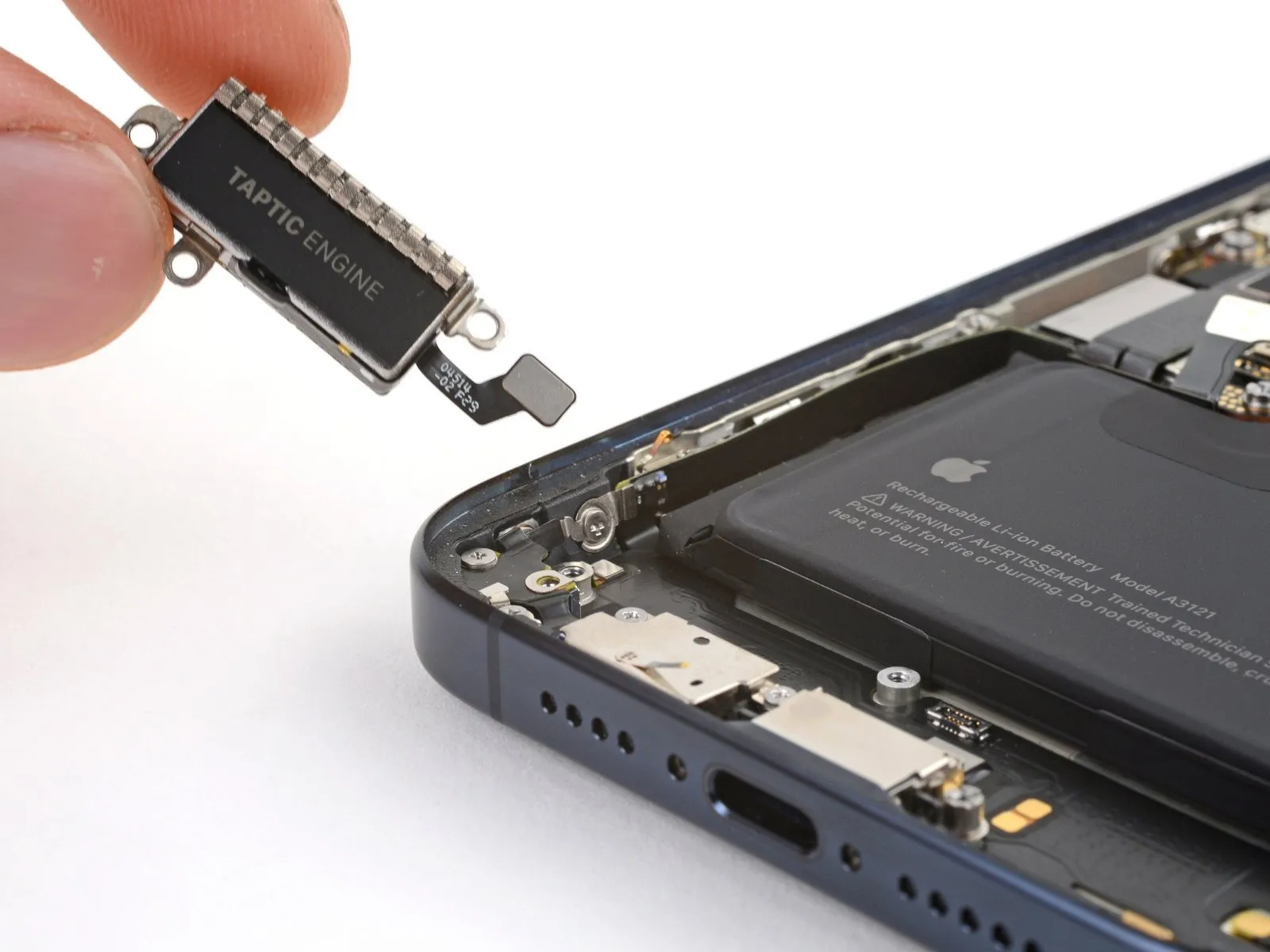

• Proceed to detach the Taptic Engine from its mounting position.The component is now free from its secured location.Complete the removal process by disengaging the Taptic Engine.
• Ensure the Taptic Engine is fully released from the chassis.The Taptic Engine is now completely detached.The Taptic Engine has been successfully removed.
