iPhone 16 5G mmWave Antenna Replacement

• To optimize battery health, permit the battery's charge level to descend to a minimum of 25%.A lithium-ion battery that is fully charged presents a possible safety risk.
• Disconnect all connected cables from the device before proceeding.
• Simultaneously depress the power button and either volume button, then utilize the swipe gesture to initiate the phone's shutdown sequence.

• To prevent injury and simplify the subsequent separation of components, apply multiple layers of adhesive packing tape across the fractured screen or rear glass surface.
• Ensure a sufficiently large, uninterrupted section exists close to the lower edge, allowing for secure adhesion of a suction cup.

Employ a P2 pentalobe driver to detach the two screws, each measuring 7.7 mm in length, located on both sides of the charging port.The two screws securing the device near the charging port require removal using a specialized P2 pentalobe driver.To access the charging port area, utilize a P2 pentalobe driver and unscrew the two fasteners, each with a length of 7.7 mm, situated on the left and right sides.

• A critical safety precaution: improper insertion of a prying tool poses a risk of device damage.To prevent over-insertion, precisely determine a 3-millimeter distance from the tool's tip and clearly indicate this point using a permanent marker.
• For enhanced reference, consider marking the tool's other corners with distinct measurement values.
• As an alternative method for establishing the correct insertion depth, securely affix a coin to the tool's tip, positioning it 3 millimeters from the end.
• Exercise caution to avoid exceeding the marked depth, as doing so could result in irreparable harm to the device's internal components.

• Employing a hair dryer or heat gun, warm the lower perimeter of the rear glass panel until it reaches a touch-sensitive temperature.Alternatively, an iOpener device can be utilized to achieve the necessary heating of the back glass surface.Proper application and heating techniques are essential when using an iOpener to avoid damage.The back glass must be heated to a point where it is noticeably warm to the hand.Carefully follow the subsequent instructions to ensure correct iOpener operation and even heat distribution.
• Applying heat to the lower edge of the back glass facilitates separation from the device's frame.The iOpener's consistent heat output helps to soften the adhesive securing the back glass.Maintaining even heat across the bottom edge prevents localized stress and potential cracking of the glass.

• Securely attach a suction cup to the lower border of the rear glass panel.
• Maintaining stability of the device's frame with manual support, exert a consistent and considerable upward pull on the suction cup to establish separation between the rear glass and the frame.
• Carefully introduce the pointed end of a prying tool into the newly formed space.

• During the process of separating the rear glass with a separating tool, maintain a maximum insertion depth of 3 millimeters.Potential damage to a fragile cable, situated adjacent to the volume decrease button, can occur if excessive force is applied.To prevent severance of the aforementioned cable, restrict the separating tool from penetrating beyond the specified depth.
• A series of spring contacts are located along the device's outer edge, and are also susceptible to damage from excessive tool insertion.
• Exercise caution to prevent injury to these spring contacts by limiting the separating tool's penetration depth to 3 millimeters.

Apply warmth to the right-hand perimeter of the rear glass panel utilizing a hair dryer or heat gun.The targeted area should reach a temperature that is perceptible upon contact.Employing either device facilitates softening the adhesive securing the back glass.Ensure the heat is evenly distributed along the edge to prevent localized stress.Carefully monitor the glass temperature to avoid damage from excessive heat.

• Ensure the tool's insertion depth remains under 3 millimeters to prevent potential harm to the spring contact points.Employ a prying tool to maneuver along the lower-right edge, extending towards the volume down button, facilitating adhesive separation and metal clip detachment.Refrain from advancing the tool beyond the volume buttons, as doing so risks damage to the wireless charging cable.
• An audible and tactile indication of metal clip release will occur as the tool progresses past this area.
• Maintain the tool's position within the gap to inhibit adhesive re-bonding.

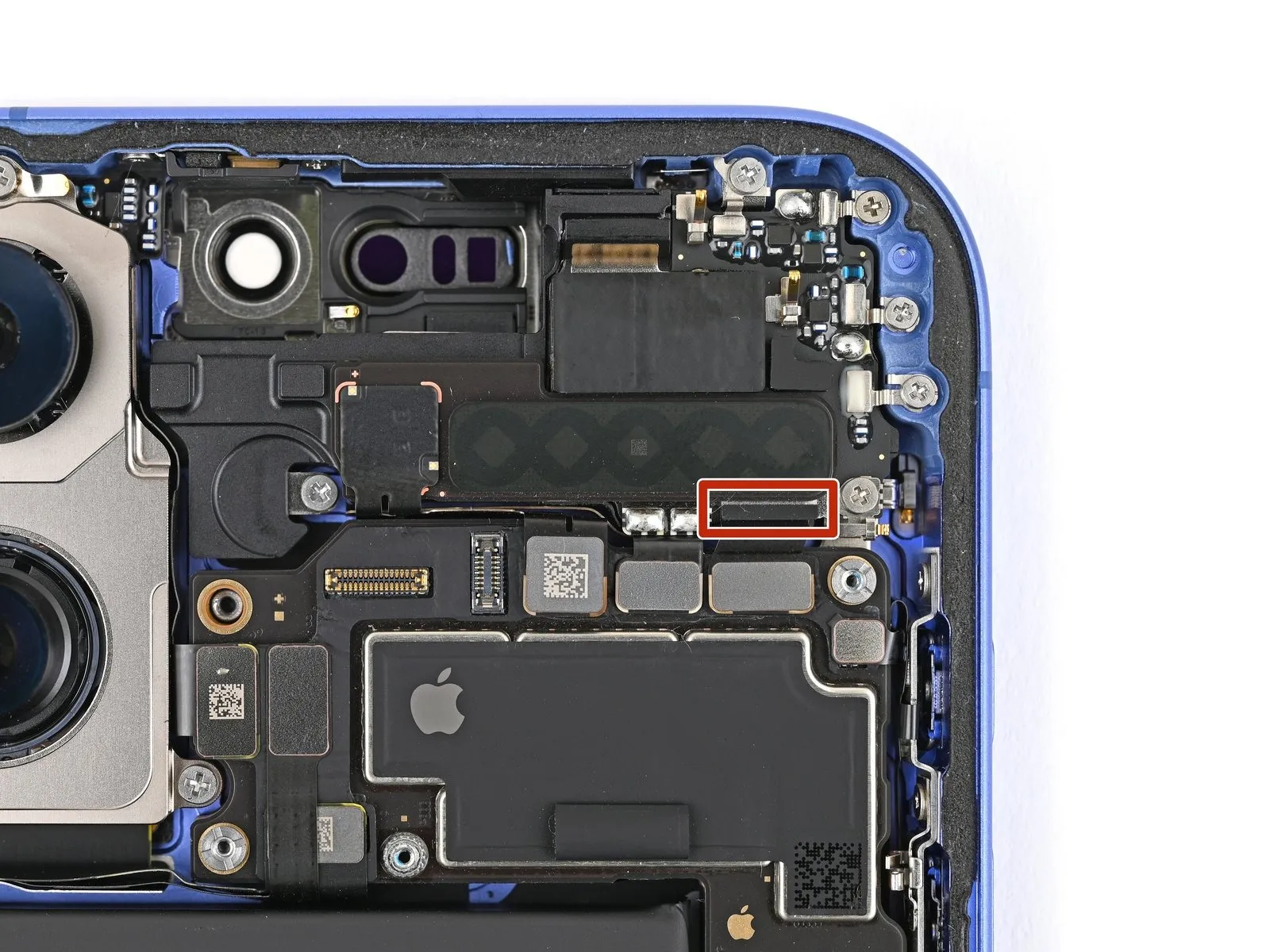

• The spring contacts are susceptible to damage if the tool penetrates beyond the specified depth of 3 mm.
• Carefully maneuver the tool to detach the metal clip by separating the adhesive, ensuring the wireless charging cable remains undamaged.

To loosen the adhesive securing the rear glass, apply heat to its left border using a hair dryer or heat gun, continuing until the surface becomes warm to the hand.

• To prevent harm to the spring contacts, ensure the pick's insertion depth remains no greater than 3 millimeters.Employ a second opening pick, positioning it near the lower boundary.Moving the second pick along the lower-left corner and the screen's left side will detach the adhesive and disengage the metal clips.
• The audible and tactile sensation of the metal clips releasing will indicate successful separation.
• Maintain the initial pick's position at the upper-left corner to inhibit adhesive re-adhesion.
• Separation of the adhesive is achieved through sliding motion of the second pick.
• Care must be taken to limit pick insertion to a maximum of 3 mm to safeguard the spring contacts.

To soften the adhesive securing the rear glass, apply warmth to its upper perimeter using a hair dryer or heat gun, continuing until the surface feels warm upon contact.

• To prevent potential harm to the spring contacts, ensure the pick's insertion depth remains no greater than 3 millimeters.Employing a second opening pick, maneuver it along the upper-left corner and the top edge, facilitating adhesive separation and disengagement of the metal clips; audible and tactile feedback will indicate clip release.Proceed with pick sliding around the upper-right corner, culminating at the Action button's location.
• Maintain the position of this pick to obstruct any re-adhesion of the adhesive.
• Successful separation is confirmed by the distinct sounds and sensations of the metal clips releasing from their secured positions.
• Care must be taken to limit pick insertion to a maximum depth of 3 mm, safeguarding the delicate spring contact mechanisms.

• The rear panel's separation from the device's frame ought to be complete at this juncture; should resistance be encountered, re-examine the edges with a prying tool to identify and address any remaining adhesive or obstructions.

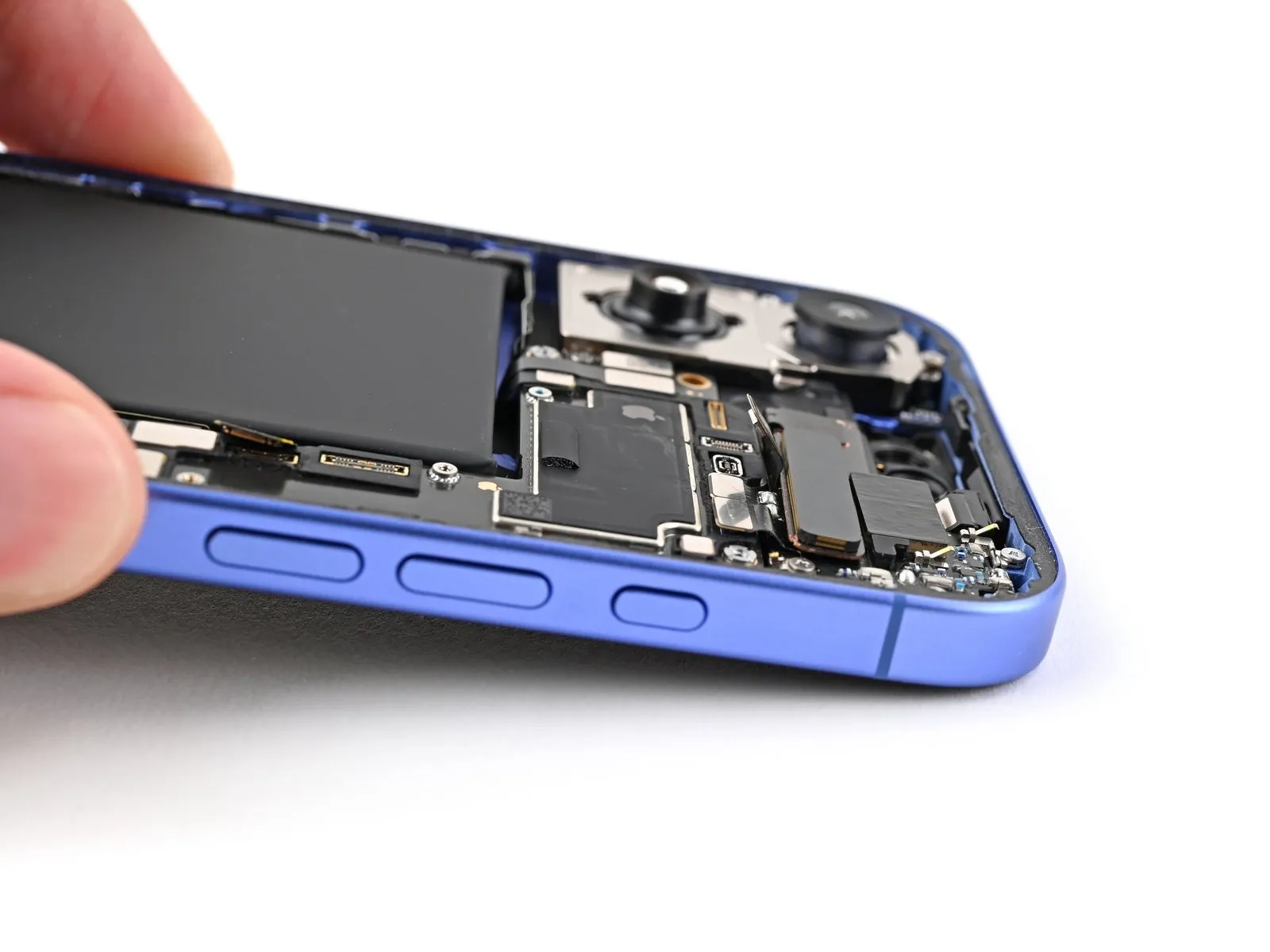

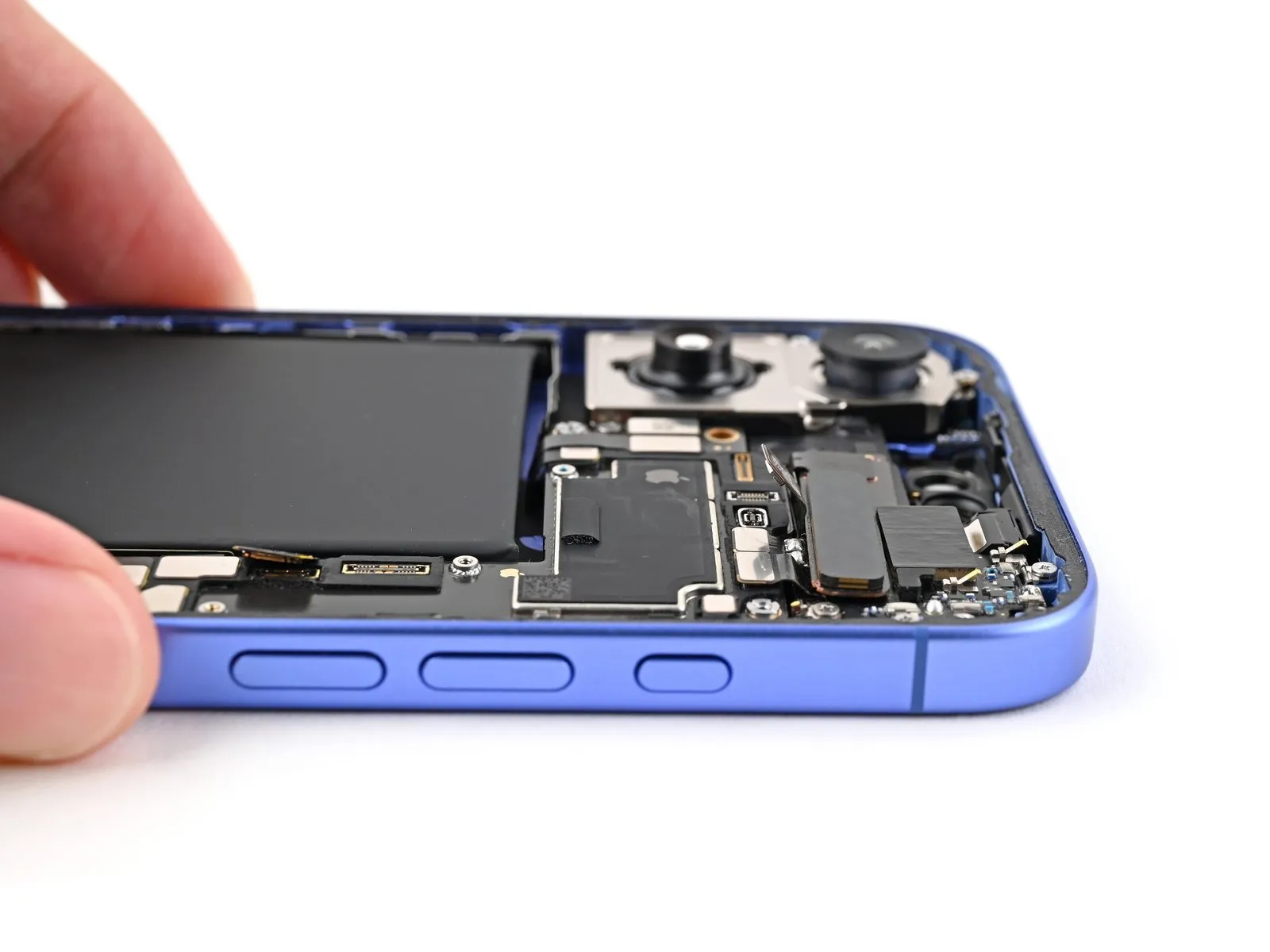

• Initiate a hinged opening of the rear glass towards the device's right side to break the bond of the remaining adhesive.
• Maintain stability of the detached rear glass by utilizing a rigid, uncontaminated support.
• Prior to proceeding with subsequent steps, extract the opening tools from the device.

Employ a specialized tri-point Y000 driver for disassembly.The middle connector cover is held in place by two fasteners.These fasteners are screws, each measuring 1 millimeter in length.A tri-point Y000 driver is essential for engaging the screw heads.Removing these screws will release the middle connector cover.

• Employ the pointed end of a spudger to access one of the openings present on the central connector cover.By moving the cover laterally towards the phone's left side, disengage the securing hook from its position within the logic board.The connector cover can now be detached.
• A spudger's tip should be carefully positioned within one of the provided recesses on the middle connector cover's housing.
• To free the cover, slide it horizontally until the retaining hook separates from its corresponding fixture on the logic board.

• Employ a screwdriver to detach the four fasteners that hold the upper bracket in place.
• A Phillips screw, measuring 3.5 millimeters in length, is required for this step.
• Two Phillips screws, each with a length of 1.4 millimeters, are also necessary.
• A tri-point Y000 screw, possessing a length of 1.0 millimeter, is needed for the process.

• Employing either tweezers or direct manual manipulation, detach the upper bracket assembly.The top bracket can be dislodged using a precision tool like tweezers, or by carefully grasping it with your fingertips.To extract the uppermost bracket, utilize tweezers for a precise grip or apply finger pressure, ensuring secure removal.

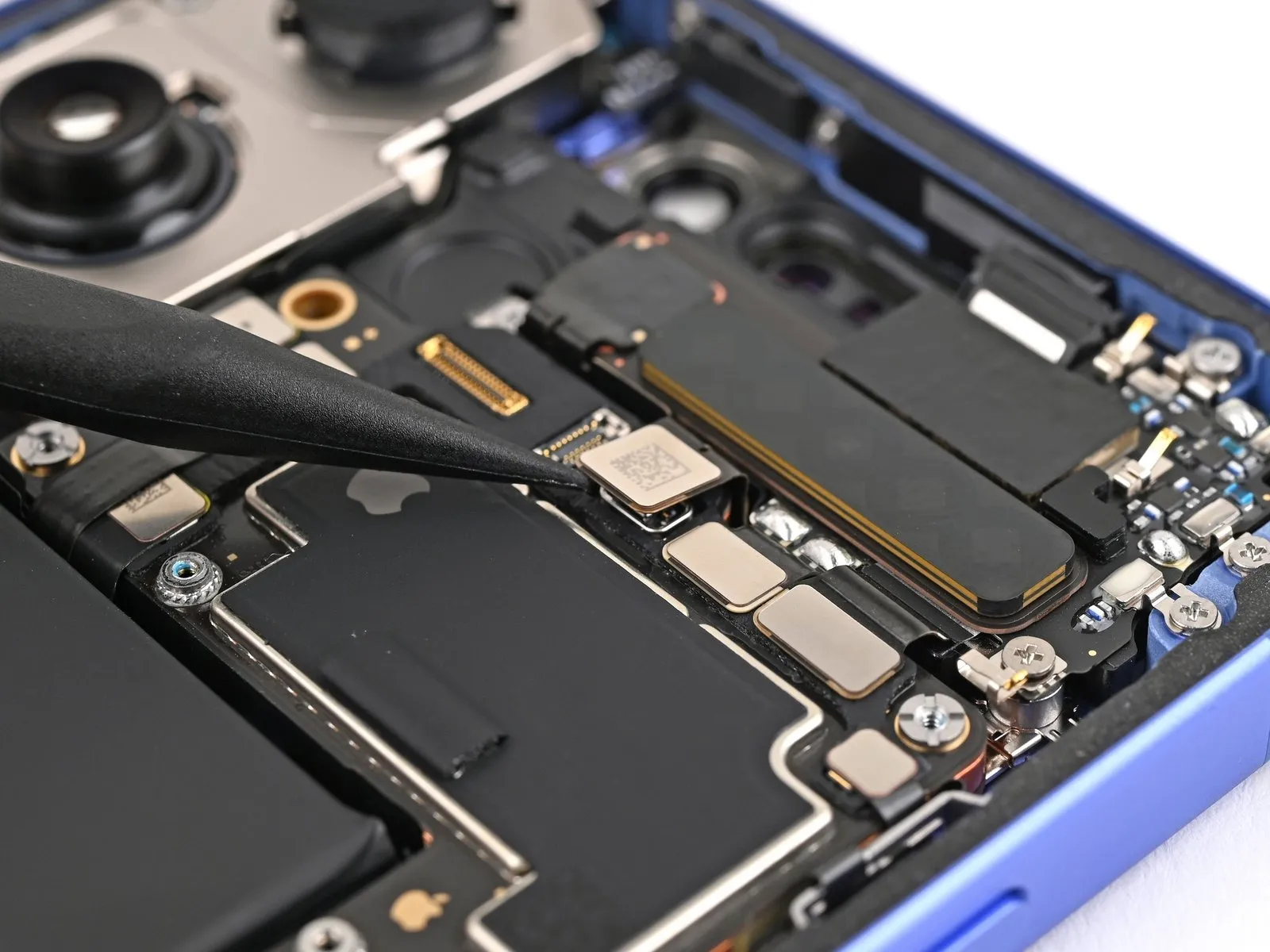

• Employ the tip of a spudger to carefully lift and detach the pair of front camera press connectors.The second press connector is located beneath the initial connector, requiring access from below.Disconnection of these connectors necessitates precise manipulation to avoid damage.

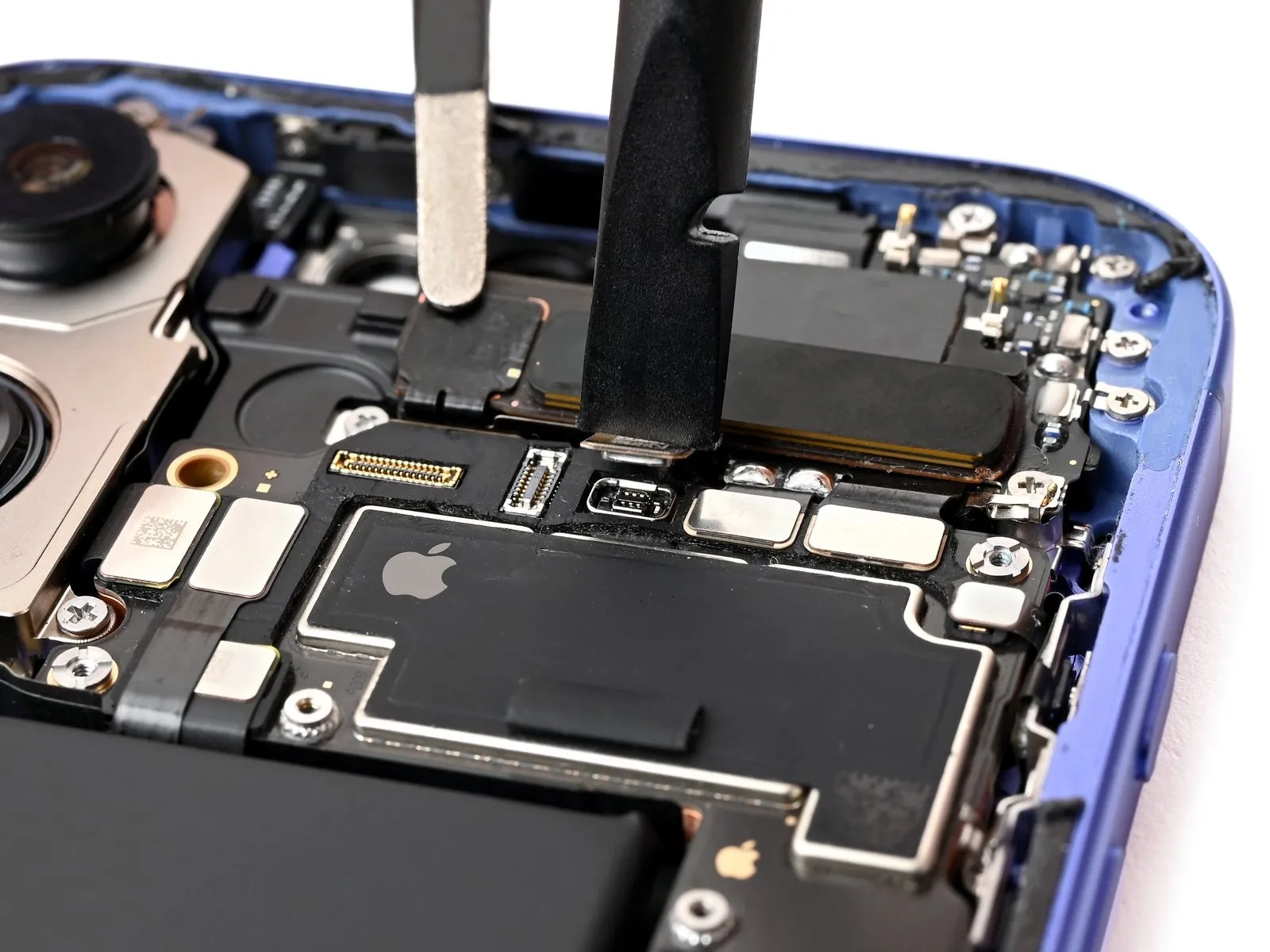

• Using a spudger, carefully wedge the tip into the space separating the front-facing camera assembly from the device's upper frame.Gently pry the front camera upwards, disengaging it from its mounting within the frame.Completely detach the front camera component from the frame by continuing to lift it away.

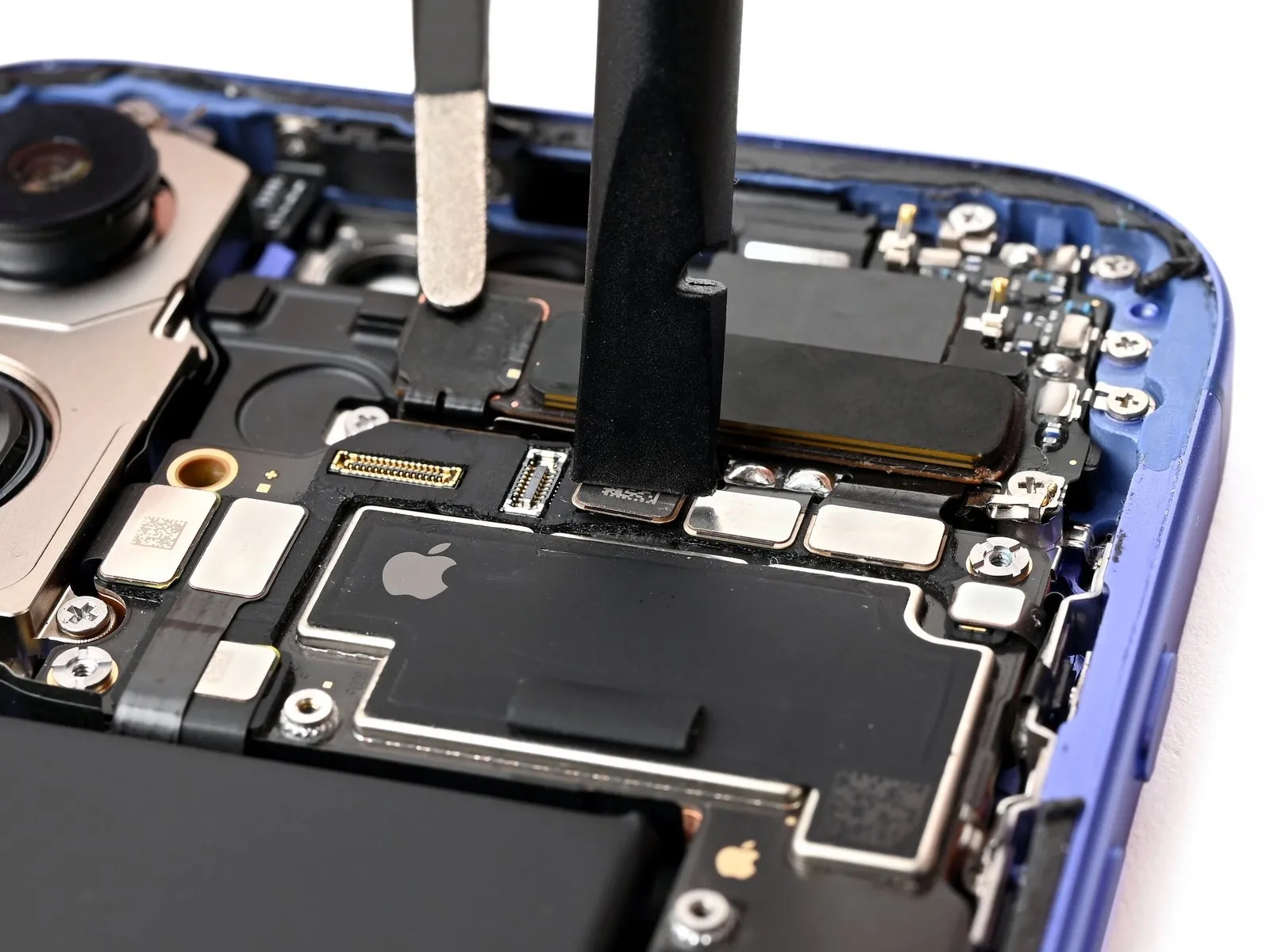

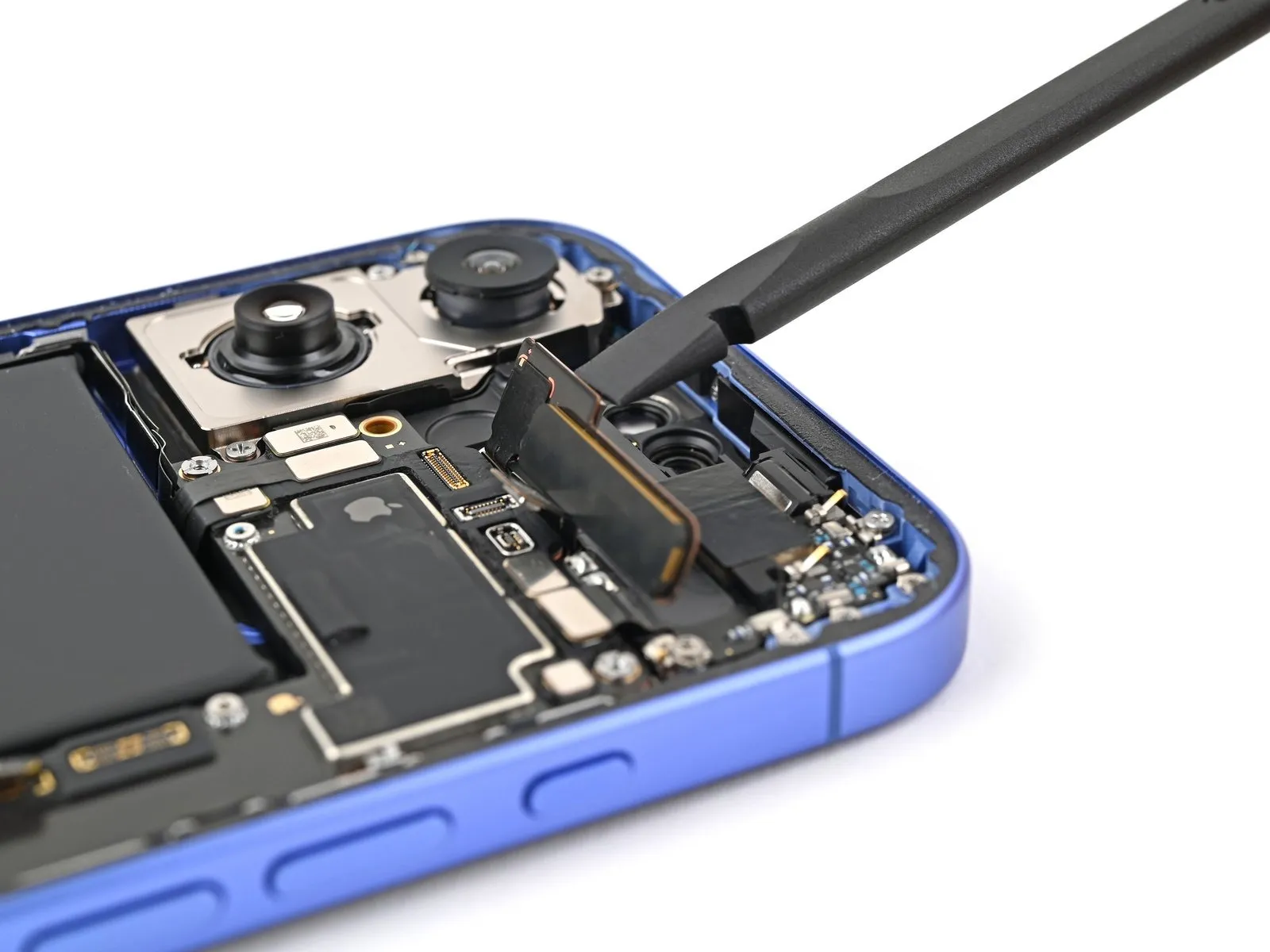

• Employ the tip of a spudger to carefully lift and detach the 5G mmWave antenna's press-fit connector.The antenna connector is secured with a press-fit mechanism, requiring a prying action for separation.Applying force with the spudger's point will release the connector, allowing for disconnection of the 5G mmWave antenna.

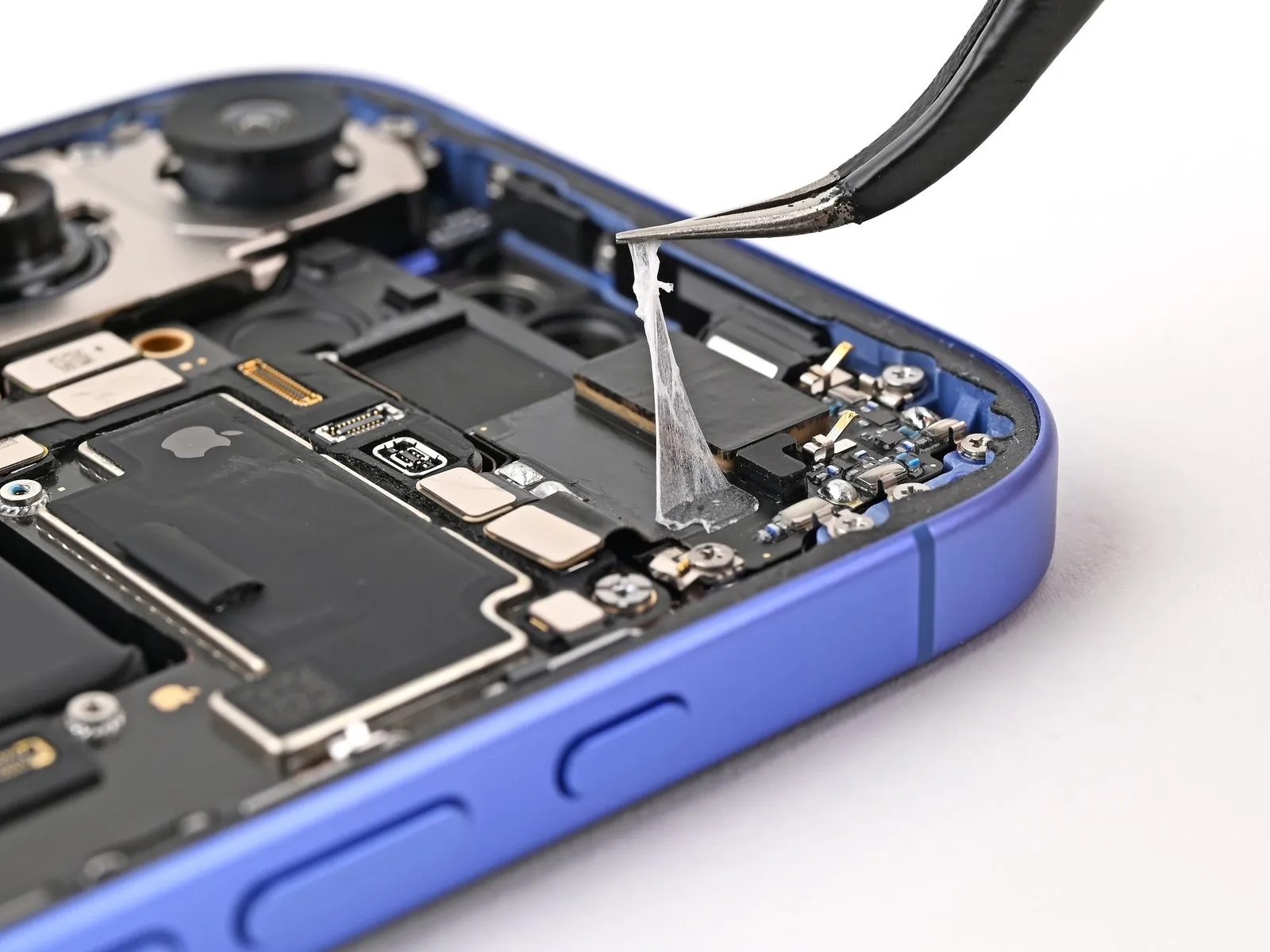

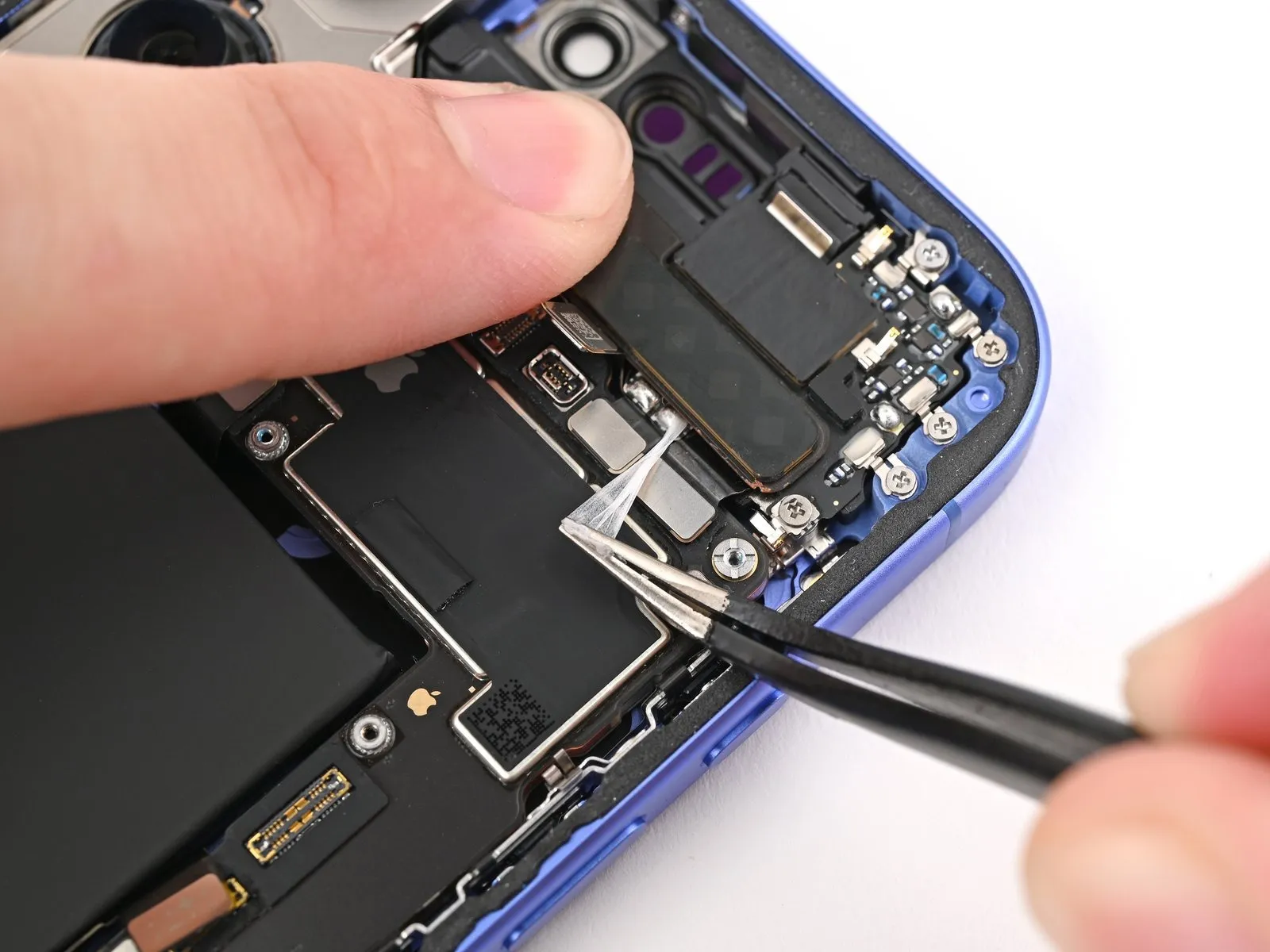

• Employ angled tweezers to securely grasp the black pull tab situated on the lower right edge of the 5G mmWave antenna.While maintaining downward pressure on the antenna with your other hand, utilize the tweezers to extract the stretch-release adhesive strip gradually and consistently at a shallow angle.Allow ample time for the adhesive to extend and detach from beneath the antenna's surface.Enhance your grip on the adhesive strip by rotating it around the tweezers' tip during the extraction process.Should the adhesive strip fragment, attempt retrieval with the tweezers and proceed with pulling; if retrieval is impossible, proceed to the subsequent two steps as an alternative.

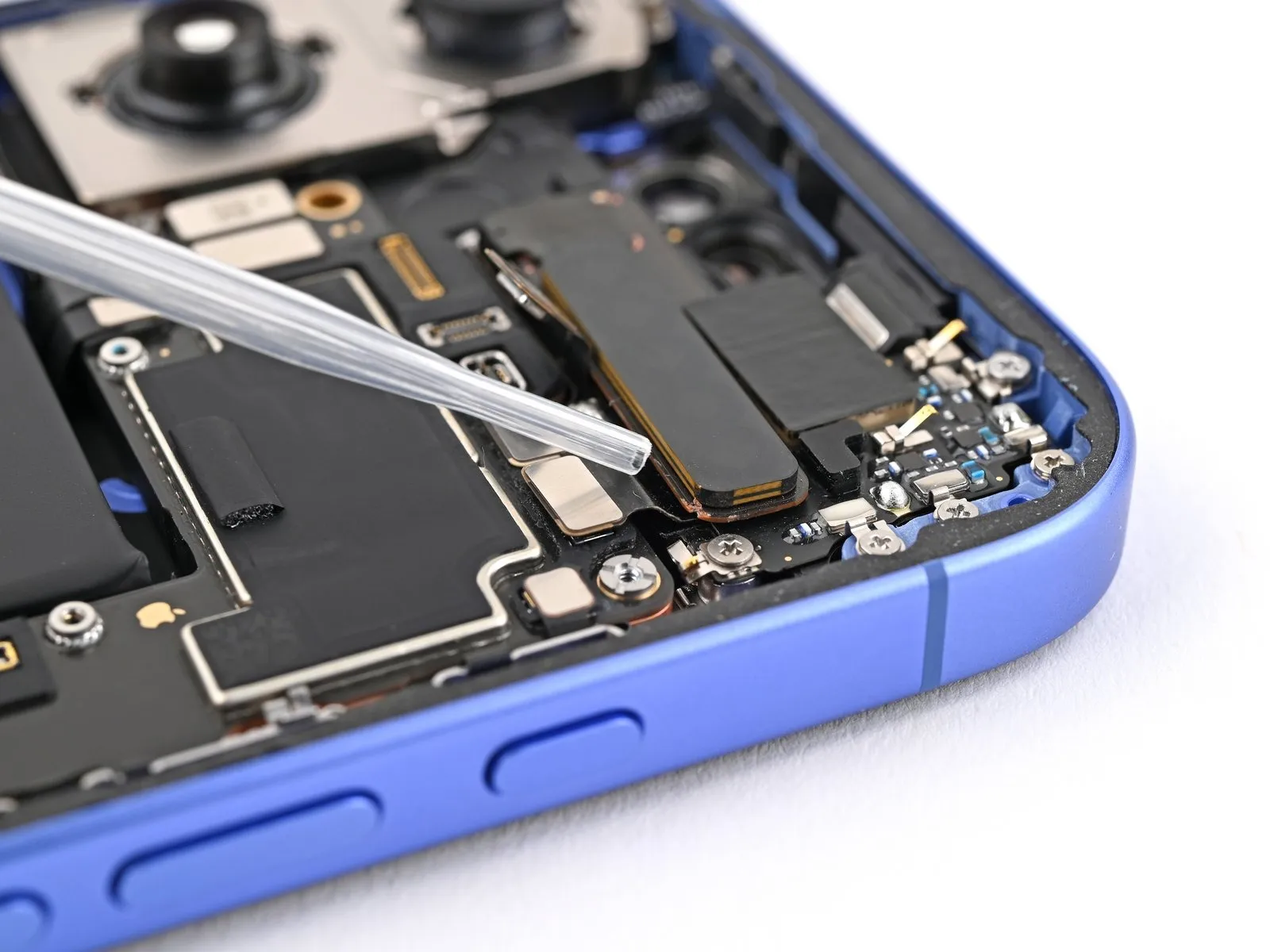

1. Introduce a small quantity of isopropyl alcohol with a concentration exceeding 90 percent along the lower boundary of the 5G mmWave antenna.
2. Elevate the lower portion of the device to permit the
3. isopropyl alcohol to permeate beneath the antenna, allowing for adhesive separation, and then pause for sixty seconds.

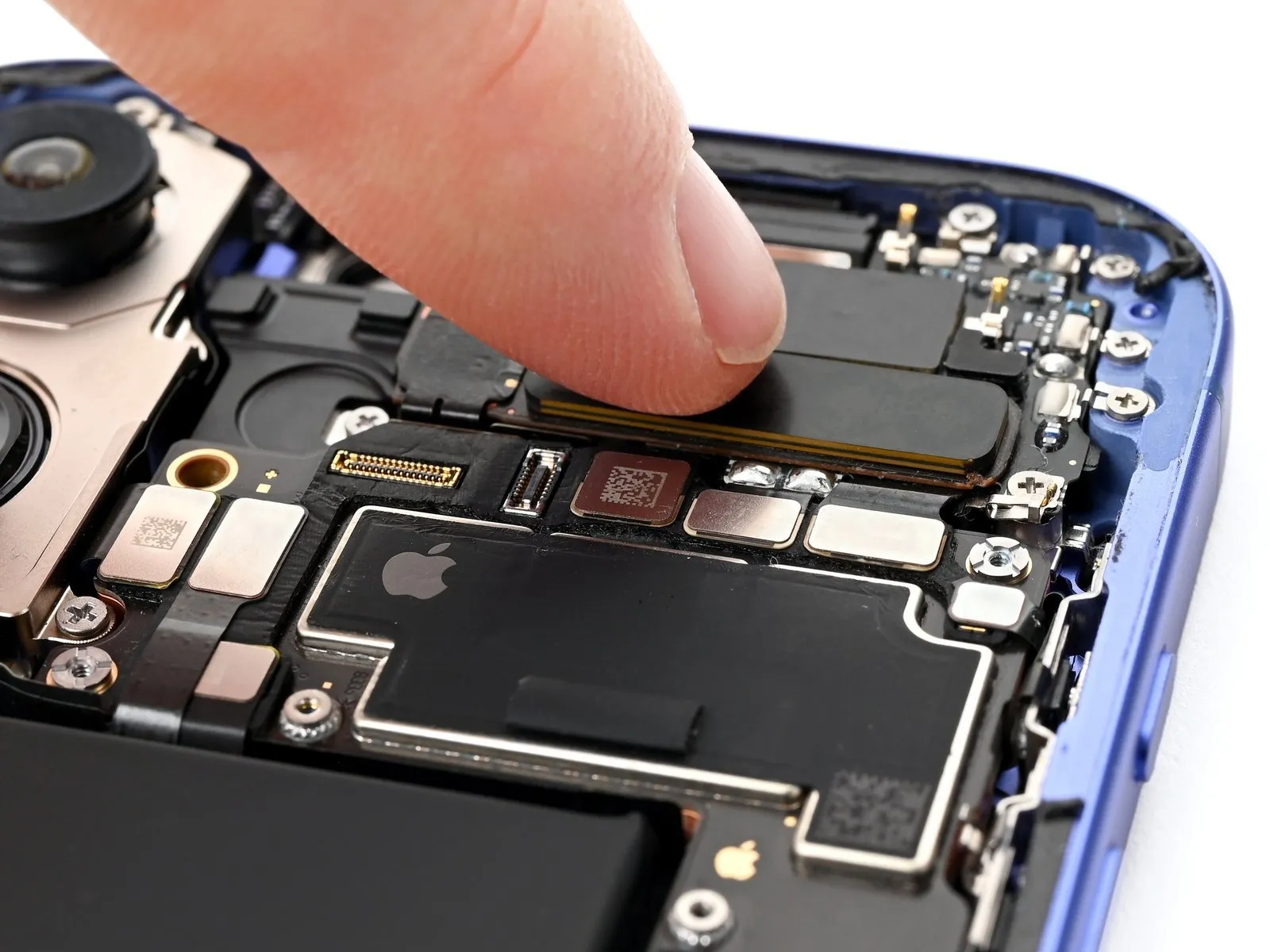

1. Employing the planar extremity of a spudger, begin insertion beneath the uppermost left margin of the 5G mmWave antenna, positioned proximate to the frontal camera aperture.The 5G mmWave antenna's location is near the front-facing camera's opening.Carefully maneuver the spudger to gain access and initiate separation.To release the antenna, apply upward force using the spudger.The objective is to disengage the adhesive securing the 5G mmWave antenna.
2. This upward prying action will break the adhesive bond between the antenna and the device.

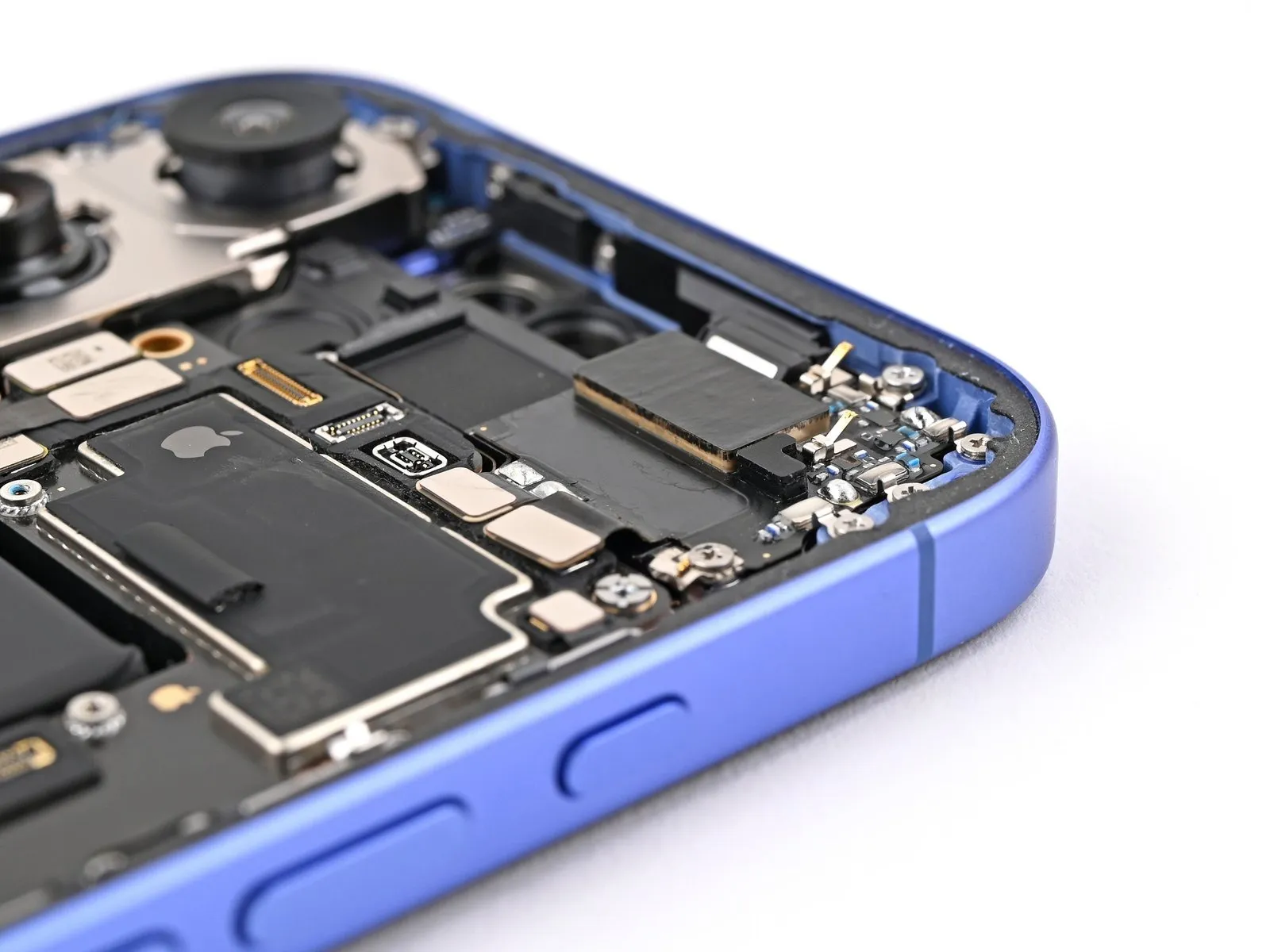

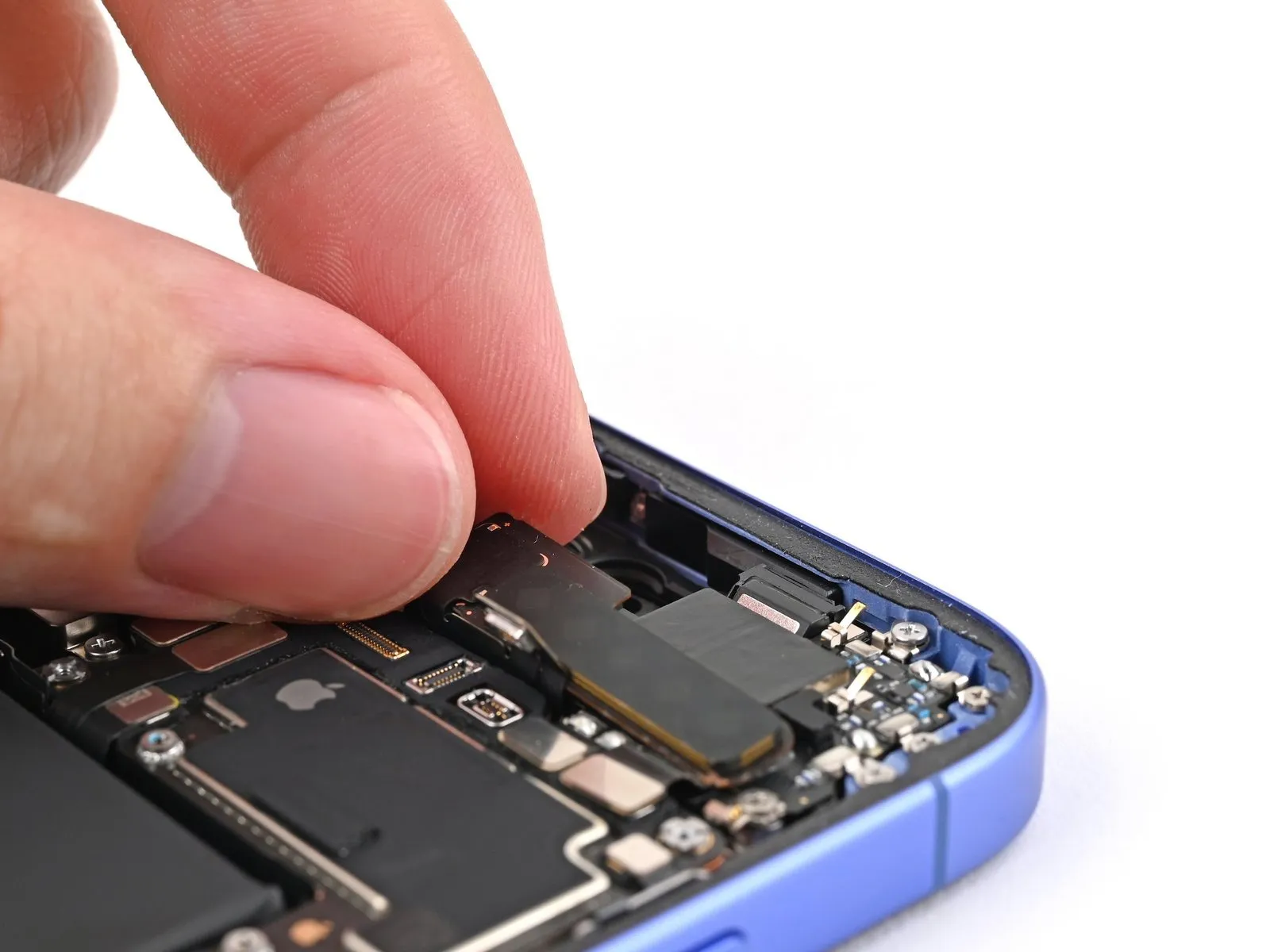

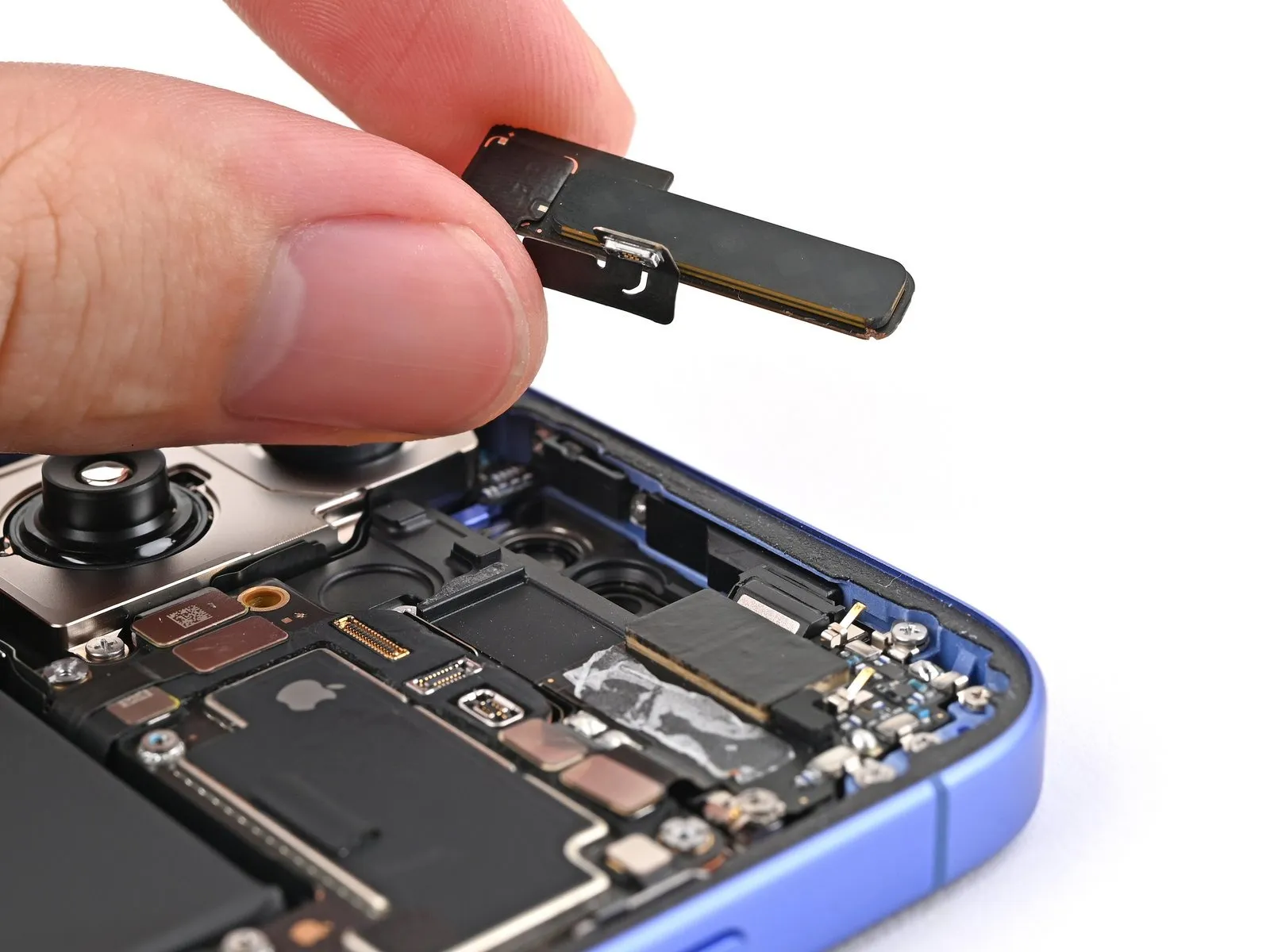

• Carefully detach the 5G mmWave antenna from the earpiece speaker assembly.To proceed with the repair, completely separate the antenna from its connected components.Following detachment, remove the 5G mmWave antenna from its position.

Having finished the disassembly process, the following instructions detail the reassembly procedure for your device.

• To ensure proper connection during reattachment, precisely position each connector above its corresponding receptacle and apply downward pressure using a fingertip or spudger, initially on one edge and subsequently on the other, until a distinct click is heard, confirming secure engagement.

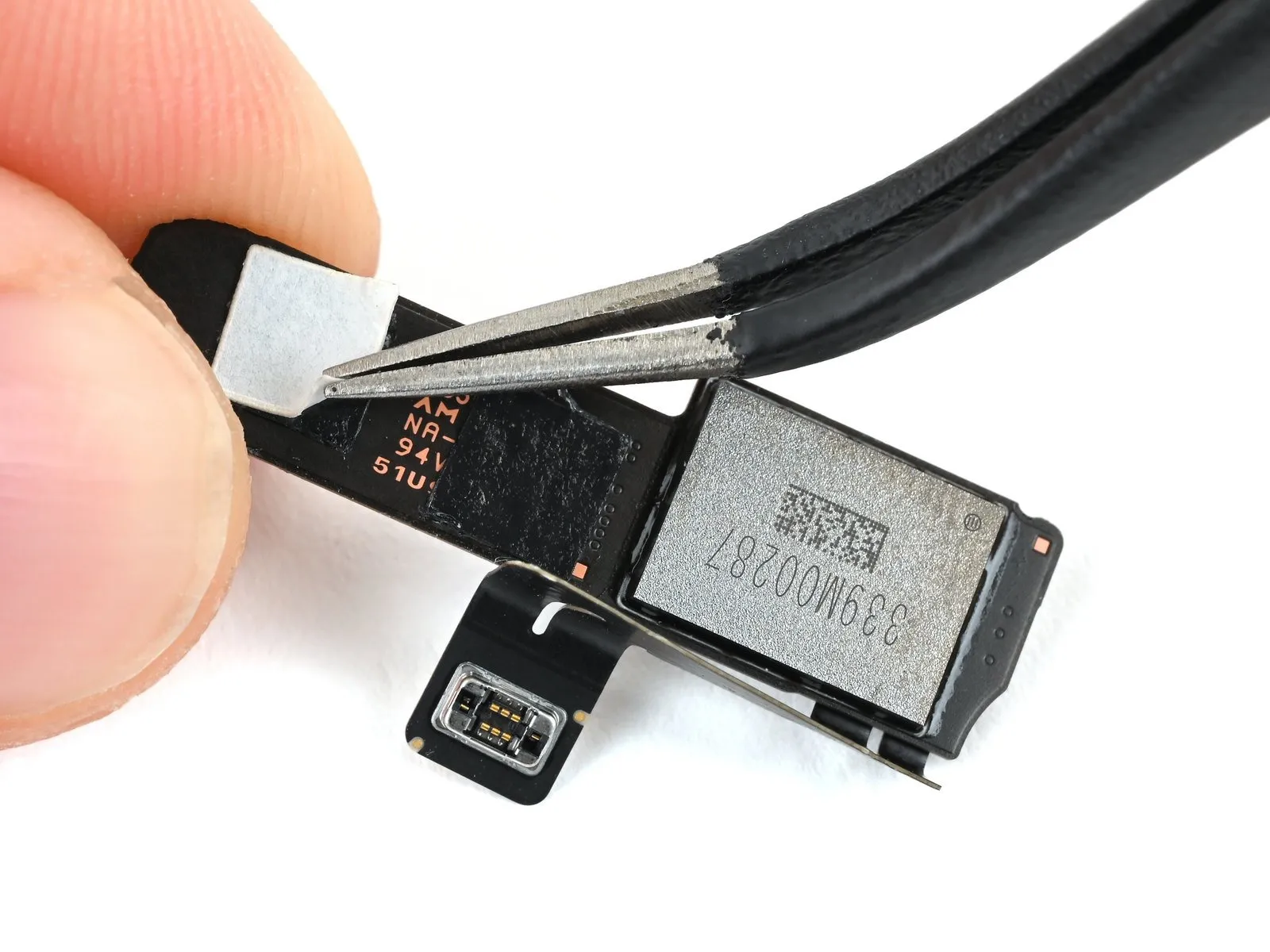

• Carefully detach the aged adhesive residue from the earpiece speaker's upper surface utilizing tweezers or manual dexterity.

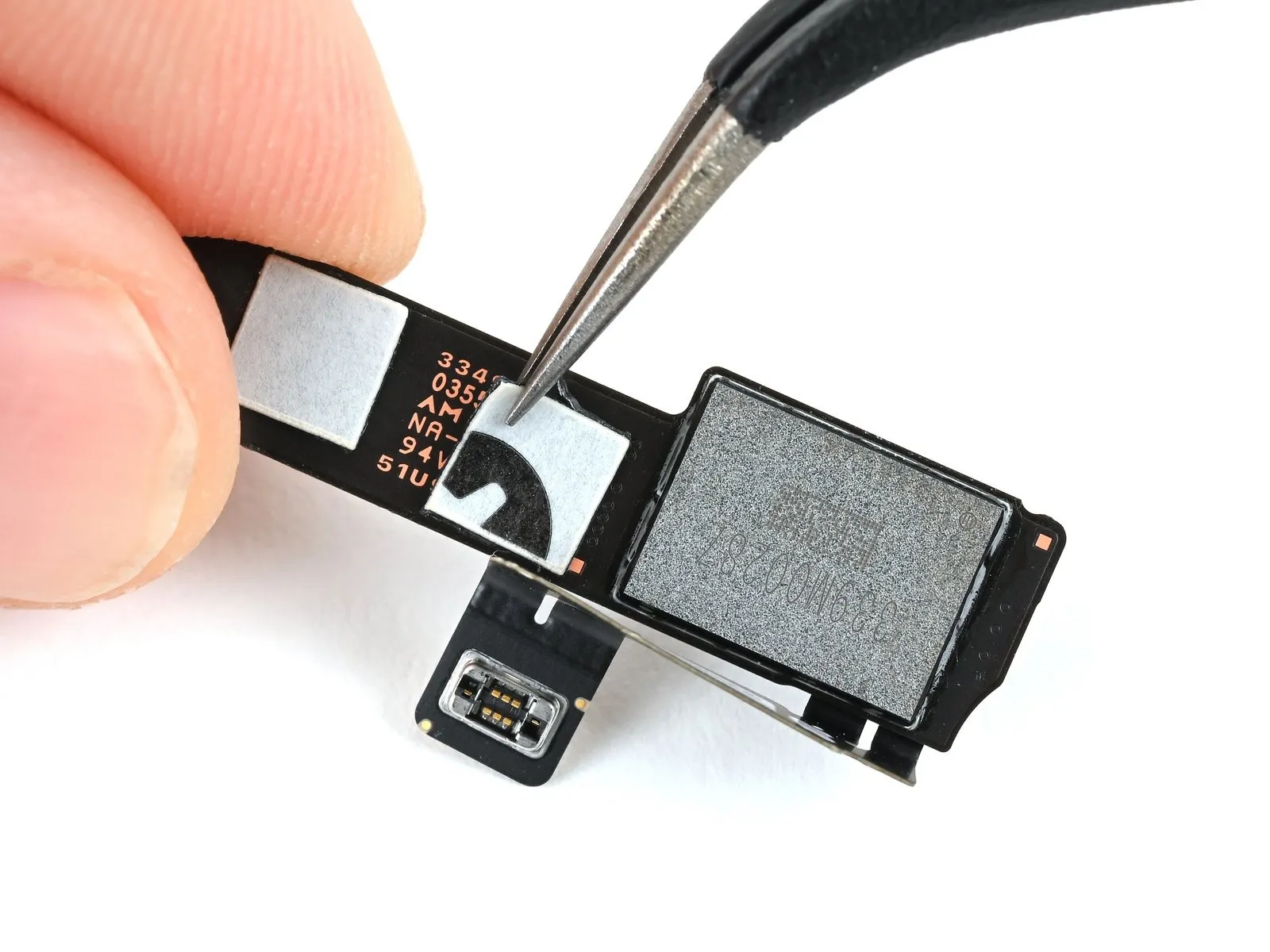

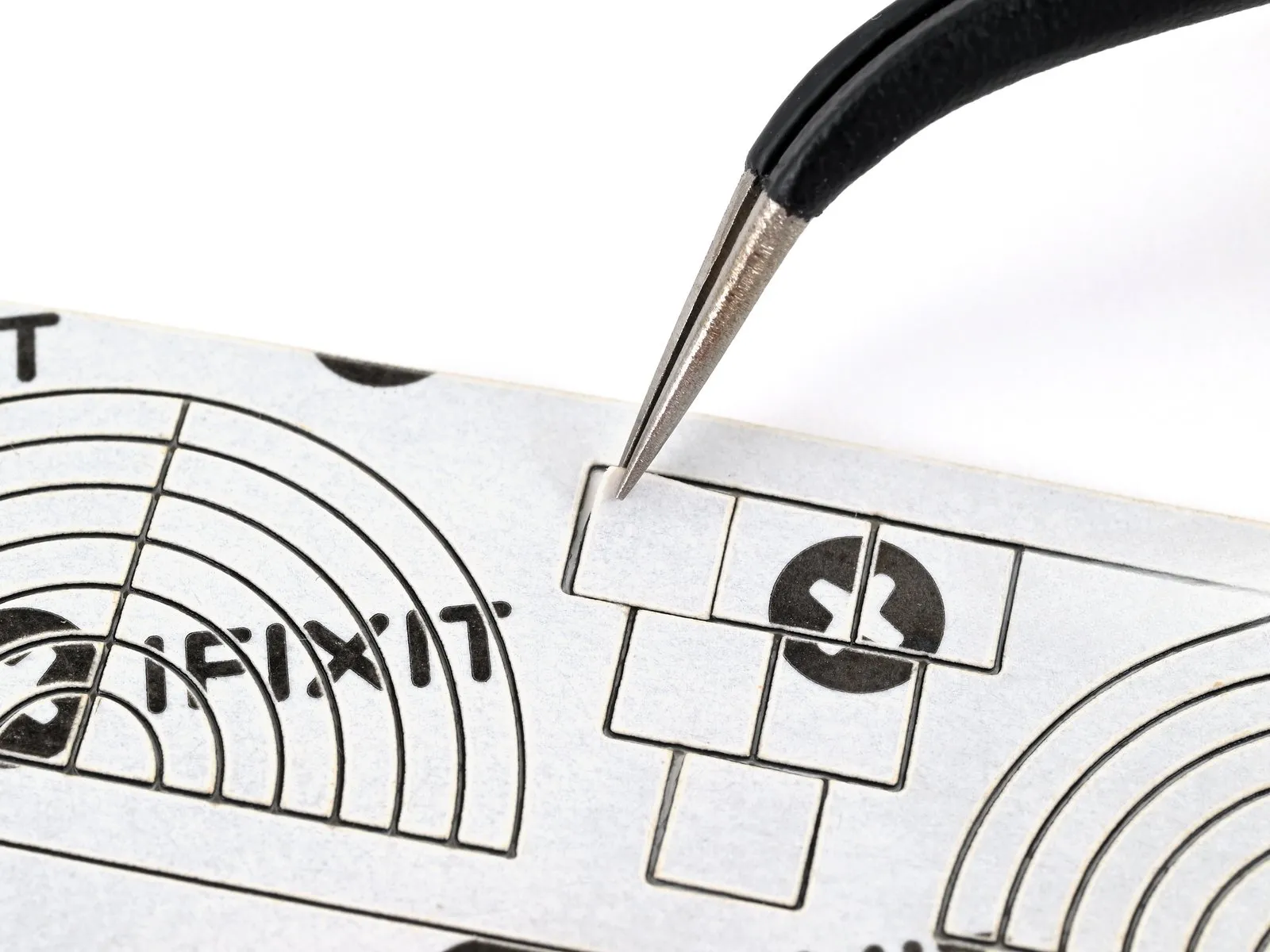

Secure the rear surface of the 5G mmWave antenna with a slender layer of double-sided adhesive tape, specifically Tesa tape is recommended.Adhesive placement should be restricted solely to the black fiberglass section of the antenna, avoiding contact with any metallic components.The antenna's black fiberglass portion is the only area suitable for tape application.

• Remove the protective paper backing to reveal the adhesive layer, preparing it for attachment.

Securely grasp the 5G mmWave antenna utilizing tweezers or your fingertips.

• Maintain proper alignment by preventing adhesive contact with the earpiece speaker's surface.

• Apply downward force to the 5G mmWave antenna to guarantee complete adhesion to the earpiece speaker's designated recess.

• Employ the planar edge of a spudger, or a fingertip, to establish a connection at the lower press connector of the front-facing camera assembly.Subsequently, a connection must be made at the upper press connector of the same camera component.This process requires careful application of pressure to ensure proper electrical contact.
• The connectors are delicate and susceptible to damage; exercise caution during this manipulation.

• Reattach the upper mounting bracket utilizing either precision tweezers or direct manual manipulation.The bracket, previously removed, should now be positioned and secured back into its designated location.Ensure proper alignment and retention of the bracket during reinstallation to maintain structural integrity.

1. Employ a screwdriver for the installation of the four screws that fasten the top bracket.Four screws are utilized to secure the top bracket.A Phillips screw, measuring 3.5 millimeters in length, is required for one location.
   • Two Phillips screws, each with a length of 1.4 millimeters, are necessary.One tri-point screw, specifically a Y000 type and 1.0 millimeters long, is also needed.
   • The fastening process involves the use of a screwdriver to apply torque.Ensure proper alignment of the top bracket before screw installation.
   • The screws provide structural integrity for the top bracket's attachment.Carefully manage torque during screw installation to prevent damage to components.

Exercise caution to prevent harm to the spring contacts during the cleaning process of the frame.

• Following reattachment of the battery and rear glass, activate the device and confirm proper functionality.
• Deactivate the power, detach the battery and rear glass, proceeding with the subsequent assembly steps.

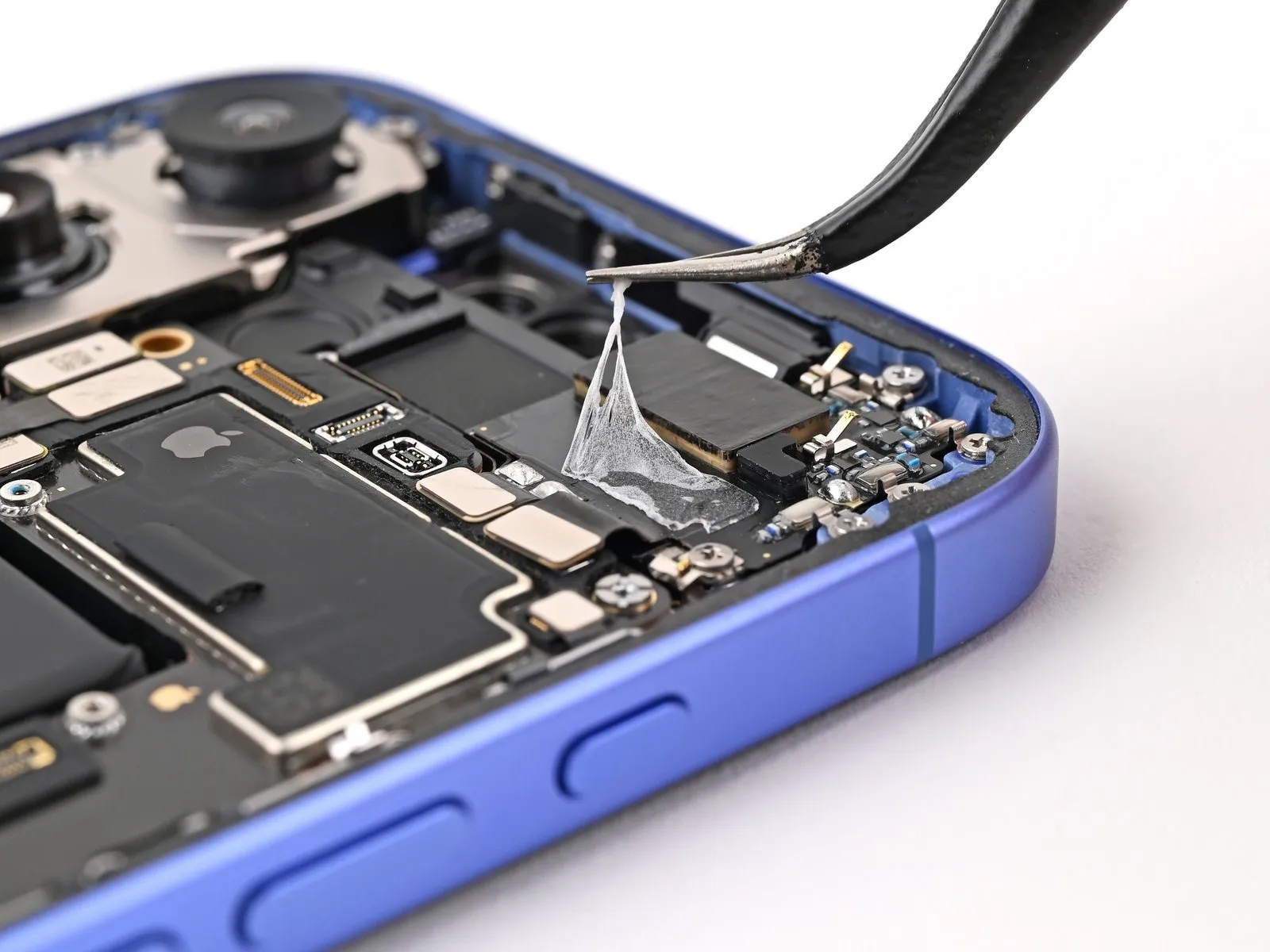

Employ the tweezers to detach the adhesive residue from the device's surface.

• Continue the process of adhesive removal, alternating between the preceding action and this instruction, until complete elimination is achieved.

Remaining adhesive material can negatively impact the iPhone's water resistance, necessitating a complete cleaning of the frame.
Employing a spudger, cover its tip with a microfiber or lint-free cloth, then dispense a small quantity of isopropyl alcohol with a concentration exceeding 90% onto the cloth's surface.
To effectively remove adhesive remnants, use a single, consistent wiping motion along the frame's edge.
Allow several minutes for complete evaporation of any residual alcohol before continuing with subsequent repair steps.

Disregard this procedure if the existing rear cover is not being repurposed.

• To facilitate adhesive bonding, use a microfiber or lint-free cloth dampened with a small quantity of isopropyl alcohol possessing a concentration exceeding 90% to clean the edges of the rear cover.
• Carefully manipulate any bent retaining clips located on the rear cover with your fingers to restore their original shape.

• Position the new adhesive onto the frame, ensuring the expansive blue liner faces inward and the release tab is situated in the lower-right area.
  Variations in liner color and pull tab placement are possible depending on the specific adhesive model.
  Employ visual cues like the camera aperture and edge indentations to confirm accurate adhesive alignment.

• Initiate the separation of the adhesive backing's protective liner by grasping the designated pull tab and commencing peeling from the lower edge, ensuring the liner remains partially attached.

• Because the adhesive bonds immediately upon contact, repositioning is impossible; any misplacement necessitates complete removal and replacement with fresh adhesive.
  Maintain the blue liner's separation from the work area while carefully positioning the adhesive strip along the iPhone's lower border.
  Ensure proper alignment of the iPhone’s spring contacts with the liner’s corresponding openings by seating the adhesive’s lower edge within the frame’s designated channel.

• Gradually remove the protective backing from the adhesive strip, ensuring firm contact with the iPhone's perimeter during application.
  Proper alignment of the adhesive's lower edge will result in automatic positioning of the side and top edges; if misalignment occurs, discard the adhesive and reapply a fresh strip.
  Should a replacement adhesive strip be unavailable and misalignment occurs, the iPhone can be reassembled and used temporarily without adhesive; however, be aware that water resistance will be significantly reduced until new adhesive is installed.

• Employ the planar edge of a spudger for securing the adhesive bond along the frame's outer boundary.The spudger's flat end facilitates application of the adhesive, ensuring secure placement around the frame's edges.A spudger, specifically utilizing its flat end, is the appropriate tool for pressing the adhesive into its designated position.During this process, exercise caution to prevent contact with the spring terminals exposed through the pink liner.To properly seat the adhesive, utilize the flat end of a spudger and apply pressure around the frame's circumference.
  Avoid making contact with the spring contacts that protrude from within the pink liner during adhesive placement.

• After the uppermost protective film is peeled away, observe three slender liners situated above the adhesive, each featuring a pull tab positioned close to the lower boundary.
  The location of these pull tabs can vary.
  Should these pull tabs be absent, it is possible that the delicate liners were unintentionally removed during the prior procedure; if the adhesive surface is free of contaminants and correctly positioned, continuation is possible, but avoid any contact with the exposed adhesive until the back glass is ready for installation.

• To prevent screen damage, secure the rear glass on the right side with a stable support, such as a box.
  Employing a specialized tool, specifically the flat end of a spudger, or a fingertip, proceed to the next step.The designated tool's flat edge facilitates a precise connection.A spudger, or a fingertip, is suitable for this delicate operation.Carefully engage the charging coil press connector with the aforementioned tool.This action requires precision to avoid damaging the internal components.

• The logic board incorporates two slots designed to receive the two hooks present on the connector cover.

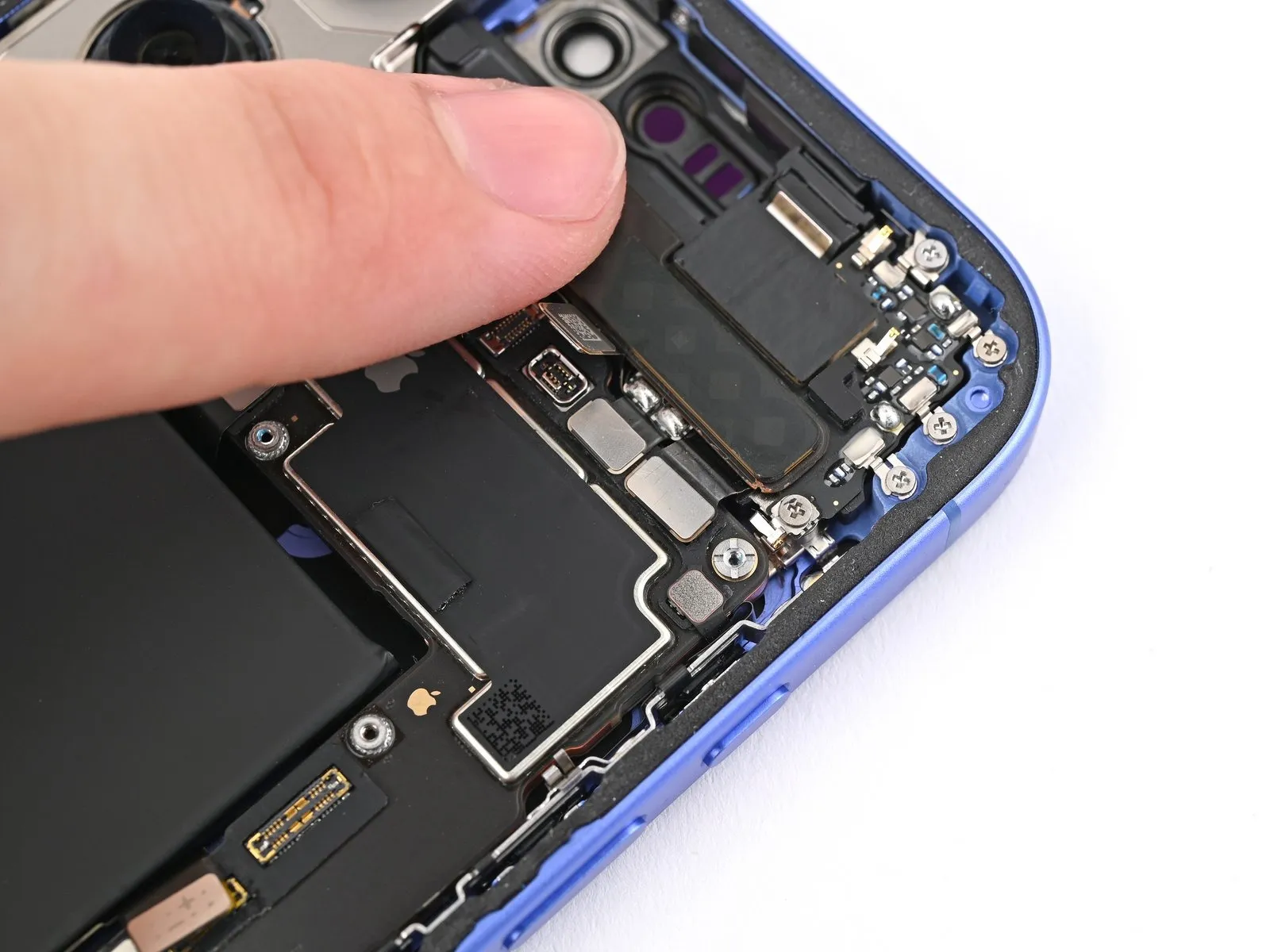

• Position the connector cover atop the device, ensuring the hooks are offset slightly to the left relative to the corresponding slots on the logic board.
• Apply downward and rightward pressure with a fingertip to the connector cover, facilitating the engagement of both hooks within their designated slots.

• During liner removal in this procedure, the adhesive backing becomes completely visible; prevent any contact with this exposed adhesive.
• Employ the designated "blue tabs" to detach the liners from the lower, left, and upper borders of the iPhone device.Defer liner removal from the right-hand side of the device until a later stage.Adhesive exposure occurs when the liners are detached; safeguarding this adhesive from unintended contact is essential.

• To prevent adhesive contact with the rear glass surface, position the glass over the device, enabling access to the remaining liner situated on the right-hand side.
• Employ tweezers or manual manipulation to extract the final liner located along the right edge of the device.

• Position the replacement back glass directly over the device's frame, ensuring precise alignment.
• Carefully lower the glass onto the frame, applying even pressure until the retaining clips securely latch.
• Apply consistent pressure around the entire circumference of the back glass to guarantee all clips are fully engaged.

• For improved adhesion, warm the borders of the rear glass with a specialized iOpener, a hairdryer, or a heat gun, ensuring they reach a temperature that is comfortably warm to the hand.
• Exert consistent, substantial pressure along the entire outer edge of the rear glass assembly.
• Employ screen vise clamps to reinforce the new adhesive's bond, should they be available; otherwise, proceed to the following instructions for alternative securing methods.

1. Ensuring uniform pressure during iPhone compression and a secure back glass adhesion requires consideration of the camera module's protrusion.
   Locate the original iPhone packaging and utilize the lid as a stable working platform, should it be available.
   If the original packaging is unavailable, proceed to an alternative compression technique, bypassing this initial step.
   Position the iPhone, with the display facing upwards, within the box lid, aligning the camera bump with the designated indentation.
   Acquire an object with a height exceeding the box's sides, but approximating the iPhone's width, and position it atop the device, followed by several substantial weights.
   Maintain the applied pressure for a minimum of thirty minutes; extend this duration proportionally to the weight's lightness, with overnight compression being optimal.

Lacking the iPhone's initial packaging, proceed with the subsequent three procedures to achieve uniform compression of the rear glass panel.

• Position the iPhone with its display facing downwards upon a cushioned, level plane.
• Secure the rear glass surface with adhesive tape to safeguard its cosmetic appearance.

1. To ensure consistent tape adhesion along the rear glass perimeter, position two coin stacks, or equivalent-thickness substitutes, directly on the tape's surface.
   • Maintain a uniform spacing between the coins, verifying their thickness is equivalent to or greater than the camera module's projection.

To apply pressure for bending, place several books or similarly weighty items directly atop your iPhone.

• Avoid utilizing precious or delicate materials as the base surface, as coins can potentially create indentations.
• Maintain the applied pressure for a minimum of thirty minutes; extend this duration proportionally to the objects' reduced weight, with an overnight period being optimal.

Employ a P2 pentalobe driver for the installation process.The two screws, each measuring 7.7 millimeters in length, require this specialized tool.Securely fasten the screws to the device's chassis, positioning them on both sides of the charging port.A P2 pentalobe driver is essential for manipulating the screws during installation.Properly aligning the screws ensures a secure connection beside the charging port, utilizing the 7.7 mm screws.
