iPhone 16 Front Camera Assembly Replacement

• To maximize battery health, permit the battery's charge level to descend to a minimum of 25%.A lithium-ion battery that is fully charged presents a possible safety risk.
• Disconnect all connecting wires and cords from the device.
• Simultaneously depress the power button and one of the volume buttons, then use the sliding mechanism to shut down the phone.

• To prevent injury and simplify the subsequent separation of components, apply several layers of adhesive packing tape across the fractured screen or rear glass surface.
• Ensure a sufficiently sized, uninterrupted section exists close to the lower perimeter, allowing for secure adhesion of a suction cup.

Employ a P2 pentalobe driver to detach the two screws, each measuring 7.7 millimeters in length, situated on both sides of the charging port.The two screws securing the device near the charging port require removal using a specialized P2 pentalobe driver.To access the charging port area, utilize a P2 pentalobe driver and carefully unscrew the two fasteners, each with a length of 7.7 mm, located laterally.

• A critical caution exists: improper insertion depth of a spudger tool may result in device damage.To prevent over-insertion, accurately determine a 3-millimeter distance from the spudger's tip and clearly indicate this point using a permanent marker.
• For enhanced precision, consider marking the spudger's other corners with distinct measurement values.
• As an alternative method for establishing the correct insertion depth, securely affix a coin to the spudger, positioning it 3 millimeters from the tip.
• Exercise care to avoid device harm by ensuring the spudger does not penetrate beyond the marked depth.

• Employ a hair dryer or heat gun to warm the lower perimeter of the rear glass panel until it reaches a touch-sensitive temperature.Alternatively, an iOpener can be utilized for this heating process, ensuring adherence to the subsequent procedural guidelines.The rear glass's lower edge should be heated until it registers as hot when touched.Proper application and heating techniques are essential when using an iOpener.To achieve the necessary temperature, direct the heat source towards the bottom edge of the back glass.
• The iOpener's intended function is to facilitate separation by applying controlled heat.Carefully observe the provided instructions to guarantee effective heating and iOpener placement.Maintaining consistent heat distribution across the lower edge is crucial for successful separation.

• Securely attach a suction cup to the lower border of the rear glass assembly.
• Maintaining structural integrity of the device's frame with manual support, exert a consistent and considerable upward pull on the suction cup to establish separation between the rear glass and the frame.
• Carefully introduce the pointed end of a prying tool into the newly formed space.

• During the process of separating the rear glass with a separation tool, maintain a maximum insertion depth of 3 mm.Insertion beyond this depth carries a risk of damaging sensitive internal components.A flexible connector, situated adjacent to the volume down button, links the back glass assembly to the device's main board; exercise caution to prevent severance.
• Several resilient electrical contacts are positioned along the device's outer edge, and must be avoided during separation.
• Careful tool manipulation is essential to prevent damage to the flexible cable and spring contacts while releasing the adhesive.

Apply warmth to the right-hand perimeter of the rear glass panel utilizing a hair dryer or heat gun.The purpose of applying heat is to soften the adhesive securing the back glass.Ensure the glass surface reaches a temperature that is perceptible upon contact.Avoid overheating, as this could potentially damage the device's internal components.The recommended temperature is sufficient to soften the adhesive without causing visible deformation of the glass.

• Ensure the tool's insertion depth remains under 3 millimeters to prevent potential harm to the spring contact points.Employ a prying tool to maneuver along the lower-right edge, extending towards the volume down button, to sever the adhesive bond and disengage the metal clip.Refrain from advancing the tool beyond the volume buttons, as doing so risks damaging the wireless charging cable.
• An audible and tactile indication of the metal clip's release will occur as the tool passes that location.
• Maintain the pick's position within the gap to inhibit the adhesive from re-adhering.
• The spring contacts are susceptible to damage if the tool penetrates beyond the specified 3 mm limit.
• Carefully separate the adhesive by sliding the tool from the lower-right corner, progressing toward the volume down button, which will free the metal clip.

To soften the adhesive securing the rear glass, apply warmth to the left-hand perimeter using a hair dryer or heat gun, continuing until the surface reaches a temperature that is noticeable upon contact.

• To prevent harm to the spring contacts, ensure the pick's insertion depth remains no greater than 3 mm.Employ a second opening pick positioned at the lower boundary.Moving the second pick along the lower-left corner and the screen's left border will detach the adhesive and disengage the metal clips.
• The audible and tactile indication of metal clip release will occur during this sliding motion.
• Maintain the initial pick's position at the upper-left corner to inhibit adhesive re-bonding.
• Careful manipulation is essential to avoid contact damage to the spring contacts, limiting pick insertion to a maximum of 3 millimeters.
• Separation of the adhesive and release of the metal clips is achieved by sliding a second pick along the bottom edge and left side of the display.

To soften the adhesive securing the rear glass, apply heat to its upper perimeter using a hair dryer or heat gun, continuing until the surface becomes warm enough to be comfortably touched.

• Ensure your tool's insertion depth remains below a 3-millimeter threshold to prevent potential harm to the spring contact points.Employ a second opening tool to maneuver along the upper-left corner and the top perimeter, facilitating adhesive separation and metal clip disengagement; audible and tactile cues will indicate clip release.Proceed with tool manipulation around the upper-right corner, extending the movement until the Action button is encountered.
• Maintain the position of this tool within the assembly to inhibit adhesive re-bonding.
• Exceeding a depth of 3 mm carries the risk of compromising the integrity of the spring contacts.
• The detachment of metal clips will be accompanied by both a distinct sound and a noticeable shift in resistance as the tool advances.

• The rear panel's detachment from the chassis ought to be complete at this stage; should resistance be encountered, re-examine the edges using a prying tool to identify and release any overlooked adhesive or retaining clips.
• Initiate a hinged opening of the rear glass towards the device's right side to sever the remaining adhesive bond.
• Maintain stability of the rear glass using a rigid, uncontaminated support.
• Prior to proceeding with subsequent steps, extract the opening tools.

Employ a specialized tri-point Y000 driver for disassembly.The two screws, each measuring 1 millimeter in length, require a tri-point Y000 driver for removal.To detach the middle connector cover, the screws must be unscrewed using a tri-point Y000 driver.A tri-point Y000 driver is essential for accessing the components beneath the middle connector cover.The middle connector cover is fastened with two screws, each 1 mm long, necessitating a tri-point Y000 driver for their removal.

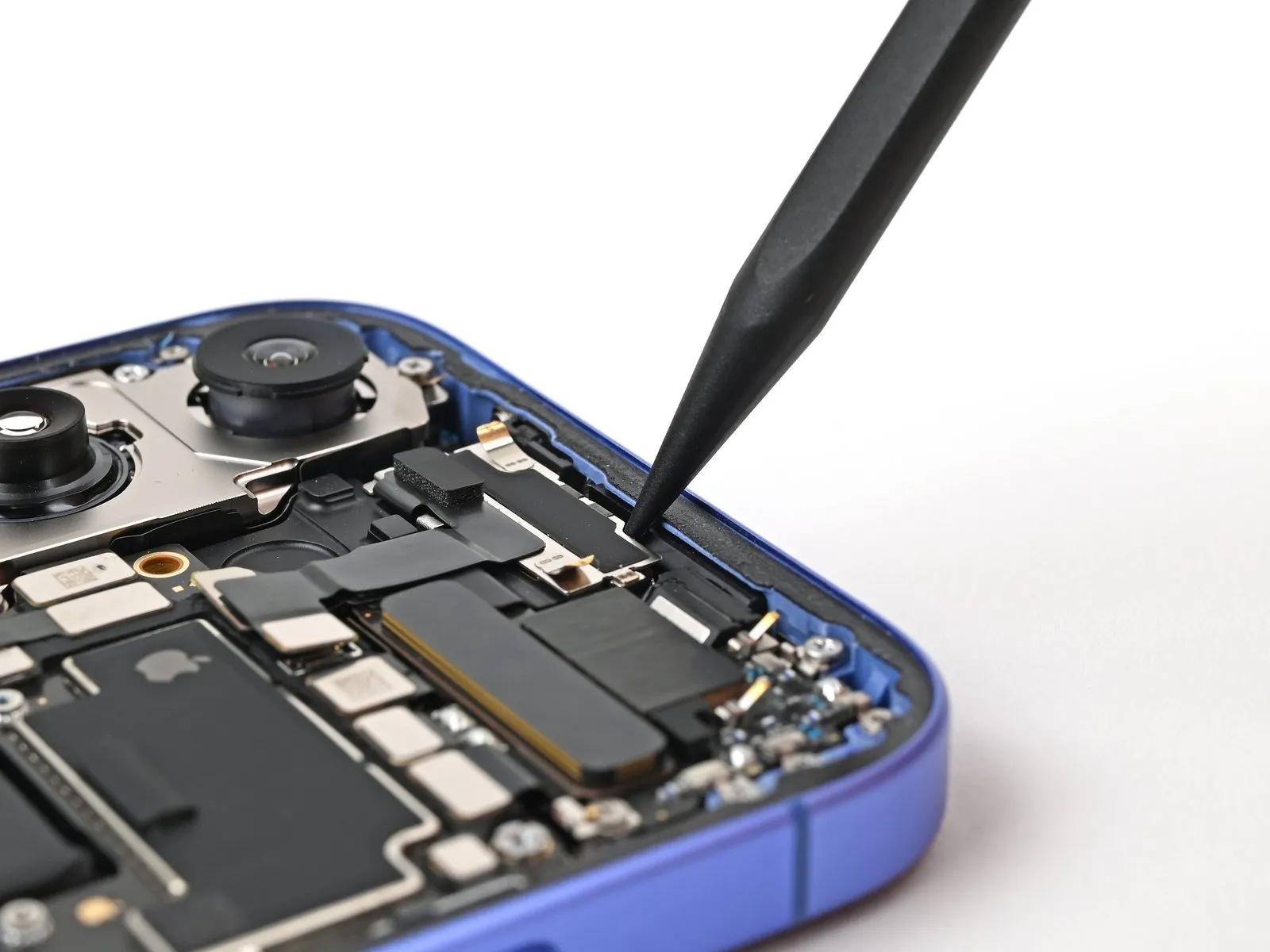

• Employing a spudger, carefully introduce its tip into one of the recesses located on the central connector cover.By moving the cover leftward along the device's side, disengage the retaining clip that secures it to the logic board.The cover's attachment is released through this sliding motion.
• The logic board's securing feature is now free from the cover's constraint.
• The previously secured cover can now be detached from the phone.

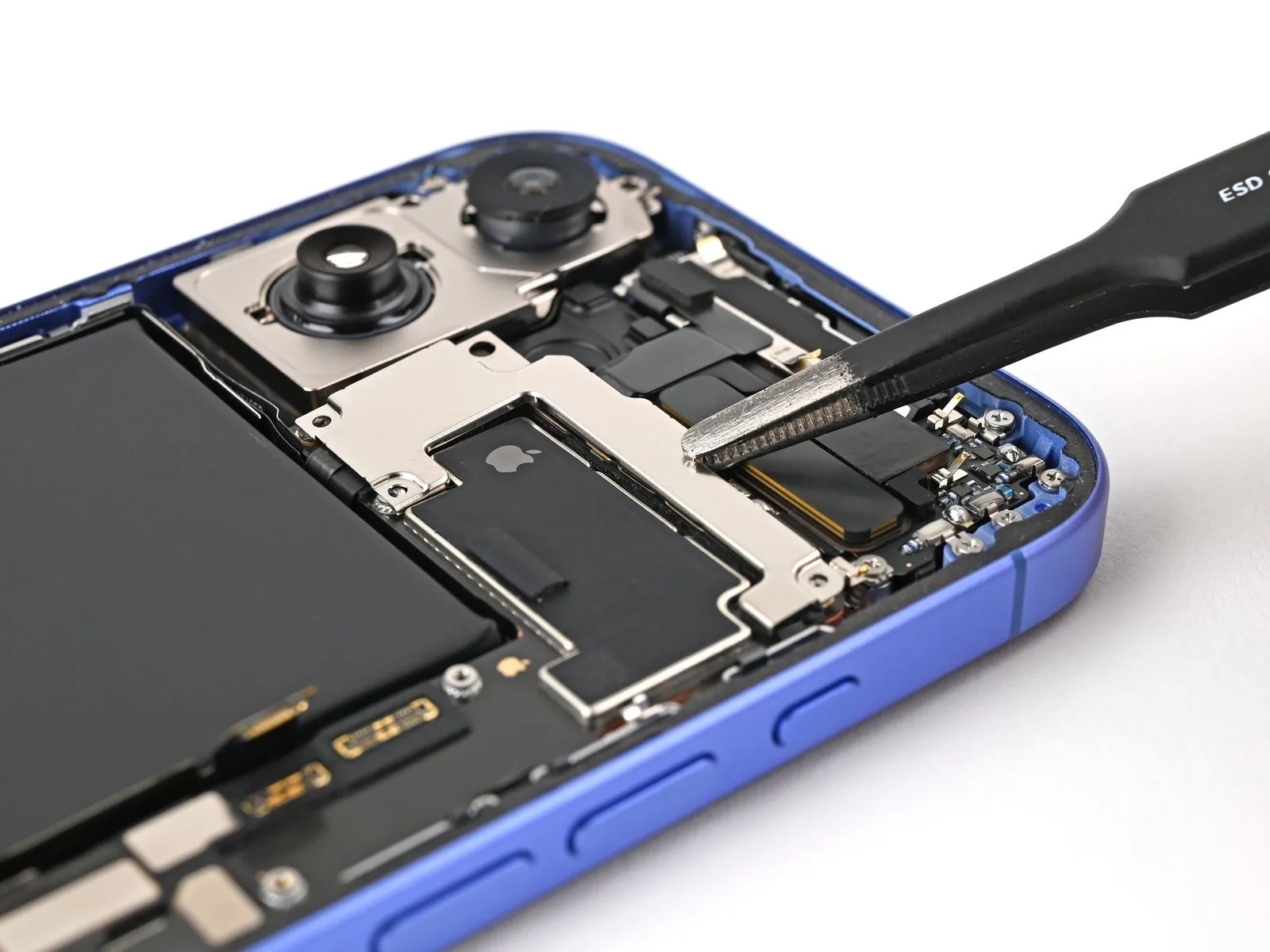

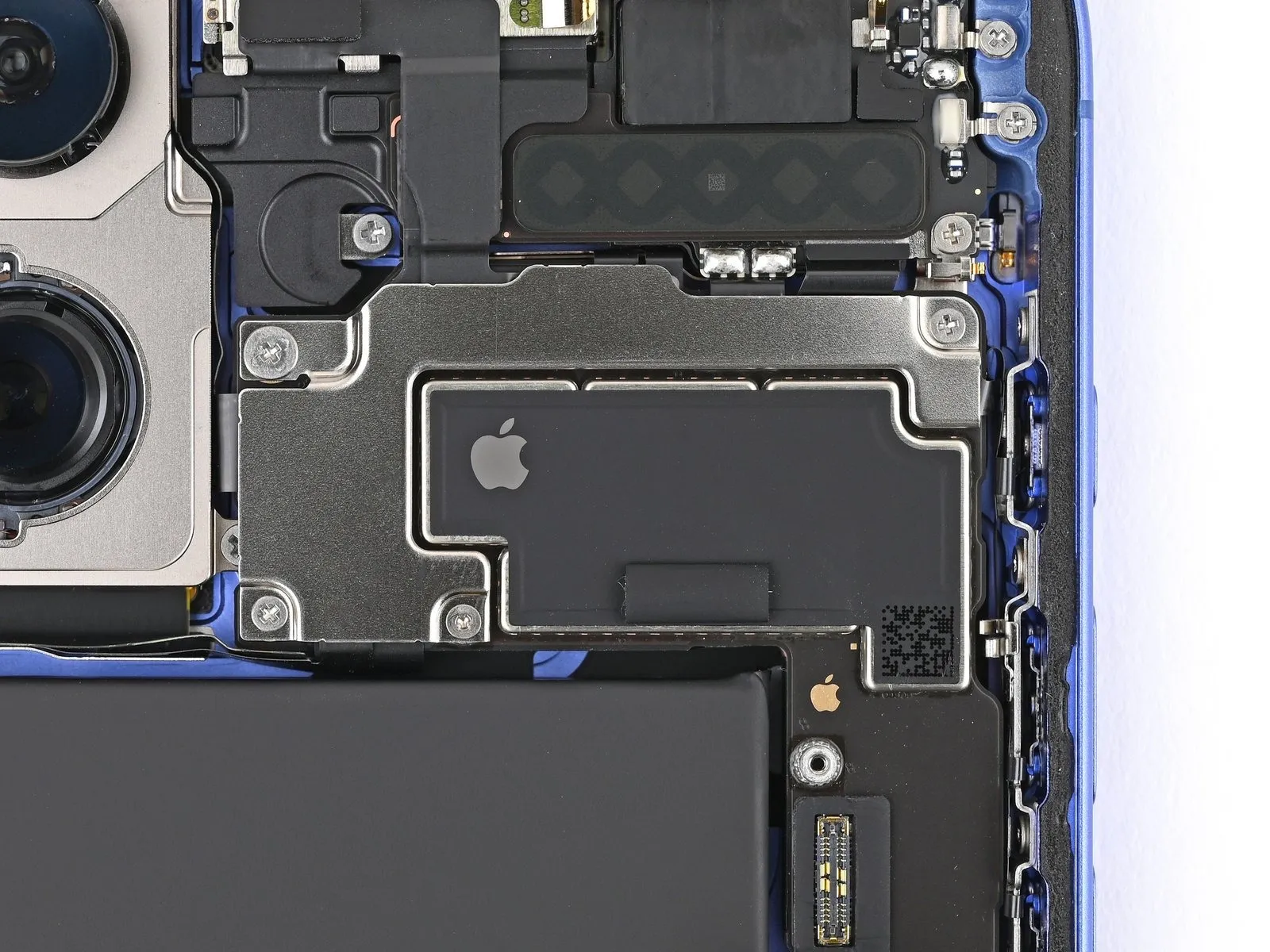

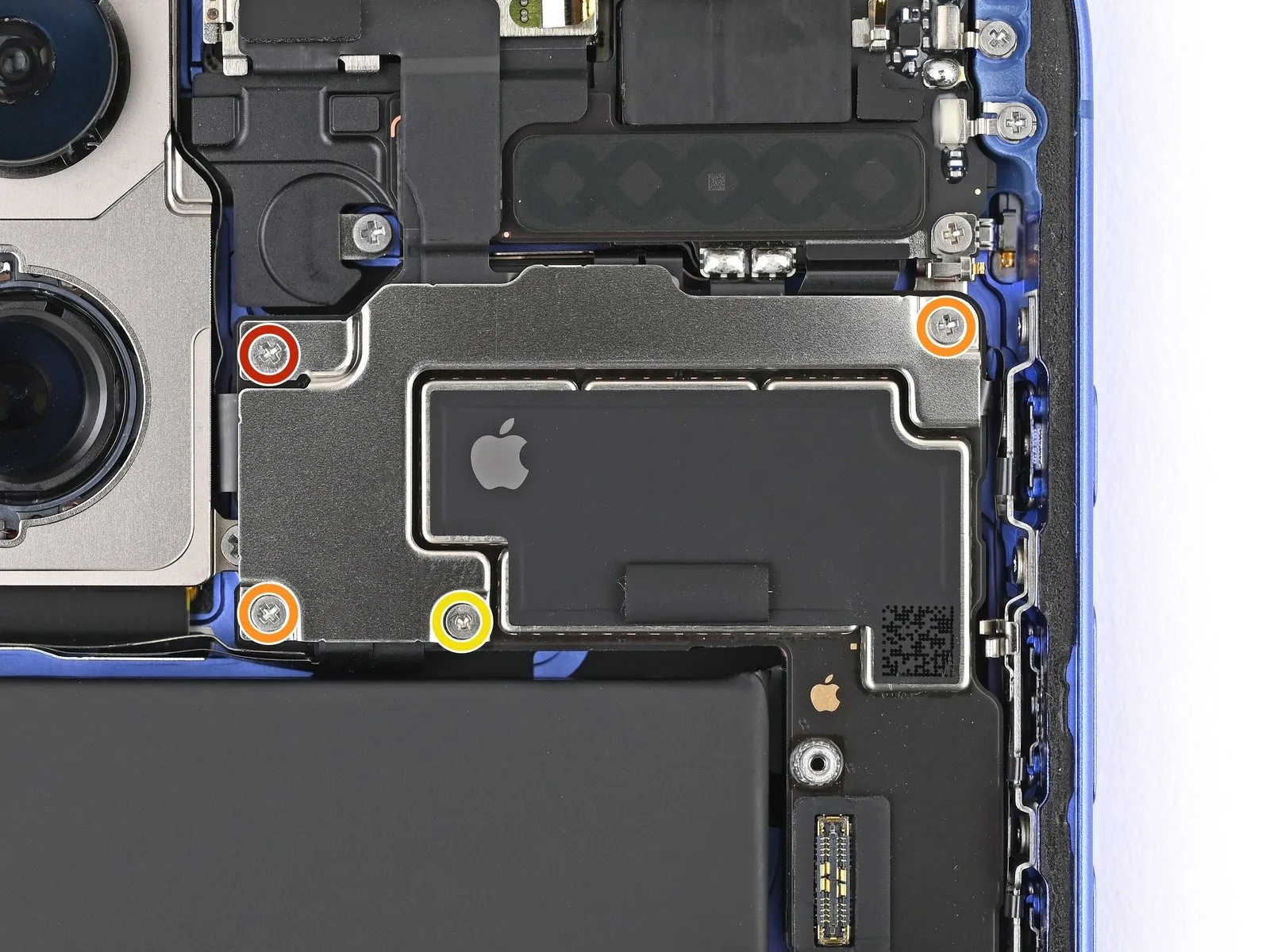

• Employ a screwdriver to detach the four screws that fasten the upper mounting bracket in place.
• A Phillips head screwdriver is required to remove a screw measuring 3.5 millimeters in length.
• Two Phillips head screws, each with a length of 1.4 millimeters, must also be removed.
• A tri-point Y000 screwdriver is necessary to unscrew a fastener that is 1.0 millimeters long.

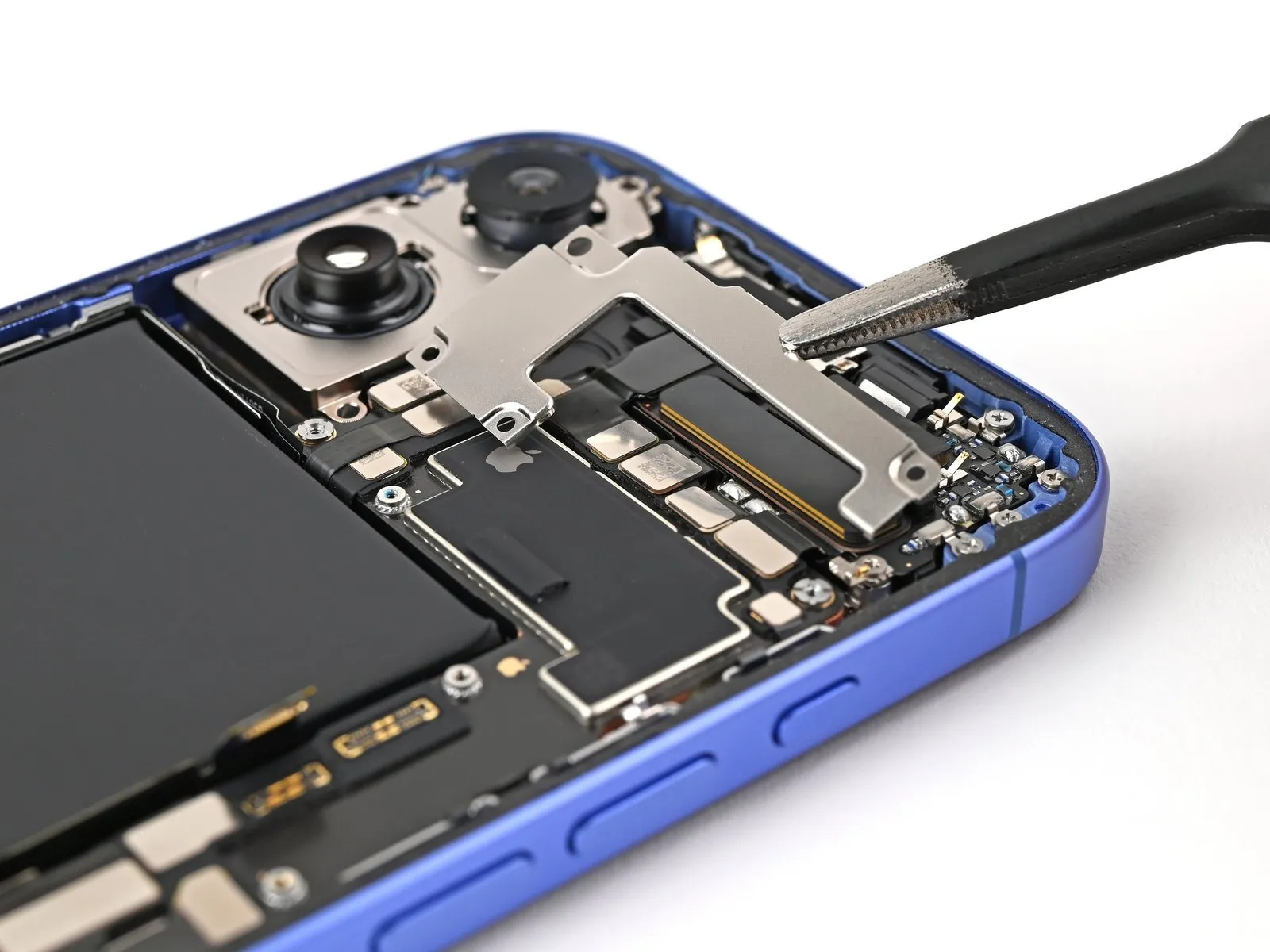

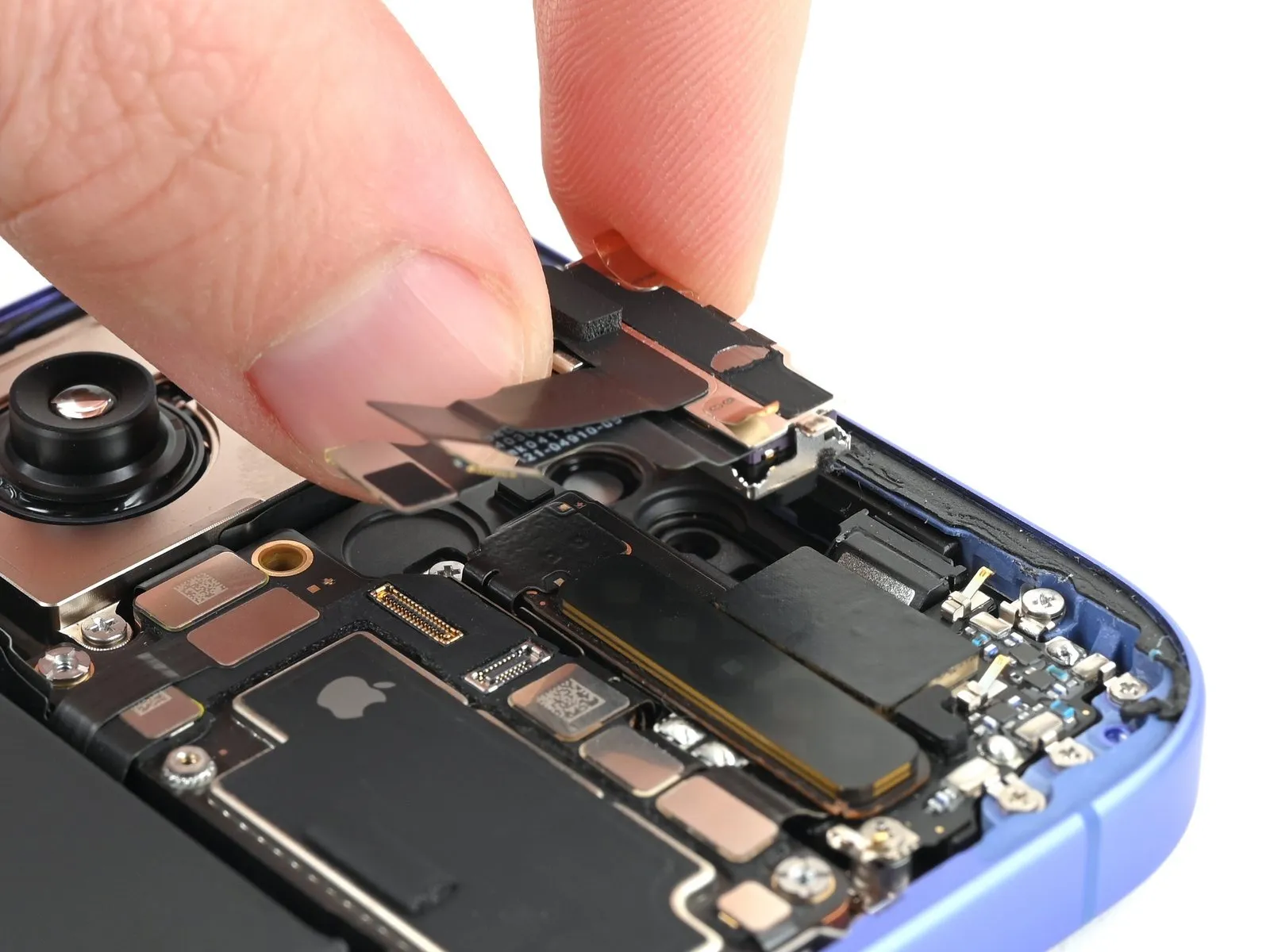

• Employing tweezers or direct finger manipulation, detach the upper bracket assembly.The top bracket can be dislodged using tweezers or by hand.Carefully extract the upper bracket, utilizing tweezers or your fingertips for precise handling.

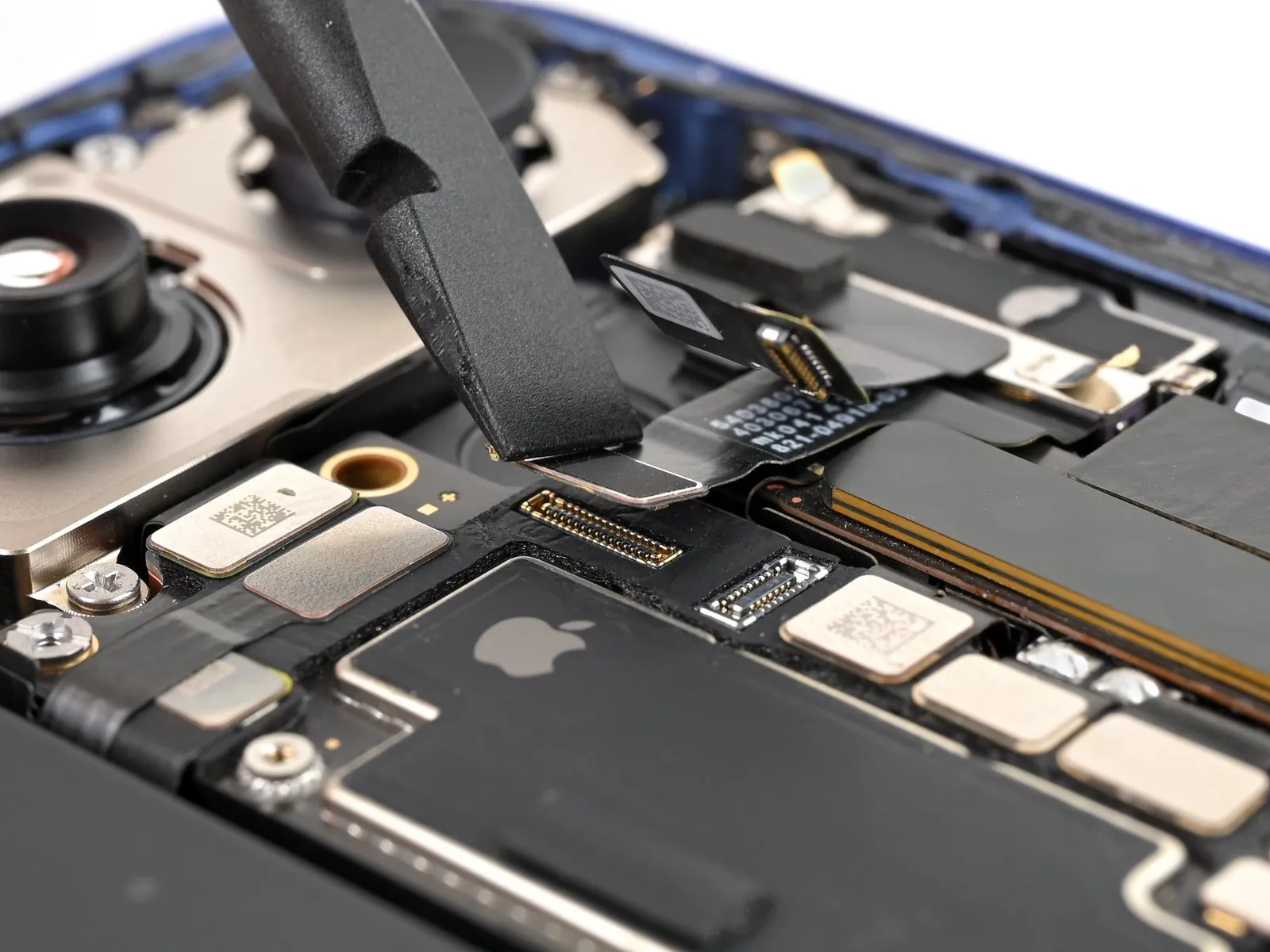

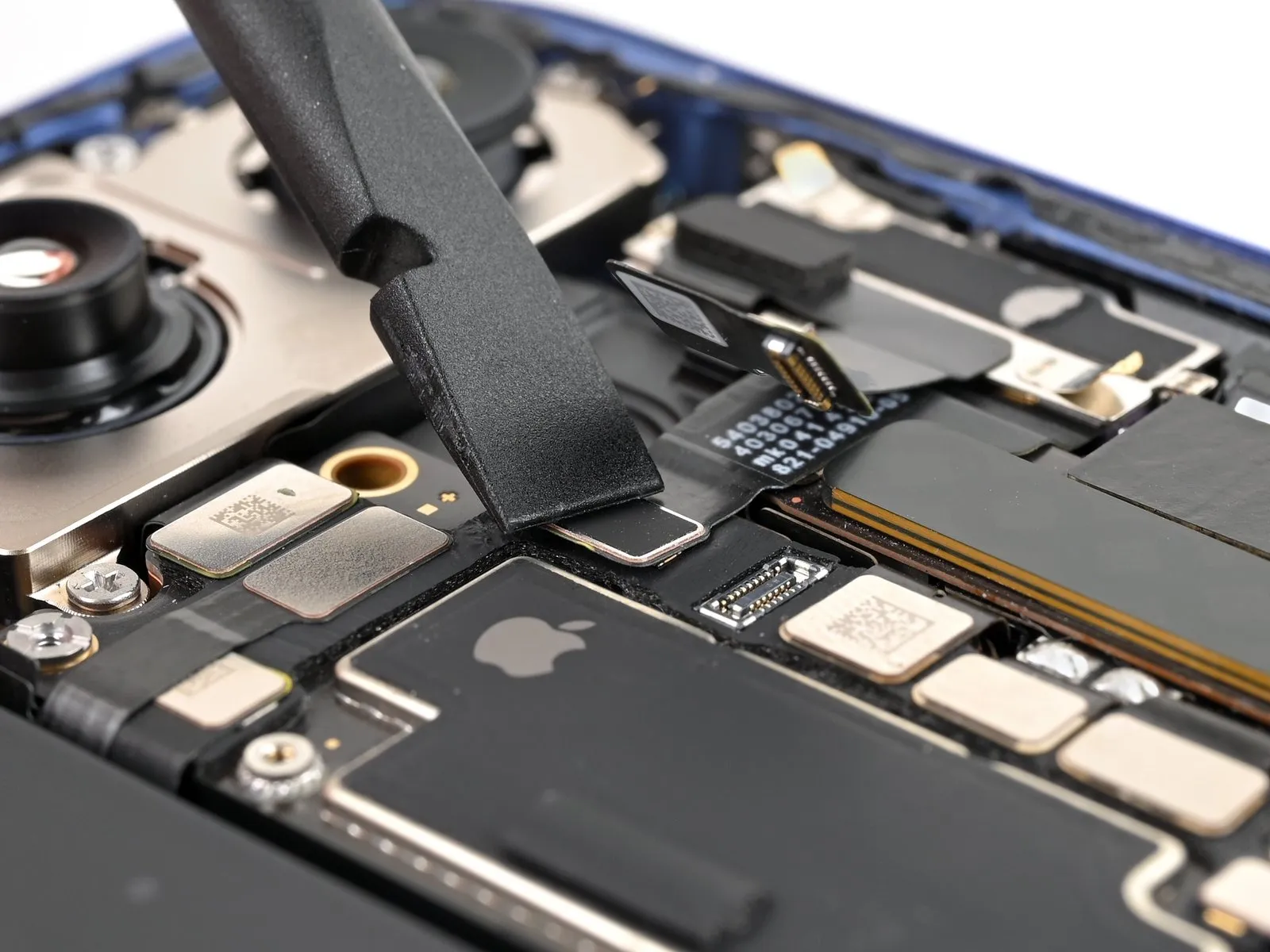

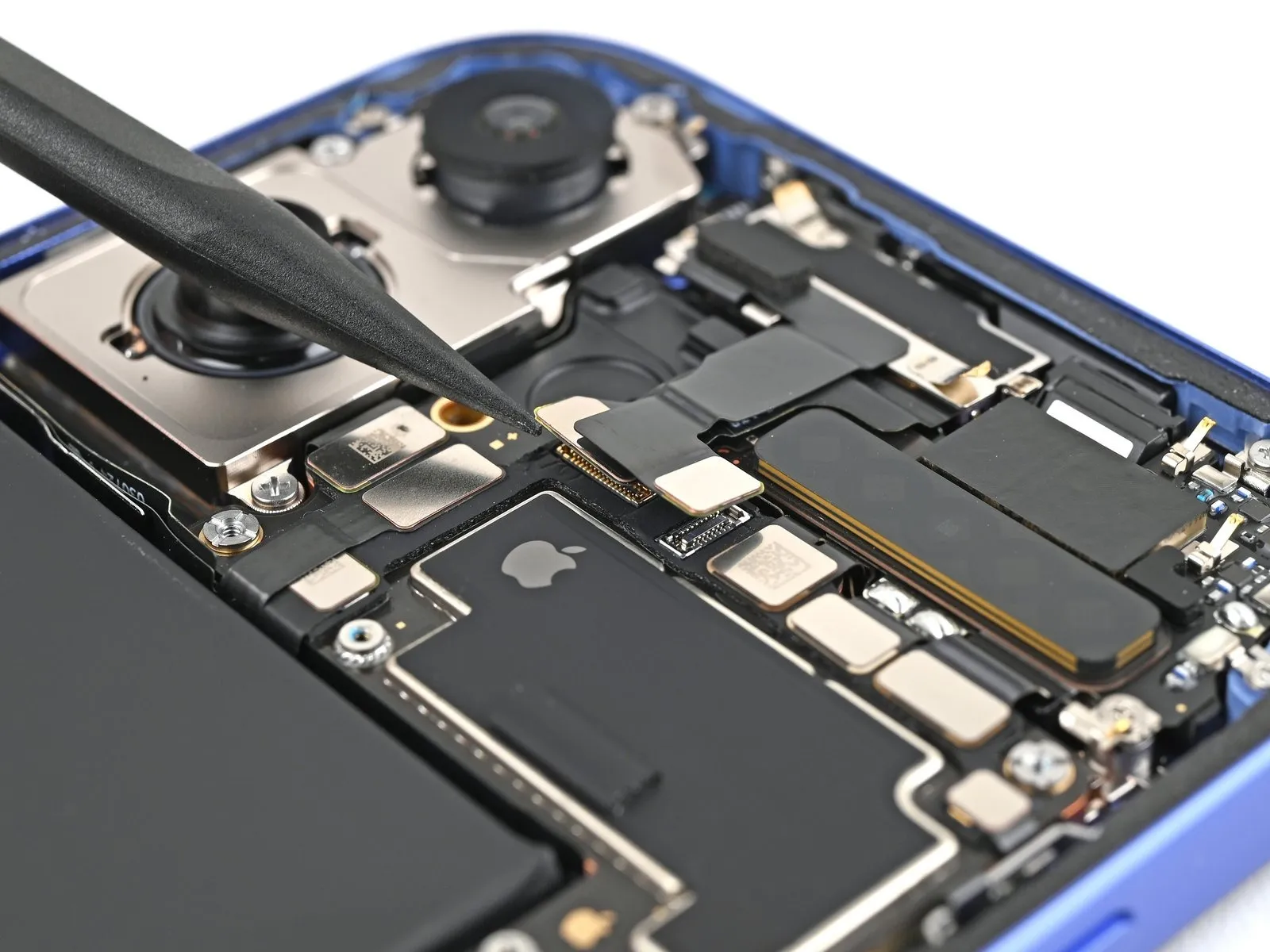

• Employing the tip of a spudger, carefully lift and detach the pair of front camera press connectors, noting that the second connector is located beneath the initial one.

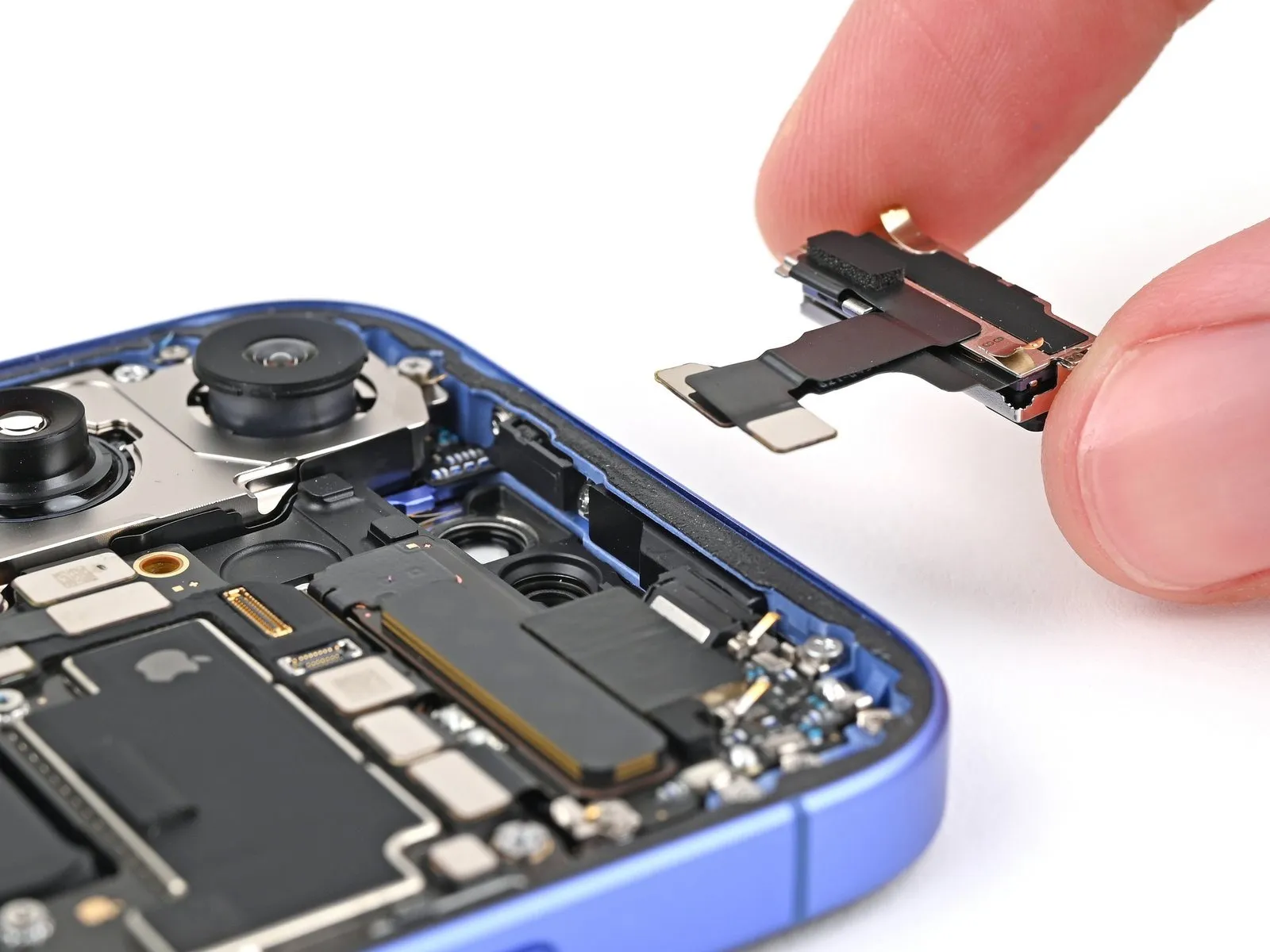

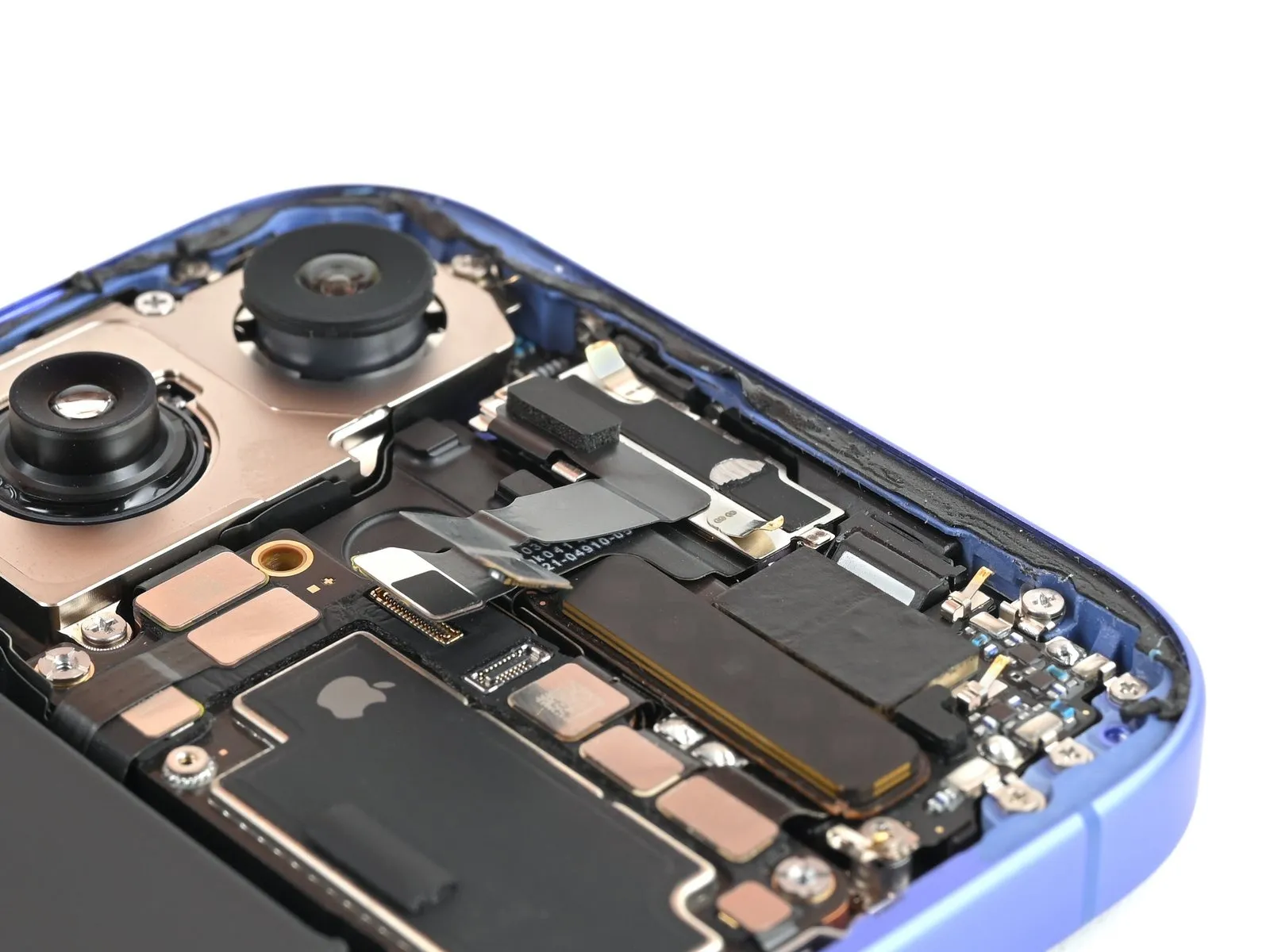

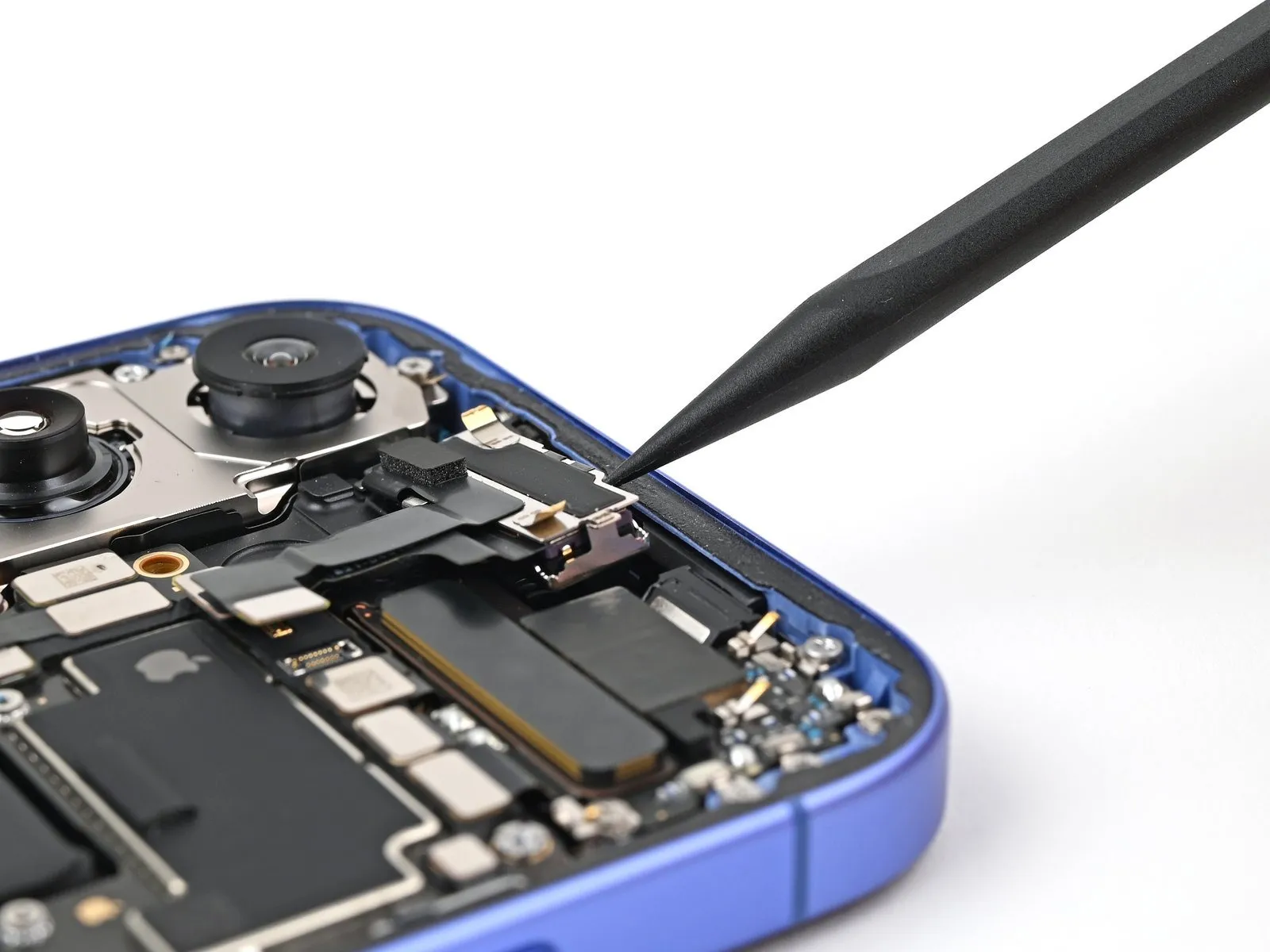

• Using a spudger, gently pry the front camera assembly away from the device's top edge by inserting the tool's tip between the camera and the frame, then carefully disengage and remove the camera.

Having finished the disassembly process, the subsequent instructions detail the reassembly procedure. To ensure proper connection when reattaching connectors, meticulously position the connector above its corresponding socket, then apply downward pressure initially on one side using a fingertip or spudger, followed by the opposite side, until an audible click confirms secure engagement. Avoid applying excessive force during connector insertion; should difficulties arise, readjust the connector's position and attempt reconnection.

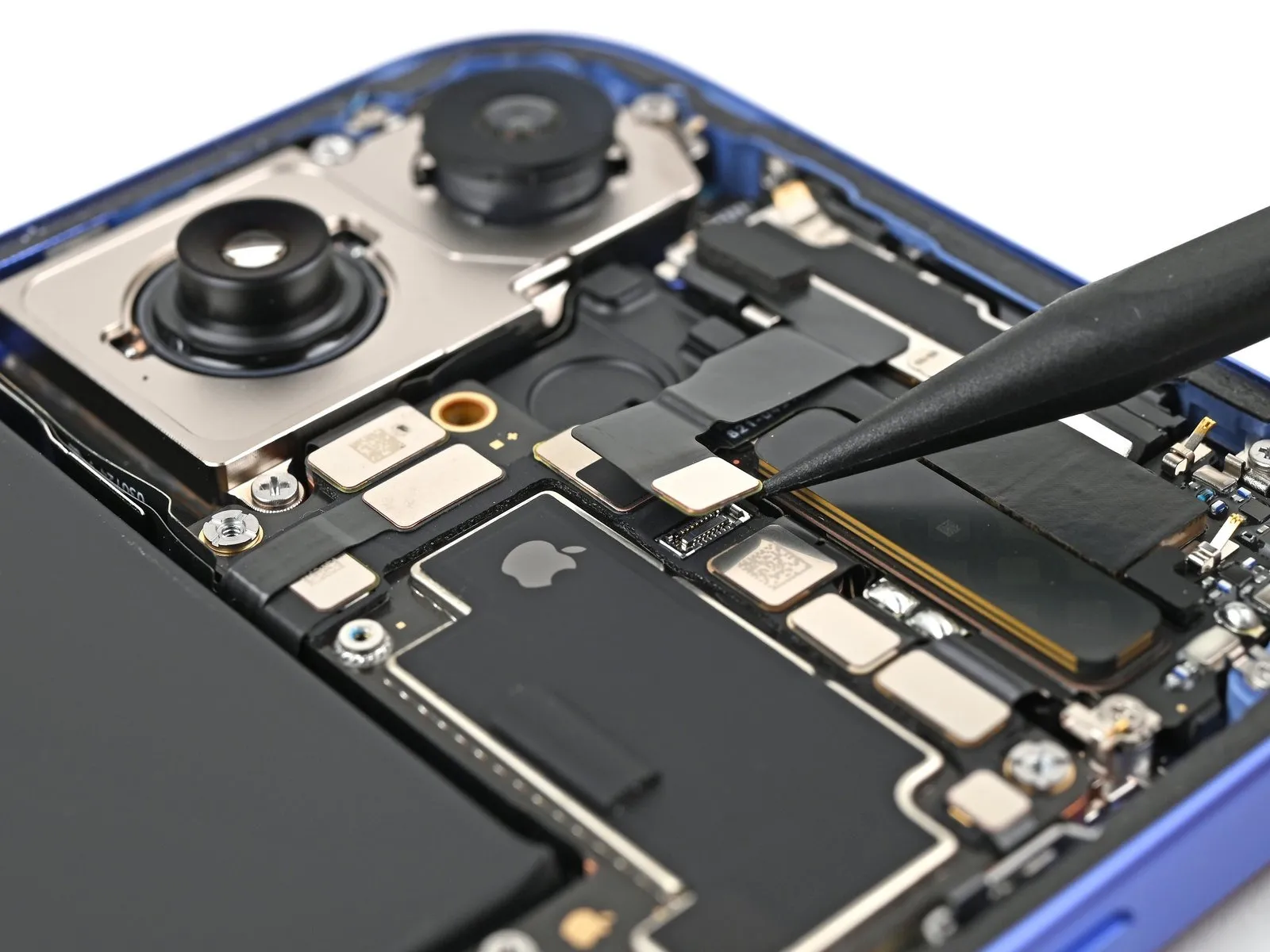

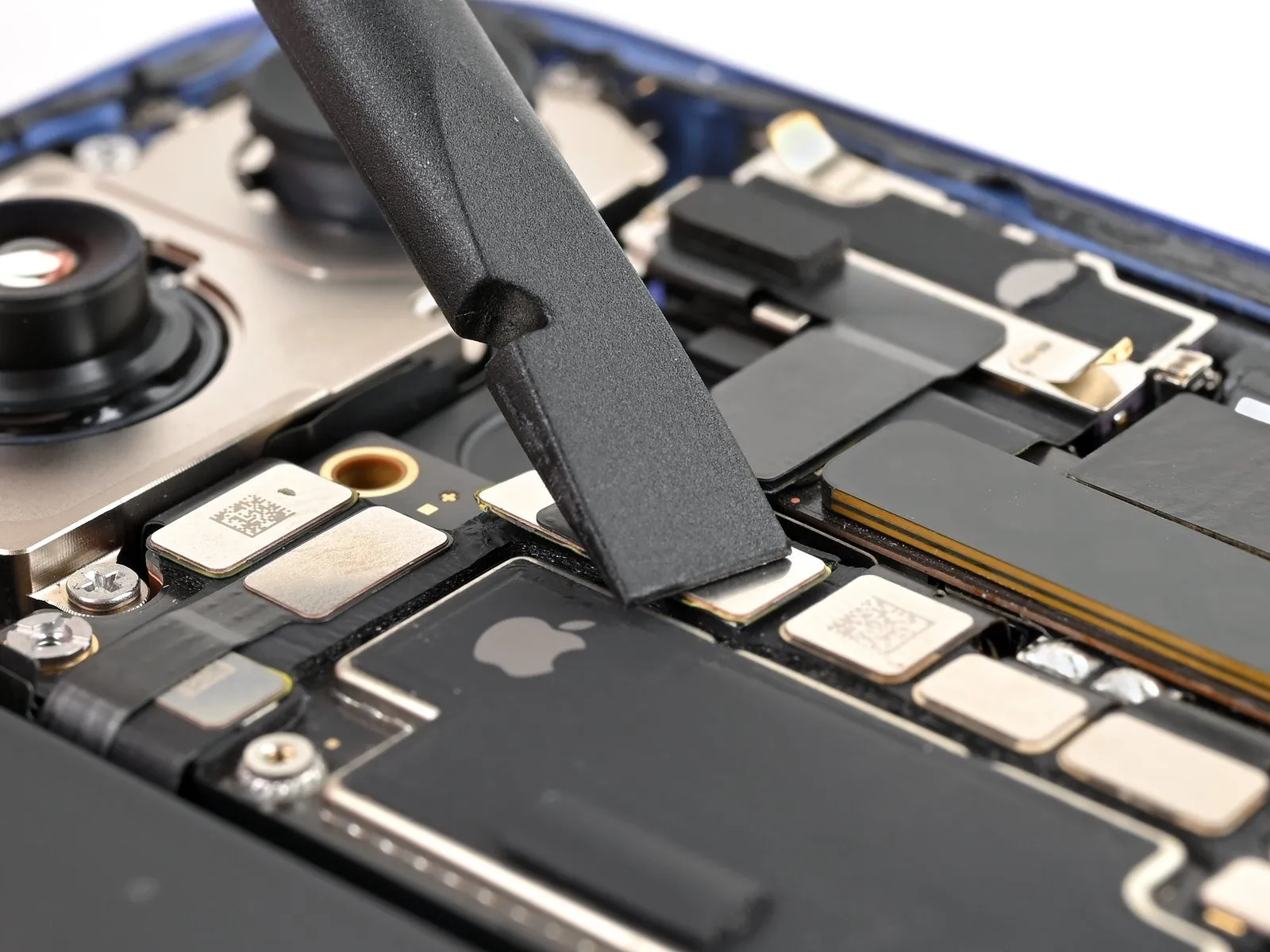

• Employ the planar edge of a spudger, or your fingertip, to establish contact with the lower press connector of the front-facing camera assembly.Subsequently, make a connection at the upper press connector of the same front camera module.This process ensures proper electrical engagement for both connectors.
• Care must be taken to avoid damage to the delicate press connectors during this connection procedure.

• Reattach the upper mounting bracket by utilizing tweezers or manual dexterity.

• Employ a screwdriver to fasten the four screws that hold the top bracket in place.A Phillips screw, measuring 3.5 millimeters in length, is required for one of the fasteners.Two Phillips screws, each with a length of 1.4 millimeters, are also necessary.
• A single tri-point Y000 screw, measuring 1.0 millimeters in length, completes the set of fasteners.
• Ensure proper alignment before tightening each screw to prevent damage to surrounding components.
• The screws secure the top bracket, providing structural stability to the assembly.

• Exercise caution to prevent harm to the spring contacts during the cleaning process of the frame.
• Prior to final phone closure, a functional verification is recommended; reconnect the battery and rear glass, activate the device, confirm proper operation, then deactivate, disconnect the battery and rear glass, and proceed with reassembly.
• Adhesive residue on the phone's surfaces proves challenging to eliminate and can leave behind traces; if removal proves problematic, utilize a hair dryer or heat gun to apply warmth.
• Employ the tapered tip of a spudger to apply pressure and manipulate the adhesive, facilitating a grip with tweezers.A spudger's pointed end is the appropriate tool for pressing and rolling the adhesive layer.Tweezers can then be used to grasp the adhesive after it has been manipulated with the spudger.

• Employ the tweezers to detach the adhesive residue from the device's surface.
• Continue the process of adhesive removal by reiterating the preceding action and the current instruction until complete separation is achieved.

Remaining adhesive traces can negatively impact the iPhone's environmental protection.
Cover the tip of a spudger with a microfiber cloth or a similar lint-free material.Apply a small quantity of isopropyl alcohol with a concentration exceeding 90% onto the cloth.Employ a single, consistent wiping motion around the frame's edge to eliminate adhesive remnants.
Allow several minutes to pass, ensuring complete evaporation of any surplus alcohol.
Failure to eliminate all residue will jeopardize the iPhone’s protective seal.

• For installations not involving the re-use of the existing rear panel, this procedure can be omitted.
• To facilitate proper adhesion, use a microfiber or lint-free cloth dampened with a small quantity of isopropyl alcohol possessing a concentration exceeding 90%, and clean the area surrounding the rear glass's edges.
  Should any retaining clips on the back glass be deformed, carefully restore their shape by manually manipulating them.

• Position the new adhesive onto the device's frame, ensuring the broader blue liner faces inward and the release tab is situated in the lower-right area.
• Variations in liner color and pull tab placement are possible depending on the specific adhesive model.
• Align the adhesive precisely by utilizing reference points like the camera opening and edge indentations to confirm proper orientation.

• Initiate the separation of the adhesive backing's protective liner by grasping the designated pull tab and gently lifting from the lower edge, stopping before complete removal.

• After applying pressure to secure the adhesive, any adjustments are impossible; complete removal and replacement with fresh adhesive will be necessary.
• To prevent interference, maintain the blue liner's position away from the work area while carefully positioning the adhesive strip along the iPhone's lower boundary.
• Ensure proper placement by guiding the adhesive's lower edge into the designated channel within the frame, simultaneously verifying that the iPhone's spring contacts correspond with the liner's openings.

• As you detach the protective backing from the adhesive strip, maintain firm pressure to ensure it adheres securely to the iPhone's perimeter.
• Proper alignment of the lower edge of the adhesive will naturally position the side and top edges correctly; otherwise, discard the adhesive and reapply a fresh strip.
• Should misalignment occur and a replacement adhesive set is unavailable, the iPhone can be reassembled and used temporarily without adhesive; however, be aware that water resistance will be significantly reduced until new adhesive is applied.

• Employ the planar edge of a spudger to secure the adhesive bond along the frame's outer boundary.The spudger's flat end facilitates even pressure distribution during adhesive application.Ensure the adhesive is fully seated around the frame's edges using the spudger.Exercise caution to prevent contact with the spring terminals exposed through the pink liner material.Physical contact with the spring contacts can cause malfunction and should be avoided.
• Proper adhesive placement, achieved with the spudger, is essential for maintaining device integrity.

• To detach the pink adhesive liner, grasp the diminutive pull tab situated in the upper-right region.The liner is secured with adhesive, requiring a deliberate action to separate it.Carefully extract the liner using the provided pull tab to avoid damage.

• After the uppermost protective film is peeled away, observe three slender liners situated atop the adhesive layer, each featuring a pull tab located close to the lower boundary.
• The placement of these pull tabs can vary.
• Should these pull tabs be absent, it is possible that the delicate liners were unintentionally removed during the prior procedure; if the adhesive surface appears clean and correctly positioned, proceed with caution, avoiding any contact with the exposed adhesive until the back glass installation is prepared.

• To prevent screen damage, secure the rear glass on the right side with a rigid support, such as a box.The purpose of this support is to maintain stability during subsequent repair steps.Employ the broad, planar tip of a spudger, or a fingertip, to establish a connection with the charging coil press connector.
• This action is necessary to disengage the connector from its socket.Ensure a firm and deliberate contact to avoid accidental damage to the delicate components.Carefully observe the connector's orientation during this manipulation.

• Employ the planar edge of a spudger tool, or a fingertip, to establish a connection with the battery.A spudger's flat end, or a similar blunt instrument like a finger, is necessary for making contact with the battery.To interface with the battery, utilize the flat portion of a spudger or apply pressure with a finger.

The connector cover incorporates two hooks designed to engage with corresponding slots situated on the logic board; position the cover atop the device, ensuring the hooks are marginally offset to the left of the slots within the logic board. Subsequently, apply downward and rightward pressure with a fingertip to the connector cover, facilitating the complete insertion of both hooks into their designated slots.

• Employ a specialized tri-point Y000 driver for the installation process of the screws.The two screws, each measuring 1 millimeter in length, fasten the middle connector cover in place.Securely affix the cover utilizing the aforementioned driver to avoid damage.

Removing the liners at this stage will completely reveal the adhesive.To prevent contamination, avoid any contact with the now-visible adhesive.Employ the designated "blue tabs" to detach the liners from the iPhone's lower, left, and upper borders, postponing liner removal from the right side.

• Position the replacement back glass over the device's rear surface, ensuring precise alignment with the surrounding frame structure.
• Carefully lower the glass onto the frame, maintaining a flat orientation, and apply pressure until the securing clips audibly click into place.
• Distribute even pressure around the entire edge of the back glass to guarantee that all retaining clips are fully engaged.

• For optimal adhesion, warm the perimeter edges of the rear glass with a specialized iOpener tool, a hairdryer, or a heat gun, ensuring they reach a warm surface temperature.
• Apply consistent, substantial pressure around the entire circumference of the rear glass assembly.
• Employ screen vise clamps to enhance the new adhesive's bonding strength, or proceed to the following instructions for alternative back glass securing methods if clamps are unavailable.

• Consistent pressure across the iPhone's surface is essential for proper back glass adhesion and frame reinforcement, necessitating consideration of the camera module's protrusion.
• Locate the original iPhone packaging and utilize the lid as a stable work platform, should it be available.
• If the original packaging is unavailable, proceed to an alternative compression technique.
• Position the iPhone, with the display facing upwards, within the box lid, ensuring the camera bump aligns with the designated indentation.
• Acquire an object with a height exceeding the box's sidewalls but approximating the iPhone's width, then position it atop the iPhone, followed by several substantial weights.
• Maintain the applied pressure for a minimum of thirty minutes; reduce this duration proportionally to the weight of the applied objects, with overnight compression being optimal.

• Position the iPhone with its display facing downwards upon a cushioned, level surface to ensure stability.
• Secure the rear glass with adhesive tape to safeguard its surface coating from potential damage.
• This protective measure prevents scratches or blemishes during the compression process.

• Ensure uniform spacing of these coins, verifying their thickness is equivalent to or exceeding the height of the camera module's protrusion.
• The purpose of this arrangement is to maintain consistent pressure and separation during the adhesive curing process.

1. To apply downward pressure for bending, position several books or similarly weighty items atop the iPhone's casing.
   Because coins can create marks, avoid placing them on surfaces that are precious or easily damaged.
   Maintain the applied pressure for a minimum of thirty minutes; for less substantial weights, extend this duration, with overnight retention being the optimal timeframe.

• Employ a P2 pentalobe screwdriver to fasten the two screws, each measuring 7.7 mm in length, situated on both sides of the charging port.The screws securing the charging port are located laterally and require a P2 pentalobe driver for installation.To affix the screws flanking the charging port, a P2 pentalobe driver is necessary, ensuring each screw is 7.7 mm long.
