iPhone 16 Microphone Replacement

• To mitigate potential safety risks associated with charged lithium-ion batteries, permit the phone's battery level to decrease to less than 25% charge.
• Disconnect all connected cables from the device before proceeding.
• Deactivate the phone by simultaneously pressing the power button and one of the volume buttons, then sliding to initiate the power-off sequence.

• To prevent injury and simplify the subsequent separation of components, apply multiple layers of adhesive packing tape across the fractured screen or rear glass surface.
• Confirm the presence of a sufficiently sized, uninterrupted section close to the device’s lower border, suitable for secure adhesion of a suction cup.

Employ a P2 pentalobe driver to detach the two screws, each measuring 7.7 mm in length, located on both sides of the charging port.The two screws securing the device near the charging port necessitate the use of a P2 pentalobe driver for their removal.To access the charging port area, utilize a P2 pentalobe driver and unscrew the pair of fasteners, each with a length of 7.7 mm, positioned laterally.

• Critical safety precaution: Incorrect insertion depth of a prying tool poses a risk of device harm.To mitigate potential damage, implement a method for gauging the appropriate insertion depth of the tool.
• Establish a reference point on the tool to control its depth during use.
• Using a precise measuring instrument, determine a distance of3 millimetersfrom the tool's distal end and clearly indicate this measurement with a permanent marking pen.
• For enhanced precision, consider marking additional points on the tool with varying distances.
• As an alternative method, affix a coin, positioned 3 millimeters from the tool's tip, using adhesive tape.

• Employ a hair dryer or heat gun to warm the lower perimeter of the rear glass panel to a point where it feels hot upon contact.An iOpener device can be utilized as an alternative method for warming the rear glass.Detailed guidance follows, outlining the correct procedure for applying heat and using the iOpener.The rear glass's lower edge should be heated with either a hair dryer or a heat gun.For warming the back glass, the iOpener presents a viable option.
• To ensure effective and safe operation, adhere to the subsequent instructions when heating and utilizing the iOpener.The back glass requires warming along its bottom edge, achievable with a hair dryer or heat gun.An iOpener provides a different approach to warming the rear glass surface.
• Proper heating and iOpener application are detailed in the following steps.Heating the bottom edge of the back glass is necessary, and can be accomplished using a hair dryer or heat gun.The iOpener can be employed to warm the back glass, with specific instructions provided below.

• Securely attach a suction cup to the lower perimeter of the rear glass panel.
• Maintaining stability of the device's frame with manual support, exert a consistent and forceful upward traction on the suction cup to establish separation between the rear glass and the frame.
• Carefully introduce the pointed end of a prying tool into the newly formed space.

• During the process of separating the rear glass with a separating tool, maintain a maximum insertion depth of 3 millimeters.Potential damage to a sensitive cable, situated near the volume down button, can occur if the separating tool is inserted too deeply.To prevent severing this cable, exercise caution and limit the tool's penetration.
• Numerous spring contacts are located along the device's edges, and are also susceptible to damage from excessive tool insertion.
• Carefully control the depth of the separating tool to safeguard these spring contacts during the glass removal procedure.

Employing a hair dryer or heat gun, apply warmth to the right-hand perimeter of the rear glass panel.The application of heat should continue until the surface reaches a temperature that is perceptible upon contact.Ensure the selected heating device is held close to the glass surface to facilitate efficient heat transfer.Avoid excessive heat, as this could potentially damage the underlying adhesive or components.The purpose of this heating process is to soften the adhesive securing the back glass.

• Ensure the tool's insertion depth remains under 3 millimeters to prevent potential harm to the spring contact points.Employ a prying tool to maneuver along the lower-right edge, extending towards the volume down control, facilitating adhesive separation and clip disengagement.Refrain from advancing the tool beyond the volume buttons to safeguard the wireless charging cable's integrity.
• An audible and tactile indication of clip release will occur during the separation process.
• Maintain the pick's position within the gap to inhibit adhesive re-bonding.
• The spring contacts are susceptible to damage if the pick penetrates beyond the specified depth of 3 mm.
• Carefully detach the metal clip by sliding the tool from the bottom right corner towards the volume down button, while avoiding the wireless charging cable.

To loosen the adhesive securing the rear glass, apply warmth to the left perimeter using a hair dryer or heat gun, ensuring the surface reaches a temperature that is perceptible upon contact.

• To prevent harm to the spring contacts, ensure the pick's insertion depth remains no greater than 3 millimeters.Employ a second opening pick, positioning it near the lower boundary.Moving the second pick along the lower-left corner and the screen's left side will detach the adhesive and disengage the metal clips.
• The audible and tactile sensation of the metal clips releasing will indicate successful separation.
• Maintain the initial pick's position at the upper-left corner to inhibit adhesive re-bonding.
• Careful manipulation is required to avoid damaging the delicate spring contacts during pick insertion.
• Separating the adhesive layer necessitates sliding the second pick along the screen's perimeter, releasing the securing metal clips.

Apply warmth to the upper perimeter of the rear glass panel utilizing a hair dryer or heat gun, continuing until the surface reaches a temperature that is perceptible upon contact.

• Ensure the insertion depth of your tool remains below 3 millimeters to prevent potential harm to the spring contact points.
• Employ a second opening tool to maneuver along the upper-left corner and the top perimeter, facilitating adhesive separation and disengagement of the metal clips; a distinct audible and tactile indication will signal clip release during this process.
• Proceed with tool movement around the upper-right corner, continuing until the Action button is reached.
• Maintain the position of this tool to inhibit adhesive re-bonding.

• The rear panel's detachment from the chassis ought to be complete at this stage; should resistance be encountered, re-examine the edges using the pick to identify and release any remaining adhesive or trapped fasteners.
• To disengage the rear glass, pivot it outwards towards the right side of the device, thereby breaking the bond of the adhesive.
• Maintain stability of the rear glass by positioning a rigid, non-contaminating object underneath it.
• Prior to proceeding with subsequent steps, extract the opening tools from the assembly.

Employ a specialized tri-point Y000 driver for disassembly.The two screws, each measuring 1 millimeter in length, require a tri-point Y000 driver for removal.To detach the middle connector cover, utilize a tri-point Y000 driver.A tri-point Y000 driver is essential for loosening the fasteners holding the middle connector cover in place.The middle connector cover is affixed with two screws, each 1 mm long, necessitating a tri-point Y000 driver for their removal.

• Employing a spudger, carefully introduce its tip into one of the recesses found on the central connector cover.By moving the cover leftward along the phone's side, disengage the retaining clip that secures it to the logic board.The cover's attachment is released through this sliding motion.
• The connector cover is now free from its secured position.
• Proceed to lift the cover away from the device.

• Employ the tip of a spudger to carefully lift and detach the battery press connector.A spudger's pointed end facilitates the separation of the battery press connector from its socket.To release the battery press connector, utilize a spudger and apply gentle prying force.

• Employ the tip of a spudger to carefully separate the wireless charging coil's press connector by applying leverage.The press connector securing the wireless charging coil must be released using a spudger's pointed end.To detach the wireless charging coil, utilize a spudger to gently lift and disengage its press connector.

• Carefully detach the rear glass component from its surrounding frame and subsequently remove it.

• Employ a Phillips screwdriver for the disassembly of the Taptic Engine bracket's fasteners.The bracket is held in place by two screws, each measuring 1.8 millimeters in length.These screws must be removed using the appropriate Phillips screwdriver.Carefully unscrew the two fasteners to release the Taptic Engine bracket.Ensure the Phillips screwdriver is properly engaged with the screw heads to prevent stripping during removal.

• Employing tweezers or direct manual manipulation, detach the Taptic Engine bracket.The Taptic Engine bracket can be dislodged using tweezers for precision or by hand.To free the Taptic Engine bracket, utilize tweezers or your fingertips for removal.

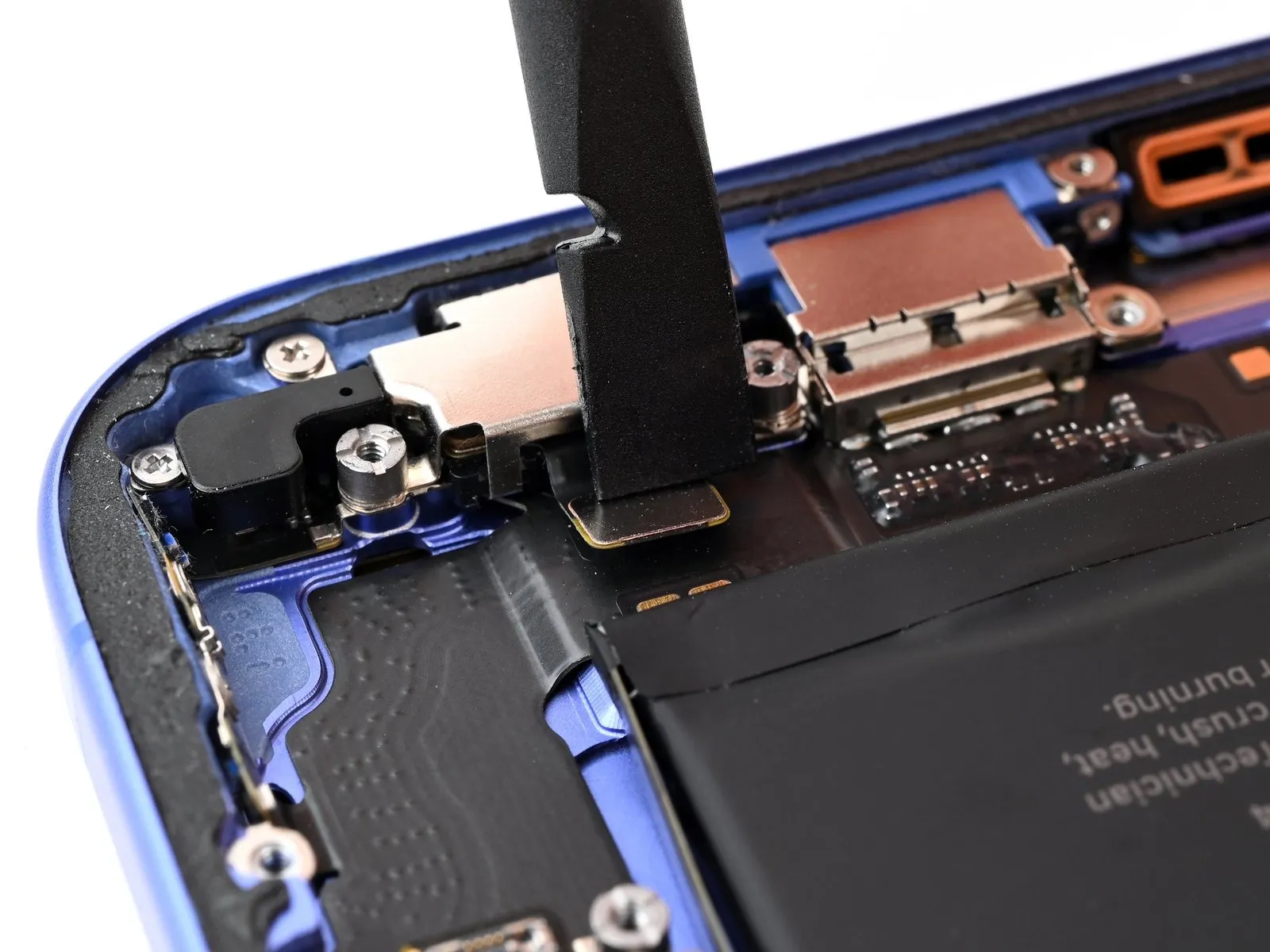

• Employing the tip of a spudger, carefully lift and detach the Taptic Engine press connector.

• Employ a Phillips screwdriver to detach the two screws that hold the Taptic Engine in place.The fastening hardware includes a screw measuring 2.2 millimeters in length.Additionally, a screw with a length of 1.7 millimeters is also present.
  Carefully unscrew the fasteners to release the Taptic Engine.Ensure the Phillips screwdriver is properly seated on the screw heads to prevent damage.
  The shorter screw, 1.7 mm, is likely located near the edge of the Taptic Engine.Note the screw lengths (2.2 mm and 1.7 mm) for correct reassembly.

• Employing the tip of a spudger, carefully disengage the Taptic Engine from its housing within the frame.
  Extract the Taptic Engine from its location.

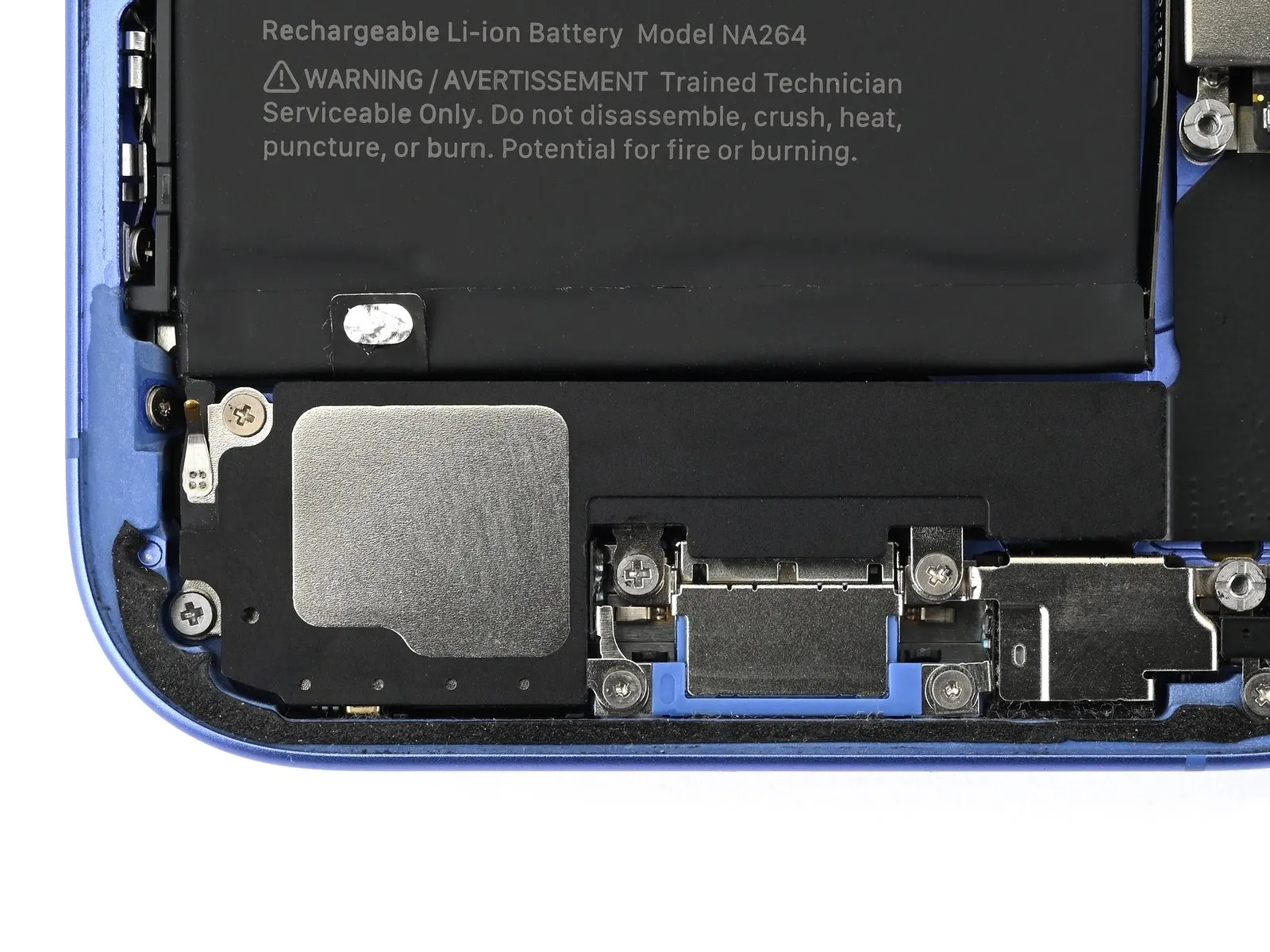

• To detach the loudspeaker, begin by eliminating the five fasteners that hold it in place.
  The loudspeaker is secured with two Phillips head screws, each measuring 1.5 millimeters in length.
  A single Phillips head screw, possessing a length of 2.0 millimeters, is also utilized.
  Additionally, one Phillips head screw with a 2.9-millimeter length contributes to the loudspeaker's retention.
  A tri-point Y000 screw, measuring 1.2 millimeters in length, completes the set of fasteners.

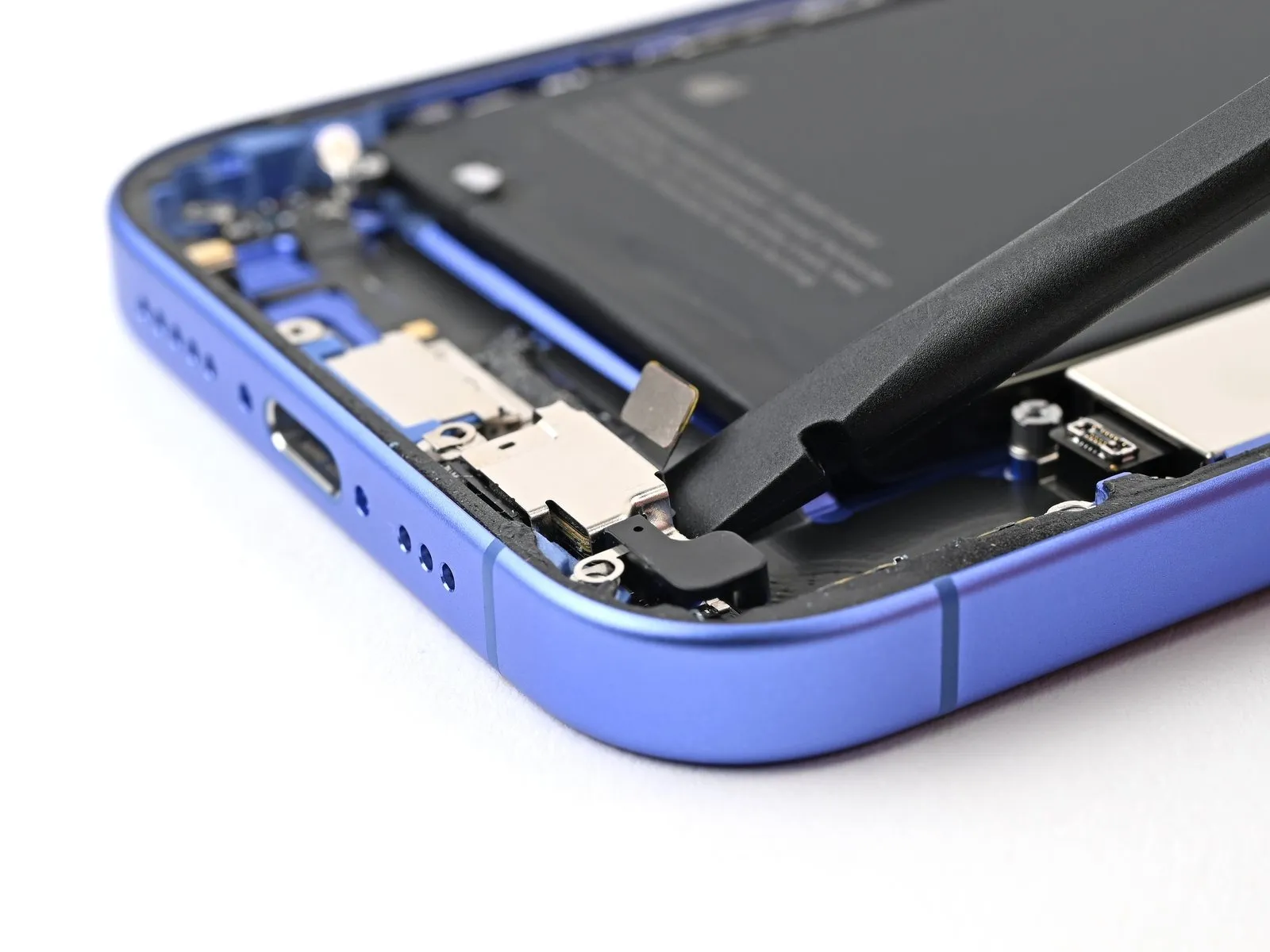

• Employing the tip of a spudger, carefully disengage the loudspeaker assembly from its surrounding frame.

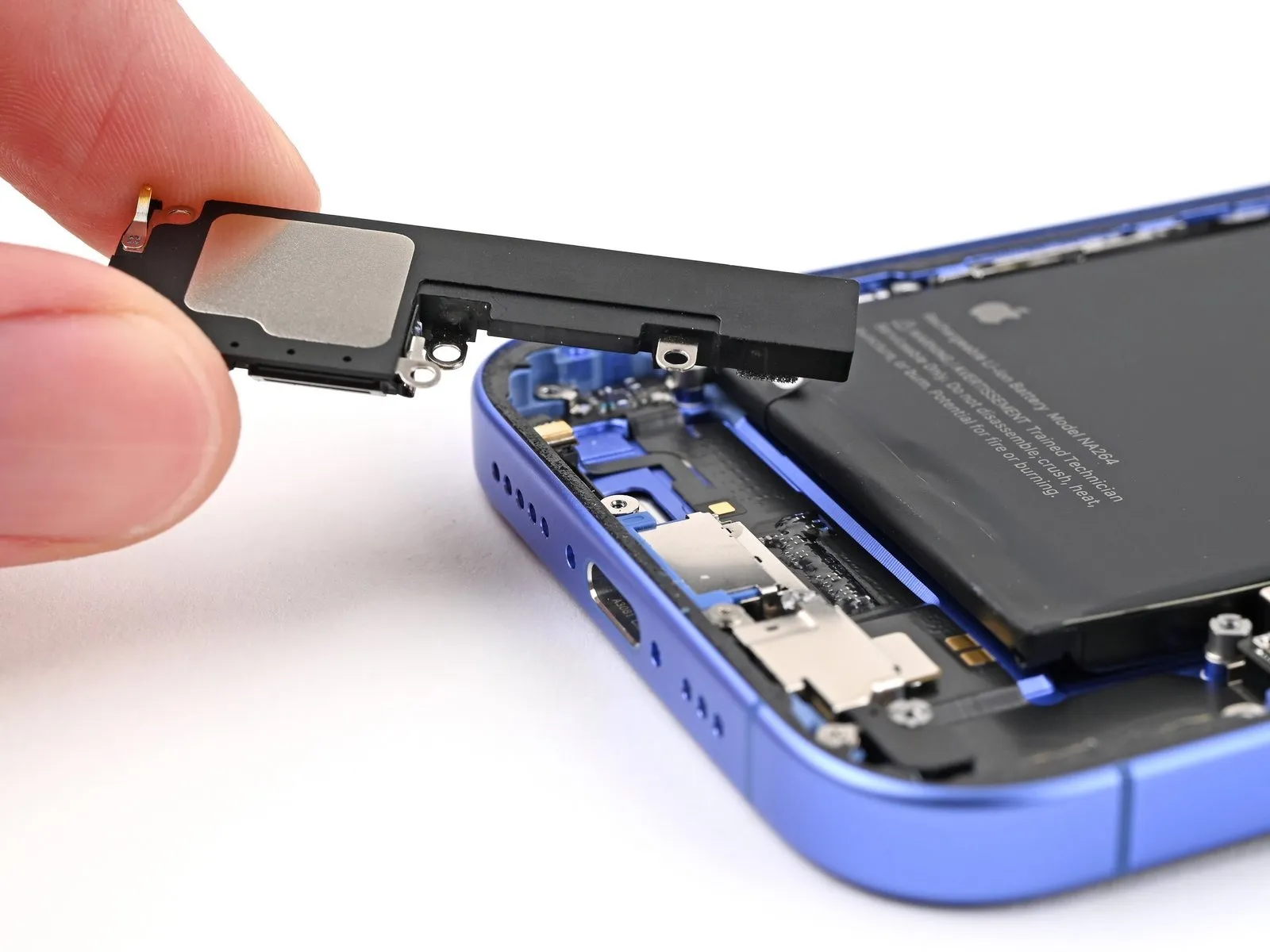

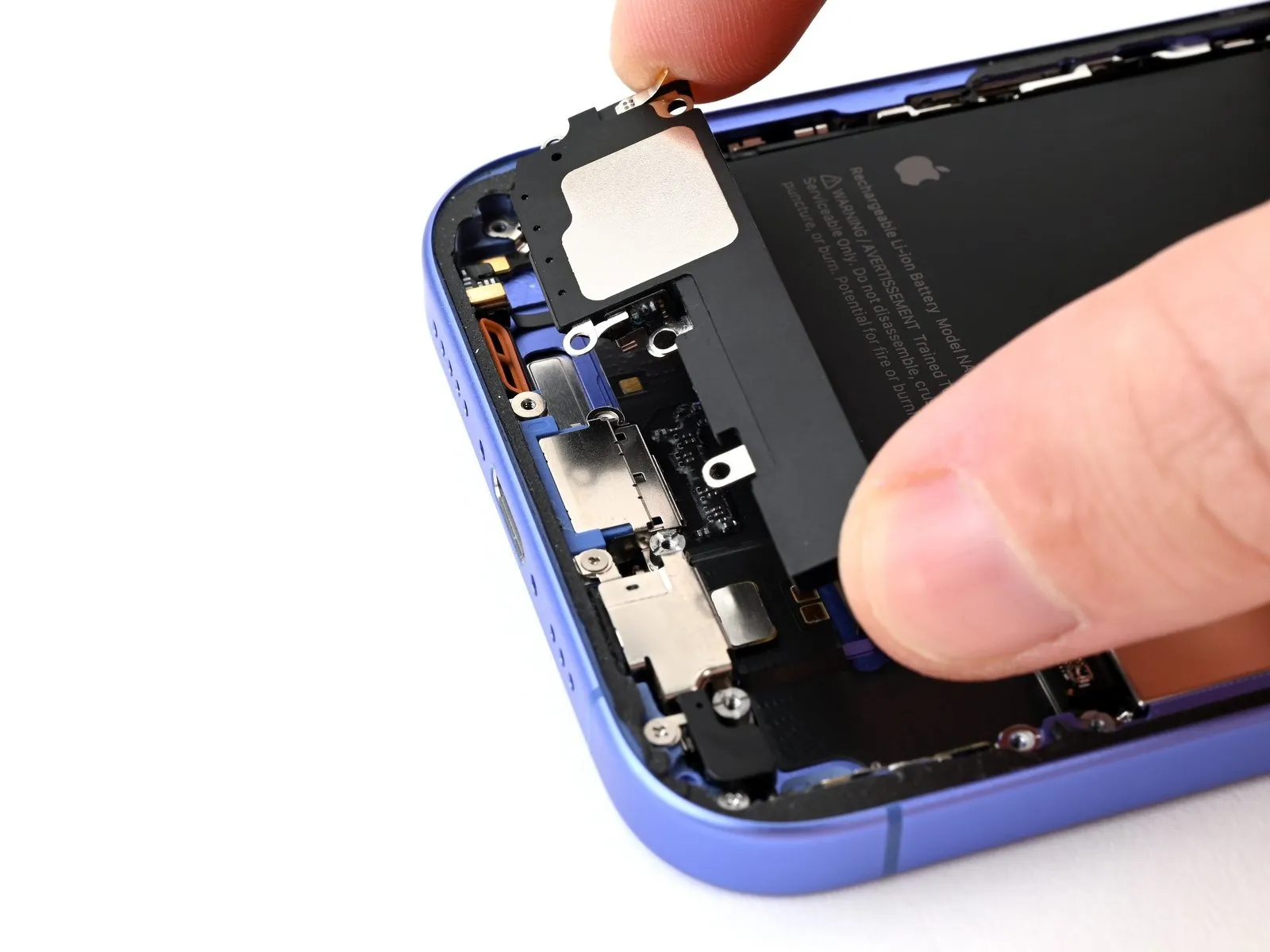

• Extract the loudspeaker component completely.

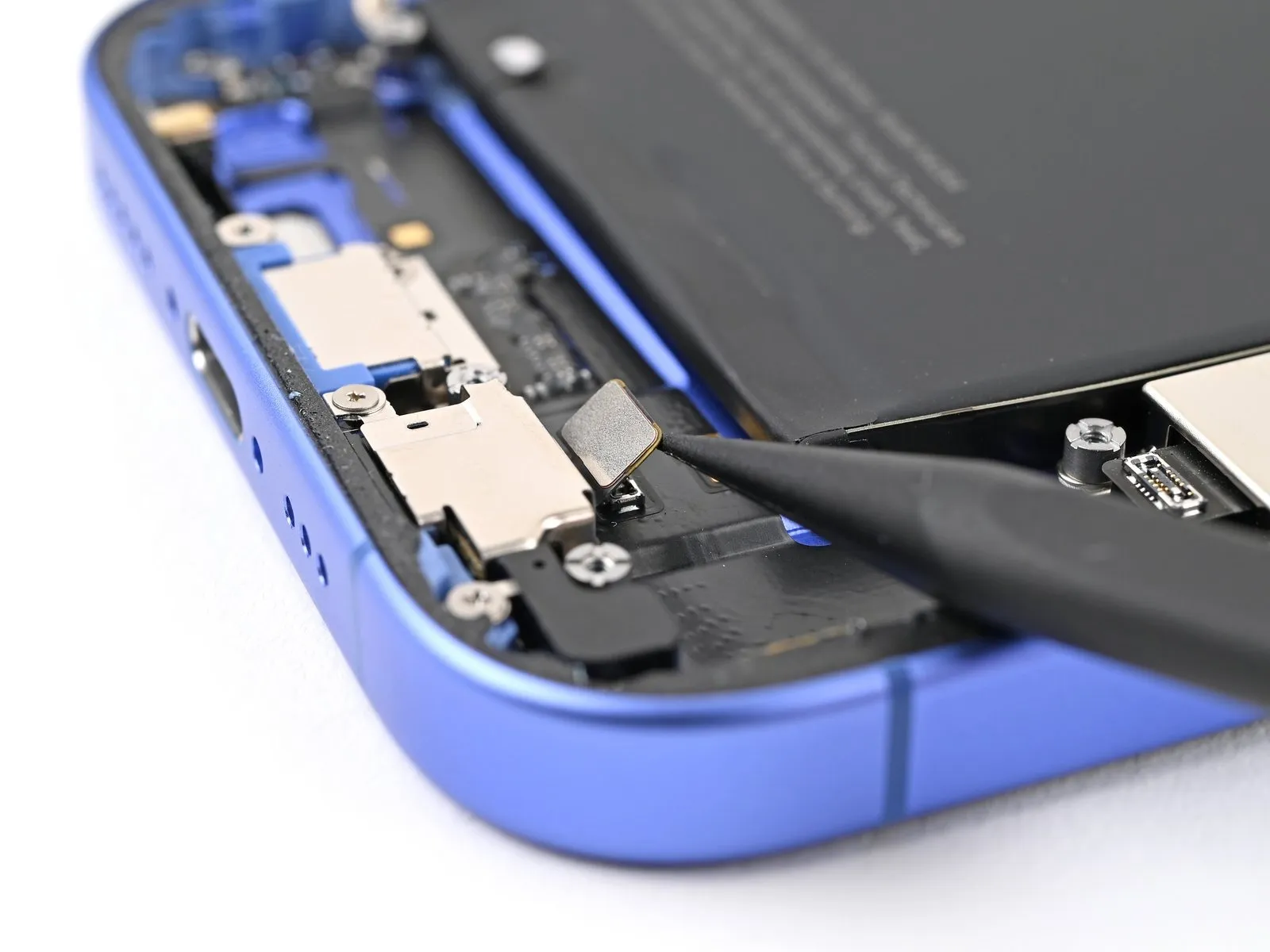

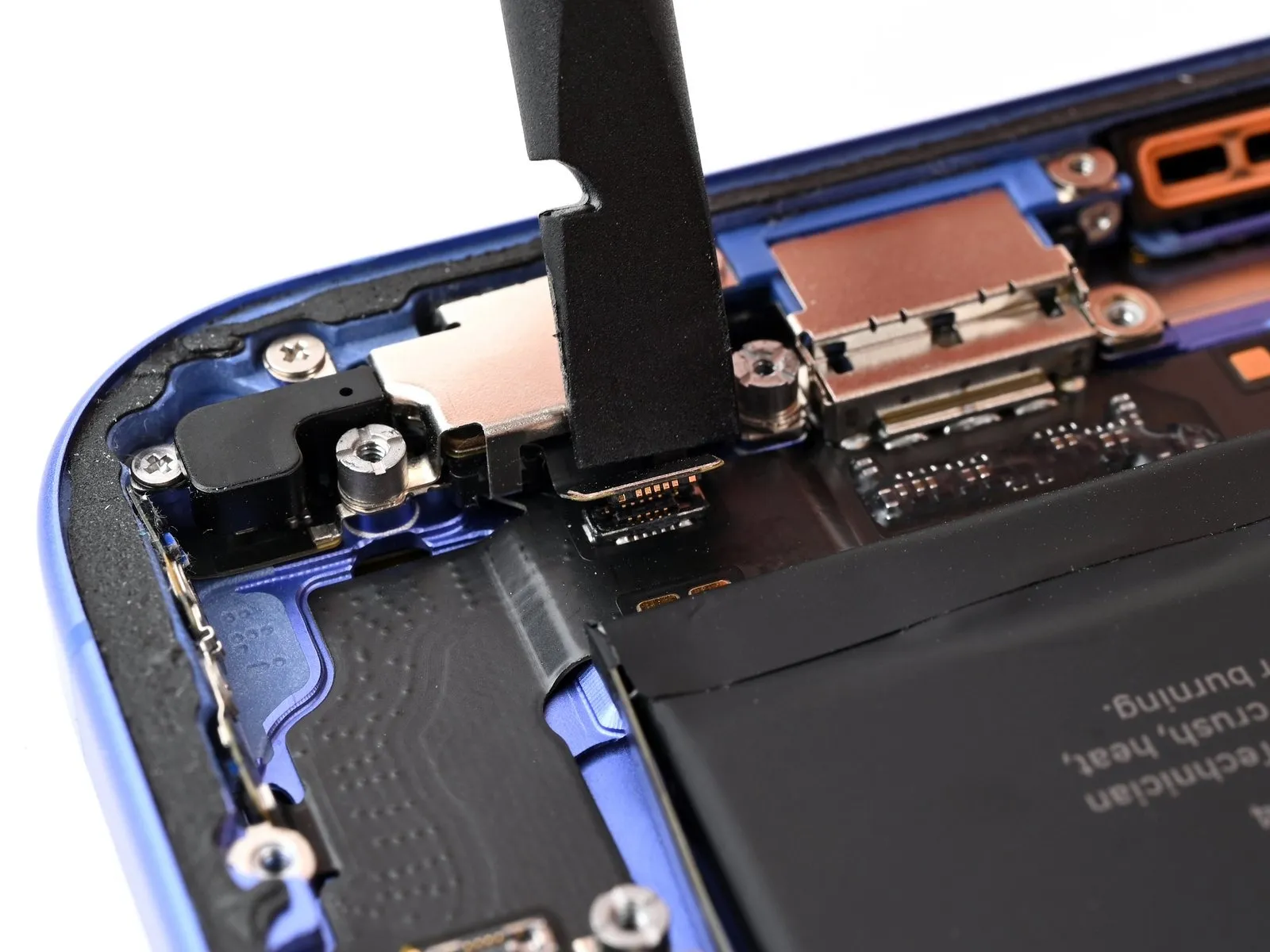

• Employ the pointed end of a spudger tool to carefully separate the microphone's press connector.

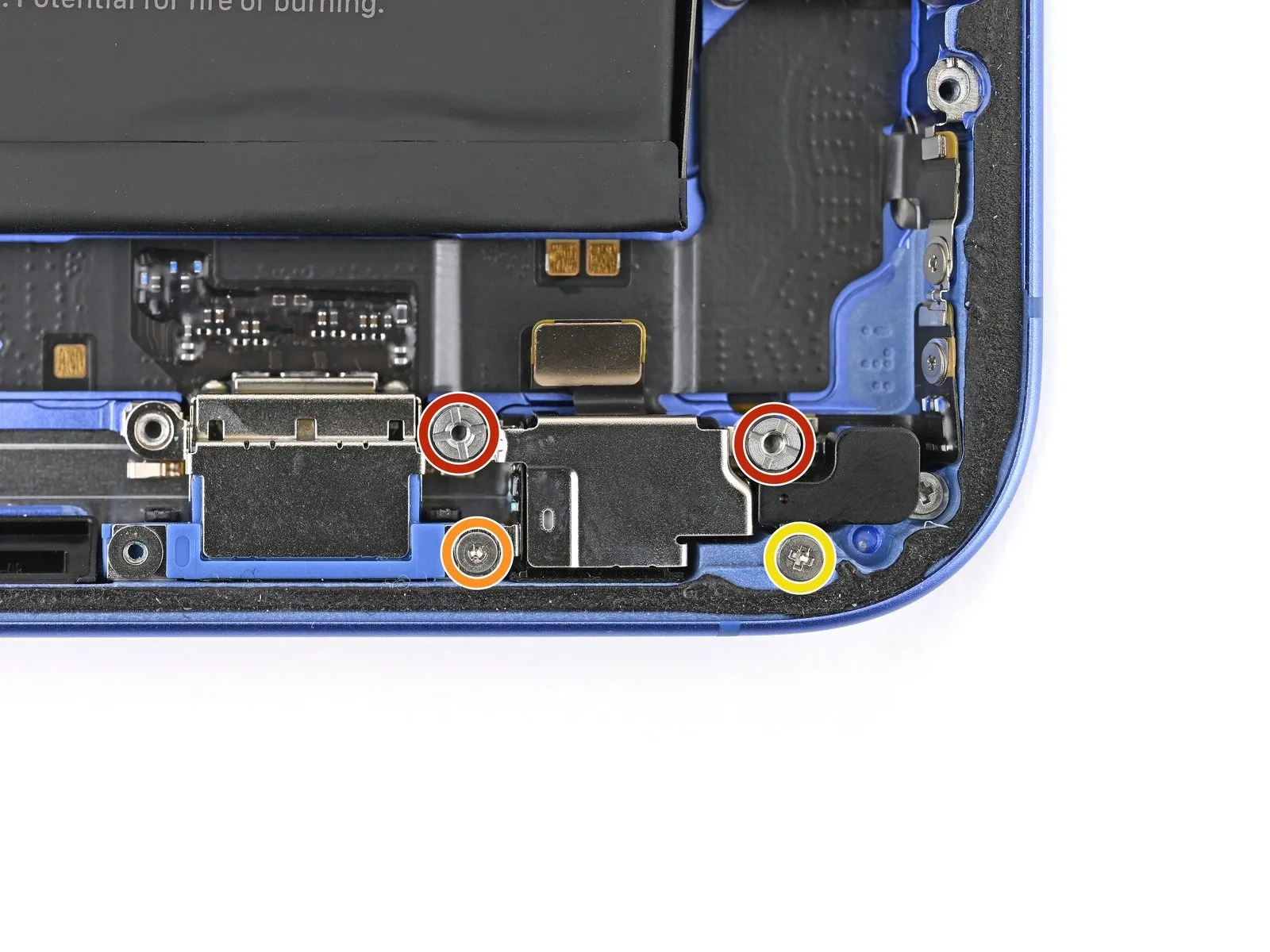

• To detach the microphone, first eliminate the four fasteners that hold it in place.
  The microphone is affixed with two standoff screws, each measuring 3.3 millimeters in length.
  A single tri-point Y000 screw, with a length of 1.1 millimeters, is also utilized.
  Additionally, a Phillips screw, extending 1.5 millimeters, secures the component.
• Should a standoff driver be unavailable, a slender flathead screwdriver can be cautiously employed; however, exercise extreme care to prevent damage to the screw head recesses.

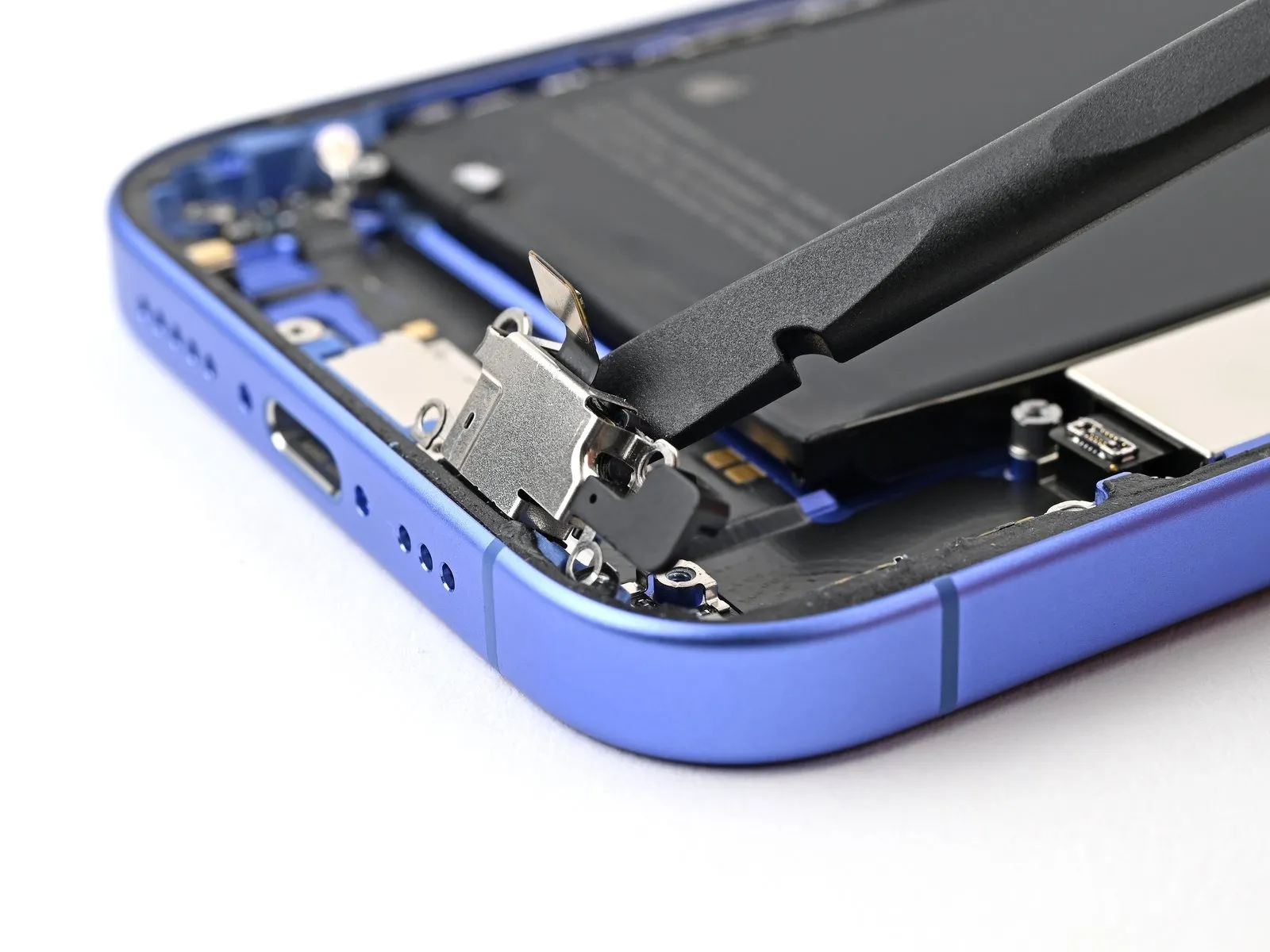

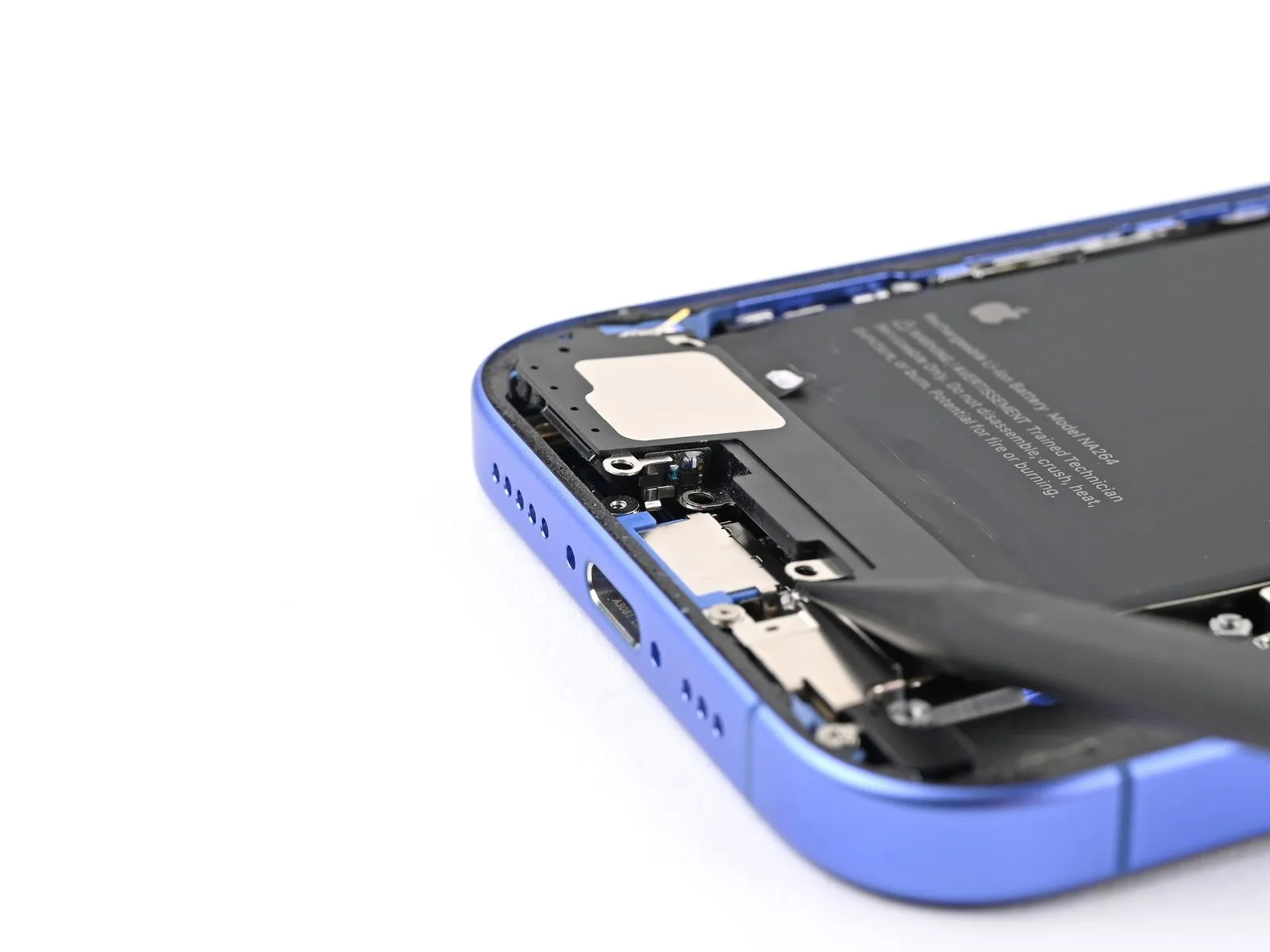

• To facilitate adhesive separation, carefully detach the microphone component from the frame's structure.

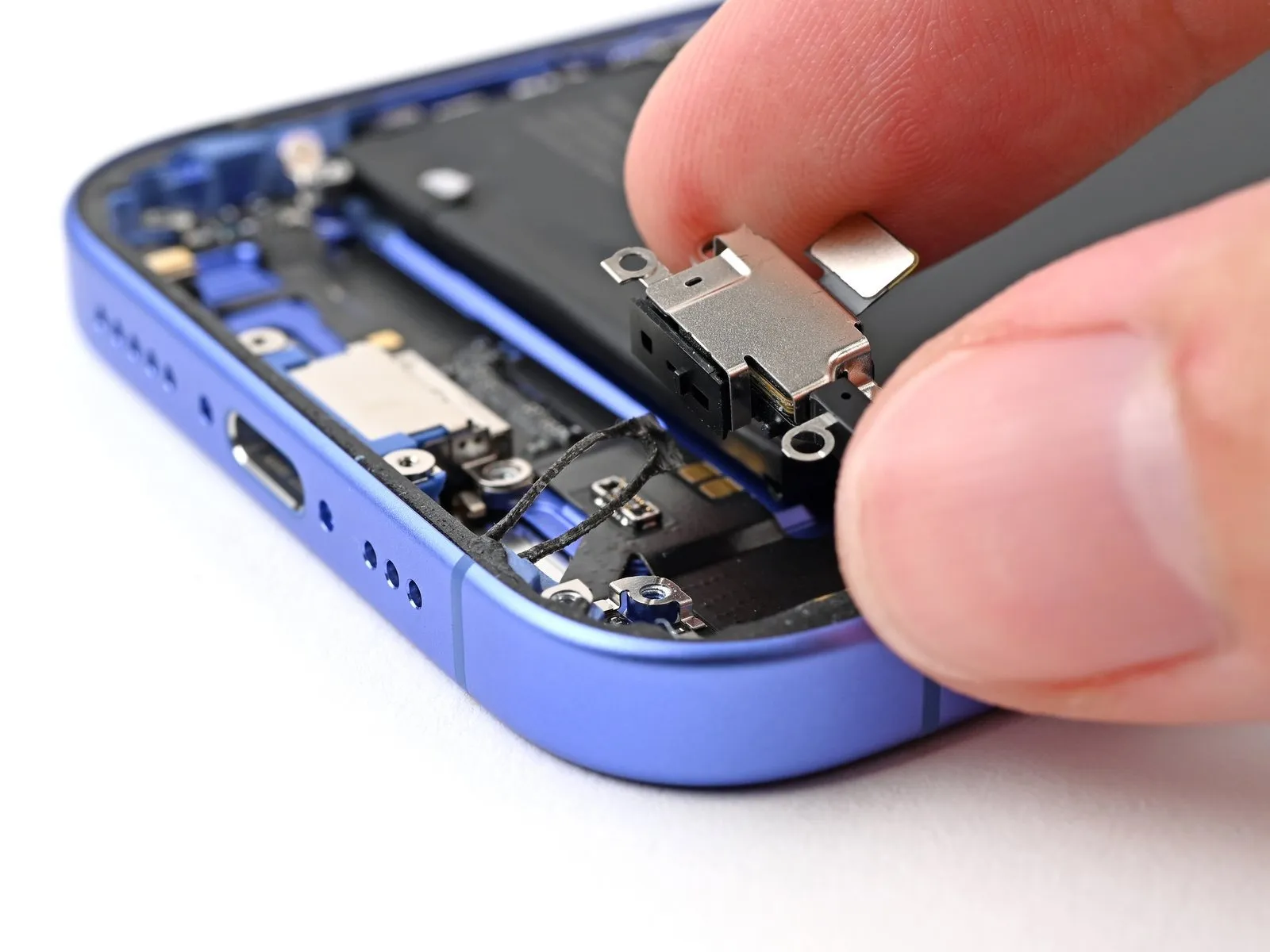

• Proceed with the removal of the microphone assembly.

Having finished the disassembly process, the following instructions detail the reassembly procedure for your device.
To ensure a secure connection during reattachment, precisely position each connector above its corresponding socket and apply downward pressure with a fingertip or a spudger, initially on one edge before engaging the opposite side, until an audible click is heard; avoid applying excessive force.Should you encounter resistance while connecting, reposition the connector and attempt the connection again.Proper alignment and gentle pressure are crucial for successful connector engagement; forcing the connector can result in damage.

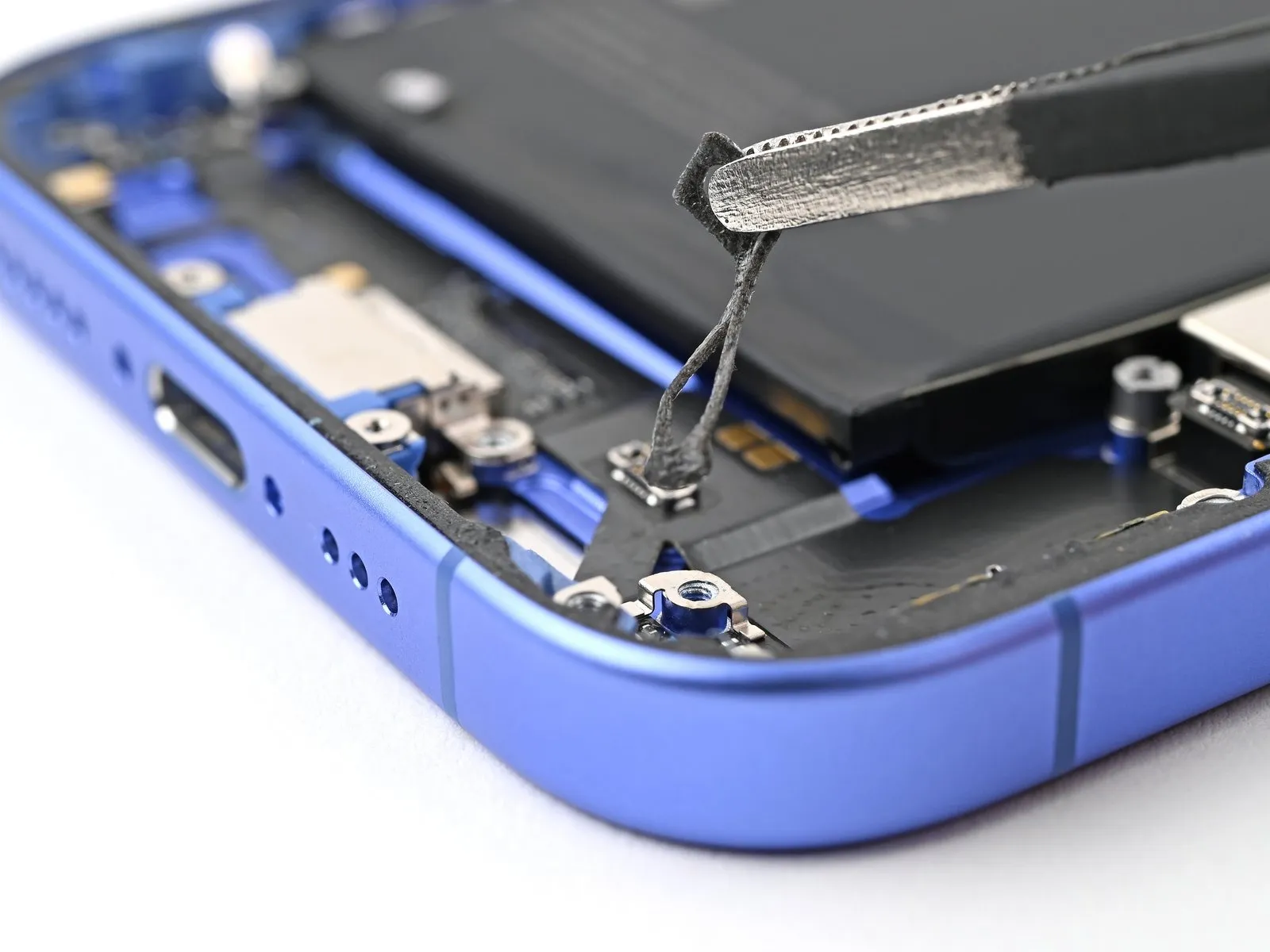

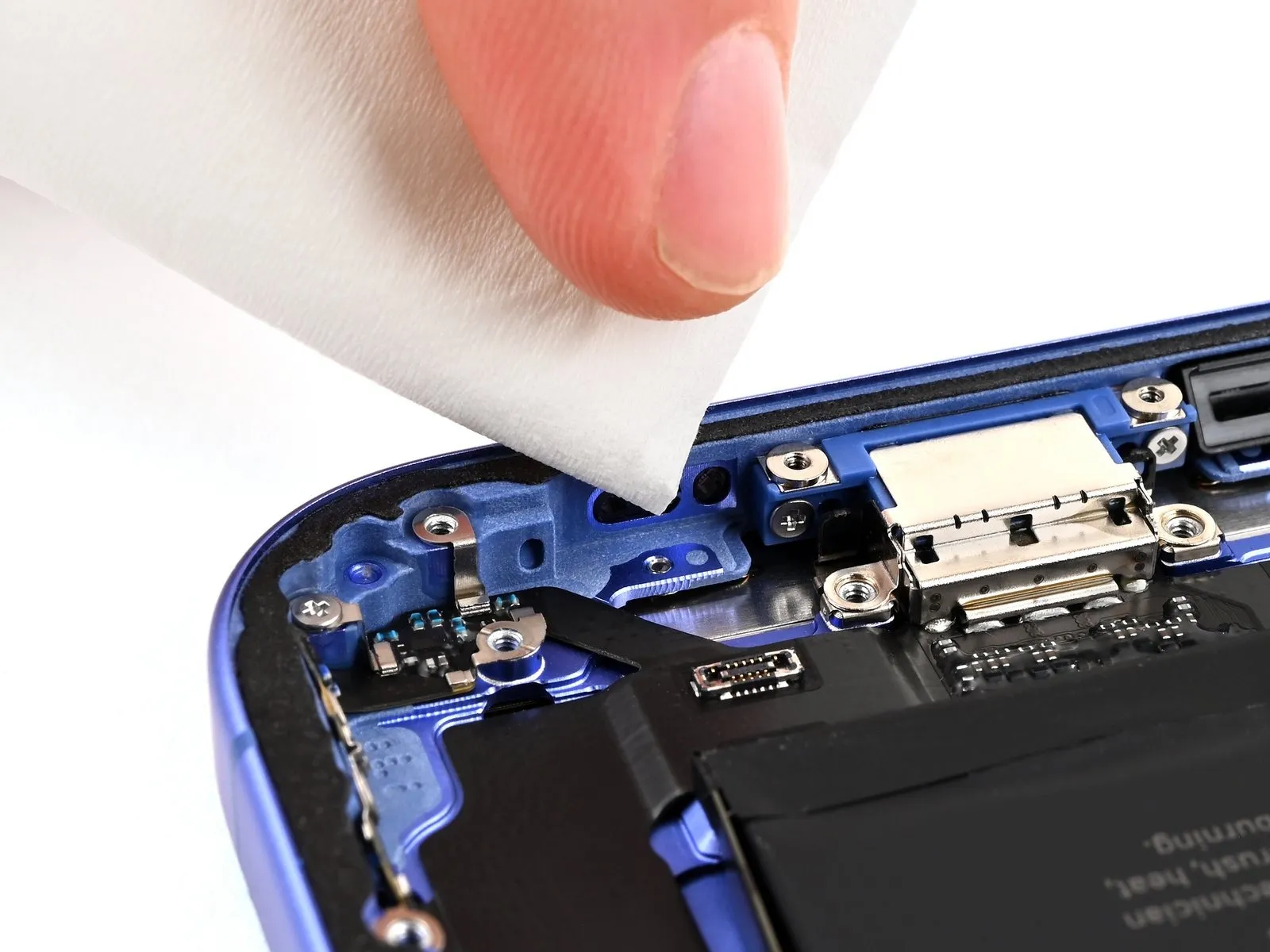

To eliminate adhesive remnants from the microphone aperture within the frame, employ a microfiber or lint-free cloth dampened with isopropyl alcohol possessing a concentration exceeding 90%.A cleaning solution of isopropyl alcohol with a purity surpassing 90% is essential for effectively removing adhesive residue.The microphone opening, situated on the frame, requires cleaning using a microfiber or lint-free cloth and isopropyl alcohol with a concentration exceeding 90%.

• Proceed to the subsequent procedure if your microphone includes pre-applied adhesive.
• Maintain a firm grip on the microphone's adhesive with one hand, then employ your fingertips or tweezers to detach the white protective layer from the adhesive surface.

Orient the microphone, ensuring the metallic surface is positioned in an upward direction.
Secure the adhesive to the microphone's exterior, maintaining the pull tab's orientation above the surface.

Detach the microphone adhesive's blue protective layer.

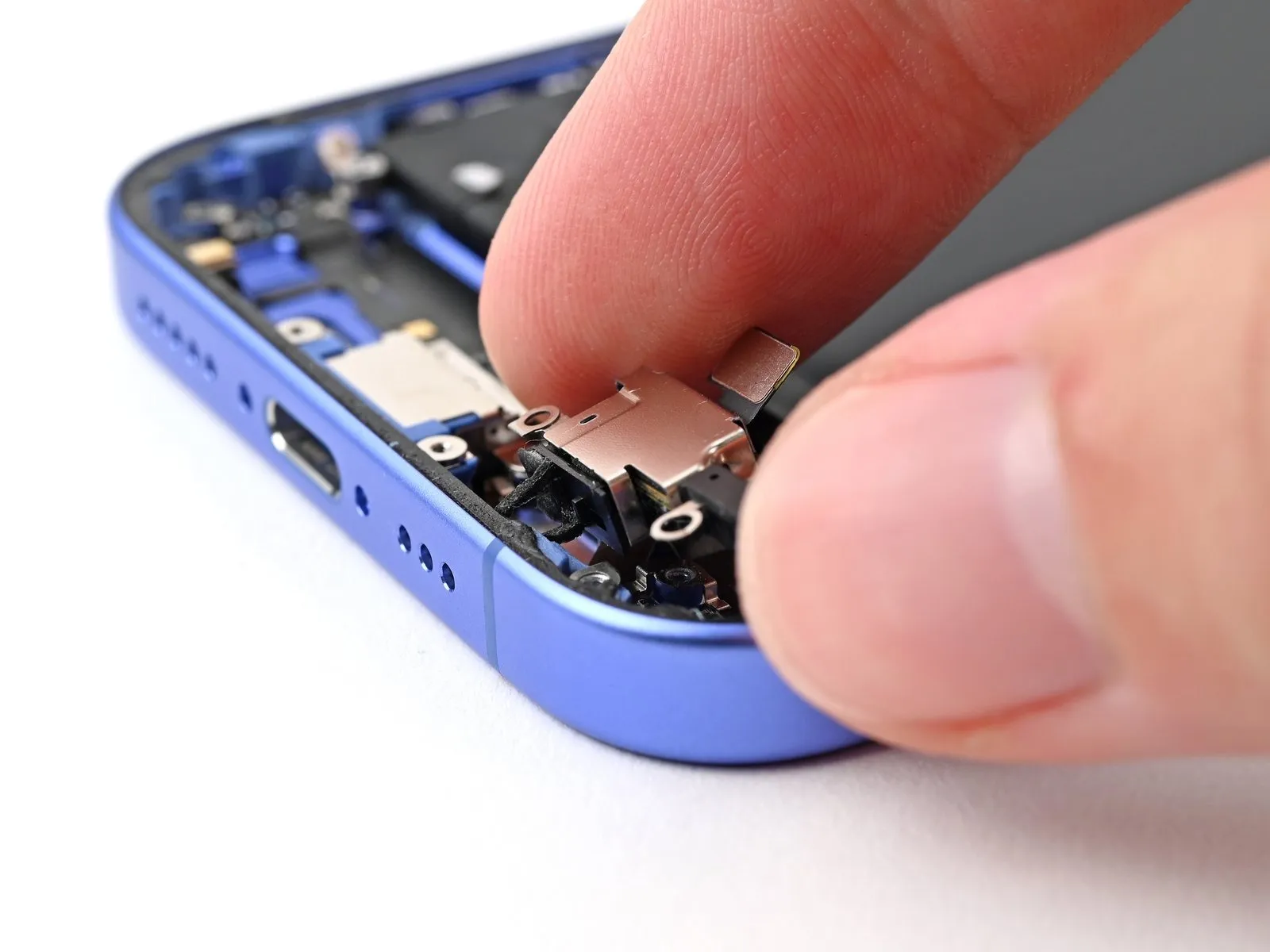

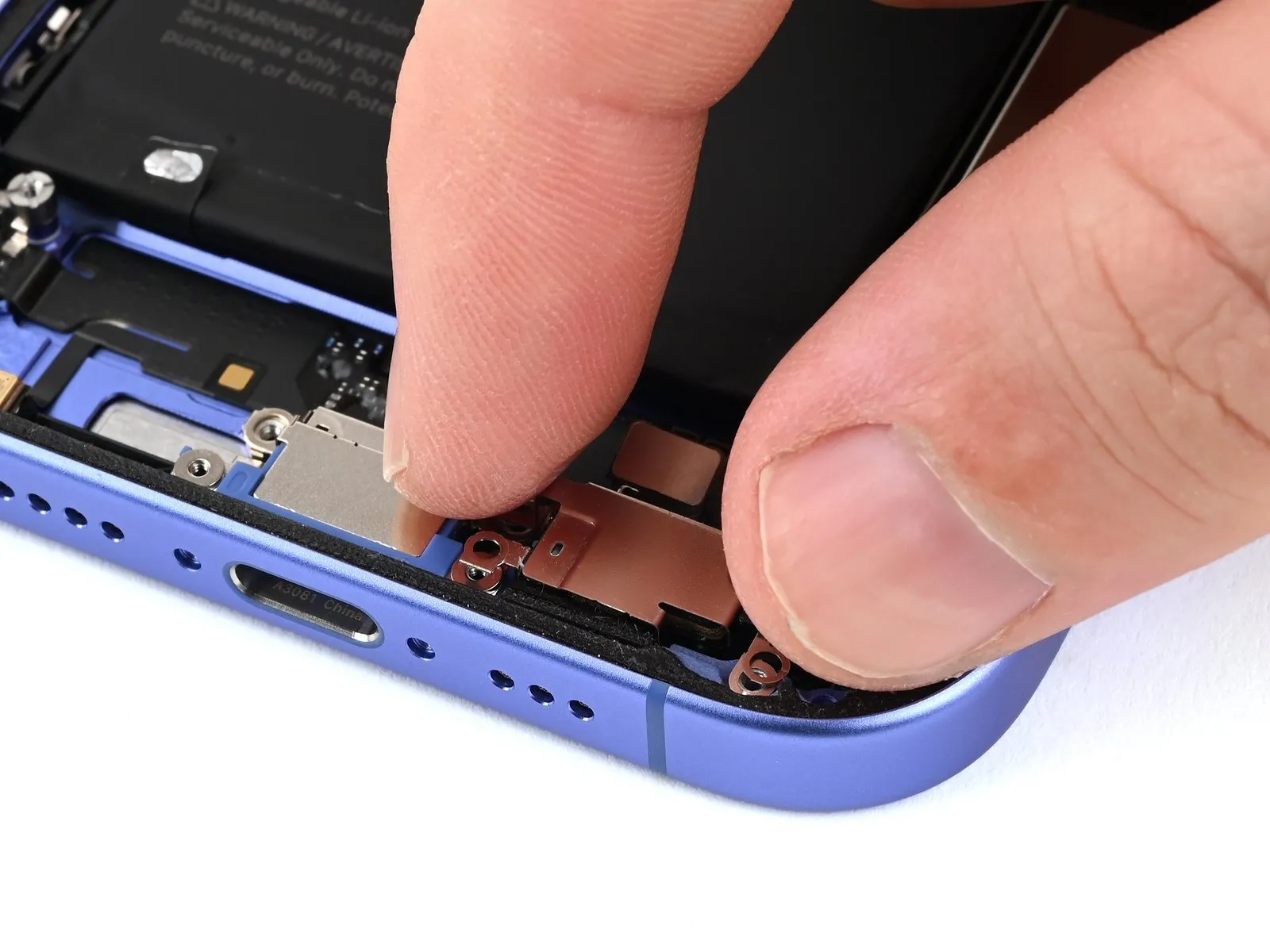

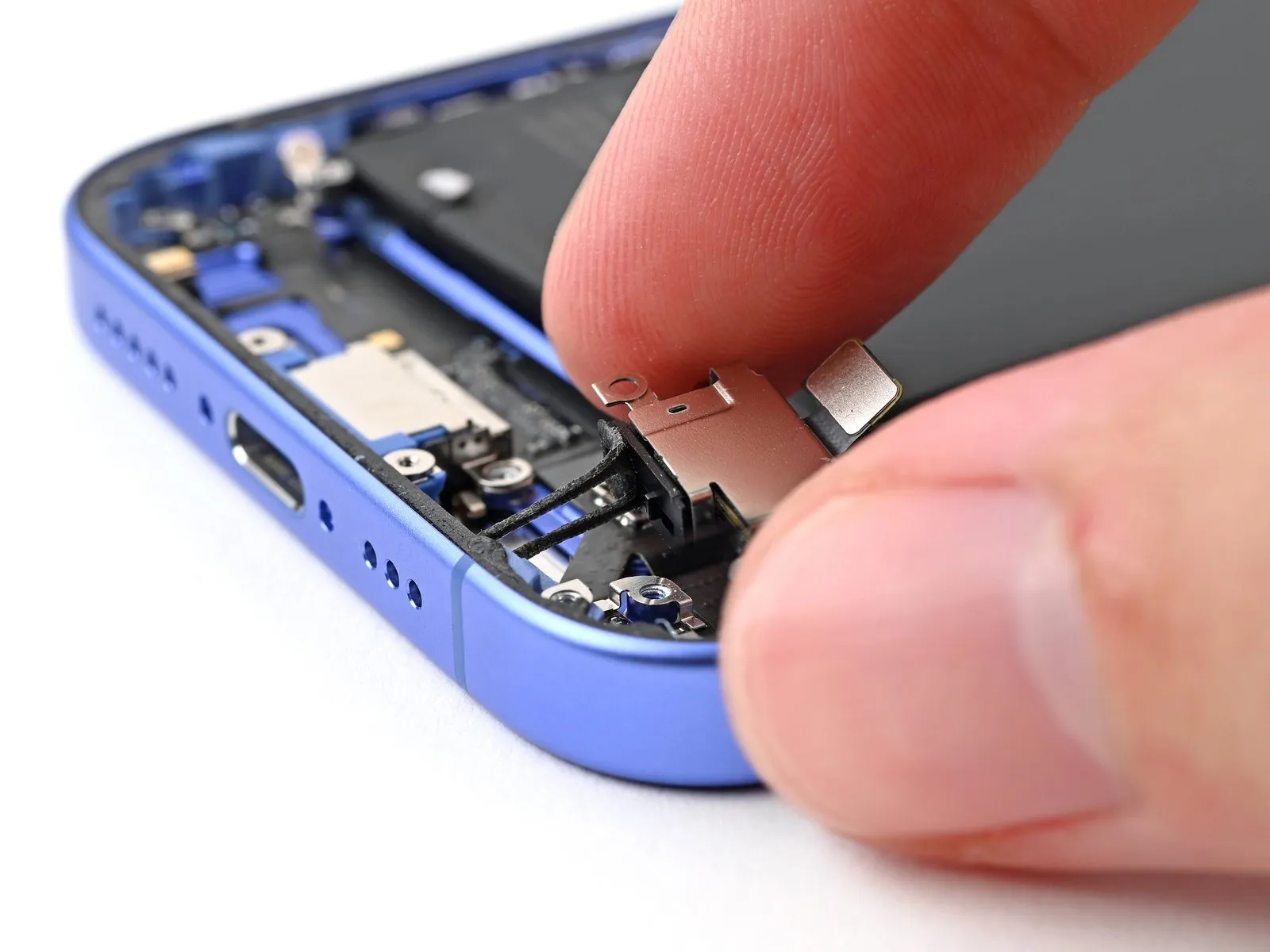

• To ensure a secure bond, position the microphone within its designated space, tilting it downwards to facilitate complete adhesive contact with the surrounding frame perimeter.

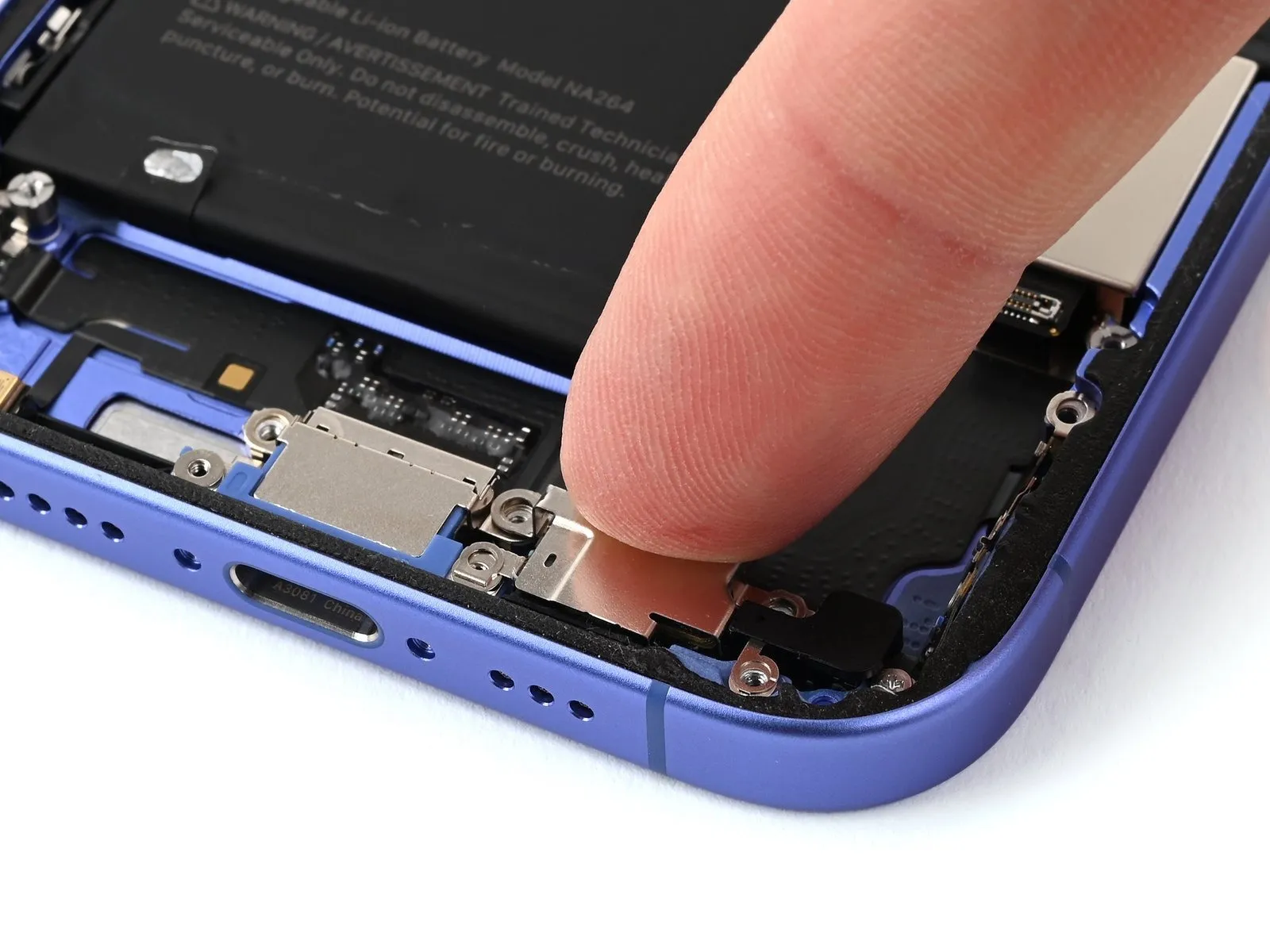

• Apply consistent, substantial pressure to the microphone to guarantee its firm and stable placement.

• To affix the microphone, utilize four screws designed for that purpose.

  • Employ two standoff screws, each measuring 3.3 millimeters in length.A tri-point Y000 screw, with a length of 1.1 millimeters, is also required.Secure another component with a Phillips screw, specifically one that is 1.5 millimeters long.
  • The microphone's attachment relies on the proper installation of these fasteners.Ensure the standoff screws provide adequate spacing for the microphone.The Y000 tri-point screw is crucial for a precise and secure connection.
  • A Phillips head screwdriver is necessary for the 1.5 mm screw.Carefully align each screw before tightening to prevent damage.The total length of the screws is vital for proper microphone stability.

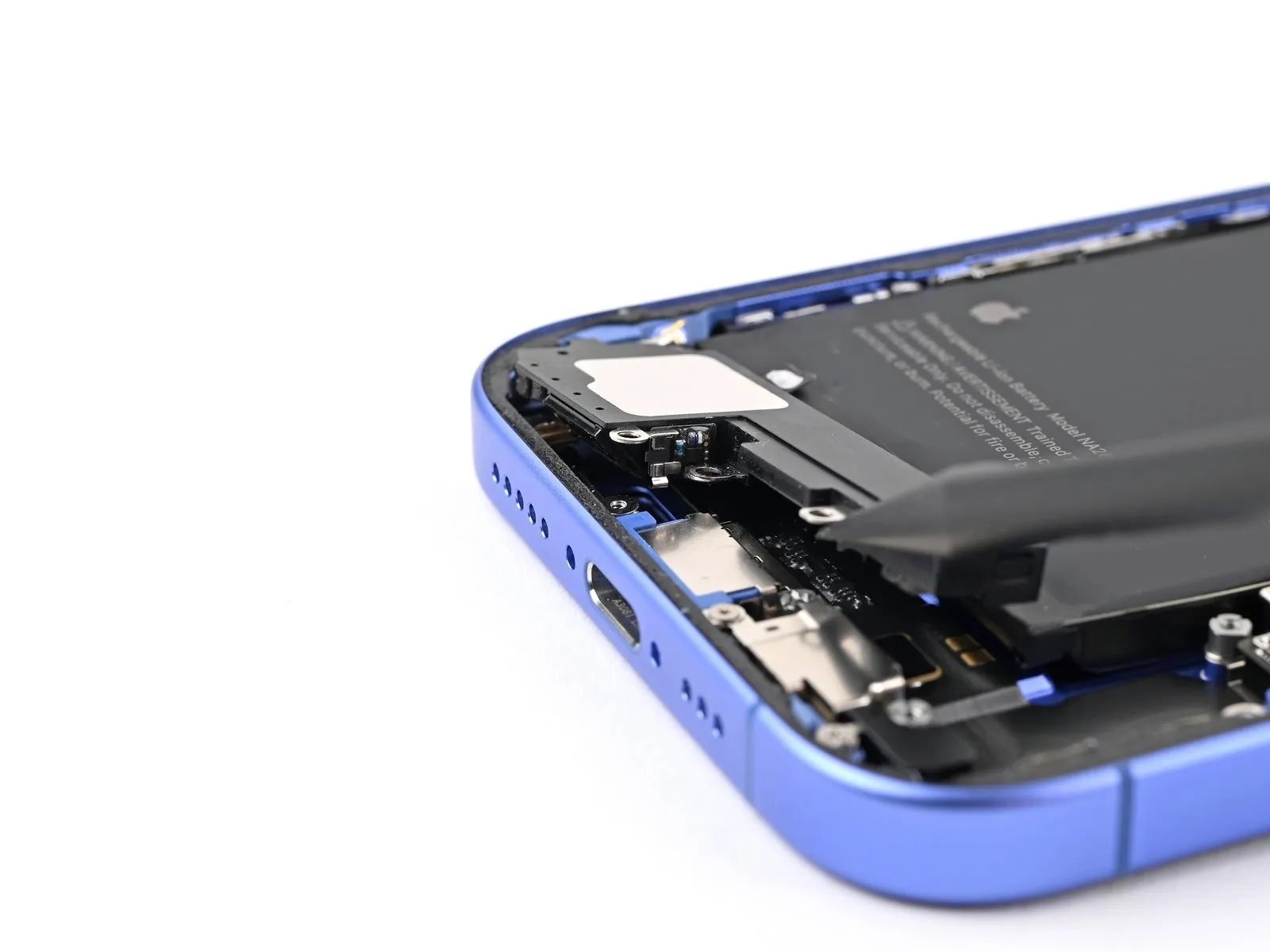

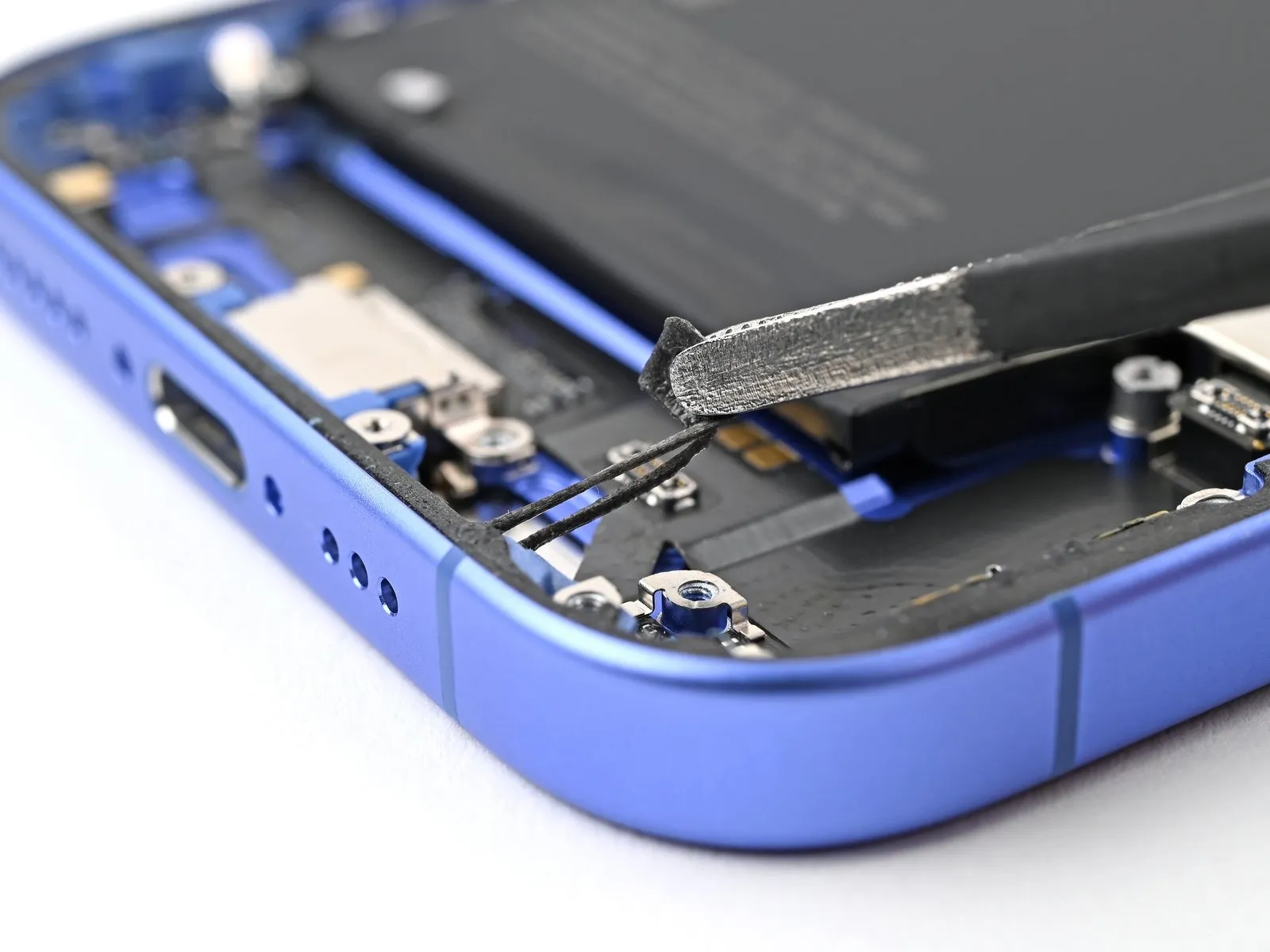

Employ the planar edge of a spudger tool to establish a connection with the microphone press connector.

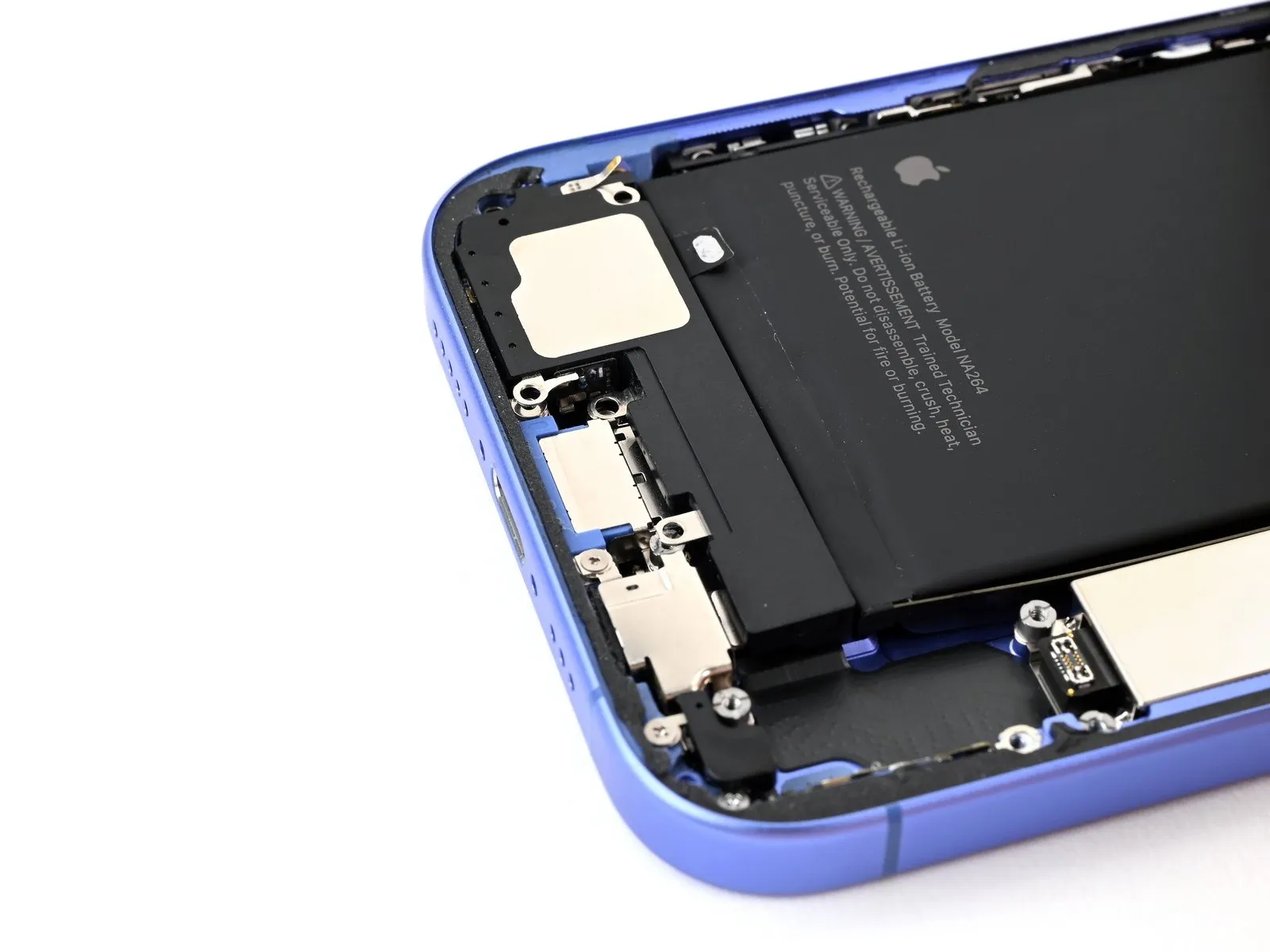

Position the loudspeaker within the designated frame.

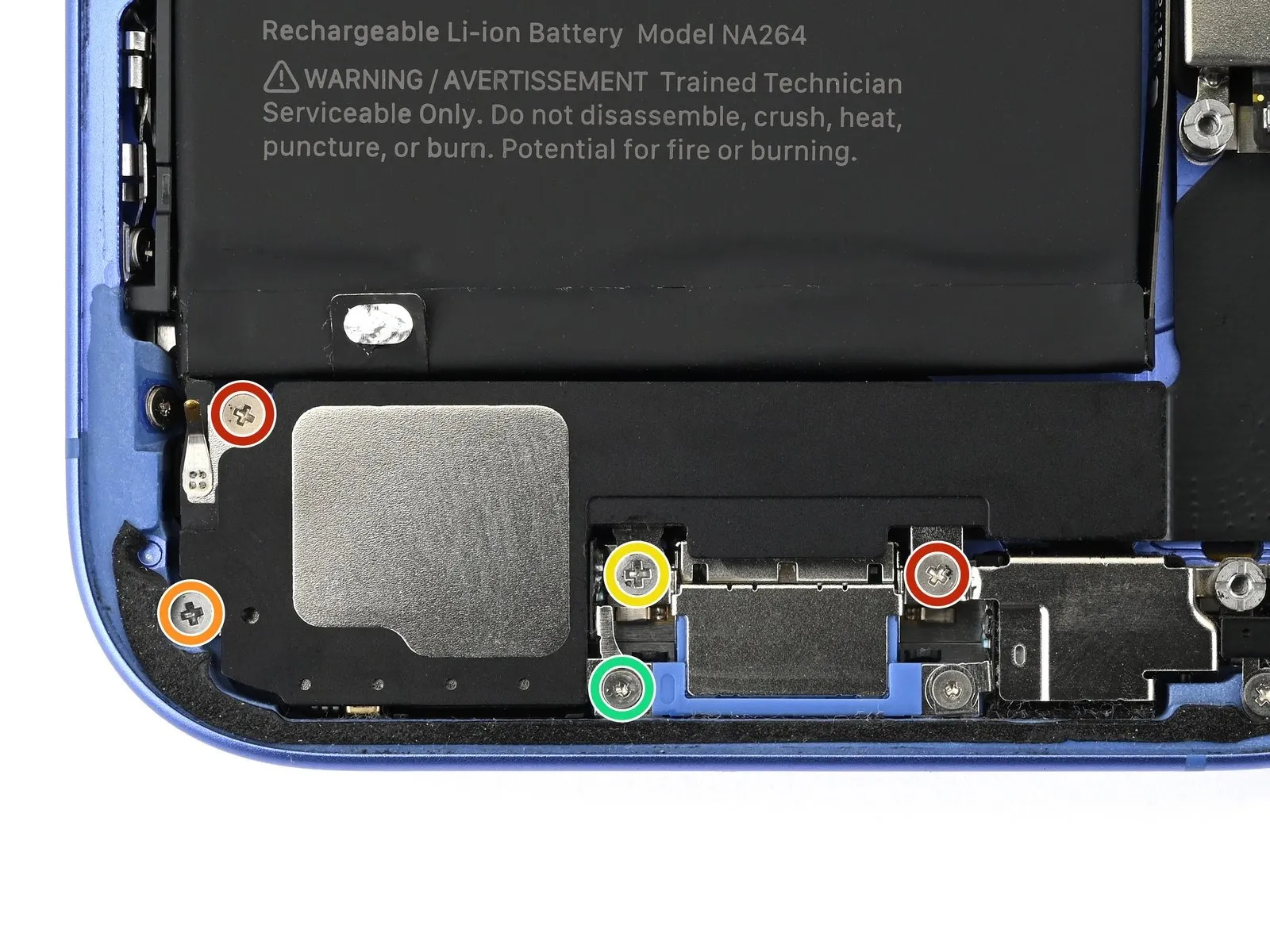

• To affix the loudspeaker, utilize five screws for secure attachment.

  • The assembly requires two Phillips head screws, each measuring 1.5 millimeters in length.
  • A single Phillips head screw, with a length of 2.0 millimeters, is also needed.
  • Additionally, incorporate one Phillips head screw extending 2.9 millimeters.
  • Finally, a 1.2-millimeter tri-point Y000 screw completes the fastening process.

Carefully position the Taptic Engine component within its designated cavity located on the device frame.

• Employ a Phillips screwdriver for the installation of the two screws that hold the Taptic Engine in place.

  • A screw measuring 2.2 millimeters in length is required.
  • Additionally, a 1.7-millimeter screw is also necessary for this step.

Engage the planar edge of a spudger tool to establish a connection with the Taptic Engine press connector.

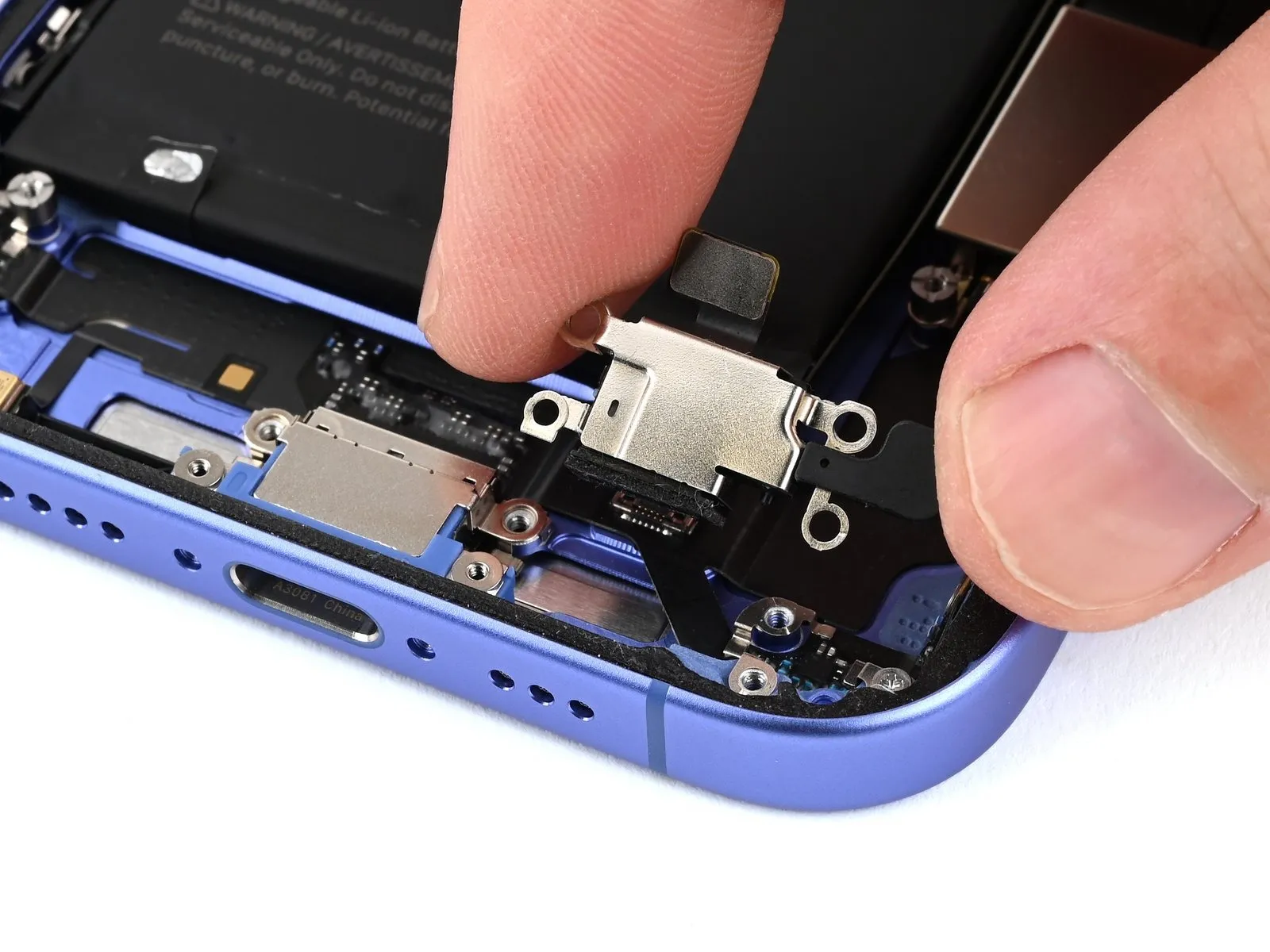

• Position the connector bracket atop the Taptic Engine press connector utilizing either tweezers or direct manual manipulation.To ensure proper alignment, carefully situate the bracket over the Taptic Engine press connector with either tweezers or your fingertips.Employing tweezers or your fingers, precisely align and secure the bracket over the Taptic Engine press connector.

• Employ a Phillips screwdriver for the installation process.The bracket that holds the Taptic Engine is fastened with screws.Two screws, each measuring 1.8 millimeters in length, are required.Secure the Taptic Engine bracket using these fasteners.Properly aligning the screws is essential for a stable connection.

• Exercise caution to prevent harm to the spring contacts during the cleaning process of the frame.
  Prior to finalizing the phone's reassembly, it's advisable to verify the repair's functionality; reconnect the battery and back glass, activate the device, and confirm expected operation, then deactivate, disconnect the battery and back glass, and proceed with reassembly.
• The adhesive present on the phone is challenging to eliminate and tends to leave behind a residue; if removal proves problematic, applying warmth with a hairdryer or heat gun can be beneficial.
  Employ the tapered tip of a spudger to apply pressure and manipulate the adhesive, facilitating its eventual grasp with tweezers.A spudger's pointed end is the appropriate tool for pressing and rolling the adhesive to enable a secure grip with tweezers.To effectively remove the adhesive, utilize a spudger's pointed end to apply pressure and roll the material until it can be grasped with tweezers.

• Employ the tweezers to detach the adhesive residue from the device's surface.
  Continue the process of adhesive removal, alternating between the preceding action and this one, until complete elimination is achieved.

• Remaining adhesive material can negatively impact the iPhone's water resistance, necessitating a complete cleaning of the frame.
• Employing a spudger, cover its tip with a microfiber cloth or a similar lint-free material, then dispense a small quantity of isopropyl alcohol with a concentration exceeding 90% onto the cloth.To effectively remove adhesive residue, use a unidirectional wiping motion along the frame's edge.Allow several minutes for complete evaporation of any residual alcohol before continuing the repair process.
• The integrity of the iPhone's sealing is dependent on the absence of any lingering residue.
• A small amount of high-concentration isopropyl alcohol (greater than 90%) should be applied to a microfiber or lint-free cloth wrapped around a spudger's tip.

• When re-using the rear panel, proceed without performing this action.
• Utilize a microfiber or lint-free cloth dampened with a small quantity of isopropyl alcohol possessing a concentration exceeding 90% to clean the back glass edges.This cleaning process facilitates proper adhesion of replacement adhesive.If retaining the original back glass, carefully manipulate any bent retaining clips back into their original shape using your fingers.
• Straightening these clips ensures secure attachment of the rear panel.

1. Position the new adhesive onto the frame, ensuring the larger blue protective liner faces inward and the release tab is situated in the lower-right area.
   Variations in liner color and pull tab placement are possible depending on the specific adhesive model.
   Align the adhesive accurately by referencing existing features like the camera opening and edge indentations.

1. Initiate the removal process for the adhesive backing by grasping the designated pull tab and gently separating the liner, commencing from the lower edge, while ensuring the liner remains partially attached.

• After applying pressure to secure the adhesive, adjustments are impossible; complete removal and replacement with fresh adhesive will be necessary.
  Maintain the blue liner retracted to facilitate precise alignment of the adhesive.Position the adhesive so that it corresponds exactly with the lower boundary of the iPhone's chassis.
  Carefully seat the lower edge of the adhesive within its designated channel on the frame, ensuring the iPhone’s spring contacts are correctly situated over their corresponding openings in the liner.

• Progressively remove the protective liner from the adhesive strip, ensuring firm contact with the iPhone's frame edges during application.
  Proper alignment of the lower edge of the adhesive will result in automatic positioning of the side and top edges; otherwise, discard the adhesive and repeat the process with a fresh strip.
  Be aware that the absence of correctly positioned adhesive can allow for temporary reassembly and continued use of the iPhone.Without replacement adhesive, operating the iPhone without it is permissible, but doing so will reduce its ability to resist water damage.

• Employ the planar edge of a spudger to secure the adhesive, ensuring firm contact with the frame's outer boundary.
  Exercise caution to prevent contact with the spring terminals exposed through the pink liner.The pink liner serves as a protective layer for sensitive components.Proper alignment during adhesive placement is crucial for maintaining device integrity.

To detach the pink adhesive liner, grasp the diminutive pull tab situated in the upper-right area.Removal of the pink adhesive liner is achieved by utilizing the small pull tab located on the top-right side.

• After the uppermost protective film is peeled away, observe three slender liners situated atop the adhesive, each featuring a pull tab located close to the lower border.
• The placement of these pull tabs can vary.
• Should these pull tabs be absent, it's likely the delicate liners were unintentionally detached during the prior procedure; if the adhesive surface is free of contaminants and correctly positioned, continuation is possible, but avoid any contact with the exposed adhesive until the back glass is ready for installation.

• To prevent screen damage, secure the rear glass on the right side with a stable support, such as a box.
• Employ the broad, planar tip of a spudger, or a fingertip, to establish a connection with the charging coil press connector.The spudger is a specialized tool designed for delicate prying and disconnection tasks.Ensure a firm and precise engagement with the charging coil press connector using the selected tool.

• Employ the planar edge of a specialized prying tool, or a fingertip, to establish contact with the battery.A spudger's flat end, or a similar blunt instrument, facilitates the necessary connection to the battery.To make contact with the battery, utilize the flat surface of a spudger or apply pressure with a finger.

• The logic board incorporates two slots designed to receive the two hooks present on the connector cover.
• Position the connector cover atop the device, aligning the hooks with slots on the logic board, ensuring a slight leftward offset.
• Apply downward and rightward pressure with a fingertip to the connector cover, facilitating complete engagement of both hooks within their corresponding slots.

• Employ a specialized tri-point Y000 driver for the installation process.The required fasteners are two screws, each measuring 1 millimeter in length.These screws are specifically responsible for maintaining the secure attachment of the middle connector cover.Proper utilization of the tri-point Y000 driver is essential for preventing damage to the screw heads.Ensuring the screws are fully tightened will guarantee the cover's stability and prevent dislodgement.

• During liner removal in this procedure, the adhesive backing becomes completely visible; avoid any contact with this exposed adhesive.
• Employ the designated "blue tabs" to detach the liners from the lower, left, and upper borders of the iPhone's enclosure.Defer the liner removal process for the right-hand side of the device.Adhesive exposure occurs when the liners are detached; maintaining contact-free handling of the adhesive is crucial.

• To prevent adhesive contact with the rear glass surface, position the back glass above the device to enable access to the remaining liner situated on the right-hand side.
• Employ tweezers or your fingertips to extract the last liner located on the right edge of the device.

• Position the replacement back glass directly over the device's frame, ensuring precise alignment.
• Carefully lower the glass onto the frame's surface, applying even pressure until the retaining clips securely interlock.
• Apply consistent pressure along the entire edge of the back glass to guarantee that all fastening clips are fully engaged.

• Enhance the adhesive's effectiveness by warming the back glass's borders with a specialized iOpener tool, a hairdryer, or a heat gun until they reach a warm surface temperature.Apply consistent pressure along the entire outer edge of the rear glass panel.Utilize screen vise clamps, if available, to reinforce the newly applied adhesive's adhesion.
• In the absence of screen vise clamps, proceed to the following instructions for alternative back glass securing methods.
• The application of heat assists in creating a stronger bond between the adhesive and the back glass surface.

Consistent pressure across the iPhone's surface is essential for proper adhesion of the rear glass to the chassis, necessitating consideration of the camera module's protrusion.
Locate the original iPhone packaging and utilize the box lid as a stable working platform.
Should the original packaging be unavailable, proceed to a different compression technique.
Position the iPhone, with the display facing upwards, within the box lid, ensuring the camera bump aligns with the designated indentation.
Acquire an object with a height exceeding the box's sidewalls but approximating the iPhone's width, and position it atop the device, subsequently adding several substantial weights.
Maintain the applied pressure for a minimum of thirty minutes; reduce this duration proportionally to the weight's mass, with overnight stabilization being the optimal timeframe.

Lacking the iPhone's initial packaging, proceed with the subsequent three procedures to achieve uniform compression of the rear glass panel.
Position the iPhone on a level, cushioned surface, ensuring the display faces downward.
Secure the rear glass with adhesive tape to safeguard its surface coating.

To ensure proper tape adhesion along the rear glass perimeter, position two coin stacks, or equivalent thickness objects, directly on the tape's surface.
Maintain a uniform spacing between the coins, verifying their thickness is equivalent to or greater than the camera module's protrusion.

To apply downward pressure for a screen separation, place several books or similarly weighty items atop your iPhone.

• Because coins can potentially mark or dent the surface below, avoid using precious or delicate materials for the weighting process.
• Maintain the applied pressure for a minimum of thirty minutes; if the weighting objects are less dense, extend the duration, with an overnight period being the optimal timeframe.

Employ a P2 pentalobe driver for the installation process.The two screws, each measuring 7.7 millimeters in length, require this specialized tool.Securely fasten the screws to the device's chassis.These fasteners are located on both sides, adjacent to the charging port.Proper use of the P2 pentalobe driver is essential for preventing damage to the screw heads.
