iPhone 16 Plus 5G mmWave Antenna Replacement

• To optimize battery health, permit the power cell to discharge to a level below 25% capacity.A lithium-ion battery that is fully charged presents a potential safety risk.Disconnect all connected wires and cords from the device.
• Simultaneously depress the power button and one of the volume buttons, then utilize the swipe gesture to initiate the shutdown sequence.
• The phone's power-off function is activated by sliding the power button along with either volume button.

• To prevent injury and simplify the subsequent disassembly process when the display or rear glass exhibits severe cracking, apply multiple layers of adhesive packing tape across the damaged surfaces.
• Confirm the presence of a sufficiently sized, uninterrupted surface area close to the lower edge, ensuring it provides adequate adhesion for a suction cup.

• Excessive insertion of a spudger can potentially harm the device; therefore, it's crucial to implement a marking procedure to avoid such incidents.
• Using a precise measuring tool, determine a distance of3 millimetersfrom the spudger's distal end and clearly indicate this point with a permanent marking instrument.
• For enhanced precision, consider marking the remaining corners of the spudger with varying measurement distances.
• As an alternative method, affix a coin to the spudger's tip, positioning it3 millimetersaway from the distal end.

Employ a P2 pentalobe driver for the extraction of the two screws.The screws securing the USB-C port are each 7.7 millimeters in length.These fasteners are situated on both lateral aspects of the USB-C port.

• Utilize a heated iOpener, or a comparable device, on the lower perimeter of the rear glass panel, maintaining the heat for a duration of two minutes.As an alternative method, a hair dryer or heat gun can be employed to warm the lower edge of the back glass until it reaches a comfortably warm temperature.Exercise caution to prevent overheating the device; the battery is vulnerable to thermal degradation.
• The permissible temperature limit must be observed to avoid potential damage to the internal battery.
• Prolonged or excessive heat exposure poses a risk of battery failure due to heat sensitivity.

• Securely attach a suction handle to the lower perimeter of the rear glass, positioned directly over the USB-C connector.
• Exert a consistent and considerable upward pull on the suction handle to generate separation between the rear glass and the device's frame.
• Carefully introduce the pointed end of an opening tool into the newly formed space.

• During the removal of the adhesive holding the rear glass, exercise caution regarding specific zones, as detailed in the subsequent procedures.
• A fragile cable, responsible for the back glass's connection to the device, is situated near the volume up button; therefore, refrain from inserting any tools in this location to prevent cable damage.
• Numerous spring contacts are positioned along the phone's edge; to prevent deformation of these components, adhere strictly to the depth recommendations provided for each individual step when inserting tools.

• To preclude damage to the spring contacts, ensure the pick's insertion depth does not exceed 5 mm along the lower border.Employing a back-and-forth motion, use the pick to sever the adhesive bond along the lower edge.Maintain the pick's position within the lower-right corner to inhibit the adhesive from re-adhering.
• Care must be taken to limit pick penetration to a maximum of 5 millimeters when working on the lower edge.
• A reciprocating movement of the pick is necessary to effectively release the adhesive securing the components.

• Utilize a heated iOpener on the right-hand side of the rear glass panel, maintaining heat for a duration of two minutes.To facilitate separation, the rear glass should be warmed to a point where it is comfortably hot to the touch.Employing a hair dryer or heat gun is an acceptable method for achieving the necessary temperature on the back glass.
• Prolonged application of heat with an iOpener, hair dryer, or heat gun is recommended to soften the adhesive securing the rear glass.

• Ensure your prying tool does not penetrate beyond a depth of 5 millimeters.To prevent harm to the spring contacts and ribbon cable, restrict tool insertion to the right edge's perimeter.Maneuver your prying tool along the lower-right corner, progressing upwards along the right edge until resistance is encountered from a securing clip.
• Refrain from using the prying tool in close proximity to the volume buttons, as this area houses the wireless charging and flash cable.
• Maintain the pick's position within the gap to inhibit the adhesive from reforming a seal.
• The clip's presence will be indicated by a firm obstruction during the prying process.

• Utilize a heated iOpener on the left side of the rear glass panel, maintaining heat for a duration of two minutes.The application of heat facilitates separation of the adhesive securing the back glass.To ensure adequate temperature, the surface should reach a point where it is comfortably warm to the hand.
• Employing either a hair dryer or a heat gun requires careful monitoring to avoid overheating and potential damage.

• To prevent damage to the spring contact, ensure the pick's insertion depth does not exceed 5 mm near the left edge.A second opening pick should be positioned at the lower edge.Moving the second pick around the lower-left corner and the screen's left edge will detach the adhesive and disengage the metal clips.
• The audible and tactile sensation of the metal clips releasing will indicate successful separation.
• Maintain the initial pick's position at the top-left corner to inhibit adhesive re-adhesion.

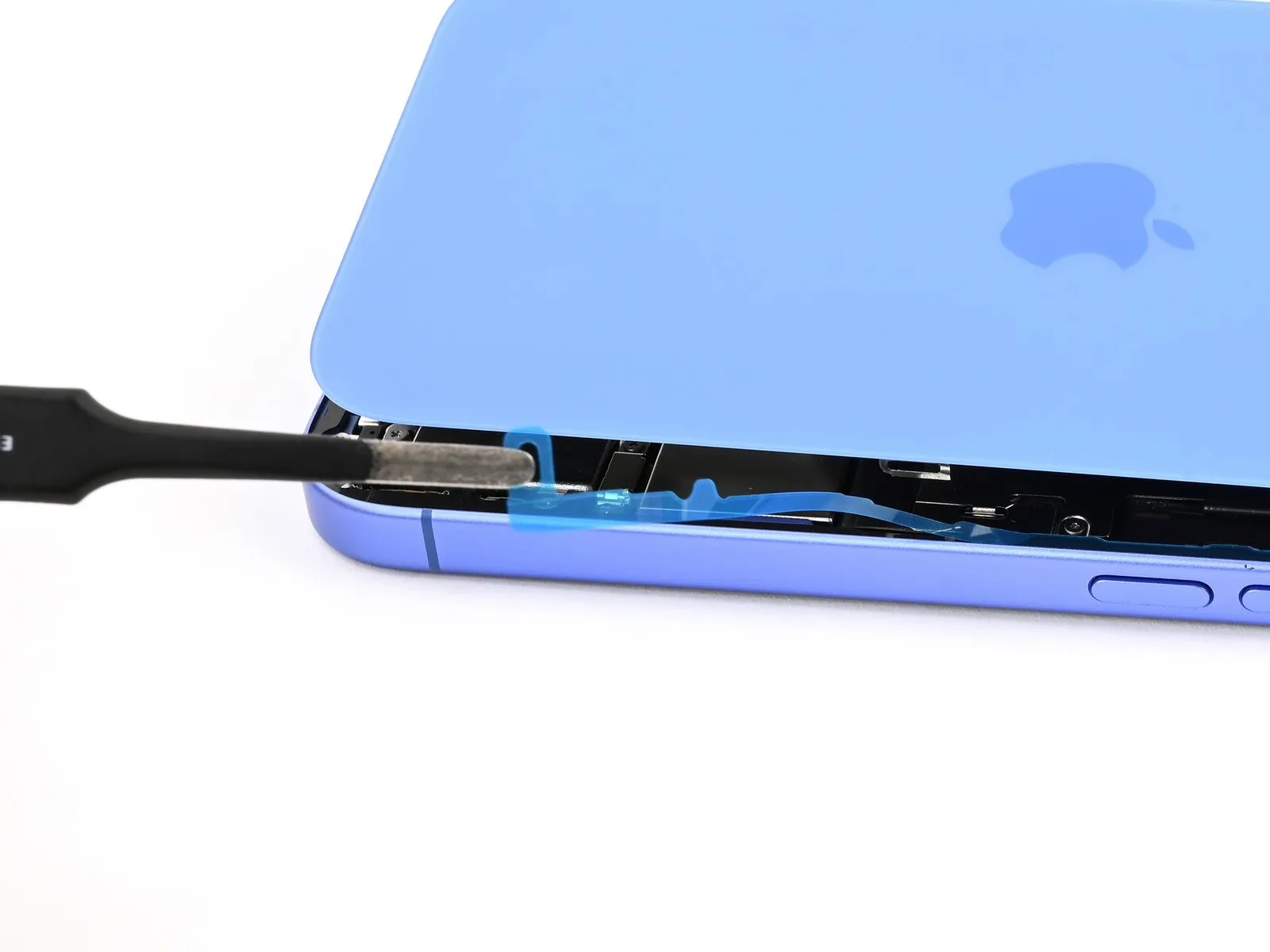

• Separation of the adhesive is achieved by carefully sliding the pick along the designated edges.
• Care must be taken to avoid over-insertion of the pick, limiting depth to a maximum of 5 mm.

• To initiate the separation process, utilize a heated iOpener on the upper perimeter of the rear glass panel, ensuring the volume controls are encompassed within the heat zone, and maintain this application for a duration of two minutes.The purpose of this prolonged heat application is to soften the adhesive securing the back glass.For alternative heating methods, such as hair dryers or heat guns, direct the airflow until the surface reaches a temperature comfortable to touch.
• Care must be taken to avoid excessive heat, which could damage internal components.

• To prevent potential harm to the spring contacts, ensure the insertion depth of your tool remains no greater than 3 millimeters along the device's upper border.Employing a sliding motion, maneuver your opening tool across the upper edge, progressing towards the top right corner and the volume up button, to effectively break the adhesive bond.The release of the upper two clips will be indicated by audible clicks and a discernible tactile sensation.
• Successful separation of the adhesive is confirmed by the release of these two clips, accompanied by the distinct sounds and feelings of their disengagement.

• Refrain from attempting complete separation of the rear glass at this stage, as it remains connected via a fragile ribbon cable; proceed with the subsequent instructions to ensure safe detachment.
• Should the rear glass resist easy pivoting, avoid applying excessive force; instead, re-examine the edges with your pick to identify any remaining adhesive or obstructions.
• Elevating the rear glass marginally prior to pivoting may be necessary to ensure complete disengagement of the retaining clips.

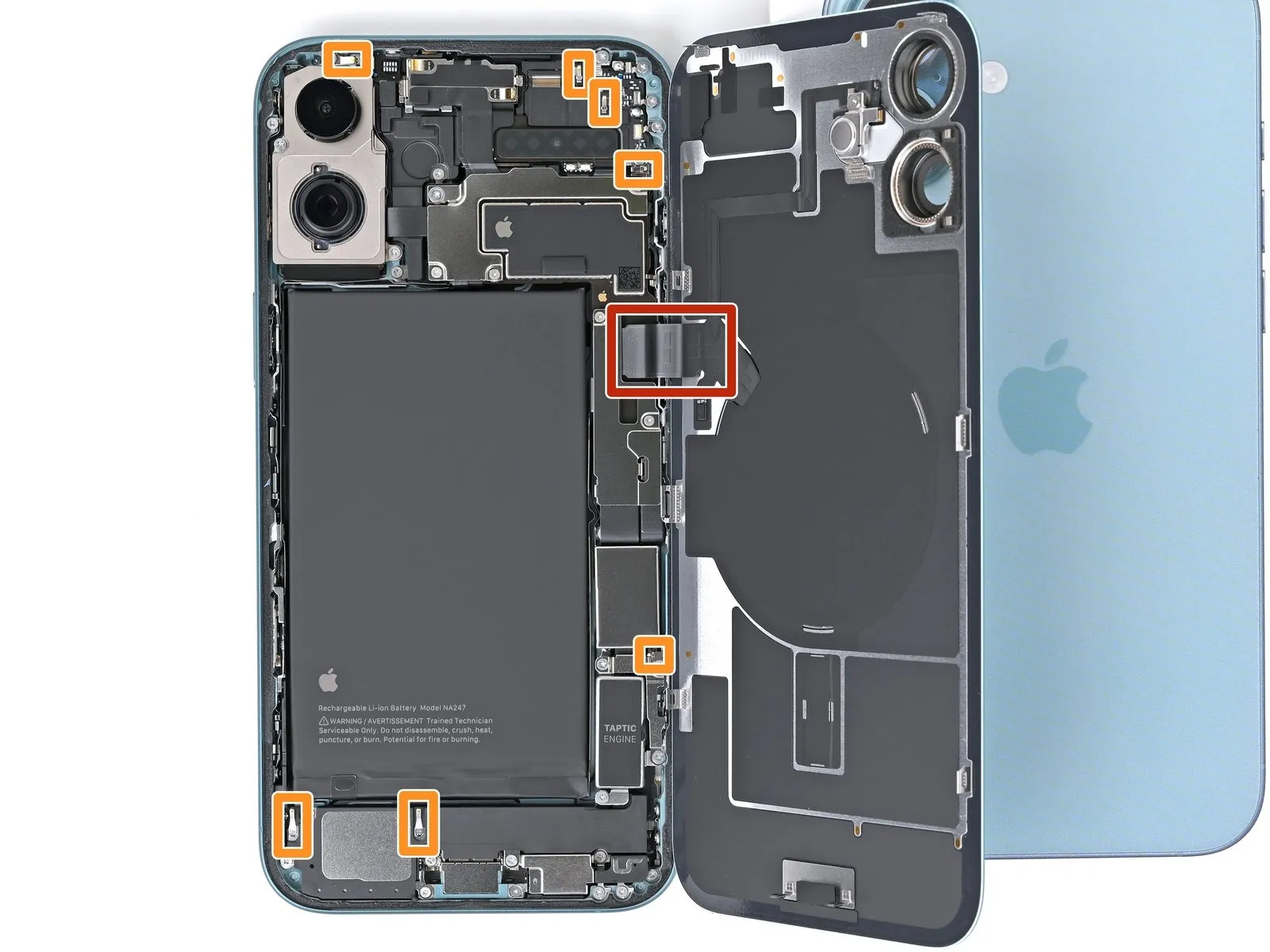

• Carefully pivot the rear glass assembly in the direction of the volume buttons.
• Employ a stable, non-abrasive support, such as a small box, to maintain the rear glass and prevent stress on the connecting cable.
• Extract the opening tools from the device.

• Employ a specialized tri-point Y000 driver for the disassembly process.The required driver type is a tri-point, specifically a Y000.Two screws, each measuring 1.3 millimeters in length, are used to fasten the middle connector cover.Secure the middle connector cover with screws that have a length of 1.3 mm.Removal of the middle connector cover necessitates the use of a tri-point Y000 driver to unscrew the two fasteners.

• Exercise caution to prevent any physical damage, such as dents or punctures, to the battery's casing.This precaution is essential while performing the subsequent actions.

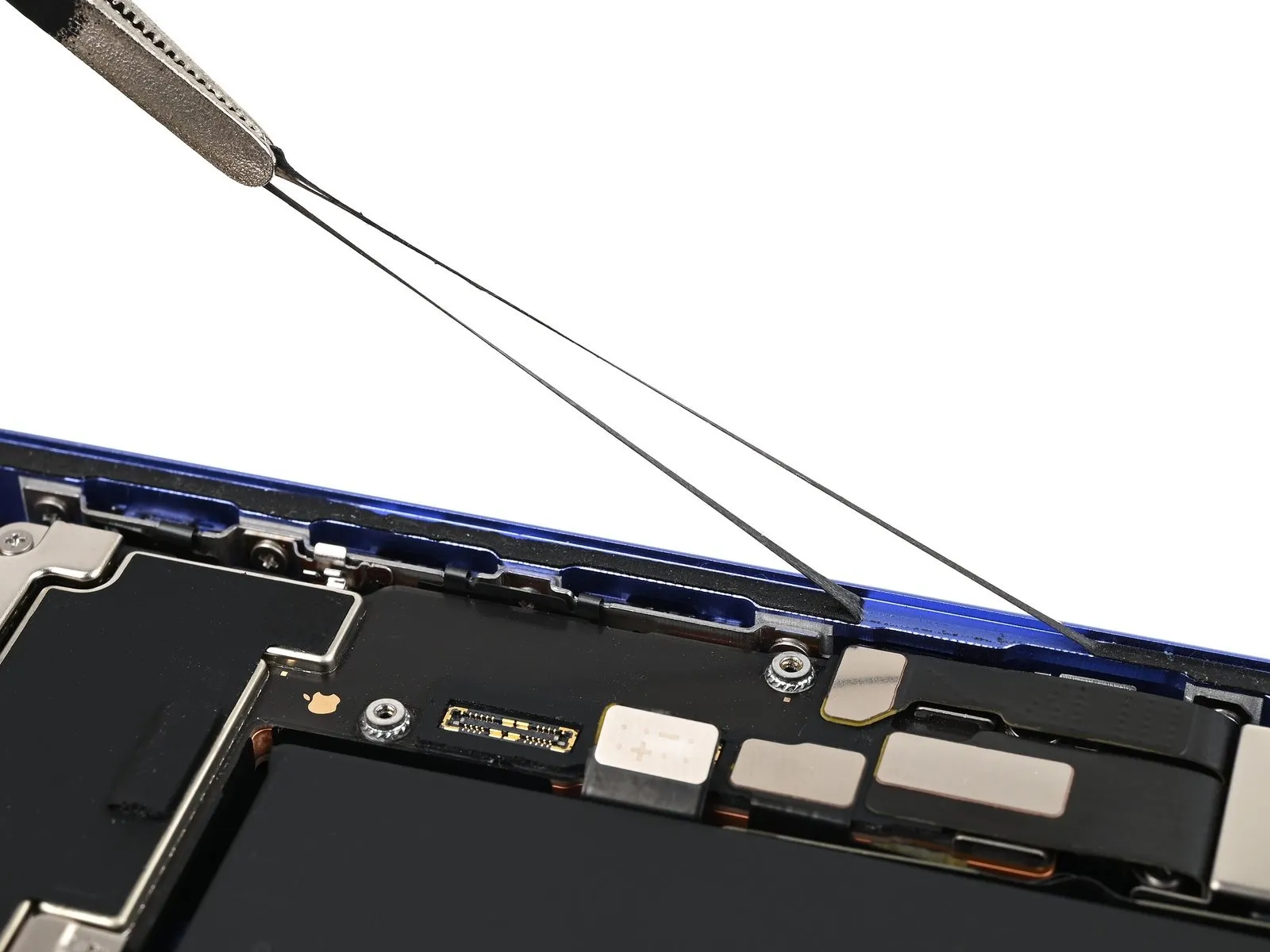

• Employing specialized tools, specifically blunt-nose tweezers, is recommended for this procedure; alternatively, your fingertips may be used.Carefully maneuver the cover by sliding it laterally towards the phone's left side, disengaging the retaining hook from its corresponding position on the logic board.The hook's release from the slot on the logic board allows for the cover's removal.
• Proceed to detach the cover from the device.

• Employ the tip of a spudger to carefully lift and detach the wireless charging coil's press-fit connector.Applying gentle force with a spudger's pointed end facilitates separation of the connector from the wireless charging coil.To release the wireless charging coil's connector, utilize a spudger and apply pressure at its tip for prying.

• Detach the rear glass component from its surrounding frame structure, subsequently removing it.

• To access the internal components, detach the upper connector cover by unscrewing the fasteners that hold it in place.
  The cover is affixed with two Phillips screws, each measuring 1.4 millimeters in length.
  A single Phillips screw, with a length of 3.5 millimeters, is also present.
  Additionally, a 1.0-millimeter tri-point Y000 screw secures the cover.

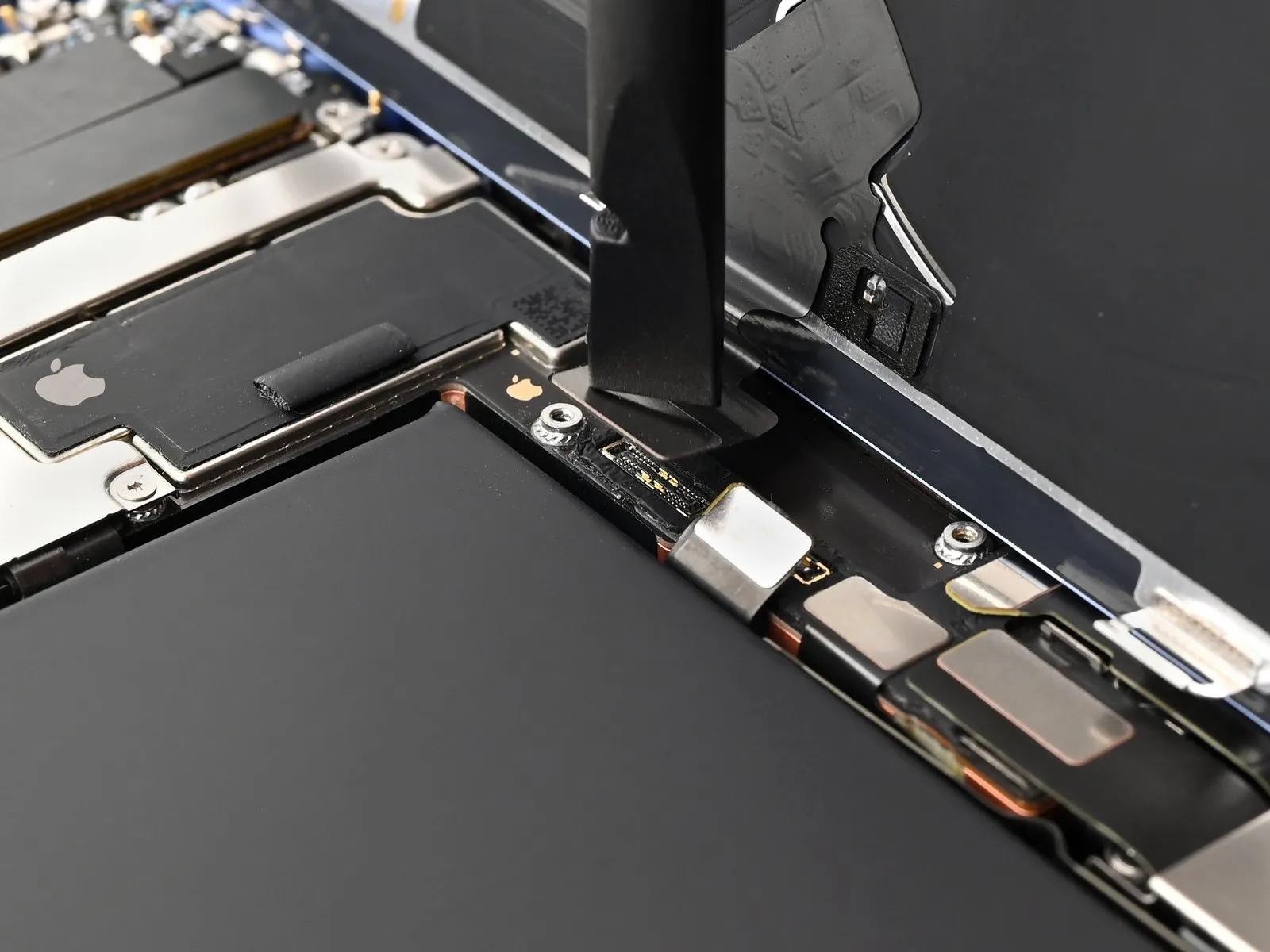

• Employing either tweezers or direct manual manipulation, detach the protective cover situated over the upper connector.The upper connector's cover can be disengaged using tweezers or by carefully grasping it with your fingertips.To access the connector, the overlying cover must be removed, and this can be accomplished with tweezers or by hand.

• Employ the tip of a spudger to carefully lift and detach the 5G mmWave antenna's press-fit connector.The connector securing the 5G mmWave antenna requires prying with a spudger to release it from its position.Disconnecting the 5G mmWave antenna necessitates utilizing a spudger to apply leverage and separate the press connector.

• Employ your tweezers to secure the stretch-release adhesive pull-tab, which is situated on the right-hand side of the 5G mmWave antenna.Carefully extract the stretch-release adhesive strip by applying gentle, consistent tension with your tweezers, maintaining a shallow angle.Allow ample time for the adhesive to extend and detach from beneath the antenna during the extraction process.
• To enhance your hold, consider winding the adhesive around the tip of your tweezers as you exert pulling force.Should the adhesive strip fracture during removal, utilize your tweezers to recover any detached fragments and proceed with the extraction.The pull-tab is designed for stretch-release functionality, enabling a controlled separation.
• Maintaining a low angle minimizes the risk of damage to surrounding components during the adhesive removal.A slow, steady pulling action prevents abrupt forces that could compromise the antenna's integrity.The stretch-release adhesive is formulated to provide a secure bond initially, then release with controlled force.
• If the adhesive breaks, attempt to gather the pieces with your tweezers to complete the removal.The 5G mmWave antenna is a delicate component; exercise caution throughout this procedure.The tweezers are essential for precise manipulation of the small adhesive pull-tab.

• Detach the 5G mmWave antenna from the earpiece speaker assembly and extract it.

Having finished the disassembly process, the subsequent instructions detail the reassembly procedure for your iPhone.

• Please note that certain reassembly images depict the iPhone 16 non-Plus model, which might exhibit minor visual variations.
• This outlined sequence of actions accurately reflects the proper reassembly method.

Should the newly acquired component lack pre-applied adhesive, affix the antenna to the earpiece speaker utilizing a strip of double-sided adhesive tape measuring 5 millimeters by 16 millimeters.A segment of double-sided tape, precisely 5 mm in width and 16 mm in length, is necessary for securing the antenna when the replacement part is not pre-bonded.To ensure proper attachment of the antenna to the earpiece speaker, apply a 5 mm by 16 mm section of thin, double-sided adhesive tape if the replacement component lacks its own adhesive backing.

Position the fresh antenna beneath the wiring harness of the front-facing camera.Ensure the antenna's cable is guided within the designated pathway situated above the main circuit board.

• Establish a connection with the antenna press connector.Secure the antenna press connector by firmly pressing the antenna against the earpiece speaker to create a bond.The antenna must be affixed to the earpiece speaker through pressure.

To position the upper connector cover so that its screw apertures correspond with their intended locations, employ tweezers or manual manipulation, subsequently securing it in the designated position.

• A quantity of two Phillips screws, each measuring 1.4 millimeters in length, are required.A single Phillips screw, with a length of 3.5 millimeters, is necessary for this procedure.
• A solitary tri-point screw of type Y000, possessing a length of 1.0 millimeter, is needed.The fasteners include two Phillips head screws, each with a 1.4 mm dimension.
• For assembly, a 3.5 mm Phillips screw will be utilized as a component.A 1.0 mm tri-point Y000 screw constitutes one of the required parts.

• Exercise caution to prevent harm to the spring contacts during the cleaning process of the frame.
• Prior to final phone closure, it's advisable to verify the repair's functionality; reconnect the battery and rear glass, activate the device, confirm expected operation, then deactivate, detach the battery and rear glass, and proceed with reassembly.
• Adhesive remnants on the device are challenging to eliminate and often leave behind residue; if removal proves problematic, apply warmth with a hairdryer or heat gun.
• Employ the tapered tip of a spudger to apply pressure and manipulate the adhesive, facilitating a secure grip with tweezers.

• Employ tweezers to detach the adhesive residue from the device's surface.
• Continue this method iteratively until complete removal of all adhesive material is achieved.

• Remaining adhesive contaminants can negatively impact the iPhone's environmental protection.
• Employing a spudger, cover its tip with a microfiber or lint-free cloth, then dispense a small quantity of isopropyl alcohol with a concentration exceeding 90 percent onto the cloth's surface.
• To effectively remove adhesive remnants, use a single, consistent wiping motion along the frame's edge.
• Allow several minutes for complete evaporation of any residual alcohol before continuing the repair process.

• For installations not involving the original rear panel, proceed to the subsequent repair stage.
• Utilize a small quantity of isopropyl alcohol possessing a concentration exceeding 90% on a microfiber cloth or a lint-free alternative to clean the back glass edges, facilitating adhesive bonding.The cleaning process should encompass the entire perimeter of the rear glass.If retaining clips on the back glass are deformed, carefully restore their shape manually.
• Gentle manipulation with your fingers is sufficient for clip realignment.

• Position the new adhesive onto the frame, ensuring the wider blue protective liner faces inward and the release tab is situated in the lower-right area.
• Variations in liner color and pull tab placement are possible depending on the specific adhesive model.
• Employ existing details like the camera aperture and edge indentations to confirm proper adhesive alignment.

• Initiate the removal of the adhesive backing's protective liner by grasping the designated pull tab and gently separating it from the bottom edge, ensuring the liner remains partially attached.

• After applying pressure to secure the adhesive, adjustments are impossible; complete removal and replacement with fresh adhesive will be necessary.
• Maintain the blue liner's position aside and carefully position the adhesive strip along the iPhone's lower boundary.
• Ensure proper alignment of the iPhone’s spring contacts with the liner’s corresponding openings by seating the adhesive’s lower edge within the frame's designated cavity.

• Progressively remove the protective backing from the adhesive strip, ensuring firm contact with the iPhone's frame perimeter during application.
• Proper alignment of the lower adhesive edge should result in automatic positioning of the side and top edges; if misalignment occurs, discard the adhesive and reapply a fresh set.
• Should a misaligned adhesive situation arise without replacement adhesive availability, the iPhone can be reassembled and used temporarily without adhesive; however, be aware that the device's water resistance will be significantly reduced until new adhesive is installed.

• Employ the planar edge of a spudger to secure the adhesive bond along the frame's outer boundary.Exercise caution to prevent contact with the spring terminals exposed through the pink liner material.Applying pressure with the spudger's flat end ensures proper adhesion around the device's frame.
• The adhesive must be firmly seated around the frame's edges using the spudger's flat end.

• To detach the pink adhesive liner, grasp the diminutive pull tab situated in the upper-right region.

• After the uppermost protective film is peeled away, observe three slender liners situated above the adhesive, each featuring a pull tab located close to the lower border.
• The placement of these pull tabs can vary.
• Should these pull tabs be absent, it's possible the delicate liners were unintentionally detached during the prior procedure; if the adhesive surface appears clear and correctly positioned, continue with caution, avoiding any contact with the exposed adhesive until the back glass is ready for installation.

• To prevent screen damage, secure the rear glass on the right side with a rigid support, such as a box.
• Employ the broad, planar tip of a spudger, or a fingertip, to establish a connection with the charging coil press connector.The spudger is a specialized tool designed for delicate prying and disconnecting.Ensure a secure electrical connection by applying gentle pressure to the charging coil press connector.

• Employ the planar edge of a spudger tool, or a fingertip, to establish a connection with the battery.A spudger's flat end, or your finger, can be utilized to make contact with the battery.To engage the battery, apply pressure with the flat portion of a spudger, or use a finger.

• The logic board incorporates two slots designed to receive the two hooks extending from the connector cover.
• Position the connector cover atop the device, ensuring the hooks are offset slightly to the left relative to the corresponding slots on the logic board.
• Apply downward and rightward pressure with a fingertip to the connector cover, facilitating the complete insertion of both hooks into their designated slots.

• Employ a specialized tri-point Y000 driver for the installation process of the screws.The screws, each measuring 1 millimeter in length, fasten the middle connector cover in place.Securely affix the cover utilizing the aforementioned driver to manage the two diminutive fasteners.

• During liner removal in this procedure, the adhesive backing becomes completely visible; prevent any contact with this exposed adhesive.
• Employ the designated "blue tabs" to detach the liners from the lower, left, and upper borders of the iPhone’s housing.Defer liner removal from the right-hand side of the device until a later stage.Adhesive exposure occurs when the liners are detached, necessitating precautions to avoid unintended adhesion.

• To prevent contact between the rear glass and the adhesive, position it above the device to facilitate access to the remaining liner situated on the right side of the phone's frame.
• Employ tweezers or your fingertips to detach the last liner from the right edge of the device.

• Position the replacement back glass over the device's rear surface, ensuring precise alignment with the surrounding frame structure.
• Carefully lower the glass component onto the frame, applying even pressure until the securing clips audibly click into place.
• Apply consistent force across the entire edge of the back glass to guarantee that all retaining clips are fully engaged.

• For improved adhesion, warm the perimeter edges of the rear glass with a specialized iOpener tool, a hairdryer, or a heat gun, ensuring they reach a warm surface temperature.Exert consistent pressure along the entire outer boundary of the rear glass assembly.Utilize screen vise clamps, if available, to enhance the adhesion of the replacement rear glass.
• Alternatively, proceed to the following instructions for alternative methods of securing the newly installed rear glass.
• The application of heat facilitates a stronger adhesive connection between the rear glass and the device's frame.

• Consistent pressure across the iPhone's surface is essential for proper back glass adhesion and frame reinforcement, necessitating consideration of the camera module's protrusion.
• Utilize the iPhone's original packaging, specifically the lid, and position it on a level work area.
• Should the original packaging be unavailable, proceed to an alternative compression technique.
• Position the iPhone, screen-facing upwards, within the box lid, ensuring the camera bump aligns with the designated cavity.
• Locate an object with approximate dimensions to the iPhone's length but exceeding the box's lateral dimensions; then, position this object atop the iPhone, followed by several substantial weights.
• Maintain the applied pressure for a minimum of thirty minutes; lighter weights require extended compression times, with overnight stabilization being the optimal duration.

• Lacking the iPhone's original packaging, alternative procedures involving uniform compression of the rear glass assembly are detailed in the subsequent instructions.
• Position the iPhone with its display facing downwards upon a cushioned, level surface.
• Adhesive tape should be applied to the rear glass to safeguard its cosmetic appearance.

1. To ensure consistent pressure along the rear glass perimeter, position two coin stacks, or equivalent-thickness spacers, directly on the adhesive tape's edges.
   Maintain a uniform distribution of these spacers, guaranteeing their thickness is equivalent to or greater than the camera module's protrusion.

1. To apply pressure for bending, place several books or similarly weighted items directly on top of the iPhone's chassis.
   Because coins can potentially create a mark, avoid utilizing precious or irreplaceable items as the base surface beneath the applied weight.
   Maintain the applied pressure for a minimum of thirty minutes; if the weighting is less substantial, extend the duration, with an overnight period being the optimal timeframe.

• Employ a P2 pentalobe driver for the installation process.The two screws, each measuring 7.7 millimeters in length, require this specialized tool.Securely fasten the screws to the device's chassis, positioning them on both sides of the charging port.A P2 pentalobe driver is essential for proper engagement with the screw heads.Ensure the screws are aligned correctly before applying torque to prevent damage.
