iPhone 16 Pro 5G mmWave Antenna Replacement

Using these instructions, you can substitute a new component.The device incorporates a 5G millimeter wave antenna.For iPhone 16 Pro devices manufactured for use in the United States and Puerto Rico (model number A3083), the replacement antenna is required.

Cellular network problems while Wi-Fi works suggest a possible need to substitute the cellular antenna assembly.The device incorporates a 5G millimeter wave antenna..

  • To proceed, obtain a new back glass component.Use adhesive specifically designed for 5G millimeter wave antennas.Employ the specified tools and adhere to all safety precautions while performing this procedure.
  • If the factory-applied adhesive on the earpiece speaker fails or is damaged, replace it with a layer of double-sided tape suitable for this application.

Step 1 | Prepare the phone for disassembly

Step 1 image
Thumbnail 1
Thumbnail 2
  • Let the battery's charge level drop to a state where it registers below.One-quarter.Because a lithium-ion battery containing an electrical charge presents a possible safety risk.
  • Disconnect all wires and cords connected to the device.
  • Simultaneously press and maintain the power button and one of the volume buttons, then swipe your finger across the screen to initiate the power-off sequence.

Step 2 | Tape over any cracks

Step 2 image
Thumbnail 1
Thumbnail 2
  • To prevent injury and simplify the repair process when the display or rear glass exhibits severe cracking, apply strips of packing tape, ensuring they overlap, across the damaged areas.
  • Ensure a flat surface, approximately the size needed to accommodate a suction cup, exists close to the lower perimeter.

Step 3 | Mark your opening picks

Step 3 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  • To avoid potential damage to your device, ensure the opening pick does not extend beyond a safe depth; mark the pick to serve as a visual reference for proper insertion.
  • Determine the dimension using a measuring tool.Three millimeters.Using a permanent marker, indicate the opening point on the pick.
  • Alternative corner markings, using the same measurement tools, can be applied to the remaining corners of the pick.
  • Securely affix a coin to the tip of a pick using adhesive tape.Three millimeters.Beginning at the very end, proceed.

Step 4 | Remove the pentalobe screws

Step 4 image
Thumbnail 1
Thumbnail 2

Employ a P2 pentalobe screwdriver to detach the two.The specified dimension is seven point four millimeters.Secure the USB-C port with the provided long screws, one on each side.

Step 5 | Heat the bottom edge

Step 5 image
Thumbnail 1
Thumbnail 2
  • Use a heat source to introduce the material.Use a specialized device like an iOpener to gently apply heat around the perimeter of the enclosure.Apply consistent pressure to the lower border of the rear glass panel and maintain contact for a duration of 120 seconds.
  • Applying heat to the lower edge of the rear glass with a hairdryer or heat gun, until it reaches a warm surface temperature, is another option.
  • To prevent heat-related battery damage, ensure the device's temperature remains below the specified limit.

Step 6 | Insert an opening pick

Step 6 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  • Using a suction handle, secure it to the lower edge of the rear glass, positioning it directly over the USB-C port.
  • Apply firm, consistent upward pressure to the handle to separate the rear glass from the frame.
  • Carefully slide the pointed end of a prying tool into the separation.

Step 7 | Back glass information

Step 7 image
Thumbnail 1
Thumbnail 2
  • Exercise caution while separating the back glass, paying close attention to these specific zones.
  • To prevent damage to the fragile cable linking the rear glass assembly and the device, refrain from inserting any tools near the upper volume control button.
  • To prevent damage, exercise caution and limit the depth of your tool insertion during each step, as delicate spring contacts are positioned along the phone's edge.
  • Using a spudger or opening pick, carefully realign any bent spring contacts to ensure they make proper contact with the gold pads located on the rear glass.

Step 8 | Separate the bottom edge adhesive

Step 8 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  • To prevent spring contact damage, limit the insertion depth of the pick to a maximum of 5 mm when working on the bottom edge.
  • Use a pick to gently work between the lower edge and the chassis, moving it back and forth to release the adhesive bond.
  • To stop the adhesive from bonding prematurely, maintain a pick in the lower right section.

Step 9 | Heat the right edge

Step 9 image

Apply warmth to encourage component release.Apply heat to the right side of the rear glass panel until its surface temperature is high enough to be felt as hot when touched.

Step 10 | Separate the bottom right corner adhesive

Step 10 image
Thumbnail 1
Thumbnail 2
  • Carefully move the component along its axis.Select the component.Proceed along the lower right perimeter and up the right side, stopping when you encounter a firm resistance indicating a retaining clip has been reached.
  • To prevent damage to the wireless charging/flash cable, exercise caution and do not use the cutting tool in the vicinity of the volume buttons.
  • Maintain the pick's position within the gap to stop the adhesive from bonding again.

Step 11 | Heat the left edge

Step 11 image

Apply warmth to raise the temperature.Apply heat to the left side of the rear glass panel until its surface temperature is high enough to be felt as hot when touched.

Step 12 | Separate the left edge adhesive

Step 12 image
Thumbnail 1
Thumbnail 2
  • Place an additionalUse a specialized tool designed for prying, often referred to as an opening pick.Locate the lower border.
  • Carefully move the secondSelect the component.Carefully work your way around the lower-left corner and up the left side of the display, using a plastic opening tool to break the adhesive bond and disengage the metal clips.
  • As the clips slide past, you will perceive both an audible click and a slight movement indicating their disengagement.
  • Maintain the pick's position in the upper left corner to obstruct adhesive re-bonding.

Step 13 | Heat the top edge

Step 13 image
Apply heat evenly across the upper perimeter of the rear glass, extending the warmth to the region encompassing the volume controls, ensuring the surface reaches a temperature that is noticeably warm when touched.

Step 14 | Separate the top edge adhesive

Step 14 image
Thumbnail 1
Thumbnail 2
  • Avoid pushing the tool beyond the specified depth.Three millimeters.To prevent damage to the spring contacts, maneuver along the upper border.
  • Carefully insert a separation tool along the upper edge, progressing around the top right corner until it reaches the volume up button, to break the adhesive seal. Listen and feel for the distinct clicks indicating the release of the two upper retaining clips.

Step 15 | Swing open the back glass

Step 15 image
Thumbnail 1
Thumbnail 2
  • Avoid complete separation of the rear glass at this stage, as it remains connected via a fragile ribbon cable; proceed with the subsequent instructions to ensure safe detachment.
  • Should you encounter resistance when attempting to lift the rear glass, avoid applying excessive force; instead, carefully retrace the edges with your pick to identify and release any remaining adhesive or clipped fasteners.
  • To ensure complete separation of the retaining clips, a small upward movement of the rear glass might be necessary prior to pivoting it outwards.
  • Carefully pivot the rear glass assembly away from the volume controls.
  • To prevent damage to the cable, use a rigid, non-contaminating item—such as a small box—to provide backing for the rear glass during the repair.
  • Carefully extract the opening picks.
  • To shield the rear camera lenses from potential scratches during internal repairs, apply polyimide tape; exercise caution and refrain from applying pressure to these components, as doing so could harm the sensitive image stabilization mechanisms.

Step 16 | Disconnect the battery

Step 16 image
Thumbnail 1
Thumbnail 2
  1. Employ a three-pronged screwdriver.Use a Y000 screwdriver.Use a screwdriver to unscrew and detach the three screws that hold the lower connector cover in place.
    • Employ a quantity of two.One point two millimeters.Utilize screws with a length of long.
    • Begin the process by executing step one.One millimeter.Employ a screw with a substantial length.

Step 17

Step 17 image
Thumbnail 1
Thumbnail 2
Thumbnail 3

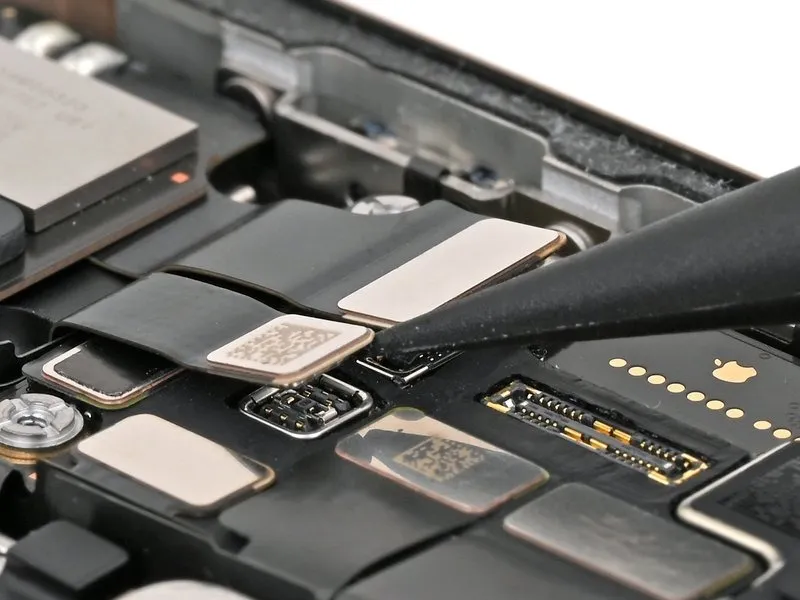

  • Employ the specified tool to perform the action.Employ fine-tipped pliers or similar precision instruments.orUse your hands.Gently lift and detach the lower connector cover.

Step 18

Step 18 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  • Carefully insert the tip of a screwdriver to.Use a spudger.Use a prying tool to release and separate the battery press connector.

Step 19 | Disconnect the back glass

Step 19 image
Thumbnail 1
Thumbnail 2
  1. Employ a Y000 tri-point screwdriver to detach the four screws that hold the upper connector cover in place.
    • Two.One millimeter.Use screws with a length of long.
    • Begin the process with the number one.One point two millimeters.Employ a screw with a substantial length.
    • Begin the process by executing action number one.One point six millimeters.Utilize a screw with a substantial length.

Step 20

Step 20 image
Thumbnail 1
Thumbnail 2
  • Employ the specified tool to perform the action.Employ fine-tipped pliers or similar precision instruments.orUse your hands.Gently lift and detach the upper connector cover.

Step 21

Step 21 image
Thumbnail 1
Thumbnail 2

Carefully insert the tip of a screwdriver to.Use a plastic pry tool, often referred to as a spudger.Using a prying tool, carefully lift the back glass press connector to release its connection.

Step 22 | Remove the back glass

Step 22 image
Thumbnail 1
Thumbnail 2

Carefully detach the rear glass component from its surrounding frame, then completely separate it.

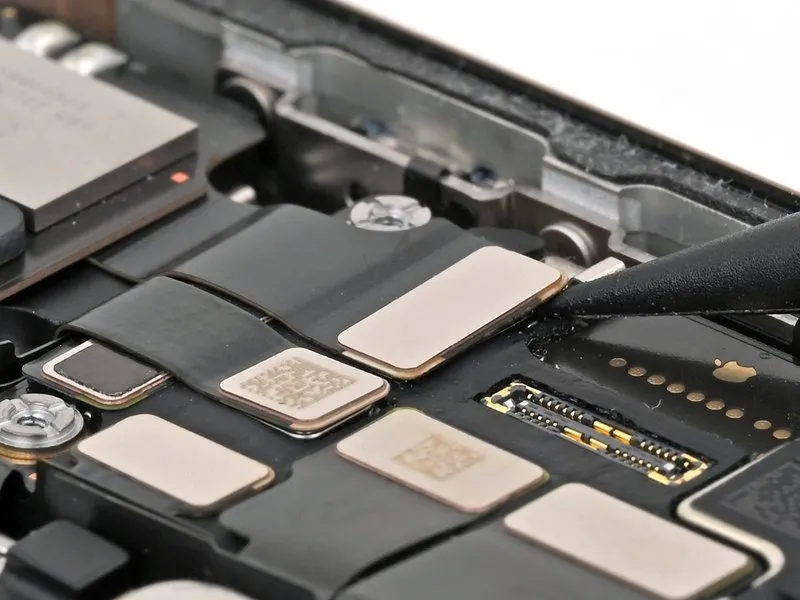

Step 23 | Disconnect the earpiece speaker

Step 23 image
Thumbnail 1
Thumbnail 2
Thumbnail 3

Please provide the original text you want me to rewrite. I need the sentence or instruction to be able to fulfill your request.The device incorporates a 5G millimeter wave antenna.The following procedure applies exclusively to iPhone 16 Pro models (A3083) distributed in the United States and Puerto Rico; if you have a different model, proceed to the steps after the next four.
Carefully insert the tip of a screwdriver to.Use a plastic pry tool, often called a spudger, to avoid scratching surfaces.Carefully leverage the earpiece speaker assembly free and detach it.Secure the 5G millimeter wave antenna using press-fit connectors.The component is situated in the upper right quadrant of the logic board.

Step 24 | Remove the earpiece speaker

Step 24 image

Employ a 3/8-inch socket wrench to tighten the fastener to a torque of 15 Nm, ensuring you observe all safety precautions and handle the component with care.Use a Phillips-head screwdriver.Use a Phillips head screwdriver to detach the six screws that hold the earpiece speaker in place.

  • A quantity of three is required.Screws measuring 1.2 millimeters in length.
  • Two.Screws measuring 1.8 millimeters in length.
  • Begin the process by executing the action designated as "One."A screw measuring 1.7 millimeters in length.

Step 25

Step 25 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  • Using a spudger, gently lift the earpiece speaker assembly by inserting the tip into the lower-right corner and applying upward pressure.
  • Expect a slight binding force as you separate the speaker, particularly at the upper edge where the speaker gasket makes contact with the frame; ease the speaker outward to break the seal.

Step 26 | Remove the stretch release adhesive

Step 26 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  1. Carefully grasp the stretch release adhesive pull tab, positioned along the edge, with tweezers.The device incorporates a 5G millimeter wave antenna..
  2. Carefully extract the stretch release adhesive strip using tweezers, maintaining a shallow angle and proceeding slowly to allow for gradual separation from beneath the antenna.
  3. To enhance traction during removal, rotate the adhesive material around the tweezers' tip as you exert pulling force.
  4. Use tweezers to carefully recover any detached adhesive strip fragments, then proceed with the pulling process.

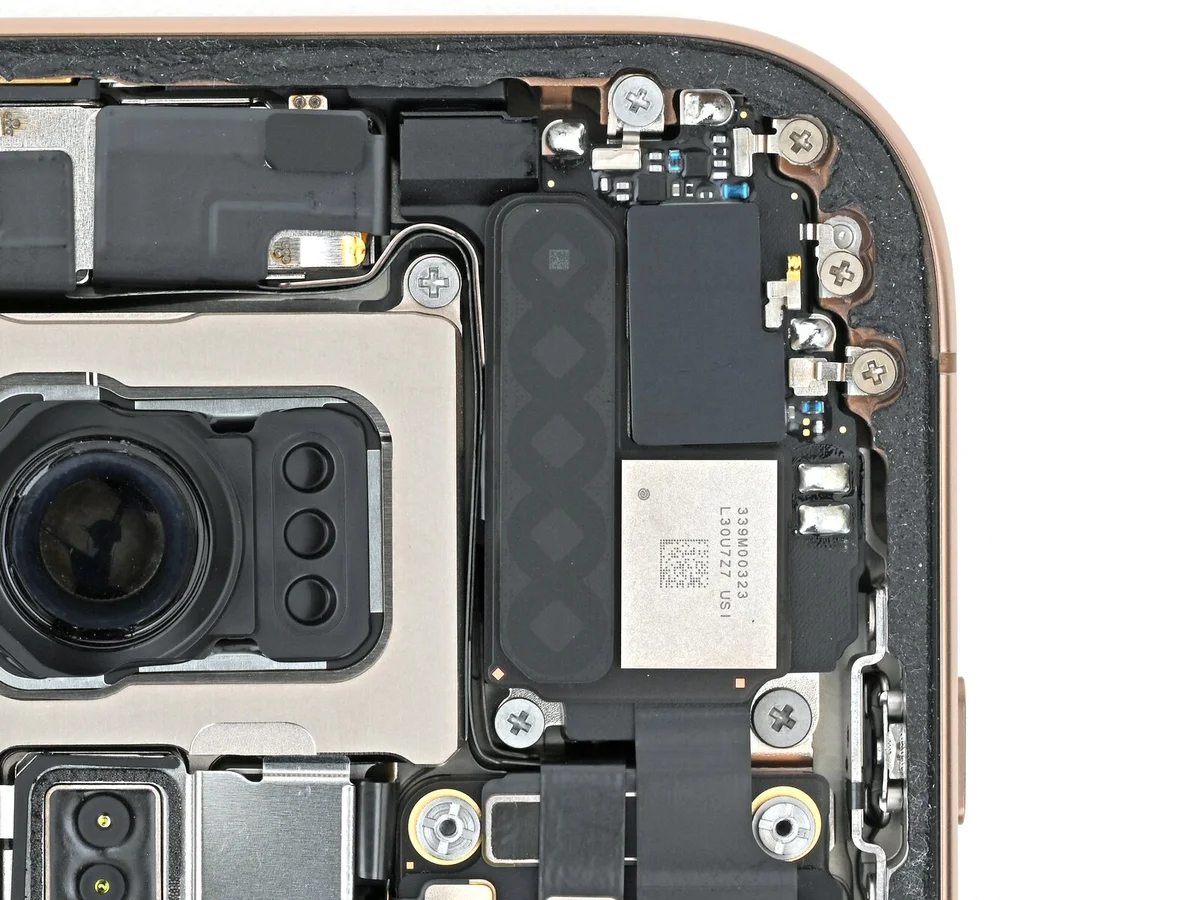

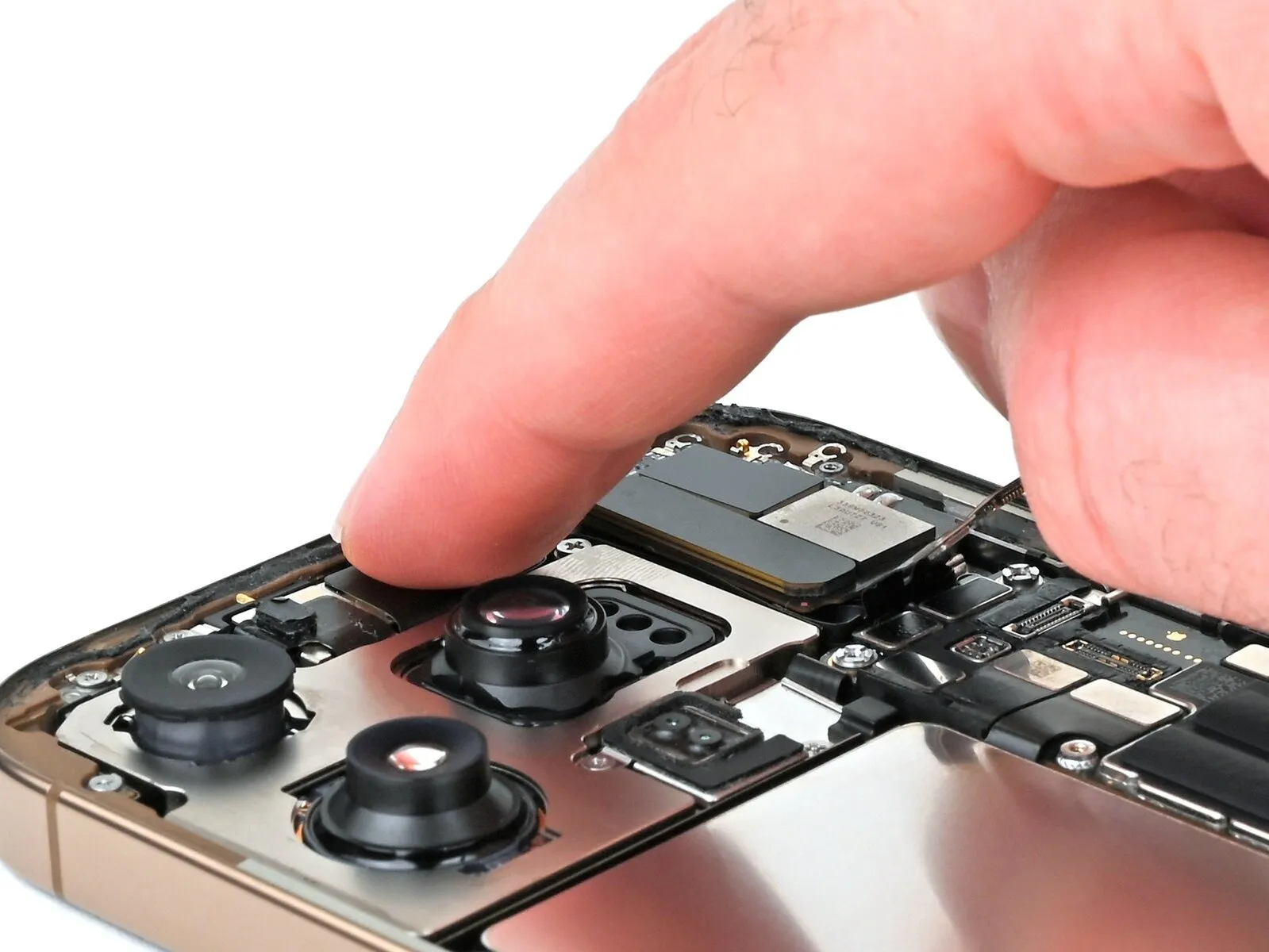

Step 27 | Remove the antenna

Step 27 image
Thumbnail 1
Thumbnail 2

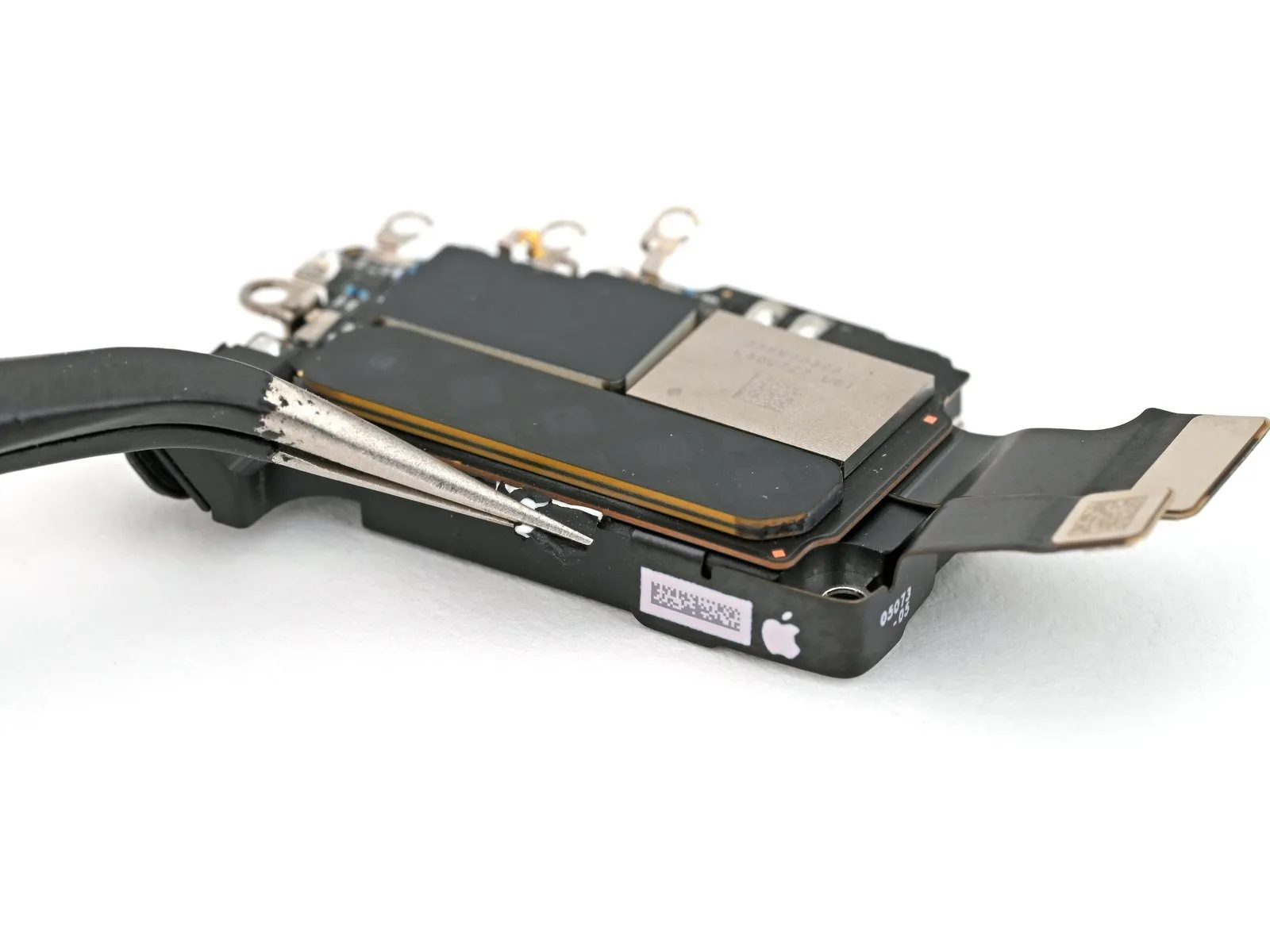

Carefully raise theThe device incorporates a 5G millimeter wave antenna.Carefully detach the earpiece speaker component and then take it out.

Step 28 | Disassembly complete

Step 28 image

Having finished the disassembly process, the following instructions detail the reassembly of your iPhone. While some images illustrate the Pro Max, the outlined procedure is applicable to both the Pro and Pro Max models.

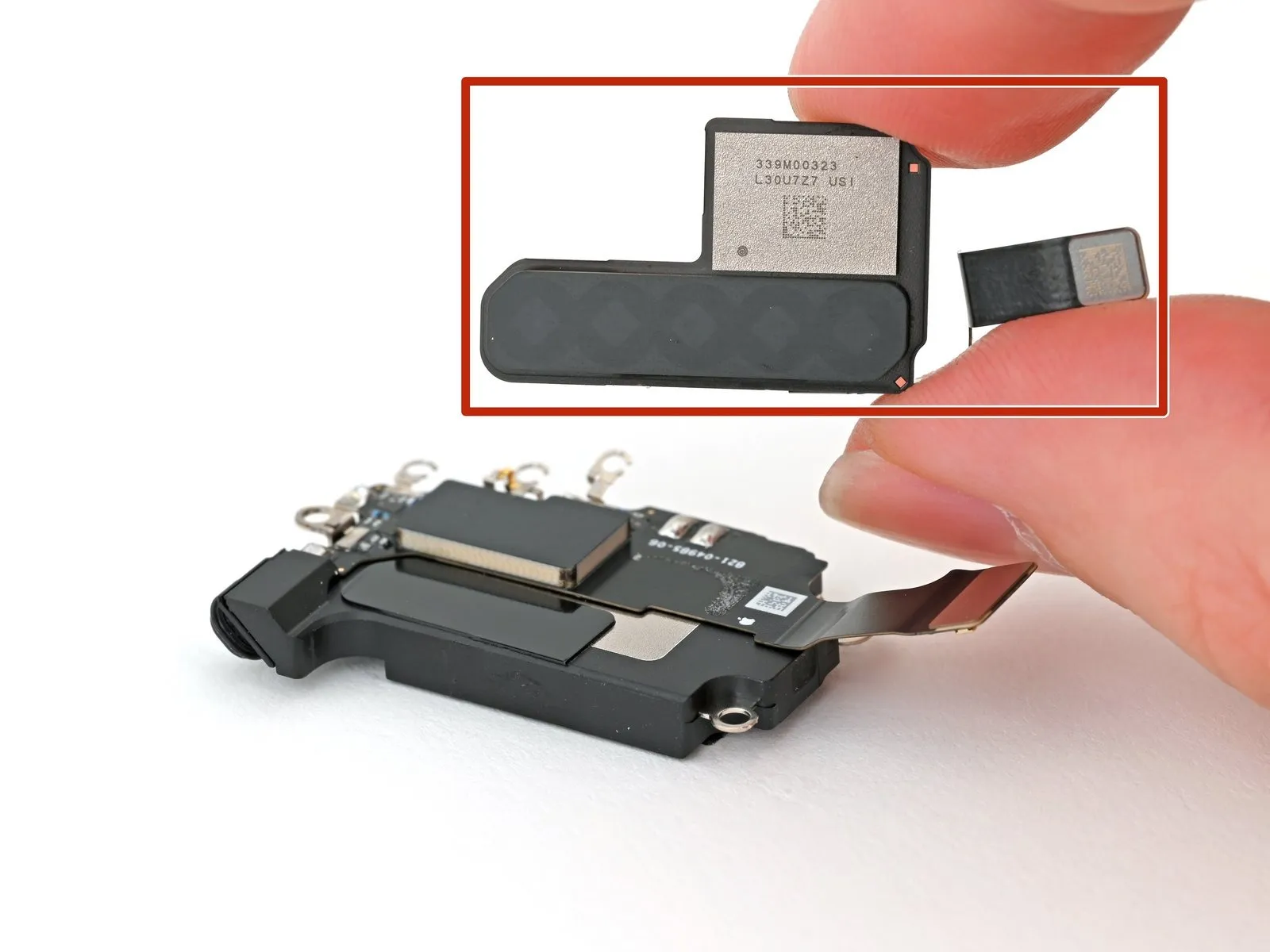

Step 29 | Antenna information

Step 29 image

To proceed, follow these instructions for installing theThe device incorporates a 5G millimeter wave antenna.Prior to attaching the earpiece speaker, proceed to the subsequent instruction only if your device includes the antenna; otherwise, bypass it.

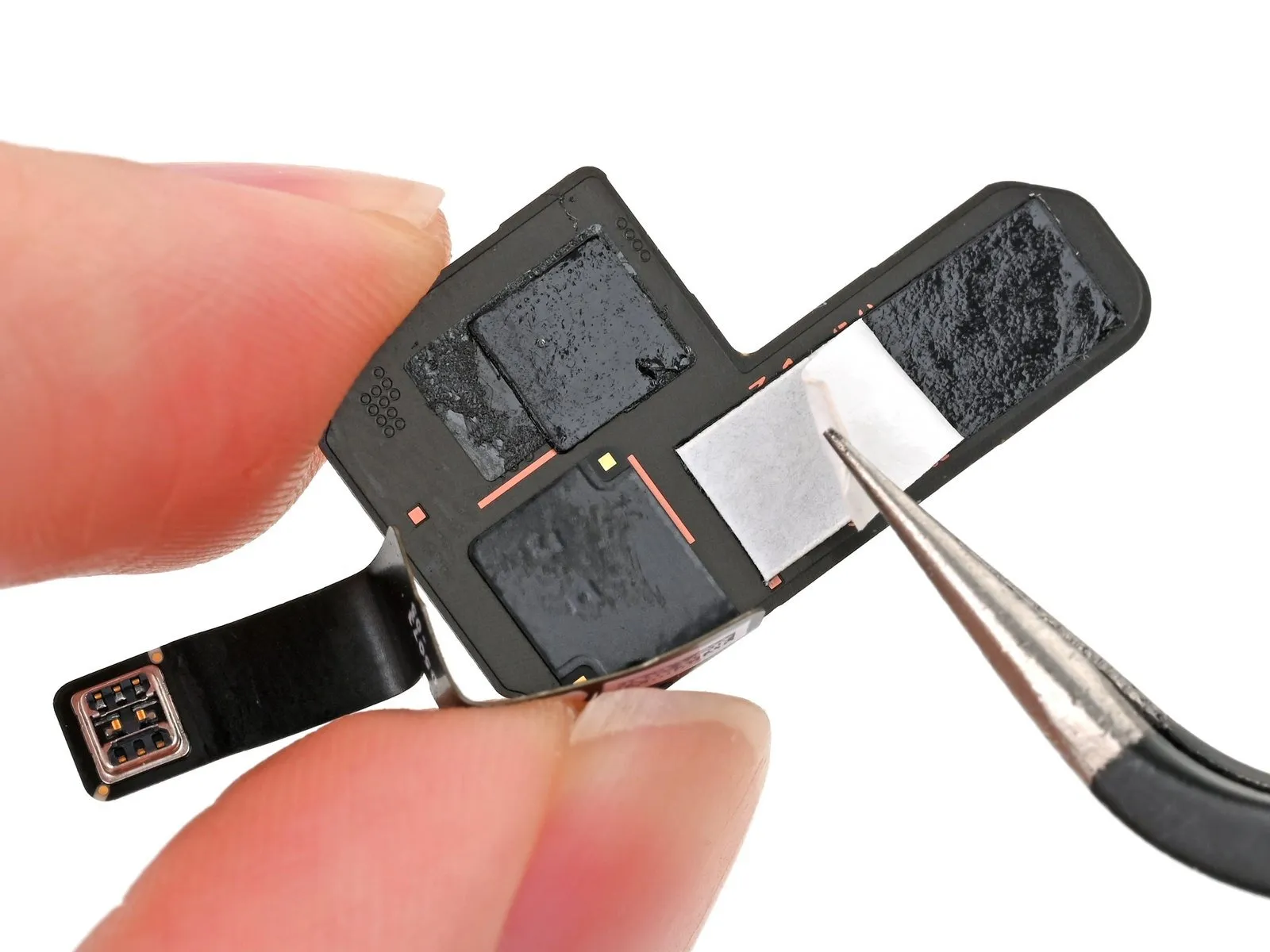

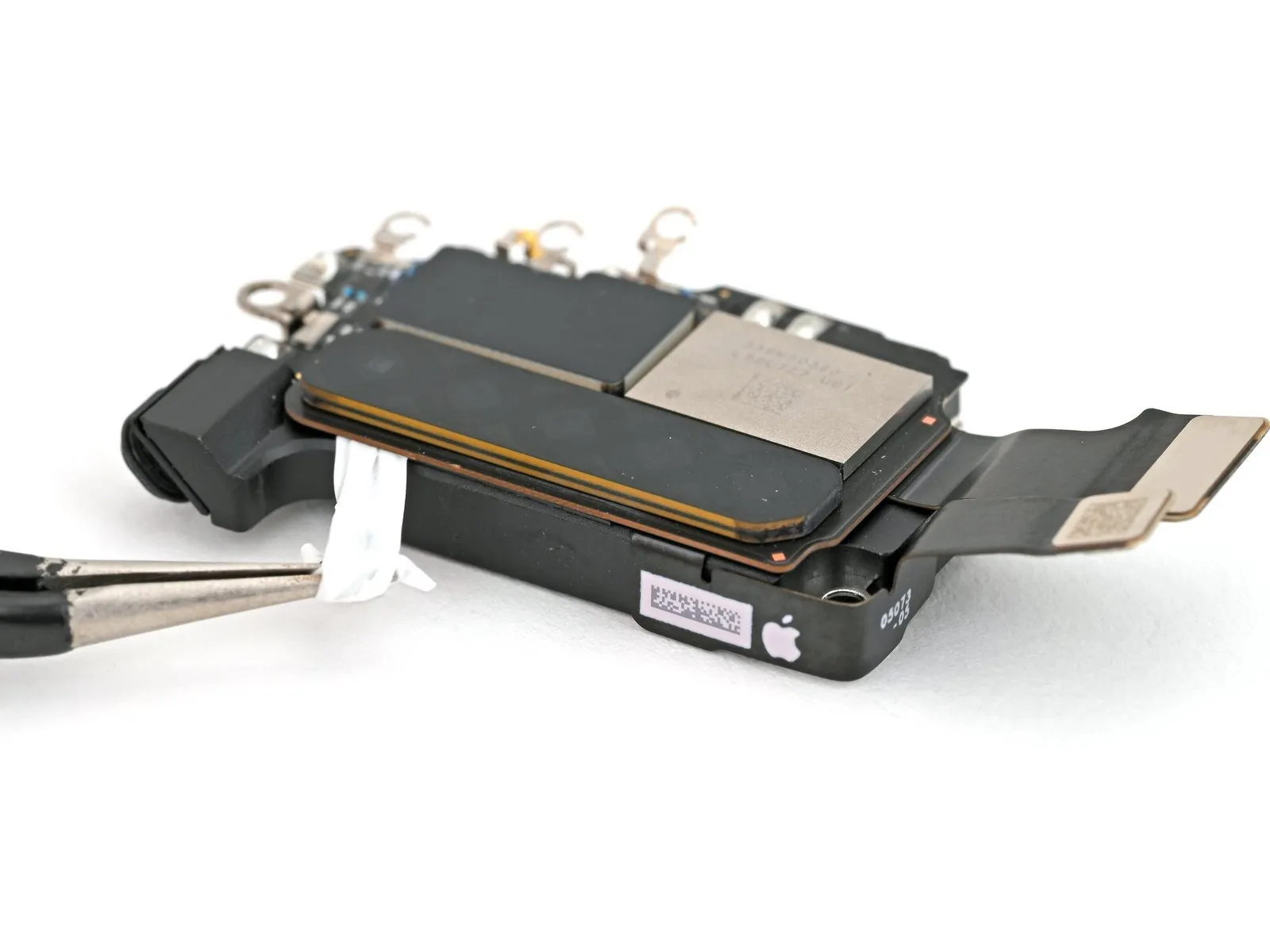

Step 30 | Install the antenna

Step 30 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  • To secure the antenna, whether it's being reused or lacks factory-applied adhesive, affix narrow strips of double-sided tape to the antenna’s rear surface, precisely covering the area previously occupied by the original adhesive.The dimension is 16 millimeters by 5 millimeters.Carefully remove two 2-inch by 2-inch sections from the pre-cut card material.
  • Carefully detach the liners from the adhesive using tweezers or your fingertips.
  • Secure the antenna to the earpiece speaker by applying firm pressure to ensure it sticks.

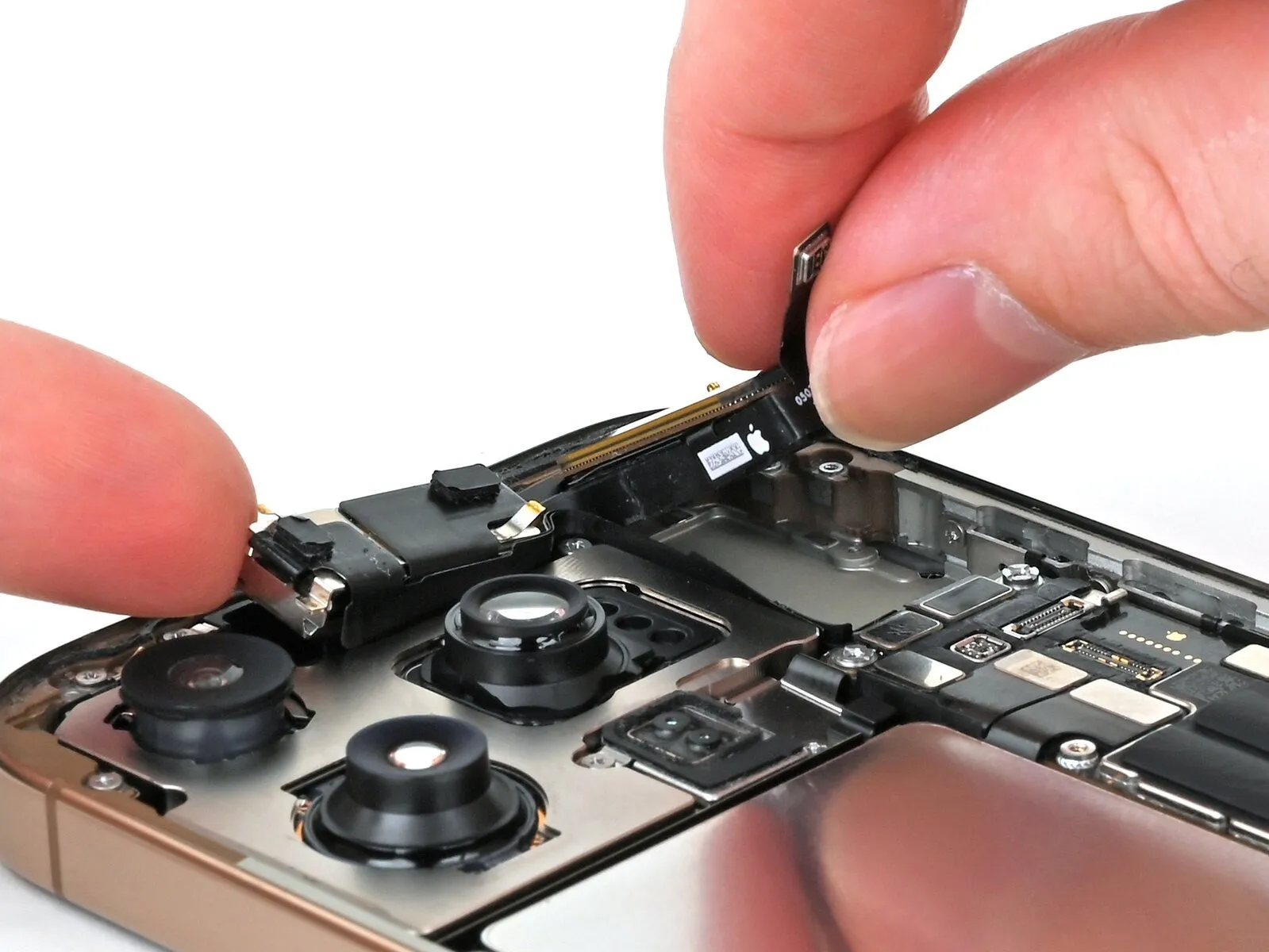

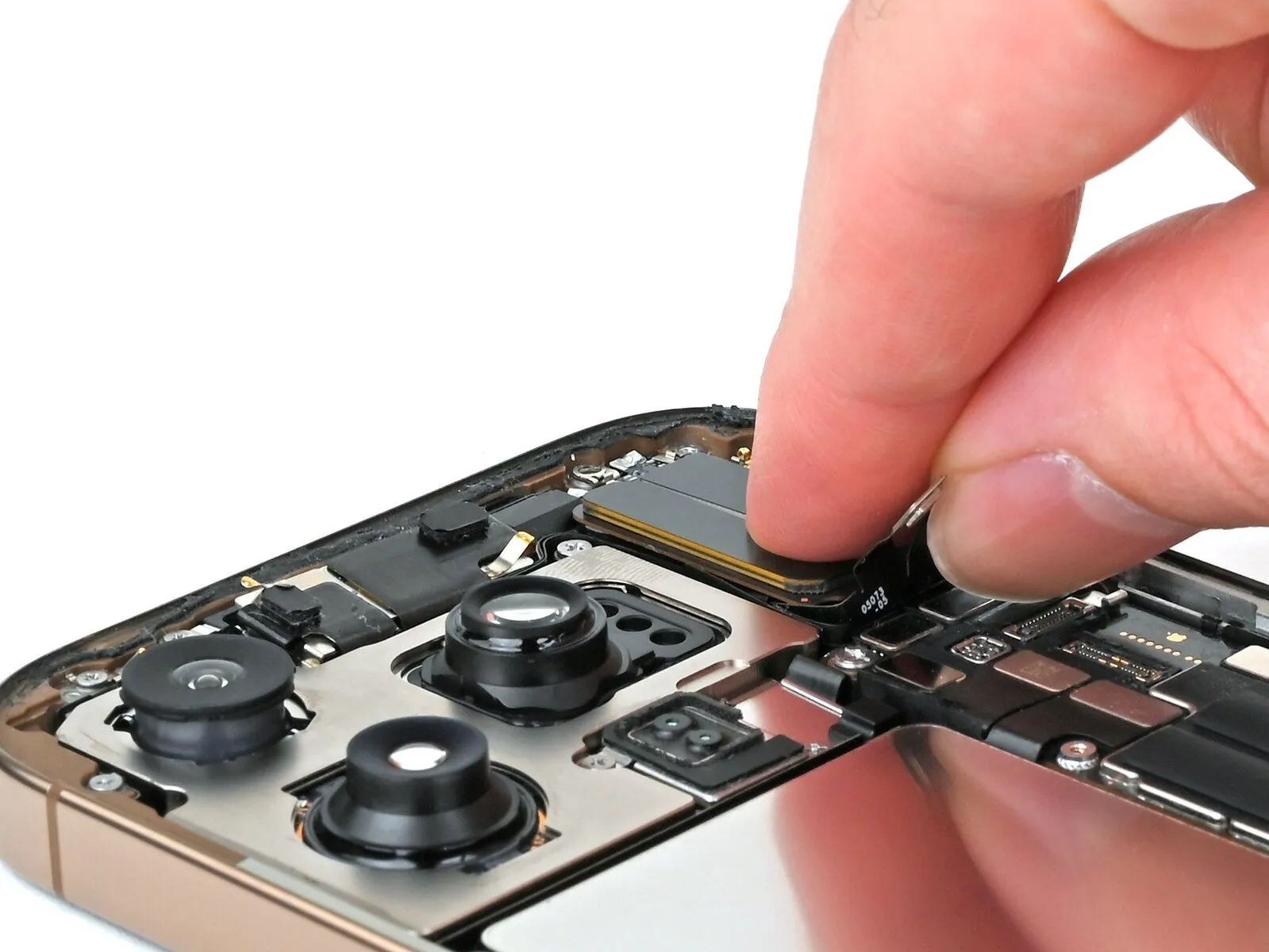

Step 31 | Install the earpiece speaker

Step 31 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  1. Position the gasket against the upper edge of the earpiece speaker, angling it downwards as you guide it into the designated recess, and then firmly secure it by pressing it flush against the frame.
    To access the earpiece speaker’s opening, carefully elevate the front camera assembly; ensure the speaker fits within its designated space. Direct both the antenna and earpiece speaker cables alongside the front camera cables. After positioning the front camera within its cutout, secure its cables by pressing them evenly against the rear camera assembly.

Step 32

Step 32 image
Thumbnail 1
Thumbnail 2
  • Employ a Phillips screwdriver and fasten the earpiece speaker with the six screws that hold it in place.
  • A quantity of three is required.One point two millimeters.Utilize screws with a length of long.
  • Two.The specified dimension is one point eight millimeters.Utilize screws with a length of "long".
  • Begin the process by executing the action designated as "One."One point seven millimeters.Employ a screw with a substantial length.

Step 33 | Connect the 5G mmWave antenna

Step 33 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  • Employ either a fingertip or a plastic spudger to gently depress.Use a plastic spudger.Secure the earpiece speaker and the 5G mmWave antenna—for US models only—by firmly engaging the connectors situated in the upper right-hand section of the logic board.

Step 34 | Remove the leftover adhesive

Step 34 image
Thumbnail 1
Thumbnail 2
Thumbnail 3

Exercise caution while cleaning the frame to avoid damaging the delicate grounding clips; should one become displaced, carefully restore it to its original position using your fingers or tweezers.
Employ the specified tool to perform the action.Use tweezers with a flat, unpointed tip.Use your fingers to detach sizable adhesive remnants from the frame's edges.
Employ a 5/32-inch hex key to tighten the retaining screw to a torque of 6-8 inch-pounds, ensuring that the spindle is properly secured and preventing excessive play.Use a plastic pry tool, often referred to as a spudger, to avoid scratching surfaces.Carefully remove any remaining adhesive from the frame using a scraper.
To loosen a firmly bonded adhesive, direct warm air from a hair dryer or heat gun onto the area and reattempt separation.

Step 35 | Clean the back glass

Step 35 image
Thumbnail 1
Thumbnail 2

To facilitate proper adhesion when reinstalling the rear glass, clean its edges by gently wiping with a microfiber or lint-free cloth that has been moistened with a small amount of isopropyl alcohol with a concentration exceeding 90%.

Step 36 | Clean the frame

Step 36 image
  • To prevent scratching, cover the tip of a screwdriver with either a clean, lint-free cloth or a coffee filter.Use a plastic pry tool, often referred to as a spudger, to gently separate components.Carefully dispense a small quantity of isopropyl alcohol with a concentration exceeding 90% onto the component.
    Using a cloth, carefully remove any remaining adhesive by wiping along the frame's edges in a single direction.
    Carefully proceed with this step; a thoroughly cleaned frame surface will enable the new adhesive to spread uniformly, resulting in a stronger, more reliable bond.

Step 37 | Apply the replacement adhesive

Step 37 image
  • Position theA self-stick backing facilitates attachment.Position the component atop the frame, ensuring alignment based on its design.
    Carefully observe the frame's design elements—including the camera opening and indentations at the top and bottom—to ensure proper adhesive placement.

Step 38

Step 38 image
Thumbnail 1
Thumbnail 2
  • Carefully lift the corner edge using the provided tab.A self-stick backing facilitates attachment.Carefully remove the backing liner, revealing approximately one-third of the adhesive surface.
    Because the adhesive surface is highly adhesive, prevent contact with other materials until you intend to bond it to the frame.
    Remove the protective layers from the adhesive until the surface designed to bond with the frame is revealed.

Step 39

Step 39 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  • Ensure the visible perimeter is precisely positioned.Employ a self-adhesive tape.Align the component's border precisely with the iPhone's casing edge.
    Because the adhesive bonds immediately upon contact, any repositioning attempts will require complete removal and replacement with fresh adhesive.
    Ensure proper positioning, then apply light pressure to the visibleDouble-sided tapeSecurely position the component against the frame.

Step 40

Step 40 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  • Carefully remove the protective backing layer.Employ a bonding agent.Apply even pressure to ensure proper seating.
    Proper adhesive placement ensures the borders seat flush and precisely.
    Carefully reposition any minor adhesive deviations by gently drawing the extended borders toward the frame.
    Should the adhesive exhibit folding or distortion, discard the affected material and reapply a new section.Employ a bonding agent..
    Should replacement adhesive strips not be available, the iPhone can be reassembled and used without them; however, be aware that the device's water resistance will be reduced until a new adhesive set is installed.

Step 41

Step 41 image
Thumbnail 1
Thumbnail 2
Using a 5/32-inch hex key, carefully tighten the four M4x8 screws securing the fan assembly to the heatsink, ensuring a torque of 4.0 to 5.5 in-lbs to prevent damage.
  • Employ a 3/8-inch socket wrench to loosen the retaining bolt, ensuring you maintain a firm grip and avoid excessive force to prevent damage to the bolt head.Use a plastic pry tool, often referred to as a spudger.Ensure the adhesive strip is firmly applied by applying even pressure across its full circumference.
  • Handle the delicate grounding clips with caution; should one become displaced, restore it to its original position using your fingers or tweezers, applying gentle pressure.
  • Apply gentle pressure to prevent distortion or elongation of the adhesive material.

Step 42

Step 42 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
Carefully align the 3.5mm diameter shaft of the potentiometer within its designated aperture on the circuit board, ensuring the body remains flush with the board's surface, and then secure it with the provided M2 x 6mm screw, observing caution to avoid over-tightening which could damage the component.
  • Employ a 3/8-inch socket wrench to loosen the fastener, ensuring you apply consistent pressure to avoid damaging the retaining clip and observe the torque specification of 12 Nm as indicated in the service manual, paying close attention to the warning regarding potential injury from spring tension.Use a plastic pry tool, often referred to as a spudger, to gently separate components.Locate the pull tab, typically found at a corner, and use it to raise the large front liner, being careful to avoid pinching your fingers.
  • Carefully remove the extensive adhesive backing by grasping the designated pull tab.
  • To avoid unintended adhesion during reassembly, leave the thin, protective release liners in place around the edges for now.

Step 43 | Connect the back glass

Step 43 image
Carefully align the 4mm hex key to the retaining screw, ensuring it is fully seated, and then tighten the screw to a torque of 1.5 Nm using the torque wrench.
  • Using a repair tool, gently support the rear glass panel on its right side to create a small gap.

Step 44

Step 44 image
Carefully align the 4.5mm hex key to the retaining screw, ensuring it sits flush, and then tighten the screw to a torque of 1.2 Nm using the torque wrench.
  • Gently depress the component with your fingertip or the broad, flat edge of a prying tool.Use a plastic pry tool, often referred to as a spudger.Carefully align the back glass connector and firmly secure it to the logic board.

Step 45 | Connect the battery

Step 45 image
Carefully align the 4mm hex key to the retaining screw, ensuring it sits flush, then use the tool to loosen and remove the screw, taking care to avoid damaging the surrounding components.
  • Carefully align the battery press connector and secure it to the logic board by applying even pressure with a fingertip or spudger.
  • Before final reassembly and sealing, verify the functionality of your iPhone by powering it on and confirming expected operation; if issues arise, shut down the device and proceed with reassembly.
  • Following a logic board replacement, if the iPhone remains unresponsive, apply power and attempt startup. Should the display also remain inactive, proceed with the screen repair guide to establish a direct connection to the display connector.

Step 46 | Install the connector covers

Step 46 image
Carefully align the 4mm diameter pin on the new actuator (part number AB12345) with the corresponding hole in the chassis, ensuring a flush fit before securing it with the provided M3 screw using a 3mm hex key; observe the warning regarding potential pinch points during this process.
Position the back glass connector cover so that the screw holes are aligned, then set it down.

Step 47

Step 47 image
Carefully align the 4mm diameter dowel pin with the corresponding hole, then gently press it into place using pliers, ensuring it is fully seated to a depth of 6mm and avoiding damage to the surrounding plastic housing.
  • Employ a Y000 tri-point screwdriver to fasten the four screws that hold the back glass connector cover in place.
    • Use screws, each measuring 1.3 millimeters in length.
    • Use screws, each measuring 1.0 mm in length.

Step 48

Step 48 image
Carefully align the 4mm diameter dowel pin with the corresponding hole in the chassis and gently press it into place, ensuring it is fully seated to prevent loosening; observe the warning regarding potential pinch points during this process.
Position the battery connector cover so the screw holes match their corresponding locations, then secure it by pressing it firmly into place.

Step 49

Step 49 image
  • Employ a 3/8-inch socket wrench to loosen the fastener, ensuring you apply consistent pressure to prevent damage to the retaining clip and observe the torque specification of 12 Nm as indicated in the service manual.Use a Y000-sized tri-point screwdriver.Using a Phillips head screwdriver, fasten the battery connector cover in place with the three screws provided.
    • Two.Screws measuring 1.3 millimeters in length.
    • Begin the process by executing the singular action.A screw measuring 1.0 millimeters in length.

Step 50 | Remove the final adhesive liners

Step 50 image
Thumbnail 1
Thumbnail 2
  • Carefully separate the surrounding liners from their position using your fingers or a spudger, revealing the underlying adhesive.
    To prevent adhesive contamination, avoid contact with any exposed adhesive surfaces during liner removal.
    Carefully inspect the frame and rear glass, ensuring all liners have been completely removed; any remaining liners must be discarded.

Step 51 | Install the back glass

Step 51 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  1. Align the upper edge of the rear glass with the frame and gently position the entire component.
    A binding sensation indicates a perimeter clip might be deformed and pinched between frame components. Examine the area where you encounter the obstruction and carefully restore any clips to their original shape.
    Apply even pressure to the perimeter of the rear glass to ensure it makes full contact with the device's frame.

Step 52 | Apply heat to the perimeter

Step 52 image
  • Employ a 3/8-inch socket wrench to loosen the retaining bolt, ensuring you maintain a firm grip and avoid excessive force to prevent damage to the threads, and then carefully remove the component.Utilize a device designed to emit warm, directed airflow, typically employing a heating element and fan assembly, ensuring the unit's wattage is within the range of 1000-2000 watts and its cord is undamaged prior to operation, and maintaining a safe distance of at least six inches from any flammable materials to prevent fire hazards.,Apply warmth using a device that generates heated air.Using appropriate safety precautions, ensure the component is either aUse a specialized heat tool designed for electronics, like an iOpener, to gently warm the device's exterior casing.Carefully raise the temperature of the back glass's outer edge to a point just beyond comfortable touch, ensuring it's noticeably warm.
    Applying warmth loosens the adhesive, facilitating a stronger connection.

Step 53 | Apply pressure to the perimeter

Step 53 image
Thumbnail 1
Thumbnail 2
  • Apply consistent, even pressure with your hands to encompass the entire outer edge of the iPhone.

Step 54

Step 54 image
Thumbnail 1
Thumbnail 2
  • Position the iPhone, with the display facing downward, on a clean, level workspace.
    To shield the back glass's surface from scratches, apply a length of tape completely around its edges.
    Using coins, build a circular barrier along the edge of the rear glass, raising it to the same height as the rear camera lenses.
    To ensure proper adhesion, secure the device's edges with vise clamps.

Step 55

Step 55 image
Thumbnail 1
Thumbnail 2
  • Apply consistent, even pressure by positioning three to four substantial volumes directly atop the iPhone's surface.
    To avoid marking the lower book cover, use a substitute material instead of valuable items, as the coins' weight could create a minor indentation.
    Allow the books to remain positioned atop the device for approximately half an hour.
    Applying force will engage the adhesive properties.

Step 56 | Install the pentalobe screws

Step 56 image
Thumbnail 1
Thumbnail 2

Employ a 3/8-inch socket wrench to loosen the fastener, ensuring you apply even pressure to avoid damaging the retaining clip and observe the torque specification of 15 Nm as indicated in Table 2.Use a P2 screwdriver with a pentalobe tip.Secure the pair using the provided fasteners.Screws measuring 7.4 millimeters in length.Adjacent to the USB-C port, you'll find components on both the left and right sides.

Check COD Availability

Enter your pincode to see if Cash on Delivery is available in your area.

Please enter a valid 6-digit pincode
