iPhone 16 Pro Rear Cameras Replacement

• Let the battery's charge level decrease until it reaches a state of depletion.One-quarter.Because a lithium-ion battery that still holds a charge presents a possible safety risk.
• Disconnect all connected cables from the device.
• Simultaneously press and maintain the power button and one of the volume buttons, then swipe across the screen to initiate the power-off sequence.

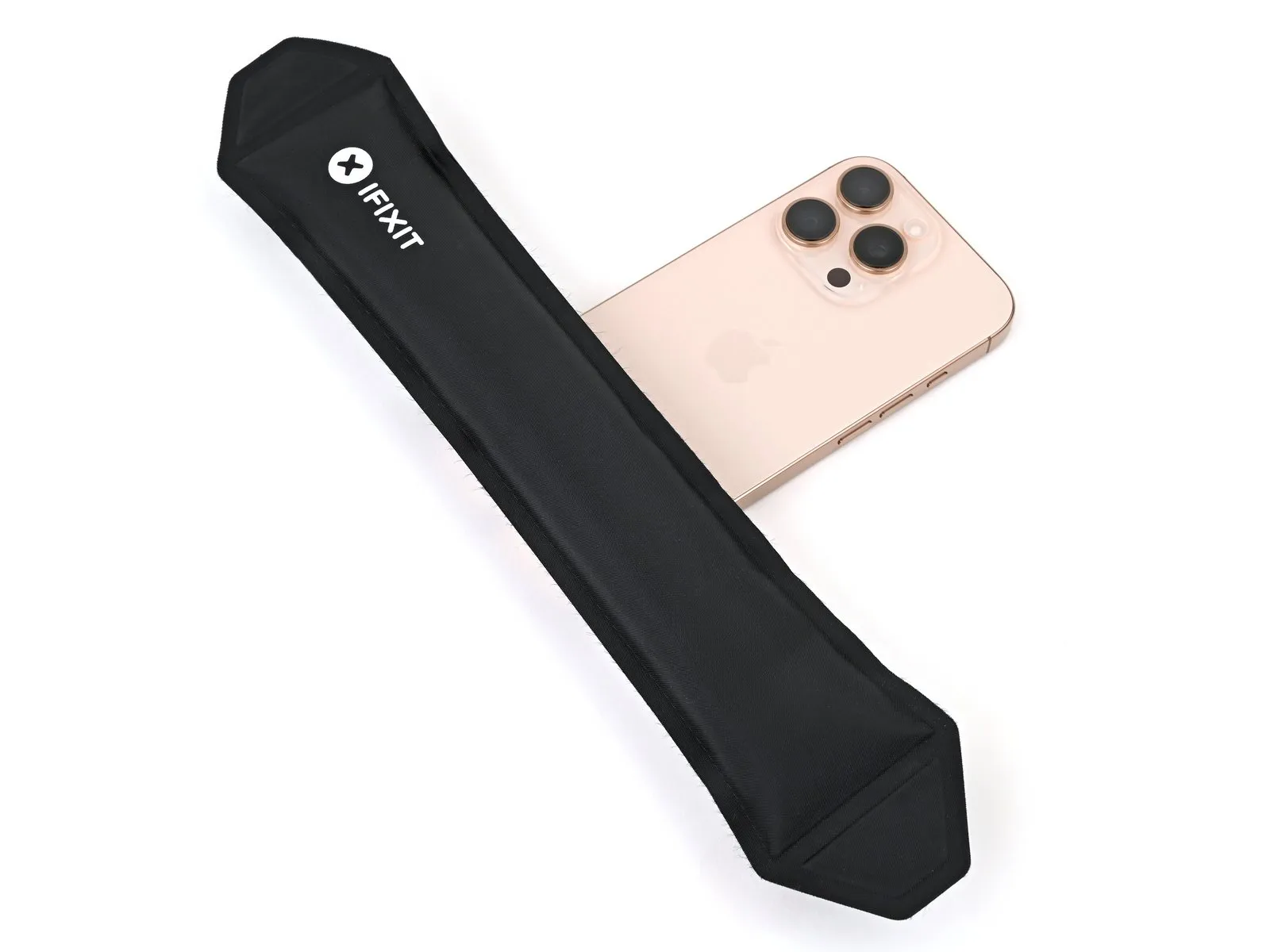

• To prevent injury and simplify the repair process when the display or rear glass exhibits severe cracking, apply strips of packing tape that overlap each other across the damaged areas.

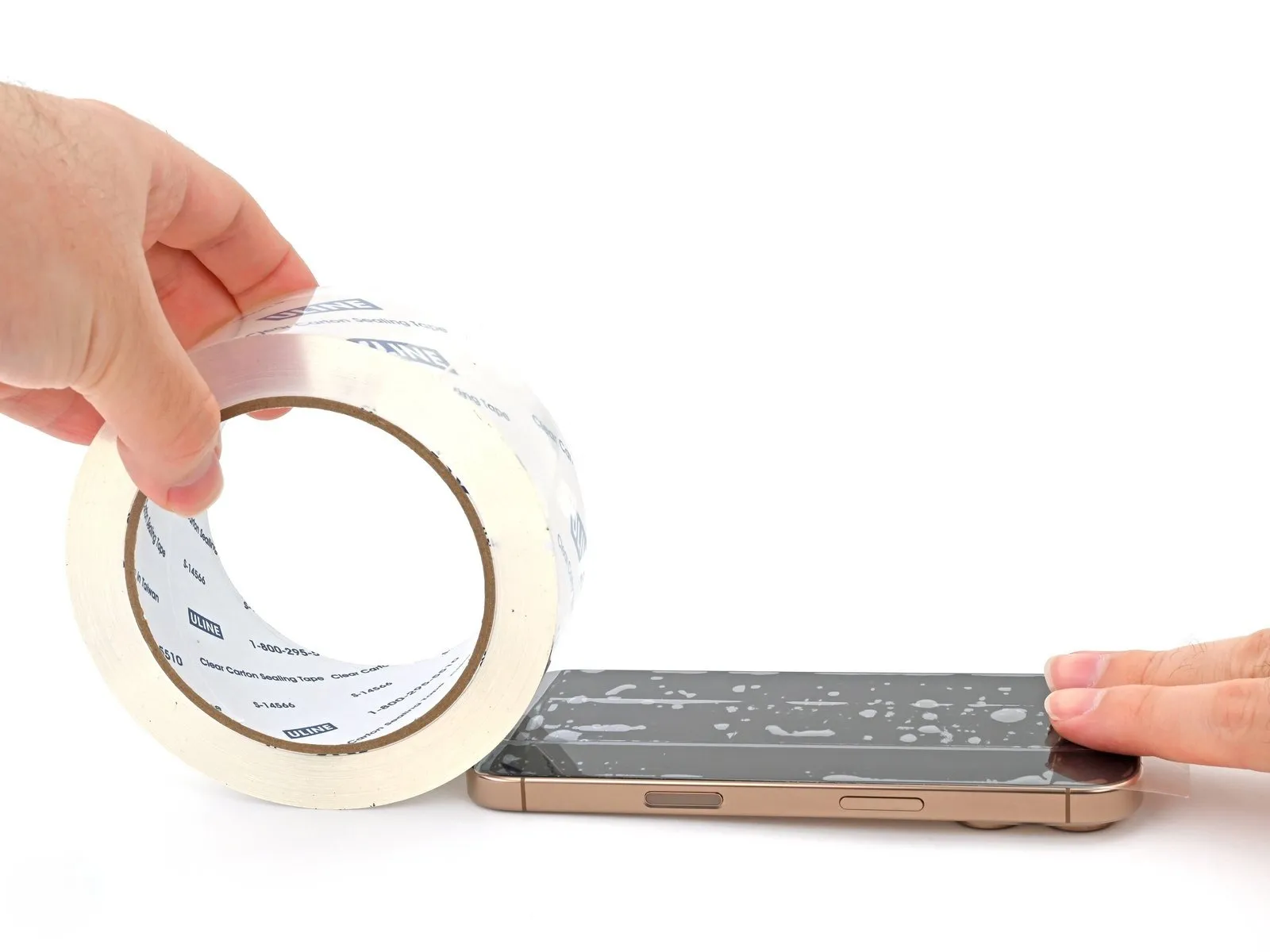

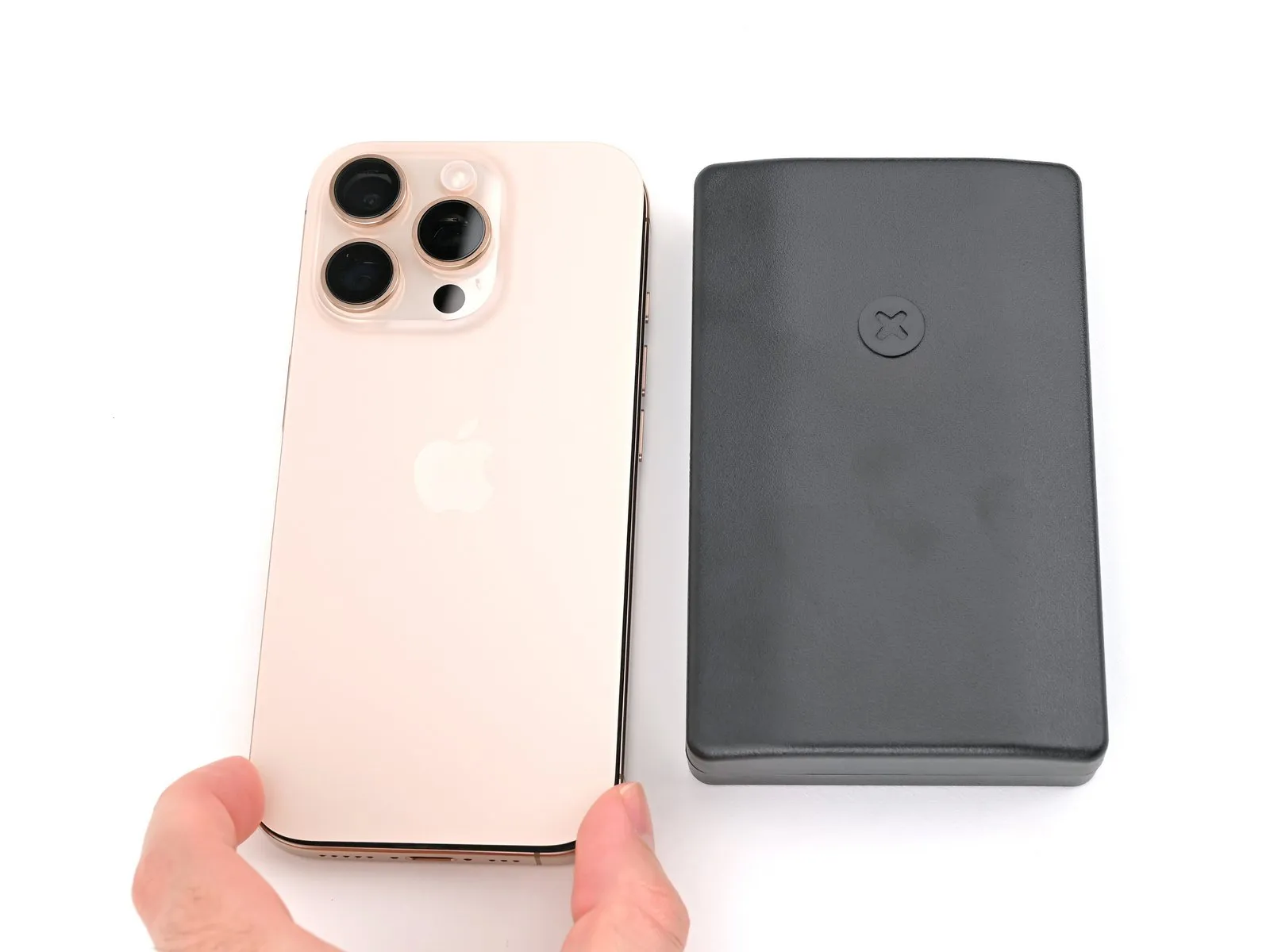

• Ensure a flat surface, approximately the size needed for suction cup adhesion, exists close to the lower border.

• To avoid potential damage to your device, ensure the opening pick does not extend beyond a safe depth; establish a reference point on the pick to guide insertion and prevent over-insertion.
• Determine the dimension using an appropriate measuring tool.Three millimeters.Using a permanent marker, clearly indicate the opening point on the pick.
• Alternative corner markings, using the same measurement tools, can be applied to the remaining corners of the pick.

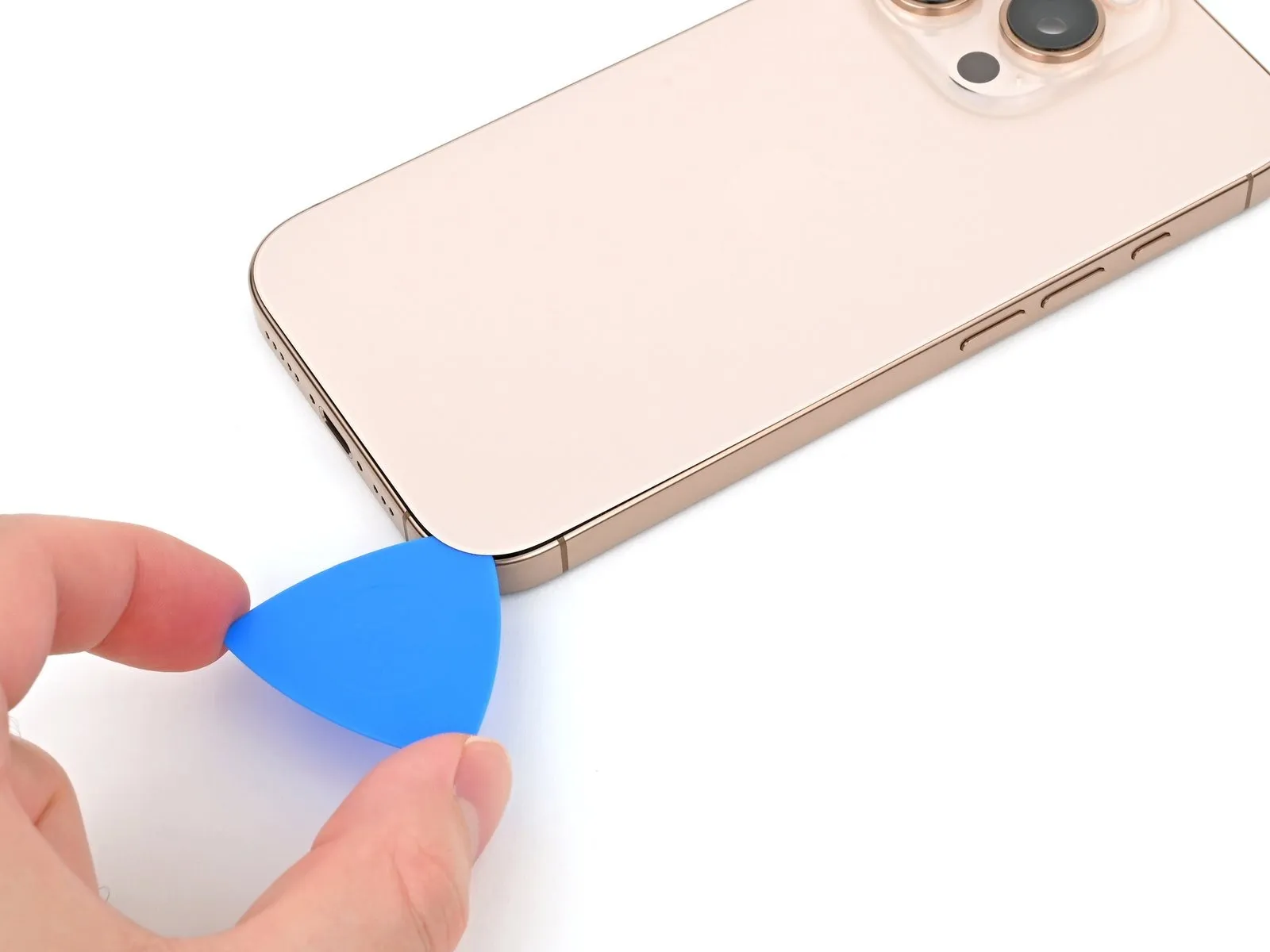

• Securely affix a coin to the tip of a pick using adhesive tape.Three millimeters.Beginning at the very end, proceed from that point.

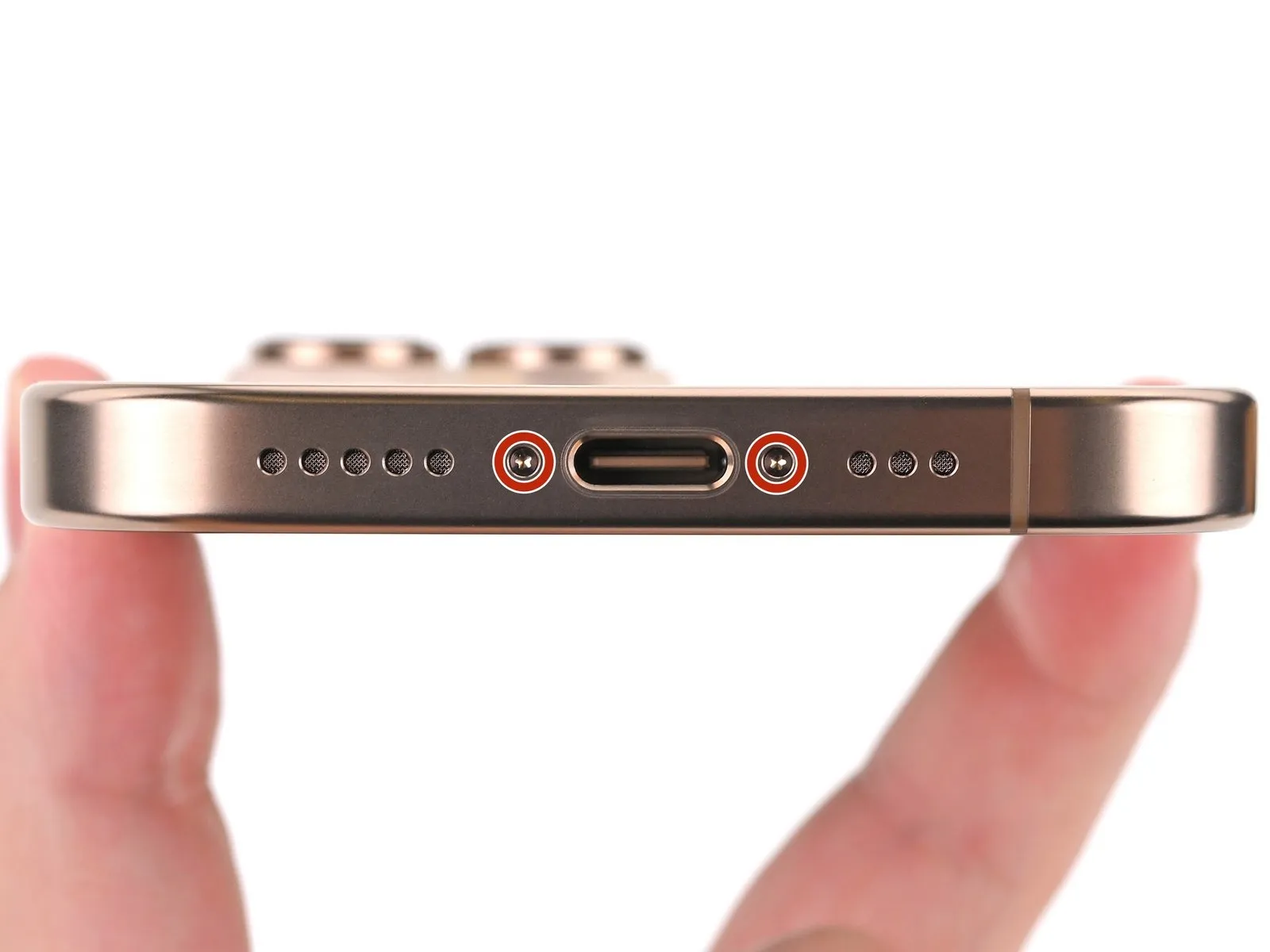

Employ a P2 pentalobe screwdriver to detach the two.The specified dimension is seven point four millimeters.Secure the USB-C port with the two long screws, one on each side.

• Use a heat source to introduce the material.Use a specialized device designed for electronics disassembly, often referred to as an iOpener.Apply consistent pressure to the lower border of the rear glass assembly and maintain contact for a period of 120 seconds.

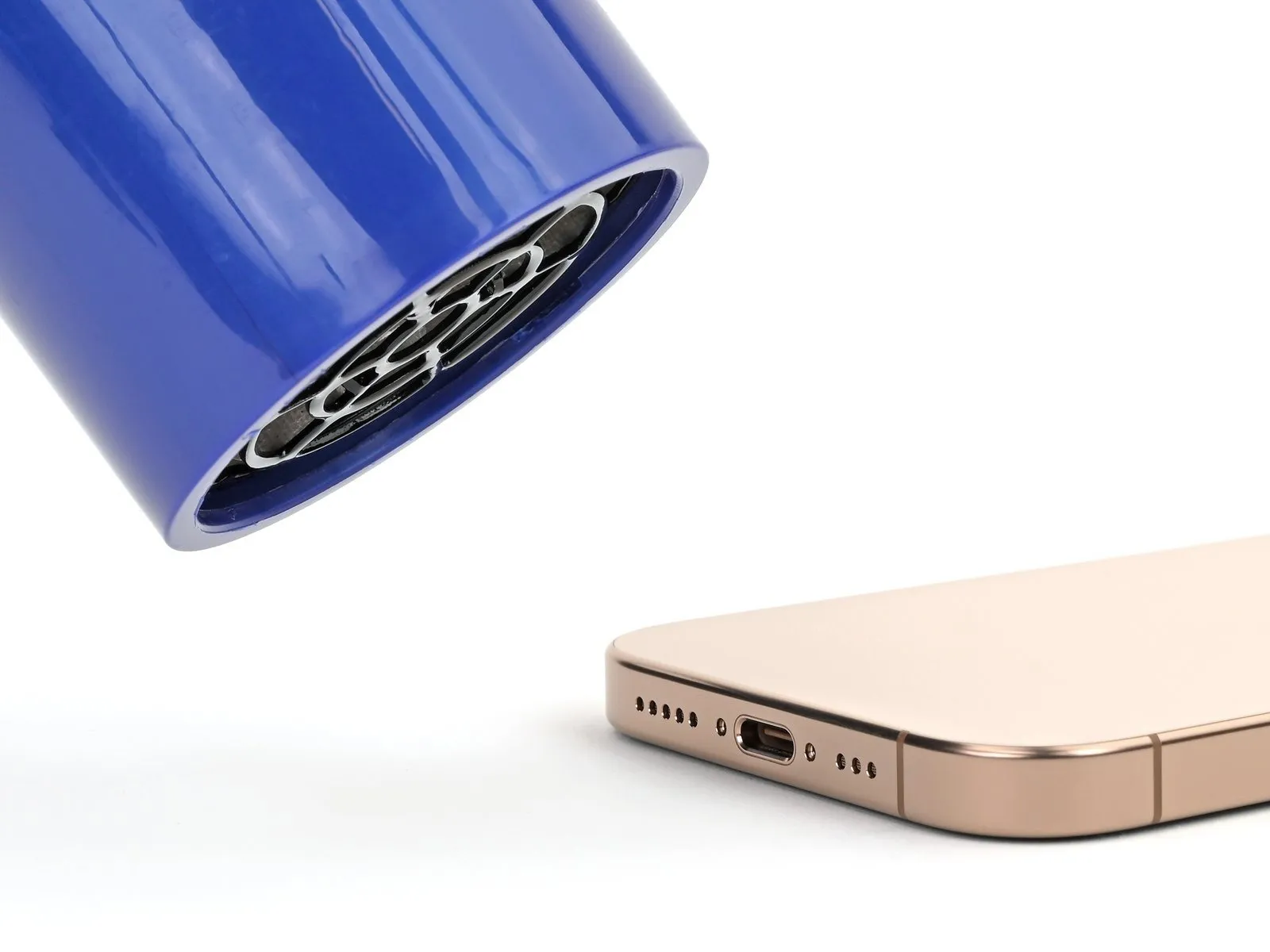

• Applying heat to the lower perimeter of the rear glass with a hairdryer or heat gun, until it reaches a warm surface temperature, is another option.
• To prevent heat-related battery damage, ensure the device's temperature remains below the specified limit.

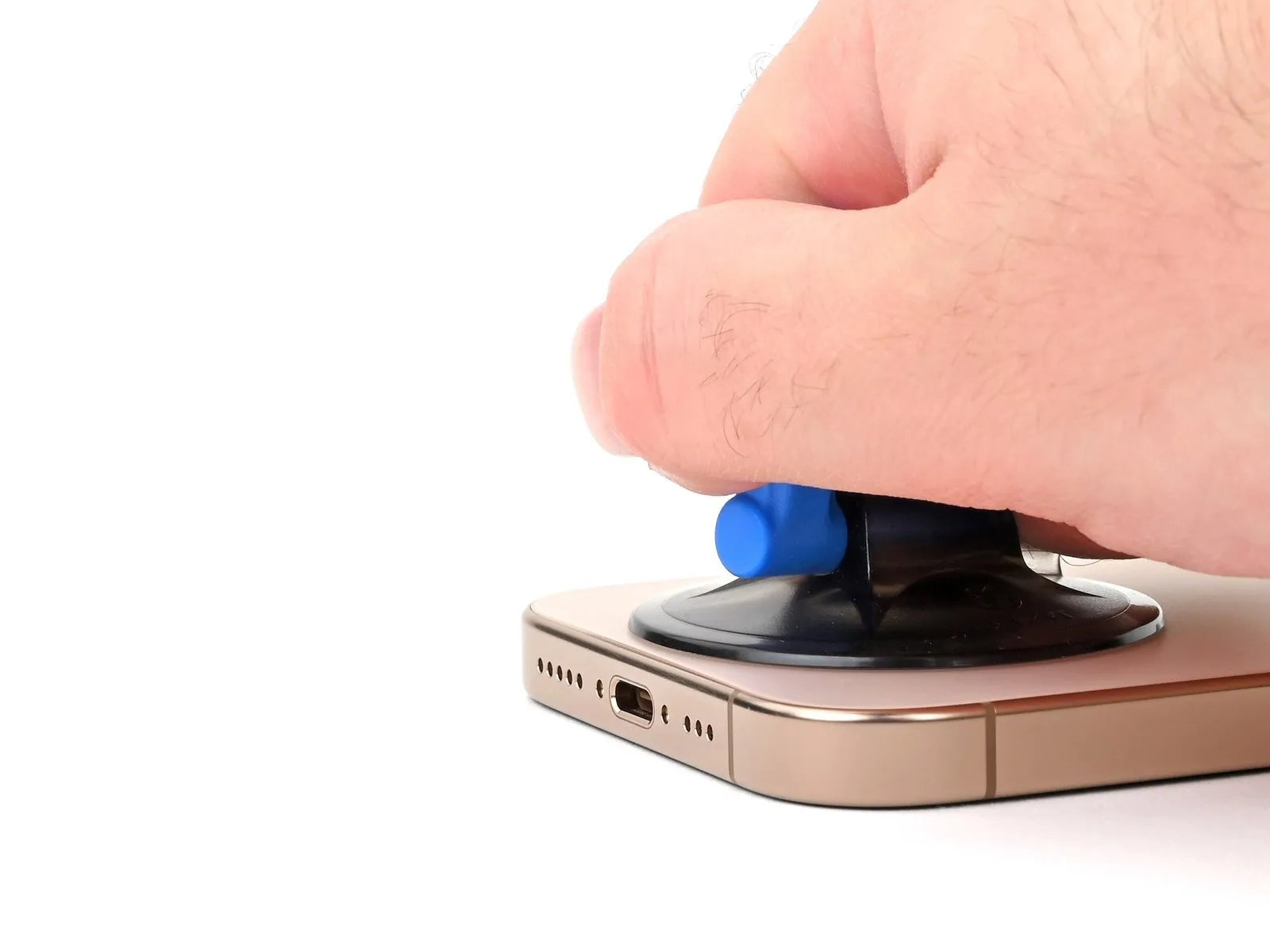

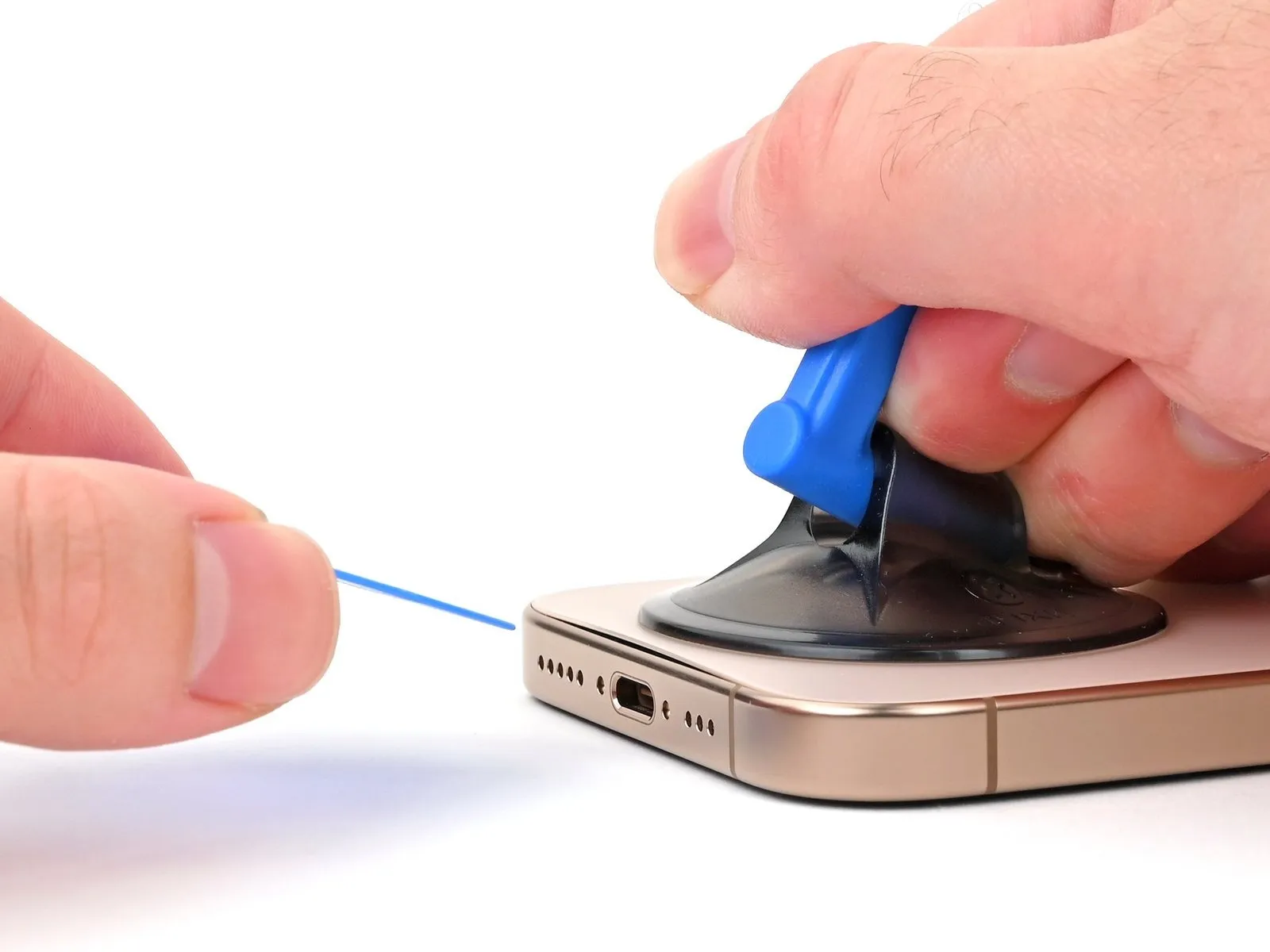

• Using a suction handle, secure it to the lower edge of the rear glass, positioning it directly over the USB-C port.
• Apply firm, consistent upward pressure to the handle to separate the rear glass from the frame.

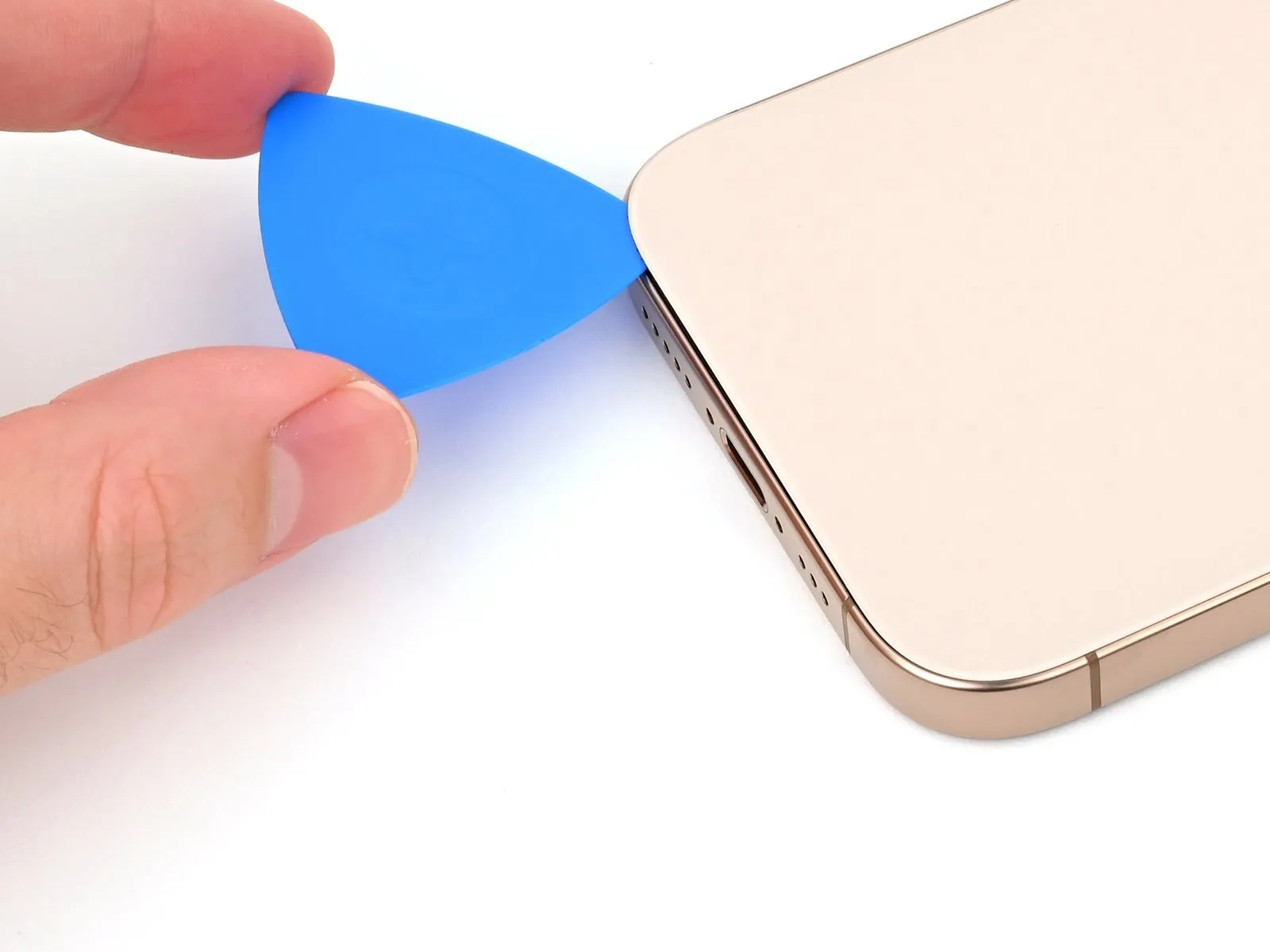

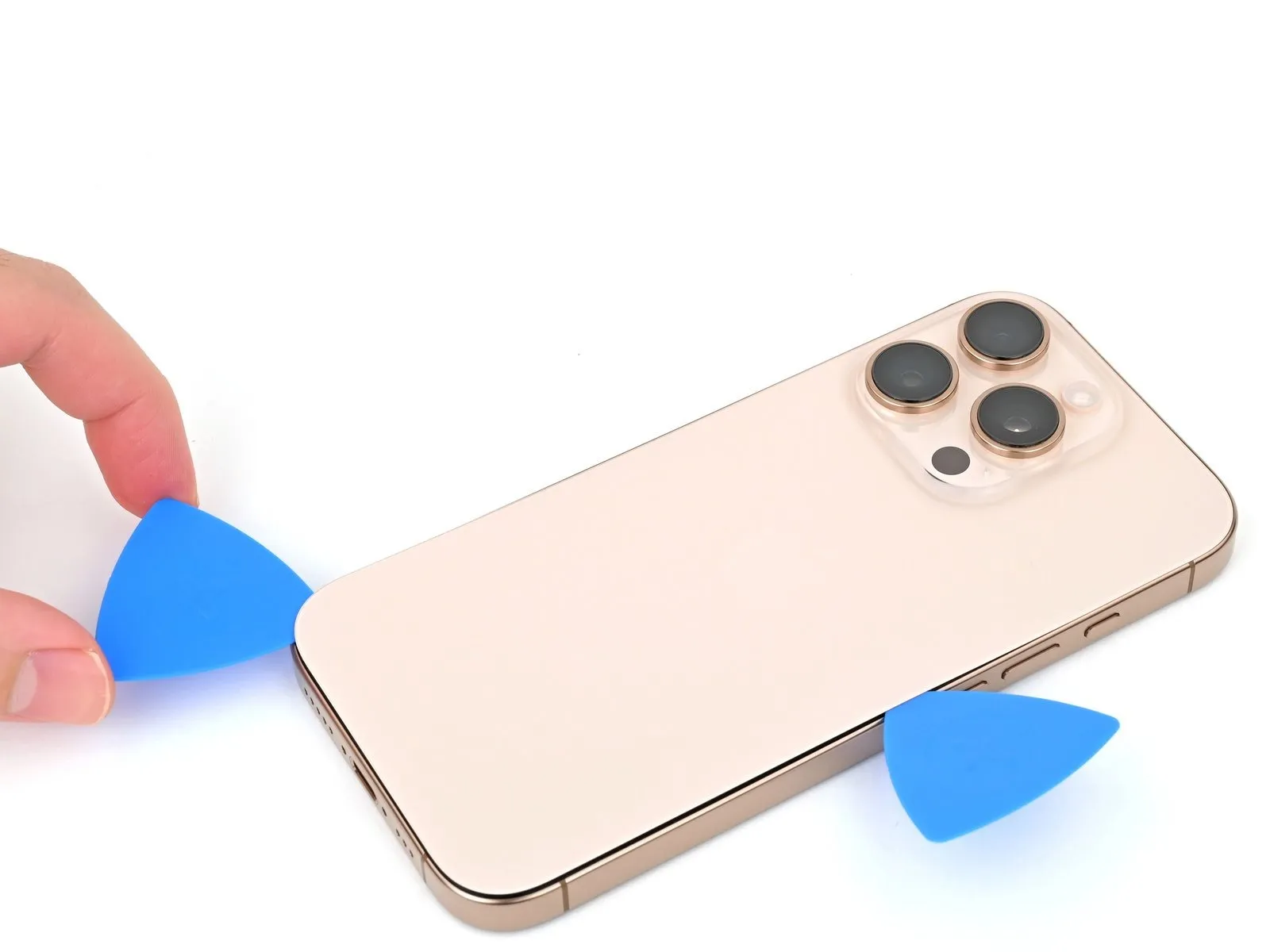

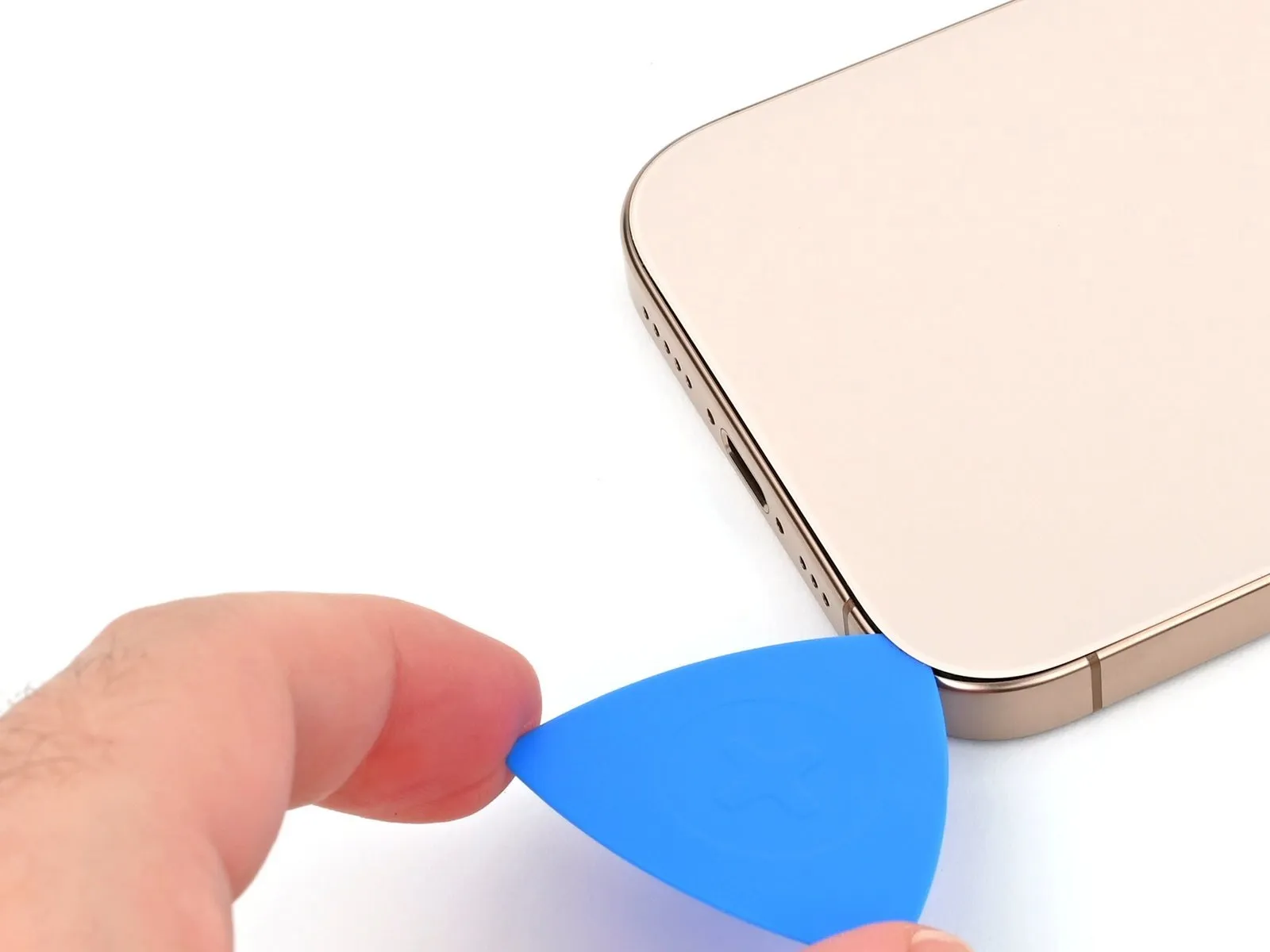

• Carefully slide the pointed end of a prying tool into the separation.

• Exercise caution while separating the adhesive that holds the rear glass in place during the subsequent procedures, specifically avoiding damage to these zones.
• To prevent damage to the fragile cable linking the rear glass assembly and the device, avoid using a tool in this area, which is situated adjacent to the volume up button.
• To prevent damage, exercise caution and limit the depth of your tool insertion during each step, as delicate spring contacts are situated along the phone's edges.

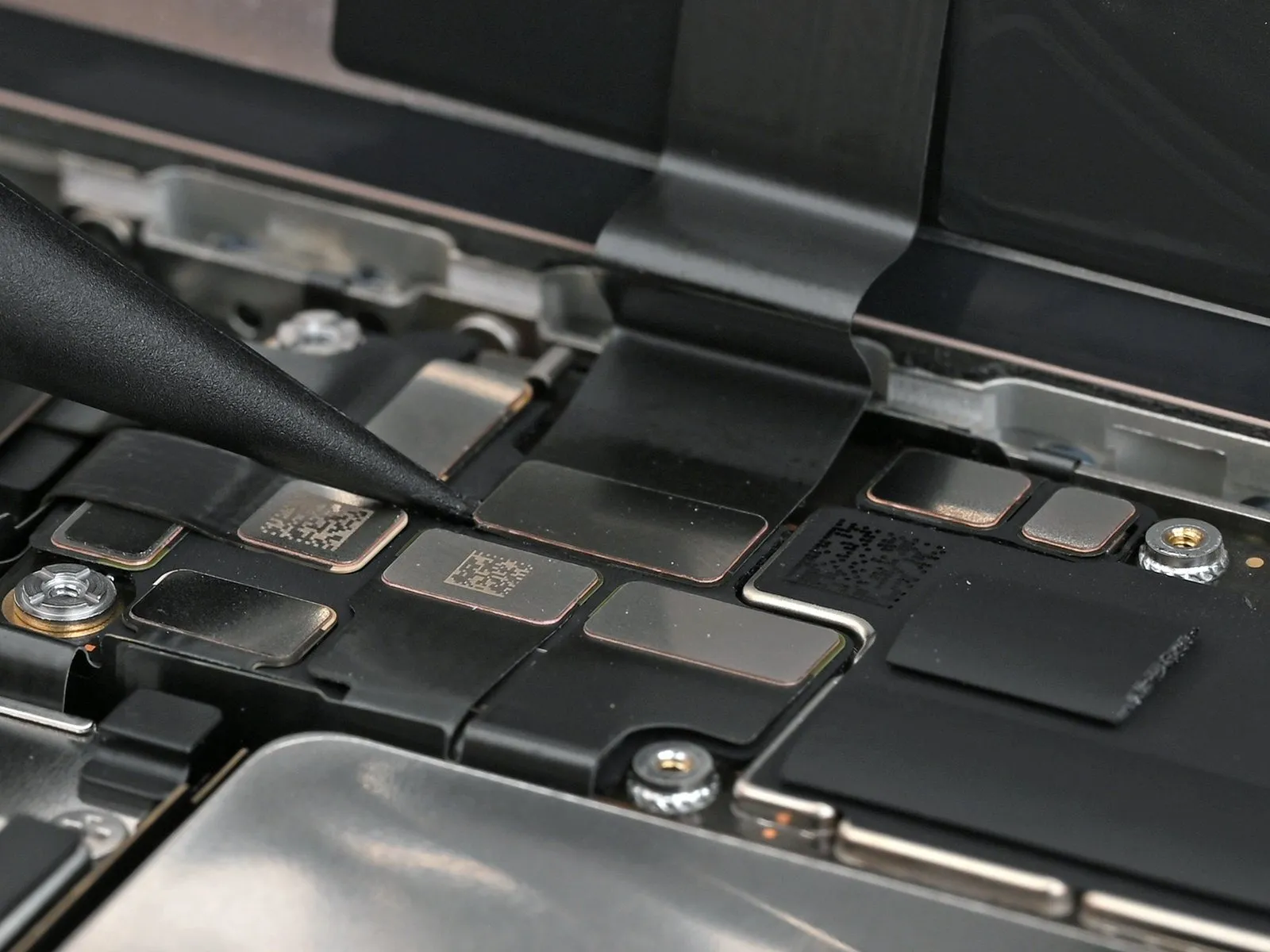

• Carefully restore any bent spring contacts to proper alignment using a spudger or opening pick, ensuring they make contact with the gold pads located on the rear glass.

• To prevent spring contact damage, limit the insertion depth of your pick to a maximum of 5 mm when working on the bottom edge.
• Using a pick, gently work along the lower edge, moving it back and forth to loosen the adhesive bond.
• To stop the adhesive from bonding prematurely, maintain a pick in the lower right area.

Apply warmth.Carefully heat the right-hand side of the rear glass panel until its surface temperature is high enough to be felt as hot when touched.

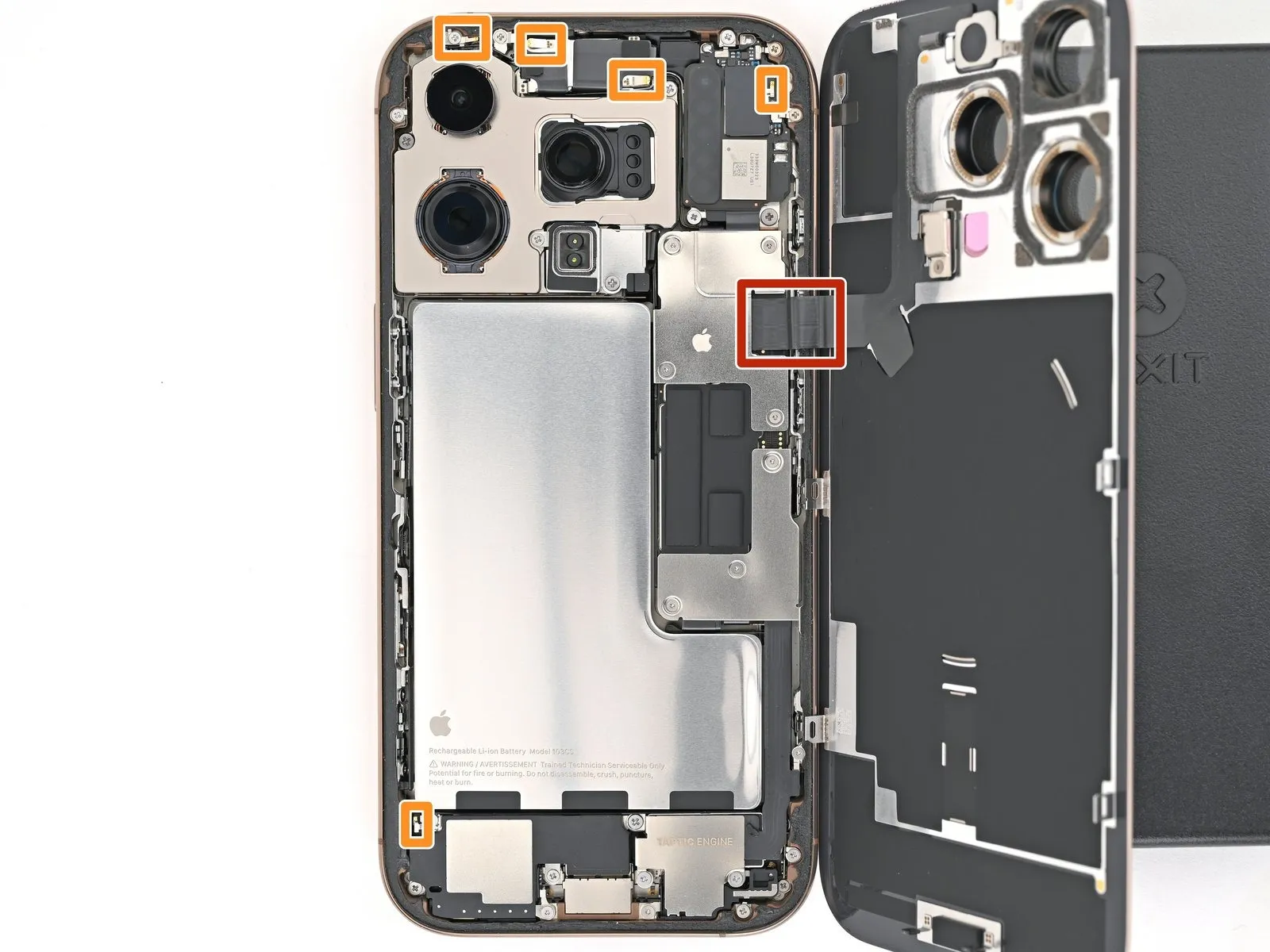

• Carefully move the component in a linear direction.Select.Proceed along the lower-right perimeter and up the right side to a point approximately midway along the edge, noting the resistance encountered when the edge of the tool engages the retaining clip that secures the rear glass.
• To prevent damage to the wireless charging/flash cable, exercise caution and do not use the cutting tool close to the volume buttons.
• Maintain the pick's position during adhesive curing to avoid unwanted bonding.

Apply thermal energy.Apply heat to the left side of the rear glass panel until its surface temperature is high enough to be felt as hot when touched.

• A second component should be placed.Use a specialized tool designed for prying, often referred to as an opening pick.Locate the lower border.
• Carefully move the component designated as the second one.Select the component.Carefully work your way around the lower-left corner and up the left side of the display, using a plastic opening tool to break the adhesive bond and disengage the metal clips.
• As the clips slide past, you will notice and sense them disengaging.
• Maintain the pick's position in the upper left corner to obstruct adhesive re-bonding.

Apply heat evenly across the upper edge of the back glass, extending to the region encompassing the volume buttons, ensuring the surface reaches a temperature that is noticeably warm when touched.

• Avoid pushing the tool past the specified depth.Three millimeters.To prevent damage to the spring contacts, maneuver along the upper edge.
• Carefully insert a pick between the top edge and the top right corner of the device, working towards the volume up button to break the adhesive seal; listen and feel for the distinct clicks indicating the release of the two upper retaining clips.

Avoid complete separation of the rear glass at this stage, as it remains connected via a sensitive ribbon cable; proceed with the subsequent instructions to ensure safe detachment.

• Should you encounter resistance when attempting to open the rear glass, avoid applying excessive force; instead, carefully retrace the edges with your pick to identify and release any remaining adhesive or clipped fasteners.
• To allow complete separation of the retaining clips, a small upward movement of the rear glass might be necessary before pivoting it outwards.

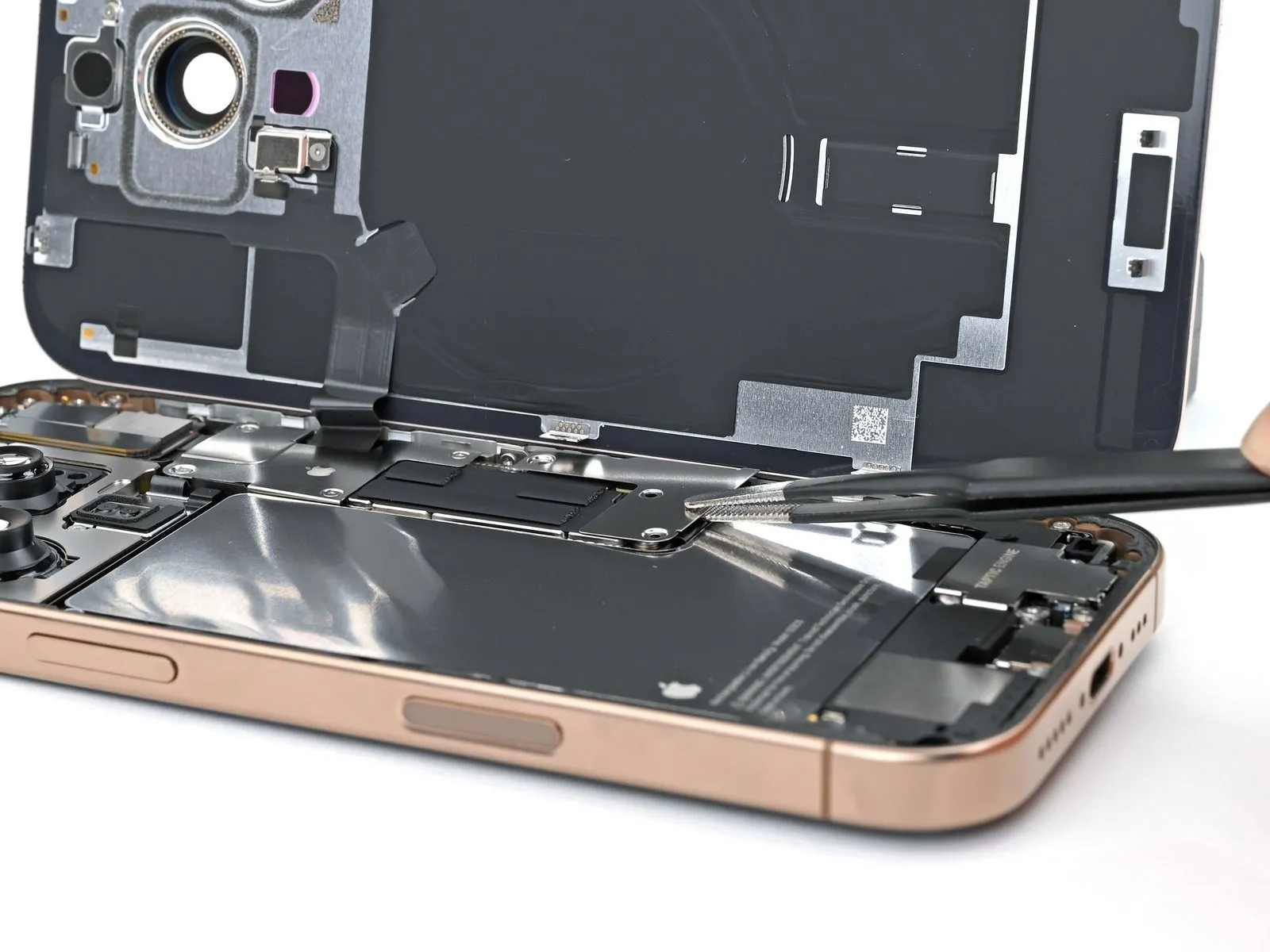

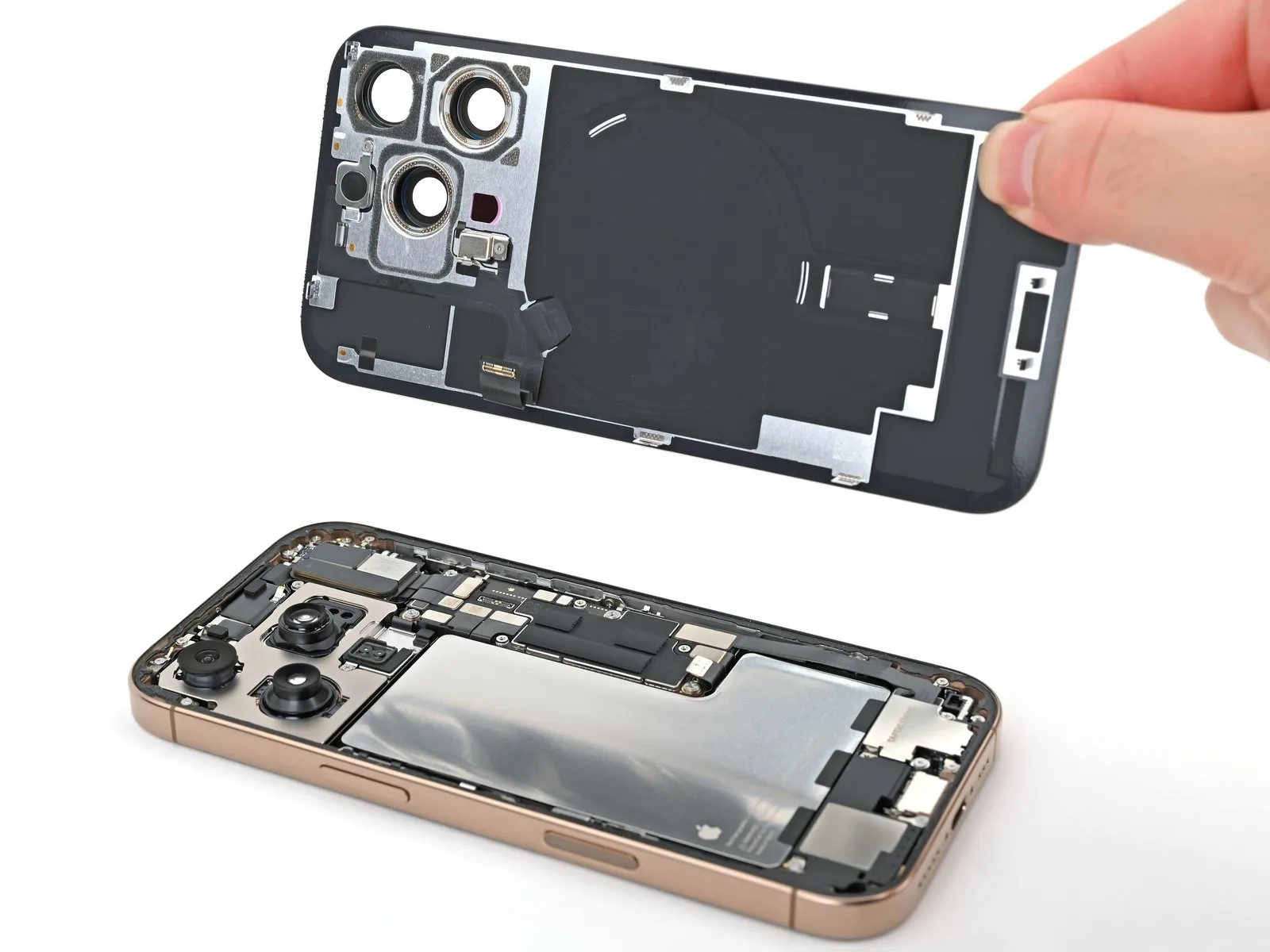

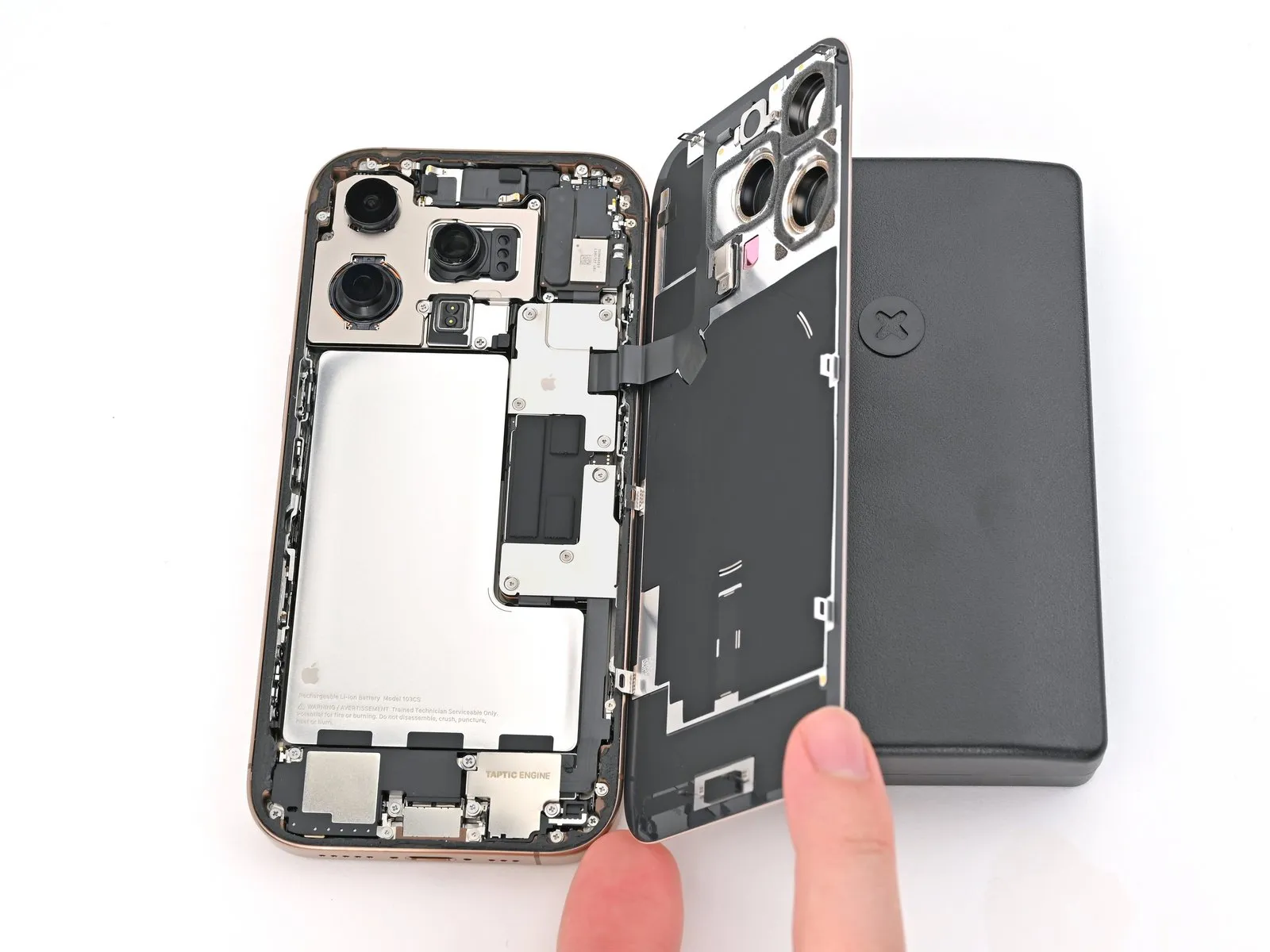

• Carefully pivot the rear glass assembly away from the volume controls.
• To prevent cable stress, use a rigid, non-contaminating support—such as a small box—to hold the rear glass in place.
• Carefully extract the retaining clips.

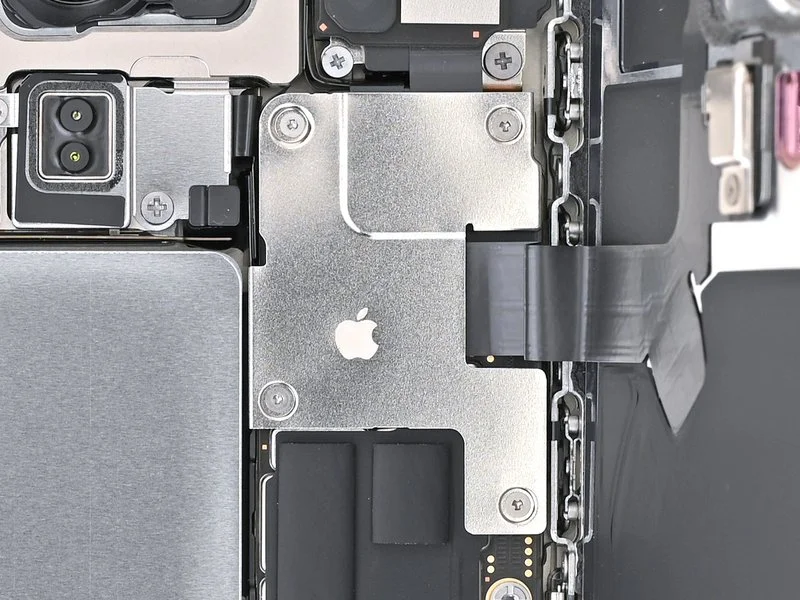

• To shield the rear camera lenses from potential scratches during internal repairs, apply polyimide tape; exercise caution and avoid applying pressure to the lenses themselves, as this could harm their sensitive stabilization components.

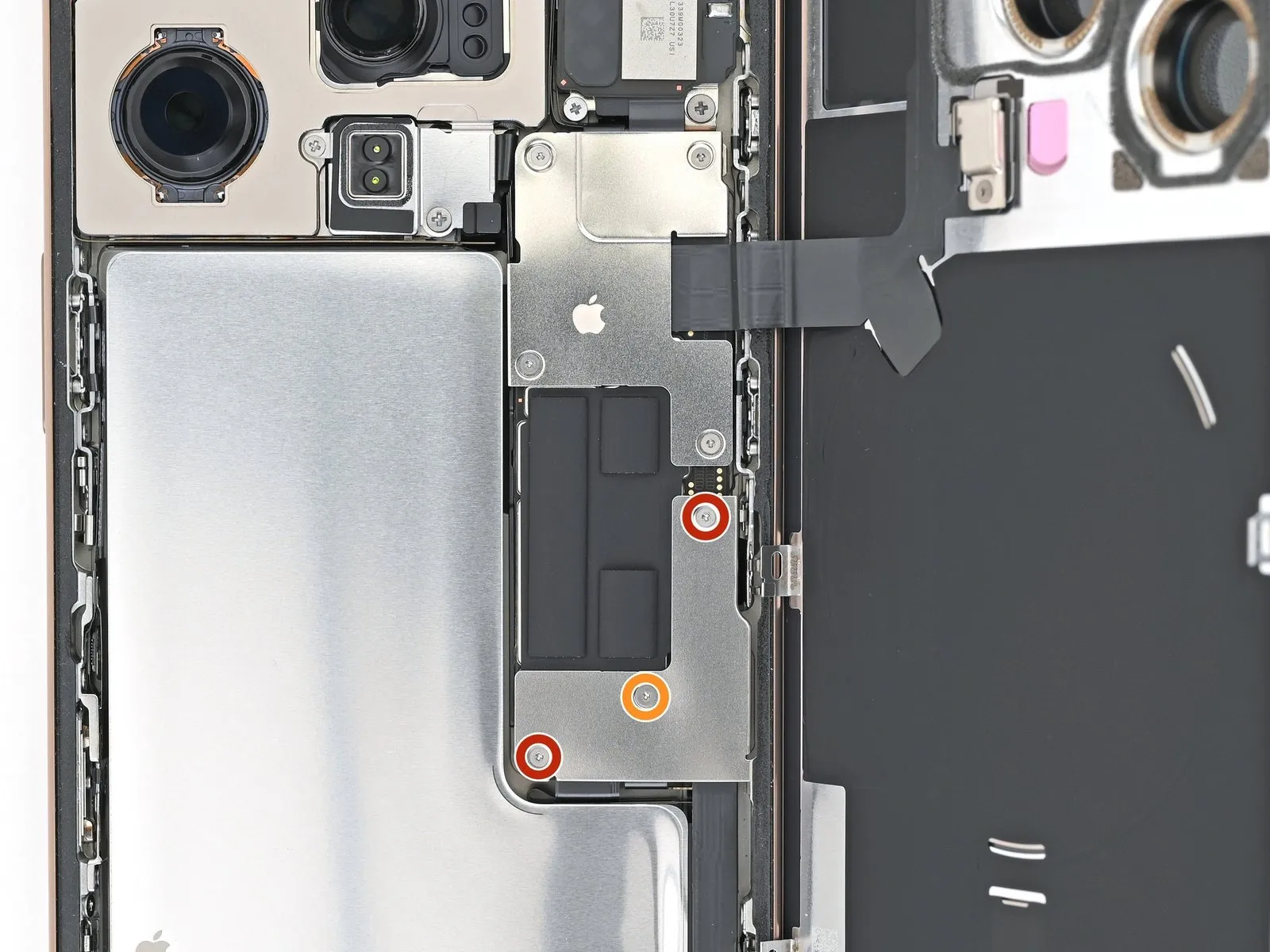

1. Employ a three-pronged screwdriver.Use a Y000-type screwdriver.Use a Phillips screwdriver to detach the lower connector cover by unscrewing the three fasteners that hold it in place.
   • Two.One point two millimeters.Utilize screws with a length designated as "long."
   • Begin the process by performing action one.One millimeter.Utilize a screw with a substantial length.

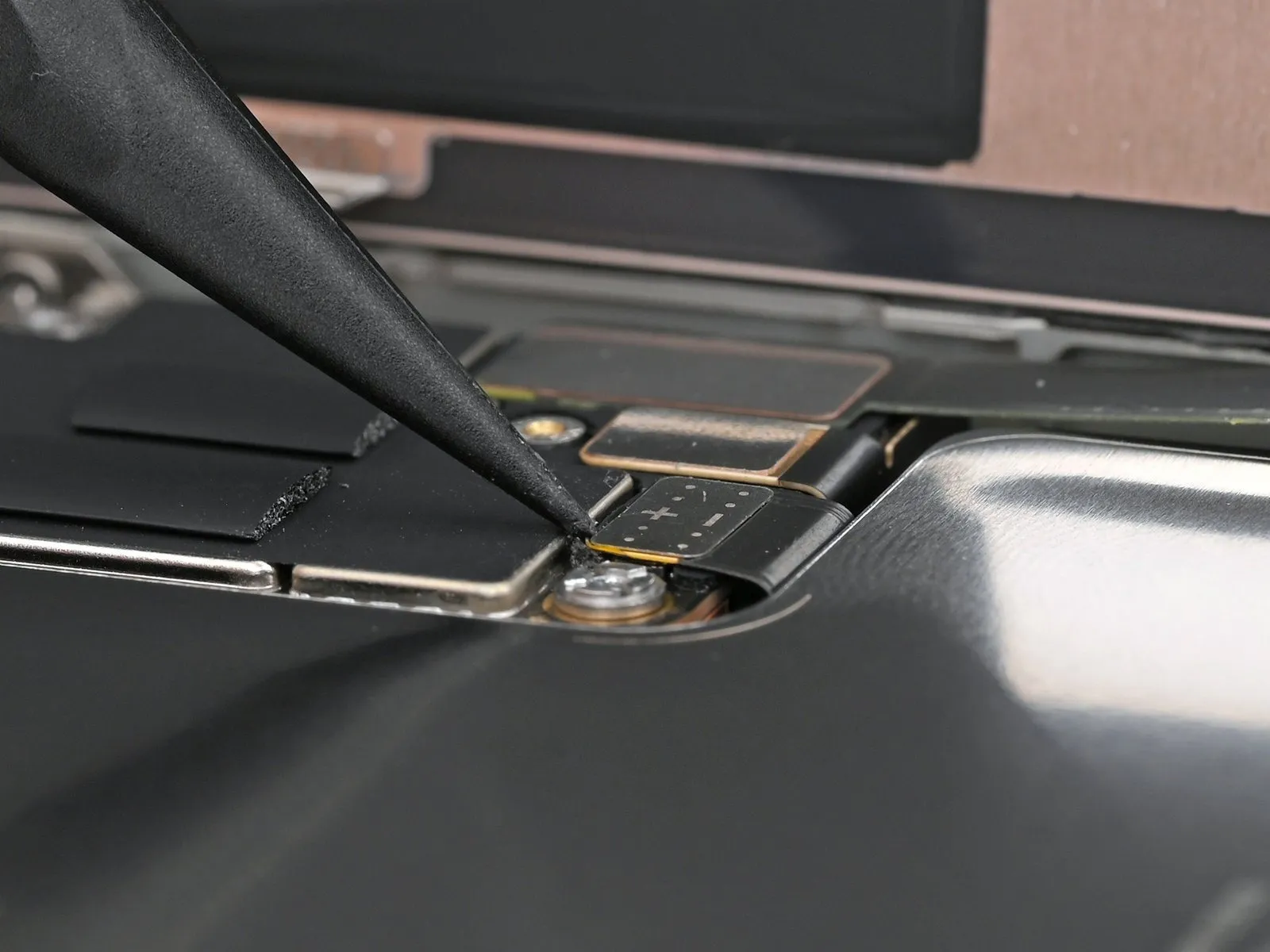

• Employ the specified tool to perform the action.Employ fine-tipped pliers or similar precision instruments.orUse your hands.Carefully lift and detach the lower connector cover.

• Carefully insert the tip of a screwdriver to.Use a plastic pry tool, often called a spudger, to avoid scratching surfaces.Use a prying tool to release and separate the battery press connector.

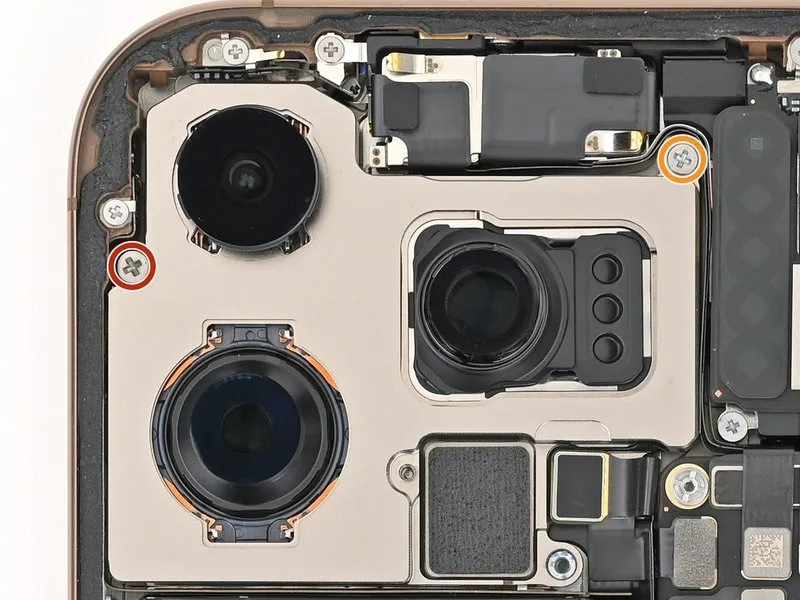

1. Employ a Y000 tri-point screwdriver to detach the four screws that hold the upper connector cover in place.
   • Two.One millimeter.Utilize screws with a length designated as "long."
   • Begin the process by executing action number one.One point two millimeters.Utilize a screw with a substantial length.
   • Begin the process by executing action number one.One point six millimeters.Utilize a screw with a substantial length.

• Employ the specified tool to perform the action.Employ fine-tipped pliers or similar precision instruments.orUse your hands.Gently lift and detach the upper connector cover.

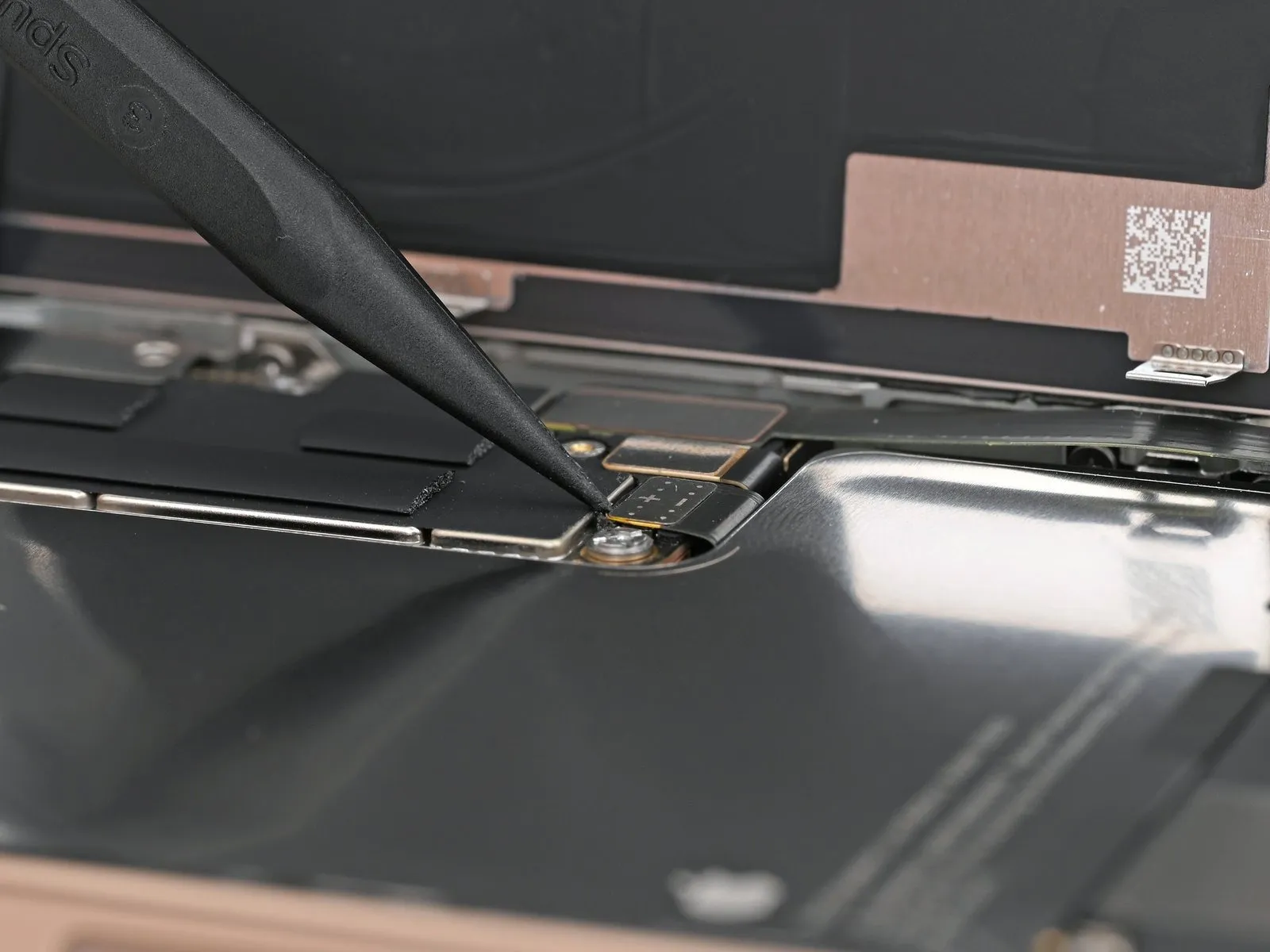

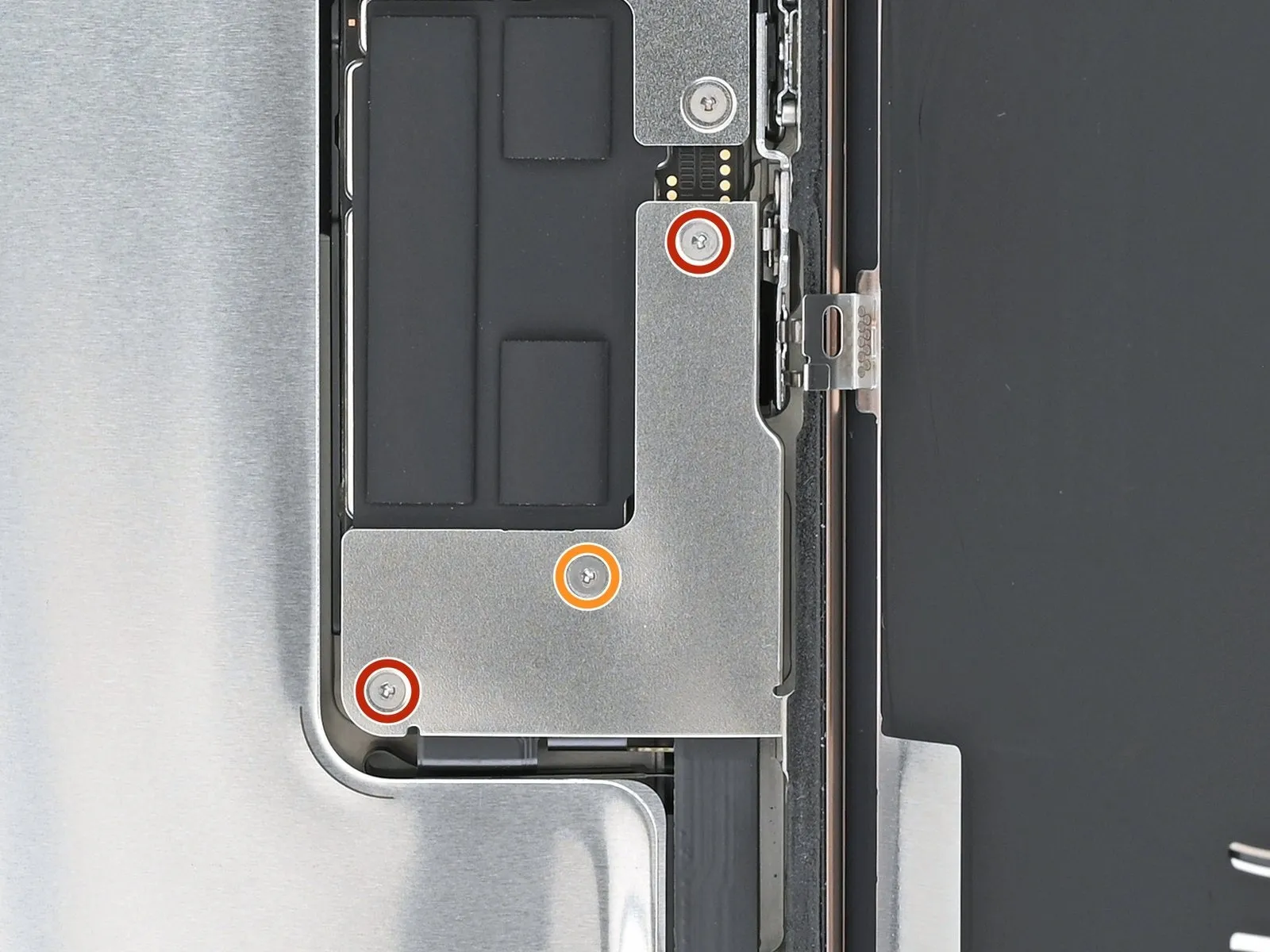

• Employ a 3/8-inch socket wrench to loosen the fastener, ensuring you apply consistent pressure to avoid damaging the retaining clip and observe the torque specification of 12 Nm as indicated in Table 2.Use a Phillips-head screwdriver.Use a Phillips head screwdriver to detach the LiDAR sensor by unscrewing the two fasteners.
• A screw, measuring 1.7 millimeters in length, is required.
• A screw, measuring 3.0 millimeters in length, is required.

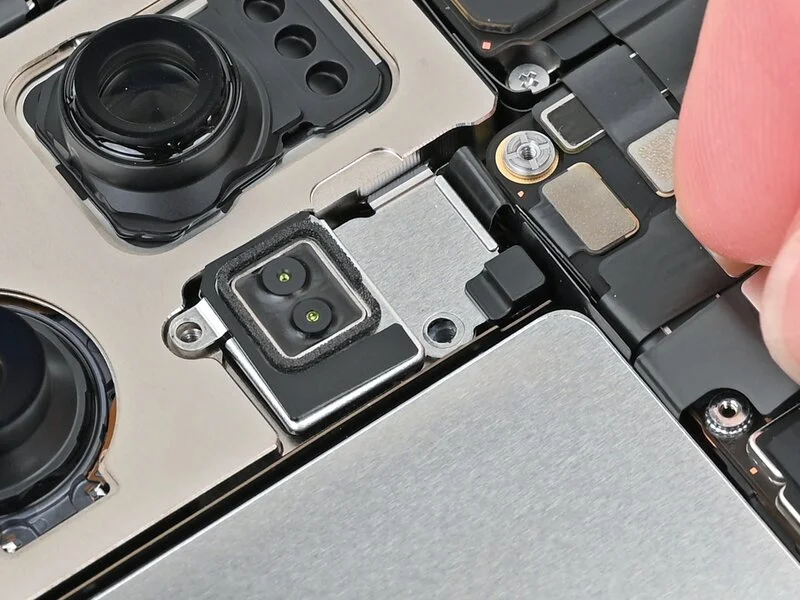

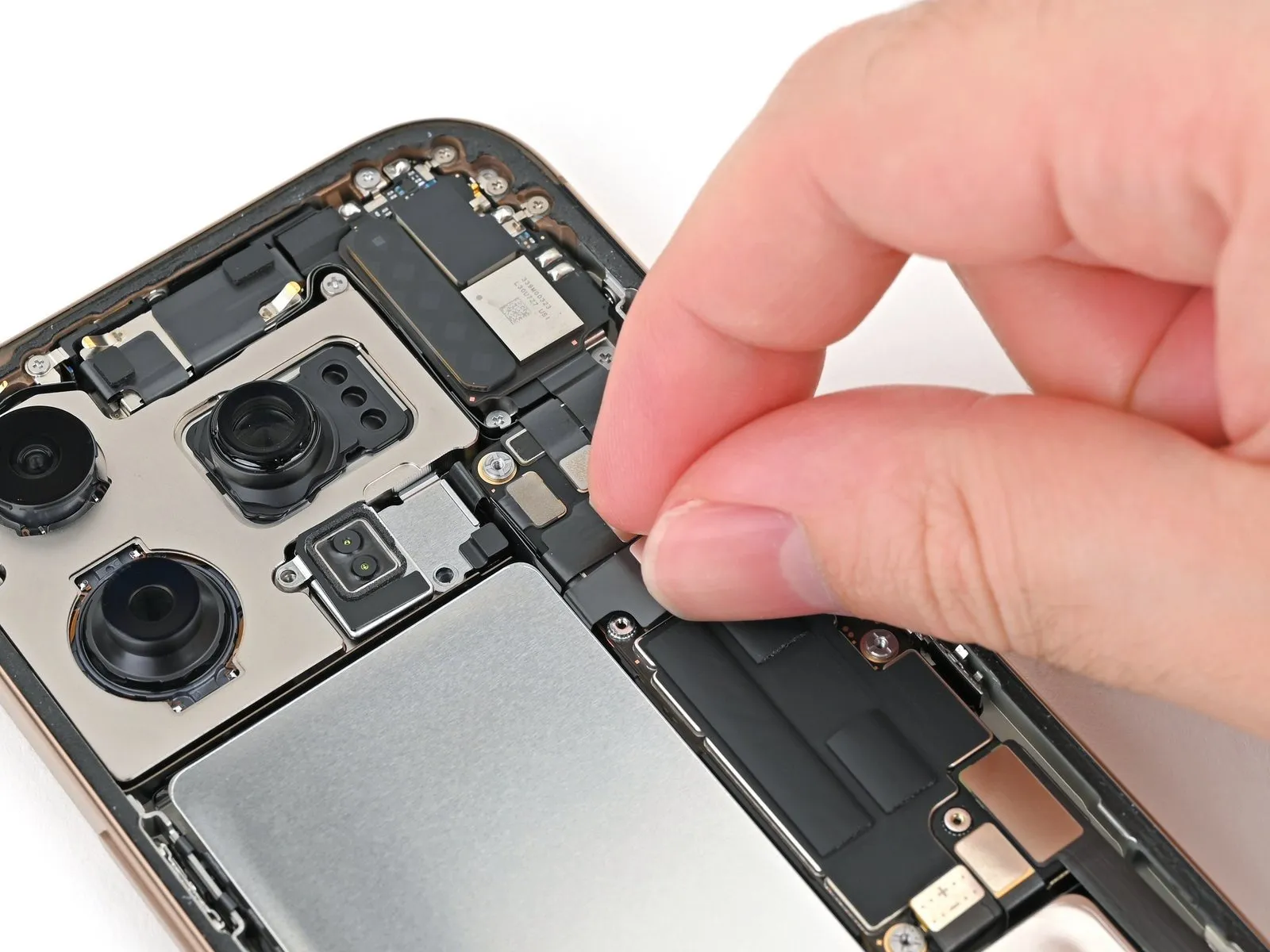

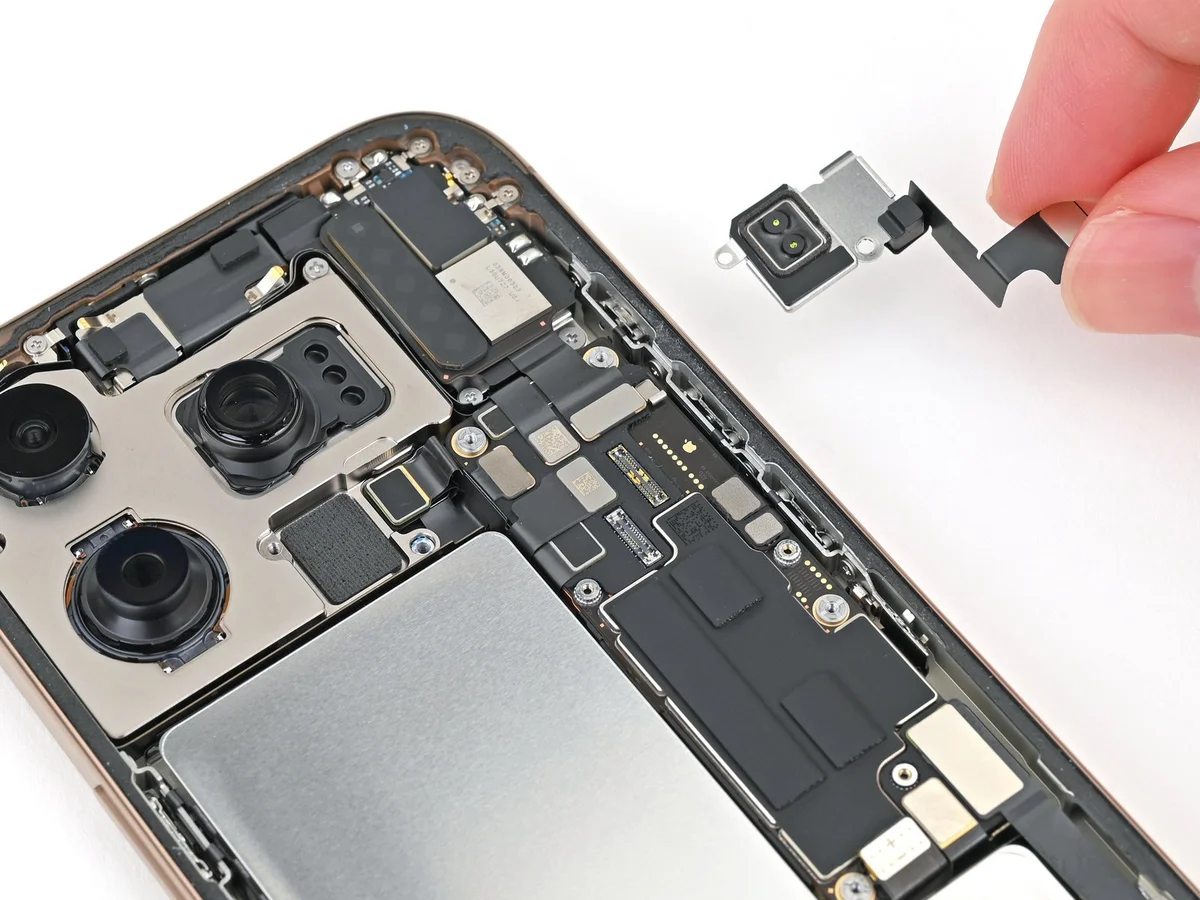

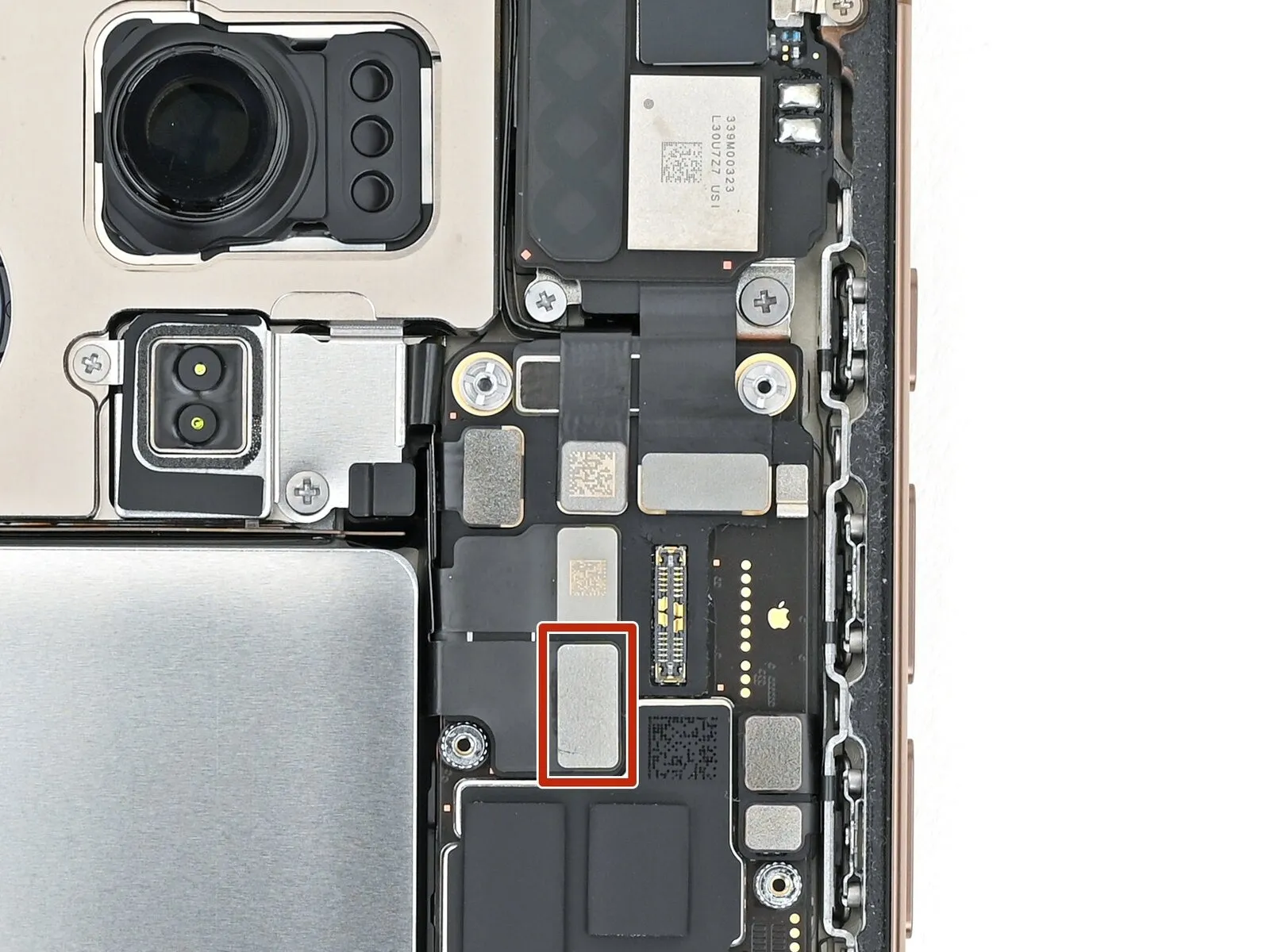

Carefully detach the component using your fingertips or tweezers.The light detection and ranging (LiDAR) sensor.

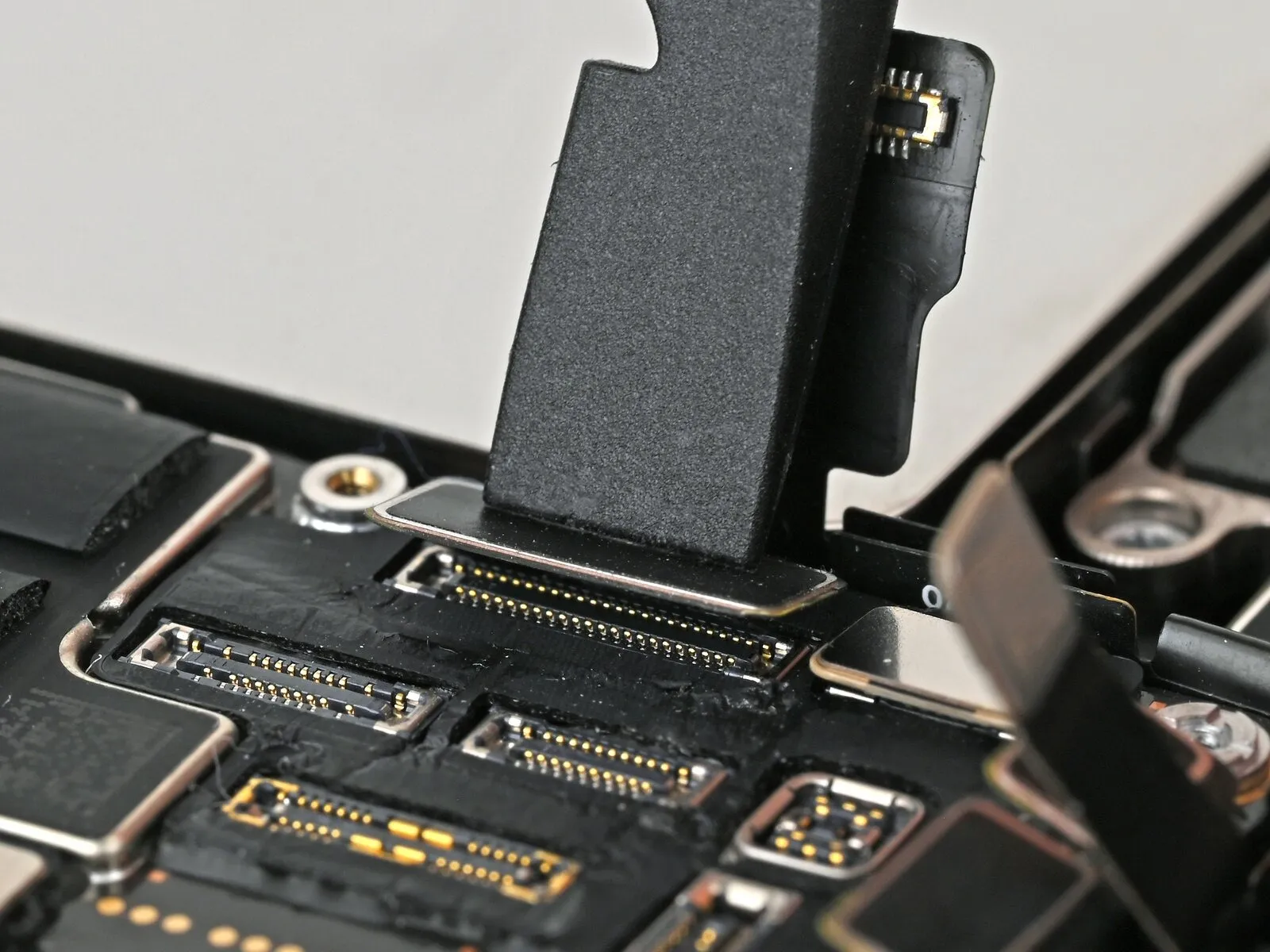

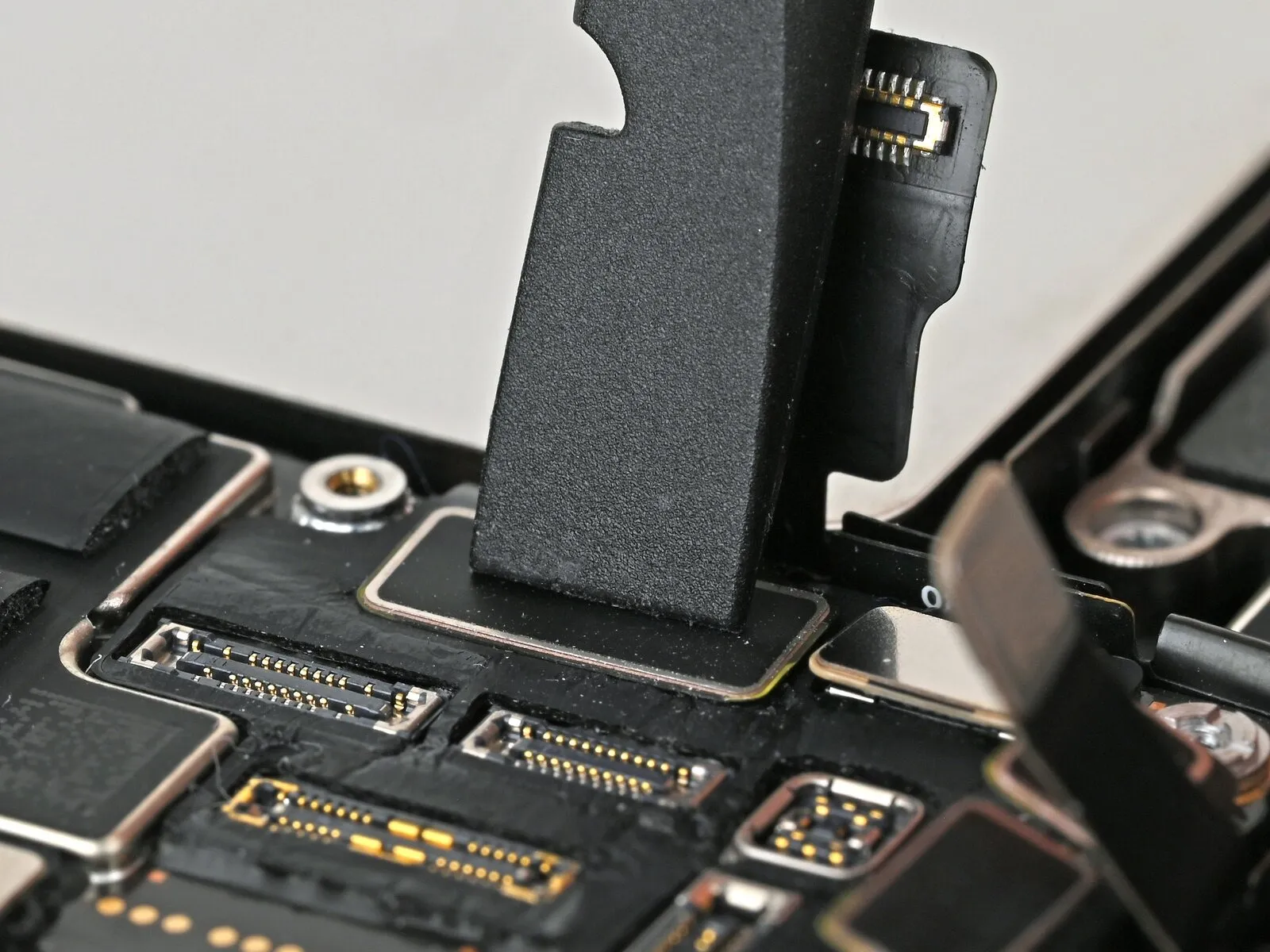

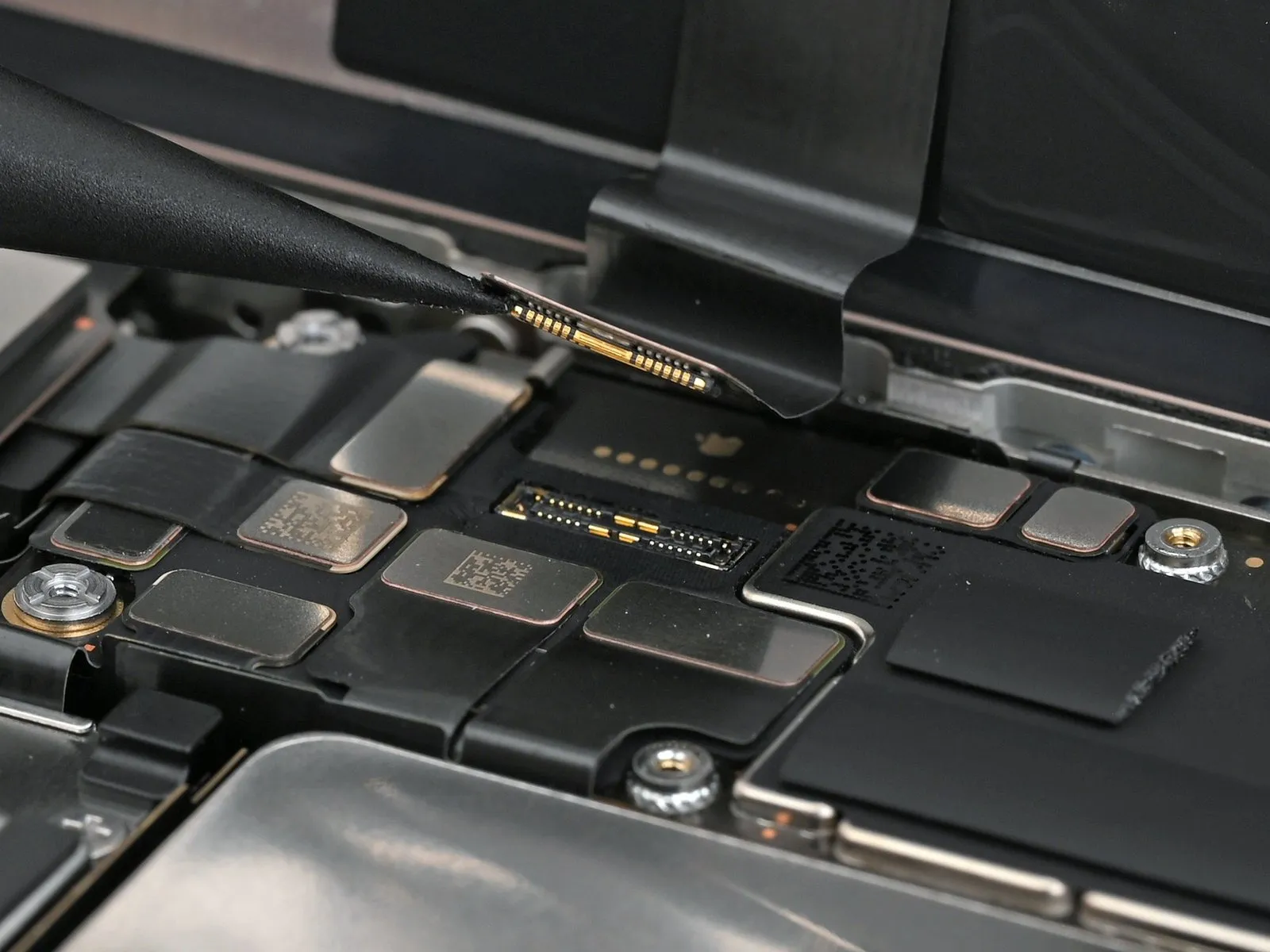

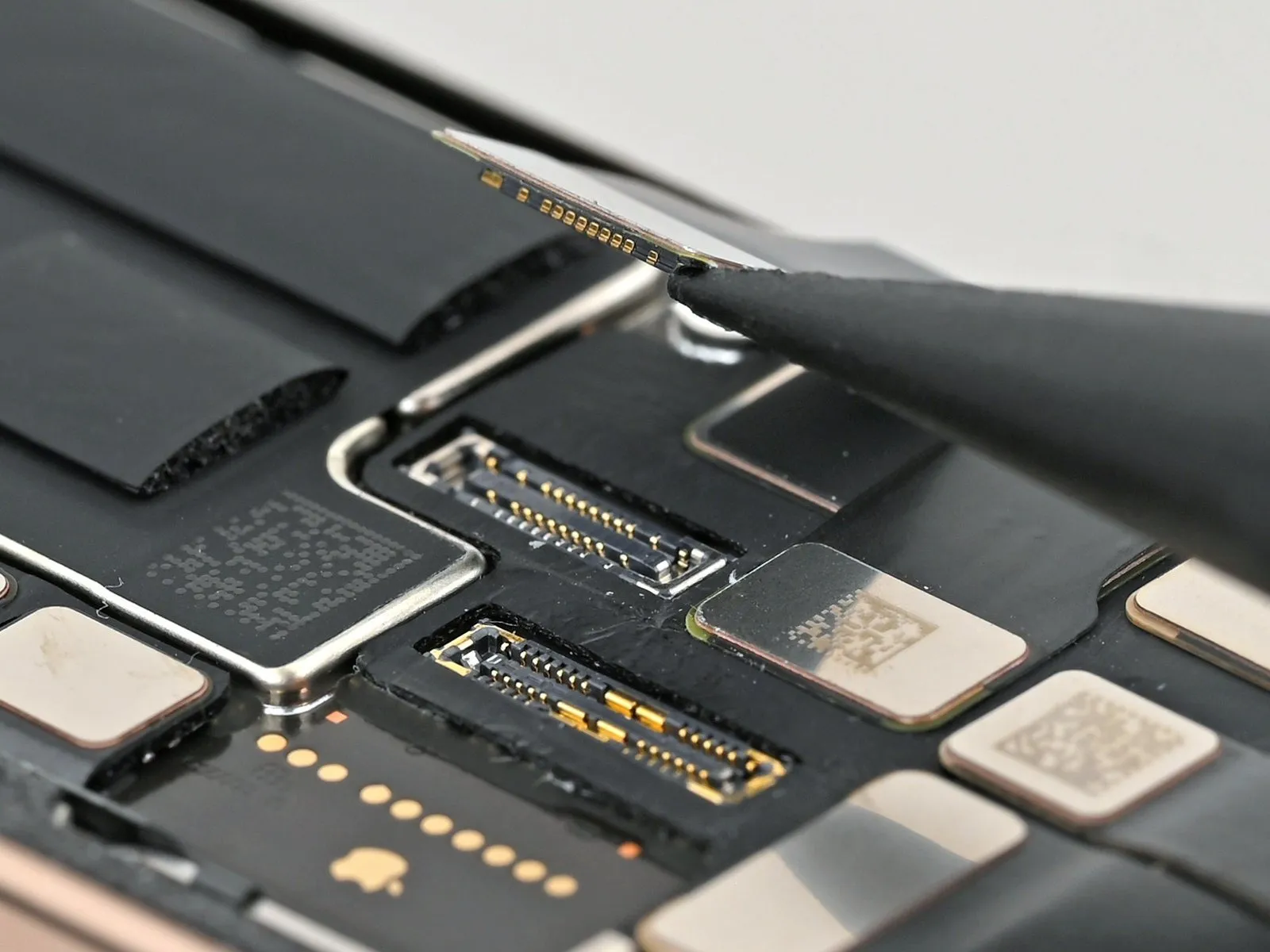

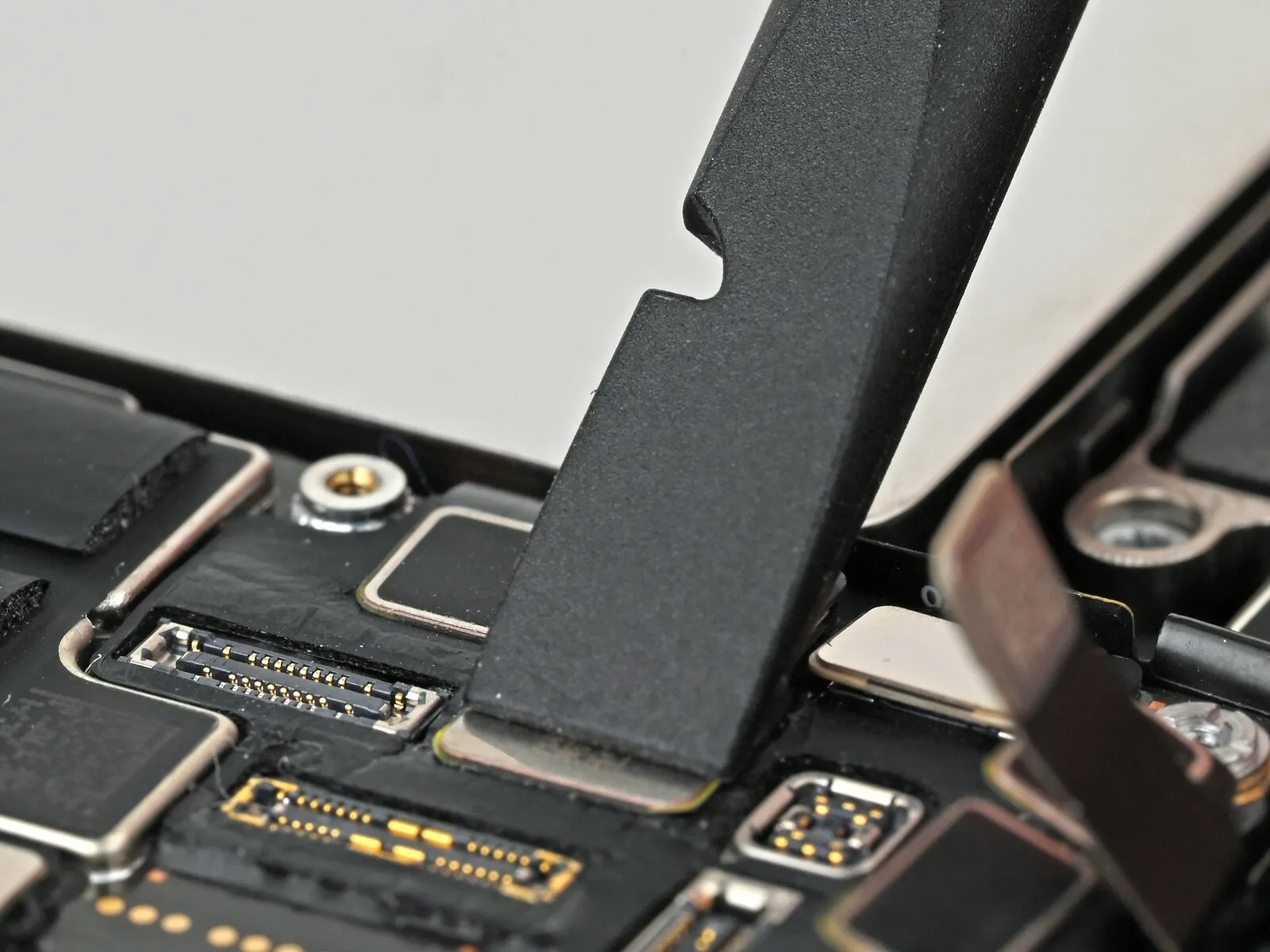

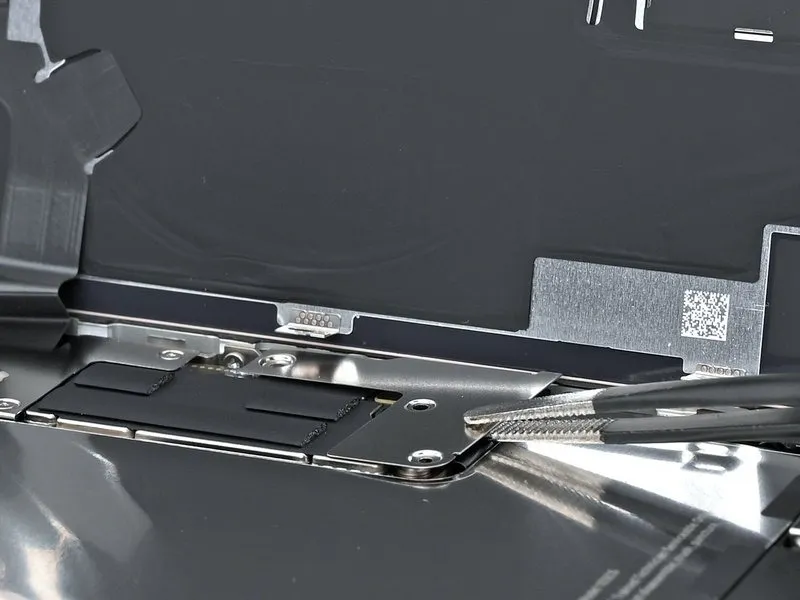

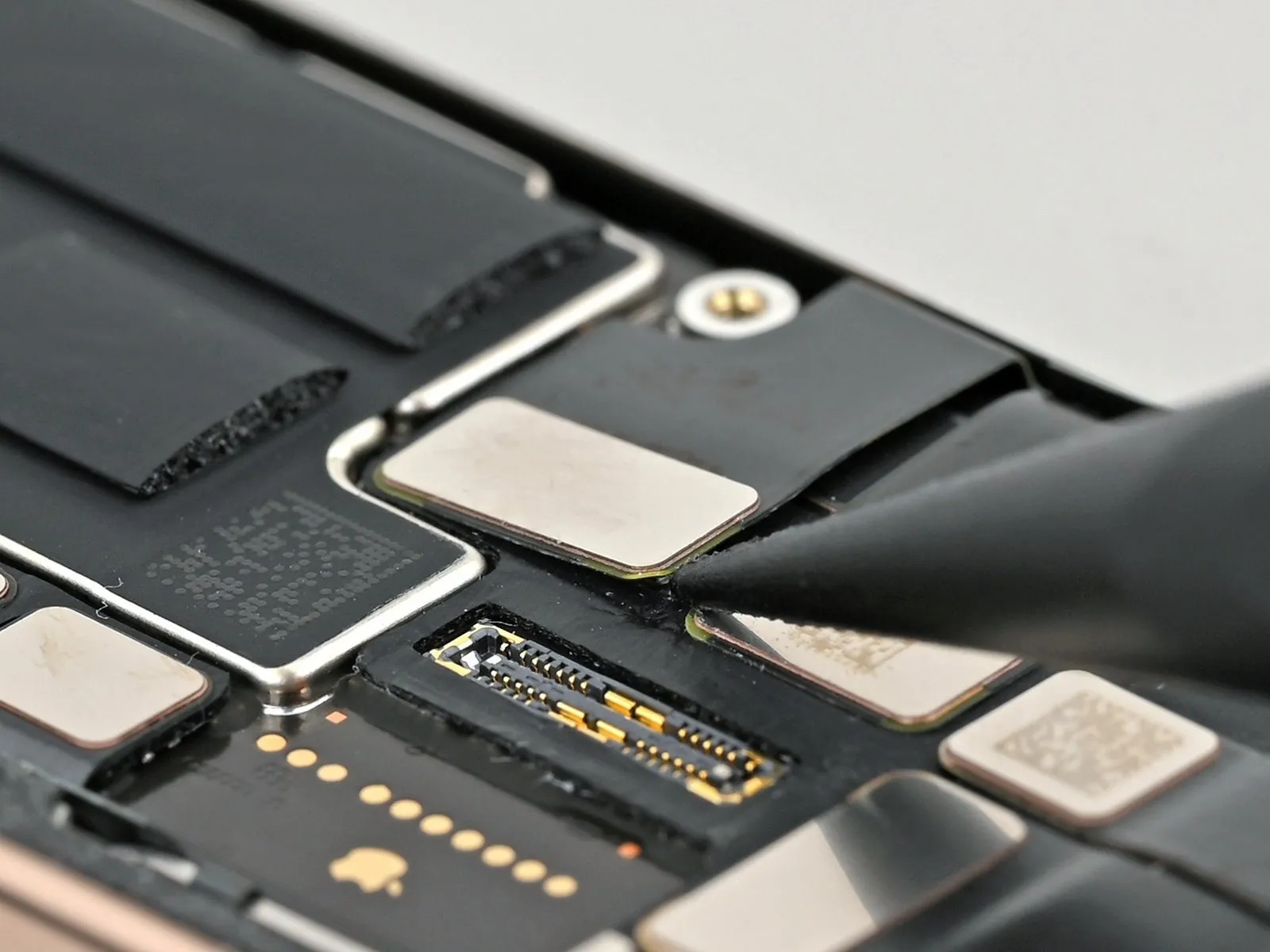

• Carefully separate the initial rear camera's connector from its socket using a spudger tip.

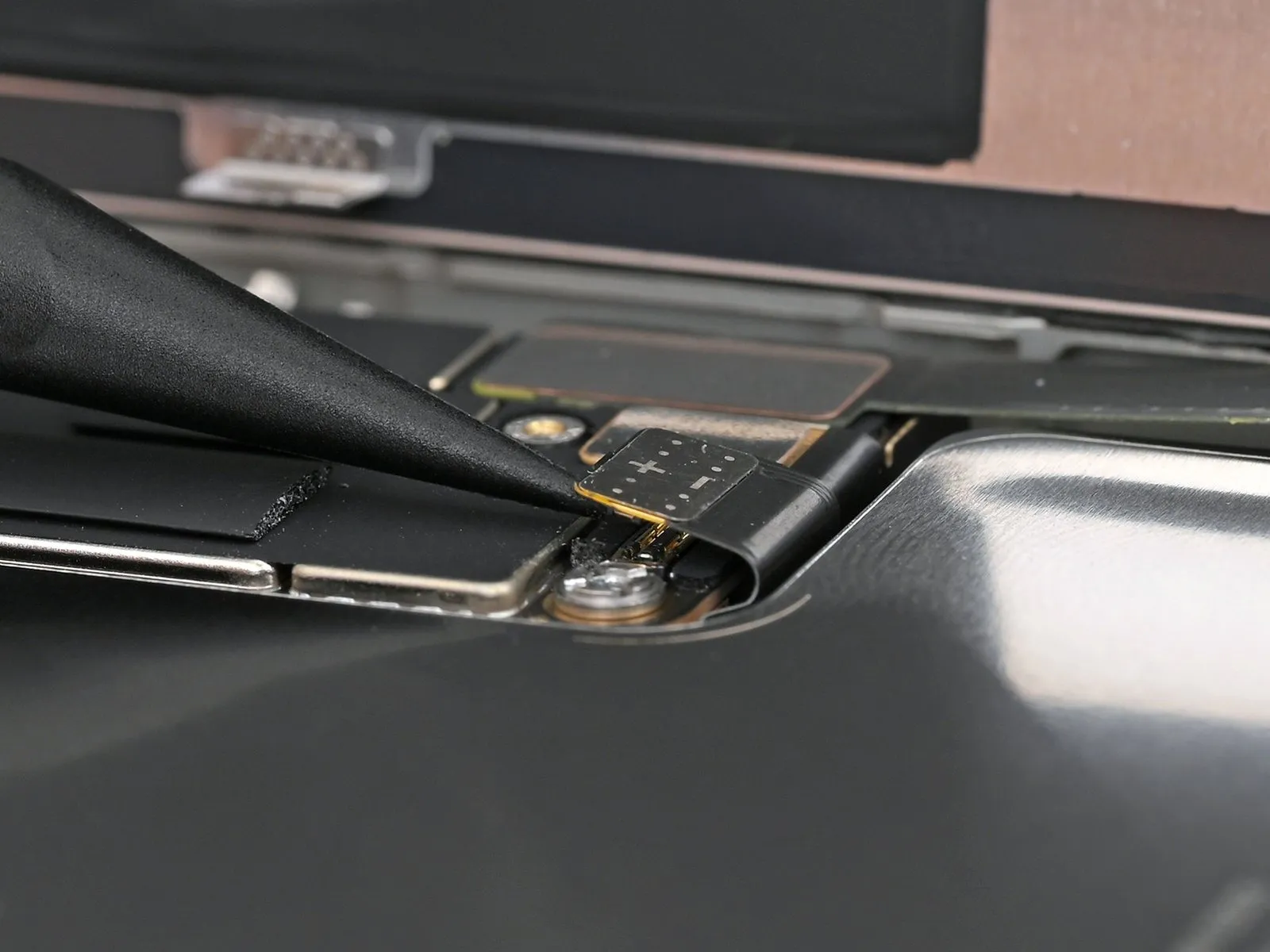

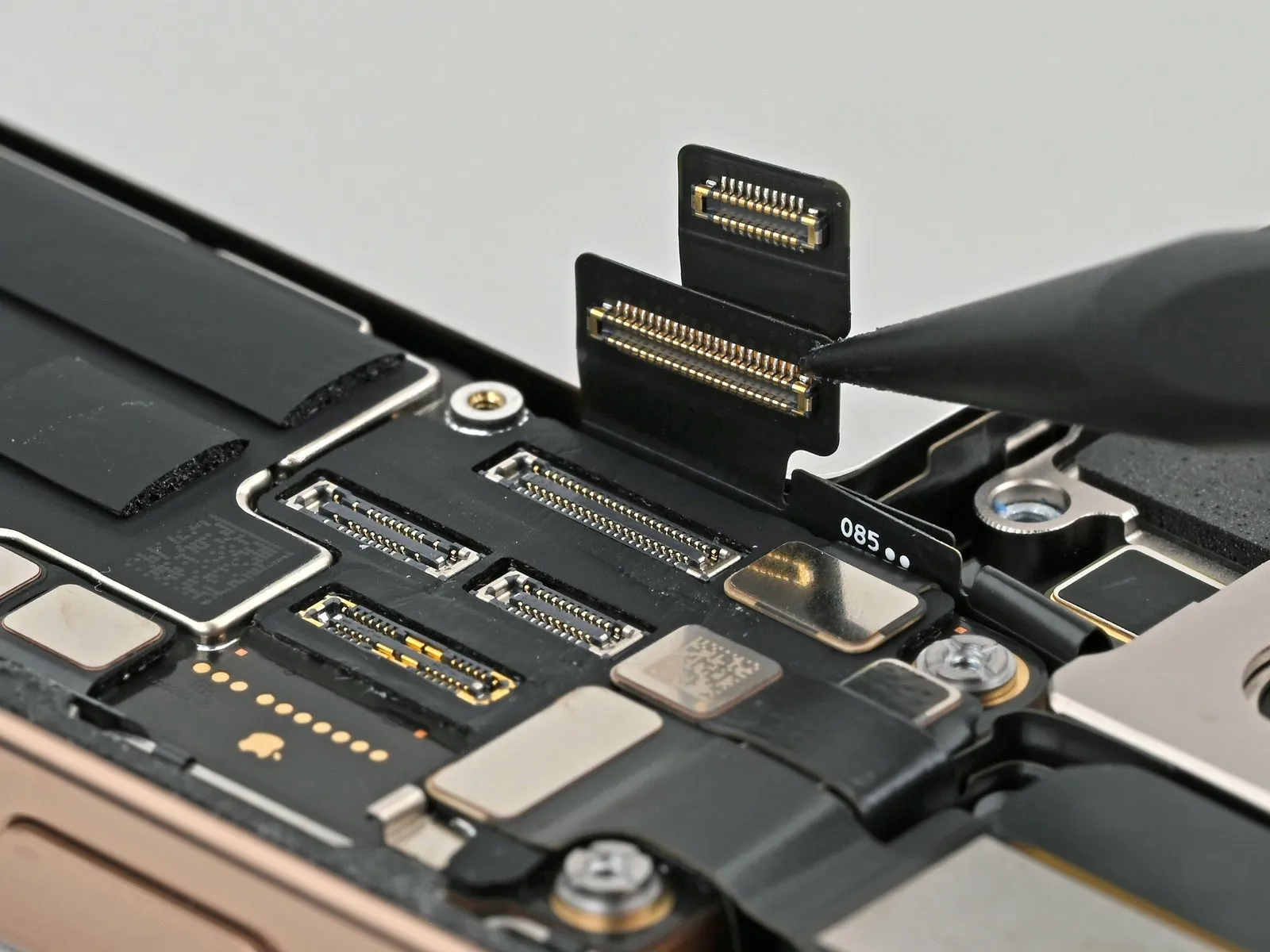

  Carefully detach the second camera connector, noting its position directly below the first connector.

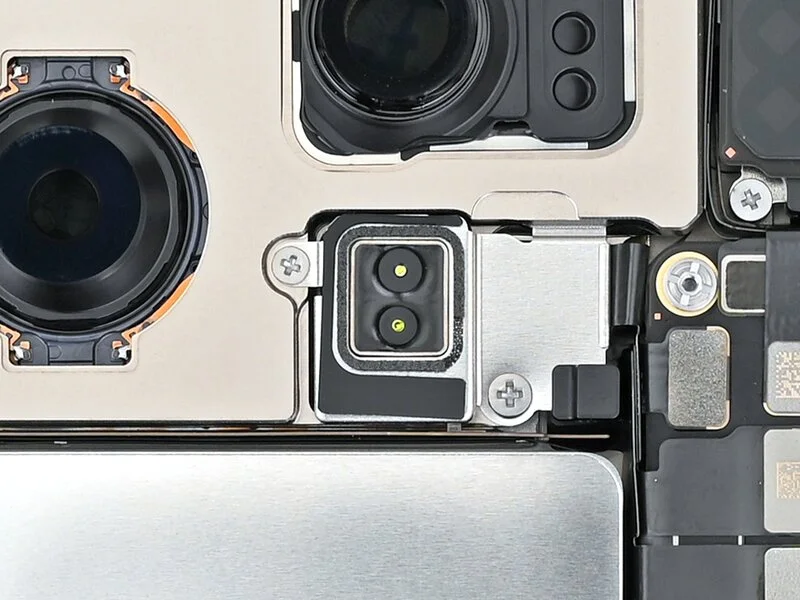

• Employ the specified tool to proceed.Use a Phillips head screwdriver.Loosen the two screws that hold the rear cameras in place.
  Begin the process with a single unit.A screw measuring 2.9 millimeters in length.
  Begin the process with a single unit.A screw measuring 3.8 millimeters in length.

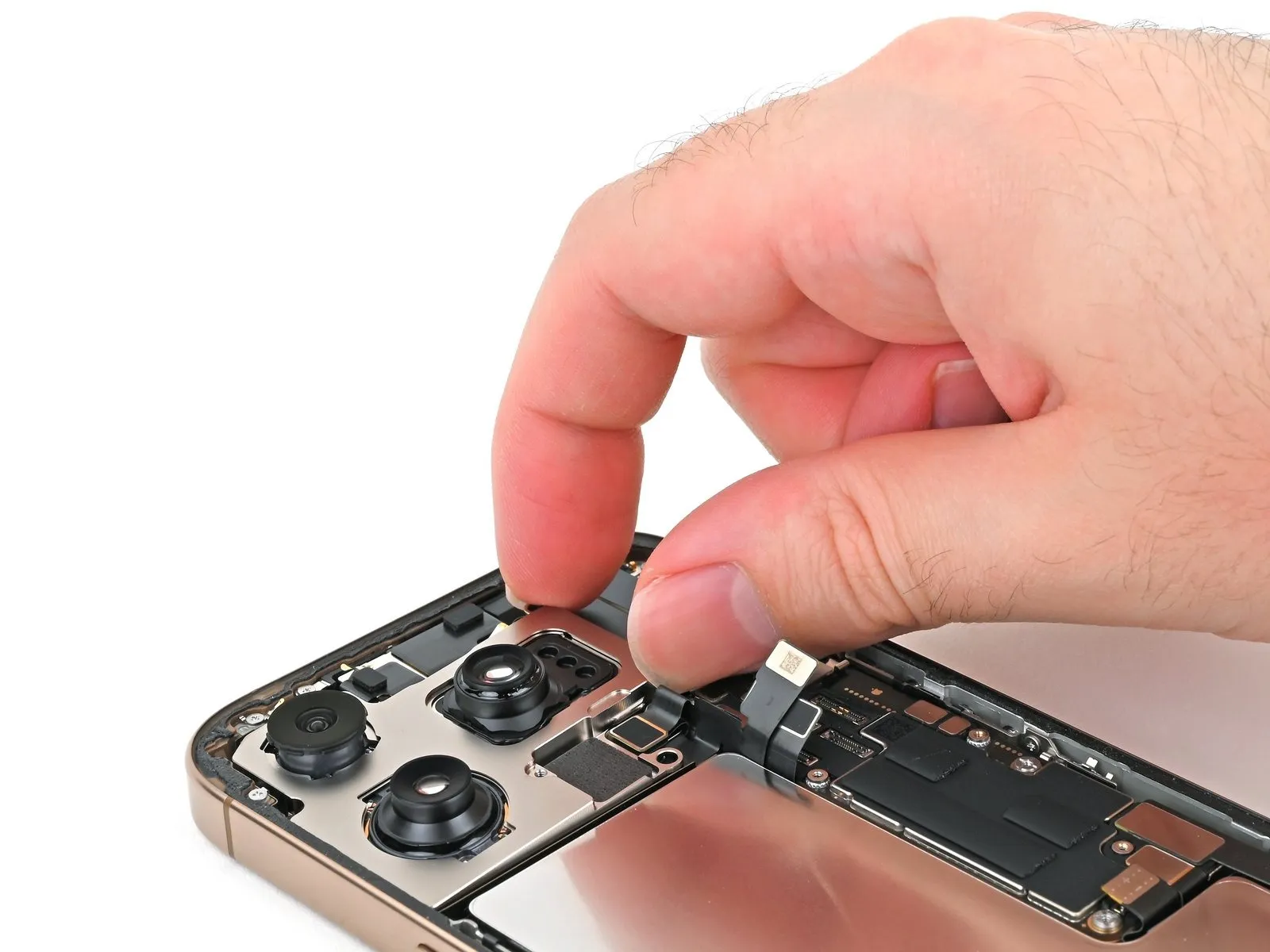

Carefully raise each camera vertically to detach it.

• Position the rear camera assembly so that its screw posts match the corresponding locations within the frame's recess, then set the assembly into place.
  Guide the camera's connecting wires through the designated pathway located between the battery and the logic board.

1. Employ a 3/8-inch socket wrench to loosen the retaining bolt, ensuring you maintain a firm grip and avoid damaging the bolt head; torque the bolt to 25 Nm upon reinstallation, and be aware that excessive force may strip the threads.Use a Phillips-head screwdriver.Using a Phillips head screwdriver, fasten the two screws that hold the rear cameras in place.
   Begin the process by executing the action designated as "One."A screw measuring 2.9 millimeters in length.
   Begin the process by executing the singular action.A screw measuring 3.8 millimeters in length.

1. Carefully engage the initial rear camera connector, situated on the logic board's left side, utilizing either a fingertip or a spudger.
   Position the second camera connector directly over the first connector.

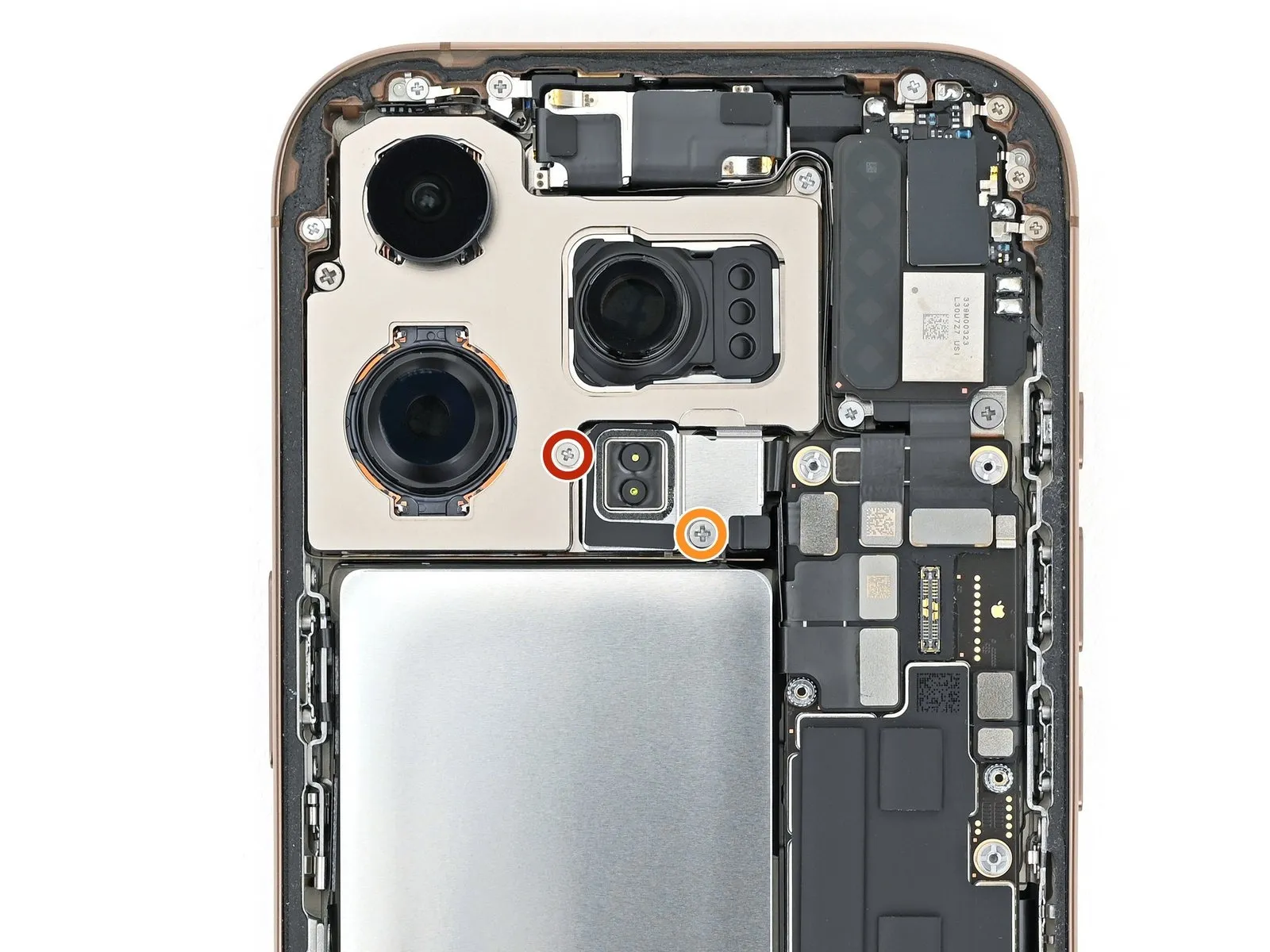

1. Adjust the setting to.The laser-based distance measurement device, often referred to as a Lidar sensor, is required for autonomous navigation.Position the device so that its screw apertures are visible.
   Verify that theThe cable connecting the lidar sensorThe component should be positioned evenly and level against both the battery and the logic board.

1. Employing a Phillips screwdriver, fasten the two screws that hold the [part name] in place.The laser-based distance-measuring component.:
   Begin the process by executing the action designated as "one."A screw measuring 1.7 millimeters in length.
   Begin the process by executing the singular action.A screw measuring 3.0 millimeters in length.

1. Establish an electrical connection by joining theSecure the lidar sensor's electrical connection by firmly pressing the connector into place.The logic board's central area houses it.

• Carefully detach substantial adhesive remnants from the frame's edges, employing either blunt-nosed tweezers or direct manual manipulation.
• Carefully remove any remaining adhesive from the frame's surface using a spudger.
• To loosen a firmly bonded adhesive, direct warm air from a hair dryer or heat gun onto the area and repeat the process.

• Using a clean cloth, remove any remaining adhesive by gently wiping along the frame's edges, maintaining a consistent direction.
• Proceed deliberately, as accuracy is essential.Using a clean cloth and a mild solvent, thoroughly remove any dirt, grime, or residue from the frame's surfaces.Applying even pressure facilitates uniform distribution of the replacement adhesive, which promotes a stronger bond.

• Carefully align the device, utilizing the camera opening and the upper and lower edge indentations as guides.Mentally picture the adhesive's placement and behavior.The component will rest within the frame.

• Because the adhesive surface is highly adhesive, prevent contact with other materials until you intend to bond it to the frame.
• Carefully remove the protective backing layers from the adhesive until the surface intended for bonding is revealed.Carefully position the chassis, ensuring all dimensions remain within the specified 1.2mm tolerance, utilizing the provided fixture and a calibrated micrometer to verify alignment before proceeding..

• Ensure the adhesive strip's visible border is precisely matched to the iPhone frame's matching edge.
• Because the adhesive bonds immediately upon contact, any repositioning attempts will require complete removal and replacement with fresh adhesive.
• Ensure proper positioning, then apply even pressure to secure the adhesive strip to the frame.

• Carefully remove the backing material from the adhesive, ensuring firm contact with the surface as you apply it.
• Proper adhesive placement ensures the borders seat flush and precisely.
• Carefully reposition any minor adhesive offset by easing the extended borders toward the frame.
• Should the adhesive display creases or wrinkles during application, discard the affected material and reapply using a new portion of adhesive.
• Should a replacement set of adhesive strips be unavailable, the iPhone can be reassembled and operated without them; however, be aware that the device's water resistance will be reduced until the adhesive is properly replaced.

• Carefully apply pressure along the device's outer edge with a spudger to release the adhesive securing it.
• Exercise caution to avoid damaging the delicate grounding clips; should one become displaced, carefully reposition it using your fingers or tweezers.
• Apply gentle pressure to avoid distorting or overextending the adhesive.

• Carefully detach the large front liner by gently prying up the pull tab, typically found in a corner, using a spudger or your fingertips.
• Carefully remove the extensive adhesive backing by grasping the designated pull tab.
• To avoid unintended adhesion during reassembly, a protective liner might still be in place around the edges; postpone its removal for now.

• Carefully align the battery press connector and engage it with the logic board, applying pressure with a finger or spudger.
• Before finalizing the iPhone's enclosure, verify the repair's functionality by powering on the device and confirming expected operation; subsequently, power it off and proceed with the remaining assembly steps.
• Attempt to power on the iPhone; if unsuccessful, establish a connection to a power source and repeat the power-on process.
• After logic board replacement, a non-functional display necessitates following the screen guide's procedures to establish a direct connection to the display connector.

• Employ a 5/32-inch hex key to tighten the retaining screw to a torque of 6-8 inch-pounds, ensuring that the spindle is securely affixed and preventing unwanted movement.Use a Y000 tri-point screwdriver.Using the Phillips head screwdriver, fasten the four screws—each measuring 3.5mm—that hold the back glass connector cover in place.
  Use screws, each measuring 1.3 millimeters in length.
  Use screws, each measuring 1.0 mm in length.

1. Employ a 3/8-inch socket wrench to loosen the retaining bolt, ensuring you maintain a firm grip and wear safety glasses to protect against potential debris.Use a Y000-sized tri-point screwdriver.Using a Phillips head screwdriver, fasten the battery connector cover in place with the three screws provided.
   Use two screws, each measuring 1.3 millimeters in length.
   A screw, measuring 1.0 millimeters in length, is required.

1. Gently apply fingertip pressure, or utilize a similar tool, to.Use a plastic pry tool, often referred to as a spudger, to avoid scratching surfaces.Carefully remove the complete border of liners, revealing the underlying adhesive.
   To prevent adhesive contamination, avoid any contact with the newly revealed adhesive surface during liner removal.
   Carefully inspect both the frame and rear glass, ensuring all stray liners have been eliminated; confirm their complete absence.

• Position the rear glass assembly against the frame, aligning the top edge first.
  A binding sensation indicates a perimeter clip might be deformed and pinched between frame components. Examine the area where you encounter this resistance and carefully restore any clips to their original shape.
  Apply even pressure to all sides of the rear glass to ensure it makes full contact with the device's frame.

Apply warmth around the edges of the rear glass using a hair dryer, heat gun, or iOpener, continuing until the surface becomes uncomfortably warm to the touch.
Applying warmth loosens the adhesive, facilitating a stronger connection.

• Apply consistent, even pressure with your hands to encompass the entire outer edge of the iPhone.

• Position the iPhone, with the display facing downward, on a clean, level workspace.

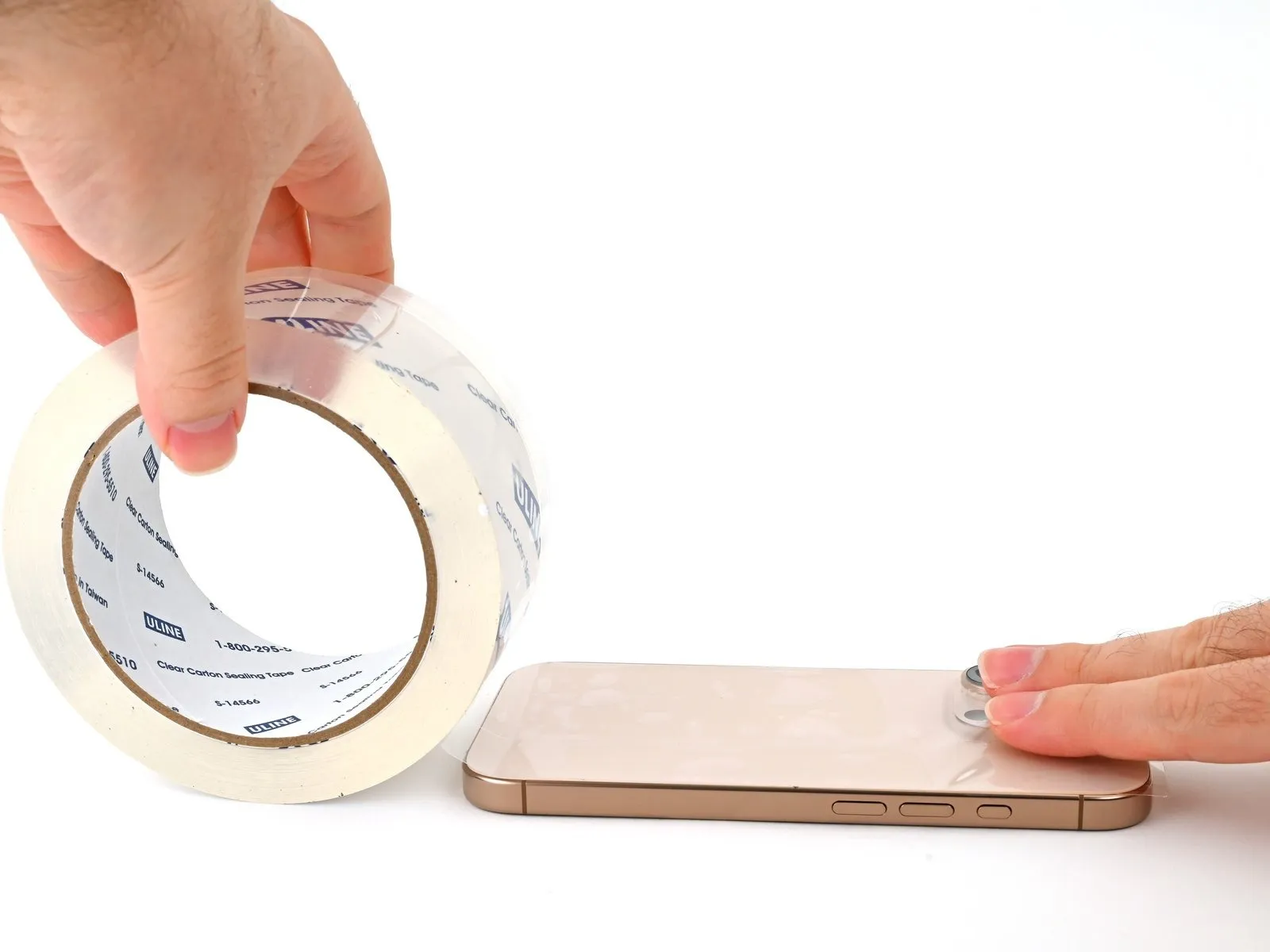

• To shield the back glass's surface from scratches, apply a length of tape completely around its edges.
• Using coins, build a raised border along the edge of the rear glass, ensuring the height of this border matches the extent of the rear camera bumps.
• To ensure proper adhesion, secure the device's edges with vise clamps.

1. Position the component, ensuring it aligns precisely with the designated markings and maintains a 1.5mm clearance from adjacent parts, utilizing the 3mm hex key to secure it with a torque of 2.7 Nm, observing the caution regarding potential damage to the surrounding circuitry.Apply downward pressure equivalent to the weight of three to four standard-sized, hardcover books.Position the device directly and flush against the iPhone's surface.
2. To prevent potential marking of the lower book cover's surface, avoid placing valuable items underneath during this process.
3. Allow the books to remain positioned atop the device for approximately half an hour.
4. Applying force will engage the adhesive properties.

• Employ a 3/8-inch socket wrench to loosen the retaining bolt, ensuring you apply consistent pressure to avoid damaging the threaded connection and following all safety precautions outlined in section 4.2 regarding eye protection and torque specifications (18 Nm).Use a P2 screwdriver with a pentalobe tip.Secure the pair using the provided fasteners.Screws measuring 7.4 millimeters in length.Flanking the USB-C connector are components on both the left and right sides.
