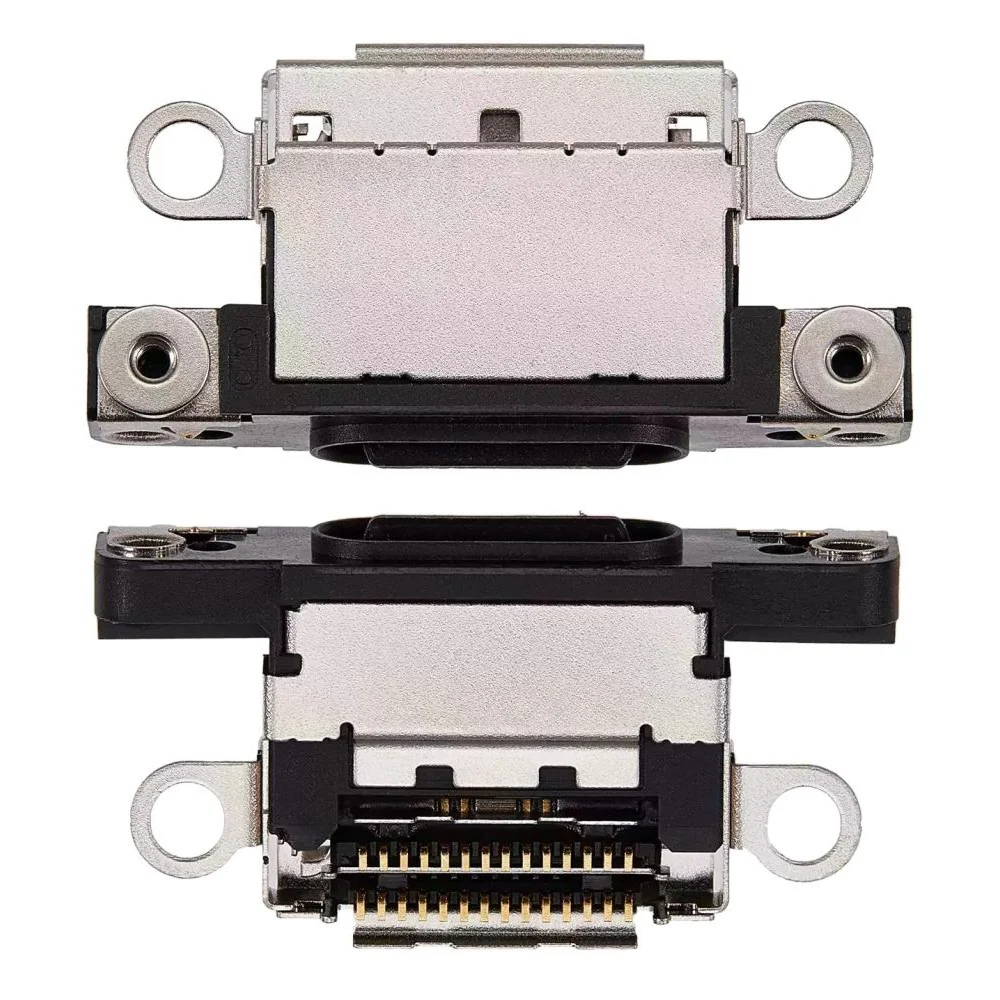

iPhone 16 Pro Max Charge Port Replacement

To mitigate potential safety risks associated with charged lithium-ion batteries, permit your iPhone's battery level to decrease to less than 25% capacity.

• Disconnect all connected cables from the iPhone device before proceeding with any repair steps.
• Simultaneously press and maintain the power button alongside either volume button, then utilize the sliding motion to deactivate the iPhone.

To prevent injury and simplify the subsequent separation of components, apply multiple layers of adhesive packing tape across the fractured screen or rear glass surface.
Confirm the existence of a sufficiently sized, uninterrupted surface region proximate to the lower edge, suitable for secure adhesion of a suction cup.

Employ a P2 pentalobe driver to detach the two screws, each measuring 7.4 millimeters in length, positioned laterally around the charging port.The two screws securing the charge port are to be unscrewed utilizing a P2 pentalobe driver.To facilitate removal of the screws flanking the charge port, a P2 pentalobe driver is required; these screws are each 7.4 mm long.

Caution is advised: Improper insertion depth of a pick tool may result in device damage.To prevent over-insertion, limit the pick's depth by establishing a reference point.

• Using a ruler, determine a distance of precisely 3 millimeters from the pick's distal end.Clearly indicate this 3-millimeter measurement on the pick's tip with a durable, permanent marker.For enhanced precision, apply distinct markings with varying measurements to the pick's other corners.
• As an alternative method for depth control, securely affix a coin to the pick's shaft.
• Ensure the coin's edge is positioned exactly 3 millimeters from the pick's foremost point.This coin-secured pick provides a visual guide to restrict insertion depth.Adherence to these depth limitations is crucial to avoid potential harm to the device's internal components.

• Employing a hair dryer or heat gun, apply warmth to the lower perimeter of the rear glass panel until it reaches a temperature that is perceptible upon contact.
• Alternatively, an iOpener can be utilized for localized heating; ensure adherence to the provided guidelines for correct application and temperature control.

• Secure a suction handle to the lower perimeter of the rear glass panel.
• Exert consistent, considerable upward pressure on the handle to separate the rear glass from the device's frame.
• Should separation not occur initially, increase the localized heat application to the edge and reattempt the lifting process.
• Carefully introduce the pointed end of a prying tool into the newly formed space.

During the process of separating the rear glass with a separation tool, maintain a maximum insertion depth of 3 mm to prevent potential harm.A fragile cable, situated adjacent to the volume up button and connecting the rear glass assembly to the iPhone's internal components, is susceptible to damage; therefore, avoid tool insertion in this region.The area is also vulnerable to damage from the separation tool due to the presence of numerous spring contacts located along the iPhone's outer edge.

• Care must be taken to ensure the separation tool does not penetrate beyond the specified 3 mm depth.
• Insertion of the separation tool beyond the recommended depth carries a risk of severing the delicate cable or displacing the spring contacts.

• Utilize the opening pick, moving it along the lower border, to sever the bonding agent.
• Should the adhesive present resistance to separation, apply heat to the edge for approximately one minute, then attempt the process anew.
• Maintain the opening pick's position within the lower-left corner to inhibit the adhesive from reforming a seal.

Apply warmth to the left side of the rear glass panel utilizing a hair dryer or heat gun.The purpose of applying heat is to soften the adhesive securing the glass.Ensure the glass edge reaches a temperature that is comfortably warm when touched.This preparatory heating step facilitates easier separation of the back glass from the device’s frame.

• Introduce a supplementary opening tool into the lower-left area, positioned near the already inserted tool.
  Limit the insertion depth of the tool to a maximum of 3 millimeters.Preventing damage to the spring contacts necessitates this depth restriction.
• Move the tool along the left side to detach the adhesive and disengage the metal clips.
  The audible and tactile sensation of the metal clips releasing will indicate their separation.
• Maintain the initial tool's position in the upper-left corner to inhibit the adhesive from re-bonding.

Employ a hair dryer, or alternatively a heat gun, to warm the upper perimeter and the upper-right corner of the rear glass panel.The application of heat should continue until the surface reaches a temperature that is perceptible upon contact.This warming process facilitates the separation of the back glass from the underlying adhesive.Exercise caution during this step to prevent damage to adjacent components or excessive heat exposure.

• To prevent harm to the spring contacts, ensure the pick's insertion depth remains no greater than 3 millimeters.Damage to the spring contacts can occur if the pick is inserted too far.
• Position a third opening tool within the upper-leftmost area.
  Move the opening tool along the superior border, curving it around the upper-right corner, and halt its progress positioned above the volume up control.
• Maintain the placement of this opening tool to obstruct the adhesive from reforming a bond.

• Position a fourth opening tool within the lower-rightmost recess.
• Maneuver the opening tool along the corner's contour and upward along the right side, pausing its movement prior to the volume down button's location.

• Initiate the opening of the rear glass by pivoting it towards the right side of the iPhone, which will break the remaining adhesive bond.

• Two screws, each measuring 1.3 millimeters in length, are present.
• A single screw with a 1.0-millimeter length is also required.

• The assembly incorporates two fasteners.These fasteners are screws, each measuring 1.3 millimeters in length.Additionally, two shorter screws are present.
• These secondary screws have a length of 1.0 millimeters.Carefully manipulate the Y000 tri-point driver to avoid damaging surrounding components during screw removal.Ensure proper alignment and torque when re-installing the screws to prevent future connector issues.

• Additionally, a screw with a length of 1.3 millimeters is utilized in the fastening process.A third screw, possessing a length of 2.4 millimeters, is also present in the cover's attachment.
• The Phillips screwdriver is essential for loosening and removing these fasteners.Carefully unscrew the three fasteners to detach the Taptic Engine cover.
• Note the specific lengths of each screw (2.9 mm, 1.3 mm, and 2.4 mm) for reassembly.Properly managing the screws during removal prevents loss and ensures correct reinstallation.

• Employ tweezers or manual dexterity to elevate the superior border of the Taptic Engine cover.
• After the inferior edge disengages from the device's frame, extract the Taptic Engine cover.

• Employing the tip of a spudger, carefully separate and detach the lower assembly cable connector from the logic board's corresponding interface.The lower assembly cable's connection to the logic board must be released by leveraging the pointed end of a spudger tool.To release the lower assembly cable, utilize a spudger, applying force to its tip to disengage it from the logic board.

• Employing the tip of a spudger, carefully separate and detach the pair of connectors situated close to the lower-right corner of the device's frame.The connectors, located on the bottom right edge, must be disconnected by applying gentle leverage with a spudger's pointed end.To release the two connectors positioned at the frame's lower right, utilize a spudger and apply pressure to lift and disengage them.

• To detach the lower assembly cable, it is necessary to eliminate the two screws that hold it in place.
• A tri-point Y000 screw, measuring 1.0 mm in length, is required for this process.
• Additionally, a Phillips screw with a length of 1.3 mm will be needed.

Apply heat to the lower assembly's cable section, situated above the Taptic Engine, utilizing a hair dryer until the surface reaches a temperature that is noticeably warm to the hand.

• Utilize an opening pick to gently insert it beneath the lower assembly cable, facilitating its detachment from the Taptic Engine.The lower assembly cable must be disengaged from the Taptic Engine using a specialized opening pick.To allow access to the Taptic Engine, carefully maneuver the cable, creating a bend that moves it aside.Positioning the opening pick allows for separation of the lower assembly cable from the Taptic Engine.A bending motion is required to reposition the lower assembly cable, clearing the path to the Taptic Engine.
• The Taptic Engine's accessibility is improved by carefully redirecting the lower assembly cable.Employing an opening pick enables the necessary separation of the lower assembly cable from the Taptic Engine component.To gain access to the Taptic Engine, the lower assembly cable should be carefully bent away from its original position.

• Employ a Phillips screwdriver for the removal process.The screw, measuring 2.1 millimeters in length, requires a Phillips screwdriver for disassembly.A Phillips screwdriver is necessary to detach the fastener.To release the Taptic Engine, utilize a Phillips screwdriver to unscrew the 2.1 mm screw.The Taptic Engine is held in place by a screw that necessitates a Phillips screwdriver for removal.For the purpose of detaching the Taptic Engine, a Phillips screwdriver is the appropriate tool for the 2.1 mm screw.A Phillips screwdriver is required to loosen and remove the 2.1 mm screw which secures the Taptic Engine.

• Employ the tip of a spudger to gently lift the corner bracket.A spudger's pointed end facilitates the upward movement of the corner bracket.To raise the corner bracket, utilize the pointed end of a spudger for leverage.

• Utilize the pointed end of an opening pick to gently disengage the Taptic Engine from its surrounding components.Position the opening pick's tip along the superior perimeter of the Taptic Engine.The plastic buffer strip, which is affixed to the Taptic Engine, must be detached using this method.A sliding motion with the opening pick facilitates the separation of the plastic buffer strip.Carefully maneuver the pick to avoid damaging the Taptic Engine during the separation process.

• Employ the tip of a spudger to carefully lift the Taptic Engine.Exercise caution to avoid applying pressure to the battery during the separation process.The Taptic Engine can be disengaged using a spudger's pointed end.Prevent damage by ensuring the spudger's point doesn't contact the battery's surface.Detach the Taptic Engine by leveraging the spudger's tip for gentle prying.
• To avoid potential battery damage, direct the spudger's force away from the battery.A spudger's pointed tip is the appropriate tool for releasing the Taptic Engine.The Taptic Engine's removal necessitates the use of a spudger for leverage.
• Carefully use a spudger to separate the Taptic Engine from its mounting location.Ensure the spudger is positioned to avoid contact with the battery during the Taptic Engine's removal.Employing a spudger facilitates the detachment of the Taptic Engine while safeguarding the battery.

• To detach the loudspeaker, begin by eliminating the four screws that hold it in place.
• Utilize a Phillips screwdriver with a bit measuring 1 millimeter in length.The initial screw requires a 1.7 millimeter Phillips head for removal.
• Employ another Phillips screwdriver, this one also measuring 1 millimeter.A 1.5 millimeter Phillips screwdriver is necessary for the subsequent screw.
• For the standoff, a Phillips screwdriver with a 1 millimeter shaft is needed.The standoff is secured with a 4.1 millimeter standoff screw.
• A tri-point Y000 screwdriver, measuring 1 millimeter in length, is required.The final component is fastened with a 1.3 millimeter tri-point Y000 screw.

• Employing a spudger, carefully introduce its tip into the recess located beneath the loudspeaker's securing screw in the lower-right corner.This maneuver allows for leverage to disengage the adhesive securing the component.Apply gentle upward force to separate the loudspeaker from the device's chassis.
• The loudspeaker assembly is now free and can be lifted away.Exercise caution to avoid damaging surrounding components during removal.Ensure the spudger is used to apply force, not the fingers, to prevent injury and component damage.

1. To detach the lower microphone assembly, first loosen the three screws that hold it in place.
   • A single 3.4-millimeter-length standoff screw is required for this process.Additionally, a 3-millimeter-length standoff screw is also necessary.
   • A 1.4-millimeter-length tri-point Y000 screw is the third fastener to be removed.These screws are critical for maintaining the microphone's secure attachment.
   • Carefully unscrew each fastener to avoid damaging surrounding components.Proper identification of each screw type is essential for reassembly.

Employ the planar edge of a spudger to disengage the lower microphone assembly.Avoid applying force against the battery during this process, as damage could occur.Expect a degree of opposition as the microphone separates from its adhesive seal.

• The microphone's detachment from its securing adhesive will be perceptible through felt resistance.
• Carefully release the microphone from its position using the spudger's flat edge.

Employ tweezers or manual dexterity to detach the existing adhesive gasket situated on the frame's lower surface.

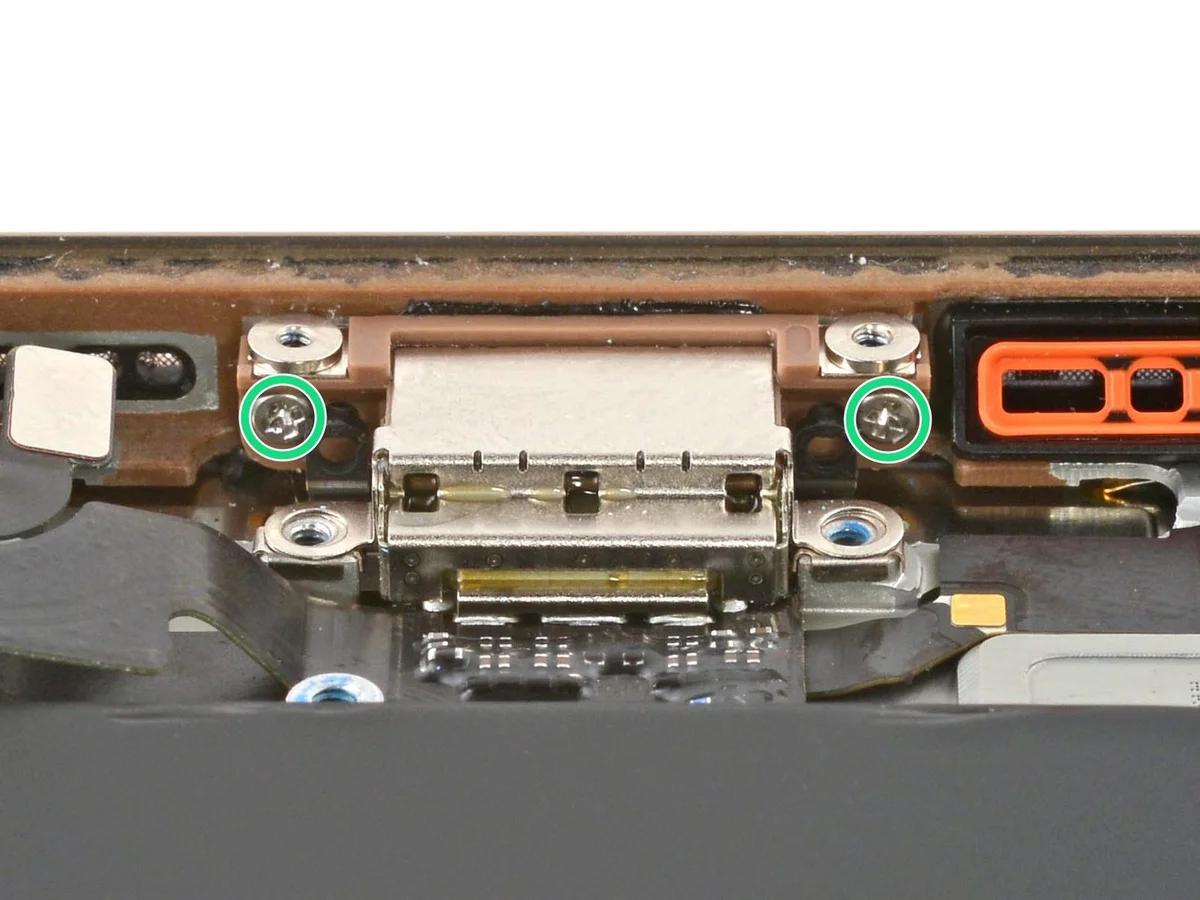

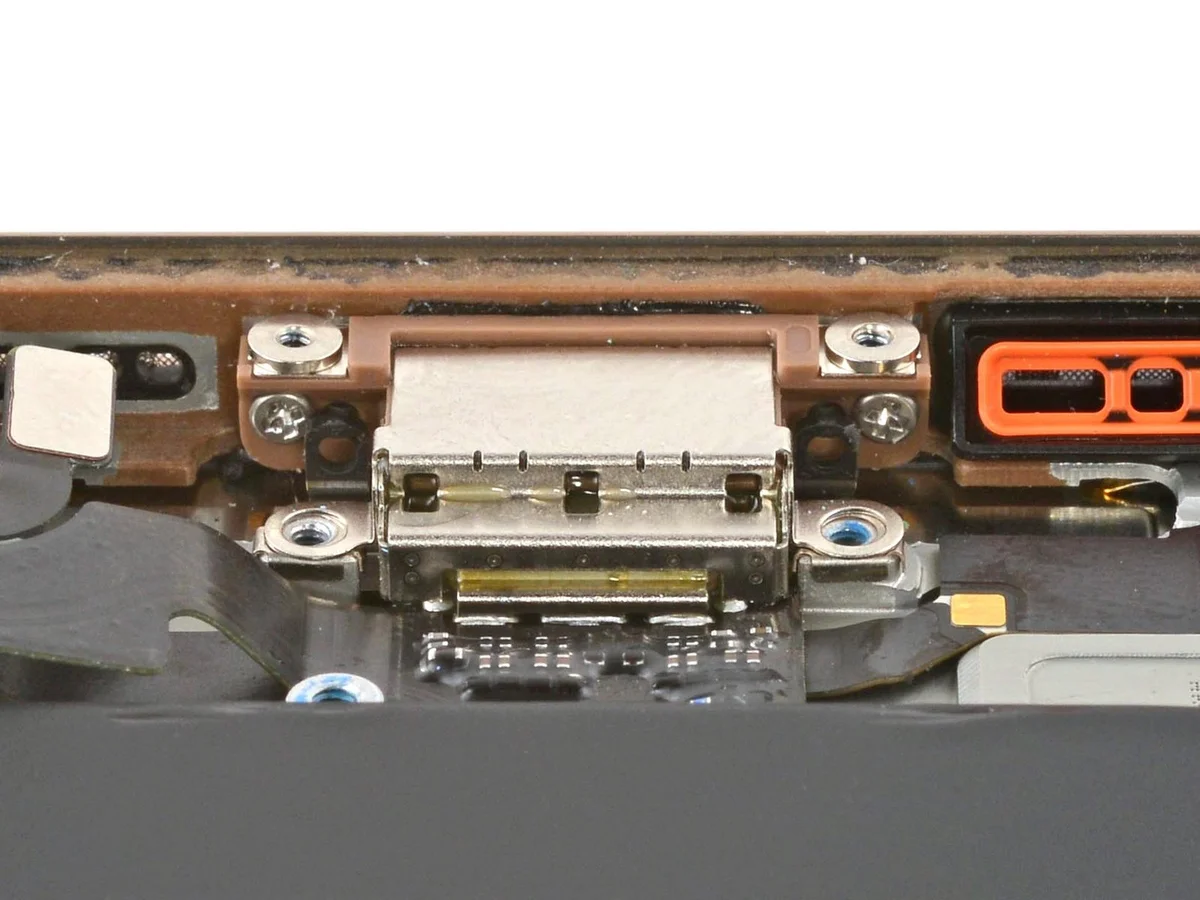

Employ a Phillips screwdriver to detach the two screws, each measuring 3.3 mm in length, which fasten the charge port assembly to the device's frame.Due to the screws' substantial tightness and limited accessibility, maneuvering the screwdriver at a minimal angle is advisable for effective removal.Exercise caution to prevent contact with the battery during screw removal, as applying excessive pressure could cause damage.

• Careful angling of the screwdriver is necessary to access the screws effectively, while avoiding unintended pressure on the internal battery.

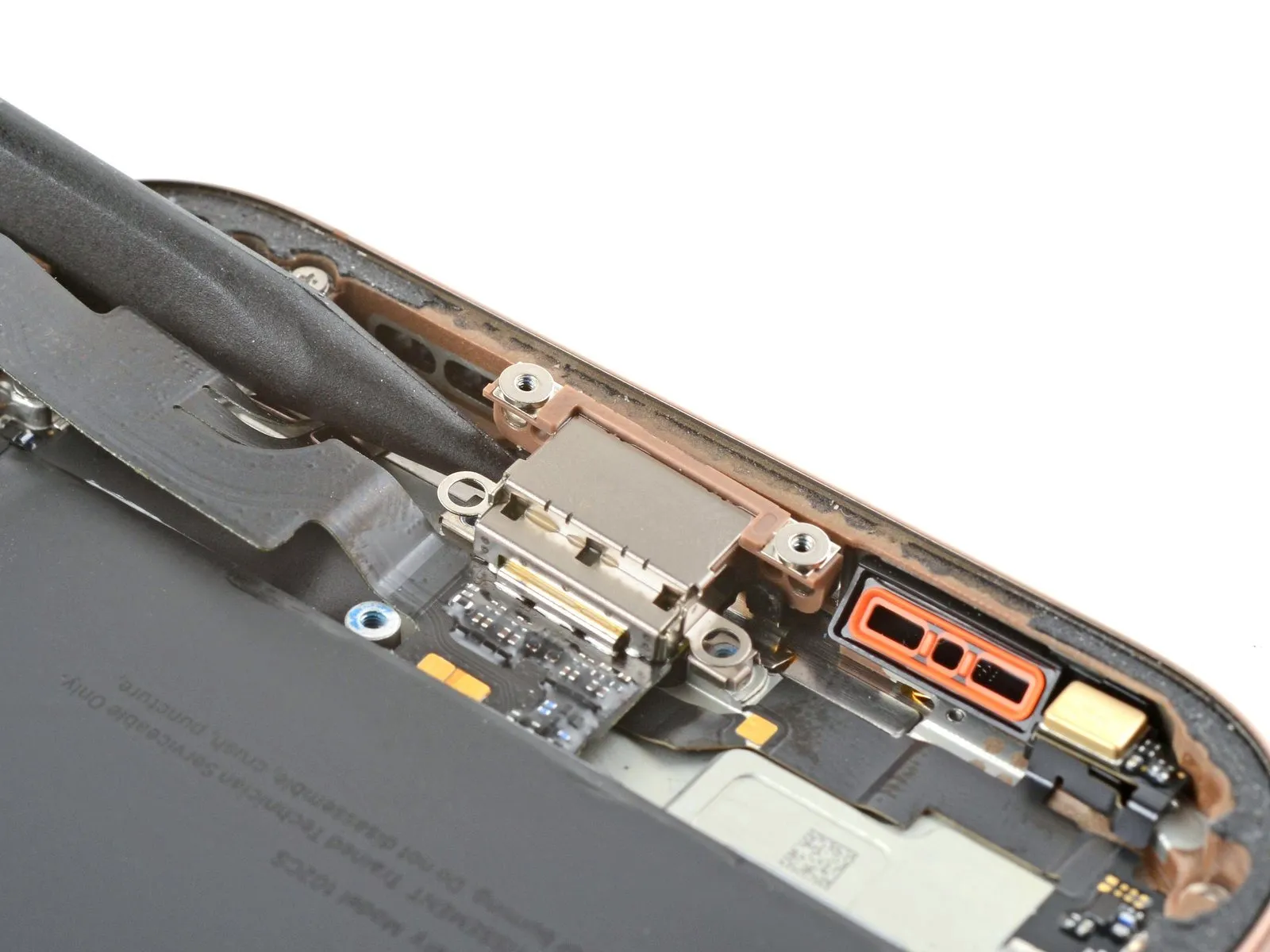

A self-adhesive gasket ensures a watertight seal between the charging port and the device's lower frame.

• Utilize the tip of a spudger to initiate separation of the charging port.Apply slight upward pressure to disengage the gasket and elevate the port.The port's retention is further secured by two locking tabs, hindering its removal.
• Replicate this process on the opposite side to achieve complete dislodgement of the charging port.
• Gentle force is required to detach the gasket while preventing damage to surrounding components.

• Detach the charge port assembly from the device.

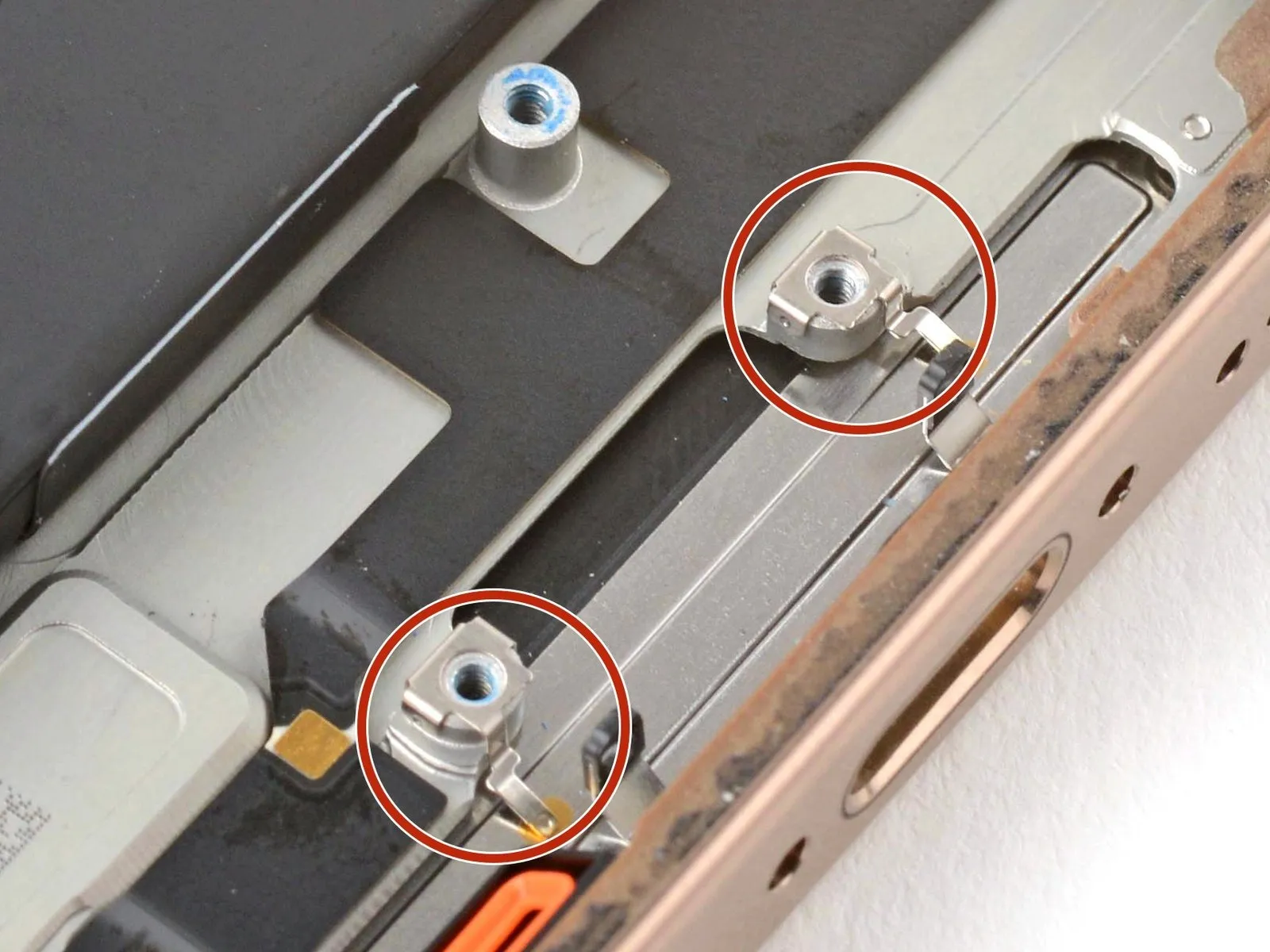

• Grounding clips are affixed to the two screw posts located beneath the charge port; ensure these clips are reattached if they became dislodged, orienting them downwards towards the iPhone's base.

• Successful completion of the disassembly process is acknowledged.
• The subsequent instructions detail the reassembly procedure for your iPhone device.
  Minor variations in the visual appearance of reassembly images may occur based on the specific iPhone model, although the outlined steps remain accurate for all versions.

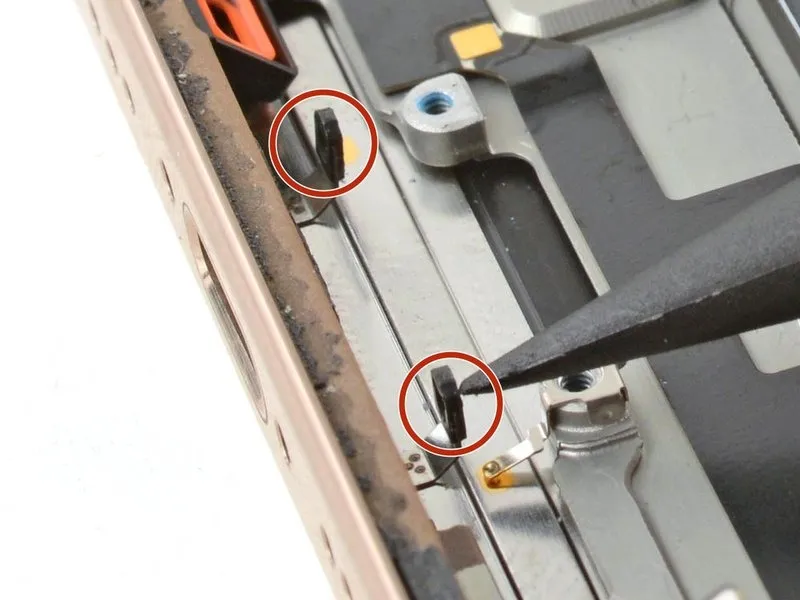

• Confirm that the two black pins are positioned vertically.
• Should the pins have been deformed during charge port disassembly, utilize the tip of a spudger to gently restore their alignment.

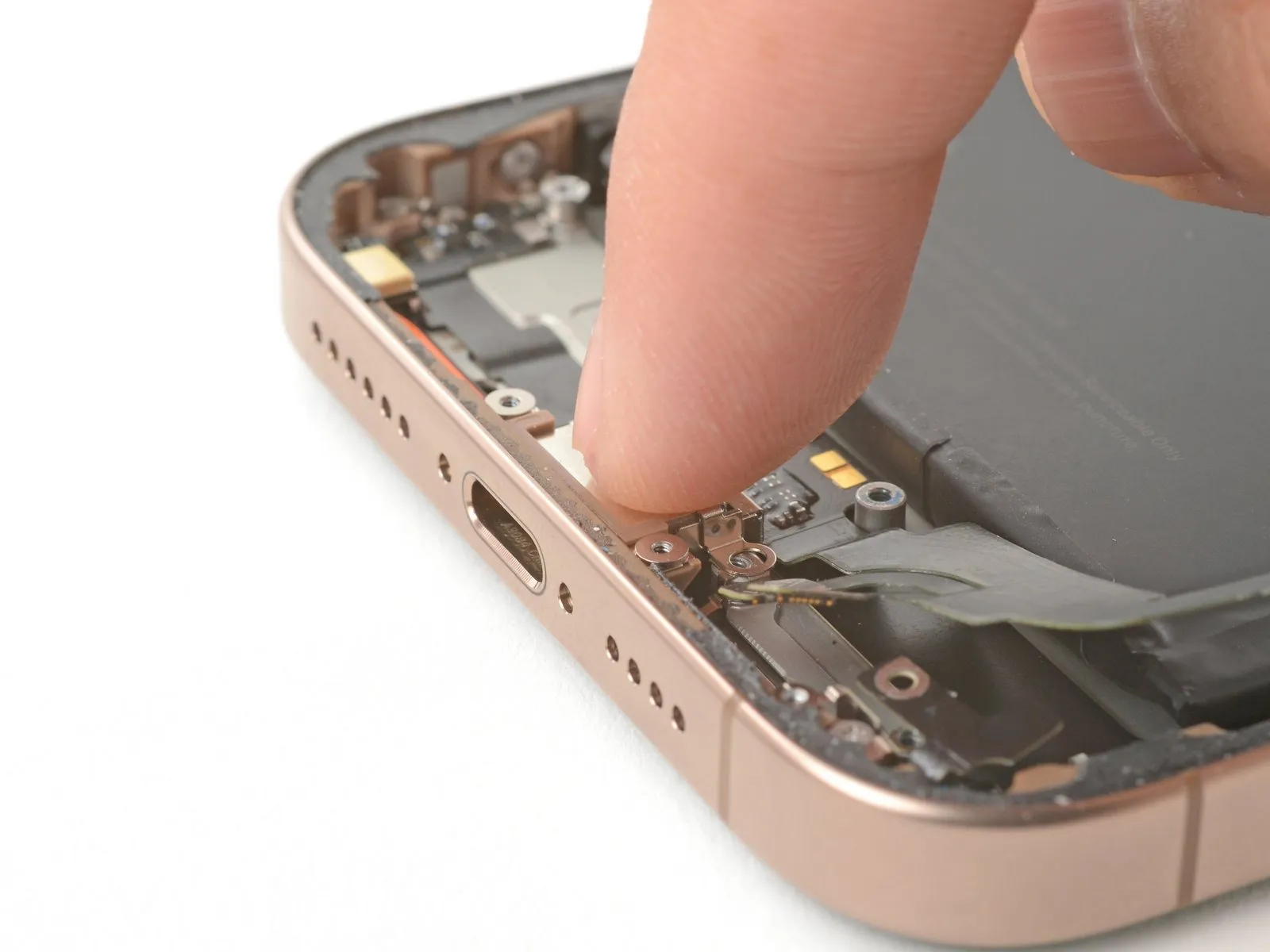

• Position the lower extremity of the charging connector within its designated cavity, ensuring a secure fit by applying pressure.

• Employ a pentalobe P2 driver for the temporary installation of the two external pentalobe screws.The purpose of this action is to secure the screws in place.
• This maneuver facilitates the repositioning of the charge port, ensuring proper alignment.

• Employ a Phillips head screwdriver for the installation process.Two fasteners, each measuring 3.3 millimeters in length, are required for this step.These screws provide the necessary attachment between the charge port and the device's frame.Exercise caution to prevent the screwdriver from applying pressure to the battery during this procedure.
• Direct contact between the screwdriver and the battery could potentially cause damage.

• Employ a pentalobe P2 driver for the screw removal process.The two temporary pentalobe screws must be detached utilizing the specified driver.
• Failure to detach these screws will impede proper back glass installation.

• Carefully separate the protective backing from the microphone adhesive gasket.
• Position the gasket precisely over the microphone opening in the frame, then secure it with gentle pressure applied via a spudger.
• Completely remove the remaining adhesive backing.

• To affix the lower microphone assembly, utilize three screws for secure attachment.
  A single standoff screw, measuring 3.4 millimeters in length, is required for this process.
• Additionally, a 3-millimeter standoff screw is necessary for the installation.
• The final fastening point utilizes a 1.4-millimeter tri-point Y000 screw.

• Position the lower extremity of the loudspeaker at an angle relative to the device's frame.
• Secure the loudspeaker within its designated cavity by applying pressure.

• To affix the loudspeaker, utilize four screws designed for this purpose.
  Employ a Phillips screw measuring 1.7 millimeters in length for this installation.
• A Phillips screw, with a length of 1.5 millimeters, is also required for the process.
• Secure a standoff screw, characterized by a 4.1-millimeter length, during the assembly.
• A tri-point Y000 screw, precisely 1.3 millimeters long, completes the necessary hardware.

Position the Taptic Engine component within its designated cavity.Ensure the Taptic Engine is situated correctly inside the intended space.Place the Taptic Engine into the recessed area for proper installation.

Position the corner bracket by leveraging a fingertip to rotate it downwards into its designated location.

Employ a Phillips screwdriver for the installation process.A 2.1 millimeter screw is required for this step.The screw's purpose is to fasten the Taptic Engine.Secure the Taptic Engine with the aforementioned screw.Utilize the Phillips screwdriver to drive the screw into place.Ensure the screw is properly seated during installation.The Taptic Engine is held in position by the 2.1 mm screw.

Carefully position the lower assembly cable onto the Taptic Engine by applying gentle pressure with a fingertip.Ensure the cable makes firm contact with the Taptic Engine's surface.This action secures the cable connection to the Taptic Engine.

• To affix the lower assembly cable, two screws must be installed.A 1.0 mm-long tri-point Y000 screw is required for this process.
  Additionally, a 1.3 mm-long Phillips screw is also necessary.Ensure proper alignment before tightening the screws.
  Use caution to avoid stripping the screw heads during installation.The screws provide critical cable retention, so secure them firmly.

To establish an electrical connection between the two lower assembly cable connectors, apply pressure with either a fingertip or a spudger.

Position the Taptic Engine cover over the device, ensuring the screw apertures are correctly aligned.Verify the cover's placement by matching it to the intended screw locations.Confirm secure attachment by observing the lower border of the cover's proper engagement with the chassis.
Properly secure the cover, paying attention to the bottom edge's complete connection with the frame.

• Employ a Phillips screwdriver for the installation process.These screws fasten the Taptic Engine cover in place.Three screws are required for securing the cover.A screw with a length of 2.9 millimeters is needed.
  A 1.3-millimeter-long screw is also necessary.Additionally, a screw measuring 2.4 millimeters in length is required.
  The fastening procedure necessitates the use of the Phillips screwdriver.The Taptic Engine cover is held in position by the three screws.
  Ensure proper alignment when installing the screws of varying lengths.The screws provided are 2.9 mm, 1.3 mm, and 2.4 mm in length, respectively.

• Exercise caution near the delicate grounding clips during cleaning procedures to prevent damage to the frame.
• Employ blunt-nosed tweezers or your fingertips to detach sizable adhesive sections from the frame's edges.
• A spudger tool is necessary for the subsequent step.Employ a spudger to eliminate any remaining adhesive residue adhered to the frame's surface.Should the adhesive prove difficult to remove, localized heat application via a hair dryer or heat gun can facilitate the process.
• Re-establish the original form of any displaced grounding clips through careful manipulation with your fingers or tweezers.

• To protect surfaces, cover the tip of a spudger with a clean, non-abrasive cloth or a coffee filter.Apply a small quantity of isopropyl alcohol with a concentration exceeding 90% to the cloth-covered spudger tip.Employing a single direction, carefully clean the frame's edge to remove any remaining adhesive.Execute this cleaning process deliberately and methodically.A thoroughly cleaned frame facilitates the uniform application of replacement adhesive.
• Even adhesive distribution is essential for achieving a stronger and more reliable bond.
• Proper preparation of the frame's surface significantly improves the quality of the subsequent adhesive seal.

• To establish the correct positioning of the adhesive sheet, place it upon the frame's surface.
• Employ elements like the camera aperture and the indentations situated on the superior and inferior borders to aid in visualizing the adhesive's placement within the frame.

• To reveal a portion of the adhesive, carefully lift the corner tab of the adhesive sheet's liner and remove it, exposing approximately one-third of the adhesive surface.
• Exercise caution, as the newly exposed adhesive possesses a high degree of tackiness; prevent unintended contact with other surfaces until it is positioned onto the frame.
• Should your adhesive product incorporate several liners, remove only the uppermost liner to reveal the side intended for bonding to the frame.

• Ensure the visible perimeter of the adhesive strip is precisely matched to the matching border on the iPhone's chassis.
• Because the adhesive will bond immediately upon contact, repositioning is impossible; any misalignments necessitate removal and replacement with a fresh adhesive strip.
• After proper alignment is confirmed, apply gentle pressure to secure the adhesive strip to the iPhone's frame.

• Carefully remove the adhesive backing, ensuring the adhesive makes firm contact with the surface.
• Proper alignment of the adhesive is indicated by a seamless fit of the edges within the frame's boundaries.
• To correct minor misalignments, delicately reposition the longer sides of the adhesive towards the frame.
• Should the adhesive develop creases or folds, discard it and apply a replacement set for optimal results.
• In the absence of spare adhesive strips, the iPhone can be reassembled and used without them, though its water resistance will be diminished until a replacement is installed.

• Employ a spudger to apply pressure to the adhesive sealant encompassing the entire edge of the iPhone's housing.Exercise caution to avoid damaging the delicate grounding clips during this process; if displacement occurs, carefully reposition them using your fingers or tweezers.Excessive force should be avoided to prevent distortion or stretching of the adhesive layer.
• The adhesive's integrity is maintained by distributing pressure evenly around the device's circumference with the spudger.

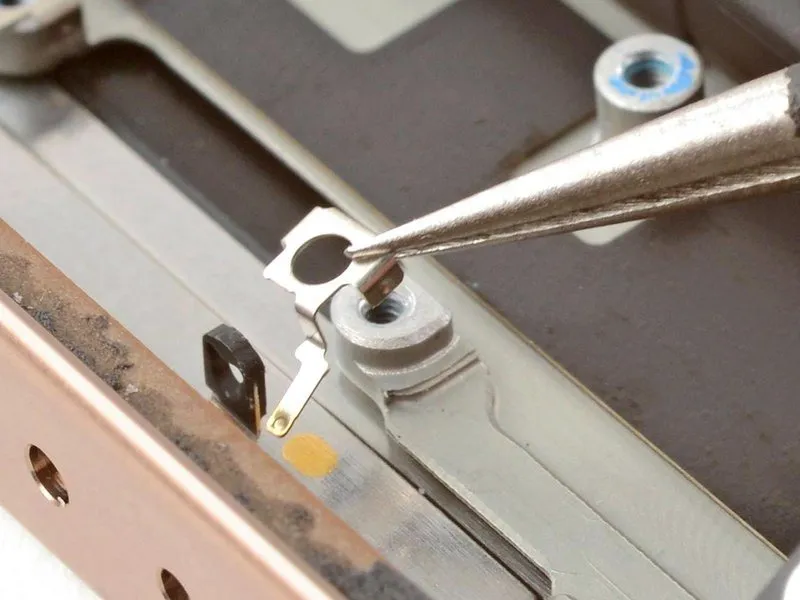

• Correcting a bent grounding clip requires a gentle touch, either with fingertips or precision tools like tweezers.

• Employ a spudger tool, or manually use your fingers, to detach the pull tab affixed to the expansive front liner.The pull tab's typical location is situated within a corner of the liner itself.Utilize the detached pull tab to carefully separate the large front liner from its adhesive backing.
• A remaining liner may still cover the outer edges, safeguarding the adhesive during reassembly; refrain from removing these smaller release liners at this stage.
• These smaller liners are designed to prevent premature adhesion during the reassembly process and should remain in place for now.

To prevent damage, carefully support the rear glass component by its right-hand perimeter during the repair process.

To establish a secure electrical connection, apply pressure to the back glass connector and seat it firmly against the logic board's designated contact points, utilizing either a fingertip or the broad, planar surface of a spudger.A spudger's flat edge provides a suitable tool for ensuring proper alignment and consistent pressure during the connector's attachment to the logic board.Carefully position the connector and apply force to guarantee a reliable interface between the back glass connector and the logic board, preventing potential signal interruptions.

• Employ either a fingertip or a spudger to firmly engage the battery press connector with the logic board.At this juncture, it's advisable to verify the functionality of your repair prior to final reassembly; initiate the iPhone's power sequence and confirm expected operation, then deactivate it to proceed.Should the iPhone fail to power on, establish a connection to an external power source and attempt activation once more.
• In circumstances where a logic board replacement has been performed and the display remains inactive, refer to the dedicated screen repair guide to execute a manual connection of the display connector.
• Ensure a secure connection of the battery press connector to the logic board by applying pressure with a finger or a spudger.
• To confirm the repair's success before concluding the reassembly process, activate the iPhone and verify its proper operation, subsequently deactivating it.

• Employ a tri-point Y000 driver for the installation process of the screws.The back glass connector cover is fastened with four screws requiring this specialized tool.Two screws, each measuring 1.3 millimeters in length, are included in the assembly.

  • Additionally, two screws with a length of 1.0 millimeters are also part of the securing mechanism.
  • Proper use of the tri-point Y000 driver is essential to avoid damage during screw installation.

• Employ a specialized tri-point Y000 driver for the installation process.The battery connector cover is fastened with three screws requiring a tri-point Y000 driver for removal and installation.Two screws, each measuring 1.3 millimeters in length, are utilized in the securing process.

  • A single screw with a length of 1.0 millimeters is also part of the fastening assembly.
  • Properly utilizing a tri-point Y000 driver is essential to avoid damage when working with the screws holding the battery connector cover.

• Employing either your fingertips or a spudger, carefully separate the surrounding liners to reveal the underlying adhesive.
  During liner removal, prevent any contact between surfaces and the newly exposed adhesive to maintain its bonding properties.
• Thoroughly inspect both the frame and rear glass assembly, eliminating any residual liners to ensure a completely clean adhesive surface.

• Position the rear glass component onto the device frame, initiating the alignment from the uppermost boundary.
  Should you encounter opposition during installation, a surrounding retaining clip might be deformed and compressed by the frame; carefully examine the area of obstruction and delicately restore any bent clips to their original shape.
• Apply even pressure across the iPhone's perimeter to ensure the rear glass makes complete contact with the frame.

• Apply warmth around the edge of the rear glass using a hair dryer, heat gun, or iOpener until the surface reaches a temperature that is uncomfortable to briefly touch.
  This thermal application reduces the adhesive's viscosity, facilitating a more secure reattachment.

Employ your fingertips to apply consistent, strong pressure encompassing the entire edge of the iPhone's casing.

• Position the iPhone with its display facing downwards onto a pristine, level workspace.
• Apply a continuous strip of adhesive tape along the outer edge of the rear glass to safeguard its cosmetic appearance.
• Arrange a circular stack of coins along the edge of the rear glass, constructing a barrier that matches the height of the rear camera lenses.
• As an alternative method, secure the device with vise clamps around its perimeter to ensure proper adhesion.

• To apply even pressure across the iPhone’s surface, position 3 to 4 substantial volumes flat on top.
• Because the weight could potentially mark the bottom book's cover, avoid using materials of significant value.
• Allow the applied pressure to remain constant for approximately 30 minutes.
• This sustained force facilitates the bonding of the adhesive material.

Employ a P2 pentalobe driver for the screw installation process.The two screws, each measuring 7.4 mm in length, are positioned laterally relative to the charging port.Secure the screws to the device housing using the specified driver.Ensure proper alignment of the screws before applying torque.The charge port area requires careful handling to prevent damage during screw installation.
