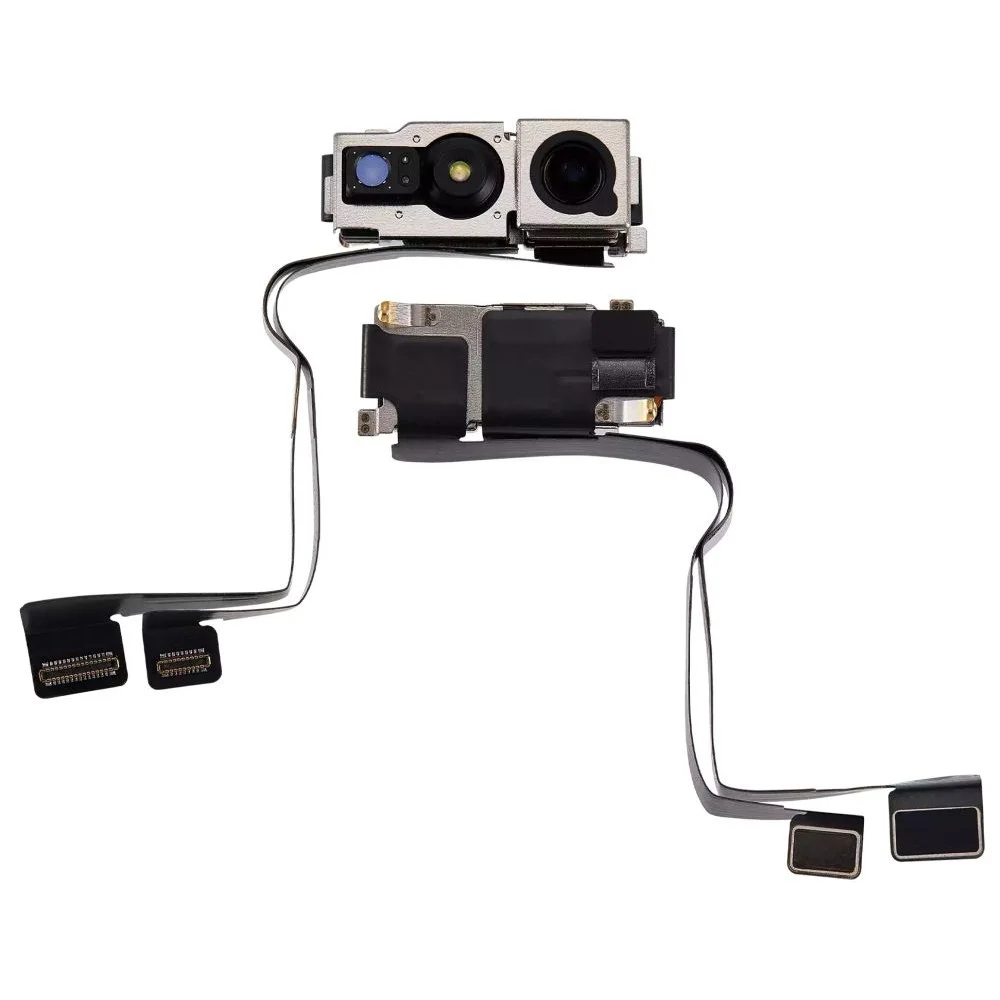

iPhone 16 Pro Max Front Camera Assembly Replacement

• To mitigate potential safety risks associated with charged lithium-ion batteries, permit your iPhone's battery level to deplete to less than 25% capacity.
• Disconnect all connected cables from the iPhone device prior to commencing any repair procedures.
• Simultaneously press and maintain the power button alongside either volume button, then utilize the sliding gesture to deactivate the iPhone.

• To prevent injury and simplify the subsequent separation of components, apply multiple layers of adhesive packing tape across the fractured screen or rear glass surface.
• Ensure a sufficiently sized, uninterrupted section of the lower edge exists, allowing for secure adhesion of a suction cup.

Employ a P2 pentalobe driver to detach the two screws, each measuring 7.4 millimeters in length, positioned laterally around the charging port.The two screws securing the device near the charge port must be unscrewed utilizing a specialized P2 pentalobe driver.To release the screws flanking the charge port, a P2 pentalobe driver is required; these screws are each 7.4 mm long.

• Caution is advised: Excessive insertion of a picking tool may result in device harm.To mitigate potential damage, implement the following procedure to indicate the safe insertion depth of your pick.
• Establish a reference point on the pick by measuring a distance of 3 millimeters from its foremost edge.
• Utilize a permanent marker to clearly denote this 3 mm measurement on the pick's tip.For enhanced precision, consider marking the pick's other corners with varying measurements to accommodate different opening sizes.As an alternative method, affix a coin to the pick's tip, ensuring the coin's edge is precisely 3 millimeters from the pick's point.
• This marking or attachment serves as a visual guide, preventing over-insertion during the opening process.
• Adherence to this precaution safeguards the device from internal damage caused by excessive tool penetration.

The subsequent procedures detail the process of establishing a preliminary separation utilizing a suction tool.

• Employ a hair dryer or heat gun to warm the lower perimeter of the rear glass panel to a point where it registers as hot when touched.
• Alternatively, an iOpener can be utilized for heating the rear glass; adhere to the provided instructions for correct heating and application of the iOpener.

• Secure a suction handle to the lower perimeter of the rear glass panel.
• Exert a consistent, forceful upward pull on the handle to separate the rear glass from the device's frame.
• Should separation not occur, increase the heat applied to the edge and attempt the process once more.
• Carefully introduce the pointed end of a prying tool into the created separation.

• During the process of separating the rear glass with a separating tool, maintain a maximum insertion depth of 3 mm.Potential damage exists to a fragile cable assembly, situated adjacent to the volume increase button, which connects the rear glass to the device.To prevent severance of the aforementioned cable, exercise caution and refrain from inserting the tool in its vicinity.
• A series of flexible electrical connectors are positioned along the device's outer edge, requiring careful attention during separation.
• Avoid excessive tool penetration near these spring contacts to prevent unintended disconnections or physical harm.

• Utilize a specialized opening pick, carefully moving it along the lower perimeter to sever the bonding agent.
• Should resistance be encountered while attempting to cut the adhesive, apply heat to the edge for approximately one minute, then retry the cutting process.
• Maintain the opening pick's position within the lower-left corner to inhibit the adhesive from reforming a bond.

Apply warmth to the left side of the rear glass panel utilizing a hair dryer or heat gun.Elevate the temperature of the glass's edge by applying heat until a tactile warmth is detected.The application of heat should be directed to the left border of the back glass, employing either a hair dryer or heat gun to achieve a warm surface temperature.

• Introduce a supplementary opening tool into the lower-left region, positioned near the already inserted tool.
• Ensure the tool's insertion depth remains under 3 mm to safeguard the spring contact points from harm.
• Advance the tool along the left border, disengaging the adhesive and freeing the metal clips.
• The detachment of the metal clips will be evident through both audible and tactile cues as the tool progresses.
• Maintain the initial tool's position within the upper-left corner to inhibit the adhesive from re-bonding.

Applying warmth with a hair dryer or heat gun to the upper edge and upper-right corner of the rear glass panel is necessary to achieve a temperature where it feels warm upon contact.The purpose of this heating process is to soften the adhesive securing the back glass.Ensure the glass reaches a warm state, as indicated by tactile sensation, to facilitate separation.

• To preclude harm to the spring contacts, ensure the insertion depth of the tool remains no greater than 3 millimeters.Employ a third opening tool and position it within the upper-leftmost recess.Advance the opening tool along the superior border, maneuvering it around the upper-right corner, and halt its progress positioned above the volume increase button.
• Maintain the placement of this tool to inhibit the adhesive from reforming a bond.
• Exceeding a depth of 3 mm risks compromising the integrity of the spring contacts.
• A third opening tool should be introduced into the upper-left corner to facilitate the separation process.

• Position a fourth opening tool within the lower-rightmost area.
• Move the opening tool along the corner's contour and upward along the right side, pausing its ascent prior to the volume down button's location.

• Initiate the opening of the rear glass assembly by pivoting it towards the right side of the iPhone, effectively breaking the adhesive bond.

• Three screws, each measuring 1.3 millimeters in length, are present.
• A single screw with a 1.0-millimeter length is also utilized.

• A quantity of two screws are present.These screws measure 1.3 millimeters in length.Additionally, a quantity of two screws is also present.
• These secondary screws have a length of 1.0 millimeters.The specified screws must be removed using the appropriate tri-point Y000 driver.Carefully note the lengths of each screw type during removal to ensure correct reassembly.

• Employing the tip of a spudger, carefully separate and detach the back glass connector.The spudger's pointed end facilitates prying and disconnecting the back glass connector.To release the back glass connector, utilize the pointed end of a spudger for leverage and disconnection.

• Detach the rear panel of glass.

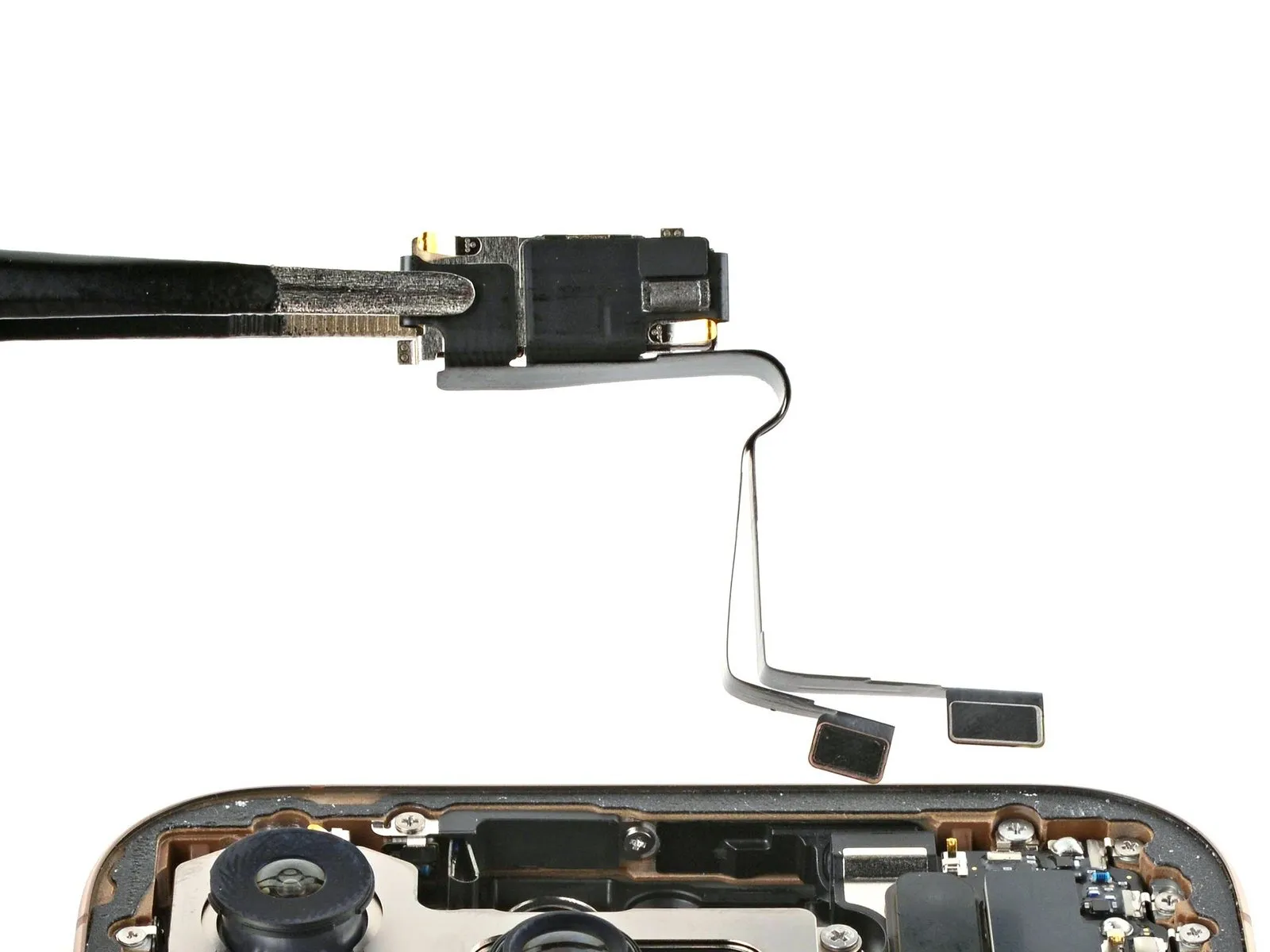

• Employing the tip of a spudger, carefully separate and release the earpiece speaker and 5G mmWave antenna connectors.The spudger's pointed end facilitates the detachment of the earpiece speaker and 5G mmWave antenna connectors through a prying action.To release the earpiece speaker and 5G mmWave antenna connectors, utilize the pointed end of a spudger for leverage and separation.

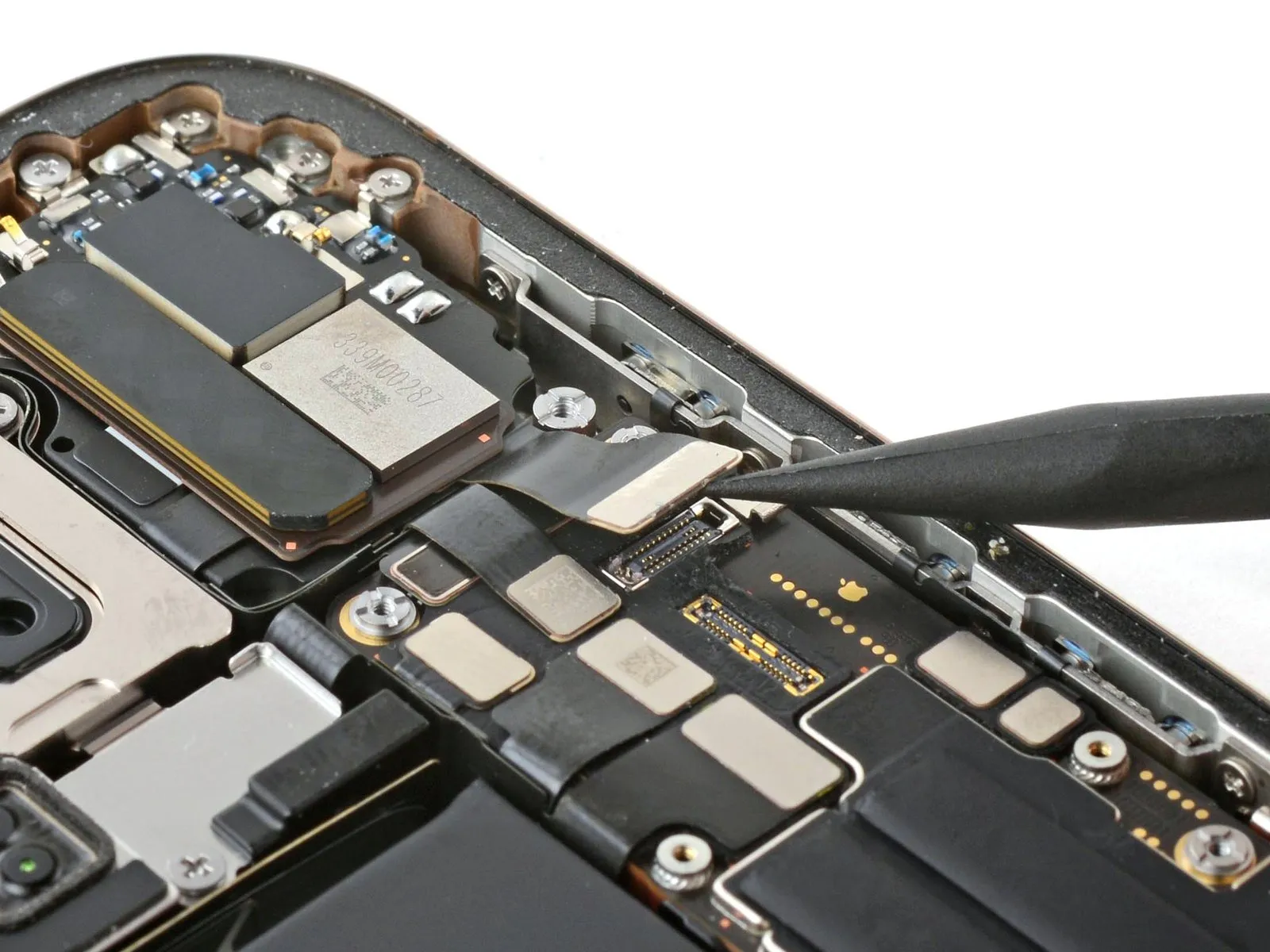

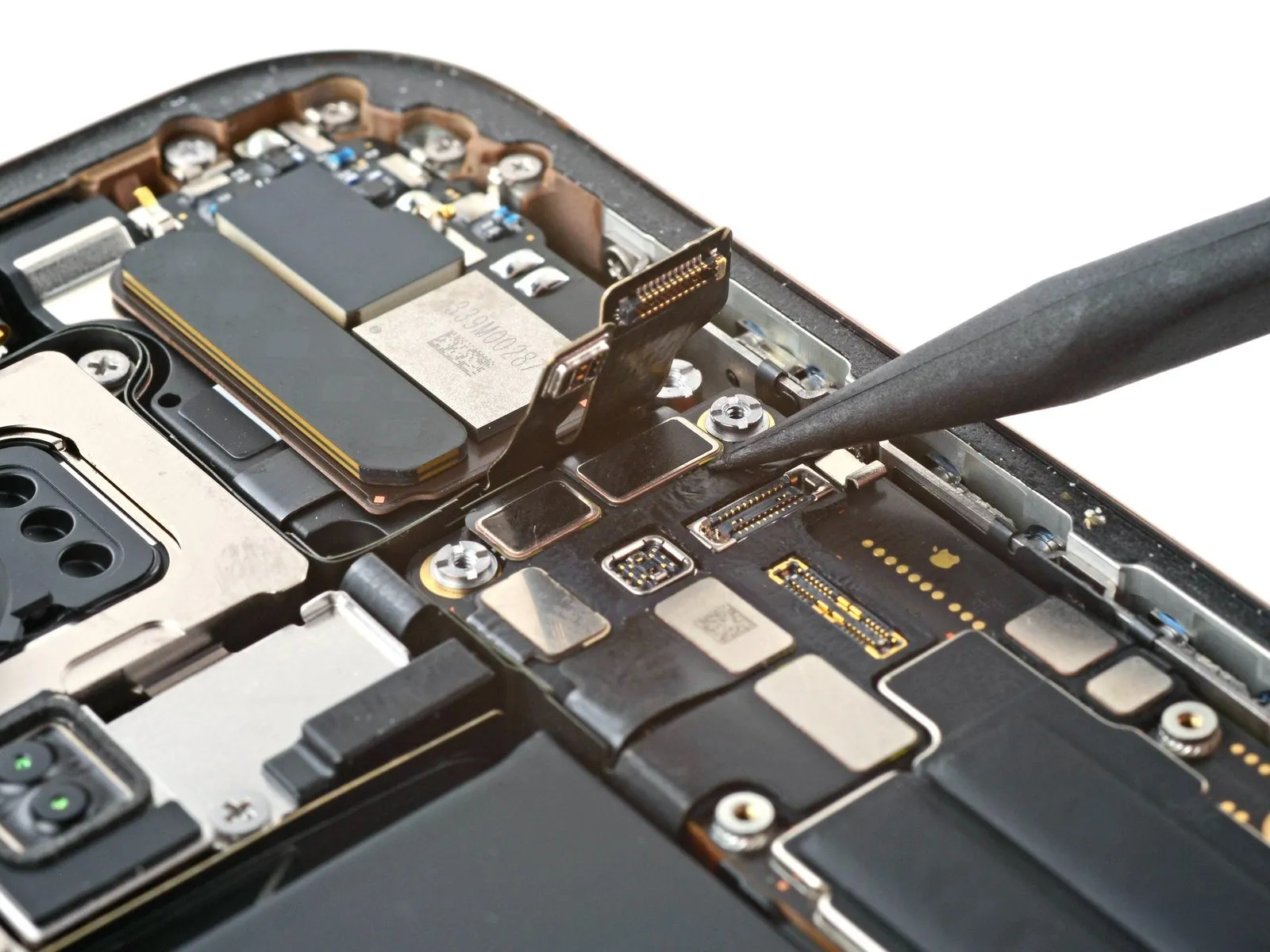

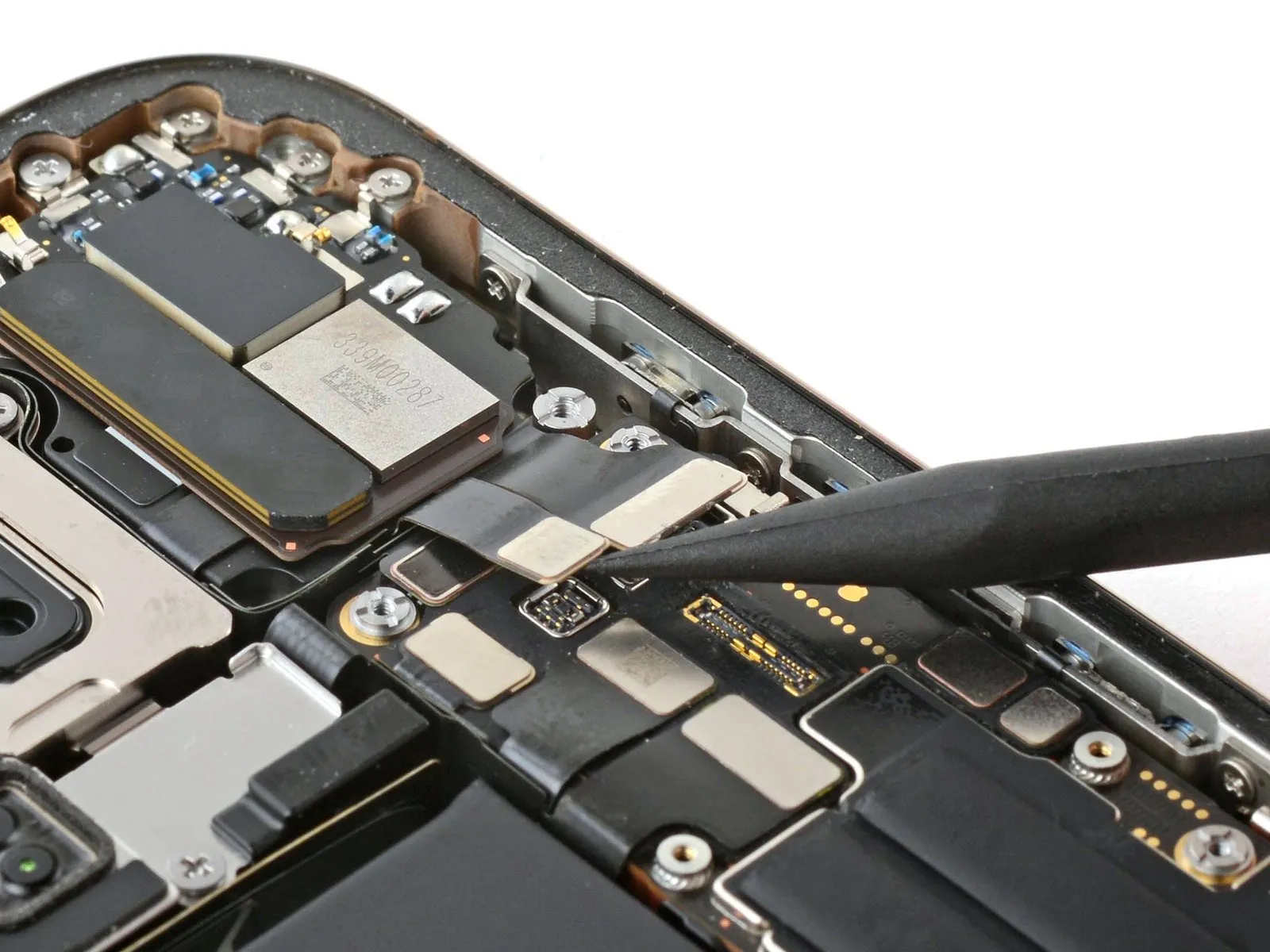

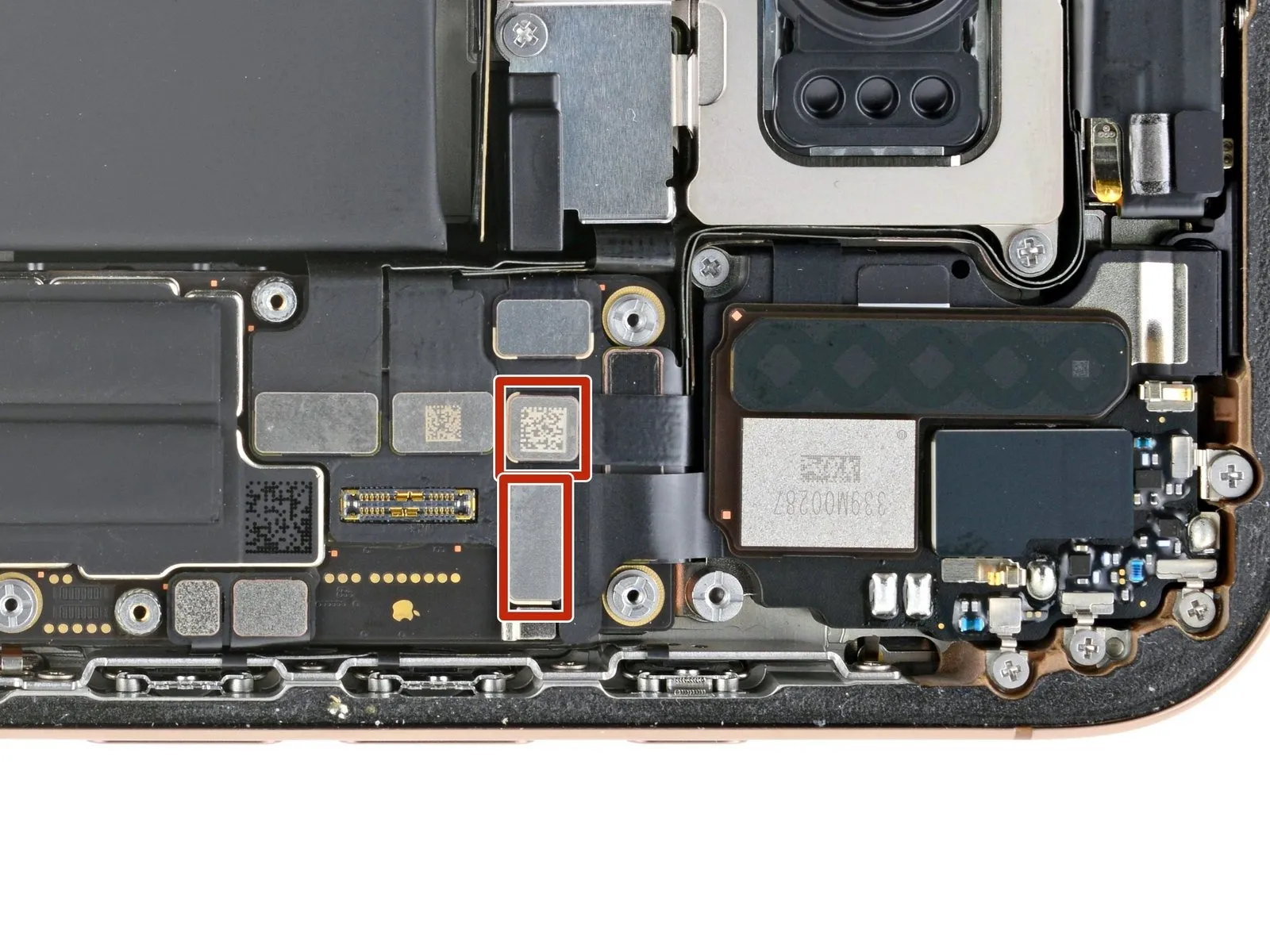

• Employing the tip of a spudger, carefully lift and separate the two front camera assembly connectors located beneath the preceding connectors.To release the connectors, apply gentle prying pressure with the spudger's pointed end.These connectors are situated directly below the previously detached components, requiring precise manipulation to avoid damage.

• Having finished the disassembly process, the following instructions detail the reassembly procedure for your iPhone.
• Slight variations in the visual appearance of reassembly images might occur based on your specific iPhone model; however, the outlined steps remain accurate for all versions.

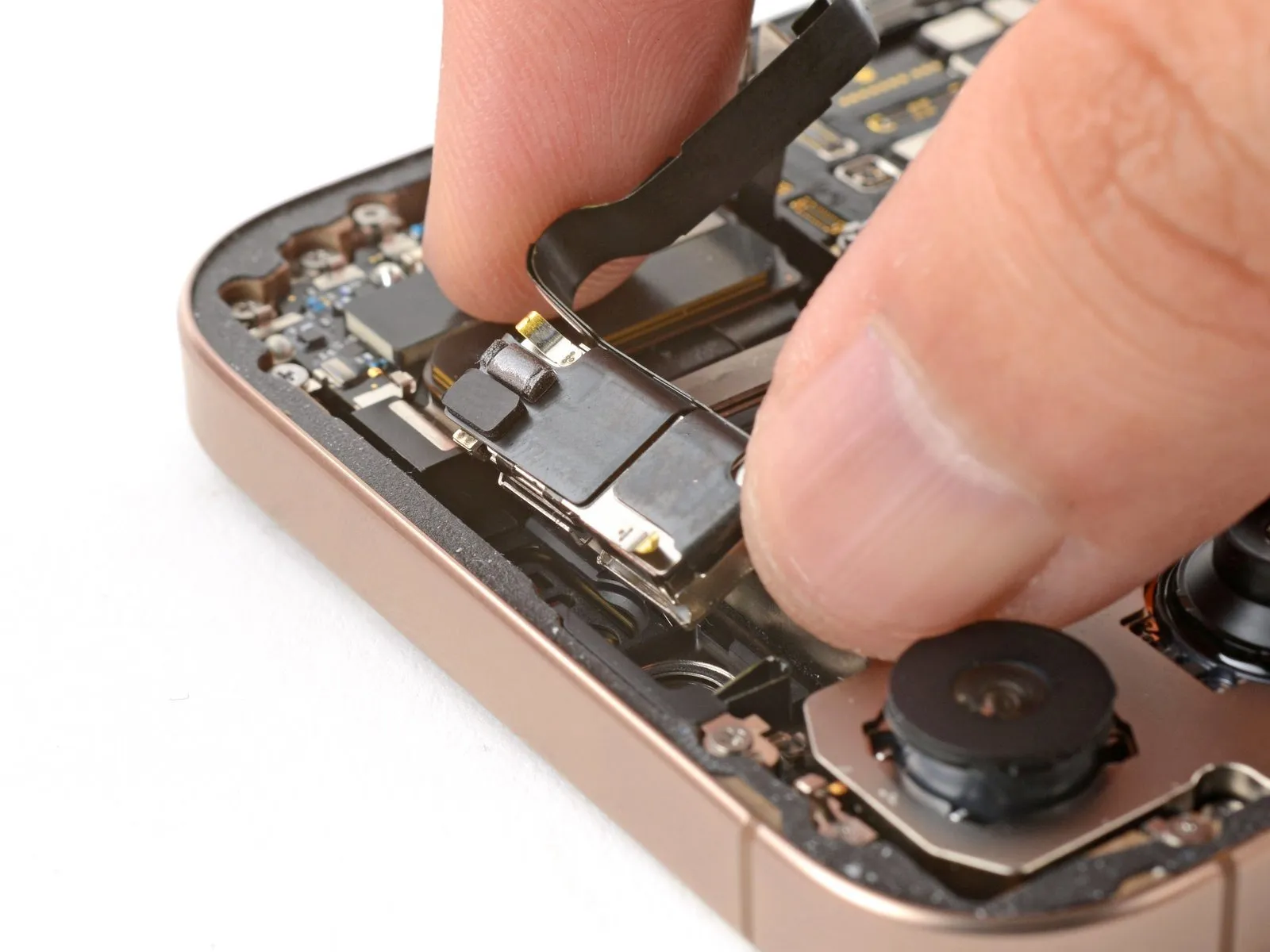

• Position the front-facing camera component within its designated cavity.
• Carefully guide the camera connector ribbons into the space located between the rear camera module and the earpiece speaker.

• Employ either a fingertip or a spudger to establish a secure connection between the two camera connectors and the logic board by applying pressure.
• For reattachment, mirroring this procedure, meticulously position the connectors and apply downward force to one edge until an audible click is heard, subsequently repeating the process on the opposing edge; avoid applying pressure centrally.
• Connector misalignment carries the risk of pin deformation, potentially resulting in irreversible component failure.

• Exercise caution while cleaning the frame, carefully avoiding damage to the delicate grounding clips; should a clip become displaced, restore its original shape with careful manipulation using your fingers or tweezers.
• Employ blunt-nose tweezers or your fingertips to detach sizable adhesive sections from the frame's edges.
• A spudger is required to eliminate the remaining adhesive residue adhering to the frame's surface.The spudger serves as the optimal tool for this removal process.Persistent adhesive can be softened by applying warmth with a hair dryer or heat gun, facilitating its removal.
• Reattempt the adhesive removal process after applying heat to the affected area if initial efforts prove ineffective.

• To prevent scratching, cover the tip of a spudger with a clean, lint-free cloth or a coffee filter.Apply a small quantity of isopropyl alcohol, with a concentration exceeding 90%, onto the cloth-covered spudger tip.Clean the adhesive residue from the frame's edge by wiping in a single direction.Careful attention to detail is crucial during this cleaning process.A thoroughly cleaned frame facilitates the even application of replacement adhesive.
• Consistent adhesive placement is essential for achieving a strong and reliable bond.
• Proper cleaning ensures the new adhesive will adhere uniformly to the frame's surface.

• To establish the correct positioning of the adhesive sheet relative to the frame, place it on top of the frame’s surface.
• Employ frame elements like the camera aperture and the indentations situated on the upper and lower borders to aid in visualizing the adhesive’s placement within the frame.

• To reveal a portion of the adhesive, detach the corner tab from the liner and remove it to expose one-third of the adhesive's surface.
• Exercise caution, as the revealed adhesive possesses a high degree of tackiness; prevent unintended contact with other surfaces until application to the frame is prepared.
• Should your adhesive incorporate several liners, remove the liner that exposes the side intended for bonding to the frame.

• Ensure the visible perimeter of the adhesive strip is precisely matched to the matching edge on the iPhone's housing.
• Because the adhesive bond forms immediately upon contact, repositioning is impossible; any misalignment necessitates removal and replacement with a fresh adhesive strip.
• After achieving proper alignment, apply even pressure to secure the adhesive strip to the iPhone's frame.

• Carefully remove the adhesive backing, ensuring firm contact between the adhesive and the surface.
• Proper alignment of the adhesive is indicated by a seamless fit of the edges within the frame's boundaries.
• To correct minor misalignments, delicately reposition the longer sides of the adhesive relative to the frame.
• Should the adhesive develop creases or wrinkles, discard it and apply a new set for optimal results.
• In the absence of replacement adhesive strips, the iPhone can be reassembled and used temporarily, acknowledging a reduction in its water resistance until a proper seal is restored.

• Employ a spudger to apply pressure to the adhesive sealant encompassing the complete edge of the iPhone's housing.Exercise caution to avoid damaging the delicate grounding connectors; should one become displaced, carefully reposition it using your fingers or tweezers.Excessive force during this process risks distorting and overextending the adhesive's original shape.
• The adhesive's integrity is crucial for maintaining device stability and water resistance; therefore, handle with care.
• Maintaining the adhesive's structural integrity is vital, as deformation can compromise the iPhone's sealing capabilities.

• Employ a spudger tool, or manually use your fingers, to detach the pull tab affixed to the extensive front liner.The pull tab's typical location is situated within a corner of the liner.Utilize the pull tab to carefully separate the large front liner from its adhesive backing.
• A remaining liner may still be present around the edges, safeguarding the adhesive during reassembly; refrain from removing these smaller release liners at this stage.
• These smaller liners serve to prevent unintended adhesion during the reassembly process.

To facilitate access, carefully wedge the rear glass component against the right side of the iPhone's enclosure.

Employing either a fingertip or the planar edge of a spudger tool, establish a secure connection between the rear glass connector and the logic board by applying pressure.The rear glass connector must be firmly affixed to the logic board through manual pressure exerted with a finger or the broad, flat end of a spudger.To ensure proper electrical contact, utilize a finger or the flat spudger end to apply pressure and join the back glass connector with the logic board.

• Verify proper operation by powering on the iPhone; subsequently, power it off to proceed with the remaining assembly steps.
• Should the iPhone fail to power on initially, establish a connection to a power source and attempt powering it on again.
• In the event that a logic board replacement has been performed and the display remains inactive, consult the screen replacement guide for instructions on manually engaging the display connector.
• Ensure a firm connection of the battery press connector to the logic board by applying consistent pressure, utilizing either a fingertip or a specialized spudger tool.

• The cover is secured with two screws, each measuring 1.3 millimeters in length.
• Additionally, two screws with a length of 1.0 millimeters are used for attachment.

• Additionally, a single screw with a length of 1.0 millimeters is also used.Ensure the correct driver size is utilized to prevent damage to the screw heads.
• Carefully manipulate the driver to avoid stripping the screw heads during installation.These screws secure the cover, allowing access to the battery connector.

• Employing either your fingertips or a specialized spudger tool, carefully detach the surrounding protective liners to reveal the underlying adhesive.
• During liner removal, prevent any contact between surfaces and the newly exposed adhesive to maintain its bonding properties.
• Thoroughly inspect both the device frame and rear glass assembly, eliminating any residual liners to guarantee a completely clean adhesive surface.

• Position the rear glass component onto the device frame, initiating the placement with the uppermost boundary.
• Should you encounter opposition during installation, a surrounding retaining clip might be deformed and compressed by the frame; carefully examine the area of obstruction and delicately correct any distortions.
• Apply even pressure across the iPhone's borders to ensure the rear glass makes complete contact with the frame.

• Apply warmth around the edges of the rear glass utilizing a hair dryer, heat gun, or iOpener until the surface reaches a temperature just beyond comfortable touch.
• This thermal application reduces the adhesive's viscosity, facilitating a more secure reattachment.

Employ your fingertips to apply consistent, secure pressure encompassing the entire outer edge of the iPhone's casing.

• Position the iPhone with its display facing downwards onto a pristine, level workspace.
• Apply adhesive tape along the edges of the rear glass to safeguard its cosmetic appearance.
• Arrange a circular stack of coins bordering the rear glass, building a barrier that matches the height of the rear camera lenses.
• As an alternative method, secure the device with vise clamps around its perimeter to establish a fresh adhesive seal.

1. To apply even pressure, position four to five substantial volumes directly atop the iPhone’s surface.
   Because the weight can create minor indentations, avoid utilizing valuable books that might be damaged.
   Maintain the applied pressure by keeping the books in their position for approximately half an hour.
   This sustained force facilitates the bonding process of the adhesive material.

• Employ a P2 pentalobe driver for the installation process.The two screws, each measuring 7.4 mm in length, require secure fastening.Position these screws on both sides, directly adjacent to the charging port.Proper use of the P2 pentalobe driver is essential for this step.Ensuring the screws are correctly installed is vital for maintaining charge port functionality.
