iPhone 16 Pro Max Logic Board Replacement

To mitigate potential safety risks associated with charged lithium-ion cells, permit your iPhone's battery level to descend below the 25% threshold.

• Disconnect all connected cables from the iPhone device.
• Simultaneously depress the power button and either volume button, then utilize the sliding gesture to deactivate the iPhone.

To prevent injury and simplify the subsequent separation of components, apply multiple layers of adhesive packing tape across the fractured display or rear glass panel.
Confirm the existence of a sufficiently sized, uninterrupted surface region close to the lower perimeter, suitable for secure adhesion of a suction cup.

Employ a P2 pentalobe driver to detach the two screws, each measuring 7.4 mm in length, situated on both sides of the charging port.The screws securing the charge port are fastened with a P2 pentalobe driver, and their length is precisely 7.4 mm.To release the screws flanking the charge port, a P2 pentalobe driver is necessary for their removal; these screws have a 7.4 mm length.

Caution is advised: improper insertion depth of a prying tool may result in device damage.To prevent over-insertion, establish a defined insertion limit on the opening pick.

• Using a measuring tool, determine a distance of precisely 3 millimeters from the pick's distal end.Clearly indicate this 3-millimeter measurement on the opening pick using a permanent marking instrument.For enhanced precision, consider marking additional corners of the pick with varying measurement values.
• As an alternative method for limiting insertion depth, affix a coin to the pick's tip.
• Secure the coin to the pick at a distance of exactly 3 millimeters from the distal end.This coin-secured pick acts as a physical barrier, preventing over-insertion.Adhering to these guidelines minimizes the risk of device harm during the repair process.

• Employing either a hair dryer or a heat gun, apply warmth to the lower perimeter of the rear glass until it reaches a temperature detectable by touch.
• Alternatively, an iOpener can be utilized for localized heating; adhere to the provided guidelines to ensure appropriate heating and application of the iOpener.

• Secure a suction handle to the lower perimeter of the rear glass panel.
• Exert a consistent, forceful upward pull on the handle to separate the rear glass from the device's frame.
• Should separation not occur initially, increase localized heat application to the edge and attempt the process again.
• Carefully introduce the pointed end of a prying tool into the newly formed separation.

Carefully separate the adhesive holding the rear glass in place, ensuring your tool does not penetrate beyond a depth of 3 millimeters.A fragile cable, situated adjacent to the volume up button and connecting to the rear glass assembly, is susceptible to damage; prevent tool insertion in this region to preclude cable severance.The process of separating the adhesive requires caution to prevent injury to numerous spring contacts positioned along the iPhone's outer edge.

• To mitigate potential harm to internal components, restrict the maximum insertion depth of your separation tool to a measurement of 3 millimeters.
• Exercise extreme care during adhesive separation to safeguard the integrity of a sensitive cable located near the volume up button and the array of perimeter-mounted spring contacts.

• Utilize the opening pick, moving it along the lower perimeter to sever the bonding agent.
• Should resistance be encountered while attempting to cut the adhesive, apply heat to the edge for approximately one minute, then retry the separation.
• Maintain the opening pick's position within the lower-left corner to inhibit the adhesive from reattaching.

Apply warmth to the left-hand border of the rear glass panel utilizing a hair dryer or heat gun.The purpose of applying heat is to soften the adhesive securing the glass.Ensure the glass edge reaches a temperature that is noticeably warm upon contact.This preparatory heating step facilitates easier separation of the back glass from the device's frame.

• Introduce a supplementary opening toolpositioning it within the lower-left area, near the initial tool already in place.
• Limit the insertion depth of your tool toa maximum of 3 millimetersto safeguard the spring contacts from potential harm.
• Advance the tool along the left side to detach the adhesive bond and disengage the metal clips.
• Audible and tactile confirmation of clip release will occur during this movement.
• Maintain the initial tool's placement in the upper-left corner to inhibit adhesive re-adhesion.

Apply warmth to the upper edge and upper-right corner of the rear glass panel utilizing a hair dryer or heat gun.The targeted areas should reach a temperature that is perceptible upon contact.Employing either a hair dryer or a heat gun provides a method for localized heating.This thermal application facilitates separation of the back glass from the underlying adhesive.

• To preclude harm to the spring contacts, ensure the insertion depth of your prying tool remains no greater than 3 millimeters.A third opening tool should be positioned within the upper-leftmost section of the device.Carefully maneuver the opening tool along the superior border, progressing around the upper-right corner, and pausing directly over the volume up control.
• Maintain the placement of this tool to inhibit the adhesive from reforming a seal.The spring contacts are susceptible to damage if the prying tool penetrates beyond the specified limit.
• Proper positioning of the third tool is crucial for successful separation.
• The volume up button's location dictates the precise stopping point for the opening tool's movement.

• Position a fourth opening tool within the lower-rightmost area.
• Move the opening tool along the corner's contour and upward along the right side, pausing before reaching the volume down button.

• Initiate the opening of the rear glass by pivoting it towards the right side of the iPhone, which will break the remaining adhesive bond.

• The cover utilizes two screws, each measuring 1.3 millimeters in length.
• A single screw, with a length of 1.0 millimeter, is also part of the assembly.

• The assembly includes two fasteners.These two fasteners are each 1.3 millimeters in length.Additionally, two other fasteners are present.
• These secondary fasteners measure 1.0 millimeters in length.Careful removal of the screws is essential to avoid damage.The connector cover's retention is solely dependent on these screws.

• To detach the earpiece speaker, begin by eliminating the six screws that hold it in place.

  • A Phillips screw measuring 2.4 millimeters in length is required for this step.
  • Three Phillips screws, each with a length of 1.3 millimeters, are also necessary.
  • Additionally, a single Phillips screw with a 1.6-millimeter length is needed.
  • A standoff screw, measuring 3.3 millimeters in length, must also be removed.
• Employing a specialized standoff driver or bit is the preferred method for removing standoff screws; however, a small flathead screwdriver can be used with heightened care to prevent slippage and potential damage to nearby parts.

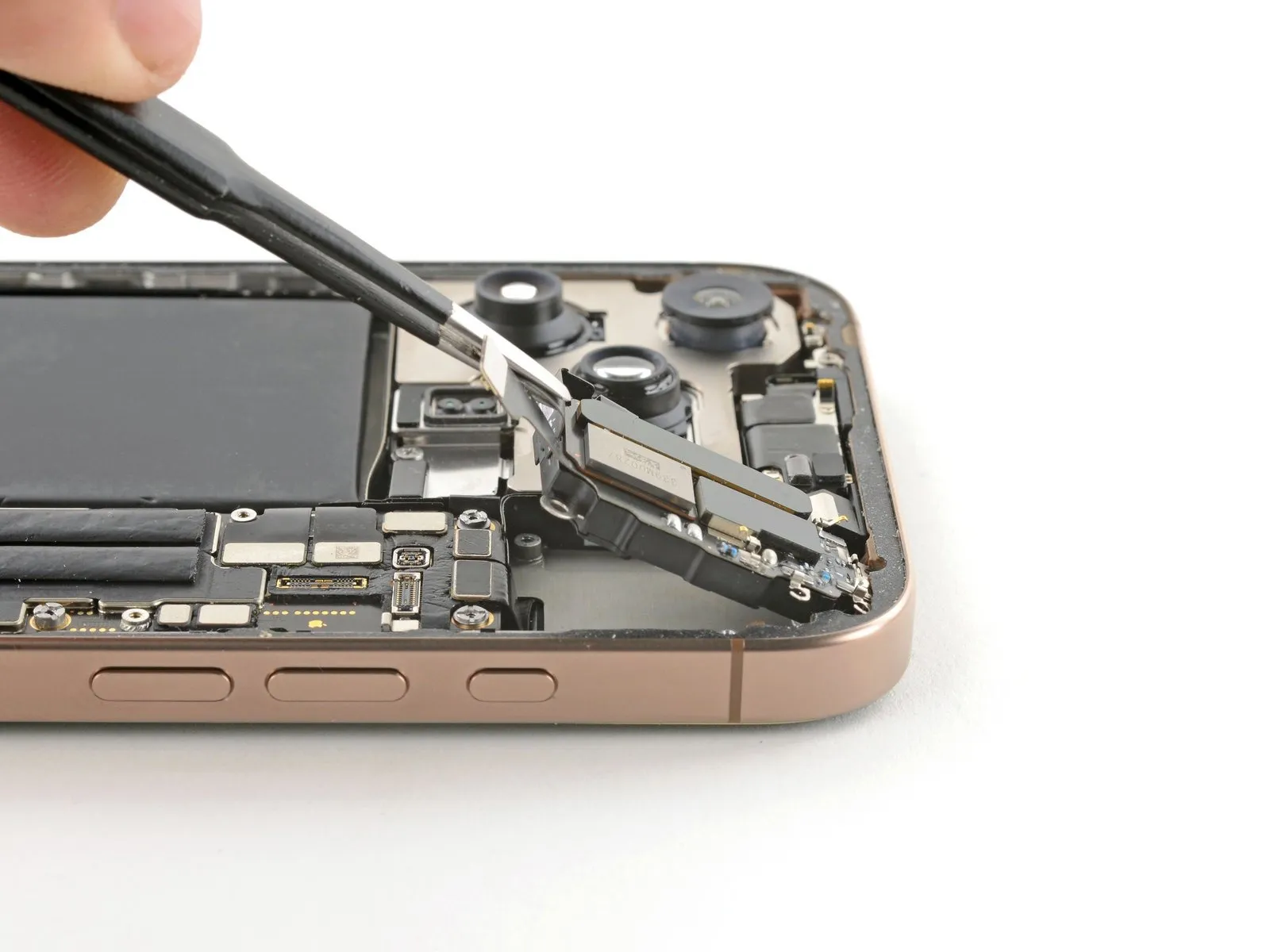

• Employing tweezers facilitates the lifting and removal of the earpiece speaker component.A degree of opposition might be encountered close to the uppermost border, attributable to the speaker gasket's adherence to the device's frame.To disengage the sealing mechanism, exercise caution and apply a gradual outward force when extracting the speaker.
• Gentle manipulation is essential to prevent damage while separating the speaker from its surrounding structure.

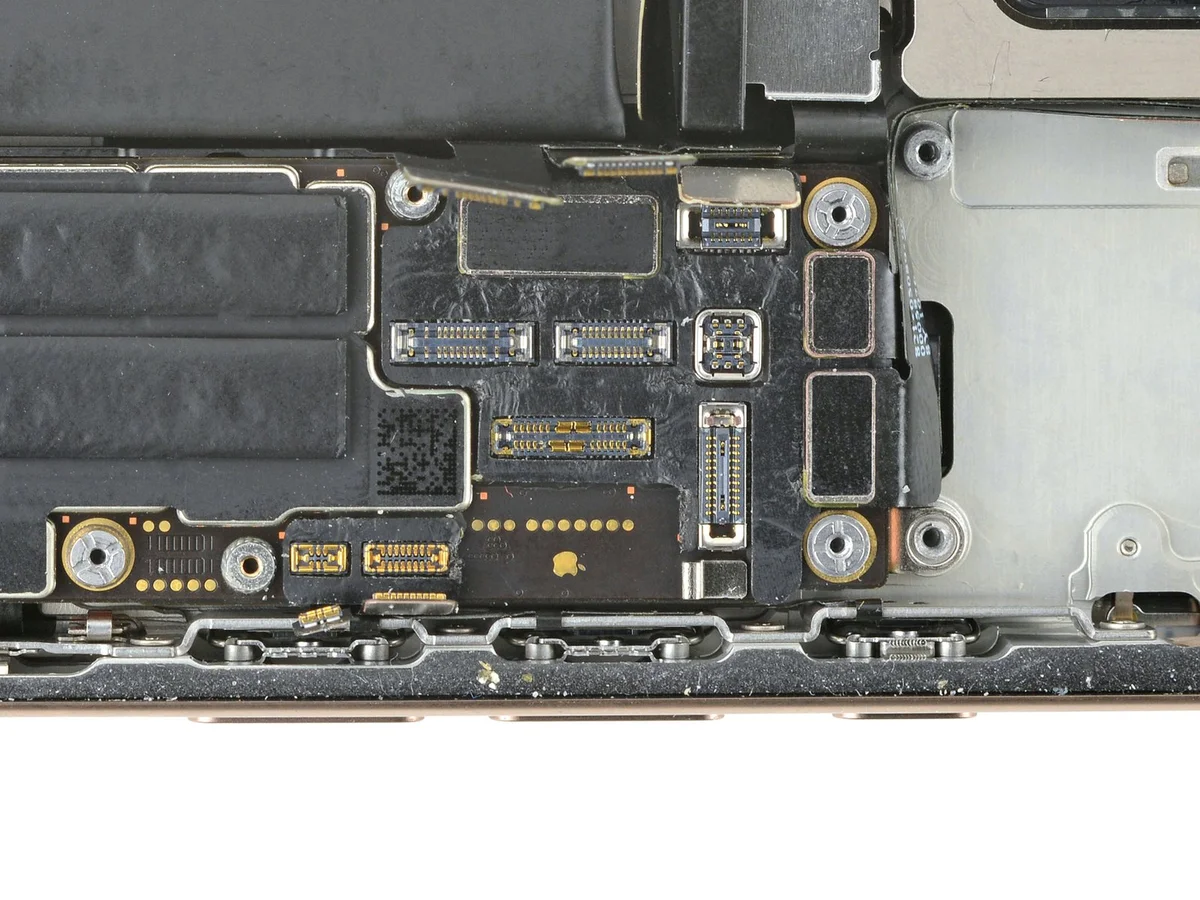

• Employ a spudger tool to carefully lift and detach the seven silver press connectors situated on the logic board's upper surface.The seven silver press connectors must be released from their positions on the logic board's top side by utilizing a spudger for prying.To separate the seven silver press connectors from the logic board's top edge, a spudger should be used to apply lifting force and break the connection.

• Employ a spudger tool to carefully lift and detach the three black press connectors, which secure connections to the logic board.To release the three black press connectors from their positions on the logic board, utilize a spudger for prying and disconnection.A spudger should be used to gently separate and release the three black press connectors from the logic board, ensuring disconnection.

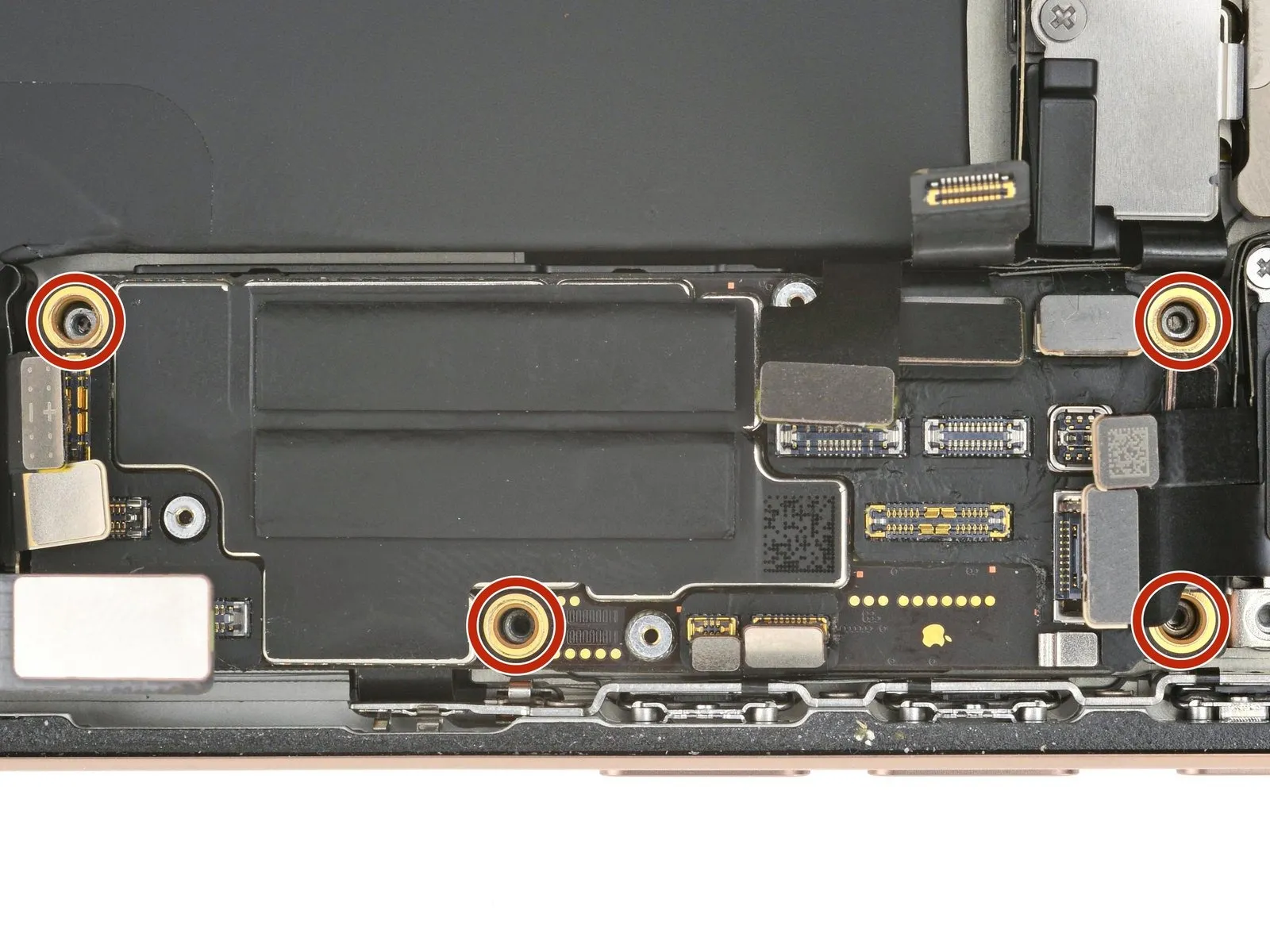

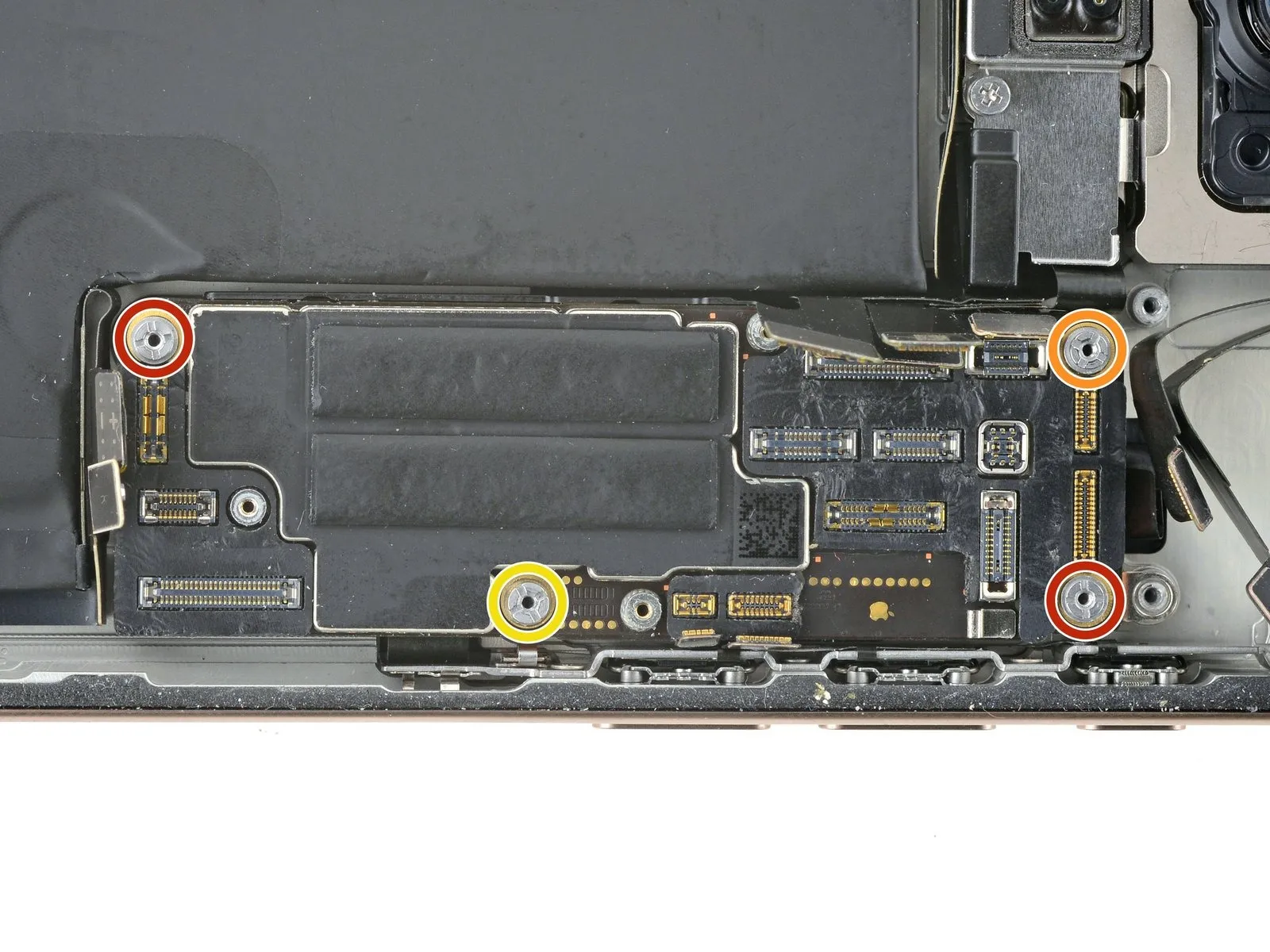

• Employ a standoff driver to detach the four screws that hold the logic board in place.Four screws, each measuring 4.5 millimeters in length, are used for this purpose.A single screw with a length of 3.4 millimeters is also present.

  • Additionally, a screw measuring 4.2 millimeters in length is incorporated.The standoff driver is essential for preventing damage during screw removal.
  • Carefully unscrew the fasteners to avoid stripping the threads.Ensure the standoff driver fits the screw heads precisely.
  • Proper removal of these screws is necessary for logic board access.Note the screw lengths for accurate reassembly.

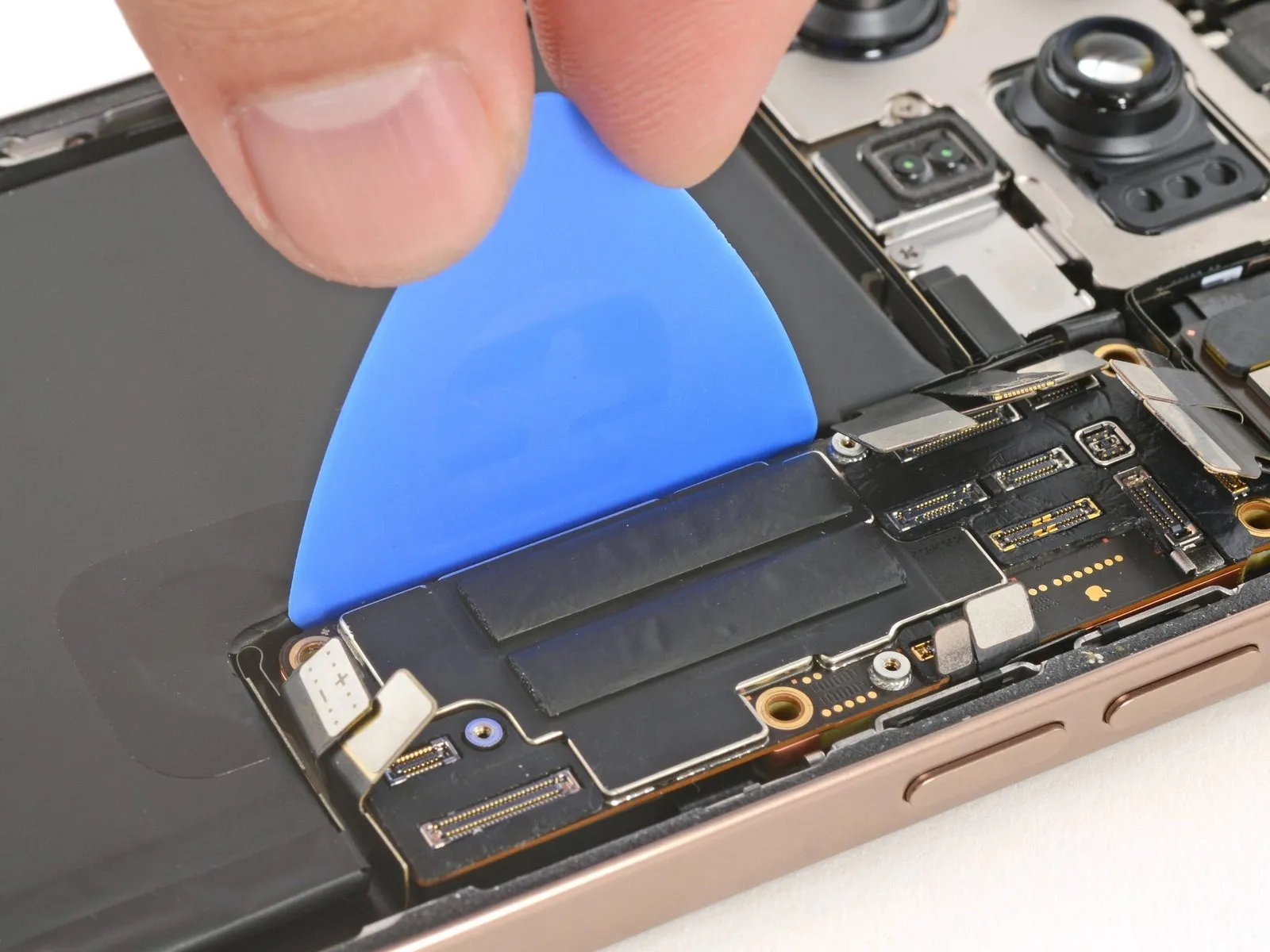

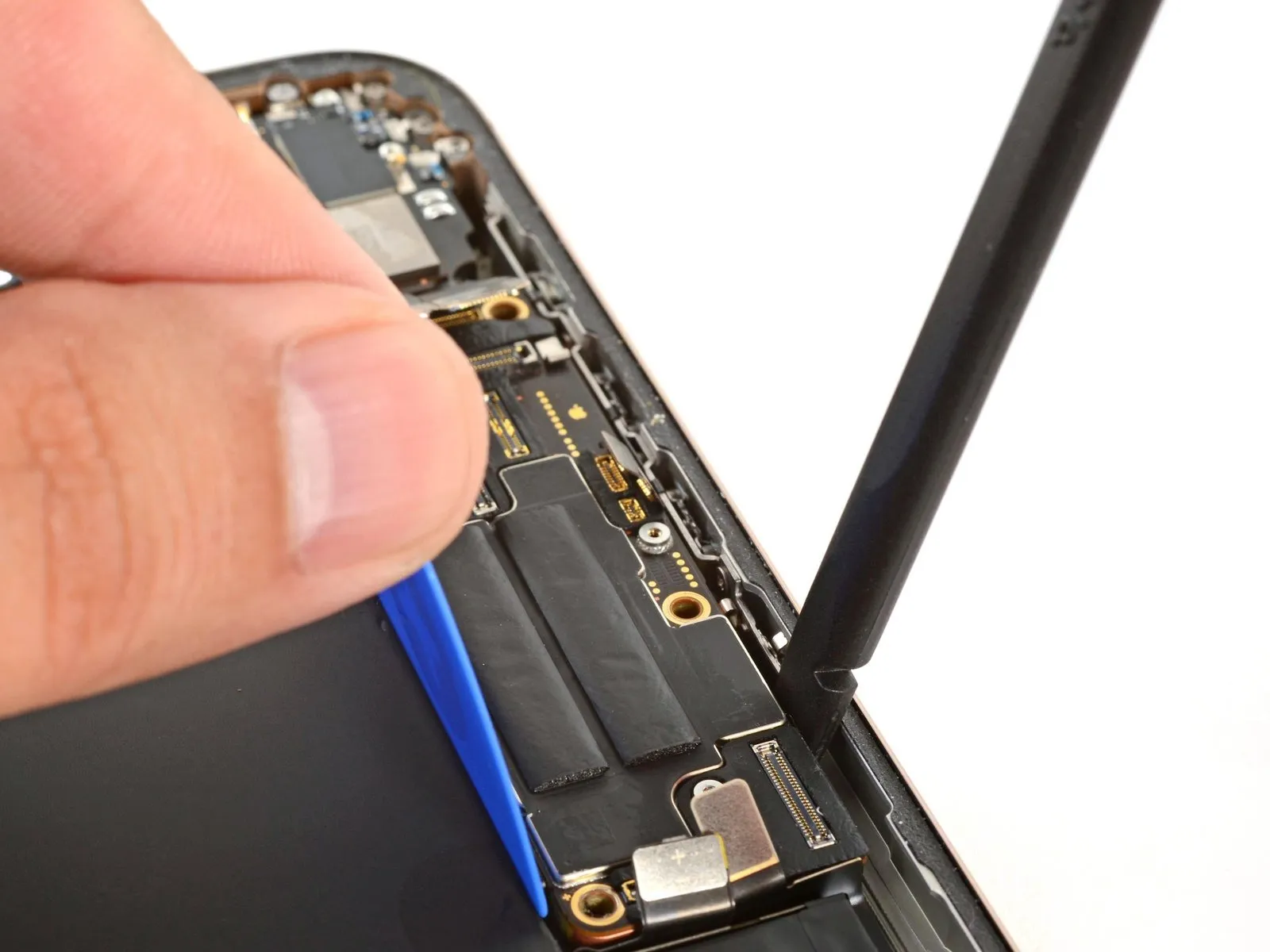

• Position the flat profile of a specialized opening tool within the space separating the battery and the left-hand border of the logic board, maintaining its position with manual pressure.

Having finished the disassembly process, the subsequent instructions detail the reassembly procedure for your iPhone.

• Slight variations in the visual appearance of reassembly images are possible, contingent upon the specific iPhone model you possess.
• Despite potential visual differences, the outlined steps accurately reflect the correct reassembly sequence applicable to all iPhone models.

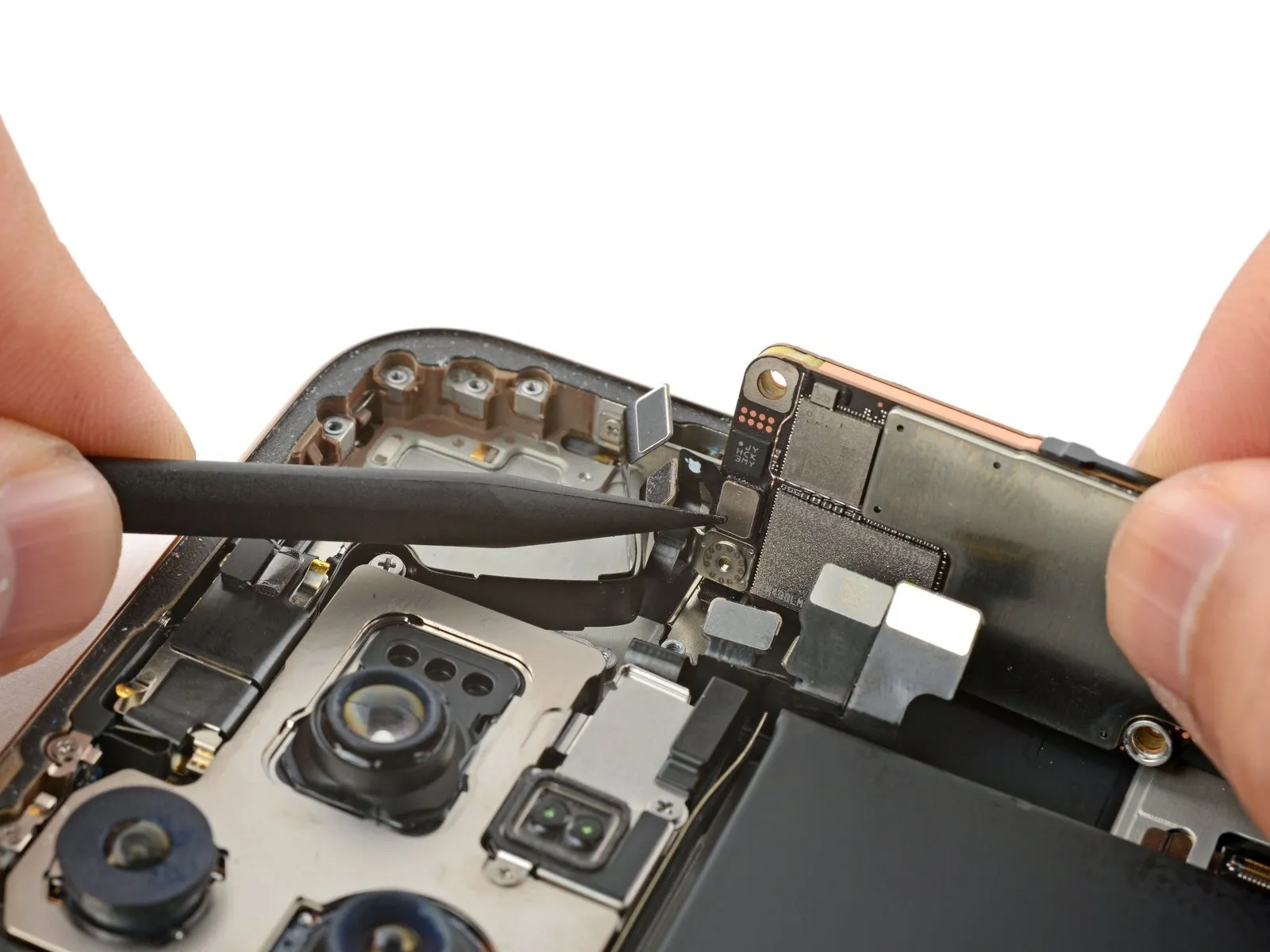

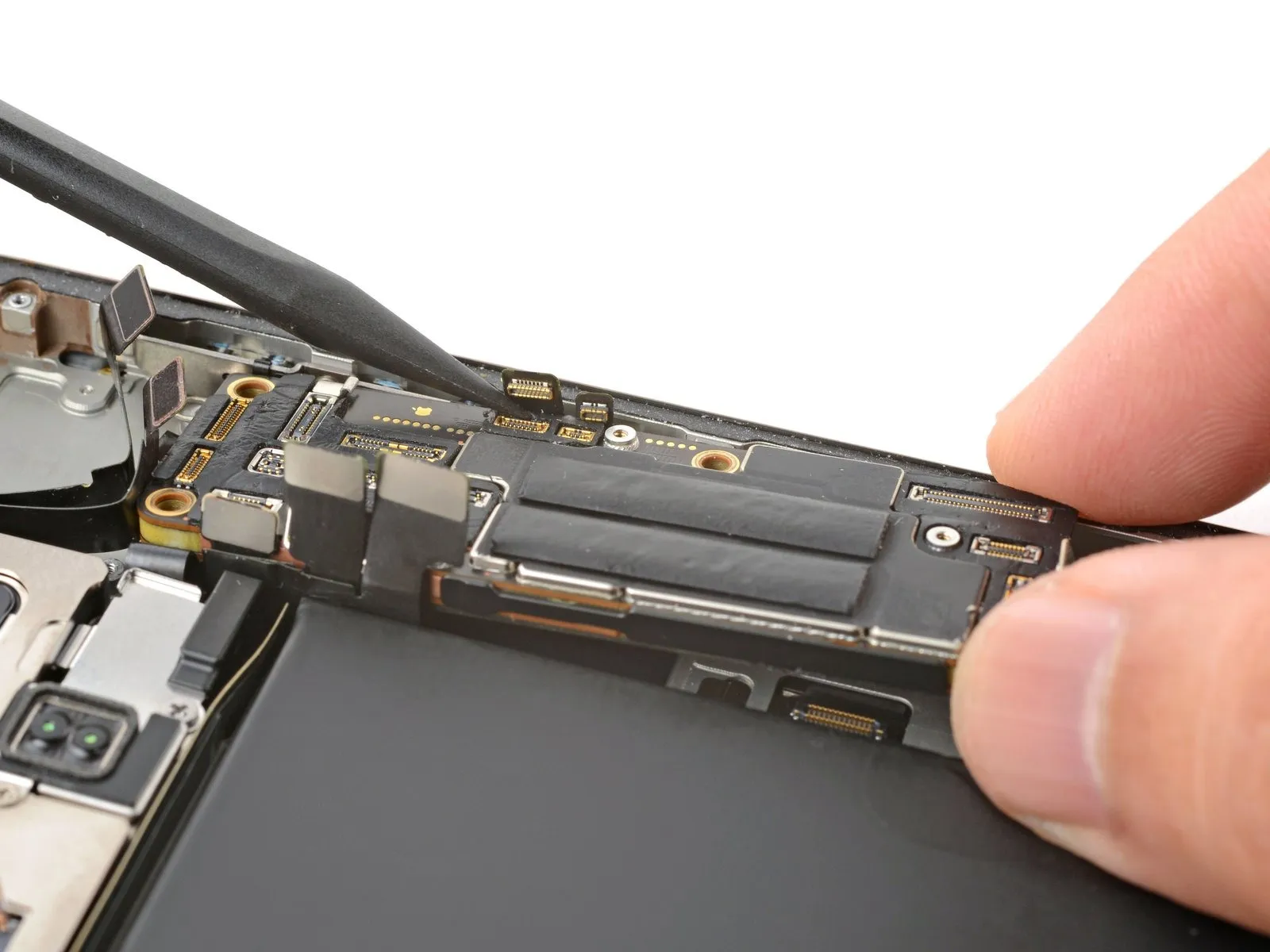

Maintain a position for the logic board, ensuring the front sensor cable is situated near its corresponding connector.

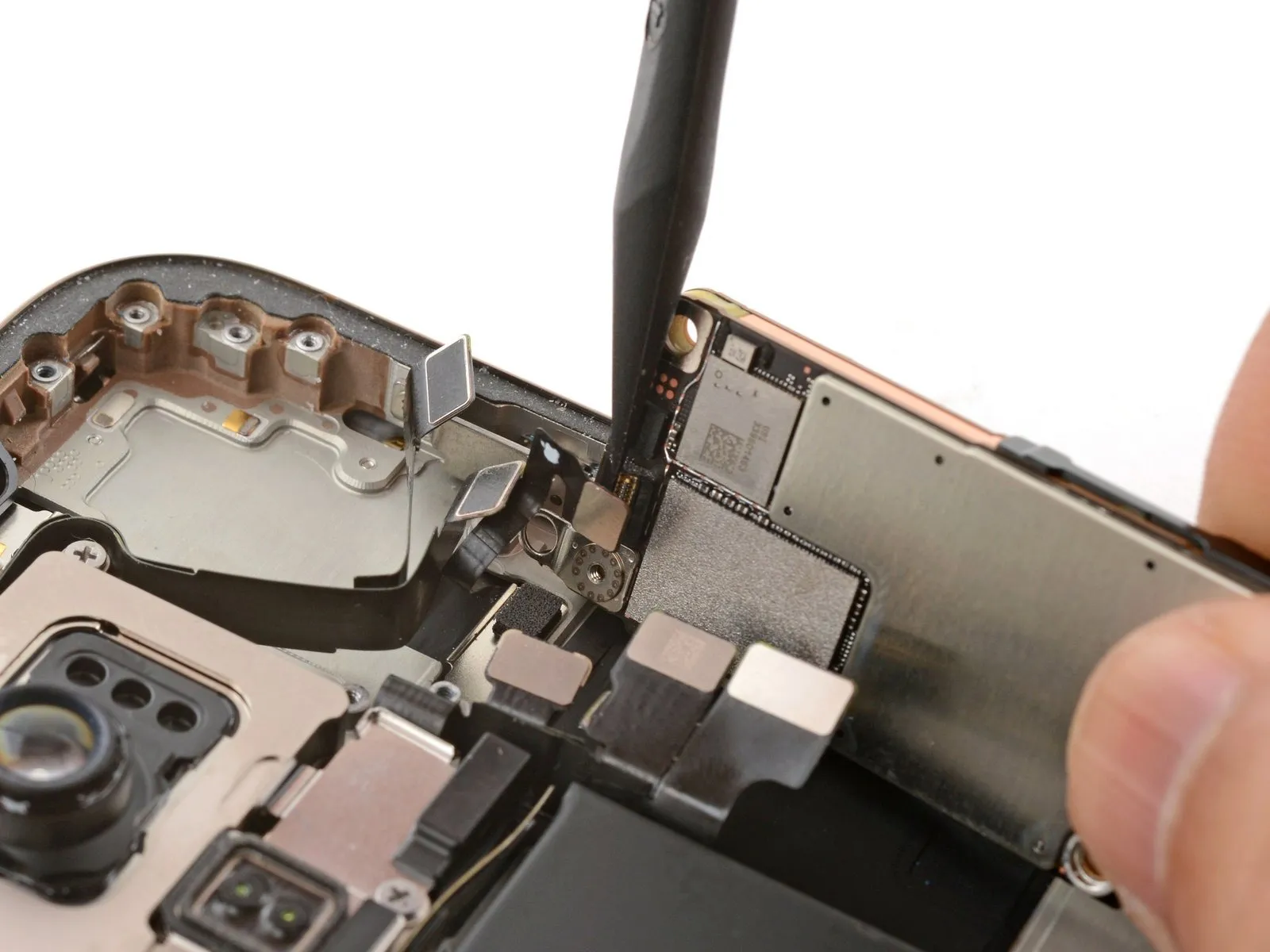

• Precisely position the front sensor cable connector above the logic board socket, paying close attention to alignment.
• Employ the tip of a spudger, or a fingertip, to apply pressure to the connector until a distinct clicking sound is heard.A spudger is a specialized tool for prying and manipulating components.Avoid applying excessive force during the connection process; if difficulties arise, readjust the connector's position and attempt the procedure again.
• Should resistance be encountered, repositioning the connector and retrying the connection is recommended to prevent damage.

Carefully deflect all detached press connectors to provide clearance for positioning the logic board.

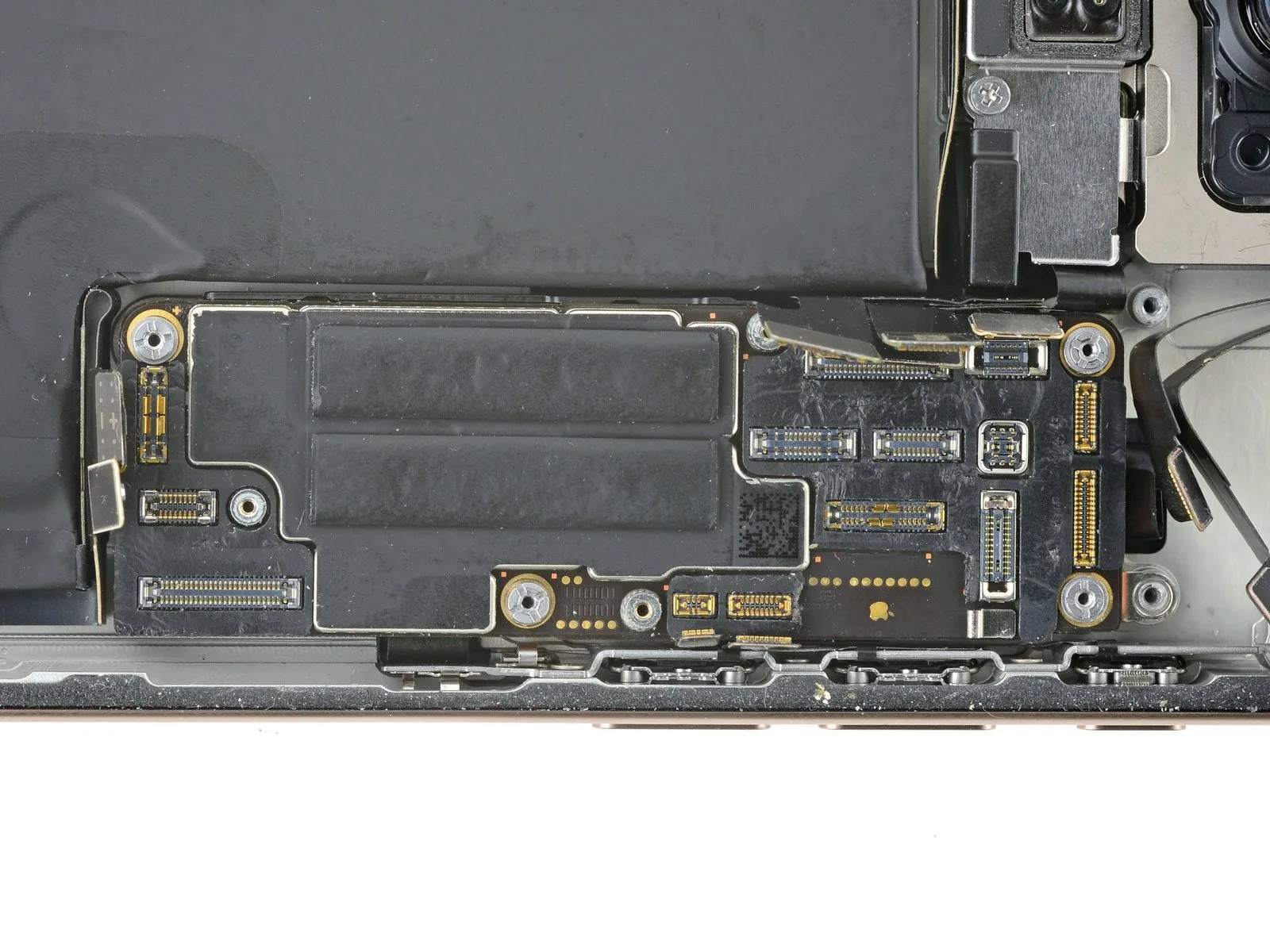

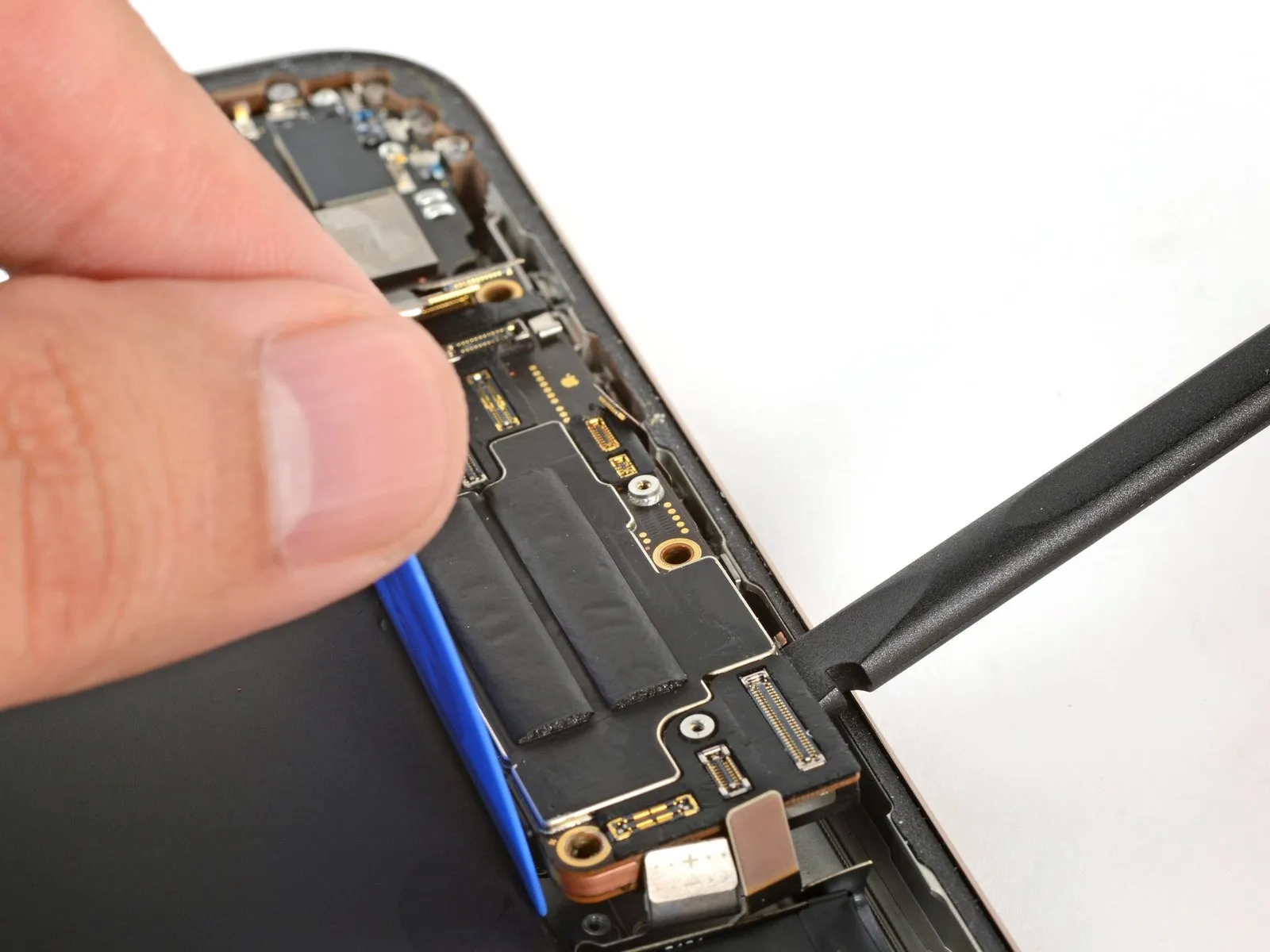

• Position the logic board within its designated cavity.

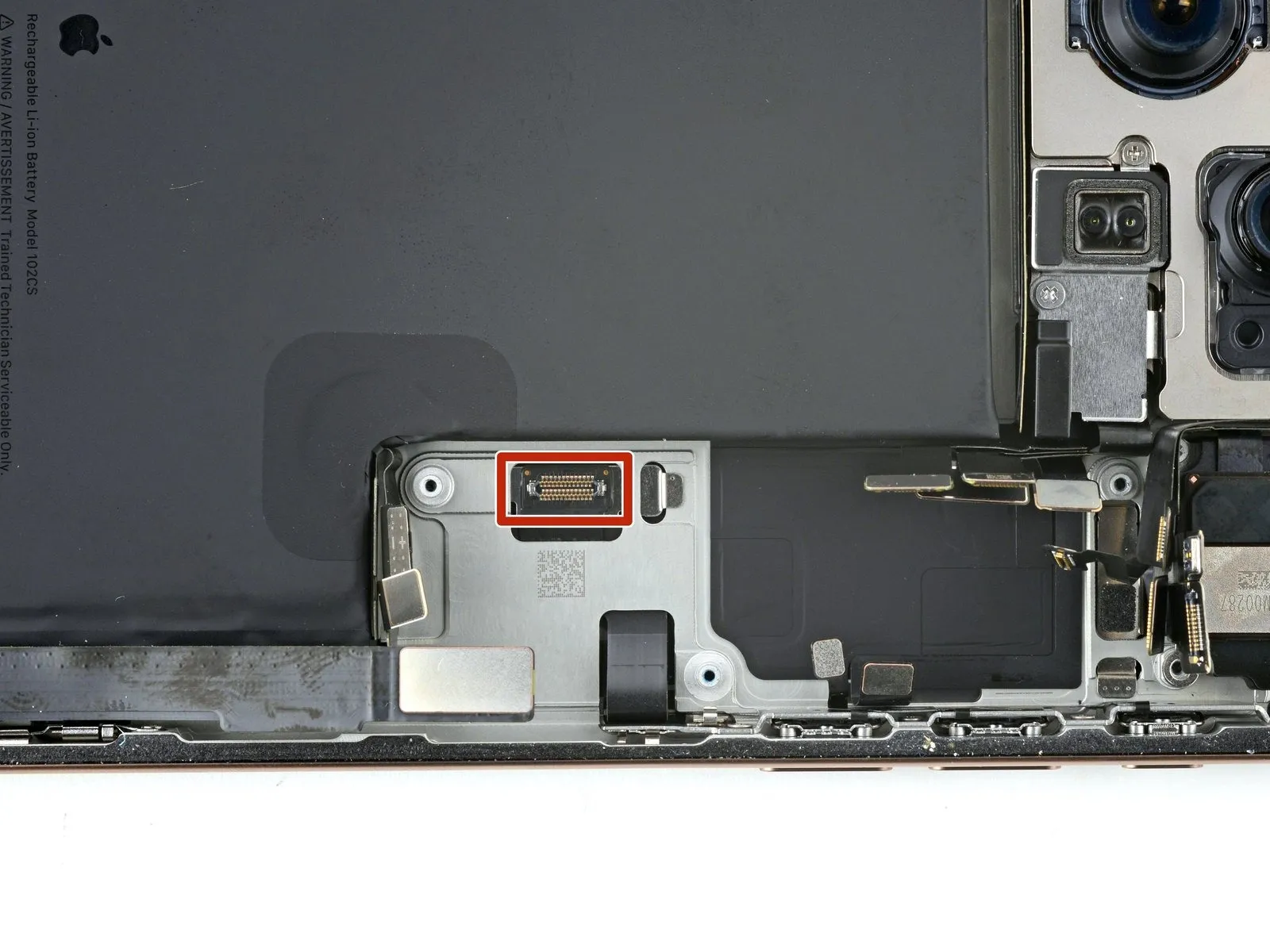

Directly attaching the display connector to the logic board's underside is impossible without first detaching the screen assembly; however, a secure connection can potentially be achieved by initially fastening the logic board using its screws.

• Ensure the logic board makes firm contact with its designated screw posts during reassembly.These screw posts are crucial for precise alignment of the logic board with the display connector located beneath it.Prior to permanently reassembling the iPhone, thoroughly verify its functionality to confirm proper repair.

• Employ a standoff driver to facilitate the installation of the four screws that hold the logic board in place.Two screws, each measuring 4.5 millimeters in length, are required for this process.A single screw with a length of 3.4 millimeters is also necessary.
• Additionally, one screw with a length of 4.2 millimeters must be used.
• The standoff driver is essential for properly engaging the screws during installation.
• Ensure accurate screw placement using the specified lengths to avoid damage to the logic board.

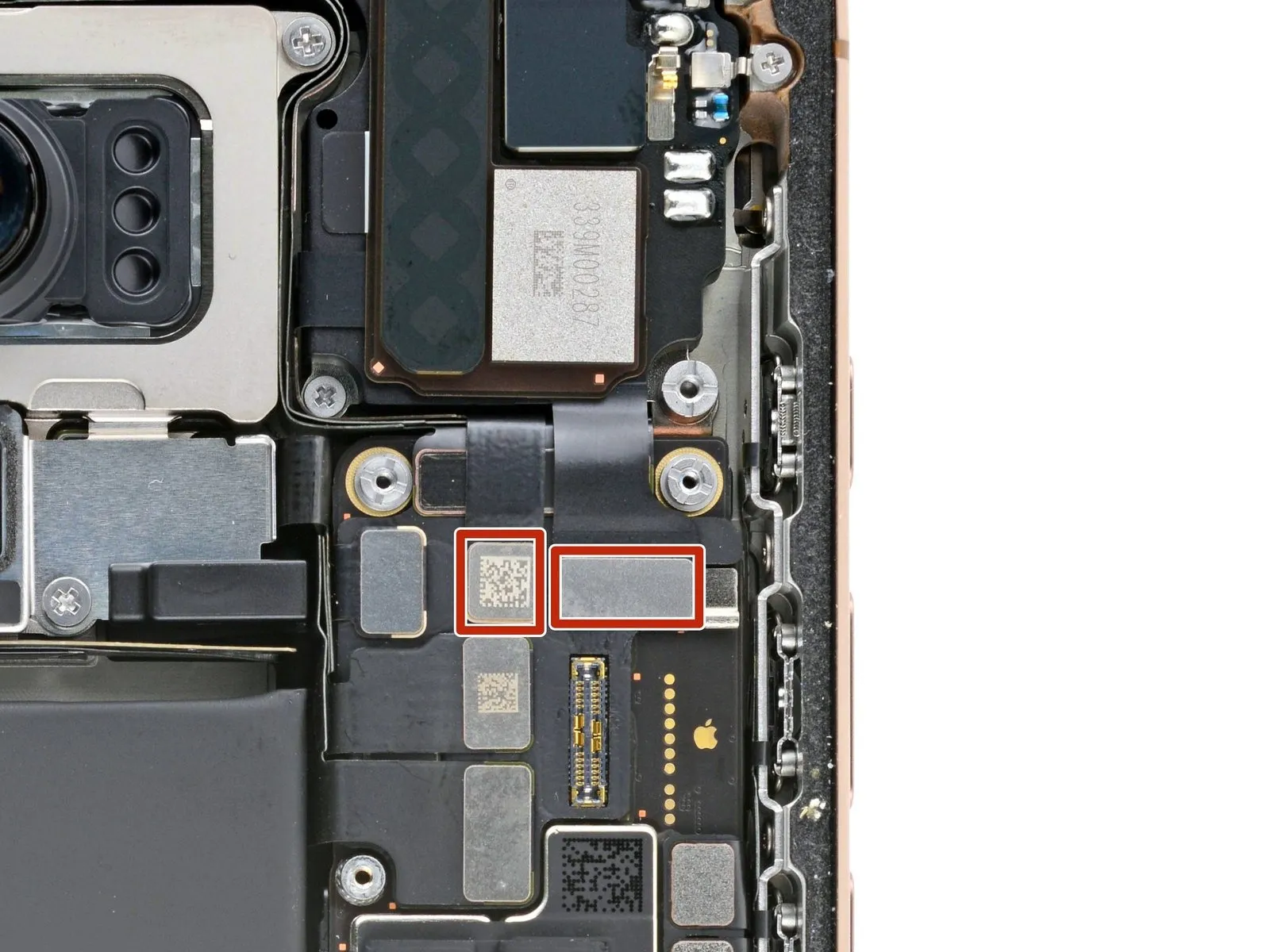

• Employ either a fingertip or a spudger to establish a secure connection between the three black press connectors and the logic board by applying pressure.When reinstalling connectors of this type, ensure precise alignment before applying downward force to one edge until an audible click is heard, then repeat the process on the opposing edge.Avoid applying pressure to the central portion of the connector during reattachment to prevent potential damage.
• Misalignment during connector installation can result in bent pins, which may lead to irreversible component failure.

• Employing either a fingertip or a specialized spudger tool, establish a secure connection between the seven silver press connectors and the logic board by applying pressure.The seven silver press connectors must be firmly affixed to the logic board, utilizing either a finger or a spudger for the necessary pressure to ensure proper engagement.To achieve a reliable electrical link, apply pressure with a finger or a spudger to seat the seven silver press connectors onto the designated points on the logic board.

• Ensure the superior border of the earpiece speaker is precisely matched with the superior border of the frame's structure.

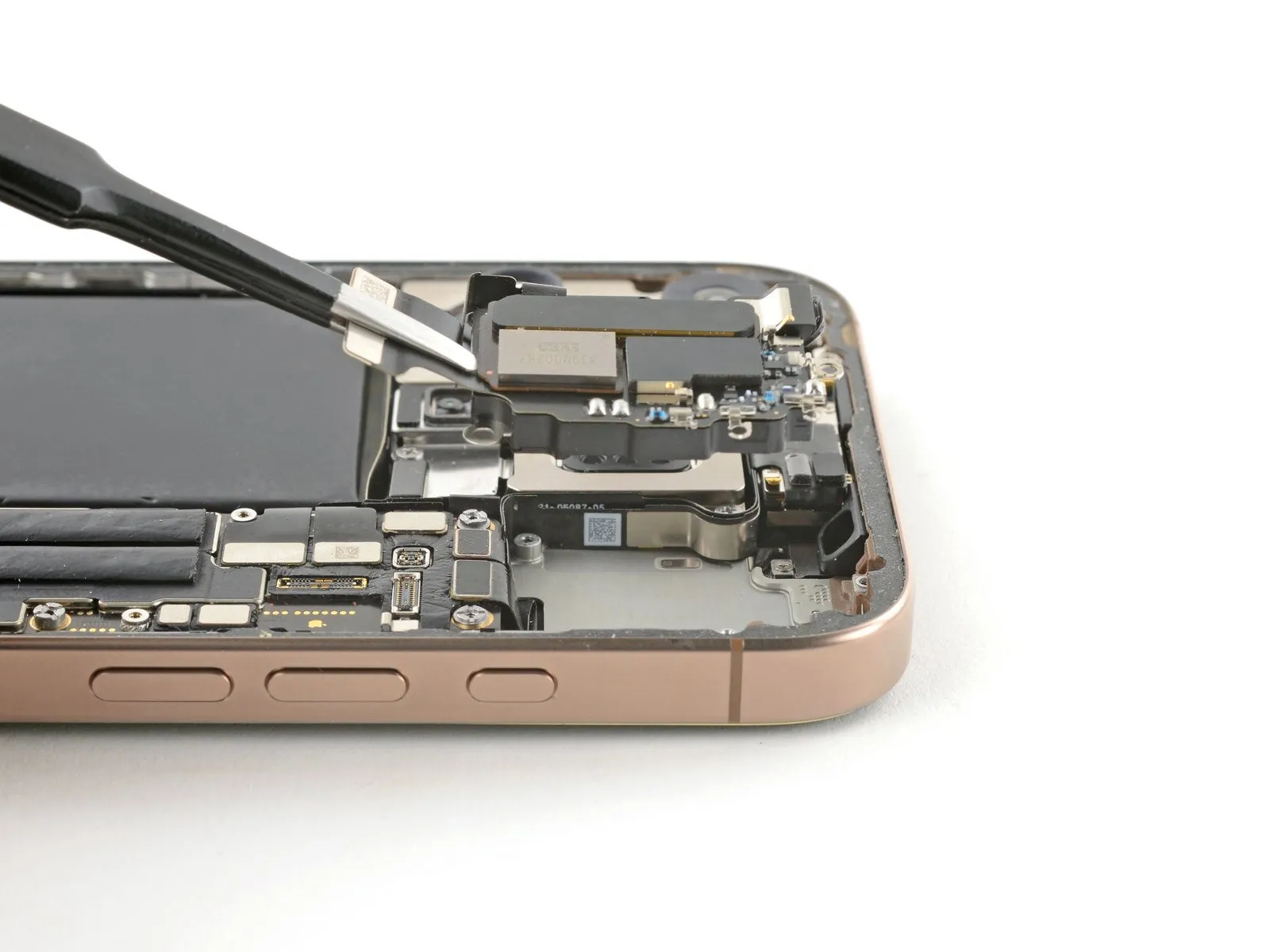

• Position the earpiece speaker within its designated cavity.
• Applying pressure directed towards the frame's upper edge might be necessary to achieve a secure and complete seating of the speaker.

• Affix the earpiece speaker using six screws to maintain its position.

  • Employ a Phillips screwdriver to install screws with a length of 2.4 millimeters.Secure the component with Phillips screws, each measuring 1.3 millimeters in length; three are required.
  • Utilize a Phillips screwdriver to fasten a screw that is 1.6 millimeters long.A standoff screw, measuring 3.3 millimeters in length, is necessary for the next step.
  • The earpiece speaker is held in place by screws that must be carefully installed.Ensure proper alignment when inserting the 2.4 mm Phillips screws.
  • Three smaller Phillips screws, each 1.3 mm long, are needed for a different connection.The 1.6 mm and 3.3 mm screws serve distinct purposes in the assembly.

To establish a secure connection between the earpiece speaker and the mmWave connectors and the logic board, apply pressure using either a fingertip or a spudger.

• Exercise caution near the delicate grounding clips during frame cleaning, as displacement can occur; if a clip is bent, restore its shape carefully with finger pressure or tweezers.

  • Employ blunt-nose tweezers or manual manipulation to detach sizable adhesive fragments from the frame's edges.
  • Employ a spudger to eliminate remaining adhesive traces from the frame surface.
  • For adhesive that resists removal, utilize a hair dryer or heat gun to apply warmth, then attempt removal once more.

To ready a salvaged rear cover for reattachment, utilize a microfiber or lint-free cloth dampened with a small quantity of isopropyl alcohol possessing a concentration exceeding 90%, and thoroughly clean the edges.

• To protect sensitive surfaces, cover the tip of a spudger with a clean, non-abrasive cloth or a coffee filter, then apply a small amount of isopropyl alcohol with a concentration exceeding 90%.Employing a single direction, meticulously clean the frame's edge to remove any remaining adhesive.Proceed slowly and deliberately during this cleaning process.
  A thoroughly cleaned frame facilitates the even distribution of replacement adhesive, which is crucial for a strong and reliable bond.
  Proper adhesive application is dependent on a clean frame surface, ensuring optimal contact and adhesion.

• To ascertain the correct positioning of the adhesive sheet, place it upon the frame's surface.
  Employ elements like the camera aperture and the indentations situated on the superior and inferior frame borders to confirm the adhesive's intended placement.

• To reveal a portion of the adhesive, carefully lift the corner tab of the liner and remove it, exposing approximately one-third of the adhesive surface.Exercise caution, as the newly exposed adhesive possesses a high degree of tackiness; prevent unintended contact with other surfaces until application to the frame is prepared.Should your adhesive product incorporate multiple liners, remove only the uppermost liner to reveal the side intended for bonding to the frame.
  The adhesive's inherent stickiness demands careful handling to avoid premature adhesion to unintended objects.
  Prior to application, ensure the exposed adhesive remains free from contact to maintain its bonding properties.

• Ensure the visible perimeter of the adhesive strip is precisely matched to the adjacent edge of the iPhone's chassis.After applying pressure to secure the adhesive, repositioning is impossible, necessitating removal and replacement with a fresh strip.Correct alignment is essential before applying pressure, as adjustments are not possible once the adhesive bonds.
  The exposed edge of the adhesive strip requires meticulous positioning relative to the iPhone's frame.
  Applying pressure to the adhesive strip after placement prevents subsequent adjustments.To achieve proper bonding, a gentle, even pressure should be applied to the adhesive strip's exposed surface against the frame.Should misalignment occur during the adhesive strip's placement, complete removal and a new strip are required to ensure a secure bond.

• Carefully remove the adhesive backing, ensuring firm contact between the adhesive and the surface.
• Proper alignment of the adhesive is indicated by a seamless fit of the edges within the frame's boundaries.
• To correct minor misalignments, delicately reposition the extended edges towards the frame’s structure.
• Should creases or wrinkles appear on the adhesive, discard it and apply a new set for optimal results.
• In the absence of replacement adhesive strips, the iPhone can be reassembled and used temporarily; however, be aware that its water resistance will be reduced until the adhesive is properly replaced.

• Employ a spudger to apply pressure to the adhesive securing the iPhone's edges.
• Exercise caution near the delicate grounding clips; should one become displaced, carefully reposition it using your fingers or tweezers.
• Avoid excessive force, as this could distort and overextend the adhesive layer.

1. Employ a spudger tool or manual dexterity to disengage the pull tab affixed to the expansive front liner, typically located within a corner.
2. Utilize the pull tab to detach the extensive front liner from its adhesive backing.
3. Remaining perimeter liners may still be present, safeguarding the adhesive surface during reassembly; postpone their removal for the time being.

• To facilitate access, carefully elevate the rear glass component by supporting its right-hand perimeter.

• Employ either a fingertip or the planar edge of a spudger tool to establish a secure connection between the rear glass connector and the logic board's surface.Ensure proper engagement of the back glass connector with the logic board by applying pressure using a finger or the flat spudger end.To affix the rear glass connector to the logic board, utilize a finger or the spudger's flat end to apply the necessary pressure for a firm connection.

1. Employ either a fingertip or a spudger to firmly secure the battery press connector to the logic board.Before finalizing the iPhone's reassembly, it's advisable to verify the repair's functionality; initiate the device and confirm its expected operation, then deactivate it.Should the iPhone fail to power on initially, establish a connection to a power source and attempt activation once more.

In the event a logic board replacement results in a non-functional display, consult and adhere to the procedures outlined in the screen guide to establish a manual connection for the display connector.
The battery press connector must be engaged with sufficient pressure to ensure a reliable electrical connection to the logic board.
A successful power-on test at this stage validates the integrity of the repair before proceeding with the remaining steps.To troubleshoot a failure to power on, ensure the device is receiving adequate electrical current from an external source and retry the power-on sequence.Manual intervention, as described in the screen guide, becomes necessary to rectify display connectivity issues following a logic board substitution.

• Position the back glass connector cover so that the screw apertures are aligned, then set it down.

1. Employ a specialized tri-point Y000 driver for the installation process.The required tool for this step is a tri-point driver with a Y000 tip.Secure the back glass connector cover with four screws, utilizing the appropriate driver.
   • A total of two screws, each measuring 1.3 millimeters in length, are needed.Two screws, possessing a length of 1.0 millimeters, are also required for this assembly.
   • The securing screws consist of two different lengths to ensure proper fitment.Carefully install the screws using the tri-point Y000 driver, noting the length differences.

• Position the battery connector cover so that the screw apertures are aligned, then set it down into its designated location.

• Employ a tri-point Y000 driver for the installation of the three screws that fasten the battery connector cover in place.
  • Two screws, each measuring 1.3 millimeters in length, are required.A single screw, with a length of 1.0 millimeters, is also necessary.The battery connector cover is held in position by these fasteners.
  • Ensure the Y000 driver is properly seated on the screw heads to prevent damage.Carefully tighten the screws to avoid stripping the threads.The dimensions of the screws are critical for proper fit and secure attachment.

• Employing either your fingertips or a specialized spudger tool, carefully separate the surrounding protective liners to reveal the underlying adhesive.
  During liner removal, prevent any contact between surfaces and the newly exposed adhesive to maintain its bonding properties.
  Thoroughly inspect both the device frame and rear glass for any detached liner fragments, ensuring complete removal of all protective liners.

• Position the rear glass component onto the device frame, initiating the placement with the uppermost boundary.
  Should you encounter opposition during installation, a surrounding retaining clip might be deformed and compressed by the frame; carefully inspect the area of resistance and delicately realign any bent clips.
  Apply even pressure across the iPhone's borders to ensure the rear glass makes complete contact with the frame.

• Apply warmth to the rear glass edge using a hair dryer, heat gun, or iOpener.Continue heating the perimeter of the back glass until the surface reaches a temperature just beyond comfortable touch.This thermal application reduces the adhesive's viscosity.The resulting softening action facilitates a stronger subsequent adhesion.
• Employing heat allows for improved bonding during reassembly.

Employ your fingertips to apply consistent, secure pressure encompassing the entire outer edge of the iPhone's casing.

• Position the iPhone with the display surface facing downwards onto a pristine, level workspace.
• Apply a strip of adhesive tape along the outer edge of the rear glass to safeguard its cosmetic appearance.
• Arrange a circular stack of coins bordering the rear glass, building a barrier that matches the height of the rear camera lenses' projections.
• As an alternative method, secure the device with vise clamps around its outer edges to establish a fresh adhesive seal.

• To apply even pressure, position four to five substantial volumes directly atop the iPhone’s surface.
• Because the weight could potentially create minor marks on the book covers, avoid utilizing valuable or delicate materials.
• Allow the applied pressure to remain constant for approximately half an hour.
• This sustained force facilitates the bonding of the adhesive material.

• Employ a P2 pentalobe driver for the installation process.The two screws, each measuring 7.4 millimeters in length, require this specialized tool.Securely fasten the screws to the device's chassis, positioning them on both sides of the charging port.A P2 pentalobe driver is essential for manipulating the fasteners.Properly aligning the screws is crucial for a secure attachment to the charge port area.
