iPhone 16e Screen Replacement

• To optimize battery health, permit the battery's charge level to decrease to below 25% capacity.A lithium-ion battery that is fully charged presents a possible safety risk.
• Disconnect all cables connected to the device before proceeding.
• Initiate the power-off sequence by pressing and maintaining the power button alongside either volume button, subsequently sliding to confirm the shutdown.

• To prevent injury and simplify the subsequent dismantling process when the display or rear glass exhibits severe cracking, apply layers of adhesive packing tape across the damaged surfaces.
• Ensure a flat, sufficiently sized region exists close to the lower perimeter, allowing for secure adhesion of a suction cup.

Employ a pentalobe P2 screwdriver for the task of detaching the two screws, each measuring 7.8 mm in length, located on both sides of the charging port.The two screws securing the device near the charging port necessitate removal using a pentalobe P2 screwdriver.To access the charging port area, utilize a pentalobe P2 screwdriver and unscrew the pair of fasteners, each with a length of 7.8 mm, situated on the left and right sides.

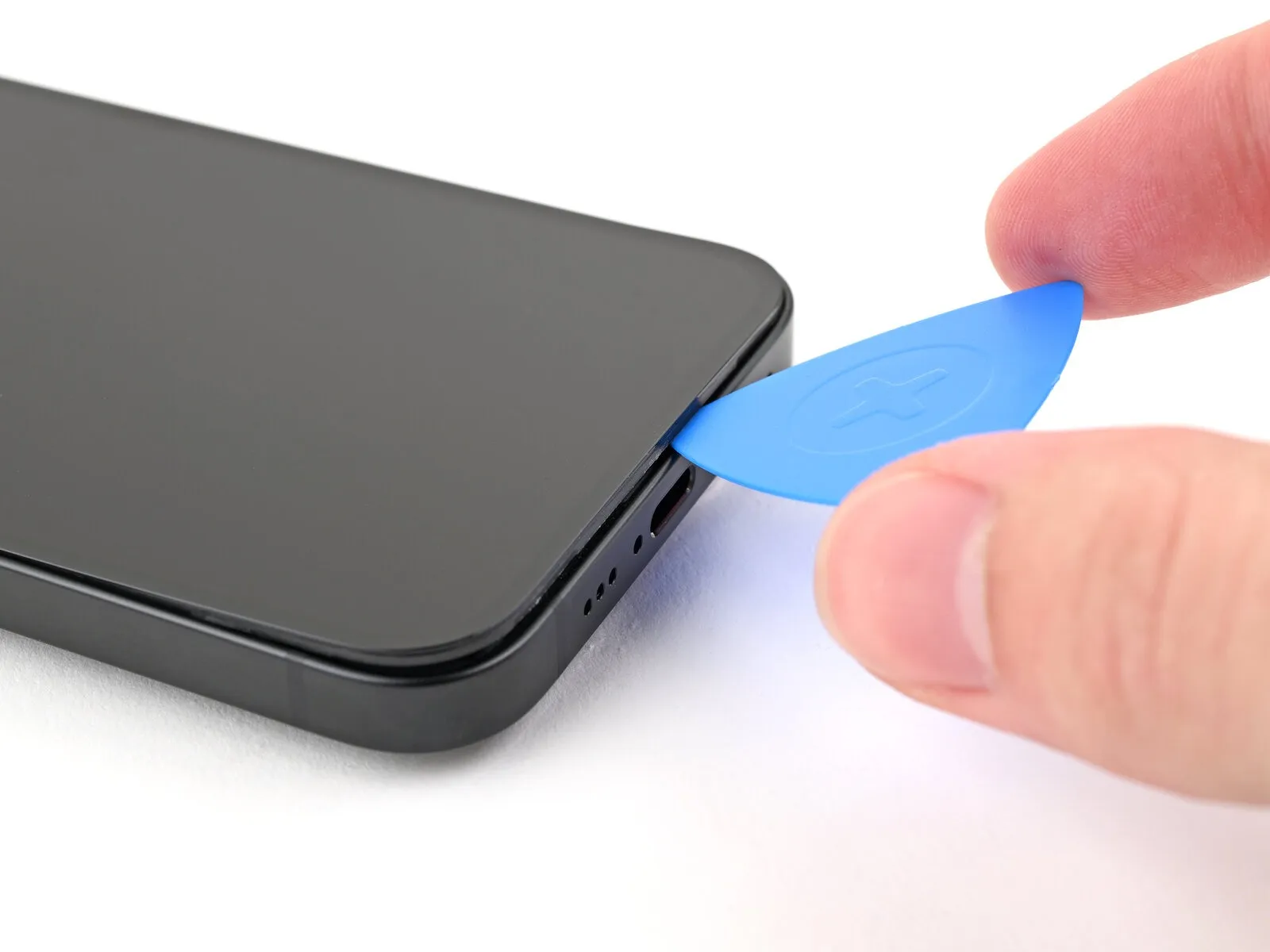

• Caution is advised: Overly deep insertion of a prying tool may result in device impairment.To mitigate potential harm, implement the subsequent procedure for pick identification.

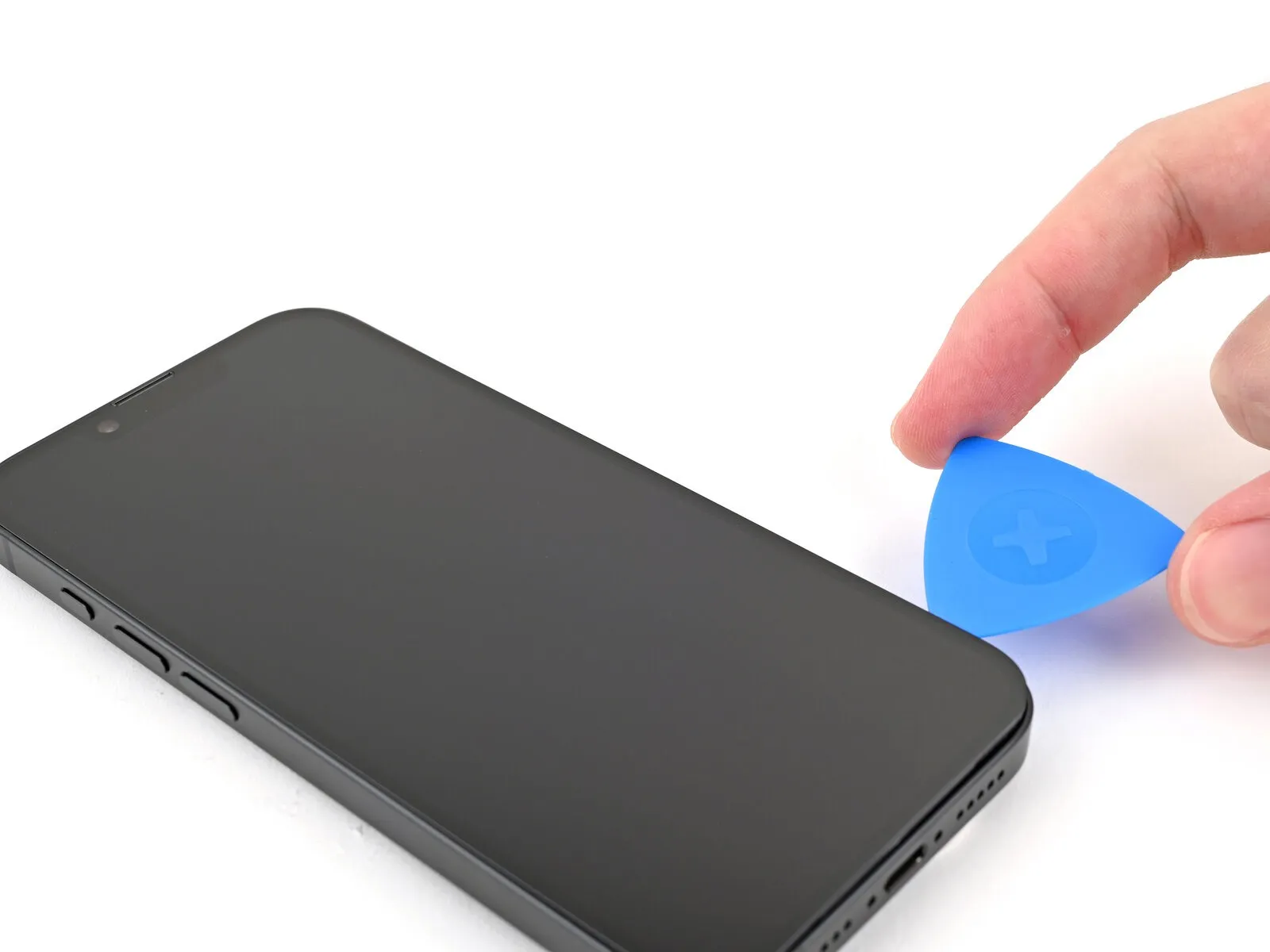

• Using a permanent marker, indicate a point on the pick's tip, precisely 3 millimeters away.

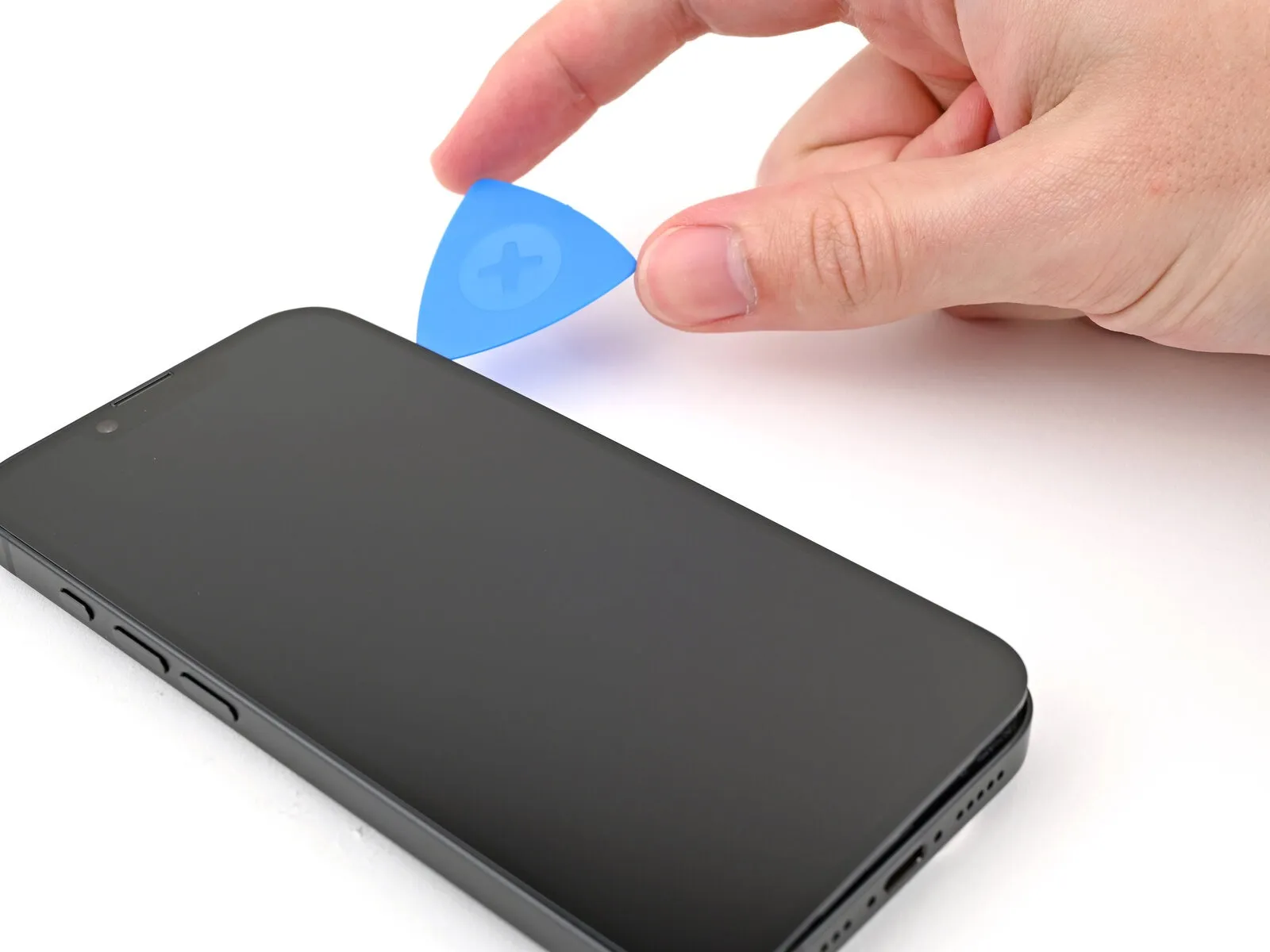

• Additional markings on the pick's other corners can be established using varying distances.As an alternative method, affix a coin to the pick's tip, ensuring a separation of 3 millimeters.This measurement of 3 mm serves as a crucial reference point to avoid excessive force.
• The purpose of this marking is to limit the pick's insertion depth during the repair process.
• Careful adherence to this guideline will help prevent unintended damage to internal components.

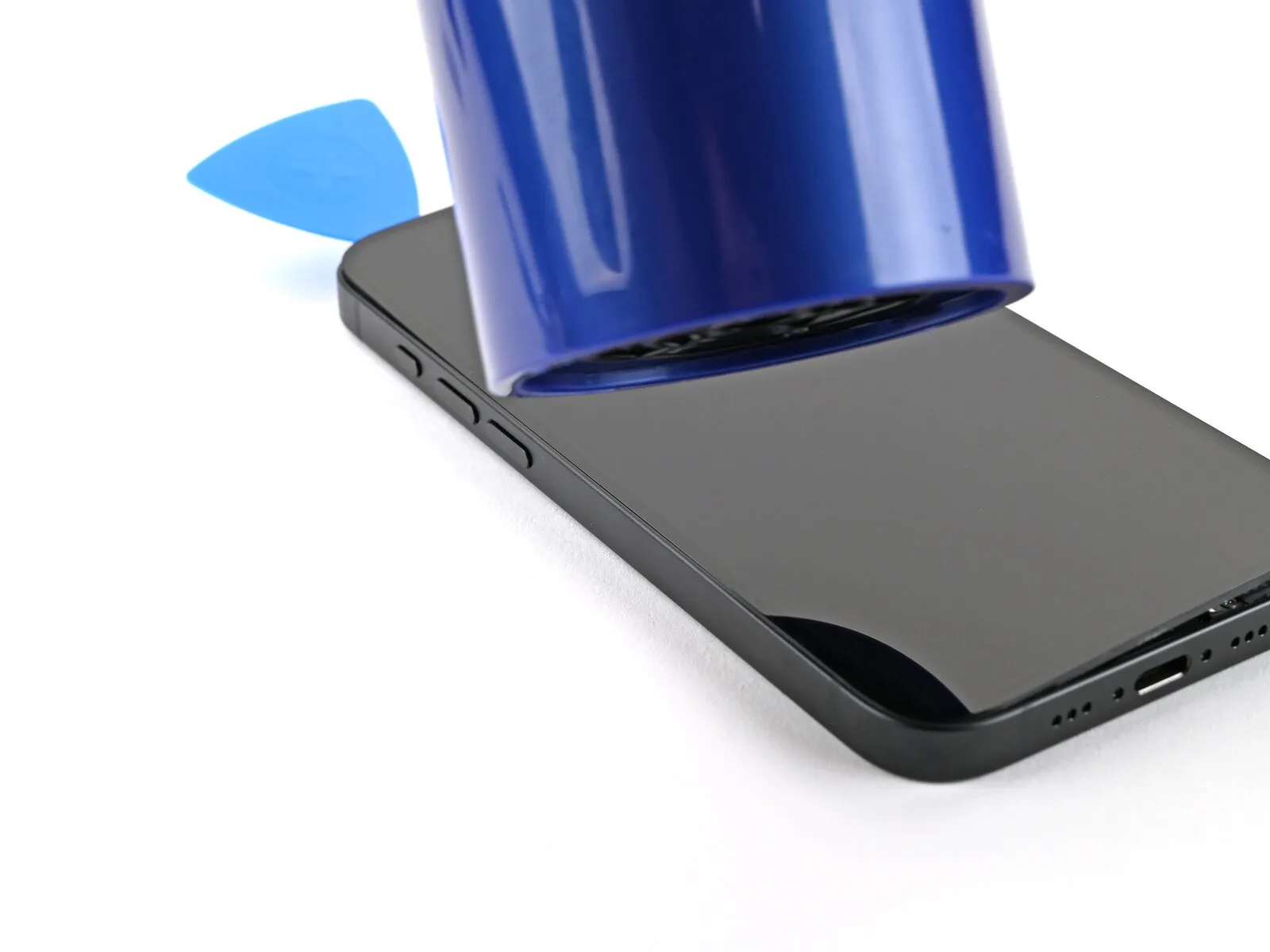

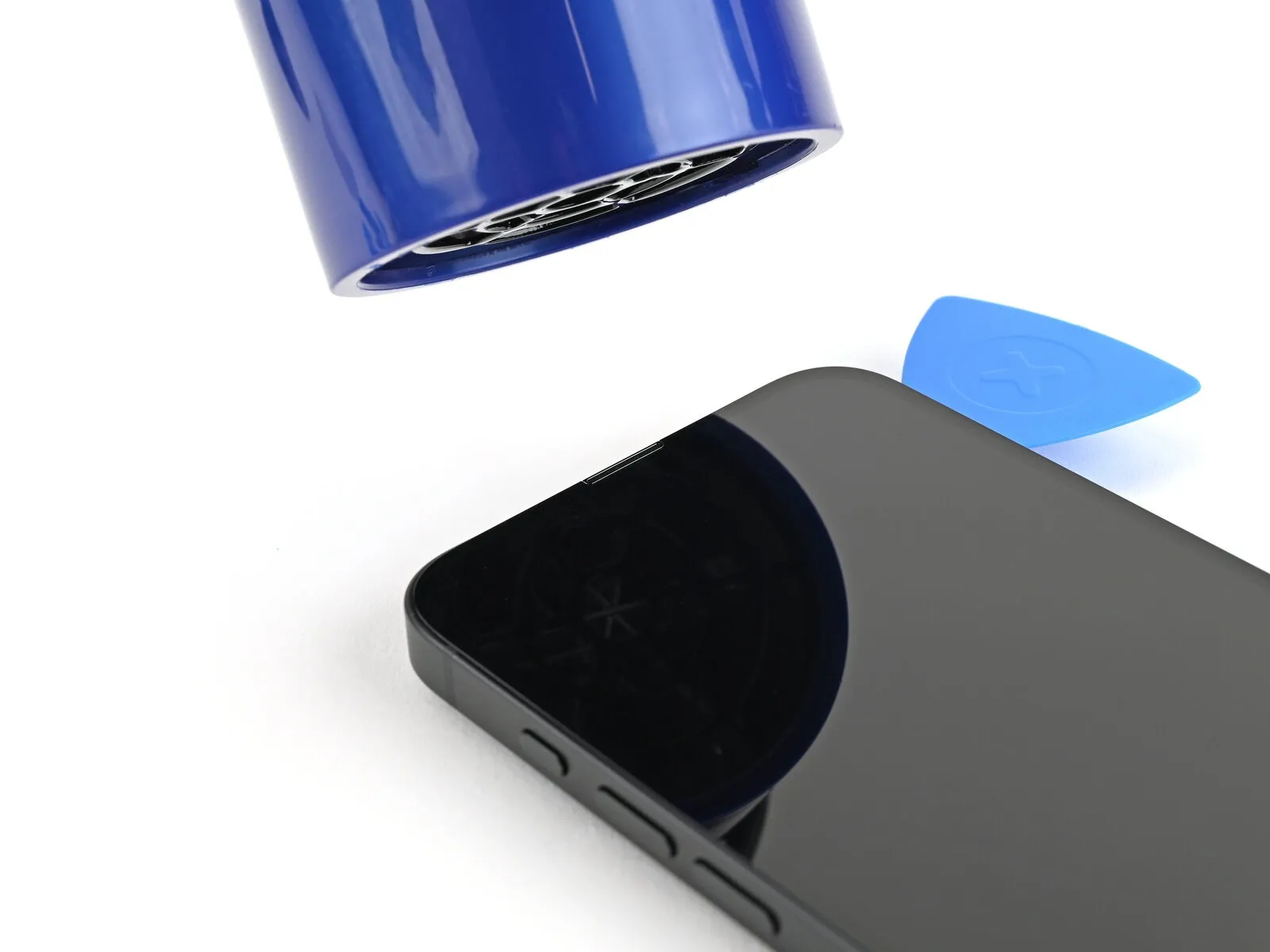

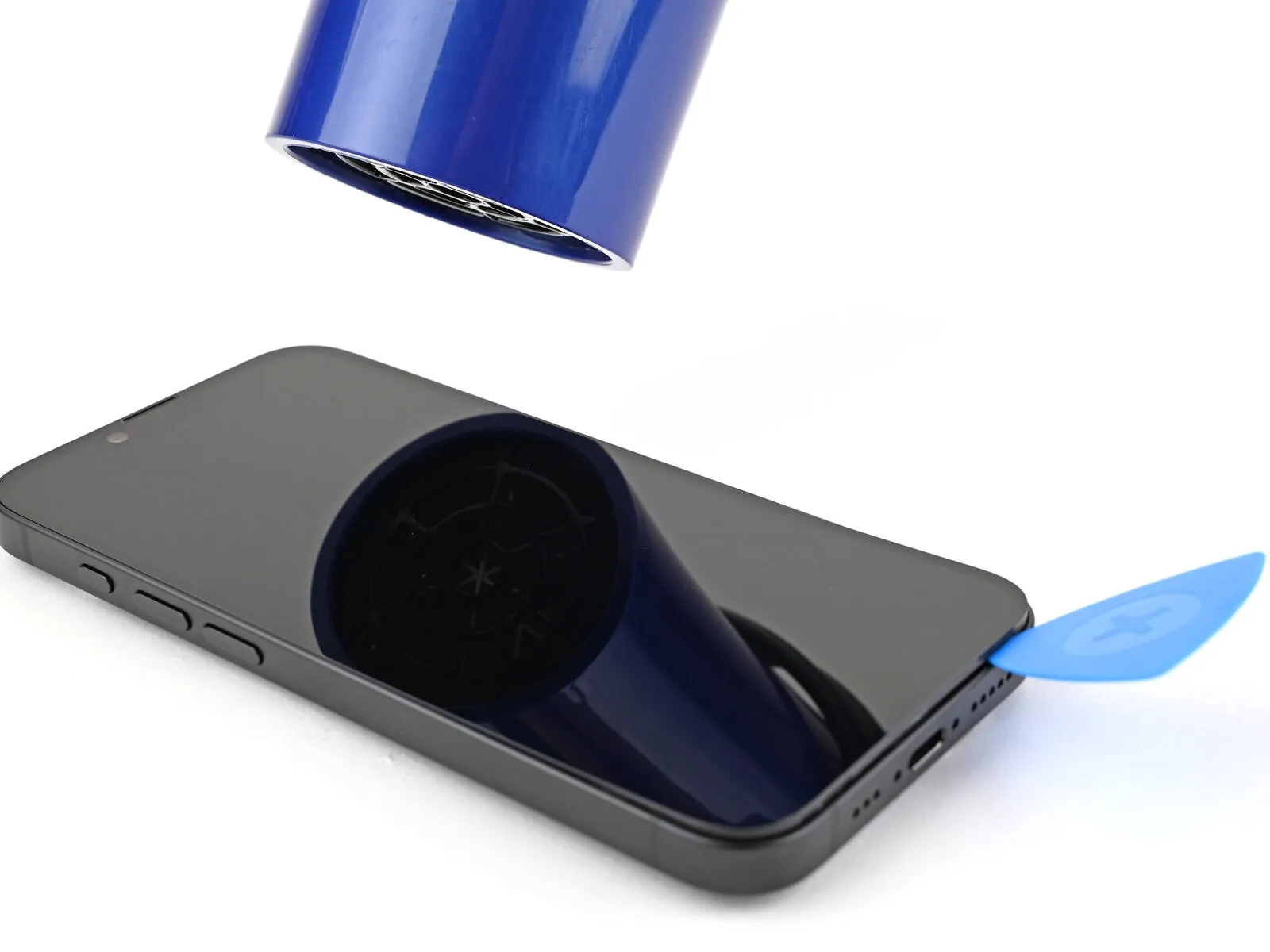

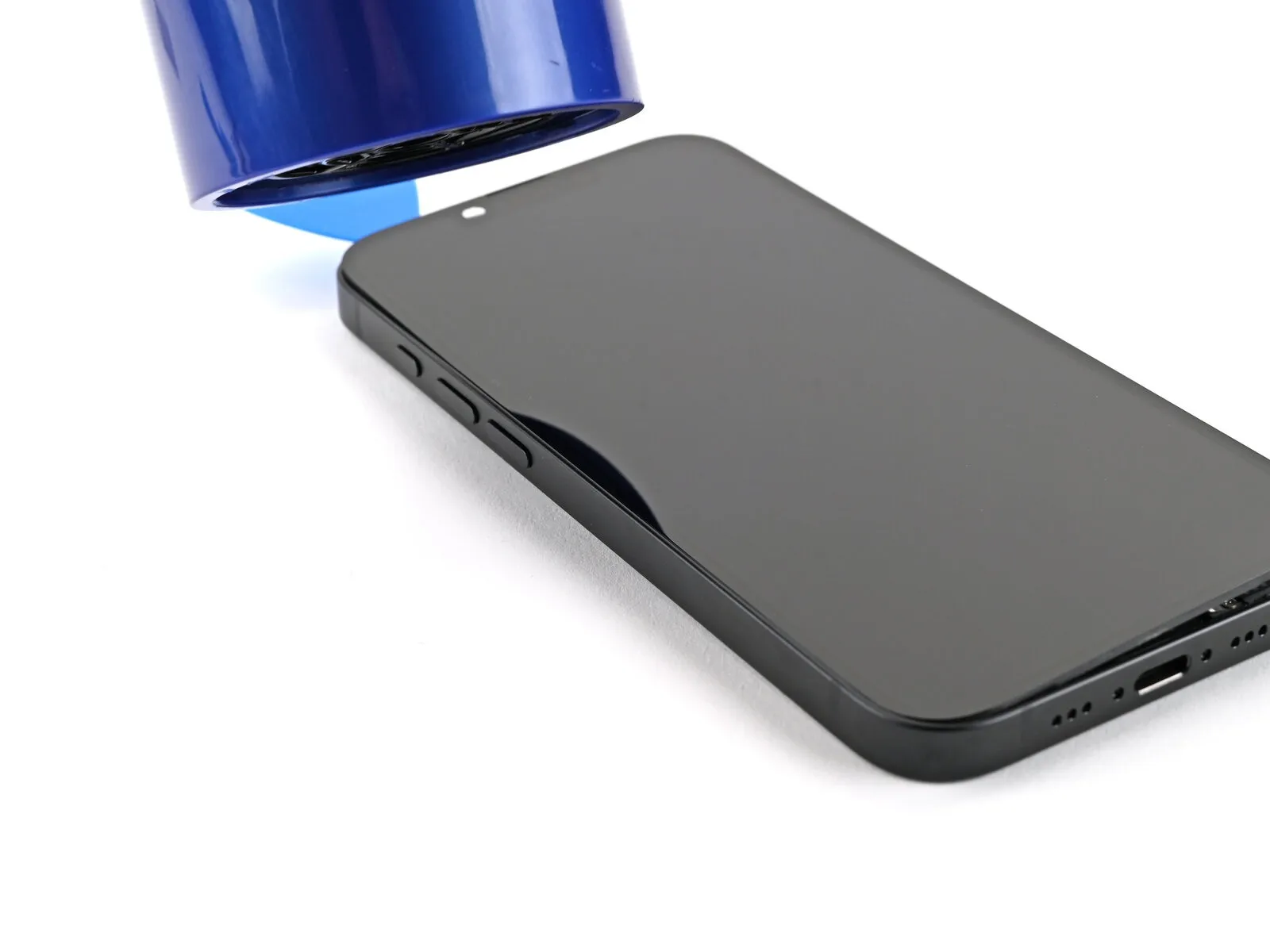

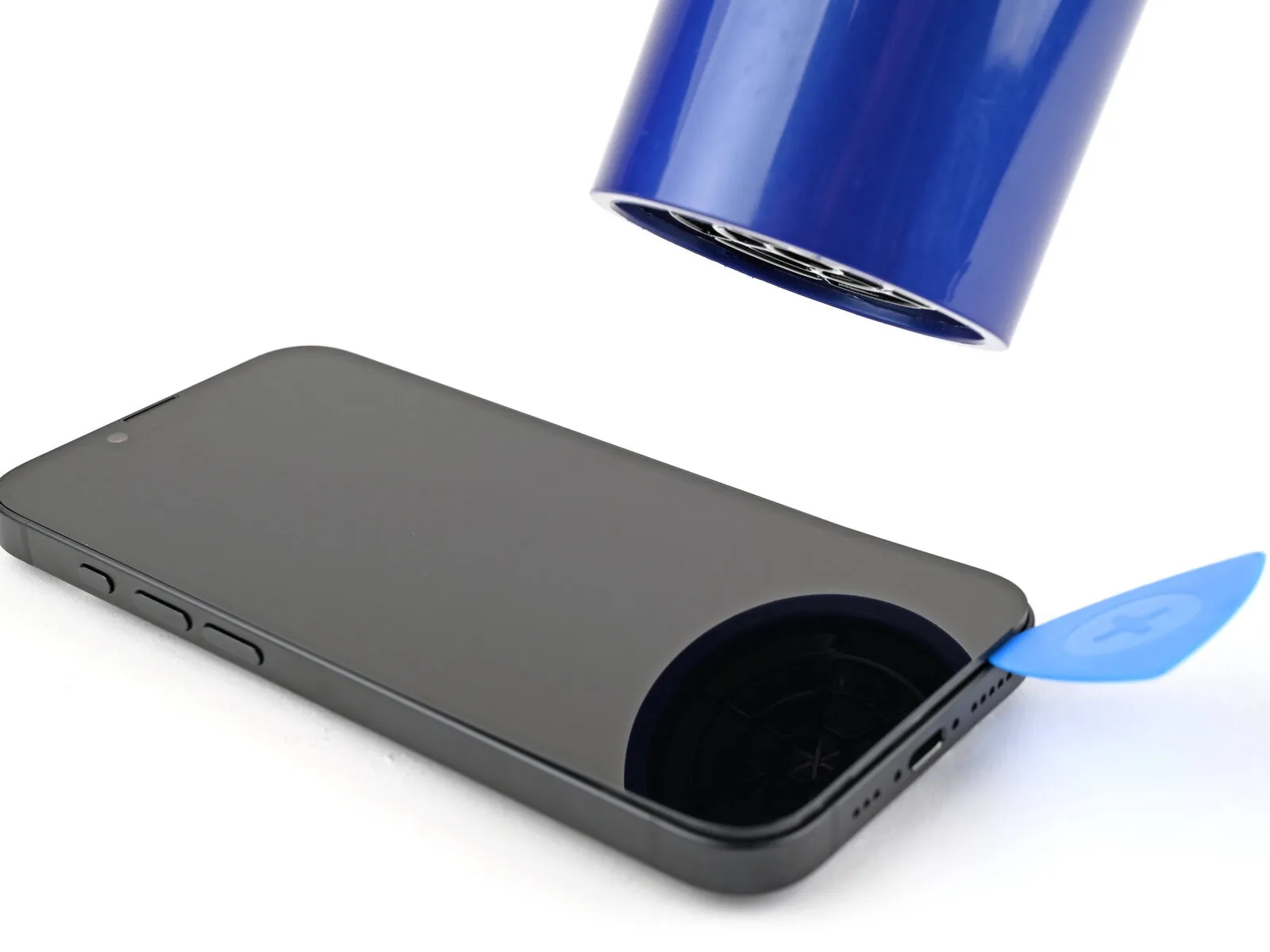

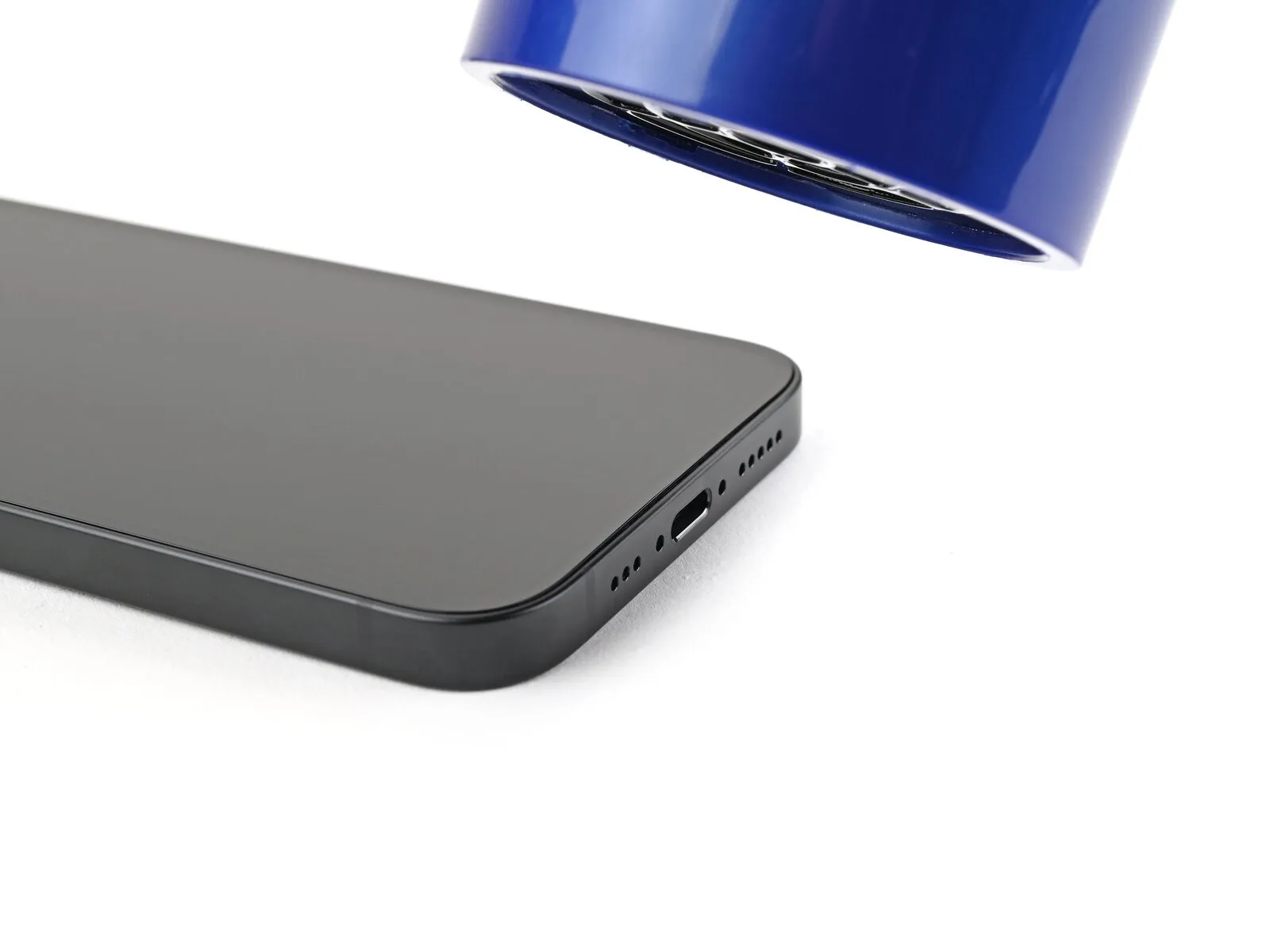

• Apply warmth to the screen's lower border utilizing a hair dryer or heat gun, continuing until the surface reaches a temperature that is noticeable upon contact.

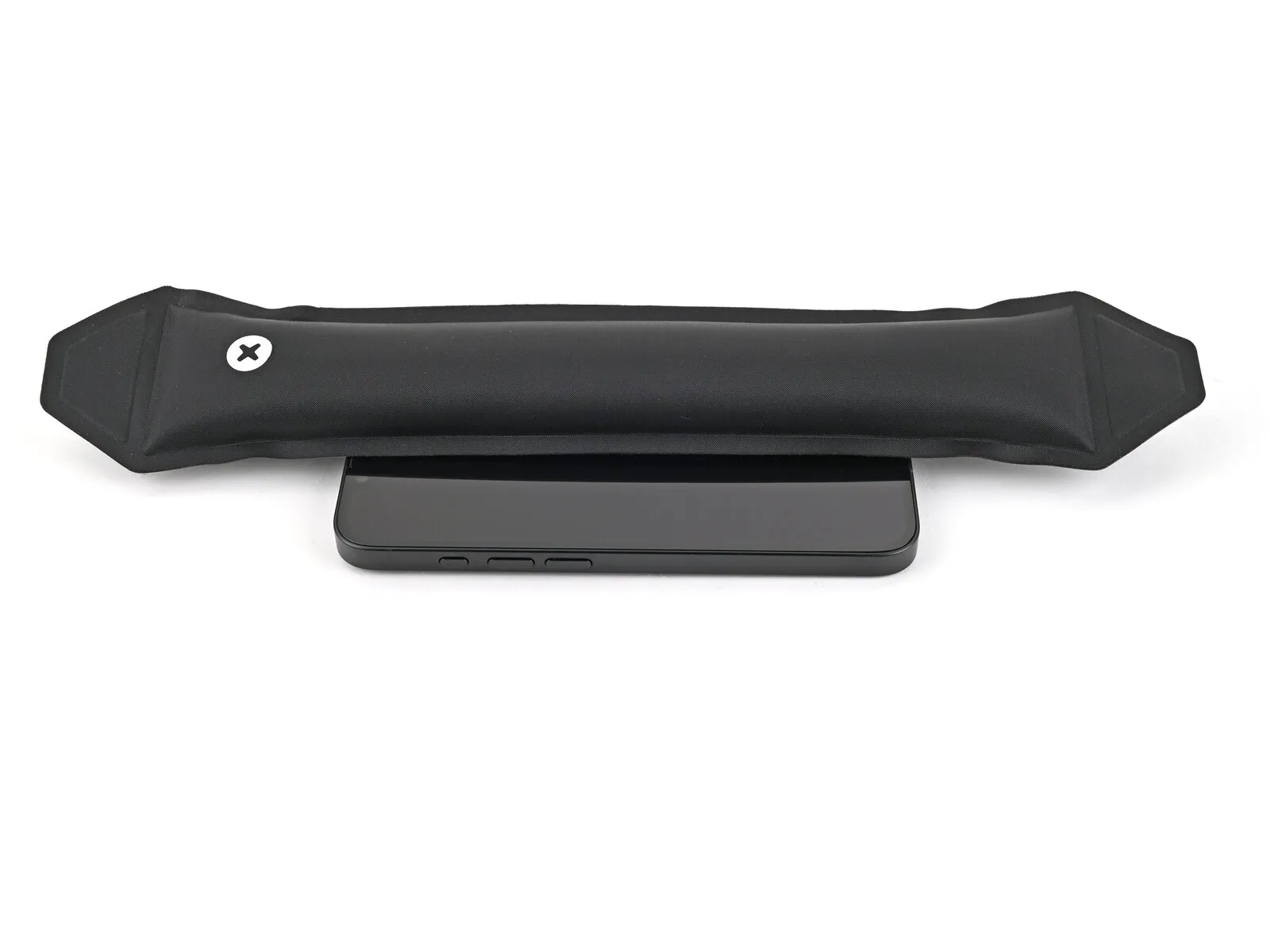

• Alternatively, an iOpener can be employed for heating; adhere to the subsequent guidelines to ensure appropriate warming and application of the device.

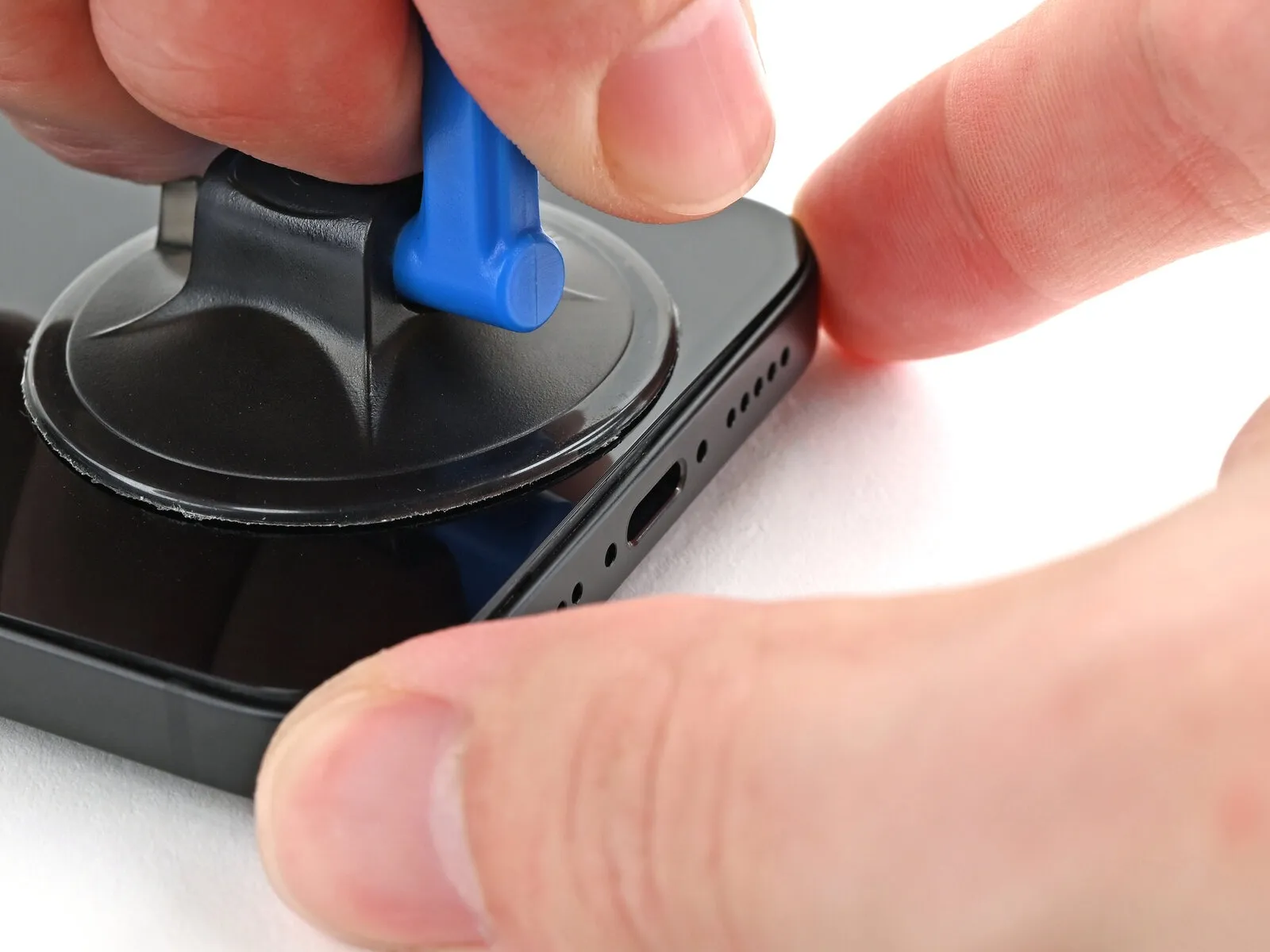

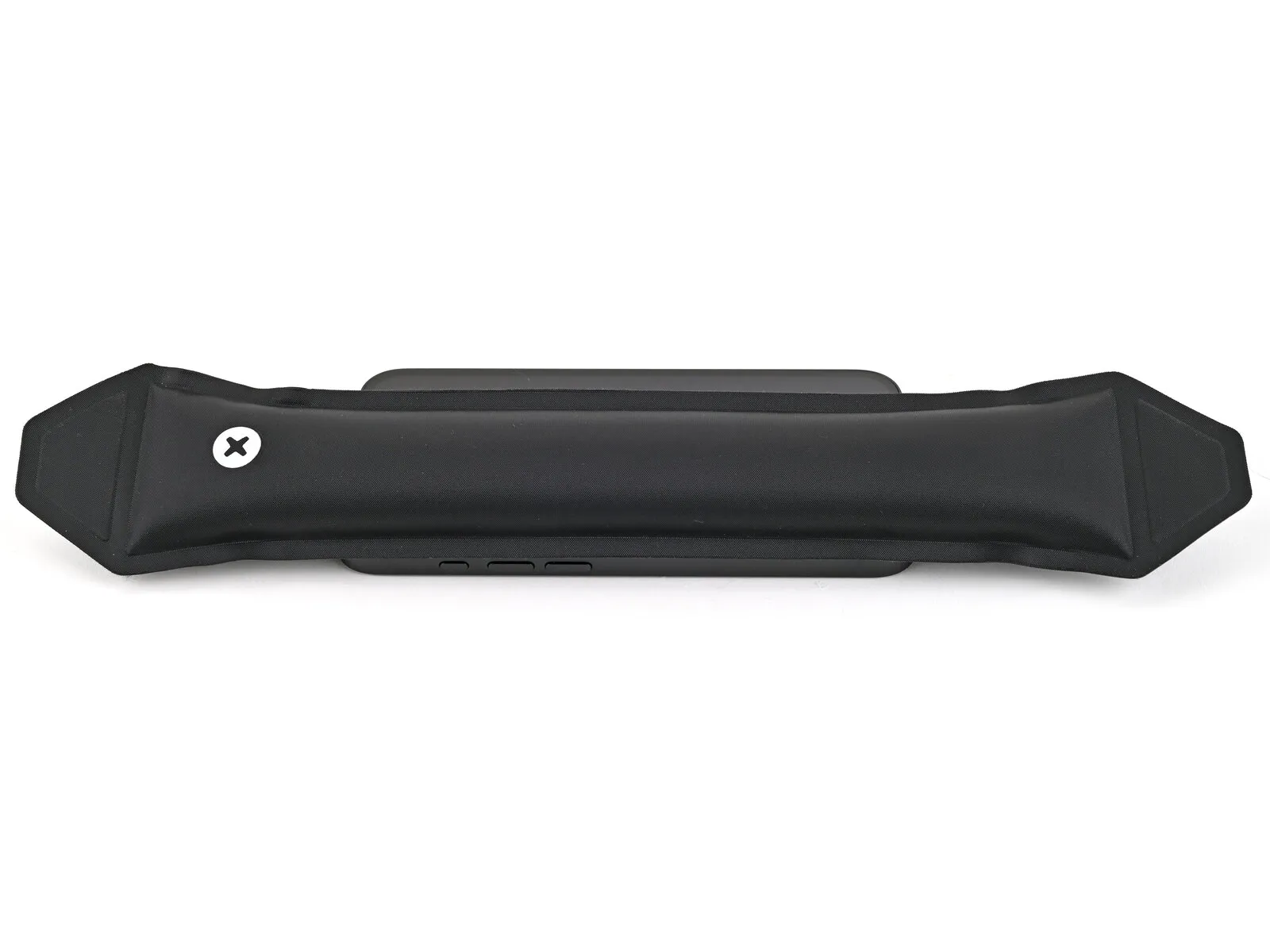

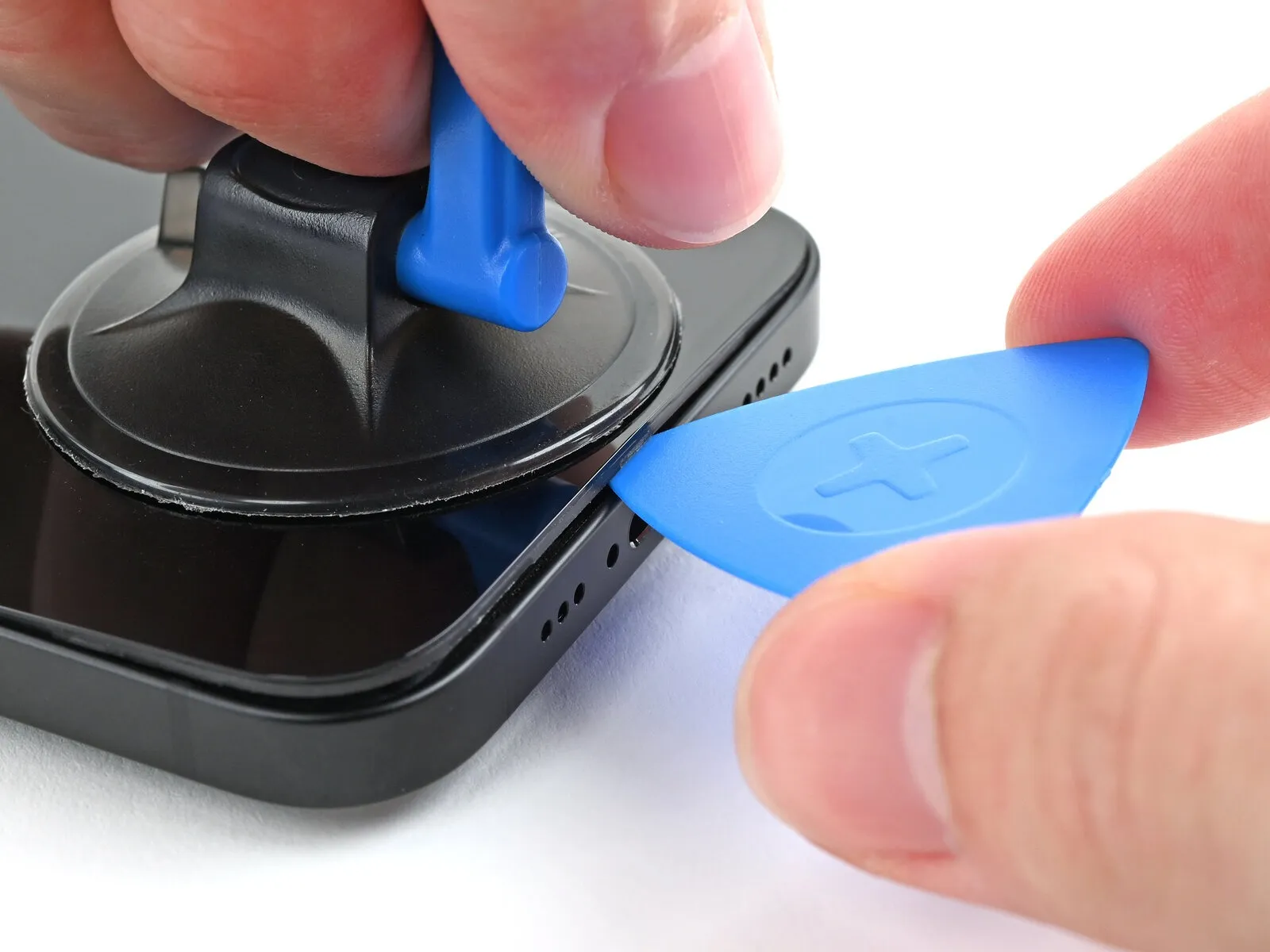

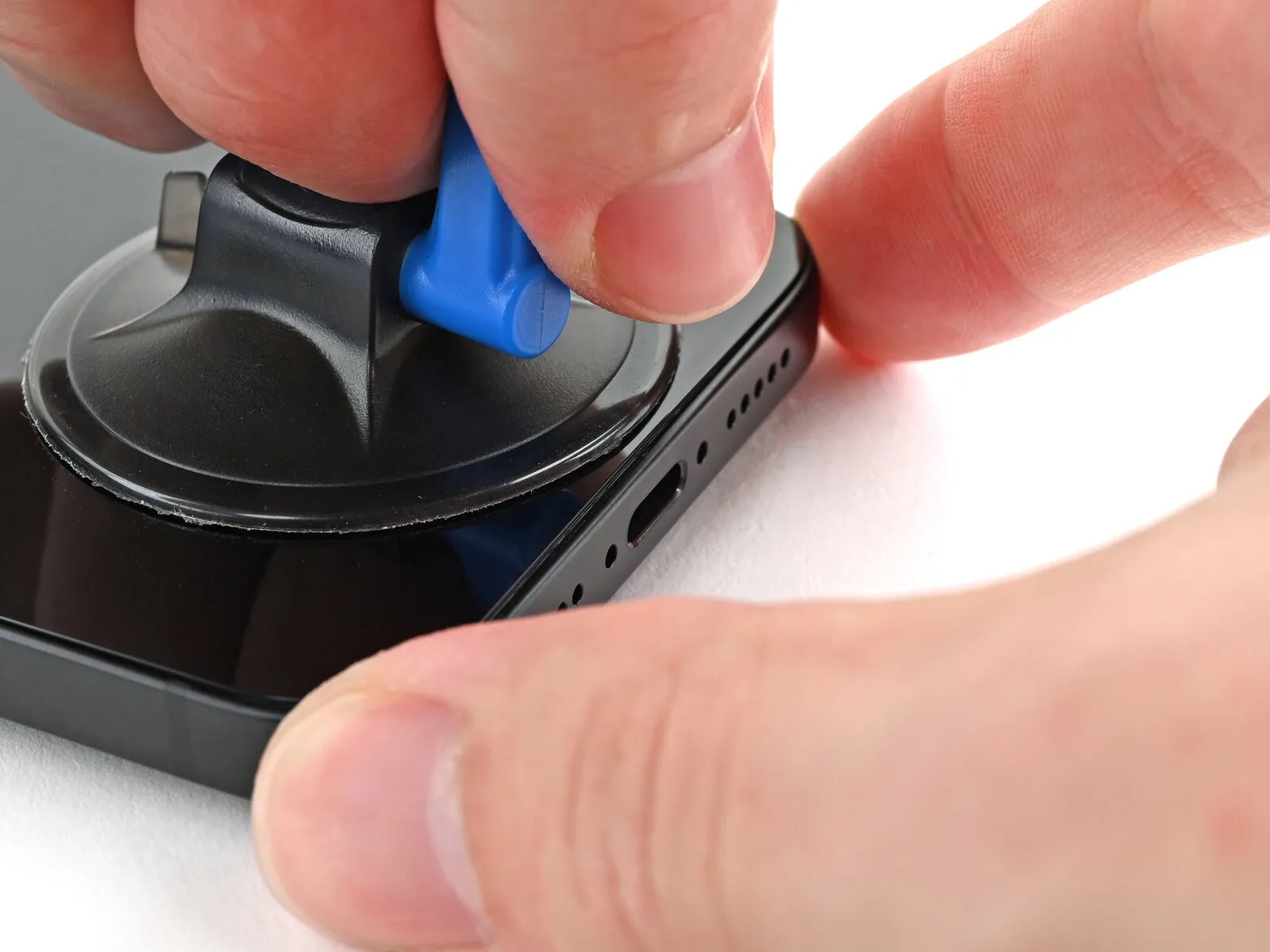

• Securely attach a suction handle to the lower portion of the screen's surface.
• Maintaining downward pressure on the device's frame, exert a firm, continuous upward pull on the suction handle to disengage the screen.

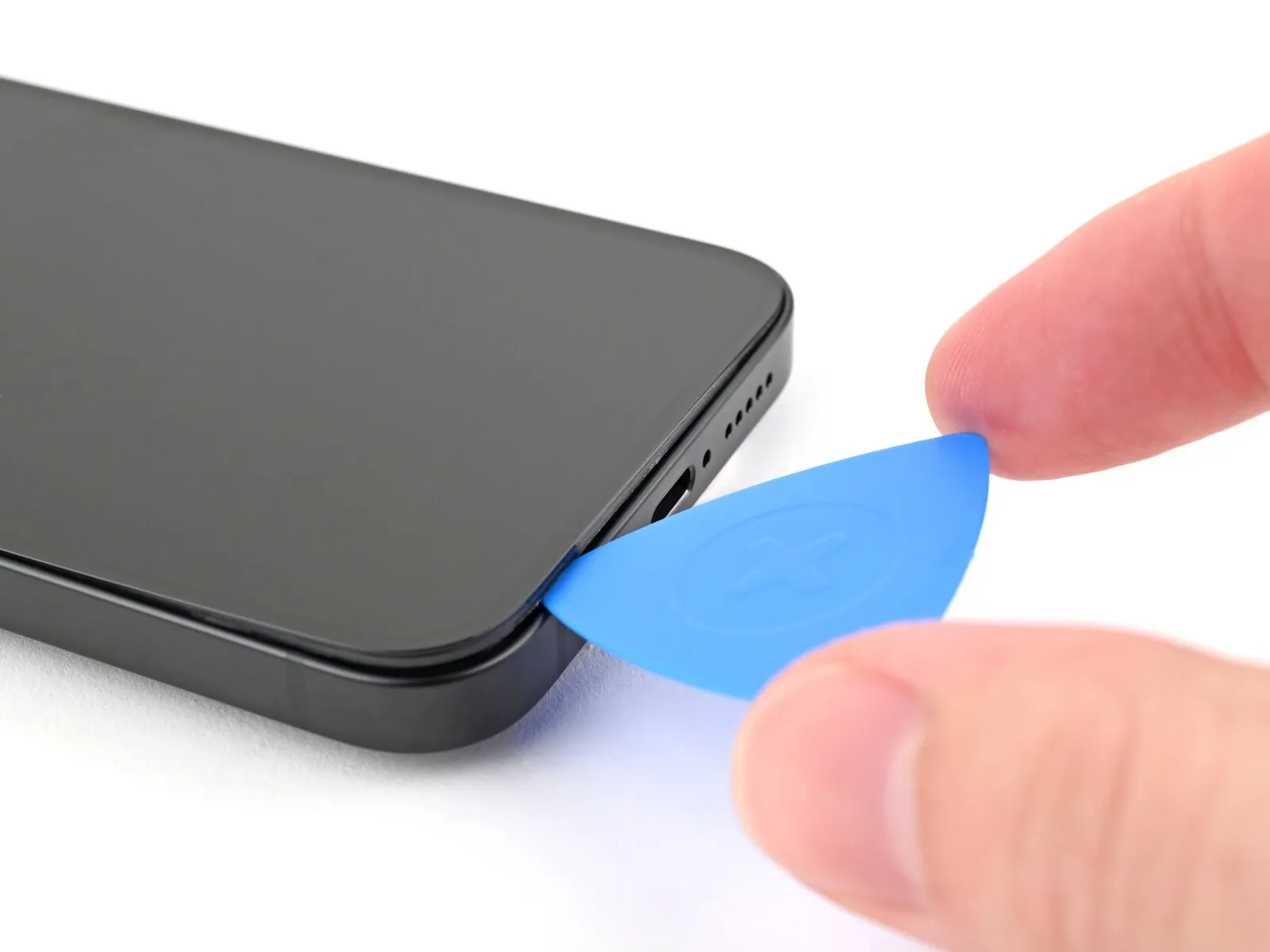

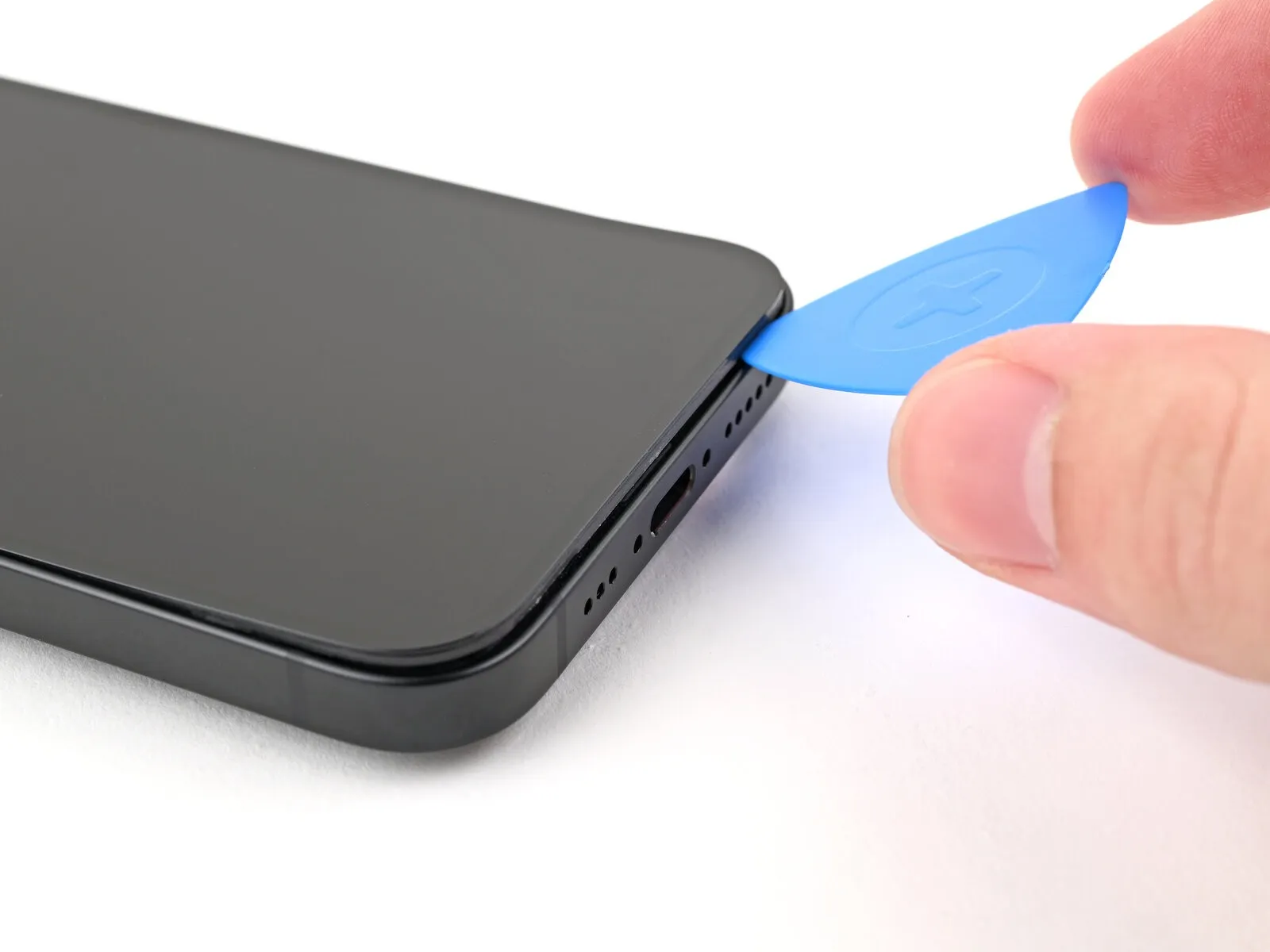

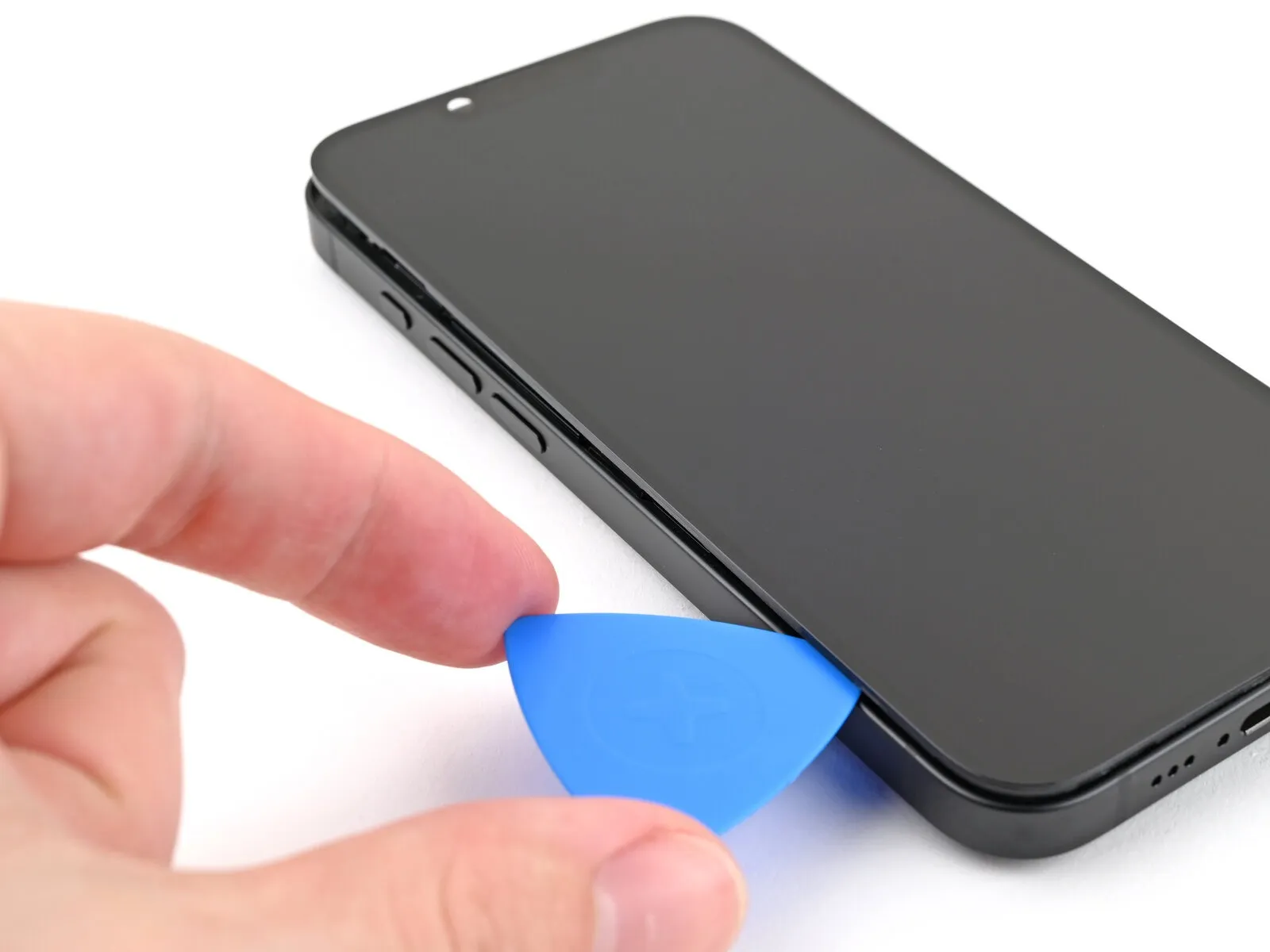

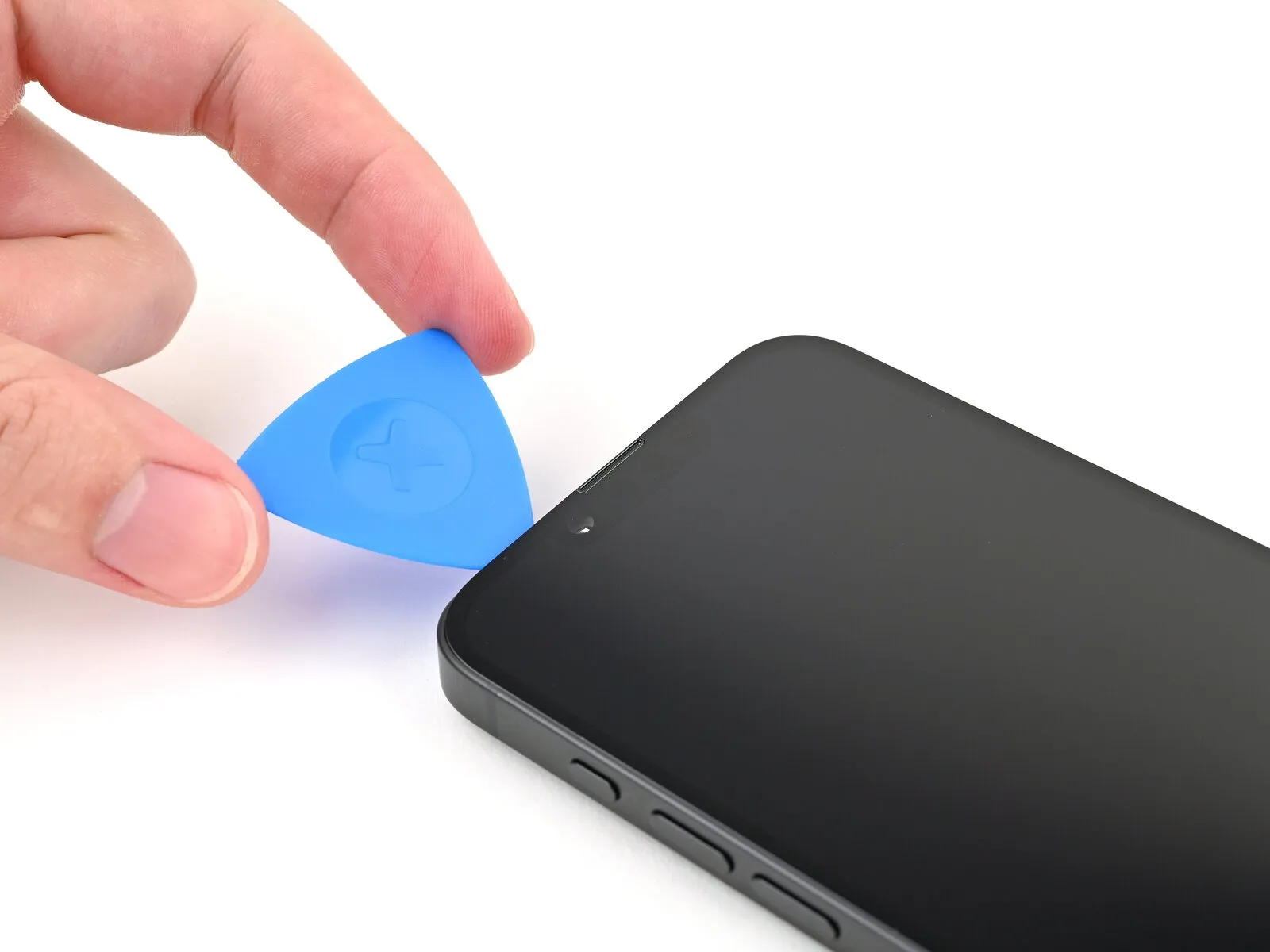

• Once a separation is achieved, carefully introduce the pointed end of an opening tool into the resulting space.

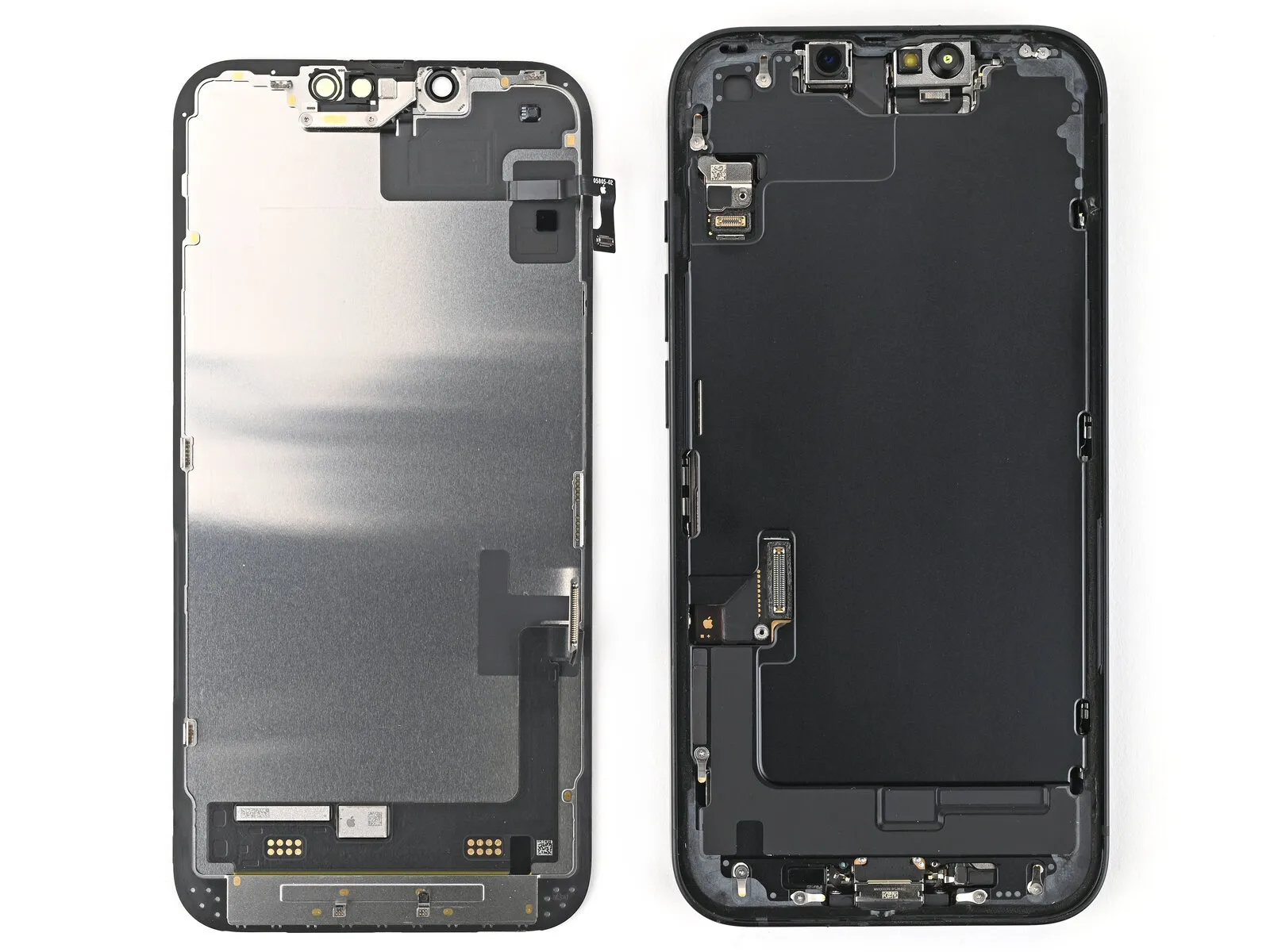

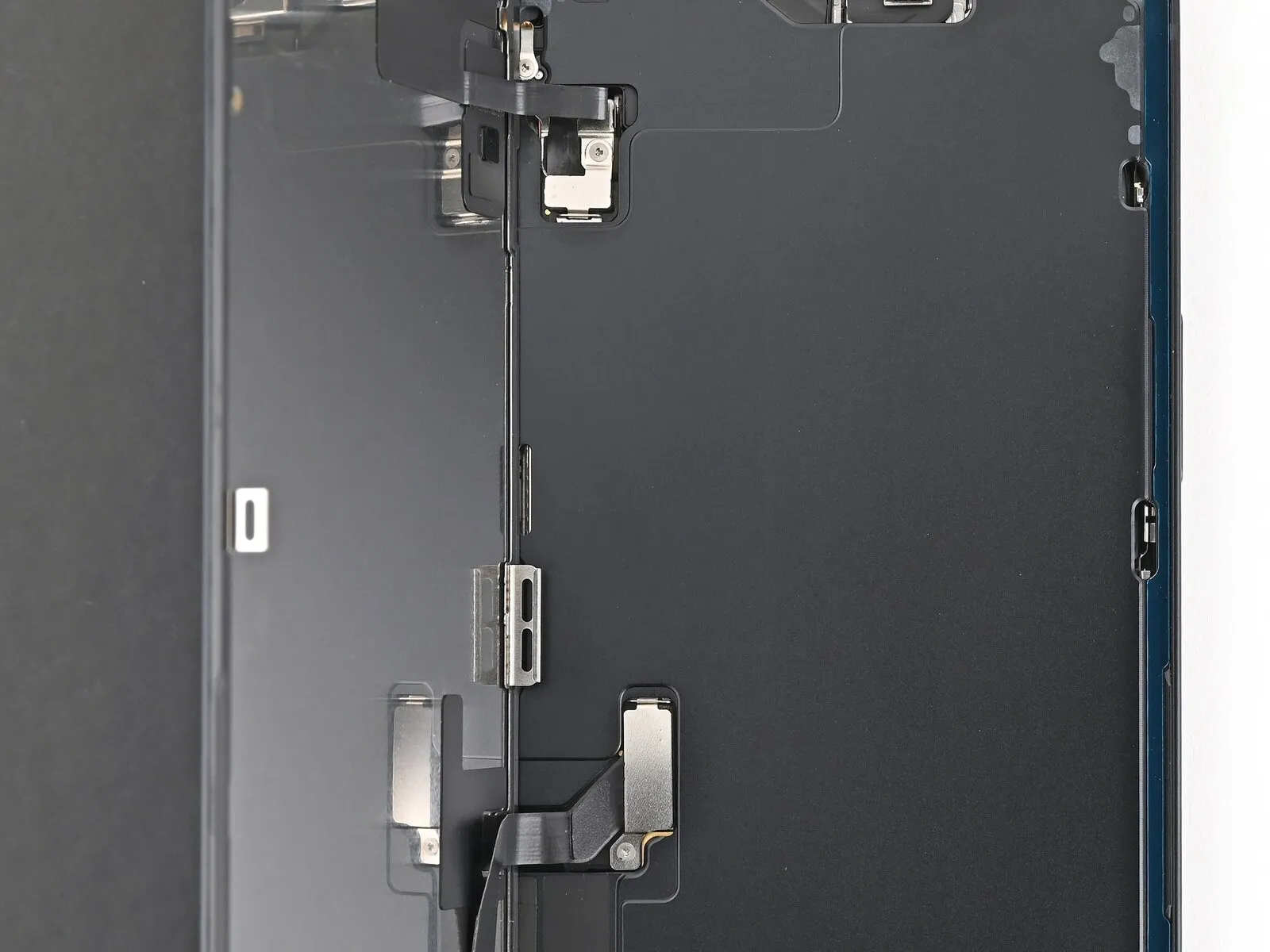

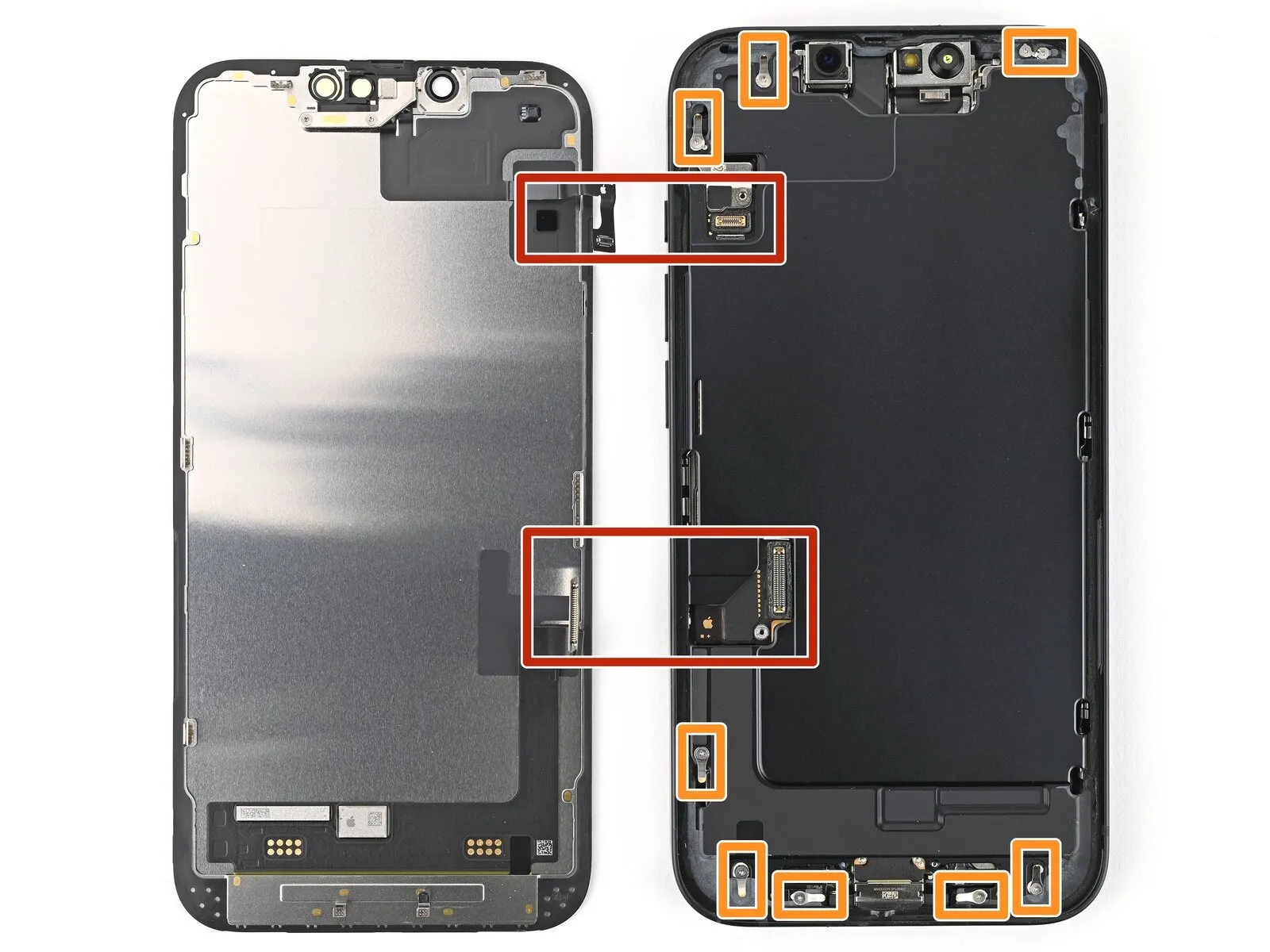

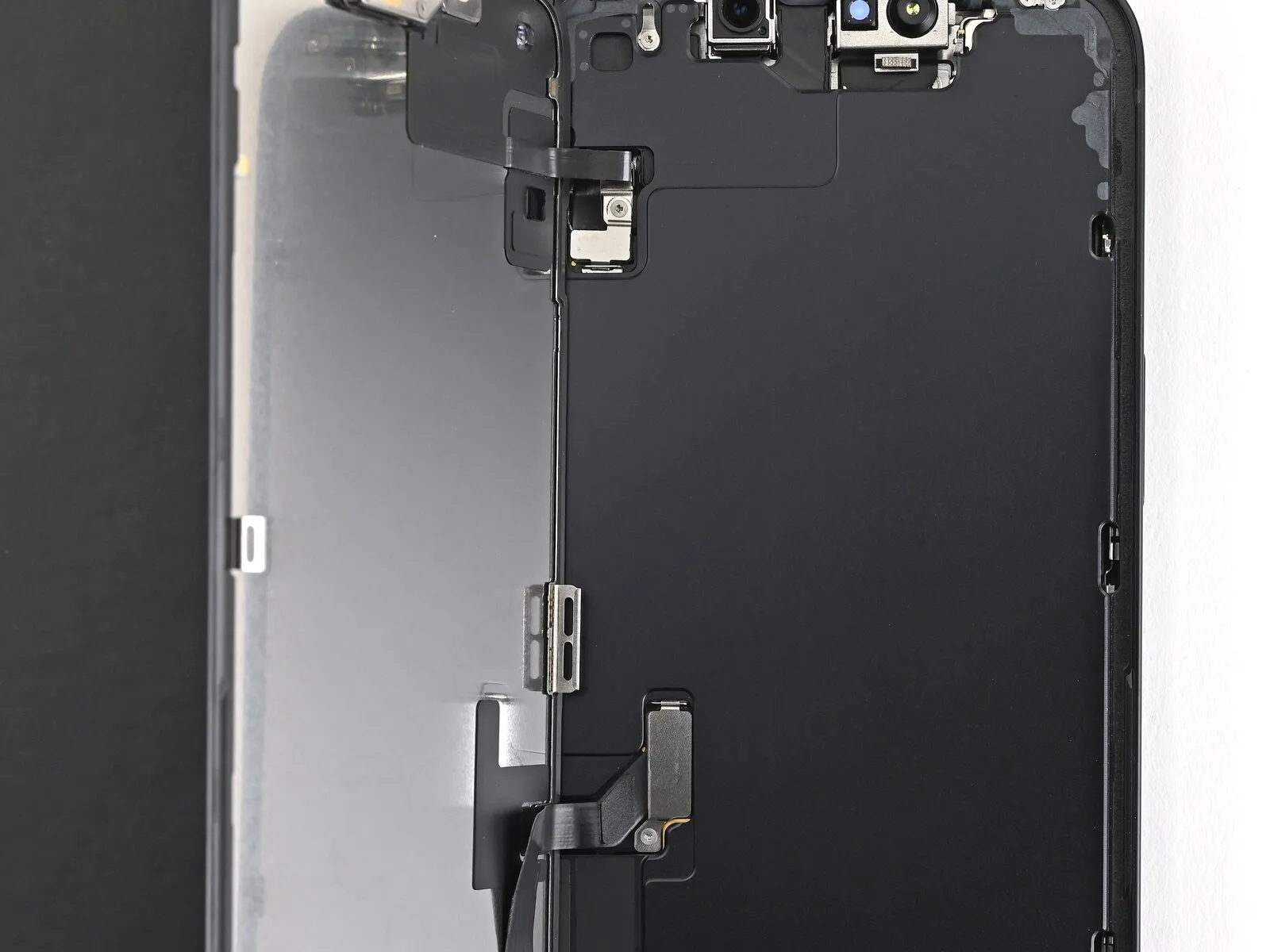

• The display assembly is connected via two flexible ribbon cables; one is situated near the Action button, while the other is located approximately midway between the volume down button and the device's lower edge.
• A series of spring-loaded electrical contacts are arranged along the phone's outer edge.

• Employ an opening pick to carefully work around the screen's lower-right corner, continuing upwards along the right edge, to sever the adhesive bond.The metal clip securing the display will detach as the adhesive is separated, a process accompanied by an audible and tactile indication.
• A distinct click and slight movement will signal the metal clip's disengagement from its position.

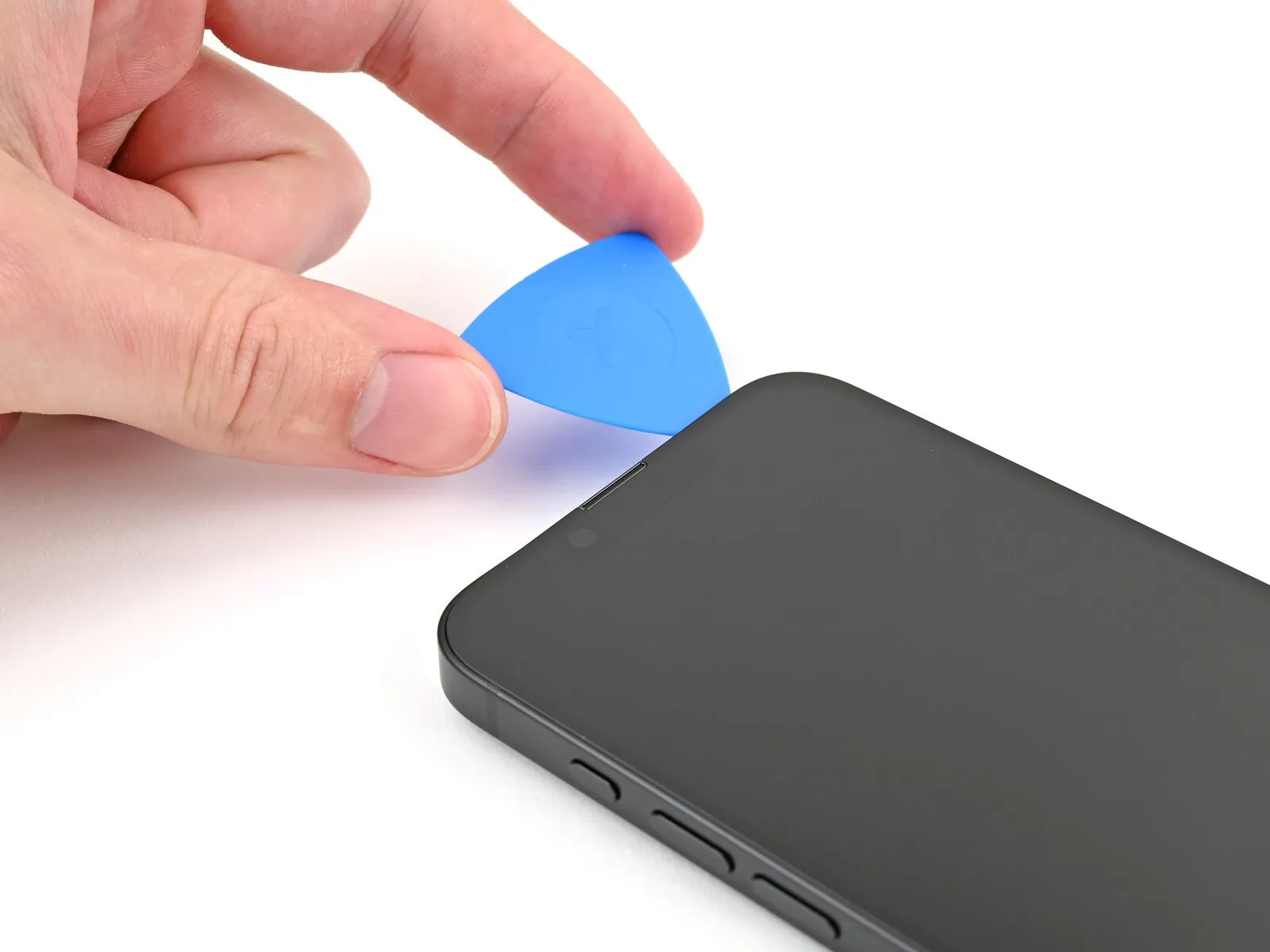

• Proceed with the pick, maneuvering along the upper-right corner and extending across the top surface to sever the adhesive bond.
• This action will facilitate the detachment of the two metal clips.

• Apply warmth to the screen's left border, ensuring it reaches a temperature that is noticeably hot upon contact.

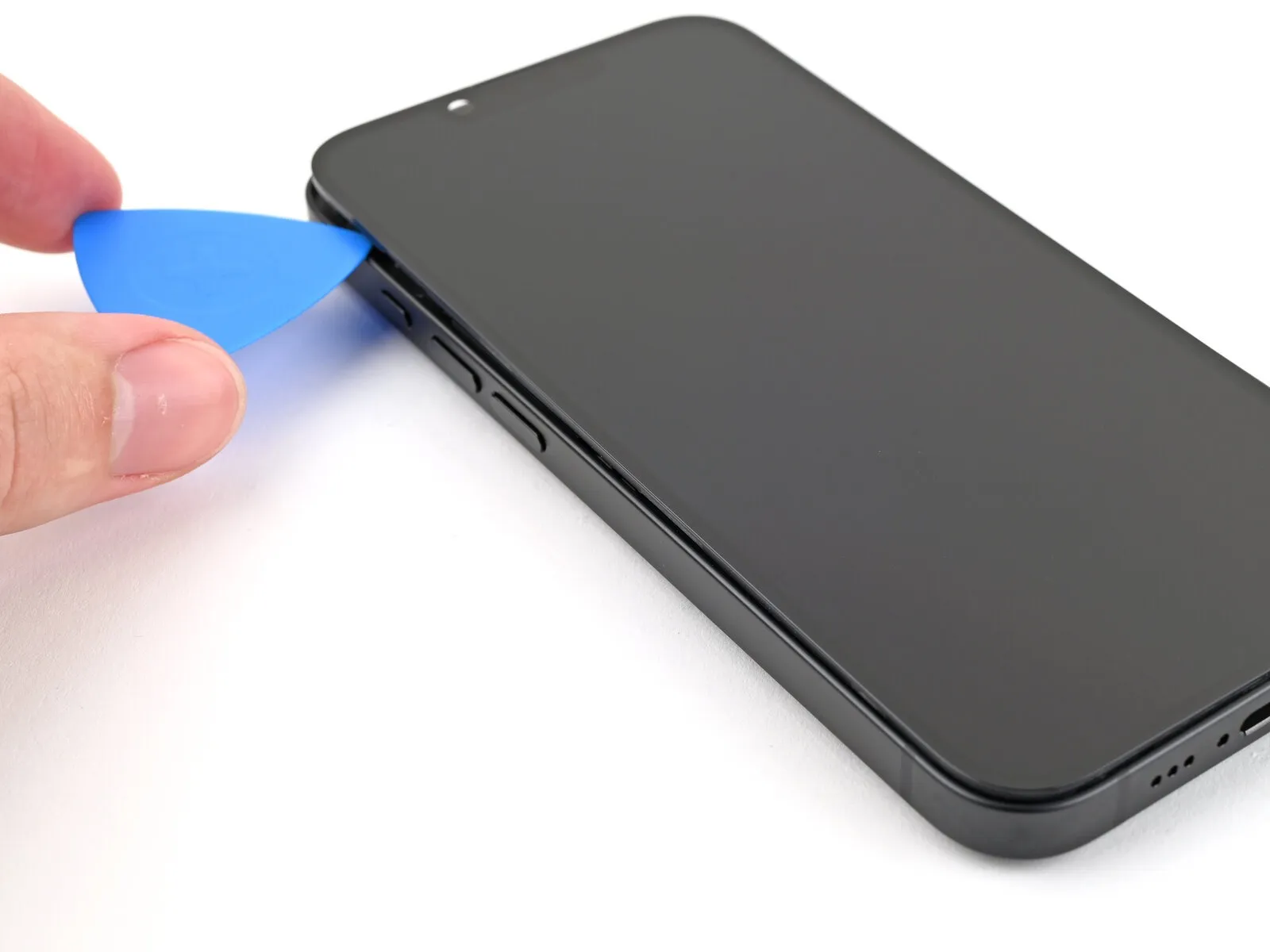

• To detach the final two metal clips and loosen the remaining adhesive, insert a separating tool along the left screen edge and maneuver it downwards.

Ensure the display panel is completely detached from its surrounding frame; should resistance be encountered, re-examine the edges using a prying tool to identify and release any remaining adhesive or secured fasteners.

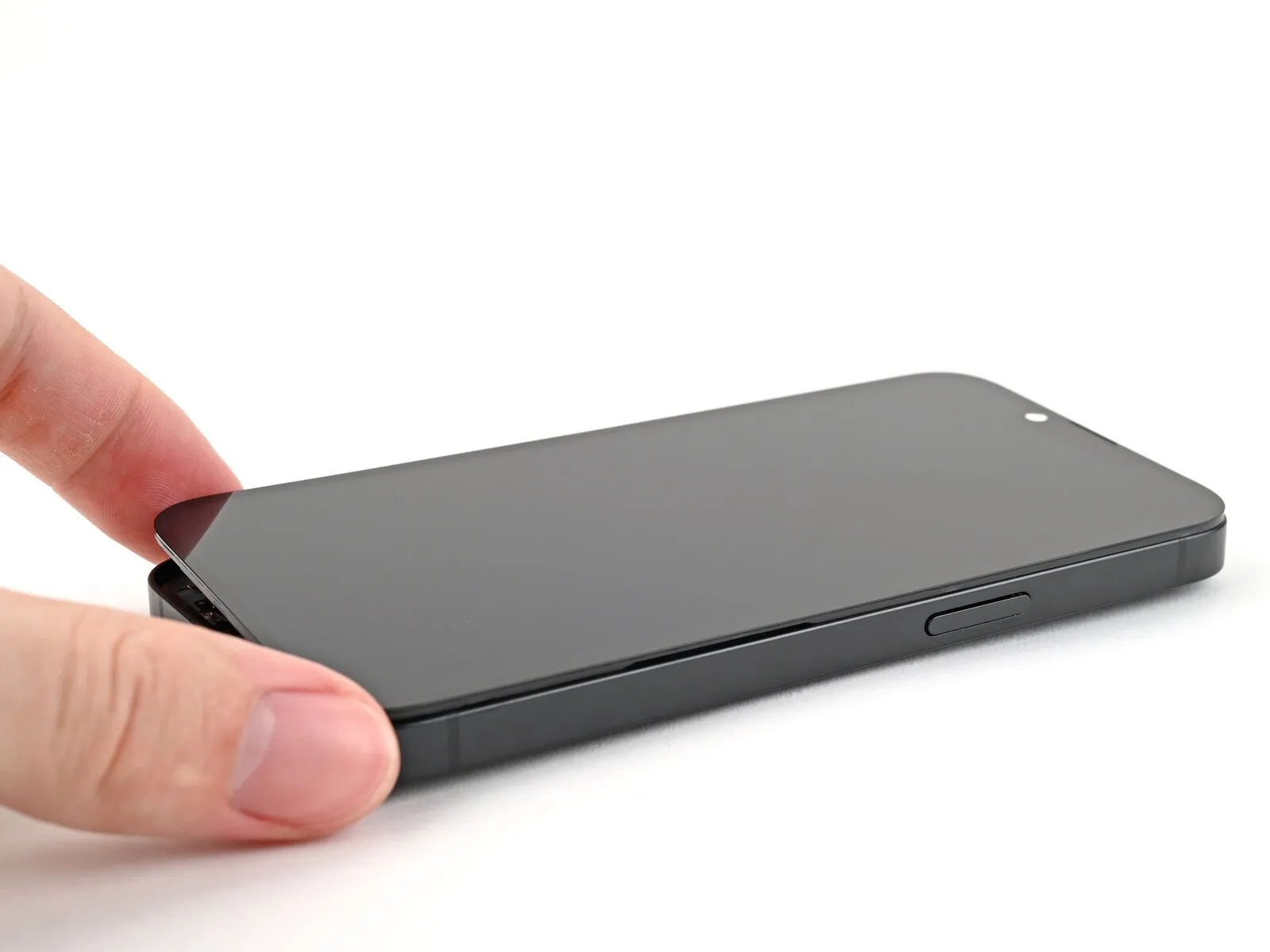

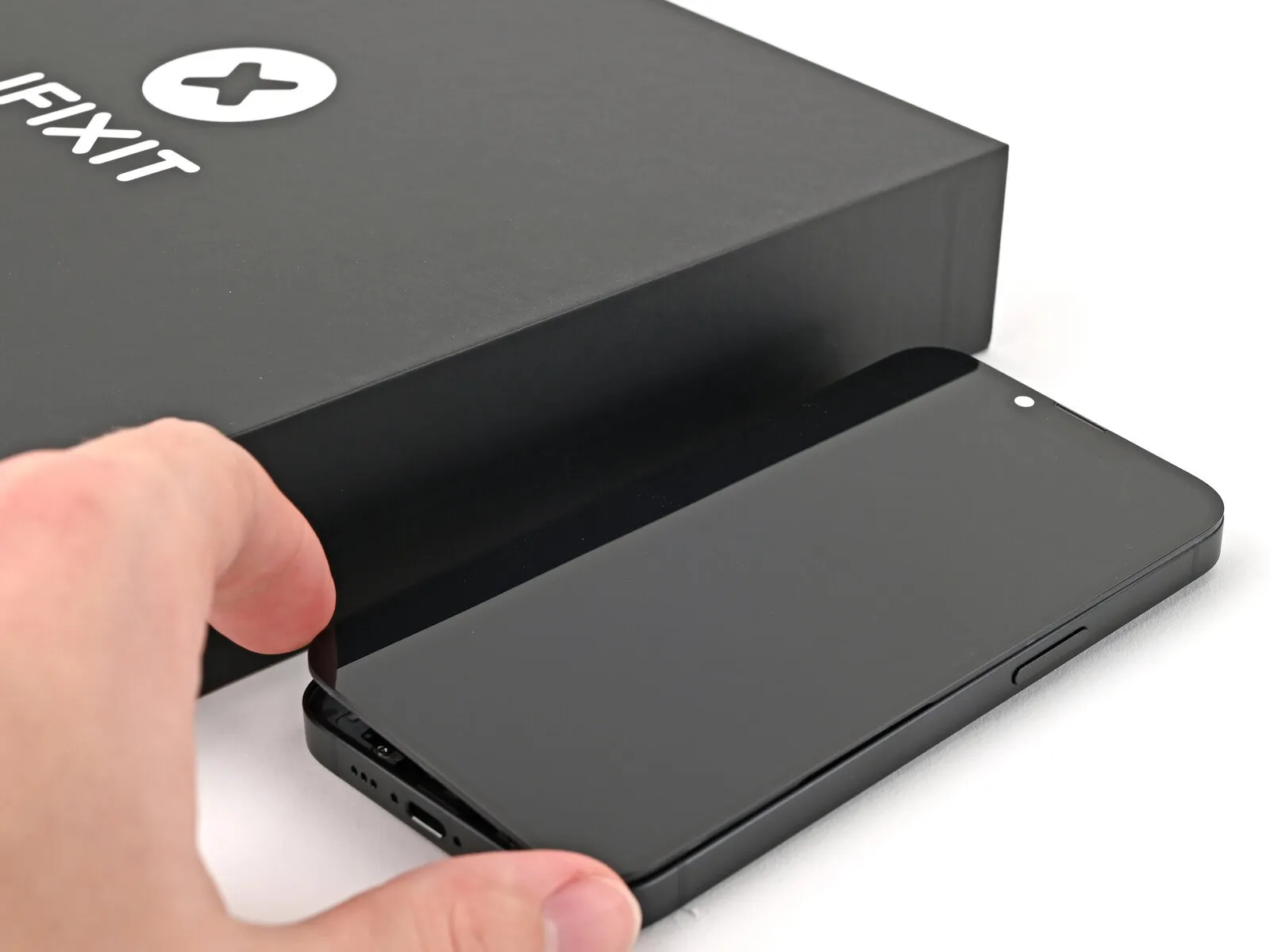

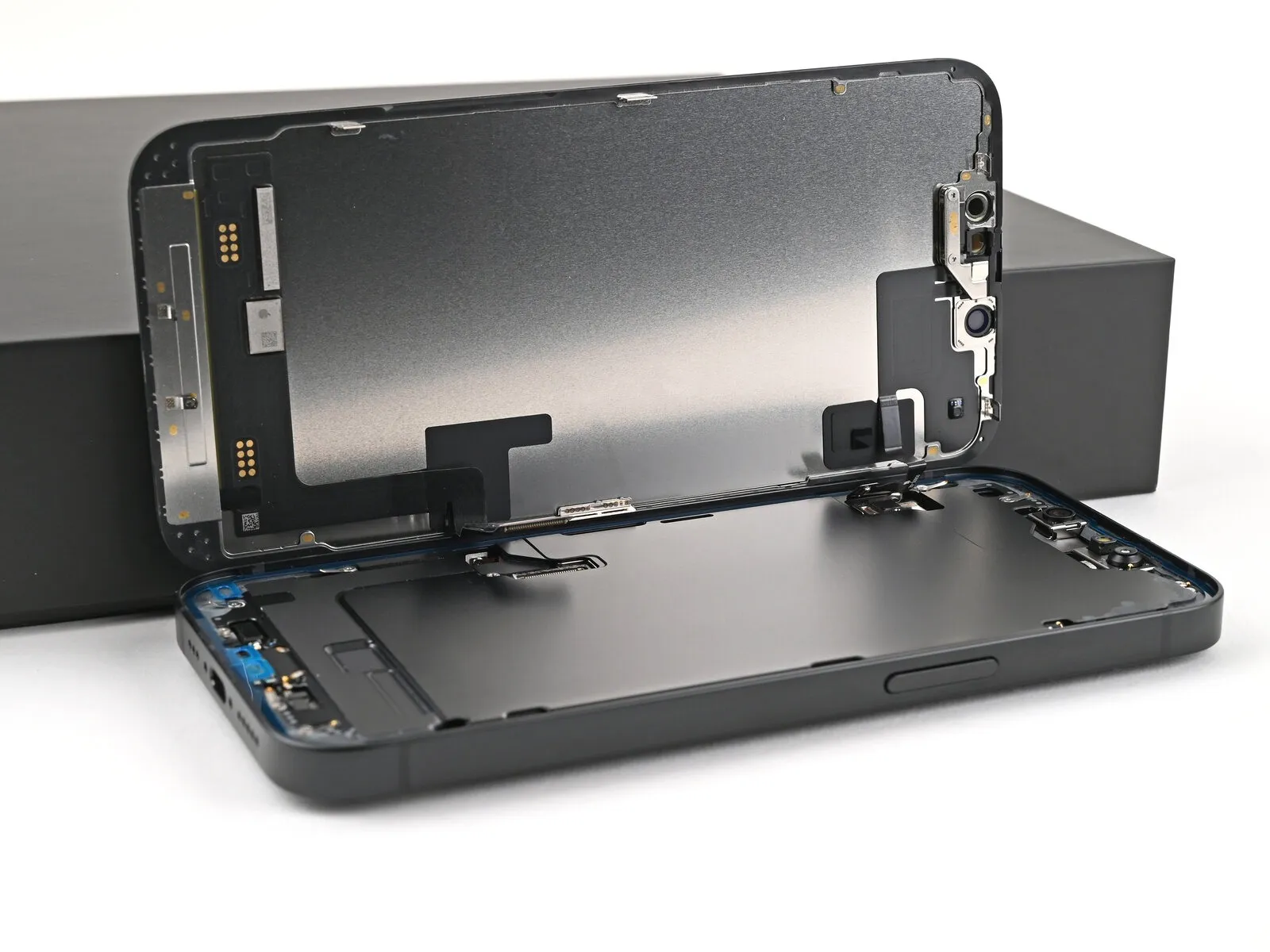

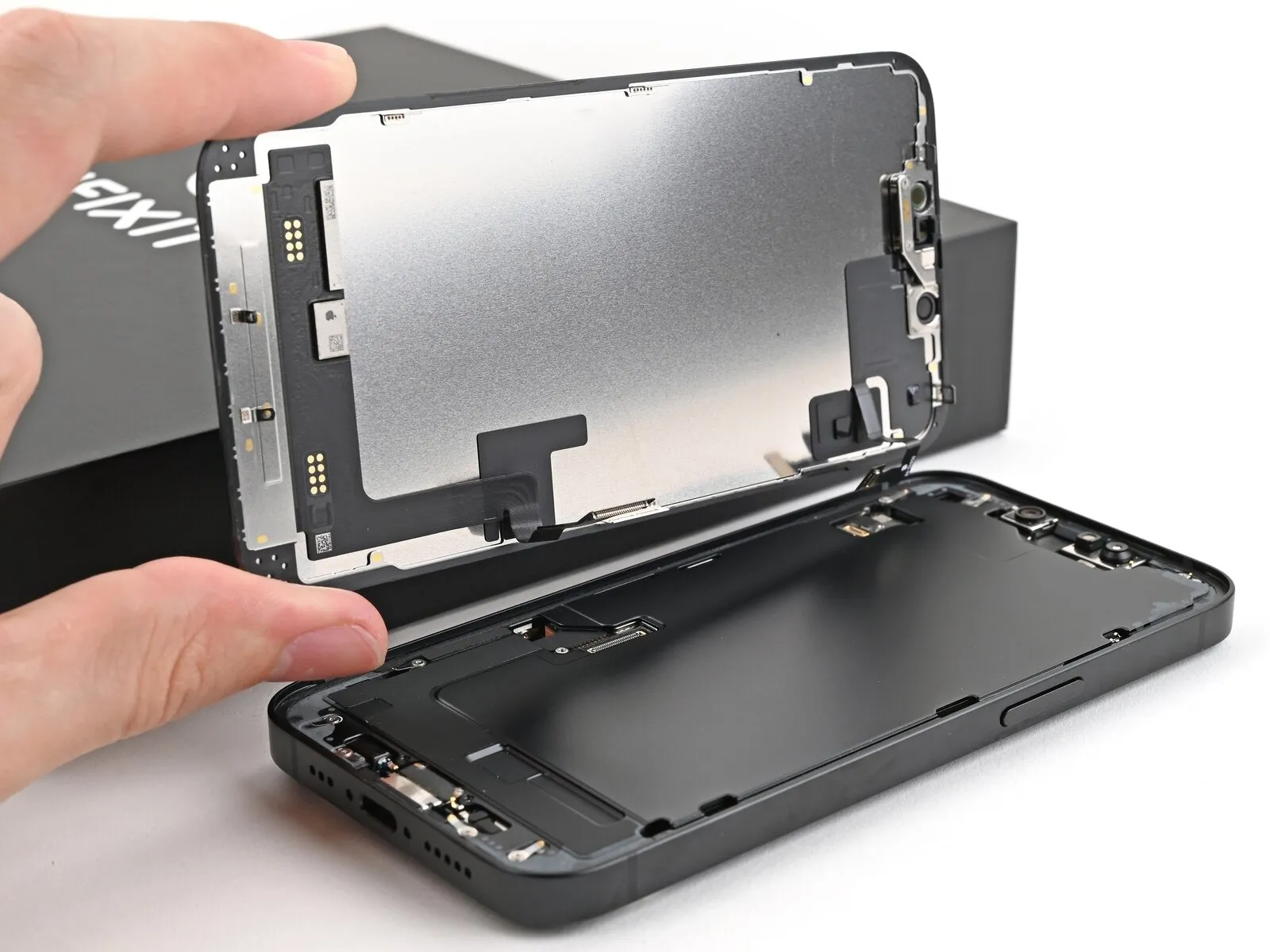

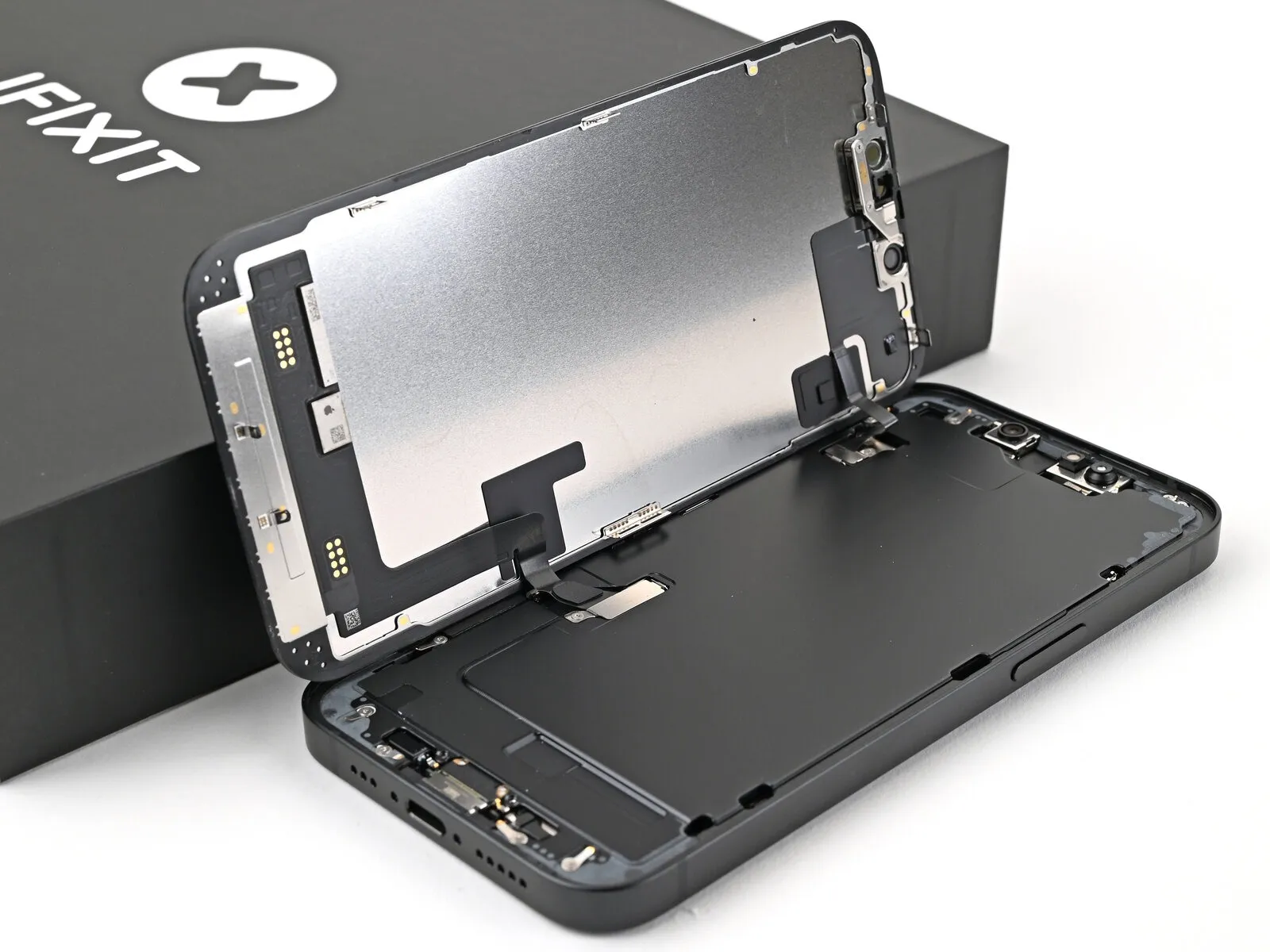

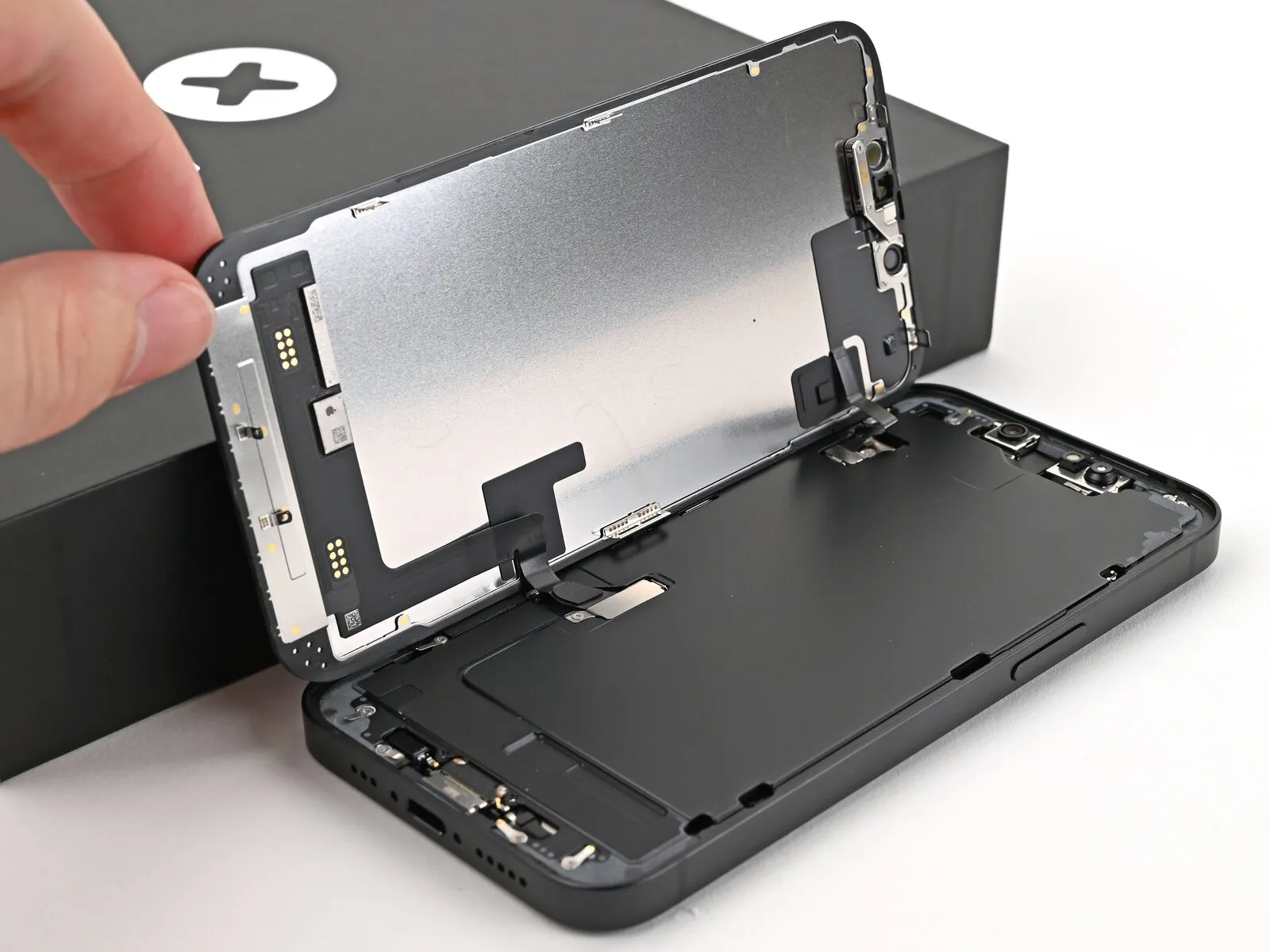

Carefully pivot the display assembly upwards and over the left side of the device, providing stable support with a rigid, non-abrasive surface.

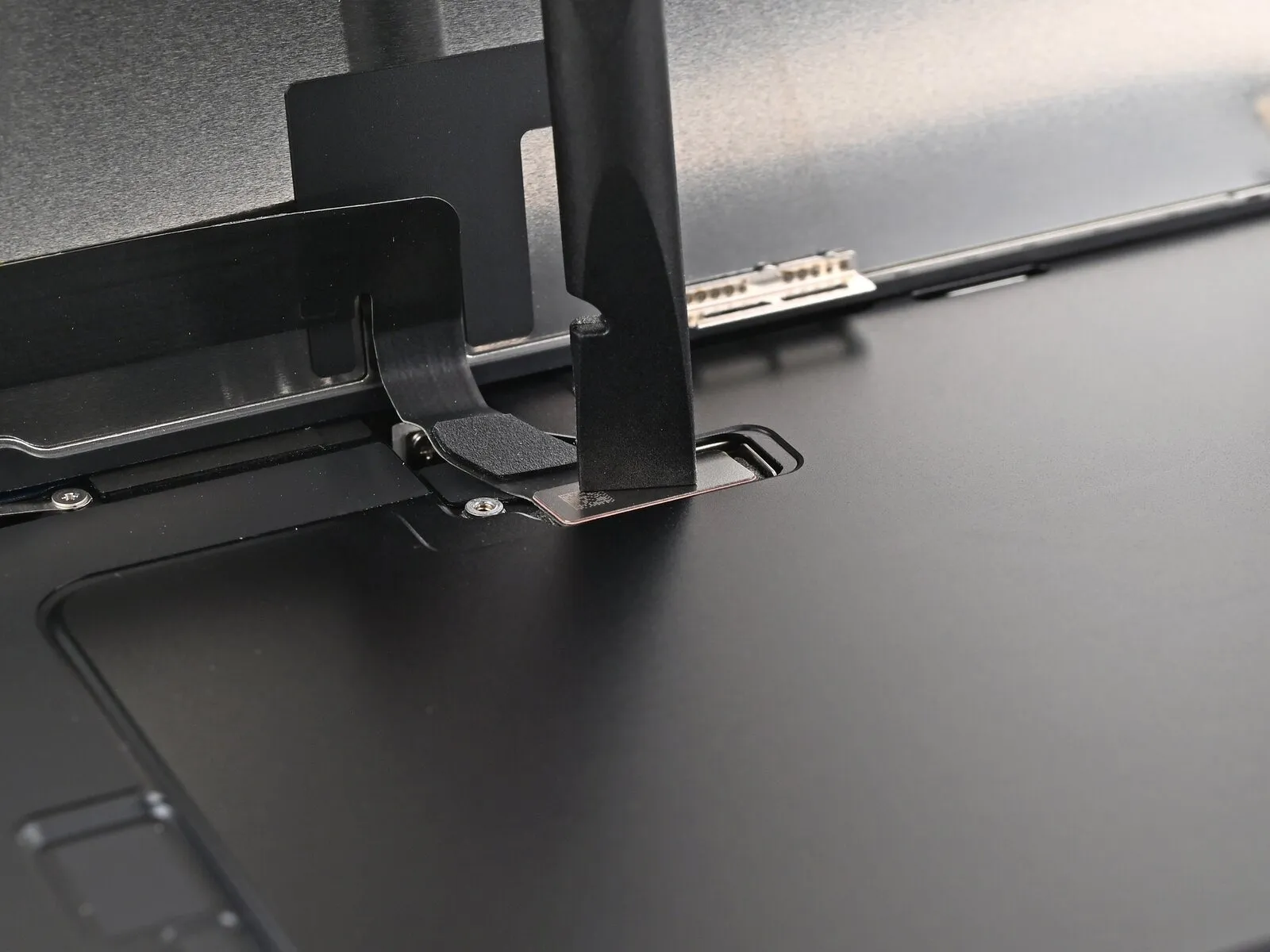

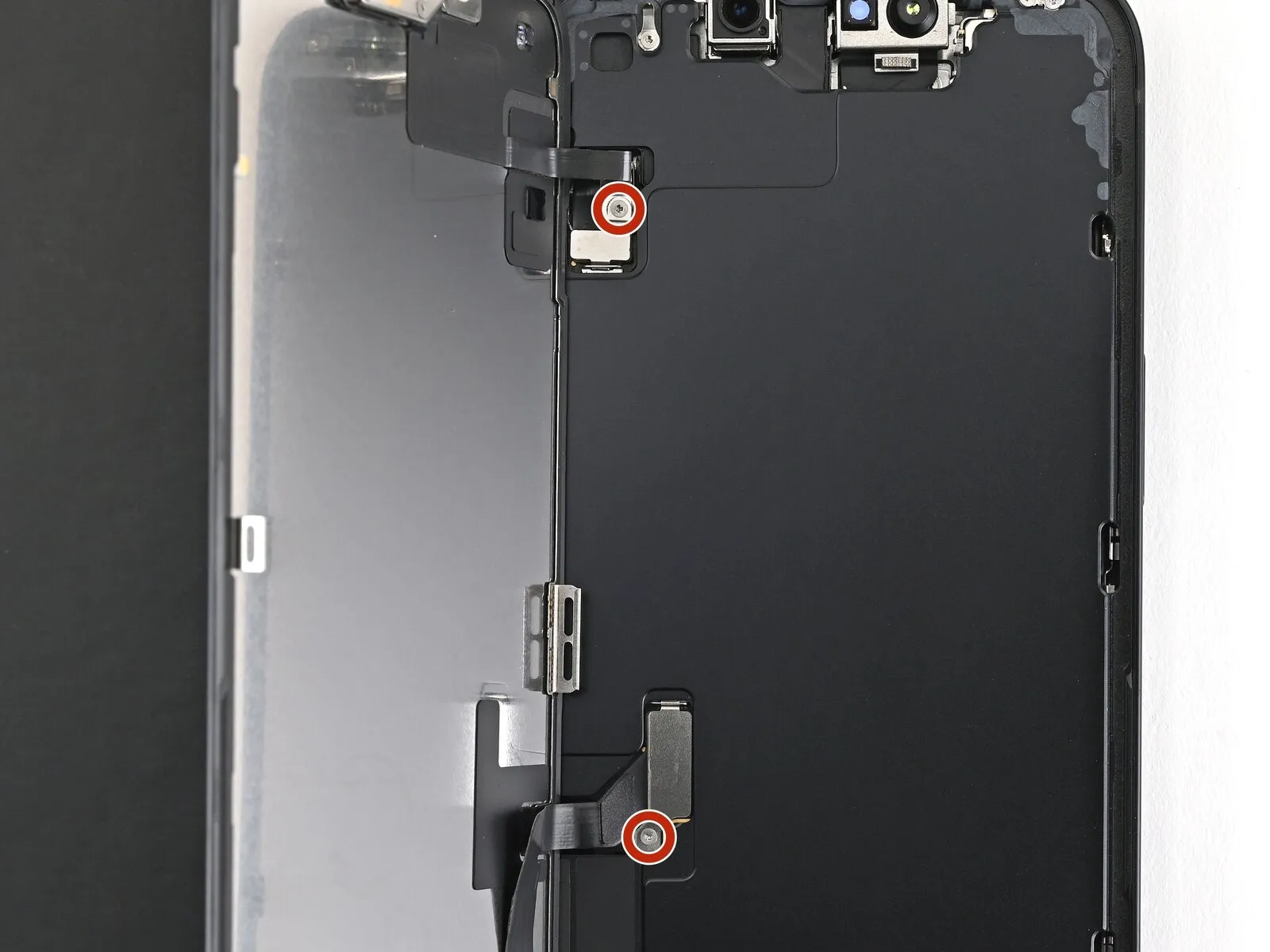

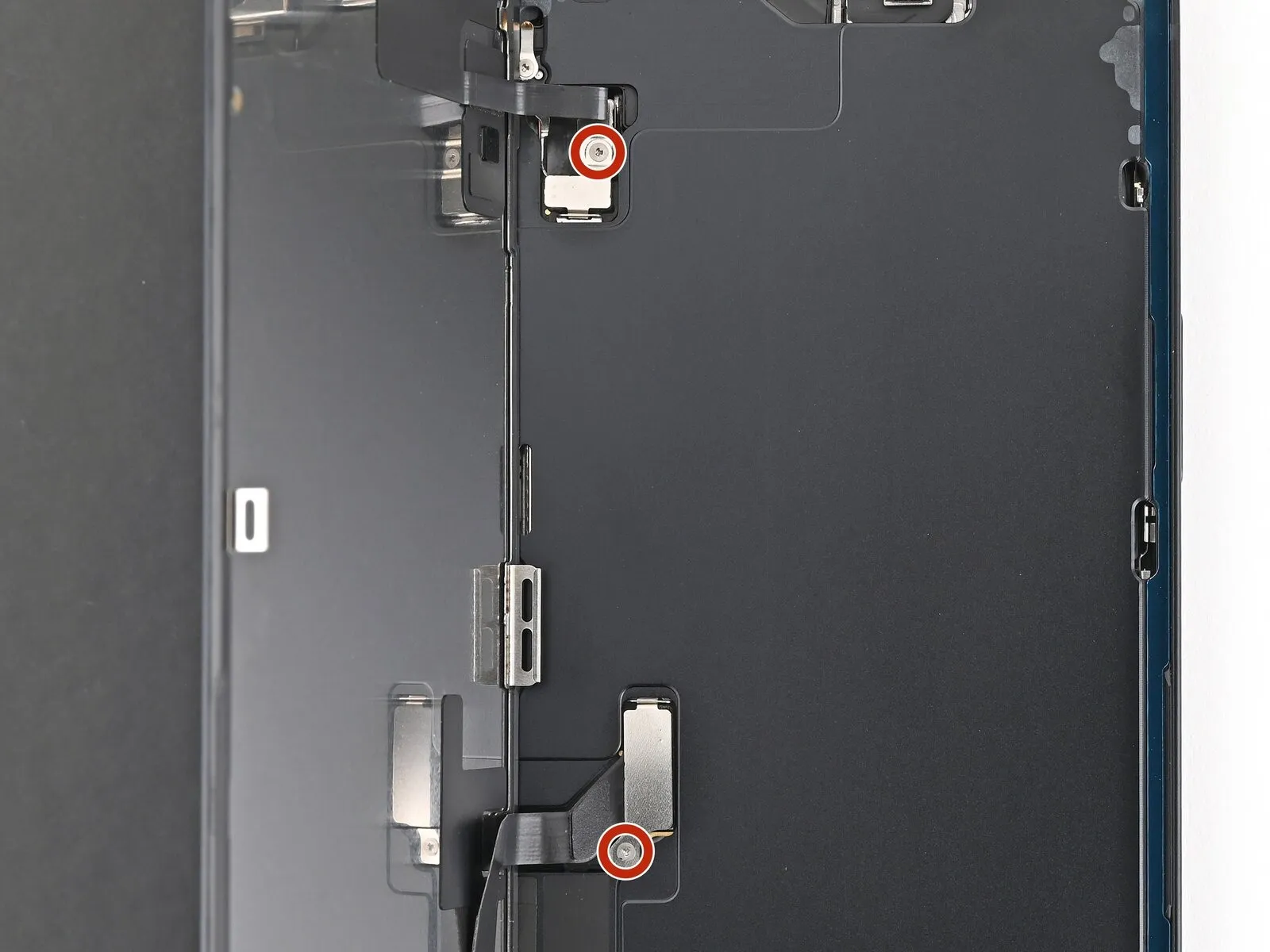

Employ a specialized tri-point screwdriver, specifically a Y000, for disassembly.The fasteners involved are two screws, each measuring 0.9 millimeters in length.These screws serve to secure the protective covers positioned over the front sensor connector.Additionally, the same screws also secure the protective cover for the screen connector.Careful removal of these screws is necessary to access the connectors.

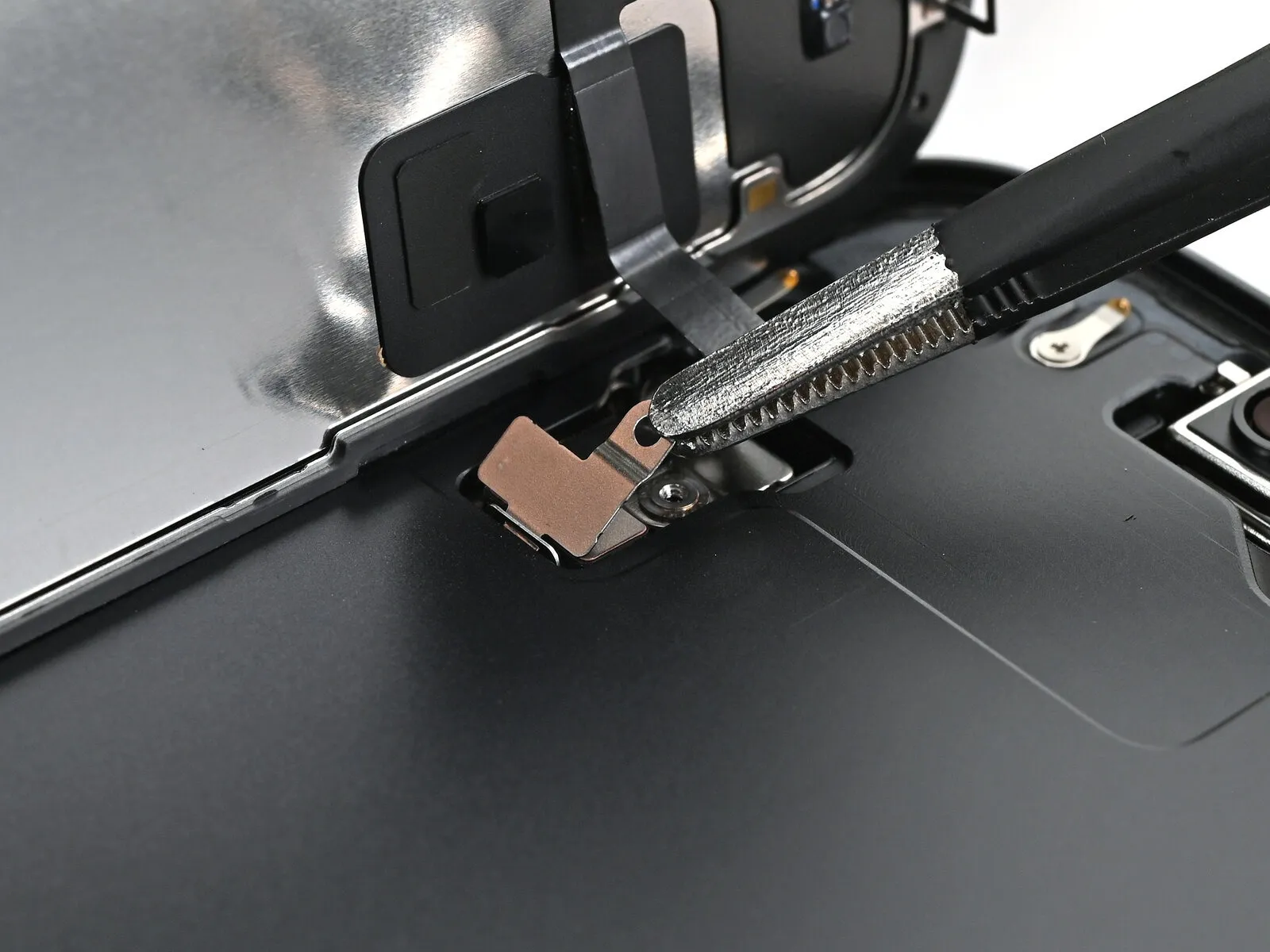

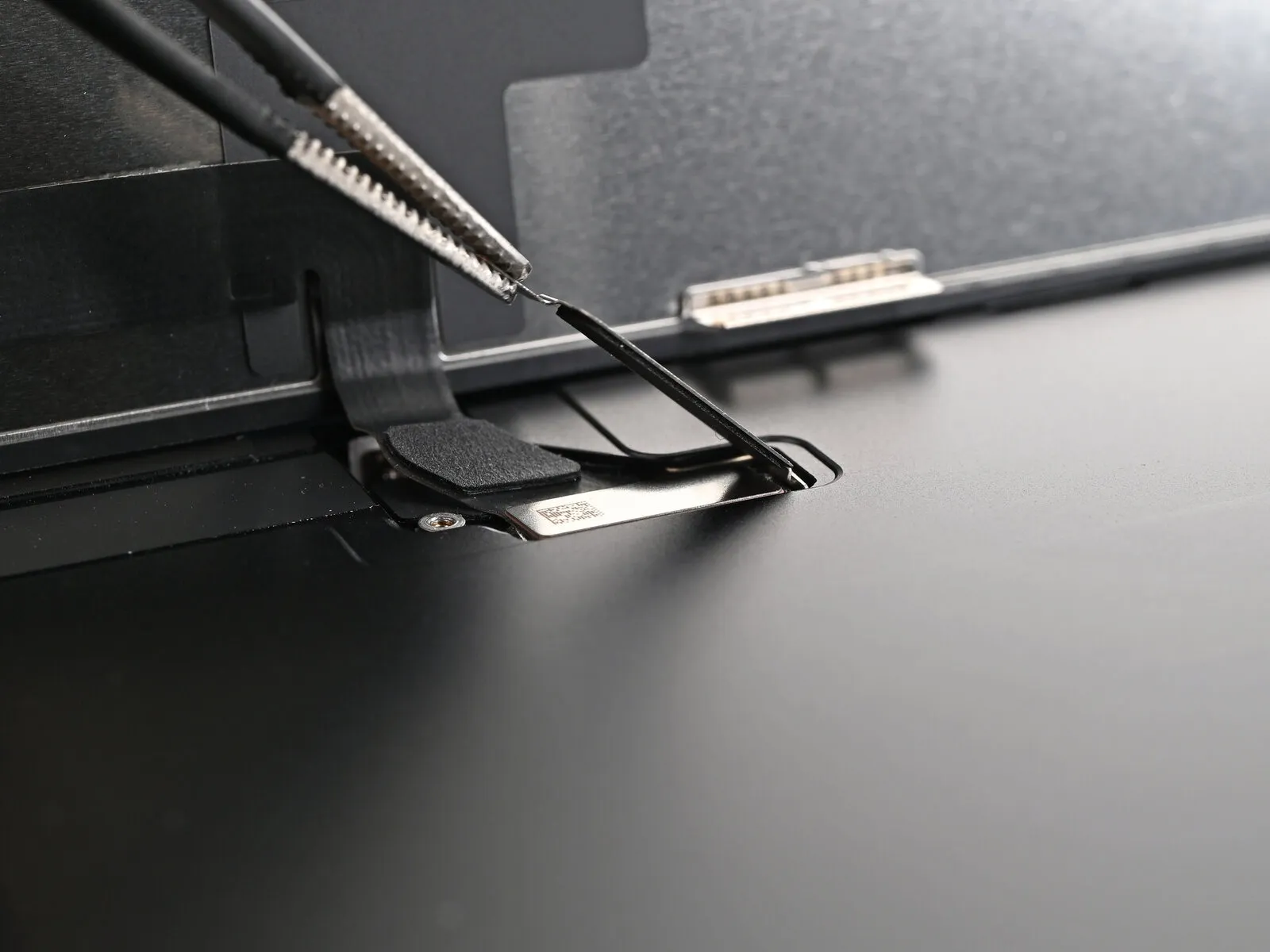

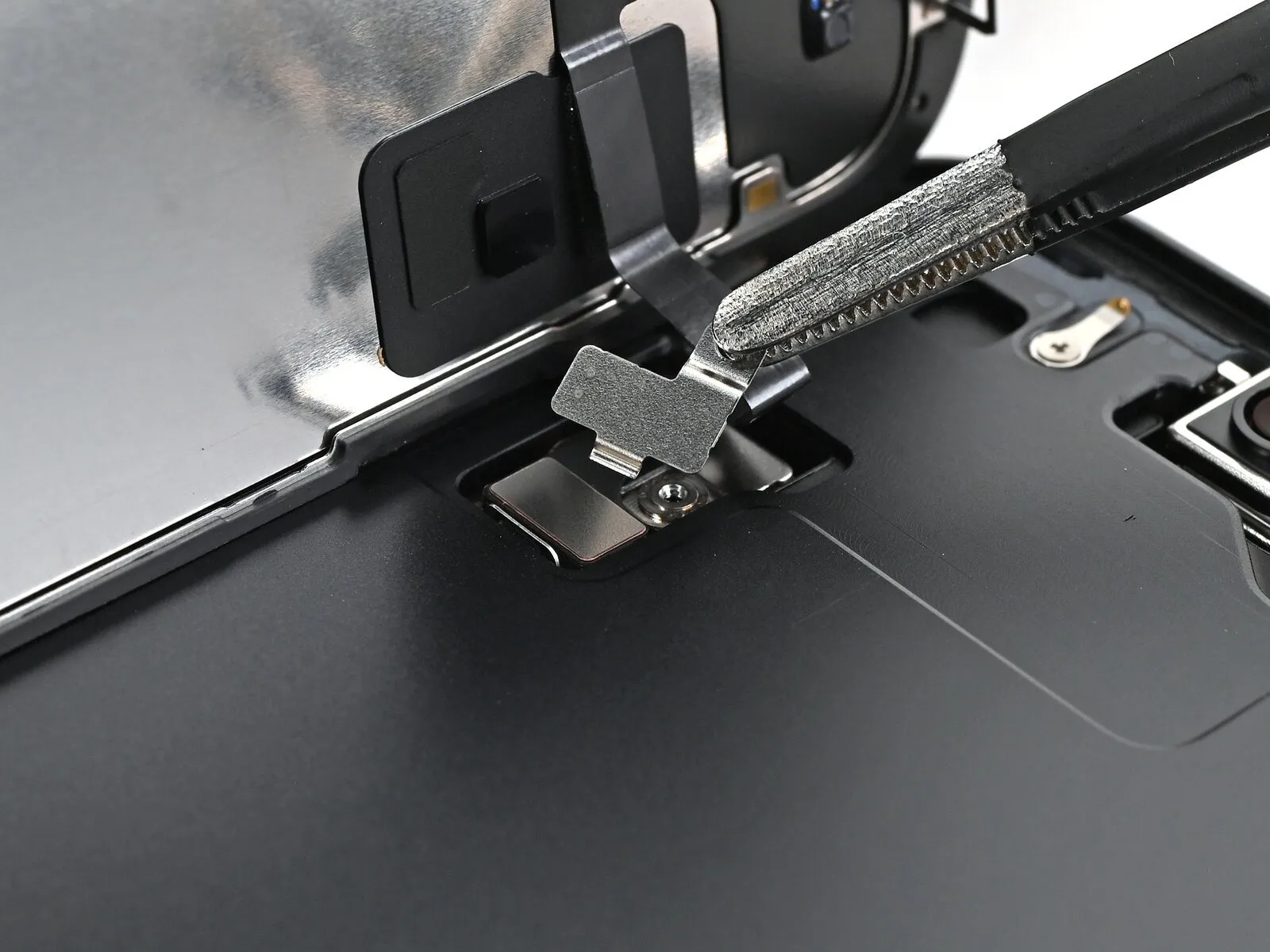

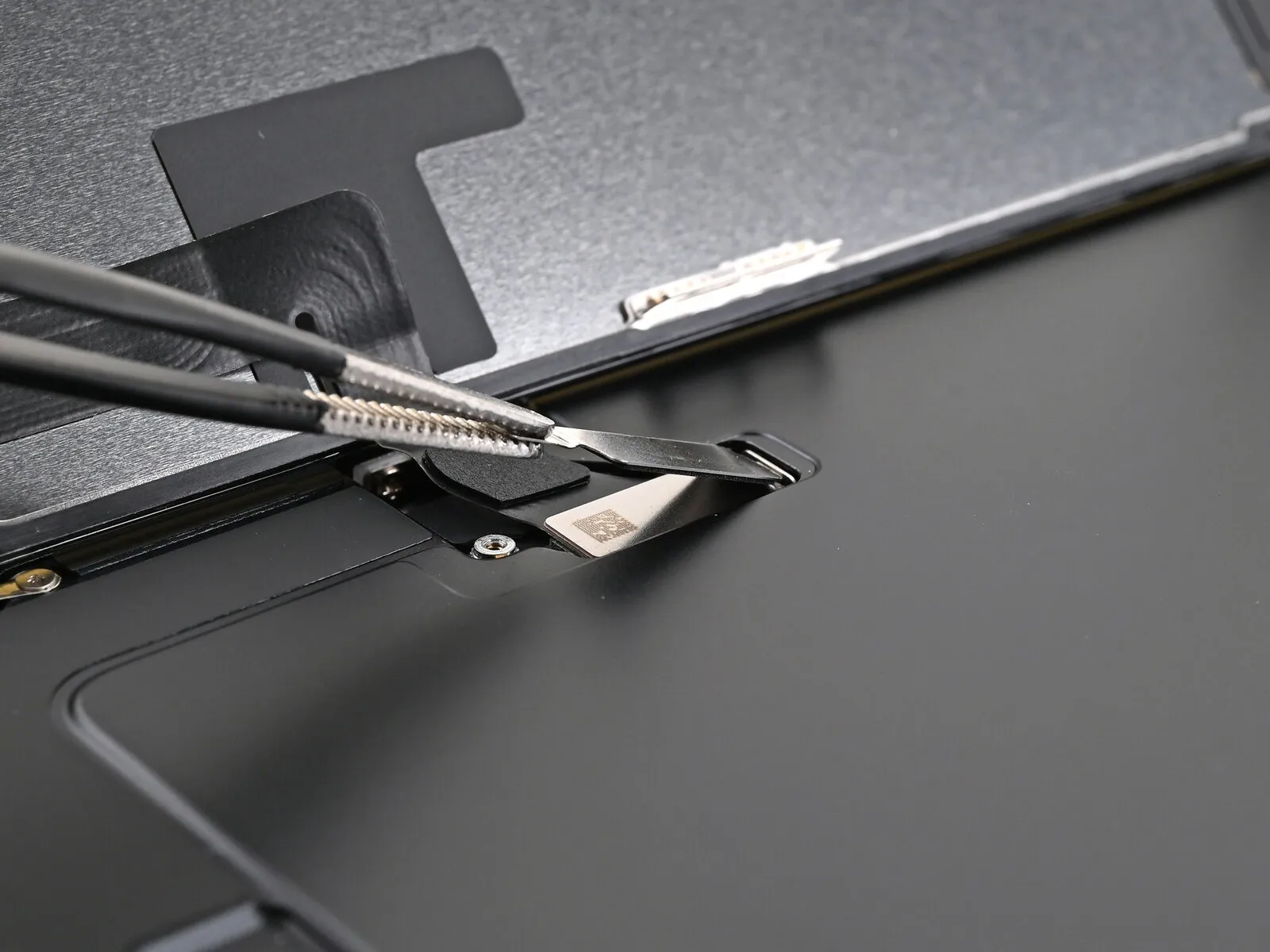

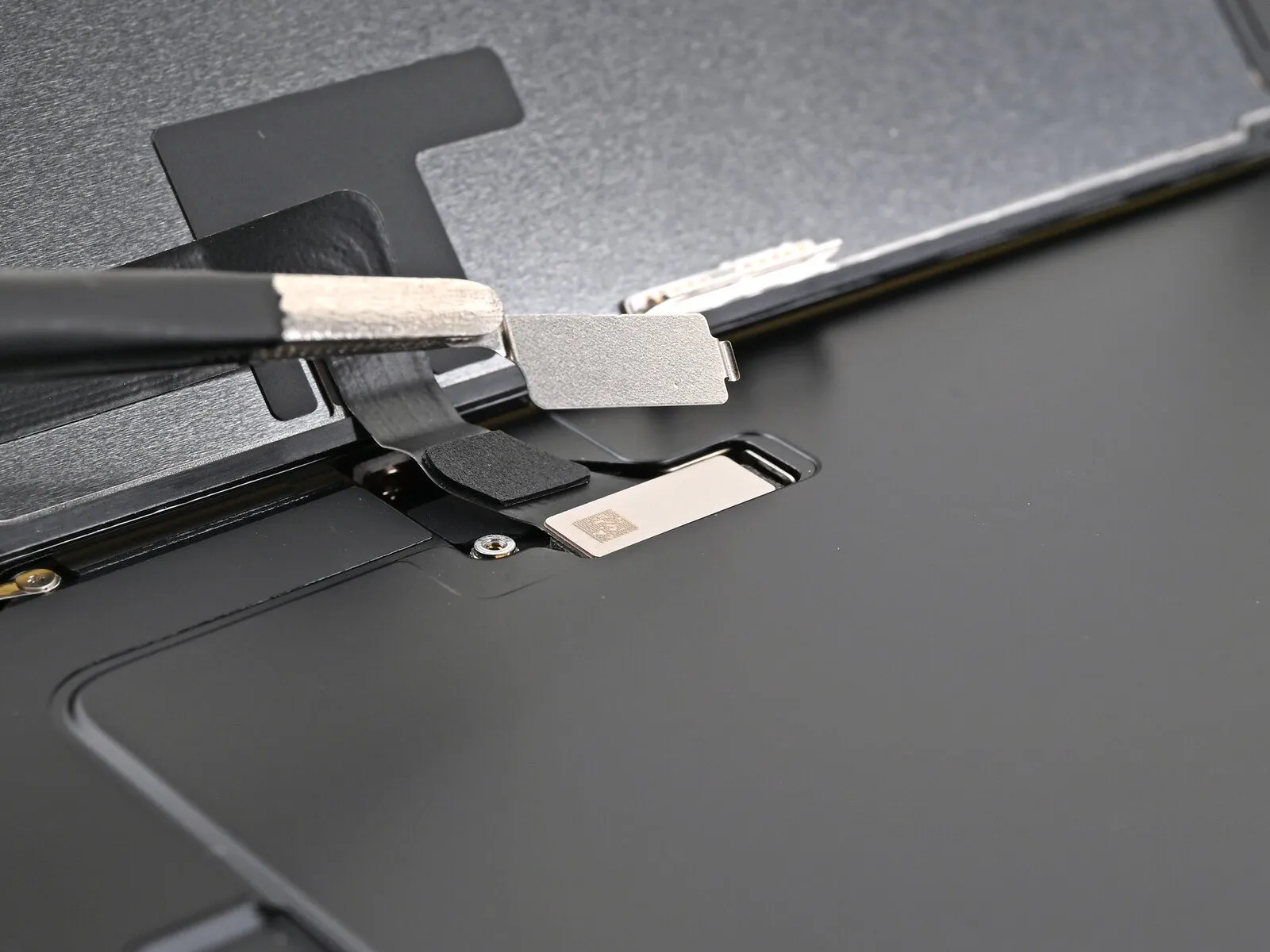

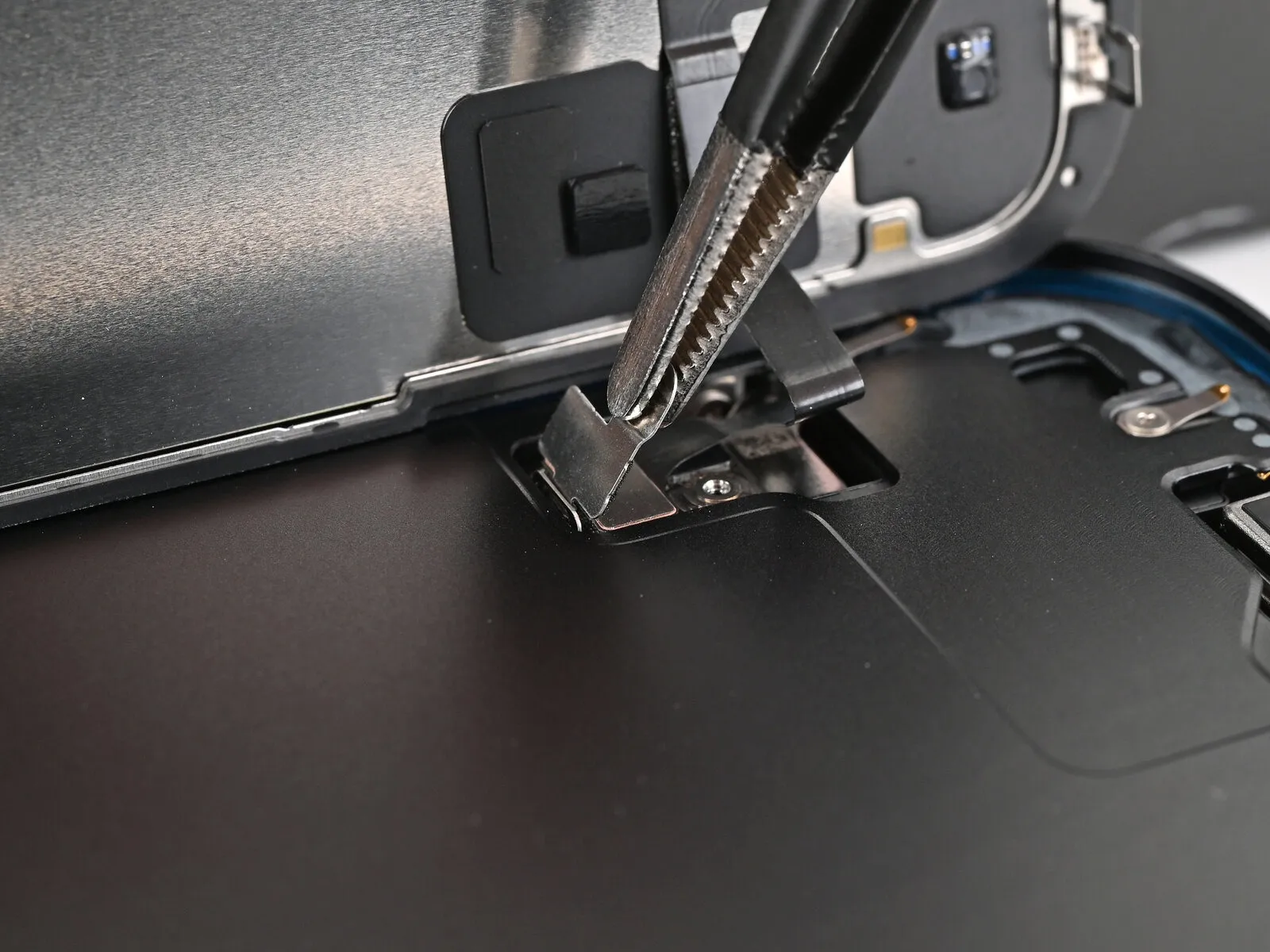

• Employing tweezers or manual dexterity, elevate the front sensor cover until it achieves a 90-degree orientation, subsequently disengaging it from the securing notch on the logic board.Detach the cover from its position within the slot by raising it.The sensor cover’s removal from the logic board necessitates a lifting motion.
• To free the component, maneuver it out of its designated slot.

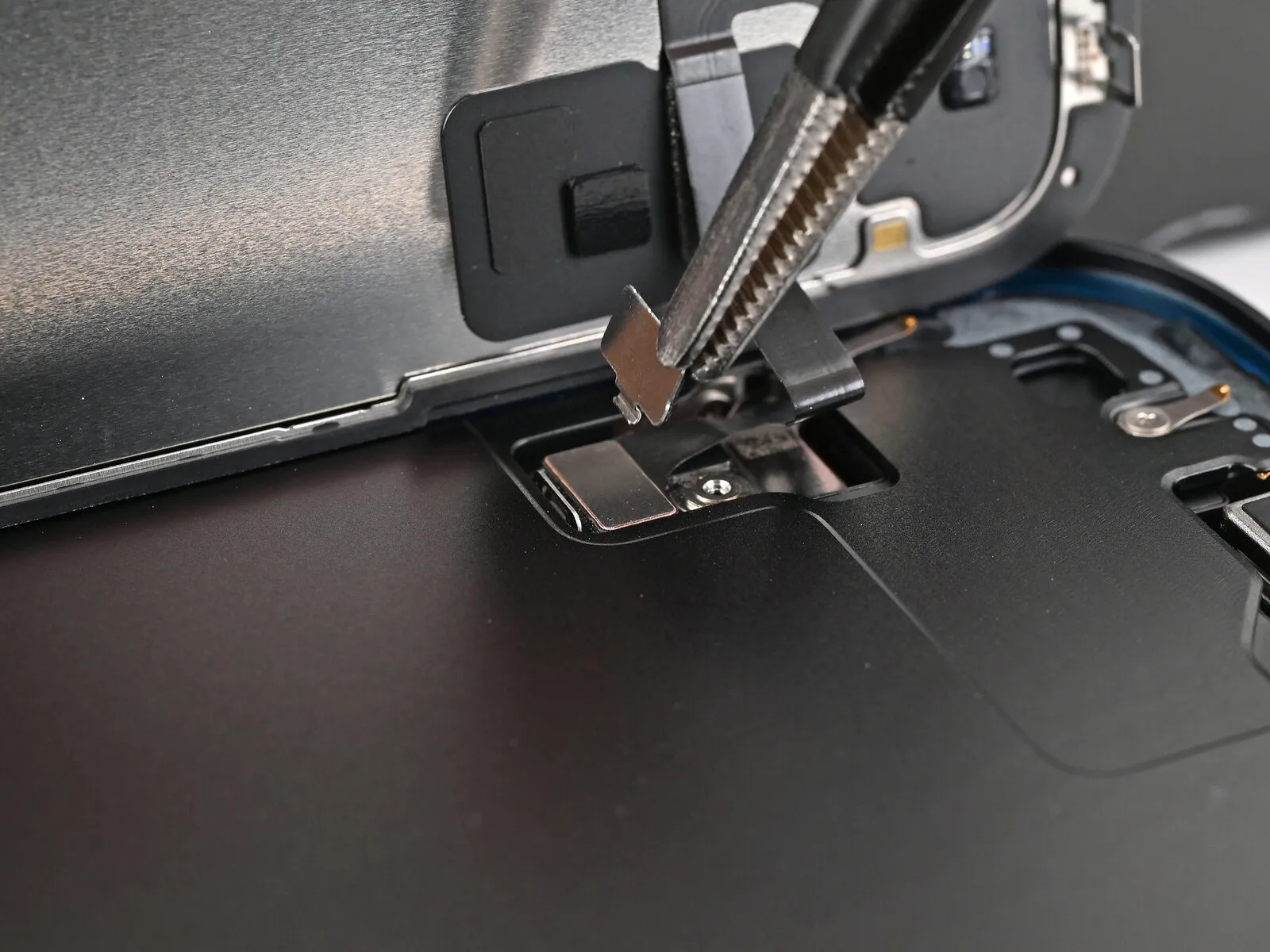

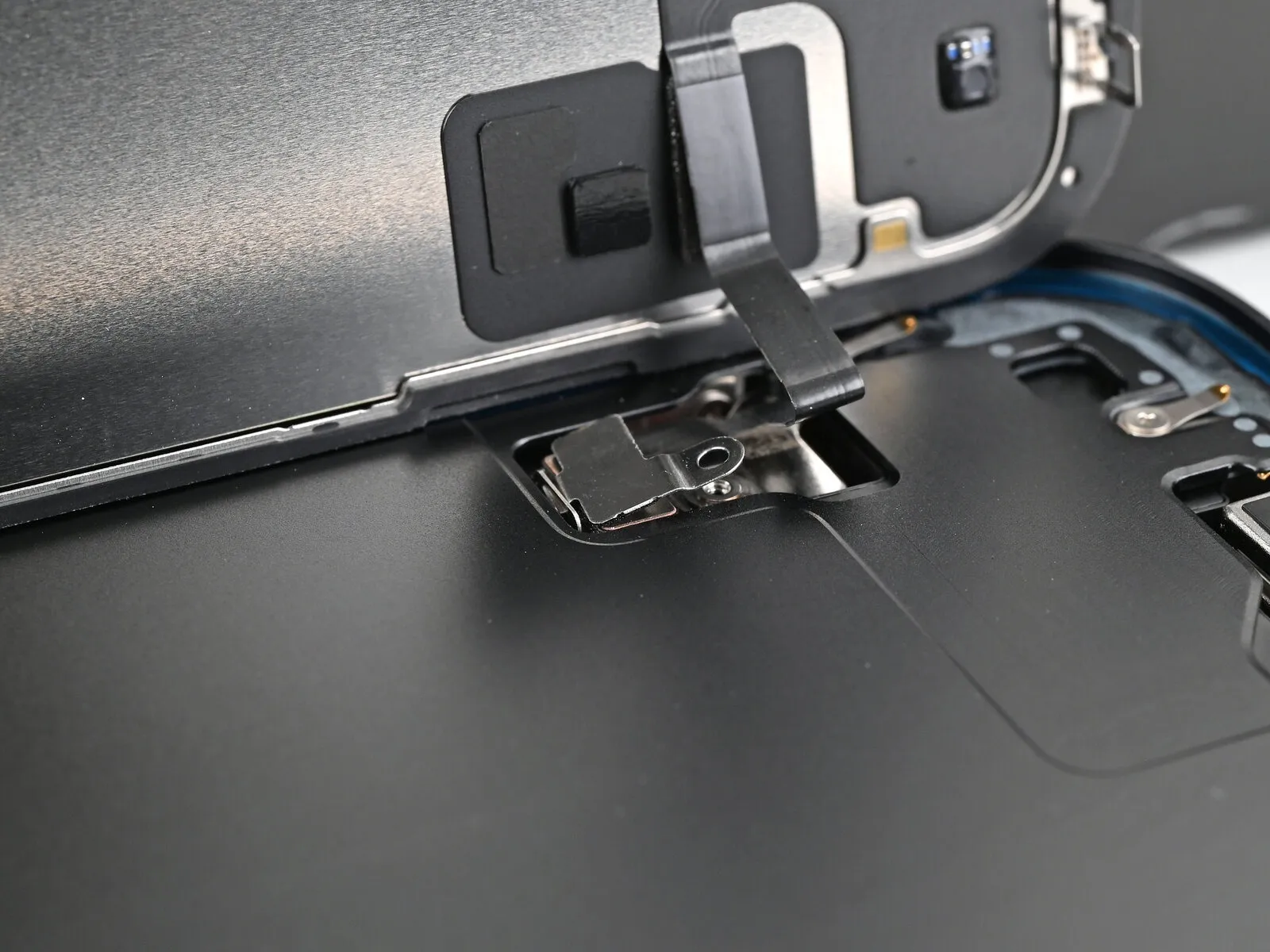

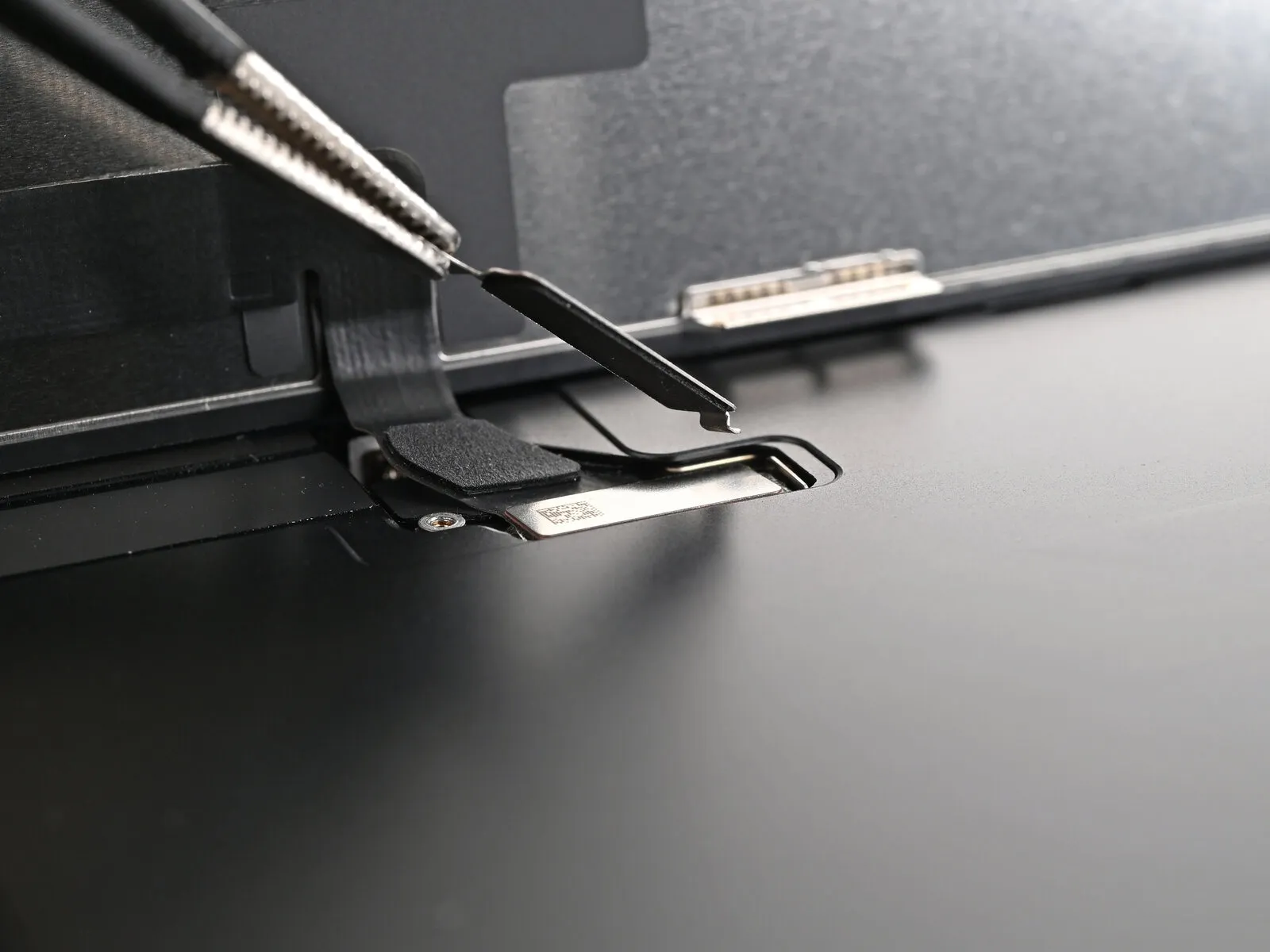

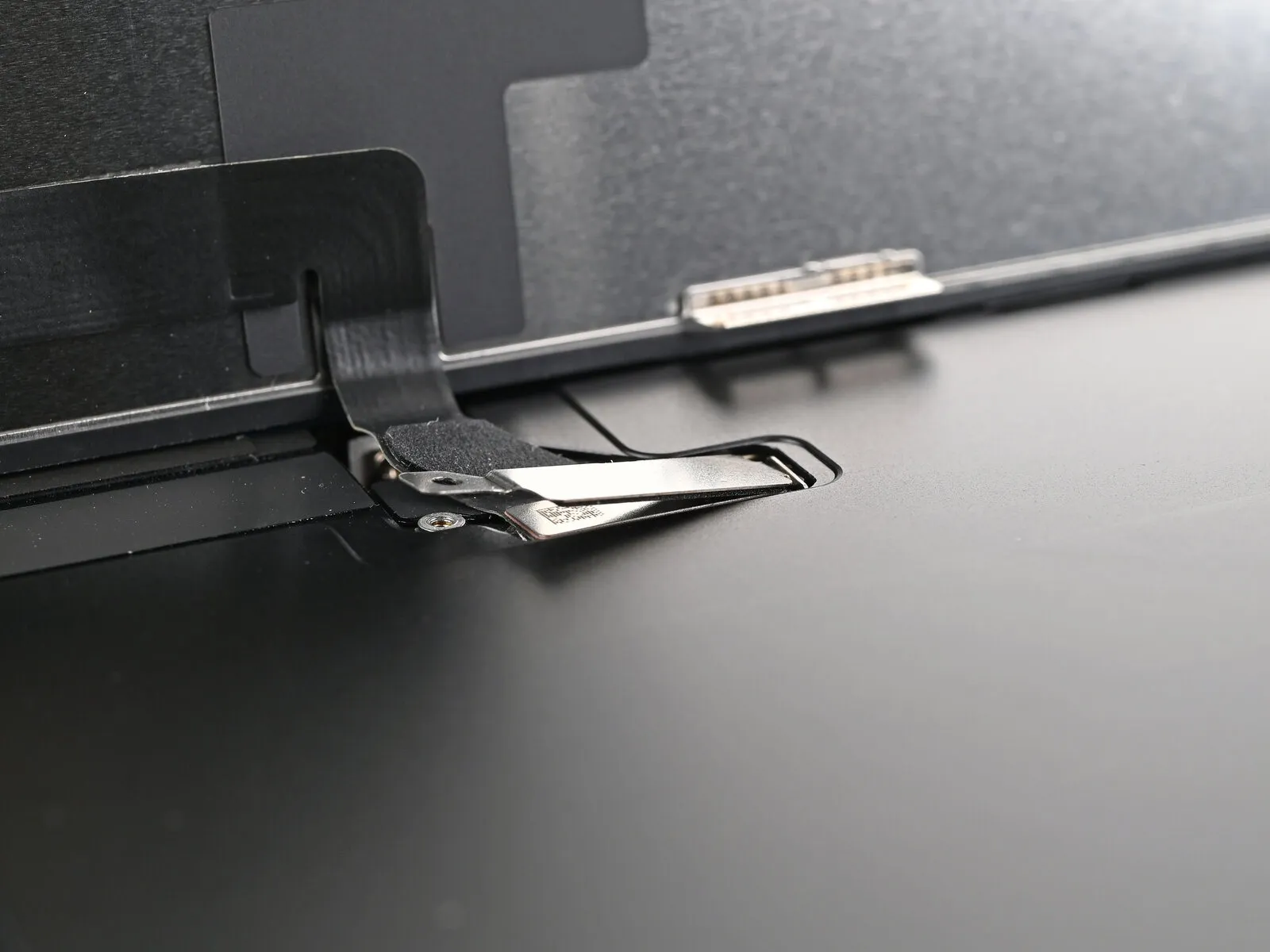

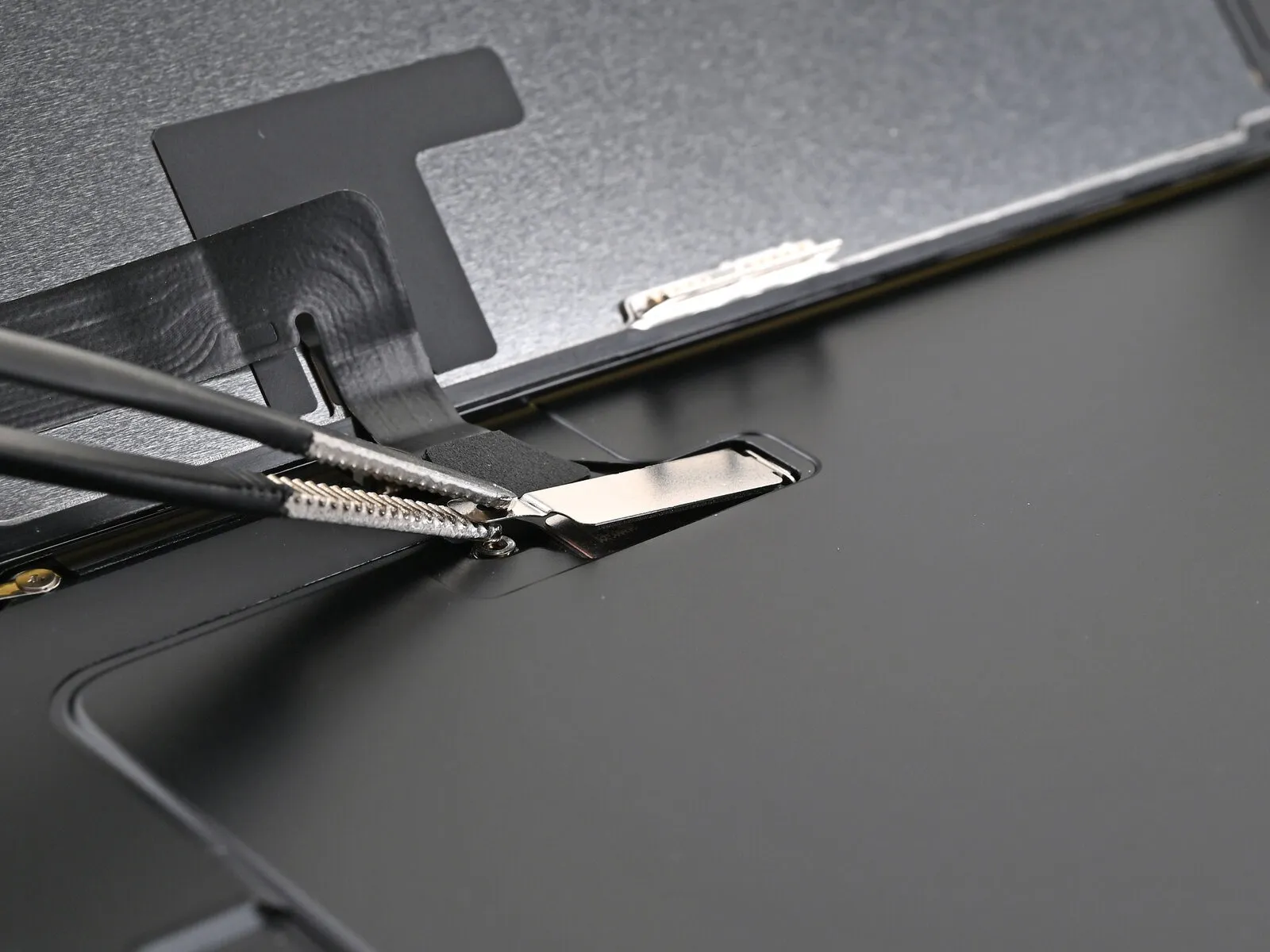

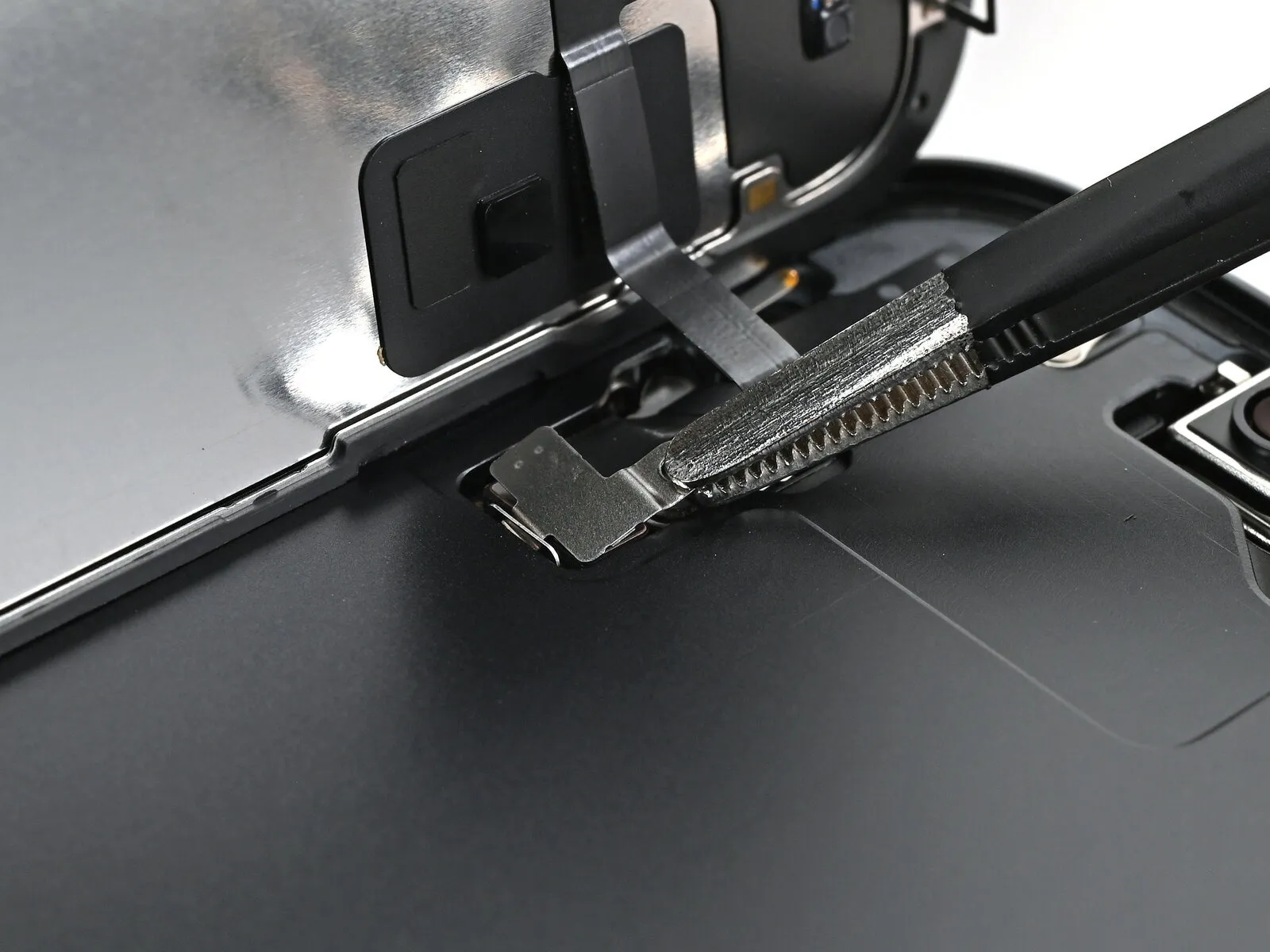

• Employing tweezers or manual dexterity, gently raise the screen connector cover, angling it slightly to disengage it from its corresponding location on the logic board.To detach the cover, elevate it from its seated position within the slot.Complete the removal process by extracting the cover entirely from its designated slot.
• This disengagement ensures that subsequent connector manipulation can proceed without risk of damage to surrounding components.

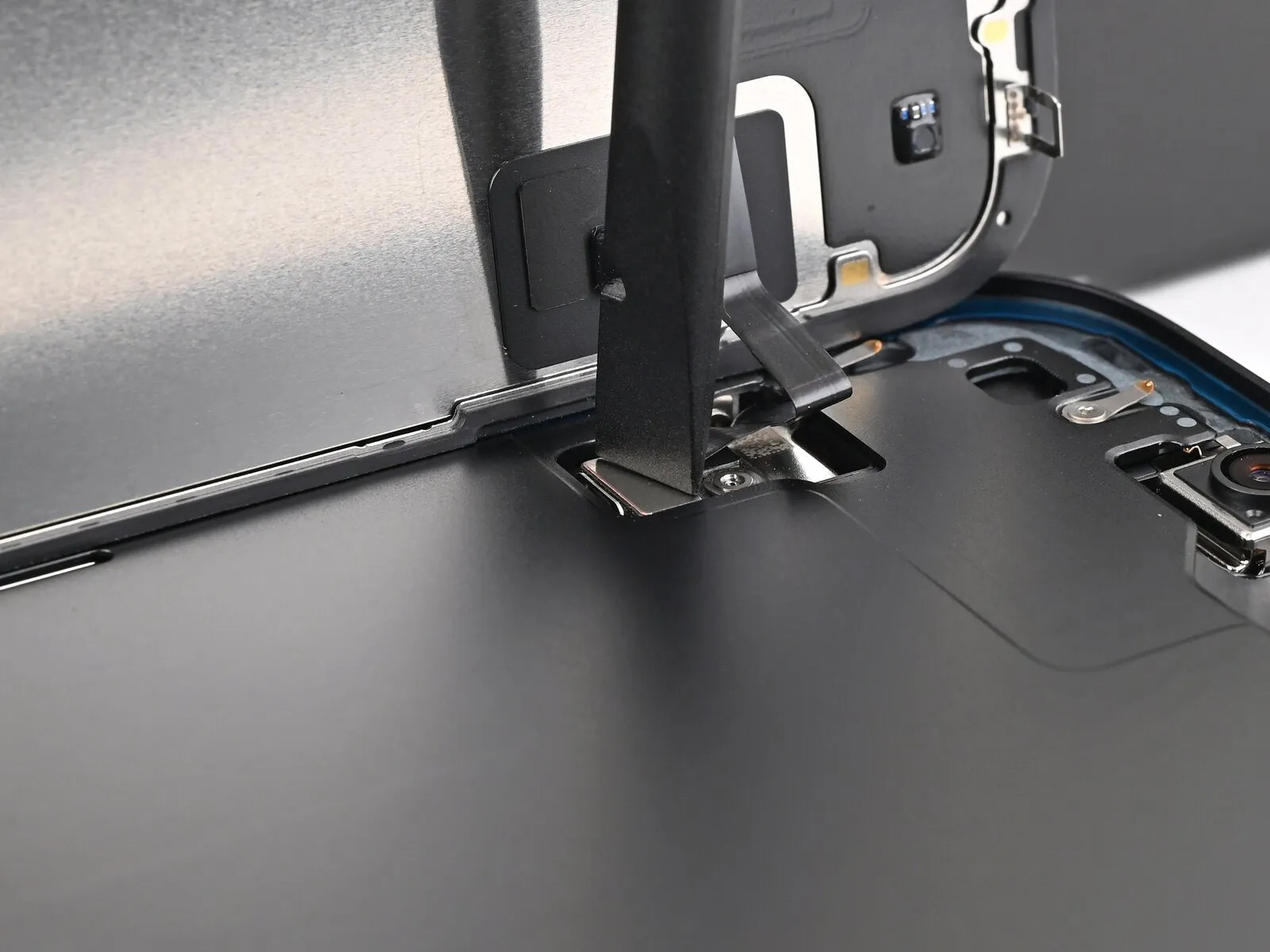

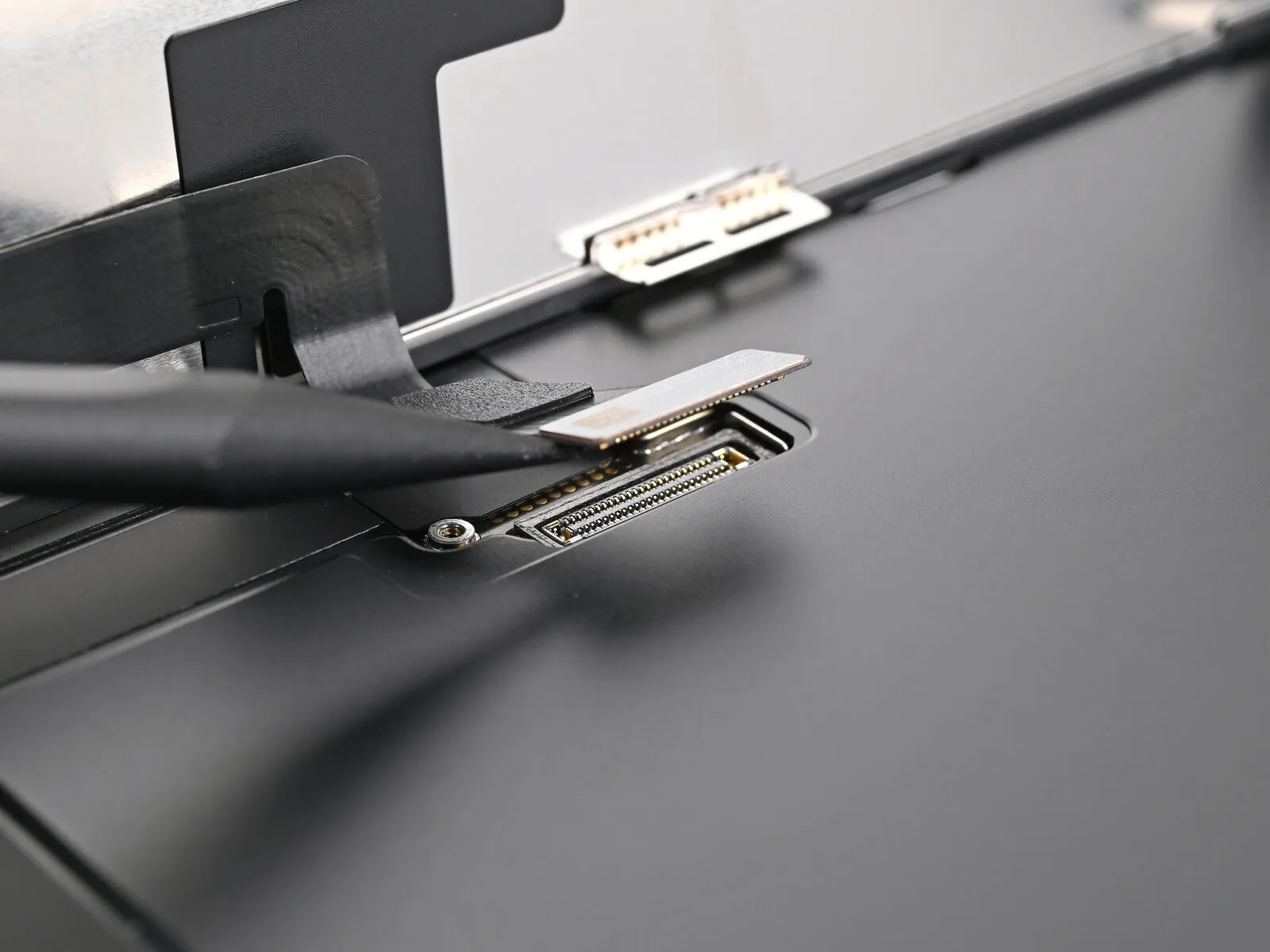

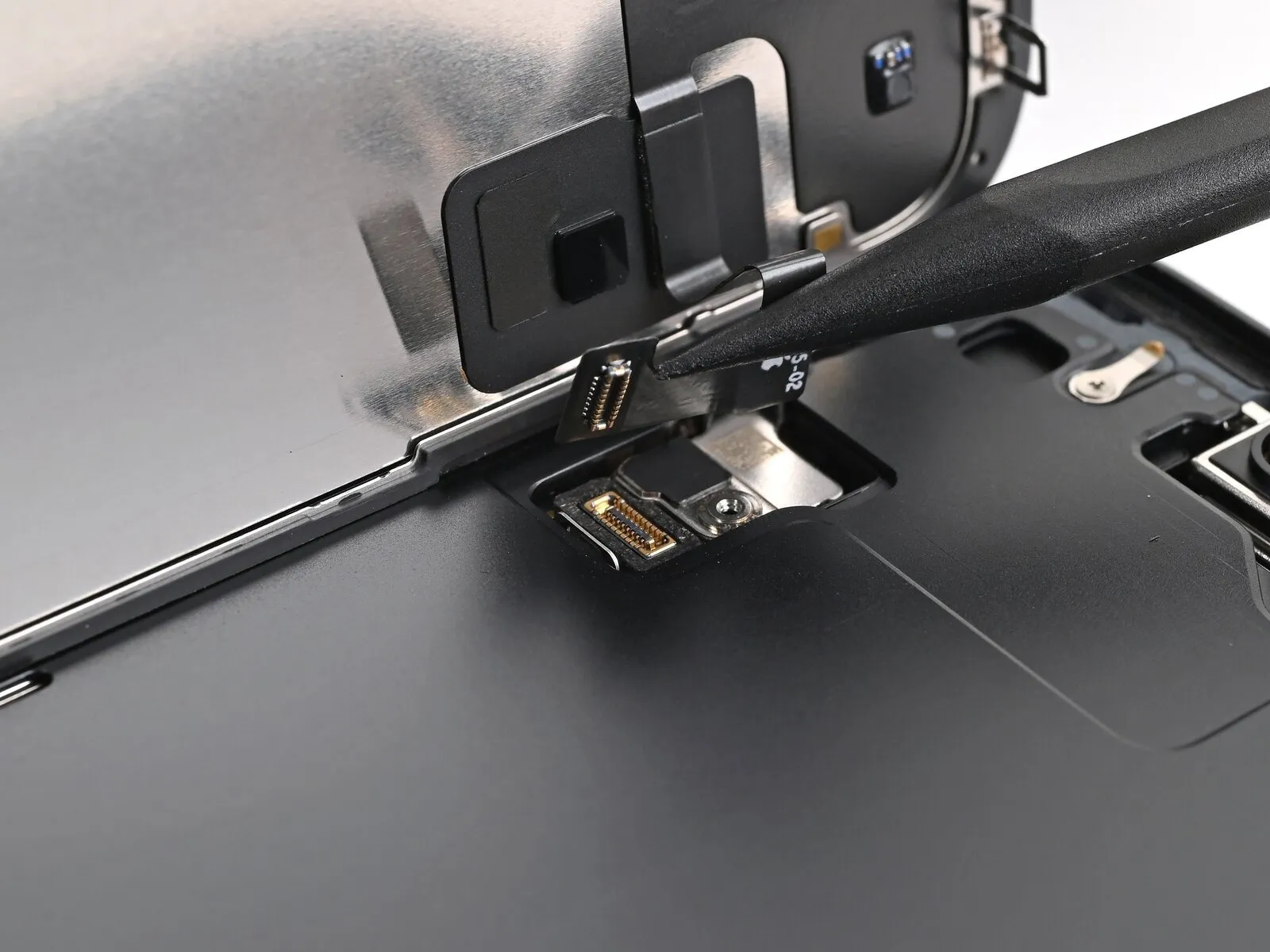

• Employ the pointed end of a spudger to carefully lift and detach the screen press connector.The screen press connector must be released using this prying technique.To ensure proper functionality, the front sensor press connector should also be disconnected using the same method.
• This process necessitates the use of a spudger to avoid damage to surrounding components.

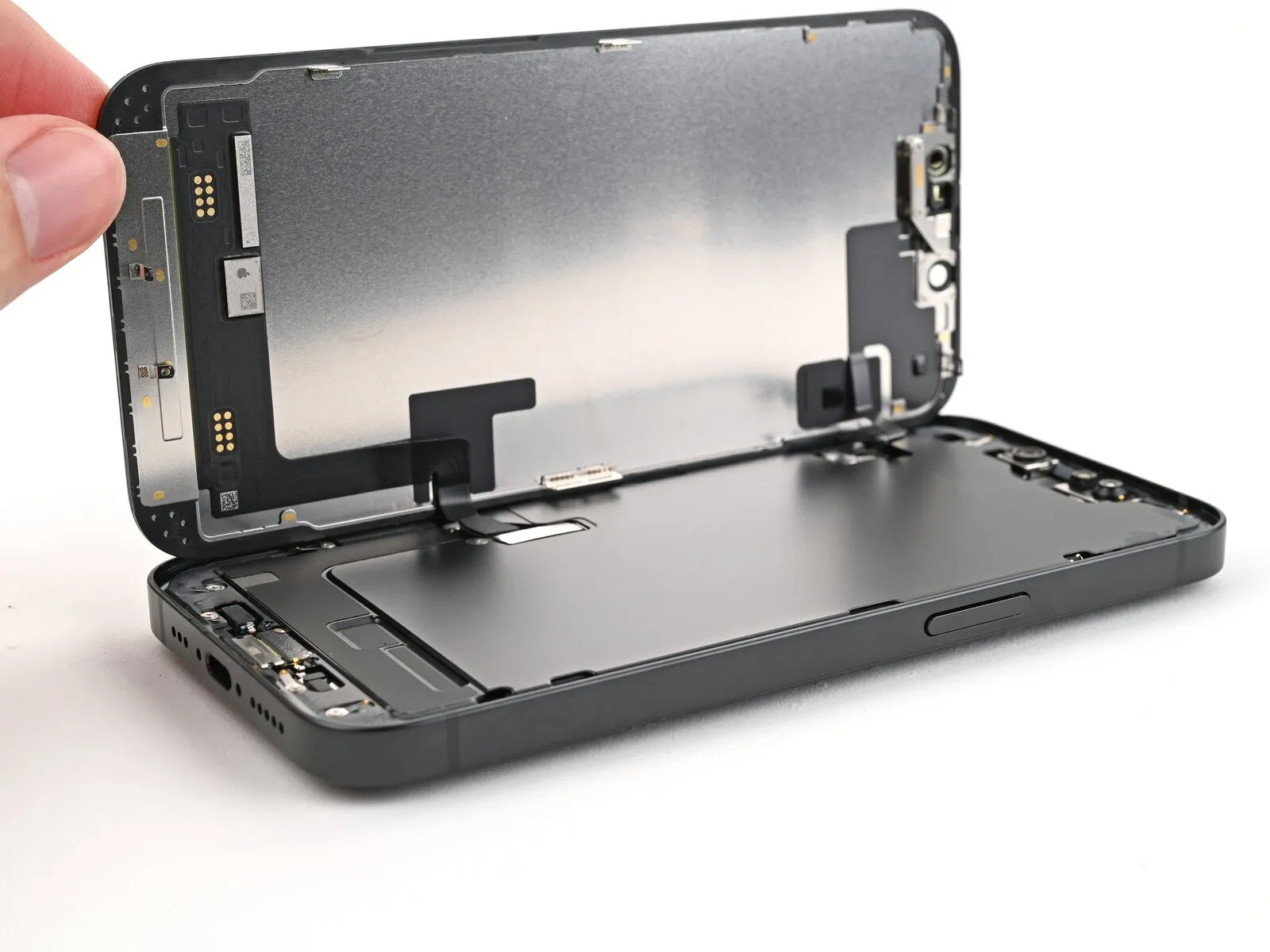

Detach the display panel from its surrounding structural support.

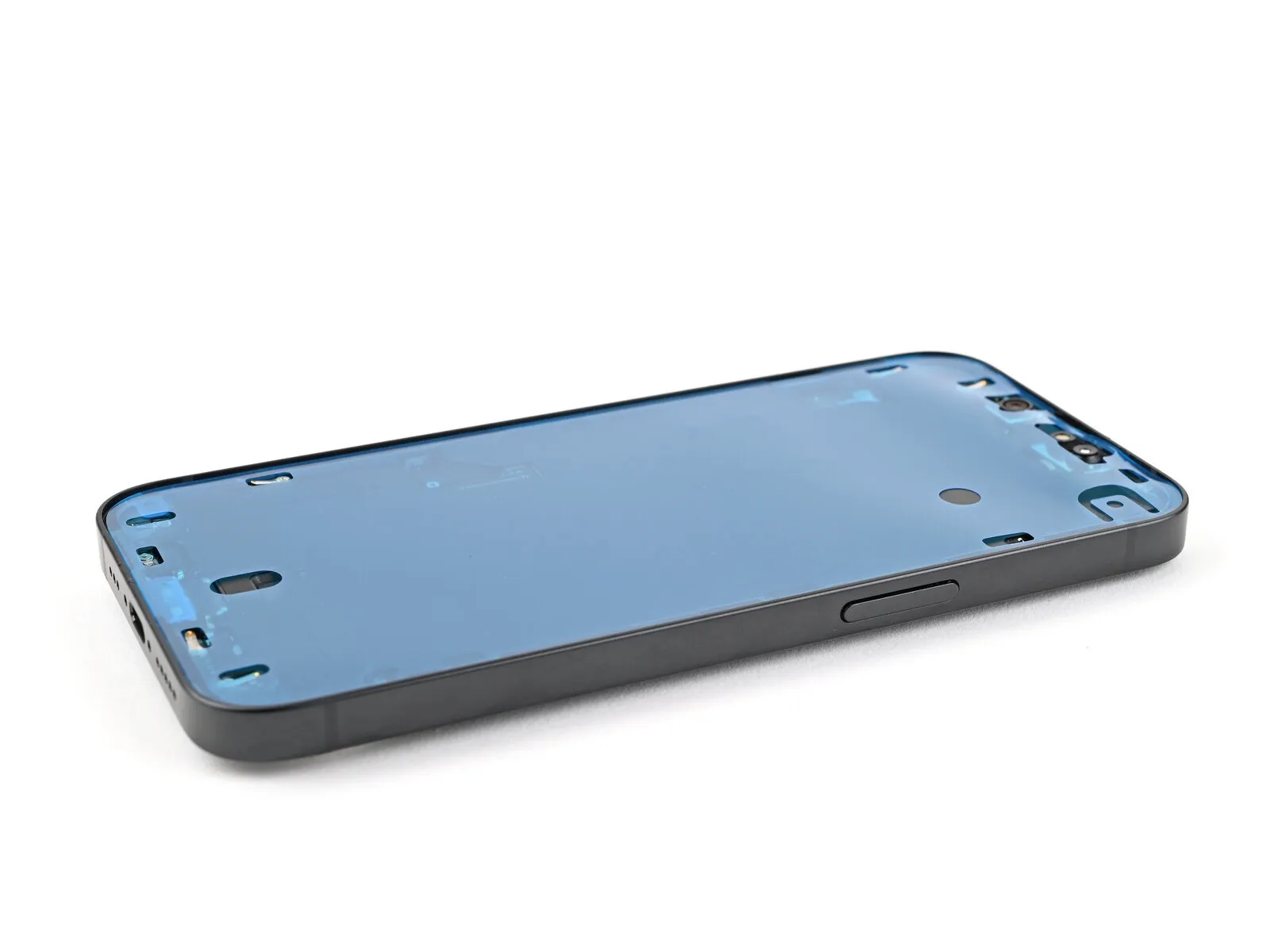

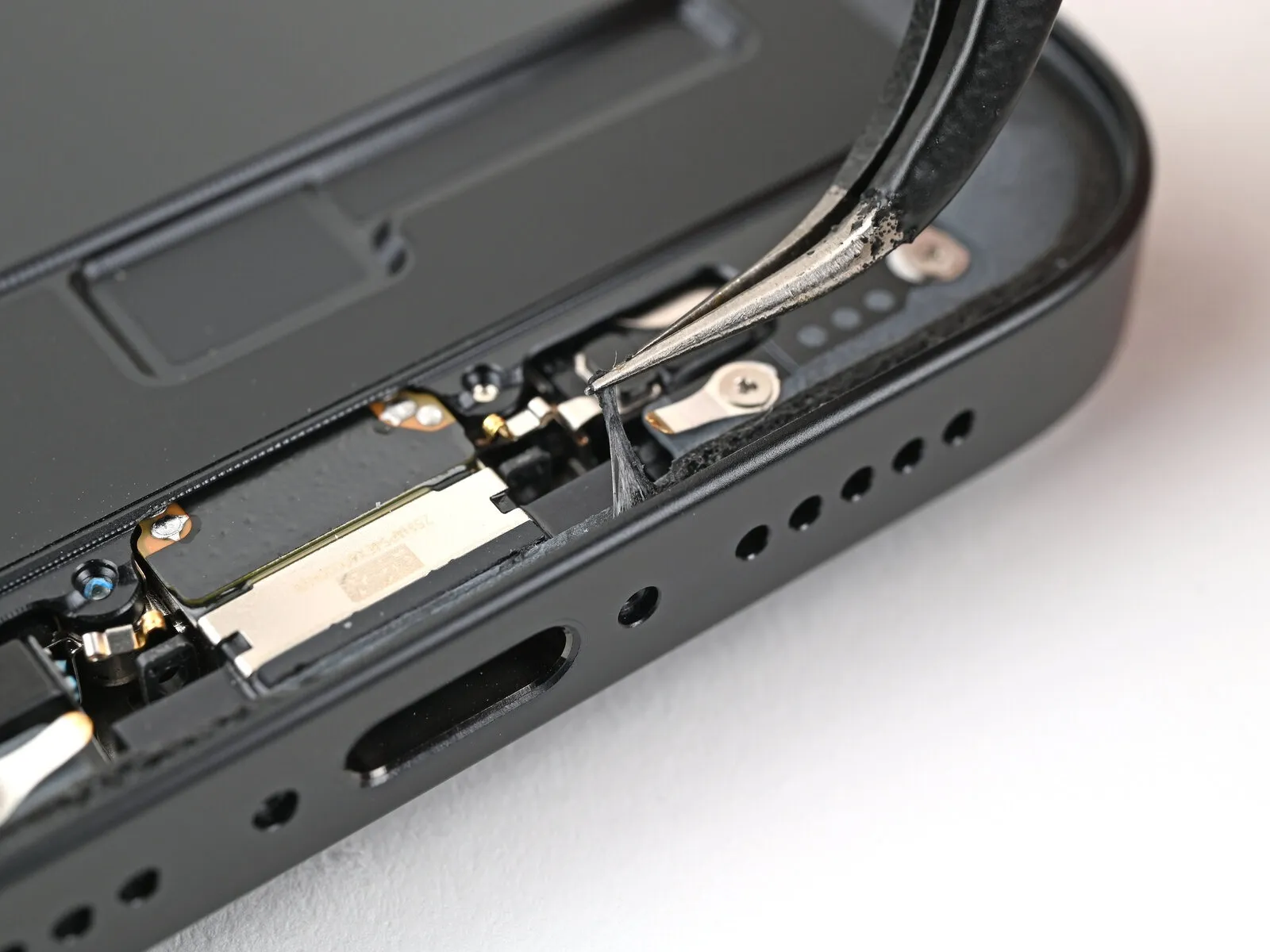

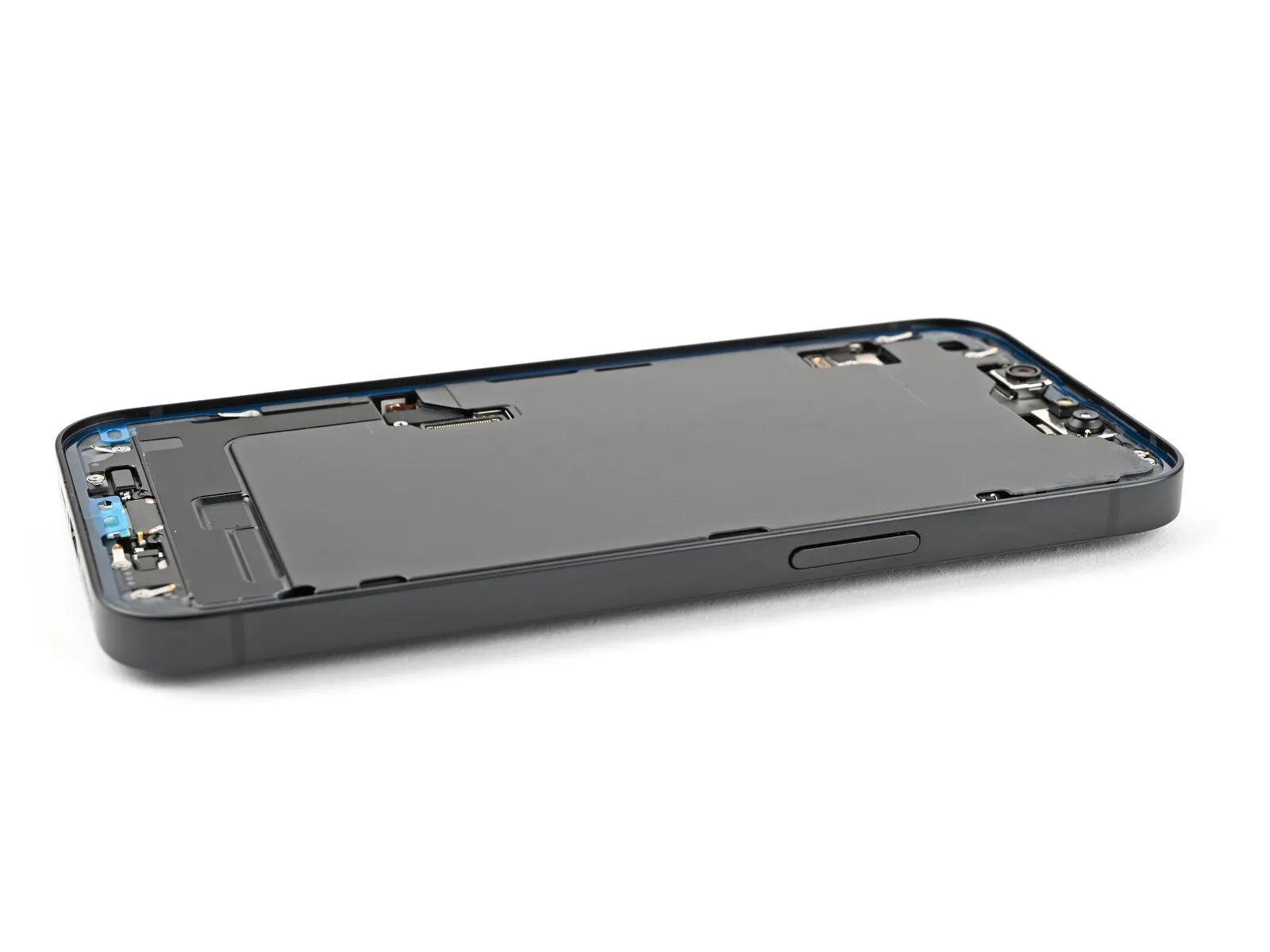

• Employing tweezers facilitates the removal of adhesive material situated along the frame's edges.Accumulating the adhesive with the tip of a spudger might be necessary to provide a suitable grip for the tweezers.A spudger's pointed end can be utilized to gather the adhesive for easier manipulation.

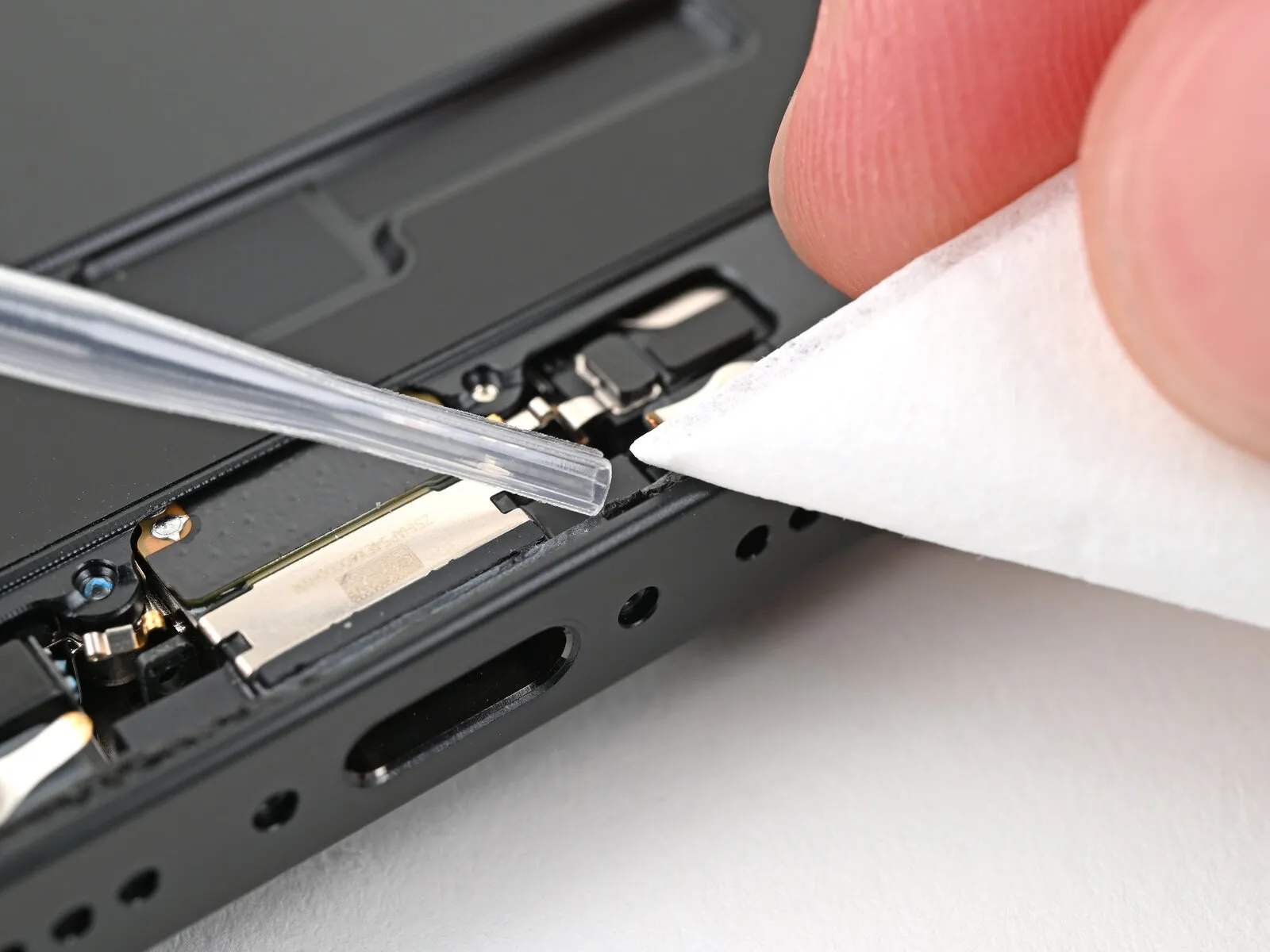

• To eliminate any remaining adhesive traces, apply a coffee filter or a lint-free cloth saturated with isopropyl alcohol exceeding 90% concentration.High-concentration isopropyl alcohol, greater than 90%, is essential for effective adhesive residue removal.A lint-free cloth serves as an alternative to a coffee filter for cleaning purposes.
• Thorough cleaning of the frame is achieved by using a coffee filter or lint-free cloth with isopropyl alcohol (>90%).

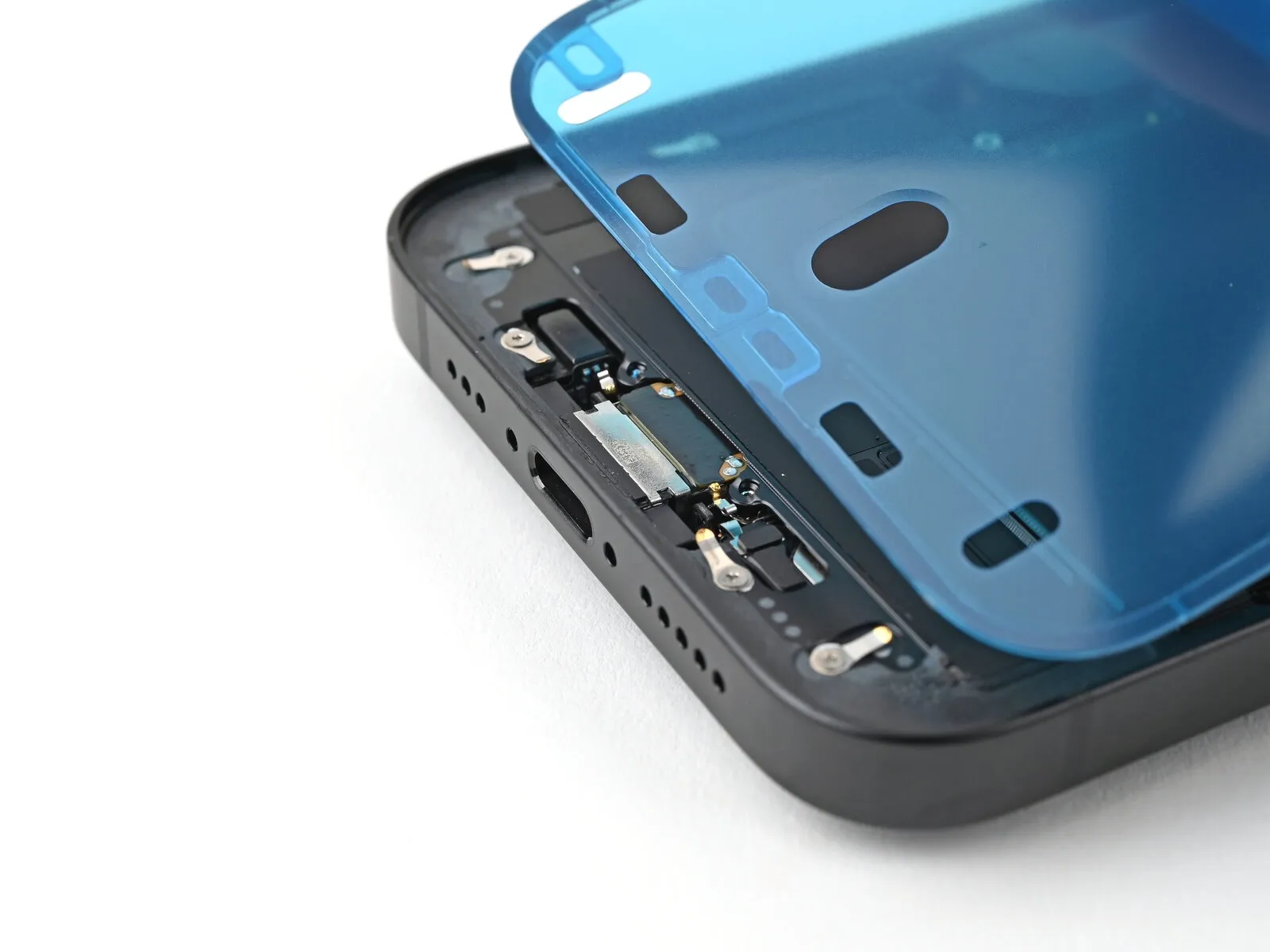

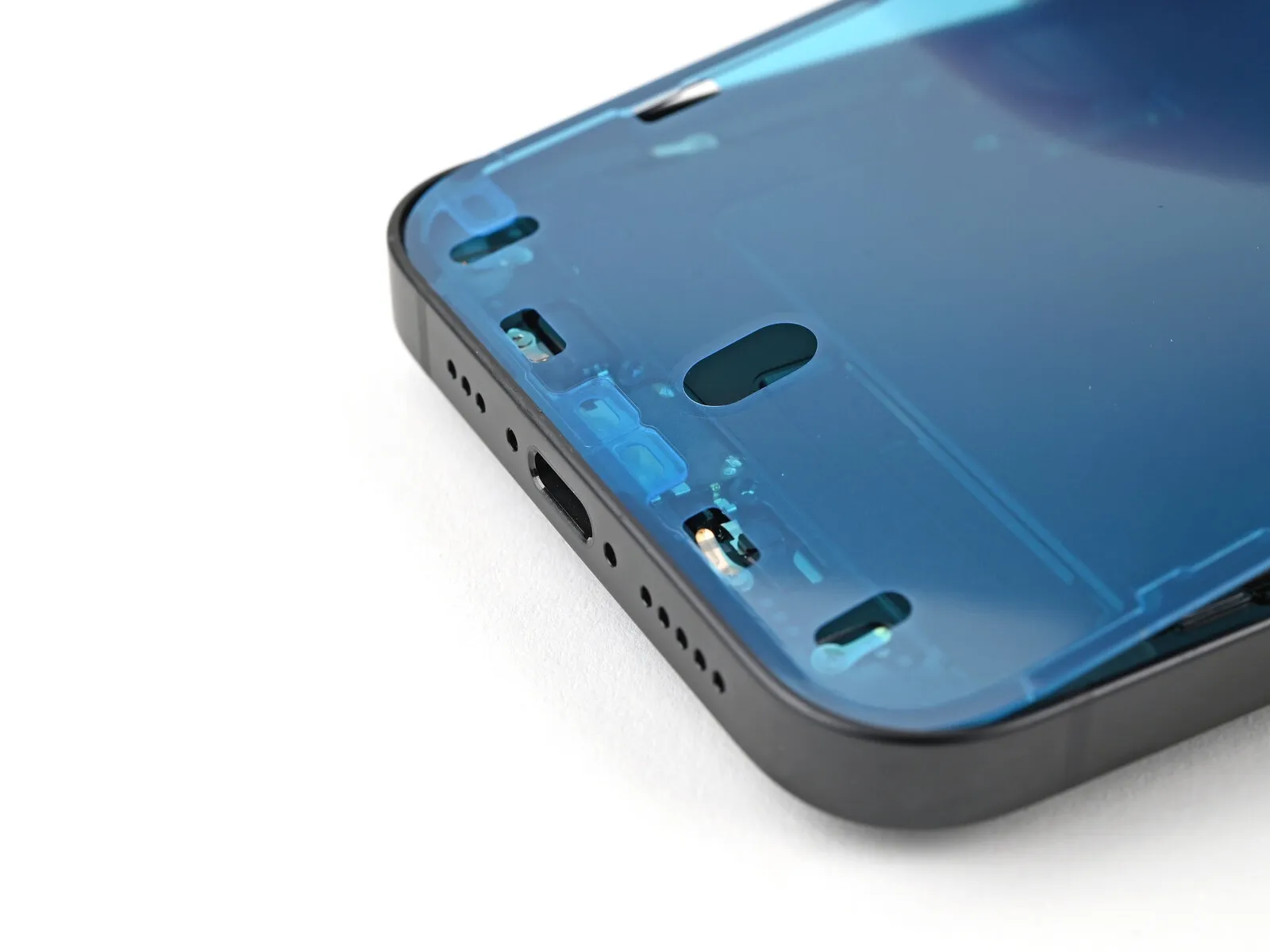

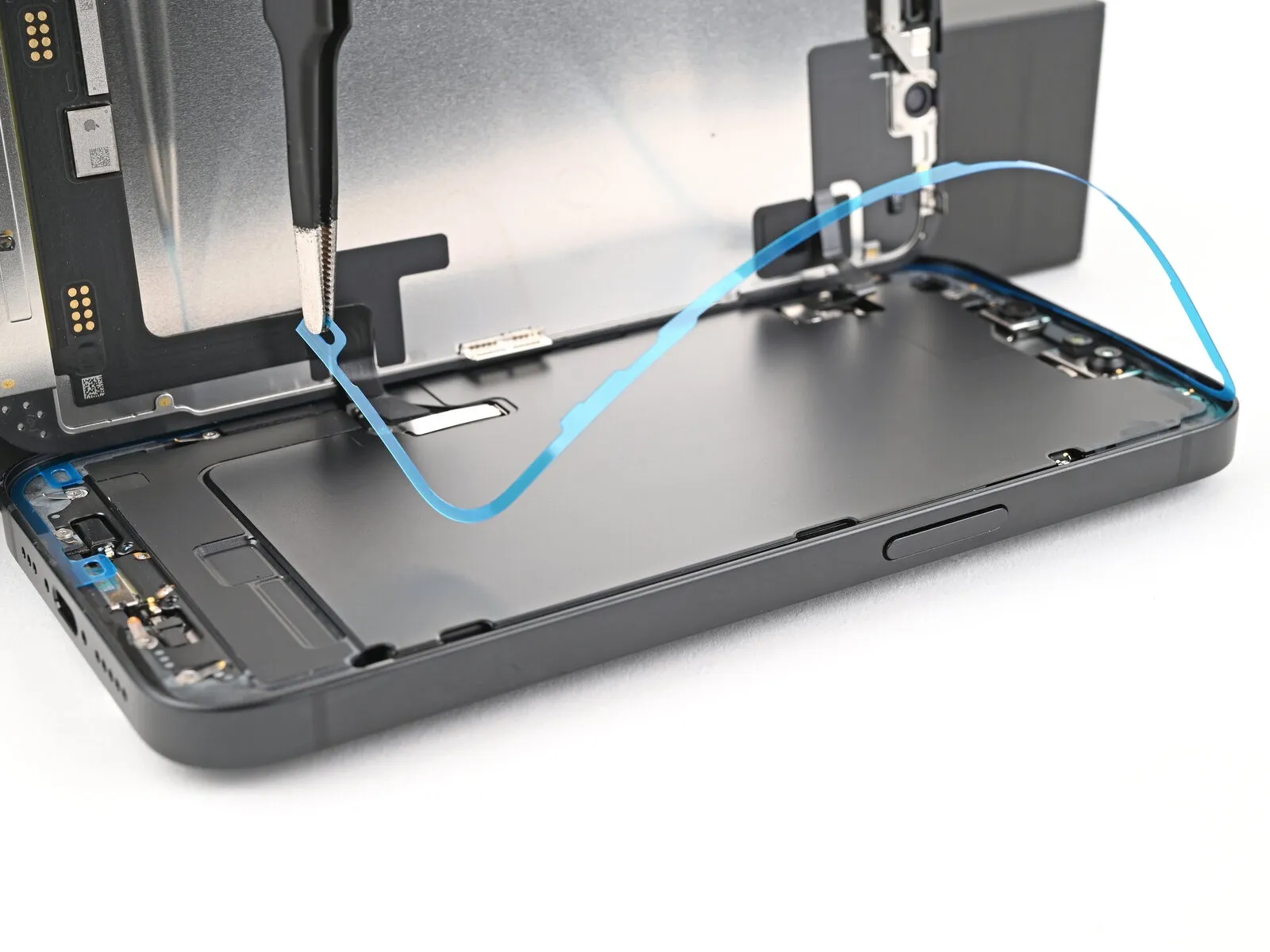

• Carefully position the adhesive over the device, utilizing existing openings such as those for spring contacts and the front camera to ensure proper alignment.
• Variations in appearance may be observed among adhesive components.

• After applying pressure to secure the adhesive, repositioning is impossible; complete removal and replacement with fresh adhesive will be necessary.

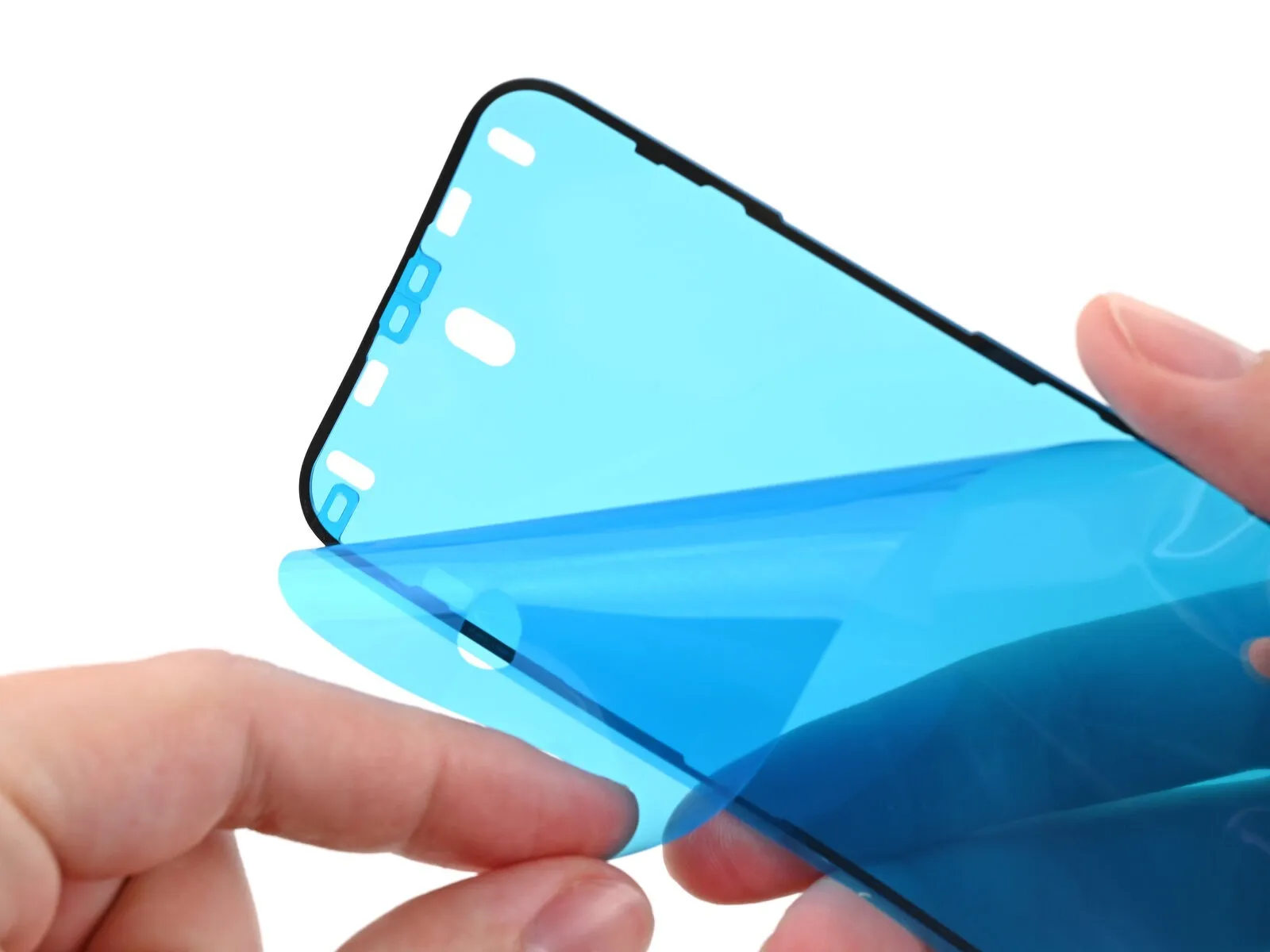

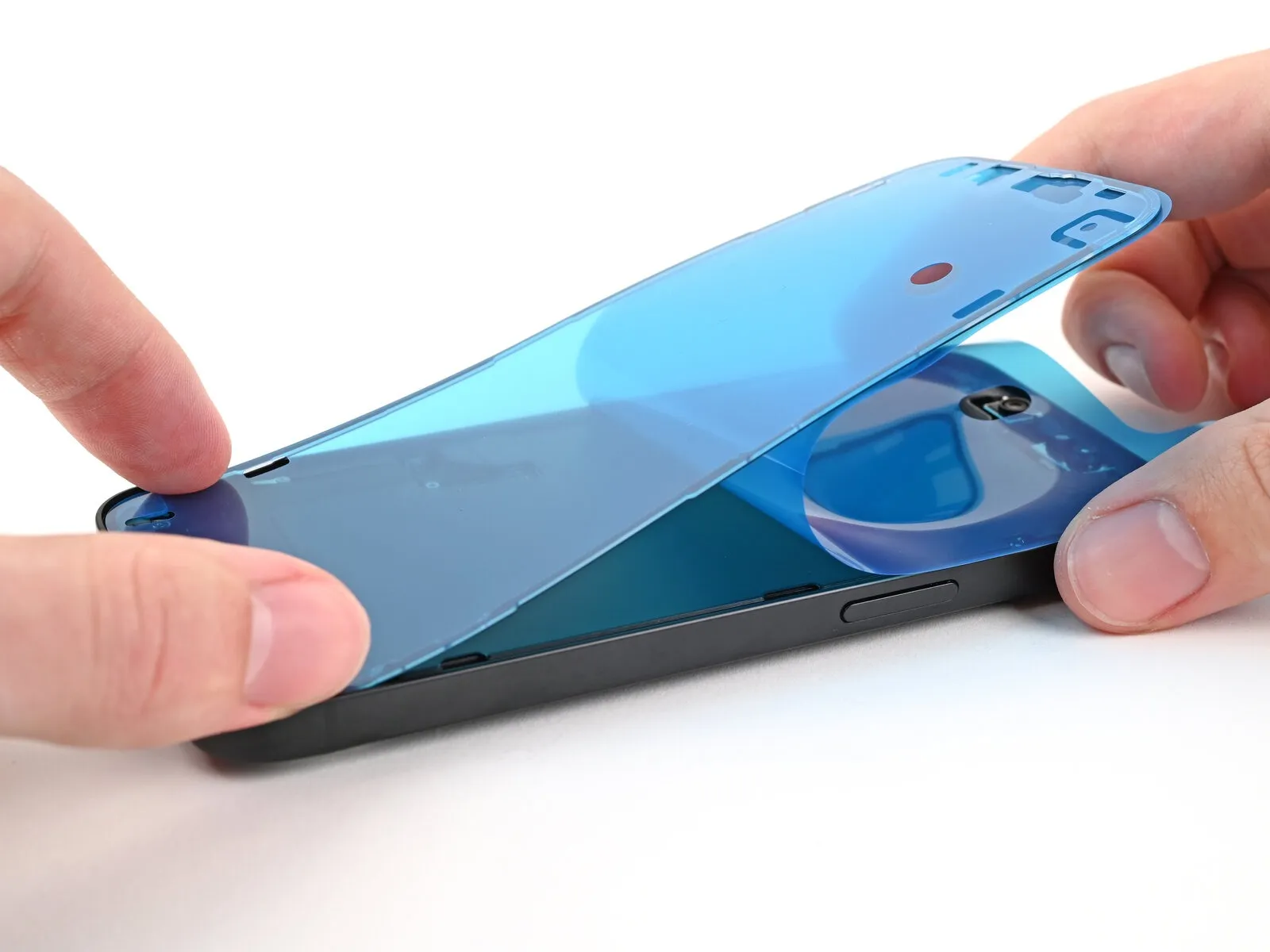

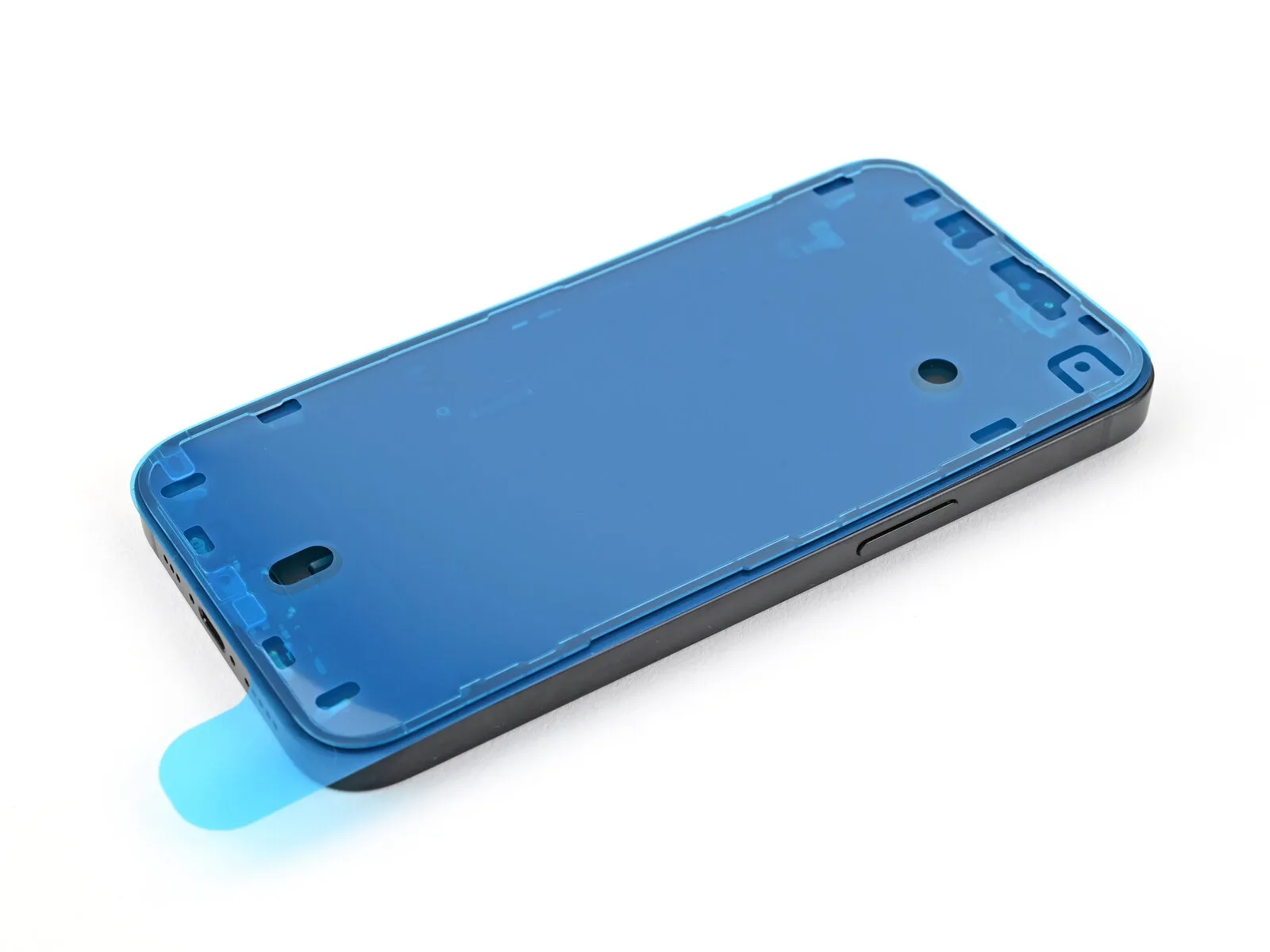

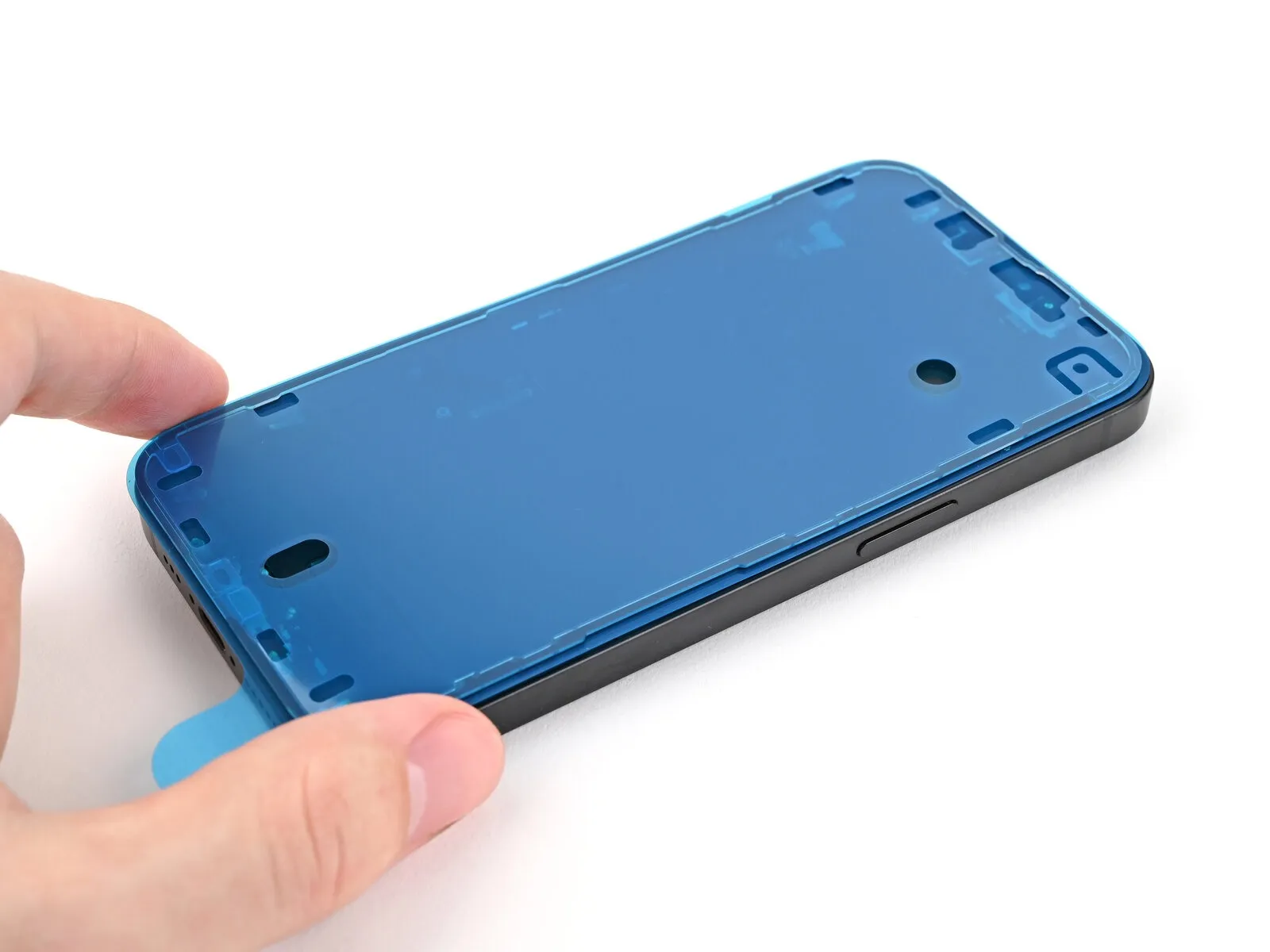

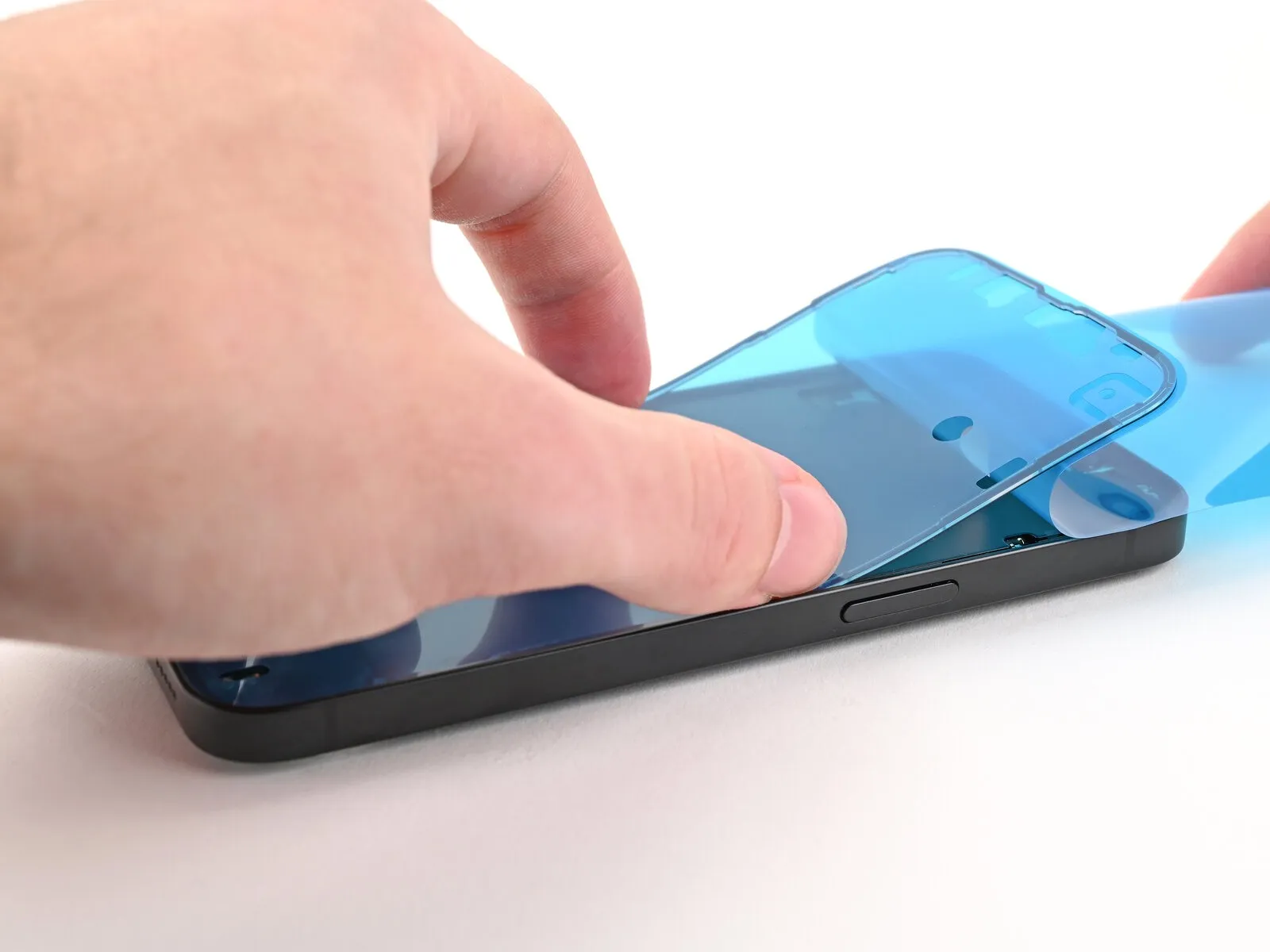

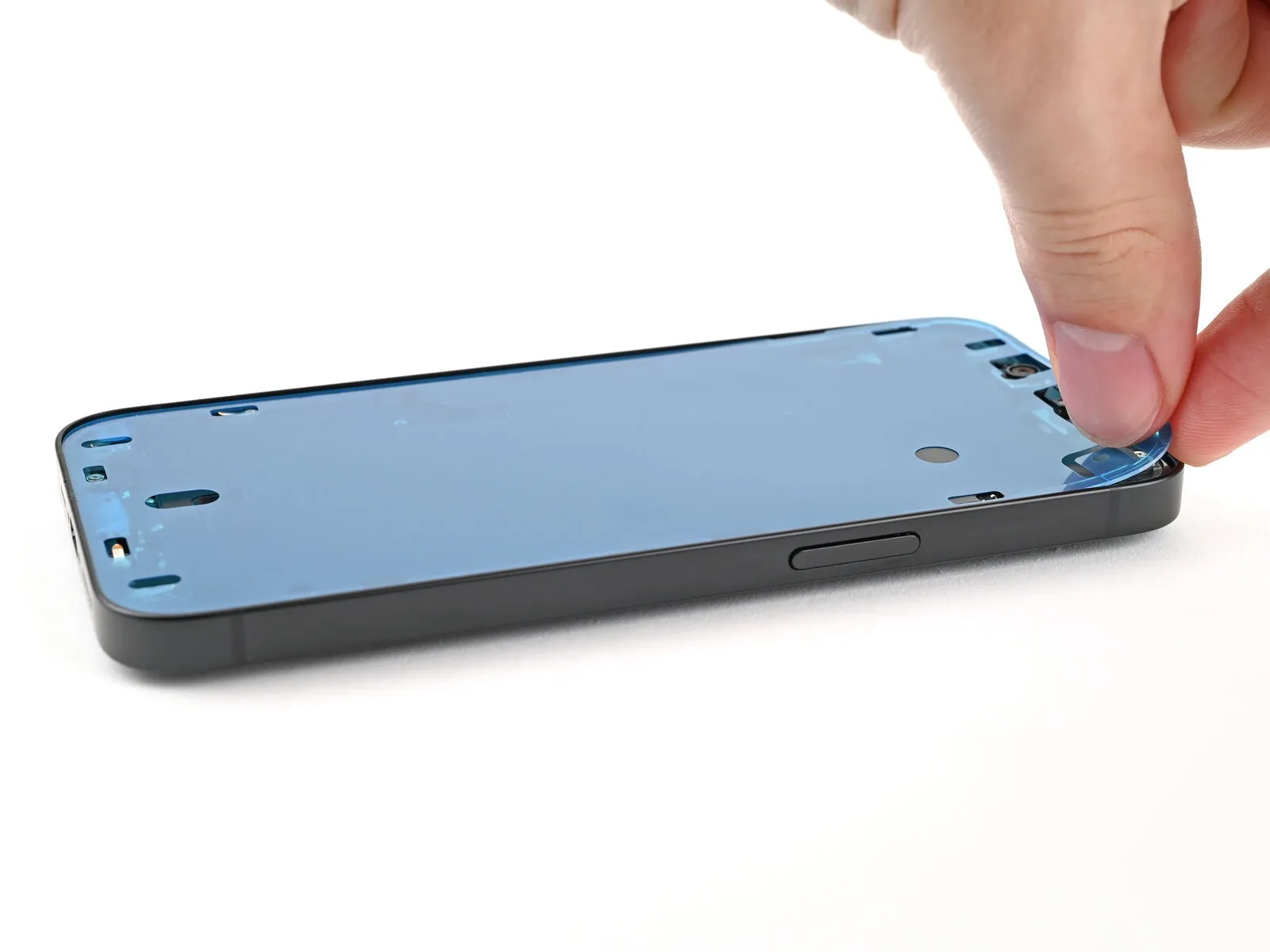

• Initiate the peeling process of the adhesive's backing liner from its bottom edge using the provided pull tab, but avoid complete removal.
• Maintain the blue liner's position away from the work area while carefully aligning the adhesive with the iPhone's lower boundary.
• Ensure proper contact between the adhesive's lower edge and the corresponding recessed area within the frame, verifying that the iPhone’s spring contacts are situated within the liner’s designated openings.

• Gradually remove the protective liner from the adhesive backing, ensuring firm contact with the iPhone's perimeter during application.
• Proper alignment of the adhesive's lower edge will result in automatic positioning of the side and top edges; otherwise, discard the adhesive and repeat the process with a fresh strip.
• Should misalignment occur and a replacement adhesive strip isn't available, the iPhone can be reassembled and used temporarily without adhesive; however, be aware that water resistance will be significantly reduced until new adhesive is applied.

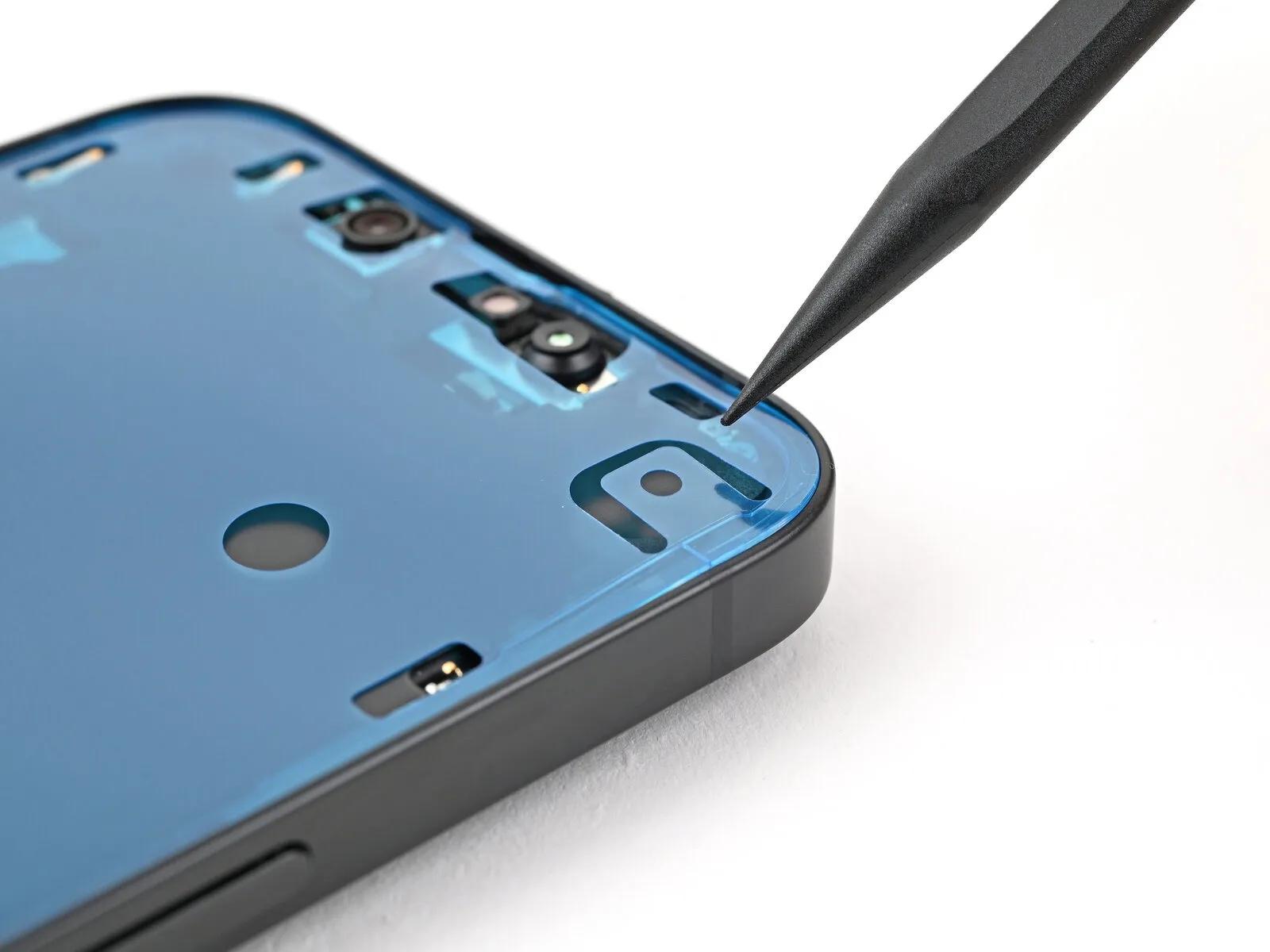

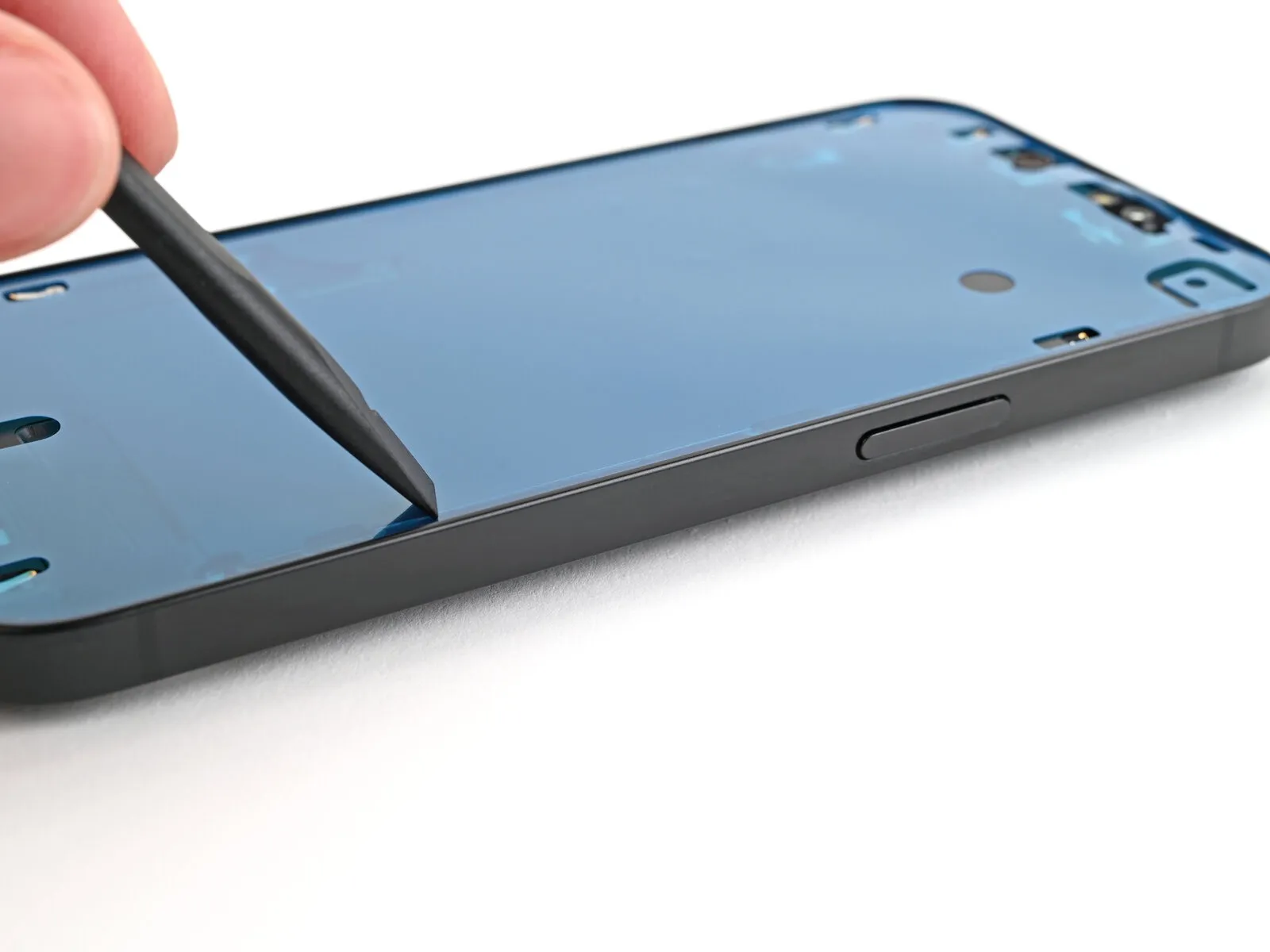

Employ the planar edge of a spudger tool to secure the adhesive bond along the outer edges of the device frame.The adhesive's placement around the frame's boundary should be facilitated by applying pressure with the spudger's flat end.To ensure proper adhesion, utilize the spudger's flat surface to firmly seat the adhesive material along the entire frame perimeter.

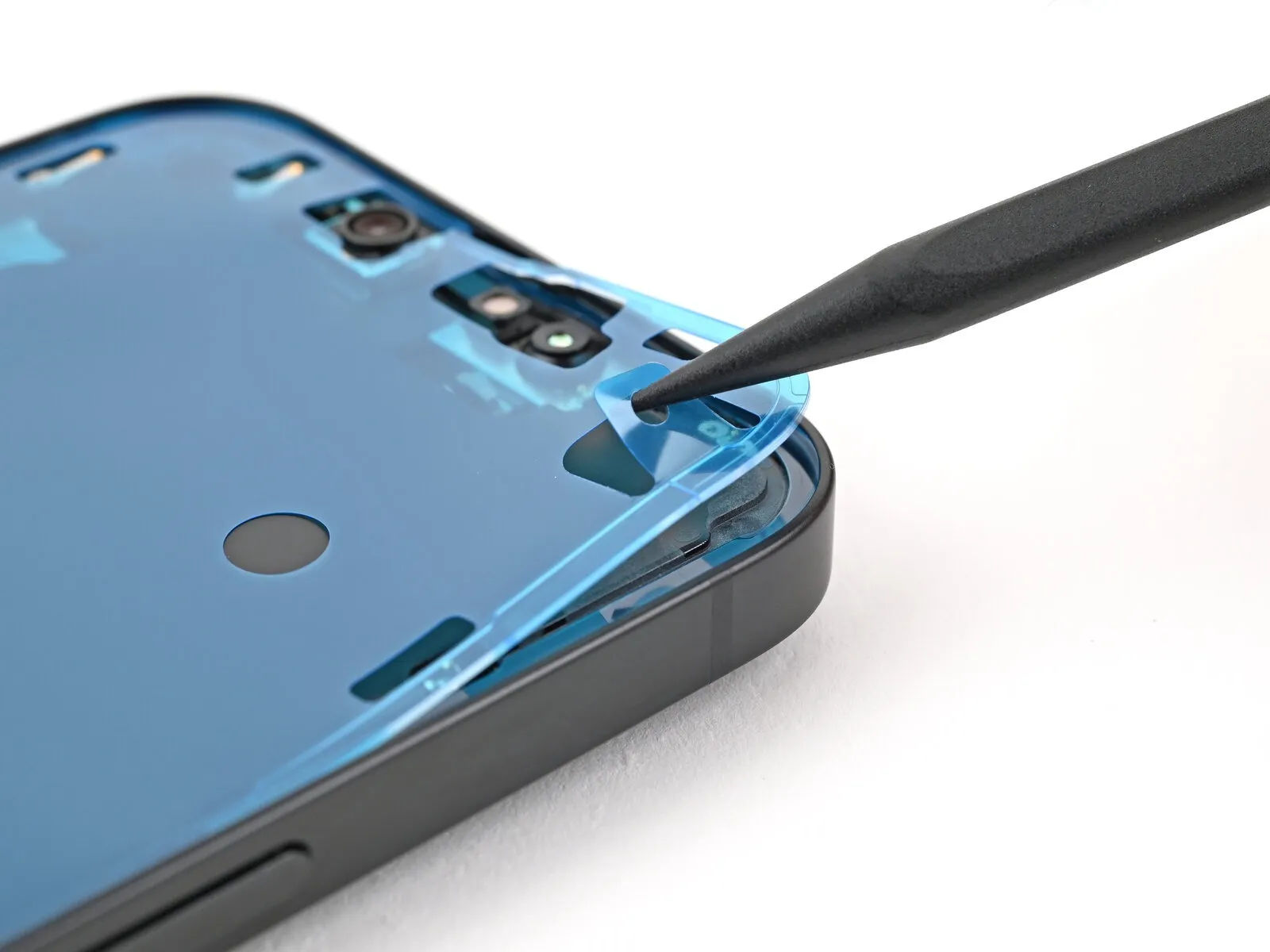

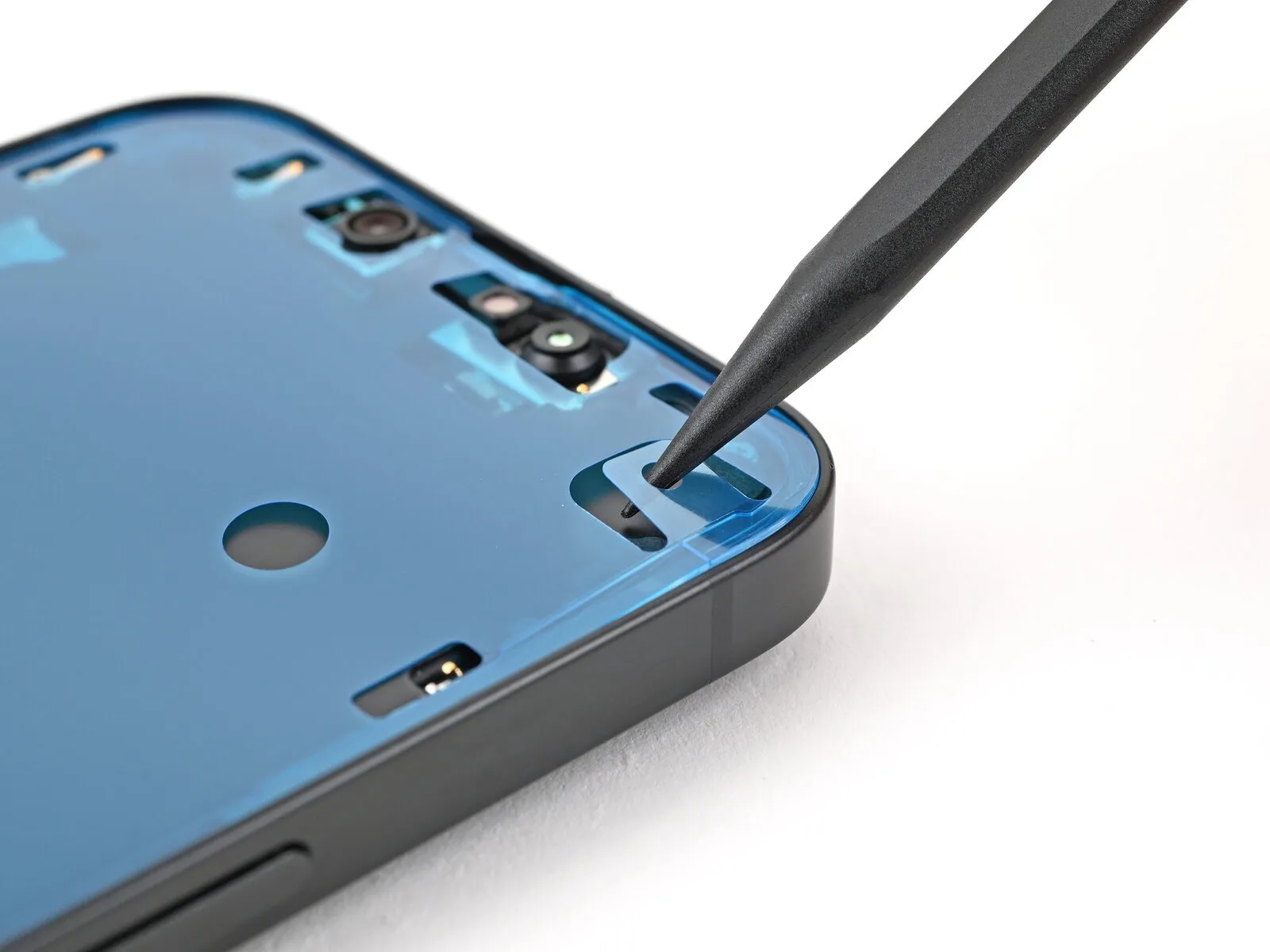

Employ the pointed end of a spudger to elevate the pull tab situated in the top-right corner of the blue adhesive liner, enabling a secure grasp with your fingers.Gaining access to the pull tab requires utilizing a spudger's tip to initiate its upward movement from the blue adhesive liner's upper right section.To facilitate manual gripping, a spudger should be used to detach the pull tab from the blue adhesive liner, specifically at its top-right location.

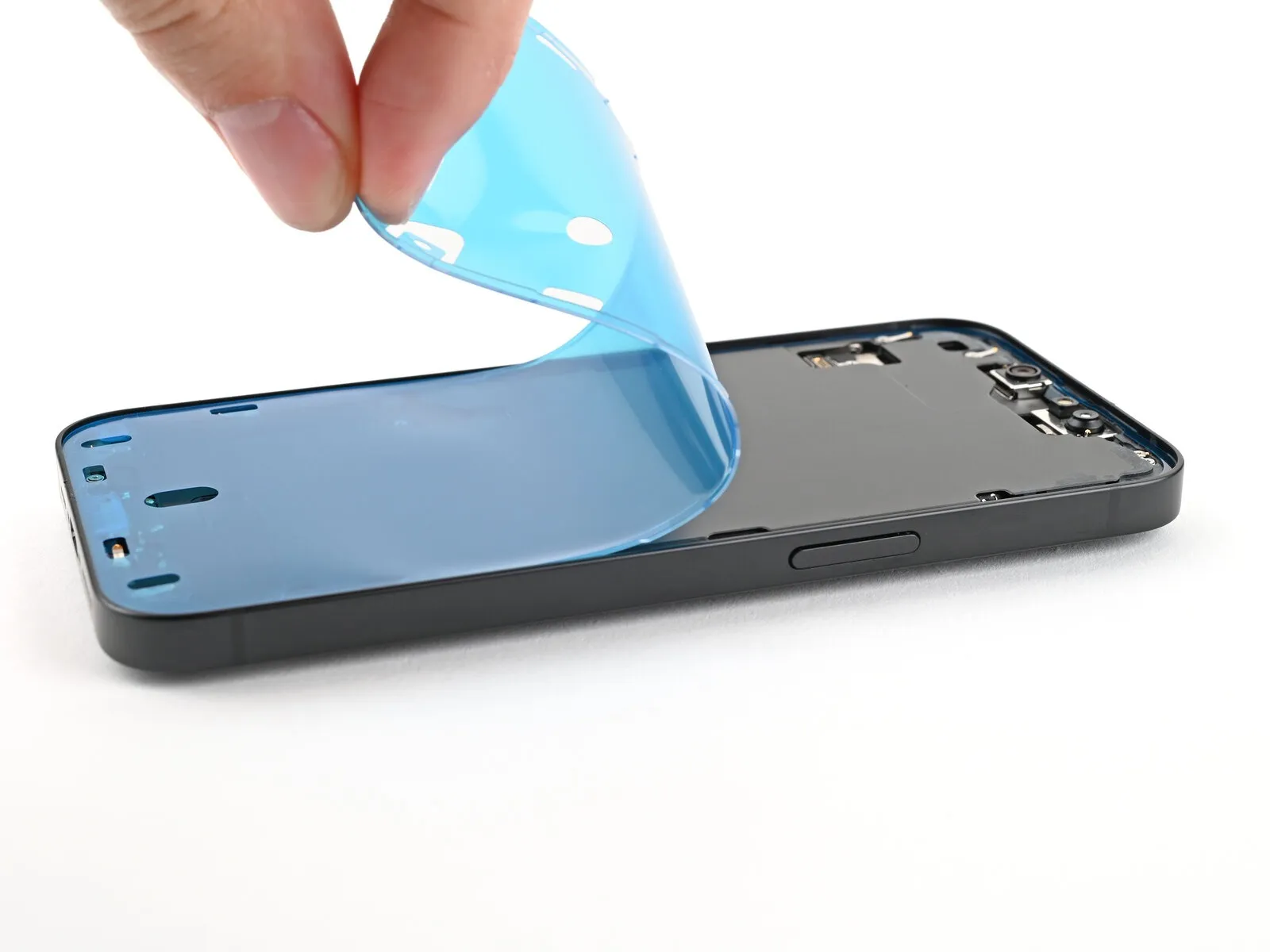

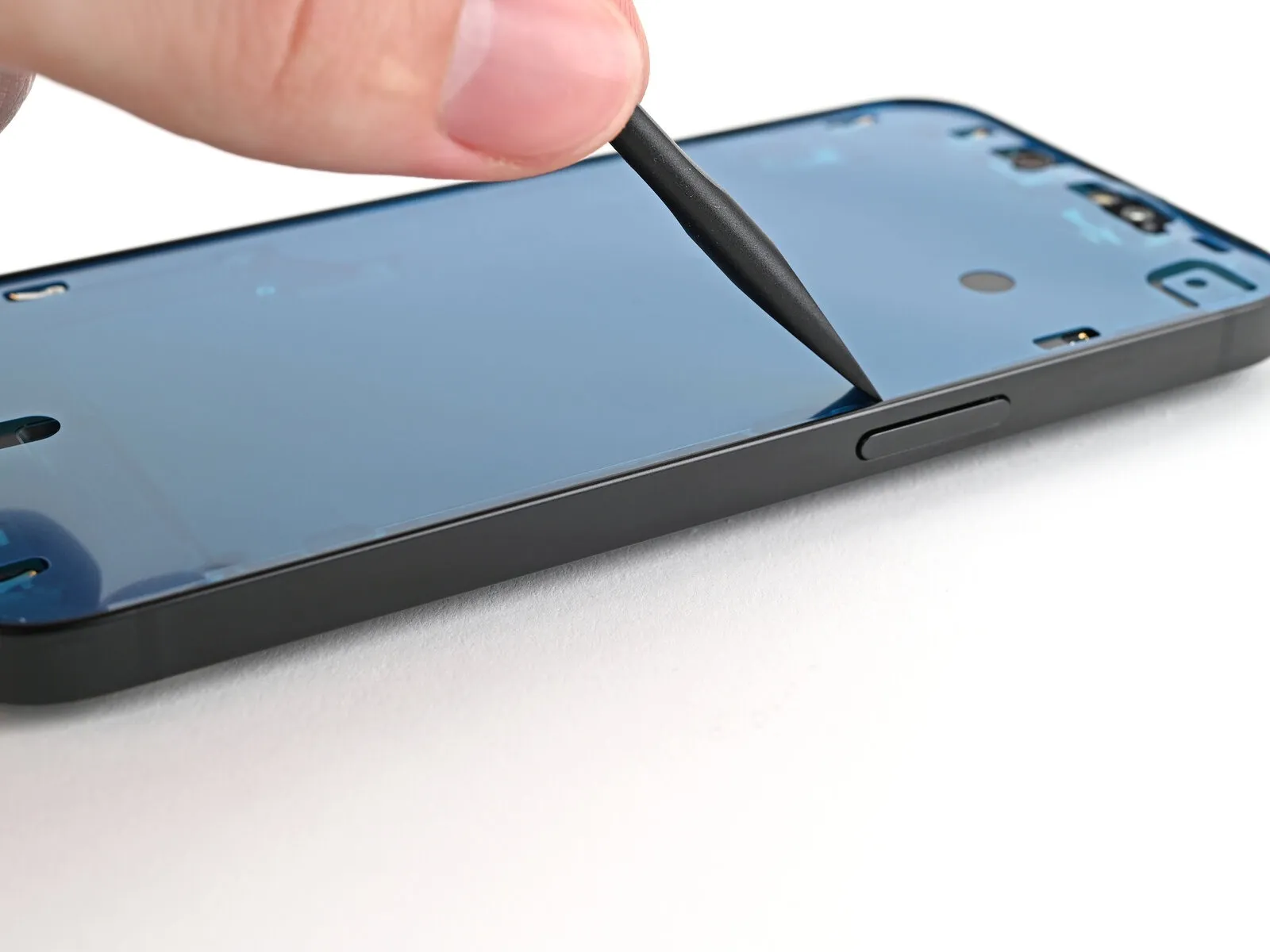

Detach the blue protective covering from the frame's surface by utilizing the integrated pull tab.

• To prevent damage, maintain the display's position by carefully supporting it with a stable object, such as a box, along the left side of the iPhone’s casing.
• Employ the broad, planar tip of a specialized opening tool, often referred to as a spudger, or a fingertip, to establish contact with the screen press connector.The screen press connector facilitates electrical connection between the display and the device’s mainboard.Replicate this procedure for the front sensor press connector, ensuring a secure connection.The front sensor press connector manages the functionality of the front-facing camera and associated sensors.Maintaining proper alignment during this step is crucial to avoid damaging the delicate connectors.
• Carefully apply pressure to ensure the connectors are fully seated and making proper contact.Any misalignment could result in device malfunction or necessitate further repair.Proceed with caution, as excessive force can easily damage the connectors or surrounding components.

• Position the screen's upper edge and the connector cover into the designated recess within the frame assembly, subsequently applying pressure via the press connector.The connector cover serves to protect the electrical connections on the screen's upper edge.Ensure proper alignment and secure placement of the screen and cover before activating the press connector to guarantee a stable connection.

1. Position the front sensor so that it forms a right angle.Secure the connector cover.Guide the cover into the frame's designated opening, ensuring a 90-degree insertion.
2. Place the cover atop the press connector.

• Employ a specialized tri-point screwdriver, specifically a Y000 type, for the installation process.Two screws, each measuring 0.9 millimeters in length, are utilized for fastening.These fasteners are responsible for securing the covers situated over the front sensor.The covers also protect the screen connector during the repair.Proper use of the Y000 tri-point screwdriver is essential to avoid damage.Ensure the screws are tightened adequately, but do not overtighten them.The front sensor connector and screen connector covers are held in place by the specified screws.

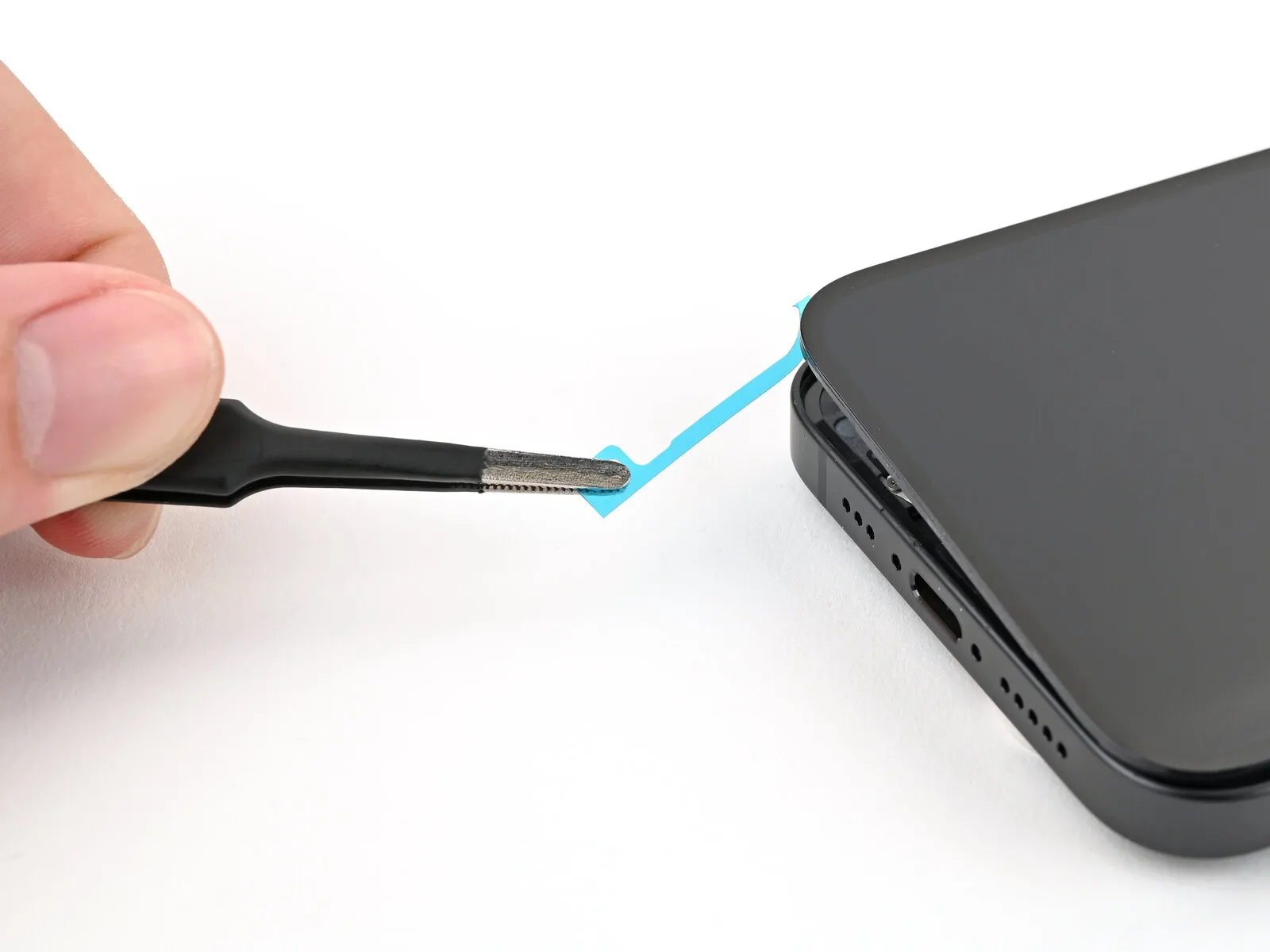

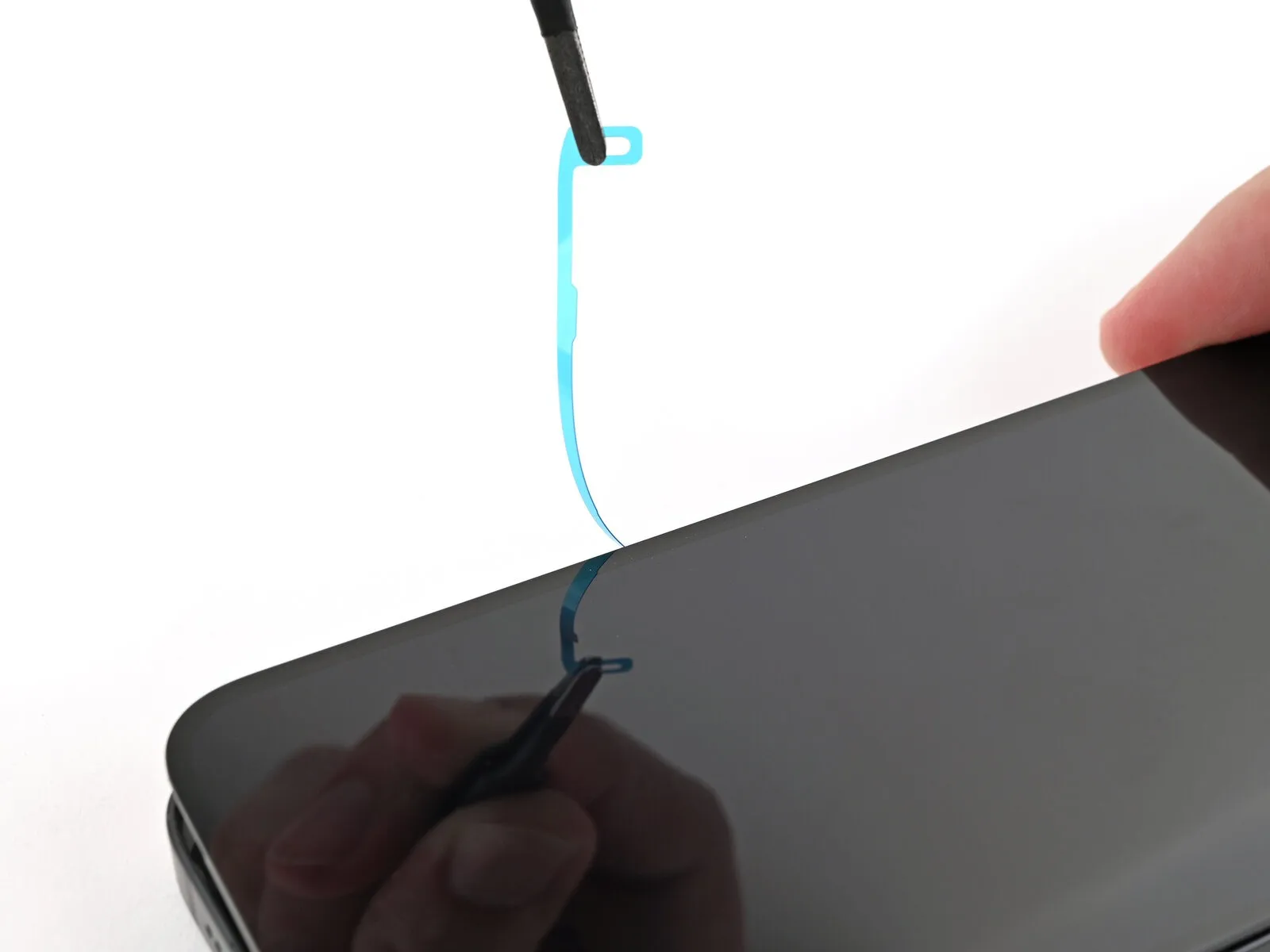

• Employing tweezers or direct finger manipulation, secure the azure pull tab to detach the protective liner situated along the device's right perimeter.Maintaining separation between the display panel and the adhesive backing, position the screen above the phone's body while extracting the remaining two liner sections.The liner's removal should be performed with care to prevent the screen from adhering to the adhesive.
• Proper alignment and secure positioning of the screen are crucial during liner removal to avoid unintended contact with the adhesive.

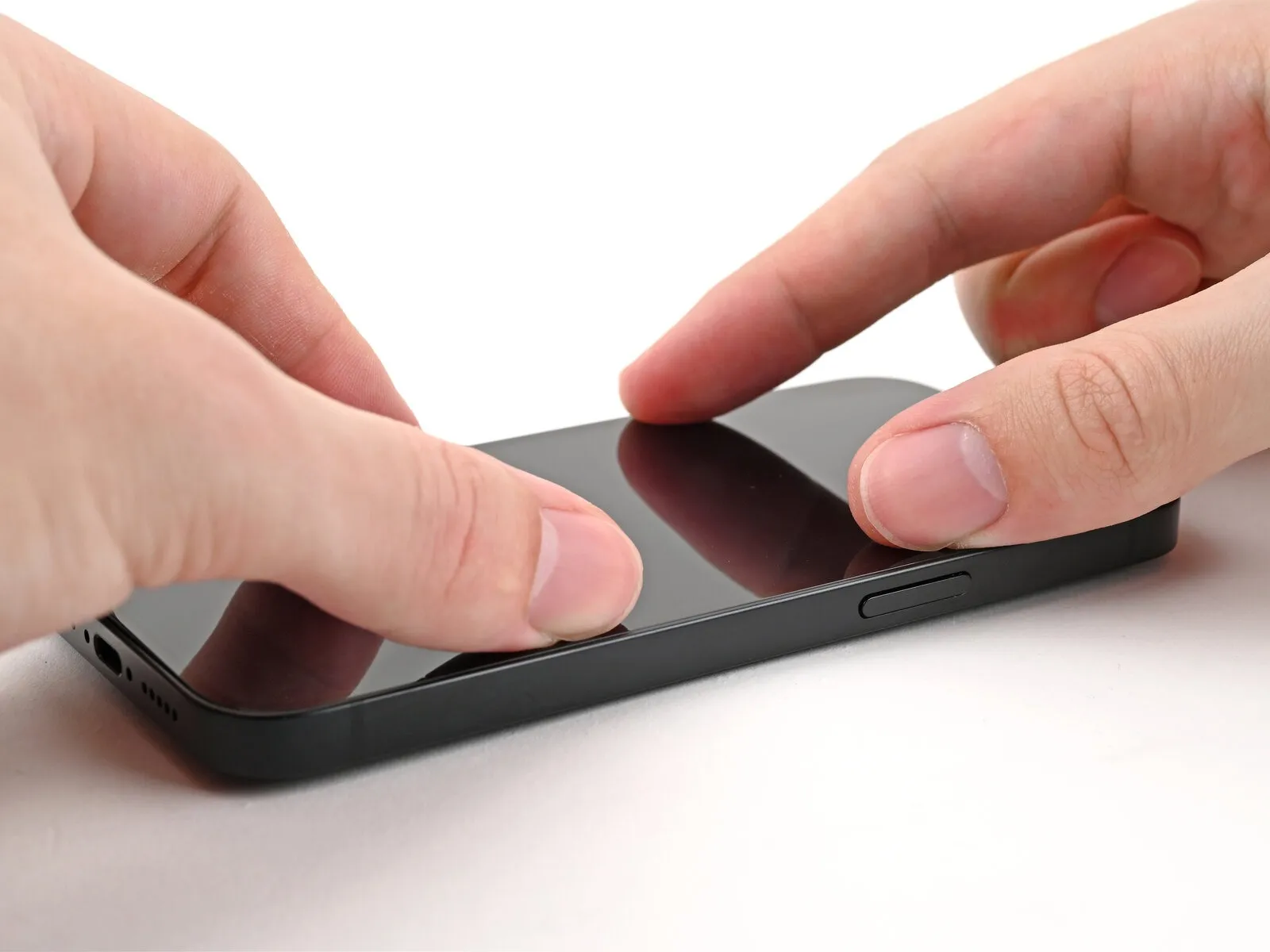

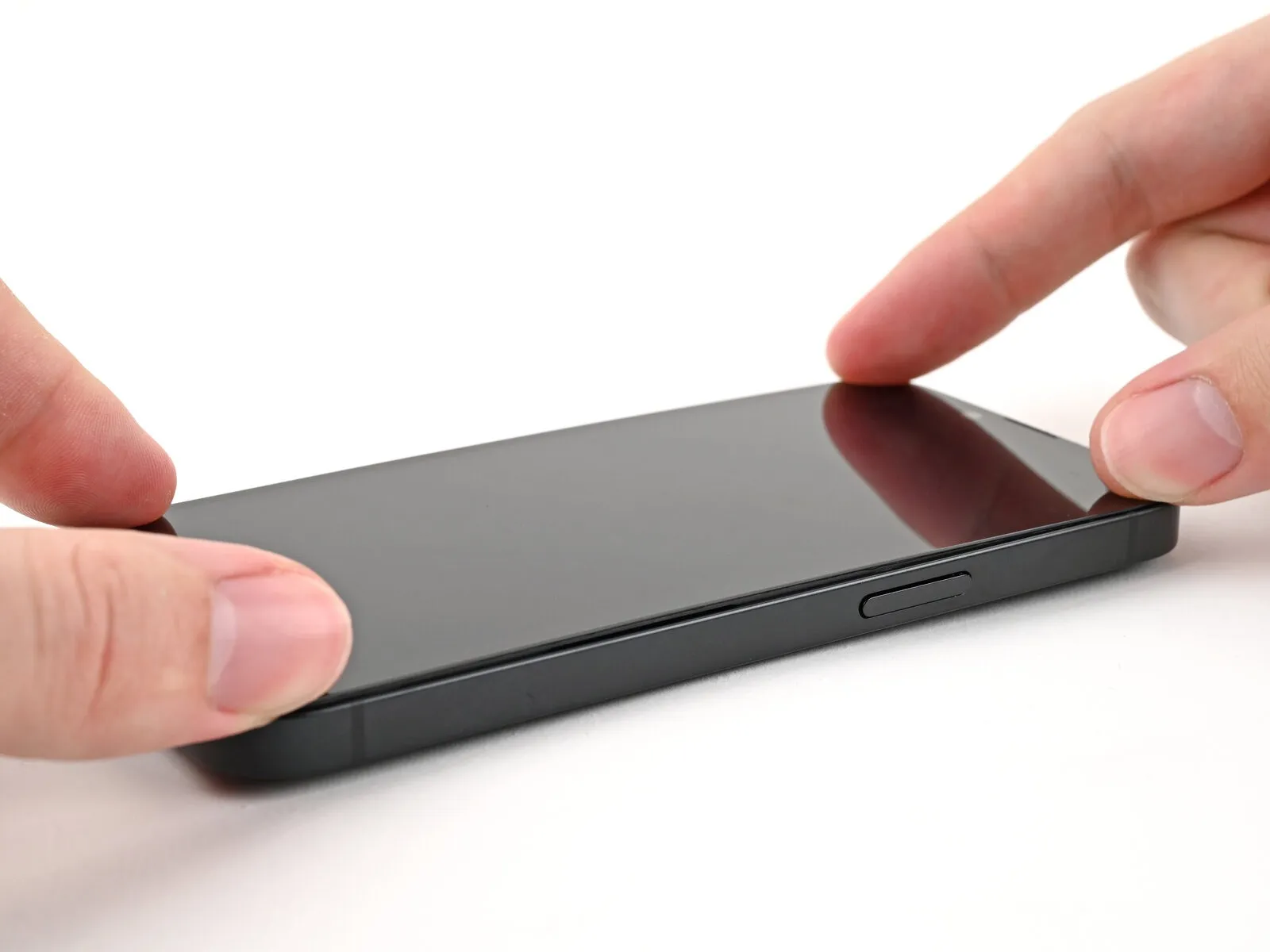

• Position the display panel flat against the chassis and apply pressure to ensure the retaining clips securely latch.
• To guarantee complete engagement of all securing clips, apply even pressure along the entire edge of the display.

• Achieving uniform pressure across the iPhone's chassis is essential for a secure screen adhesion, necessitating consideration of the camera module's protrusion.
• Utilize the iPhone's original packaging lid, positioning it on a level work area if available.
• Should the original packaging be unavailable, proceed to an alternative compression technique.
• Position the iPhone, with the display facing upwards, within the box lid, ensuring the camera bump aligns with the designated indentation.
• Gather items approximating the iPhone's length but exceeding the box's sidewalls; arrange these atop the iPhone, subsequently adding several substantial weights.
• Allow the applied pressure to remain constant for a minimum of thirty minutes; extend this duration proportionally to the weights' reduced mass, with overnight stabilization being optimal.

• Lacking the iPhone's original packaging, proceed with the subsequent three procedures to achieve uniform screen compression.
• Position the iPhone with the display facing downwards onto a cushioned, level plane.
• Secure the rear glass with adhesive tape to safeguard its surface coating.

• Position a single layer of coins, or alternative items possessing comparable thickness, onto the adhesive tape situated along the perimeter of the rear glass.
• The required number of coin layers may vary, contingent upon the coins' individual thickness.
• Ensure uniform coin placement and a minimum thickness matching the camera module's protrusion.

• To apply even pressure across the iPhone's casing, position several books or a similar weighty item on top of it.
• Because coins can potentially mark or dent the surface beneath them, avoid using delicate or valuable materials for the applied weight.
• Allow the weight to remain undisturbed for a minimum of thirty minutes; for lighter objects, extend this duration, and overnight is the optimal timeframe for maximum effect.

• Employ a P2 pentalobe screwdriver for the installation process.Two screws, each measuring 7.8 mm in length, are required for this step.These fasteners are positioned bilaterally, adjacent to the charging port.Securely fasten the screws using the specified screwdriver to ensure proper component alignment.
