iPhone 17 Battery Replacement

Follow these instructions to swap out the battery within your iPhone 17.

The iPhone battery's capacity is specified asAchieve a level of completion reaching four-fifths.They can hold a maximum volumeThe battery is designed to maintain its performance for 500 complete charge and discharge cycles.ApproximatelyReplace the filter cartridge every 18 to 24 months.A diminished battery life or reduced device performance on your iPhone could indicate battery degradation, suggesting a replacement is necessary.

  • Carefully observe that the specified torque of 25 Nm, achieved using a torque wrench, must be applied when tightening the M6 bolt to prevent damage to the component.To detach the battery, which is secured with adhesive activated by electrical charge, apply a voltage as detailed in the Apple repair documentation.Utilize a 9-volt battery.Apply power for a duration of 90 seconds, alternatively utilizing a power supply or power bank.The voltage output ranges from 5 to 20 volts.The duration needed to release the adhesive's bond is not fixed and will fluctuate.
  • Employing the VoltClip in conjunction with the FixHub Portable Power Station facilitates adhesive separation; alternatively, proceed with the standard instructions while adhering to your power source's specific operational guidelines for each required stage.

Following the repair, expect potential system alerts regarding the substitute battery and a loss of battery health information; however, the battery's functionality should remain standard. Beginning with iOS 26, battery health data compatibility extends to both original equipment manufacturer and third-party replacement batteries. Utilize the Repair Assistant to recalibrate the battery performance data.

Although the accompanying images were taken using a slightly different model, any visual variations are minor and will not impact the repair steps.

Step 1 | Before you begin

Step 1 image
Thumbnail 1
Thumbnail 2

To optimize battery health, ensure the charge level drops to a minimum of 75% remaining.A fully charged lithium-ion battery presents a possible safety risk..
Disconnect all wires and cords connected to the device.
Simultaneously press and maintain the power button along with either volume button, then move the device in a sliding motion to initiate the power-off sequence.

Step 2 | Tape over any cracks

Step 2 image
Thumbnail 1
Thumbnail 2

To prevent injury and simplify the repair process when the display or rear glass exhibits severe cracking, apply strips of packing tape that slightly overlap each other across the damaged surfaces.
A flat surface, sufficient in size to accommodate a suction cup, must be present close to the lower extremity.

Step 3 | Remove the pentalobe screws

Step 3 image
Thumbnail 1
Thumbnail 2

Employ a 3/8-inch socket wrench to loosen the retaining bolt, ensuring you maintain a firm grip and avoid over-tightening during reassembly, as excessive force can damage the threaded insert.Use a P2 driver with a pentalobe tip.Detach the pair of fasteners.Screws measuring 7.7 millimeters in length.Flanking the charging port are components located on both the left and right sides.

Step 4 | Mark your opening picks

Step 4 image
Thumbnail 1
Thumbnail 2
Thumbnail 3

To avoid potential damage to your device, ensure the opening pick does not extend beyond a safe depth; to help with this, mark the pick according to the following procedure.

  • Determine the dimension using a suitable measuring tool.Three millimeters.Using a permanent marker, indicate the opening point on the pick.
  • Alternative corner markings, using the same measurement tools, can be applied to the remaining corners of the pick.
  • To achieve the same effect, affix a coin to the pick, positioning it 3 millimeters from the pointed end.

Step 5 | Heat the bottom edge

Step 5 image

Employ a 3/8-inch socket wrench to loosen the retaining bolt, ensuring you maintain a firm grip on the component to prevent it from rotating while the bolt is removed, and always wear safety glasses to protect against potential debris.Utilize a hair dryer to apply heat, ensuring the device is set to a low temperature and held approximately 6 inches away from the component, to facilitate adhesive softening and removal.orApply warmth using a device that directs heated air.Apply heat to the lower perimeter of the rear glass panel until its surface is warm enough to be comfortably touched.
Alternatively, employ aUse a specialized iOpener tool.Employ heat to the rear glass panel, adhering to the subsequent steps for correct iOpener usage and application.

Step 6 | Insert an opening pick

Step 6 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  • Using a suction handle, secure it to the lower edge of the rear glass panel.
  • Apply firm, even upward pressure to the handle, ensuring the frame remains stabilized, to separate the back glass from the frame; a noticeable space should appear.
  • Carefully guide the pointed end of anUse a specialized tool designed for prying, often referred to as a pick.Carefully slide the component into the designated space.

Step 7 | Back glass information

Step 7 image

To prevent damage, limit the insertion depth of your tool to 3 mm while carefully separating the adhesive holding the rear glass in place during the subsequent procedure.

  • Carefully handle the component to avoid damage.Connect the wire, ensuring its length remains within the 12-inch tolerance and using appropriate crimping tools to secure it.Carefully align the rear glass with the frame, positioning it adjacent to the volume down button; avoid inserting any tools in this area to prevent damage to the internal cable.
  • Several instances of this step are required.Resilient metal connectorsCarefully trace the device's outer edges.

Step 8 | Heat the right edge

Step 8 image

Employ a 3/8-inch socket wrench to loosen the fastener, ensuring you apply a steady force to prevent damage to the retaining clip and avoid exceeding the specified torque of 15 Nm, as indicated in Figure 3.Utilize a hair dryer to apply heat, ensuring the device is rated for voltages up to 120V and draws no more than 15 amps, maintaining a distance of at least 6 inches from the component being treated to prevent damage.orApply warmth with a heat gun.Apply heat to the right side of the rear glass panel, continuing until the surface is warm enough to be comfortably touched.

Step 9 | Separate the bottom right adhesive

Step 9 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  • Avoid pushing the tool beyond the specified depth.Three millimeters.Exercise caution to prevent harm to the spring contacts.
  • Using a pick, carefully work along the lower right edge, extending the movement toward the volume down button, to break the adhesive seal and disengage the metal clip.
  • To prevent damage to the wireless charging cable, be careful not to move your finger across the volume buttons while holding the device.
  • As the part moves past, listen and feel for the audible and tactile indication of the metal clip disengaging.
  • Maintain the pick's position within the gap to stop the adhesive from bonding shut.

Step 10 | Heat the left edge

Step 10 image

Apply heat to the left side of the rear glass panel using a hair dryer or heat gun, ensuring the surface reaches a temperature that is comfortable to touch.

Step 11 | Separate the left adhesive

Step 11 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  • Limit pick insertion depth to a maximum of 3 millimeters.Exercise caution to prevent harm to the spring contacts.
  • Position another opening pick near the lower boundary.
  • Using the second pick, carefully work your way around the lower-left corner of the screen and up its left side to loosen the adhesive and disengage the metal clips.
  • As the clips slide past, you will notice and sense them disengaging.
  • Maintain the pick's position in the upper left corner to obstruct adhesive reattachment.

Step 12 | Heat the top edge

Step 12 image

Apply warmth with a hair dryer or heat gun to the area.The uppermost border of the rear glass panel.Ensure the component reaches a temperature detectable by hand.

Step 13 | Separate the top right adhesive

Step 13 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  • To prevent spring contact damage, limit pick insertion depth to a maximum of 3 millimeters.
  • Using a second opening pick, carefully work it along the top edge, starting at the upper left corner, to sever the adhesive bond and disengage the metal clips.
  • As the clips slide past, you will notice and sense them detaching.
  • Carefully maneuver the pick along the upper right edge until it contacts the Action button.
  • Maintain the tool's position within the gap to stop the adhesive from bonding shut.

Step 14 | Reposition the back glass

Step 14 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  • Ensure the rear glass is completely detached from the frame; if resistance is encountered, re-examine the entire edge using your pick to locate and release any remaining adhesive or trapped clips.
  • Carefully pivot the rear glass assembly away from the device body on the right side to release the bonding adhesive.
  • Use a rigid, non-contaminating tool to provide stabilization to the rear panel.
  • Prior to proceeding with the repair, discard the provided opening picks.

Step 15 | Remove the middle connector cover screws

Step 15 image
Thumbnail 1
Thumbnail 2

Employ a Y000 tri-point screwdriver.Detach the pair of fasteners.Screws measuring 1 millimeter in lengthAffix the central connector cover, ensuring it is properly aligned and fastened.

Step 16 | Remove the middle connector cover

Step 16 image
Thumbnail 1
Thumbnail 2
Thumbnail 3

Using a spudger, gently wedge its tip into one of the openings on the central connector cover, then slide the cover leftward to disengage the retaining hook from its position on the logic board, allowing the cover to be detached.

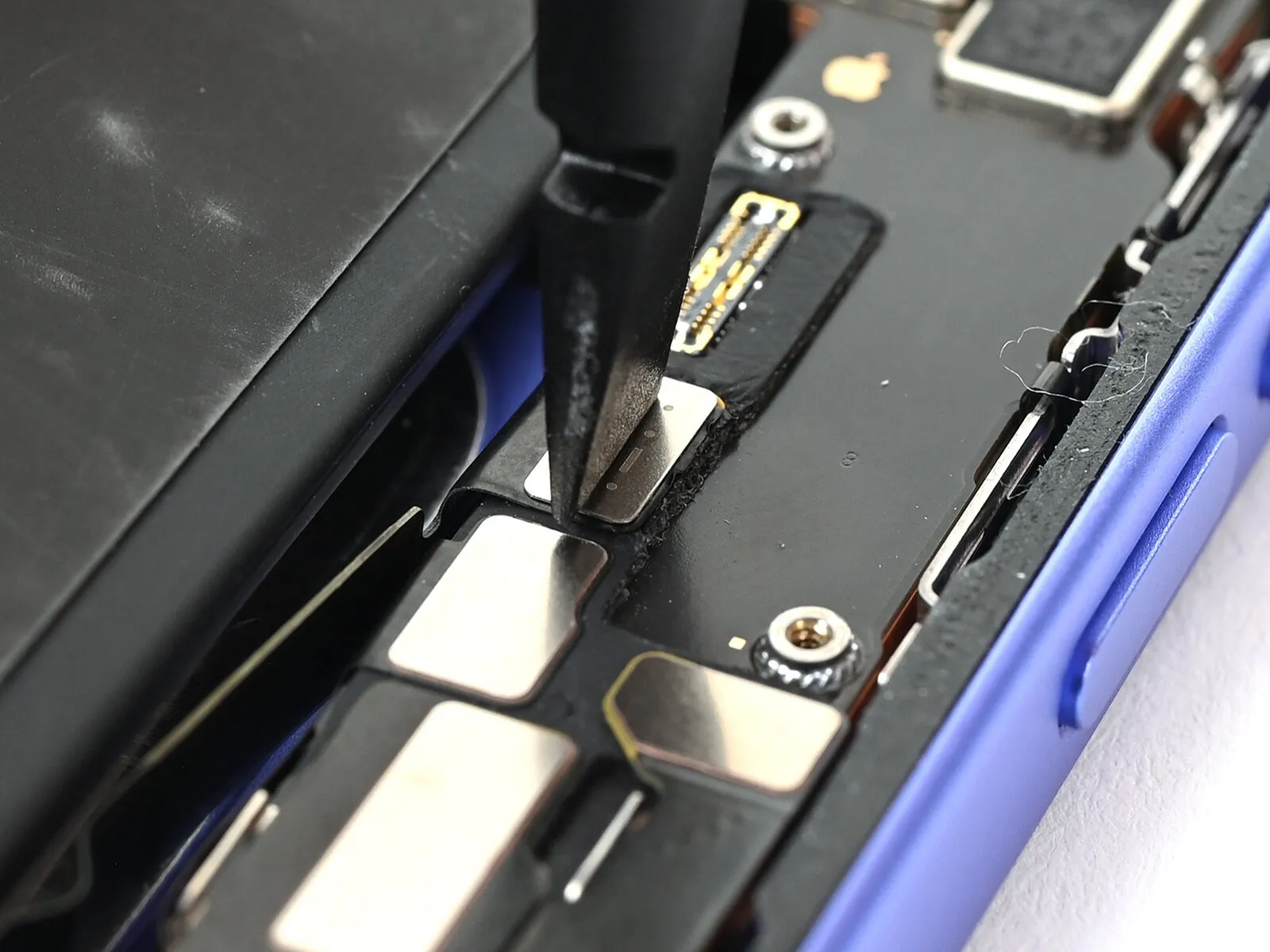

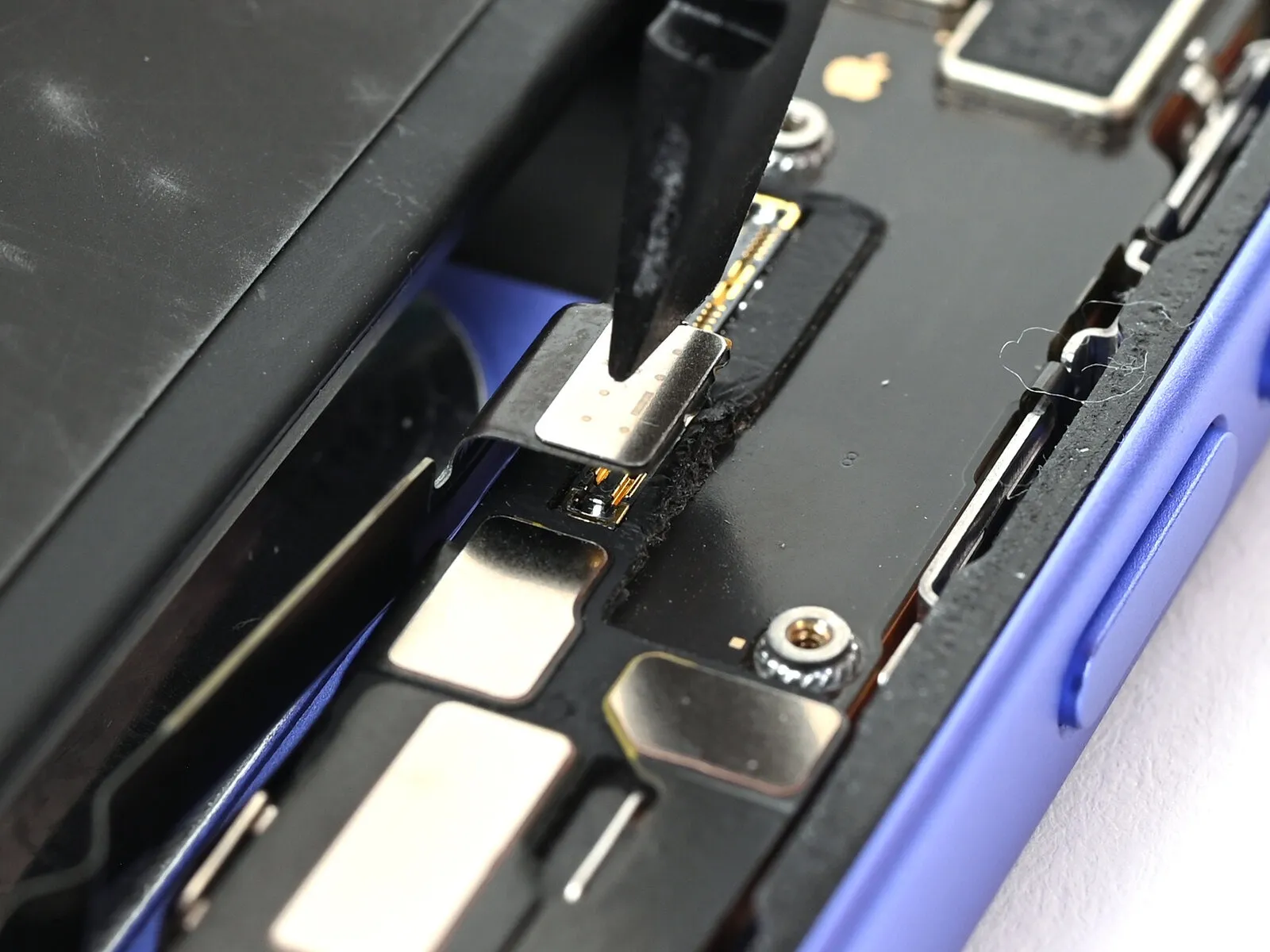

Step 17 | Disconnect the battery

Step 17 image
Thumbnail 1
Thumbnail 2

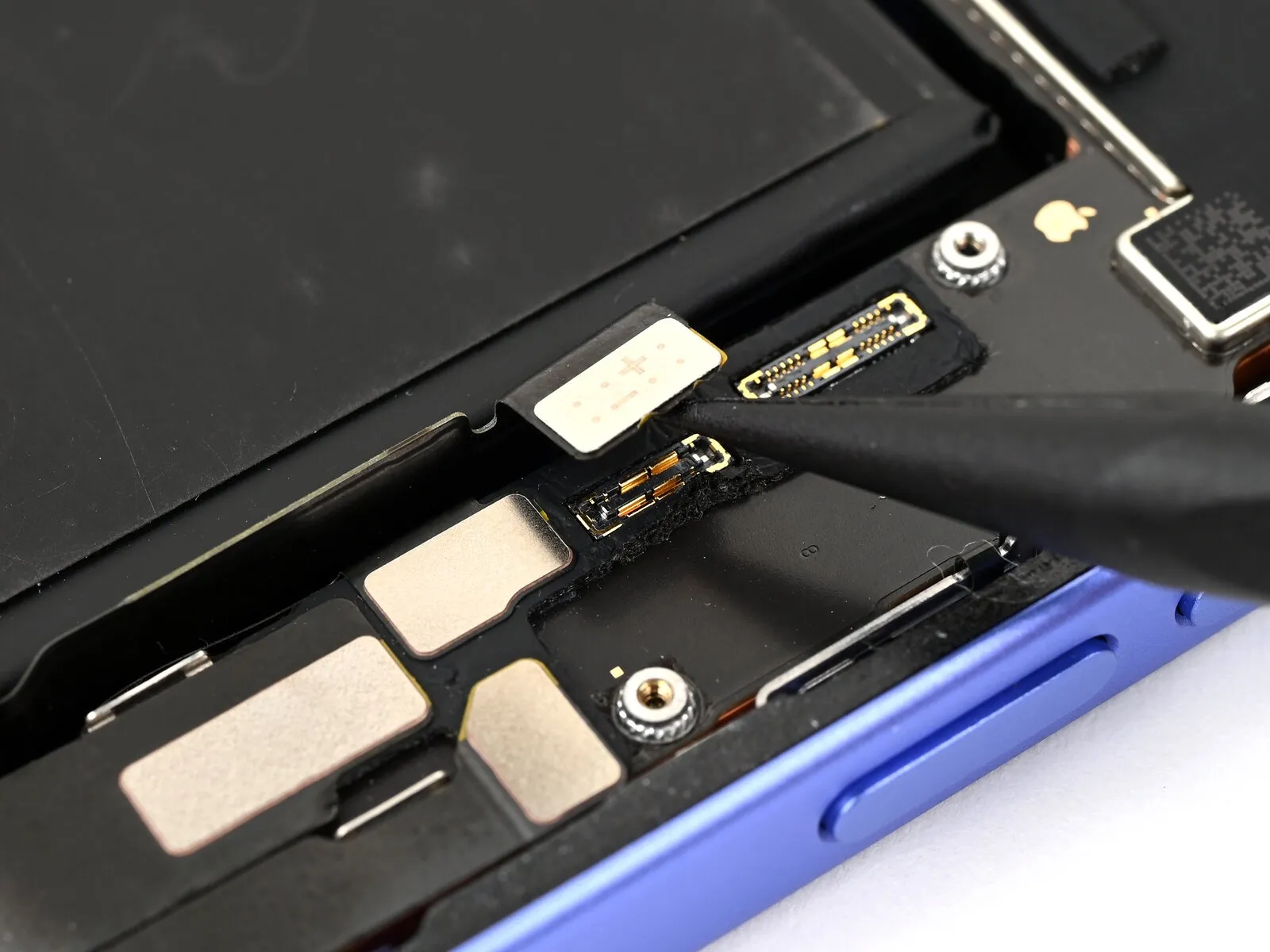

Carefully insert the tip of a screwdriver to.Use a plastic pry tool to gently separate.Use a prying tool to release and separate the battery press connector.

Step 18 | Disconnect the wireless charging coil

Step 18 image
Thumbnail 1
Thumbnail 2

Carefully insert the tip of a screwdriver to.Use a plastic pry tool, often referred to as a spudger.Release the connector securing the wireless charging coil, then use prying action to separate the coil.

Step 19 | Remove the back glass

Step 19 image

Carefully detach the rear glass component from its surrounding frame, then completely separate it.

Step 20 | Separate the silver tab

Step 20 image
Thumbnail 1
Thumbnail 2

Carefully lift the edge of the component using a specialized opening tool or a clean fingernail.A metallic strip, typically silver in color, is present.Along the battery's lower perimeter.

Step 21 | Assemble the VoltClip

Step 21 image
Thumbnail 1
Thumbnail 2
  • Connect the power cable into the receptacle.Use the VoltClip.Connect the barrel connector of the S cable to the USB-C elbow.
  • Ensure the connector remains disconnected.Employ the VoltClip diagnostic tool.Before connecting to power, ensure the alligator clips are not contacting each other, as this could result in an electrical short.

Step 22 | Attach the alligator clips

Step 22 image
Thumbnail 1
Thumbnail 2
  • Connect the red alligator clip to the silver tab.

Step 23

Step 23 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  • Connect the black alligator clip directly to the grounding screw.

Step 24 | Connect power to the VoltClip

Step 24 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  • Prevent contact between the red alligator clip and any unintended metal objects.
  • After plugging in a USB-C cable with power to the USB-C elbow connector, allow 90 seconds to elapse, which will permit the adhesive to release.

Step 25 | Disconnect the VoltClip

Step 25 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  • Carefully detach the USB-C connector from the elbow joint.
  • Remove the alligator clips by detaching them from their connections.

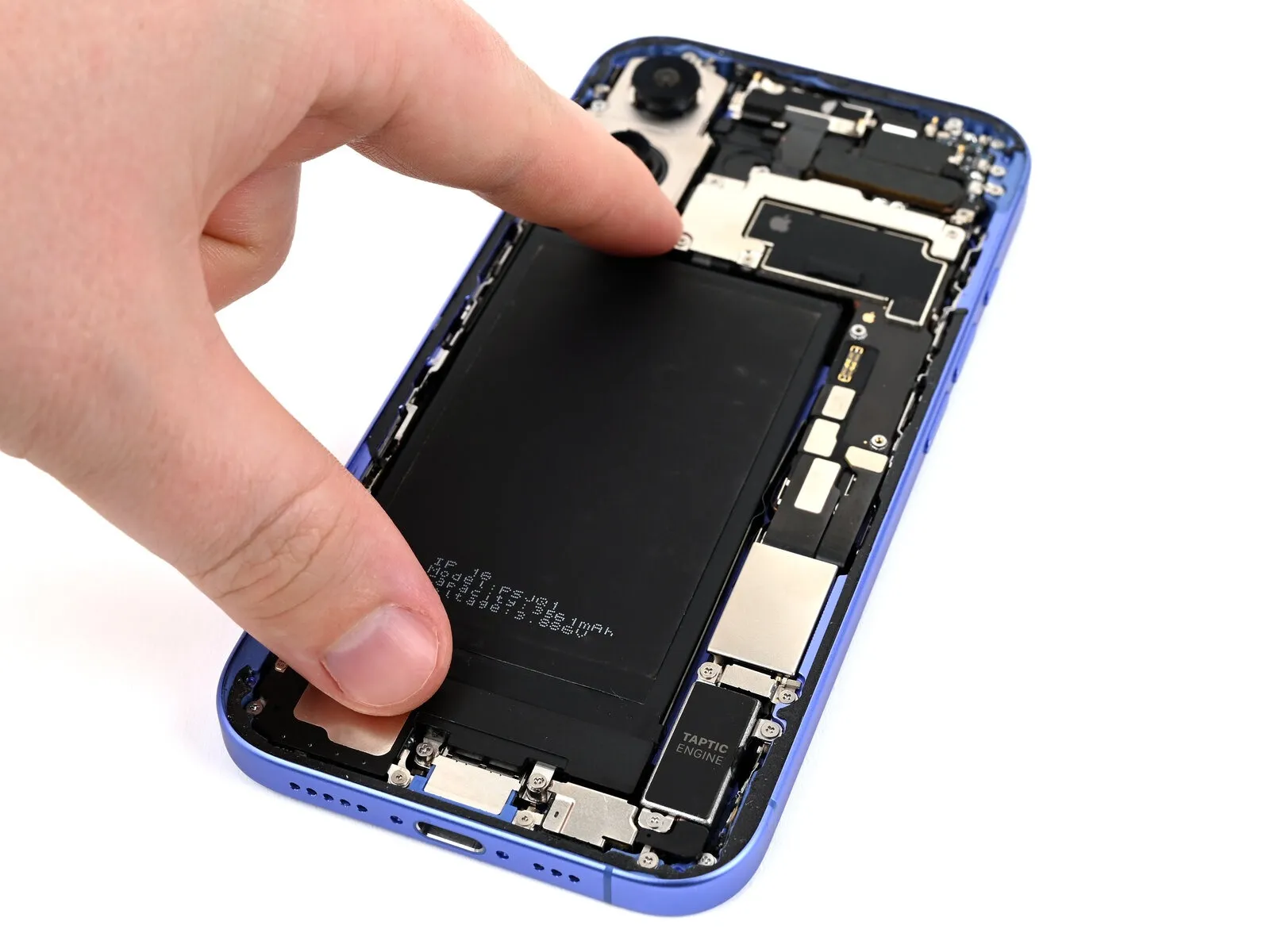

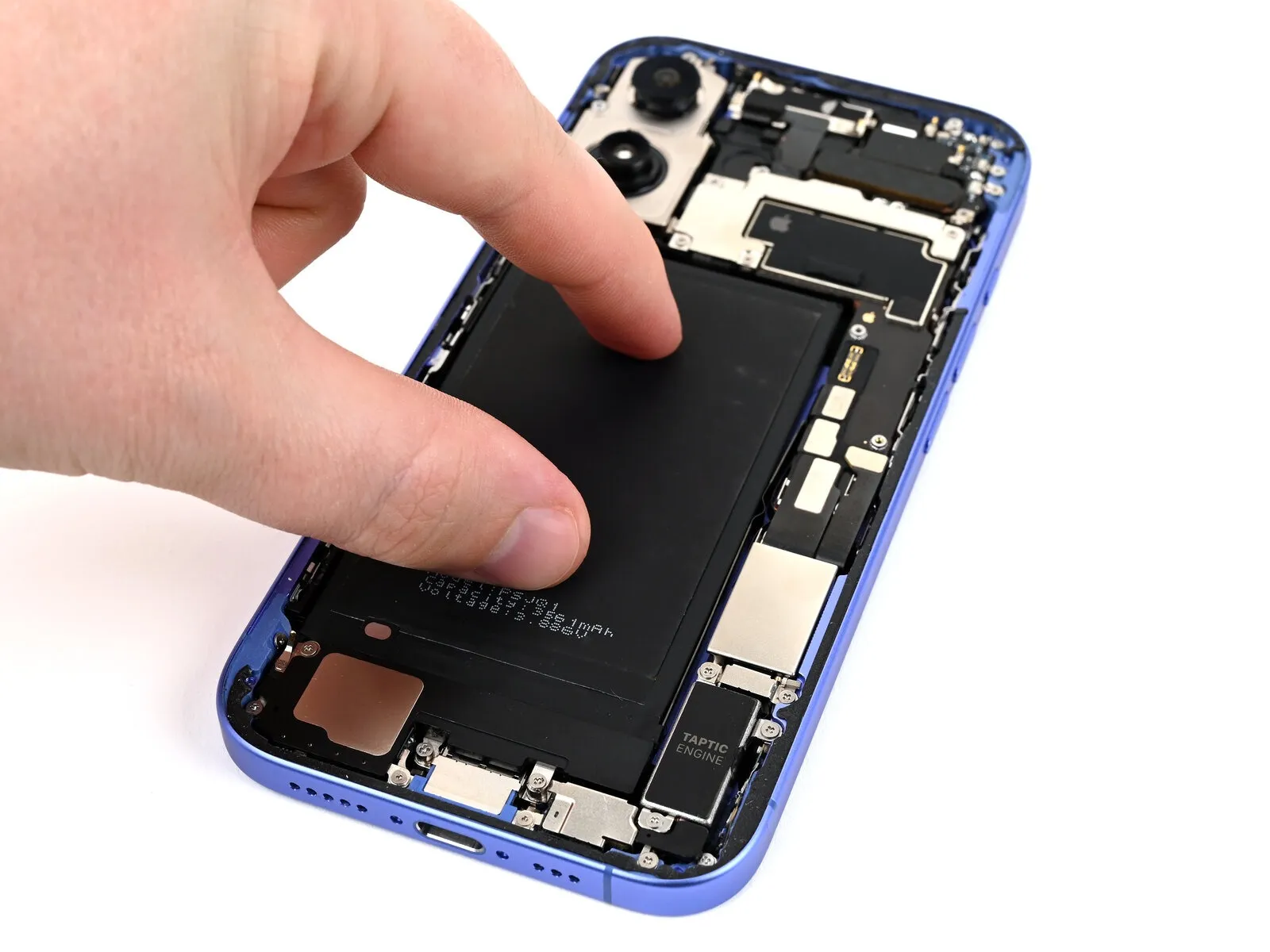

Step 26 | Remove the battery

Step 26 image
Thumbnail 1
Thumbnail 2
Thumbnail 3

Ensure the adhesive is completely released; if the battery remains fixed, apply the alligator clips again for one more minute before attempting removal.
Securely hold.Carefully locate the silver tab.Raise the component.Carefully remove the battery from its housing within the frame.
Employing a suction handle offers another method for battery removal; should resistance be encountered, avoid applying excessive force and instead repeat the prior extraction procedure.

Step 27 | End of disassembly

Step 27 image

Having finished taking the device apart, proceed with the following instructions to put it back together.
To ensure proper engagement, position the connector precisely above its receptacle and apply even pressure, initially on one side using a fingertip or spudger, followed by the opposite side, until a distinct click confirms secure attachment; avoid excessive force, and if alignment proves difficult, readjust the connector's position before attempting reconnection.

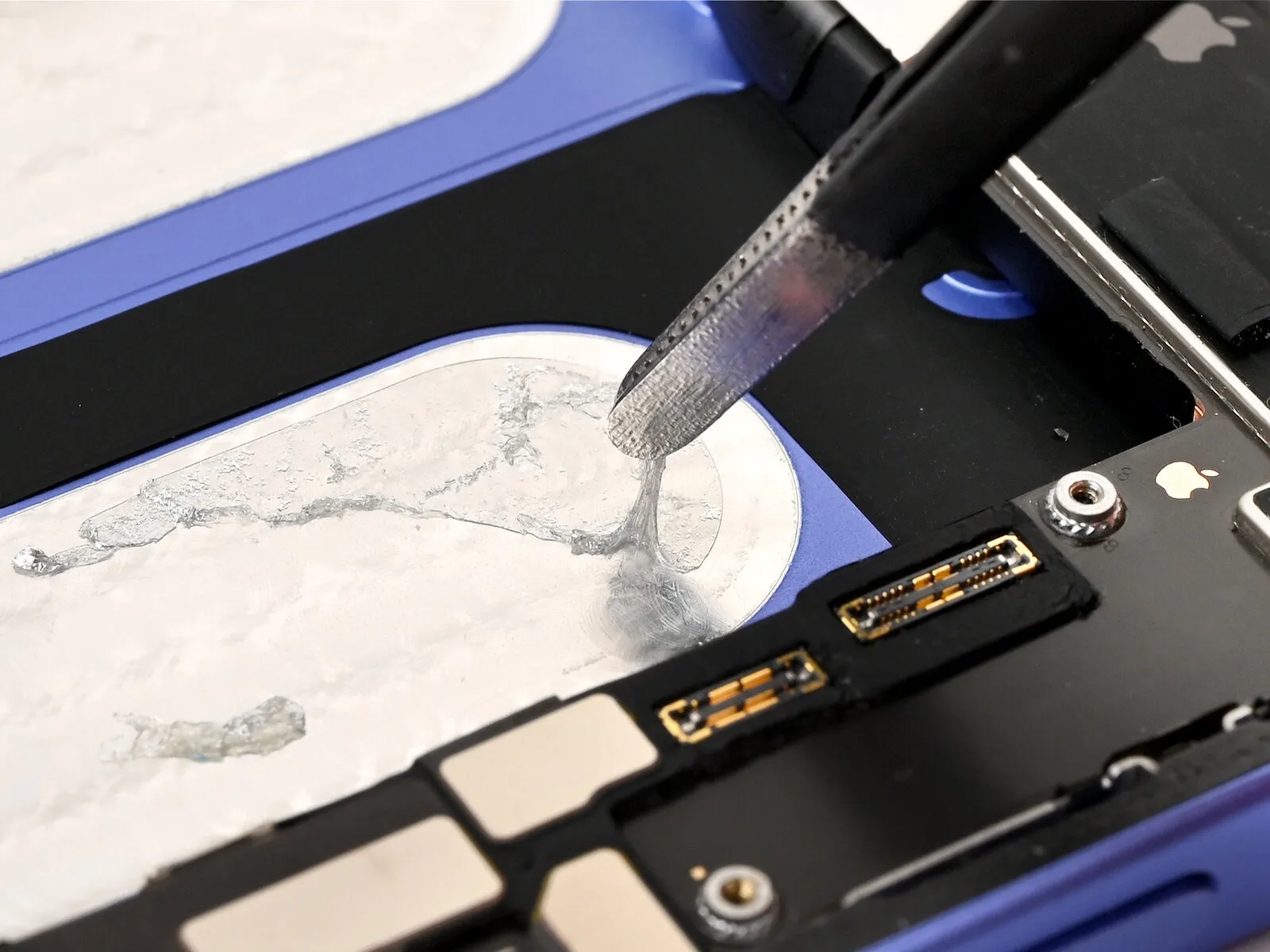

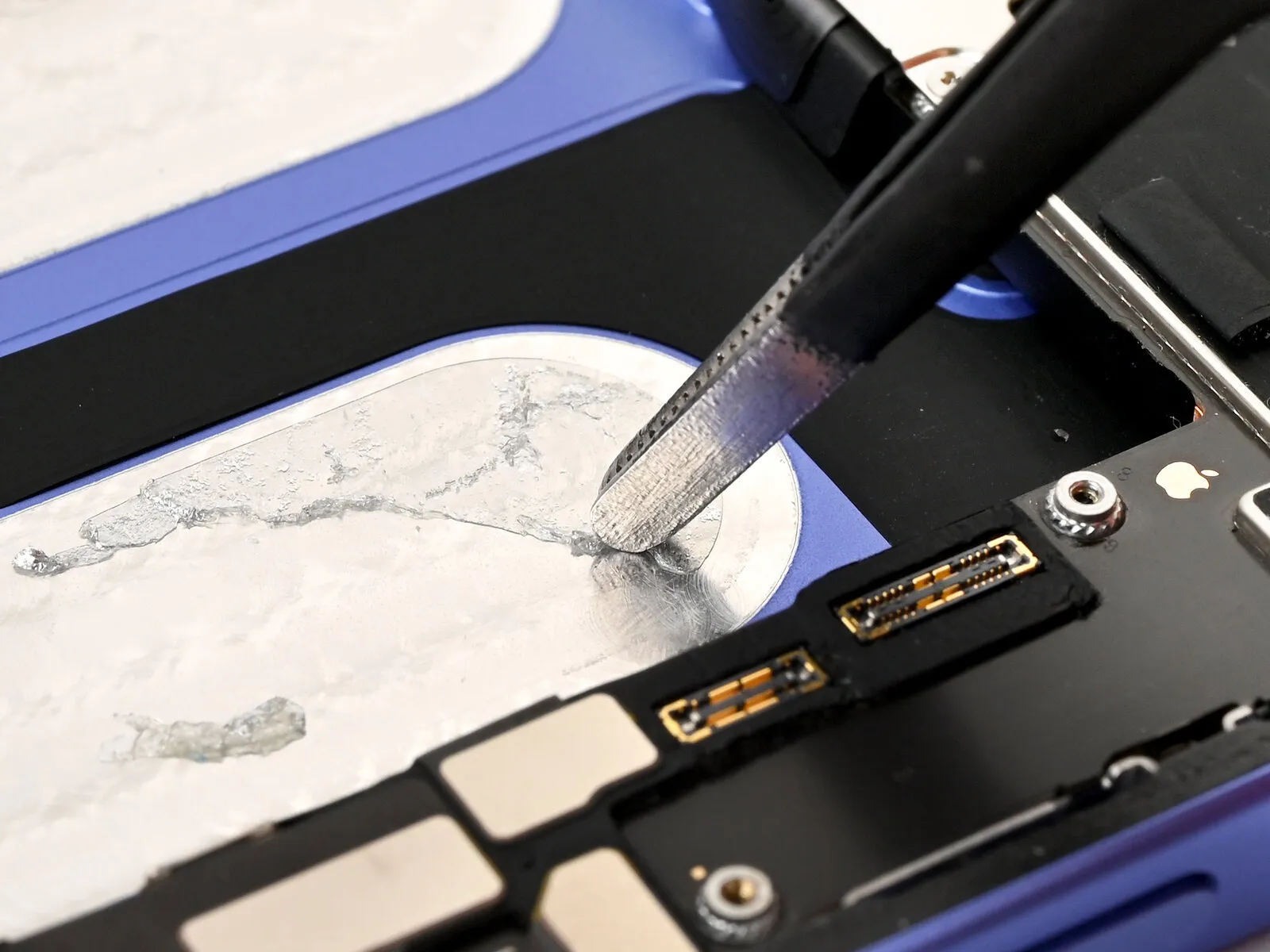

Step 28 | Remove residual battery adhesive

Step 28 image
Thumbnail 1
Thumbnail 2

Carefully remove substantial remnants of the battery adhesive from the iPhone frame using tweezers.

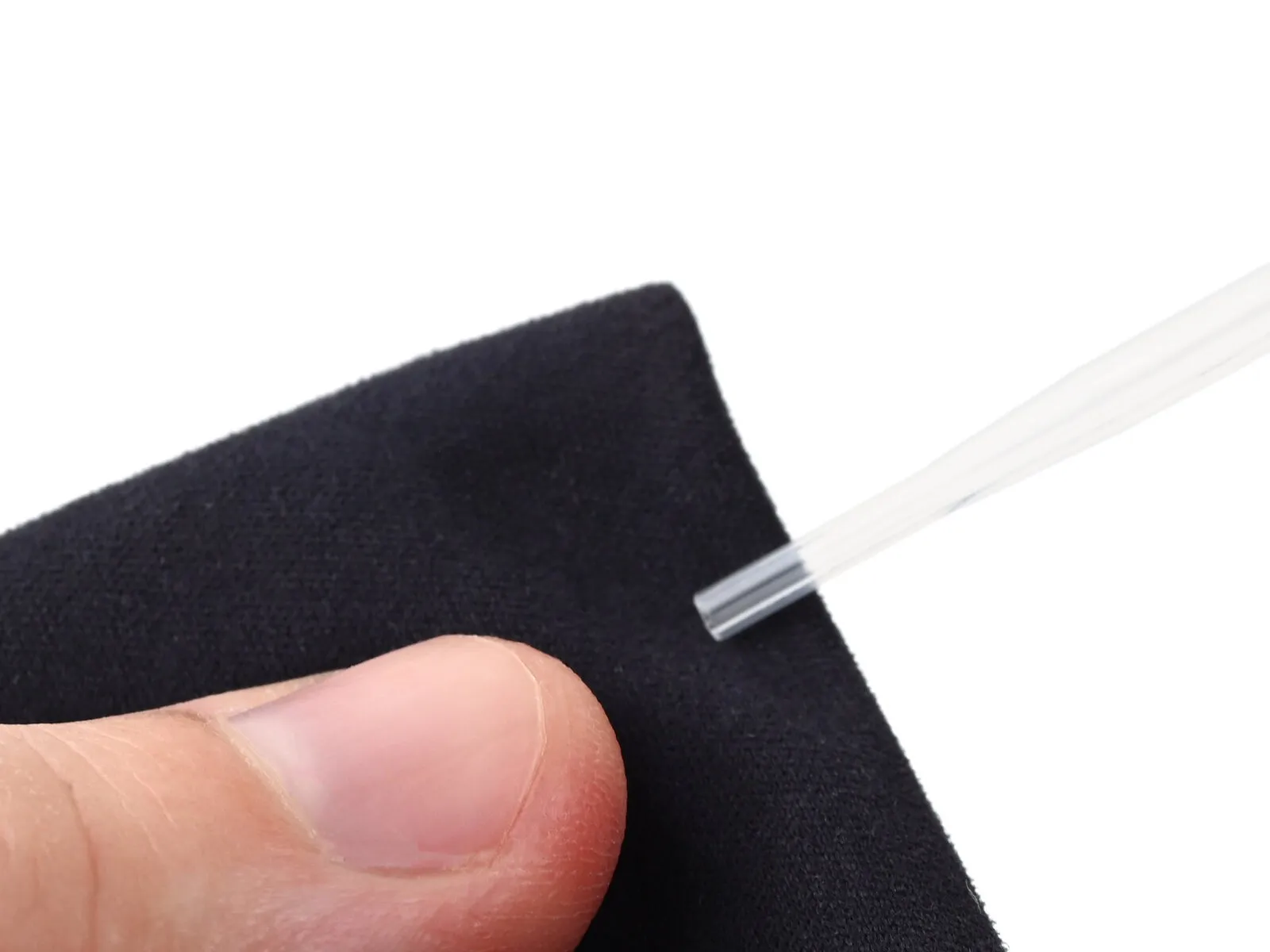

Step 29 | Remove adhesive residue

Step 29 image
Thumbnail 1
Thumbnail 2

Carefully remove any lingering battery adhesive from the iPhone frame by gently wiping with either a coffee filter or a lint-free cloth dampened with isopropyl alcohol having a concentration greater than 90%.

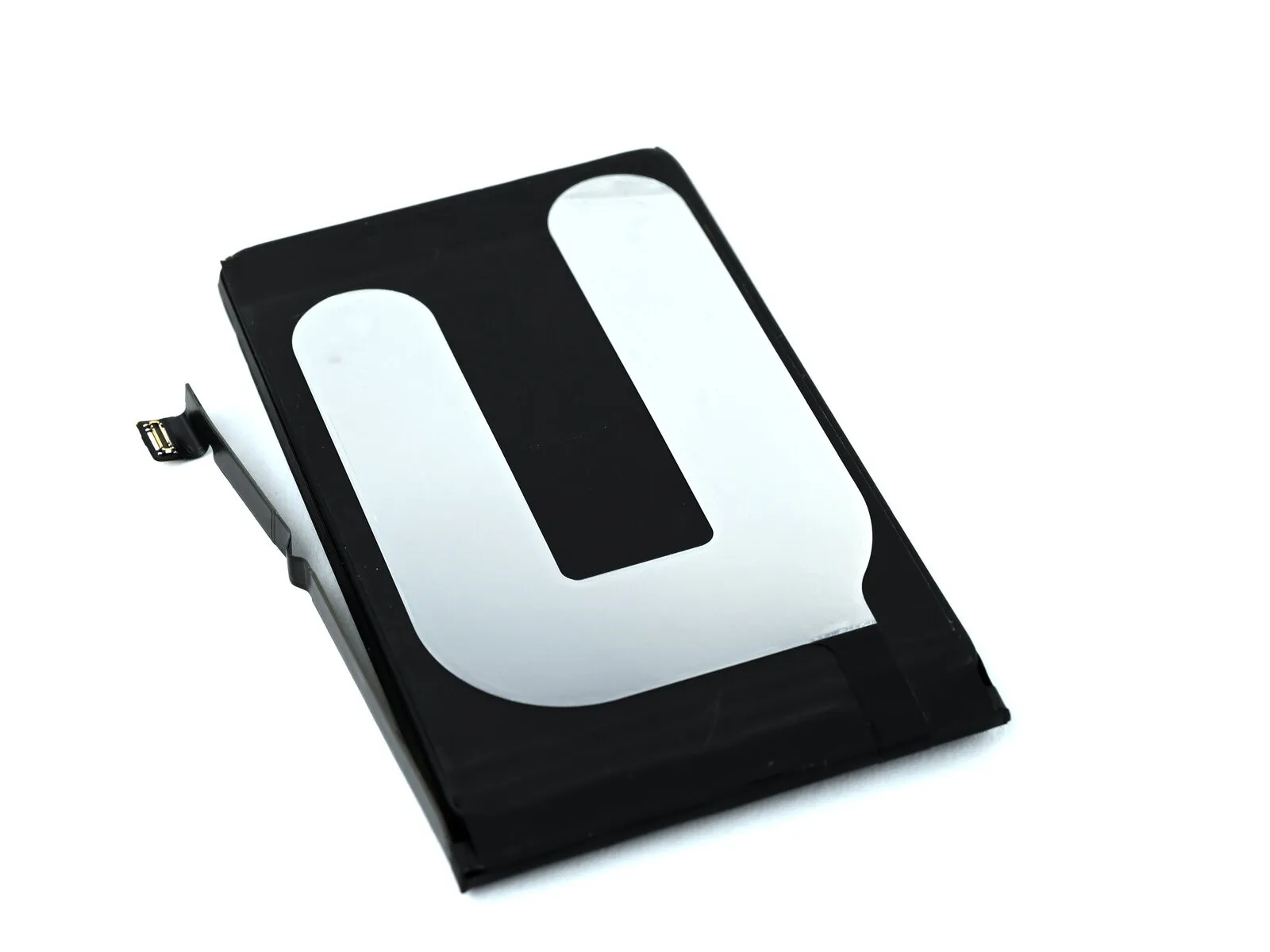

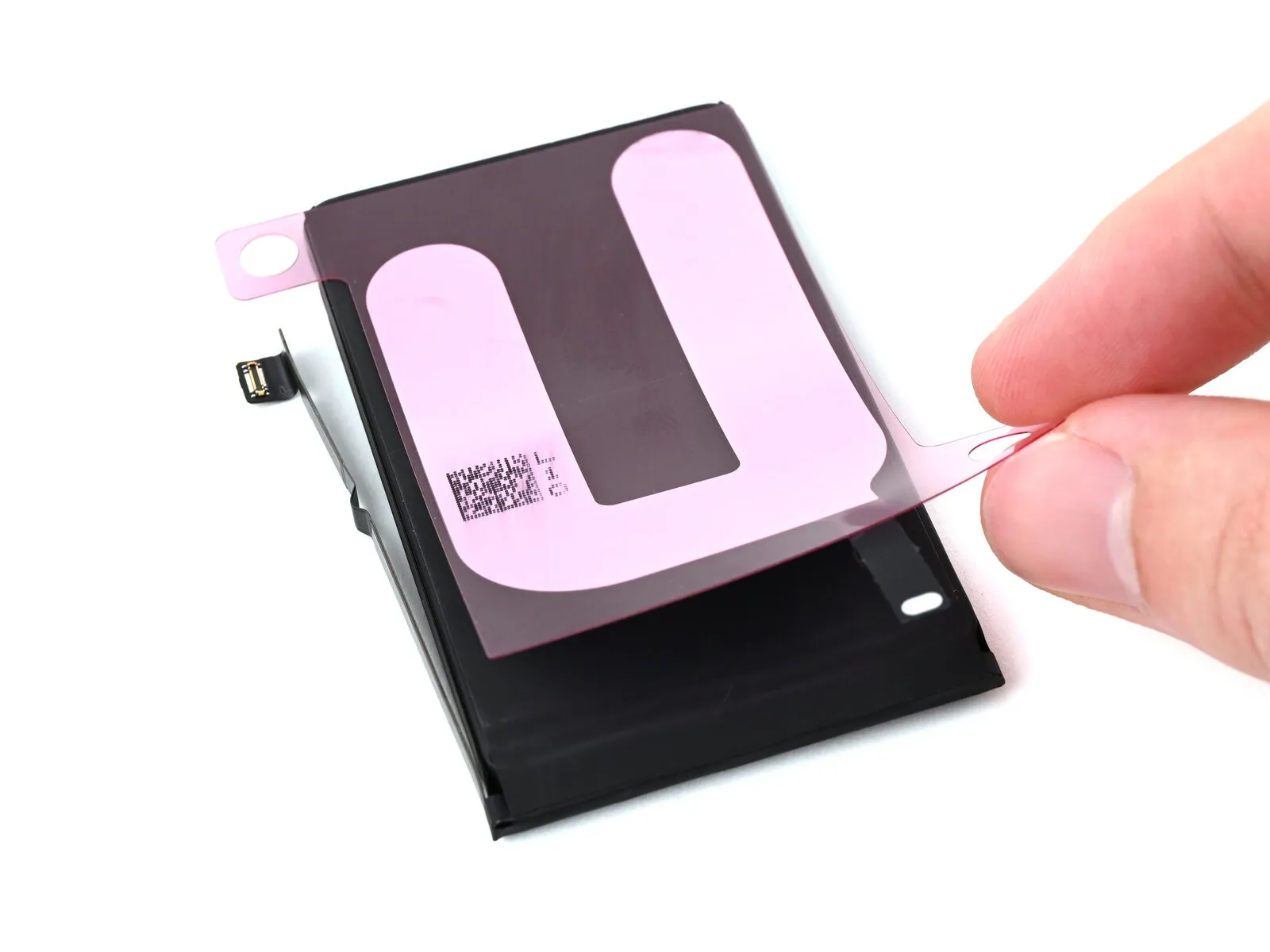

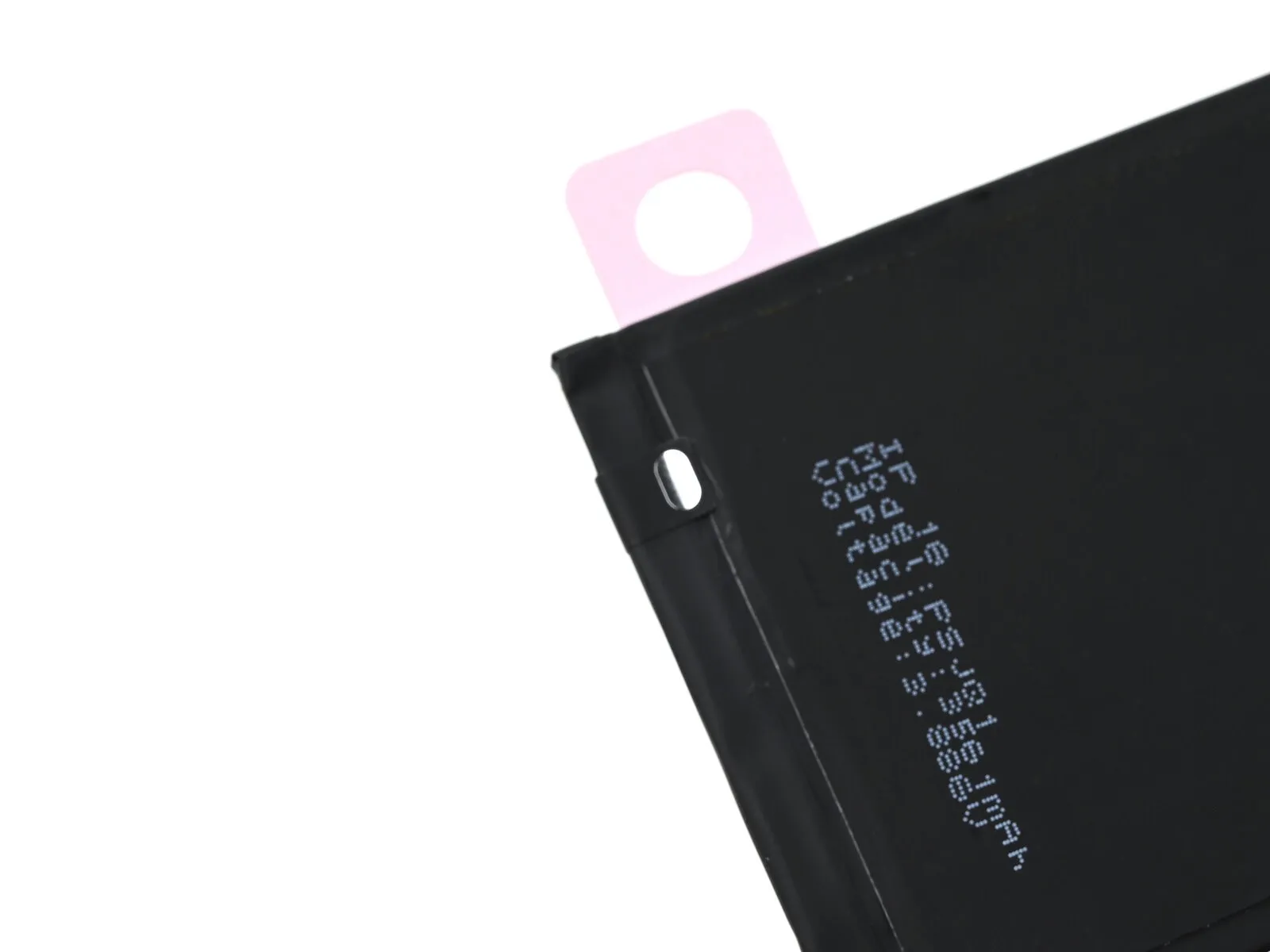

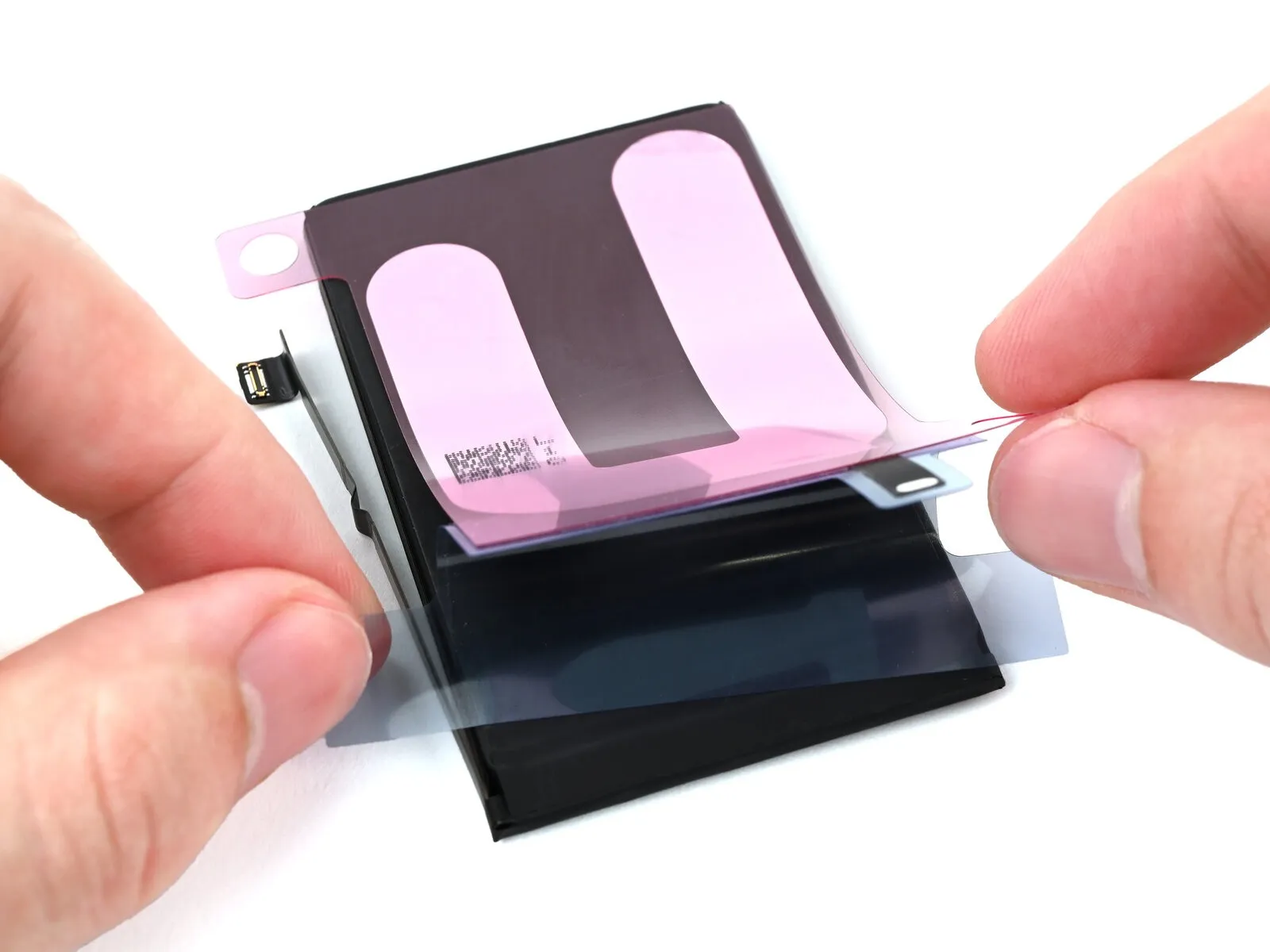

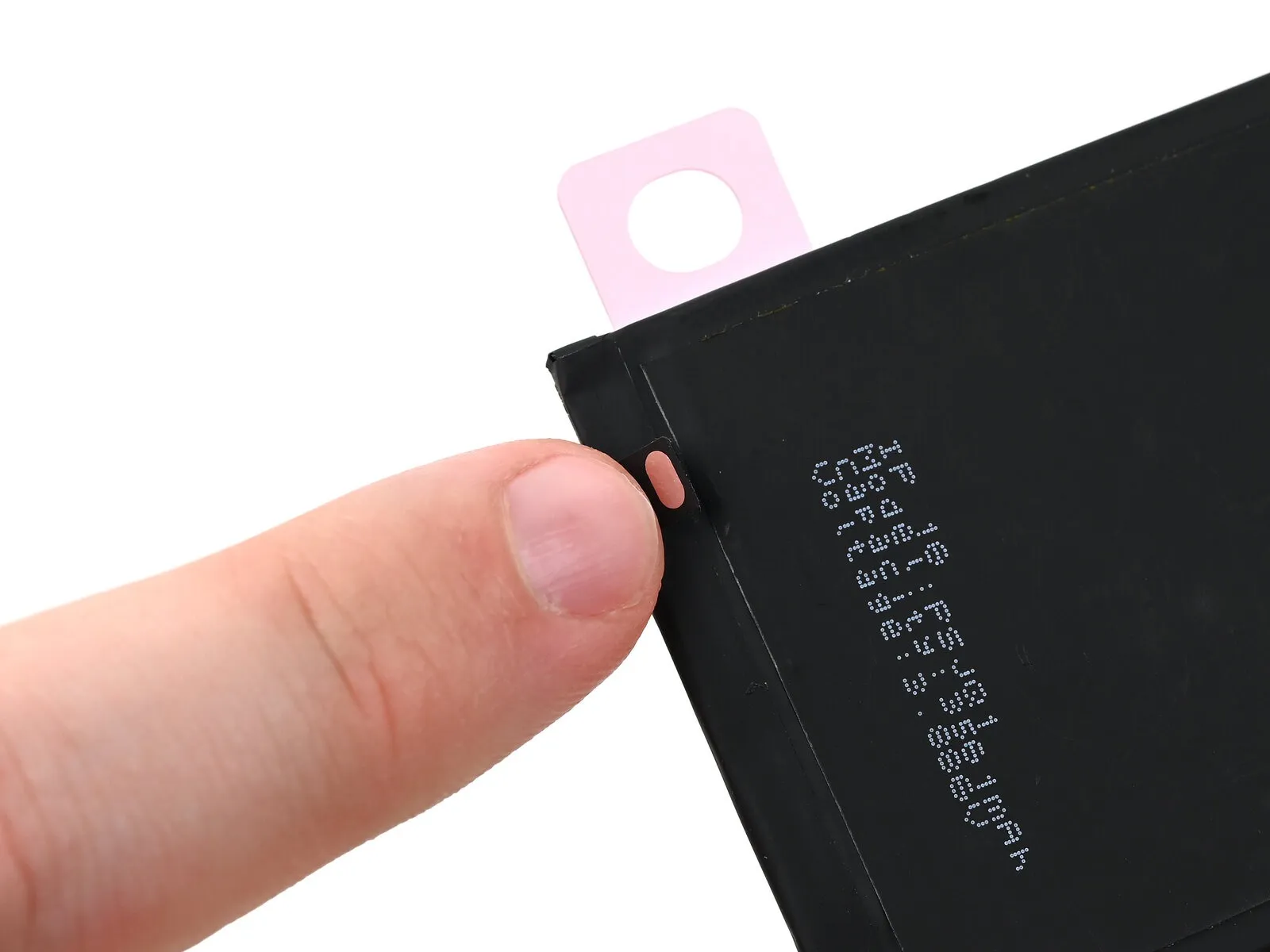

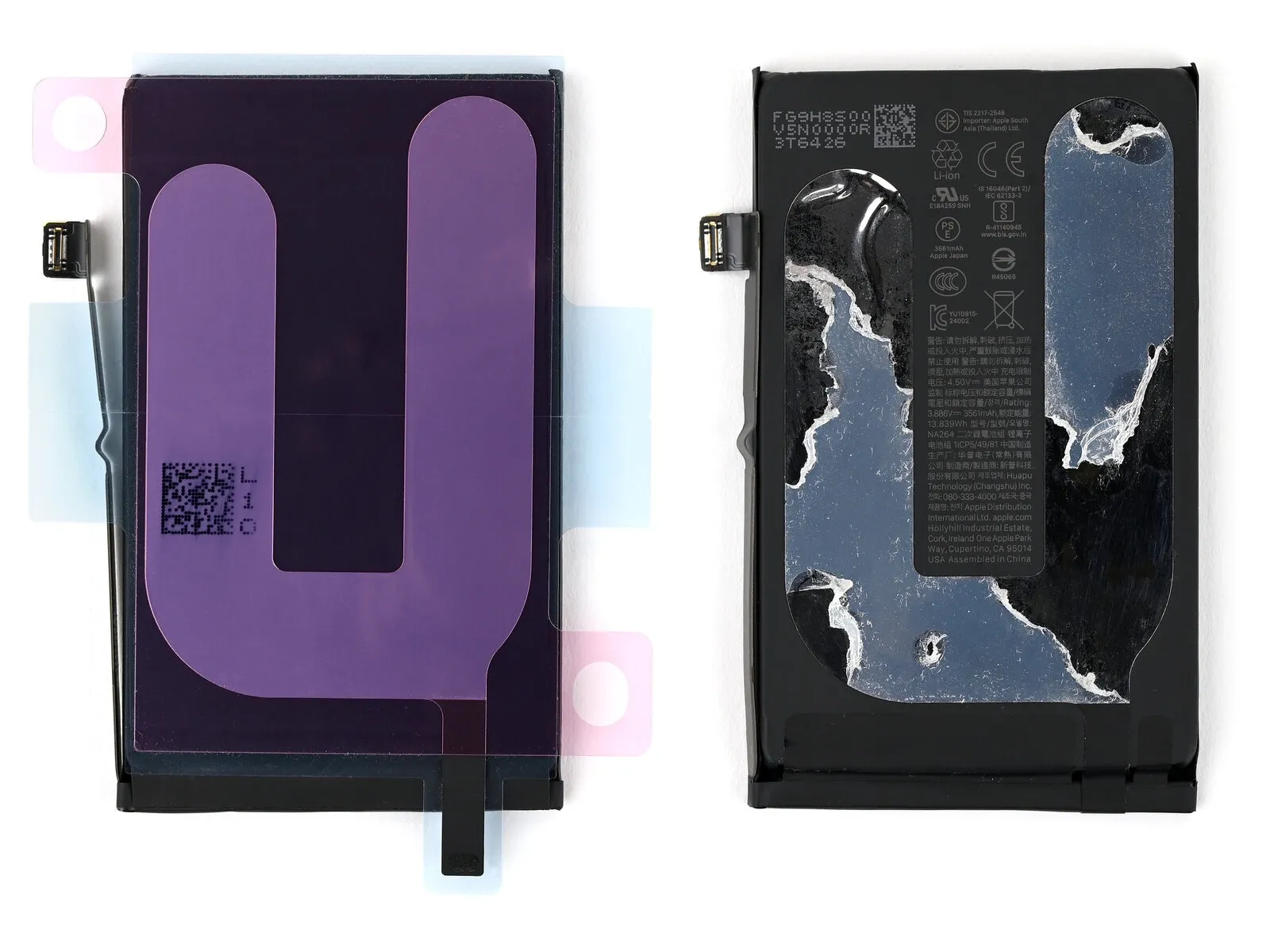

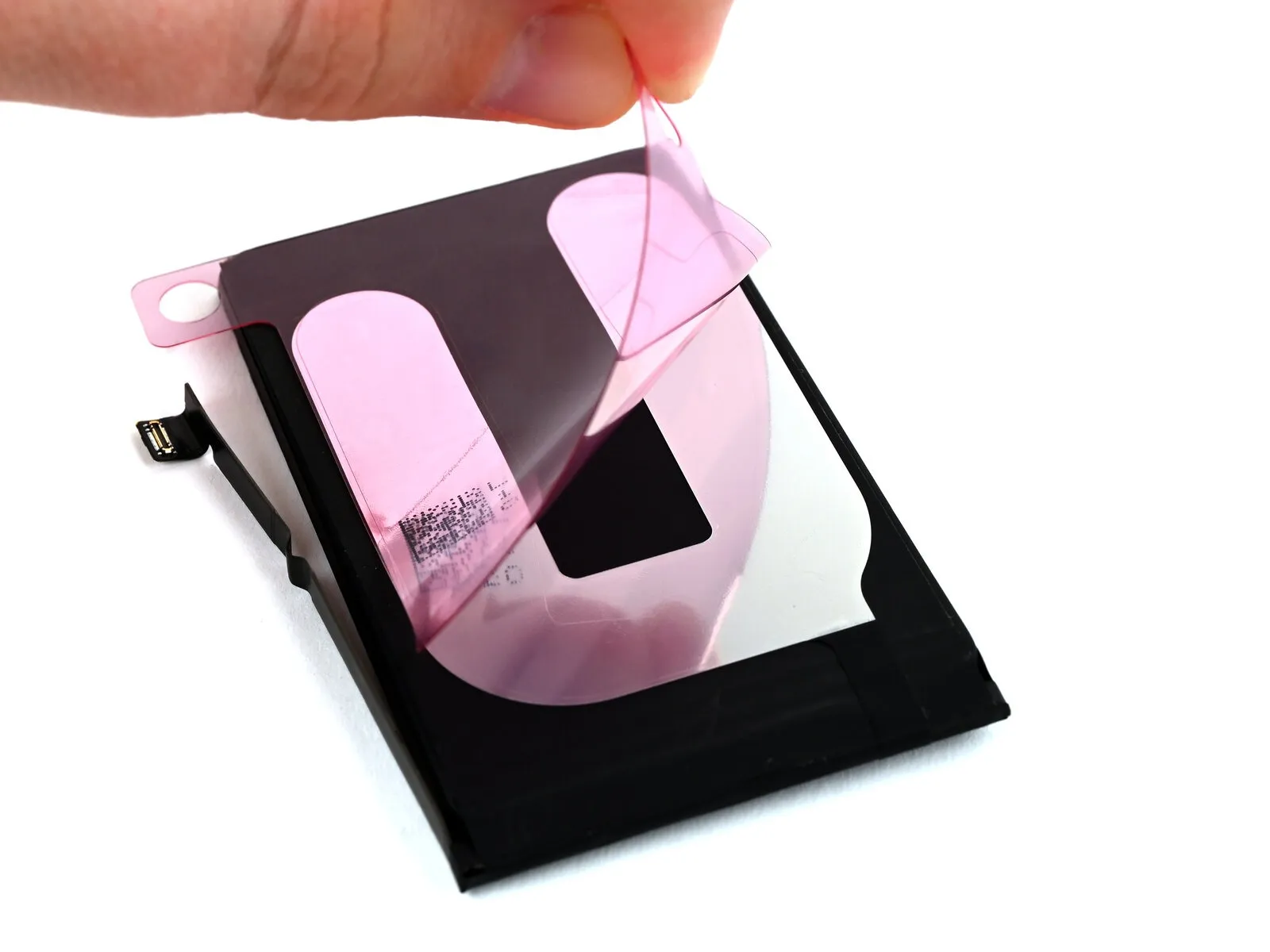

Step 30 | Remove the top battery‐side liner

Step 30 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  • Position the used battery, ensuring the adhesive side is exposed, adjacent to the replacement battery.
  • Before securing the battery, apply a small amount of the adhesive to its surface to evaluate the necessary application technique.
  • The appearance of your adhesive and its backing material can vary.

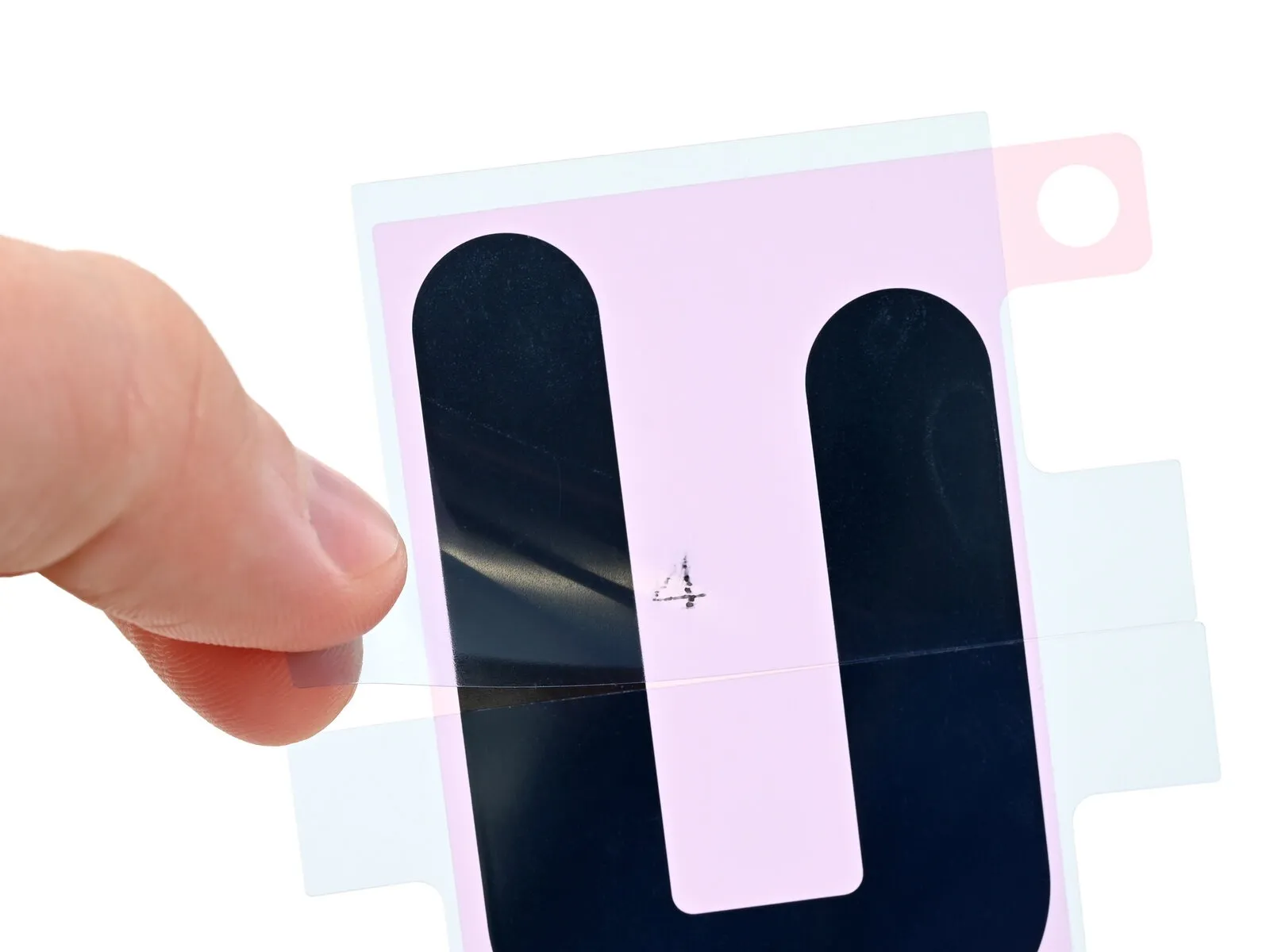

  • Carefully peel off the uppermost protective layer from the adhesive on the battery side.
  • Carefully peel away the single protective liner from the battery contact area of the adhesive.

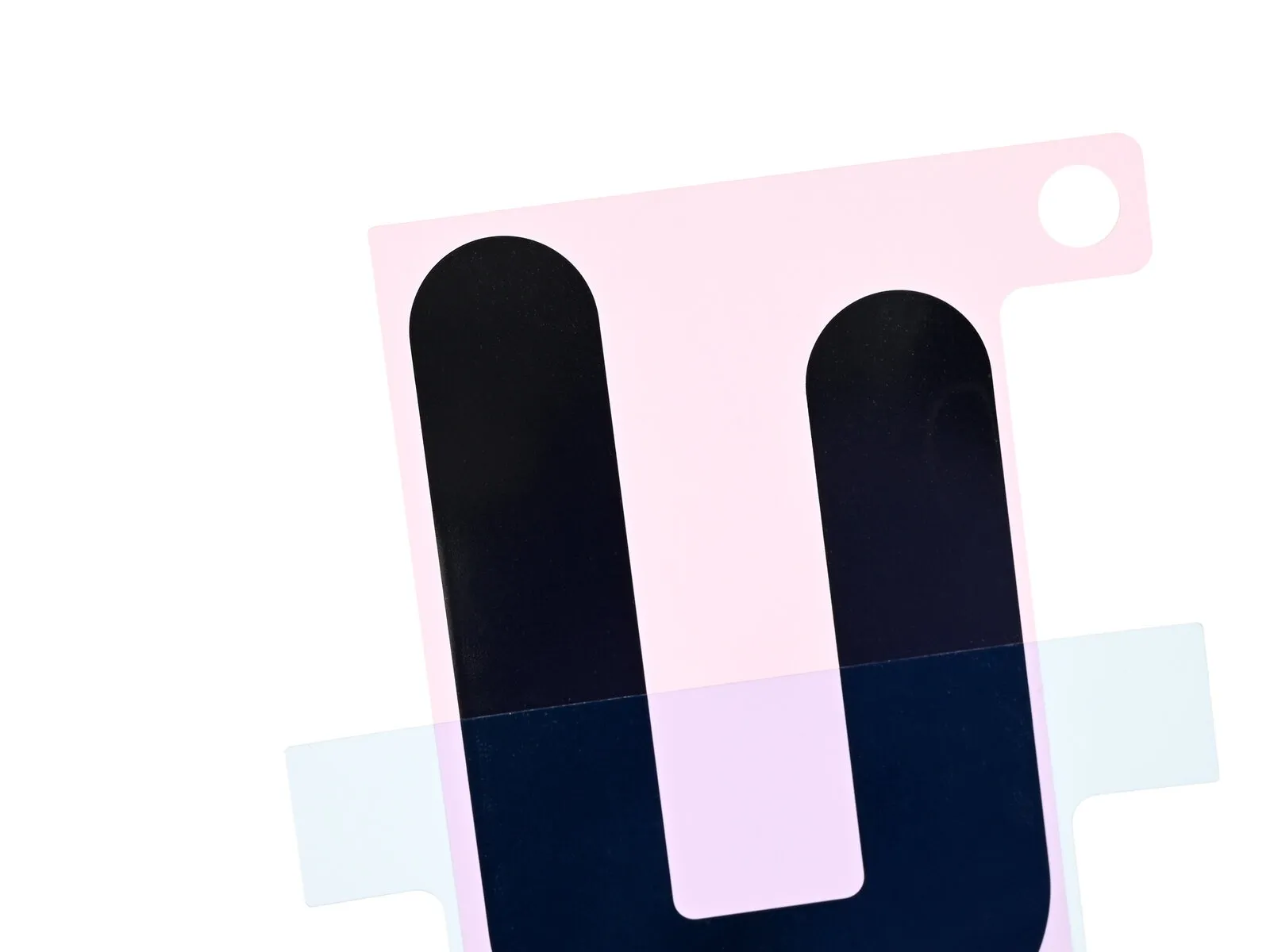

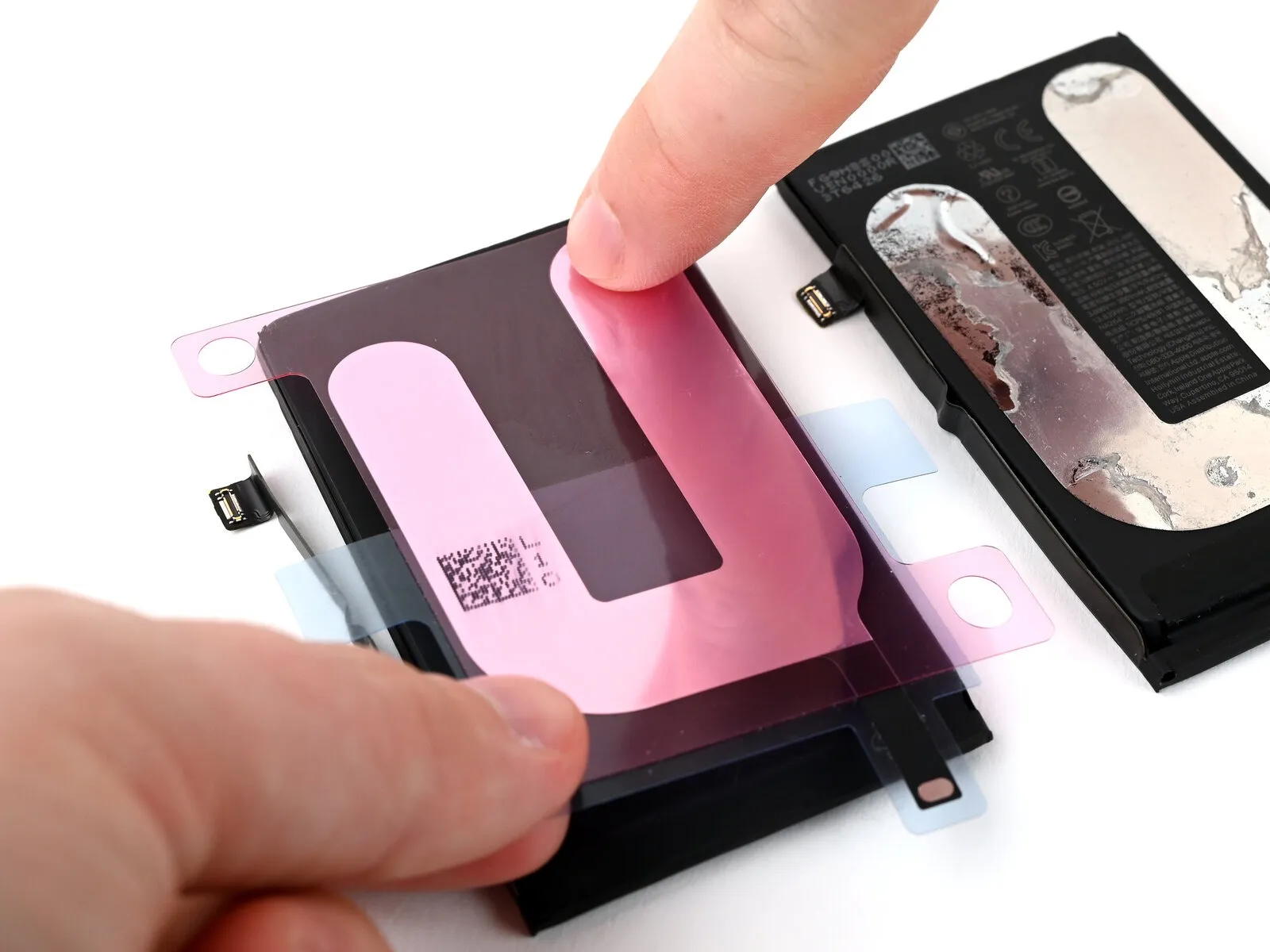

Step 31 | Apply the top of the adhesive

Step 31 image
Thumbnail 1
Thumbnail 2
Thumbnail 3

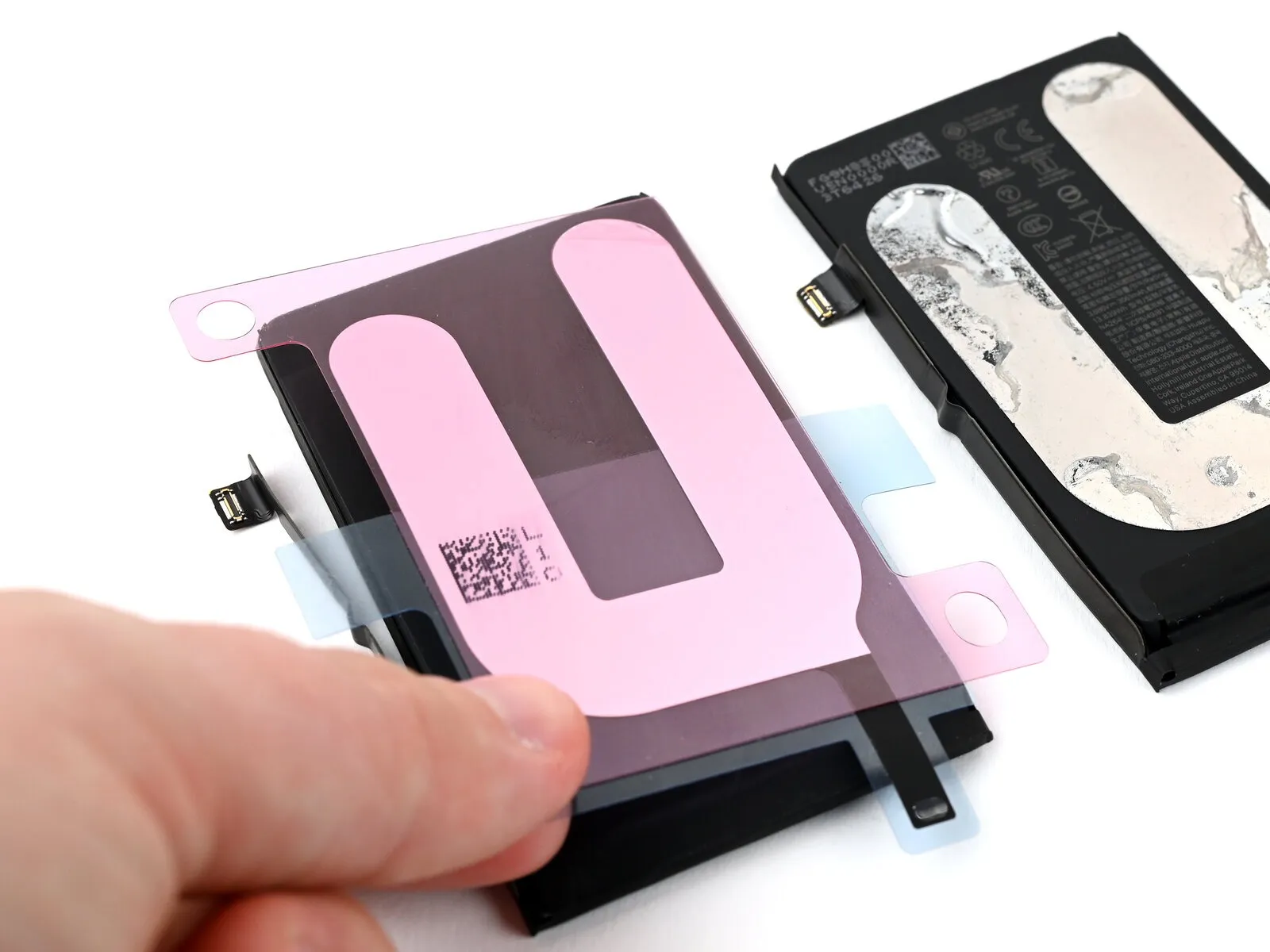

To ensure proper placement, keep the removed battery in view and gently apply pressure with your finger to secure the fresh adhesive to the replacement battery.

Verify the positioning of the replacement adhesive matches the original adhesive's location.

To reposition, gently lift the adhesive layer and reapply.

Ensure proper positioning and a visual match between the replacement adhesive and the existing adhesive, then apply firm pressure to secure it to the battery.

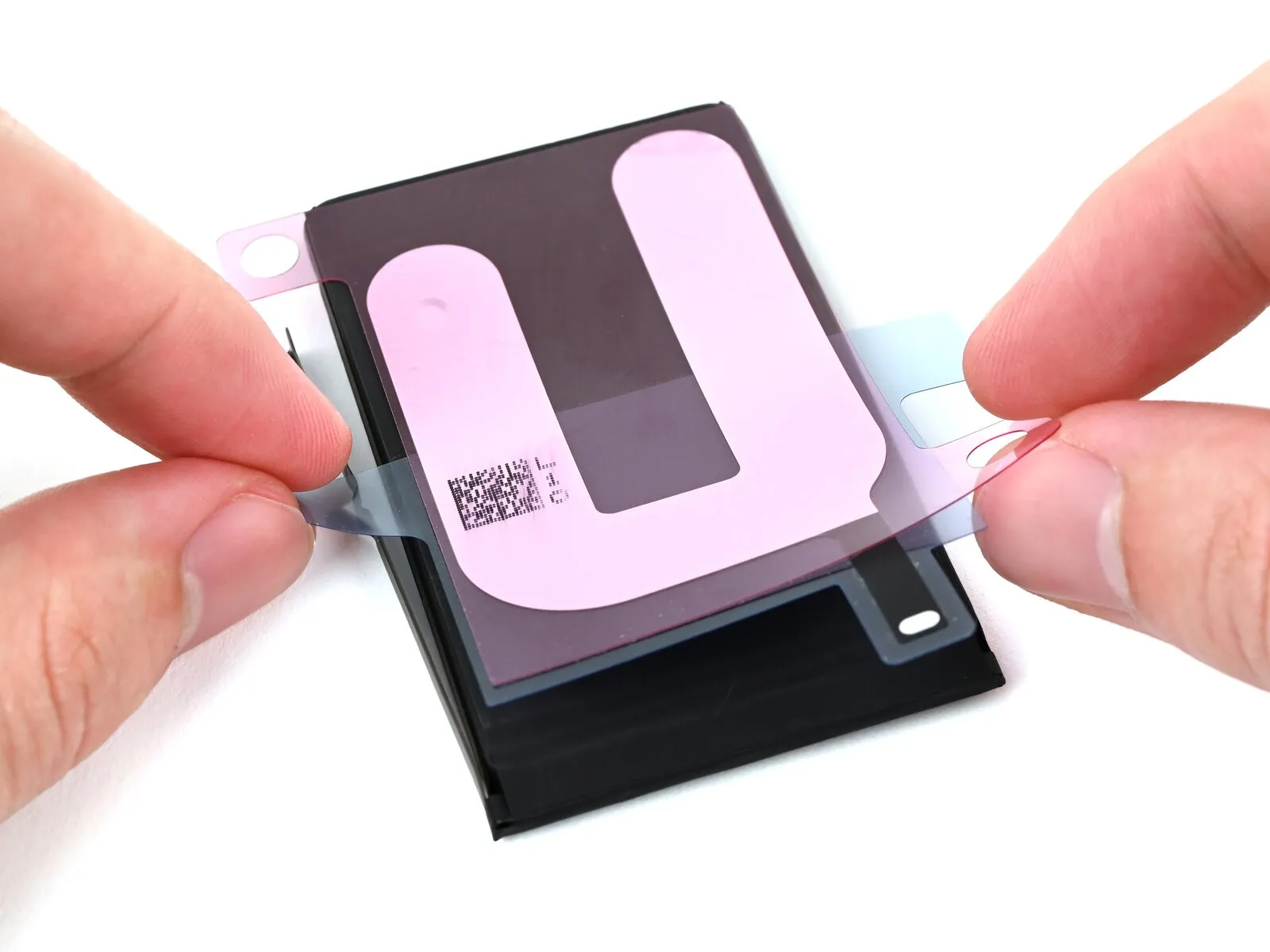

Step 32 | Remove the bottom battery‐side liner

Step 32 image
Thumbnail 1
Thumbnail 2
Thumbnail 3

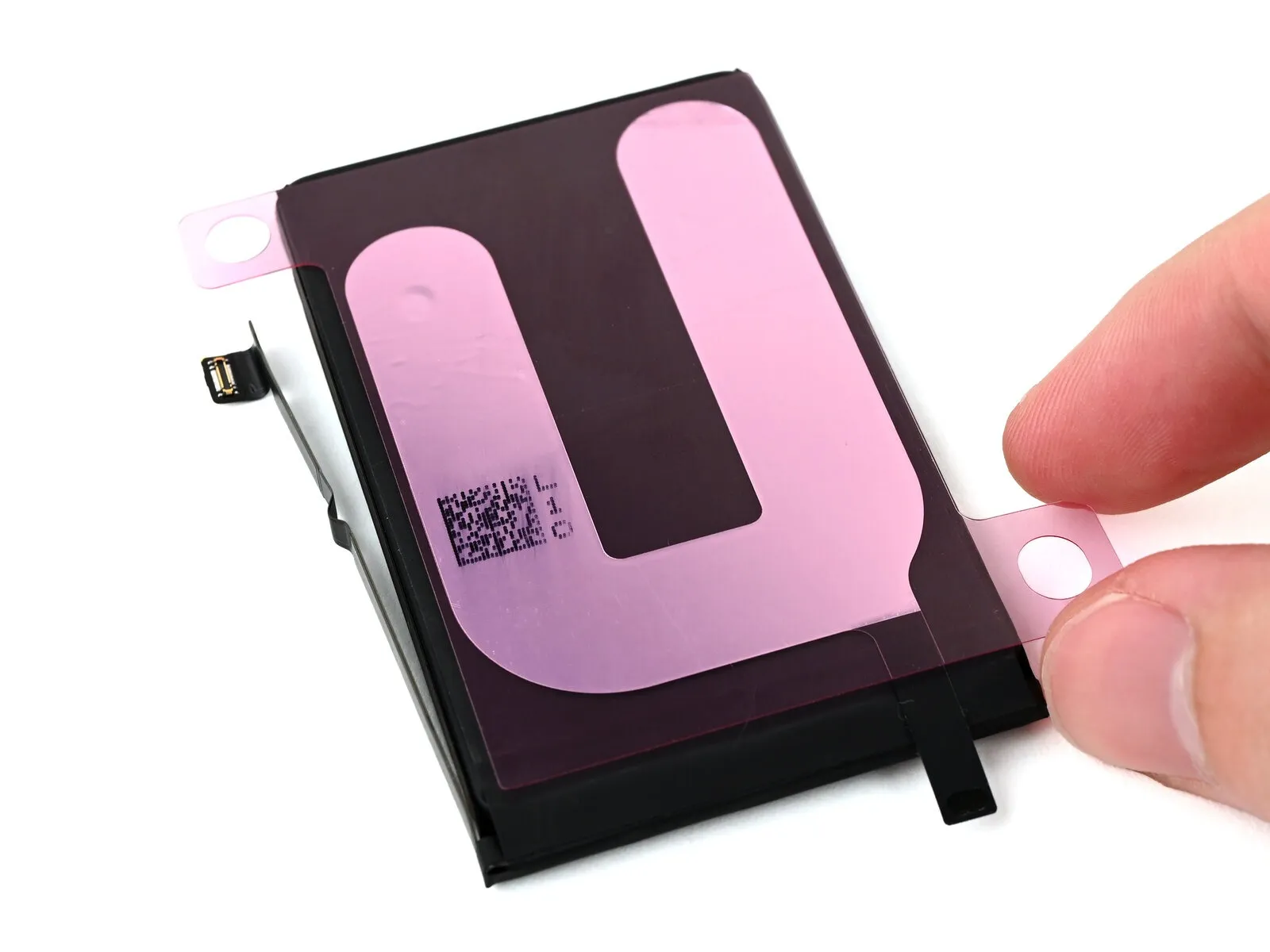

Before proceeding, ensure the adhesive backing on the battery is free of any protective liner.

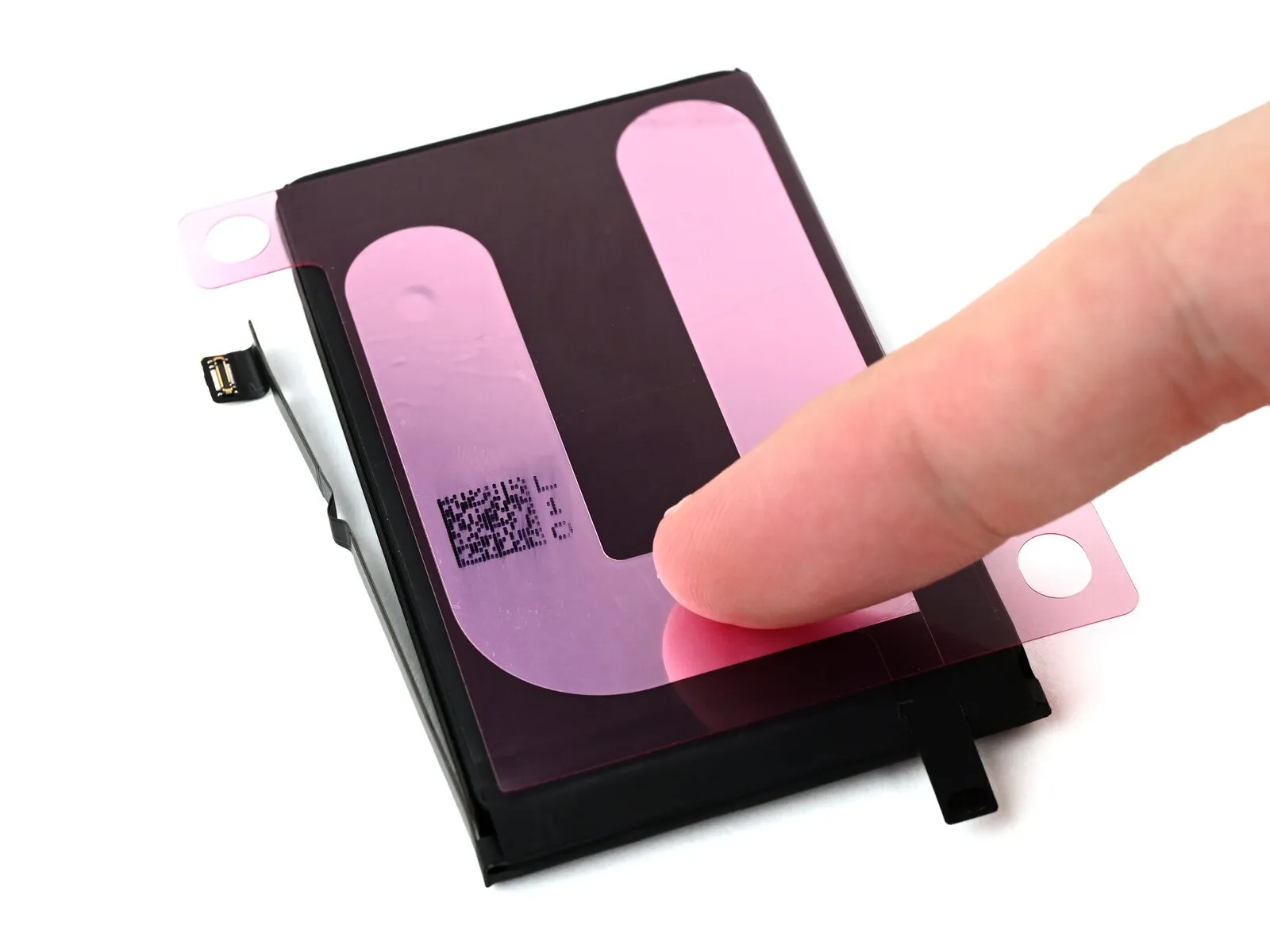

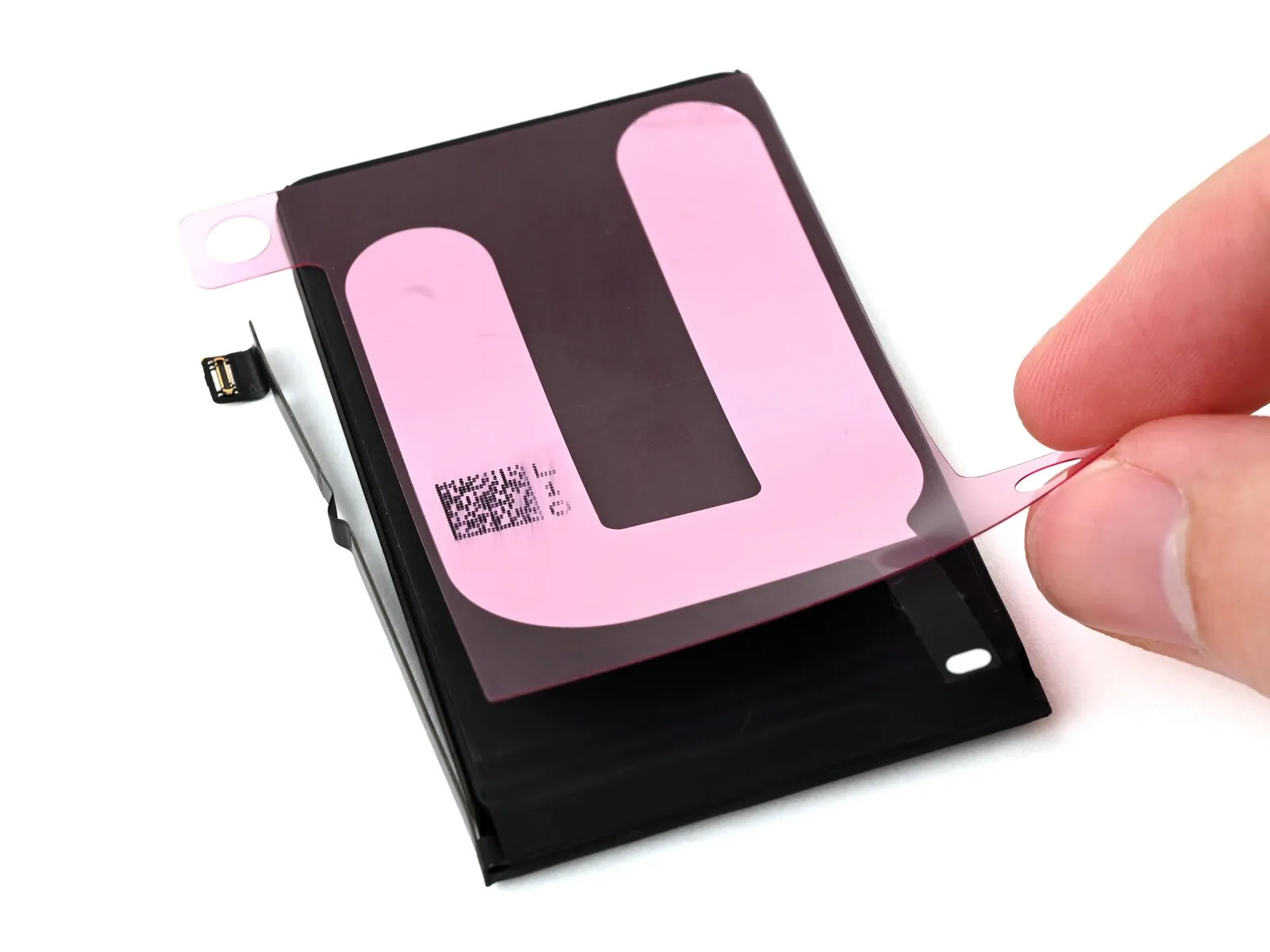

Step 33 | Press the adhesive

Step 33 image
Thumbnail 1
Thumbnail 2
Thumbnail 3

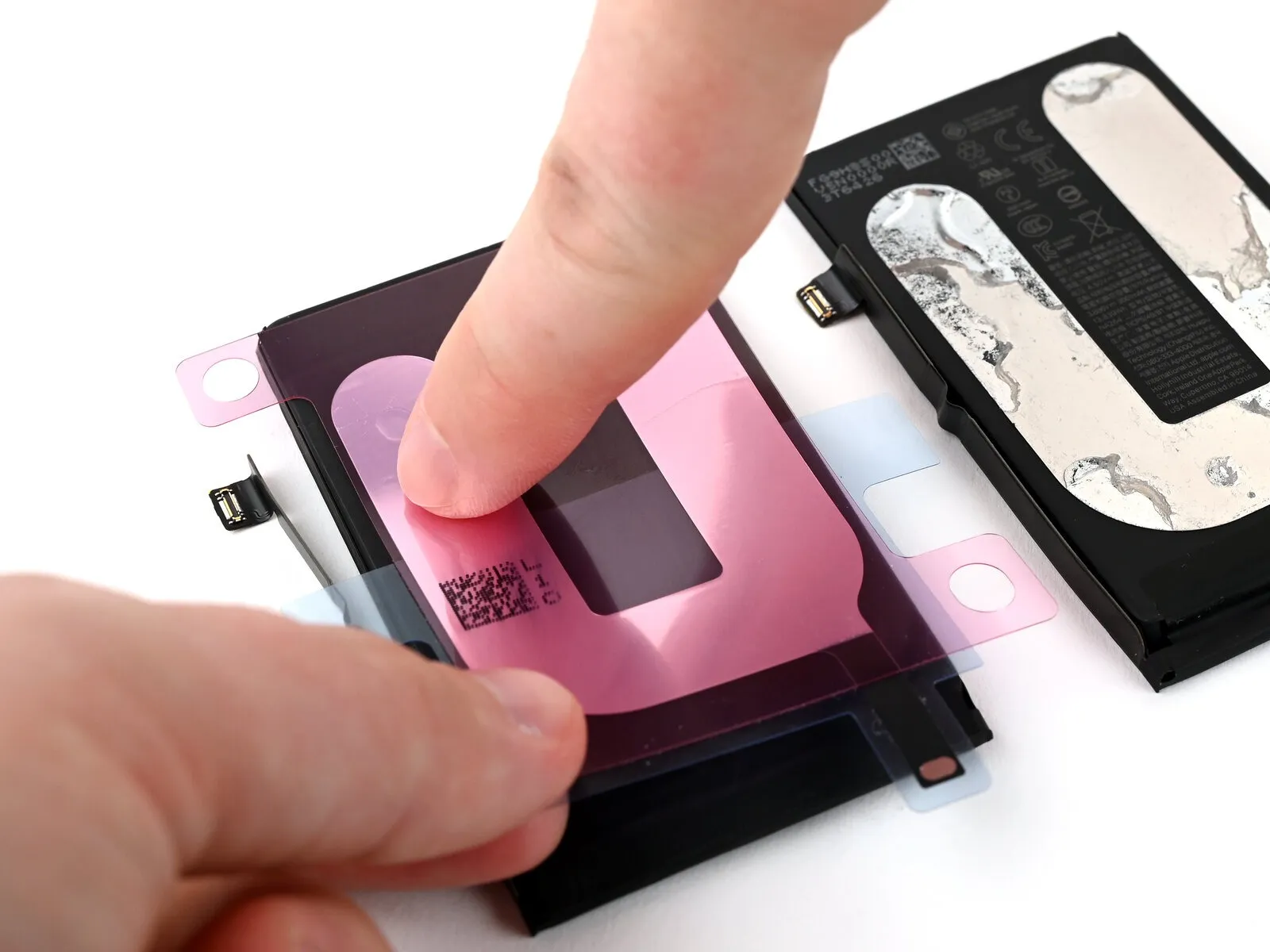

Apply the adhesive to the battery surface, ensuring full contact by pressing firmly.

Step 34 | Fold the conductive tab

Step 34 image
Thumbnail 1
Thumbnail 2
Thumbnail 3

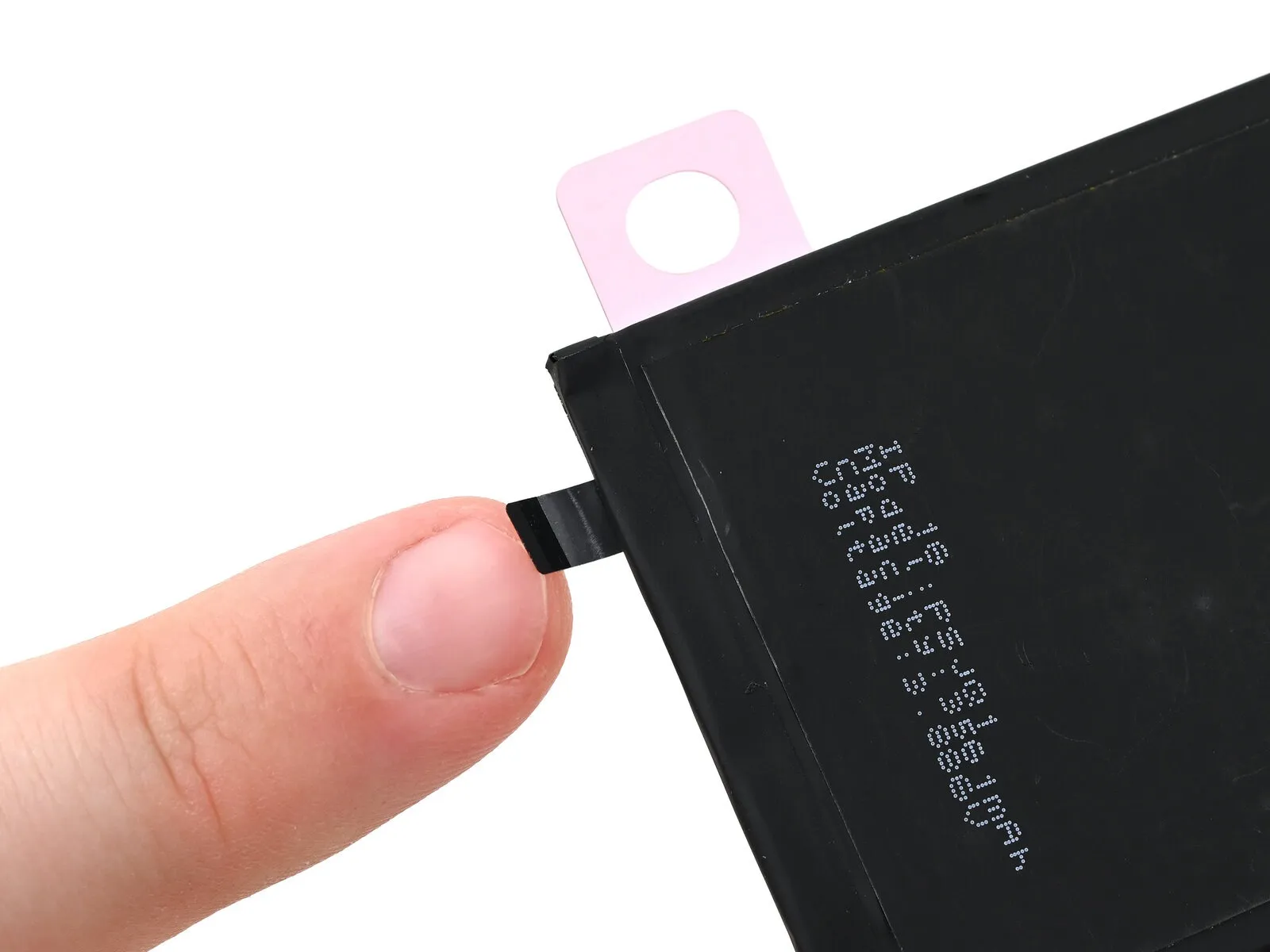

Carefully bend the metallic tab, which conducts electricity, to position it over the battery’s front surface, ensuring it makes firm contact.

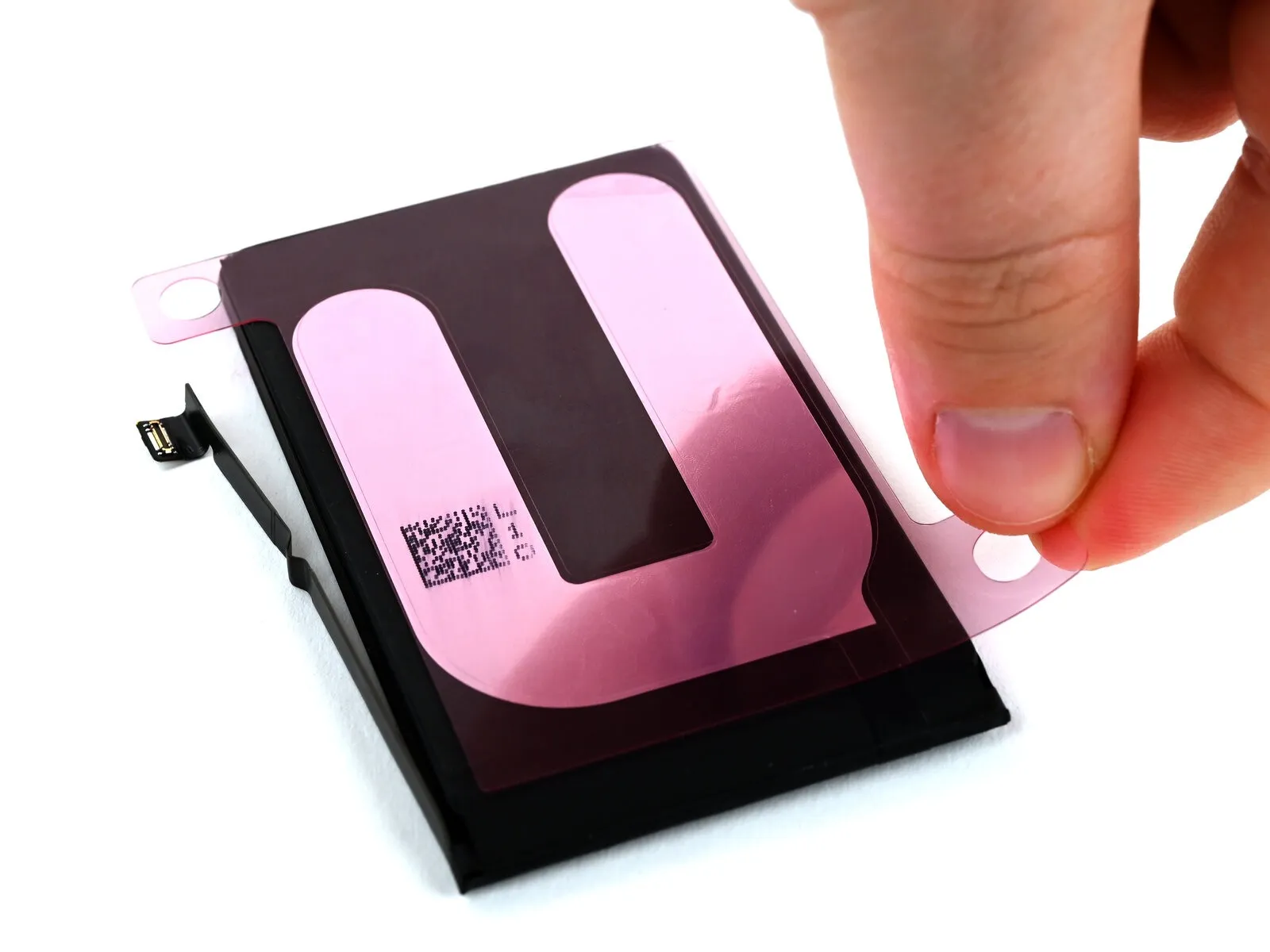

Step 35 | Remove the iPhone‐side liner

Step 35 image
Thumbnail 1
Thumbnail 2
Thumbnail 3

Carefully remove the adhesive backing from the battery, which is pre-applied to the iPhone side.

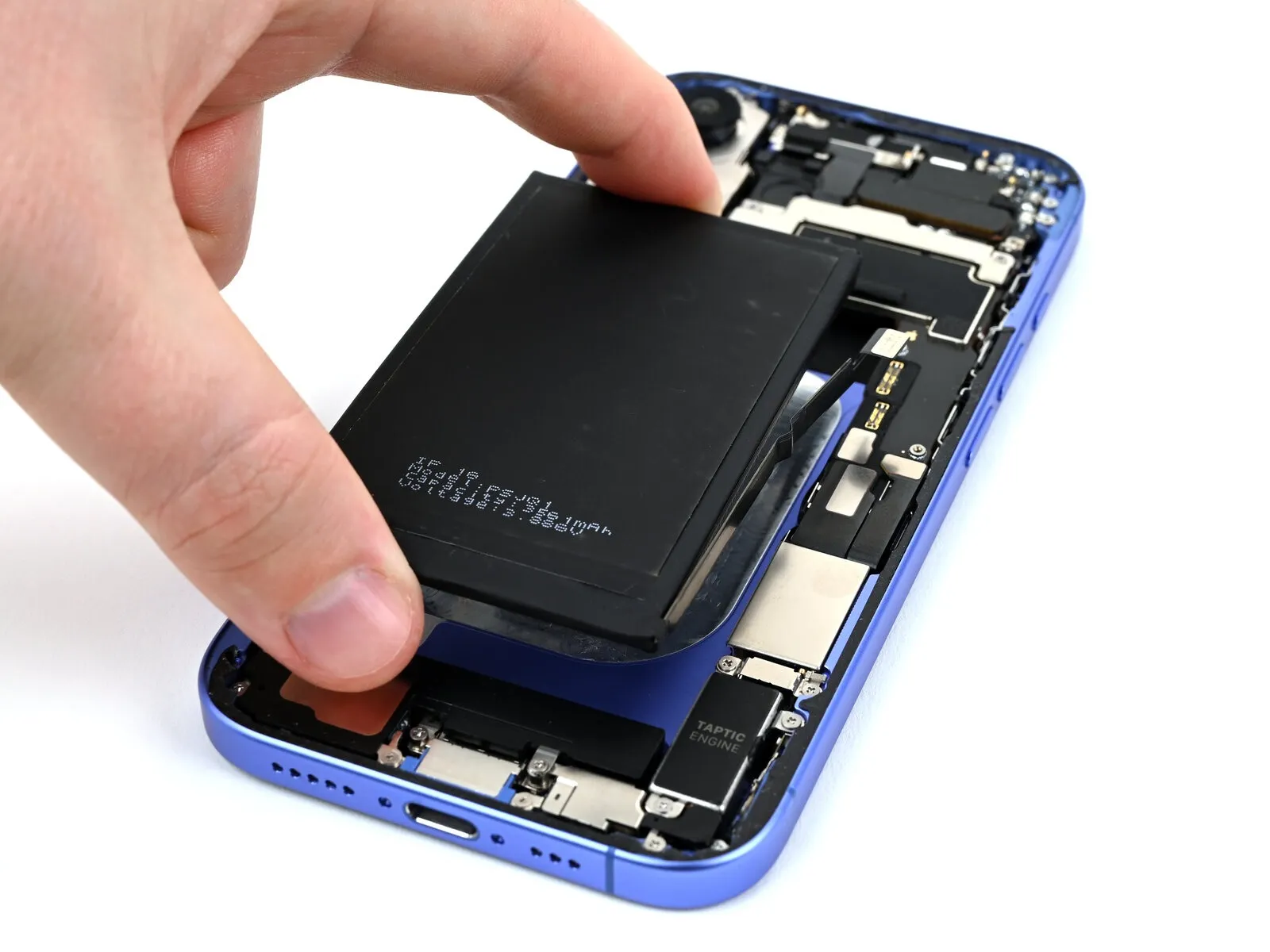

Step 36 | Connect the battery

Step 36 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  • Position the battery above its designated compartment within the iPhone, ensuring proper alignment, but avoid fully seating it at this stage.
  • Carefully align the battery within its compartment, then gently press it into position using a spudger or fingertip.Secure the battery using a press to connect it..

Step 37 | Place the battery

Step 37 image
Thumbnail 1
Thumbnail 2
Thumbnail 3

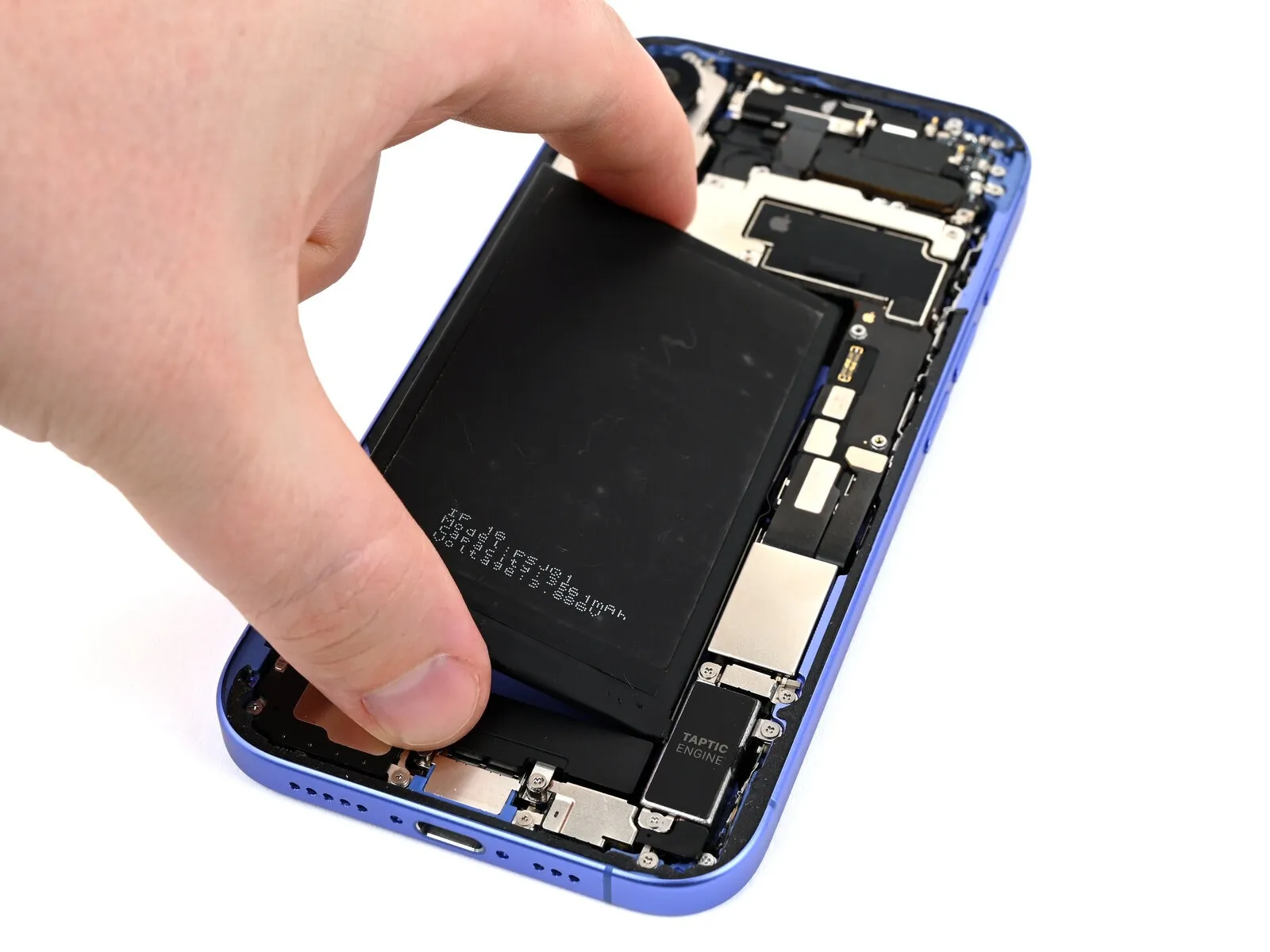

Carefully position the battery within its designated compartment inside the iPhone while the connection remains active.

  • Carefully position the battery, then apply gentle, even pressure with your fingertips until it is fully seated.

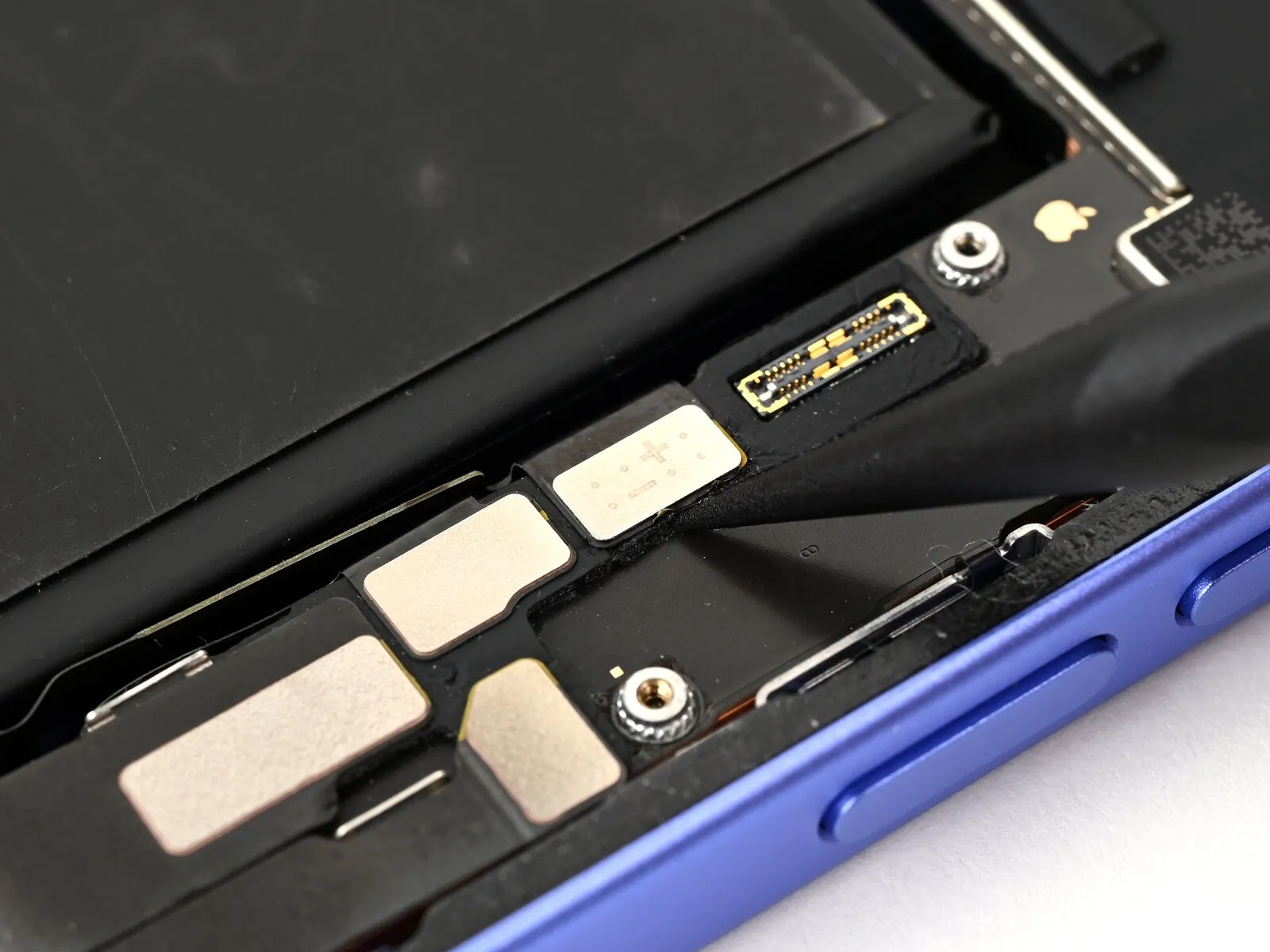

Step 38 | Disconnect the battery

Step 38 image
Thumbnail 1
Thumbnail 2

Employ a 3/8-inch socket wrench to loosen the retaining nut, ensuring you apply a torque of 15-20 ft-lbs, and be mindful of potential spring tension when disassembling the valve assembly.Use a plastic pry tool, often referred to as a spudger, to gently separate components.To prevent short circuits while reassembling the iPhone, manually sever the battery connection using your finger.

Step 39 | Remove the back glass adhesive

Step 39 image
Thumbnail 1
Thumbnail 2
Thumbnail 3

Exercise caution to prevent any harm to the spring contacts.While removing debris from the frame.

  • Before reassembling the phone, verify the repair's functionality by attaching the battery and rear glass, then activating the device to confirm it operates normally.
  • Following power-down, detach the battery and rear glass, then proceed with the remaining assembly steps.
To avoid residue and the challenges of removing stubborn adhesive from your phone, use a hair dryer or heat gun to soften it if necessary.
Carefully insert the tip of the tool into.Use a plastic pry tool, often referred to as a spudger.Apply firm, even pressure while smoothing the adhesive with a rolling motion until it reaches a consistency allowing for manipulation using tweezers.

Step 40

Step 40 image
Thumbnail 1
Thumbnail 2

Carefully detach the adhesive from the phone's surface using tweezers.

  • Continue alternating between the prior procedure and the current one, ensuring complete removal of the adhesive.

Step 41 | Clean the frame

Step 41 image
Thumbnail 1
Thumbnail 2
Thumbnail 3

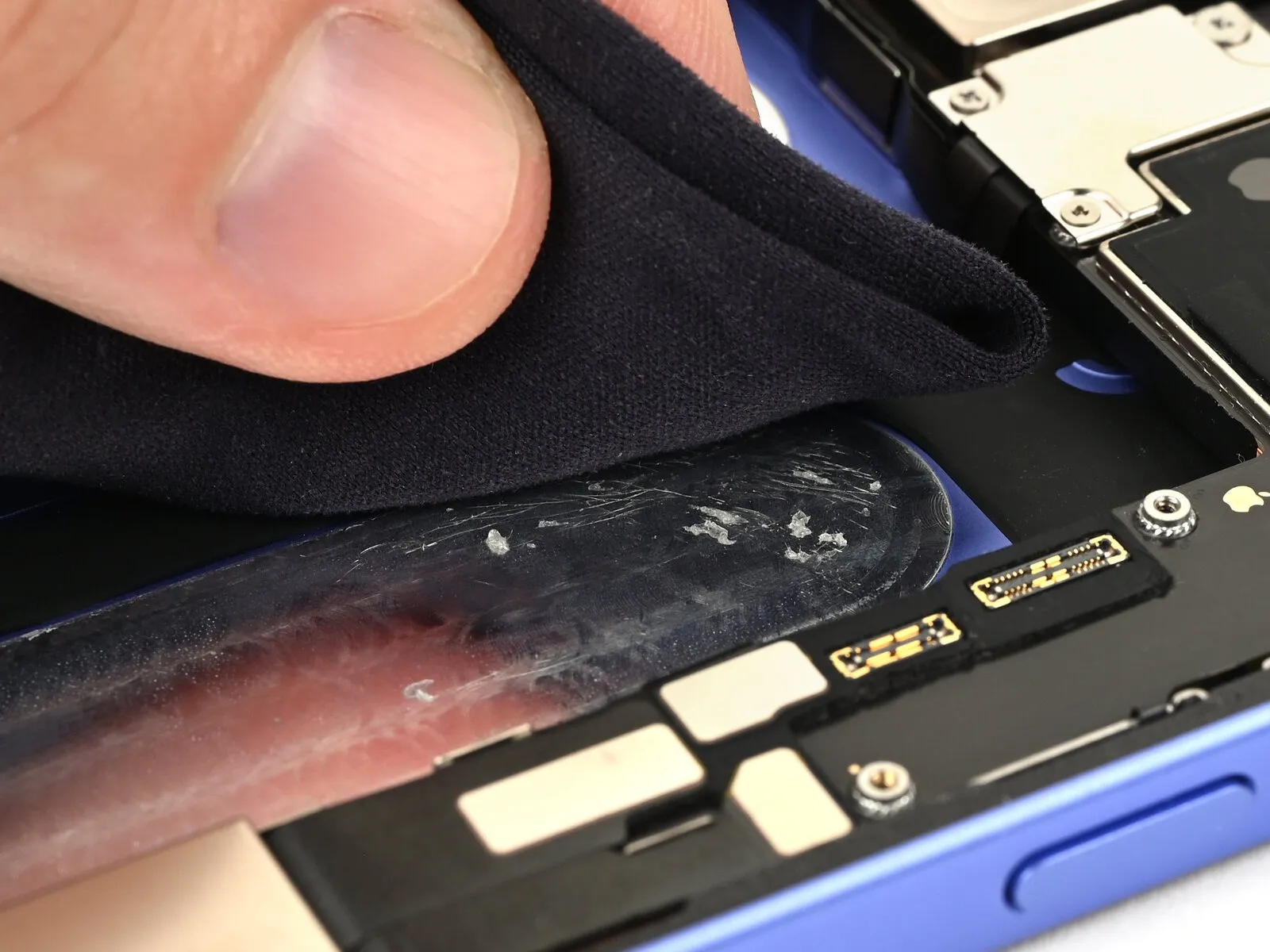

To prevent damage to the iPhone's water resistance, meticulously remove all traces of adhesive from the frame.

  • Using a clean microfiber cloth or lint-free cloth, cover the tip of a screwdriver.Use a plastic pry tool, often referred to as a spudger, to avoid scratching surfaces.Carefully dispense a small quantity of isopropyl alcohol with a high concentration to the area.Exceeding 90% is acceptable.Apply the adhesive evenly across the fabric surface.
  • Using a cloth, carefully remove adhesive residue by wiping consistently in a single direction around the frame's edges.
  • Allow several minutes for any residual cleaning alcohol to fully dissipate before continuing the repair.

Step 42 | Clean the back glass

Step 42 image
Thumbnail 1
Thumbnail 2

Discard this procedure if the rear glass panel will not be reattached.

  • Carefully dispense a small quantity of isopropyl alcohol with a high concentration onto the area.Exceeding 90% is acceptable.Using a microfiber cloth or one free of lint, clean the edges of the rear glass, ensuring the area is ready for the application of fresh adhesive.
  • Carefully restore any bent retaining clips on the rear glass to their original position using your fingers.

Step 43 | Orient the adhesive

Step 43 image
Thumbnail 1
Thumbnail 2

Position the new adhesive onto the frame, ensuring the side featuring the larger blue liner faces inward and the pull tab is situated in the lower-right area; note that liner color and pull tab placement can vary.

  • Carefully align the adhesive by referencing the camera opening and edge notches as guides.

Step 44 | Expose the bottom edge of the adhesive

Step 44 image

Starting at the lower edge, gently lift the pull tab to initiate separation of the adhesive backing, exposing only a portion of the adhesive surface; avoid complete liner removal.

Step 45 | Apply the adhesive

Step 45 image
Thumbnail 1
Thumbnail 2
Thumbnail 3

After applying the adhesive, repositioning is impossible; any errors require complete removal and replacement with fresh adhesive. Ensure the blue liner remains clear and then carefully align the adhesive strip with the iPhone’s lower edge.

  • Carefully position the adhesive's lower edge within the frame's designated slot, ensuring the iPhone's spring contacts precisely match the corresponding openings in the liner.

Step 46

Step 46 image
Thumbnail 1
Thumbnail 2
Thumbnail 3

As you apply the adhesive, gradually remove the protective backing liner, ensuring firm contact with the iPhone's frame edges.
Proper alignment of the adhesive's bottom edge ensures the side and top edges will automatically position correctly; if misalignment occurs, discard the adhesive and repeat the process using fresh adhesive.
Should the adhesive strip be improperly positioned and a replacement isn't immediately available, the iPhone can be reassembled and used as normal without the adhesive; however, be aware that the device's water resistance will be reduced until a new adhesive strip is applied.

Step 47 | Press the adhesive into place

Step 47 image
Thumbnail 1
Thumbnail 2
Thumbnail 3

Carefully apply pressure along the frame's edges with the spudger's flat tip to secure the adhesive.
Avoid contact with the spring terminals extending through the pink liner.

Step 48 | Remove the pink liner

Step 48 image
Thumbnail 1
Thumbnail 2
Thumbnail 3

Gently lift the pink adhesive liner by grasping the small tab located at the upper right edge.

Step 49

Step 49 image
Thumbnail 1
Thumbnail 2

After removing the uppermost protective layer, you will find three thin liners situated above the adhesive, each featuring a pull tab located close to the lower border; note that the placement of these tabs can vary.

  • Absence of the pull tabs indicates the thin liners were likely discarded during the prior procedure.
  • Ensure the adhesive is free of contaminants and correctly positioned before continuing, exercising caution to avoid contact with the exposed adhesive surface until back glass installation is ready to commence.

Step 50 | Connect the charging coil

Step 50 image
Thumbnail 1
Thumbnail 2
Thumbnail 3

To prevent damage, secure the iPhone’s rear glass on its right side with a stable support, such as a small box, while proceeding. Employ the tool’s flat end to...Use a plastic pry tool, often referred to as a spudger, to gently separate components.To engage the charging coil, manually join the connector using your finger.

Step 51 | Connect the battery

Step 51 image
Thumbnail 1
Thumbnail 2
  • Employ the tool's straight, planar edge.Use a plastic spudger.Establish electrical contact between the battery terminals using a finger.

Step 52 | Install the cover

Step 52 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  1. Align the connector cover so its two hooks are positioned slightly left of the corresponding slots on the logic board, then apply downward pressure while moving the cover to the right, ensuring both hooks fully engage within their slots.

Step 53 | Install the cover screws

Step 53 image
Thumbnail 1
Thumbnail 2
  • Employ a 5/32-inch hex key to tighten the retaining screw to a torque of 6-8 inch-pounds, ensuring that the adjustment knob is securely affixed and preventing unintended movement.Use a Y000 tri-point screwdriver.Secure the pair using the specified fasteners.Screws measuring 1 millimeter in length.Affix the central connector cover, ensuring it is properly aligned and fastened.

Step 54 | Remove the final adhesive liners

Step 54 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  1. Carefully peel away the protective liners, revealing the adhesive; avoid any contact with this exposed adhesive surface.Locate the two blue-colored tabs.Carefully detach the adhesive liners from the iPhone's bottom, left, and top edges; leave the liner on the right edge intact.

Step 55

Step 55 image
Thumbnail 1
Thumbnail 2
  1. Carefully position the rear glass above the device, ensuring it doesn't contact the adhesive, to allow access to the remaining liner located on the right side. Employ tweezers or your fingertips to detach this final liner from the right edge.

Step 56 | Place the back glass

Step 56 image
Thumbnail 1
Thumbnail 2
Thumbnail 3

Carefully position the replacement back glass over the phone’s frame, ensuring proper alignment. Gently lower the glass onto the frame and apply even pressure until the retaining clips click into place. Subsequently, apply consistent pressure around the entire edge of the back glass to confirm that all clips are securely fastened.

Step 57 | Heat the back glass

Step 57 image
Thumbnail 1
Thumbnail 2
Thumbnail 3

Use a heat gun to warm the perimeter of the rear glass, which will aid in the adhesive's ability to properly adhere.Utilize an iOpener.Apply heat from a hair dryer or heat gun to the back glass until it reaches a warm temperature; then, apply consistent pressure around all edges. For a stronger bond, utilize screen vise clamps if available; otherwise, proceed to the following steps for alternative securing methods.

Step 58 | Press the back glass

Step 58 image
Thumbnail 1
Thumbnail 2
Thumbnail 3

For uniform pressure and a secure back glass attachment, compensate for the camera module's protrusion; use the iPhone's original packaging lid, positioning it on a level surface to achieve this, or proceed to an alternative compression technique if the box is unavailable.

  • Position the iPhone, camera lens facing upwards, within the box’s lid, ensuring the camera bump aligns with the designated indentation.
  • Employ an object approximately the dimensions of a standard iPhone in height and width, but exceeding the box's side walls in vertical length. Position this object atop the iPhone, then add several substantial weights on top of it.
  • Allow the items to remain undisturbed for a minimum of thirty minutes; reduce the waiting time only if the objects are exceptionally lightweight. For optimal results, maintain the stacked arrangement overnight.

Step 59

Step 59 image
Thumbnail 1
Thumbnail 2

Lacking the original packaging, use the subsequent three steps to apply uniform pressure across the rear glass.

  1. Position the iPhone on a level, non-abrasive surface with the display facing downward.
  2. To prevent damage to the rear glass surface, affix masking tape across its exterior.

Step 60

Step 60 image
Thumbnail 1
Thumbnail 2
Thumbnail 3

To ensure proper alignment, position two coin stacks—or equivalent items of similar thickness—along the rear glass edges, spacing them uniformly and guaranteeing their height matches or exceeds the camera module's protrusion.

Step 61

Step 61 image

To apply downward pressure evenly across the iPhone's surface, position several books or a similar weighted item on top of it.

  • To prevent marking or damage, avoid placing the items being pressed together directly on delicate or valuable surfaces.
  • Allow the items to remain undisturbed for a minimum of thirty minutes; reduce the duration if the objects are heavy. For optimal results, maintain the stacked arrangement overnight.

Step 62 | Install the pentalobe screws

Step 62 image
Thumbnail 1
Thumbnail 2

Employ a 3/8-inch socket wrench to loosen the fastener, ensuring you apply even pressure to avoid damaging the retaining clip and observe the torque specification of 12 Nm as indicated in the service manual, paying close attention to the safety warning regarding eye protection.Use a P2 driver bit designed for pentalobe screws.Secure the pair with the specified fasteners.Screws, each measuring 7.7 millimeters in length, are required.Flanking the charging port are components on both the left and right sides.

Check COD Availability

Enter your pincode to see if Cash on Delivery is available in your area.

Please enter a valid 6-digit pincode
