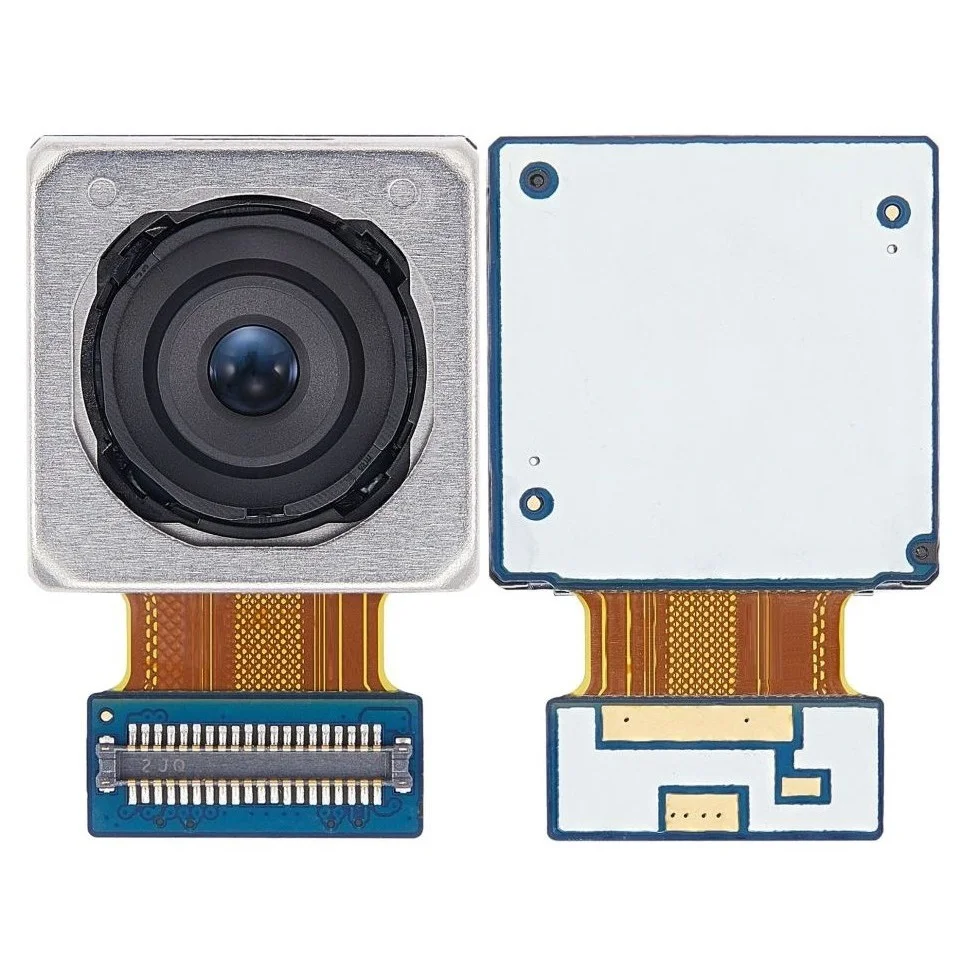

iPhone 17 Pro Front Camera Assembly Replacement

To mitigate fire hazards associated with compromised lithium-ion cells, ensure your iPhone's battery level drops below 25% prior to commencing the repair procedure, as a fully charged battery presents a significant fire risk if punctured or damaged.

• Disconnect all connected cables from the device to prevent electrical shorts during the repair process.
• Initiate a power-off sequence by simultaneously pressing the power button and either volume button, subsequently sliding the power control to deactivate the iPhone.

Important safety note: Fragments of broken glass present a hazard during the repair process and may lead to physical harm.Should your device exhibit a cracked screen, proceed with the following procedure to mitigate potential complications.

• To prevent glass dispersal and facilitate suction cup adhesion, affix packing tape strips across the entire damaged glass surface.
• Ensure a solitary, non-overlapping strip of tape is positioned along the lower edge, providing sufficient area for suction cup attachment.
• Confine the tape application exclusively to the glass portion, avoiding contact with the surrounding frame.

Employ a P2 pentalobe screwdriver to detach the two screws, each measuring 7.5 millimeters in length, positioned laterally around the charging port.The two screws securing the charging port area are fastened with a P2 pentalobe head and require 7.5 mm in length to be removed.To access the charging port, utilize a P2 pentalobe screwdriver and unscrew the pair of fasteners, each with a 7.5 mm length, located on the sides.

A critical warning: excessive insertion of the opening tool poses a risk of device harm.To mitigate potential damage, implement a marking procedure for the opening pick, as described below.

• Using a permanent marker, precisely indicate a point 3 millimeters from the tool's distal end.
• As an alternative method, secure a coin to the pick's tip with adhesive tape, positioning it 3 millimeters from the end.

Applying warmth to the screen's lower border with a hair dryer or heat gun will soften the adhesive, requiring the surface to reach a temperature just beyond comfortable touch.

• A critical warning:Failure to operate a heat gun correctly presents a significant risk of irreparable damage to the display assembly and/or the battery; adhere strictly to the detailed instructions provided via the included link.

Secure a suction handle to the screen's lower boundary, positioning it as near the perimeter as feasible.

Prior to proceeding, verify the precise placement of your prying tool.

• A plastic trim piece, situated beneath the screen's surface, rests upon the device's frame; ensure the prying tool is positioned entirely beneath this bezel.
• A separation exists between the plastic bezel and the display panel; avoid inserting the prying tool into this gap to prevent unintended disassembly and increased repair complexity.

Apply consistent, substantial upward pressure to the suction cup's handle to separate the display panel from its surrounding structure, creating a visible space.
Overcoming this separation might require considerable effort; should initial attempts prove unsuccessful, reapplying heat to the display screen and retrying the process is recommended.
Carefully position the pointed end of a specialized opening tool within the newly formed separation to facilitate further detachment.

To prevent harm to internal parts, ensure the insertion depth of your tool remains below a maximum of 3 millimeters.Proximity to the volume and Action buttons places the screen and ambient light sensor cables in a vulnerable area.The phone's frame incorporates sensitive spring contacts positioned along its edges, demanding careful handling.

• Thin, metallic clips secure the display assembly, engaging with matching receptacles on the device's frame.
• Exercise caution to prevent unintended damage to these components during separation.
• These clips are situated on the underside of the screen and must be disengaged with precision.

Utilize a separation tool to disengage the adhesive bond by moving it along the lower perimeter.
Maintain the tool's position beneath the lower-right corner to inhibit the adhesive from re-adhering.

• Detach the suction cup from the display surface by actuating the small protrusion located on its body.

• To loosen the adhesive securing the display, apply warmth to the screen's right side using a hair dryer or heat gun, ensuring the surface reaches a temperature just beyond comfortable touch.

• Position a second opening pick beneath the lower-right corner of the display assembly.

  • Advance the pick along the right side to detach the adhesive layer and disengage the two retaining clips.
  • A slight upward lift of the screen might be necessary to facilitate clip release.
• Maintain the pick's position beneath the upper-right corner to inhibit adhesive re-bonding.

• To loosen the adhesive securing the display, apply warmth to its upper border using a hair dryer or heat gun, ensuring the surface reaches a temperature just beyond comfortable touch.

• Position a third opening pick beneath the screen's upper-right quadrant.

  • Advance the pick along the top perimeter, carefully maneuvering it around the upper-left corner to detach the adhesive and disengage the two retaining clips.
  • Avoid extending the pick's movement, as this could potentially harm the ambient light sensor cable.
• Maintain the pick's placement beneath the upper-left corner to inhibit the adhesive from re-bonding.

Apply warmth to the screen's left border utilizing a hair dryer or heat gun, ensuring the surface reaches a temperature just beyond comfortable touch.

• Position a fourth opening pick beneath the lower-left corner of the display assembly.
• Advance the pick along the right side to detach the adhesive and disengage the retaining clip, pausing immediately prior to the volume up control.
• A slight upward lift of the screen may be necessary to free the clip from its position.Avoid further pick movement to prevent potential damage to the screen cable.The screen cable is a delicate component and requires careful handling during separation.

Ensure the display panel is fully disengaged from its surrounding structure; should resistance be encountered, re-examine the edges to release any lingering adhesive or securing fasteners.
Elevate the display vertically and rotate it towards the left side, supporting it with a stable object like a container or pile of literature to prevent stress on the connecting wires; as an alternative, the display can be placed horizontally across the left side.

Carefully document the location of each screw during disassembly to ensure correct reassembly.
Employ a specialized tool for the following steps.A JIS 00 screwdriver is essential for the next procedure.The two cable covers are held in place by screws that require removal using the specified screwdriver.
One screw, measuring 1.4 mm in length, secures the screen and front sensor cable cover.
The battery cover is fastened with a screw that is 1.3 mm long.
iFixit Phillips bits are specifically engineered to interface with JIS screws.Alternative Phillips drivers from other brands may be attempted, but doing so carries the potential for screw damage.Stripping the screw heads is a risk associated with using non-iFixit Phillips drivers.Proper screw management is crucial for successful repair completion.

Detach the pair of protective enclosures.

Employ the tip of a spudger to carefully lift and detach the battery press connector.A spudger's pointed end facilitates the separation of the battery press connector from its socket.To release the battery press connector, utilize a spudger, applying force to its pointed tip.

Employing the pointed end of a prying tool or a spudger, carefully lift and detach the screen and ambient light sensor press connectors from their sockets.The connectors securing the screen and ambient light sensor press must be released from their housings using a pointed instrument, such as a prying tool or spudger.To separate the screen and ambient light sensor press connectors, apply gentle upward force with the tip of a prying tool or a spudger.

Detach the display panel.

Employ a Torx Plus 4IP screwdriver for the task of unscrewing the battery tray fasteners.A Torx Plus 4IP screwdriver is essential for this step.The battery tray is held in place by screws that require a Torx Plus 4IP screwdriver for removal.

• A single screw, measuring 7.5 millimeters in length, is present.One screw with a length of 5.9 millimeters is included.
• A single fastener, 3.4 millimeters long, is also used.A screw measuring 2.3 millimeters in length is another component.
• Nine screws, each 3.7 millimeters long, are used to secure the tray.Additionally, a single 3.7-millimeter screw is incorporated.
• The presence of this particular screw is dependent on the iPhone model’s SIM card configuration.Models equipped with a physical SIM card will not feature this screw.
• This screw's absence is a characteristic of iPhone models utilizing a physical SIM card.The battery tray's attachment is achieved through a combination of screws of varying lengths.
• Careful use of the Torx Plus 4IP screwdriver is necessary to avoid damage.Note that certain iPhone versions lack this specific screw due to SIM card design.

Employ a fingertip to elevate the battery compartment's upper-left corner, subsequently dislodging it.
Exercise caution to prevent any smearing of the front-facing camera lens.

Employ a specialized tri-point screwdriver, specifically a Y000 type, for disassembly.The screw, measuring 1.0 millimeters in length, requires a tri-point Y000 screwdriver for removal.A tri-point Y000 screwdriver is essential for detaching the front camera connector cover.To release the front camera connector cover, utilize a tri-point Y000 screwdriver and unscrew the fastener.The 1.0 mm screw, which holds the front camera connector cover in place, must be removed with a tri-point Y000 screwdriver.

Employ tweezers to detach and extract the cover protecting the front camera connector.

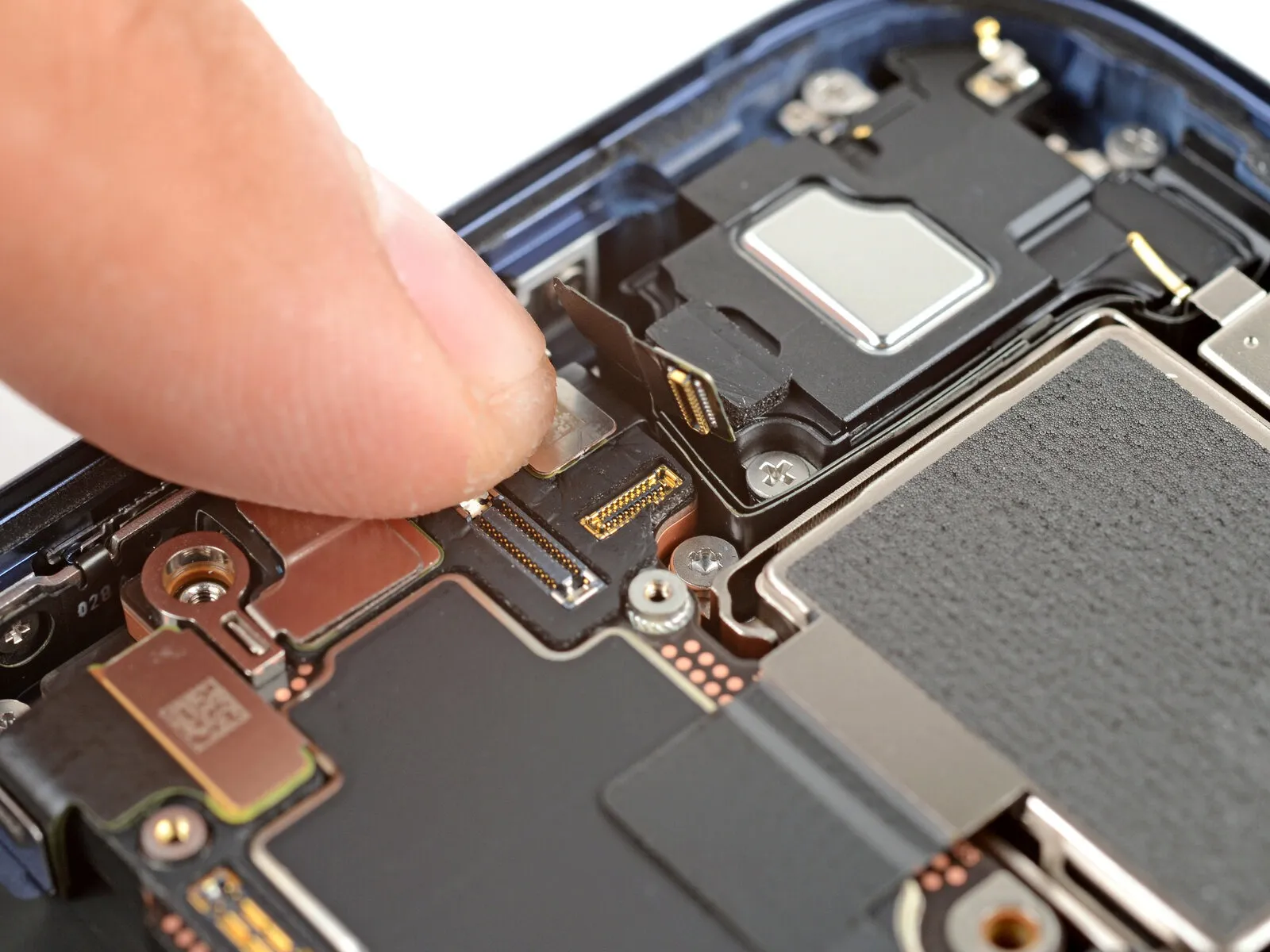

Employ the tip of a spudger to carefully lift and detach the dual front camera connectors, noting that one connector sits beneath the other, both connected to the logic board.To release the front camera assembly, utilize a spudger to gently separate the two connectors from their corresponding positions on the logic board.Disconnecting the front camera connectors requires using a spudger to apply leverage and free them from their sockets on the logic board, observing their stacked arrangement.

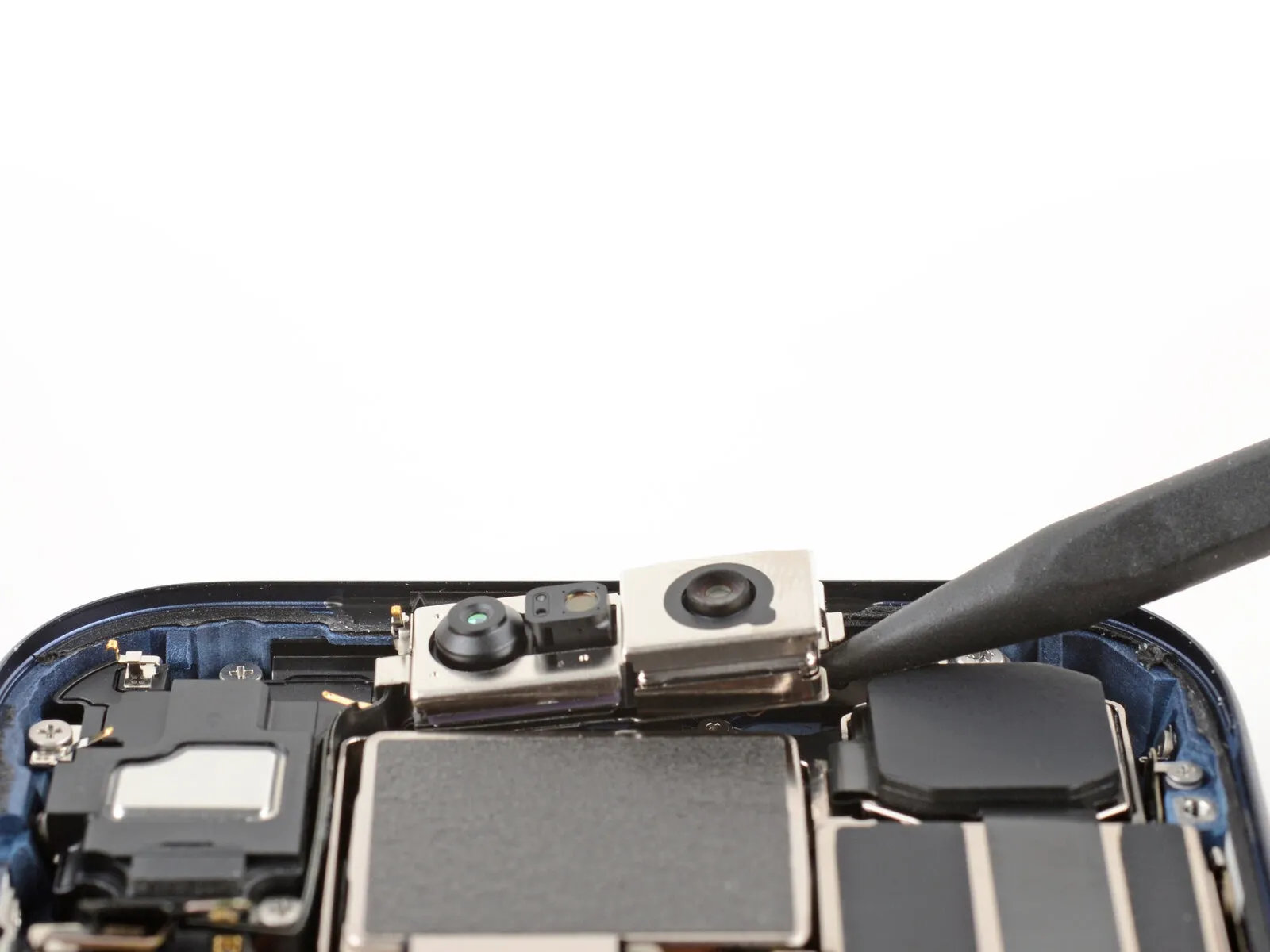

Employ the tip of a spudger to gently separate the right side of the front camera assembly from its housing.The spudger's pointed end facilitates leverage to disengage the adhesive securing the camera.Carefully elevate the front camera assembly, ensuring it clears any retaining features.

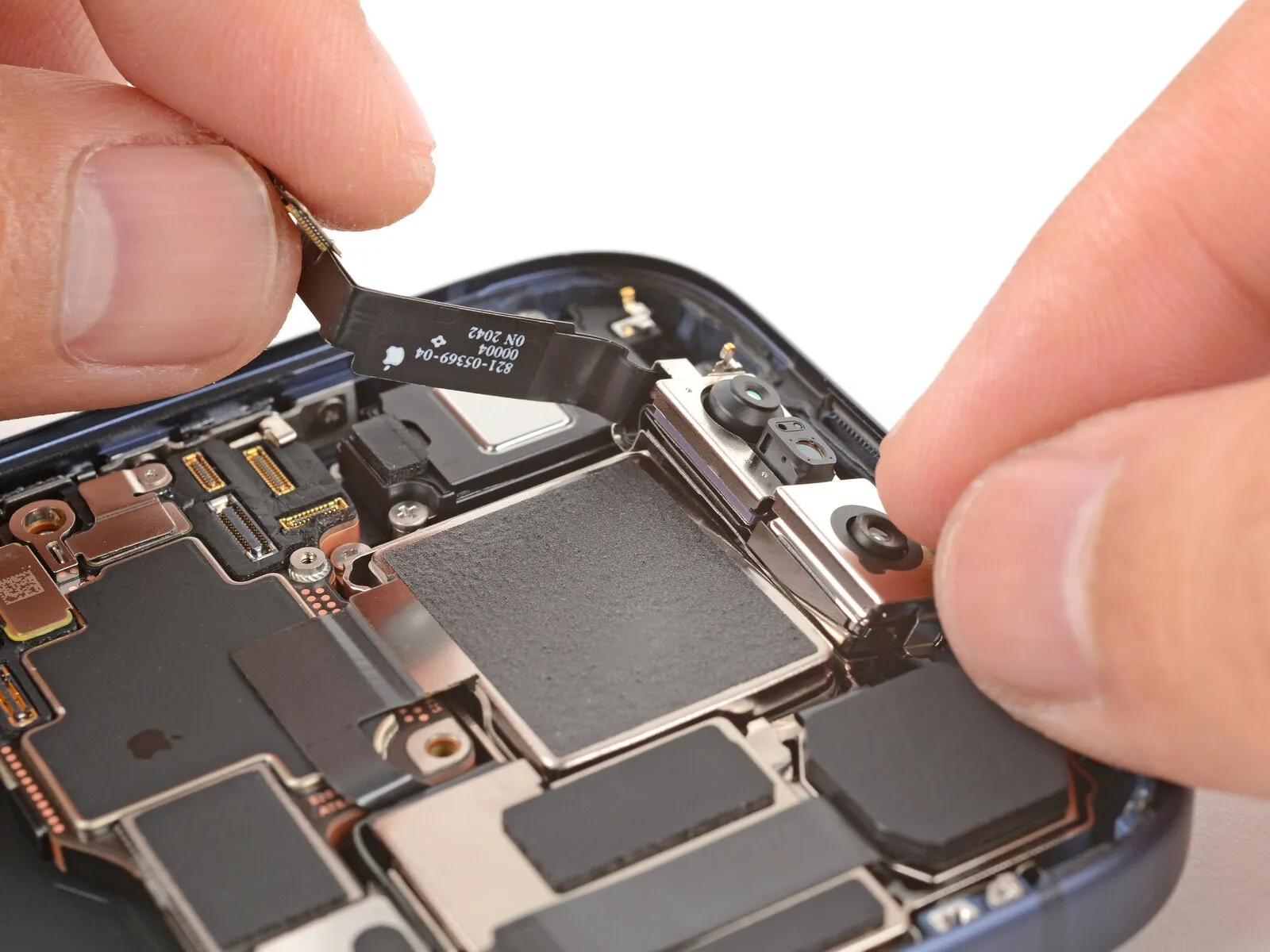

Completely detach the front camera assembly from its recessed position within the device.

Having finished the disassembly process, the subsequent instructions detail the reassembly procedure for your iPhone.
Slight variations in the visual appearance of reassembly images might occur based on the specific iPhone model being serviced, but the outlined steps remain accurate for all versions.

Position the front-facing camera module within its designated cavity, ensuring the connecting wires are routed correctly within the provided channel.

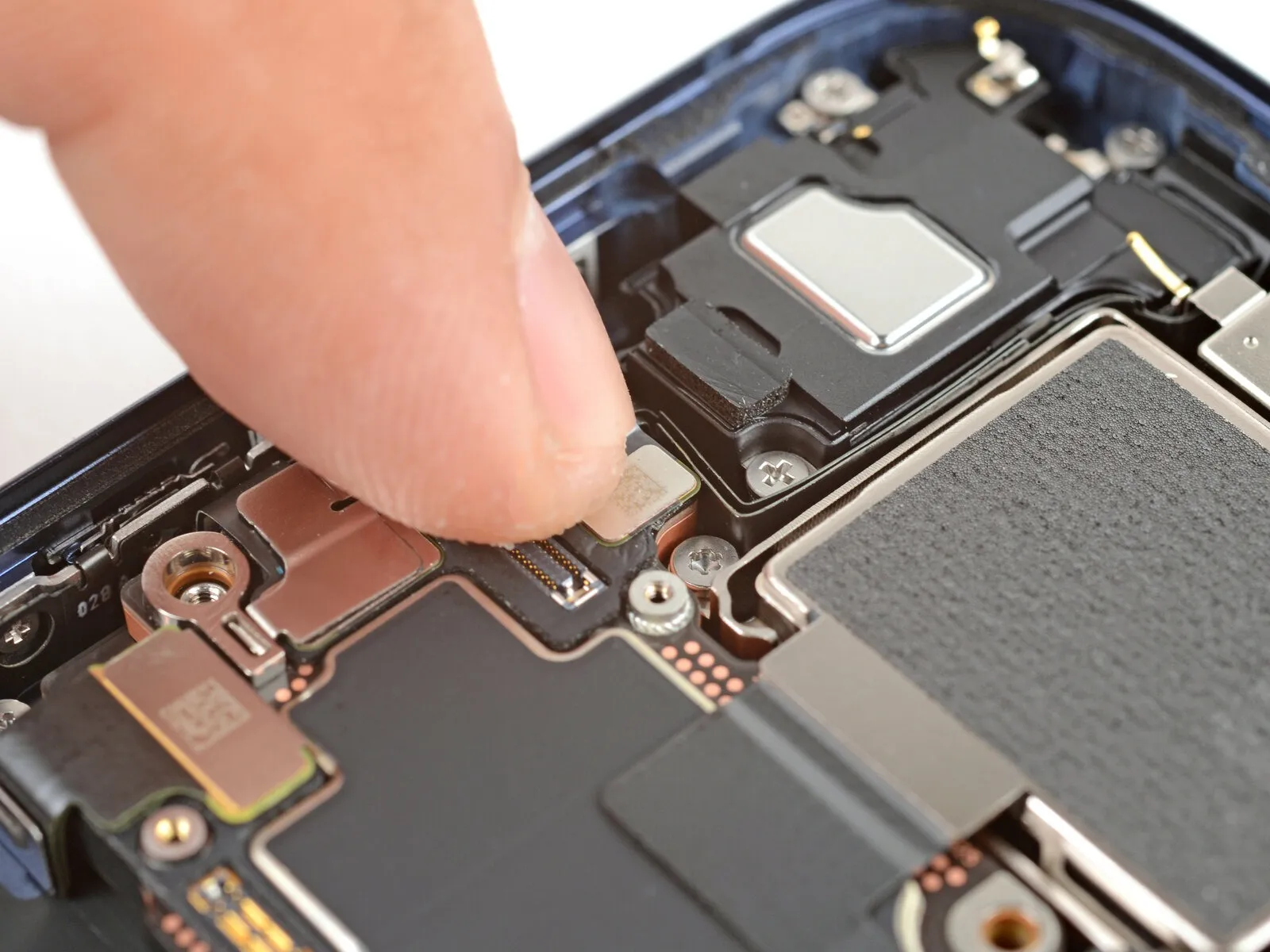

Employ your fingertips to meticulously position and secure the two front camera assembly press connectors.The press connectors must be precisely aligned before applying pressure to the logic board.Ensure proper engagement of the connectors by exerting even pressure with your fingers.

Secure the camera connector cover to the logic board by engaging its features and positioning it correctly.

Employ a specialized tri-point screwdriver, specifically a Y000 type, for the subsequent installation.A screw measuring 1.0 millimeters in length is required for this step.The purpose of this screw is to firmly affix the front camera connector cover.Ensure the correct screwdriver type is utilized to prevent damage to the screw head.Properly securing the cover with the designated screw maintains the integrity of the camera assembly.

• Position the battery tray correctly within the designated area.
• Exercise caution to prevent any wires from becoming pinched or obstructed by the tray's placement.

1. Employ a Torx Plus 4IP screwdriver for the battery tray screw installation process.A single 7.5-millimeter screw is required for this step.One screw, measuring 5.9 millimeters in length, is also necessary.
2. A 3.4-millimeter screw constitutes another component needed.Additionally, a 2.3-millimeter screw is part of the hardware.
3. Nine screws, each with a length of 3.7 millimeters, are included.A further 3.7-millimeter screw is also needed for secure attachment.
4. Certain iPhone versions, those incorporating a physical SIM card, lack this particular screw.Secure the battery tray using the specified screws with a Torx Plus 4IP screwdriver.
5. The 7.5-millimeter screw provides a longer reach for secure fastening.The 5.9-millimeter screw contributes to the overall stability of the assembly.
6. The 3.4-millimeter screw ensures proper alignment during installation.The 2.3-millimeter screw offers a shorter length for specific mounting points.
7. The nine 3.7-millimeter screws collectively reinforce the battery tray's attachment.The additional 3.7-millimeter screw provides supplemental support.

Models equipped with a physical SIM card will not require the inclusion of this screw.

• Exercise caution when cleaning the frame, carefully maneuvering around the delicate grounding clips to prevent damage; if a clip becomes displaced, restore its original shape with careful manipulation using your fingers or tweezers.
• Employ tweezers or your fingertips to detach sizable portions of adhesive that are adhered to the frame's outer edges.
• Employ a spudger to eliminate any remaining adhesive residue clinging to the frame's surface.
• Should the adhesive prove difficult to remove, apply warmth with a hair dryer or heat gun, then attempt removal once more.

• Employing a lint-free cloth or a coffee filter, meticulously clean the frame's edge by wiping in a single direction to remove adhesive remnants.
• Should the adhesive residue retain a tacky feel, carefully apply a small quantity of isopropyl alcohol to the cleaning cloth and repeat the wiping process.
• Performing this task with deliberate care is crucial, as a thoroughly cleaned frame facilitates the even application of replacement adhesive, which is essential for a robust bond.

To facilitate adhesion when reinstalling a display, utilize a microfiber or lint-free cloth dampened with a small quantity of isopropyl alcohol possessing a concentration exceeding 90 percent.The purpose of this cleaning step is to meticulously remove any contaminants from the display's edges, ensuring optimal bonding.Wipe the display's surrounding area with the alcohol-moistened cloth to properly prepare the surface for the application of fresh adhesive.

• To ascertain the correct positioning of the adhesive layer, place it upon the frame's surface, ensuring that no protective liners are removed during this assessment.
• Employ elements like the camera aperture and the indentations situated on the upper and lower borders to mentally simulate the adhesive's final placement within the frame.

• To reveal a portion of the adhesive, carefully lift the corner tab of the liner and remove it, exposing approximately one-third of the adhesive surface; exercise caution, as the exposed adhesive possesses a high degree of tackiness and should not contact any surfaces until application to the frame.
• Should your adhesive assembly incorporate multiple liners, remove only the liner that reveals the side intended for bonding to the frame.

Because the adhesive bonds immediately upon contact, repositioning is impossible; any misalignments necessitate complete removal and replacement with fresh adhesive material. Precisely match the visible edge of the adhesive strip to its intended location on the iPhone's frame. Following proper alignment, apply gentle pressure to secure the exposed adhesive strip to the frame.

• Carefully remove the adhesive backing while applying even pressure to ensure proper adhesion.
• Successful alignment is indicated by a seamless fit of the adhesive edges within the frame; minor discrepancies can be corrected by gently repositioning the longer sides.
• Should the adhesive develop creases or wrinkles, discard it and apply a new set for optimal results; alternatively, the iPhone can be reassembled and used without adhesive, though this will reduce its water resistance until replacement adhesive is installed.

Employ a spudger to apply pressure to the adhesive securing the iPhone's edges, ensuring complete coverage around the device's circumference.Exercise caution to avoid damaging the delicate grounding clips during this process; should a clip become displaced, carefully reposition it using your fingers or tweezers.Prevent excessive force, as this could overextend and permanently alter the adhesive's structural integrity.

Detach the extensive front adhesive liner by grasping the integrated pull tab, which is typically situated within a corner of the liner; however, remaining liners will still protect the outer edges.

To ensure adequate cable reach to the logic board, carefully align the iPhone display assembly adjacent to the frame.

• Employing either a fingertip or the broad, planar edge of a spudger tool, establish a secure physical connection between the two screen connectors and the logic board.The screen connectors must be affixed to the logic board with a firm, even pressure.Ensure proper alignment of the connectors; avoid applying excessive force during the connection process.
  Should resistance be felt while attempting to join the connector, adjust its position slightly and reattempt the attachment.

To establish the electrical connection, apply pressure to the battery connector using either a fingertip or the broad, planar edge of a spudger tool.Ensure the battery connector makes firm contact with the designated area on the logic board during this process.Proper alignment and secure attachment of the battery connector are essential for correct operation.

1. Prior to reassembling and securing the iPhone enclosure, it is advisable to verify the functionality of the completed repair; confirm proper operation by powering on the device.
   Should the iPhone fail to power on, establish a connection to a power source and attempt to initiate the device again.

• Carefully slide the upper border of the battery connector cover beneath the designated edge.
• Verify that each of the two retaining tabs is securely positioned beneath the lip.
• Position the cover precisely using the screw aperture as a guide, then set it into its intended location.

• Carefully slide the left side of the screen connector cover beneath the designated notch.
• Position the cover precisely using the screw aperture as a guide, then set it down.

To fasten the screen connector cover, employ a JIS 00 screwdriver and a screw measuring 1.2 mm in length.

• Maintain the screen's stability by securing it with one hand.
• Employing either fingertips or a spudger, carefully separate the perimeter liners to reveal the underlying adhesive.
  Ensure that no objects make contact with the newly exposed adhesive material.
• Thoroughly inspect the internal components, eliminating any detached liners to guarantee their complete absence.

• Position the display assembly onto the chassis, initiating the alignment process from the uppermost border.
• Should you encounter opposition during placement, inspect for a perimeter clip that may have become deformed and is experiencing compression from the chassis; carefully realign any such clips at the location of the obstruction.
• Verify that no flexible circuit cables are being compressed between the display and the chassis.
• Apply even pressure across the iPhone's borders to ensure the display is fully seated and level with the chassis.

Apply consistent, substantial pressure encompassing the device's complete outer edge.

Apply warmth around the display's edges utilizing a hair dryer or heat gun, ensuring the surface reaches a temperature just beyond comfortable touch to loosen the adhesive.This thermal application facilitates adhesive softening and promotes a more secure reattachment.

Employ a P2 pentalobe screwdriver for the installation process.Secure the two screws, each measuring 7.5 mm in length.Position these fasteners on both lateral aspects of the charging port.Properly aligning the screws is crucial for a secure attachment.
