iPhone 17 Pro LiDAR Module Replacement

To ensure optimal conditions for this repair procedure, allow your iPhone's battery to discharge to a level below 25% prior to commencing.Due to the potential fire hazard associated with compromised lithium-ion cells, a fully charged battery presents a significant risk if subjected to damage.

• Disconnect all connecting wires and cords from the device before proceeding with the repair.
• Initiate a power-off sequence by simultaneously pressing the power button and either volume button, subsequently sliding the power-off indicator.

Important safety note: Fragments of broken glass present a hazard during the repair process and may inflict harm.Should your device's display be fractured, proceed with the following procedure with heightened care.

• To prevent glass dispersal and facilitate suction cup adhesion, affix packing tape strips across the damaged screen surface.
• Secure a solitary strip of tape, without overlap, along the lower edge, ensuring sufficient area for suction cup placement.
• Confine the tape application solely to the glass portion, avoiding contact with the surrounding frame.

Employ a P2 pentalobe screwdriver to detach the two screws, each measuring 7.5 millimeters in length, located on both sides of the charging port.The two screws securing the device near the charging port must be unscrewed using a specialized P2 pentalobe screwdriver.To access the charging port, utilize a P2 pentalobe screwdriver and carefully remove the pair of screws, each with a length of 7.5 mm, positioned laterally.

Pay close attention to the following safety instruction.Excessive insertion of the opening pick poses a risk of device damage.

• Accurately determine a 3-millimeter distance from the pick's tip and clearly indicate this point using a permanent marker.
• As an alternative method, affix a coin to the pick, positioning it 3 millimeters from the tip.

A critical warning: Incorrect operation of a heat gun carries the risk of irreparable damage to the display assembly and/or battery; adhere meticulously to the detailed instructions provided at the referenced link.To soften the adhesive securing the screen, apply heat to the lower perimeter using either a hair dryer or a heat gun.

• The screen's lower edge should be warmed to a temperature just beyond comfortable touch, indicating sufficient adhesive softening.

Secure a suction handle to the screen's lower border, positioning it as near the perimeter as feasible.

Prior to proceeding, confirm the precise placement for your prying tool.

• A plastic bezel, situated beneath the screen, rests upon the device's frame; position your prying tool beneath this bezel, ensuring complete separation.
• A distinct joint exists where the plastic bezel meets the display panel; avoid inserting the prying tool at this juncture to prevent unintended separation of these components, which would increase repair complexity.

Apply consistent, substantial upward pressure to the suction cup's handle to separate the display panel from its surrounding structure, creating a visible space.
Overcoming this separation might require considerable effort; should initial attempts prove unsuccessful, reapplying heat to the display screen and retrying the process is recommended.
Carefully position the pointed end of a specialized opening tool within the newly formed separation to facilitate further detachment.

To prevent potential harm to internal components, ensure the insertion depth of your prying tool remains limited to a maximum of 3 millimeters.Proximity to the volume and Action buttons places the screen and ambient light sensor cables in a vulnerable area.The phone's frame incorporates sensitive spring contacts positioned along its edges, requiring careful handling.

• Thin, metallic clips secure the display assembly, engaging with precisely machined slots within the device's frame.
• Exercise caution to avoid contact with these sensitive spring contacts during the separation process.
• The underside of the screen is secured by a series of thin metal clips that fit into corresponding slots on the frame, demanding precise manipulation.

Utilize a separating tool to detach the adhesive bond by moving it along the lower perimeter.
Maintain the tool's position beneath the lower-right corner to inhibit the adhesive from re-attaching.

To loosen the adhesive securing the display, apply warmth to the screen's right border using a hair dryer or heat gun, ensuring the surface reaches a temperature just beyond comfortable touch.

• Position a supplementary opening pick beneath the lower-right corner of the display assembly.
• Advance the pick along the right side to detach the adhesive bond and disengage the two securing clips.
• Slight upward pressure on the display may be necessary to facilitate clip release.
• Maintain the pick's position beneath the upper-right corner to inhibit adhesive re-adhesion.

To loosen the adhesive securing the display, apply warmth to its upper boundary using a hair dryer or heat gun, ensuring the surface reaches a temperature just beyond comfortable touch.

• Position a third opening pick beneath the screen's upper-right quadrant.
• Moving the pick along the top perimeter and slightly past the upper-left corner will disengage the adhesive and release two retaining clips.
• Avoid advancing the pick further, as this could potentially harm the ambient light sensor cable.
• Maintain the pick's placement beneath the upper-left corner to inhibit adhesive re-adhesion.

Apply warmth to the screen's left border utilizing a hair dryer or heat gun, ensuring the surface reaches a temperature just beyond comfortable touch.

• Position a fourth opening pick beneath the lower-left corner of the display assembly.
• Advance the pick along the right side to sever the adhesive bond and disengage the securing clip, pausing immediately prior to the volume up control.
• A slight upward lift of the display might be necessary to free the clip; avoid further pick advancement to prevent potential damage to the display cable.

Ensure the display panel is fully disengaged from its surrounding structure; should resistance be encountered, re-examine the edges to release any lingering adhesive or securing fasteners.
Elevate the display vertically and rotate it towards the left side, supporting it with a stable object like a container or pile of literature to prevent cable tension.
As an alternative approach, the display can be positioned horizontally across the left lateral surface.

Carefully monitor the location of each screw during disassembly to ensure correct reinstallation.
Employ a specialized tool for the subsequent steps.A JIS 00 screwdriver is required for the next procedure.The two cable covers are fastened with screws that necessitate removal using the specified tool.

• A 1.4 mm screw secures the cover protecting the screen and front sensor cable.The battery cover is held in place by a 1.3 mm screw.iFixit-branded Phillips bits are specifically engineered for compatibility with JIS screws.
• Alternative Phillips drivers from other brands may be attempted, but doing so carries the potential for screw damage.Stripping the screw heads is a risk associated with using non-iFixit Phillips drivers.Proper screw head engagement is crucial to prevent damage during the repair process.

Detach the pair of protective housings.

• Employ the tip of a spudger to carefully lift and detach the battery press connector.The battery press connector must be separated from its position using a spudger's pointed end.To release the battery press connector, utilize a spudger and apply pressure with its tip to lever it free.

• Employing the pointed end of a prying tool or a spudger, carefully separate and release the screen and ambient light sensor press connectors from their housings.The connectors securing the screen and ambient light sensor press to the circuit board require detachment via a pointed instrument, such as a prying tool or spudger.To release the screen and ambient light sensor press connectors, utilize the pointed tip of a specialized opening tool or a spudger for precise leverage and disconnection.

• Detach the display panel.The screen component must be carefully separated.Disassembly of the display is the next step.

• Employ a Torx Plus 4IP driver to detach the fasteners holding the battery compartment in place.
  A single screw, measuring 7.5 millimeters in length, is required.A solitary fastener, with a length of 5.9 millimeters, is also needed.
  Additionally, utilize one screw that extends 3.4 millimeters.A further screw, possessing a 2.3-millimeter length, should be incorporated.
  Nine screws, each with a 3.7-millimeter length, are also part of the assembly.One additional fastener, also measuring 3.7 millimeters, is present.
  Certain iPhone versions, which incorporate a physical SIM card slot, lack this particular screw.The battery tray is affixed with specialized fasteners that necessitate a specific tool for removal.
  To ensure proper disassembly, a Torx Plus 4IP screwdriver is essential for engaging the screw heads.The dimensions of the screws are critical for correct reassembly and should be carefully noted.
  The presence or absence of the 3.7 mm screw depends on the iPhone's SIM card configuration.Carefully observe the screw lengths during removal to facilitate accurate reinstallation later.
  Maintaining the original screw order is recommended to avoid potential issues during reassembly.

• Employ a fingertip to elevate the battery compartment's upper-left corner, subsequently detaching the tray.Exercise caution to prevent any smearing of the front-facing camera's lens during this process.The battery tray is secured via a retaining clip at the upper left corner, requiring upward force for separation.
  Careful manipulation is necessary to avoid compromising the integrity of the front camera's image sensor.

Employ a Y000 tri-point screwdriver for the removal of the screw that holds the rear camera connector cover in place.The screw in question measures precisely 1.0 millimeters in length.This fastener secures the cover protecting the rear camera connector.

Employing tweezers, release the rear camera connector cover's securing latch from the logic board, subsequently detaching it.

Employing the tip of a spudger, carefully lift and detach the three press connectors associated with the rear camera assembly, noting that one connector is positioned beneath another.

Employ a Torx Plus 4IP screwdriver for the disassembly process.The three screws holding the rear camera assembly in place necessitate a Torx Plus 4IP screwdriver for removal.Specifically, two screws with a length of 4.0 millimeters are fastened to the rear camera assembly.

• A single screw, measuring 4.4 millimeters in length, also secures the rear camera assembly.To detach the rear camera assembly, utilize a Torx Plus 4IP screwdriver and address the three fasteners.
• The rear camera assembly is held in position by three screws, requiring a Torx Plus 4IP screwdriver for their removal.For disassembly, a Torx Plus 4IP screwdriver is essential to loosen the three screws that affix the rear camera assembly; two are 4.0 mm long, and one is 4.4 mm long.

Employ the tip of a spudger to carefully lift the upper boundary of the rear camera module.Following the release, secure a firm grip on the assembly with your fingers.Disengage the component from its position by maneuvering it away from the device.

Employ a specialized tri-point screwdriver, specifically a Y000 type, for disassembly.The screw, measuring 1.0 millimeters in length, requires a tri-point Y000 screwdriver for its removal.A tri-point Y000 screwdriver is essential for detaching the front camera connector cover.To release the front camera connector cover, a tri-point Y000 screwdriver is the appropriate tool for the 1.0 mm screw.Utilize a tri-point Y000 screwdriver to loosen and extract the small screw that holds the front camera connector cover in place.

Employing tweezers facilitates the detachment and removal of the protective cover situated on the front camera connector.The front camera connector's cover necessitates careful disengagement and subsequent removal utilizing tweezers.To detach and extract the cover safeguarding the front camera connector, utilize precision tweezers.

• Employing the tip of a spudger, carefully separate the top speaker assembly from its mounting.The spudger's pointed end facilitates leverage to release the adhesive securing the speaker.Gently lift the top speaker, disengaging it from its position within the device.
• Complete the speaker's removal by lifting it away from the chassis.

Employ a specialized tri-point screwdriver, specifically a Y000 type, for disassembly.The fastener in question is a screw measuring 1.0 millimeters in length.This screw's purpose is to hold the button connector cover in place.Carefully detach the screw using the appropriate screwdriver.Removal of the cover is achieved by unscrewing the specified fastener.

Employing tweezers, release the retaining clip securing the button connector cover to the logic board, then detach the cover.

Employ the tip of a spudger to carefully lift and release the two press-fit connectors situated on the upper perimeter of the logic board.The press connectors, which secure connections on the logic board's top edge, should be detached using a spudger's pointed end.To separate the two press connectors from their positions along the logic board's top edge, utilize the pointed end of a spudger for prying and disconnection.

Employ the tip of a spudger to carefully lift and detach a total of five press-fit connectors affixed to the logic board.Among these connectors are two assemblies that interface with the buttons, with one located beneath the other.Additionally, two connector assemblies provide connections for the USB-C ports, also with one situated underneath the other.

• A single connector is responsible for the functionality of the power button.
• Exercise caution during this process to prevent damage to the surrounding components or the connectors themselves.
• Ensure the connectors are fully disengaged before proceeding with further disassembly.

• A single standoff screw, measuring 5.0 mm in length, is required for this step.Additionally, a 2.3 mm-long JIS 00 screw must also be removed.
• These fasteners are critical for maintaining the cover's secure attachment.Carefully note the length and screw type of each fastener for reassembly.

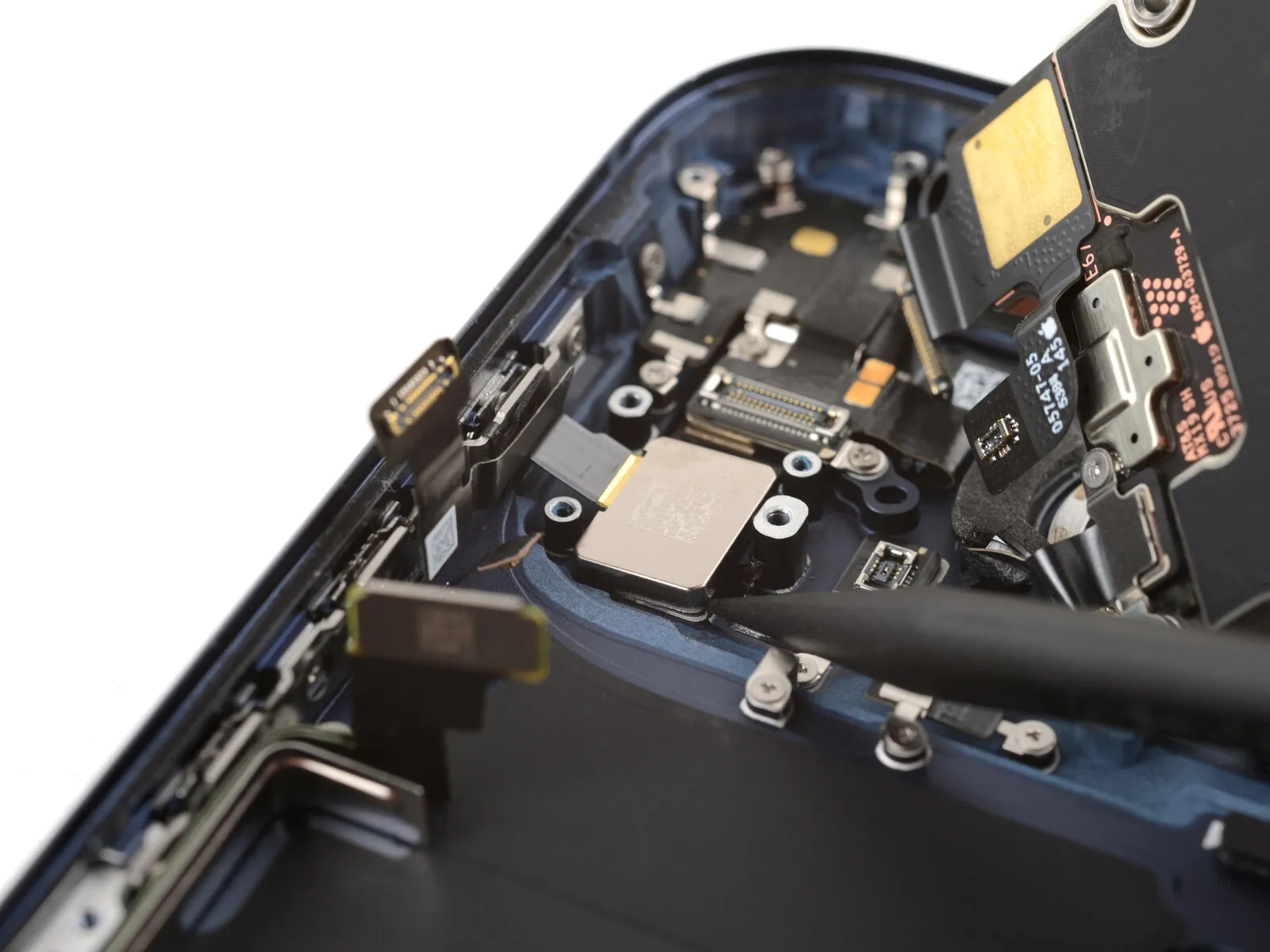

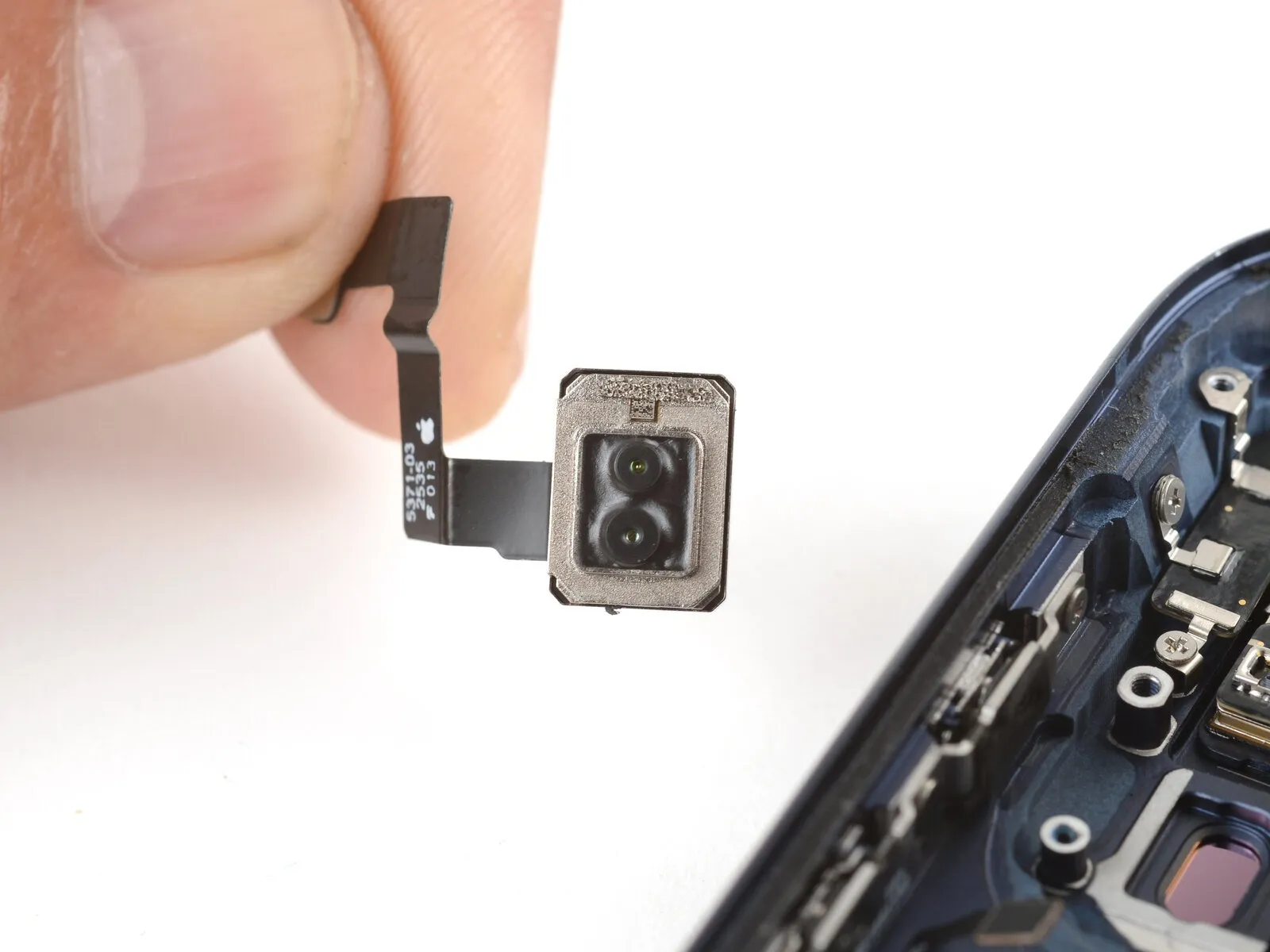

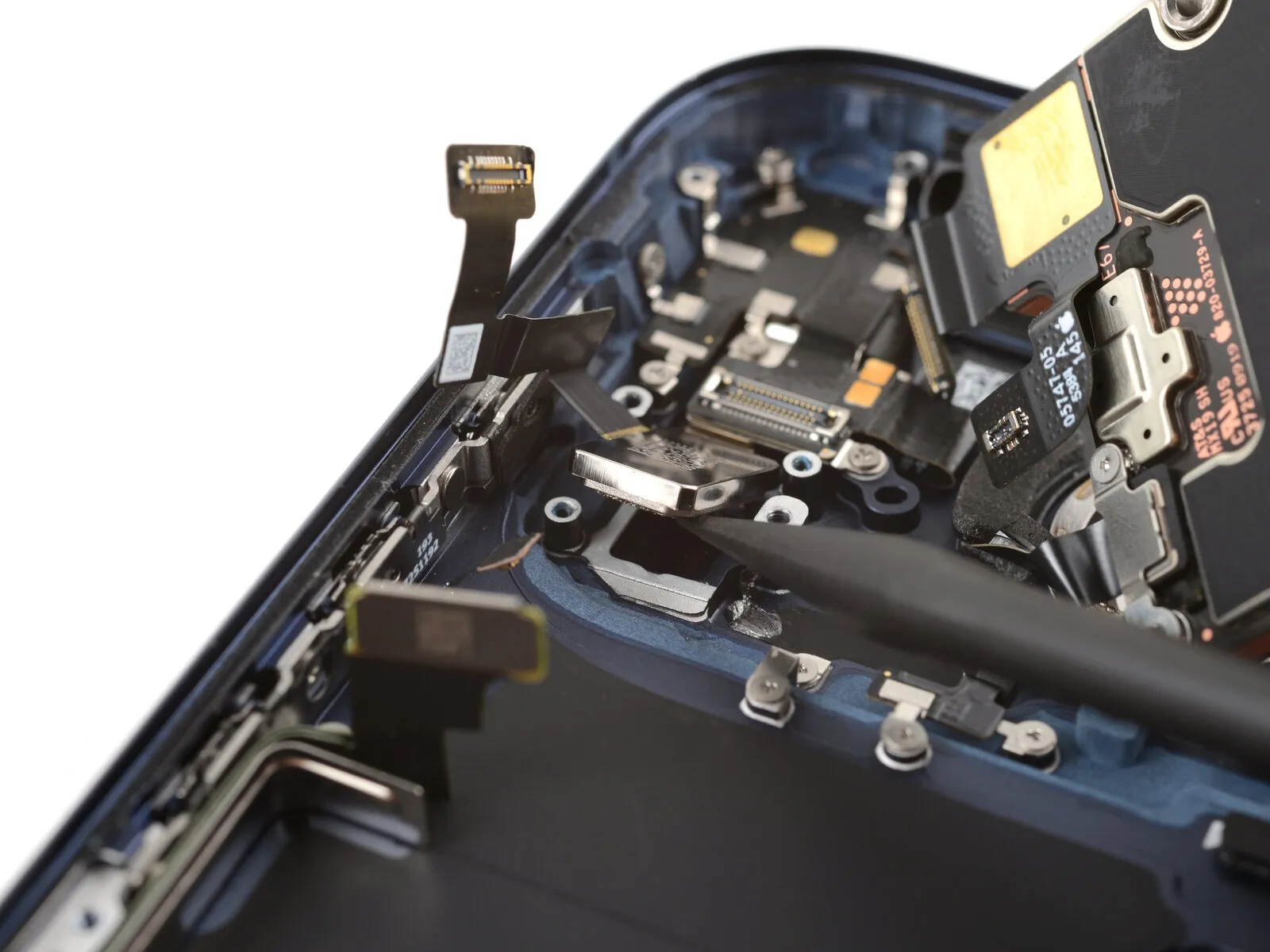

Position the LIDAR module within its designated cavity utilizing manual dexterity.Secure the component's placement by applying gentle, even pressure until it is fully seated.Ensure proper alignment and contact between the LIDAR module and the surrounding structure through careful manipulation.

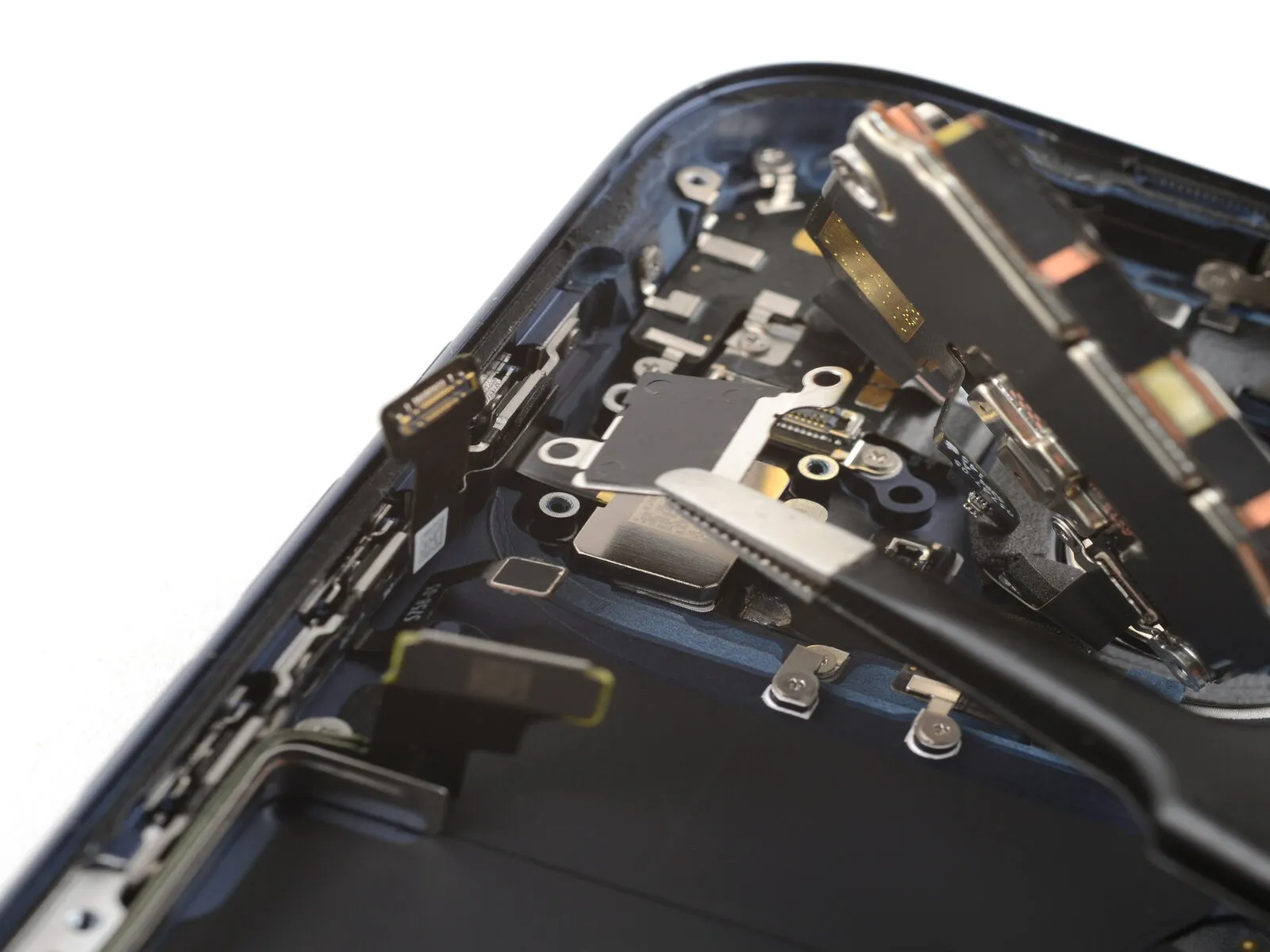

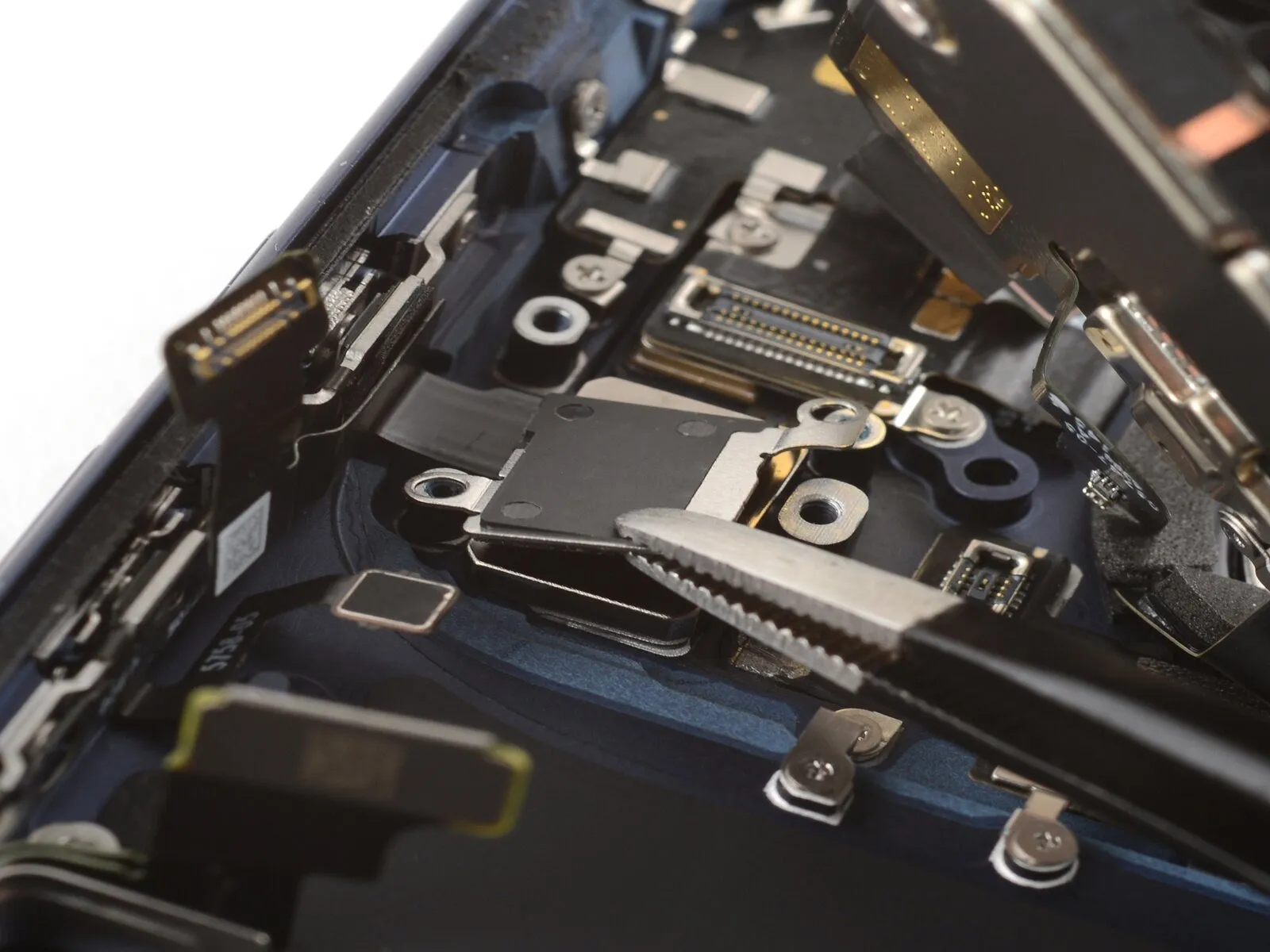

Position the protective enclosure over the LIDAR module's surface.The LIDAR cover serves to shield the LIDAR module.Ensure the cover is correctly aligned before placement.The LIDAR module is the component being protected.Proper placement of the LIDAR cover is essential for safeguarding the LIDAR module.

Secure the LIDAR cover using two distinct fasteners.A 5.0 millimeter length standoff screw is required for this step.Additionally, a 2.3 millimeter length JIS 00 screw must be utilized.

• The purpose of these screws is to maintain the cover's position.Ensure proper alignment before tightening each screw.
• Over-tightening could damage the surrounding components; exercise caution.These screws are specific to the LIDAR cover assembly.

Employ a specialized opening pick to secure the flexible connectors situated on the iPhone's left side, ensuring they remain clear of the logic board.The purpose of this action is to avoid any interference or damage to the delicate flex cables during subsequent steps.Carefully lower the logic board, verifying that no flex cables are pinched or obstructed along the left and lower borders.

• Confirm proper alignment and cable clearance before proceeding with further assembly or testing.

Carefully examine the right-hand side of the main circuit board to confirm the electrical connection for the power button is not obstructed by the board's underside.The power button connector, a small component facilitating power-on functionality, requires verification for proper placement.Ensure the power button connector isn't physically pinned or compressed between the logic board and its surrounding components during reassembly.

Apply finger pressure to engage the diminutive button connector situated on the logic board's left edge.

• Discontinue the procedure if resistance is encountered during connector alignment; the button cable frequently exhibits a kink.This kink often obstructs movement beneath the logic board's surface.Elevate the logic board to release the cable's obstruction and reattempt the connection.

Secure the six press connectors using finger pressure to ensure proper adhesion.These connectors are designed for a press-fit attachment.Specifically, affix two connectors situated along the logic board's upper boundary.

• Additionally, attach the single connector associated with the button board.
• Two USB-C port assembly connectors must be fastened, stacked directly atop one another.
• Finally, ensure the power button connector is firmly connected.
• Proper alignment and secure attachment of each connector are crucial for functionality.

• Ensure the superior boundary of the top speaker is precisely positioned relative to the iPhone's casing.
• Carefully seat the speaker within its designated compartment.

• Employ a JIS 00 screwdriver for the installation process.Secure the top speaker with three screws, each measuring 2.2 mm in length.The specified screwdriver type is essential for proper engagement with the screw heads.Accurate screw length is critical to prevent damage to the speaker or surrounding components.Ensure the screws are fully seated to maintain structural integrity.

• Position the front camera assembly within its designated cavity.Ensure the front camera assembly is situated correctly inside the provided space.Place the front camera assembly into the intended opening for proper alignment.

• Utilize your fingers to establish a secure connection between the two front camera assembly connectors, ensuring they are firmly pressed together.The two front camera assembly connectors must be joined and held in place by manual pressure.To properly engage the front camera assembly connectors, apply pressure with your fingers until a positive connection is achieved.

• Engage the diminutive retaining latch, situated at the edge of the camera connector cover, with the corresponding feature on the logic board to secure its positioning.The camera connector cover's latch is designed to interlock with a specific point on the logic board, ensuring proper alignment.Carefully position the camera connector cover so that the latch firmly connects to the logic board, establishing a secure fit.

• Employ a specialized tri-point screwdriver, specifically a Y000 type, to secure the front camera connector with a screw.The screw used for installation is a front camera connector screw, measuring precisely 1.0 millimeters in length.This task concludes with the final punctuation mark, indicating completion of the described action.

Position the rear camera component within its designated cavity.

To establish a secure physical link, apply direct pressure with a fingertip to engage the three camera press connectors with the corresponding receptacles on the logic board.

Employ a Torx Plus 4IP screwdriver for the subsequent screw installations.Secure the components with two screws, each measuring 4.0 millimeters in length.A single screw, with a length of 4.4 millimeters, is also required.

• Ensure accurate placement of each screw within its designated aperture.
• Proper screw hole alignment is essential for secure fastening.

Utilize the specified screwdriver type to avoid damaging the screw heads or surrounding components.

Secure the rear camera connector cover to the logic board utilizing tweezers, ensuring proper alignment and placement.

Employ a specialized tri-point screwdriver, specifically a Y000 type, for the subsequent procedure.A diminutive screw, measuring 1.0 millimeters in length, secures the camera connector cover.The Y000 tri-point screwdriver is essential for engaging the screw's unique head profile.Securely fastening the camera connector cover necessitates the use of this particular screwdriver type.The screw's short length (1.0 mm) requires precision and the correct tool to avoid damage.

• Position the battery tray correctly within its designated area.
• Exercise caution to prevent any wires from becoming pinched or obstructed by the tray during installation.

Secure the battery tray utilizing a Torx Plus 4IP screwdriver to engage the fasteners.The required tool for this installation is a Torx Plus 4IP screwdriver.A 7.5-millimeter length screw is necessary for this step.

• A screw measuring 5.9 millimeters in length is also required.Employ a screw with a length of 3.4 millimeters during assembly.
• A 2.3-millimeter length screw is needed for proper attachment.Nine screws, each 3.7 millimeters in length, are included for this process.
• An additional screw, also 3.7 millimeters in length, is part of the hardware set.Models of the iPhone that incorporate a physical SIM card will lack this final fastening element.
• The battery tray is affixed with screws requiring a Torx Plus 4IP screwdriver.Ensure the correct fastener is used; a Torx Plus 4IP screwdriver is essential.
• A 7.5 mm screw is one of the fasteners needed to attach the tray.The assembly process involves a 5.9 mm screw as one of the components.
• A 3.4 mm screw is also part of the required hardware for the tray.Nine fasteners, each measuring 3.7 mm in length, are used for securing the tray.

Specifically, one additional 3.7 mm screw is used, but absent on SIM-equipped iPhones.

Exercise caution while cleaning the frame's surface, ensuring the delicate grounding clips remain undisturbed to prevent deformation.

Employ tweezers or manual manipulation to detach sizable adhesive sections from the frame's edges.

Employ a spudger to eliminate any remaining adhesive traces from the frame's surface.

Should the adhesive prove difficult to remove, utilize a hair dryer or heat gun to apply warmth, then attempt removal again.

Employ a lint-free cloth, or a coffee filter, to meticulously cleanse the frame's edges.Wipe the frame perimeter in a single direction to effectively eliminate adhesive remnants.Should the adhesive residue exhibit a tacky texture, a small quantity of isopropyl alcohol can be utilized.Apply a few drops of isopropyl alcohol to the cleaning cloth to assist in residue removal.Repeat the wiping process with the alcohol-treated cloth to fully dissolve the adhesive.

• Proceed deliberately during this cleaning stage, ensuring thoroughness.A pristine frame surface is essential for optimal adhesion of fresh adhesive materials.Proper frame cleaning contributes to a stronger bond when new adhesive is applied.

To reapply a previously used display panel, introduce a small quantity of isopropyl alcohol with a concentration exceeding 90% onto a cleaning material composed of microfiber or a fabric devoid of loose fibersand carefully clean the edges to facilitate adhesive bonding.

To ascertain the correct positioning, place the adhesive layer onto the frame's surface, ensuring that no protective liners are removed during this assessment.
Employ elements like the camera aperture and the indentations situated on the superior and inferior borders to mentally simulate the adhesive's final placement within the frame.

Begin the process by grasping the corner tab of the adhesive backing and carefully remove a portion of the liner, revealing approximately one-third of the adhesive surface.Exercise caution, as the newly exposed adhesive possesses a high degree of tackiness; prevent unintended contact with other surfaces until its intended application to the frame.
Should your adhesive product incorporate multiple protective liners, ensure that you remove only the uppermost liner to reveal the adhesive side intended for frame attachment.
To prevent premature adhesion, avoid allowing the exposed adhesive to come into contact with any unintended surfaces prior to its application to the frame.

Begin the process by applying the adhesive, recognizing that subsequent adjustments are impossible without complete replacement.Ensure precise positioning by matching the visible perimeter of the adhesive strip to the matching boundary of the iPhone's structural casing.

• Successful alignment necessitates a careful matching of edges before proceeding with the next step.
• Apply even pressure to the visible adhesive strip against the frame to secure its initial placement.

Begin the process of separating the protective backing from the adhesive material, ensuring firm contact as you position it.Successful alignment of the adhesive is indicated by a seamless fit of the edges within the frame's boundaries.

• Should a minor misalignment occur, carefully reposition the extended borders to achieve proper alignment with the frame's structure.
• Should creases or wrinkles appear on the adhesive, discontinue the installation and replace it with a new set.
• In the absence of replacement adhesive strips, the iPhone can be reassembled and used temporarily without the adhesive, acknowledging a reduction in water resistance.
• The iPhone's original water resistance capabilities will be diminished until replacement adhesive strips are applied.

Begin the process by utilizing a spudger to apply pressure to the adhesive sealant located along the complete outer edge of the iPhone device.Exercise caution to avoid damaging the delicate grounding clips during this procedure; should one become displaced, carefully reposition it using your fingers or a pair of tweezers.

• Excessive force should be avoided to prevent distortion or overstretching of the adhesive layer.
• The adhesive perimeter requires careful manipulation with a spudger to release its bond, taking special care to protect the grounding clips from unintended displacement.

Grasp the designated pull tab to detach the extensive front adhesive liner.
Remaining liners continue to protect the device's edges; refrain from their removal, as they inhibit premature adhesion during reassembly of the iPhone.

Position the iPhone display adjacent to the frame, ensuring sufficient cable length to connect to the logic board.

• Apply pressure with a fingertip or the broad, planar edge of a spudger to secure the two screen connectors to the logic board's corresponding receptacles.Avoid applying excessive force when engaging the connectors; a gentle, controlled pressure is optimal.Should resistance be encountered during connector alignment, slightly adjust the connector's position and reattempt the connection.
• Persistent difficulty indicates a misalignment requiring repositioning rather than forceful insertion.

Employing either a fingertip or the planar edge of a spudger tool, ensure the battery connector's secure attachment to the logic board through firm pressure.To establish a reliable electrical connection, apply pressure to the battery connector using your finger or the broad, flat surface of a spudger.A secure connection between the battery connector and the logic board is achieved by applying pressure, which can be done with a finger or the flat end of a spudger.

• Prior to final enclosure, it's advisable to verify the functionality of your iPhone repair; initiate the device and confirm expected operation.
• Following the verification process, de-energize the iPhone and proceed with the remaining reassembly steps.
• Should the iPhone fail to power on, establish a connection to an external power source and attempt to initiate the device again.

• Slide the upper border of the battery connector cover beneath the designated lip feature.Confirm that both retaining tabs are securely positioned beneath the lip's edge.Position the cover precisely using the screw aperture as a guide, then set it down.
  Ensuring proper alignment is critical for correct placement of the component.
  The cover’s placement should be verified before proceeding with subsequent steps.

Employ a JIS 00 screwdriver for the installation process.A 1.2-millimeter screw length is required for this fastening operation.The battery connector cover necessitates securement via screw fixation.To properly affix the cover, utilize the designated screwdriver type.Ensure the screw is correctly positioned before tightening it with the JIS 00 screwdriver.

• Carefully slide the left side of the screen connector cover beneath the designated lip on the device's frame.Position the cover precisely, utilizing the screw hole as a reference point for accurate alignment.Ensure the cover rests correctly within its intended recess, preparing it for secure attachment.
  The cover should be placed in its final position, ready for fastening with screws.

Employ a JIS 00 screwdriver for the installation process.The screw, measuring 1.2 millimeters in length, is required for this step.The purpose of this fastener is to maintain the screen connector cover's position.Securely fasten the component utilizing the specified screwdriver type.Properly installing the screw ensures the screen connector cover remains attached.

1. Maintain the screen's stability by grasping it securely with one hand.
   • Employ either your fingertips or a spudger to carefully separate the surrounding liners, revealing the underlying adhesive.Prevent any contact with the newly exposed adhesive to avoid contamination.
   • Thoroughly inspect the internal components to identify and eliminate any detached liners, ensuring complete removal.
   • Confirm the complete absence of liners within the device's interior.

Position the display assembly onto the chassis, initiating the alignment from the uppermost boundary.

• Should you encounter opposition during placement, a component identified as a perimeter clip might be deformed and experiencing compression from the chassis.Carefully examine the location of the obstruction and delicately realign any clips exhibiting deformation.Verify that the display's edges are not exerting pressure on any connecting wires or cables.
• Apply even pressure across the iPhone's borders to ensure the display sits uniformly against the chassis.
• Confirm the display is completely level with the frame after applying pressure.

Apply consistent, even pressure encompassing the complete circumference of the iPhone's housing.

Apply warmth around the display's edges utilizing a hair dryer or heat gun.Ensure the temperature reaches a point just beyond comfortable touch, indicating sufficient heat.This thermal application serves to reduce the viscosity of the adhesive securing the screen.The increased temperature facilitates a more effective adhesion during reattachment.Heating the screen perimeter with either device is crucial for successful repair.

• The adhesive's softening action eases separation and promotes a stronger bond afterward.

Employ a P2 pentalobe screwdriver for the installation process.Two screws, each measuring 7.5 millimeters in length, are affixed.These screws are positioned on both lateral aspects of the charging port.The P2 pentalobe screwdriver is essential for manipulating these fasteners.Securely fasten the screws using the specified screwdriver to maintain port integrity.
