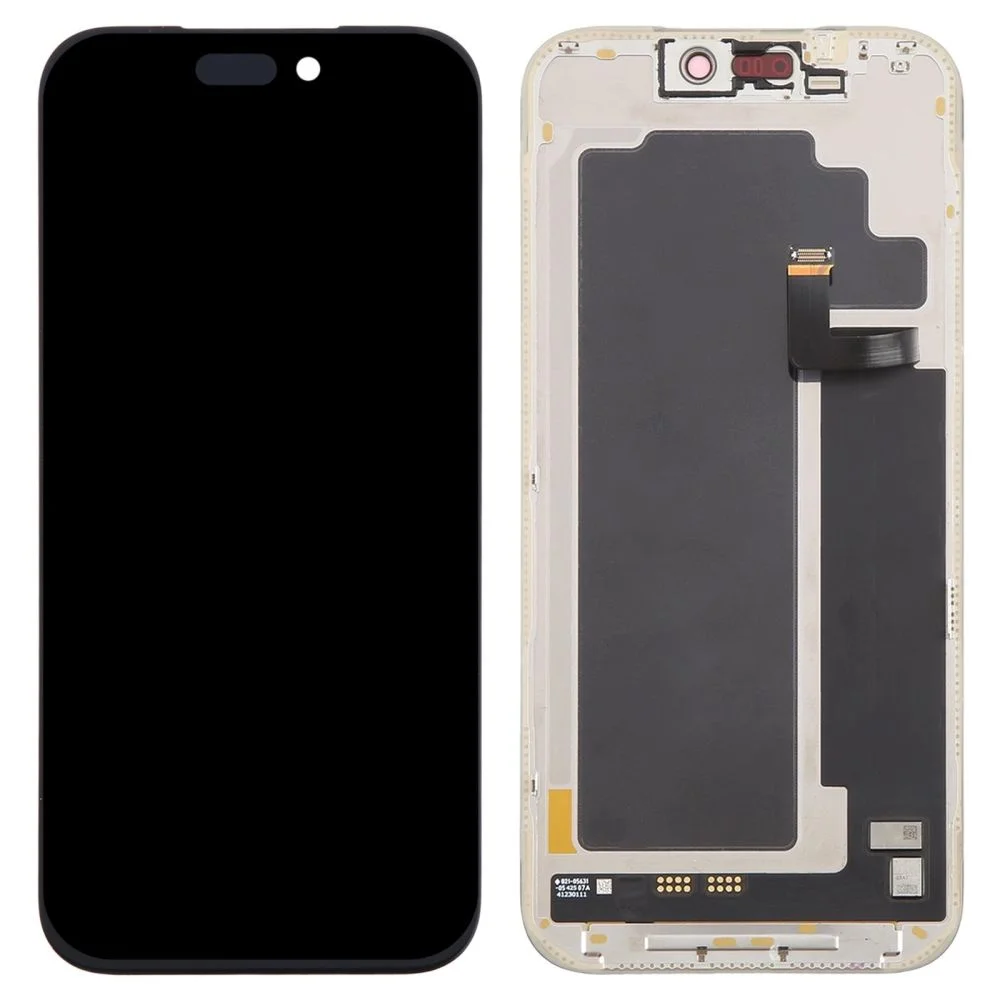

iPhone 17 Pro Max Screen Replacement

To ensure optimal conditions for this repair, allow the iPhone battery to discharge to a level below 25% prior to commencing work.A compromised lithium-ion battery presents a fire hazard when energized.

• Disconnect all wires and connectors from the device.
• Simultaneously press and maintain the power button alongside either volume button, and then move the slider to initiate the power-off sequence for the device.

To prevent potential injury or damage, exercise care when proceeding.Because broken glass fragments may hinder the repair process or create a safety hazard, proceed to the following step if your device has a cracked screen.

• To prevent glass fragments from scattering and to ensure proper adhesion of the suction cup, thoroughly cover the damaged glass surface with packing tape.
• Apply a non-overlapping strip along the lower edge, ensuring its dimensions accommodate a suction cup.
• Apply masking tape solely to the glass surface, ensuring no adhesive contacts the frame.

Employ a 3/8-inch socket wrench to loosen the retaining bolt, ensuring you maintain a firm grip on the component to prevent it from rotating while the bolt is removed, and always wear safety glasses to protect against potential debris.Use a P2 screwdriver with a pentalobe tip.Using the appropriate screwdriver, detach the two screws, each measuring 7.5 mm in length, located on both sides of the charging port.

To prevent potential injury or equipment damage, exercise care when handling components and always observe the specified torque of 5 Nm when tightening the M4 screws using a 2.5 mm hex key.Excessive insertion of the opening pick may result in device damage.

• Using a permanent marker, note the location of a 3 mm measurement back from the tip on the opening pick.
• To achieve a similar effect, affix a coin to the pick's tip, positioning it precisely 3 mm away.

To prevent potential injury or damage, exercise care when proceeding.To prevent damage to the display or battery, adhere strictly to the detailed instructions provided in the linked resource when using a heat gun.

• Apply warmth to the screen's lower border with a hair dryer or heat gun, ensuring the surface reaches a temperature just beyond comfortable touch.

Using a suction tool, carefully secure the lower screen edge, positioning it as near the perimeter as feasible.

Carefully position your pick to ensure it's placed precisely where it needs to be for the subsequent procedure.

• Position your pick beneath the plastic bezel, which is located on the screen's lower surface and rests against the frame, ensuring the pick is fully inserted.
• Avoid inserting the pick into the joint where the plastic bezel meets the display panel, as doing so will cause them to detach, making the repair process more difficult.

Apply firm, consistent upward pressure to the suction handle to create separation between the display screen and its surrounding frame.
Applying considerable pressure might be necessary; should you encounter resistance, reapply heat to the display and attempt separation once more.
Using a specialized opening tool, carefully slide its pointed end into the newly formed space.

Avoid pushing the tool beyond the specified depth.Three millimeters.To prevent harm to the subsequent components, exercise caution when working beneath the display surface.

• Close to the volume and Action buttons, you'll find the cables connecting the screen and ambient light sensor.
• Carefully inspect the phone's edges for small, sensitive spring-loaded connectors.
• Metal clips, located on the screen's lower surface, engage with matching slots positioned within the frame.

Carefully insert the opening pick between the bottom edge and the device housing, then gently maneuver it to release the adhesive bond.
To stop the adhesive from bonding again, maintain a small tool in the lower right corner.

To detach the suction cup, grasp the small projection extending from its surface and draw it away from the screen.

Apply warmth to the right screen perimeter with a hair dryer or heat gun, ensuring the surface reaches a temperature just beyond comfortable touch.

• Using a specialized opening tool, carefully slide it between the display and the device's frame, positioning the tip directly beneath the lower-right corner.
• Using a pick, gently lift the right edge to break the adhesive bond and disengage the two retaining clips; if necessary, a slight upward lift of the screen may be required to fully release the clips.
• To stop the adhesive from bonding again, maintain a small tool in the upper right corner.

Apply warmth to the screen's upper border with a hair dryer or heat gun, ensuring the surface reaches a temperature just beyond comfortable touch.

• Using a third opening pick, gently slide it between the screen and the device's frame, positioning it directly beneath the top-right corner.
• Carefully insert a pick along the upper edge, extending it just slightly around the upper left corner to break the adhesive bond and disengage the two clips; avoid excessive insertion beyond this point to prevent potential damage to the ambient light sensor cable.
• To stop the adhesive from bonding again, maintain a small tool in the upper left corner.

Apply warmth to the left screen perimeter with a hair dryer or heat gun, ensuring the surface reaches a temperature just beyond comfortable touch.

• Using a specialized opening pick, carefully slide it between the screen and the device casing, positioning the pick's tip just beneath the lower-left corner.
• Using a pick, carefully lift the left side to break the adhesive bond and disengage the clip, pausing your movement immediately prior to reaching the volume up button.
• To detach the clip, gently lift the screen a small amount; avoid inserting the pick deeper, as this could harm the screen cable.

Ensure the display assembly is fully released from the frame; if resistance is encountered, carefully examine the edges and detach any lingering adhesive or securing clips.
Carefully raise the display vertically, pivoting it to the left side, and secure it with a stable support like a box or books to prevent cable stress.
Position the display horizontally, ensuring it rests evenly against the left-hand side.

Carefully organize all screws during disassembly, noting their original locations to ensure correct reassembly.
Employ a screwdriver with a JIS 00 tip.Detach the pair of fasteners.Screws measuring 1.2 millimeters in length.Affix both battery and screen cable covers, ensuring each is properly fastened.
Utilize miniature Phillips screwdriver bits from iFixit.These components are specifically engineered for compatibility with JIS screw fasteners; attempts to use alternative screw types are discouraged.Employ Phillips screwdrivers sourced from alternative brands.Applying excessive force while turning could damage the screw's head.

Detach the two protective housings.

• Gently insert the spudger’s tip.Use a prying tool to release and separate the battery press connector.

• Employ either the pointed end of a prying tool or a spudger's tip.Release the screen and front sensors from their connections by carefully disengaging the connectors.

• Carefully detach the display panel..

• Ensure the new display panel lacks pre-installed front sensors.To proceed with removal, complete the subsequent sequence of five actions.

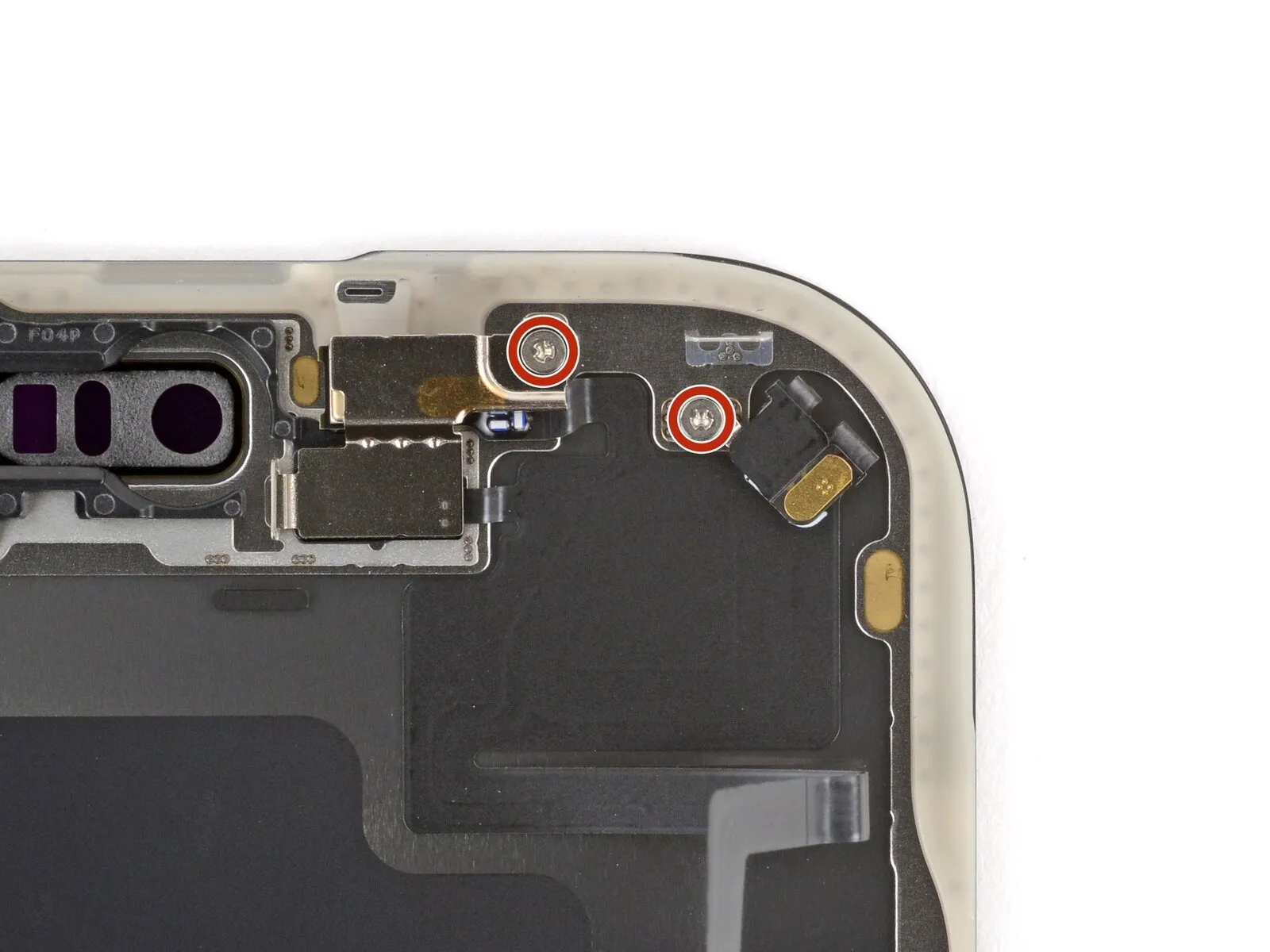

• Employ a Y000 tri-point screwdriver for this task.Detach the pair of fasteners.Front sensors are secured with screws, each measuring 1.0 mm in length..

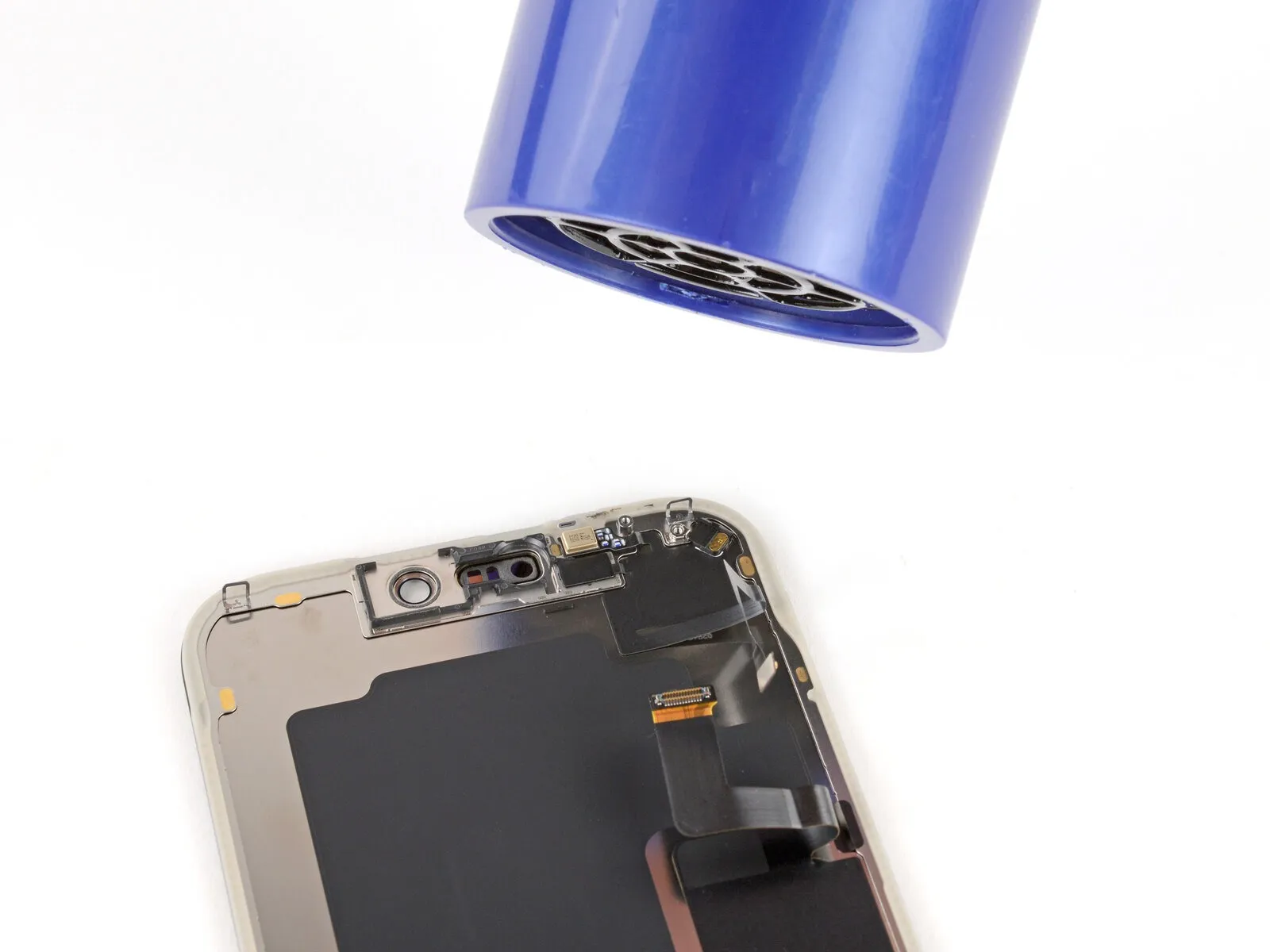

• Apply warmth with a device capable of producing heated air, such as a hair dryer or heat gun.Apply heat to the front sensors.
• Apply heat to either the sensor itself or the specific area on the screen's front surface directly above it.

Please provide the original text you want me to rewrite. I need the sentence or instruction to work with.Locate the forward-facing proximity and object detection sensors.Handle these components with extreme care as they are prone to tearing; exercise caution during removal. Should you encounter resistance, increase the heat application and attempt the process once more.

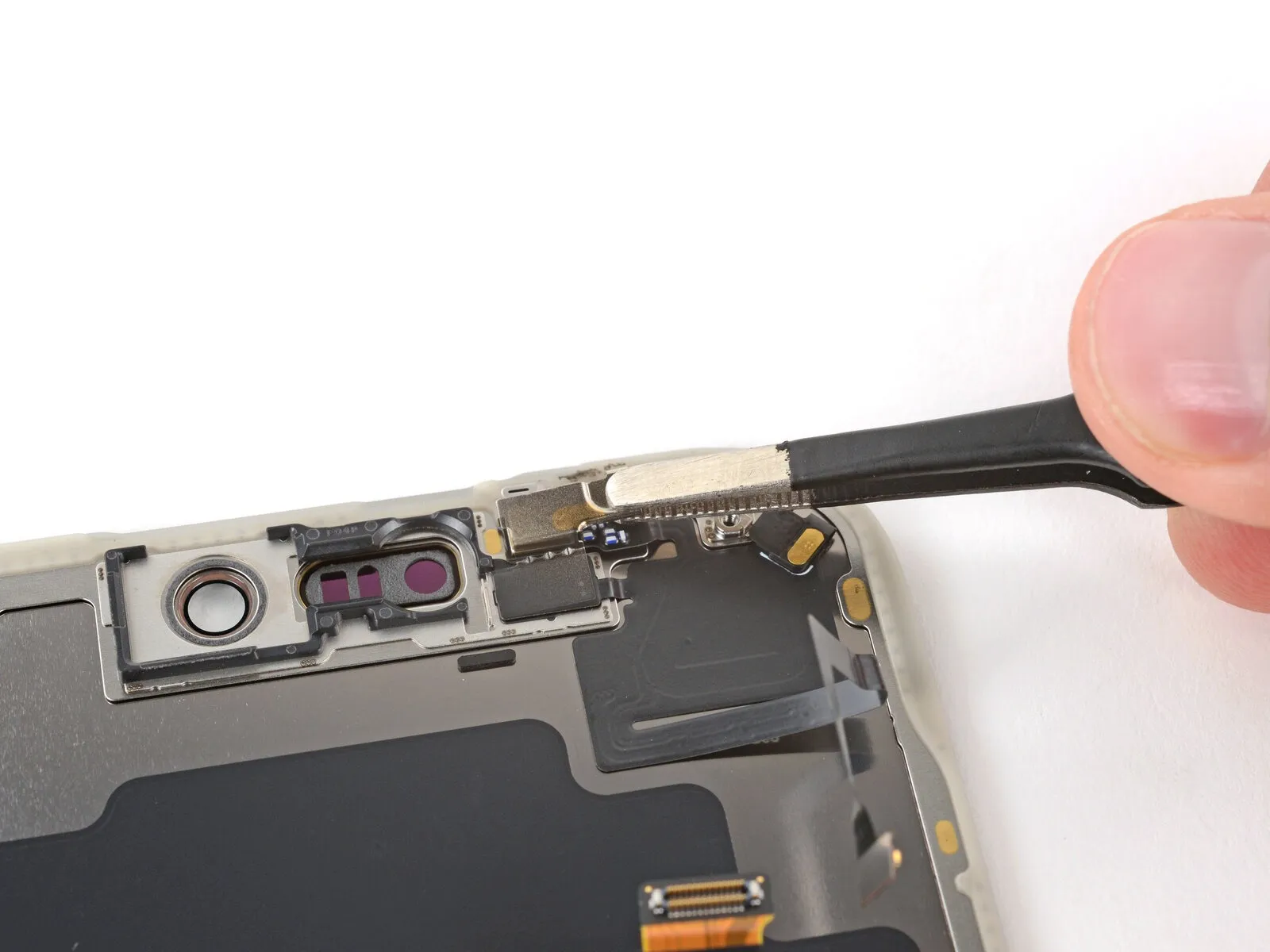

• Gently insert the spudger's tip.Carefully lever the two front sensors upward.

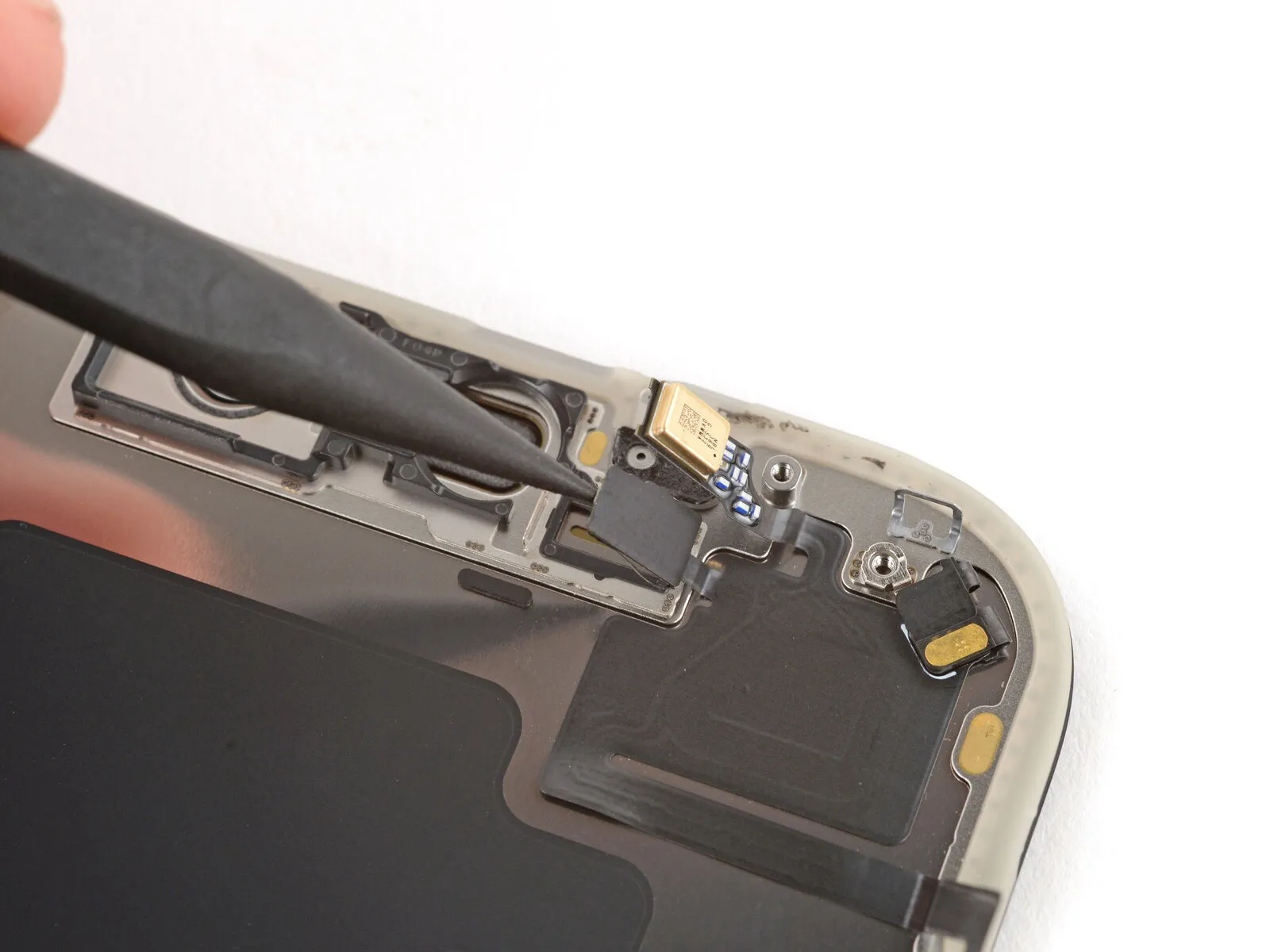

• Carefully lever up the retaining tab located beneath the sensors, ensuring you do not apply force to the sensors to prevent potential damage.

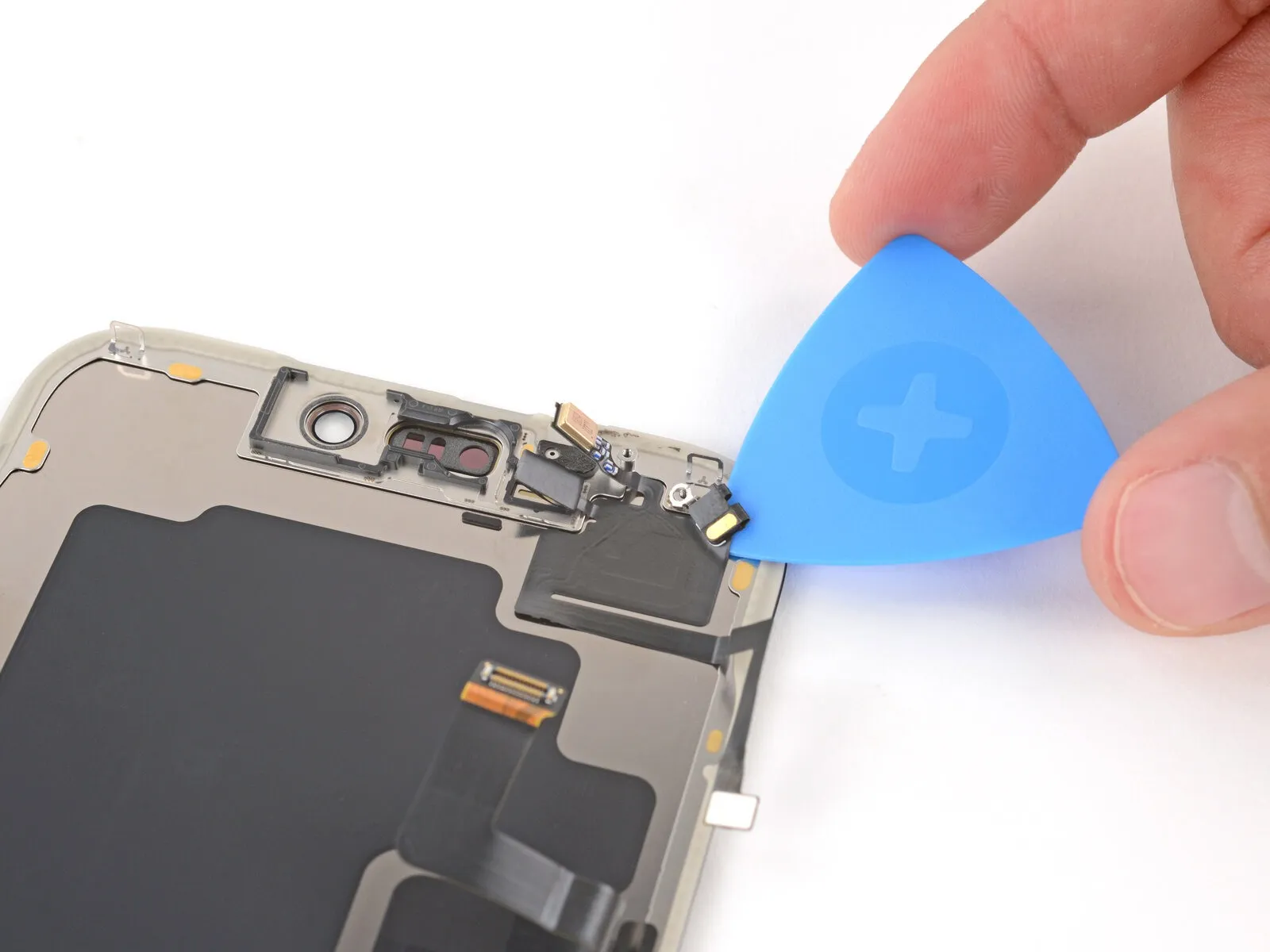

• Carefully guide the pointed end of aA thin, pointed tool designed for separating components is required.Locate the sizable cable secured with adhesive, situated beneath the front sensors on the right-hand side.

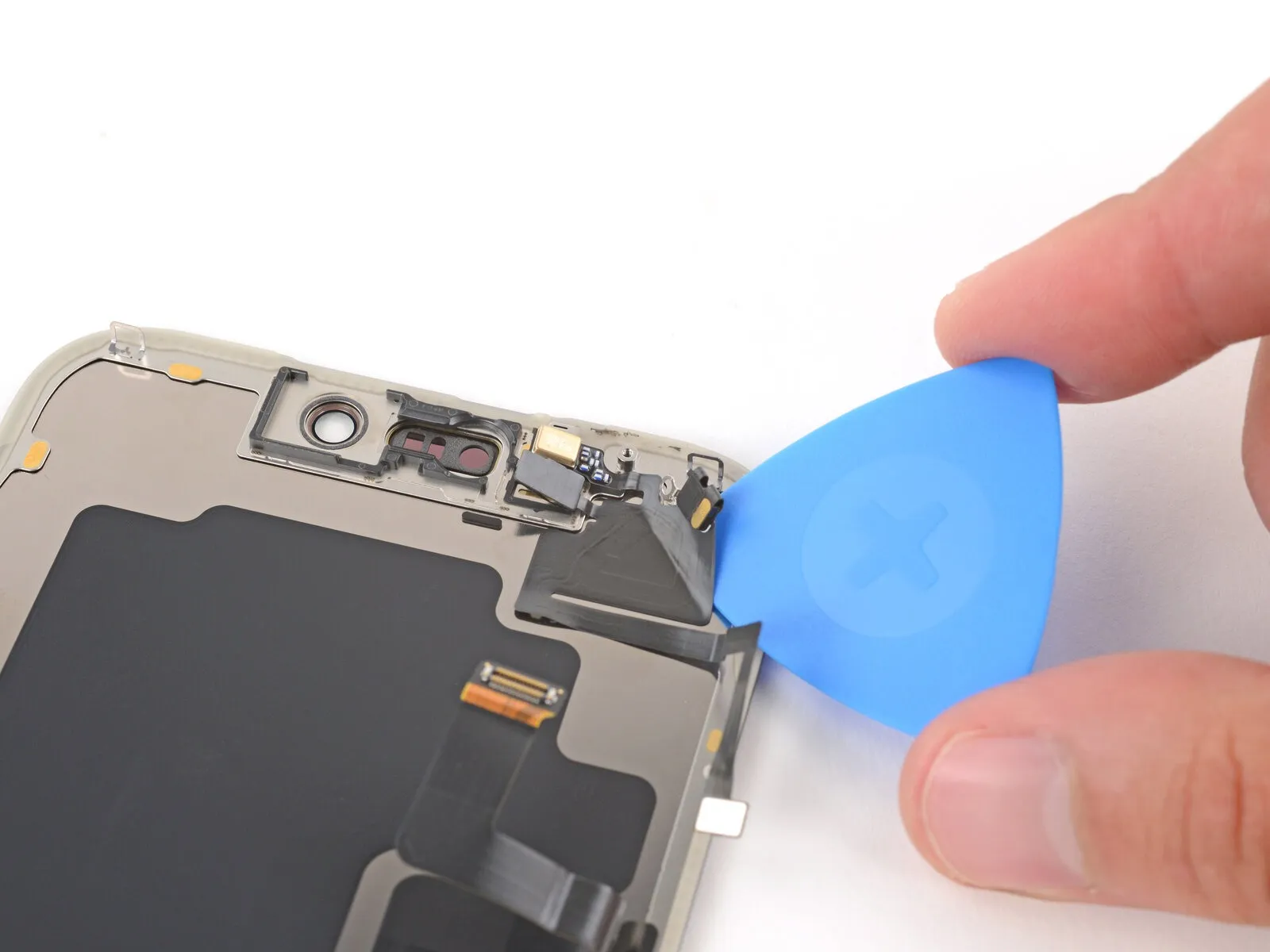

• Using a pick, gently work it between the cable and its housing, raising the cable just enough to allow for a manual grasp.
• Carefully lift the cable using your fingertips, then detach the sensors.

• Slight variations in the appearance of the reassembly images are possible based on the specific iPhone model being repaired.
• This method is applicable to your iPhone model.

• To connect the front sensors, proceed with the following four actions; however, if the replacement screen already has these sensors mounted, advance four steps further.
• Apply finger pressure to secure the front sensors cable's rectangular portion against the display surface.
• Apply gentle heat with a hair dryer or iOpener to the adhesive securing the cable, ensuring the temperature remains warm and avoids overheating.
• To secure a cable that isn't adhering, affix a small portion of double-sided tape to its rear surface.

1. Carefully insert the ambient light sensor and microphone into their designated openings, ensuring they are fully seated using a finger or spudger.

1. Position the front sensors bracket so that its left tab engages with the display, ensuring it is properly seated.

• Employ a 3/8-inch socket wrench to loosen the retaining bolt, ensuring you maintain a firm grip and avoid excessive force to prevent damage to the bolt head.Utilize a Y000-profile tri-point screwdriver for this procedure.Secure the pair using the specified fasteners.Front sensors are secured with screws, each measuring 1.0 mm in length..

• Carefully maneuver around the delicate grounding clips during cleaning of the frame; should any become displaced, restore them to their original position with a gentle touch using your fingers or tweezers.
• Employ the specified tool to perform the action.Employ fine-tipped pliers or similar instruments to manipulate small components.Use your fingers to detach substantial adhesive remnants from the frame's edges.
• Employ a 3/8-inch socket wrench to tighten the fastener to a torque of 15 Nm, ensuring you observe all safety precautions and handle the component with care.Use a plastic pry tool, often referred to as a spudger, to gently separate components.Carefully remove any remaining adhesive from the frame's surface using a scraper.
• To loosen a firmly bonded adhesive, use heat.Utilize a hairdryer to apply warm air, ensuring the temperature remains below 150°F (65°C), to soften the adhesive securing the component.orApply warmth with a device capable of generating controlled heat.Repeat the process.

• Carefully dispense a small quantity of solution with a concentration exceeding 90%.Use rubbing alcohol, which is isopropyl alcohol.Carefully remove any remaining adhesive using a plastic scraper and isopropyl alcohol.
• Employ a 3/8-inch socket wrench to loosen the retaining bolt, ensuring you maintain a grip on the component with pliers to prevent it from rotating while the bolt is removed, and be aware that the spring tension may cause sudden movement.Use a cleaning cloth made of microfiber or a material that doesn't leave behind lint.Using a clean cloth, carefully remove any remaining residue by wiping along the frame's edge, ensuring the cloth moves in a single direction.
• Careful execution is essential; a thoroughly cleaned frame surface promotes uniform adhesive distribution, which is critical for a strong, reliable bond.

To reinstall a previously used display, dispense a small quantity of high-concentration adhesive.Use rubbing alcohol, which is isopropyl alcohol.Ensure the component is at least 90% restored to its original condition.Use a cleaning cloth made of microfiber or a material that doesn't leave behind lint.Clean the edges thoroughly to ensure proper adhesion of the replacement material.

Carefully position the sheet, ensuring all protective backing layers remain intact.A self-stick backing is present.Position the component atop the frame, ensuring alignment according to its design.

• Carefully observe the frame's design elements—including the camera opening and indentations at the top and bottom—to determine the adhesive's proper placement.

Carefully pull the corner tab to release.A self-stick backing facilitates attachment.Carefully remove the protective backing to reveal approximately one-third of the adhesive surface.Employ a bonding agent..
Carefully access the component by removing any coverings to reveal it.Use a bonding agent.The adhesive is highly viscous; avoid contact with other surfaces until you intend to bond it to the frame.
Carefully remove the protective liner from the adhesive surface intended for attachment to the frame, ensuring you address all layers if multiple liners are present.

After the component is secured, proceed with tightening the M4 screws to a torque of 4.0 Nm using a torque wrench.Employ a bonding agent.Because the component is fitted with a tight press-fit, any adjustments are impossible; removal and reinstallation with fresh adhesive are required.
Ensure the visible perimeter is precisely positioned.Double-sided tapeAlign the component's border precisely with the iPhone's casing edge.
Ensure proper positioning, then apply slight pressure to the visibleDouble-sided tapeSecurely position the component against the frame.

Carefully remove the protective backing layer.Employ a bonding agent.Apply slight pressure to theEmploy a bonding agent.Ensure proper alignment and secure the component within its designated position.
Ensure proper positioning by verifying that theUse a bonding agent.Careful alignment ensures the component's borders fit precisely.

• Carefully inspect the component, ensuring its dimensions are precisely 12.7mm x 6.35mm, and use the 2.5mm hex key to tighten the retaining screw to a torque of 1.2 Nm, observing all safety precautions regarding electrical shock.Use a bonding agent.Carefully draw the extended sides toward the frame to correct the minor displacement.

• In the absence of a spare set, proceed with caution.Double-sided adhesive tapeFor convenience, you can briefly reassemble and operate the iPhone as usual, even with a temporary fix, as long as you understand this is not a permanent solution.Employ a bonding agent.The device's water-tight seal is no longer guaranteed and requires replacement of the affected component to restore its original water resistance.Apply a bonding agent..

Employ a spudger for the task.Carefully apply pressure to the adhesive across the complete edge of the iPhone, paying close attention to the delicate grounding clips; should any of these clips become displaced, restore them to their original position using your fingers or tweezers.

Grasp the protruding tab to release.Carefully detach the sizable front adhesive liner, utilizing the pull tab typically located at a corner to initiate separation. Remaining liners will cover the outer edges; leave these in place for now, as they protect the adhesive surface during reassembly of your iPhone and prevent unintended bonding.

Carefully position the replacement display assembly onto the iPhone, ensuring proper alignment with the frame and securing it in place.Position the display panel adjacent to the device's frame, ensuring sufficient slack in the screen cables to allow for easy connection to the logic board.

Employ either a fingertip or the broad, planar edge of a spudger tool.Carefully align and secure both screen connectors to the logic board, avoiding excessive force; if resistance is encountered, readjust the connector's position and attempt connection once more.

Employ either a fingertip or the broad, planar edge of a spudger tool.Carefully align the battery connector and firmly seat it onto the logic board.

• Activate the device and verify proper functionality.
• Following power-down, proceed with the remaining assembly steps.
• To troubleshoot a non-responsive iPhone, apply power by connecting it to an external power source and then attempt to activate the device.

• Position the upper edge of the battery connector cover so it fits securely beneath the designated lip of the housing.
  Ensure the tabs are positioned completely beneath the edge.
• Position the cover so the screw holes match, then set it down.

• Employ a JIS 00 screwdriver for installation.A screw measuring 1.2 millimeters in length.Fasten the cover over the battery connector using the provided screw, ensuring it is tightened to a torque of 5 in-lbs with a 4mm hex key, and observe the warning regarding potential damage from over-tightening.

• Carefully position the left side of the component within the designated space.Secure the display cable connection with the protective cover.Position the component beneath the recessed edge.
  Position the cover so the screw holes match, then set it down.

• Employ a JIS 00 screwdriver for installation.A screw measuring 1.2 millimeters in length.Fasten the component using the specified fasteners.Secure the display cable connection with the protective cover..

1. Securely grasp the component with your hand.Carefully detach the display panel, noting that it is secured with adhesive and requires gentle manipulation to avoid damage, and ensure proper alignment during reinstallation to maintain a flush fit.Maintain a stable position.
   Carefully separate the surrounding liners with your fingers or a spudger to reveal the underlying adhesive.
   Avoid contact with the adhesive surface.
   Carefully inspect the internal components, ensuring the complete absence of any loose liners; any found must be removed.

1. Carefully reduce the height of theCarefully detach the display panel, noting that it is secured with adhesive and requires gentle prying using a plastic opening tool to avoid scratching the surface or damaging the surrounding components; the screen measures 6.5 inches diagonally and incorporates a flexible cable connecting it to the motherboard.Position the component against the frame, initiating placement at the uppermost border.
   Should you encounter difficulty during movement, inspect the perimeter clips; a bend may be obstructing the frame. Carefully realign any clips that appear distorted at the location of the obstruction.
   Verify that theThe display's perimeter.Ensure no wires are compressed.
   Apply even pressure to the device's perimeter to release the adhesive securing it.Carefully detach the display panel, noting that it is secured with adhesive and five 3.5mm screws, and handle with caution to avoid scratching the protective coating.The component should make complete contact with the frame surface.

• Apply consistent, even pressure encompassing the device's full outer edge.

Apply warmth around the screen's edges with a hair dryer, heat gun, or iOpener, ensuring the surface reaches a temperature just beyond comfortable touch.
Applying warmth loosens the adhesive, facilitating a stronger connection.

Secure the two components with a P2 pentalobe screwdriver.Measure precisely 7.5 millimeters.Secure the charging port with the two long screws, one on each side.
