iPhone 3GS Display Replacement
A damaged or non-functional display necessitates glass replacement, a moderately complex procedure within your capabilities.
Step 1 | Broken Glass
To mitigate the risk of additional shattering and potential injury while repairing a cracked display glass, secure it with tape.
Apply strips of transparent packing tape across the iPhone screen, ensuring complete coverage by slightly overlapping each strip.
To prevent glass fragments from scattering and maintain stability during the display separation process, this technique is essential.
To safeguard your vision, always use safety glasses when performing this repair, as fragments of glass may become dislodged.
Apply strips of transparent packing tape across the iPhone screen, ensuring complete coverage by slightly overlapping each strip.
To prevent glass fragments from scattering and maintain stability during the display separation process, this technique is essential.
To safeguard your vision, always use safety glasses when performing this repair, as fragments of glass may become dislodged.
Step 2 | Display
Using a Phillips #00 screwdriver, detach the two screws securing the dock connector to the iPhone.
To prevent confusion during reassembly, carefully sort the screws by length as they are removed, as they vary in size.
To prevent confusion during reassembly, carefully sort the screws by length as they are removed, as they vary in size.
Step 3
For improved handling and safety, detach the metal handle from the suction cup; gripping the suction cup's base directly provides a more secure hold.
Exercise extreme caution during iPhone disassembly to prevent damage to the delicate display cables.
A black display assembly is sealed to the silver front bezel by a rubber gasket; separation necessitates applying moderate pressure.
Carefully lift the bottom edge of the display assembly by applying gentle upward force with a suction cup positioned close to the Home button.
When the display assembly's surface prevents proper suction cup attachment due to damage, secure it with a robust adhesive tape, like duct tape.
Exercise extreme caution during iPhone disassembly to prevent damage to the delicate display cables.
A black display assembly is sealed to the silver front bezel by a rubber gasket; separation necessitates applying moderate pressure.
Carefully lift the bottom edge of the display assembly by applying gentle upward force with a suction cup positioned close to the Home button.
When the display assembly's surface prevents proper suction cup attachment due to damage, secure it with a robust adhesive tape, like duct tape.
Step 4
Before completely separating the display assembly from the iPhone, be aware that multiple cables maintain its connection and attempting to do so prematurely could cause damage.

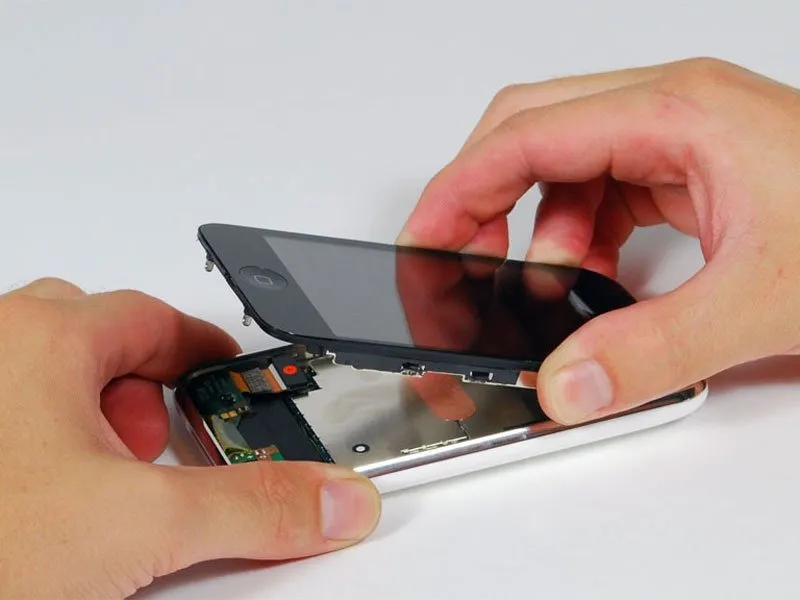

Tilt the display assembly upwards, achieving roughly a 45-degree angle.
Tilt the display assembly upwards, achieving roughly a 45-degree angle.
Step 5
Using one hand to secure the display assembly, carefully detach the ribbon cable marked with the identifier "1" with a spudger held in your other hand.
To connect ribbon cable "1", align the block at the cable's end—this block functions as a plug—and press it directly into the corresponding socket on the circuit board; no additional securing features are present.
To connect ribbon cable "1", align the block at the cable's end—this block functions as a plug—and press it directly into the corresponding socket on the circuit board; no additional securing features are present.
Step 6
Adjust the display assembly's orientation until it stands approximately perpendicular.
Removing the component provides improved clearance to facilitate disconnection of the remaining cables.
Carefully detach the ribbon cable identified with the label "2" using a spudger.
Removing the component provides improved clearance to facilitate disconnection of the remaining cables.
Carefully detach the ribbon cable identified with the label "2" using a spudger.
Step 7
To release ribbon cable "3", disengage the FPC connector securing it, then carefully slide the cable free.
To release the cable, rotate the locking mechanism, located on the opposing side of the insertion point, upward until it achieves a 90-degree angle.
Employ a plastic spudger to gently disengage the locking mechanism.

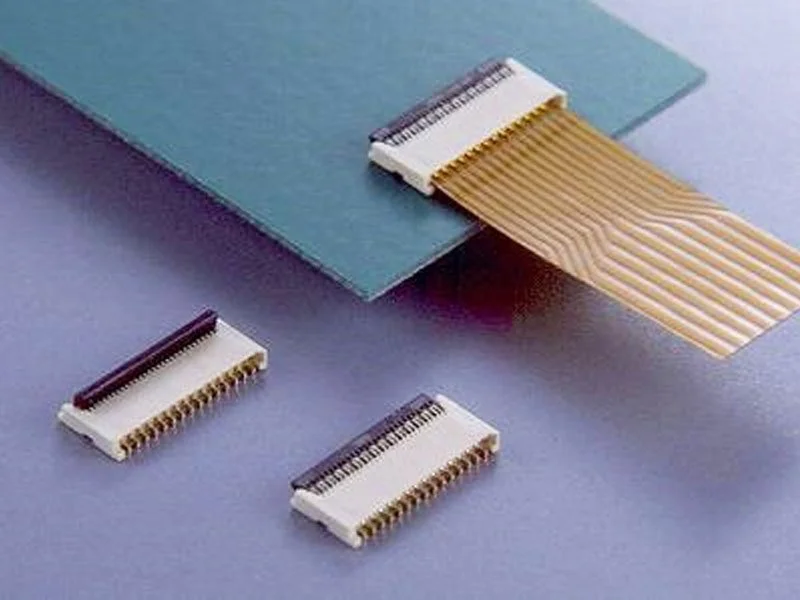

Carefully handle the flexible printed circuit (FPC) locking latch, as it's fragile and visually distinguished from the connector housing by its unique color; refer to the accompanying illustration depicting the connector in both open and closed states for clarification.
Carefully extract the ribbon cable from its connector, then detach the display assembly from the iPhone.
To correctly install or remove a ribbon cable from the flexible printed circuit (FPC) connector, the locking latch must be released; ensure it's open during attachment and detachment.
To release the cable, rotate the locking mechanism, located on the opposing side of the insertion point, upward until it achieves a 90-degree angle.
Employ a plastic spudger to gently disengage the locking mechanism.
Carefully handle the flexible printed circuit (FPC) locking latch, as it's fragile and visually distinguished from the connector housing by its unique color; refer to the accompanying illustration depicting the connector in both open and closed states for clarification.
Carefully extract the ribbon cable from its connector, then detach the display assembly from the iPhone.
To correctly install or remove a ribbon cable from the flexible printed circuit (FPC) connector, the locking latch must be released; ensure it's open during attachment and detachment.
Step 8

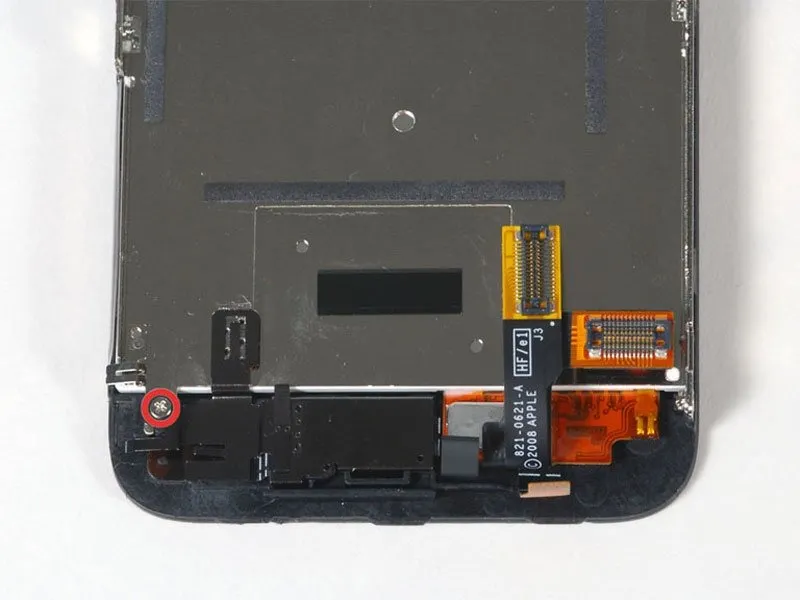

Using a Phillips head screwdriver, size #00, detach the screw securing the display assembly at its corner.
Step 9

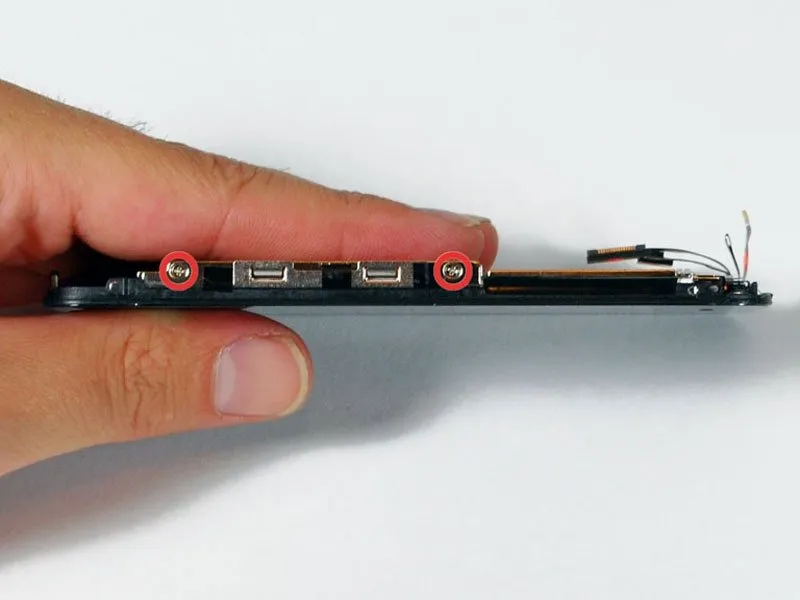

Using a Phillips #00 screwdriver, detach the two screws securing the display assembly to its right side.
Step 10

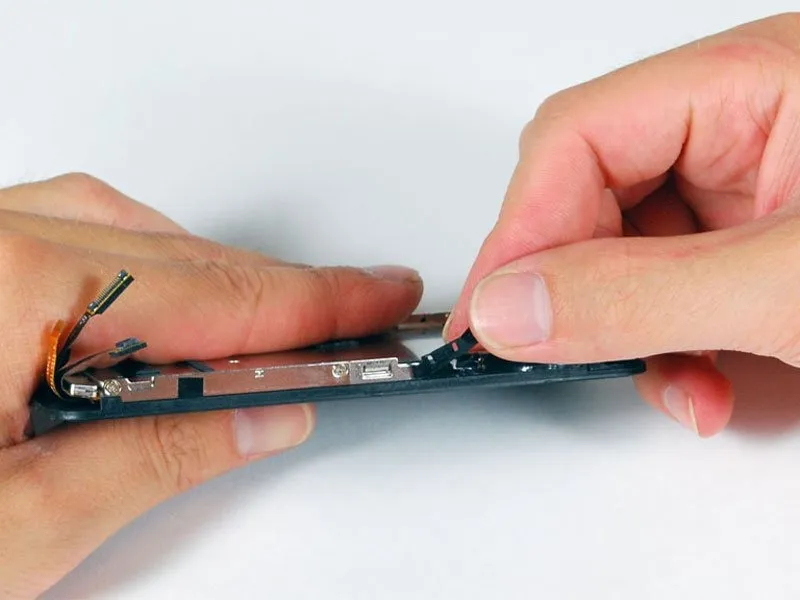

Carefully lift the display, and if a narrow strip of black tape is present on its perimeter, remove it with caution.
To prevent the adhesive from bonding to itself, position the tape on a surface treated with wax, such as a sheet of sticker backing paper.
To prevent the adhesive from bonding to itself, position the tape on a surface treated with wax, such as a sheet of sticker backing paper.
Step 11
Detach the component.Utilize three screws with a Phillips head, size #00.Access the component from the display assembly's left edge.
Step 12
Using a metal spudger, carefully slide it between the two metal rails bordering the display assembly's edge, then pivot the spudger to detach the LCD from the glass.
Step 13
Carefully detach the LCD from the glass assembly by gently moving the LCD panel outward, disengaging the ribbon cables from their connectors on the glass.
