iPhone 5 Interconnect Cables Replacement
Follow these instructions to detach the two interconnect cables from the iPhone 5's logic board.
Exercise extreme caution when handling the connector cables, as they are susceptible to damage.
Step 1 | Taping the display glass
Begin the process by ensuring the 1.5mm Allen wrench is used to loosen the four retaining screws, each measuring 8mm in length, securing the fan assembly to the chassis, and be aware that the fan blades may cause injury if the assembly is dislodged unexpectedly.
To avoid injury and contain shattered fragments while you work, secure any cracked display glass with tape.
Apply clear packing tape across the iPhone screen, ensuring each strip overlaps the previous one to completely protect the display surface.
To safeguard your eyes from potential glass fragments that may detach during the repair process, it is essential to use safety glasses.
To avoid injury and contain shattered fragments while you work, secure any cracked display glass with tape.
Apply clear packing tape across the iPhone screen, ensuring each strip overlaps the previous one to completely protect the display surface.
To safeguard your eyes from potential glass fragments that may detach during the repair process, it is essential to use safety glasses.
Step 2 | Remove the Pentalobe screws
Using a 5/32-inch hex key, carefully loosen the four retaining screws securing the fan assembly to the motor housing; exercise caution to prevent damage to the fan blades and ensure the assembly remains stable during removal.
To prevent potential fire or explosion hazards during repair, ensure the iPhone's lithium-ion battery is depleted to less than 25% capacity prior to beginning work; a fully charged battery poses a risk of ignition if damaged.
To prevent electrical shock or damage, ensure the iPhone is completely de-energized prior to starting the repair process.
Using a Pentalobe screwdriver, detach the two screws measuring 3.6 mm located adjacent to the Lightning connector.
To prevent potential fire or explosion hazards during repair, ensure the iPhone's lithium-ion battery is depleted to less than 25% capacity prior to beginning work; a fully charged battery poses a risk of ignition if damaged.
To prevent electrical shock or damage, ensure the iPhone is completely de-energized prior to starting the repair process.
Using a Pentalobe screwdriver, detach the two screws measuring 3.6 mm located adjacent to the Lightning connector.
Step 3 | How to prevent display separation
Using a 5/32-inch hex key, carefully tighten the three retaining screws securing the fan motor to the blower housing, ensuring each is snug but not over-torqued to prevent damage; observe polarity markings when reassembling.
Carefully lift the display assembly—consisting of a glass screen, a plastic bezel, and integrated metal clips—from within the phone's chassis during the subsequent procedures.
Ensure complete removal of the display assembly, irrespective of the employed tool.
When separation between the glass and plastic is observed, mirroring the depiction in the initial image, use a plastic opening tool to insert it into the gap between the plastic frame and the phone's metal chassis, carefully disengaging the metal clips from the housing.
To facilitate reassembly when the display bezel is detached, applying a narrow adhesive strip between the plastic bezel and the glass can help maintain closure.
Carefully lift the display assembly—consisting of a glass screen, a plastic bezel, and integrated metal clips—from within the phone's chassis during the subsequent procedures.
Ensure complete removal of the display assembly, irrespective of the employed tool.
When separation between the glass and plastic is observed, mirroring the depiction in the initial image, use a plastic opening tool to insert it into the gap between the plastic frame and the phone's metal chassis, carefully disengaging the metal clips from the housing.
To facilitate reassembly when the display bezel is detached, applying a narrow adhesive strip between the plastic bezel and the glass can help maintain closure.
Step 4 | Anti-Clamp instructions
Using a 5/32-inch hex key, carefully tighten the three retaining screws securing the fan assembly to the motor housing, ensuring each is snug but not over-torqued to prevent damage; observe polarity markings during reinstallation to avoid operational issues.
For those utilizing the Anti-Clamp tool, the following two actions detail its use to simplify the disassembly process; otherwise, proceed two steps further to find an alternative procedure.
Refer to the included guide for detailed procedures regarding Anti-Clamp operation.
To release the Anti-Clamp's arms, move the blue handle in a rearward direction.
Position the arms so they clear the left or right side of the iPhone, then move them into place.
To secure the device, place a suction cup on the front surface, close to the lower edge and directly over the home button, and another suction cup on the rear, in the same relative position.
Apply vacuum by pressing the cups firmly against the surface needing treatment.
To improve the Anti-Clamp's adherence if the iPhone's exterior feels excessively smooth, apply adhesive tape to the device's surface.
For those utilizing the Anti-Clamp tool, the following two actions detail its use to simplify the disassembly process; otherwise, proceed two steps further to find an alternative procedure.
Refer to the included guide for detailed procedures regarding Anti-Clamp operation.
To release the Anti-Clamp's arms, move the blue handle in a rearward direction.
Position the arms so they clear the left or right side of the iPhone, then move them into place.
To secure the device, place a suction cup on the front surface, close to the lower edge and directly over the home button, and another suction cup on the rear, in the same relative position.
Apply vacuum by pressing the cups firmly against the surface needing treatment.
To improve the Anti-Clamp's adherence if the iPhone's exterior feels excessively smooth, apply adhesive tape to the device's surface.
Step 5
Using a 5/32-inch hex key, carefully tighten the three retaining screws on the motor assembly to a torque of 4 in-lbs, ensuring that you do not overtighten and damage the threads.
To secure the arms, advance the blue handle in the direction indicated.
Rotate the handle fully, completing a 360-degree turn, observing for the initial expansion of the cups.
Maintain parallel positioning of the suction cups; should misalignment occur, gently release the suction cups' grip and reposition the arms.
Once sufficient separation is achieved by the Anti-Clamp tool, slide a prying tool beneath the display panel.
To ensure adequate separation, increase the heat applied to the component and then rotate the handle 90 degrees.
Allow one minute to elapse and avoid rotating the component more than 90 degrees incrementally, enabling the Anti-Clamp mechanism and time to facilitate the process.
To secure the arms, advance the blue handle in the direction indicated.
Rotate the handle fully, completing a 360-degree turn, observing for the initial expansion of the cups.
Maintain parallel positioning of the suction cups; should misalignment occur, gently release the suction cups' grip and reposition the arms.
Once sufficient separation is achieved by the Anti-Clamp tool, slide a prying tool beneath the display panel.
To ensure adequate separation, increase the heat applied to the component and then rotate the handle 90 degrees.
Allow one minute to elapse and avoid rotating the component more than 90 degrees incrementally, enabling the Anti-Clamp mechanism and time to facilitate the process.
Step 6 | Manual Opening Procedure
Position a suction cup directly on the display surface, situated slightly higher than the home button's location.
Ensure full contact between the cup and the screen surface to guarantee a secure seal.
To prevent further glass fragmentation and ensure a secure grip for the suction cup, apply several strips of packing tape to the face of iPhones with cracked glass, carefully smoothing out any trapped air.
Ensure full contact between the cup and the screen surface to guarantee a secure seal.
To prevent further glass fragmentation and ensure a secure grip for the suction cup, apply several strips of packing tape to the face of iPhones with cracked glass, carefully smoothing out any trapped air.
Step 7 | Start lifting the front panel assembly
Secure the front panel assembly to the suction cup, ensuring a strong and stable connection.
Using one hand to secure the iPhone, gently lift the suction cup, creating a small gap between the front panel assembly and the rear case.
Exercise caution and maintain steady pressure during installation, as the display assembly exhibits a significantly snugger fit compared to typical device components.
Using a plastic opening tool, carefully separate the rear case from the display assembly by gently levering it upwards, simultaneously lifting with a suction cup.
To release the front panel assembly from the rear case, carefully disengage the multiple retaining clips, which may require using both the suction cup and a plastic opening tool.
Using one hand to secure the iPhone, gently lift the suction cup, creating a small gap between the front panel assembly and the rear case.
Exercise caution and maintain steady pressure during installation, as the display assembly exhibits a significantly snugger fit compared to typical device components.
Using a plastic opening tool, carefully separate the rear case from the display assembly by gently levering it upwards, simultaneously lifting with a suction cup.
To release the front panel assembly from the rear case, carefully disengage the multiple retaining clips, which may require using both the suction cup and a plastic opening tool.
Step 8 | Detaching the front panel side clips
Carefully work a prying tool around the perimeter of the front panel assembly to release the retaining clips located on both the left and right edges.
Step 9 | Opening up the phone
Disconnecting the front panel assembly entirely from the rear case is not recommended, because delicate ribbon cables remain connected at the top of the iPhone.
After disengaging the retaining clips located along the lower edge and both sides of the front panel assembly, separate the assembly's lower section from the rear case by applying gentle pulling force.
Carefully position the display at a roughly 90-degree angle, then secure it in that position using a support to prevent it from moving during the repair process.
To avoid stressing the display's wiring during the repair process, secure it with a rubber band.
After disengaging the retaining clips located along the lower edge and both sides of the front panel assembly, separate the assembly's lower section from the rear case by applying gentle pulling force.
Carefully position the display at a roughly 90-degree angle, then secure it in that position using a support to prevent it from moving during the repair process.
To avoid stressing the display's wiring during the repair process, secure it with a rubber band.
Step 10 | Removing the battery connector bracket screws
Using appropriate tools, detach the two screws that fasten the metal bracket for the battery connector to the logic board.
Use a Phillips screwdriver to remove a single screw measuring 1.8 millimeters.
Use a Phillips screwdriver to remove a single screw with a 1.6 mm head.
Use a Phillips screwdriver to remove a single screw measuring 1.8 millimeters.
Use a Phillips screwdriver to remove a single screw with a 1.6 mm head.
Step 11 | Removing the battery connector bracket
Detach the bracket securing the battery connector using a tri-point screwdriver.
Step 12 | Disconnecting the battery connector
Carefully lift the battery connector away from its connection on the logic board using a plastic opening tool, ensuring no force is applied.
Exercise caution to prevent disturbance of the tiny components positioned near the socket.
Exercise extreme caution when releasing the battery connector, ensuring force is applied solely to the connector and not the logic board socket; applying pressure to the socket or the logic board risks socket destruction or damage to adjacent components.
Exercise caution to prevent disturbance of the tiny components positioned near the socket.
Exercise extreme caution when releasing the battery connector, ensuring force is applied solely to the connector and not the logic board socket; applying pressure to the socket or the logic board risks socket destruction or damage to adjacent components.
Step 13 | Removing the front panel assembly cable bracket screws
Detach the cable bracket from the logic board by unscrewing the screws listed below.
Use two Phillips head screws, each measuring 1.2 millimeters.
Use a Phillips screwdriver to remove a single screw with a 1.6 mm head.
Due to its material properties, this screw is typically not magnetically receptive and may require a non-magnetic screwdriver for installation.
To prevent interference with the compass, ensure the magnetized screw is replaced precisely as it was originally positioned during removal, and avoid losing it.
Use two Phillips head screws, each measuring 1.2 millimeters.
Use a Phillips screwdriver to remove a single screw with a 1.6 mm head.
Due to its material properties, this screw is typically not magnetically receptive and may require a non-magnetic screwdriver for installation.
To prevent interference with the compass, ensure the magnetized screw is replaced precisely as it was originally positioned during removal, and avoid losing it.
Step 14 | Removing the front panel assembly cable bracket
To detach the display cable bracket, raise it in the direction of the battery, then take it out of the iPhone.
To reassemble, position the bracket outward and secure it by engaging the left-hand hooks with the logic board.
To reassemble, position the bracket outward and secure it by engaging the left-hand hooks with the logic board.
Step 15 | Disconnecting the front panel assembly cables
Prior to either detaching or reattaching the cables in this procedure, ensure the battery is disconnected.
Carefully detach the three front panel assembly cables by gently separating them using a plastic opening tool or your fingernail.
The assembly includes the front camera module and its associated cable.
Connect the display panel's flat, ribbon-like cable, ensuring proper alignment to the connector pins, and secure it with the retaining clip.
The flexible circuit board connecting the touchscreen to the device's logic board.
Ensure the LCD cable remains securely attached to its connector during reassembly; detachment can result in display malfunctions, such as the appearance of white lines or a complete lack of image when the device is powered on.
Should this occur, restore the connection to the cable and restart the device; for optimal results, detach and then reattach the battery.
Carefully detach the three front panel assembly cables by gently separating them using a plastic opening tool or your fingernail.
The assembly includes the front camera module and its associated cable.
Connect the display panel's flat, ribbon-like cable, ensuring proper alignment to the connector pins, and secure it with the retaining clip.
The flexible circuit board connecting the touchscreen to the device's logic board.
Ensure the LCD cable remains securely attached to its connector during reassembly; detachment can result in display malfunctions, such as the appearance of white lines or a complete lack of image when the device is powered on.
Should this occur, restore the connection to the cable and restart the device; for optimal results, detach and then reattach the battery.
Step 16 | Separating front panel assembly and rear case
Detach the front panel assembly from the rear case.
Step 17 | Battery Connection
Using a Phillips screwdriver, detach the metal battery connector bracket from the logic board by unscrewing a 1.8 mm Phillips screw and a 1.6 mm Phillips screw.
Step 18
Using a precision screwdriver, detach the metal bracket that holds the battery connector in place on the iPhone.
Step 19
Carefully lift the battery connector away from its corresponding socket on the logic board using a plastic opening tool, ensuring you apply force only to the connector itself to avoid damaging the socket, as prying the socket could result in irreversible connector breakage.

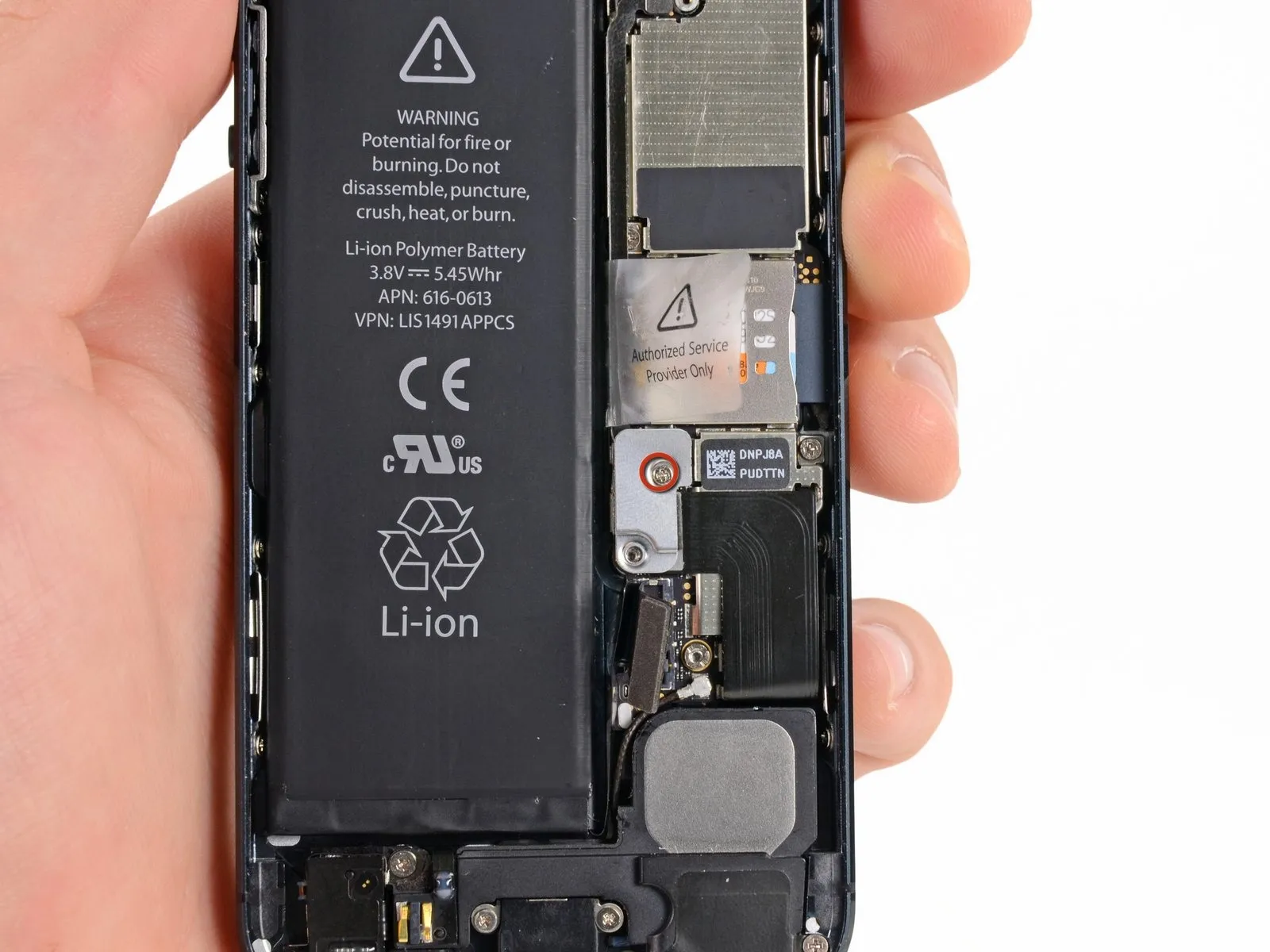

Step 20 | Interconnect Cables
Using a Phillips screwdriver, detach the 1.2 mm screw that secures the mid logic board bracket. Then, take the bracket away.

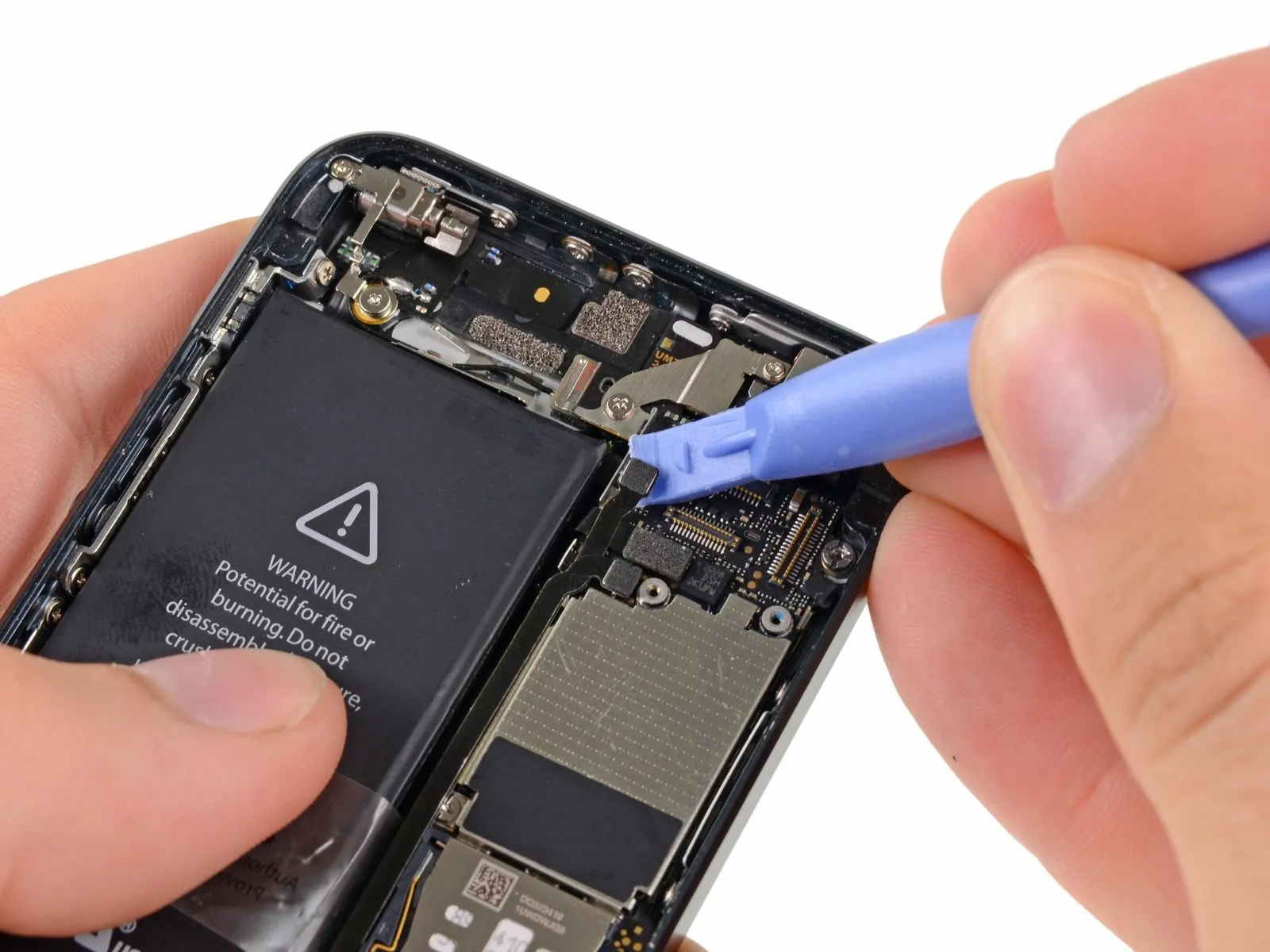

Step 21
Carefully lift the two interconnect cables from their sockets located on the logic board's upper edge, employing a plastic opening tool to avoid damage.

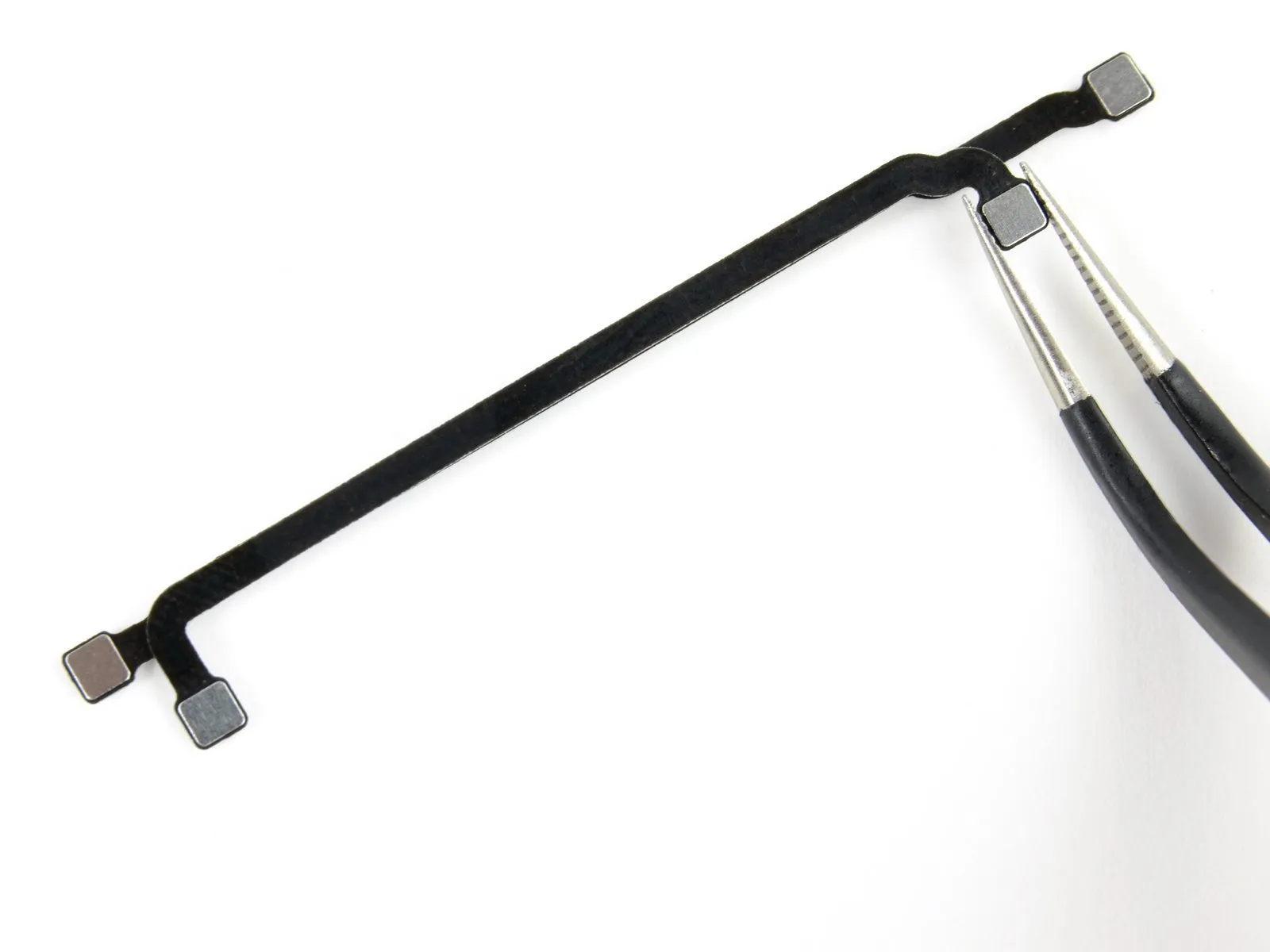

Step 22
Following the previously outlined procedure, detach both interconnect cables from the logic board's lower surface.
Step 23
Disconnect all ribbon cables connecting to the iPhone's internal components.
To install, position the interconnect cables so they match the illustrated orientation, as they are not factory-bonded.
To install, position the interconnect cables so they match the illustrated orientation, as they are not factory-bonded.
