iPhone 5 Vibrator Replacement

Begin by disconnecting the power supply, ensuring it is unplugged from the electrical outlet, then carefully remove the retaining screw securing the 4mm diameter sensor, utilizing a Phillips head screwdriver, and gently extract the sensor, observing proper handling to avoid damage.
To mitigate the risk of additional shattering and potential injury while repairing a cracked display glass, secure the glass with tape.
Apply clear packing tape across the iPhone screen, ensuring each strip overlaps the previous one to completely protect the display surface.
To safeguard your eyes from potential glass fragments released during the repair process, always use safety glasses.

Using a 5/32-inch hex key, carefully loosen the four screws securing the fan assembly to the motor housing; exercise caution to avoid damaging the retaining clips, and then gently detach the fan.
To prevent a potential fire or explosion hazard during repair, ensure the iPhone's lithium-ion battery is depleted to less than 25% capacity prior to beginning work; a fully charged battery poses a risk of ignition or rupture if damaged.
To prevent electrical shock or damage, ensure the iPhone is completely de-energized prior to commencing the repair process.
Using a Pentalobe screwdriver, detach the two screws measuring 3.6 mm located adjacent to the Lightning connector.

Using a 5/32-inch hex key, carefully tighten the retaining screw on the motor assembly to a torque of 3.5 Nm, ensuring that you do not overtighten and damage the threads.
Carefully lift the display assembly—consisting of a glass screen bonded to a plastic bezel secured by metal clips—from within the phone's chassis during the subsequent procedures.
Ensure complete removal of the display assembly, irrespective of the employed tool.
When the glass and plastic layers detach, mirroring the visual in the initial image, use a plastic opening tool to insert it into the gap between the plastic frame and the phone's metal chassis, carefully levering each metal clip free from the casing.
To ensure proper closure during reassembly of a phone featuring a detached display bezel, apply a narrow adhesive strip positioned between the plastic bezel and the glass surface.

Using a 5/32-inch hex key, carefully tighten the four mounting screws securing the fan assembly to the motor housing, ensuring each is snug but not over-tightened to prevent damage; observe a torque of 6 in-lbs per screw.
To simplify the subsequent opening process, the following two steps utilize the Anti-Clamp tool, a custom-designed aid; if you do not have this tool, proceed two steps further to find an alternative approach.
Refer to the included guide for detailed procedures regarding Anti-Clamp operation.
To release the Anti-Clamp's arms, move the blue handle in a rearward direction.
Position the arms so they extend across the iPhone's left or right side.
Affix suction cups to the iPhone's front and rear surfaces, placing one close to the lower edge, directly above the home button.
Apply vacuum by pressing the cups firmly against the surface you intend to work on.
To improve the Anti-Clamp's grip on your iPhone if the exterior feels too slick, apply adhesive tape to the device's surface.

Using a 5/32-inch hex key, carefully tighten the four M4 x 8mm screws securing the fan assembly to the heatsink, ensuring a torque of 4 in-lbs is applied to each screw to prevent damage.
To secure the arms, advance the blue handle in the direction indicated.
Rotate the handle fully, completing a 360-degree turn, observing for the initial signs of cup expansion.
Maintain parallel positioning of the suction cups; should misalignment occur, gently reduce the suction and reposition the arms.
Once sufficient space is created by the Anti-Clamp, slide a prying tool beneath the display.
To ensure adequate separation, increase the heat applied to the component and then rotate the handle 90 degrees.
Allow one minute to elapse and avoid rotating the component beyond a 90-degree movement per adjustment; this permits the Anti-Clamp mechanism to function properly and facilitates a secure fit.

Position a suction cup directly on the display surface, situated slightly higher than the home button's location.
Ensure the screen's entire surface is covered by the cup to guarantee a secure connection.
To prevent further glass fragmentation and facilitate a secure suction cup attachment when working on an iPhone with a cracked display, apply several strips of packing tape to the front surface, carefully smoothing to eliminate air pockets.

Secure the front panel assembly to the suction cup, ensuring a strong bond.
Using one hand to secure the iPhone, lift the suction cup vertically to gently create a small gap between the front panel and the device's back cover.
Exercise caution and use steady, even pressure during installation, as the display assembly fits considerably more snugly than typical device components.
Using a plastic opening tool, apply gentle upward force to separate the rear case from the display assembly, simultaneously lifting with a suction cup.
To release the front panel assembly from the rear case, carefully detach the multiple retaining clips, which may require using both the suction cup and a plastic opening tool to avoid damage.

Carefully work the front panel assembly free by levering it upwards, releasing the retaining clips on both the left and right edges.

Disconnecting the front panel assembly entirely from the rear case is not recommended; several ribbon cables remain connected at the top of the iPhone and attempting to do so could damage them.
After disengaging the retaining clips located along the lower edge and both sides of the front panel assembly, separate the assembly's lower section from the rear case by applying gentle outward pressure.
Carefully position the display at a roughly 90-degree angle, then secure it in a supported position to prevent movement during the repair process.
To avoid stressing the display's wiring during the repair process, secure it with a rubber band.

Using appropriate tools, detach the two screws that fasten the metal battery connector bracket to the logic board.
Use a Phillips screwdriver to remove a single screw with a 1.8 mm head.
Use a Phillips screwdriver to tighten a screw measuring 1.6 millimeters.

Detach the bracket securing the battery connector using a tri-point screwdriver.

Carefully lift the battery connector away from its corresponding socket on the logic board, employing a plastic opening tool to avoid damage.
Exercise caution to avoid disturbing the tiny components positioned near the socket.
Exercise extreme caution during the lifting process, ensuring force is applied solely to the battery connector; applying pressure to the logic board socket or the board itself risks socket destruction or damage to adjacent components.

Detach the cable bracket that holds the front panel assembly wires from the logic board by unscrewing the screws listed below.
Use two Phillips-head screws, each measuring 1.2 millimeters.
Use a Phillips screwdriver to remove a single screw with a 1.6 mm head.
Due to its non-magnetic properties, this screw requires a regular screwdriver for removal; avoid dropping it, and ensure correct reinstallation, as a magnetized screw can disrupt compass functionality.

To detach the display cable bracket, raise it in the direction of the battery, then take it out of the iPhone.
To reassemble, position the bracket outward while securing it to the logic board by engaging the left-hand hooks.

Prior to either detaching or reattaching the cables in this procedure, ensure the battery is disconnected.
Carefully detach the three front panel assembly cables by gently separating them using a plastic opening tool or your fingernail.
The cable connecting the front camera and its associated sensor
Connect the display panel's flat, ribbon-like cable, ensuring proper alignment to the corresponding connector pins, and secure it with the specified pressure using a calibrated tool to avoid damage; this cable is delicate and susceptible to tearing if mishandled.
The flexible ribbon cable connecting the display's touch sensor to the mainboard is the digitizer cable.
Should the LCD cable become detached from its connector during reassembly, the phone may exhibit display abnormalities like white lines or a complete lack of image upon startup. To resolve this, reattach the cable securely and restart the device; a complete restart is achieved by briefly disconnecting and then reconnecting the battery.

Detach the front panel assembly by disengaging it from the rear case.

Gently lift the battery from its adhesive backing by grasping the visible, transparent plastic tab.
Should the battery's adhesive prevent easy separation, or if the battery tab fractures during removal, carefully introduce a small quantity of isopropyl alcohol—with a concentration exceeding 90%—beneath the battery's edge to facilitate release.
Allow approximately one minute for the alcohol to dissolve the adhesive securing the battery. Then, carefully pry the battery upward, engaging its edge with a specialized opening tool.
To prevent damage, avoid using excessive force when removing the battery. If the battery remains difficult to dislodge, add additional alcohol drops to dissolve the adhesive bond. Ensure the pry tool does not compromise the battery's structural integrity by puncturing or deforming it.
To prevent damage, ensure any residual alcohol solution is completely removed by wiping with a clean cloth or permitting full evaporation before proceeding with the new battery installation.
To assist with battery separation if adhesion persists, apply warmth to the iPhone’s rear case using an iOpener or hair dryer to loosen the adhesive.
Exposure to excessive heat poses a fire risk to the iPhone's battery.

Carefully lift the battery from its compartment using the plastic opening tool, focusing exclusively on the outer perimeter of the device to avoid potential logic board damage.
Gently increase the application of isopropyl alcohol until the battery releases from its housing.
To prevent damage and potential fire risk, carefully release the battery, applying consistent, even pressure to prevent any bending.
Avoid forcing anything under the battery's upper edge, as this could damage the volume control wiring harnesses.

Disconnect the power source by detaching the battery.
Carefully detach the protective plastic packaging from the new battery by gently separating it from the ribbon cable.
To guarantee correct positioning within its designated space, briefly plug the battery connector back into the motherboard socket prior to securing the new battery.
Secure the battery in place, then sever its connection before proceeding with the remaining assembly steps.
To ensure proper alignment and prevent component damage during front panel reinstallation, firmly position the battery flush with the rear case.
Following reassembly, execute a complete system reset to proactively avoid potential problems and streamline any subsequent diagnostic procedures.

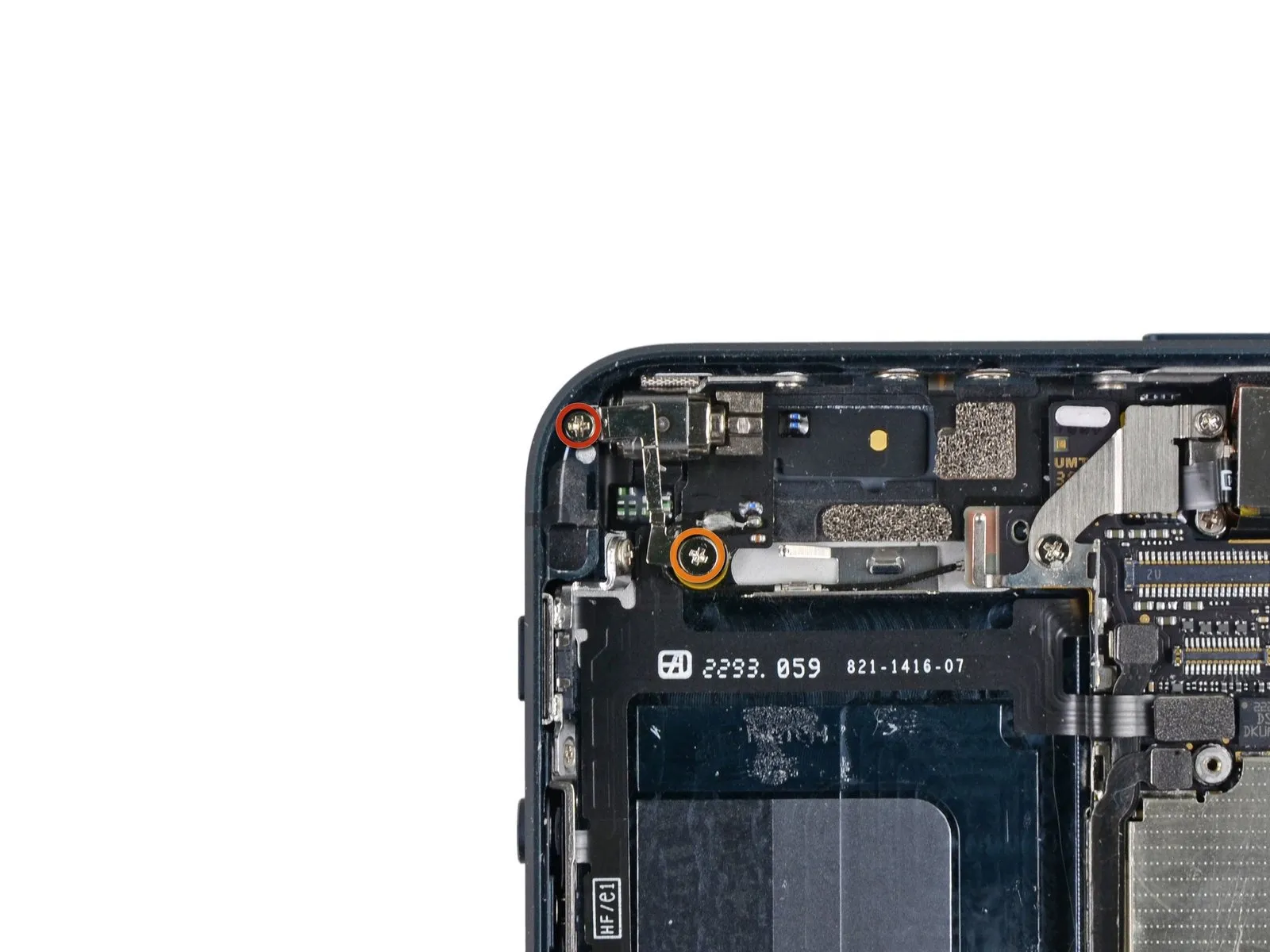

Using a screwdriver, detach the vibrator bracket from the rear case by unscrewing the two fasteners.
Use a Phillips screwdriver to tighten or loosen a single screw with a 2.3 mm head.
Use a Phillips screwdriver to tighten or loosen a 1.7-millimeter screw.

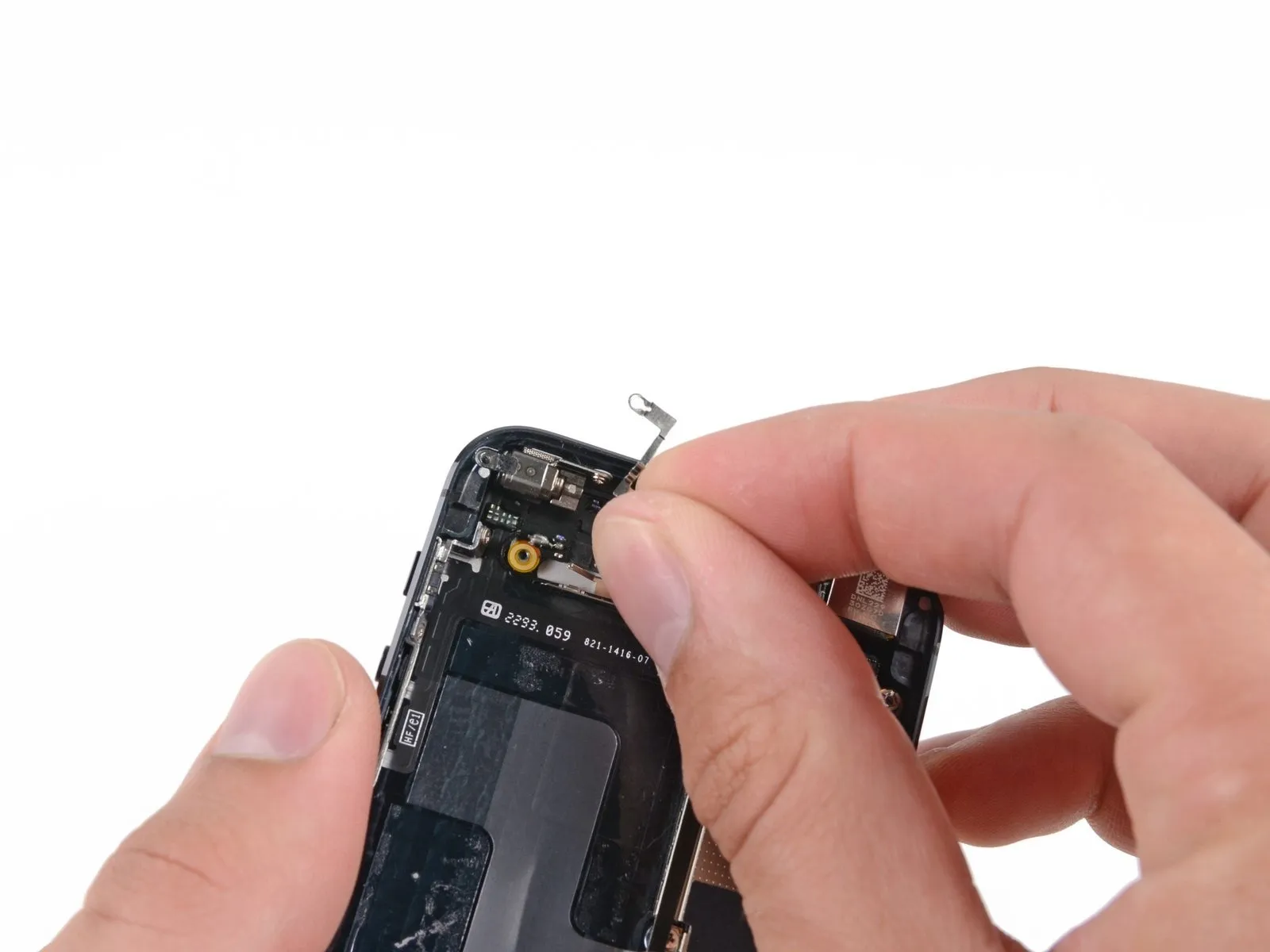

Detach the vibrator bracket using the appropriate tools; this component is secured to the rear case.

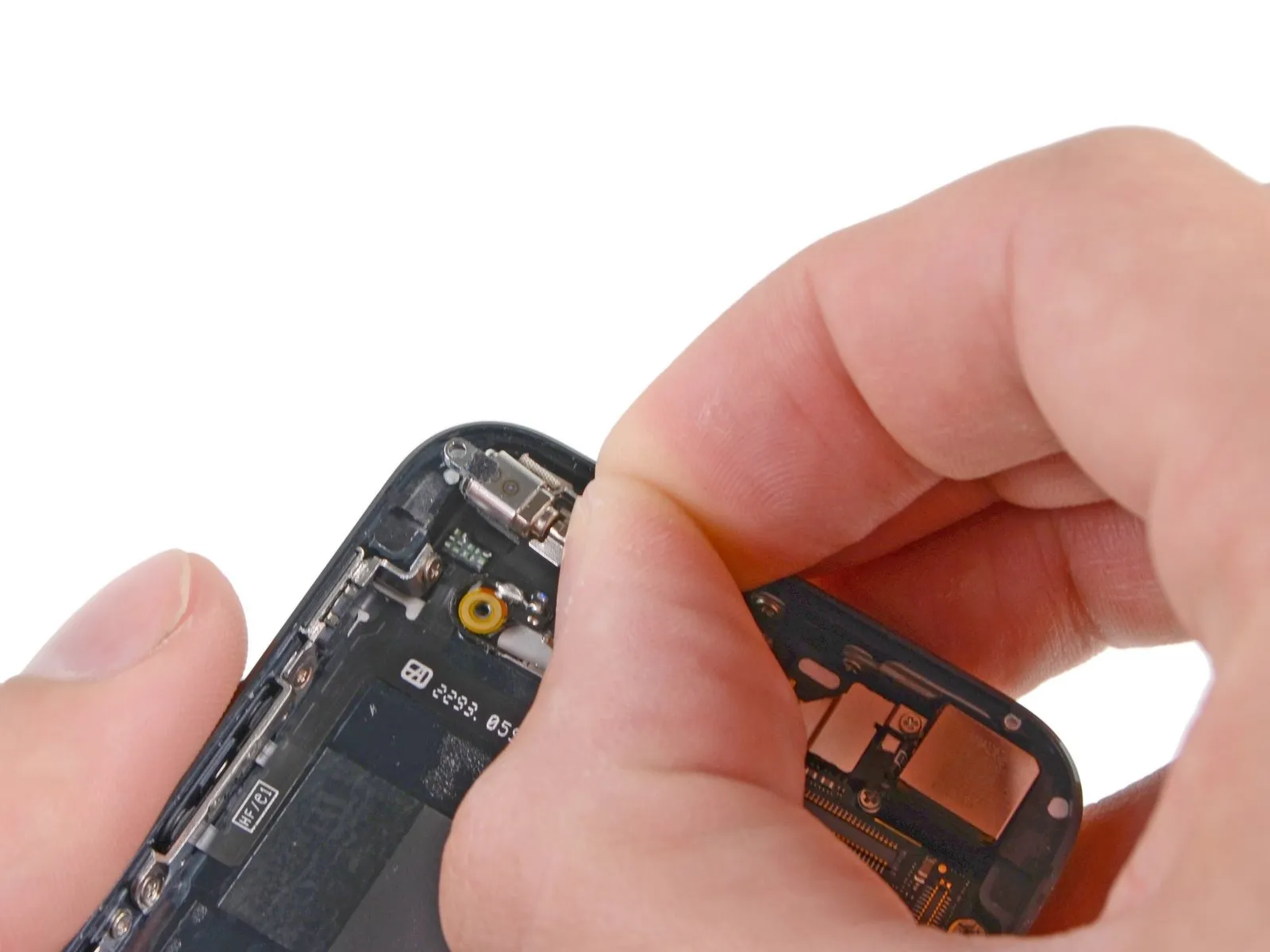

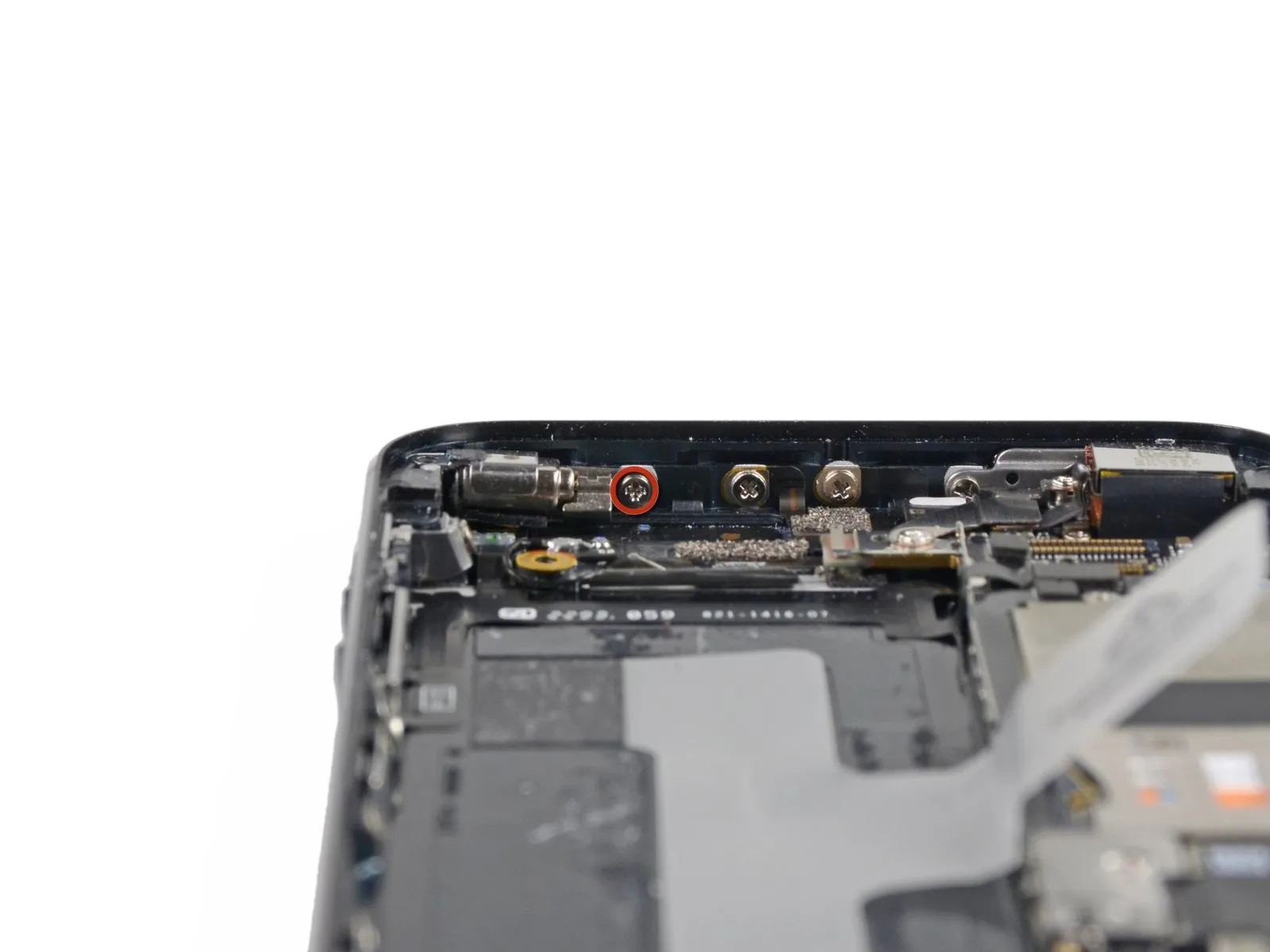

Using a Phillips screwdriver, detach the vibrator from the interior top surface of the rear case by unscrewing the 1.6 mm screw that holds it in place.

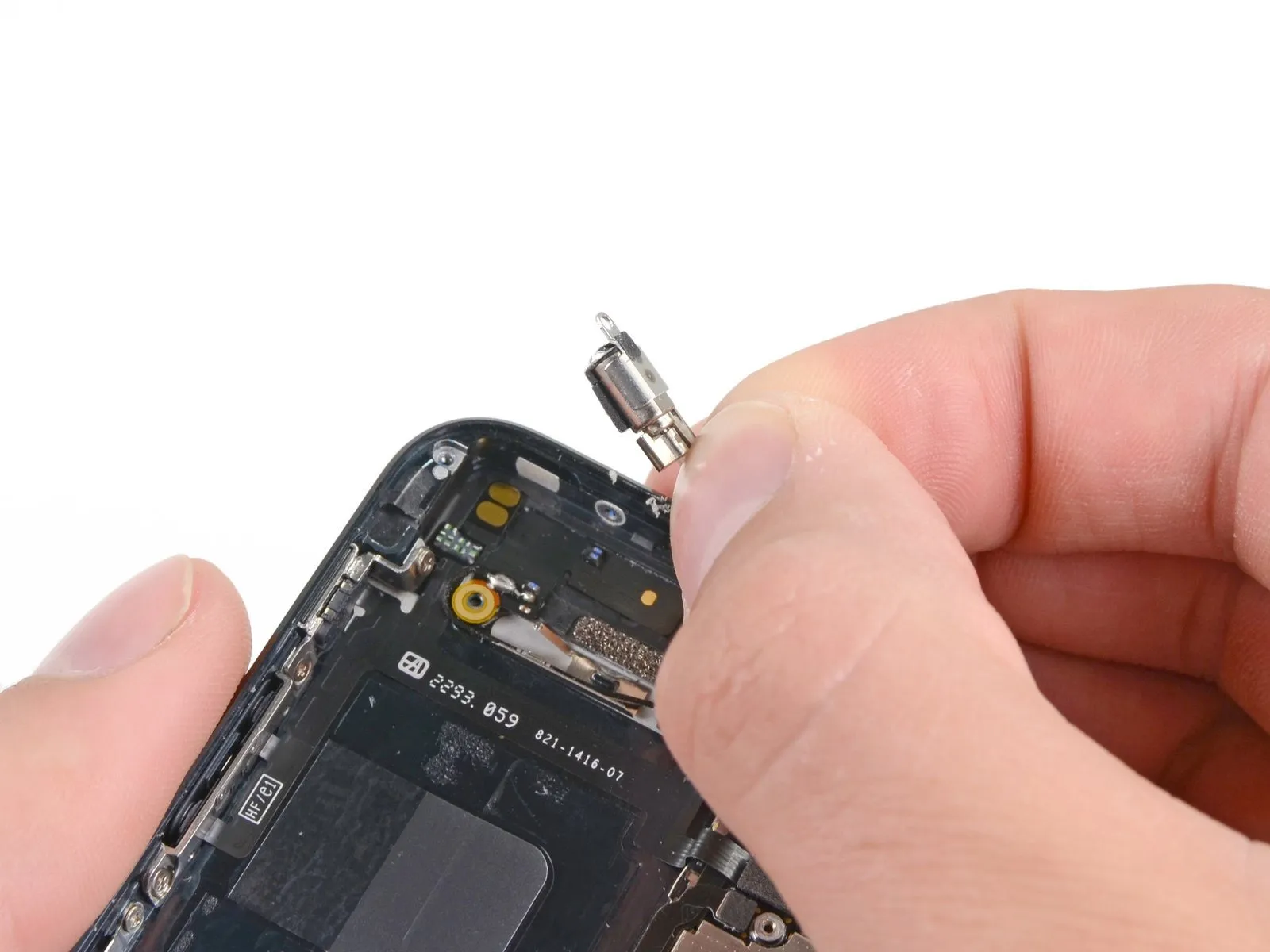

Carefully detach the vibrator component from the rear case.
