iPhone 5 Volume Controls Replacement

This document details the procedure for detaching the ringer switch and volume buttons from an iPhone 5.

Step 1 | Taping the display glass

Step 1 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
Begin by disconnecting the power supply, ensuring it's unplugged from the electrical outlet, then carefully remove the 10mm retaining bolt securing the fan motor to the chassis using a socket wrench.
To mitigate the risk of additional shattering and potential injury while repairing a cracked display glass, secure the glass with tape.
Apply strips of transparent packing tape across the iPhone screen, ensuring complete coverage by layering them until the entire display surface is protected.
To safeguard your eyes from potential glass fragments released during the repair process, always use safety glasses.

Step 2 | Remove the Pentalobe screws

Step 2 image
Using a 5/32-inch hex key, carefully tighten the retaining screw on the motor assembly to a torque of 3.5 Nm, ensuring the motor shaft aligns properly and avoiding damage to the threads; observe caution to prevent over-tightening.
To prevent potential fire or explosion hazards during repair, ensure the iPhone's lithium-ion battery is depleted to less than 25% capacity prior to beginning work; a fully charged battery poses a significant risk of ignition if damaged.
To prevent electrical shock or damage, ensure the iPhone is completely de-energized prior to starting the repair process.
Using a Pentalobe screwdriver, detach the two screws measuring 3.6 mm located adjacent to the Lightning connector.

Step 3 | How to prevent display separation

Step 3 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
Using a 5/32-inch hex key, carefully tighten the three retaining screws on the motor assembly to a torque of 3.5 inch-pounds; ensure that you do not overtighten, as this could damage the threads.
Carefully separate the display assembly, which consists of a glass screen, a plastic bezel, and integrated metal clips, from the phone's main body during the subsequent procedures.
Ensure complete removal of the display assembly, irrespective of the employed tool.
When delamination between the glass and plastic is observed, similar to the depiction in the initial image, use a plastic opening tool to insert it into the gap between the plastic frame and the phone's metal chassis, carefully levering the metal clips away from the case.
To ensure the phone remains securely closed during reassembly when the display bezel is detached, apply a narrow adhesive strip positioned between the plastic bezel and the glass.

Step 4 | Anti-Clamp instructions

Step 4 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
Using a 5/32-inch hex key, carefully tighten the three mounting screws securing the fan assembly to the motor housing, ensuring each is snug but not over-torqued to prevent damage.
For those utilizing the Anti-Clamp tool, the following two procedures illustrate its use to simplify the opening process; otherwise, proceed two steps further to access an alternative approach.
Refer to the included guide for detailed procedures regarding Anti-Clamp operation.
To release the Anti-Clamp's arms, move the blue handle in a rearward direction.
Position the arms so they extend across the iPhone's left or right side.
Secure two suction cups, one to the front and one to the rear surface of the iPhone, placing them close to the lower edge, directly above the home button.
Apply vacuum by pressing the cups firmly against the surface needing treatment.
To improve the Anti-Clamp's grip if the iPhone's exterior feels excessively smooth, apply adhesive tape to the device's surface.

Step 5

Step 5 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
Using a 5/32-inch hex key, carefully tighten the four retaining screws on the motor assembly to a torque of 3.5 inch-pounds, ensuring not to overtighten and potentially damage the threads.
To secure the arms, advance the blue handle in the direction indicated.
Rotate the handle fully, completing a 360-degree turn, observing for the initial expansion of the cups.
Maintain parallel positioning of the suction cups; should misalignment occur, gently release the suction cups' hold and reposition the arms.
Once sufficient separation is achieved by the Anti-Clamp tool, slide a prying tool beneath the display.
To ensure adequate separation, increase the heat applied to the component and then rotate the handle 90 degrees.
Allow the Anti-Clamp device to function for a full minute after each incremental adjustment of no more than 90 degrees.

Step 6 | Manual Opening Procedure

Step 6 image
Position a suction cup directly on the display surface, situated slightly higher than the home button's location.
Ensure the entire cup makes contact with the screen surface to guarantee a secure seal.
To prevent shattered glass fragments from dispersing and to provide a secure attachment point for the suction cup, apply several strips of packing tape to the face of iPhones with cracked glass, carefully smoothing to eliminate air pockets.

Step 7 | Start lifting the front panel assembly

Step 7 image
Secure the front panel assembly to the suction cup, ensuring a strong bond.
Using one hand to secure the iPhone, lift the suction cup vertically to gently create a small gap between the front panel and the rear enclosure.
Exercise caution and use steady, even pressure during installation, as the display assembly fits more snugly than typical device components.
Using a plastic opening tool, carefully separate the rear case from the display assembly by gently levering it upwards, simultaneously applying upward traction with a suction cup.
To release the front panel assembly from the rear case, carefully disengage the multiple retaining clips, potentially requiring the coordinated use of both a suction cup and a plastic opening tool.

Step 8 | Detaching the front panel side clips

Step 8 image
Carefully work a prying tool around the front panel assembly's edges to release the retaining clips on both the left and right sides.

Step 9 | Opening up the phone

Step 9 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
Disconnecting the front panel assembly entirely from the rear case is not recommended because several ribbon cables remain connected at the top of the iPhone.
After disengaging the retaining clips located along the lower edge and sides of the front panel assembly, separate the assembly's lower section from the rear case by gently pulling downwards.
Carefully position the display at a roughly 90-degree angle, then secure it in an upright position using a support to prevent movement during the repair process.
To avoid stressing the display's wiring during the repair process, secure it with a rubber band.

Step 10 | Removing the battery connector bracket screws

Step 10 image
Using appropriate tools, detach the metal battery connector bracket from the logic board by unscrewing the two screws that hold it in place.
Use a Phillips screwdriver to remove a single screw with a 1.8 mm head.
Use a Phillips screwdriver to tighten a screw measuring 1.6 millimeters.

Step 11 | Removing the battery connector bracket

Step 11 image
Detach the bracket securing the battery connector using a tri-point screwdriver, ensuring no damage occurs to the connector or surrounding components.

Step 12 | Disconnecting the battery connector

Step 12 image
Carefully disconnect the battery connector from its socket on the logic board by leveraging it upwards with a plastic opening tool.
Exercise caution to avoid accidentally moving the tiny components positioned near the socket.
Exercise extreme caution during the lifting process, ensuring force is applied solely to the battery connector; applying pressure to the logic board socket or the board itself risks socket destruction or damage to adjacent components.

Step 13 | Removing the front panel assembly cable bracket screws

Step 13 image
Detach the cable bracket that holds the front panel assembly wires from the logic board by unscrewing the screws listed below.
Use two Phillips head screws, each measuring 1.2 millimeters.
Use a Phillips screwdriver to remove a single screw with a 1.6 mm head.
Because this fastener lacks magnetic properties, use caution during removal to prevent loss, and ensure it is correctly positioned afterward; a magnetized replacement could disrupt the compass's functionality.

Step 14 | Removing the front panel assembly cable bracket

Step 14 image
Thumbnail 1
Thumbnail 2
To detach the display cable bracket, raise it in the direction of the battery, then take it away from the iPhone.
To reassemble, position the bracket towards the exterior of the device and secure it by engaging the left-hand hooks with the logic board.

Step 15 | Disconnecting the front panel assembly cables

Step 15 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
Prior to either detaching or reattaching the cables in this procedure, ensure the battery is completely disconnected.
Carefully detach the three front panel assembly cables by gently separating them with a plastic opening tool or fingernail.
The cable connecting the front camera and its associated sensor
Connect the display panel's flat, ribbon-like cable, ensuring proper alignment and secure attachment to the connector, taking care to avoid damage to the delicate wiring and observing its length of 30 centimeters.
The flexible ribbon cable connecting the display's touch sensor to the mainboard is the digitizer cable.
Should the LCD cable become detached from its connector during reassembly, the phone may exhibit display abnormalities like white lines or a complete lack of image upon startup; to resolve this, re-establish the cable's connection and restart the device, preferably by briefly disconnecting and reconnecting the battery.

Step 16 | Separating front panel assembly and rear case

Step 16 image
Detach the front panel assembly by disengaging it from the rear case.

Step 17 | Lifting the battery

Step 17 image
Gently lift the battery away from its adhesive backing by grasping the visible, transparent plastic tab.
Should the battery's adhesive prevent easy separation, or if the tab fractures during removal, carefully introduce a small quantity of isopropyl alcohol—with a concentration exceeding 90%—beneath the battery's edge.
Allow approximately one minute for the alcohol to dissolve the adhesive securing the battery. Then, carefully use an opening tool to separate the battery from the device, working along its perimeter.
To prevent damage, avoid using excessive force when removing the battery. Should the battery remain stuck, add additional alcohol droplets to dissolve the adhesive bond. Ensure the pry tool does not compromise the battery’s structural integrity by puncturing or deforming it.
To prevent damage, ensure any residual alcohol solution is completely removed by wiping with a clean cloth or by permitting it to evaporate fully prior to battery installation.
To assist with battery separation if adhesion persists, apply warmth to the iPhone's rear case using an iOpener or hair dryer to loosen the adhesive.
Exposure to excessive heat poses a risk of battery ignition in the iPhone.

Step 18 | Prying up the battery

Step 18 image
Thumbnail 1
Thumbnail 2
Carefully lift the battery from its compartment using the plastic opening tool, applying force solely to the outer perimeter of the device; avoid prying near the logic board to prevent potential damage.
Gently increase the application of isopropyl alcohol until the battery releases from its housing.
To prevent damage and potential fire risk, carefully release the battery using even pressure, ensuring it remains undamaged.
Avoid applying force to the battery's upper edge, as this could damage the volume control cables.

Step 19 | Removing the battery

Step 19 image
Disconnect the power source by detaching the battery.
Carefully discard the protective plastic packaging that accompanied the new battery by gently separating it from the ribbon cable.
To guarantee correct positioning within its designated space, briefly plug the battery connector back into the motherboard socket prior to securing the new battery.
Secure the battery in place, then sever its electrical connection before proceeding with the remaining assembly steps.
To ensure proper alignment and prevent component damage during front panel reinstallation, firmly position the battery flush with the back cover.
Following reassembly, execute a complete system reset to proactively avoid potential problems and streamline any subsequent diagnostic procedures.

Step 20 | Volume Controls

Step 20 image

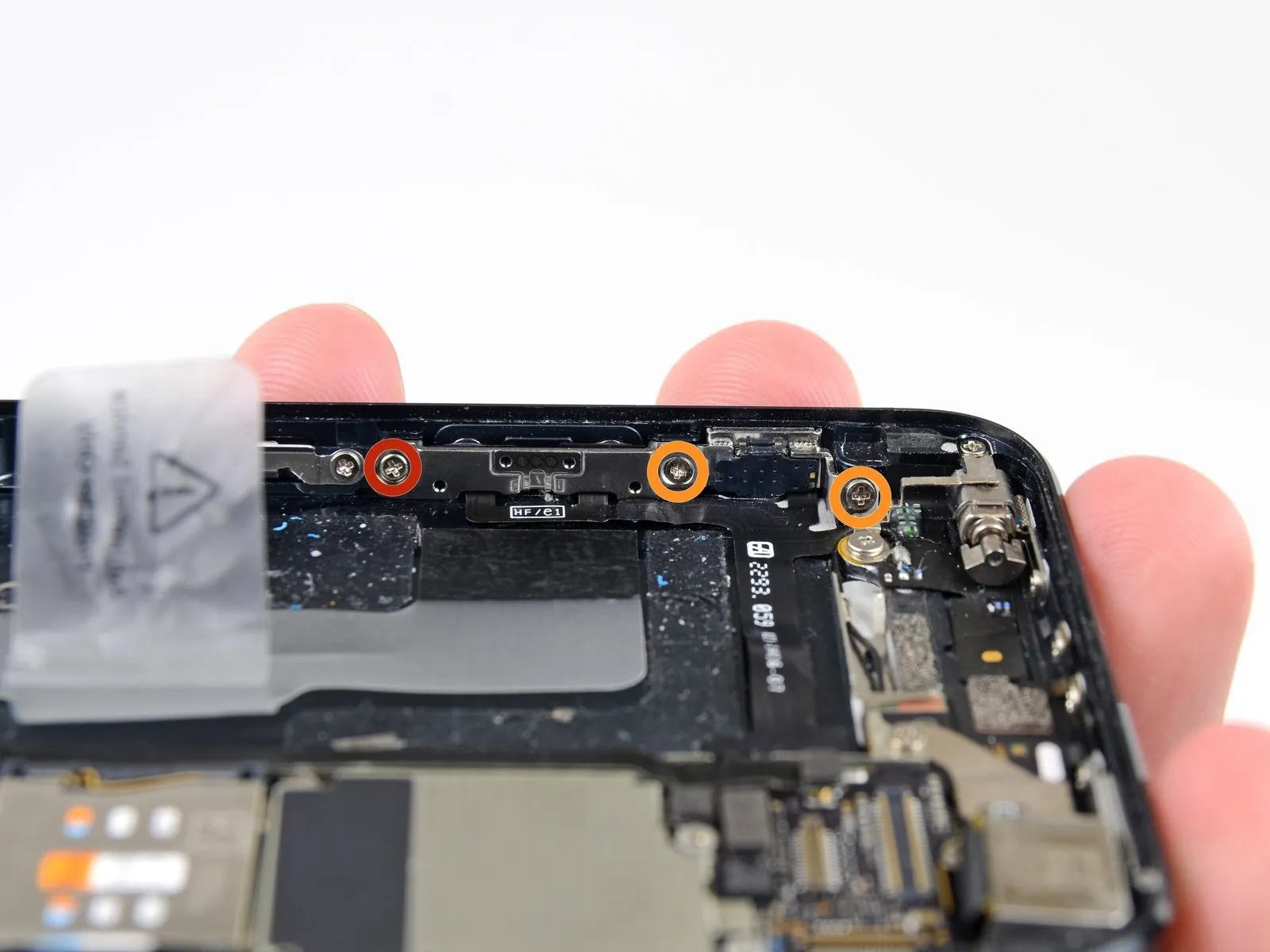

Using a Phillips screwdriver, detach the volume button and ringer switch brackets from the rear case by unscrewing the fasteners holding them in place.
Use a Phillips screwdriver to tighten a 1.5 mm screw.
Use two Phillips head screws, each measuring 1.8 millimeters.

Step 21

Step 21 image
Thumbnail 1
Thumbnail 2
Thumbnail 3

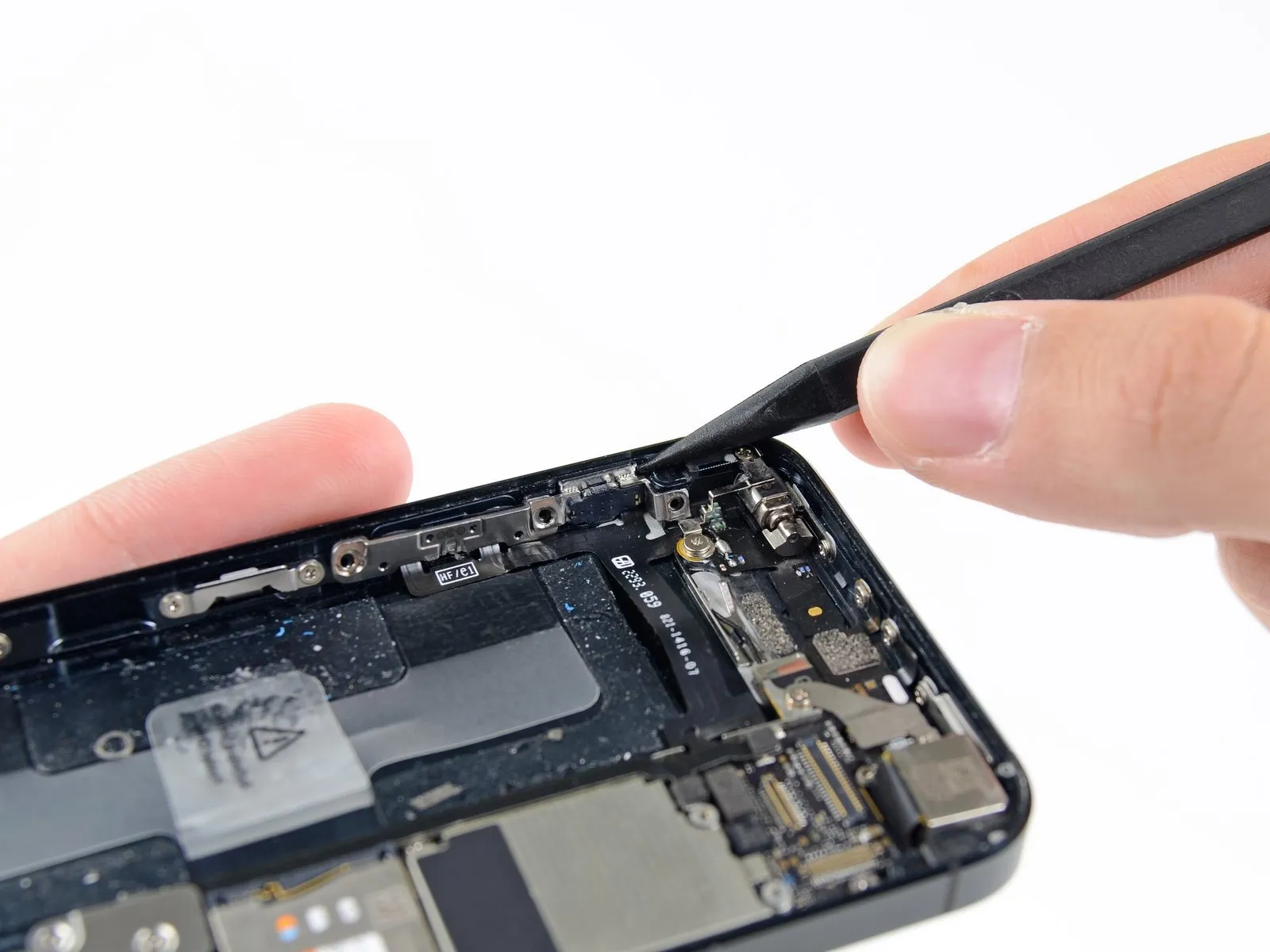

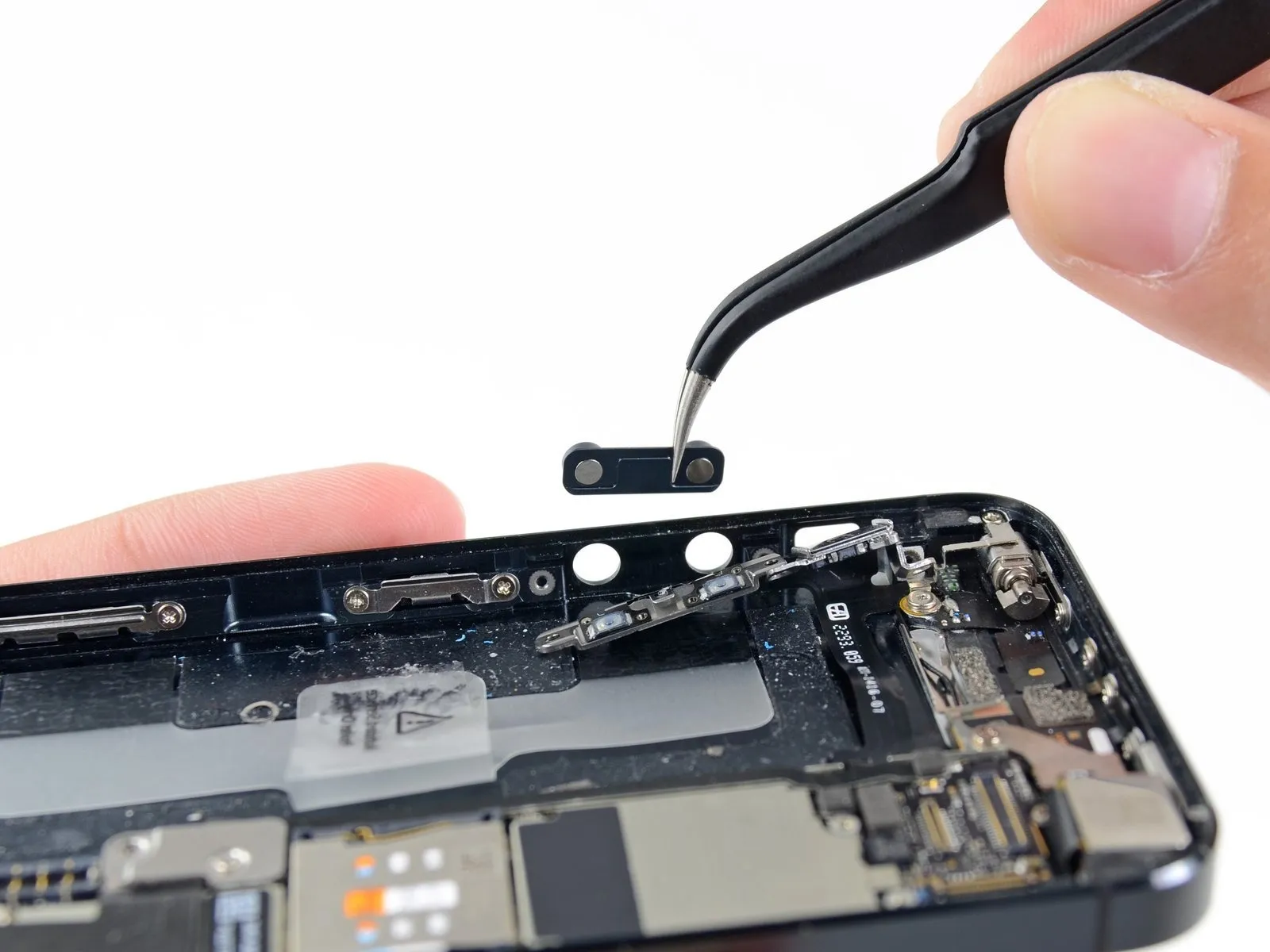

Carefully separate the ringer switch bracket from the rear case's side wall using the pointed end of a spudger.
Disconnect and detach the ringer switch.

Step 22

Step 22 image
Thumbnail 1
Thumbnail 2

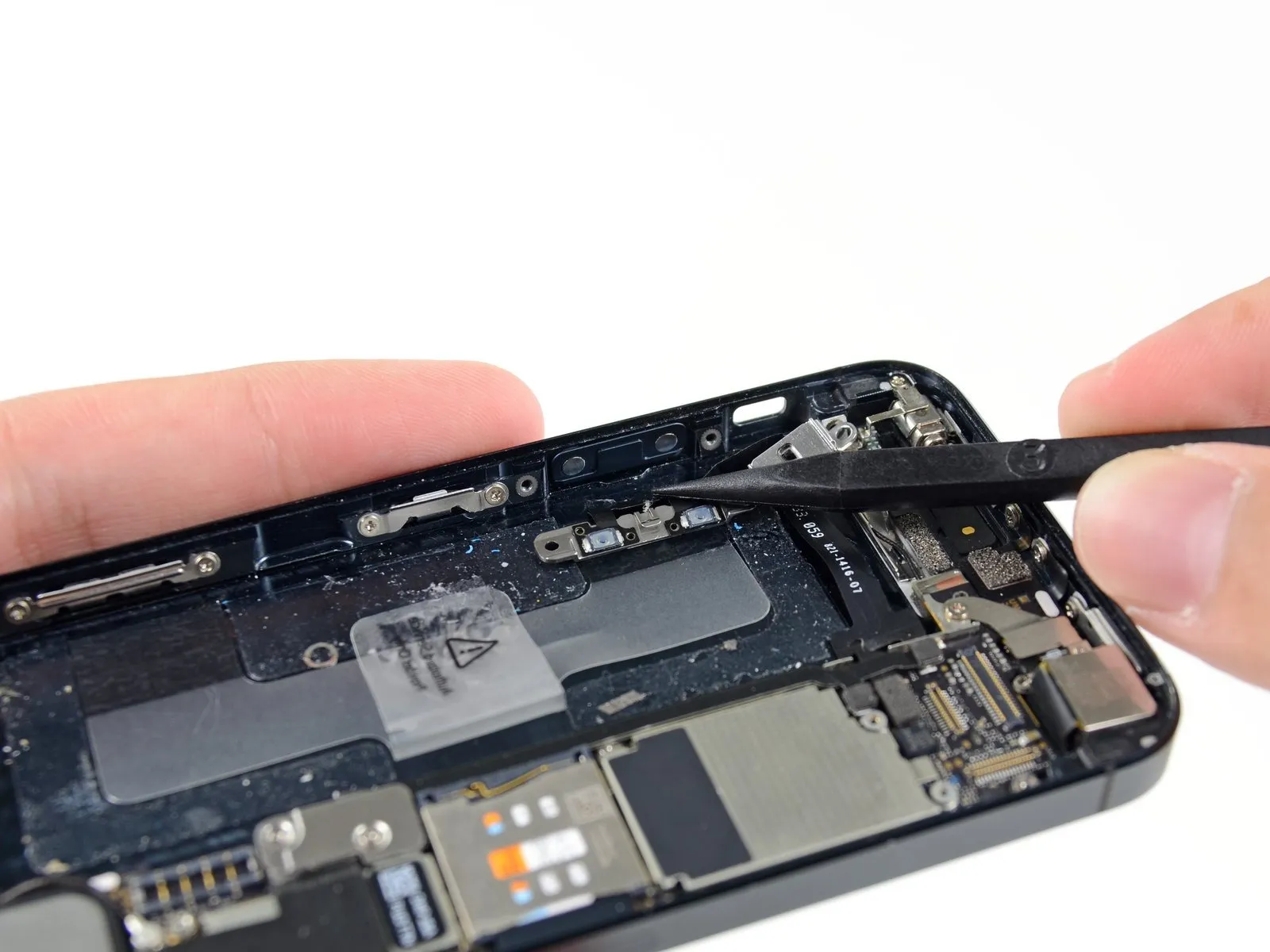

Carefully disengage the volume button bracket from the rear case's side edge using a spudger.
Carefully detach the volume buttons.
