iPhone 5c Power Button Replacement
Follow these instructions to detach the power and sleep button from the iPhone 5c.

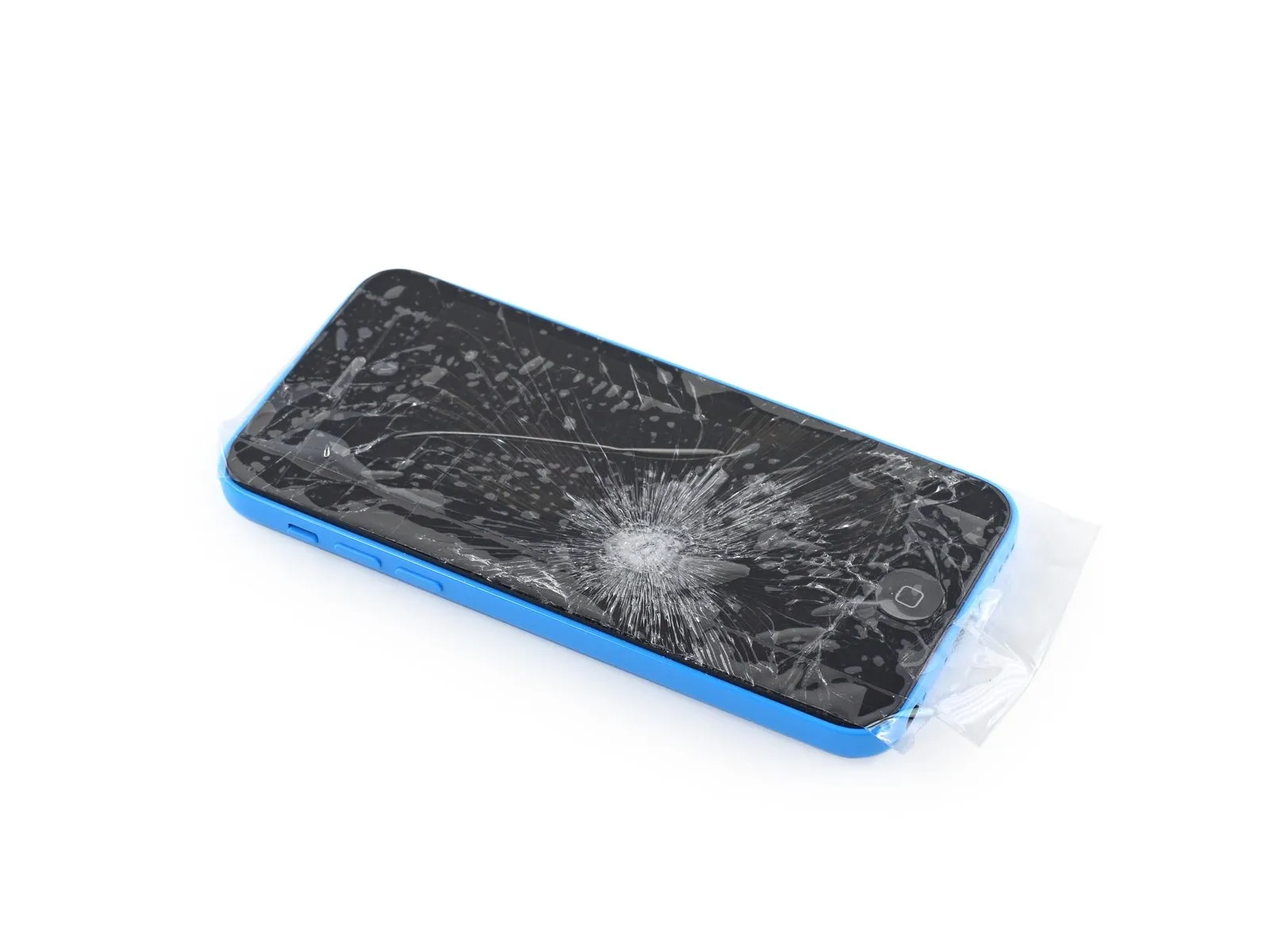

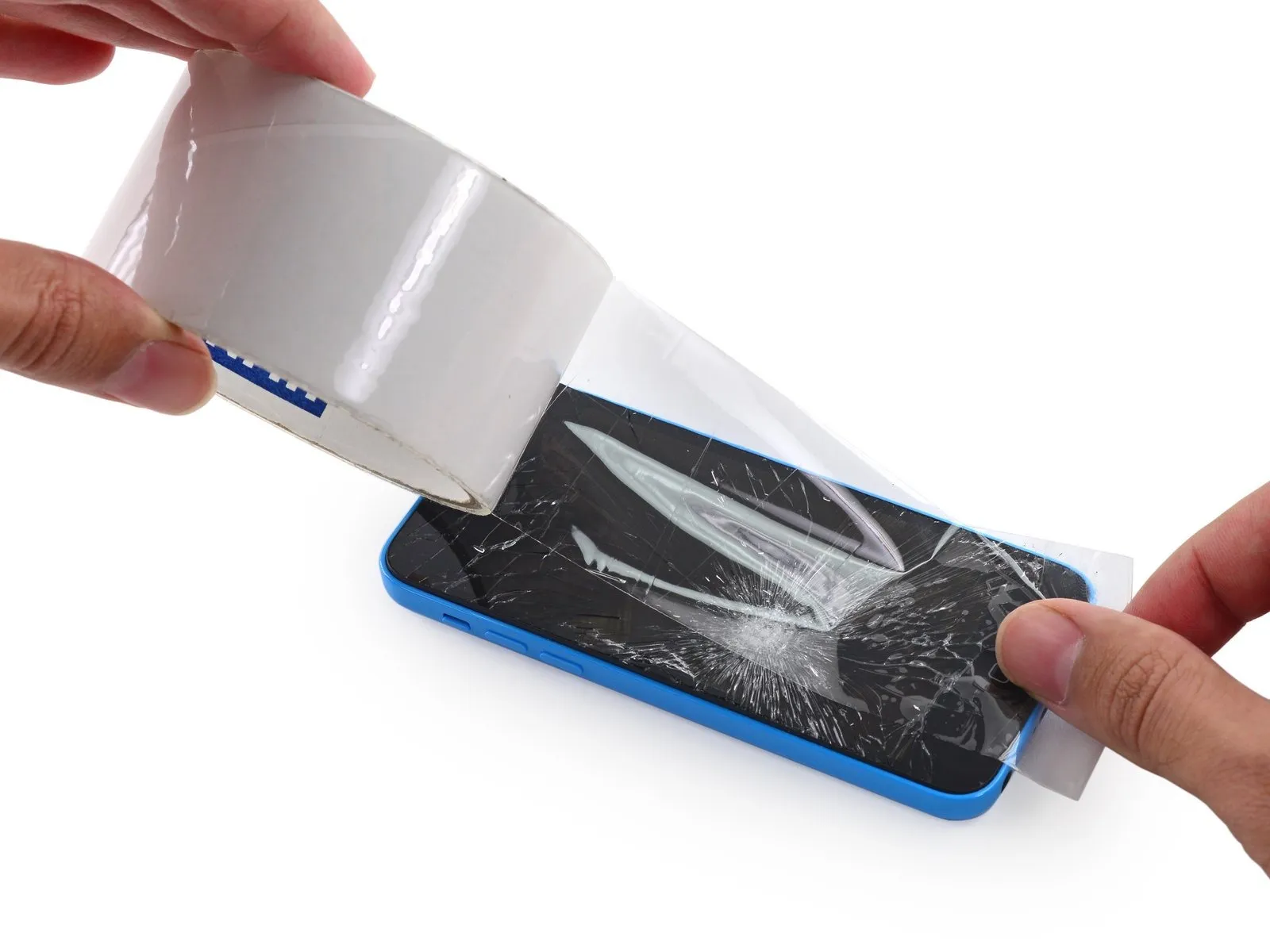

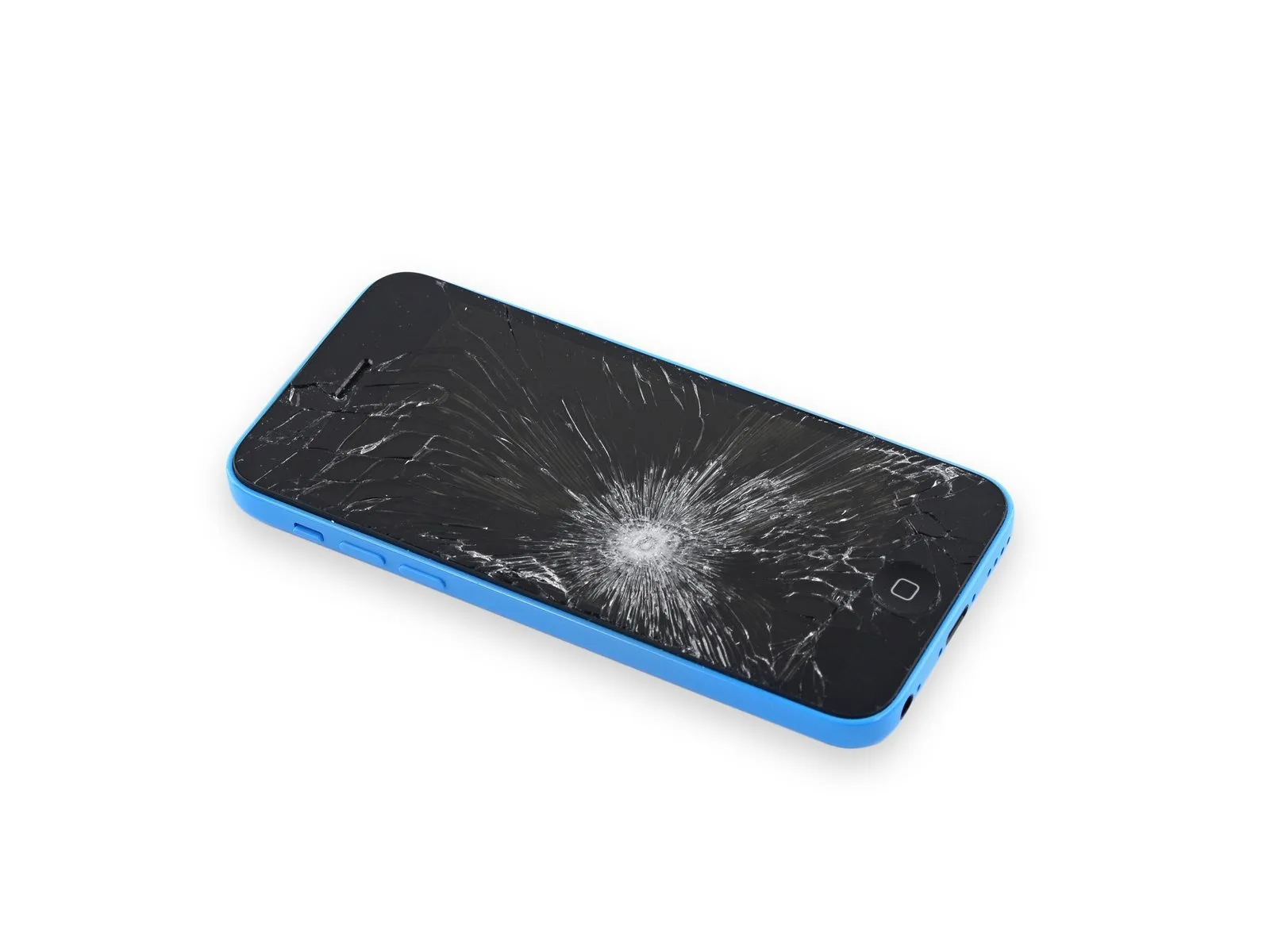

Step 1 | Taping the display glass
To mitigate the risk of additional shattering and potential injury while performing the repair, secure any cracked display glass with tape.
Apply strips of transparent packing tape across the iPhone screen, ensuring complete coverage by slightly overlapping each strip.
To prevent glass fragments from scattering and maintain stability during the display separation process, this step is crucial.
To safeguard your eyes from potential glass fragments released during the repair process, always use safety glasses.
Apply strips of transparent packing tape across the iPhone screen, ensuring complete coverage by slightly overlapping each strip.
To prevent glass fragments from scattering and maintain stability during the display separation process, this step is crucial.
To safeguard your eyes from potential glass fragments released during the repair process, always use safety glasses.

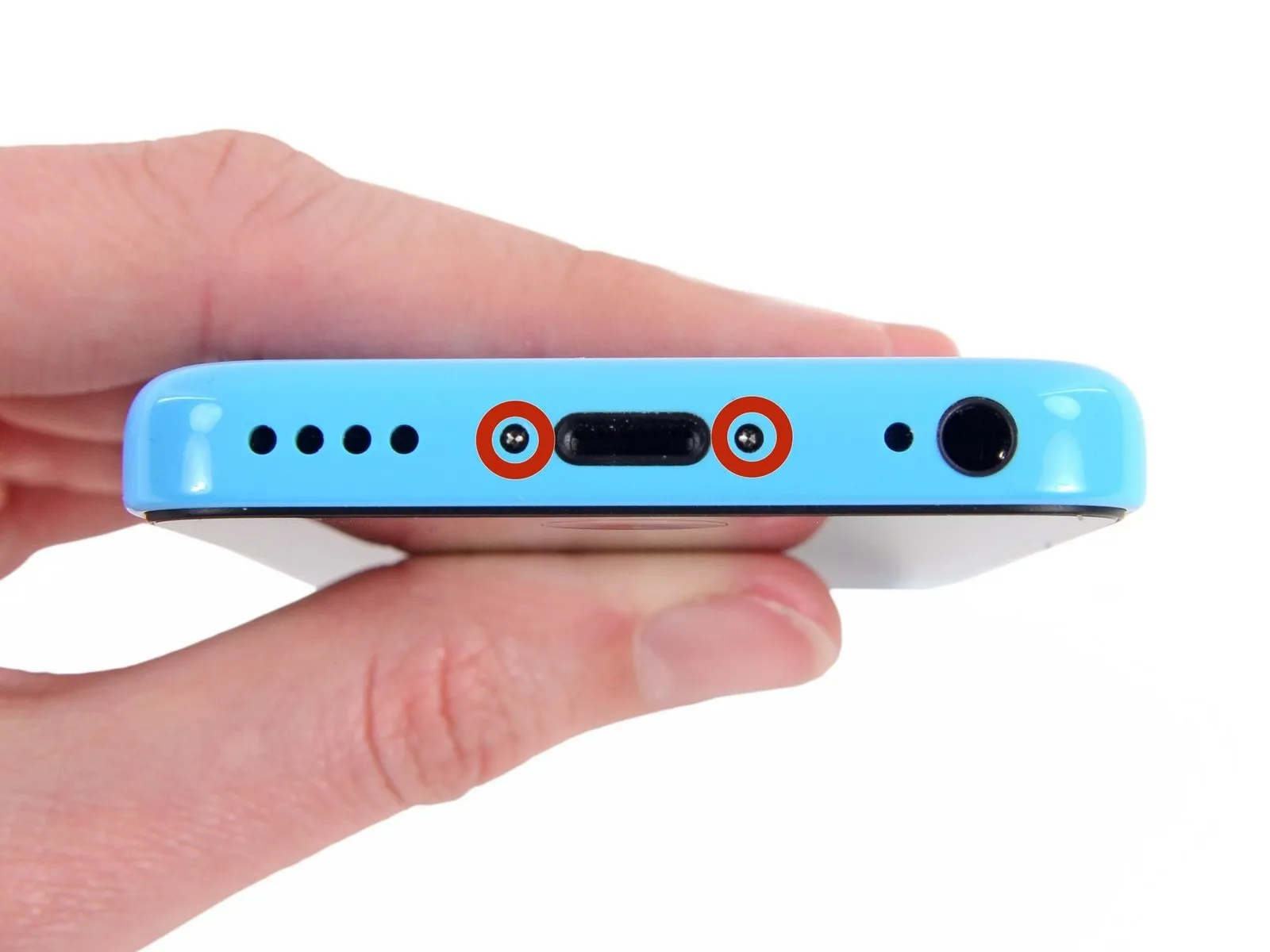

Step 2 | Removing the Pentalobe screws
To prevent a potential fire or explosion hazard during repair, ensure the iPhone's lithium-ion battery is depleted to less than 25% capacity prior to beginning work; a fully charged battery poses a risk of ignition if damaged.
To prevent electrical shock or damage, ensure the iPhone is completely de-energized prior to starting the repair process.
Using appropriate tools, detach the two Lightning connector retaining screws; these are 3.8 mm P2 Pentalobe fasteners, one located on each side.
To prevent electrical shock or damage, ensure the iPhone is completely de-energized prior to starting the repair process.
Using appropriate tools, detach the two Lightning connector retaining screws; these are 3.8 mm P2 Pentalobe fasteners, one located on each side.

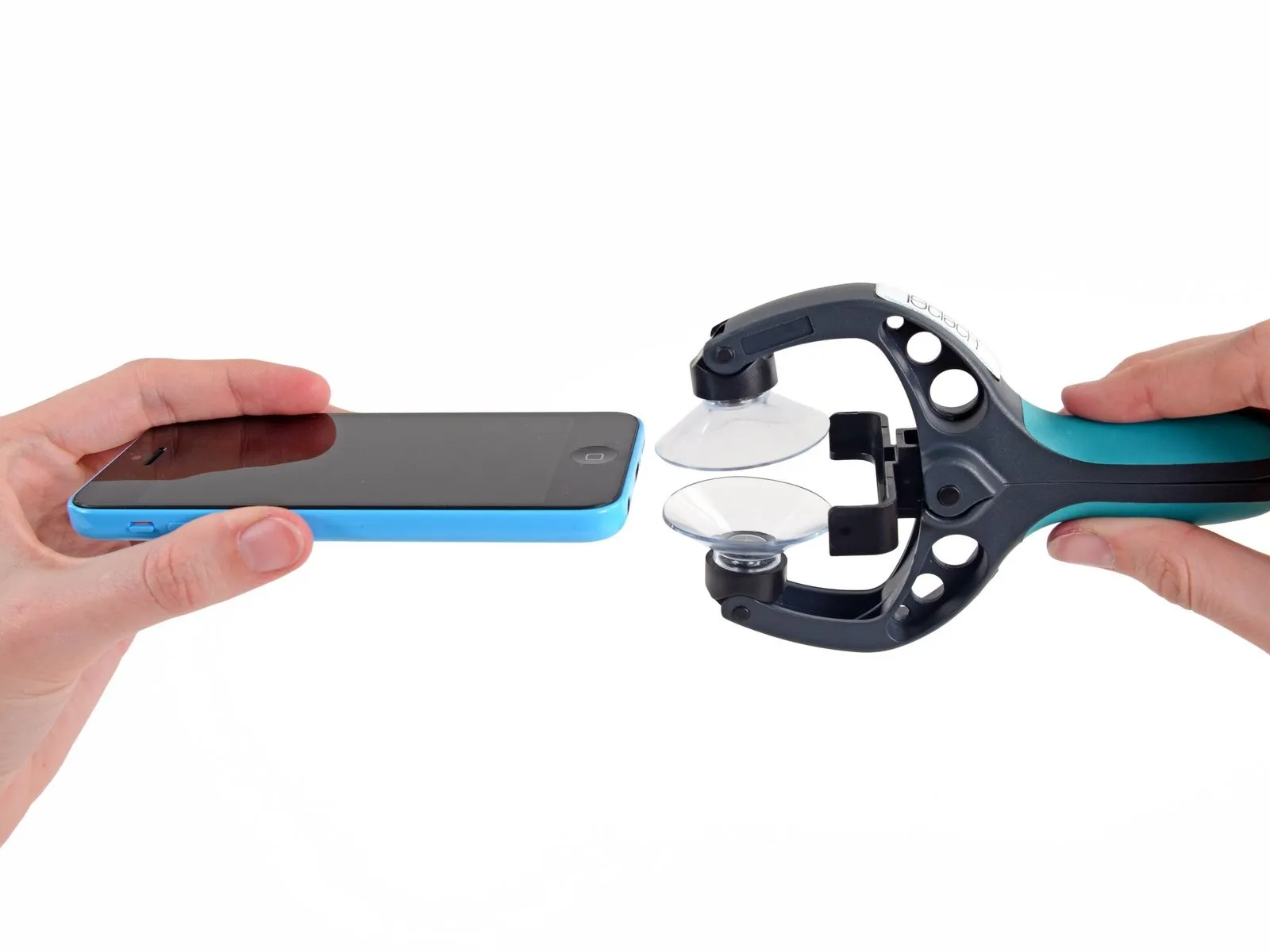

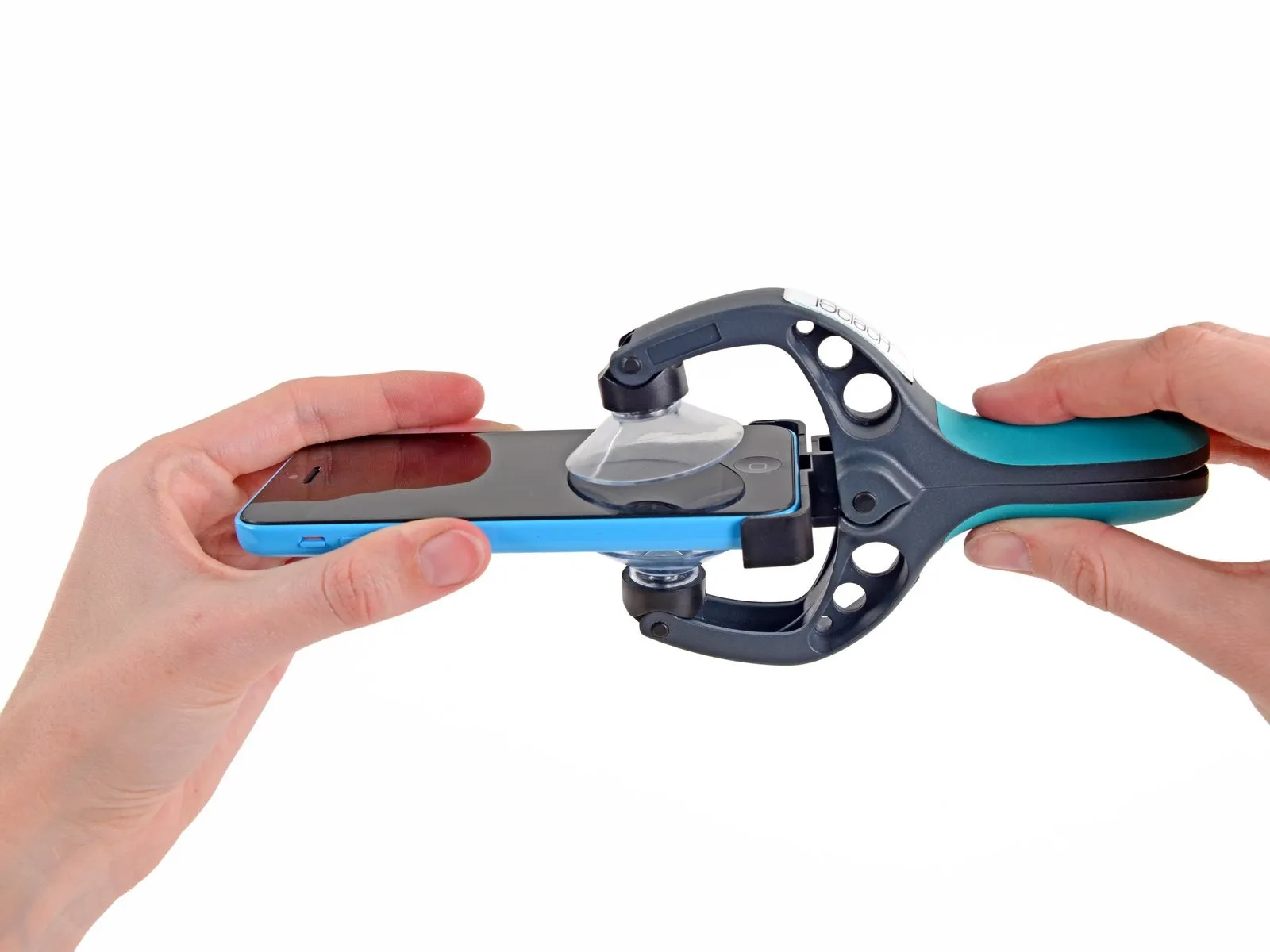

Step 3 | Starting the iSclack Opening Procedure
For those performing multiple repairs on an iPhone 5, 5s, or 5c, the iSclack is a highly recommended tool for secure device separation; proceed with the following steps if utilizing this tool, otherwise advance directly to Step 5.
Actuate the iSclack handle to release the clamping force of the suction-cup jaws.
Position the iPhone's lower edge between the suction cups, ensuring it contacts the plastic depth gauge.
Position the uppermost suction cup so it hovers slightly above the home button.
To activate the iSclack's clamping mechanism, release the handles. Position the suction cups so they are aligned, then apply consistent, strong pressure to both the top and bottom surfaces of the iPhone.
Actuate the iSclack handle to release the clamping force of the suction-cup jaws.
Position the iPhone's lower edge between the suction cups, ensuring it contacts the plastic depth gauge.
Position the uppermost suction cup so it hovers slightly above the home button.
To activate the iSclack's clamping mechanism, release the handles. Position the suction cups so they are aligned, then apply consistent, strong pressure to both the top and bottom surfaces of the iPhone.

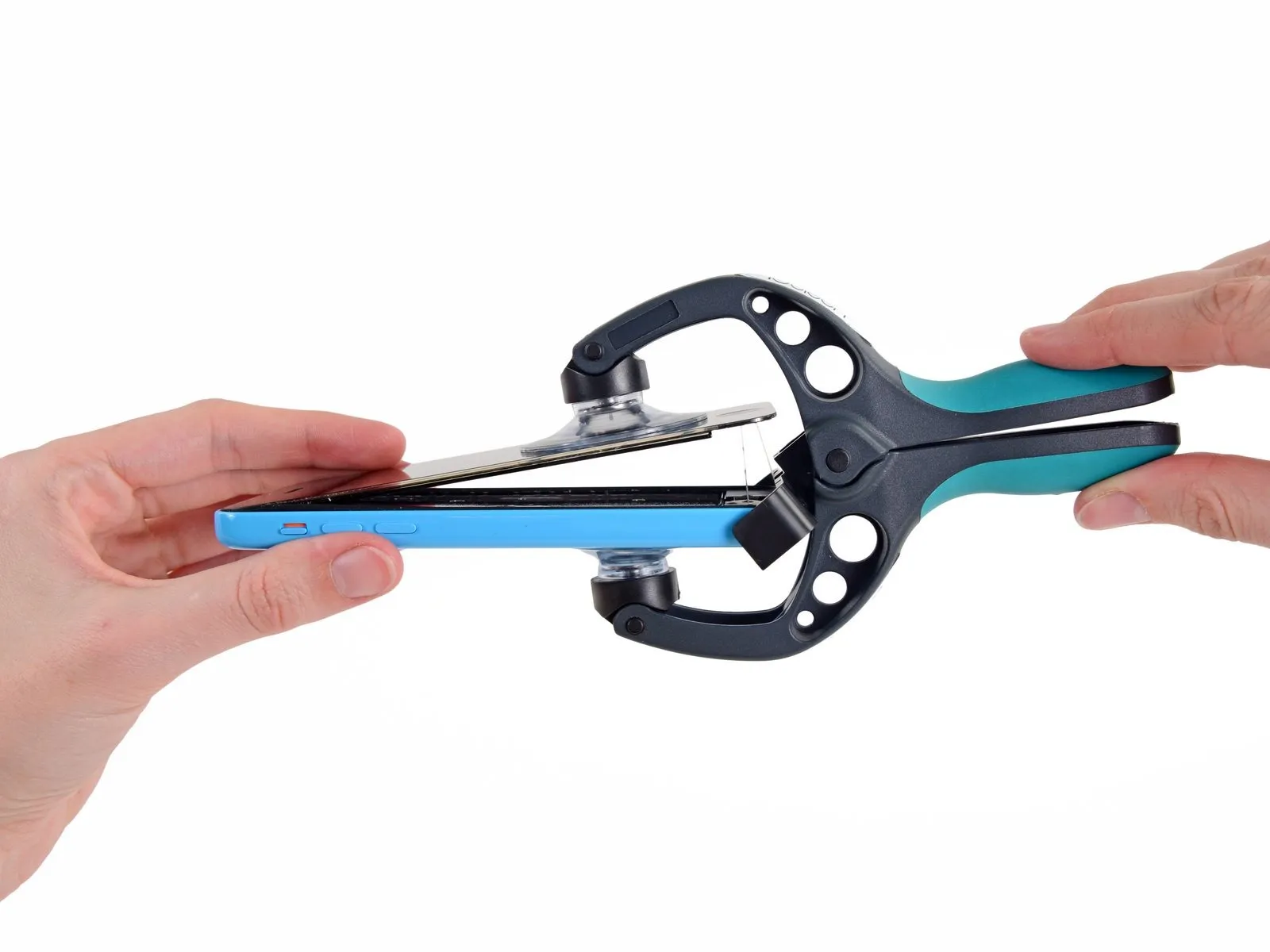

Step 4 | Finishing the iSclack Opening Procedure
Using the iSclack allows for a controlled separation of the iPhone's components, ensuring the delicate internal wiring remains undamaged during the process.
Detach the iPhone from its mounting surface by removing both suction cups.
Proceed directly to Step 8, bypassing the subsequent three steps.

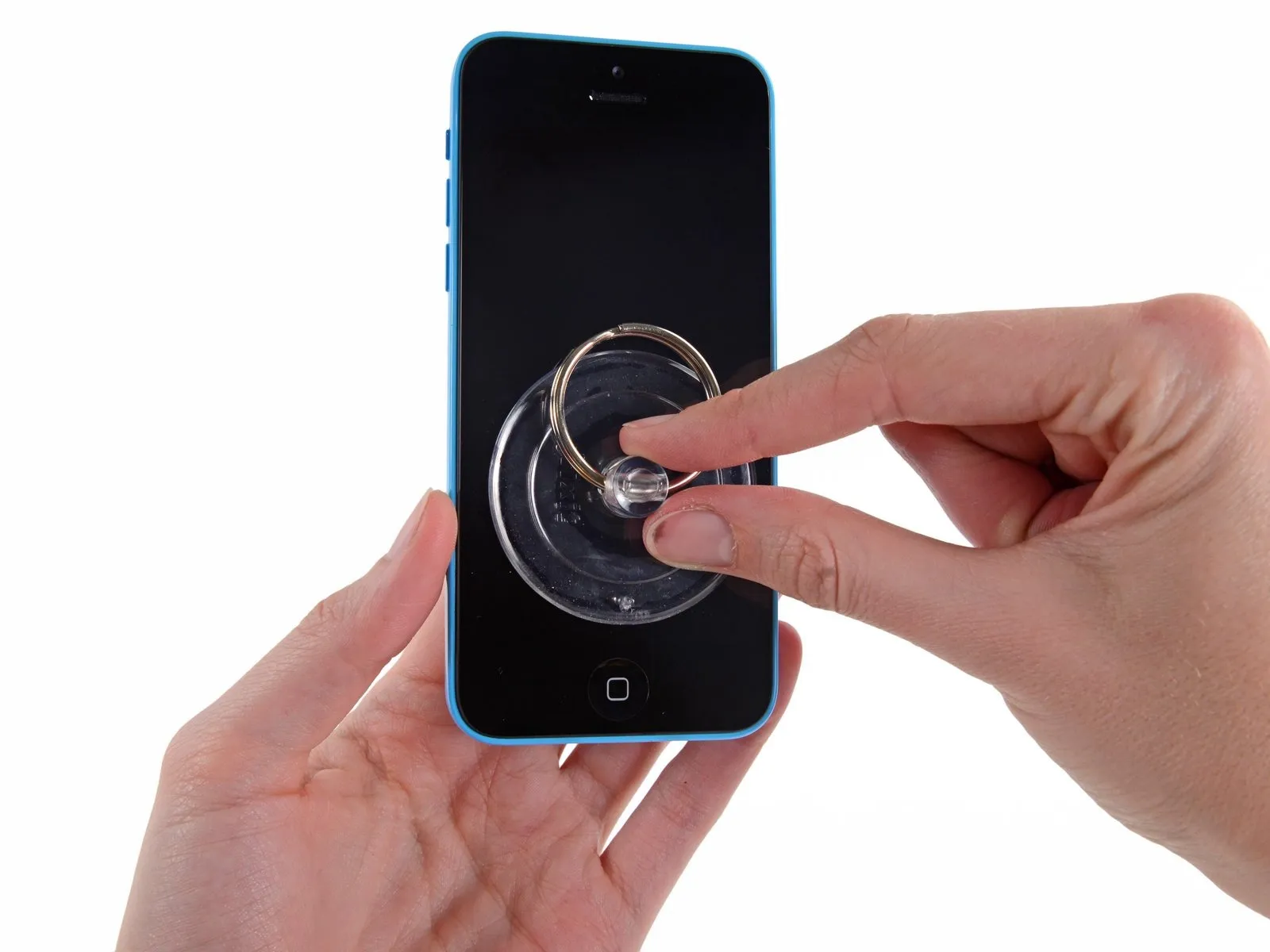

Step 5 | Manual Opening Procedure
Position a suction cup directly on the display surface, situated immediately above the home button.
Ensure the entire cup makes full contact with the screen surface to guarantee a secure seal.
Ensure the entire cup makes full contact with the screen surface to guarantee a secure seal.

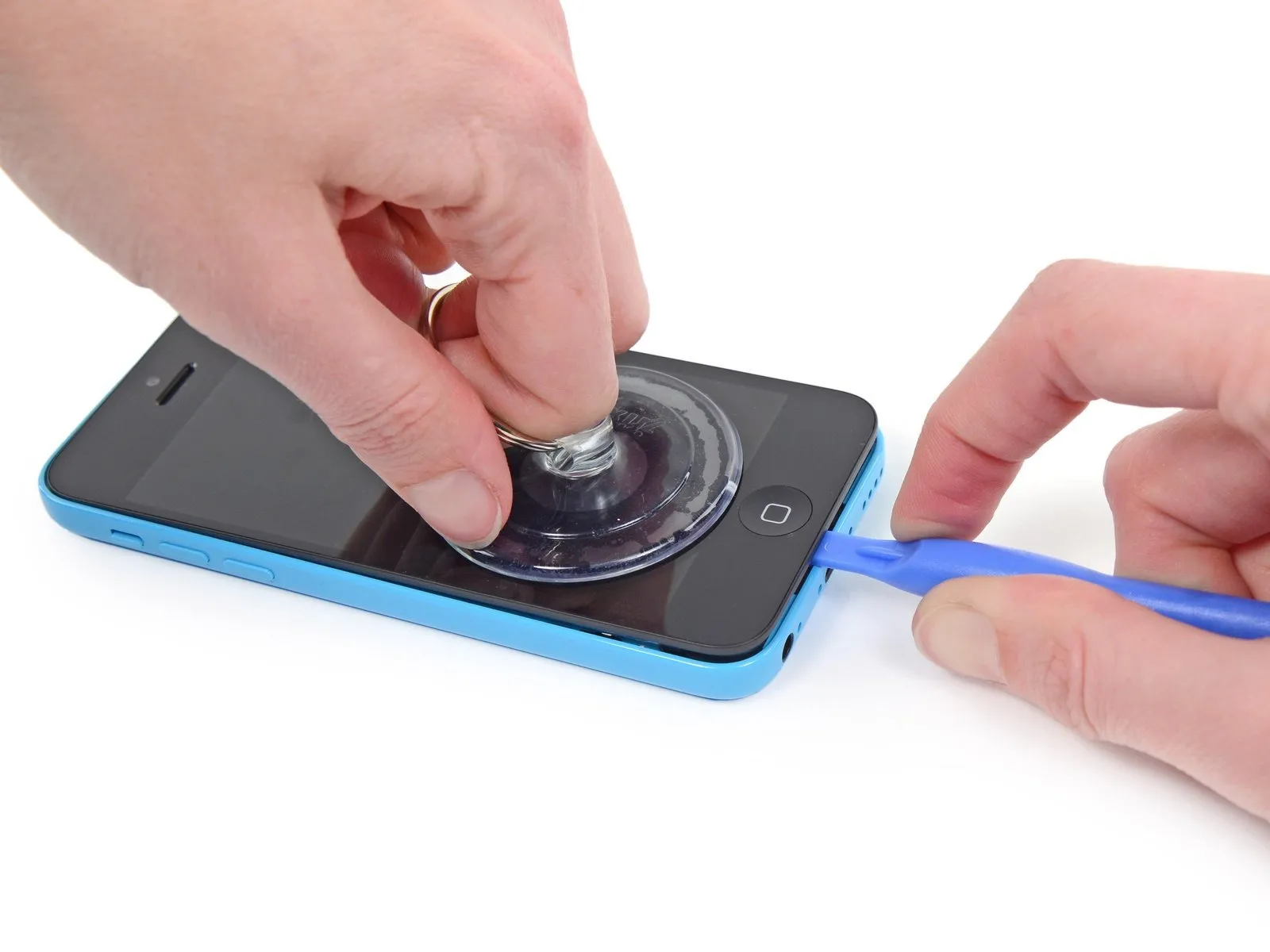

Step 6 | Start lifting the front panel assembly
Using a 5/32-inch hex key, carefully tighten the four mounting screws securing the fan assembly to the motor housing, ensuring each is snug but not over-tightened to prevent damage; observe a torque of 6 in-lbs per screw.
Secure the front panel assembly using the suction cup, ensuring a strong and stable connection.
Using one hand to secure the iPhone, lift the suction cup vertically to gently create a small gap between the front panel and the rear enclosure.
Exercise caution and use steady, even pressure when installing the display assembly, as it requires a significantly tighter fit than typical device components.

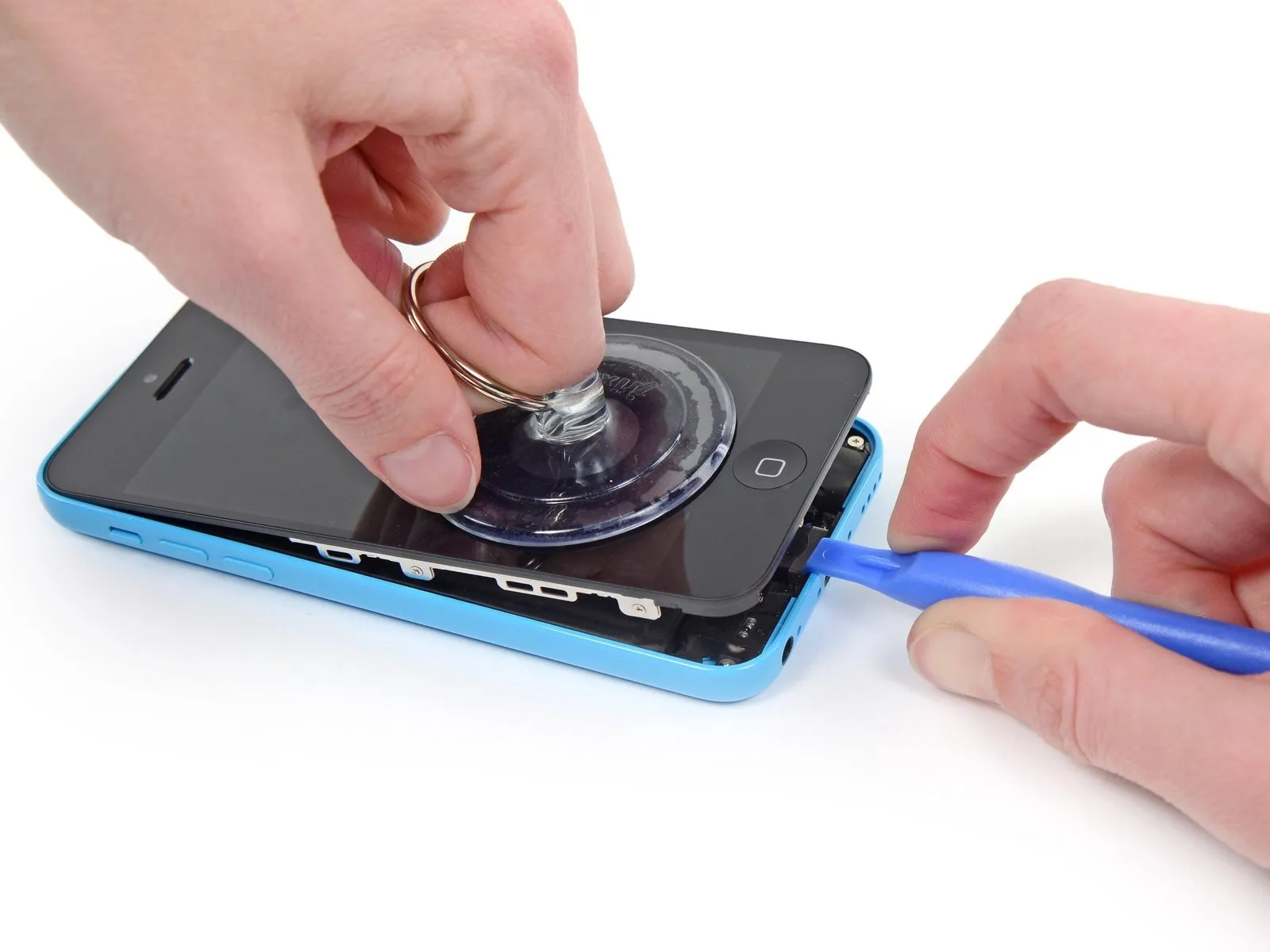

Using a plastic opening tool, carefully separate the rear case from the display assembly by gently levering it upwards, simultaneously applying upward traction with a suction cup.
To release the front panel assembly from the rear case, carefully detach the multiple retaining clips by employing both the suction cup and plastic opening tool as needed.
Secure the front panel assembly using the suction cup, ensuring a strong and stable connection.
Using one hand to secure the iPhone, lift the suction cup vertically to gently create a small gap between the front panel and the rear enclosure.
Exercise caution and use steady, even pressure when installing the display assembly, as it requires a significantly tighter fit than typical device components.
Using a plastic opening tool, carefully separate the rear case from the display assembly by gently levering it upwards, simultaneously applying upward traction with a suction cup.
To release the front panel assembly from the rear case, carefully detach the multiple retaining clips by employing both the suction cup and plastic opening tool as needed.

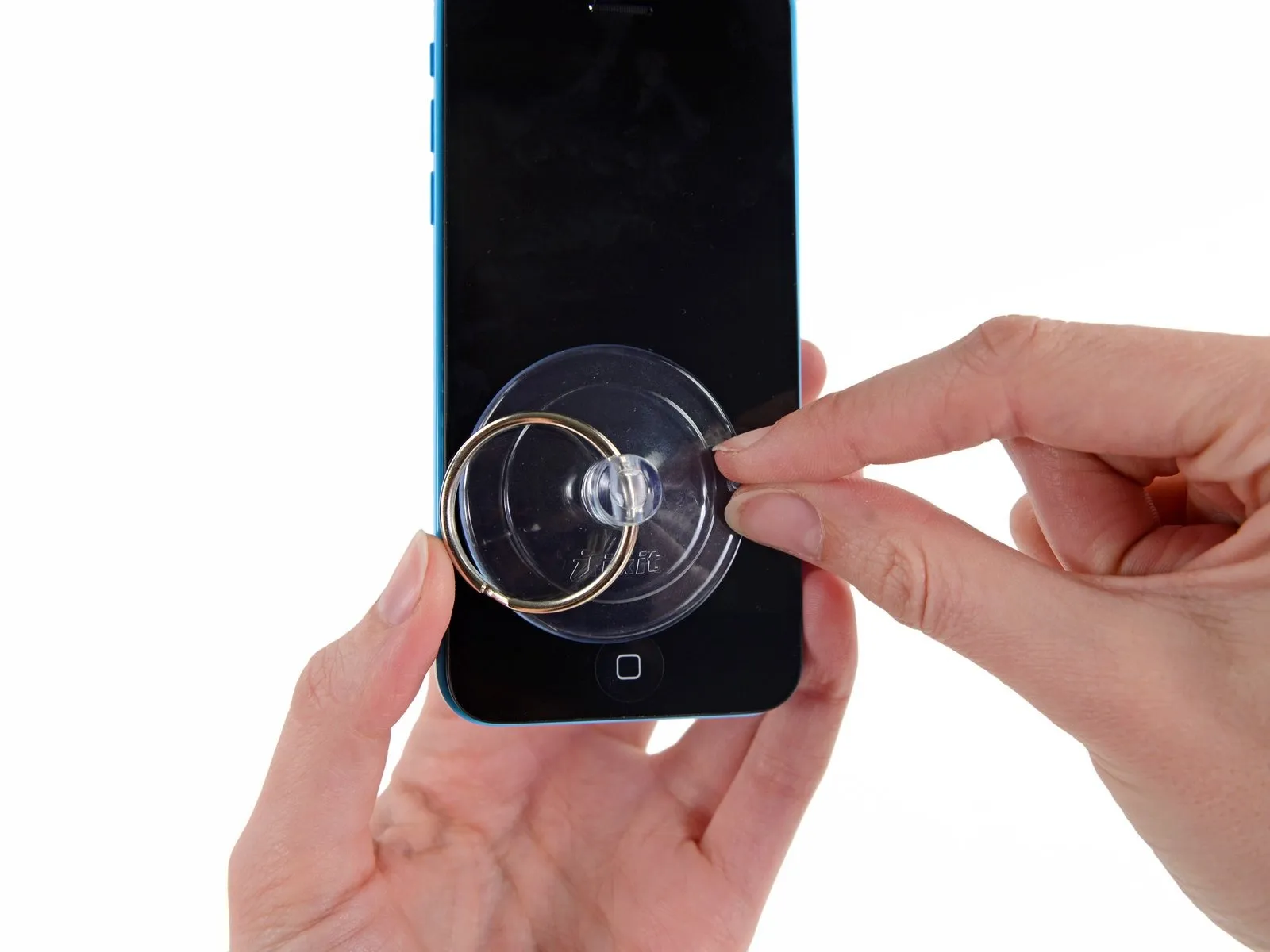

Step 7
Using a 5/32-inch hex key, carefully tighten the three M4 x 8mm screws securing the fan assembly to the heatsink, ensuring a torque of no more than 0.5 Nm to avoid damaging the threads.
To detach the suction cup, depress the plastic projection to break the airtight seal.
Detach the display assembly's suction cup.
To detach the suction cup, depress the plastic projection to break the airtight seal.
Detach the display assembly's suction cup.
Step 8 | Opening up the phone
Using a 5/32-inch hex key, carefully tighten the three retaining screws on the motor assembly to a torque of 3.5 inch-pounds, ensuring not to overtighten and potentially strip the threads.
To expose the connectors located at the top edge of the device, gently raise the front panel, starting from the home button area.

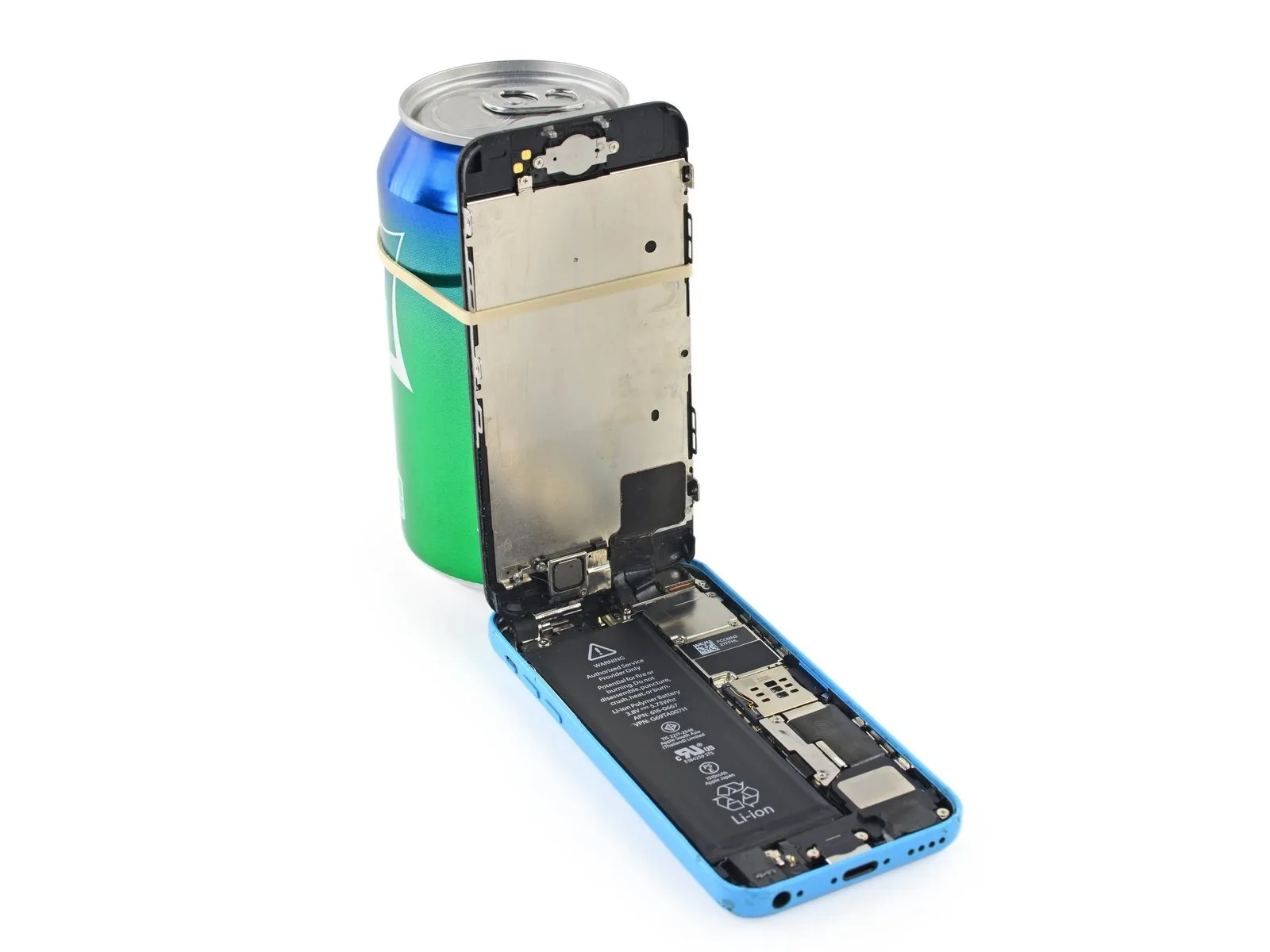

Carefully position the display at a roughly 90-degree angle, then secure it in an upright position using a support to prevent movement during the repair process.
As a temporary measure, an unused, sealed can of soda can substitute for the display during the repair process.
To avoid stressing the display's wiring during the repair process, secure it with a rubber band.
To expose the connectors located at the top edge of the device, gently raise the front panel, starting from the home button area.
Carefully position the display at a roughly 90-degree angle, then secure it in an upright position using a support to prevent movement during the repair process.
As a temporary measure, an unused, sealed can of soda can substitute for the display during the repair process.
To avoid stressing the display's wiring during the repair process, secure it with a rubber band.

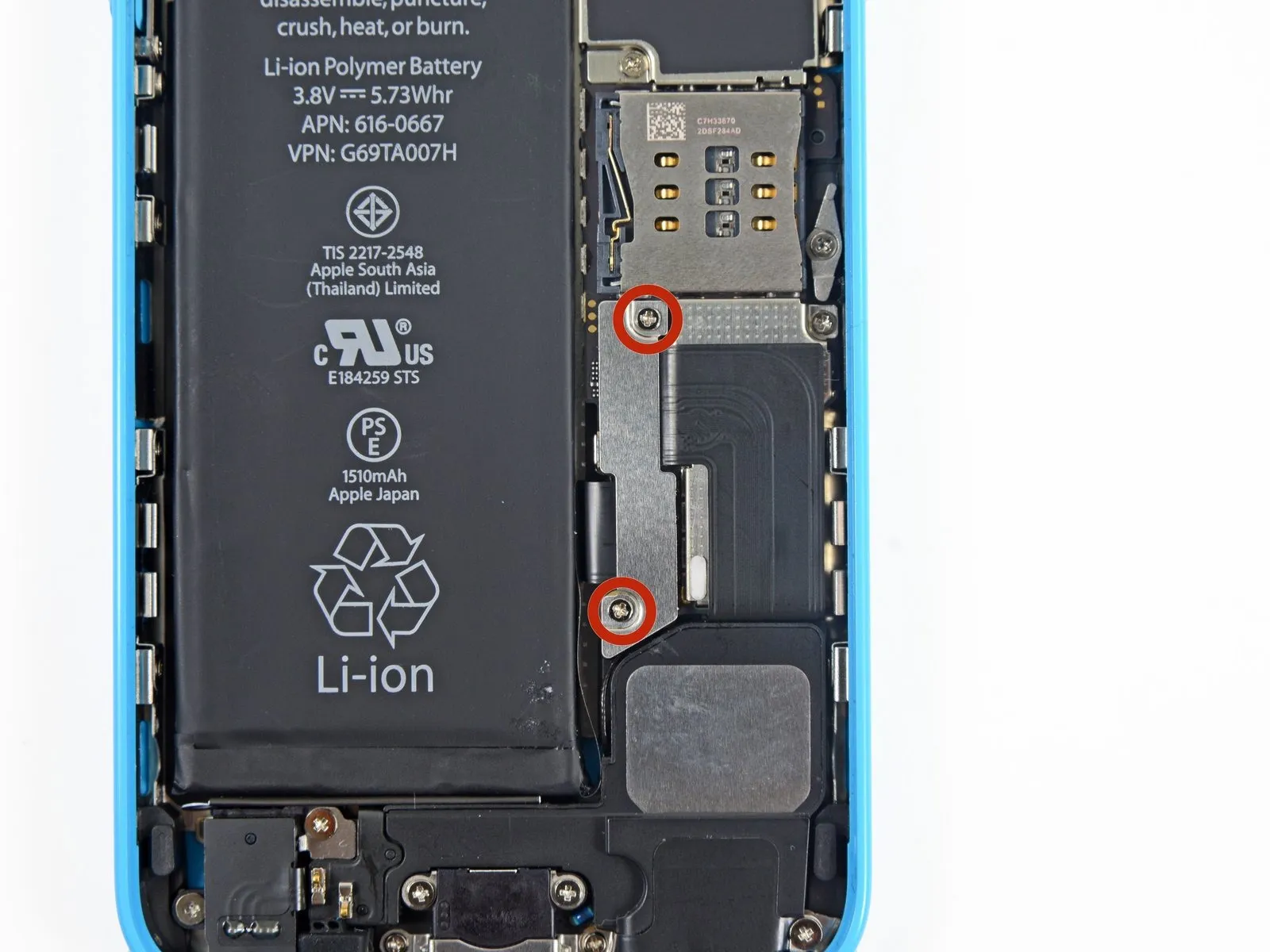

Step 9
Using a 5/32-inch hex key, carefully tighten the four M4x8mm screws securing the fan assembly to the heatsink, ensuring a torque of no more than 0.5 Nm to prevent damage.
Using a Phillips #000 screwdriver, detach the metal bracket that holds the battery connector by unscrewing the two 1.6 mm screws it uses to fasten to the logic board.
Using a Phillips #000 screwdriver, detach the metal bracket that holds the battery connector by unscrewing the two 1.6 mm screws it uses to fasten to the logic board.
Step 10
Using a 5/32-inch hex key, carefully tighten the four mounting screws securing the fan assembly to the motor housing, ensuring each is snug but not over-torqued to prevent damage.
Detach the bracket securing the battery connector using a tri-point screwdriver, ensuring no damage occurs to the connector or surrounding components.
Detach the bracket securing the battery connector using a tri-point screwdriver, ensuring no damage occurs to the connector or surrounding components.
Step 11 | Disconnecting the battery connector

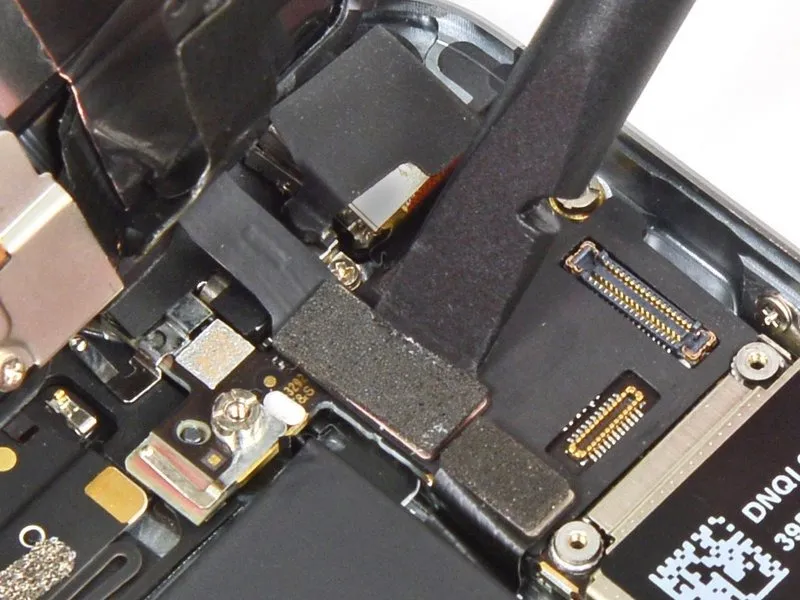

Carefully lift the battery connector away from its corresponding socket on the logic board, employing a spudger or a clean fingernail to avoid damage.
Exercise extreme caution when releasing the battery connector; lifting force should be applied solely to the connector, avoiding any pressure on the logic board socket or the board's surrounding components, as doing so risks socket destruction or damage to nearby parts.
Exercise extreme caution when releasing the battery connector; lifting force should be applied solely to the connector, avoiding any pressure on the logic board socket or the board's surrounding components, as doing so risks socket destruction or damage to nearby parts.
Step 12
Using a Phillips #000 screwdriver, detach the bracket that holds the front panel assembly cable by unscrewing the screws that fasten it to the logic board.
Use two screws, each measuring 1.3 millimeters.
A screw with a 1.7-millimeter head diameter is required.
A screw with a 3.25 mm diameter is required.
Carefully note the location of each screw during this stage, as incorrect placement during reassembly can cause serious harm. Substituting a 3.25 mm screw or a 1.7 mm screw into the bottom right hole will critically damage the logic board, preventing the device from powering on.
Avoid applying excessive force when tightening screws; if resistance is encountered during installation, verify that the correct screw size is being used and do not force the fastener.
Use two screws, each measuring 1.3 millimeters.
A screw with a 1.7-millimeter head diameter is required.
A screw with a 3.25 mm diameter is required.
Carefully note the location of each screw during this stage, as incorrect placement during reassembly can cause serious harm. Substituting a 3.25 mm screw or a 1.7 mm screw into the bottom right hole will critically damage the logic board, preventing the device from powering on.
Avoid applying excessive force when tightening screws; if resistance is encountered during installation, verify that the correct screw size is being used and do not force the fastener.

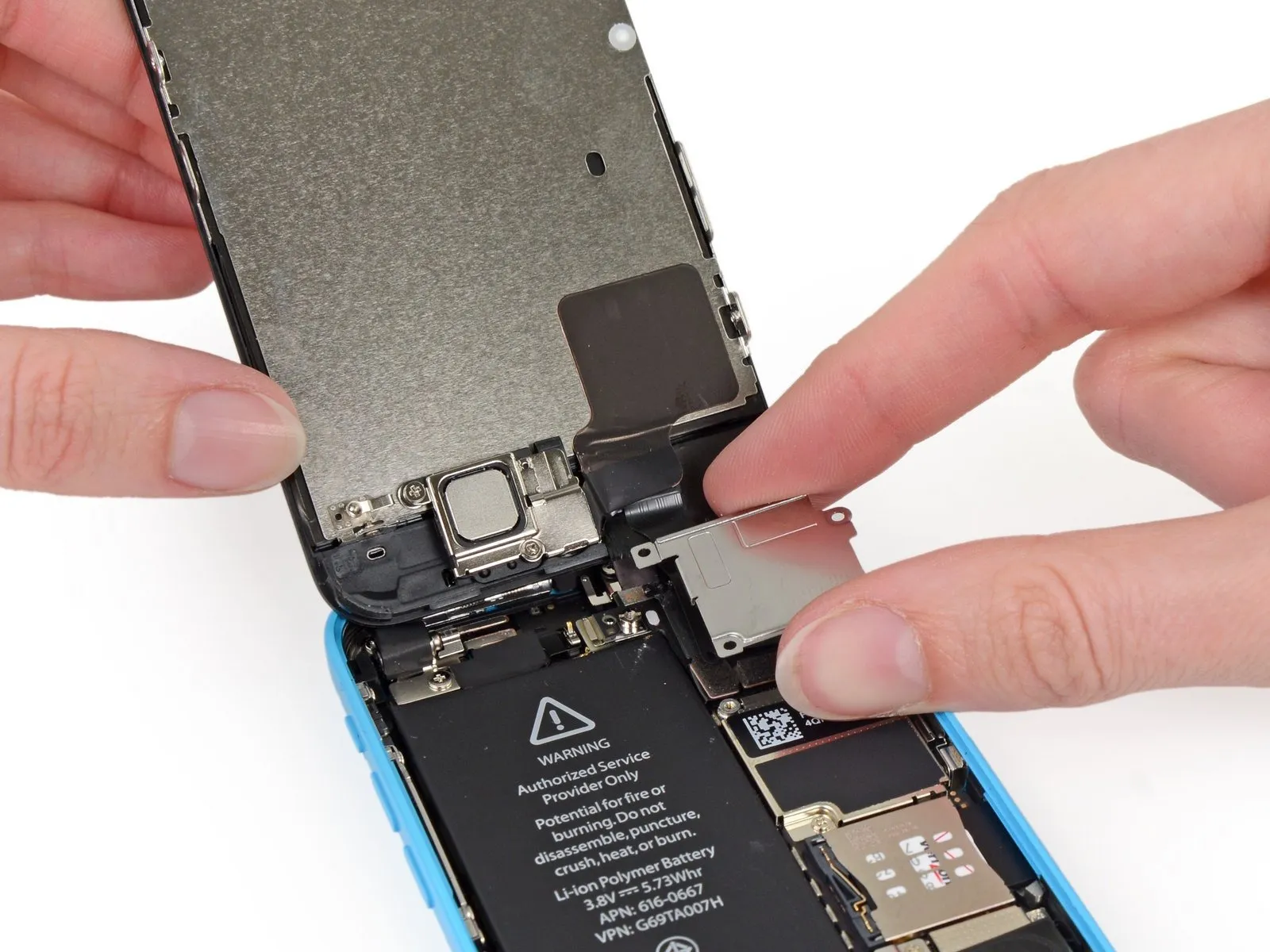

Step 13
Detach the bracket securing the front panel assembly cable to the logic board.

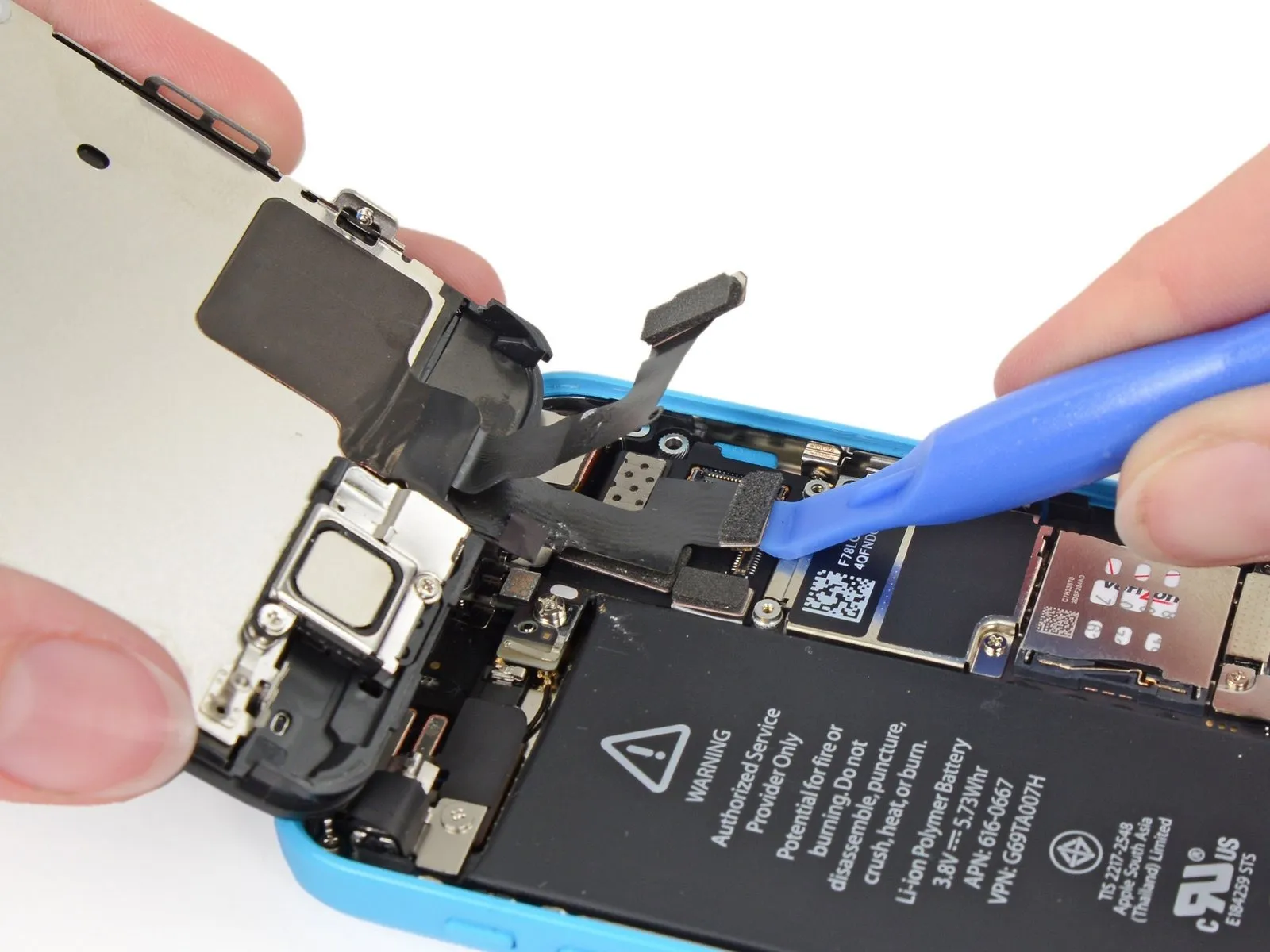

Step 14 | Disconnecting the front panel assembly cables
Carefully detach the front camera and sensor cable connector from its socket using a plastic pry tool or your fingernail.
Apply upward force solely to the connector itself, avoiding any pressure on the logic board socket.
Apply upward force solely to the connector itself, avoiding any pressure on the logic board socket.

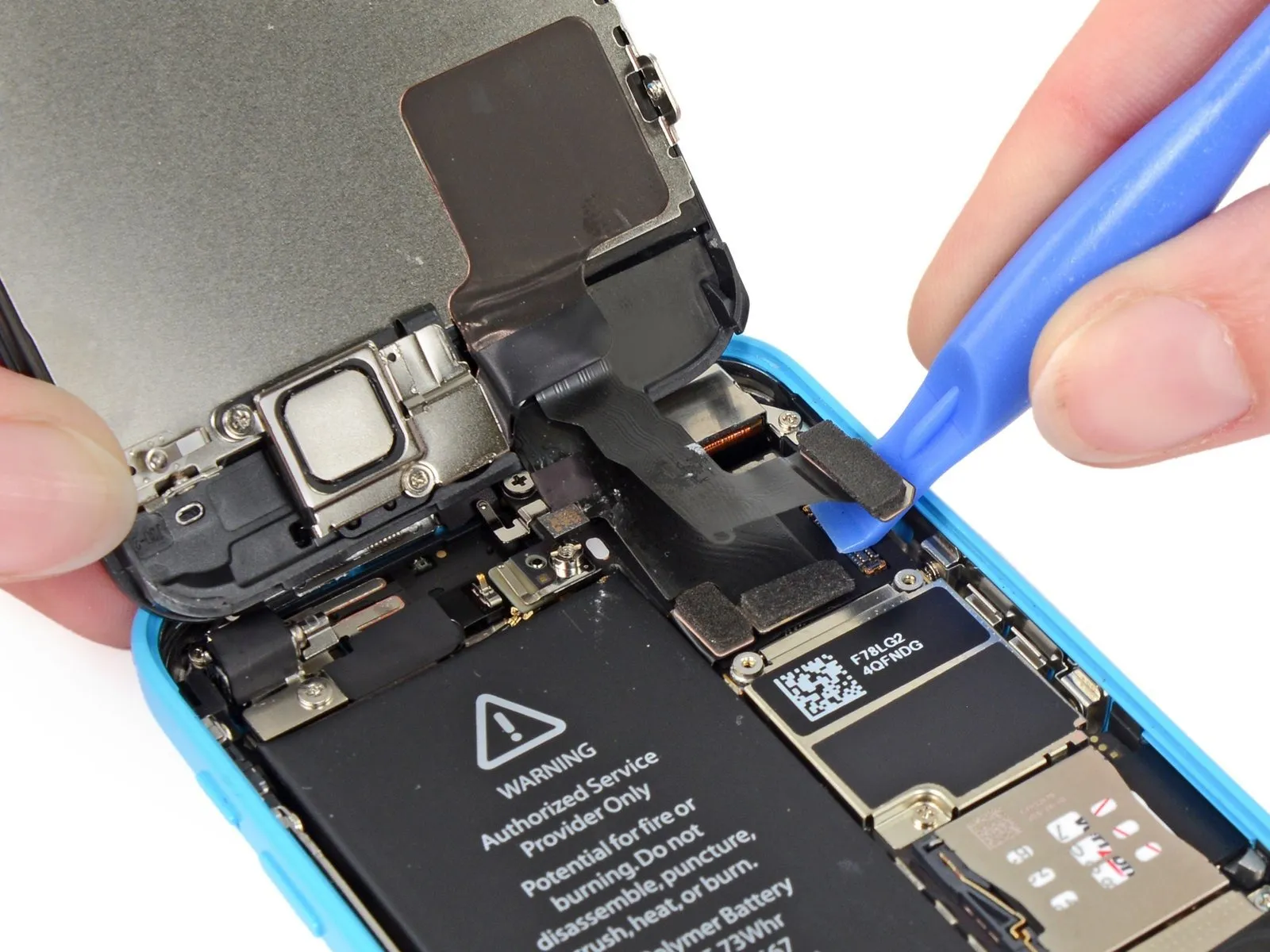

Step 15
Prior to either detaching or reattaching the cables in this procedure, ensure the battery's power is completely isolated.
Carefully separate the LCD cable connector from its socket using a plastic pry tool or your fingernail.
Because the LCD and Digitizer share a single cable assembly, lifting the LCD connector will simultaneously release both connections. Confirm complete disconnection of both cables prior to display removal.
A disconnected LCD cable from its connector during reassembly can result in a blank screen or display lines; to resolve this, ensure the cable is firmly seated and restart the device by briefly removing and reinstalling the battery.
Carefully separate the LCD cable connector from its socket using a plastic pry tool or your fingernail.
Because the LCD and Digitizer share a single cable assembly, lifting the LCD connector will simultaneously release both connections. Confirm complete disconnection of both cables prior to display removal.
A disconnected LCD cable from its connector during reassembly can result in a blank screen or display lines; to resolve this, ensure the cable is firmly seated and restart the device by briefly removing and reinstalling the battery.
Step 16 | Separating front panel assembly and rear case
Detach the front panel assembly by disengaging it from the rear case.

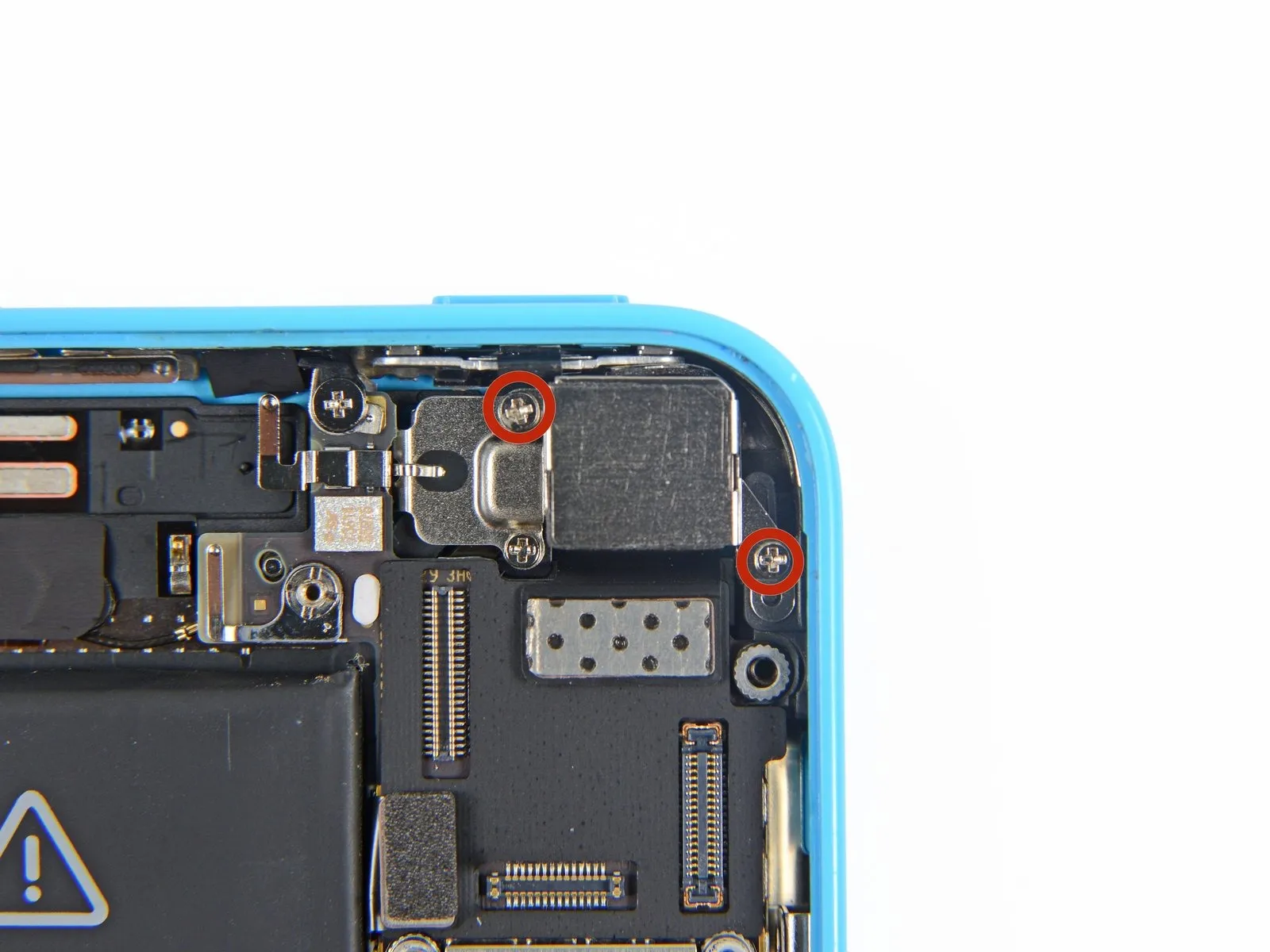

Step 17 | Rear-Facing Camera
Using a Phillips #000 screwdriver, detach the rear case from the rear-facing camera by unscrewing the two 1.5 mm screws that hold it in place.
Step 18
Detach the bracket securing the rear camera assembly.
Step 19
Carefully leverage the logic board's rear-camera connector upward with the spudger's flat blade.

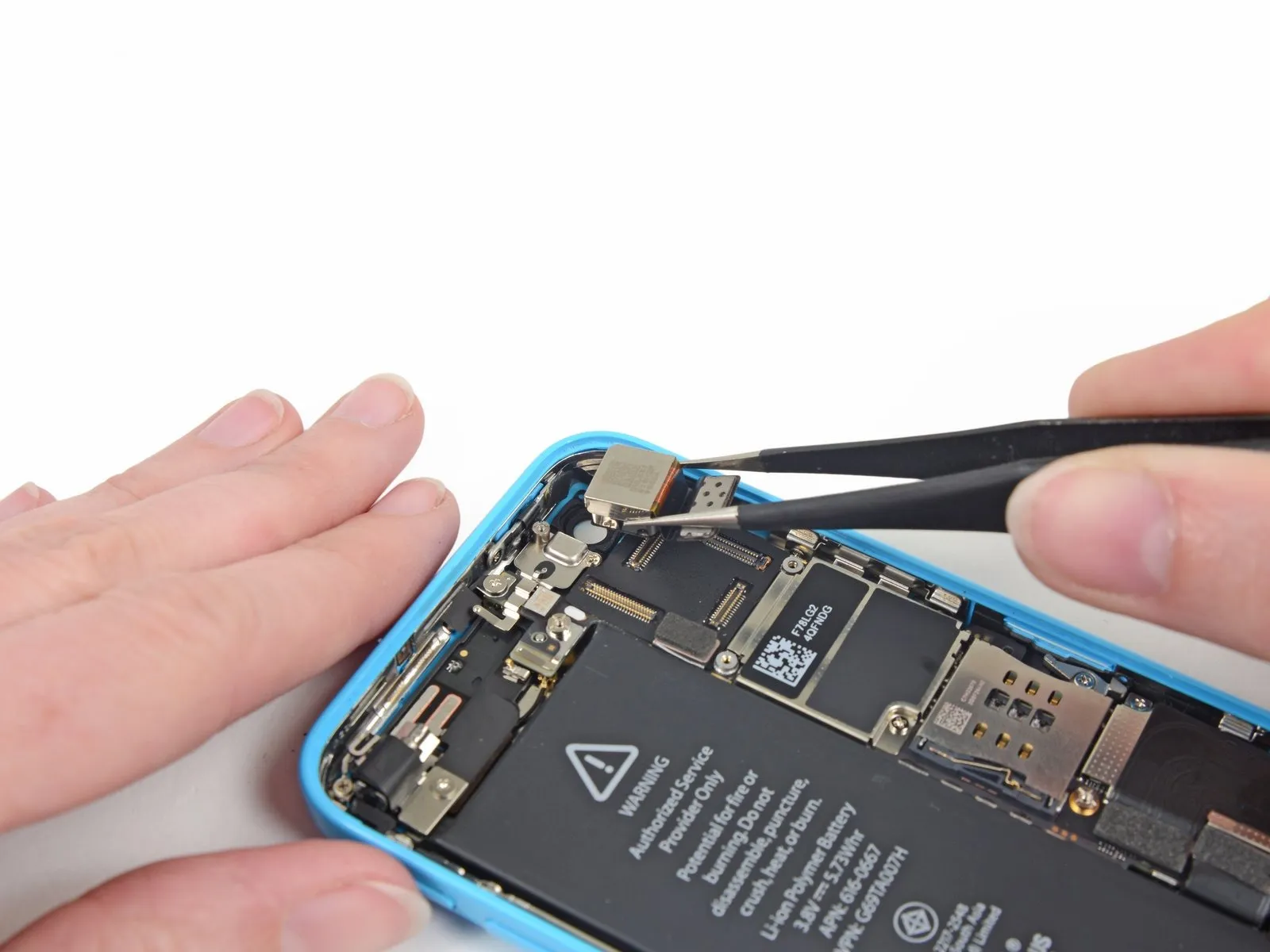

Step 20
Carefully detach the iPhone's rear camera assembly.

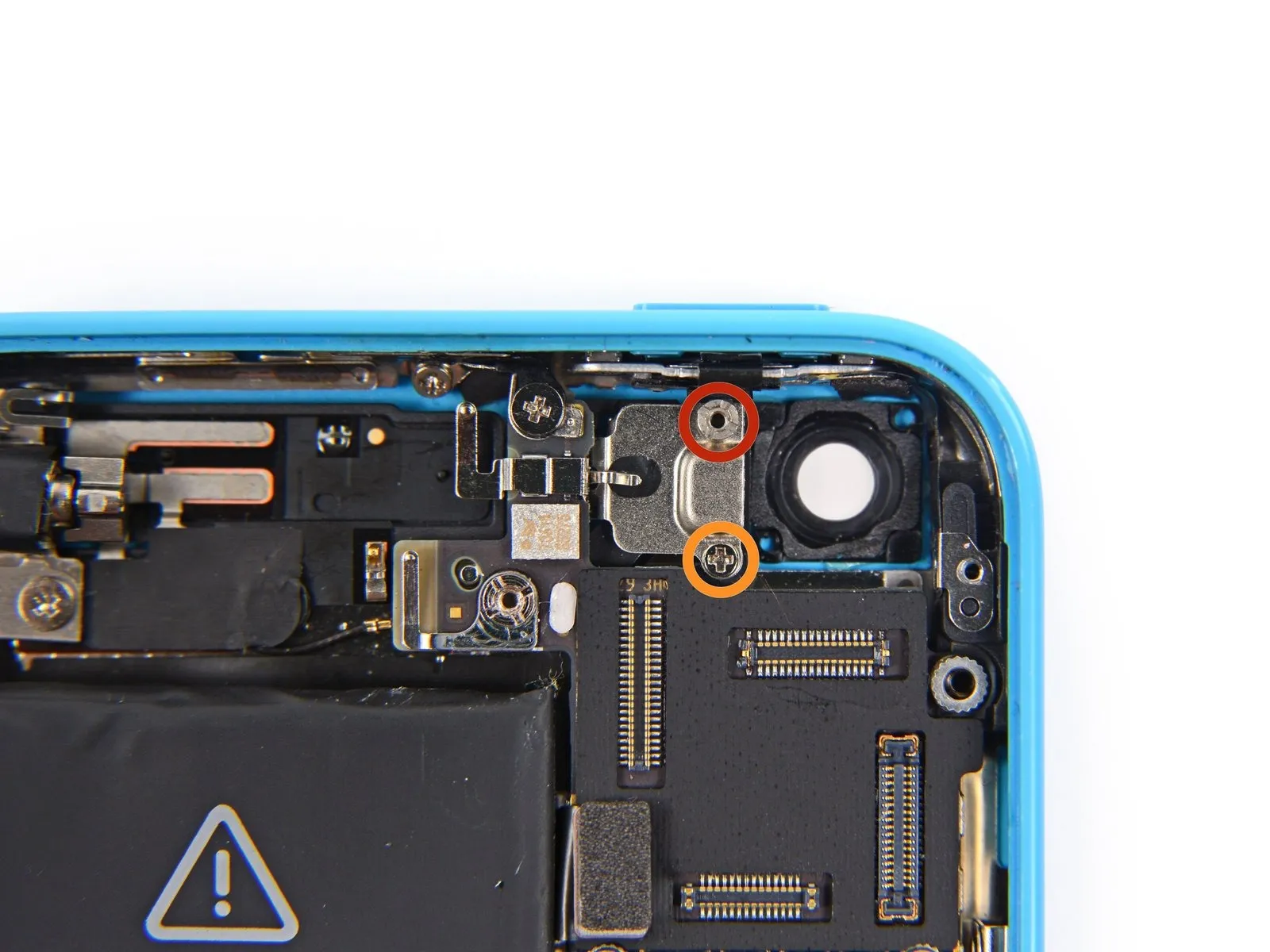

Step 21 | Power Button
- Using the appropriate screwdriver, detach the upper assembly contact bracket from the rear case by unscrewing the specified fasteners.
A 3.0-millimeter standoff screw is required.
To extract standoff screws, utilize a specialized standoff screwdriver or driver bit; alternatively, a small flathead screwdriver may be employed, but exercise heightened care to prevent slippage and potential harm to nearby parts.
Use a Phillips head screwdriver, size #000, to tighten the 1.5-millimeter screw.

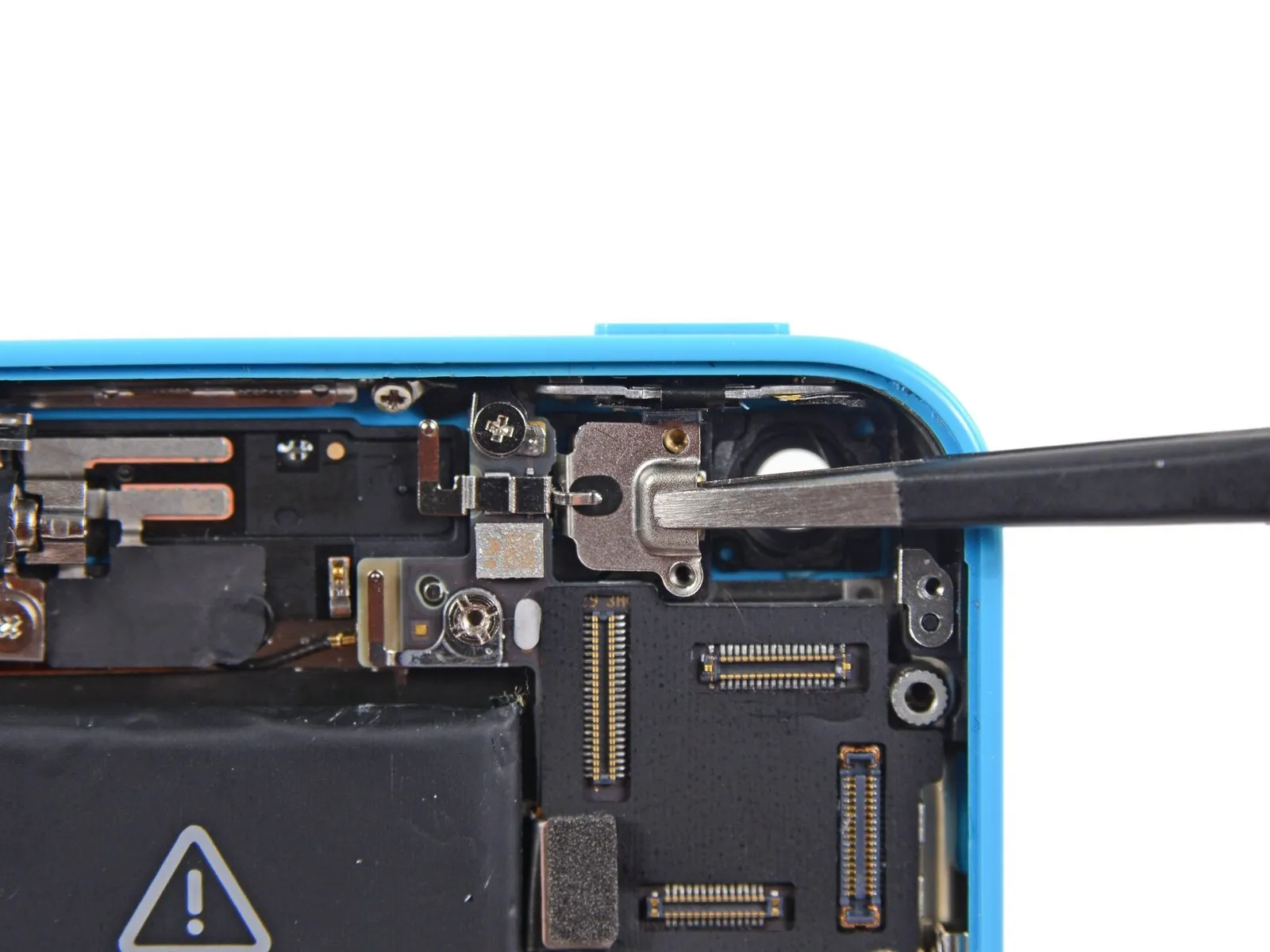

Step 22

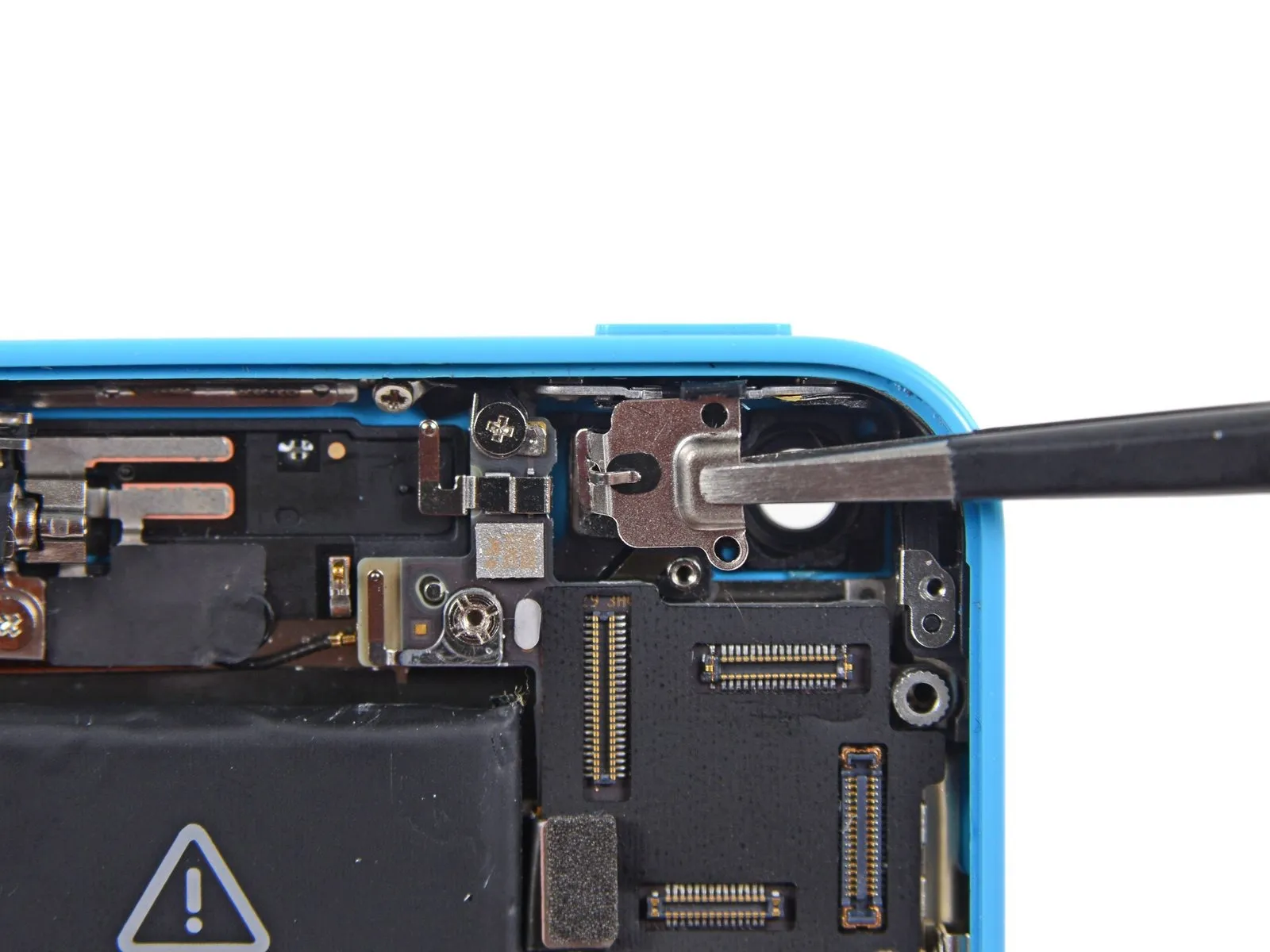

- Detach the contact bracket, which secures the upper assembly, from the rear case.
During reassembly, be mindful that the tiny rubber bumper affixed to the bracket’s upper surface could detach; ensure it is retained.

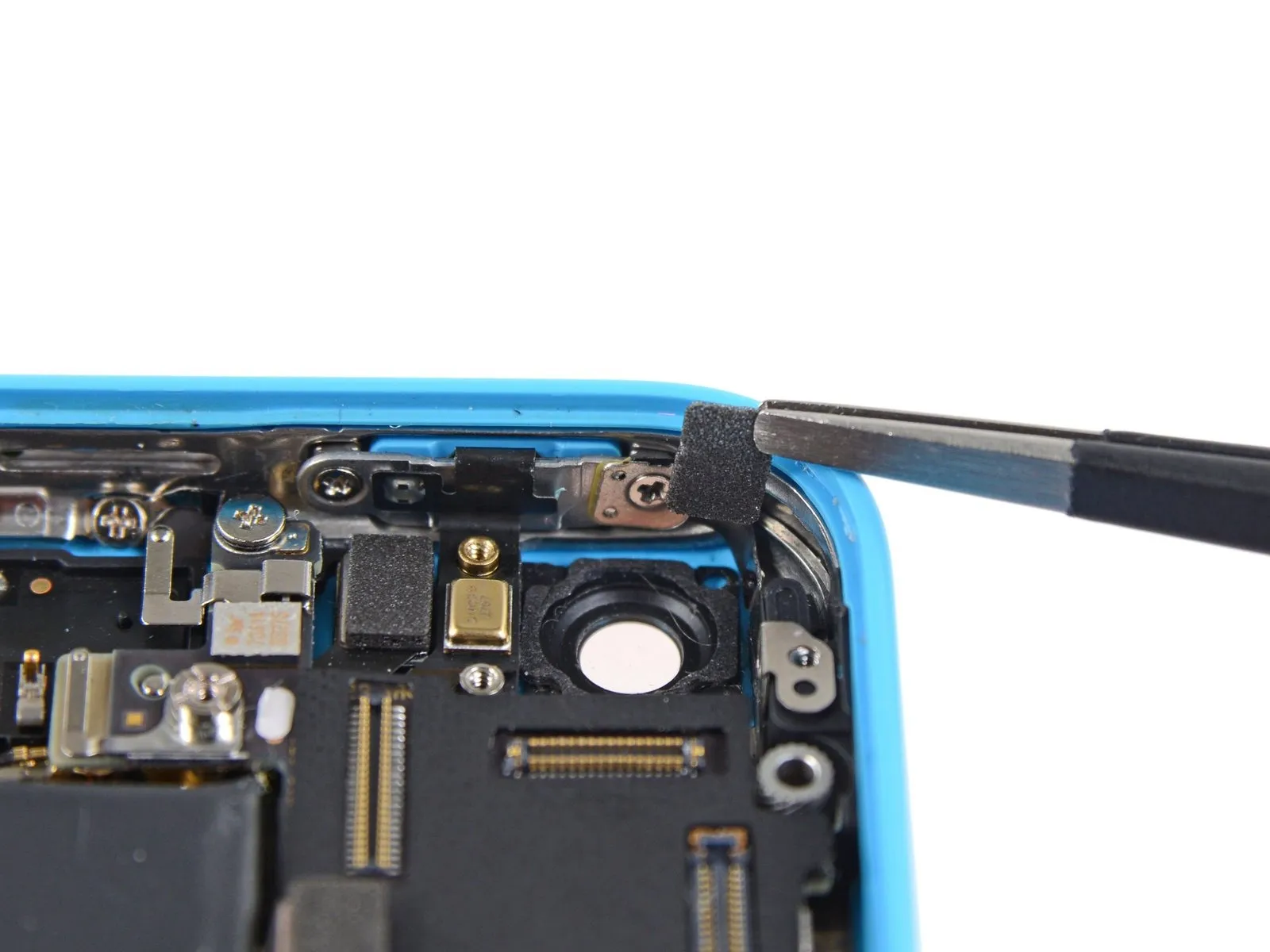

Step 23
- Carefully extract the thin foam strip located within the rear camera housing.
Step 24

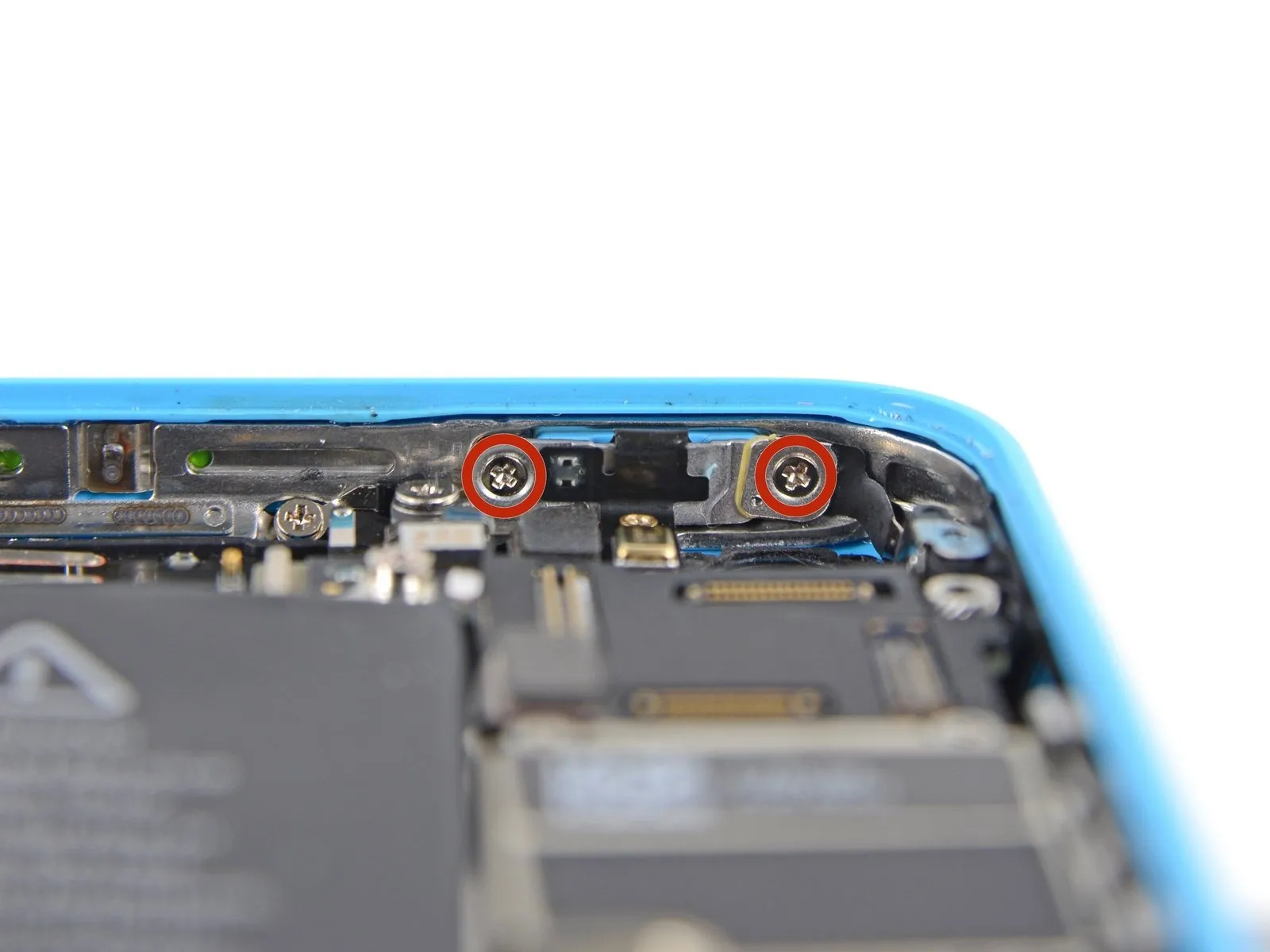

- Using a Phillips #000 screwdriver, detach the power/sleep button bracket by unscrewing the two 1.4 mm screws that hold it in place.

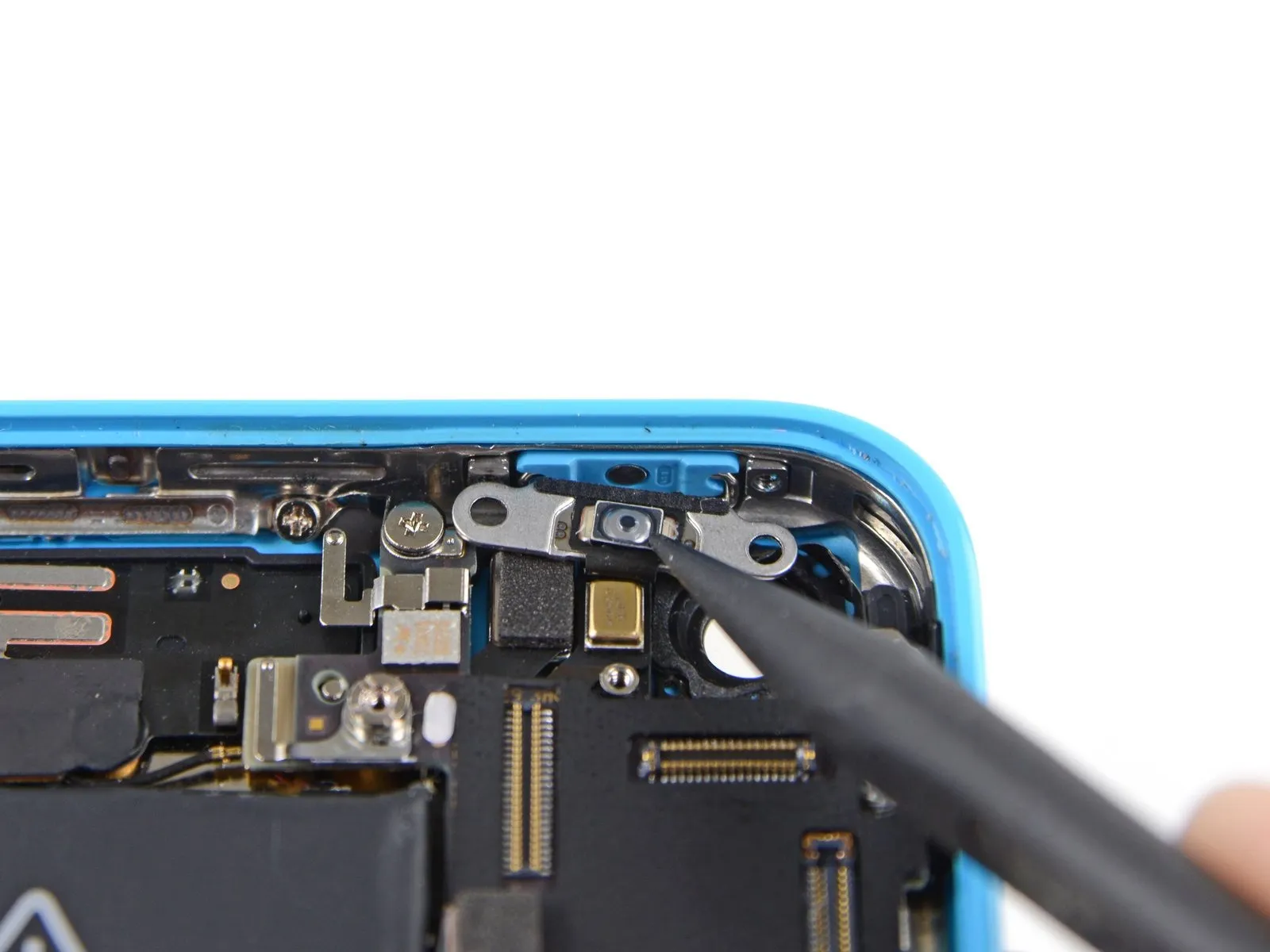

Step 25

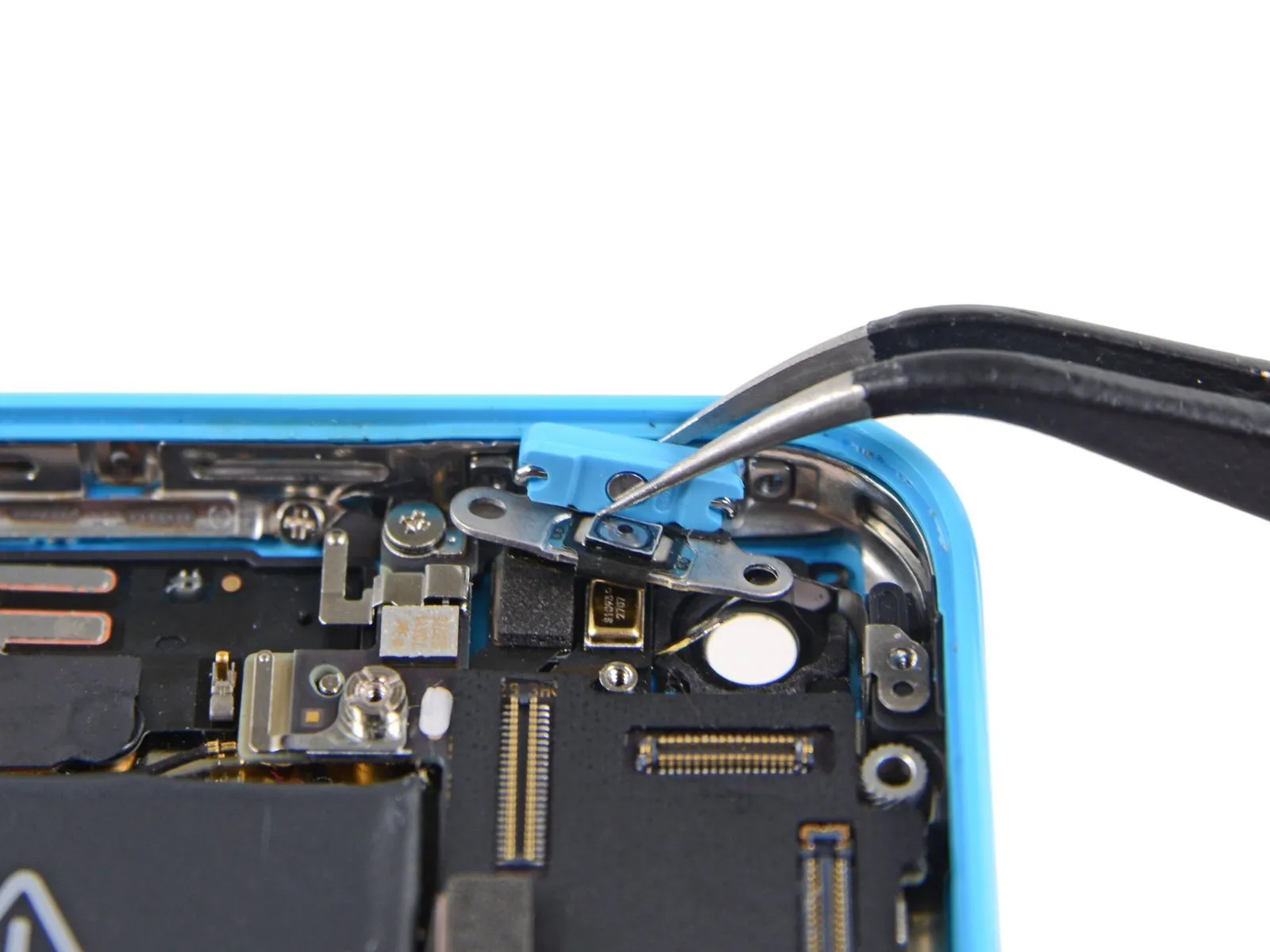

- Carefully leverage the power/sleep button bracket away from the rear case's upper edge using the tip of a spudger, applying gentle force to fold it downwards.
Employing tweezers, carefully detach the button.
Ensure the metal bar aligns perfectly with the button's lower edge during reassembly; absence of this metal hinge on your replacement home button necessitates its transfer from the existing one.

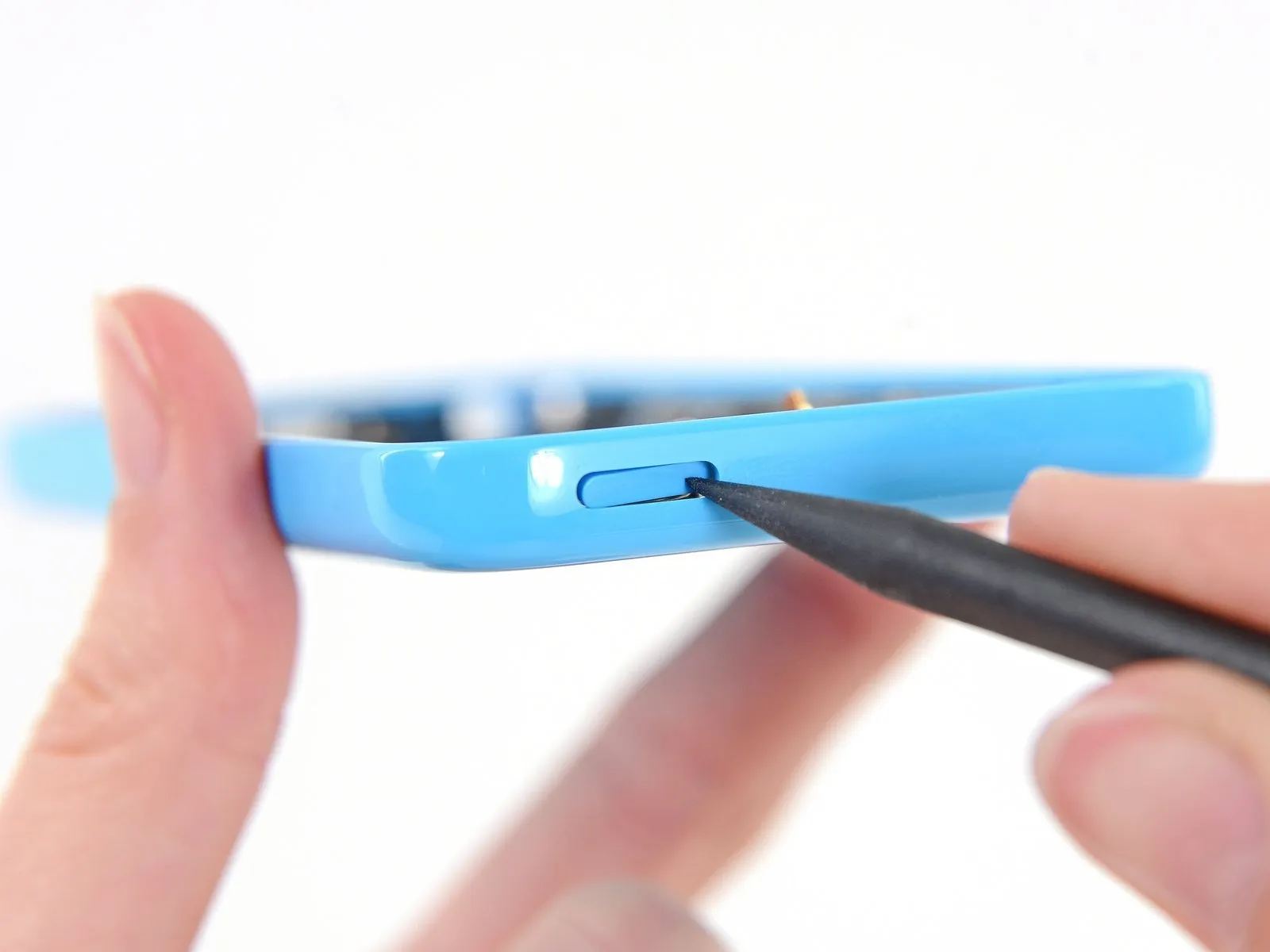

To access the power button from within the device's enclosure if it's inaccessible, gently depress it using a spudger applied to its exterior.
