iPhone 5c SIM Ejector Replacement
This document details the procedure for substituting a damaged SIM ejector tool on an iPhone 5c.
Step 1 | Taping the display glass
To mitigate the risk of additional shattering and potential injury while repairing a cracked display glass, secure it with tape.
Apply strips of transparent packing tape across the iPhone screen, ensuring complete coverage by layering them to overlap.
To prevent scattered glass fragments and maintain stability during the display separation process, ensure this measure is in place.
To safeguard your eyes from potential glass fragments released during the repair process, it is essential to utilize safety glasses.
Apply strips of transparent packing tape across the iPhone screen, ensuring complete coverage by layering them to overlap.
To prevent scattered glass fragments and maintain stability during the display separation process, ensure this measure is in place.
To safeguard your eyes from potential glass fragments released during the repair process, it is essential to utilize safety glasses.
Step 2 | Removing the Pentalobe screws
To prevent potential fire or explosion hazards during repair, ensure the iPhone's lithium-ion battery is depleted to less than 25% capacity prior to beginning work; a fully charged battery poses a risk of combustion if damaged.
To prevent electrical shock or damage, ensure the iPhone is completely de-energized prior to starting the repair process.
Using appropriate tools, detach the two screws, each measuring 3.8 mm in diameter and featuring a P2 Pentalobe head, located on both sides of the Lightning connector.
To prevent electrical shock or damage, ensure the iPhone is completely de-energized prior to starting the repair process.
Using appropriate tools, detach the two screws, each measuring 3.8 mm in diameter and featuring a P2 Pentalobe head, located on both sides of the Lightning connector.
Step 3 | Starting the iSclack Opening Procedure
For those performing multiple iPhone 5, 5s, or 5c repairs, we suggest utilizing the iSclack to ensure safe separation of the device; if you choose not to use this tool, proceed directly to Step 5.
Actuate the iSclack handle to release the clamping force and allow the suction cups to disengage.
Position the iPhone's lower edge between the suction cups, ensuring it contacts the plastic depth gauge.
Position the uppermost suction cup so it hovers slightly above the home button.
To secure the iPhone, position the iSclack’s jaws closed by opening the handles. Align the suction cups, then apply firm pressure to both the top and bottom surfaces of the iPhone.
Actuate the iSclack handle to release the clamping force and allow the suction cups to disengage.
Position the iPhone's lower edge between the suction cups, ensuring it contacts the plastic depth gauge.
Position the uppermost suction cup so it hovers slightly above the home button.
To secure the iPhone, position the iSclack’s jaws closed by opening the handles. Align the suction cups, then apply firm pressure to both the top and bottom surfaces of the iPhone.
Step 4 | Finishing the iSclack Opening Procedure
Using a firm grip on the iPhone, disengage the iSclack's handle to release the suction cups, then lift the front panel away from the rear enclosure.
Using the iSclack allows for controlled separation of the iPhone's components, preventing cable damage by limiting the opening to a safe degree.
Detach the iPhone from its mounting surface by removing both adhesive suction cups.
Proceed directly to Step 8, bypassing the subsequent three steps.
Using the iSclack allows for controlled separation of the iPhone's components, preventing cable damage by limiting the opening to a safe degree.
Detach the iPhone from its mounting surface by removing both adhesive suction cups.
Proceed directly to Step 8, bypassing the subsequent three steps.
Step 5 | Manual Opening Procedure
Position a suction cup directly on the display surface, situated slightly higher than the home button's location.
Ensure the screen's entire surface makes contact with the cup for a secure seal.
Ensure the screen's entire surface makes contact with the cup for a secure seal.
Step 6 | Start lifting the front panel assembly
Securely affix the suction cup to the front panel assembly.
Using one hand to secure the iPhone, lift the suction cup vertically to gently create a small gap between the front panel and the rear enclosure.
Exercise caution and use steady, even pressure when installing the display assembly, as its fit is considerably more snug than typical device components.
Using a plastic opening tool, carefully separate the rear case from the display assembly by gently levering it upwards, simultaneously lifting with a suction cup.
To release the front panel assembly from the rear case, carefully disengage the multiple retaining clips, which may require using both the suction cup and a plastic opening tool.
Using one hand to secure the iPhone, lift the suction cup vertically to gently create a small gap between the front panel and the rear enclosure.
Exercise caution and use steady, even pressure when installing the display assembly, as its fit is considerably more snug than typical device components.
Using a plastic opening tool, carefully separate the rear case from the display assembly by gently levering it upwards, simultaneously lifting with a suction cup.
To release the front panel assembly from the rear case, carefully disengage the multiple retaining clips, which may require using both the suction cup and a plastic opening tool.
Step 7
To detach the suction cup, depress the plastic projection to break the airtight connection.
Detach the display assembly's suction cup.
Detach the display assembly's suction cup.
Step 8 | Opening up the phone
To expose the connectors located near the top edge of the device, gently raise the front panel, beginning at the home button end.
Carefully position the display at a roughly 90-degree angle, then secure it in an upright position using a support to prevent movement during the repair process.
As a temporary measure, an unused, sealed can of soda can substitute for securing the display.
To avoid stressing the display's wiring during the repair process, secure it with a rubber band.
Carefully position the display at a roughly 90-degree angle, then secure it in an upright position using a support to prevent movement during the repair process.
As a temporary measure, an unused, sealed can of soda can substitute for securing the display.
To avoid stressing the display's wiring during the repair process, secure it with a rubber band.
Step 9
Using a Phillips #000 screwdriver, detach the metal bracket that holds the battery connector by unscrewing the two 1.6 mm screws holding it in place on the logic board.
Step 10
Using a precision screwdriver, detach the metal fixture securing the battery connector.
Step 11 | Disconnecting the battery connector
Carefully lift the battery connector away from its corresponding socket on the logic board using a spudger or a similarly non-marring tool.
Exercise extreme caution when releasing the battery connector, ensuring force is applied solely to the connector and not the logic board socket; applying pressure to the socket or the board risks socket destruction or damage to adjacent components.
Exercise extreme caution when releasing the battery connector, ensuring force is applied solely to the connector and not the logic board socket; applying pressure to the socket or the board risks socket destruction or damage to adjacent components.
Step 12
Using a Phillips #000 screwdriver, detach the cable bracket from the logic board by unscrewing all the screws that hold it in place.
Use two screws, each measuring 1.3 millimeters.
A screw with a 1.7 mm diameter is required.
A screw with a 3.25 mm diameter is required.
Carefully manage all screws during this stage to ensure correct reassembly; improper screw selection, such as using a 3.25 mm screw or a 1.7 mm screw in the bottom right hole, will severely damage the logic board and prevent the device from powering on.
Avoid applying excessive force when tightening screws; if resistance is encountered during installation, verify they are the correct size and do not attempt to force them.
Use two screws, each measuring 1.3 millimeters.
A screw with a 1.7 mm diameter is required.
A screw with a 3.25 mm diameter is required.
Carefully manage all screws during this stage to ensure correct reassembly; improper screw selection, such as using a 3.25 mm screw or a 1.7 mm screw in the bottom right hole, will severely damage the logic board and prevent the device from powering on.
Avoid applying excessive force when tightening screws; if resistance is encountered during installation, verify they are the correct size and do not attempt to force them.
Step 13
Detach the bracket securing the front panel assembly cable to the logic board.
Step 14 | Disconnecting the front panel assembly cables
Carefully detach the front camera and sensor cable connector from its socket using a plastic pry tool or fingernail.
Avoid applying force to the logic board socket while releasing the connector.
Avoid applying force to the logic board socket while releasing the connector.
Step 15
Prior to either detaching or reattaching the cables in this procedure, ensure the battery is disconnected.
Carefully detach the LCD cable connector from its socket using a plastic pry tool or your fingernail.
Because the LCD and digitizer share a single cable connection, lifting the LCD connector will simultaneously release both connections. Ensure both cables are completely detached prior to display removal.
If the display shows a blank screen or white lines after reassembly, the LCD cable might have become disconnected from its connector; to resolve this, firmly reseat the cable and restart the device by briefly removing and reinstalling the battery.
Carefully detach the LCD cable connector from its socket using a plastic pry tool or your fingernail.
Because the LCD and digitizer share a single cable connection, lifting the LCD connector will simultaneously release both connections. Ensure both cables are completely detached prior to display removal.
If the display shows a blank screen or white lines after reassembly, the LCD cable might have become disconnected from its connector; to resolve this, firmly reseat the cable and restart the device by briefly removing and reinstalling the battery.
Step 16 | Separating front panel assembly and rear case
Detach the front panel assembly by disengaging it from the rear case.
Step 17 | SIM Card
Power off the device entirely to prevent any potential issues before accessing and extracting the SIM card and its associated tray.

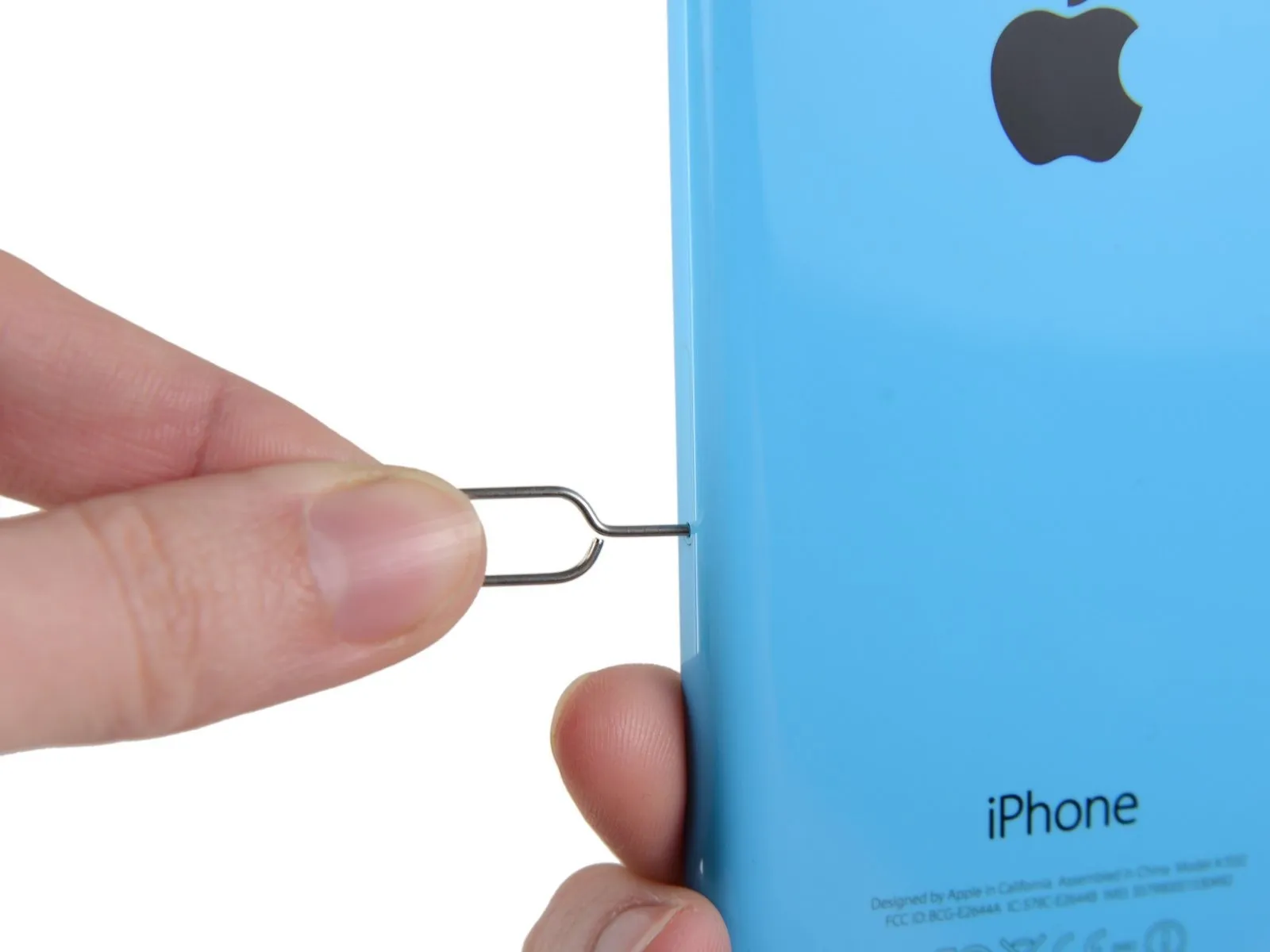

Use a SIM card eject tool, or carefully straighten a paperclip to insert it into the SIM card tray's tiny aperture to release the tray.

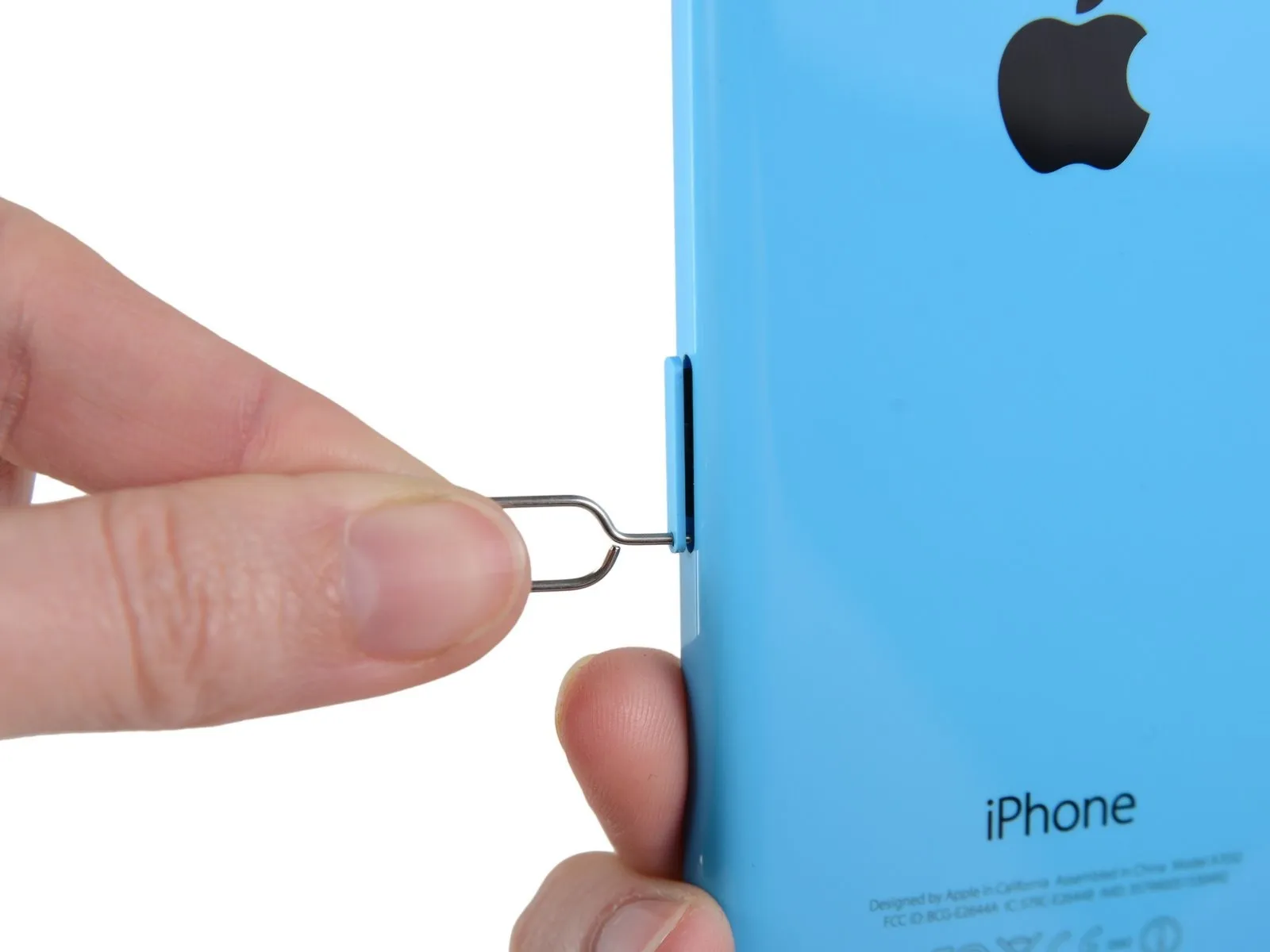

Using the SIM card eject tool, depress it fully to release the SIM tray.
Applying considerable pressure might be necessary.
Use a SIM card eject tool, or carefully straighten a paperclip to insert it into the SIM card tray's tiny aperture to release the tray.
Using the SIM card eject tool, depress it fully to release the SIM tray.
Applying considerable pressure might be necessary.
Step 18
Using the SIM ejection tool or a similar small, sturdy item, carefully depress the SIM tray release button located on the side of the iPhone to release and extract the SIM Card tray assembly.
When putting everything back together, verify the SIM card is positioned correctly within the SIM tray.
When putting everything back together, verify the SIM card is positioned correctly within the SIM tray.
Step 19 | SIM Ejector
Using a Phillips #000 screwdriver, detach the SIM ejector by unscrewing the single 2.0 mm screw that holds it in place.
Step 20

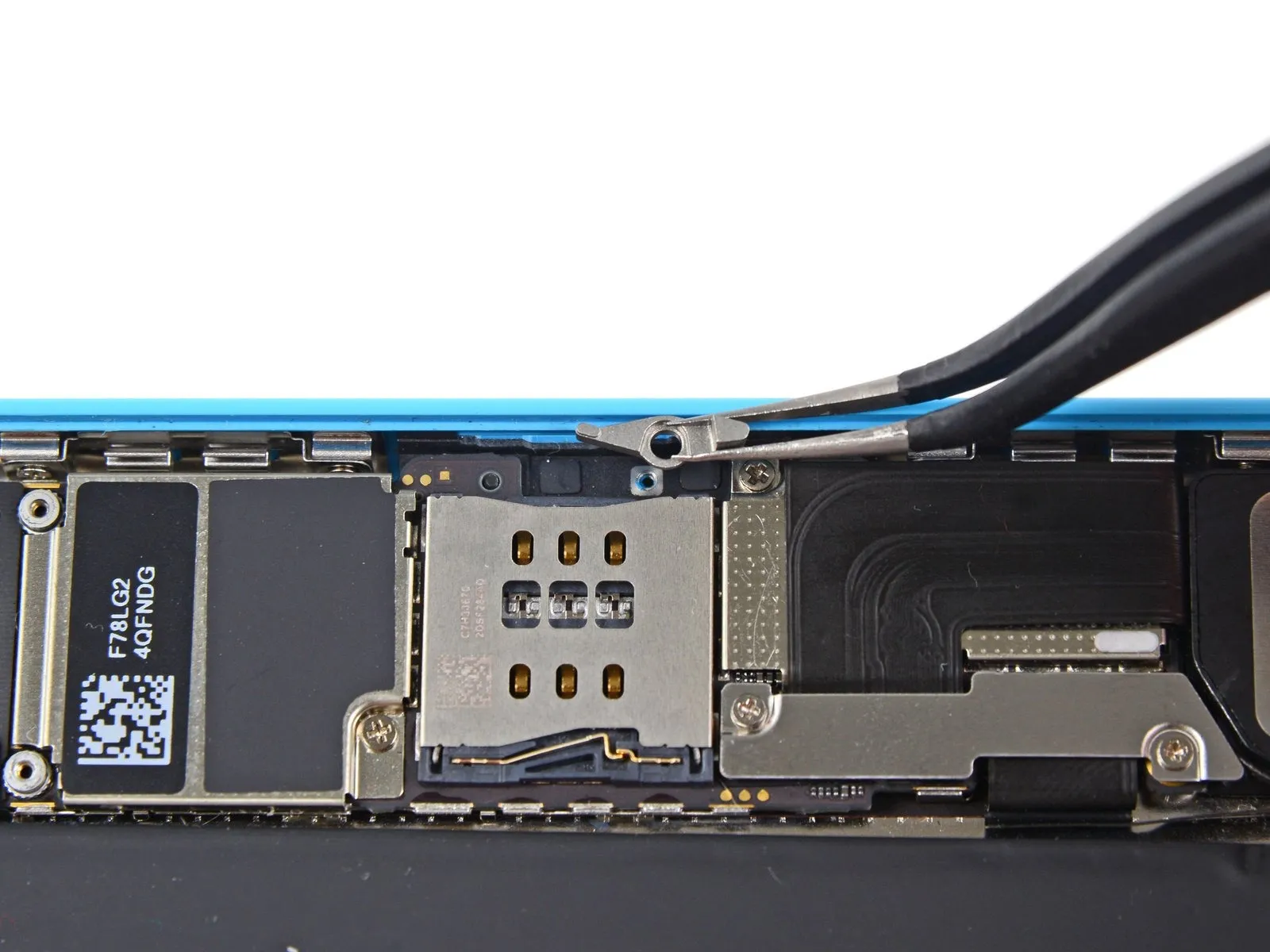

Employ tweezers to extract the SIM ejector tool from the device.
When reassembling, ensure the ejector’s raised feature aligns nearest the phone’s base.
When reassembling, ensure the ejector’s raised feature aligns nearest the phone’s base.
