iPhone 5c Speaker Replacement
To reinstate the iPhone 5c's speakerphone functionality, substitute the damaged speaker unit.
Step 1 | Taping the display glass
To avoid injury and contain shattered fragments while you work, secure the cracked display glass with tape.
Completely cover the iPhone's screen with overlapping strips of clear packing tape to protect the display.
To prevent glass fragments from scattering and maintain stability during the display separation process, this step is crucial.
To safeguard your eyes from potential glass fragments released during the repair process, always use safety glasses.
Completely cover the iPhone's screen with overlapping strips of clear packing tape to protect the display.
To prevent glass fragments from scattering and maintain stability during the display separation process, this step is crucial.
To safeguard your eyes from potential glass fragments released during the repair process, always use safety glasses.
Step 2 | Removing the Pentalobe screws
To prevent a potential fire or explosion hazard during repair, ensure the iPhone's lithium-ion battery is depleted to less than 25% capacity beforehand; a fully charged battery poses a significant risk of combustion if damaged.
To prevent electrical shock or damage, ensure the iPhone is completely de-energized prior to starting the repair process.
Using a Pentalobe screwdriver compatible with 3.8 mm screws, detach the two screws located on both sides of the Lightning connector.
To prevent electrical shock or damage, ensure the iPhone is completely de-energized prior to starting the repair process.
Using a Pentalobe screwdriver compatible with 3.8 mm screws, detach the two screws located on both sides of the Lightning connector.
Step 3 | Starting the iSclack Opening Procedure
For those performing multiple iPhone 5, 5s, or 5c repairs, we suggest utilizing the iSclack to safely separate the device; the following actions illustrate its use, but if you prefer an alternative method, proceed directly to Step 5.
Actuate the iSclack handle to release the clamping force of the suction-cup jaws.
Position the iPhone's lower edge between the vacuum cups, ensuring it contacts the plastic depth gauge.
Position the uppermost suction cup so it hovers slightly above the home button.
To secure the iPhone, position the suction cups centrally and apply consistent, strong pressure to both the upper and lower surfaces after releasing the iSclack's handles, which will open its clamping mechanism.
Actuate the iSclack handle to release the clamping force of the suction-cup jaws.
Position the iPhone's lower edge between the vacuum cups, ensuring it contacts the plastic depth gauge.
Position the uppermost suction cup so it hovers slightly above the home button.
To secure the iPhone, position the suction cups centrally and apply consistent, strong pressure to both the upper and lower surfaces after releasing the iSclack's handles, which will open its clamping mechanism.
Step 4 | Finishing the iSclack Opening Procedure
Using a firm grip on the iPhone, disengage the iSclack’s handle to release the suction cups, then lift the front panel away from the rear case.
This specialized tool allows for controlled separation of the iPhone's components, preventing cable damage by only opening the device to the necessary degree.
Detach the iPhone from its mounting surface by removing both suction cups.
Proceed directly to Step 8, bypassing Steps 4, 5, and 6.
This specialized tool allows for controlled separation of the iPhone's components, preventing cable damage by only opening the device to the necessary degree.
Detach the iPhone from its mounting surface by removing both suction cups.
Proceed directly to Step 8, bypassing Steps 4, 5, and 6.
Step 5 | Manual Opening Procedure
Position a suction cup directly on the display surface, situated slightly higher than the home button's location.
Ensure the screen's entire surface is covered by the cup to achieve a secure seal.
Ensure the screen's entire surface is covered by the cup to achieve a secure seal.
Step 6 | Start lifting the front panel assembly
Verify secure adhesion of the suction cup to the front panel assembly.
Using one hand to secure the iPhone, lift the suction cup vertically to gently create a small gap between the front panel and the device's rear case.
Exercise caution and use steady, even pressure when installing the display assembly, as it requires a significantly tighter fit than typical device components.
Using a plastic opening tool, carefully separate the rear case from the display assembly by gently levering it upwards, simultaneously lifting with a suction cup.
To detach the front panel assembly from the rear case, carefully disengage the multiple retaining clips, potentially requiring the coordinated use of both a suction cup and a plastic opening tool.
Using one hand to secure the iPhone, lift the suction cup vertically to gently create a small gap between the front panel and the device's rear case.
Exercise caution and use steady, even pressure when installing the display assembly, as it requires a significantly tighter fit than typical device components.
Using a plastic opening tool, carefully separate the rear case from the display assembly by gently levering it upwards, simultaneously lifting with a suction cup.
To detach the front panel assembly from the rear case, carefully disengage the multiple retaining clips, potentially requiring the coordinated use of both a suction cup and a plastic opening tool.
Step 7
To detach the suction cup, depress the small plastic projection that maintains the airtight seal.
Detach the display assembly's suction cup.
Detach the display assembly's suction cup.
Step 8 | Opening up the phone
To expose the connectors located near the top edge of the device, gently raise the front panel, starting from the home button end.
Carefully position the display at a 90-degree angle, then secure it in an upright position using a support to allow for hands-free access during the repair process.
As a temporary substitute, an unused, sealed can of soda can be employed to support the screen.
To avoid stressing the display's wiring during the repair process, secure it with a rubber band.
Carefully position the display at a 90-degree angle, then secure it in an upright position using a support to allow for hands-free access during the repair process.
As a temporary substitute, an unused, sealed can of soda can be employed to support the screen.
To avoid stressing the display's wiring during the repair process, secure it with a rubber band.
Step 9
Using a Phillips #000 screwdriver, detach the metal battery connector bracket from the logic board by unscrewing the two 1.6 mm screws that hold it in place.
Step 10
Using a compatible tool, detach the bracket securing the metal battery connector.
Step 11 | Disconnecting the battery connector
Carefully lift the battery connector away from its corresponding socket on the logic board, employing a spudger or a clean fingernail to avoid damage.
Exercise extreme caution during disconnection, applying force solely to the battery connector; any leverage applied to the logic board socket or the board itself risks socket destruction or damage to adjacent components.
Exercise extreme caution during disconnection, applying force solely to the battery connector; any leverage applied to the logic board socket or the board itself risks socket destruction or damage to adjacent components.
Step 12
Using a Phillips #000 screwdriver, detach the bracket that holds the front panel assembly cable by unscrewing the screws that fasten it to the logic board.
Use two screws, each measuring 1.3 millimeters.
A screw with a 1.7 mm diameter is required.
A screw with a 3.25 mm diameter is required.
Carefully manage all screws during this stage to ensure correct reassembly; improper screw selection, such as using a 3.25 mm screw or a 1.7 mm screw in the bottom right hole, will severely damage the logic board and prevent the device from powering on.
Avoid applying excessive force when tightening screws; if resistance is encountered during installation, verify that the correct screw size is being used and do not force the connection.
Use two screws, each measuring 1.3 millimeters.
A screw with a 1.7 mm diameter is required.
A screw with a 3.25 mm diameter is required.
Carefully manage all screws during this stage to ensure correct reassembly; improper screw selection, such as using a 3.25 mm screw or a 1.7 mm screw in the bottom right hole, will severely damage the logic board and prevent the device from powering on.
Avoid applying excessive force when tightening screws; if resistance is encountered during installation, verify that the correct screw size is being used and do not force the connection.
Step 13
Detach the bracket securing the front panel assembly cable to the logic board.
Step 14 | Disconnecting the front panel assembly cables
Carefully detach the front camera and sensor cable connector from its socket using a plastic pry tool or fingernail.
Avoid applying lifting force to the logic board socket; direct your prying action solely to the connector.
Avoid applying lifting force to the logic board socket; direct your prying action solely to the connector.
Step 15
Prior to either detaching or reattaching the cables in this procedure, ensure the battery is completely disconnected.
Carefully detach the LCD cable connector by gently separating it from its housing using a plastic pry tool or your fingernail.
Because the LCD and digitizer share a single cable connection, lifting the LCD connector will also release the digitizer connector; ensure both cable assemblies are completely detached prior to display removal.
A disconnected LCD cable from its connector during reassembly can result in a blank screen or white lines appearing on the display; to resolve this, firmly reseat the cable and restart the device by briefly removing and reinstalling the battery.
Carefully detach the LCD cable connector by gently separating it from its housing using a plastic pry tool or your fingernail.
Because the LCD and digitizer share a single cable connection, lifting the LCD connector will also release the digitizer connector; ensure both cable assemblies are completely detached prior to display removal.
A disconnected LCD cable from its connector during reassembly can result in a blank screen or white lines appearing on the display; to resolve this, firmly reseat the cable and restart the device by briefly removing and reinstalling the battery.
Step 16 | Separating front panel assembly and rear case
Detach the front panel assembly by disengaging it from the rear case.
Step 17 | Speaker

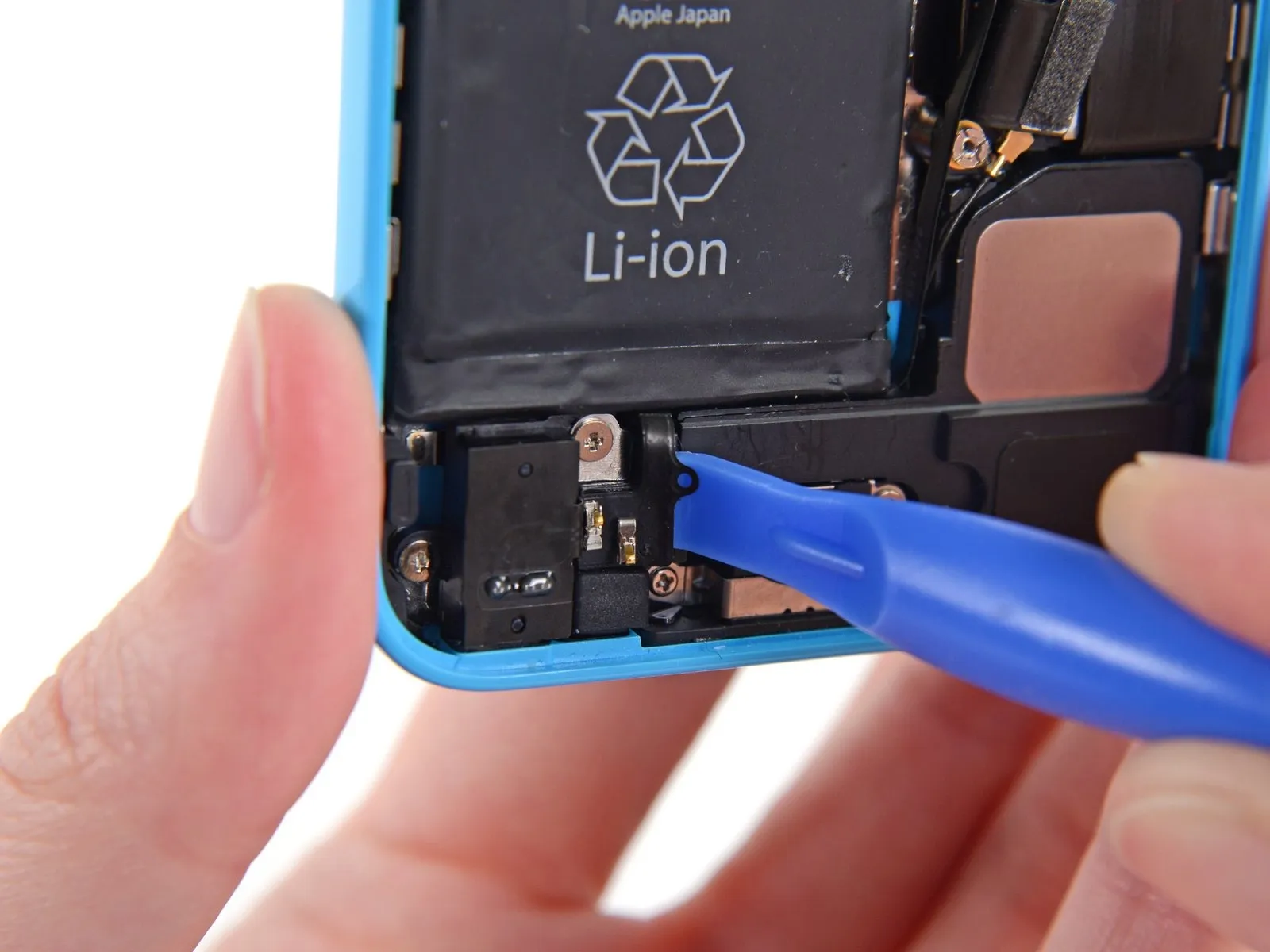

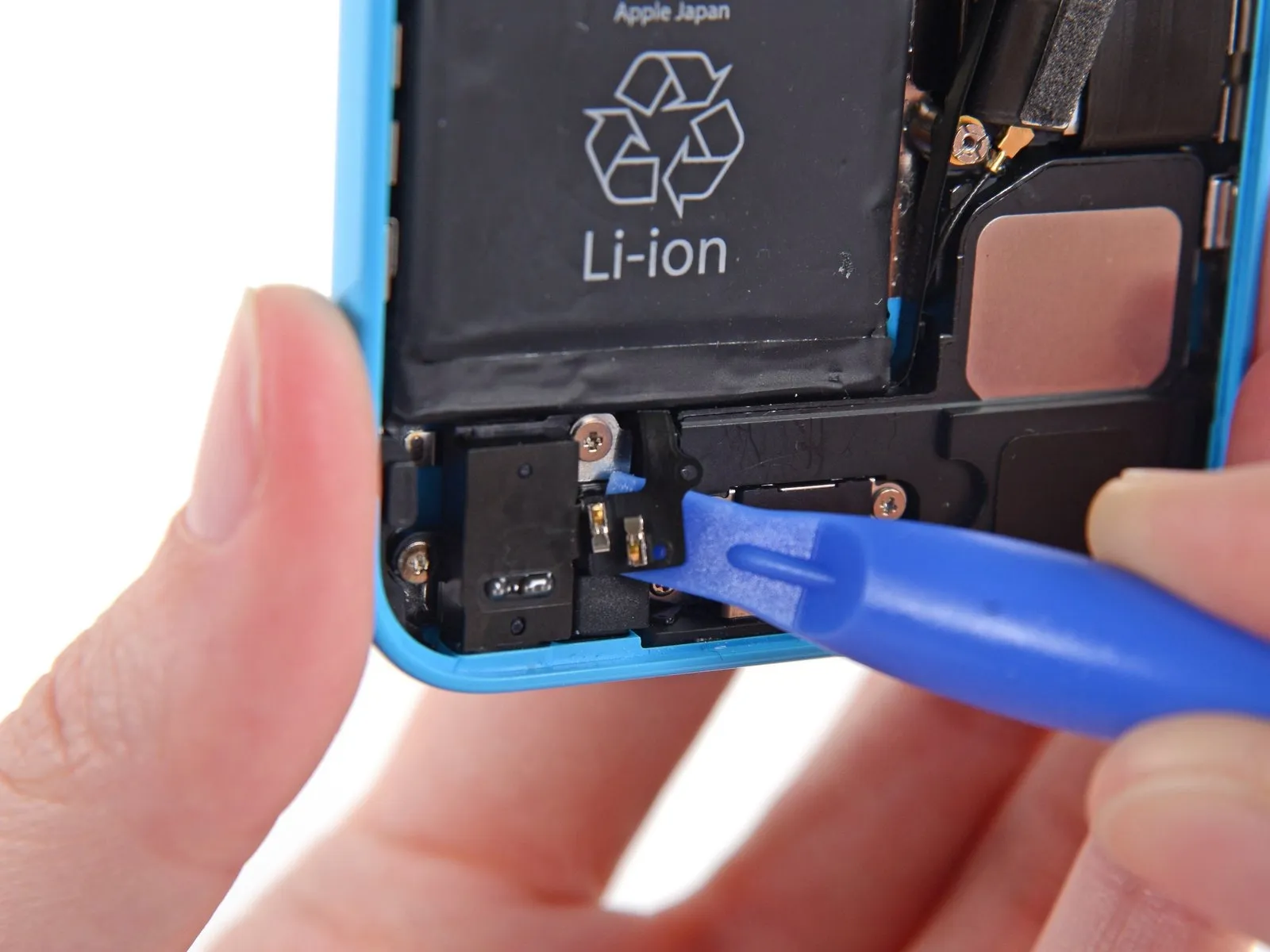

Carefully lift the home button spring contact cable away from the speaker enclosure using a plastic opening tool.
Step 18
Using the appropriate screwdriver, detach the speaker enclosure from the rear case by unscrewing the specified fasteners.
Utilize two Phillips head screws, size #000 and measuring 2.7 mm.
A Phillips head screw, size #000 and measuring 2.2 millimeters.
Utilize two Phillips head screws, size #000 and measuring 2.7 mm.
A Phillips head screw, size #000 and measuring 2.2 millimeters.
Step 19

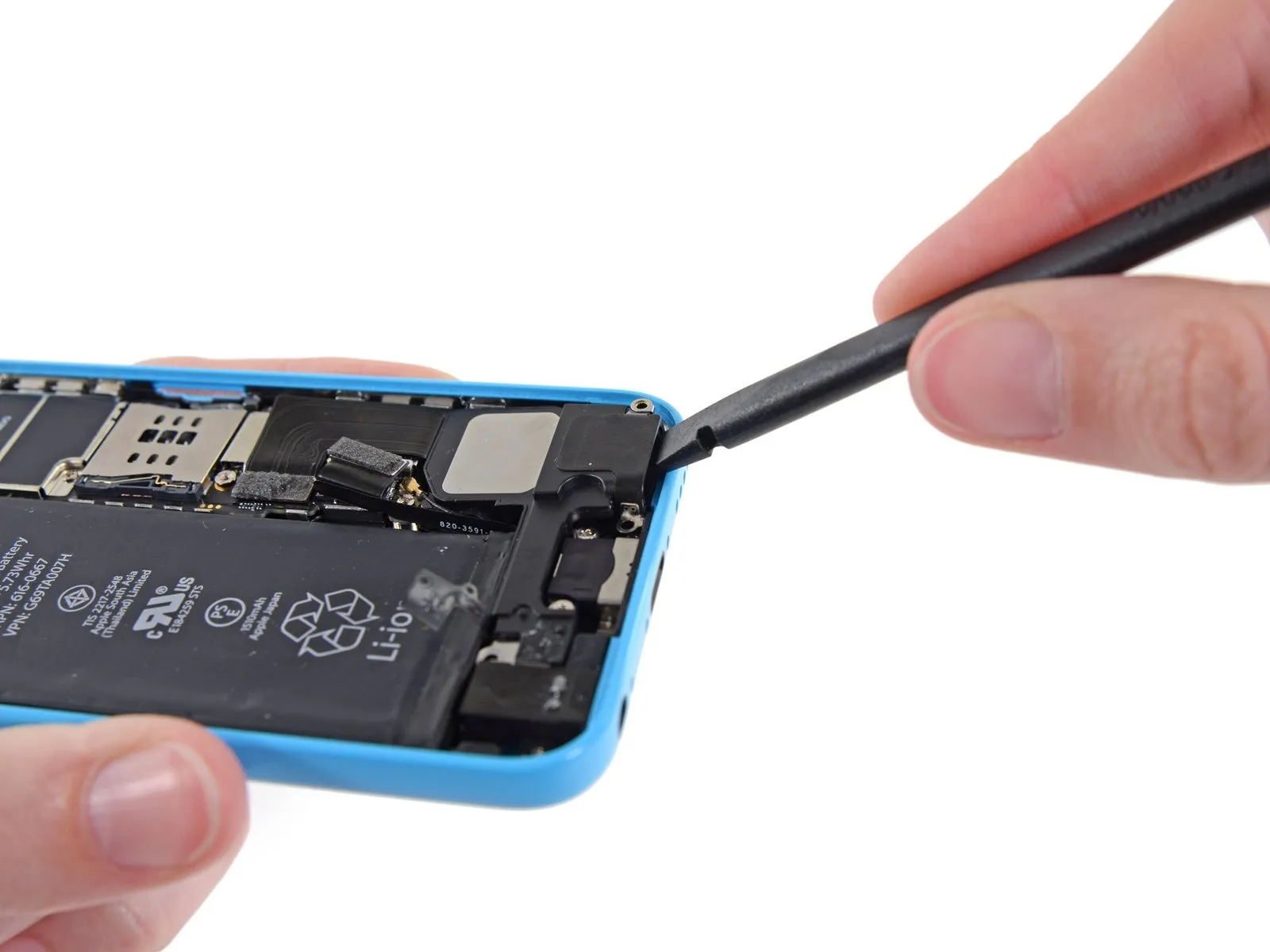

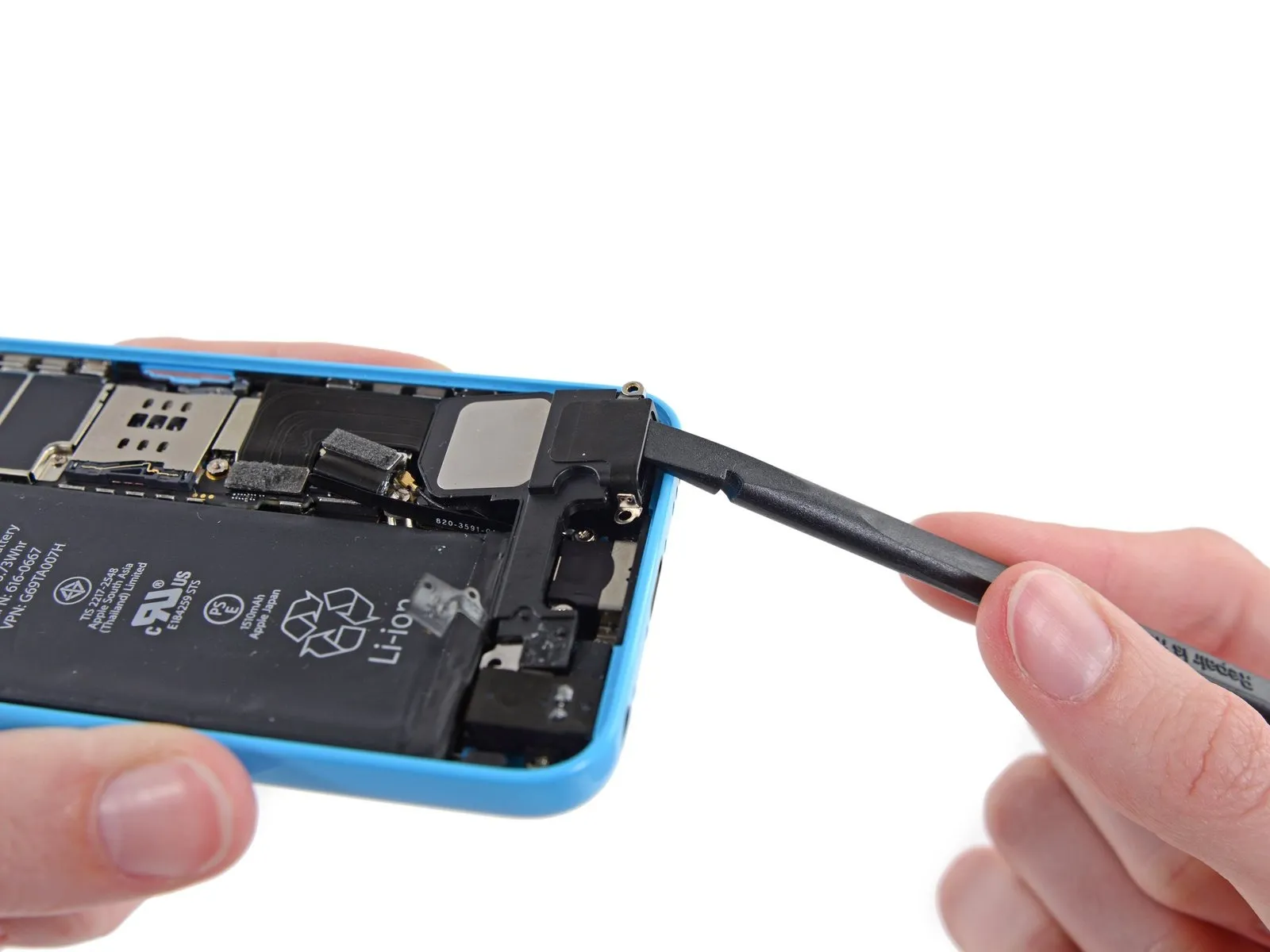

Carefully lift the speaker enclosure away from the back cover using the flat edge of a spudger, applying gentle pressure.
Step 20

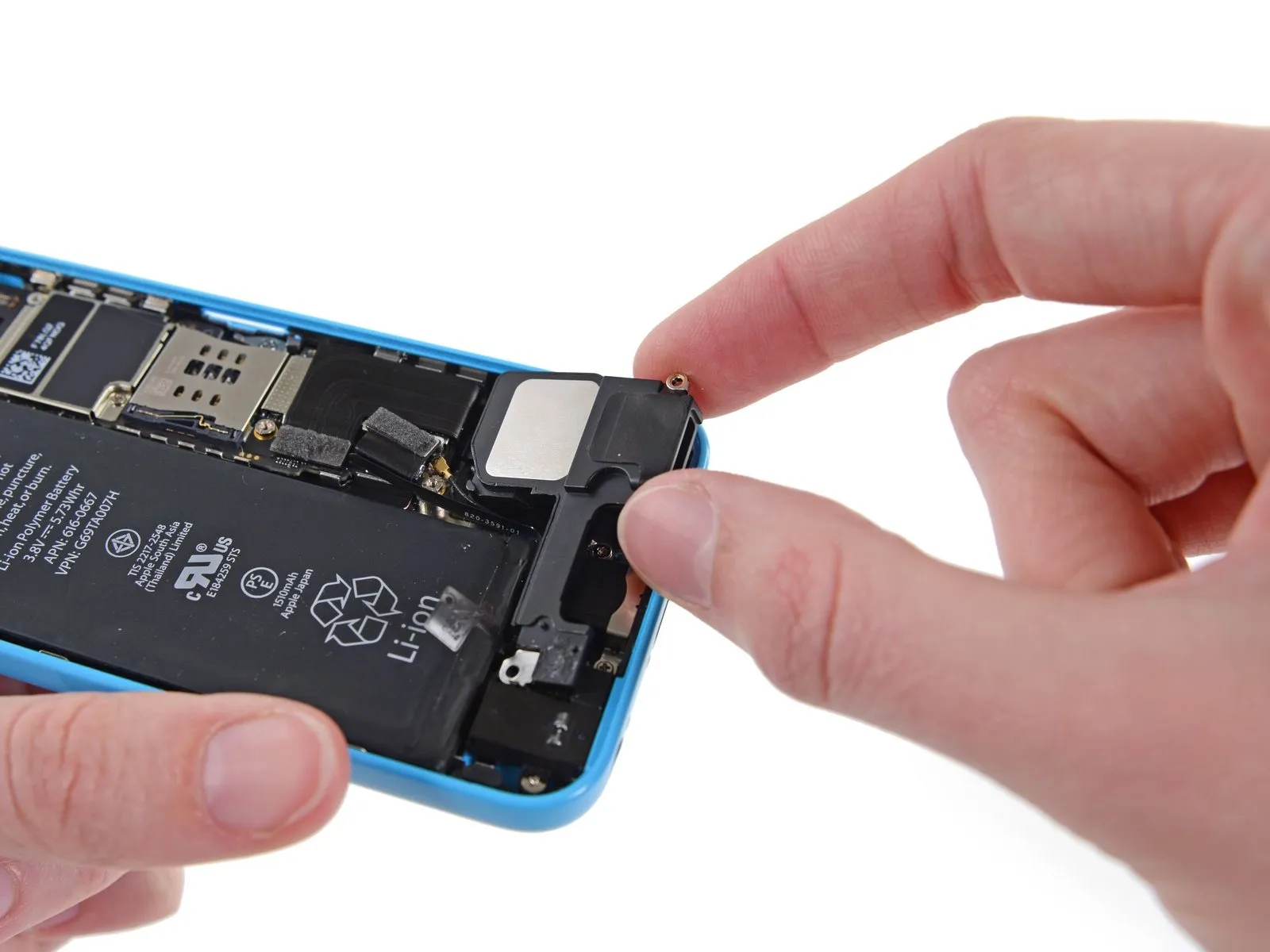

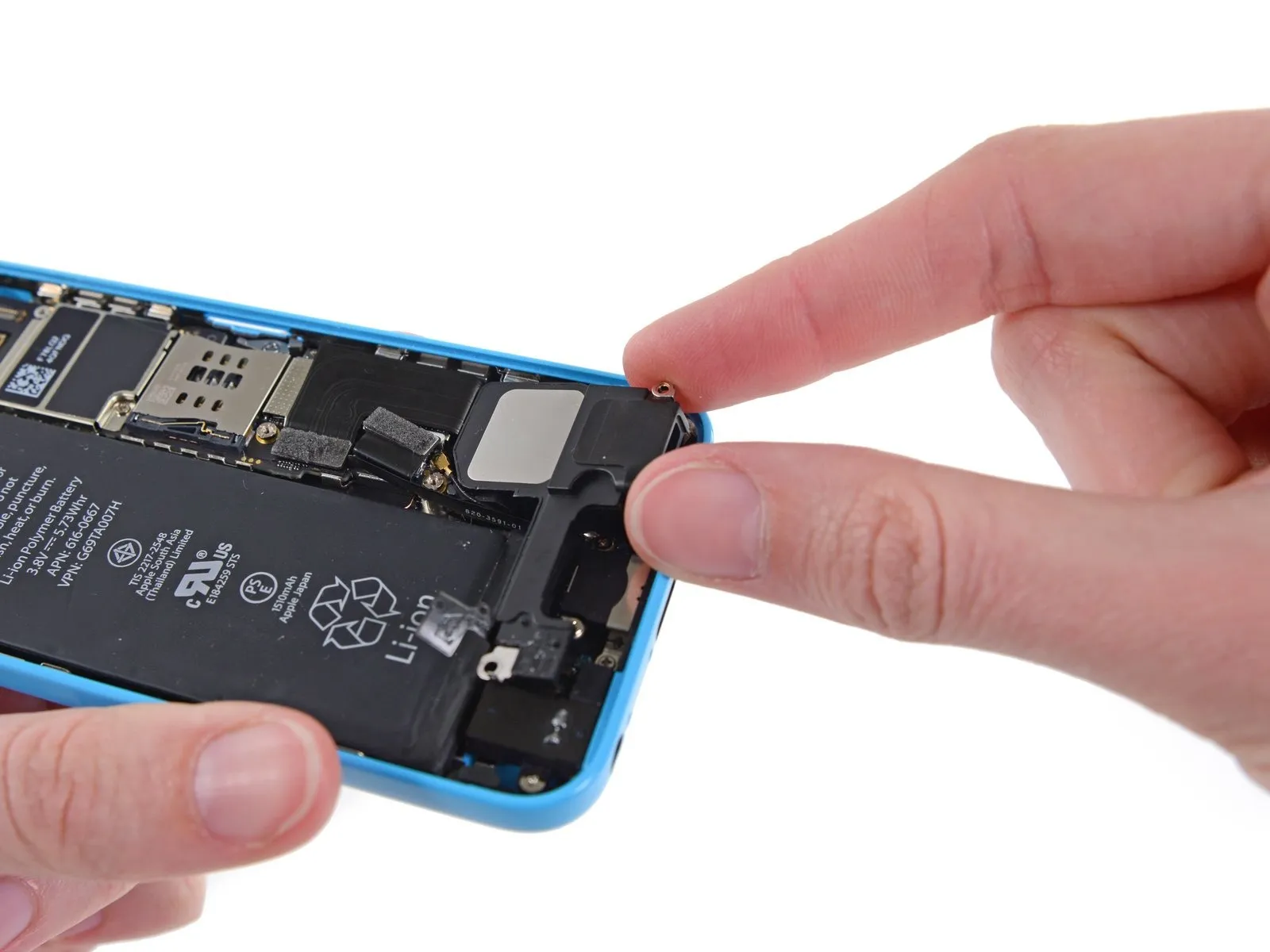

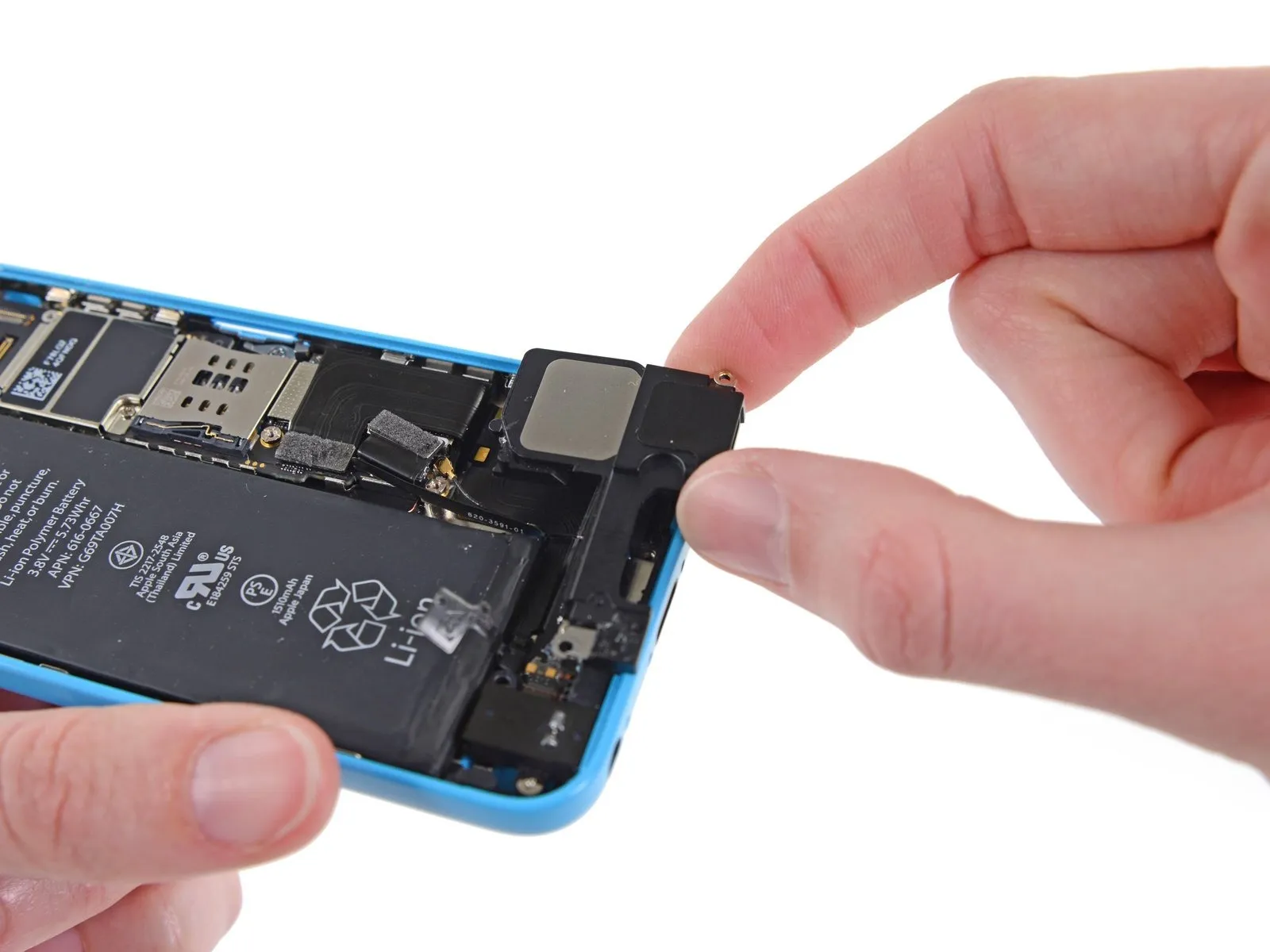

Detach the speaker enclosure, exercising caution to prevent contact and potential damage to the antenna cable.
Step 21
Carefully detach the contact bracket secured by the screw hole located on the speaker's right side, paying close attention to its original placement to ensure correct reinstallation.
Ensure the speaker makes full contact with the clip's planar surface, referencing the provided illustration for proper alignment.
The speaker assembly’s alignment bracket, located at the furthest point, is affixed with adhesive and susceptible to detachment with rough handling.
Ensure the beveled edge is oriented upwards, aligning it flush with the speaker's exterior perimeter.
Ensure the speaker makes full contact with the clip's planar surface, referencing the provided illustration for proper alignment.
The speaker assembly’s alignment bracket, located at the furthest point, is affixed with adhesive and susceptible to detachment with rough handling.
Ensure the beveled edge is oriented upwards, aligning it flush with the speaker's exterior perimeter.
Step 22

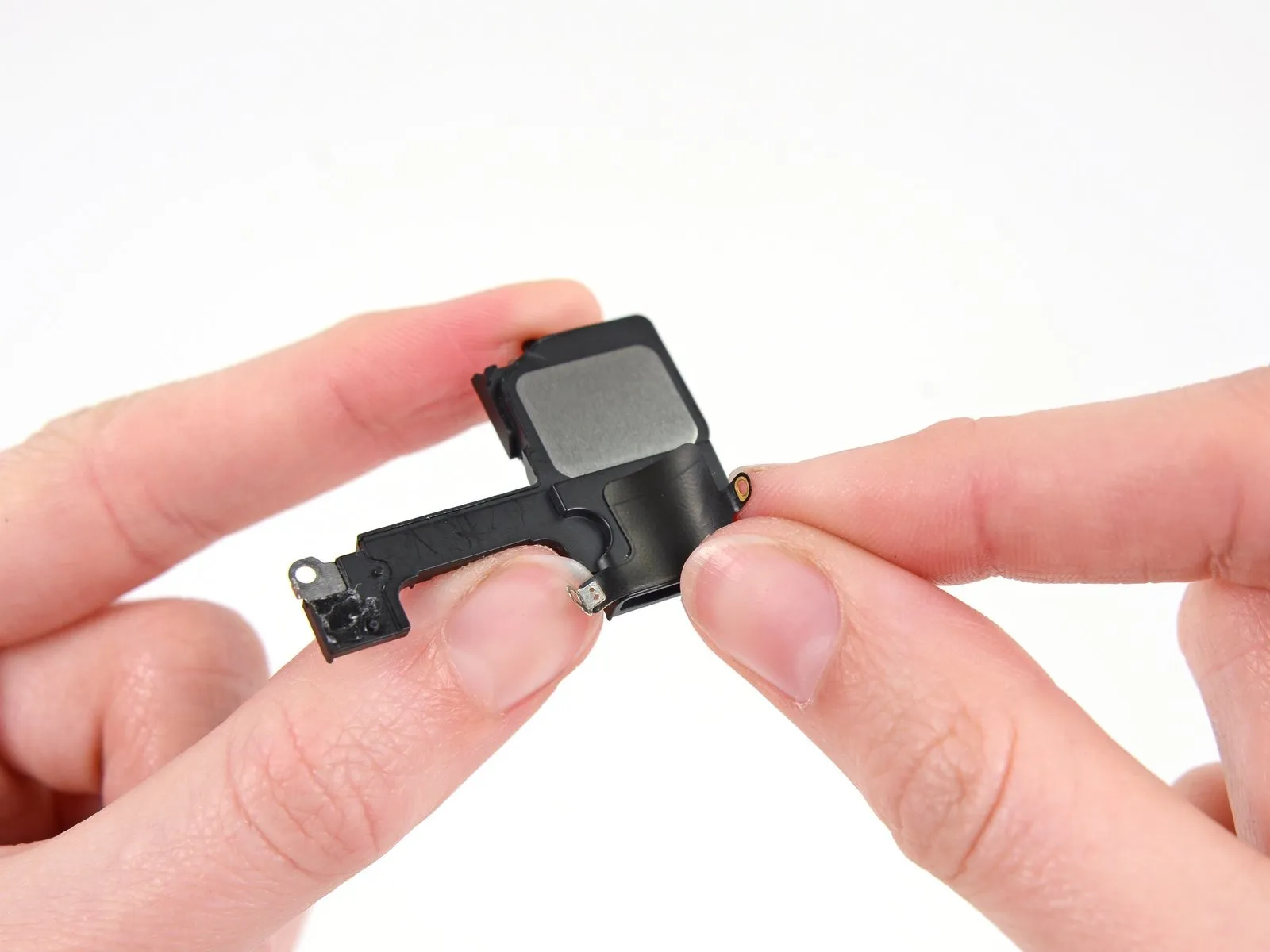

Ensure the new speaker has the contact-bearing sticker as illustrated, and if it's absent, move the existing sticker to the replacement.

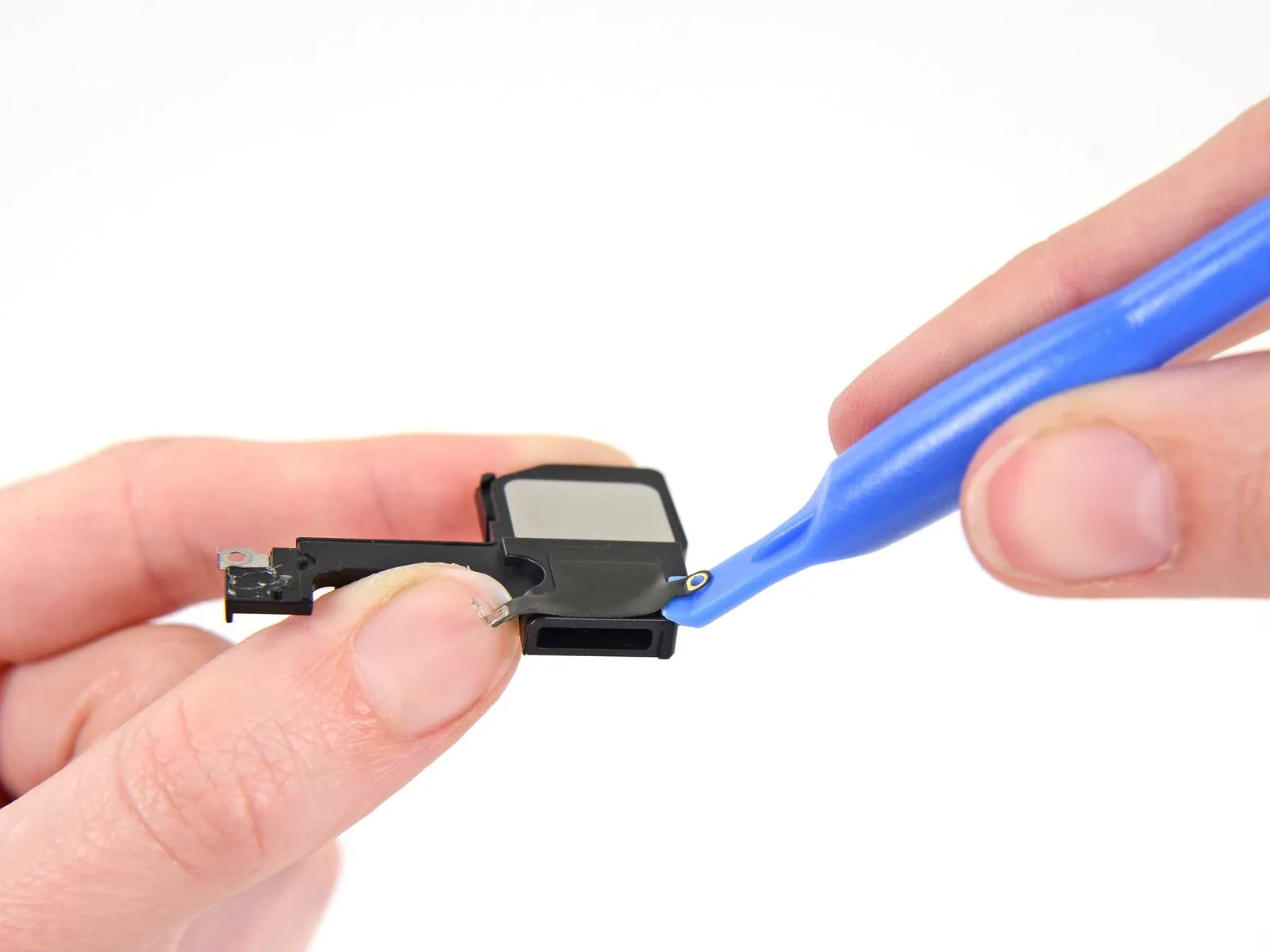

Carefully employ a plastic opening tool to detach the speaker's adhesive backing.
Carefully lift the adhesive label and detach it.
Carefully employ a plastic opening tool to detach the speaker's adhesive backing.
Carefully lift the adhesive label and detach it.
