iPhone 5c Vibrator Replacement
Follow these instructions to substitute the iPhone 5c’s vibrator, enabling silent notifications again.
Step 1 | Taping the display glass
To mitigate the risk of additional shattering and potential injury while performing the repair, secure any cracked display glass with tape.
Apply strips of transparent packing tape across the iPhone screen, ensuring complete coverage by slightly overlapping each successive strip.
To prevent shattered glass fragments from scattering and to maintain stability during the display separation process, this technique is essential.
To safeguard your eyes from potential glass fragments released during the repair process, always use safety glasses.
Apply strips of transparent packing tape across the iPhone screen, ensuring complete coverage by slightly overlapping each successive strip.
To prevent shattered glass fragments from scattering and to maintain stability during the display separation process, this technique is essential.
To safeguard your eyes from potential glass fragments released during the repair process, always use safety glasses.
Step 2 | Removing the Pentalobe screws
To prevent potential fire or explosion hazards during repair, ensure the iPhone's lithium-ion battery is depleted to a level below 25% prior to beginning work; a fully charged battery poses a risk of ignition if damaged.
To prevent electrical shock or damage, ensure the iPhone is completely de-energized prior to starting the repair process.
Using appropriate tools, detach the two screws, each measuring 3.8 mm in diameter and featuring a P2 Pentalobe head, located on both sides of the Lightning connector.
To prevent electrical shock or damage, ensure the iPhone is completely de-energized prior to starting the repair process.
Using appropriate tools, detach the two screws, each measuring 3.8 mm in diameter and featuring a P2 Pentalobe head, located on both sides of the Lightning connector.
Step 3 | Starting the iSclack Opening Procedure
For those performing multiple repairs on iPhone 5, 5s, or 5c models, the iSclack is a recommended tool for secure device separation; proceed with the following steps if utilizing this tool, otherwise advance directly to Step 5.
Actuate the iSclack handle to release the clamping force of the suction-cup jaws.
Position the iPhone's lower edge between the vacuum cups, ensuring it contacts the plastic depth gauge.
Position the uppermost suction cup so it hovers slightly above the home button.
To secure the iPhone, position the suction cups centrally and apply firm pressure to both the upper and lower surfaces, ensuring the iSclack jaws are closed by manipulating the handles.
Actuate the iSclack handle to release the clamping force of the suction-cup jaws.
Position the iPhone's lower edge between the vacuum cups, ensuring it contacts the plastic depth gauge.
Position the uppermost suction cup so it hovers slightly above the home button.
To secure the iPhone, position the suction cups centrally and apply firm pressure to both the upper and lower surfaces, ensuring the iSclack jaws are closed by manipulating the handles.
Step 4 | Finishing the iSclack Opening Procedure
Using a firm grip on the iPhone, disengage the iSclack’s handle to release the suction cups, then lift the front panel away from the rear case.
This specialized tool allows for a controlled separation of the iPhone's components, providing sufficient clearance for disassembly without risking cable damage.
Detach the iPhone from its mounting surface by removing both suction cups.
Proceed directly to Step 8, bypassing Steps 6, 7, and 8.
This specialized tool allows for a controlled separation of the iPhone's components, providing sufficient clearance for disassembly without risking cable damage.
Detach the iPhone from its mounting surface by removing both suction cups.
Proceed directly to Step 8, bypassing Steps 6, 7, and 8.
Step 5 | Manual Opening Procedure
Position a suction cup directly on the display surface, situated slightly higher than the home button's location.
Ensure the entire cup makes contact with the screen surface to guarantee a secure seal.
Ensure the entire cup makes contact with the screen surface to guarantee a secure seal.
Step 6 | Start lifting the front panel assembly
Using a 5/32-inch hex key, carefully tighten the four retaining screws securing the fan assembly to the motor housing, ensuring each is snug but not over-tightened to avoid damaging the threads; observe torque specifications of 3.5 inch-pounds per screw.
Secure the front panel assembly to the suction cup, ensuring a strong bond.
Using one hand to secure the iPhone, lift the suction cup vertically to gently create a small gap between the front panel and the rear enclosure.
Exercise caution and use steady, even pressure when installing the display assembly, as it requires a significantly tighter fit than typical device components.
Using a plastic opening tool, carefully separate the rear case from the display assembly by gently levering it upwards, simultaneously lifting with a suction cup.
To release the front panel assembly from the rear case, carefully disengage the multiple retaining clips, potentially requiring the simultaneous use of a suction cup and a plastic opening tool.
Secure the front panel assembly to the suction cup, ensuring a strong bond.
Using one hand to secure the iPhone, lift the suction cup vertically to gently create a small gap between the front panel and the rear enclosure.
Exercise caution and use steady, even pressure when installing the display assembly, as it requires a significantly tighter fit than typical device components.
Using a plastic opening tool, carefully separate the rear case from the display assembly by gently levering it upwards, simultaneously lifting with a suction cup.
To release the front panel assembly from the rear case, carefully disengage the multiple retaining clips, potentially requiring the simultaneous use of a suction cup and a plastic opening tool.
Step 7
Using a 5/32-inch hex key, carefully tighten the four retaining screws on the motor assembly to a torque of 3.5 inch-pounds, ensuring not to overtighten and potentially damage the threads.
To detach the suction cup, depress the plastic projection that maintains the airtight seal.
Detach the display assembly's suction cup.
To detach the suction cup, depress the plastic projection that maintains the airtight seal.
Detach the display assembly's suction cup.
Step 8 | Opening up the phone
Using a 5/32-inch hex key, carefully tighten the four retaining screws on the motor assembly to a torque of 3.5 inch-pounds, ensuring not to overtighten and potentially strip the threads; observe caution to prevent damage to the motor.
To expose the connectors located at the upper portion of the device, gently raise the front panel, beginning at the home button end.
Carefully position the display at a 90-degree angle, then secure it in a supported position to prevent movement during the repair process.
As a temporary substitute, an unopened, factory-sealed can of soda or similar beverage may be used to support the display during this procedure.
To avoid stressing the display's wiring during the repair process, secure it with a rubber band.
To expose the connectors located at the upper portion of the device, gently raise the front panel, beginning at the home button end.
Carefully position the display at a 90-degree angle, then secure it in a supported position to prevent movement during the repair process.
As a temporary substitute, an unopened, factory-sealed can of soda or similar beverage may be used to support the display during this procedure.
To avoid stressing the display's wiring during the repair process, secure it with a rubber band.
Step 9
Using a 5/32-inch hex key, carefully tighten the four mounting screws securing the fan assembly to the motor housing, ensuring each is snug but not over-tightened to prevent damage; observe a torque of 6 in-lbs per screw.
Using a Phillips #000 screwdriver, detach the metal bracket that holds the battery connector by unscrewing the two 1.6 mm screws it uses to fasten to the logic board.
Using a Phillips #000 screwdriver, detach the metal bracket that holds the battery connector by unscrewing the two 1.6 mm screws it uses to fasten to the logic board.
Step 10
Using a 5/32-inch hex key, carefully tighten the four mounting screws securing the fan assembly to the motor housing, ensuring each is snug but not over-tightened to prevent damage; observe a torque of 6 in-lbs per screw.
Detach the bracket securing the battery connector using a tri-point screwdriver, ensuring no damage occurs to surrounding components.
Detach the bracket securing the battery connector using a tri-point screwdriver, ensuring no damage occurs to surrounding components.
Step 11 | Disconnecting the battery connector
Carefully lift the battery connector away from its corresponding socket on the logic board, employing a spudger or a clean fingernail to avoid damage.
Exercise extreme caution when releasing the battery connector, focusing the lifting force solely on the connector; applying force to the logic board socket or the board itself risks socket destruction or damage to adjacent components.
Exercise extreme caution when releasing the battery connector, focusing the lifting force solely on the connector; applying force to the logic board socket or the board itself risks socket destruction or damage to adjacent components.
Step 12
Using a Phillips #000 screwdriver, detach the bracket that holds the front panel assembly cable by unscrewing the screws that fasten it to the logic board.
Use two screws, each measuring 1.3 millimeters.
A screw with a 1.7-millimeter head diameter is required.
A screw with a 3.25 mm diameter is required.
Carefully manage all screws during this stage to ensure correct reassembly; incorrect placement, such as using a 3.25 mm screw or a 1.7 mm screw in the bottom right hole, will severely damage the logic board and prevent the phone from powering on.
Avoid applying excessive force when tightening screws; if resistance is encountered during installation, verify that the correct screw size is being used and do not force the fastener.
Use two screws, each measuring 1.3 millimeters.
A screw with a 1.7-millimeter head diameter is required.
A screw with a 3.25 mm diameter is required.
Carefully manage all screws during this stage to ensure correct reassembly; incorrect placement, such as using a 3.25 mm screw or a 1.7 mm screw in the bottom right hole, will severely damage the logic board and prevent the phone from powering on.
Avoid applying excessive force when tightening screws; if resistance is encountered during installation, verify that the correct screw size is being used and do not force the fastener.
Step 13
Detach the bracket securing the front panel assembly cable to the logic board.
Step 14 | Disconnecting the front panel assembly cables
Carefully detach the front camera and sensor cable connector from its socket using a plastic pry tool or your fingernail.
Avoid applying force to the logic board socket while releasing the connector; focus solely on the connector itself.
Avoid applying force to the logic board socket while releasing the connector; focus solely on the connector itself.
Step 15
Prior to either detaching or reattaching the cables in this procedure, ensure the battery is completely disconnected.
Carefully detach the LCD cable connector by gently separating it from its housing using a plastic pry tool or your fingernail.
Because the LCD and Digitizer share a single cable assembly, lifting the LCD connector will also release the Digitizer connector; ensure both cable connections are completely separated prior to display removal.
A disconnected LCD cable from its connector during reassembly can result in a blank screen or white lines; to resolve this, ensure the cable is firmly seated and restart the device by briefly removing and reinstalling the battery.
Carefully detach the LCD cable connector by gently separating it from its housing using a plastic pry tool or your fingernail.
Because the LCD and Digitizer share a single cable assembly, lifting the LCD connector will also release the Digitizer connector; ensure both cable connections are completely separated prior to display removal.
A disconnected LCD cable from its connector during reassembly can result in a blank screen or white lines; to resolve this, ensure the cable is firmly seated and restart the device by briefly removing and reinstalling the battery.
Step 16 | Separating front panel assembly and rear case
Detach the front panel assembly from the rear case.

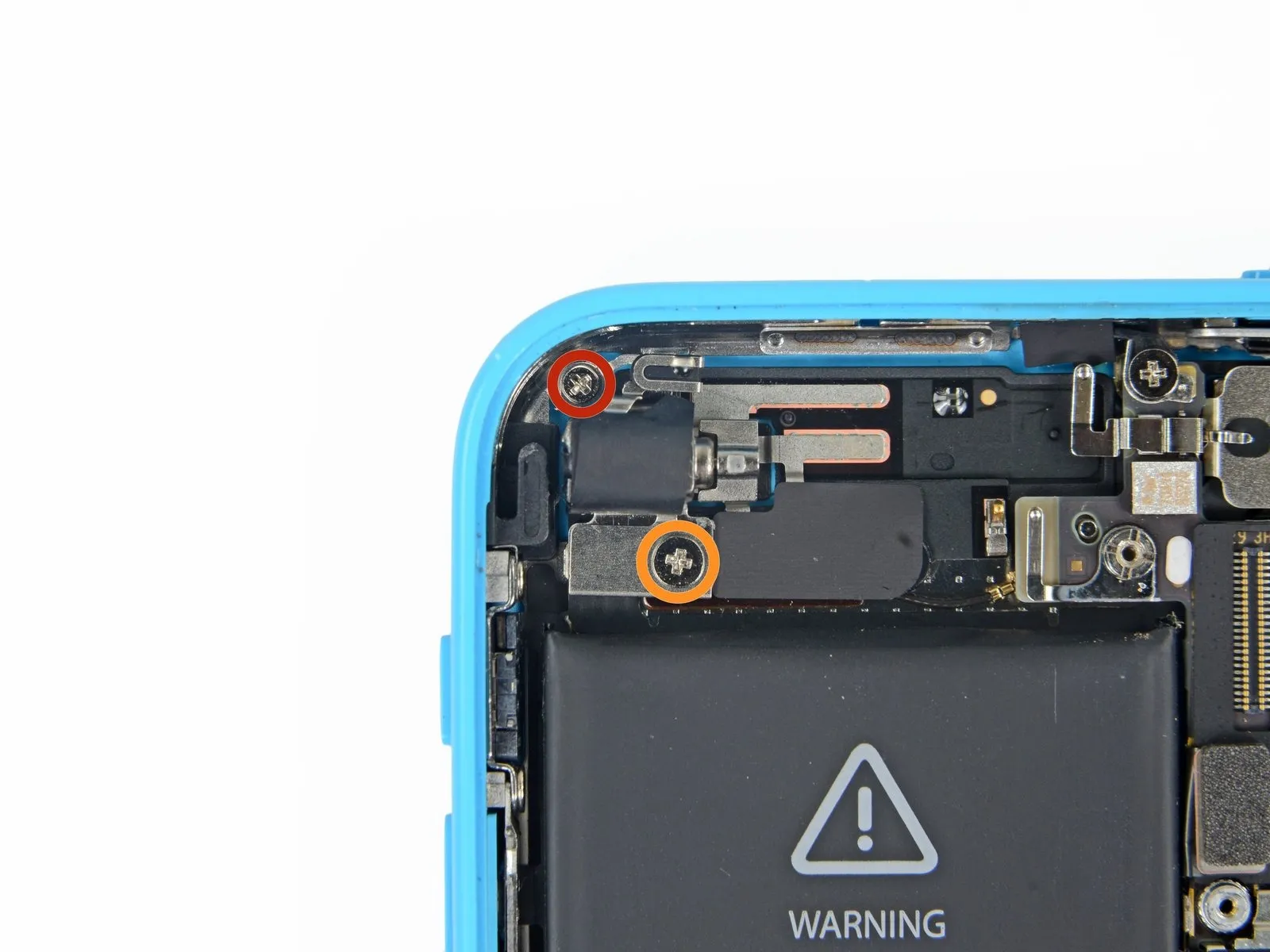

Step 17 | Vibrator
Detach the vibrator from the rear case by unscrewing the specified fasteners.
- A Phillips head screwdriver, size #000, is needed to remove a 1.2-millimeter screw.
- A Phillips screwdriver, size #000, is needed to remove a 2.2-millimeter screw.
Step 18
Carefully detach the iPhone's vibrator component.
