iPhone 6 Camera Lens Replacement
Prior to commencing any repair work, disconnect the device completely from all electrical power.
- To complete this repair, you will need the following tools:Utilize a Phillips head screwdriver.
Consult the user manual to find model-specific information and supplementary safety guidelines.
Step 1 | Pentalobe Screws
To prevent a fire hazard or explosion due to accidental puncture, ensure the lithium-ion battery's charge level is below 25% prior to beginning any disassembly work on your iPhone.
To prevent electrical shock or damage, ensure the iPhone is completely de-energized prior to starting the repair process.
Using a Pentalobe screwdriver, detach the two screws measuring 3.6 mm in length, positioned adjacent to the Lightning connector.
To prevent electrical shock or damage, ensure the iPhone is completely de-energized prior to starting the repair process.
Using a Pentalobe screwdriver, detach the two screws measuring 3.6 mm in length, positioned adjacent to the Lightning connector.
Step 2 | Anti-Clamp instructions
To simplify the subsequent opening process, the following instructions utilize the Anti-Clamp tool, a custom design; if you do not have this tool, proceed to the steps located three sections later for an alternative approach.
Refer to the included guide for detailed procedures regarding Anti-Clamp operation.
To release the Anti-Clamp's arms, move the blue handle in a rearward direction.
Position the arms so they clear the left or right side of the iPhone, then gently move them into place.
Affix two suction cups, one to the front and one to the rear surface of the iPhone, close to the lower edge, situated directly above the home button.
Apply vacuum by pressing the cups firmly against the surface needing treatment.
To improve the Anti-Clamp's grip on your iPhone if the exterior feels excessively slick, apply adhesive tape to the device's surface.
Refer to the included guide for detailed procedures regarding Anti-Clamp operation.
To release the Anti-Clamp's arms, move the blue handle in a rearward direction.
Position the arms so they clear the left or right side of the iPhone, then gently move them into place.
Affix two suction cups, one to the front and one to the rear surface of the iPhone, close to the lower edge, situated directly above the home button.
Apply vacuum by pressing the cups firmly against the surface needing treatment.
To improve the Anti-Clamp's grip on your iPhone if the exterior feels excessively slick, apply adhesive tape to the device's surface.
Step 3
To secure the arms, advance the blue handle in the direction indicated.
Rotate the handle fully, completing a 360-degree turn, observing for the initial signs of cup expansion.
Maintain parallel positioning of the suction cups; should misalignment occur, gently release the suction cups' hold and reposition the arms.
Once sufficient space is created by the Anti-Clamp, slide a prying tool beneath the display panel.
To ensure adequate separation, adjust the handle's position by 90 degrees.
Allow several seconds to elapse and avoid rotating the component beyond a 90-degree movement per increment; this permits the Anti-Clamp feature and settling time to function properly.
Rotate the handle fully, completing a 360-degree turn, observing for the initial signs of cup expansion.
Maintain parallel positioning of the suction cups; should misalignment occur, gently release the suction cups' hold and reposition the arms.
Once sufficient space is created by the Anti-Clamp, slide a prying tool beneath the display panel.
To ensure adequate separation, adjust the handle's position by 90 degrees.
Allow several seconds to elapse and avoid rotating the component beyond a 90-degree movement per increment; this permits the Anti-Clamp feature and settling time to function properly.
Step 4 | Manual Opening Procedure
Lacking an Anti-Clamp tool, secure the front panel with a single suction cup for lifting.
Secure a suction cup to the display surface, positioning it directly over the home button area.
Ensure a leakproof connection by firmly applying pressure to the cup against the screen's surface.
To facilitate suction cup attachment on a severely cracked display, apply a sheet of clear packing tape across the damage; as an alternative, a robust adhesive tape can be used directly. Should these methods prove ineffective, secure the suction cup to the screen using superglue as a last resort.
Secure a suction cup to the display surface, positioning it directly over the home button area.
Ensure a leakproof connection by firmly applying pressure to the cup against the screen's surface.
To facilitate suction cup attachment on a severely cracked display, apply a sheet of clear packing tape across the damage; as an alternative, a robust adhesive tape can be used directly. Should these methods prove ineffective, secure the suction cup to the screen using superglue as a last resort.
Step 5
Using one hand to secure the iPhone, lift the suction cup vertically to gently create a small gap between the front panel and the rear enclosure.
Exercise caution and use steady, even pressure when installing the display assembly, as its tolerances are considerably less forgiving than those typically found in other devices.
Carefully separate the rear case from the display assembly by gently levering it away with a plastic opening tool, maintaining upward traction on the display using a suction cup.
To release the front panel assembly from the rear case, carefully detach it by working around the numerous retaining clips, potentially employing both the suction cup and plastic opening tool to gently separate the components.
Exercise caution and use steady, even pressure when installing the display assembly, as its tolerances are considerably less forgiving than those typically found in other devices.
Carefully separate the rear case from the display assembly by gently levering it away with a plastic opening tool, maintaining upward traction on the display using a suction cup.
To release the front panel assembly from the rear case, carefully detach it by working around the numerous retaining clips, potentially employing both the suction cup and plastic opening tool to gently separate the components.
Step 6
To detach the suction cup, depress the plastic projection to break the airtight seal.
Detach the display assembly's suction cup.
Detach the display assembly's suction cup.
Step 7 | Opening up the phone
Carefully detach the front panel assembly from the rear case by pivoting it outward, leveraging the phone's upper edge as a fulcrum, starting at the home button end.
Along the upper edge of the front panel, multiple clips function as a partial hinge.
To reassemble, position the clips beneath the rear case's upper border, and subsequently move the front panel upwards, ensuring its uppermost surface aligns perfectly with the rear case's top edge.
Along the upper edge of the front panel, multiple clips function as a partial hinge.
To reassemble, position the clips beneath the rear case's upper border, and subsequently move the front panel upwards, ensuring its uppermost surface aligns perfectly with the rear case's top edge.
Step 8
Carefully position the display at a 90-degree angle, then secure it in an upright position using a support to prevent movement during the repair process.
If a dedicated calibration tool isn't available, a factory-sealed, unopened can of soda can be substituted, ensuring it’s the specified volume of 355 milliliters.
To avoid stressing the display's wiring during the repair process, secure it with a rubber band.
If a dedicated calibration tool isn't available, a factory-sealed, unopened can of soda can be substituted, ensuring it’s the specified volume of 355 milliliters.
To avoid stressing the display's wiring during the repair process, secure it with a rubber band.
Step 9 | Removing the battery connector bracket screws
Using a Phillips screwdriver, detach the battery connector bracket by unscrewing the included fasteners.
A single screw, measuring 2.2 millimeters, is required.
A single screw, measuring 3.2 millimeters, is required.
Carefully note the location of every screw during disassembly, as reassembling them in their original positions is crucial to prevent phone damage.
A single screw, measuring 2.2 millimeters, is required.
A single screw, measuring 3.2 millimeters, is required.
Carefully note the location of every screw during disassembly, as reassembling them in their original positions is crucial to prevent phone damage.
Step 10
Detach the bracket securing the battery connector using a Tri-Point Y000 screwdriver.
Step 11 | Disconnecting the battery connector
Carefully lift the battery connector away from its socket on the logic board, employing a plastic opening tool to avoid damage.
To prevent damage, lift exclusively on the battery connector itself; applying force to the logic board socket risks complete connector failure.
To prevent damage, lift exclusively on the battery connector itself; applying force to the logic board socket risks complete connector failure.
Step 12 | Removing the front panel assembly cable bracket screws
Using a Phillips screwdriver, detach the cable bracket from the front panel assembly by unscrewing the five screws that hold it in place.
Use three screws, each measuring 1.2 millimeters.
A screw with a 1.7-millimeter head diameter is required.
A screw with a 3.1 millimeter diameter is required.
Improperly reinstalling these screws can permanently harm the iPhone's logic board.
Use three screws, each measuring 1.2 millimeters.
A screw with a 1.7-millimeter head diameter is required.
A screw with a 3.1 millimeter diameter is required.
Improperly reinstalling these screws can permanently harm the iPhone's logic board.
Step 13
Detach the bracket securing the front panel assembly cable to the logic board.
Step 14
When proceeding with the following four steps, ensure that you lift solely on the cable connectors themselves, avoiding any upward force applied to the sockets they connect to on the logic board.
Carefully detach the front camera and sensor cable connector from its socket using a spudger or similar tool.
Carefully detach the front camera and sensor cable connector from its socket using a spudger or similar tool.
Step 15
Carefully detach the home button cable connector using a spudger or fingernail.
Step 16
Using a 5/32-inch hex key, carefully tighten the four M4 x 8mm screws securing the fan assembly to the heatsink, ensuring a torque of no more than 0.5 Nm to prevent damage.
Prior to either detaching or reattaching the cable in this procedure, ensure the battery is disconnected.
Carefully detach the display data cable connector from its socket using a spudger or similar tool, like a fingernail.
Should the display data cable become detached from its connector during reassembly, a blank screen or the appearance of white lines may occur upon powering on the device. To resolve this, re-engage the cable with the connector and restart the phone; for a complete restart, disconnect and reconnect the battery connector.
Prior to either detaching or reattaching the cable in this procedure, ensure the battery is disconnected.
Carefully detach the display data cable connector from its socket using a spudger or similar tool, like a fingernail.
Should the display data cable become detached from its connector during reassembly, a blank screen or the appearance of white lines may occur upon powering on the device. To resolve this, re-engage the cable with the connector and restart the phone; for a complete restart, disconnect and reconnect the battery connector.
Step 17
Using a 5/32-inch hex key, carefully tighten the four M4x8 screws securing the fan assembly to the heatsink, ensuring a torque of 4.5 in-lbs to prevent damage.
Carefully separate the digitizer cable connector from its socket using the flat spudger.
To avoid component bending and potential digitizer damage, apply pressure to opposing ends of the connector when reattaching the digitizer cable; refrain from applying pressure to the connector's central area.
Carefully separate the digitizer cable connector from its socket using the flat spudger.
To avoid component bending and potential digitizer damage, apply pressure to opposing ends of the connector when reattaching the digitizer cable; refrain from applying pressure to the connector's central area.
Step 18 | Separating front panel assembly and rear case
Carefully align the 4mm hex key to the setscrew, ensuring it engages fully, then gradually tighten the setscrew to a torque of 1.5 Nm using the torque wrench.
Detach the front panel assembly from the rear case.
Detach the front panel assembly from the rear case.
Step 19 | Rear Facing Camera
Carefully secure the 1/4-inch hex key to the drive shaft and rotate it clockwise until the shaft is fully seated within the motor housing, ensuring the retaining clip is properly positioned and locked; failure to do so could result in damage to the motor.
Carefully detach the tape securing the screw on the upper left side of the rear camera assembly.
Carefully detach the tape securing the screw on the upper left side of the rear camera assembly.
Step 20
Using a 5/32-inch hex key, carefully tighten the four M4x8 pan head screws securing the fan assembly to the heatsink, ensuring a torque of 4.5 in-lbs to prevent damage.
Carefully employ the flat spudger tip to disengage the rear camera connector from its corresponding socket on the logic board.
To prevent logic board damage, apply force solely to the connector when releasing it, avoiding contact with the socket.
Carefully employ the flat spudger tip to disengage the rear camera connector from its corresponding socket on the logic board.
To prevent logic board damage, apply force solely to the connector when releasing it, avoiding contact with the socket.
Step 21
Using a Phillips #00 screwdriver, detach the specified screws securing the rear-facing camera bracket.
A screw with a 1.5 mm diameter is required.
A screw with a 2.1 mm head diameter is required.
A screw with a 1.5 mm diameter is required.
A screw with a 2.1 mm head diameter is required.
Step 22
Detach the bracket securing the rear camera assembly.
Step 23
Carefully detach the rear camera assembly from the iPhone, ensuring no damage occurs.

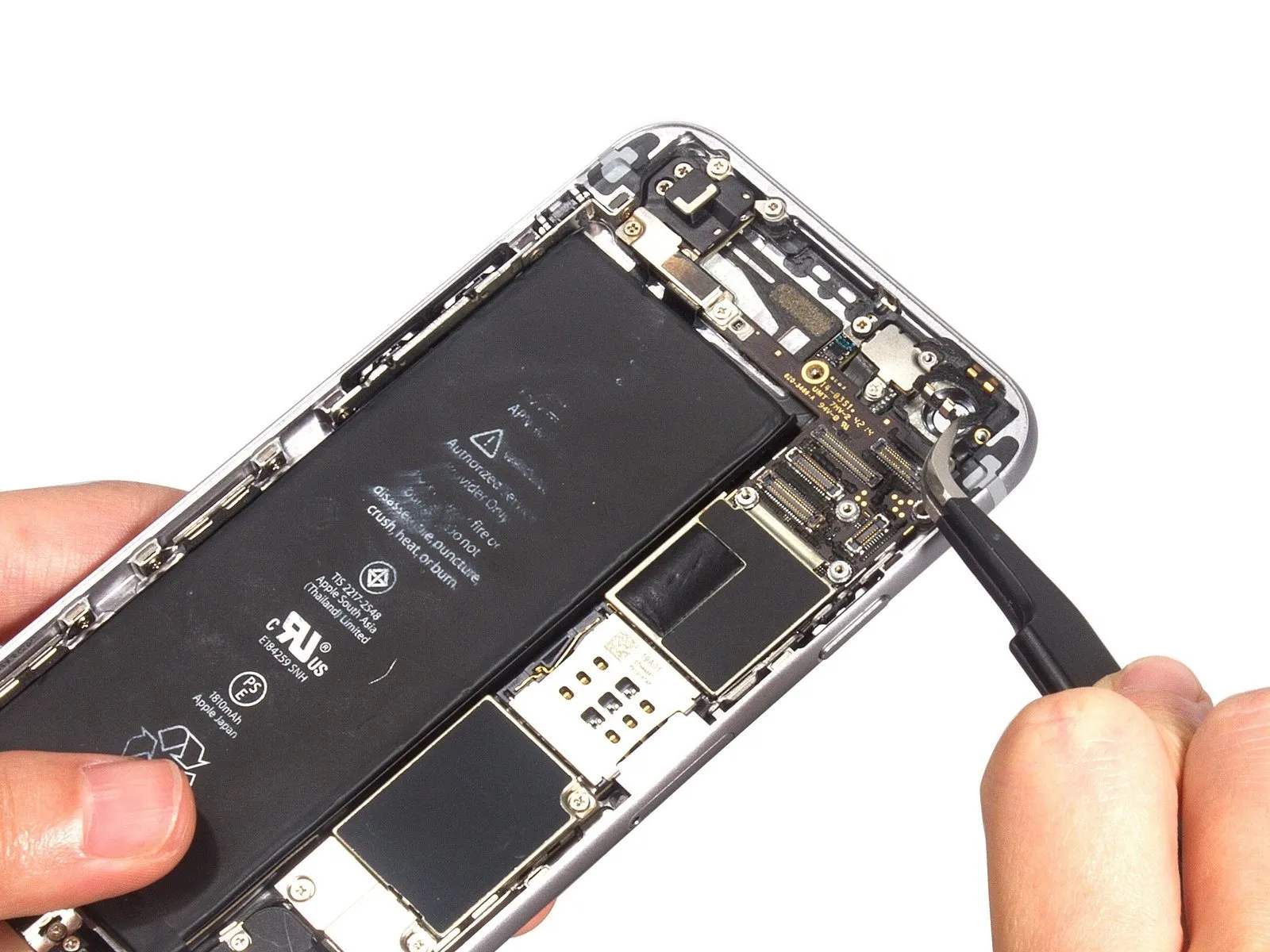

Step 24 | Camera Lens

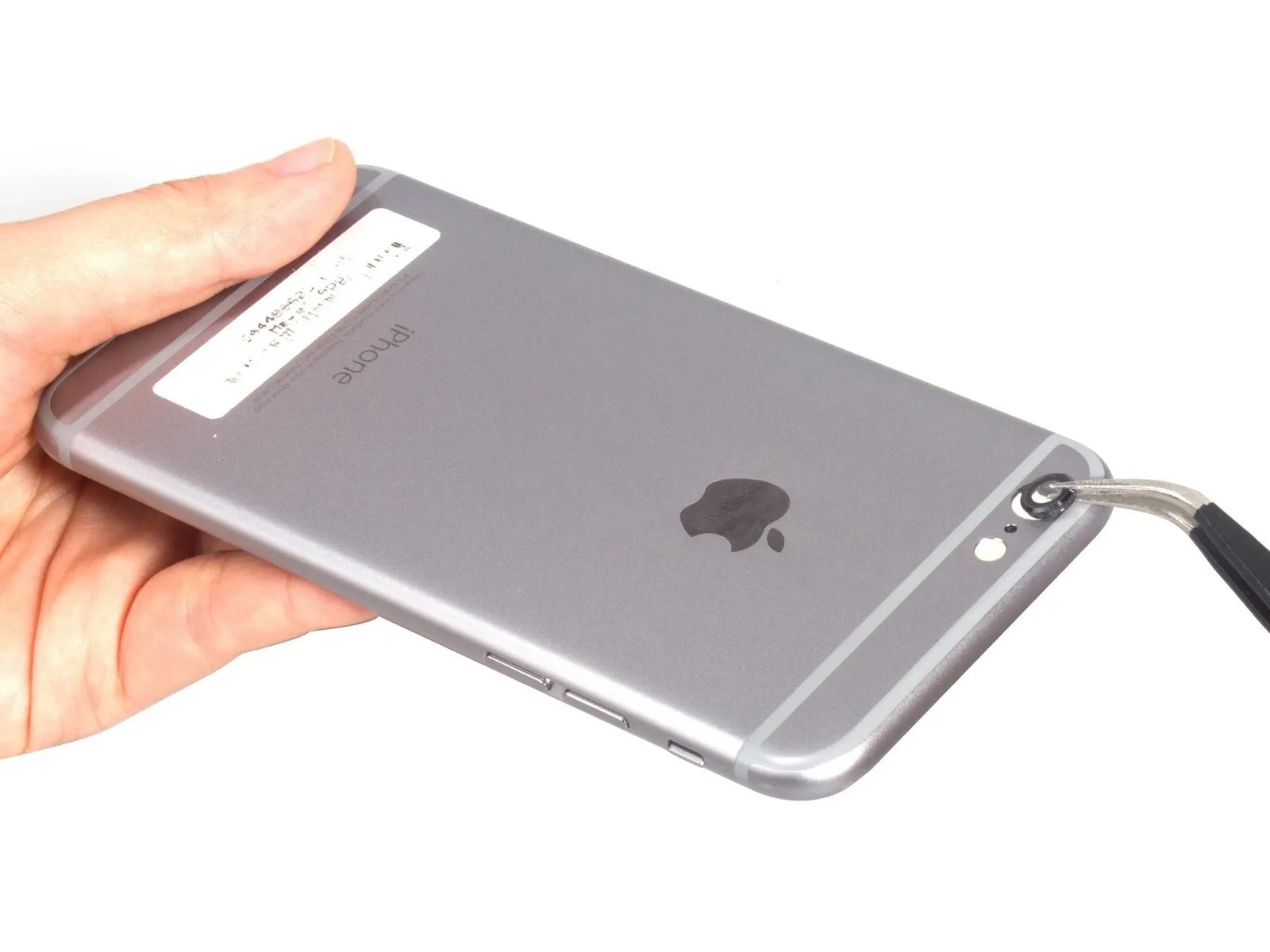

Due to a tight, seemingly bonded fit between the bottom bracket's inner circumference and the camera lens ring, removal requires significant force, and damage to the bracket is a common occurrence.
Step 25

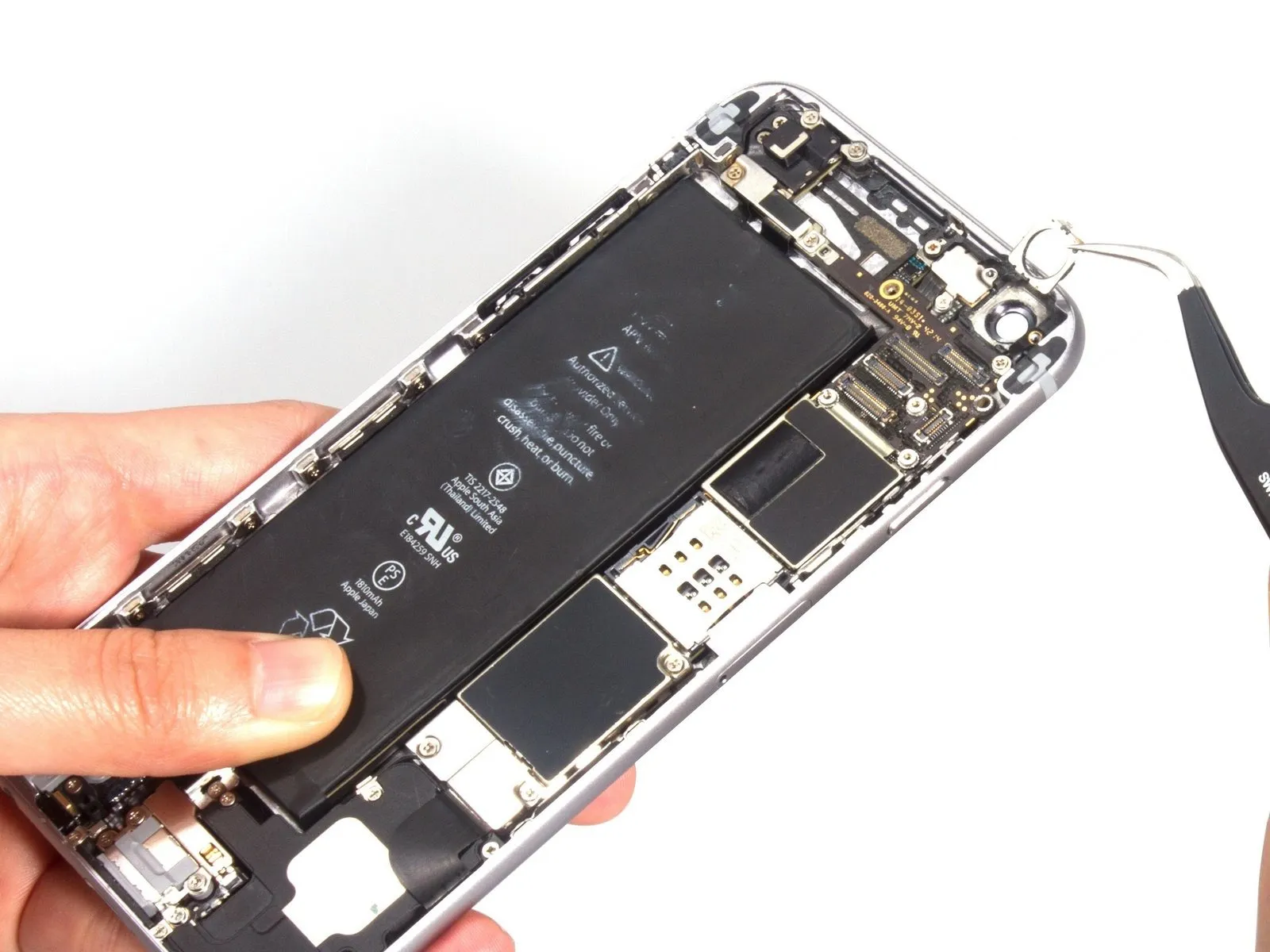

Carefully extract the fractured camera lens from within the assembly.

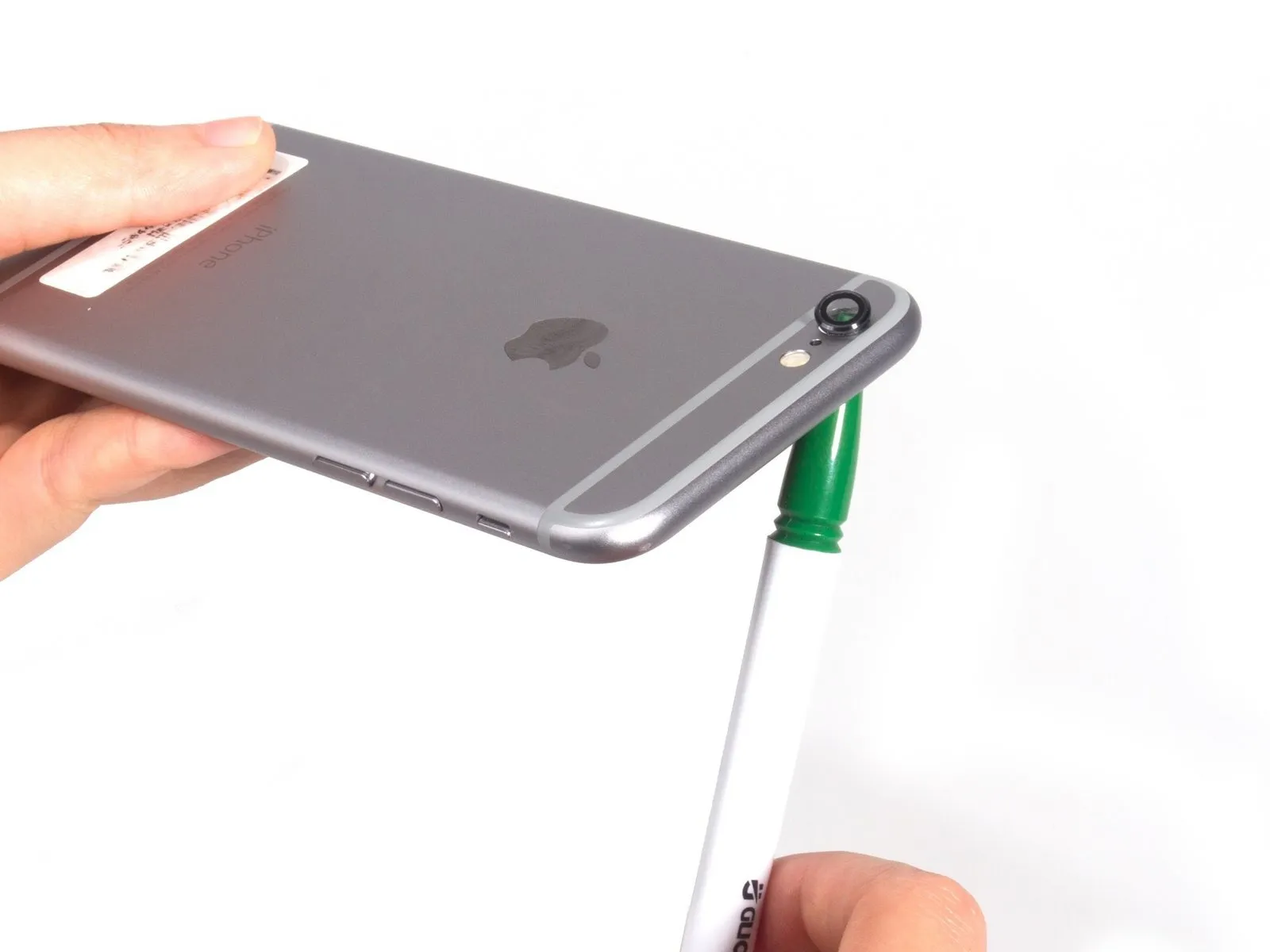

Select a suitable tool for ease of use and minimal exertion, then position your hands to shield the rear case from deformation during the process. Apply firm pressure to the camera lens, exercising caution to prevent damage to both the device and your hand.

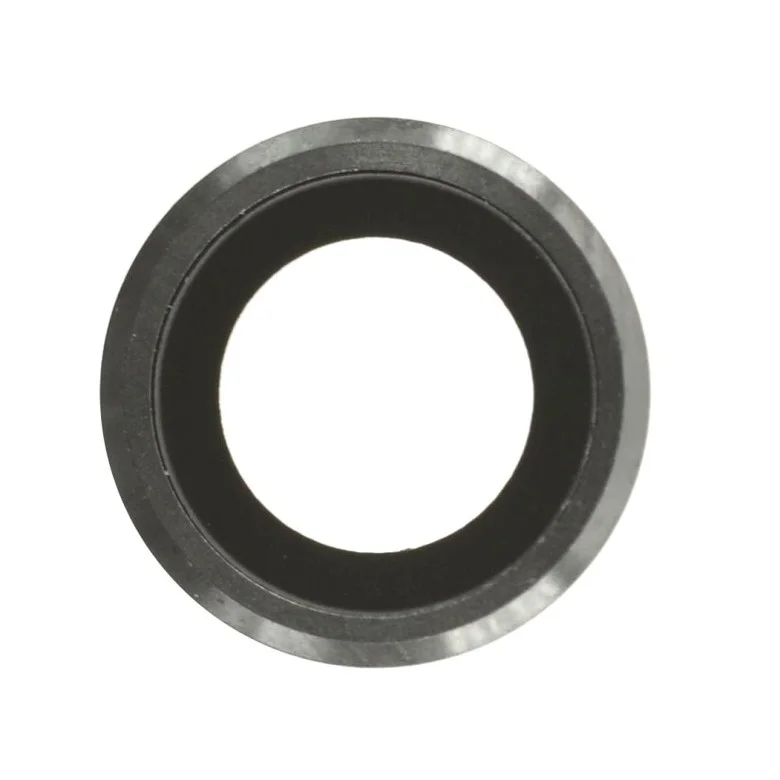

Secure both the replacement camera lens and the new bottom bracket using an appropriate adhesive or glue.
To prevent potential damage to your iPhone 6, consider professional servicing at an Apple authorized service provider.
Select a suitable tool for ease of use and minimal exertion, then position your hands to shield the rear case from deformation during the process. Apply firm pressure to the camera lens, exercising caution to prevent damage to both the device and your hand.
Secure both the replacement camera lens and the new bottom bracket using an appropriate adhesive or glue.
To prevent potential damage to your iPhone 6, consider professional servicing at an Apple authorized service provider.
