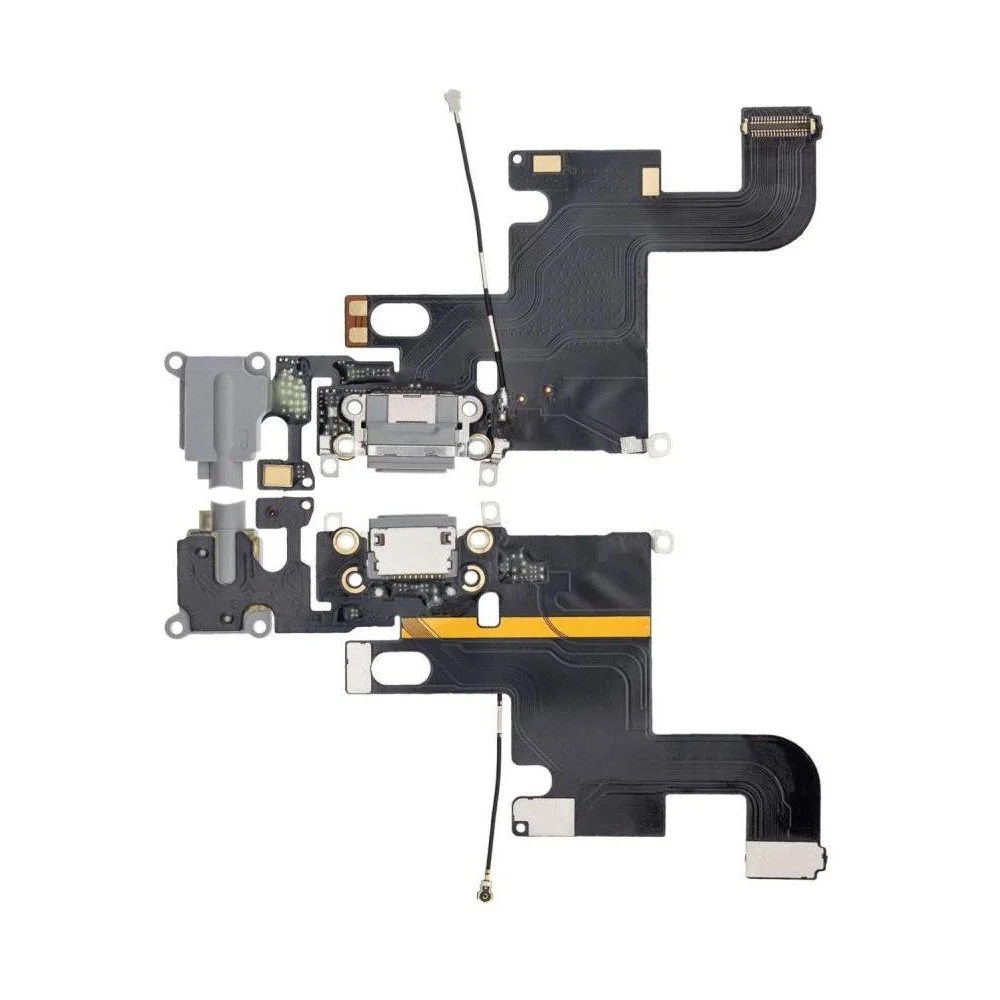

iPhone 6 Lightning Connector Assembly Replacement
To address charging or connection problems that persist even after cleaning the Lightning port, this guide details the procedure for substituting the Lightning connector assembly—a component incorporating both the headphone jack and microphone.
- This document serves as a resource for substituting these components:
Step 1 | Pentalobe Screws
To prevent a fire or explosion hazard during disassembly, ensure the lithium-ion battery's charge level is below 25%; a fully charged battery poses a risk of ignition if damaged.
To prevent electrical shock or damage, ensure the iPhone is completely de-energized prior to starting the repair process.
Using a Pentalobe screwdriver, detach the two screws measuring 3.6 mm in length, positioned adjacent to the Lightning connector.
To prevent electrical shock or damage, ensure the iPhone is completely de-energized prior to starting the repair process.
Using a Pentalobe screwdriver, detach the two screws measuring 3.6 mm in length, positioned adjacent to the Lightning connector.
Step 2 | Anti-Clamp instructions
To simplify the subsequent opening process, the following instructions utilize the Anti-Clamp tool, a custom-designed device; if you do not have this tool, proceed to the steps located three sections later for an alternative approach.
Refer to the included guide for detailed procedures regarding Anti-Clamp operation.
To release the Anti-Clamp's arms, move the blue handle in a rearward direction.
Position the arms so they clear the left or right side of the iPhone, then move them into place.
Affix one suction cup to the front surface of the iPhone, close to the lower edge and directly over the home button, and secure a second suction cup to the rear surface in the same relative position.
Apply vacuum by pressing the cups firmly against the surface needing treatment.
To improve the Anti-Clamp's grip if the iPhone's exterior feels excessively slick, apply adhesive tape to the device's surface.
Refer to the included guide for detailed procedures regarding Anti-Clamp operation.
To release the Anti-Clamp's arms, move the blue handle in a rearward direction.
Position the arms so they clear the left or right side of the iPhone, then move them into place.
Affix one suction cup to the front surface of the iPhone, close to the lower edge and directly over the home button, and secure a second suction cup to the rear surface in the same relative position.
Apply vacuum by pressing the cups firmly against the surface needing treatment.
To improve the Anti-Clamp's grip if the iPhone's exterior feels excessively slick, apply adhesive tape to the device's surface.
Step 3
To secure the arms, advance the blue handle in the direction of the front.
Rotate the handle fully in a clockwise direction, completing a full 360-degree rotation, observing for the point when the cups begin to visibly expand.
Maintain parallel positioning of the suction cups; should misalignment occur, gently release the suction cups' grip and reposition the arms.
Once sufficient separation is achieved by the Anti-Clamp, slide a prying tool beneath the display panel.
To ensure adequate separation, reposition the handle by 90 degrees.
Allow several seconds of settling time between each incremental tightening, limiting each rotation to a maximum of 90 degrees. Permit the Anti-Clamp feature and the passage of time to facilitate proper seating.
Rotate the handle fully in a clockwise direction, completing a full 360-degree rotation, observing for the point when the cups begin to visibly expand.
Maintain parallel positioning of the suction cups; should misalignment occur, gently release the suction cups' grip and reposition the arms.
Once sufficient separation is achieved by the Anti-Clamp, slide a prying tool beneath the display panel.
To ensure adequate separation, reposition the handle by 90 degrees.
Allow several seconds of settling time between each incremental tightening, limiting each rotation to a maximum of 90 degrees. Permit the Anti-Clamp feature and the passage of time to facilitate proper seating.
Step 4 | Manual Opening Procedure
Lacking an Anti-Clamp tool, secure the front panel with a single suction cup for lifting.
Using a suction cup, apply it to the display surface, positioning it directly over the home button area.
Ensure a complete and leak-proof connection by firmly applying pressure to the cup against the screen's surface.
To facilitate suction cup attachment on a severely cracked display, apply a sheet of clear packing tape across the damage; if this proves ineffective, utilize a robust adhesive tape as a substitute for the suction cup. As a last resort, secure the suction cup directly to the fractured screen using superglue.
Using a suction cup, apply it to the display surface, positioning it directly over the home button area.
Ensure a complete and leak-proof connection by firmly applying pressure to the cup against the screen's surface.
To facilitate suction cup attachment on a severely cracked display, apply a sheet of clear packing tape across the damage; if this proves ineffective, utilize a robust adhesive tape as a substitute for the suction cup. As a last resort, secure the suction cup directly to the fractured screen using superglue.
Step 5
Using one hand to secure the iPhone, gently lift the suction cup to create a small gap between the front panel and the rear enclosure.
Exercise caution and use steady, even pressure when installing the display assembly, as it requires a significantly tighter fit than typical device components.
Carefully separate the rear case from the display assembly by gently levering it downward with a plastic opening tool, maintaining upward traction on the display with the suction cup.
To release the front panel assembly from the rear case, carefully disengage the multiple retaining clips, potentially requiring the coordinated use of both the suction cup and the plastic opening tool.
Exercise caution and use steady, even pressure when installing the display assembly, as it requires a significantly tighter fit than typical device components.
Carefully separate the rear case from the display assembly by gently levering it downward with a plastic opening tool, maintaining upward traction on the display with the suction cup.
To release the front panel assembly from the rear case, carefully disengage the multiple retaining clips, potentially requiring the coordinated use of both the suction cup and the plastic opening tool.
Step 6
To detach the suction cup, depress the plastic projection to break the airtight seal.
Detach the display assembly's suction cup.
Detach the display assembly's suction cup.
Step 7 | Opening up the phone
Using the phone's top edge as a pivot point, carefully detach the front panel assembly from the rear case by moving the home button end outward.
The front panel's upper edge incorporates multiple clips that function as a partial hinge.
Ensure the clips positioned immediately beneath the rear case's upper border are properly aligned before proceeding with reassembly. Subsequently, move the front panel vertically, advancing it until its superior edge is level with the rear case's top edge.
The front panel's upper edge incorporates multiple clips that function as a partial hinge.
Ensure the clips positioned immediately beneath the rear case's upper border are properly aligned before proceeding with reassembly. Subsequently, move the front panel vertically, advancing it until its superior edge is level with the rear case's top edge.
Step 8
Carefully position the display at a 90-degree angle, then secure it in an upright position using a support to allow for hands-free access during the repair process.
If a dedicated calibration tool is unavailable, a factory-sealed, unopened can of carbonated drink can be substituted, ensuring it is the correct volume.
To avoid stressing the display's wiring during the repair process, secure it with a rubber band.
If a dedicated calibration tool is unavailable, a factory-sealed, unopened can of carbonated drink can be substituted, ensuring it is the correct volume.
To avoid stressing the display's wiring during the repair process, secure it with a rubber band.
Step 9 | Removing the battery connector bracket screws
Using a Phillips screwdriver, detach the battery connector bracket by unscrewing the included fasteners.
A single screw, measuring 2.2 millimeters, is required.
A single screw, measuring 3.2 millimeters, is required.
Carefully note the location of every screw during disassembly, as reassembly requires placing each one in its original position to prevent phone damage.
A single screw, measuring 2.2 millimeters, is required.
A single screw, measuring 3.2 millimeters, is required.
Carefully note the location of every screw during disassembly, as reassembly requires placing each one in its original position to prevent phone damage.
Step 10
Using a compatible tool, detach the metal bracket securing the battery connector.
Step 11 | Disconnecting the battery connector
Carefully lift the battery connector away from its connection on the logic board using a plastic opening tool, avoiding any forceful movements.
To prevent damage, lift solely on the battery connector itself; applying force to the logic board socket risks complete connector failure.
To prevent damage, lift solely on the battery connector itself; applying force to the logic board socket risks complete connector failure.
Step 12 | Removing the front panel assembly cable bracket screws
Using a Phillips screwdriver, detach the cable bracket from the front panel assembly by unscrewing the five screws that hold it in place.
Use three screws, each measuring 1.2 millimeters.
A single screw with a 1.7-millimeter head diameter is required.
A single screw with a 3.1 millimeter diameter is required.
Improper screw installation during reassembly can result in irreversible harm to the iPhone's logic board.
Use three screws, each measuring 1.2 millimeters.
A single screw with a 1.7-millimeter head diameter is required.
A single screw with a 3.1 millimeter diameter is required.
Improper screw installation during reassembly can result in irreversible harm to the iPhone's logic board.
Step 13
Detach the bracket securing the front panel assembly cable to the logic board.
Step 14
When proceeding with the following four steps, ensure you apply lifting force exclusively to the cable connectors themselves, avoiding any stress on the sockets where they are mounted to the logic board.
Carefully detach the front camera and sensor cable connector from its socket using a spudger or similar tool.
Carefully detach the front camera and sensor cable connector from its socket using a spudger or similar tool.
Step 15
Carefully detach the home button cable connector using a spudger or similar tool, like a fingernail.
Step 16
Using a 5/32-inch hex key, carefully tighten the four retaining screws securing the motor assembly to the gearbox housing, ensuring each is snug but not over-torqued to prevent damage; observe the warning regarding potential pinch points during this process.
Prior to either detaching or reattaching the cable in this procedure, ensure the battery is disconnected.
Carefully separate the display data cable connector from its socket using a spudger or similar tool.
Should the display data cable become detached from its connector during reassembly, powering on the device might produce a blank screen or display white lines; to resolve this, reattach the cable and restart the phone by disconnecting and reconnecting the battery connector.
Prior to either detaching or reattaching the cable in this procedure, ensure the battery is disconnected.
Carefully separate the display data cable connector from its socket using a spudger or similar tool.
Should the display data cable become detached from its connector during reassembly, powering on the device might produce a blank screen or display white lines; to resolve this, reattach the cable and restart the phone by disconnecting and reconnecting the battery connector.
Step 17
Carefully secure the 1/4-inch hex key Allen wrench into the driver and tighten the three retaining screws on the motor assembly to a torque of 3.5 Nm, ensuring the motor remains properly aligned and avoiding damage to the threads.
Carefully separate the digitizer cable connector from its socket using the flat spudger.
To avoid potential damage to the digitizer, ensure that when attaching the digitizer cable, pressure is applied sequentially to each end of the connector, rather than the central portion; applying force to the middle may warp the component.
Carefully separate the digitizer cable connector from its socket using the flat spudger.
To avoid potential damage to the digitizer, ensure that when attaching the digitizer cable, pressure is applied sequentially to each end of the connector, rather than the central portion; applying force to the middle may warp the component.
Step 18 | Separating front panel assembly and rear case
Carefully align the 4mm diameter pin on the new actuator with the corresponding hole in the control panel housing, then secure it using the provided M3 x 6mm screw and a 3mm hex key, ensuring the actuator is flush with the panel surface and observing the caution regarding potential pinch points.
Detach the front panel assembly from the rear case.
Detach the front panel assembly from the rear case.
Step 19 | Speaker
Carefully align the 4mm hex key to the setscrew located on the motor shaft, ensuring it is securely seated, then tighten the setscrew to a torque of 3.2 Nm using the torque wrench, observing caution to prevent over-tightening and potential damage to the shaft.
Carefully use the spudger's flat edge to separate the Lightning connector assembly cable, then maneuver it aside to avoid the speaker.
Carefully use the spudger's flat edge to separate the Lightning connector assembly cable, then maneuver it aside to avoid the speaker.
Step 20
Using a 5/32-inch hex key, carefully tighten the four M4x8 screws securing the fan assembly to the heatsink, ensuring a torque of 4.5 in-lbs to prevent damage.
Carefully leverage the antenna cable connector away from its socket on the logic board using a spudger's tip.
Carefully leverage the antenna cable connector away from its socket on the logic board using a spudger's tip.
Step 21
Using a Phillips screwdriver, detach the speaker by unscrewing the four screws that hold it in place.
- Use two screws, each measuring 2.9 millimeters.
- Use two screws, each measuring 2.3 millimeters.
Step 22
Carefully disengage the antenna interconnect cable clip from the speaker housing by applying pressure with a spudger.
Step 23
Carefully leverage the speaker upward and away from the rear case housing using a spudger's pointed end.
Carefully detach the speaker component from the iPhone.
Carefully detach the speaker component from the iPhone.
Step 24 | Lightning Connector Assembly

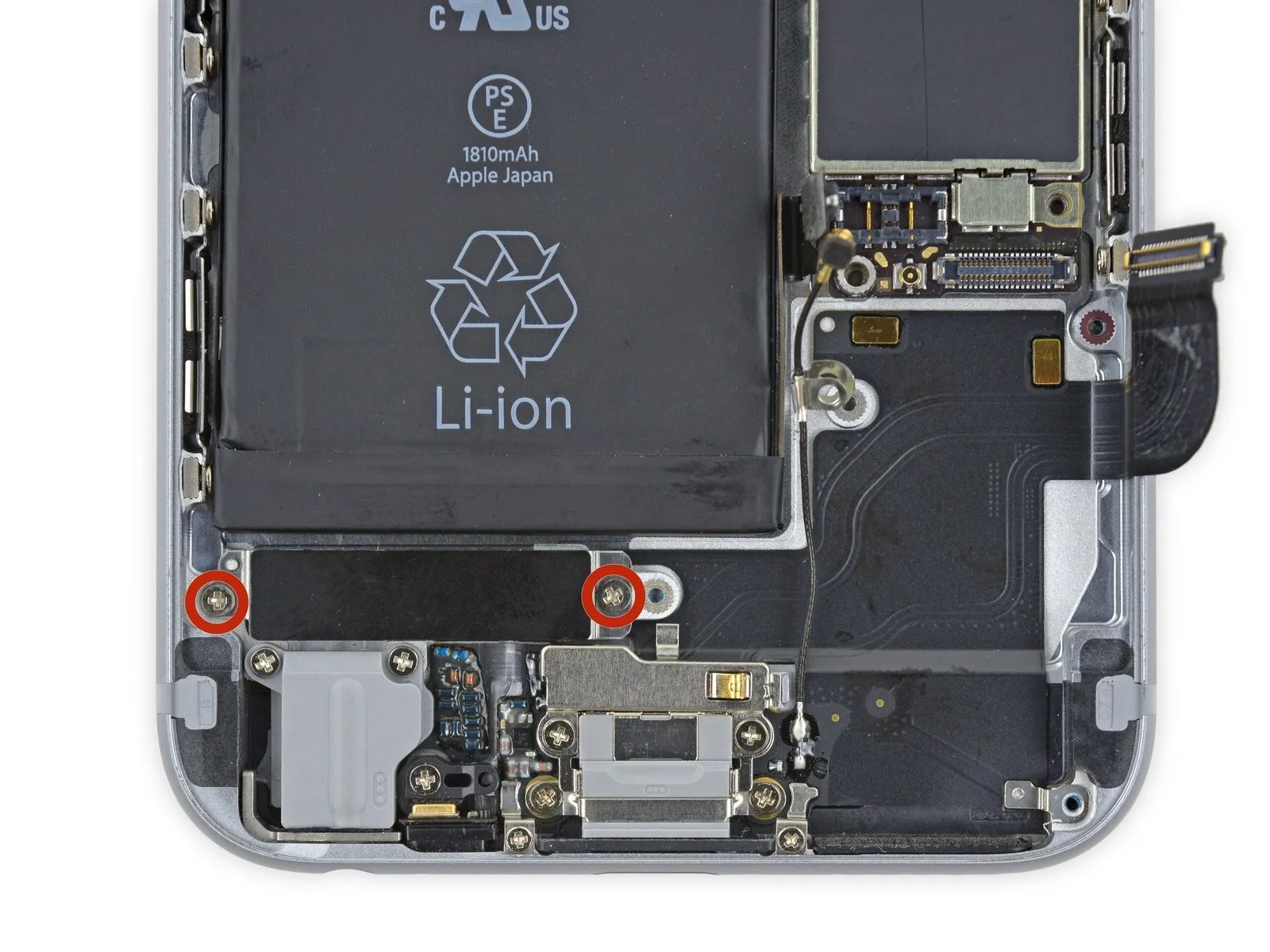

Using a Phillips #00 screwdriver, detach the vibrator from the rear case by unscrewing the two 1.6 mm screws that hold it in place.
Step 25
Carefully detach the iPhone's vibrator component.
Step 26

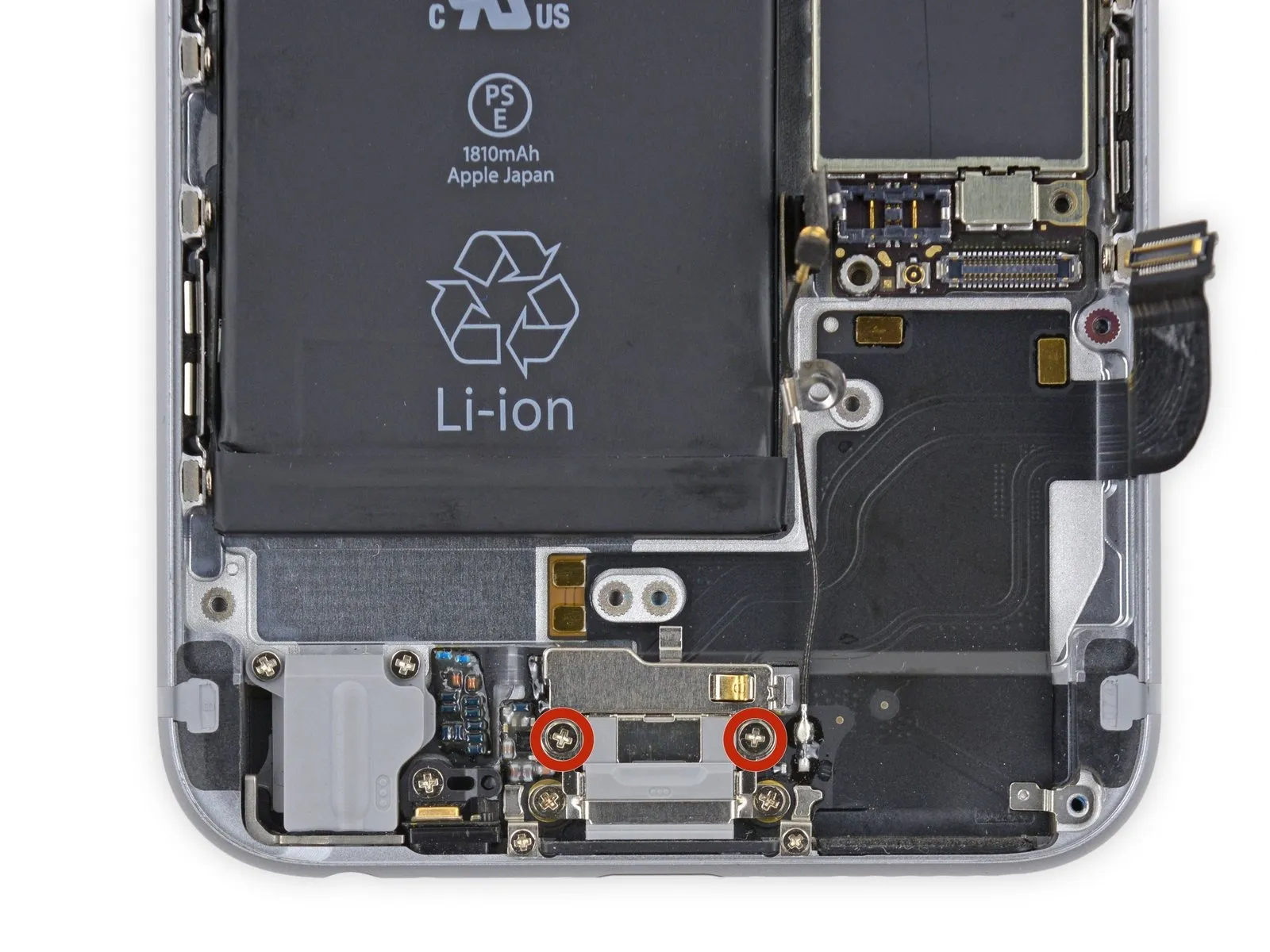

Using a Phillips #00 screwdriver, detach the Lightning port retaining bracket by unscrewing its two 3.1 mm fasteners.
Step 27

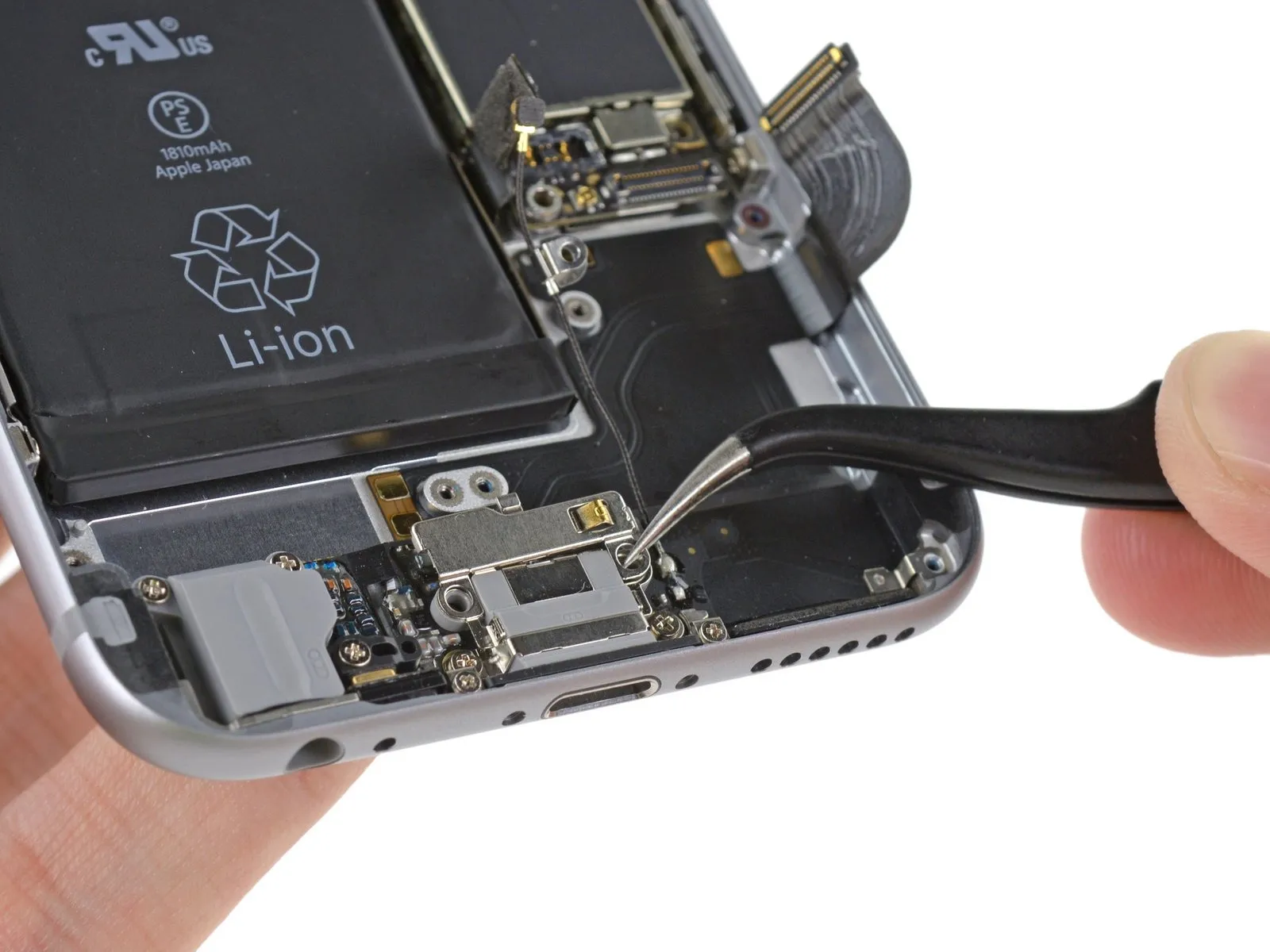

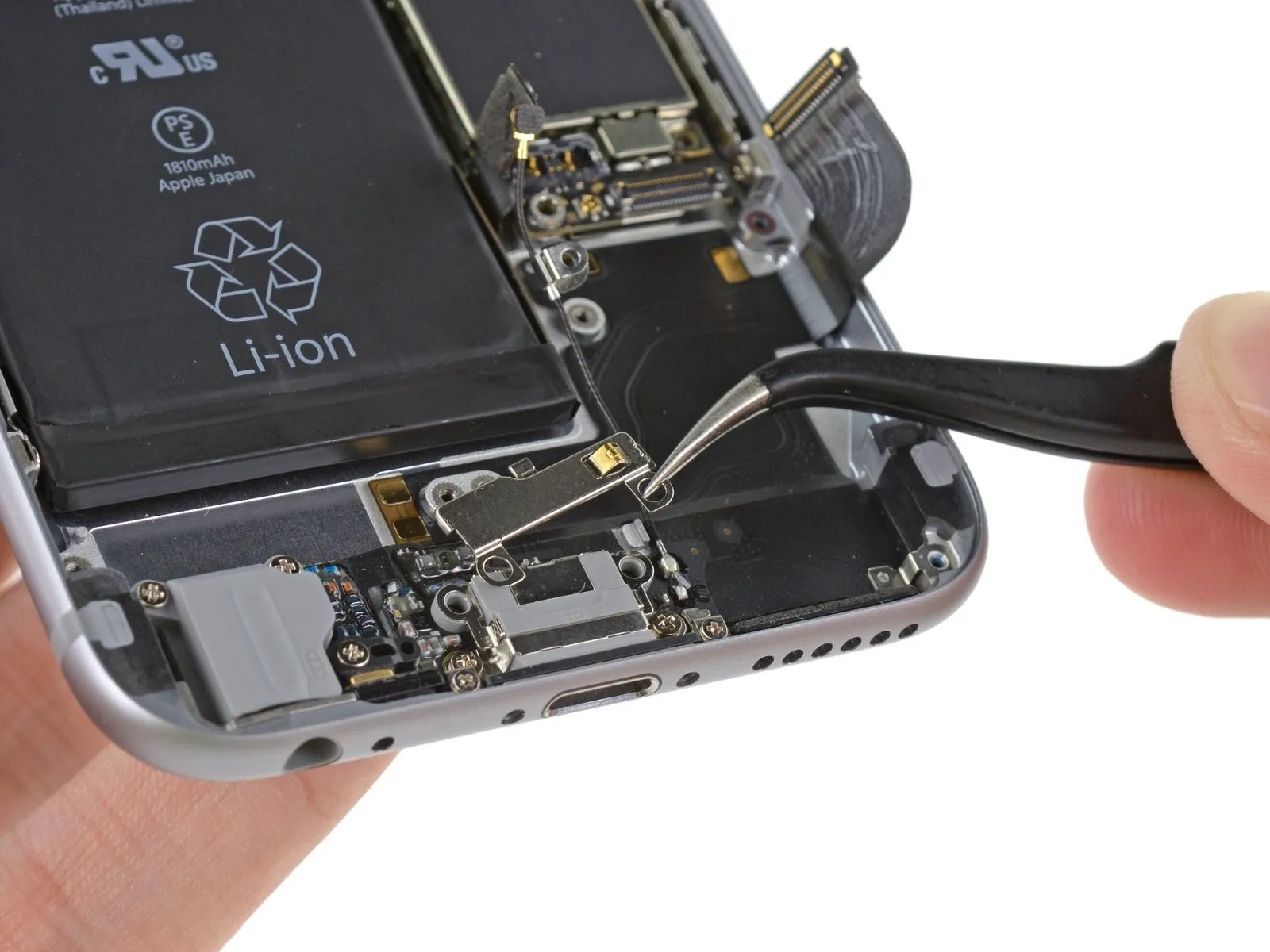

Detach the bracket securing the Lightning port.
Step 28
Using a Phillips #00 screwdriver, detach the 3.6 mm shoulder screw securing the microphone brace.
Step 29
Carefully detach the microphone support bracket from the iPhone.
Step 30

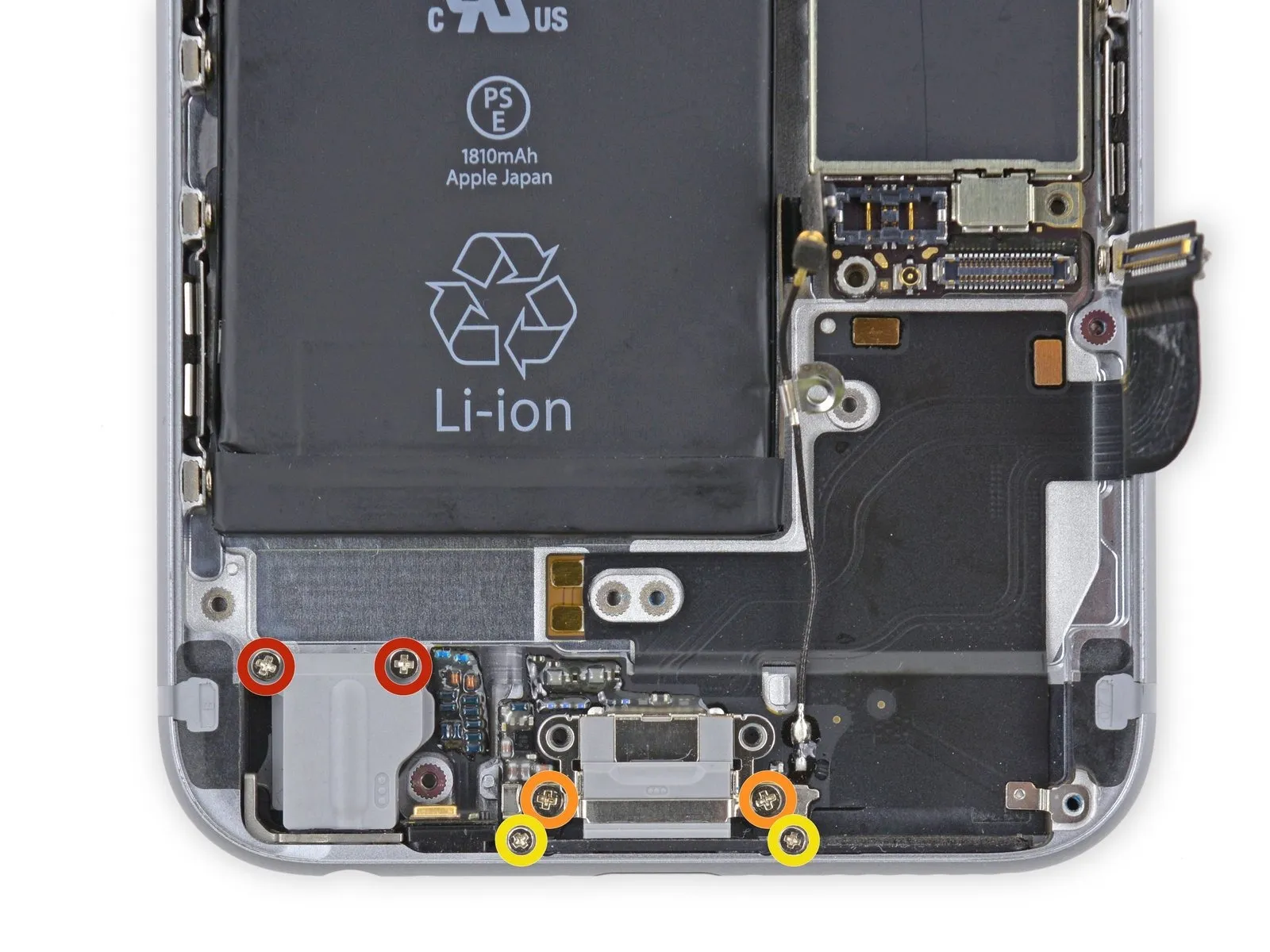

Using a Phillips #00 screwdriver, detach the six screws securing the Lightning connector assembly.
Use two shoulder screws, each measuring 3.1 millimeters.
Use two screws, each measuring 1.7 millimeters.
Use screws, each measuring 1.5 millimeters in diameter.
Use two shoulder screws, each measuring 3.1 millimeters.
Use two screws, each measuring 1.7 millimeters.
Use screws, each measuring 1.5 millimeters in diameter.
Step 31

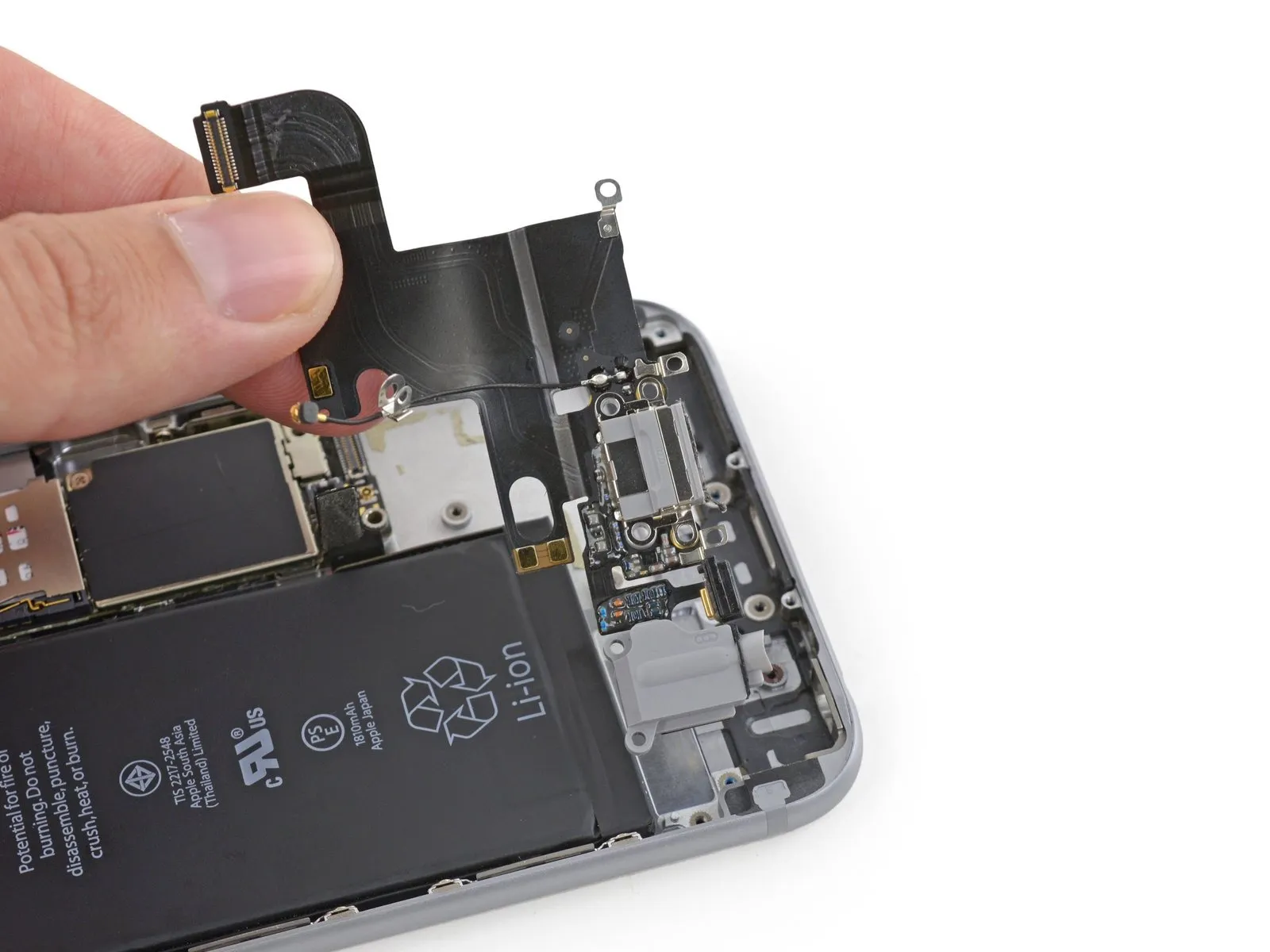

Carefully lift the Lightning connector assembly away from the back of the device housing, utilizing the flat edge of a spudger to initiate the separation.
Step 32

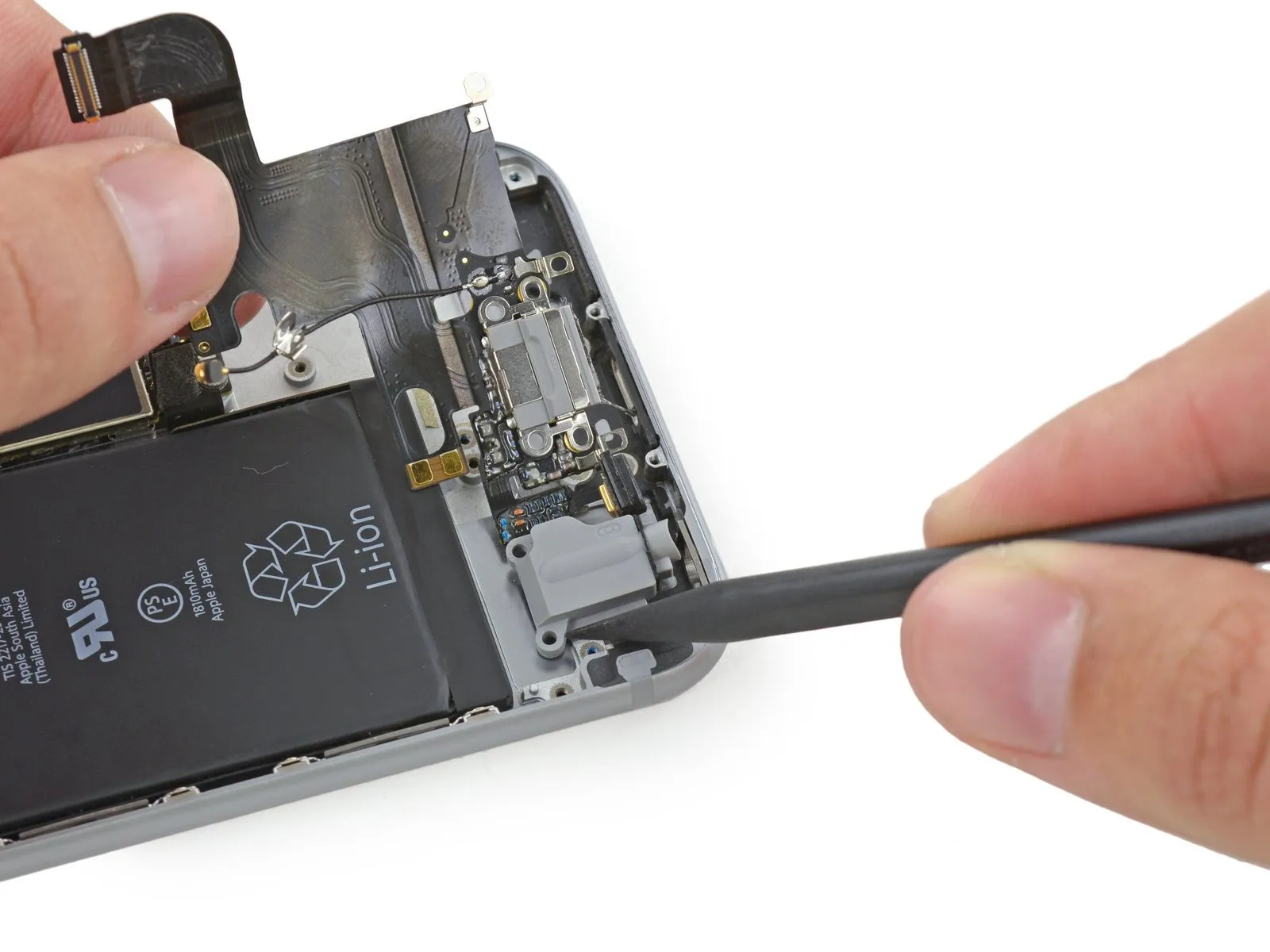

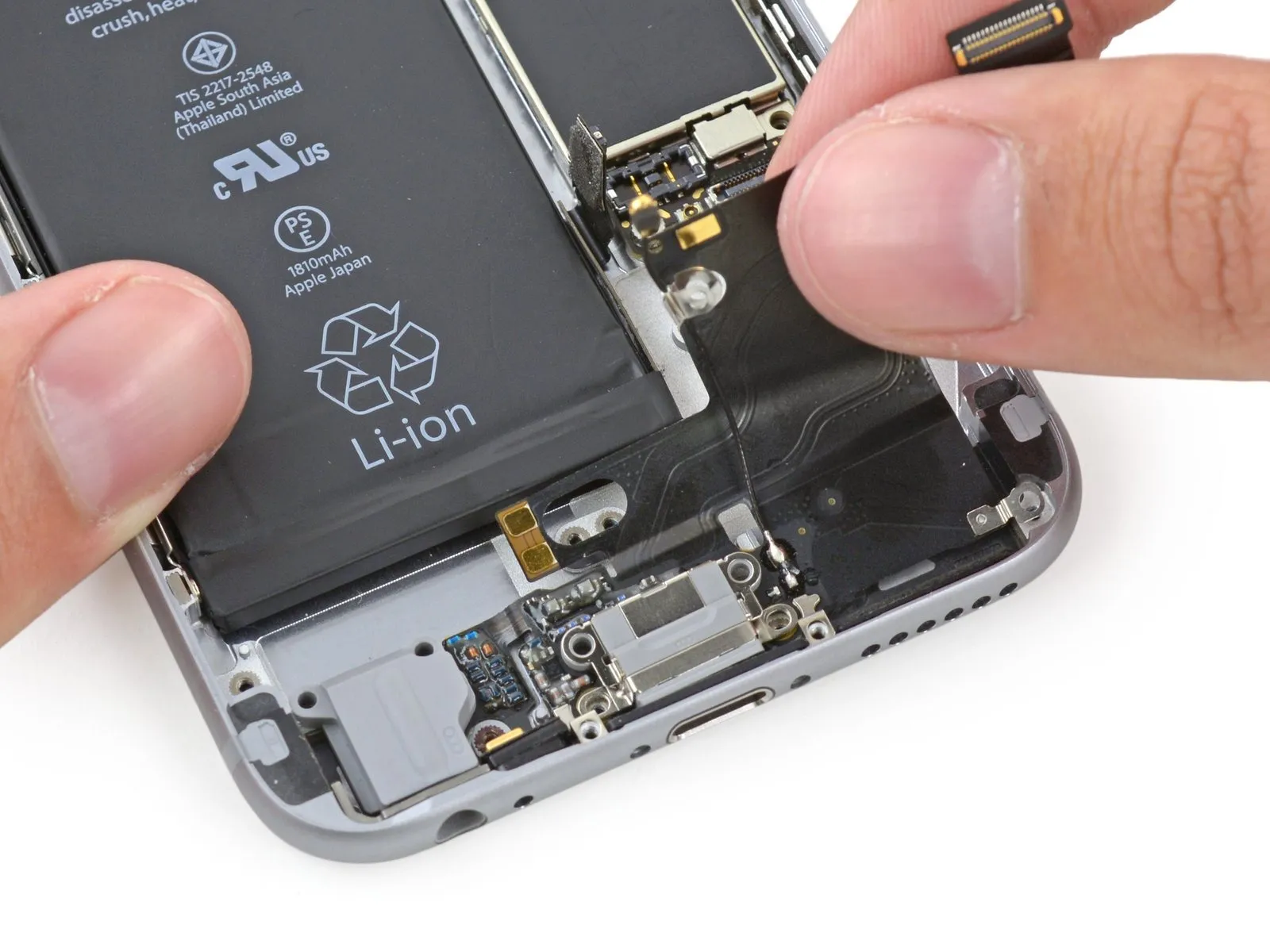

Gently lift the Lightning connector assembly a small amount, ensuring it disengages from the screw posts securing the vibrator and speaker.
Step 33

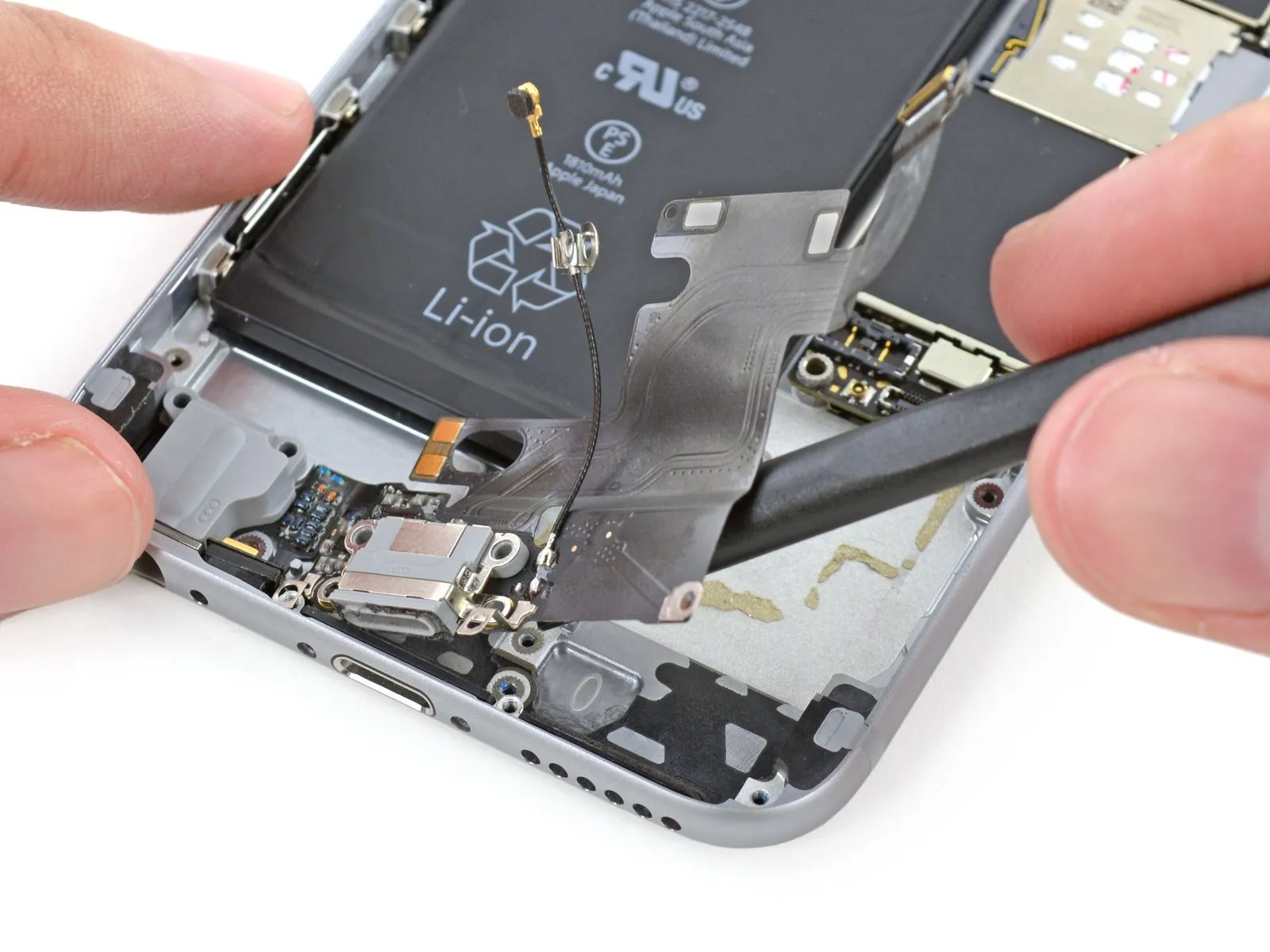

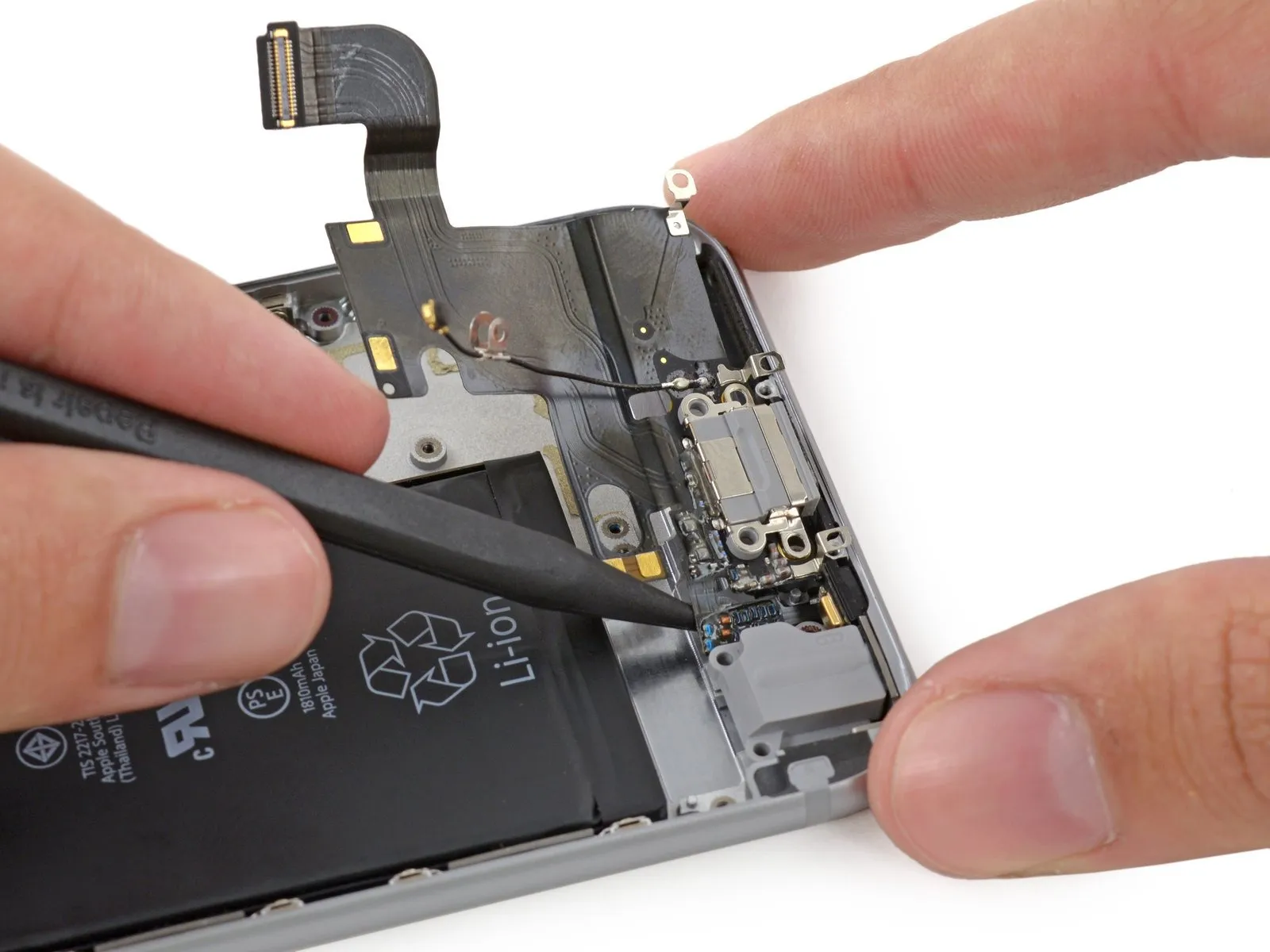

Carefully insert the flat spudger edge beneath the Lightning connector area to release the adhesive securing it.
Step 34

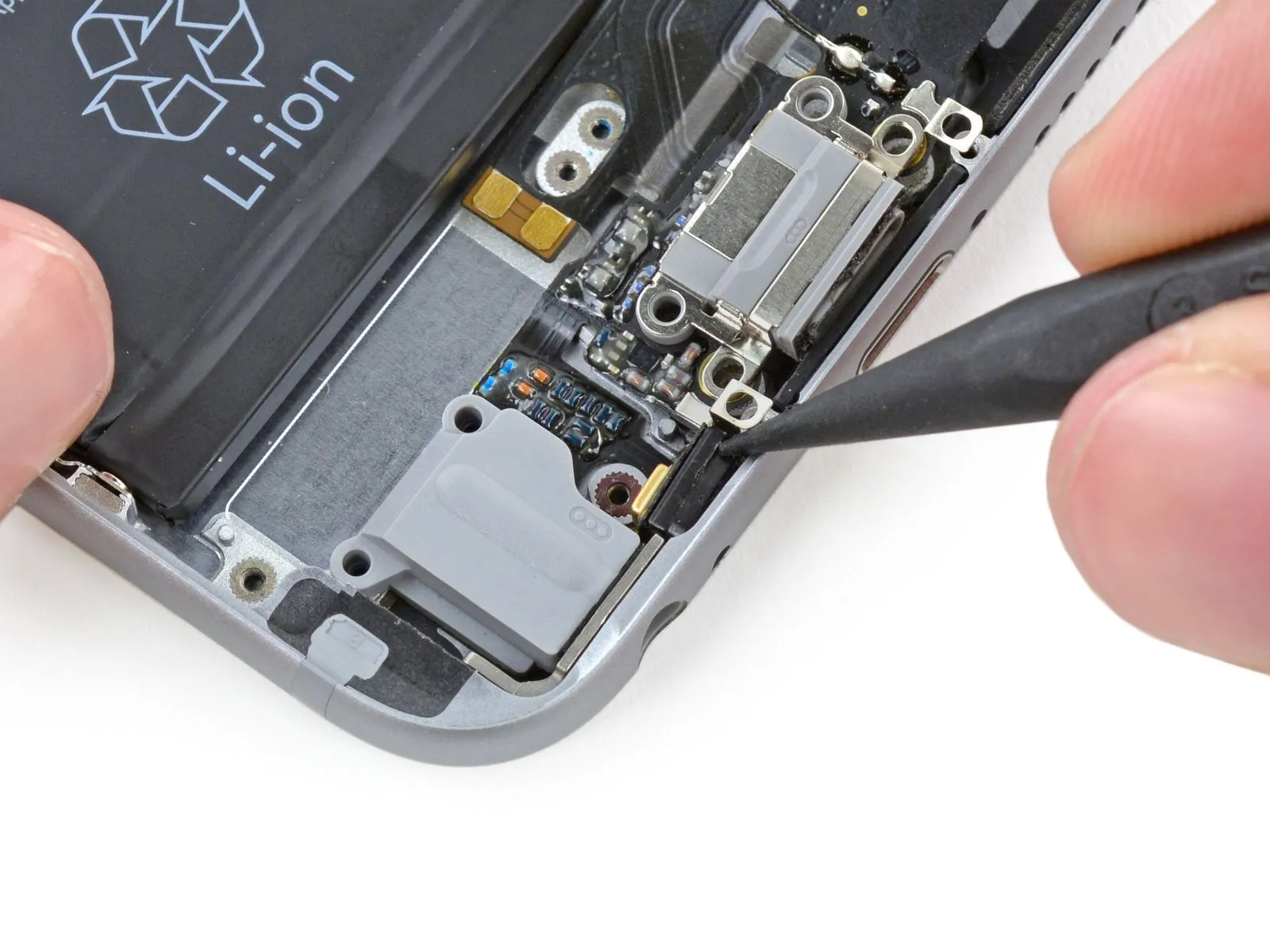

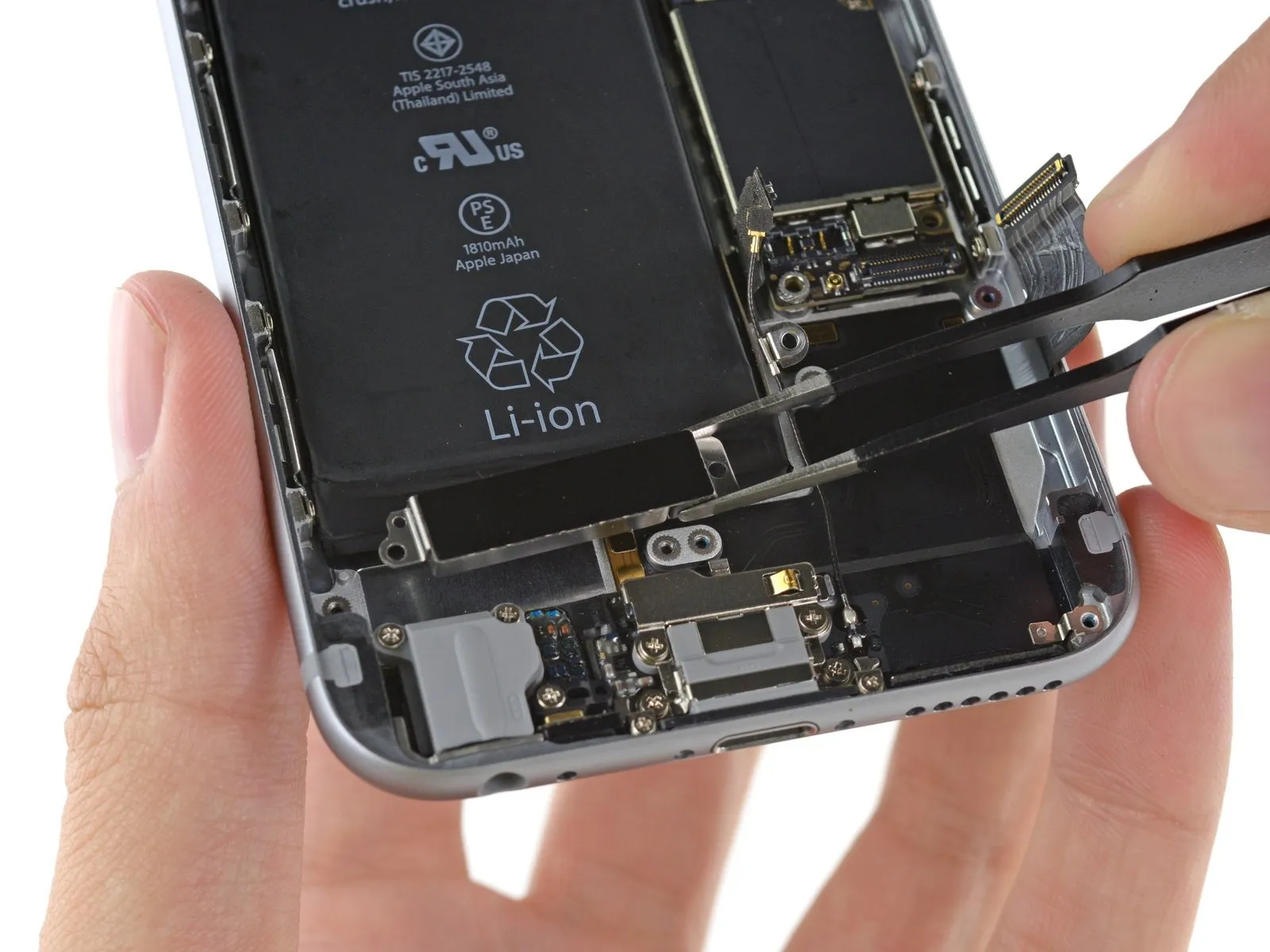

Carefully leverage the microphone component of the Lightning connector assembly from its molded position within the rear case using a spudger tip.
Step 35

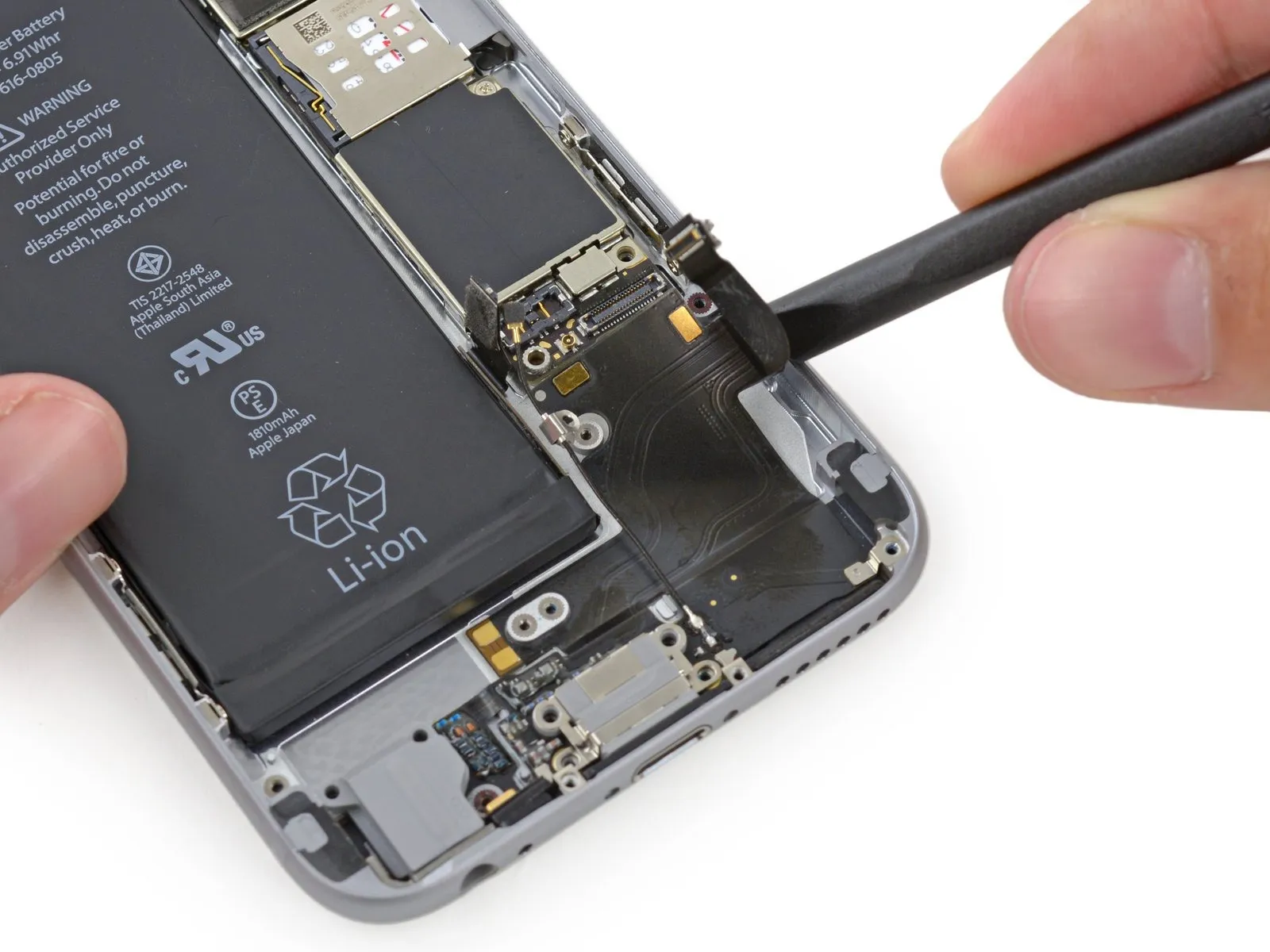

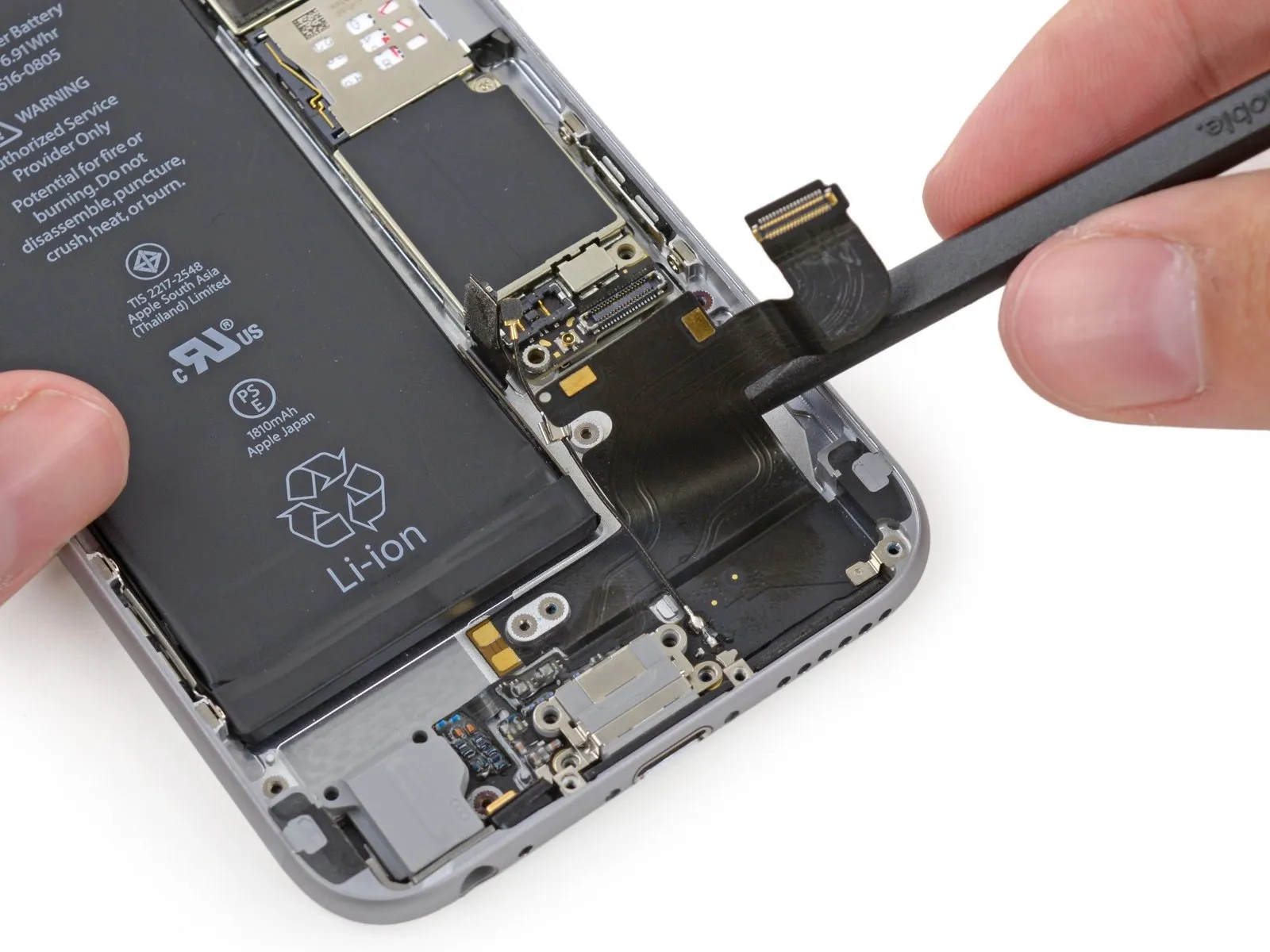

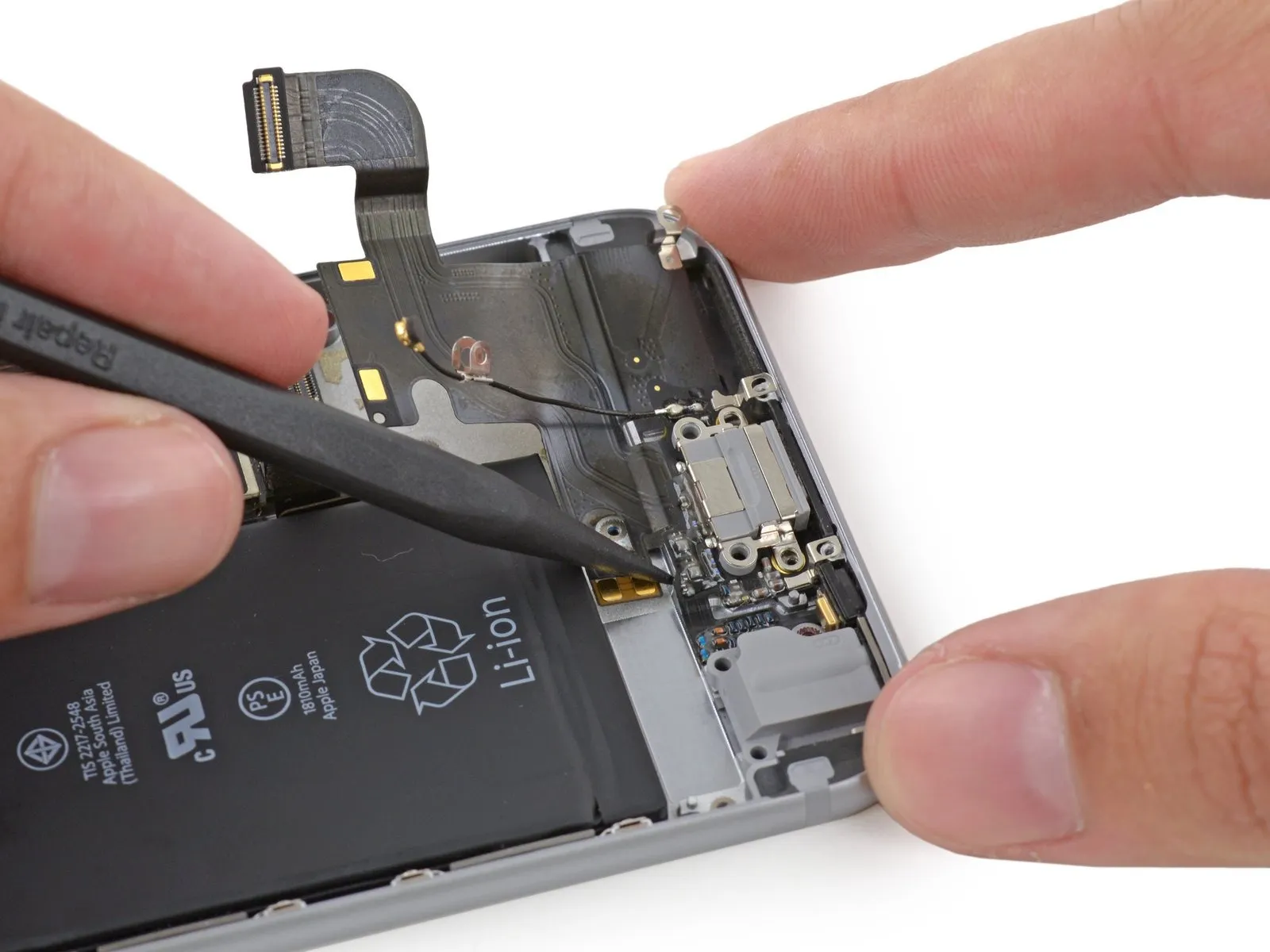

Using a spudger, carefully separate the assembly from the adhesive securing it to the device, working between the Lightning connector and the headphone jack.
Step 36

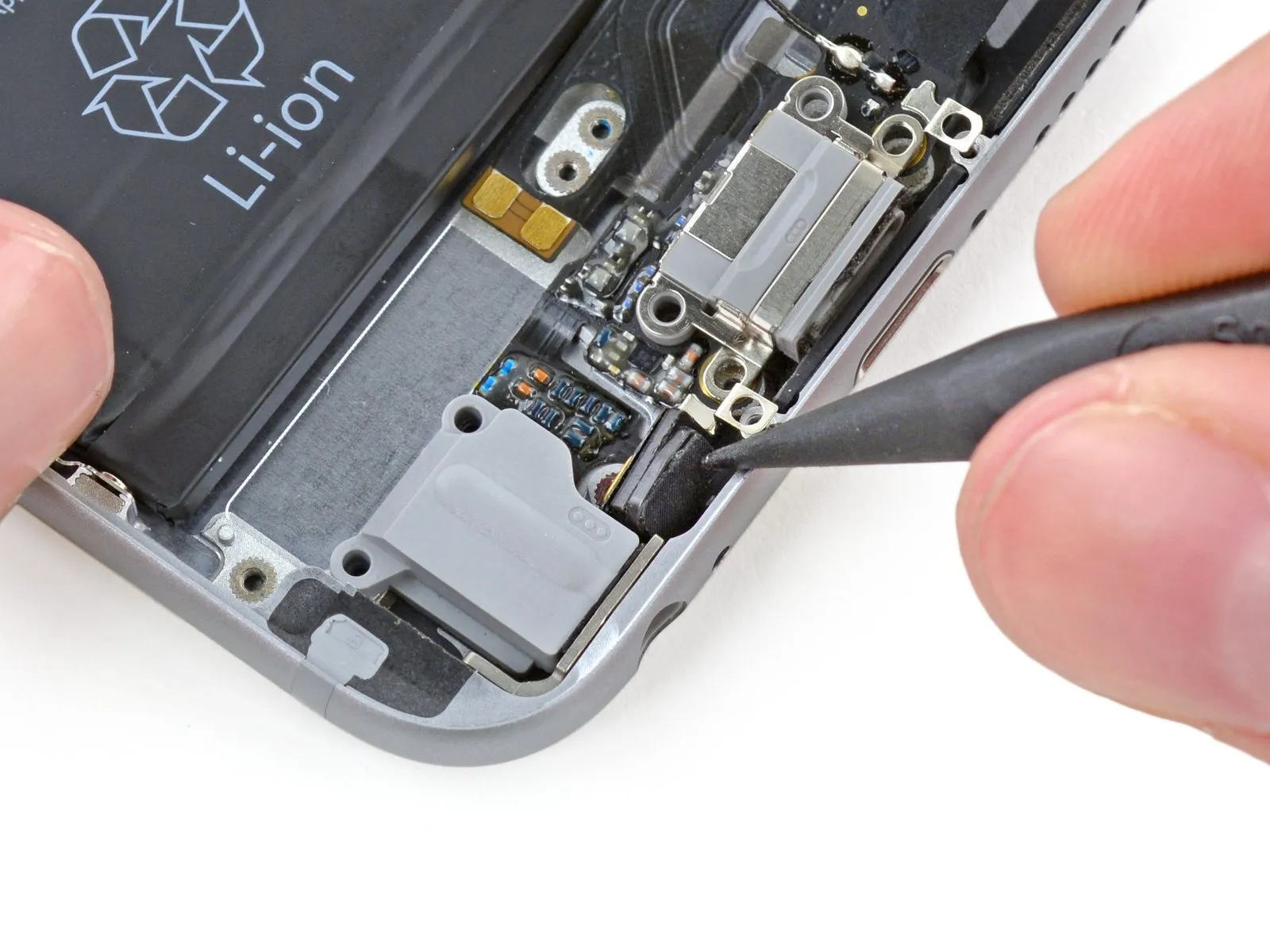

- Carefully insert the pointed end of a spudger to gently dislodge the headphone jack from its opening on the back of the device's housing.
- Carefully detach the Lightning connector assembly from the iPhone's internal components.
- To ensure proper function and prevent damage, take the following precautions prior to any work on the Lightning connector assembly.
- Carefully remove any remaining adhesive with a plastic tool, paying particular attention to the area behind the cable on the rear case.

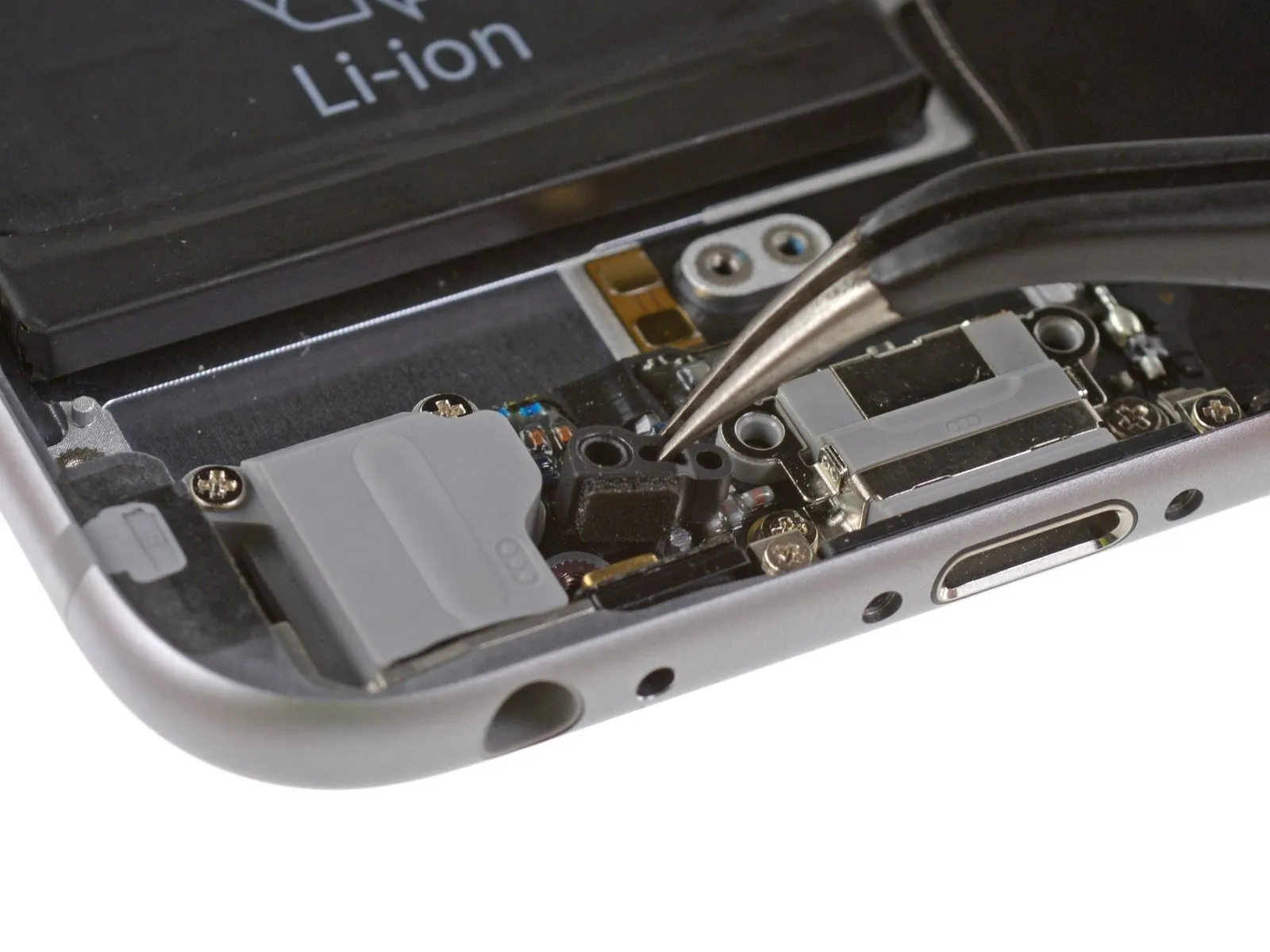

- Before installation, meticulously examine the substitute connector assembly against the existing cable, verifying dimensional and feature consistency. Note that the new Lightning connector assembly might lack specific components that must be moved from the original part.
The headphone jack gasket, microphone bracket, and antenna interconnect clip are frequently moved during repairs.
