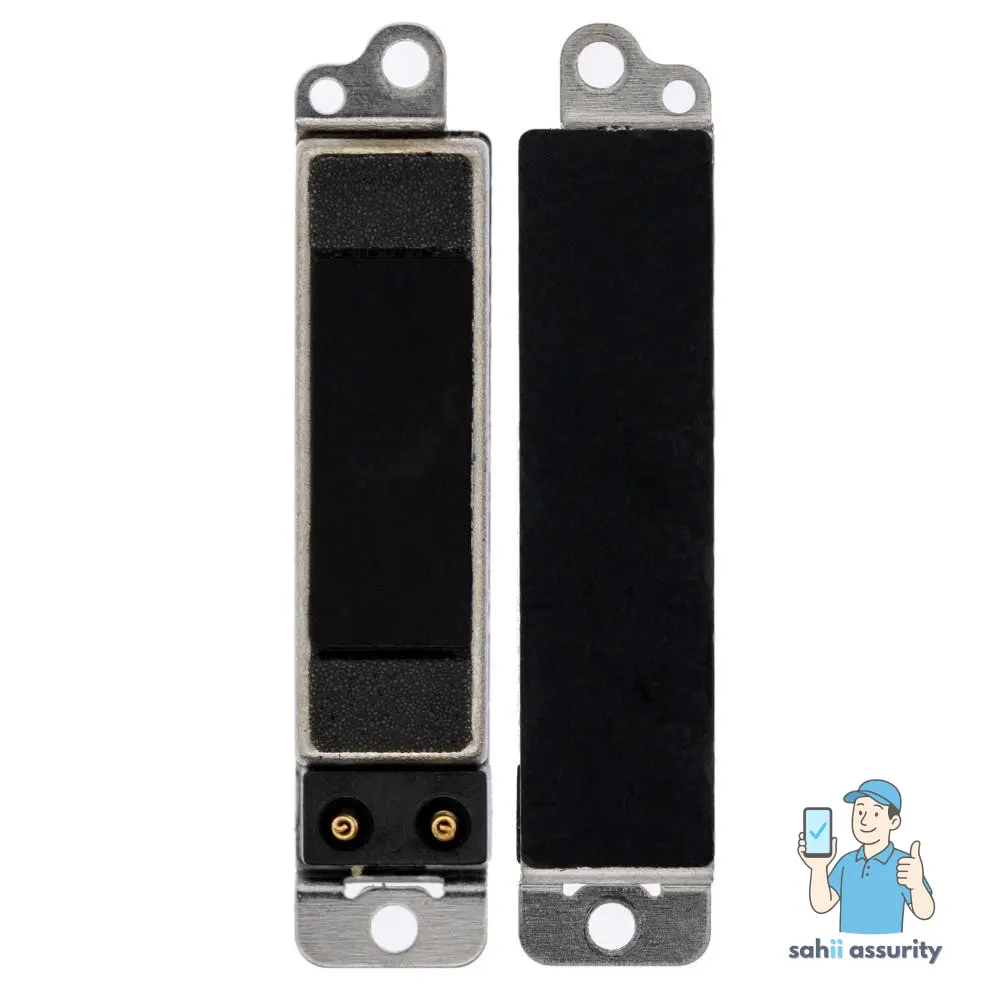

iPhone 6 Vibrator Replacement
Follow these instructions to troubleshoot and correct the absence of silent mode notifications, and to substitute a defective vibrator motor within your iPhone 6.
To protect the display's delicate wiring, this procedure requires separating the front panel assembly; alternatively, if you are confident in manually stabilizing the display, you may proceed directly to the vibrator motor removal instructions without disconnecting the display.
Step 1 | Pentalobe Screws
To prevent a fire hazard or explosion due to accidental puncture, ensure the lithium-ion battery's charge level is less than 25% prior to beginning any disassembly procedures on your iPhone.
To prevent electrical shock or damage to components, ensure the iPhone is completely de-energized prior to starting the repair process.
Using a Pentalobe screwdriver, detach the two screws measuring 3.6 millimeters in length, positioned adjacent to the Lightning connector.
To prevent electrical shock or damage to components, ensure the iPhone is completely de-energized prior to starting the repair process.
Using a Pentalobe screwdriver, detach the two screws measuring 3.6 millimeters in length, positioned adjacent to the Lightning connector.
Step 2 | Anti-Clamp instructions
To simplify the opening process, the following two steps utilize the Anti-Clamp tool; if you do not have this tool, proceed to the instructions three steps further down.
Refer to the included guide for detailed procedures regarding Anti-Clamp operation.
To release the Anti-Clamp's arms, move the blue handle in a rearward direction.
Position the arms so they extend across the iPhone's left or right side.
To secure the device, place one suction cup on the front surface, close to the lower edge and directly over the home button, and another suction cup on the rear, in the same relative position.
Apply vacuum by pressing the cups firmly against the surface needing treatment.
To improve the Anti-Clamp's adherence if the iPhone's exterior feels excessively smooth, apply adhesive tape to the device's surface.
Refer to the included guide for detailed procedures regarding Anti-Clamp operation.
To release the Anti-Clamp's arms, move the blue handle in a rearward direction.
Position the arms so they extend across the iPhone's left or right side.
To secure the device, place one suction cup on the front surface, close to the lower edge and directly over the home button, and another suction cup on the rear, in the same relative position.
Apply vacuum by pressing the cups firmly against the surface needing treatment.
To improve the Anti-Clamp's adherence if the iPhone's exterior feels excessively smooth, apply adhesive tape to the device's surface.
Step 3
To secure the arms, advance the blue handle in the direction indicated.
Rotate the handle fully, completing a 360-degree turn, observing for the initial signs of cup expansion.
Maintain parallel positioning of the suction cups; should misalignment occur, gently release the suction cups' grip and reposition the arms.
Once sufficient separation is achieved by the Anti-Clamp tool, slide a prying tool beneath the display panel.
To ensure adequate clearance, reposition the handle by 90 degrees.
Allow the Anti-Clamp device to function and achieve proper seating by incrementally tightening no more than 90 degrees at a time, pausing several seconds between each adjustment.
Rotate the handle fully, completing a 360-degree turn, observing for the initial signs of cup expansion.
Maintain parallel positioning of the suction cups; should misalignment occur, gently release the suction cups' grip and reposition the arms.
Once sufficient separation is achieved by the Anti-Clamp tool, slide a prying tool beneath the display panel.
To ensure adequate clearance, reposition the handle by 90 degrees.
Allow the Anti-Clamp device to function and achieve proper seating by incrementally tightening no more than 90 degrees at a time, pausing several seconds between each adjustment.
Step 4 | Manual Opening Procedure
Lacking an Anti-Clamp tool, secure the front panel with a single suction cup for lifting.
Securely affix a suction cup to the display surface, positioning it directly over the home button area.
Ensure a leakproof connection by firmly applying pressure to the cup against the screen's surface.
To facilitate suction cup attachment on a severely cracked display, apply a sheet of clear packing tape across the damage; as an alternative, a robust adhesive tape can be substituted for the suction cup. As a last resort, secure the suction cup directly to the fractured screen using superglue.
Securely affix a suction cup to the display surface, positioning it directly over the home button area.
Ensure a leakproof connection by firmly applying pressure to the cup against the screen's surface.
To facilitate suction cup attachment on a severely cracked display, apply a sheet of clear packing tape across the damage; as an alternative, a robust adhesive tape can be substituted for the suction cup. As a last resort, secure the suction cup directly to the fractured screen using superglue.
Step 5
Using one hand to secure the iPhone, lift the suction cup vertically to gently create a small gap between the front panel and the rear enclosure.
Exercise caution and use steady, even pressure when installing the display assembly, as its fit is considerably more snug than typical device components.
Employing a plastic opening tool, carefully separate the rear case from the display assembly by gently levering it downwards, maintaining upward traction with the suction cup.
To release the front panel assembly from the rear case, carefully detach the retaining clips, which may require using both the suction cup and a plastic opening tool in conjunction.
Exercise caution and use steady, even pressure when installing the display assembly, as its fit is considerably more snug than typical device components.
Employing a plastic opening tool, carefully separate the rear case from the display assembly by gently levering it downwards, maintaining upward traction with the suction cup.
To release the front panel assembly from the rear case, carefully detach the retaining clips, which may require using both the suction cup and a plastic opening tool in conjunction.
Step 6
To detach the suction cup, depress the plastic projection to break the airtight seal.
Detach the display assembly's suction cup.
Detach the display assembly's suction cup.
Step 7 | Opening up the phone
Carefully detach the front panel assembly from the rear case by pivoting it outward, leveraging the phone's upper edge as a fulcrum, starting at the home button end.
The front panel's upper edge incorporates multiple clips that function as a partial hinge.
Ensure the clips located immediately beneath the rear case's upper border are properly positioned during reassembly, subsequently sliding the front panel upwards until its superior edge is level with the rear case's top edge.
The front panel's upper edge incorporates multiple clips that function as a partial hinge.
Ensure the clips located immediately beneath the rear case's upper border are properly positioned during reassembly, subsequently sliding the front panel upwards until its superior edge is level with the rear case's top edge.
Step 8
Carefully position the display at a roughly 90-degree angle, then secure it in place using a support to prevent movement during the repair process.
If a suitable replacement is unavailable, a factory-sealed aluminum can containing a beverage can be temporarily utilized.
To avoid stressing the display's wiring during the repair process, secure it with a rubber band.
If a suitable replacement is unavailable, a factory-sealed aluminum can containing a beverage can be temporarily utilized.
To avoid stressing the display's wiring during the repair process, secure it with a rubber band.
Step 9 | Removing the battery connector bracket screws
Using a Phillips screwdriver, detach the battery connector bracket by unscrewing the included fasteners.
A single screw, measuring 2.2 millimeters, is required.
A single screw, measuring 3.2 millimeters, is required.
Carefully note the location of every screw during disassembly, as reassembling them in their original positions is crucial to prevent potential damage to the device.
A single screw, measuring 2.2 millimeters, is required.
A single screw, measuring 3.2 millimeters, is required.
Carefully note the location of every screw during disassembly, as reassembling them in their original positions is crucial to prevent potential damage to the device.
Step 10
Detach the bracket securing the battery connector using a Tri-Point Y000 screwdriver.
Step 11 | Disconnecting the battery connector
Carefully lift the battery connector away from its connection on the logic board, employing a plastic opening tool to avoid damage.
To avoid irreparable damage, focus your lifting force solely on the battery connector itself; applying pressure to the logic board socket risks fracturing the connector.
To avoid irreparable damage, focus your lifting force solely on the battery connector itself; applying pressure to the logic board socket risks fracturing the connector.
Step 12 | Removing the front panel assembly cable bracket screws
Using a Phillips screwdriver, detach the cable bracket from the front panel assembly by unscrewing the five screws that hold it in place.
Use three screws, each measuring 1.2 millimeters.
A screw with a 1.7-millimeter head diameter is required.
A single screw with a 3.1 millimeter diameter is required.
Improper screw installation during reassembly can result in irreversible harm to the iPhone's logic board.
Use three screws, each measuring 1.2 millimeters.
A screw with a 1.7-millimeter head diameter is required.
A single screw with a 3.1 millimeter diameter is required.
Improper screw installation during reassembly can result in irreversible harm to the iPhone's logic board.
Step 13
Detach the bracket securing the front panel assembly cable to the logic board.
Step 14
When proceeding with the following four steps, ensure that you lift solely on the cable connectors themselves, avoiding any upward force applied to the sockets they connect to on the logic board.
Carefully detach the front camera and sensor cable connector from its socket using a spudger or similar non-conductive tool.
Carefully detach the front camera and sensor cable connector from its socket using a spudger or similar non-conductive tool.
Step 15
Carefully detach the home button cable connector using a spudger or similar tool, like a fingernail.
Step 16
Prior to either detaching or reattaching the cable in this procedure, ensure the battery is disconnected.
Carefully detach the display data cable connector using a spudger or fingernail.
Should the display data cable become detached from its connector during reassembly, powering on the device may produce a blank screen or display white lines; to resolve this, re-engage the cable with the connector and perform a power cycle, which is most reliably achieved by briefly disconnecting and then reconnecting the battery connector.
Carefully detach the display data cable connector using a spudger or fingernail.
Should the display data cable become detached from its connector during reassembly, powering on the device may produce a blank screen or display white lines; to resolve this, re-engage the cable with the connector and perform a power cycle, which is most reliably achieved by briefly disconnecting and then reconnecting the battery connector.
Step 17
Carefully detach the digitizer cable connector by gently separating it from its socket using the flat tool end of a spudger.
To avoid potential digitizer damage or component bending, apply pressure to opposing ends of the digitizer cable connector when reattaching it, rather than the central portion.
To avoid potential digitizer damage or component bending, apply pressure to opposing ends of the digitizer cable connector when reattaching it, rather than the central portion.
Step 18 | Separating front panel assembly and rear case
Detach the front panel assembly by disengaging it from the rear case.
Step 19 | Vibrator
Using a Phillips #00 screwdriver, detach the vibrator from the rear case by unscrewing the two screws, each measuring 1.6 mm.
Step 20

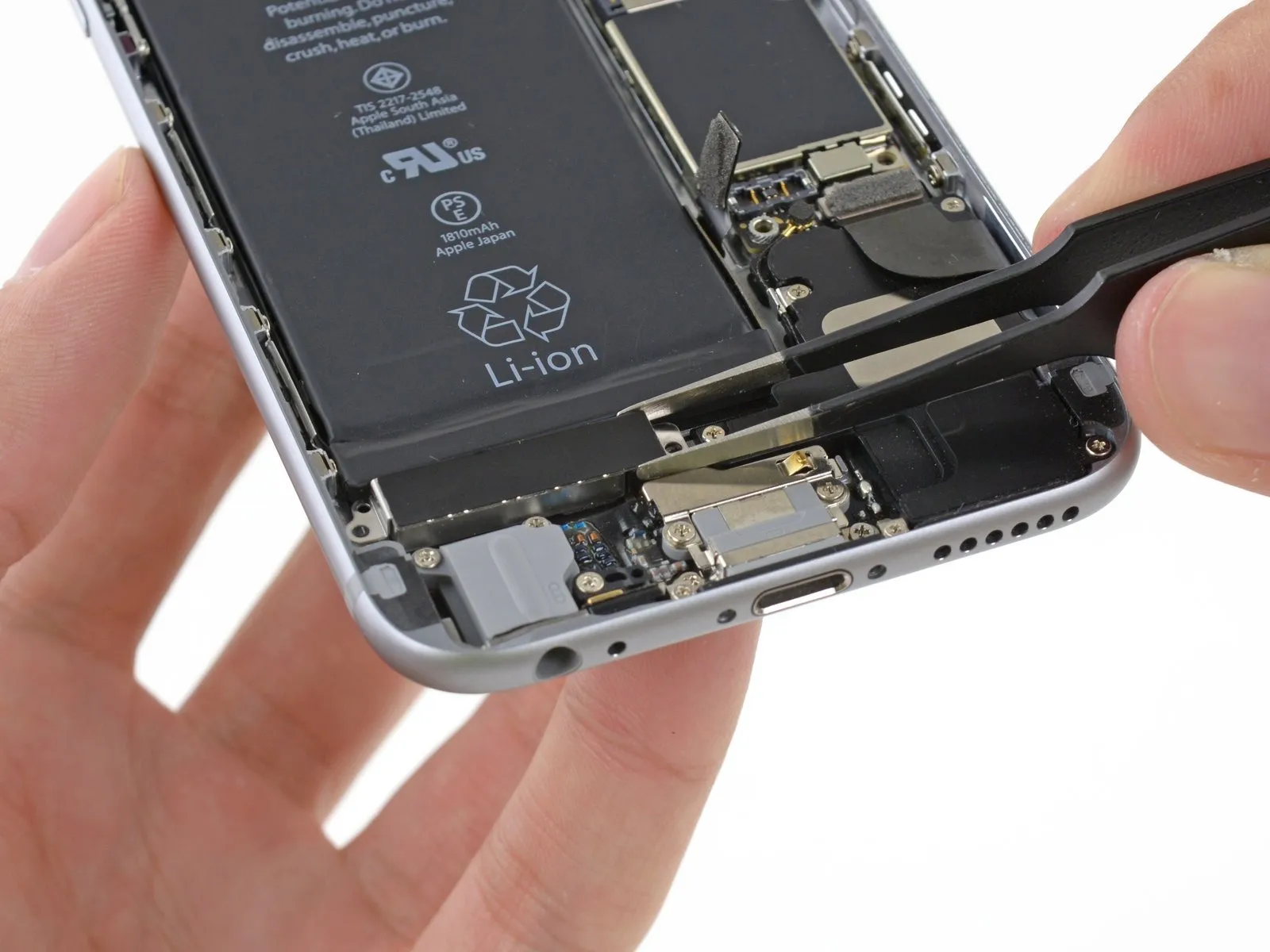

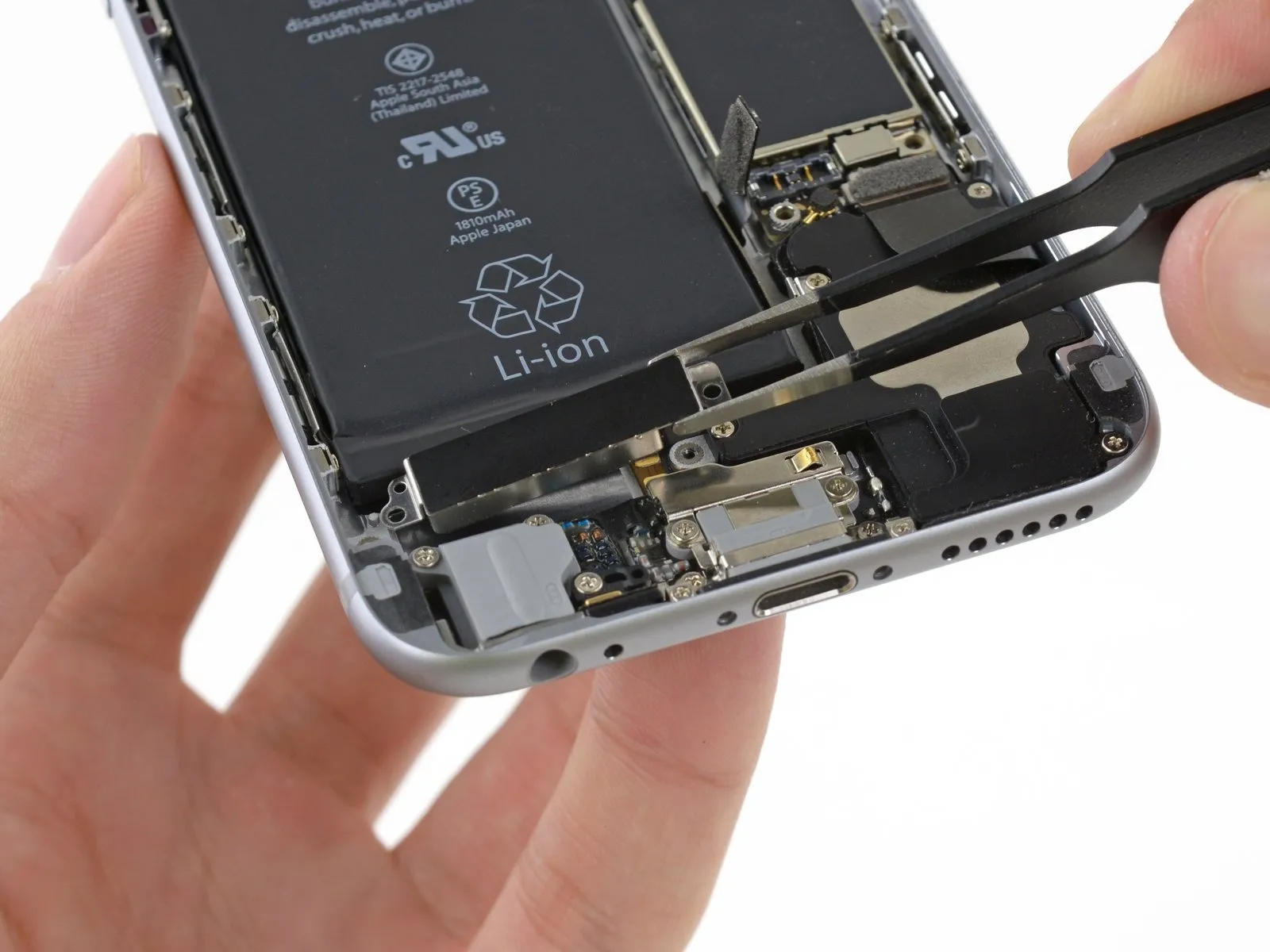

Carefully detach the iPhone's vibrator component.
