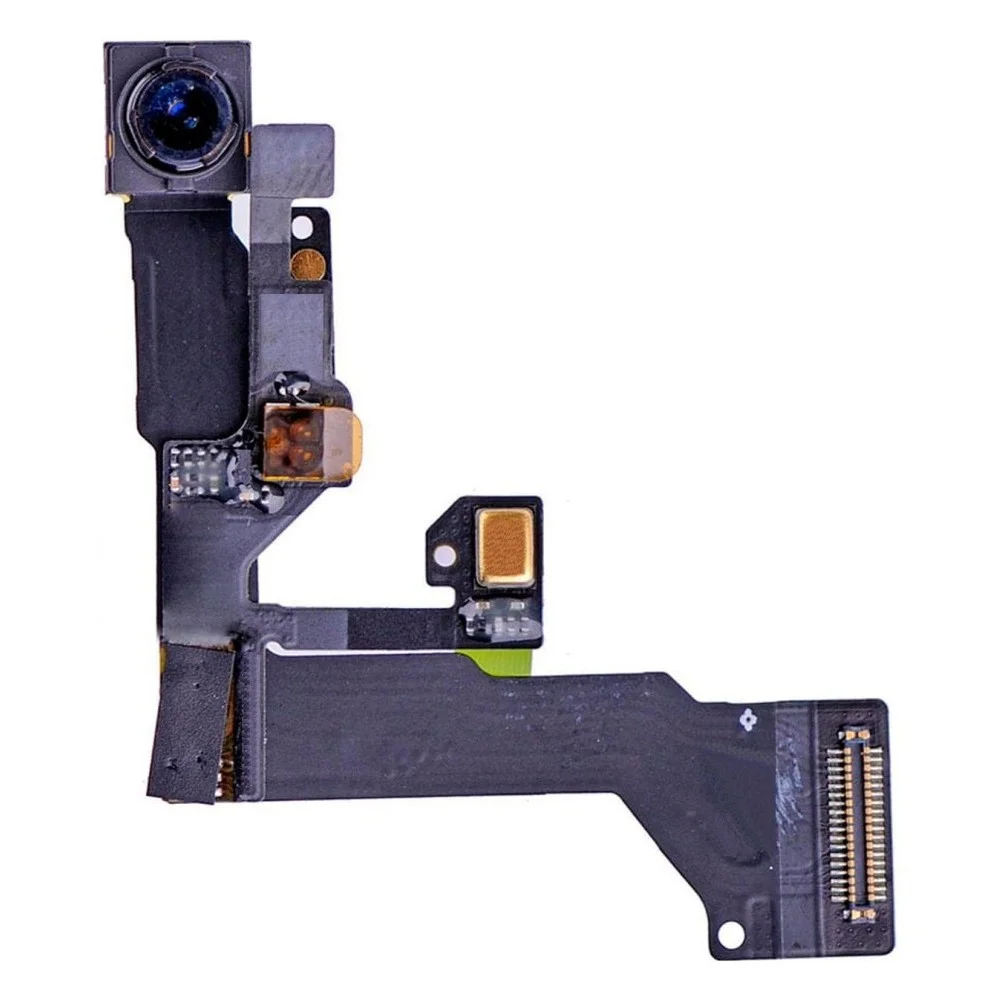

iPhone 6s Front-Facing Camera and Sensor Assembly Replacement

• To prevent potential hazards and ensure safe handling, ensure the battery's charge level is reduced to less than 25% prior to commencing any disassembly procedures on your iPhone.Ensure the battery is fully charged.A puncture can result in fire and/or explosion.
• To prevent electrical shock or damage, ensure the iPhone is completely de-energized prior to starting the repair process.
• Using a Pentalobe screwdriver compatible with 3.4 mm screws, detach the two fasteners located along the lower edge of the device, positioned on both sides of the Lightning connector.

• To simplify the process of separating the components, the following actions utilize the Anti-Clamp tool, a custom-designed aid; if you do not have this tool, proceed to the instructions located three steps further down.
• Refer to the accompanying guide for detailed procedures regarding Anti-Clamp operation.
• To release the Anti-Clamp's arms, move the blue handle in a rearward direction.
• Position the arms so they extend across the iPhone's left or right side.
• Secure two suction cups, one to the front surface and one to the rear surface of the iPhone, placing them close to the lower edge, directly above the home button.
• Apply vacuum by pressing the cup surfaces firmly against the targeted location.
• To improve the Anti-Clamp's hold on your iPhone if its surface feels too slick, apply adhesive tape for increased traction.

• To secure the arms, advance the blue handle in the direction indicated.
• Rotate the handle fully, completing a 360-degree turn, observing for the initial expansion of the cups.
• Maintain parallel positioning of the suction cups; should misalignment occur, gently release the suction cups' hold and reposition the arms.
• Once sufficient space is created by the Anti-Clamp, slide a prying tool beneath the display.
• To ensure adequate separation, reposition the handle by 90 degrees.
• Allow several seconds of settling time between each incremental tightening, limiting each adjustment to a maximum of 90 degrees of rotation. Permit the Anti-Clamp feature and time to facilitate the process.

• Lacking an Anti-Clamp tool, proceed with the subsequent three steps to utilize a suction handle.
• Using a hair dryer or iOpener, gently warm the bottom perimeter of the iPhone's casing for approximately 60 seconds to soften the adhesive.
• Applying heat will loosen the adhesive that holds the display in place, facilitating separation.

• To access the 6s display, carefully release the adhesive strip that runs along its edges; replacement adhesive strips should be prepared beforehand if desired. Functionality remains unaffected whether the adhesive is replaced or not.
• Using a suction cup, secure the lower left portion of the display assembly.
• Avoid positioning the suction cup directly on the home button.
• To facilitate suction cup attachment when the display has severe cracking, apply a sheet of clear packing tape across the damaged area; as an alternative, a robust adhesive tape can be used directly. As a last resort, secure the suction cup to the fractured screen using superglue.

• Apply steady, even force to lift the suction cup, generating a small separation between the front panel and the rear case.
• Exercise caution and use steady, even pressure during installation; the display unit's fit is considerably snugger than typical device components and secured with adhesive.
• To avoid display assembly damage, use minimal force when separating it from the rear case; the goal is to establish a narrow separation.
• To ease separation of the display adhesive, apply heat to the iPhone’s front surface with an iOpener, hair dryer, or heat gun until the surface reaches a temperature that is uncomfortably warm to the touch.

• To initiate separation of the device's housing, insert a plastic opening tool into the indentation located on the bottom surface of the display, positioned directly over the headphone jack; this area minimizes risk of damage during the initial separation.
• Using a spudger, insert its flat end into the separation between the display and the back cover, positioning it immediately over the headphone jack.

• Using a spudger, gently increase the separation between the front panel assembly and the phone's main body by applying rotational force.

• Using the tool's straight edge, carefully slide it into the designated space.Use a plastic pry tool, often referred to as a spudger.Locate this component on the device's left-hand side, positioned in the space separating the display assembly from the rear case.
• Carefully move theUse a plastic pry tool to gently separate.Carefully lift the phone's side to release the adhesive and disengage the retaining clips.

• Carefully detach the component, ensuring no damage occurs.Use a plastic pry tool, often referred to as a spudger.Carefully position the component back into its original location along the lower edge of the device, ensuring it aligns with the point where separation occurred.
• Carefully move theUse a plastic pry tool, often referred to as a spudger.Locate the edge of the device on its right side, following the lower perimeter.

• Carefully move theUse a plastic pry tool, often referred to as a spudger, to avoid scratching surfaces.Proceed along the right edge, carefully releasing the adhesive bond and disengaging the display clips from their securing positions on the iPhone.

• Employ the specified tool to carefully apply pressure, ensuring a consistent force of 15 Newtons, to the component while aligning it with the designated markings, and observe all safety precautions regarding potential pinch points.Employ a vacuum-forming device to create a secure hold.Carefully separate the display assembly from the device housing by releasing the remaining adhesive bond.
• To prevent damage, limit the display's opening angle to a maximum of 90 degrees; the three cables connecting it to the top edge are susceptible to breakage if pulled taut.

• Carefully raise the display assembly, utilizing the front panel's top clips as a pivot point to separate the device.
• Carefully position the display at a roughly 90-degree angle, then secure it in a supported position to prevent movement during the repair process.
• To avoid stressing the display's wiring during the repair process, secure it with a rubber band.
• As a temporary measure, an unused, sealed can of soda can substitute for the display during the repair process.
• If a display adhesive replacement is desired, halt the reassembly process at this point.
• To ensure proper alignment during reassembly, position the camera-side edge of the screen body beneath the main body’s edge. The screen frame’s hooks must be situated under the main body’s rim, then gently pushed toward the camera end to facilitate cover closure and secure clipping.
• Ensure these clasps are positioned beneath the phone's outer edge, as they function as a securing mechanism rather than a traditional hinge; this placement allows the screen to smoothly and softly return to its closed position, engaging with a gentle snap.
• To reinstall the screen, begin by applying pressure to secure the upper right corner, working downwards. Subsequently, repeat this process for the upper left corner.

• Using a Phillips screwdriver, detach the battery connector bracket by unscrewing the two fasteners, each measuring the specified length.
  Use a 2.9 mm screw.
  Utilize a 2.2-millimeter screw for this step.

• Carefully detach the four components listed.Use a Phillips head screwdriver.Using a 3mm hex key, tighten the bracket that holds the display cable, ensuring the four screws are secured with a torque of 5.5 Nm to prevent damage to the cable.
• Three.Use screws with a diameter of 1.2 millimeters.
• Begin the process by executing the action designated as "One."Use a 2.8-millimeter screw.

• Employ a 3/8-inch socket wrench to loosen the retaining bolt, ensuring you maintain a firm grip and apply steady pressure to prevent damage to the bolt head; subsequently, carefully remove the component.Use a plastic pry tool, often referred to as a spudger.Ensure the surface is free from any contaminants.Use a fingernail.Using a prying tool, carefully release the front camera flex cable connector from its socket on the logic board by applying upward force.

• Carefully separate the digitizer cable from its connection on the logic board by applying upward pressure.
• To ensure proper alignment and prevent damage, apply pressure to opposing ends of the digitizer cable connector during reconnection; avoid central pressure, as this may warp the component.The display's touch functionality is impaired due to damage to the digitizer..

• Prior to either detaching or reattaching the cable in this procedure, ensure the battery is disconnected.
• Using a suitable tool, carefully lift the display cable vertically away from its connector on the logic board to release it.

• Carefully detach the display assembly, ensuring all connections are released.
• If you intend to substitute fresh adhesive along the display's perimeter during reassembly, stop at this point.

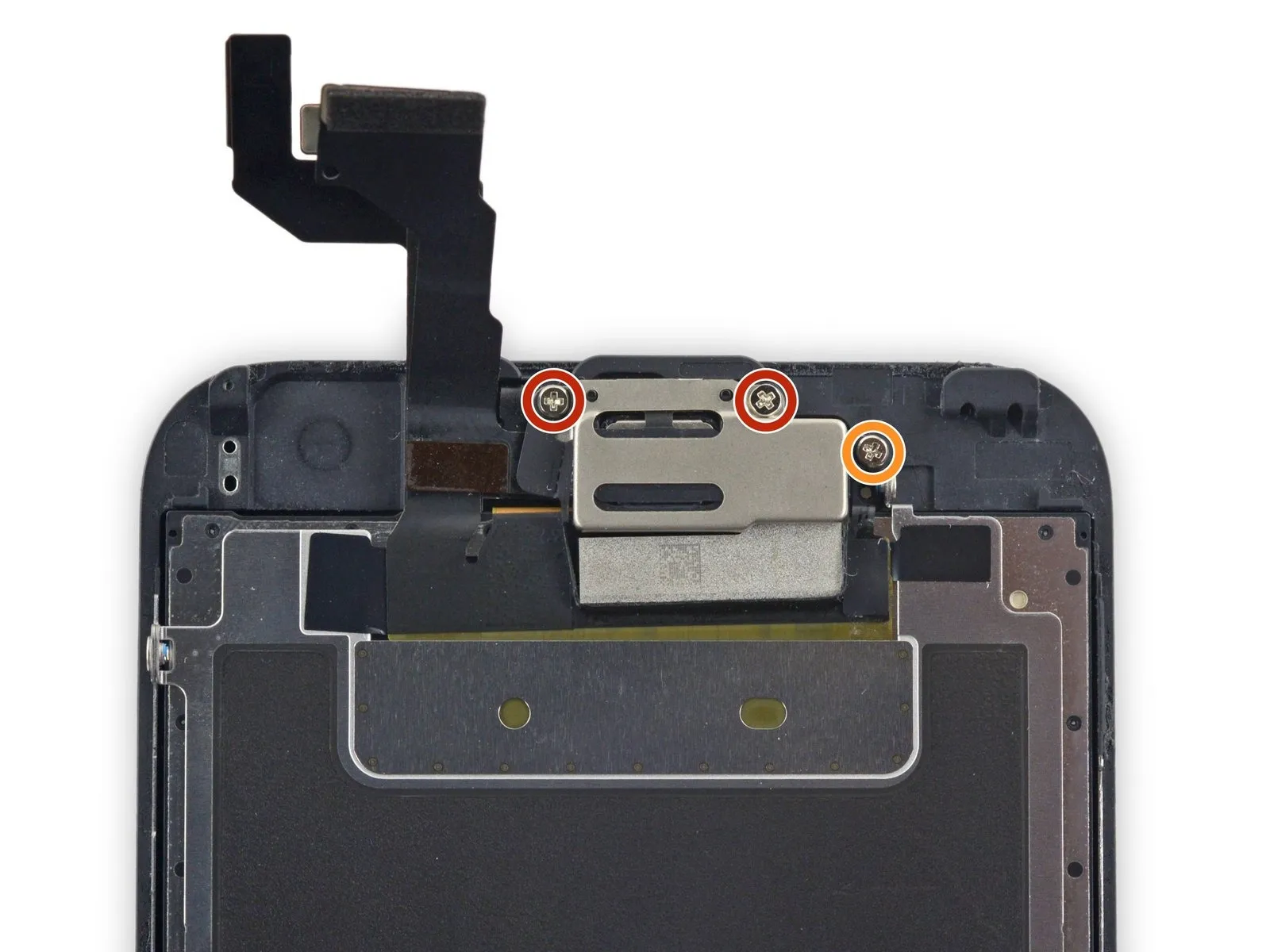

• Using a Phillips screwdriver, detach the earpiece speaker bracket by unscrewing the three screws that hold it in place.
  Use two screws, each measuring 2.3 millimeters.
• A screw with a 1.9 mm diameter is required.

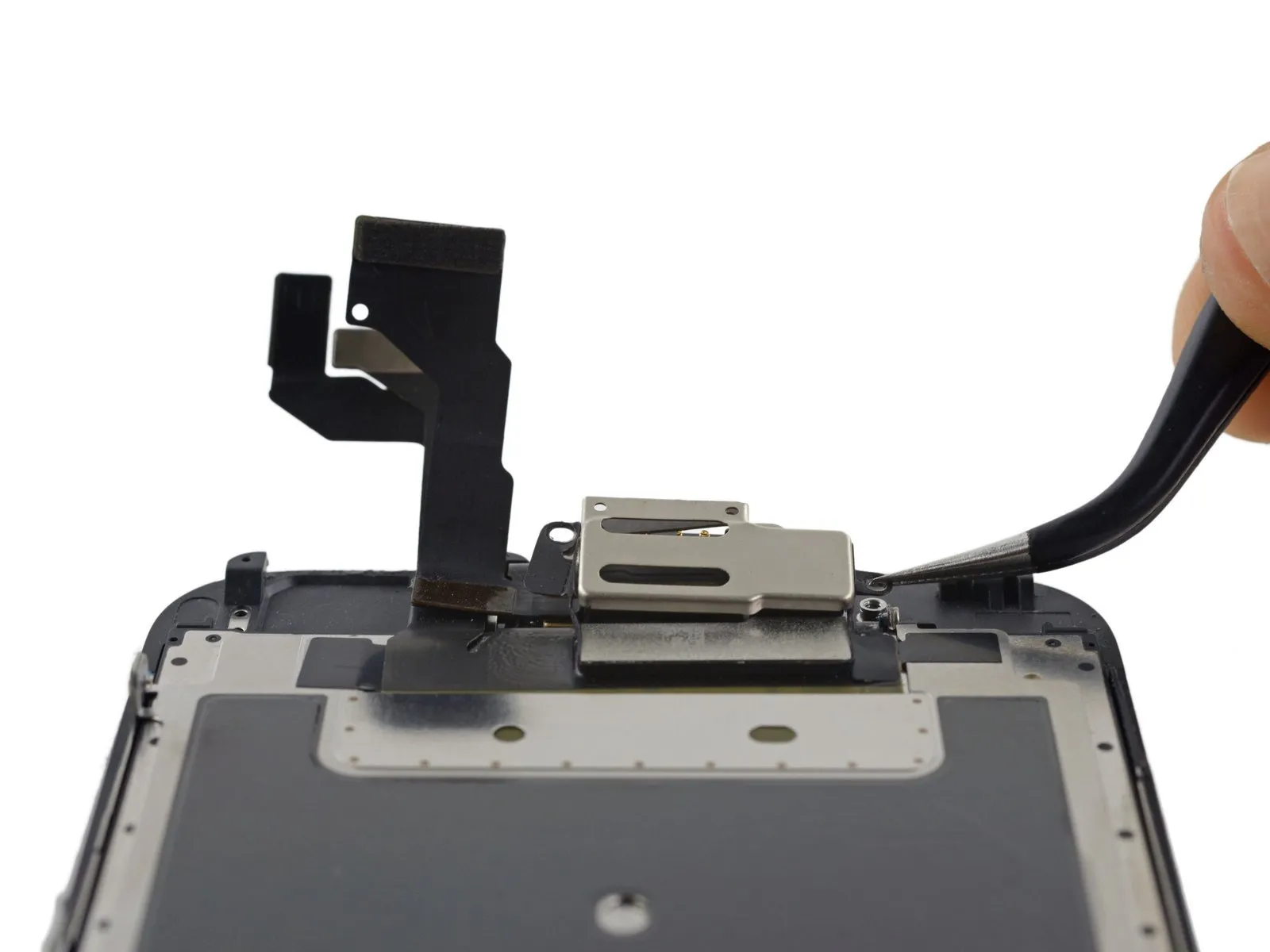

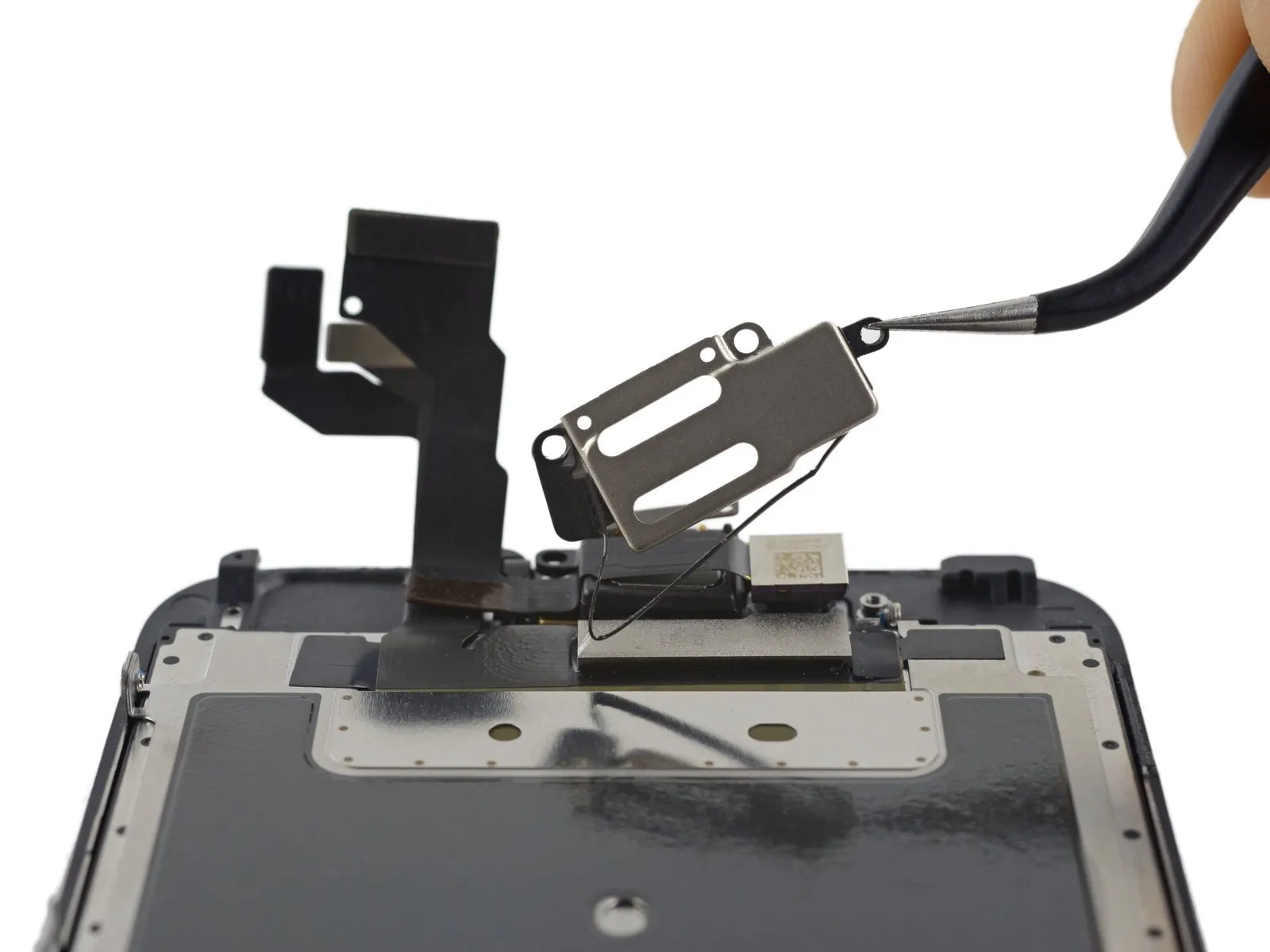

• Carefully detach the earpiece speaker bracket, releasing the bracket gasket as it’s lifted.
  Exercise caution when separating the gasket, as its thinness makes it susceptible to damage.

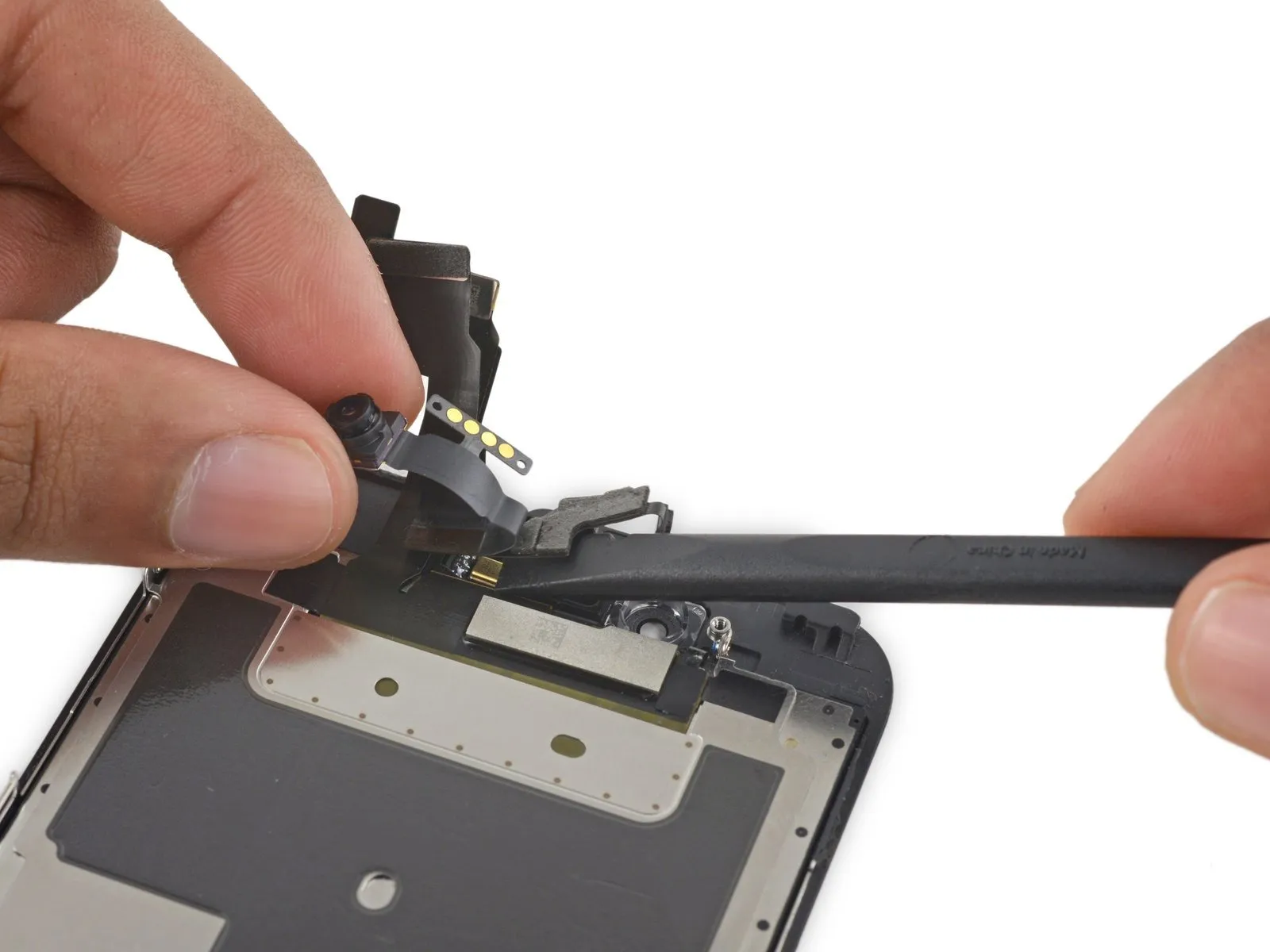

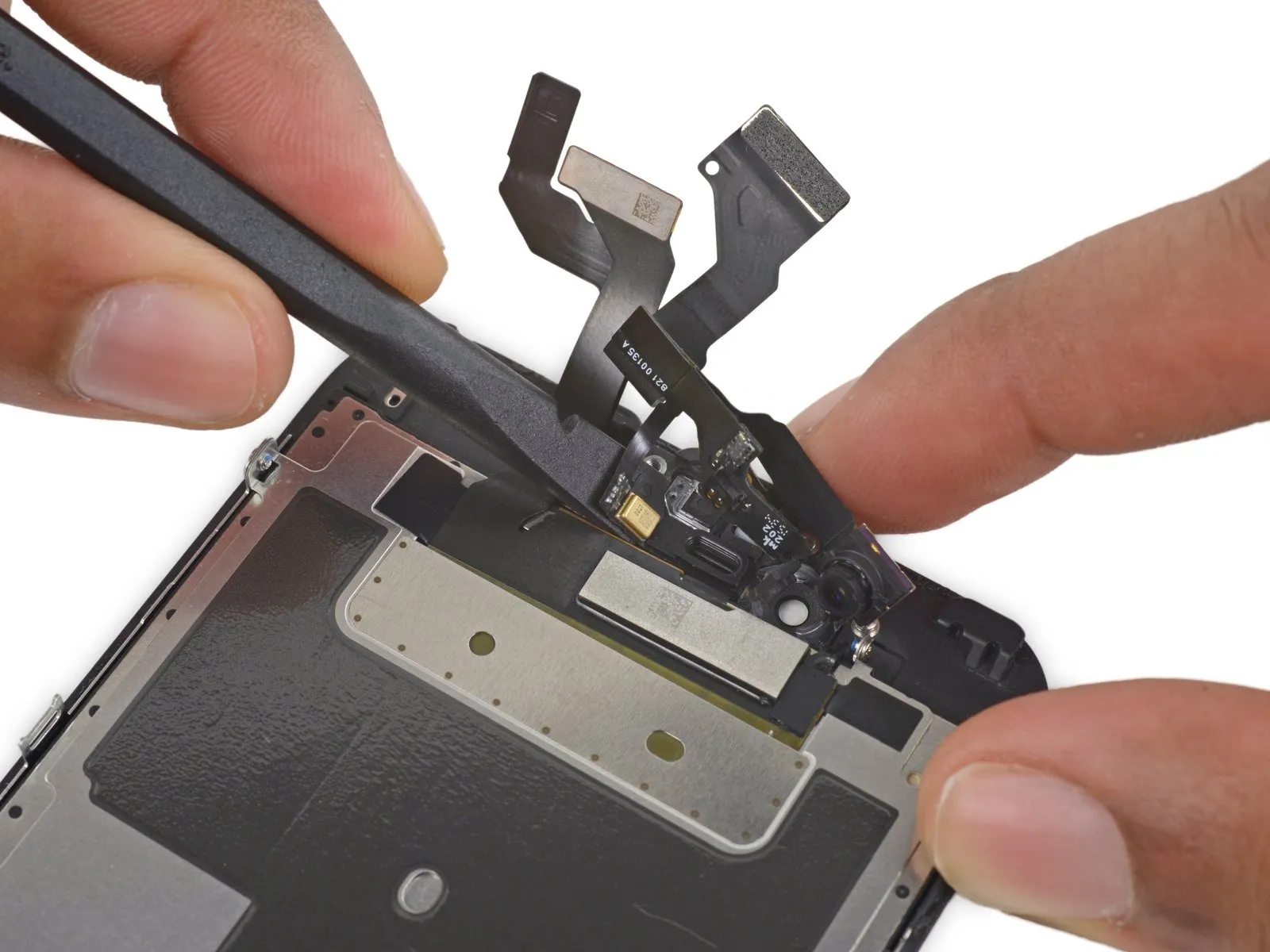

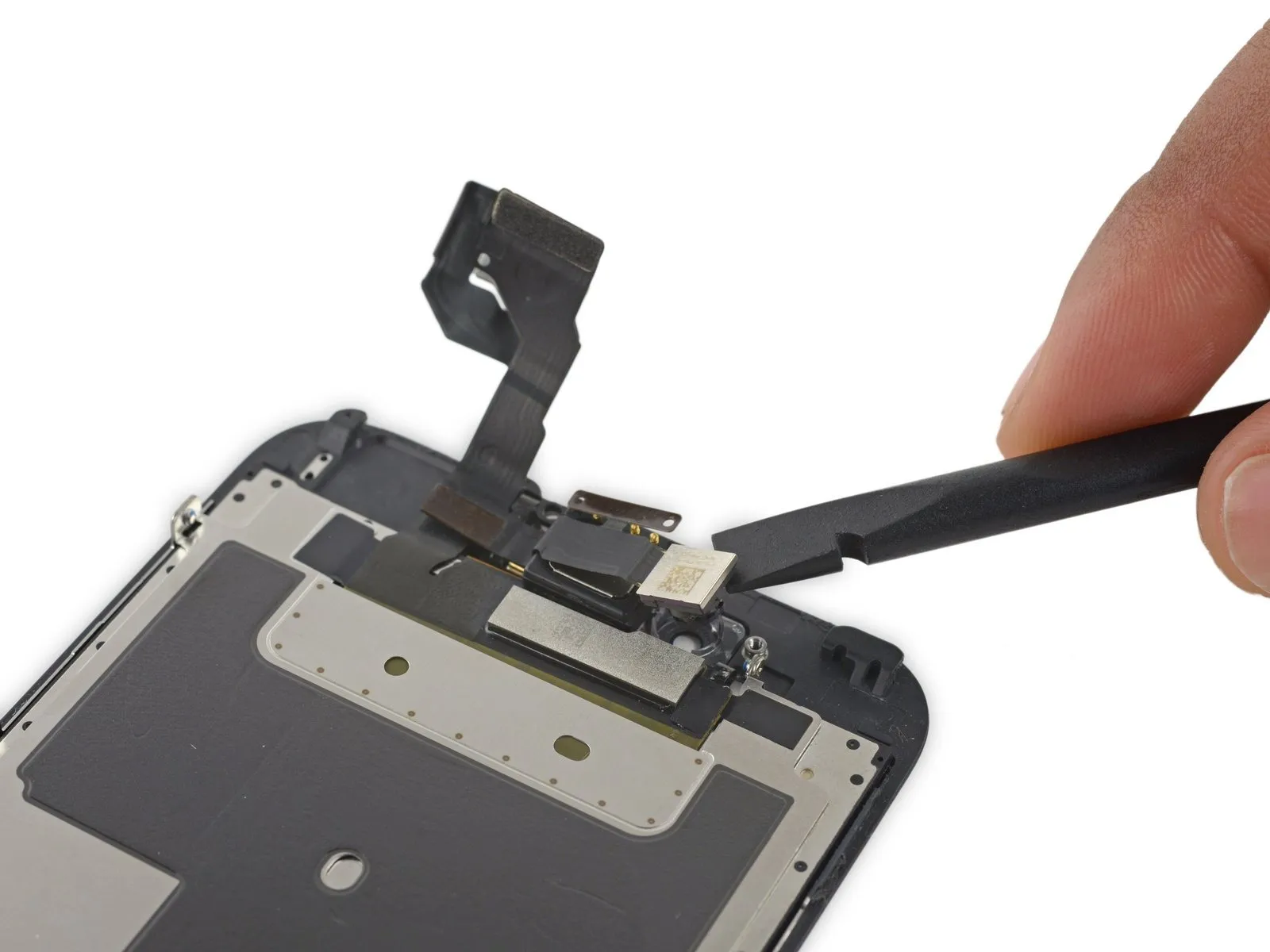

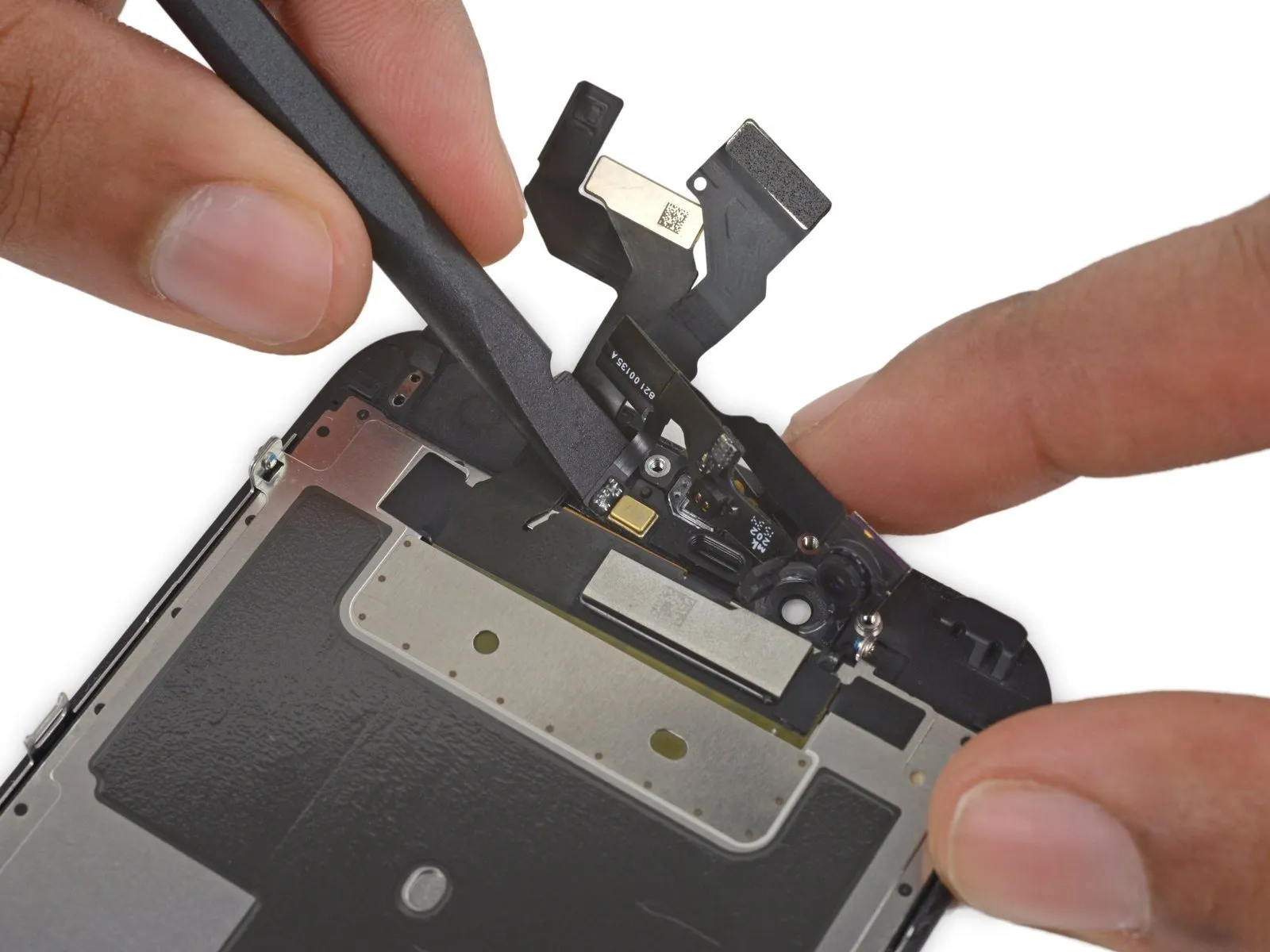

Employ the spudger's planar edge.Gently apply pressure to dislodge the front camera from its enclosure.

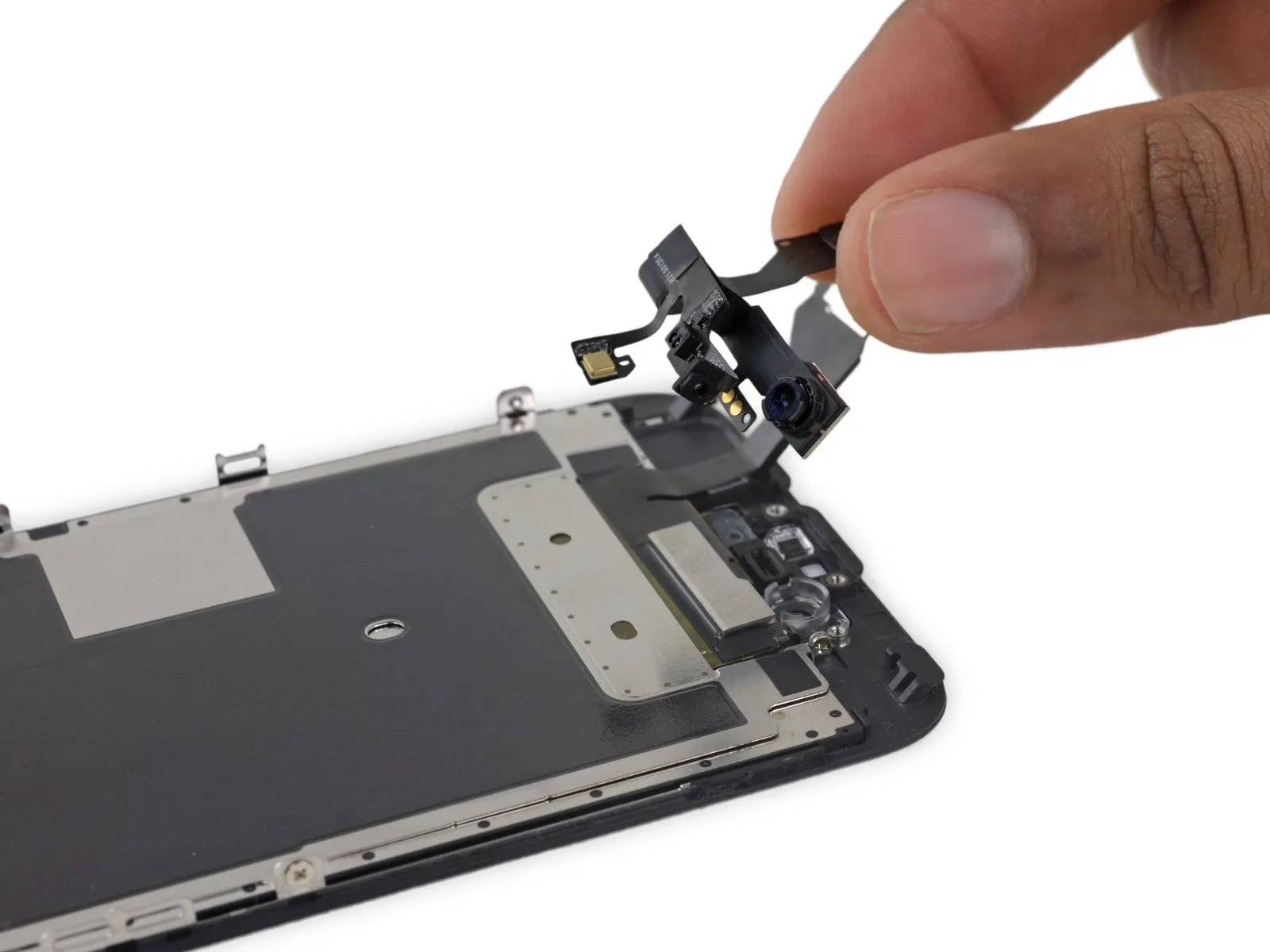

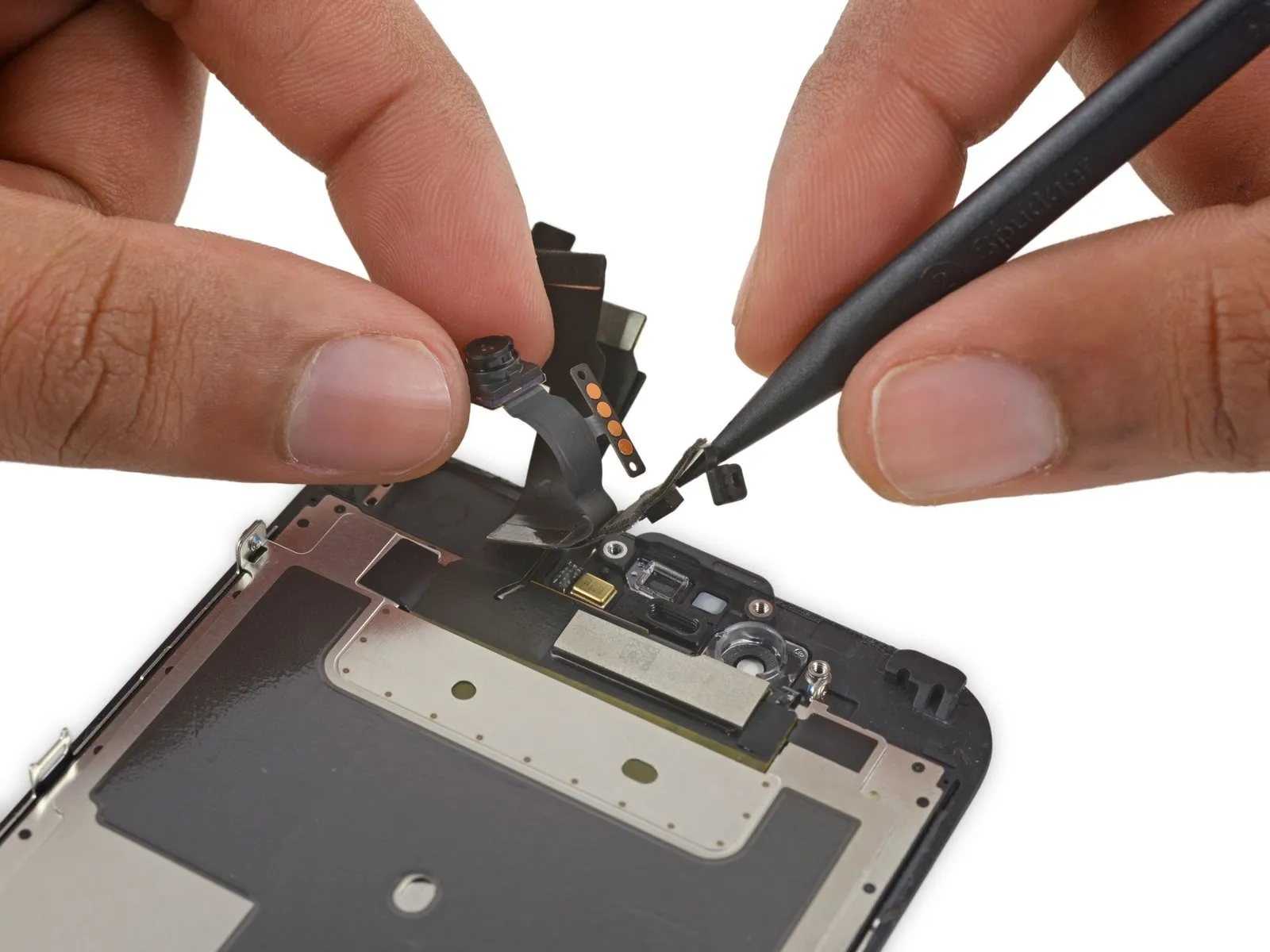

• To reach the earpiece speaker, carefully retract the front camera assembly.

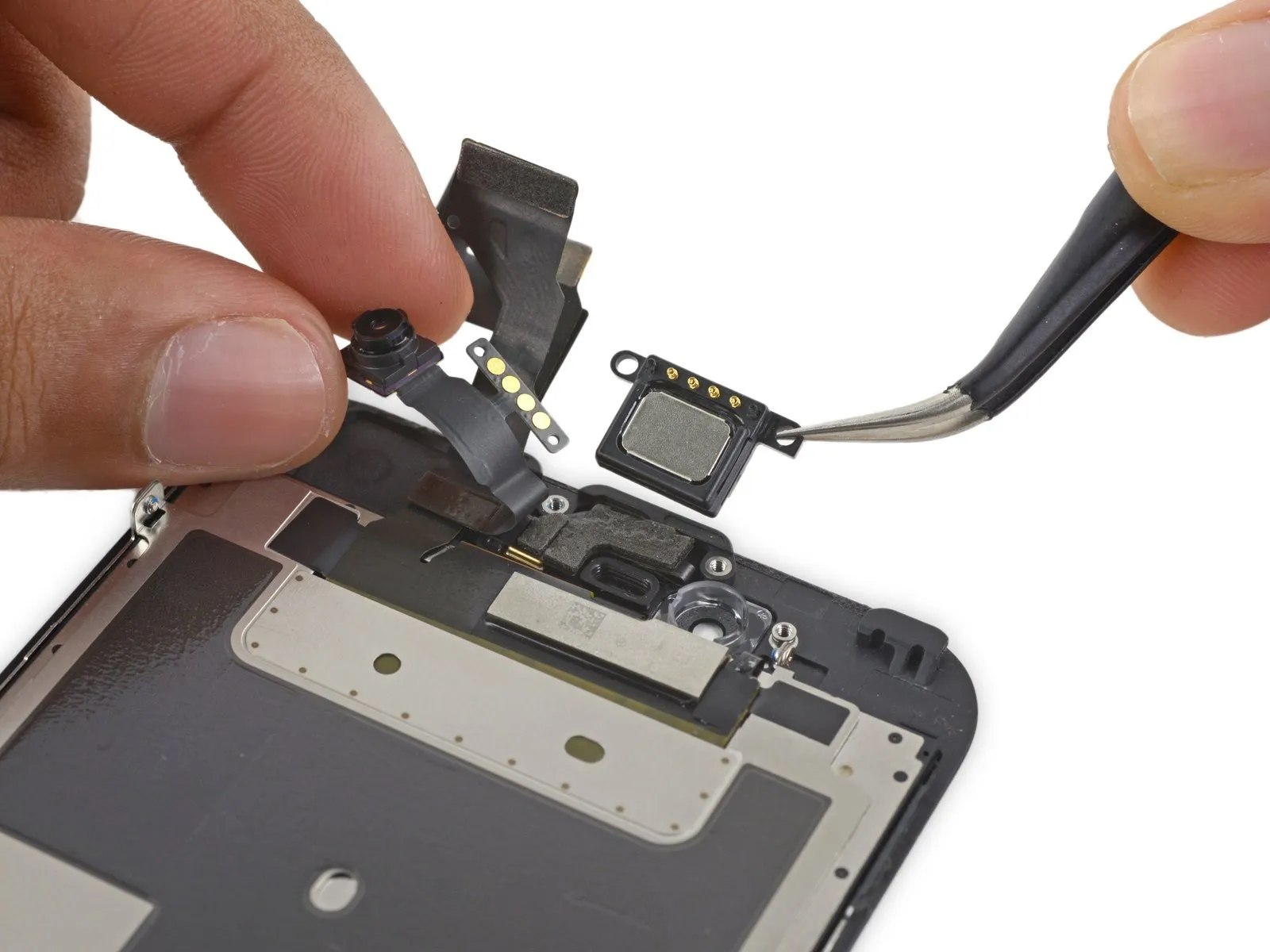

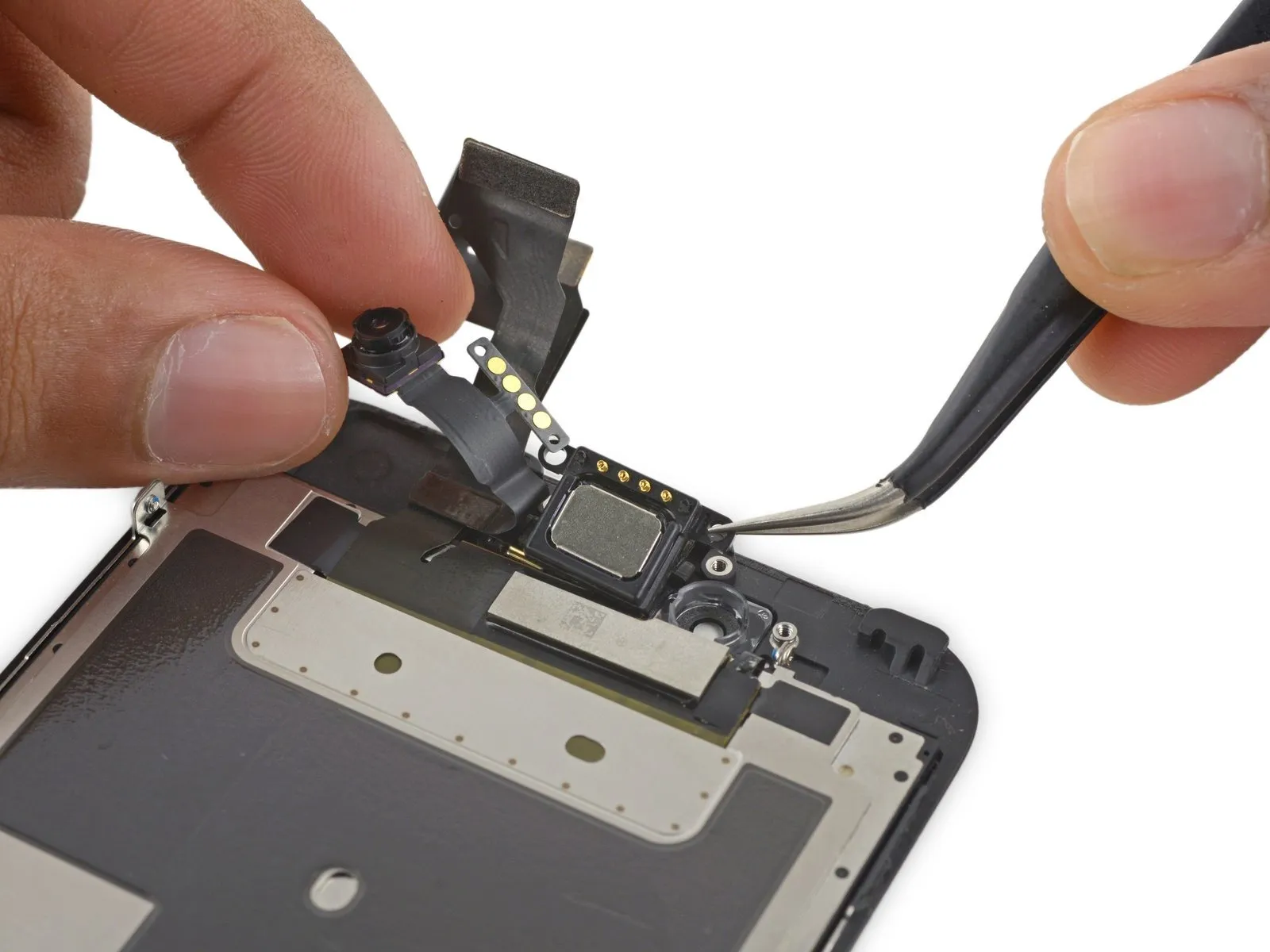

  Carefully detach the earpiece speaker component.
  To prevent connection issues, avoid contact with the gold-plated connectors during speaker removal and installation; skin oils can compromise their function. Should contact occur, clean the connectors with a small amount of isopropyl alcohol prior to reassembly.
