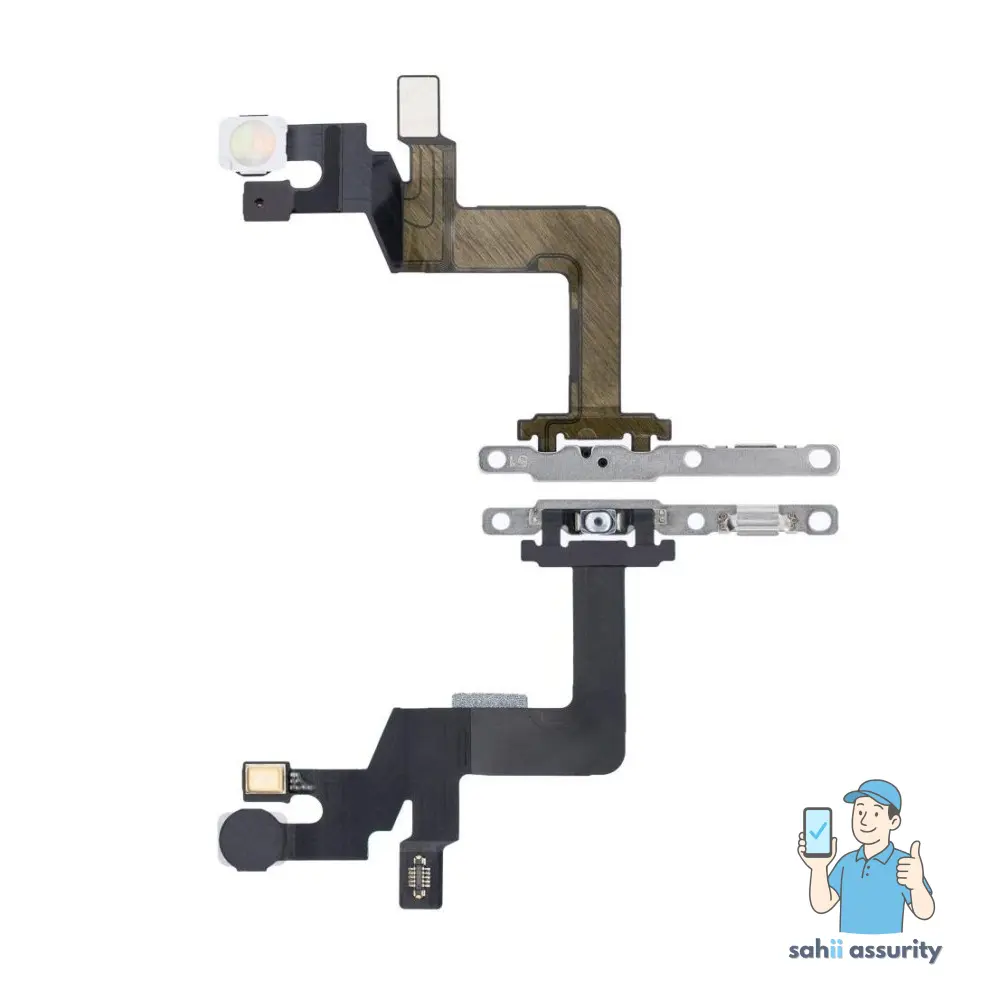

iPhone 6s Plus Power Button Cable Assembly Replacement

• To prevent potential hazards and damage, ensure the battery's charge level is reduced to less than 25% prior to beginning the disassembly process.Ensure the battery is fully charged.Accidental puncture presents a risk of fire and/or explosion.
• To prevent electrical shock or damage, ensure the iPhone is completely de-energized prior to starting the repair process.
• Using a Pentalobe screwdriver, detach the pair of 3.4 mm screws located on both sides of the Lightning connector.

• For those utilizing the Anti-Clamp tool, the following two actions detail its use to simplify the opening process; otherwise, proceed directly to the instructions three steps further down for a different approach.
• Refer to the accompanying guide for detailed procedures regarding the Anti-Clamp's operation.
• To release the Anti-Clamp's arms, move the blue handle in a rearward direction.
• Position the arms so they extend across the iPhone’s left or right side.
• Affix two suction cups, one to the front and one to the rear of the iPhone, placing them close to the lower edge, directly above the home button.
• Apply vacuum by pressing the cups firmly against the surface needing treatment.
• To improve the Anti-Clamp's grip if the iPhone's exterior feels excessively smooth, apply adhesive tape to the device's surface.

• Moving the blue handle in a forward direction will engage the locking mechanism for the arms.
• Rotate the handle fully, completing a 360-degree turn, observing for the initial expansion of the cups.
• Maintain parallel positioning of the suction cups; should misalignment occur, gently release the suction cups’ grip and reposition the arms.
• Once sufficient space is created by the Anti-Clamp, slide a prying tool beneath the display.
• To ensure adequate separation, reposition the handle by 90 degrees.
• Allow the Anti-Clamp to function and gradually tighten by rotating no more than 90 degrees per increment, pausing several seconds between each rotation to facilitate proper seating.

• Lacking an Anti-Clamp tool, proceed with the subsequent three steps to utilize a suction handle.
• Using a hair dryer or iOpener, gently warm the iPhone's lower edge with moderate heat for approximately one minute.
• Applying heat will loosen the adhesive that holds the display in place, facilitating separation.

• Removing the 6s Plus display releases a perimeter adhesive strip; replacement adhesive strips should be prepared beforehand if desired. Functionality remains unaffected whether the adhesive is replaced or not.
• Using a suction cup, secure the lower left portion of the display assembly.
• To facilitate suction cup attachment when the display has severe cracking, apply a sheet of clear packing tape across the damaged area; as an alternative, a robust adhesive tape can be substituted for the suction cup. As a last resort, use superglue to secure the suction cup directly to the fractured screen.

• Apply steady, even force to lift the suction cup, generating a small separation between the front panel and the rear case.
• To avoid display assembly damage, use minimal force when separating it from the rear case; the goal is to establish a narrow separation.

• To avoid damage, begin separating the front panel by gently inserting a prying tool into the indentation located directly over the headphone jack.
• Using consistent suction cup pressure, carefully slide the spudger's flat tip into the opening situated immediately above the headphone jack.

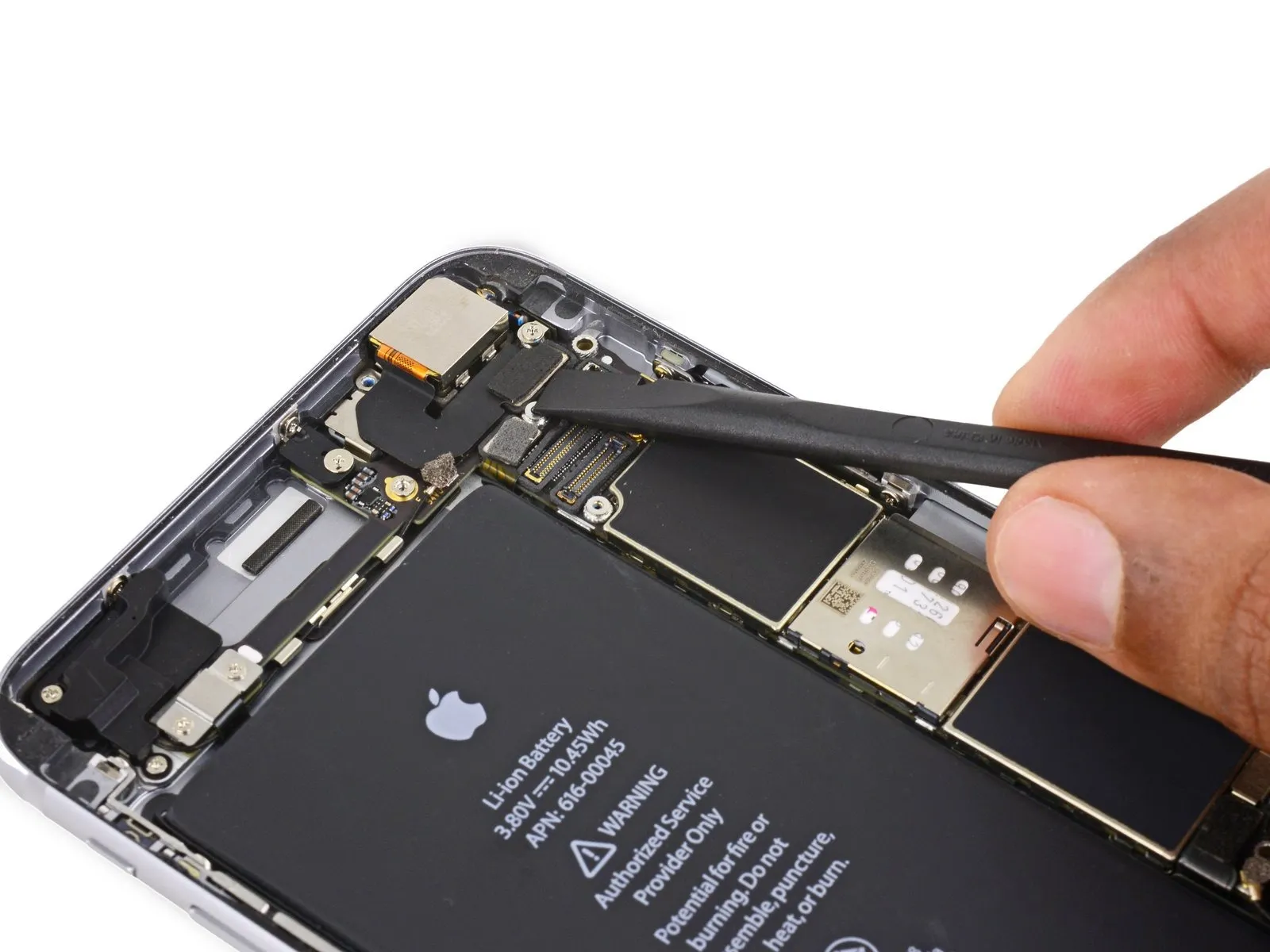

• Using the spudger, gently increase the separation between the front panel and the rear case.

• Using a screwdriver with a flat tip, carefully slide it into the designated slot.Use a plastic spudger.Locate the component along the display's right side.
• Carefully move theUse a plastic pry tool, often referred to as a spudger.Advance the component along the right-hand vertical plane.

• Employ a 3/8-inch socket wrench to loosen the retaining bolt, ensuring you apply consistent pressure to prevent damage to the threaded shaft and observe the torque specification of 15 Nm as indicated in the service manual; failure to do so may result in component failure.Use a plastic pry tool.Maintain pressure on the rear case while lifting the suction cup to release the phone.
• Carefully detach the display from its mounting points, but leave it connected to the system, avoiding full removal.Carefully avoid applying pressure to the display's upper edge, as this could harm the delicate data cables that connect to the display.

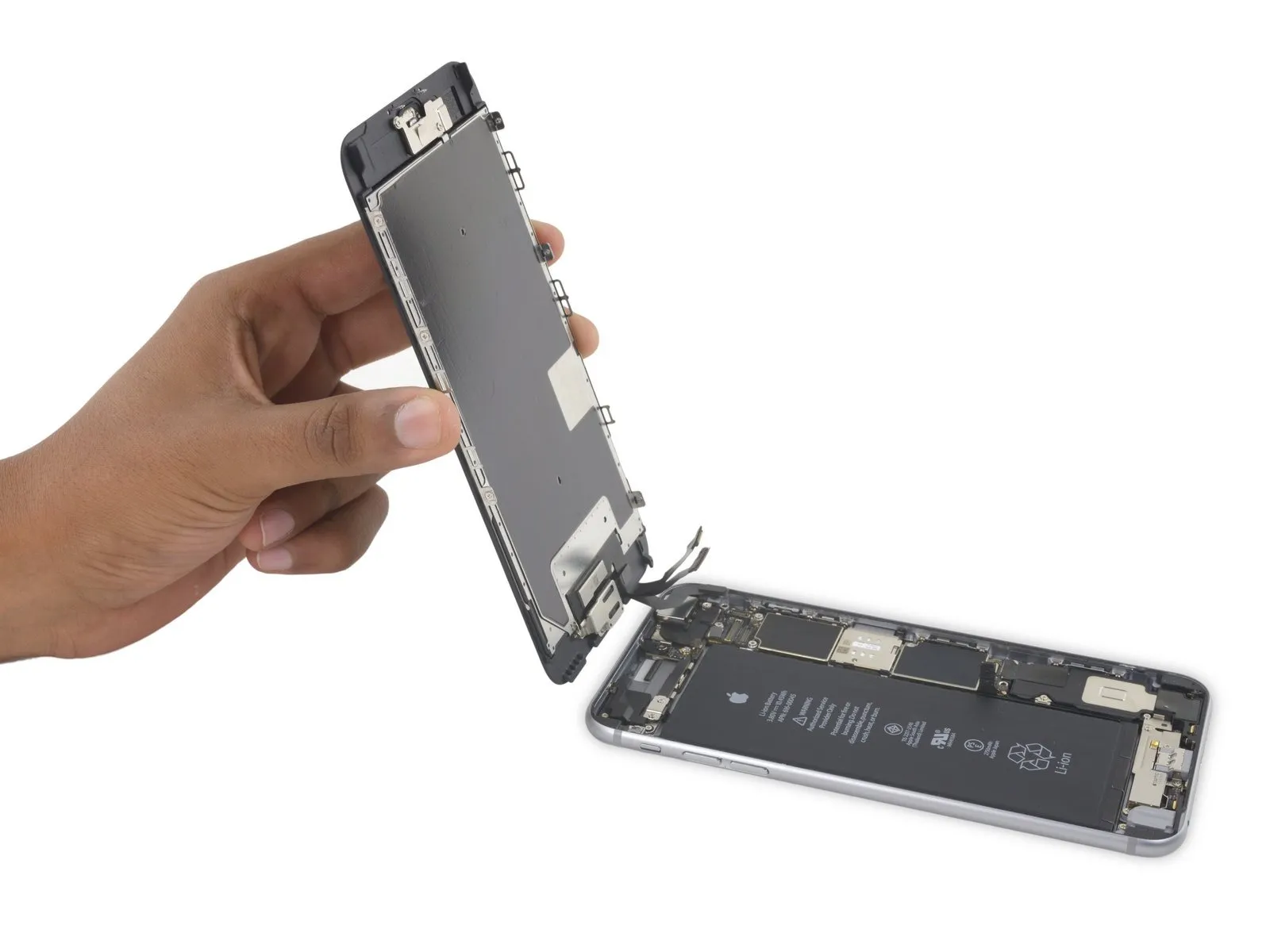

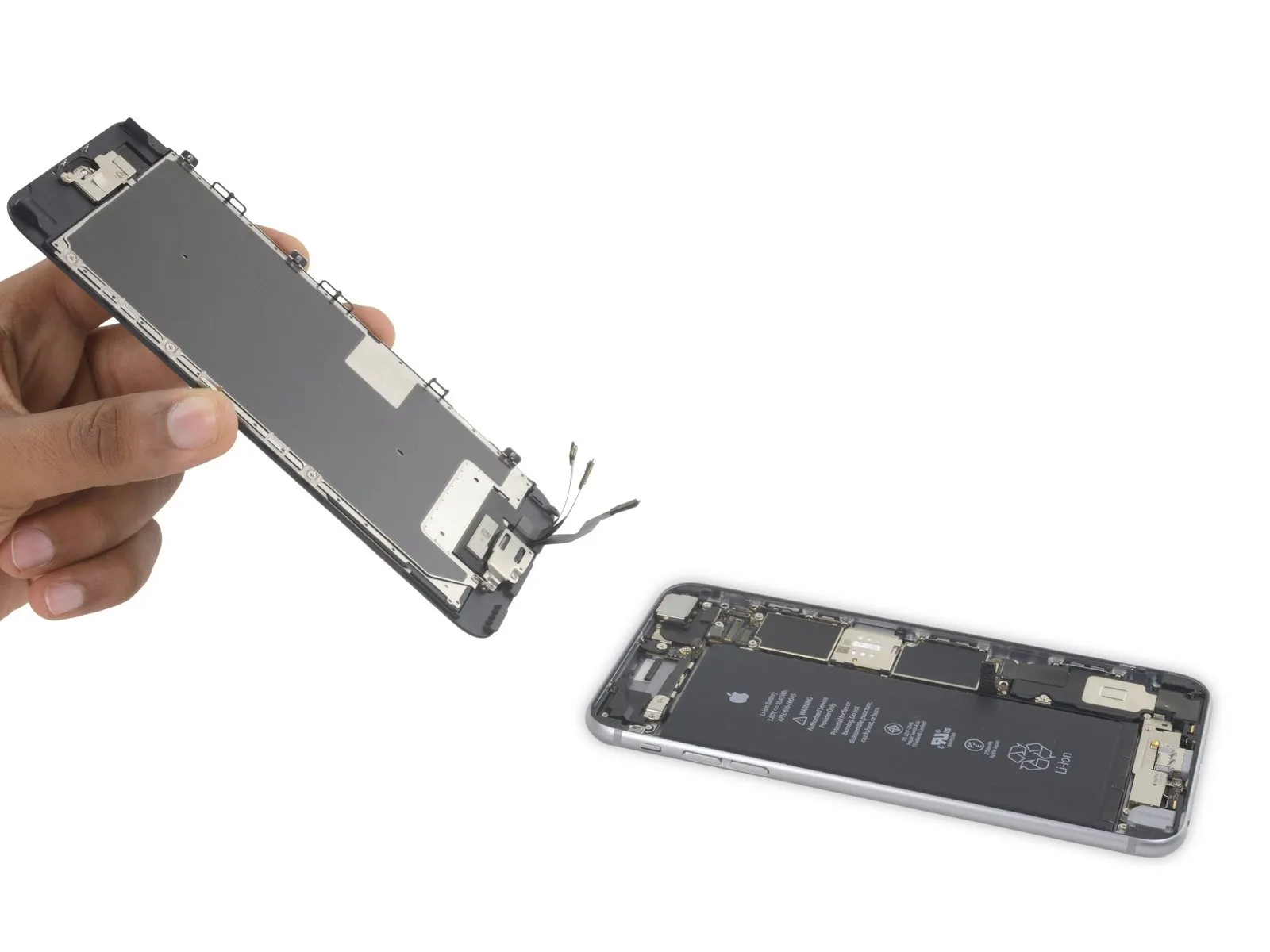

• Employing a careful grip on the display assembly, raise it to access the phone's interior, utilizing the front panel's upper clips as a pivot point.
• Carefully separate the display assembly from the device housing, creating an approximately 30-degree angle.Rotate to a 90-degree angle.Position the device at an angle, supporting it with an external object to maintain stability during the repair process.
• To prevent damage, limit display exposure during this procedure.Rotate to a 90-degree angle.Care must be taken during separation as the display, digitizer, and front camera remain linked to the upper portion of the device via delicate cables prone to damage.
• To avoid stressing the display's wiring during the repair process, secure the display with a rubber band.
• As a temporary measure, an unopened, standard-sized canned drink can provide the necessary support for the display.

• Detach two.Use a Phillips head screwdriver.Fasten the battery connector bracket to the logic board, ensuring it aligns with the specified lengths.
• Begin the process by executing step one.Use a 2.9-millimeter screw.
• Begin the process with the number one.Use a 2.3-millimeter screw.

To prevent irreversible damage, meticulously organize all screws during disassembly, ensuring each is returned to its original location during reassembly.

Employ a 3/8-inch socket wrench to loosen the retaining bolt, ensuring you maintain a firm grip and avoid over-tightening during reassembly, as excessive force could damage the threaded insert.Use a plastic pry tool, often referred to as a spudger, to avoid scratching surfaces.Carefully detach the battery connector from the logic board by applying upward pressure directly on it, using either a fingernail or a similar tool.

To prevent unintended activation, reshape the connector and then test the iPhone’s functionality while continuing the repair process.

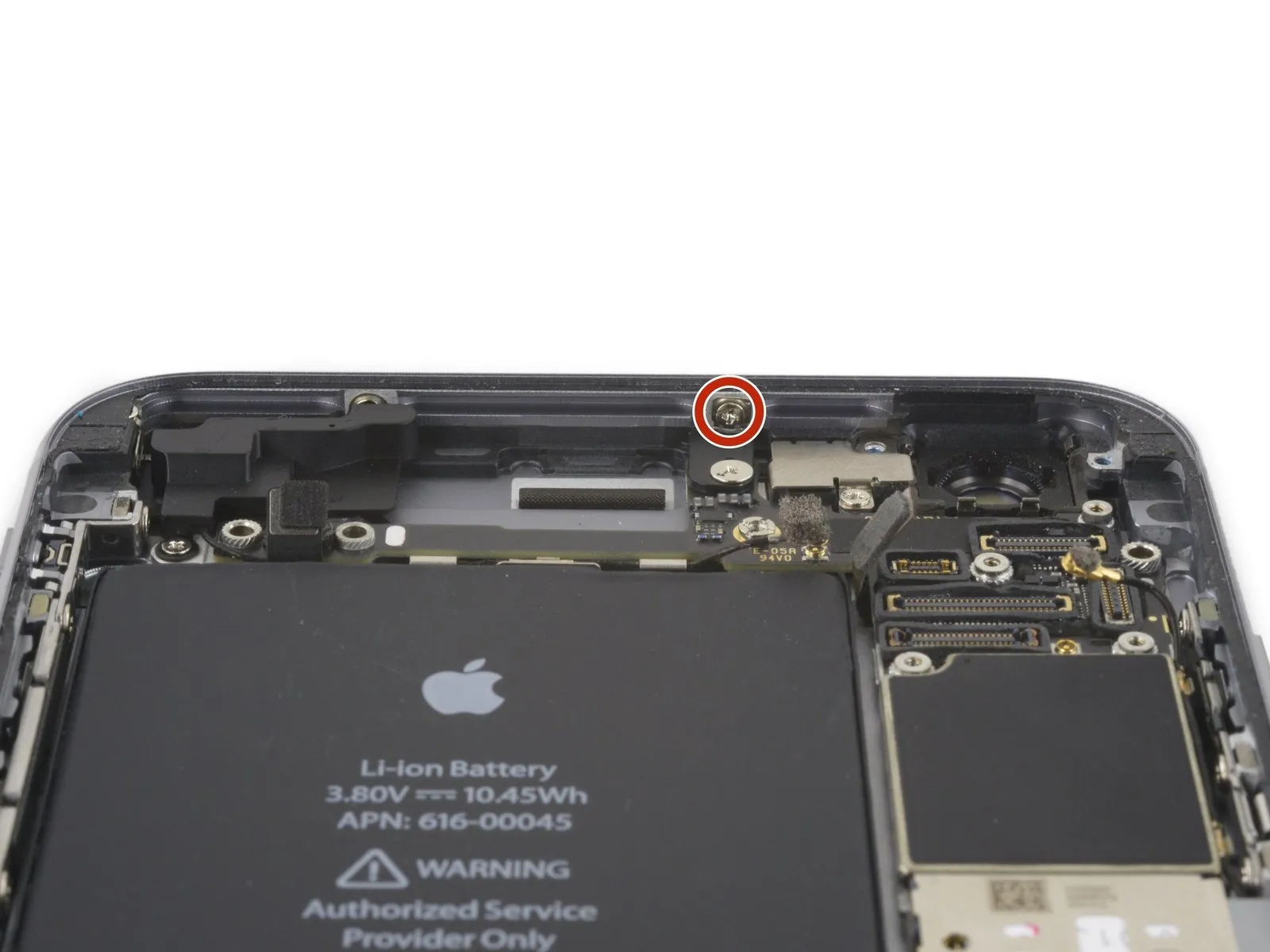

• Detach the listed components.Use a Phillips head screwdriver.:

  • Use three screws, each measuring 1.3 millimeters.

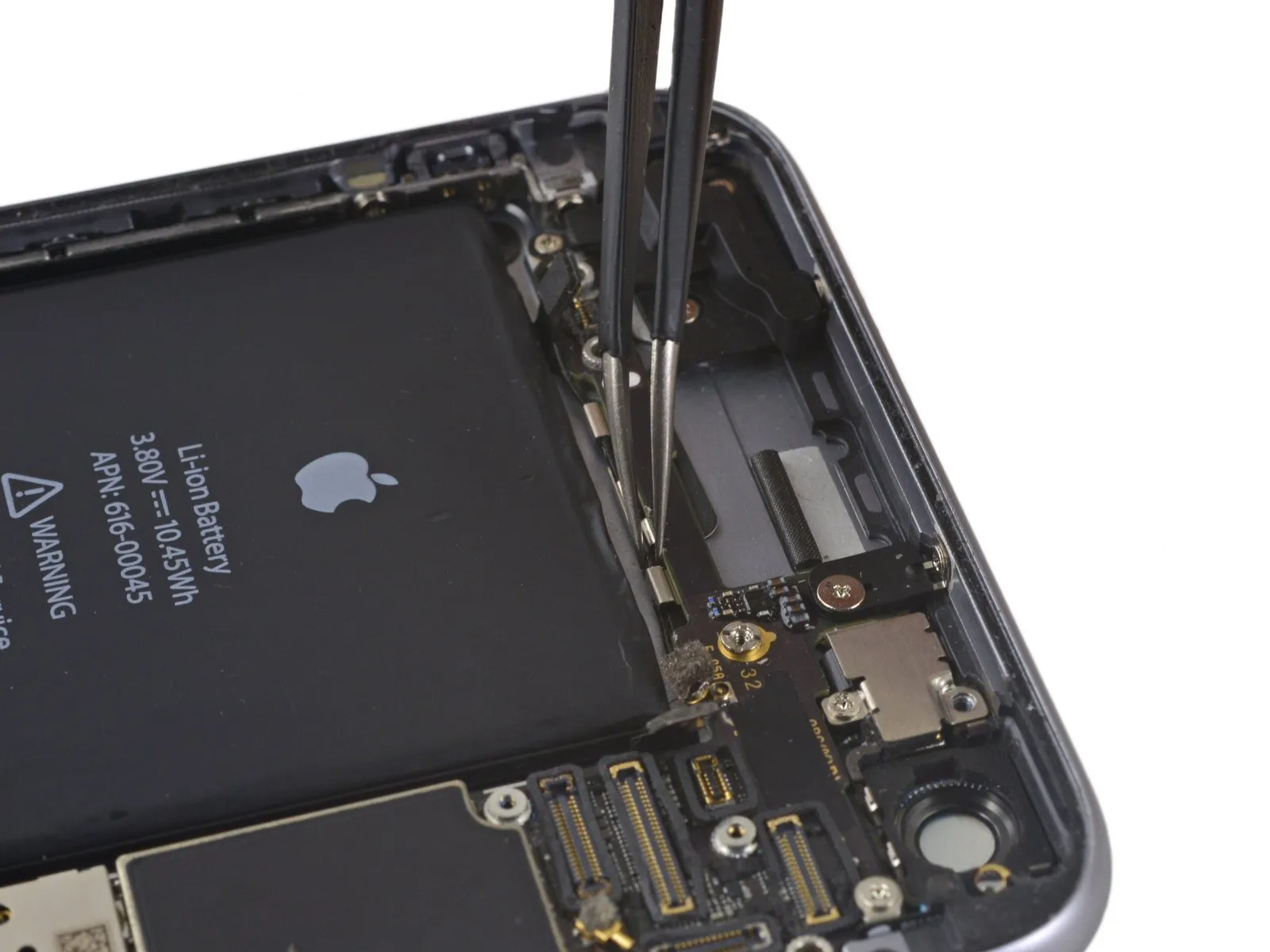

  • A screw with a diameter of 1.6 millimeters is required.
  • A screw with a 3.0 mm diameter is required.

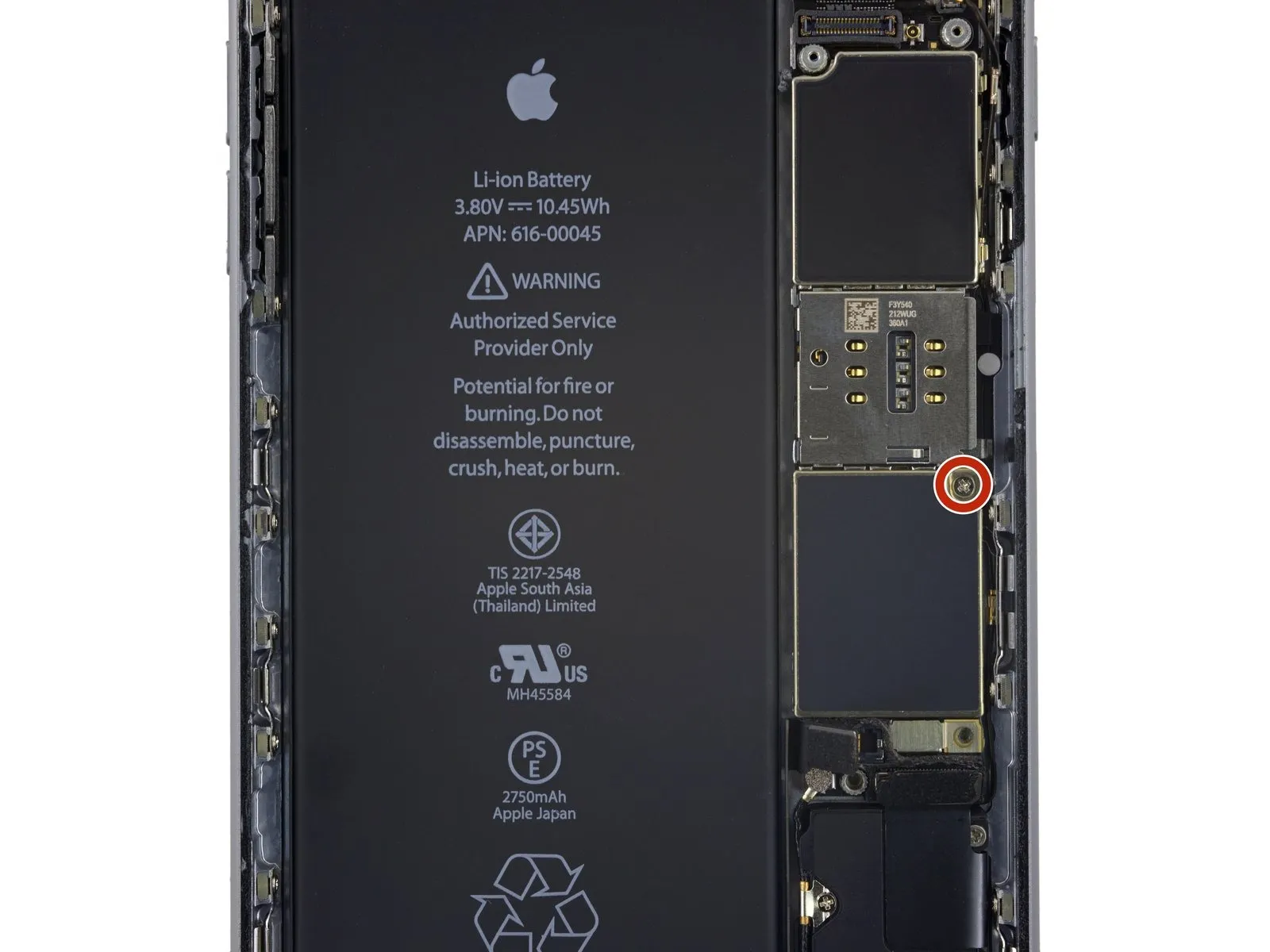

Ensure proper alignment and secure positioning of this component during the reassembly process.Use a 3.0 mm screw.Ensure the component is positioned precisely in the upper-right quadrant of the bracket to prevent logic board damage.

Using a T5 Torx screwdriver, detach the bracket securing the display cable.

• Avoid applying force to the logic board socket while releasing the connector; focus solely on the connector's release mechanism.
• Employ a 3/8-inch socket wrench to loosen the retaining bolt, ensuring you maintain a firm grip and wear safety glasses to protect against potential debris; torque the bolt to 15 Nm upon reinstallation.Use a plastic pry tool.Carefully detach the connector securing the front camera and its associated sensor cable.

• Employ a 3/8-inch socket wrench to tighten the fastener to a torque of 15 Nm, ensuring you observe all safety precautions and handle the component with care.Use a plastic pry tool.Using a prying tool, carefully lift the digitizer cable directly upward to release it from its connector on the logic board.
• To ensure proper alignment and prevent damage, avoid applying pressure to the connector's middle when attaching the digitizer cable; instead, apply force to one end, then the other. Central pressure risks warping the component.The display's touch functionality is impaired due to damage to the digitizer..

• Prior to either detaching or reattaching the cable in this procedure, ensure the battery is disconnected.

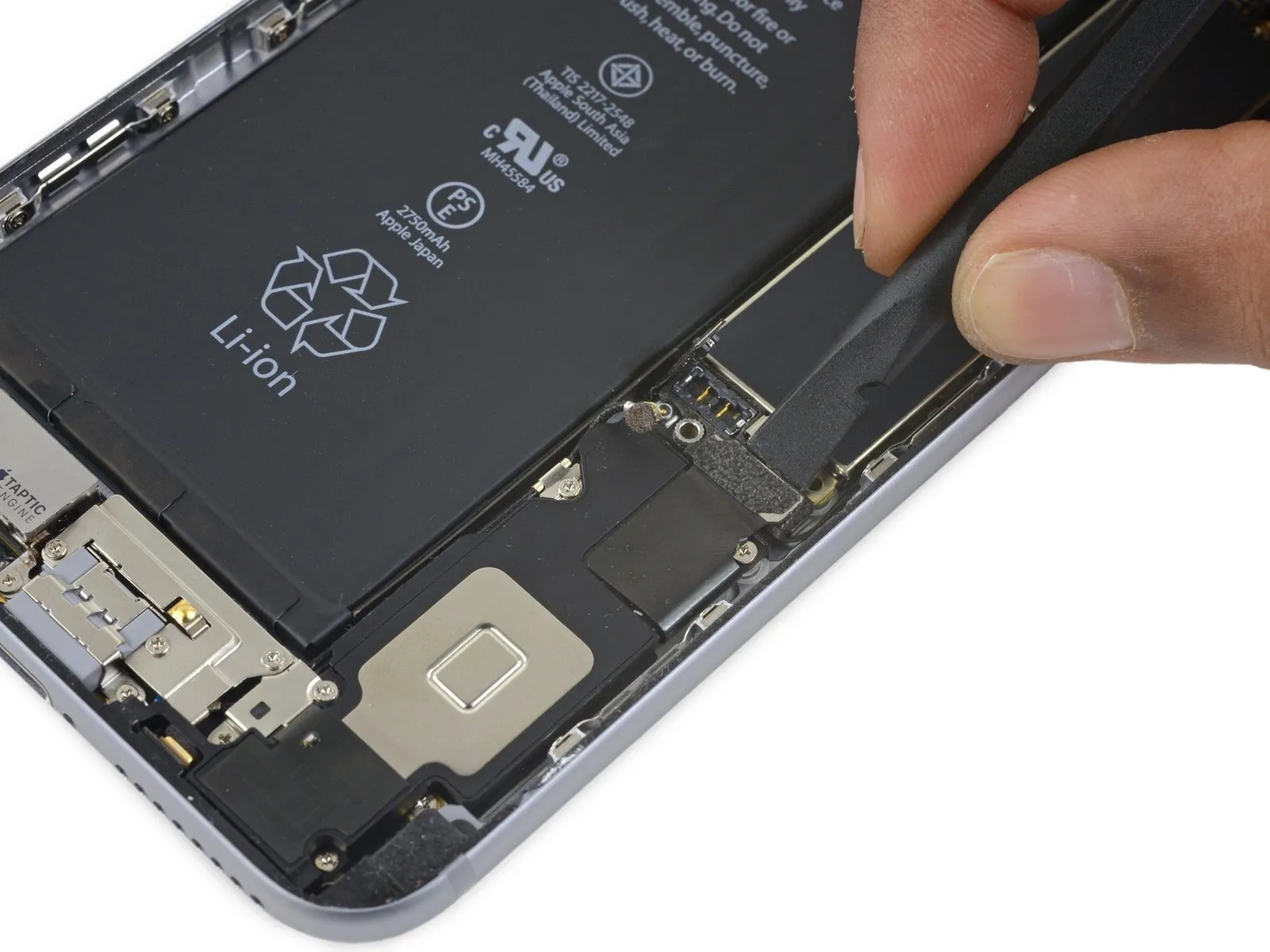

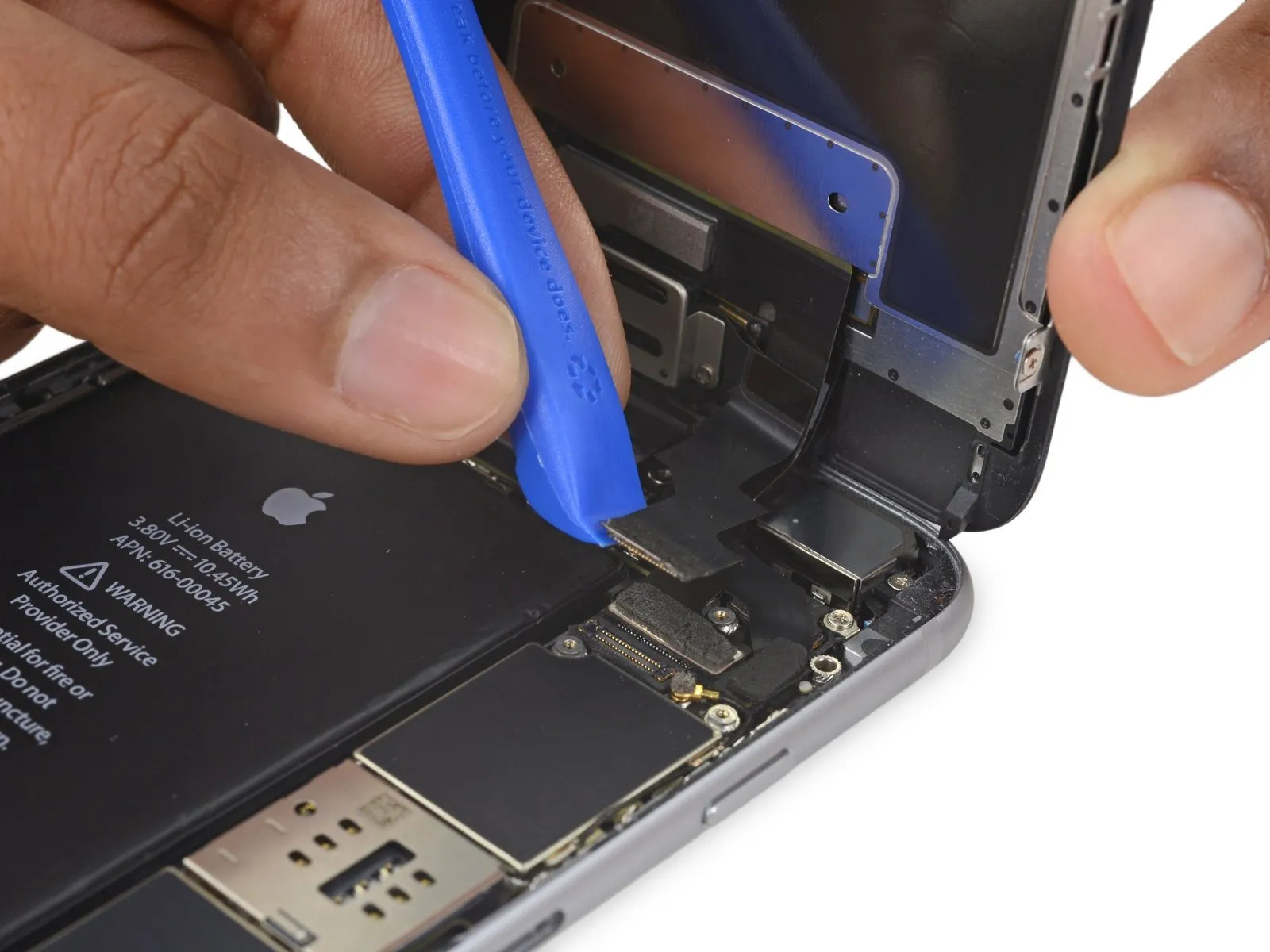

• Using a prying tool, carefully release the home button/fingerprint sensor cable by applying upward force to detach it from its connector on the logic board.

• Carefully detach the display assembly, ensuring all connections are released.
• If you intend to substitute fresh adhesive along the display's perimeter during reassembly, stop at this point.

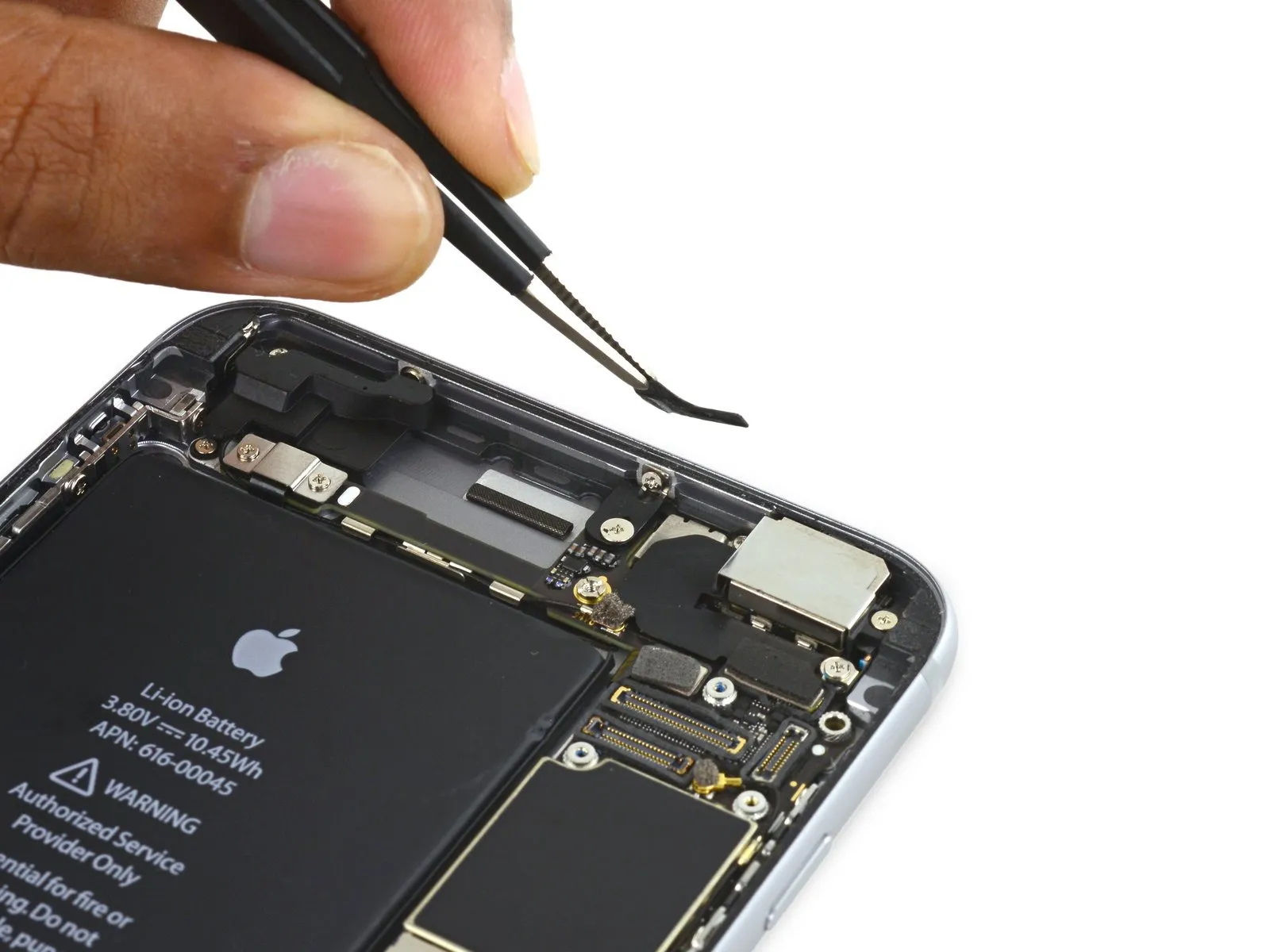

• Using a Phillips screwdriver, detach the screws securing the camera bracket.
  A screw with a 1.9 mm diameter is required.
  A screw with a 2.4 mm head diameter is required.

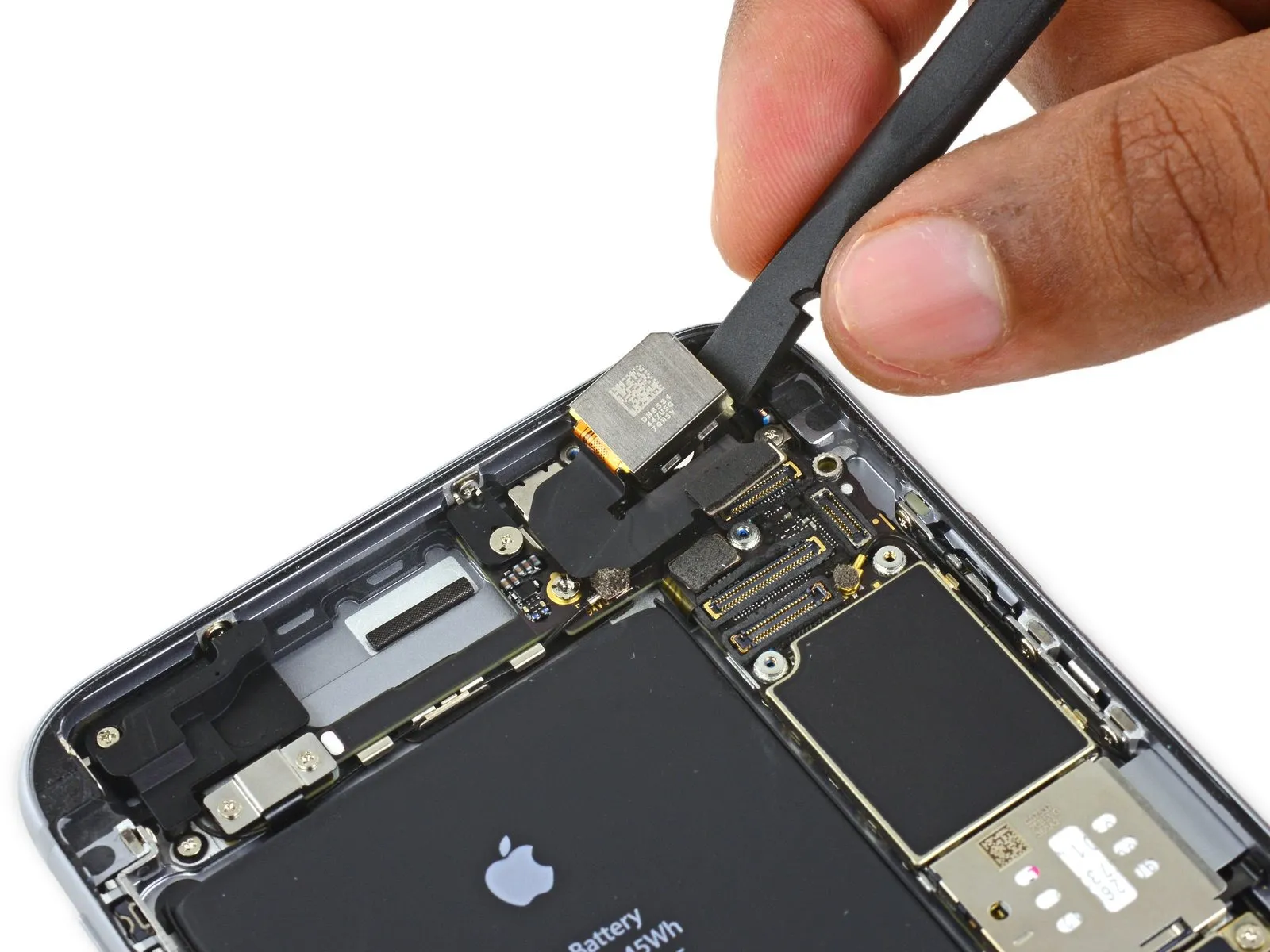

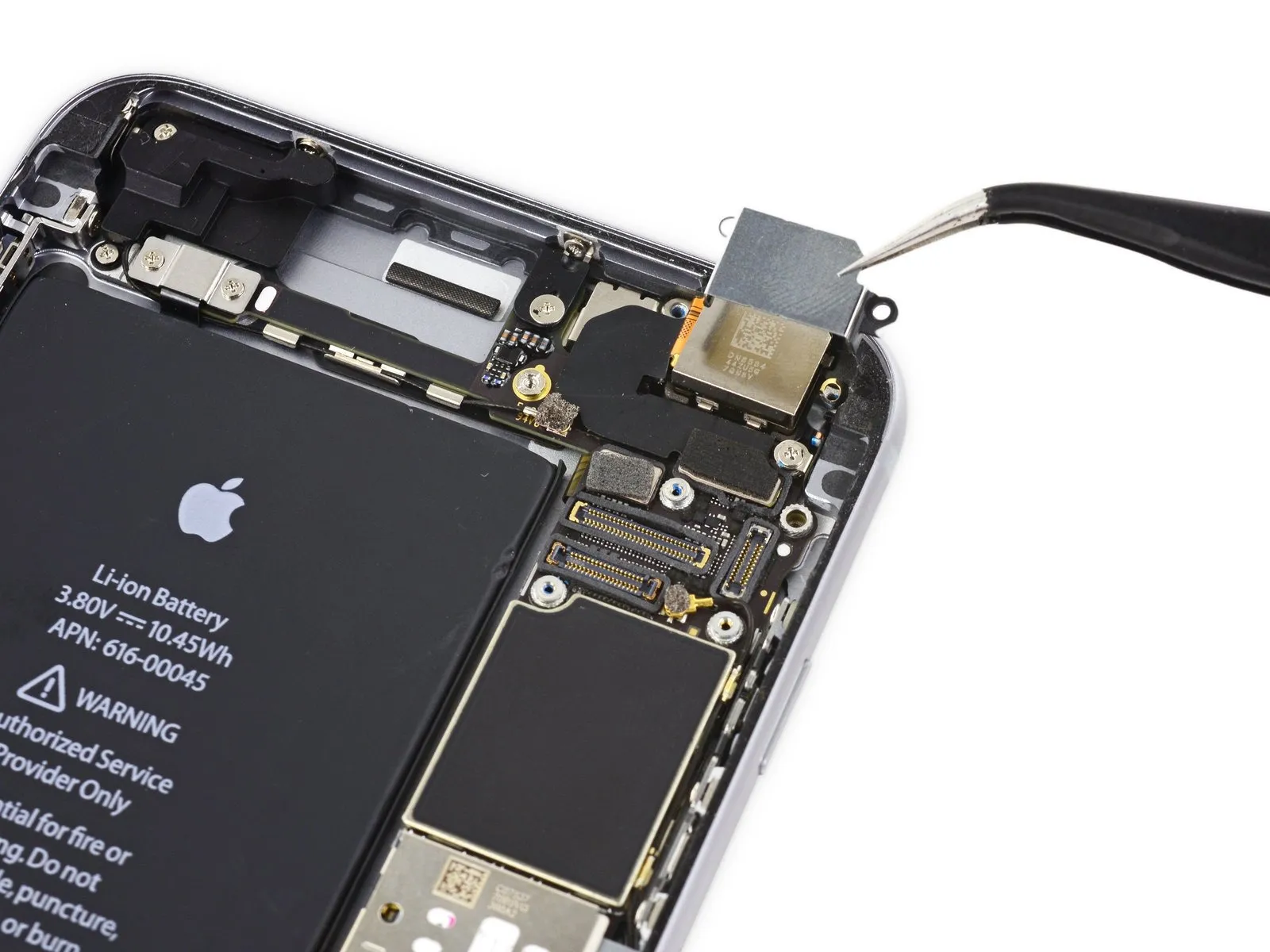

• Carefully detach the iSight camera connector from the socket located on the logic board.
  Carefully lift the connector, ensuring the socket remains secured to the logic board.

• Using the tool's straight edge, carefully slide it into the designated space.Use a plastic pry tool to gently separate.Locate the area positioned directly behind the iSight camera, on the rear casing.

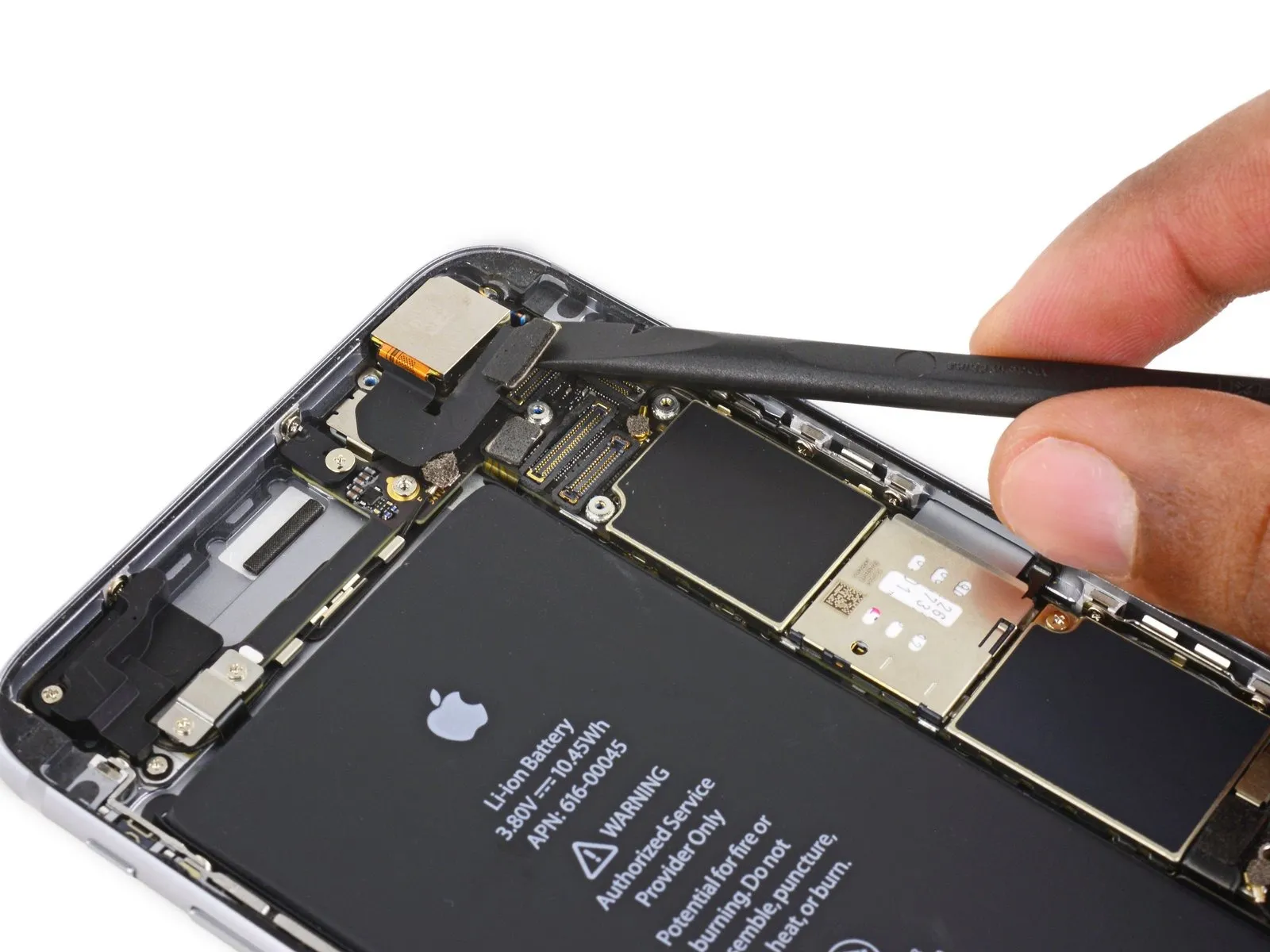

• Using careful, controlled force, disengage the camera from its enclosure.

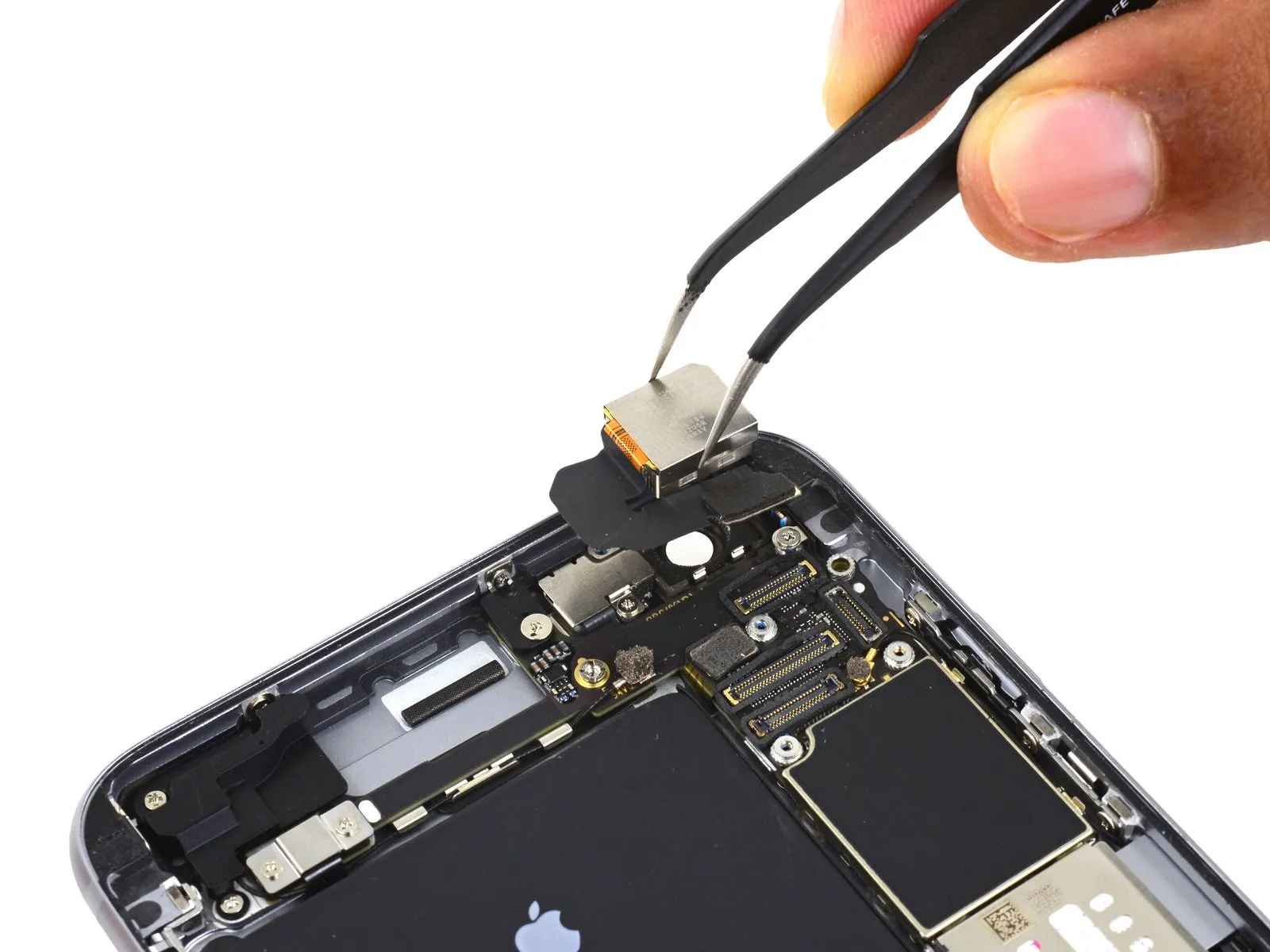

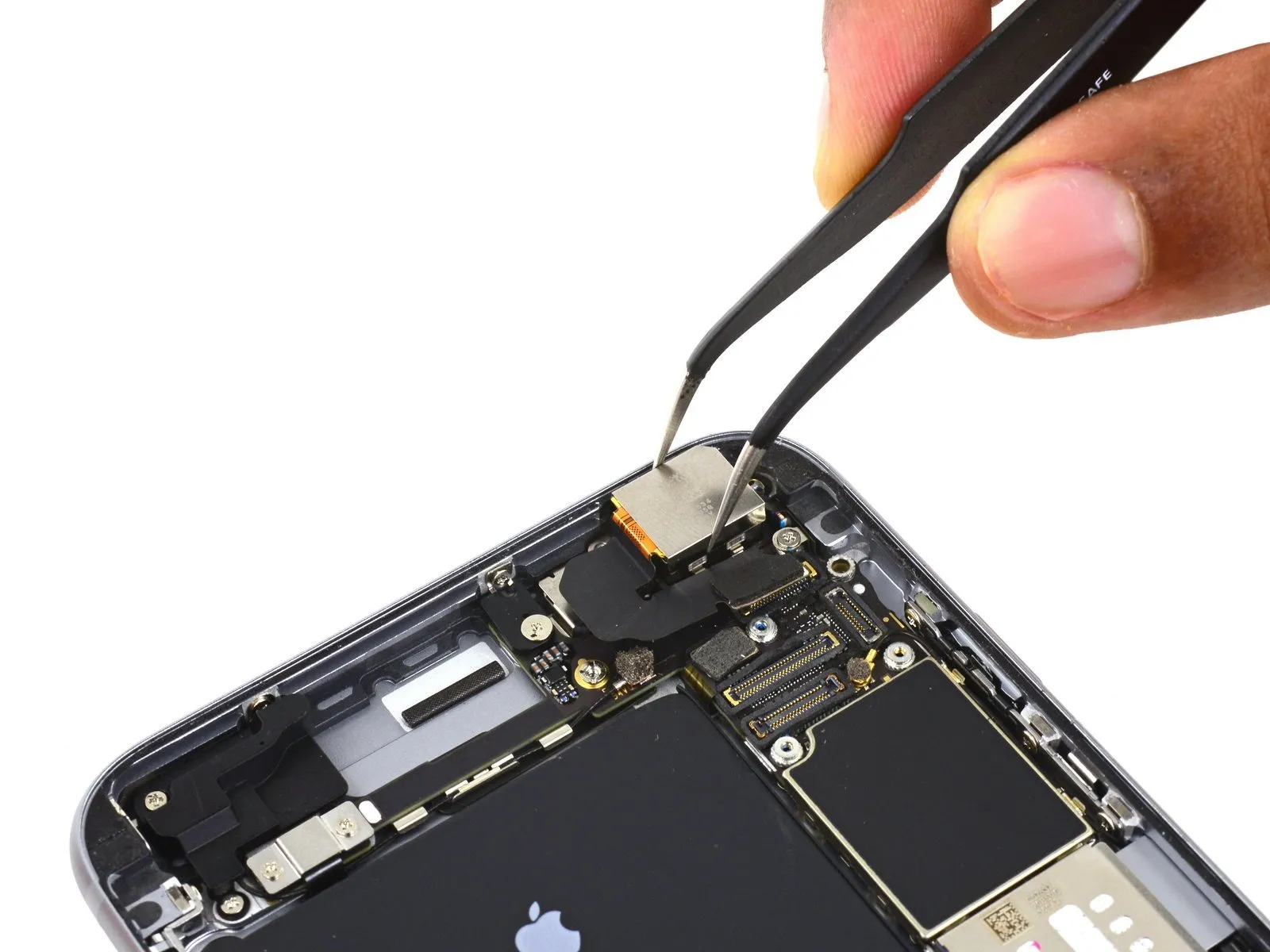

• Carefully detach the iSight camera assembly.

• Use a SIM eject tool to access the SIM card tray.Insert the SIM tray into its designated opening.
• Using your thumbnail or a SIM ejection tool, depress the SIM tray release until it pops out.

• Using a SIM ejection tool or a straightened paperclip, carefully extract the SIM card tray.
• Ensure the SIM card tray is aligned so the SIM ejection aperture faces downward during reinsertion.

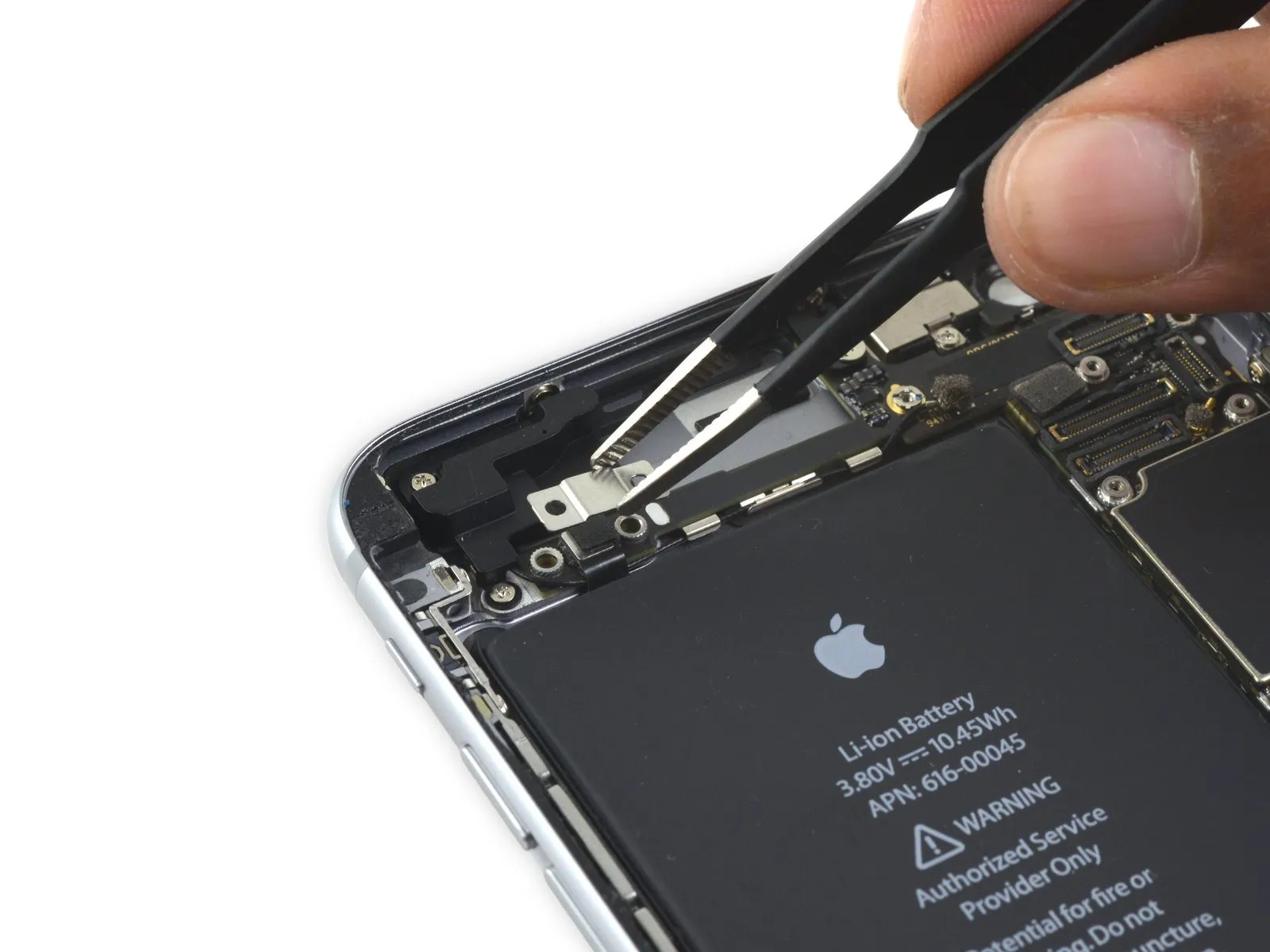

• Using a Phillips screwdriver, detach the NFC bracket by unscrewing the 1.4 mm screw that secures it.

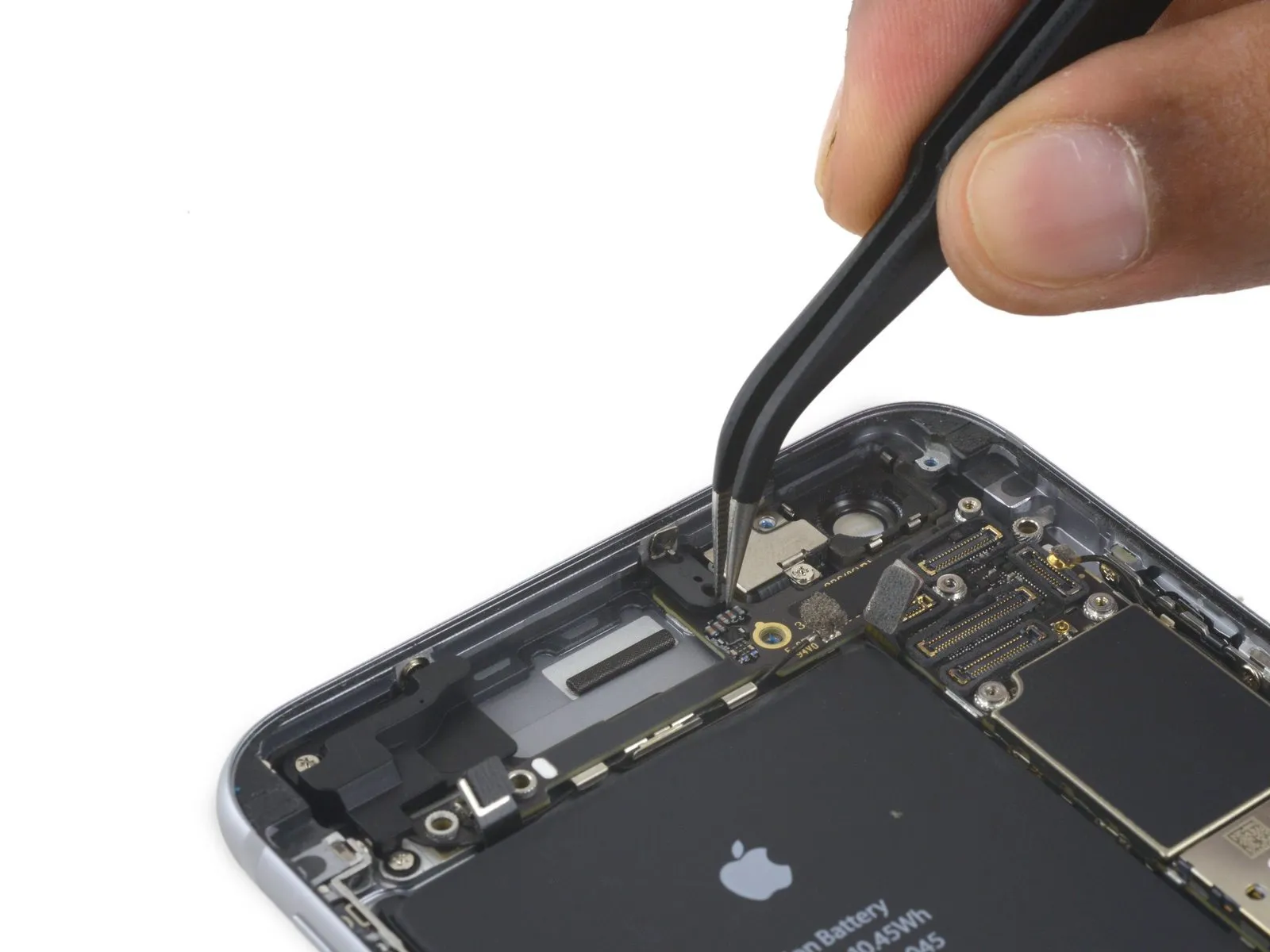

• Detach the NFC bracket.

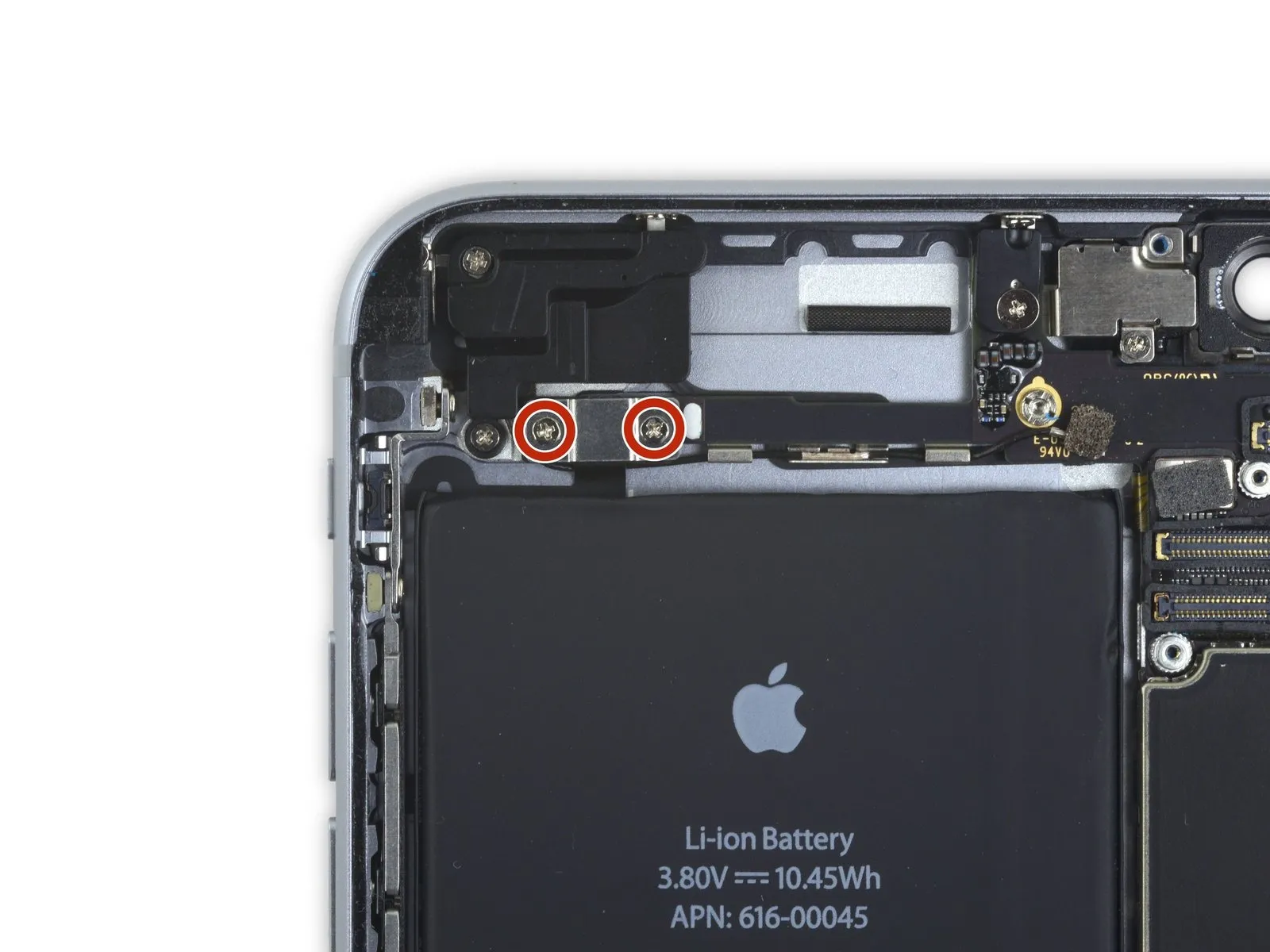

• Using a Phillips screwdriver, detach the audio control cable bracket from the logic board by unscrewing the two fasteners held in place by 2.7 mm screws.

• Detach the bracket securing the audio control cable.

• Carefully detach theConnect the audio control cable.Carefully detach the connector by applying upward pressure, ensuring it remains aligned vertically as it separates from its socket on the logic board.

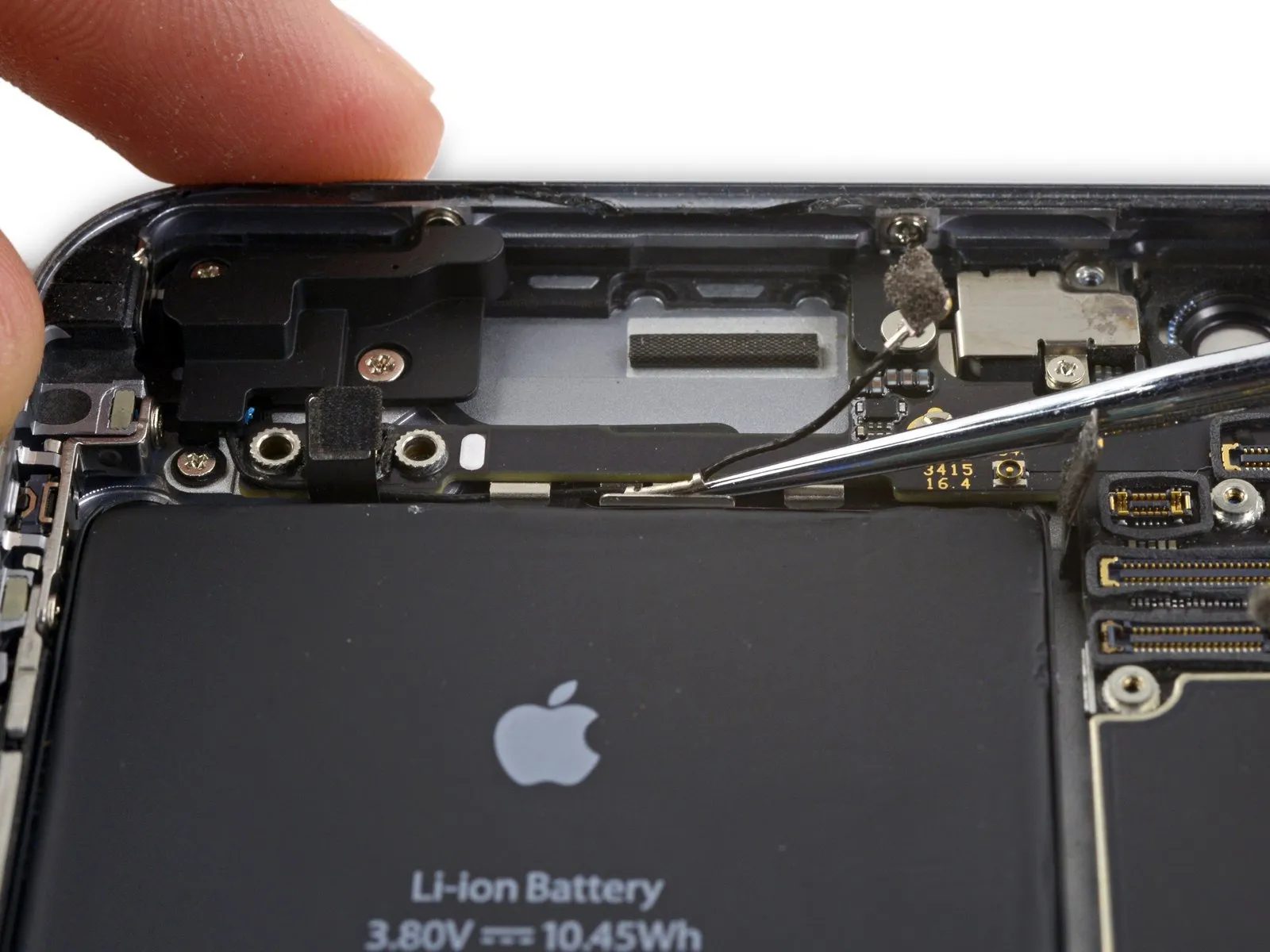

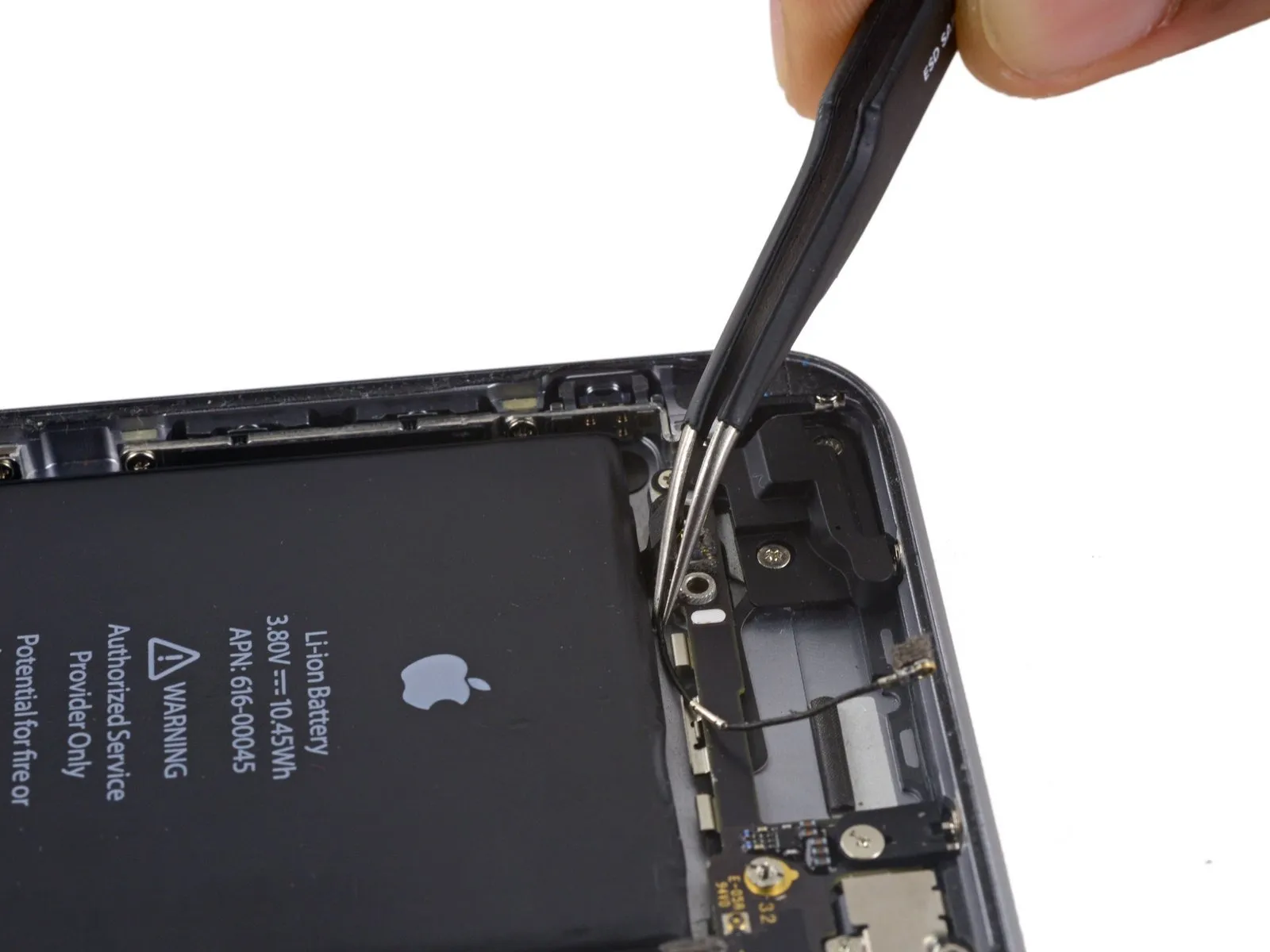

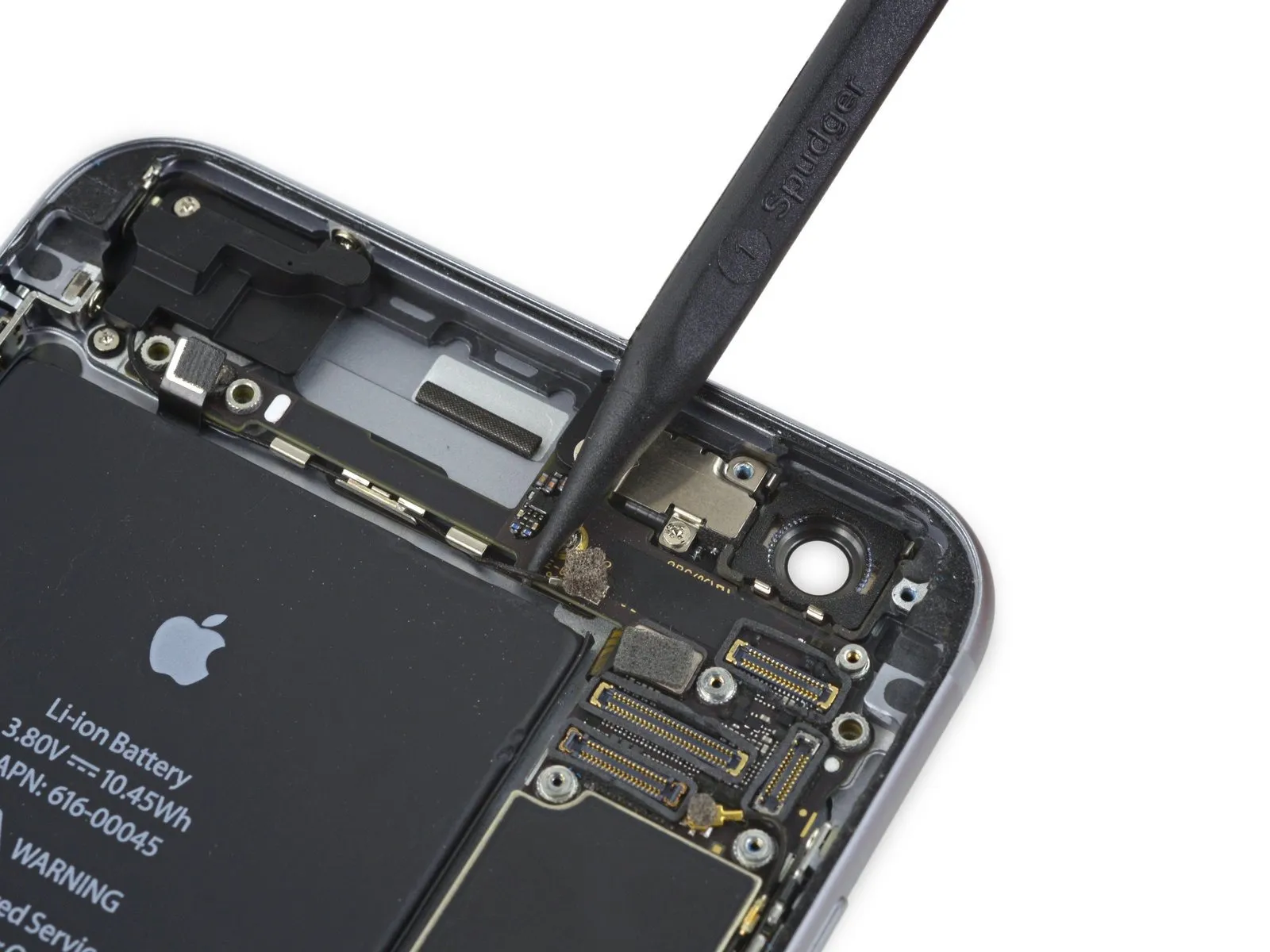

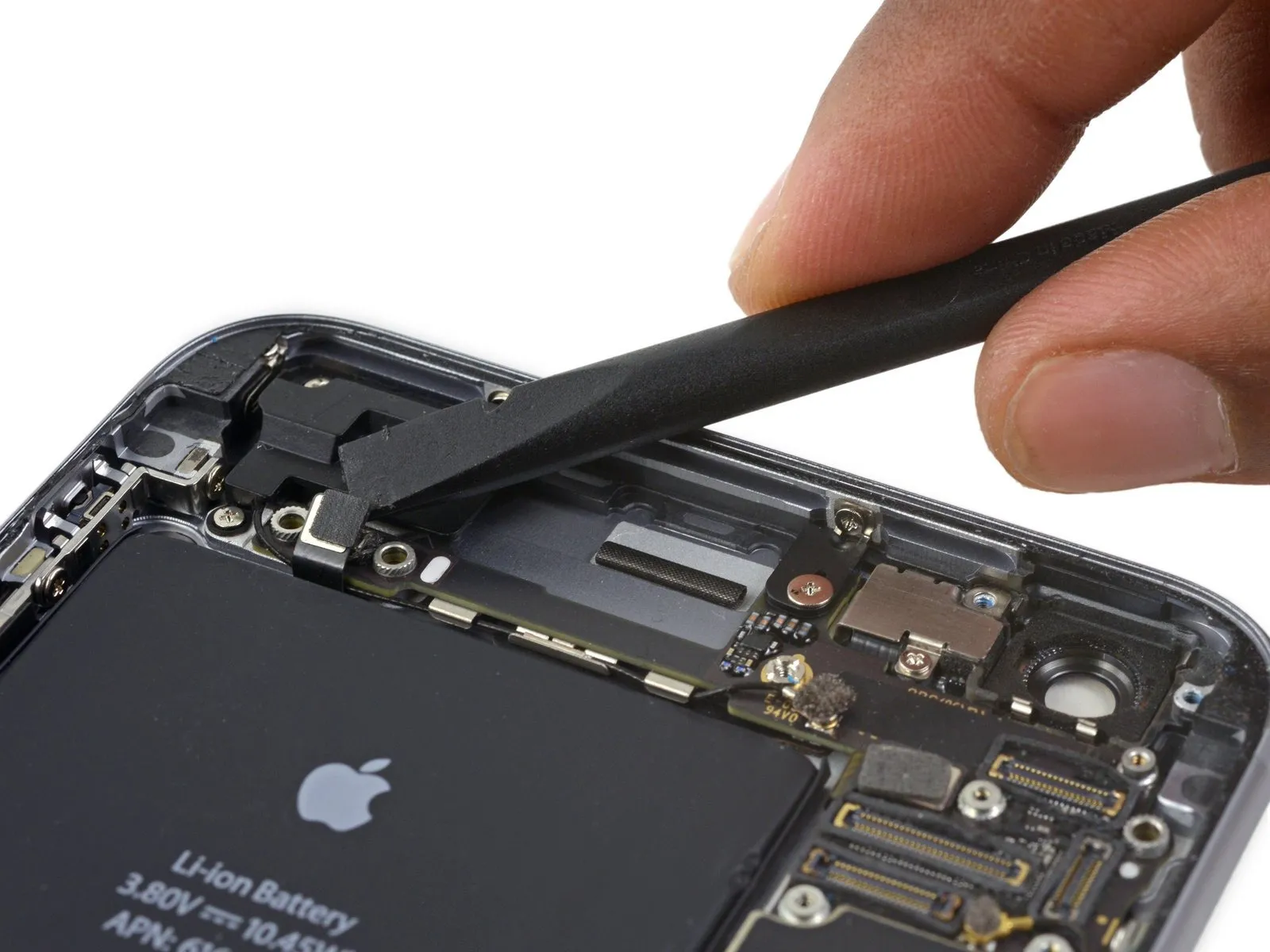

• Carefully detach theThe coaxial cable connecting to the cellular antenna.Carefully detach the connector by applying upward pressure, ensuring it remains aligned with its socket on the logic board.

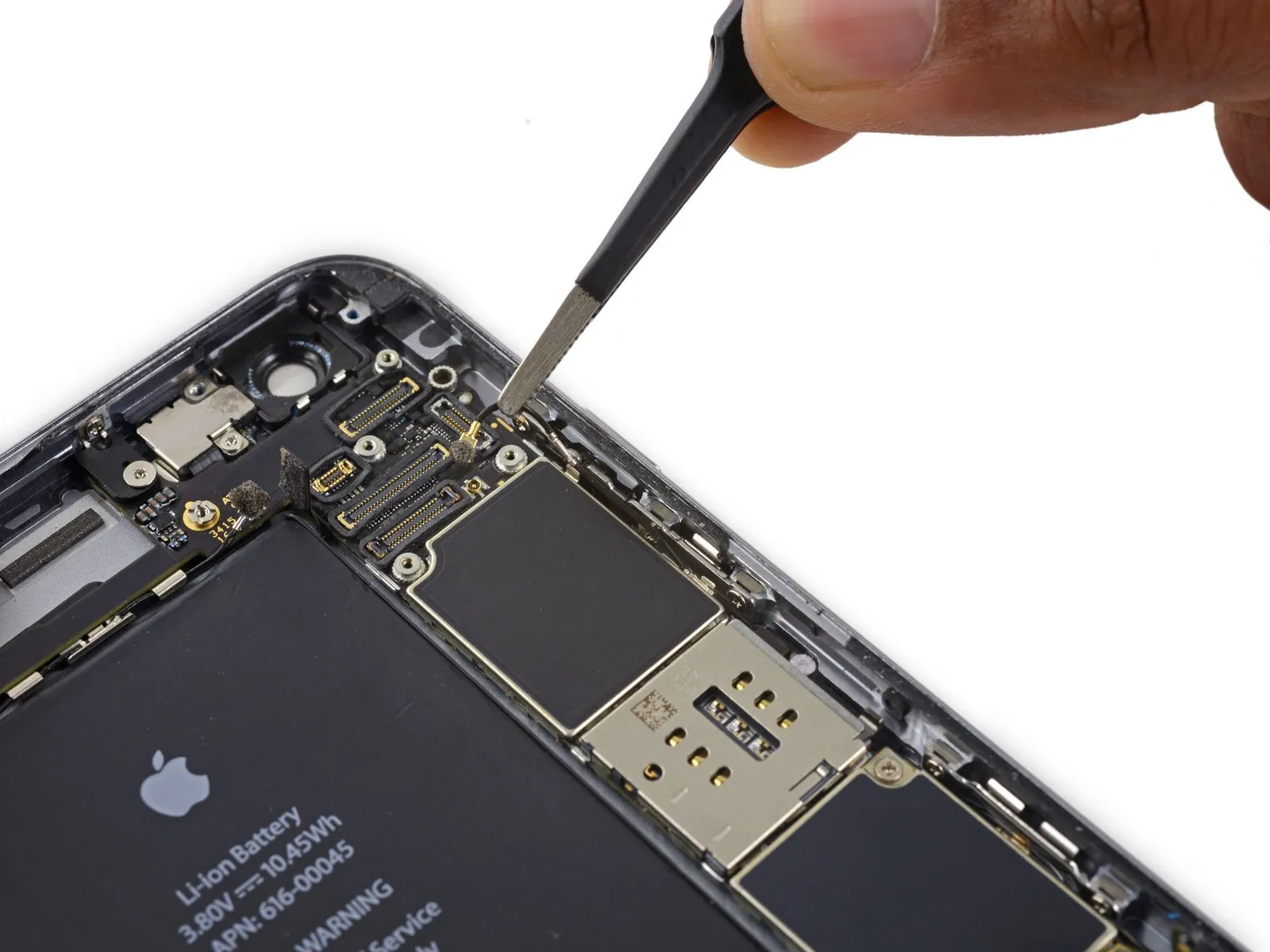

• Carefully detach theConnect the antenna cable to the Wi-Fi diversity antenna.Carefully release the connector from the logic board by gently levering it upwards.

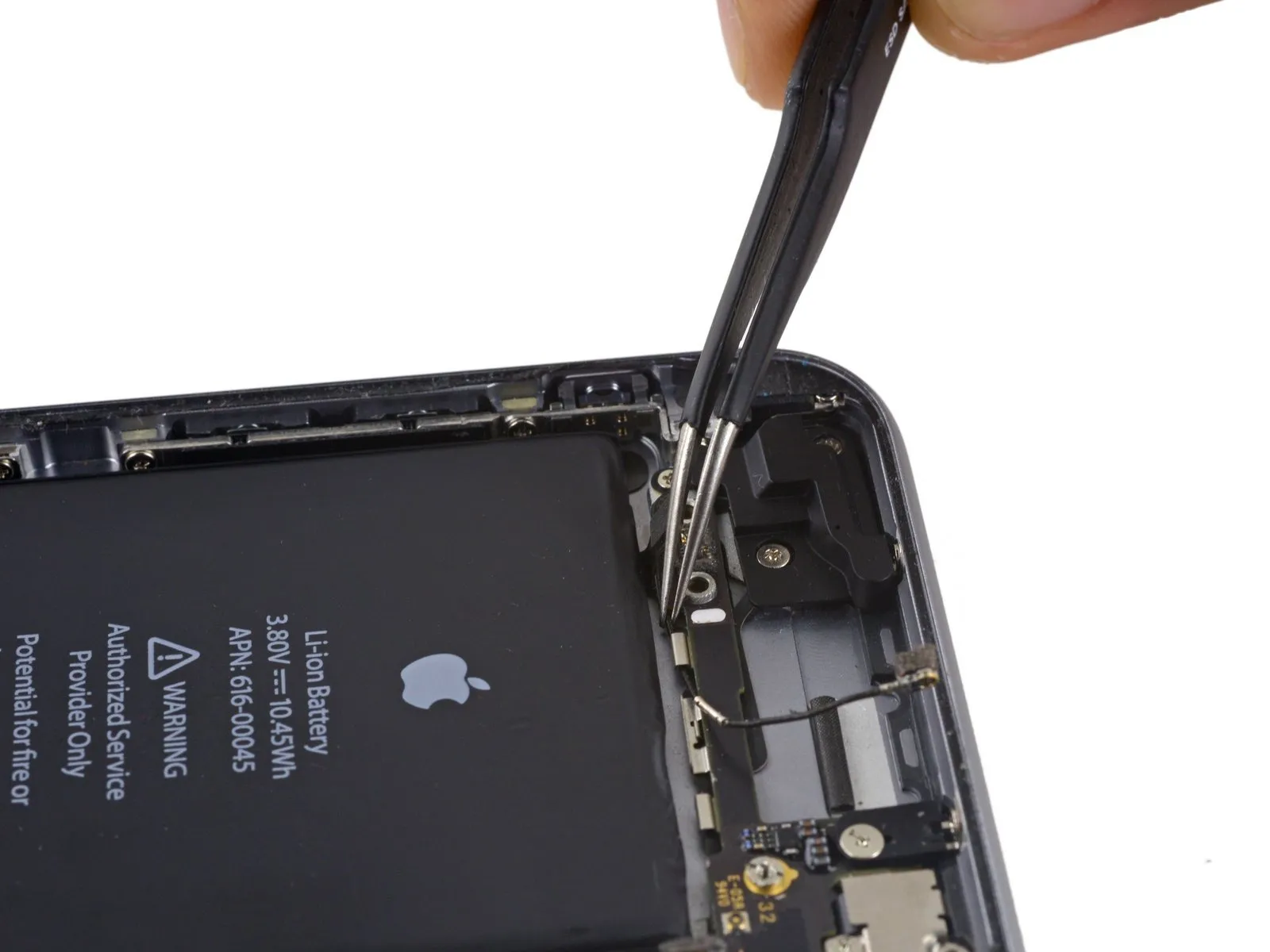

• Carefully detach theThe flexible cable connecting the power button to the device's circuitry.Carefully detach the component from its corresponding receptacle on the logic board.

• Using the appropriate screwdriver, detach the specified fasteners.
  Use a Phillips screwdriver to remove a single screw with a 1.3 mm head.
  A Phillips head screw, measuring 2.6 millimeters, is required.
  A screw with a 2.2-millimeter diameter is required.
• To detach standoff screws, utilize a standoff screwdriver or a compatible bit.
• If a specialized tool isn't available, a small flathead screwdriver can be carefully substituted; however, exercise heightened awareness to prevent slippage and potential harm to nearby parts.

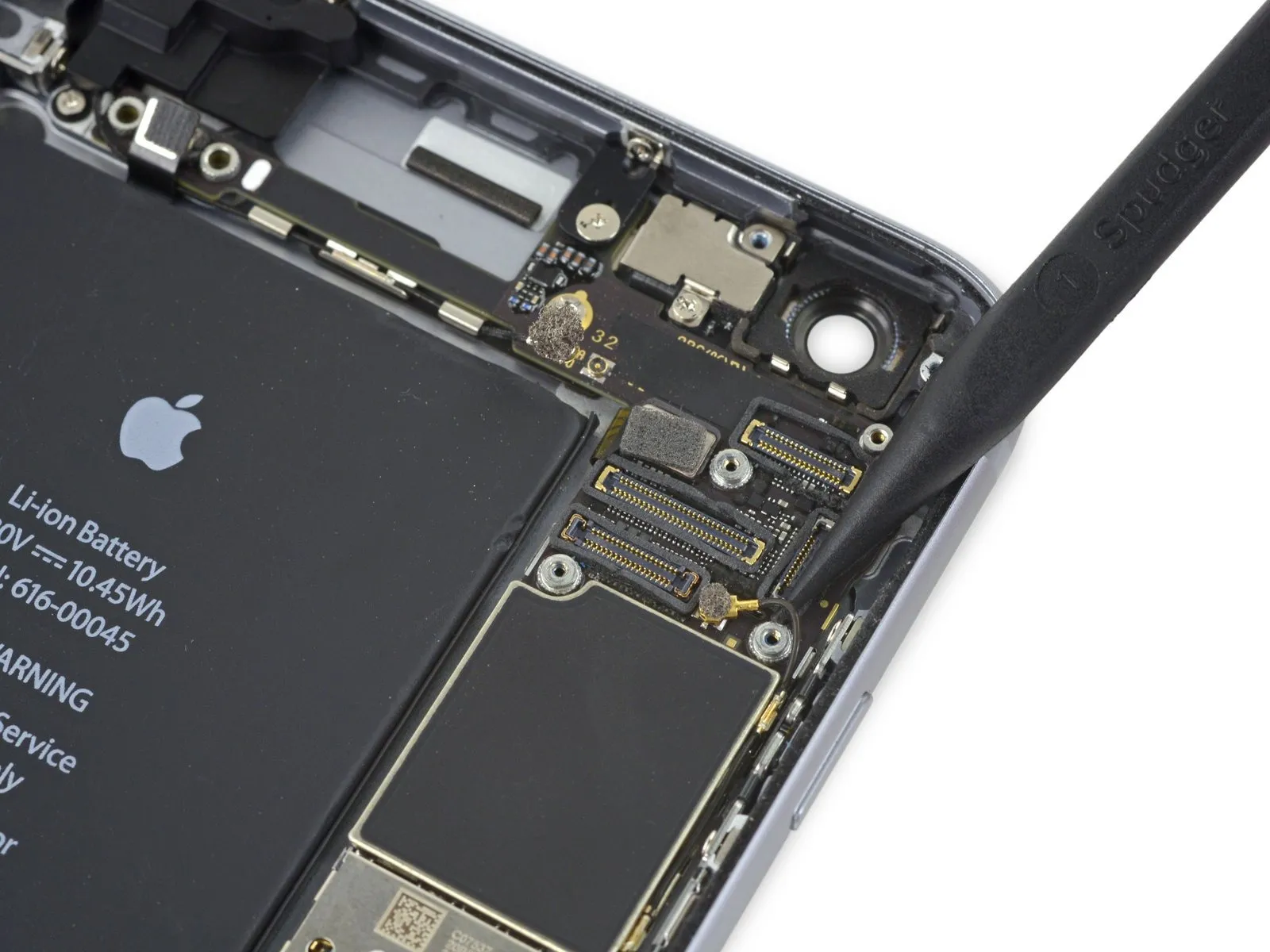

• Disconnect the cellular antenna cable from both the second and third logic board retention clips.

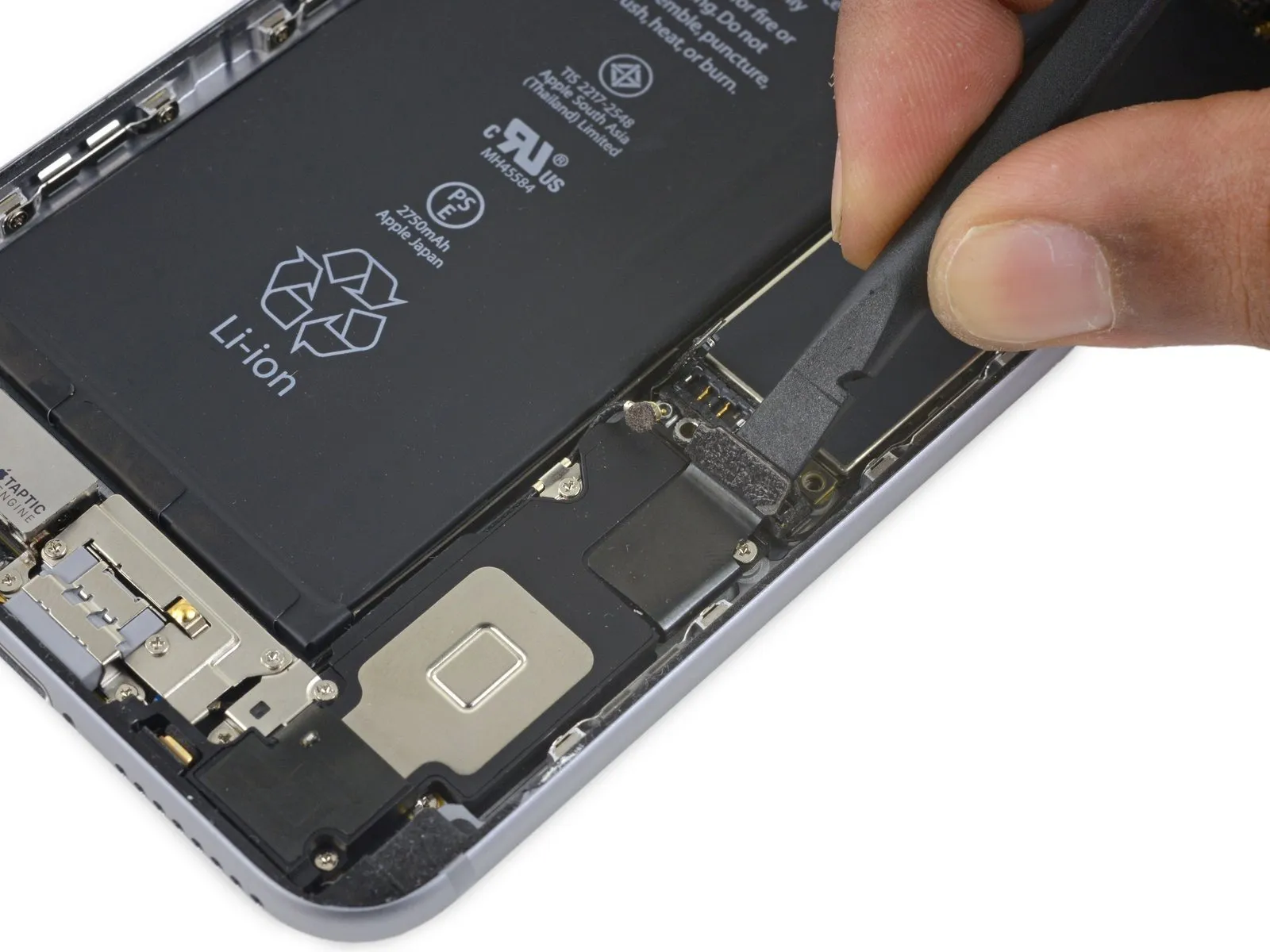

• Carefully insert the tip of the tool into the designated area.Use a plastic pry tool, often referred to as a spudger, to avoid scratching surfaces.Carefully disengage the cellular antenna cable from its securing clip on the middle logic board, using gentle force.
• Avoid separating the component from its housing by applying traction to the wire, because doing so risks damage.

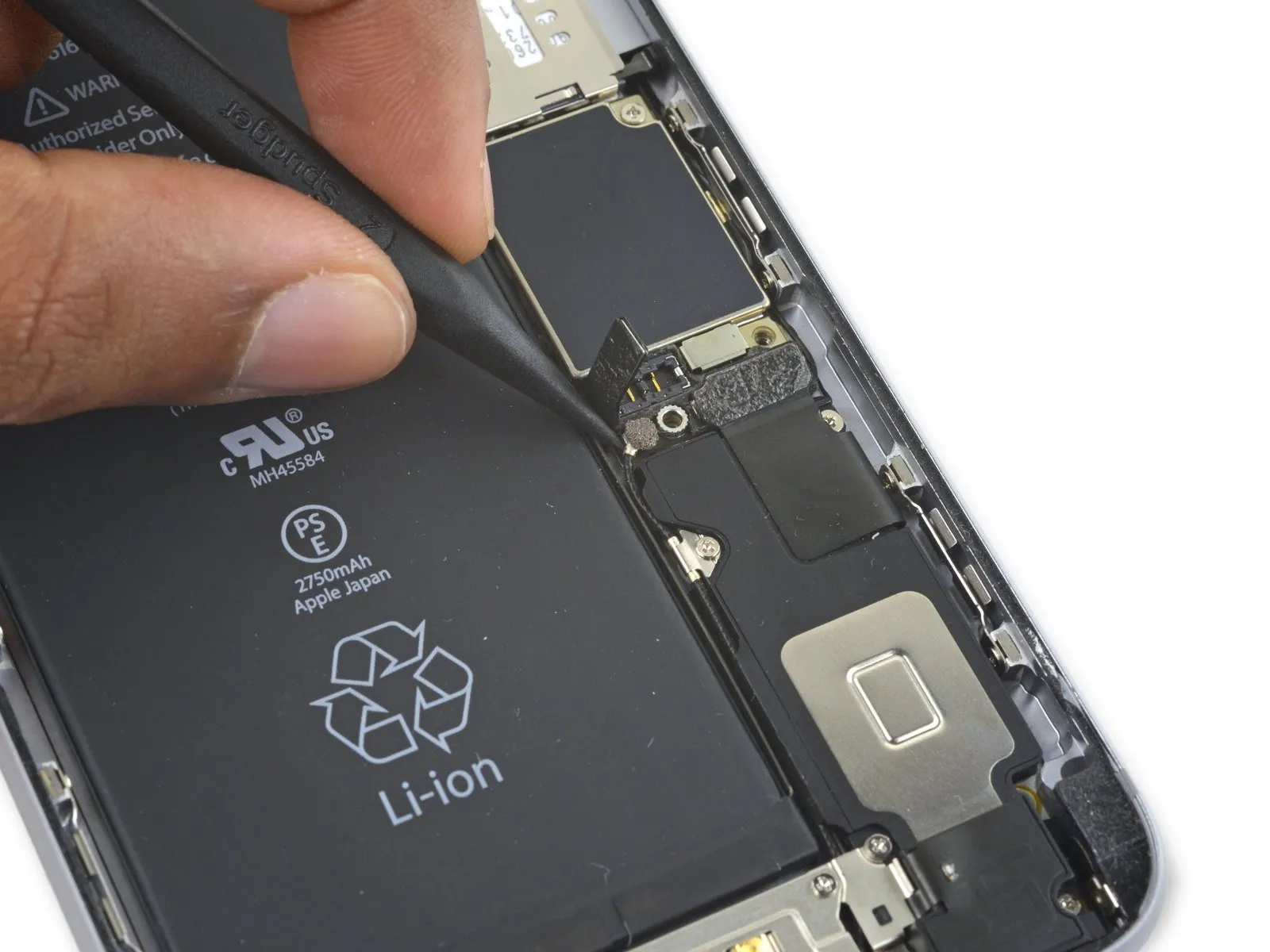

• To connect the cable to its socket on the logic board, position it over the board and then slide it beneath the audio control flex cable, following the visual guide in the initial image.

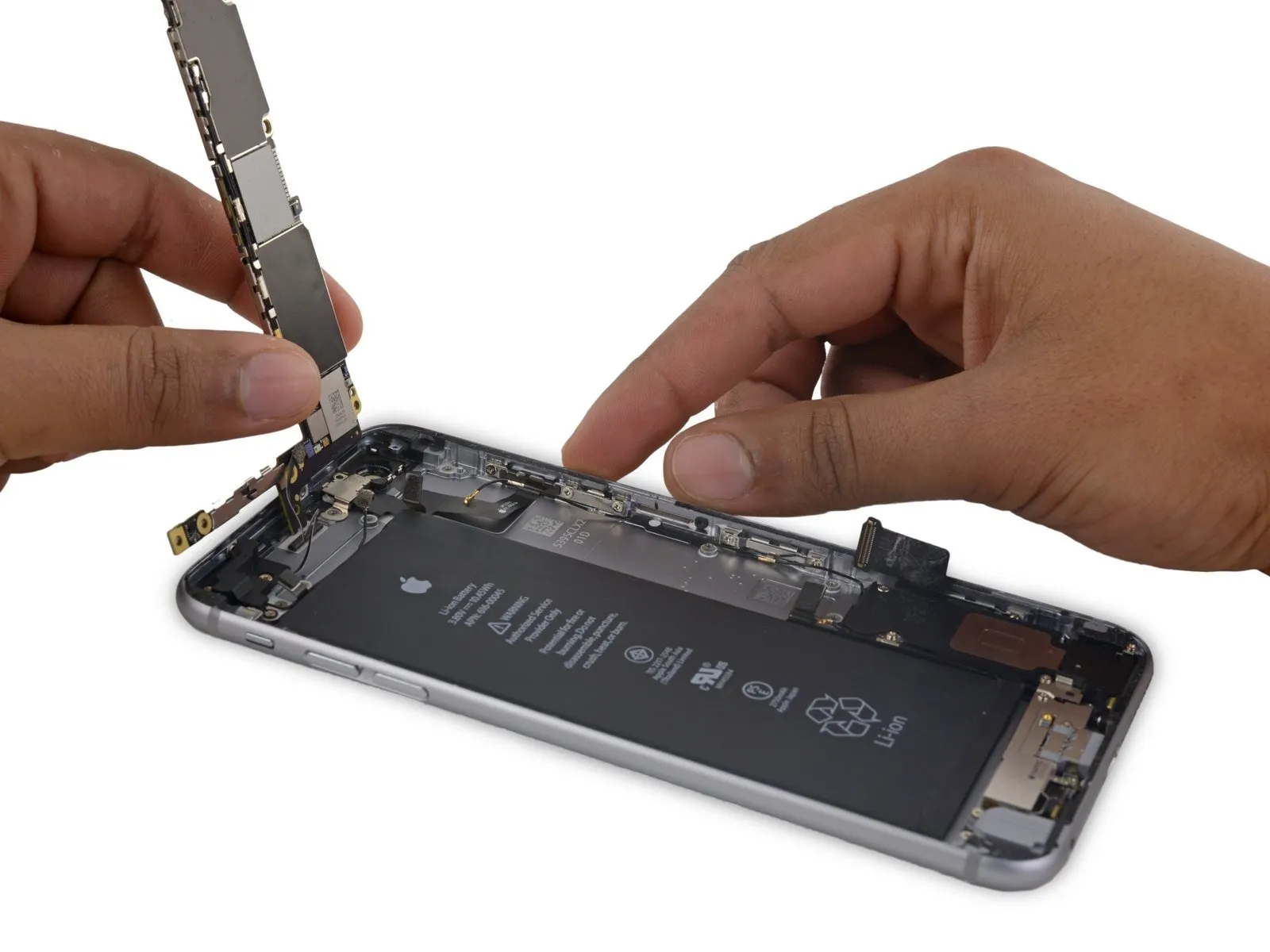

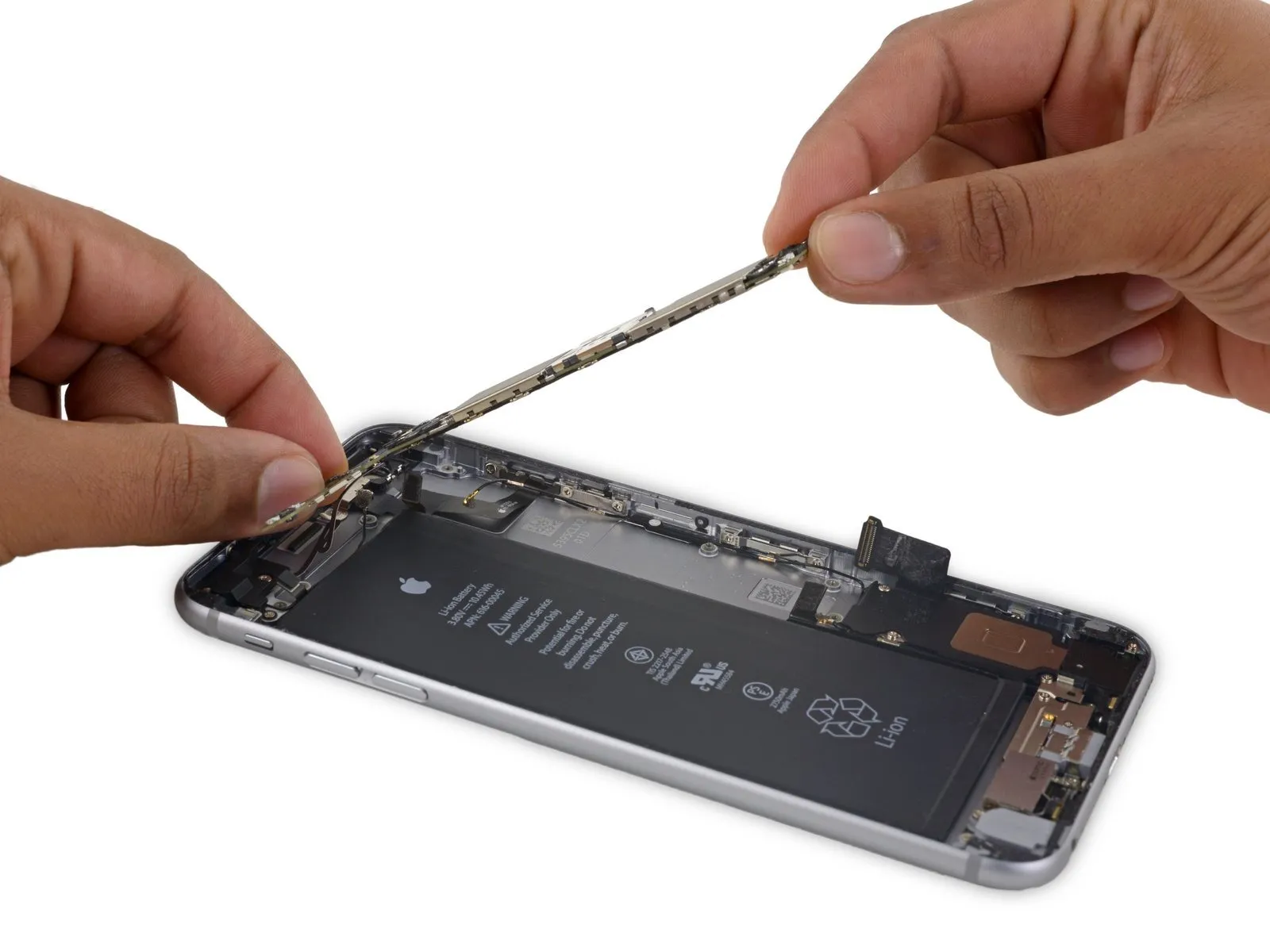

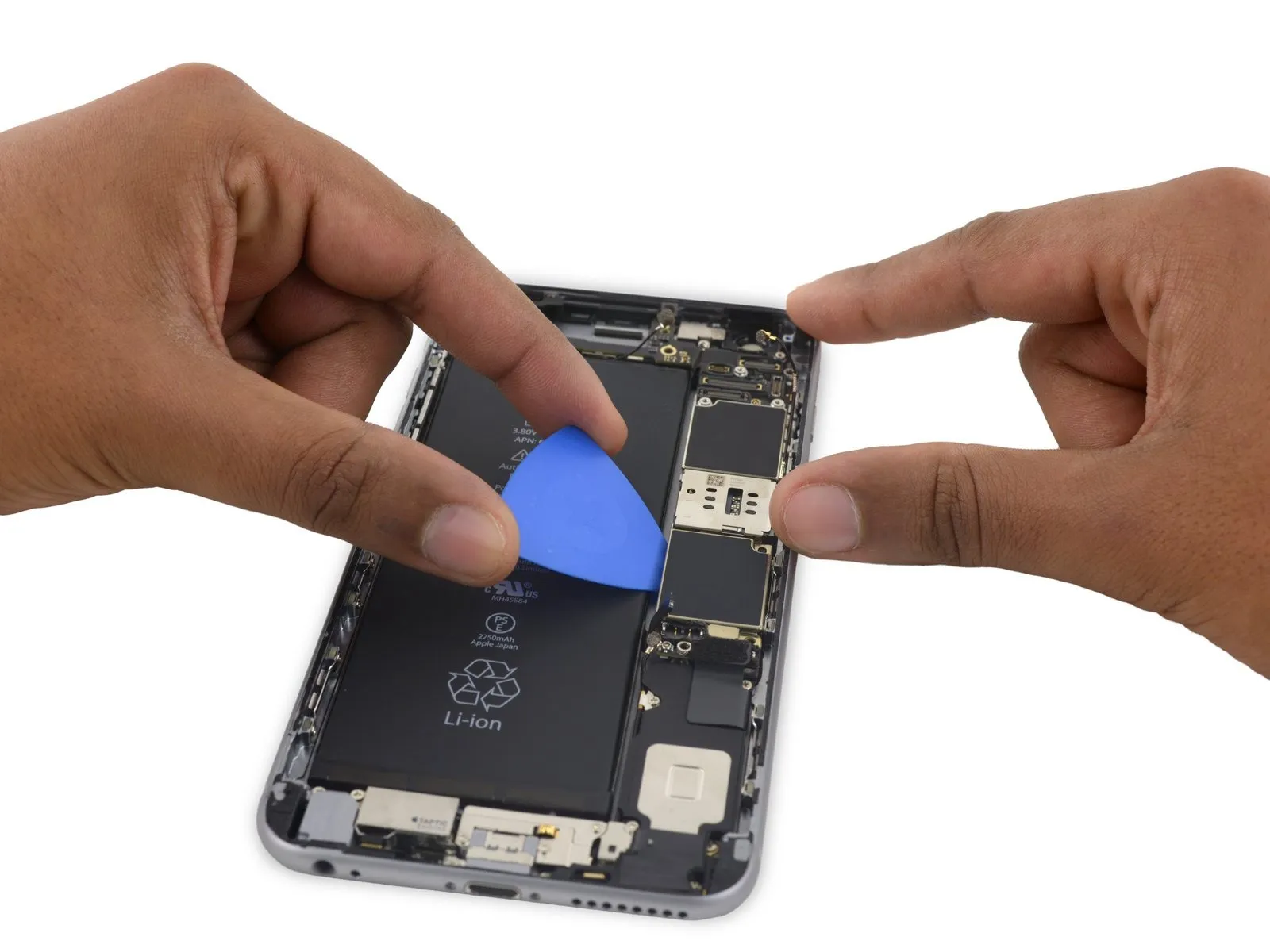

• Carefully incline theThe main circuit board, containing integrated circuits and other electronic components, is referred to as the logic board.Raise the component to a 90-degree angle, revealing the solitary antenna connector located on the bottom surface, close to the upper border of the circuit board.

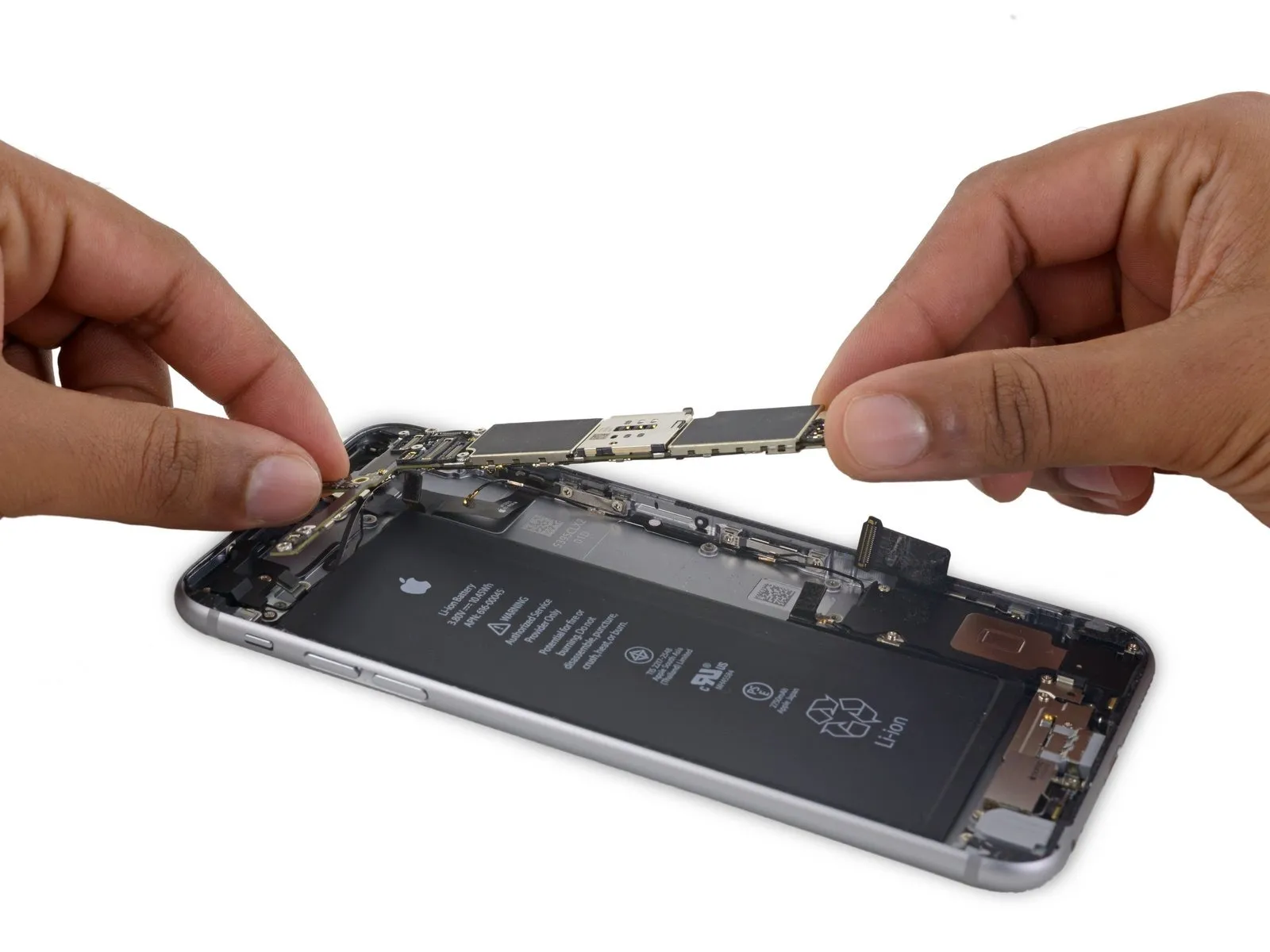

• Avoid complete detachment of theThe main circuit board, containing the integrated circuits and other electronic components, is referred to as the logic board.However, remember that the Wi-Fi and Bluetooth antenna remains attached to the board's bottom surface.

1. Carefully position theThe main circuit board, containing integrated circuits and other electronic components, is referred to as the logic board.Position the device inverted, ensuring the upper section makes contact with the iPhone's rear enclosure.

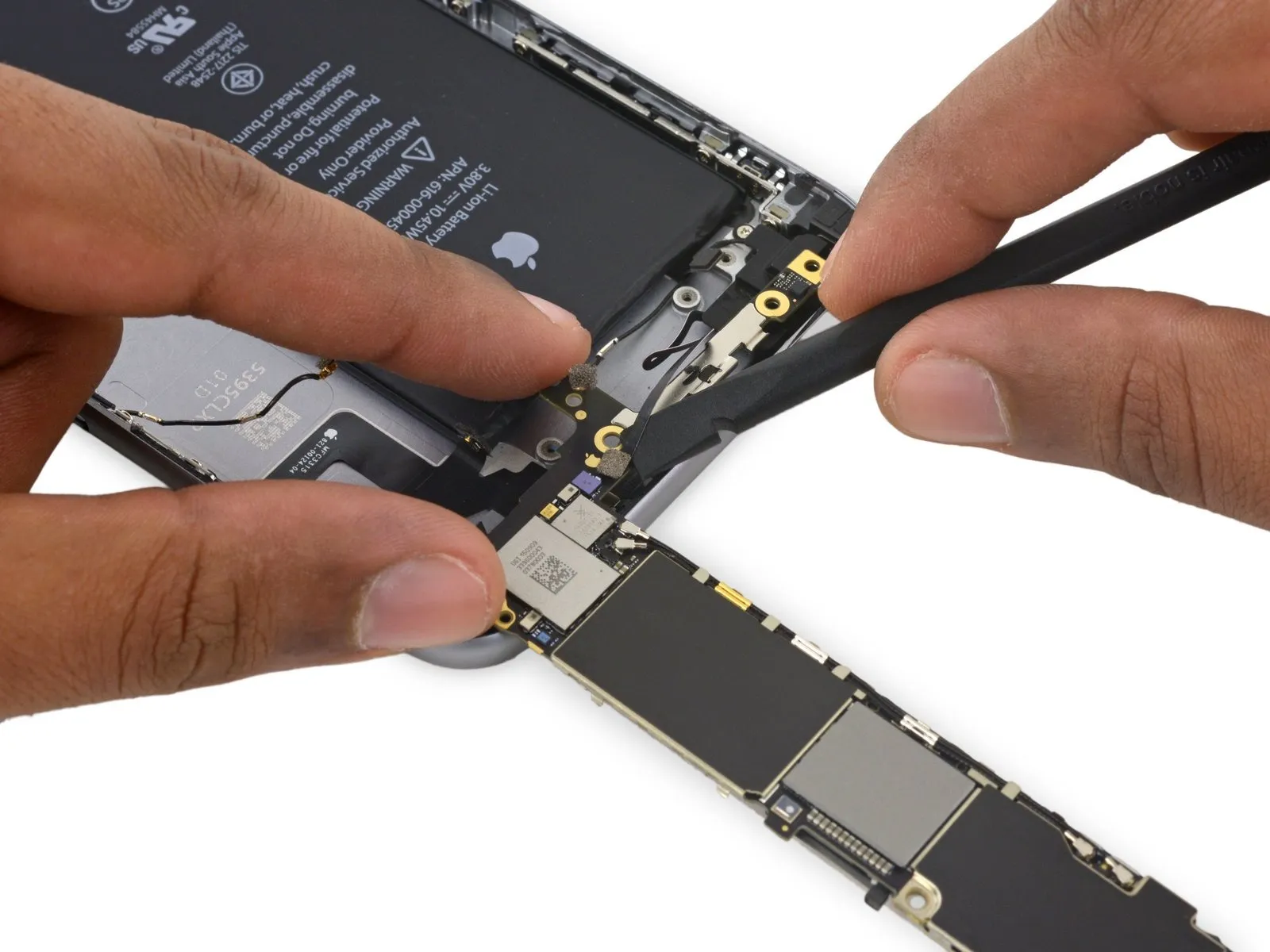

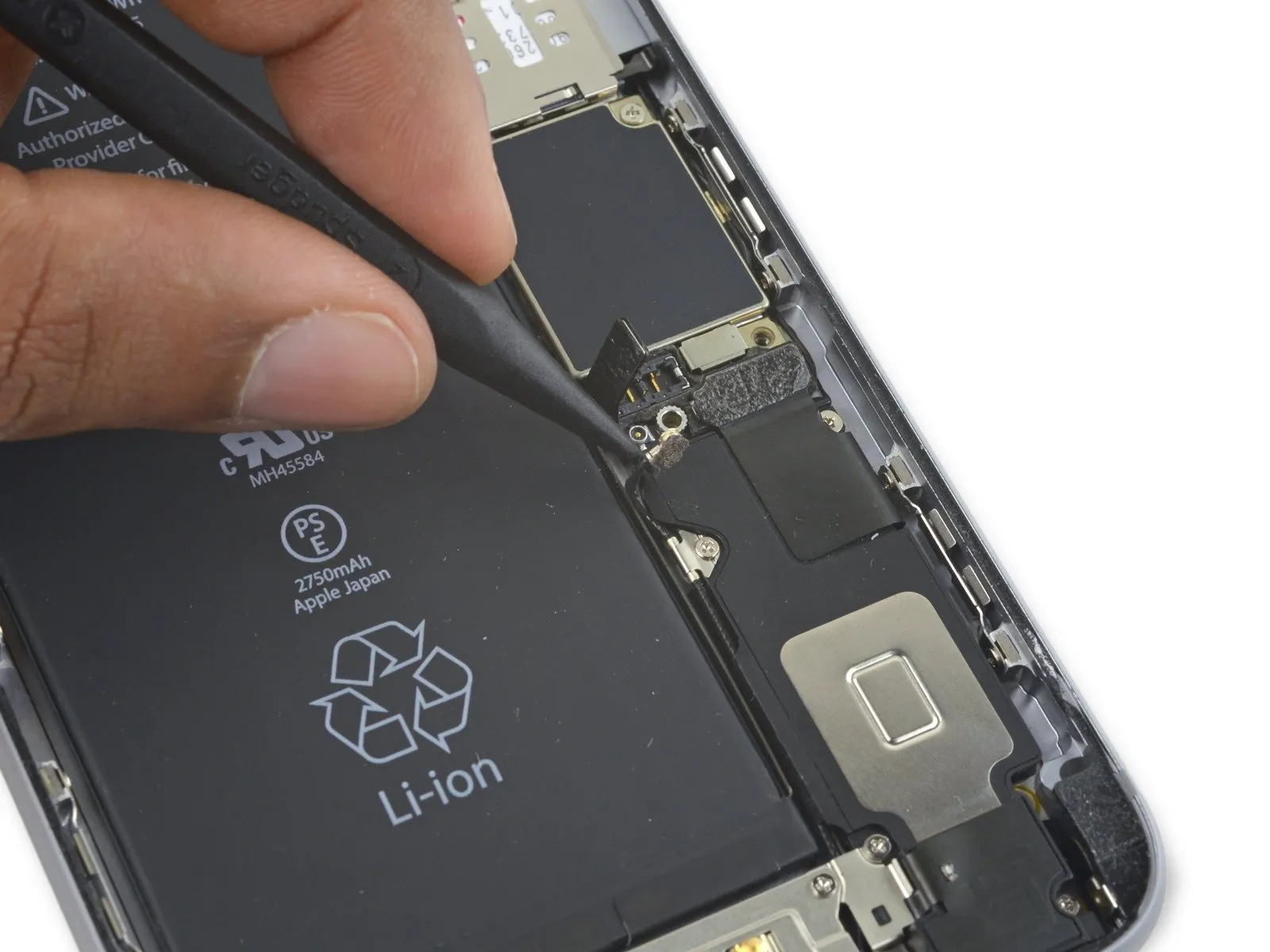

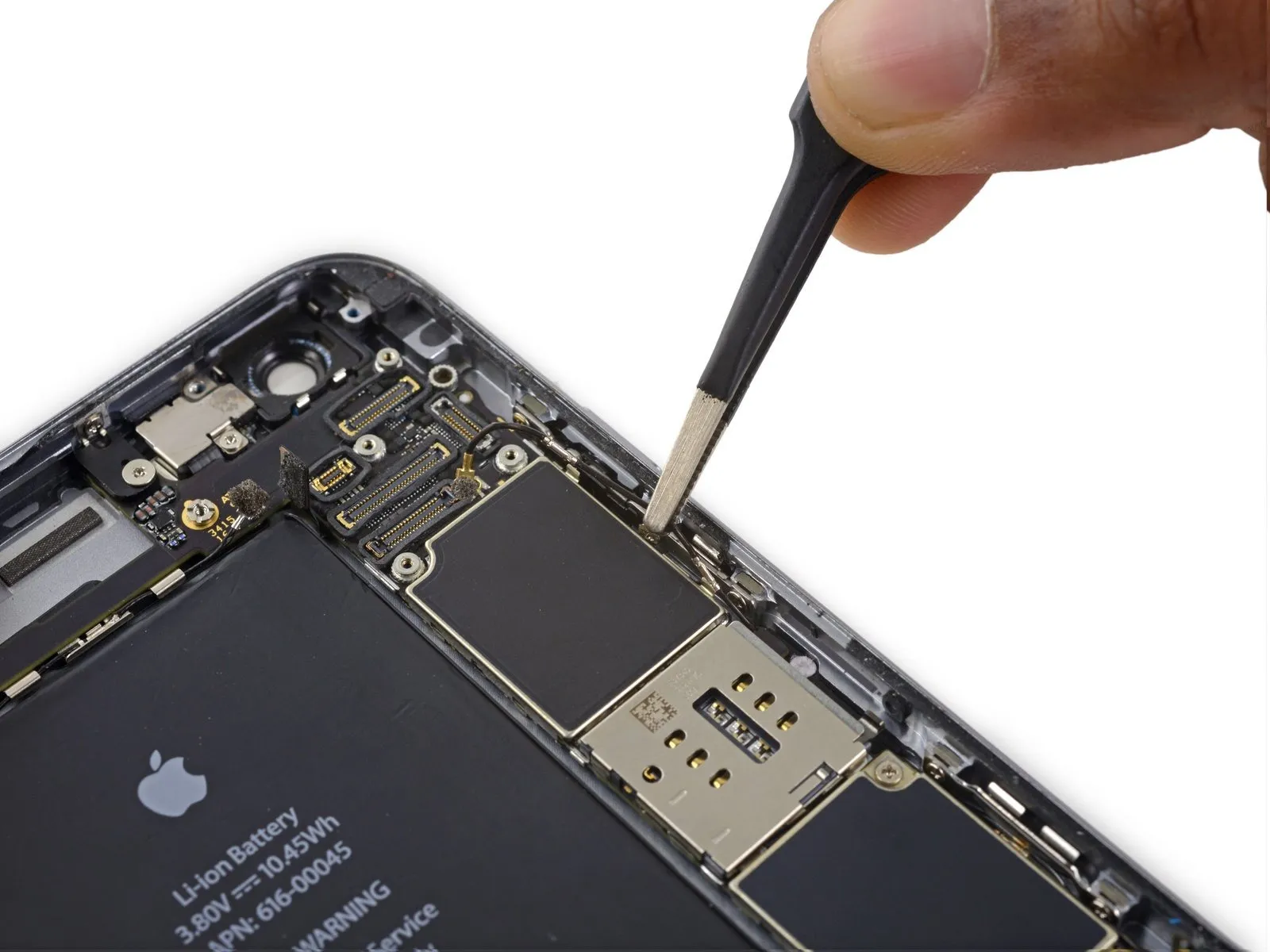

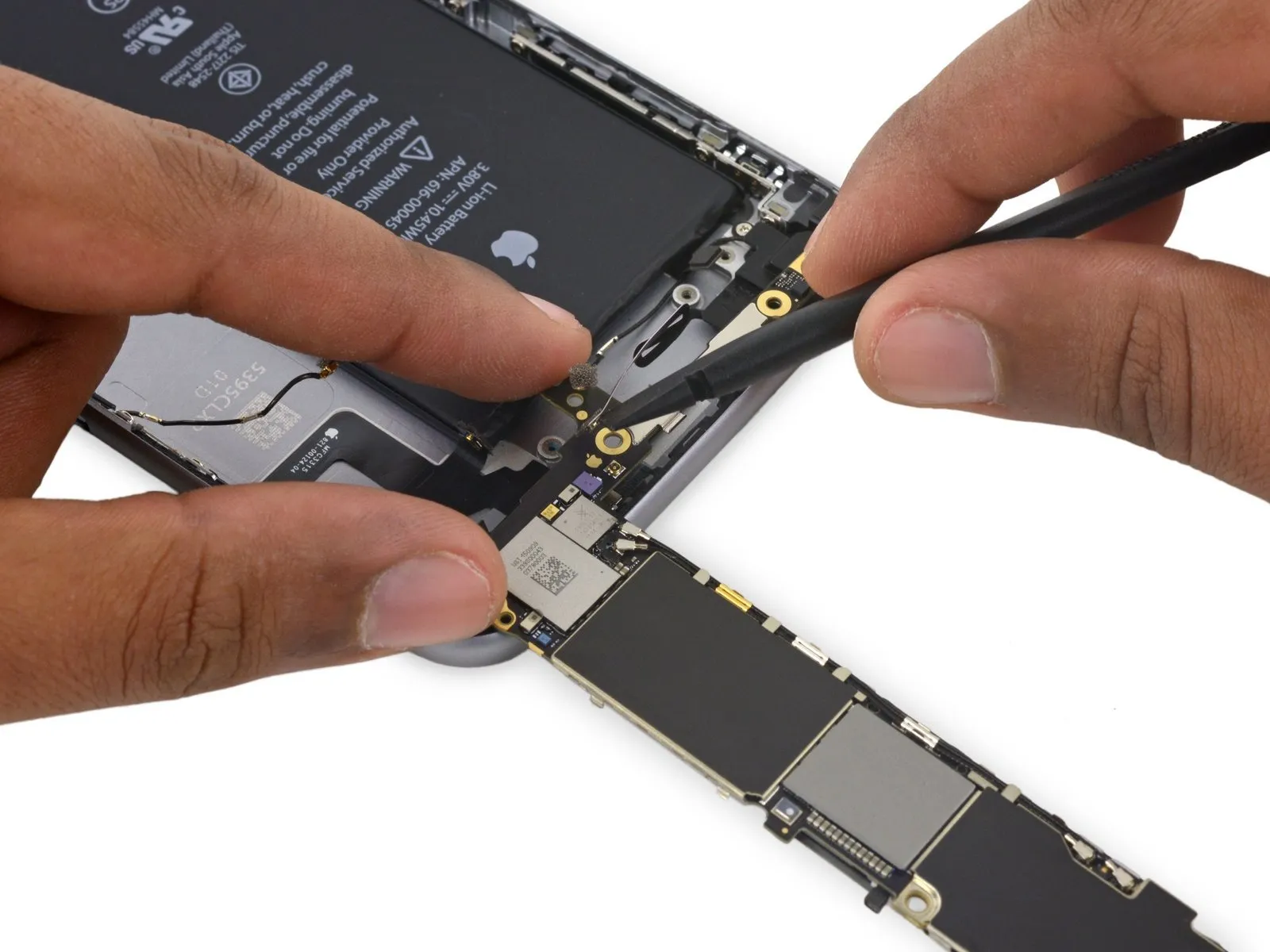

   Carefully separate the Wi-Fi/Bluetooth antenna cable from its connector located on the rear side of the board, employing the flat spudger’s end.The main circuit board, containing the integrated circuits and components that control the device's functions, is referred to as the logic board..

1. Carefully detach theThe main circuit board, containing the integrated circuits and components that control the device's functions, is referred to as the logic board..

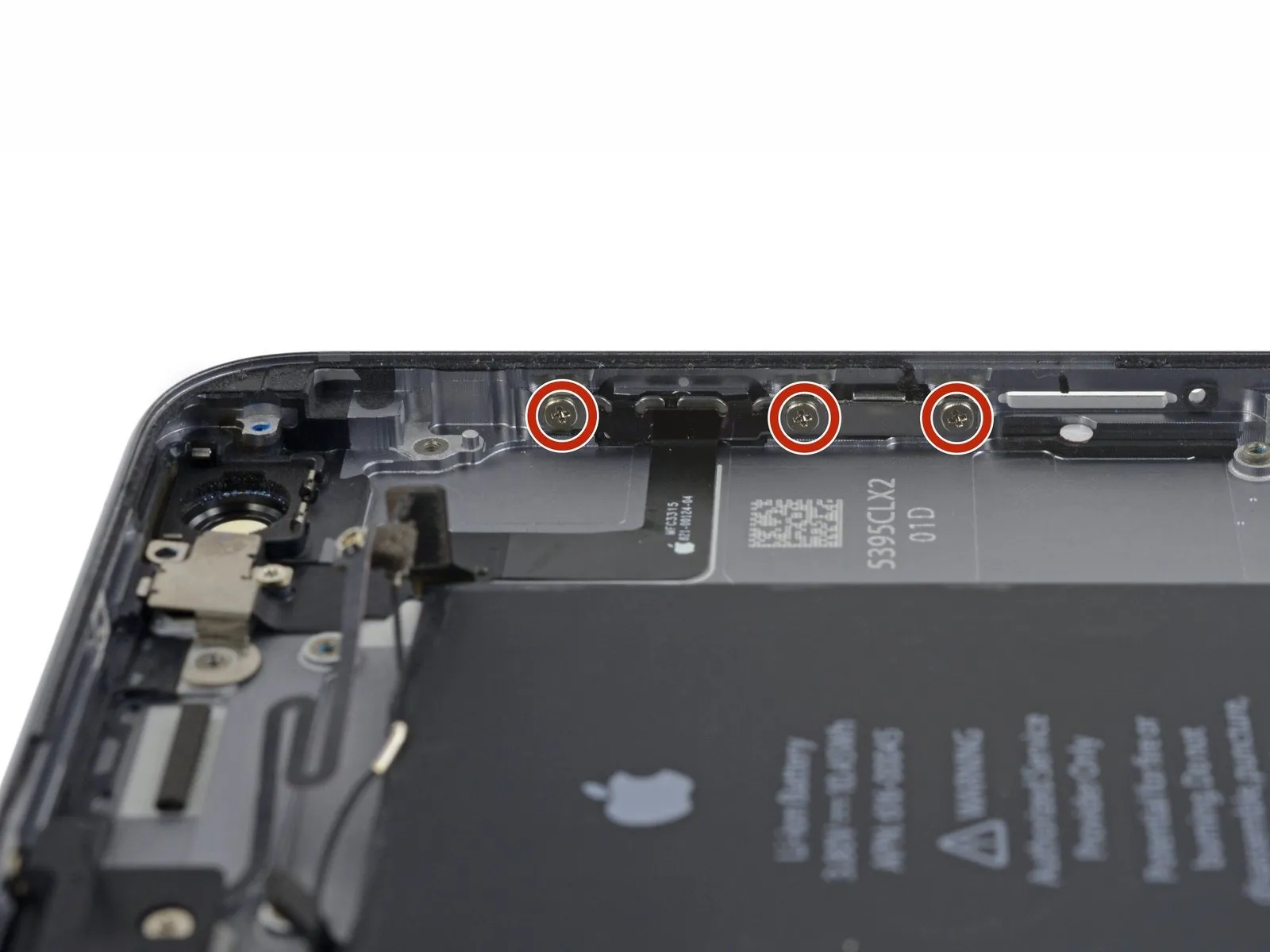

• Using a Phillips screwdriver, detach the four screws.

  • Use a 2.0 mm drill bit three times.Secure the power button bracket with the screws.
  • Use a Phillips screwdriver to remove a single screw with a 1.3 mm head.Position the component directly atop the flash and microphone mounting assembly.

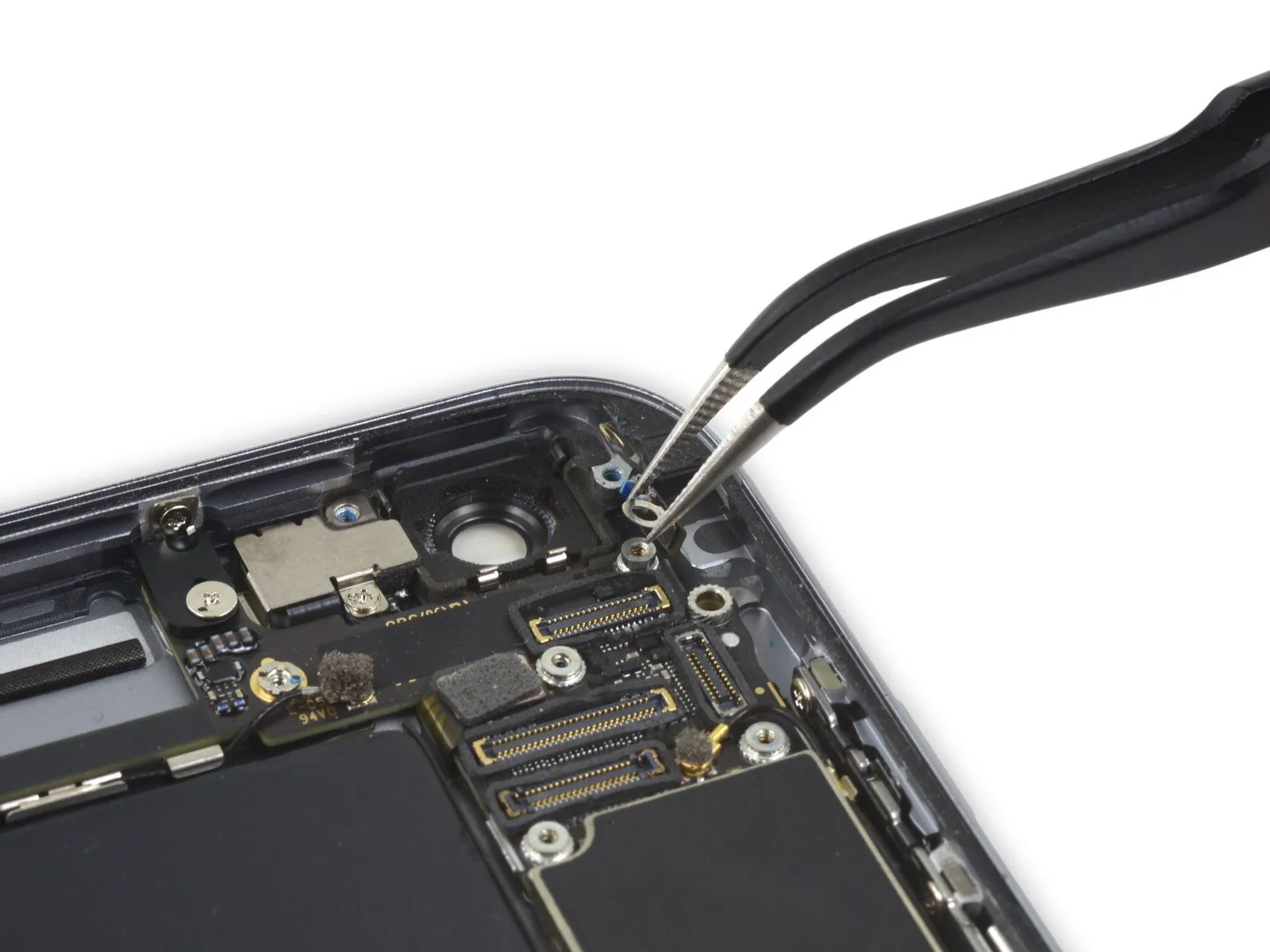

• Carefully detach the component, ensuring no damage occurs.Secure the flash or microphone to the camera body using the bracket..

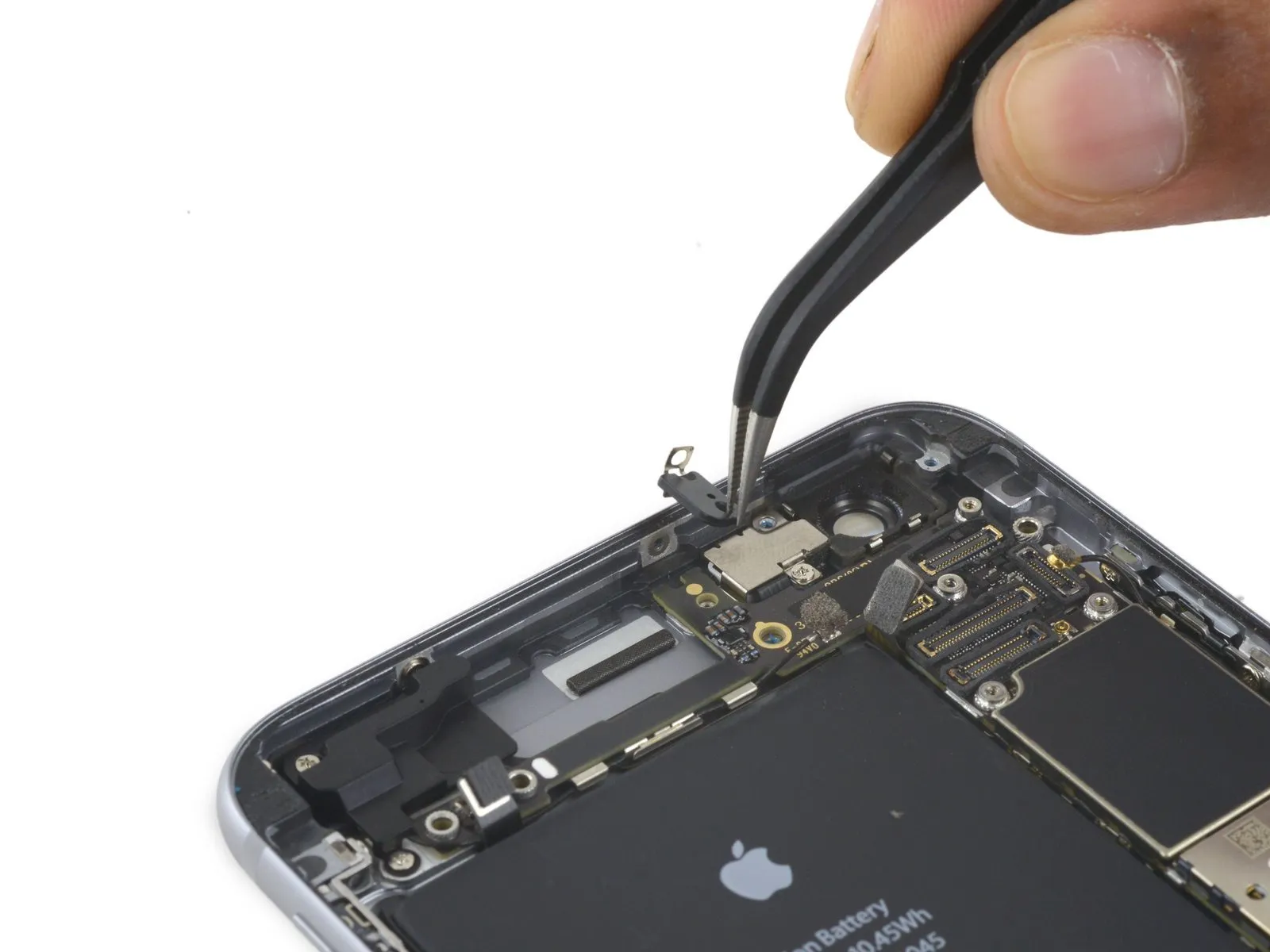

• Carefully pry up the component using the tip of a spudger.Briefly expose the component to a pulse of electricity, ensuring the voltage remains within the 3-5 volt range and using a compatible programming device.Carefully remove the component from its enclosure within the back cover.

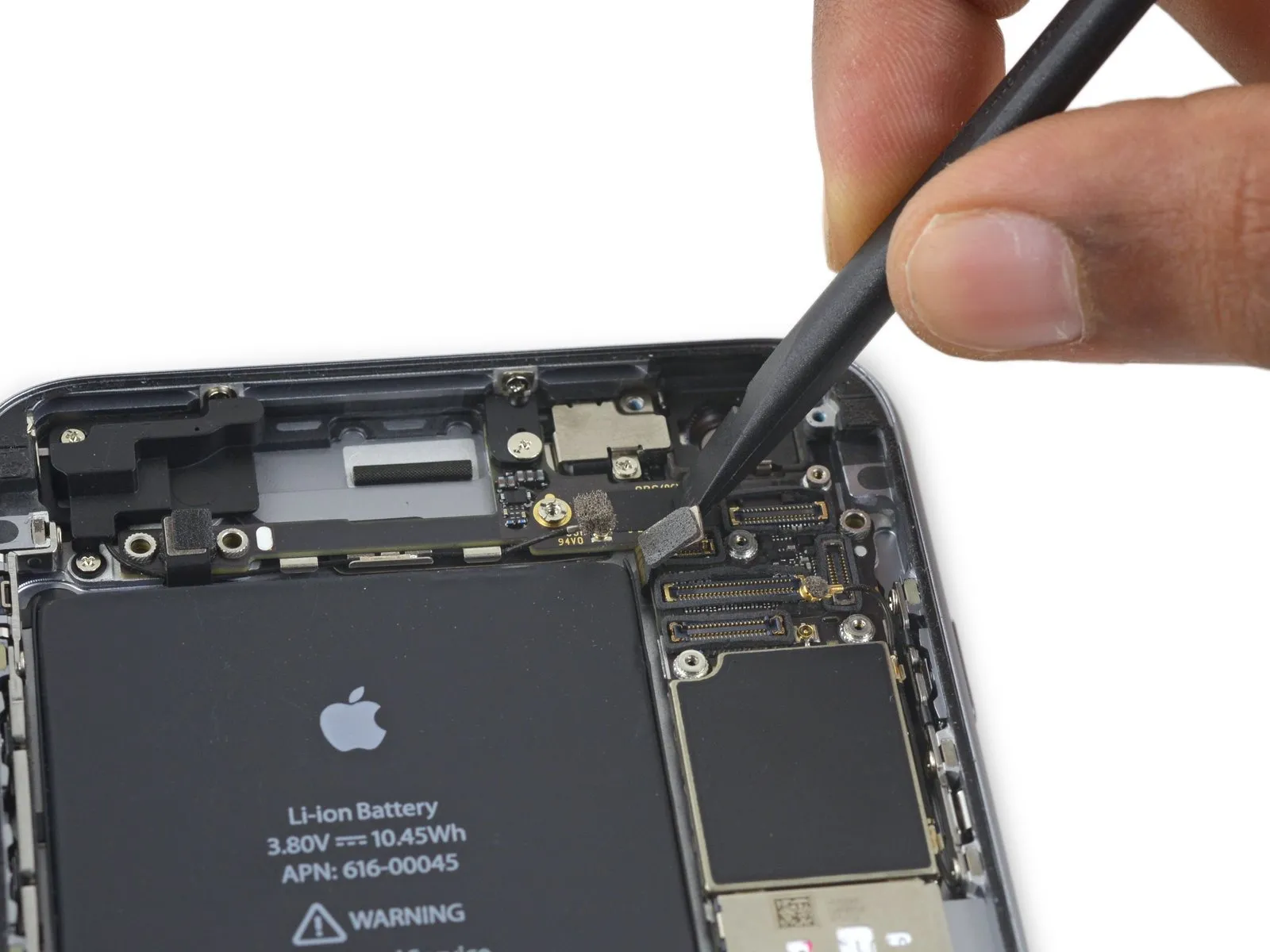

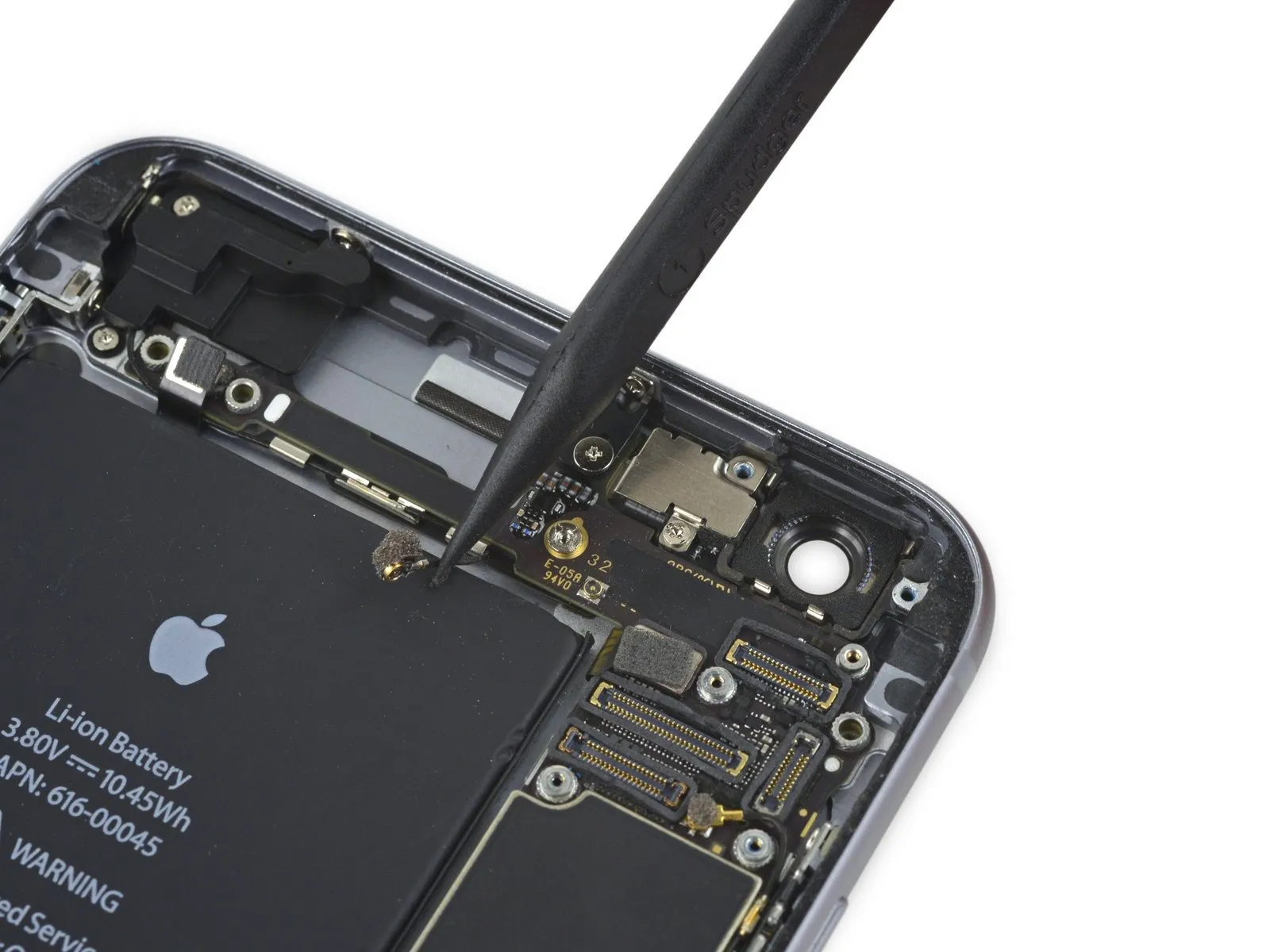

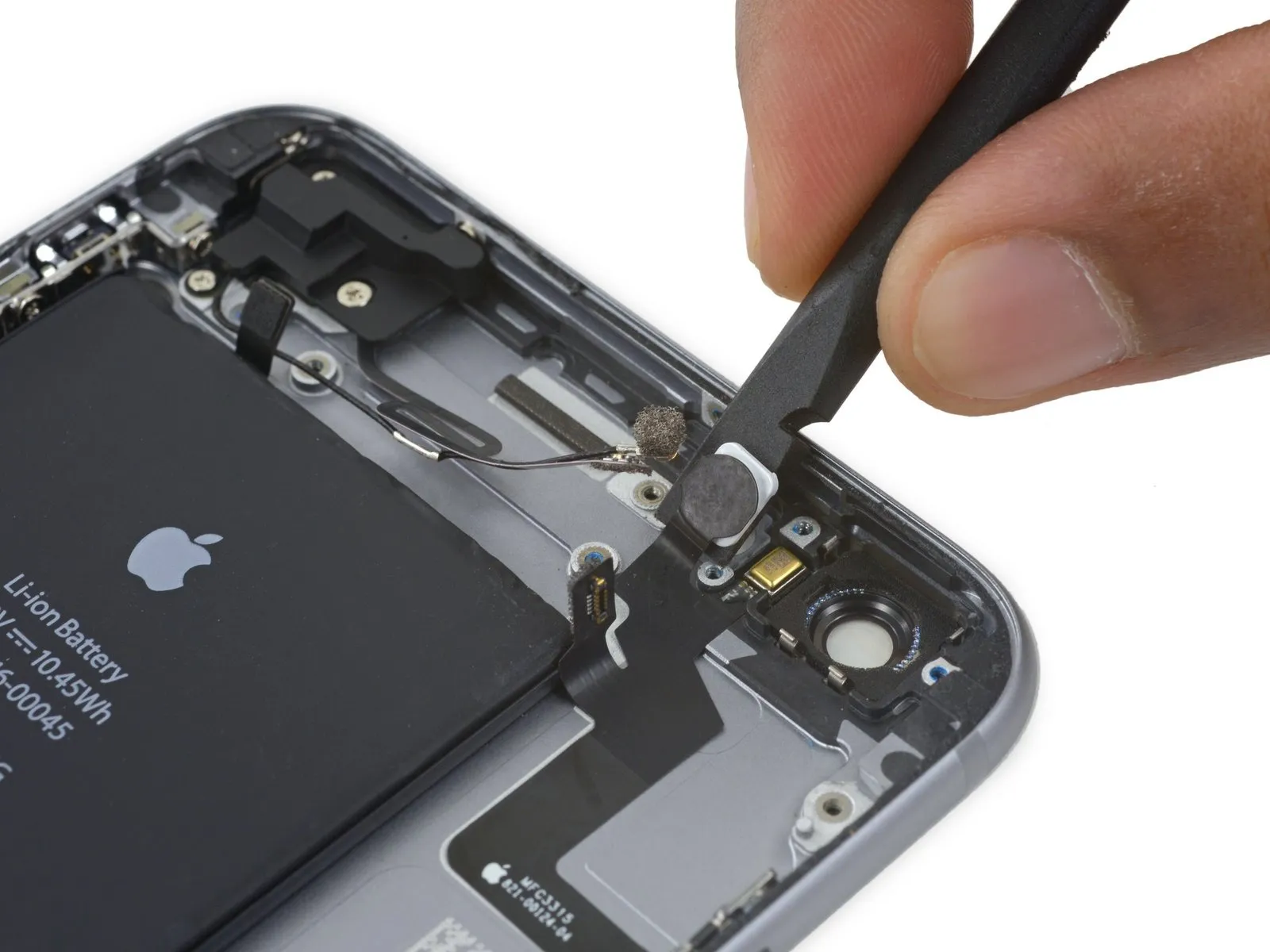

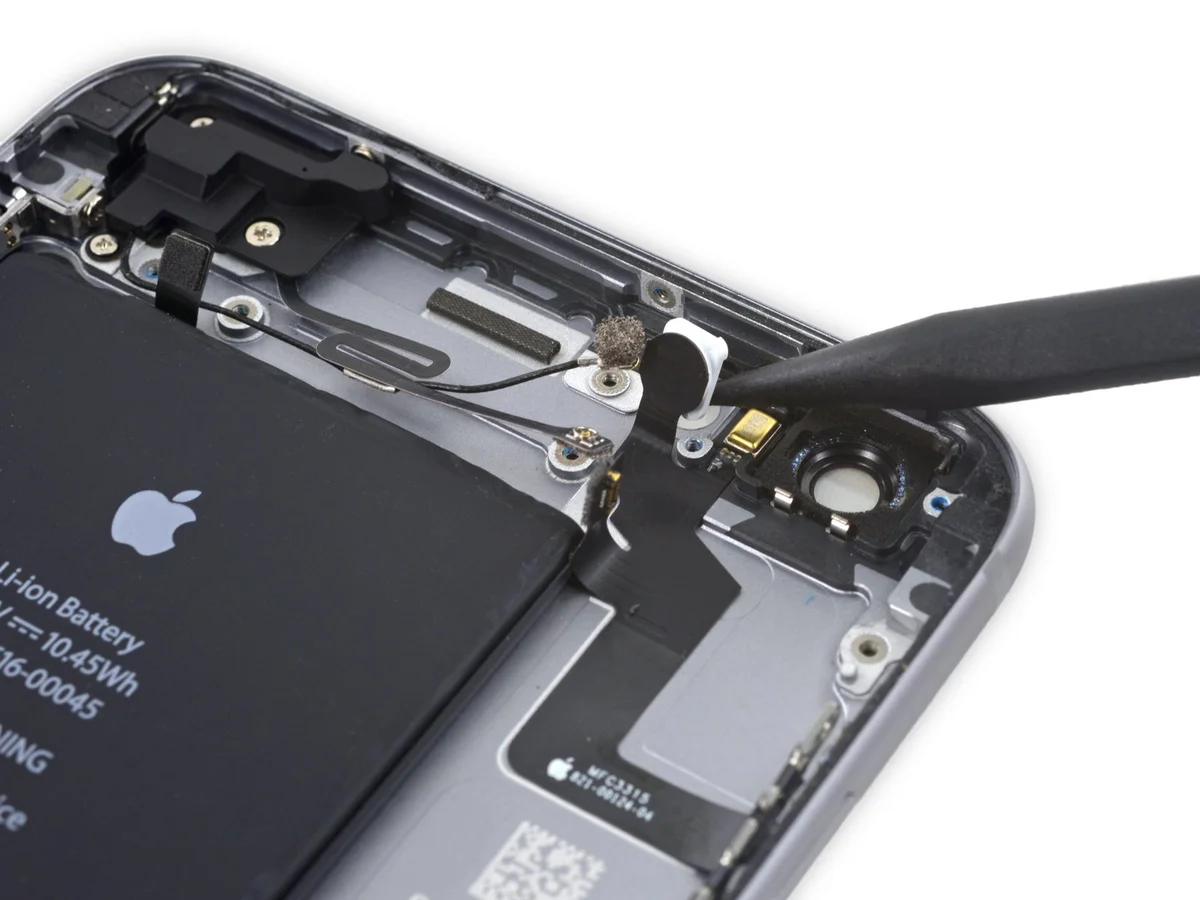

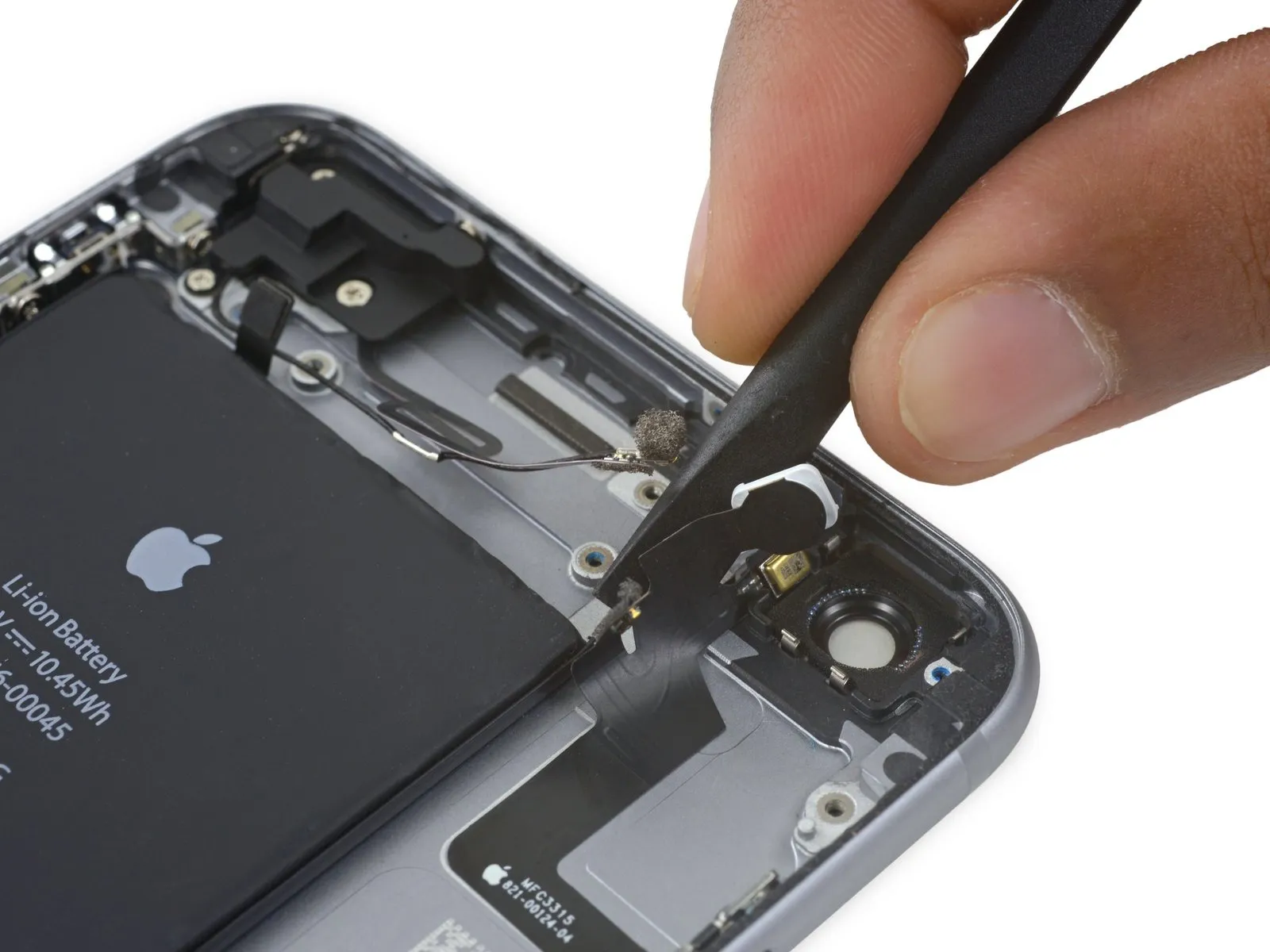

• Carefully guide the pointed end of aUse a plastic pry tool, often referred to as a spudger, to gently separate components.Carefully separate the flex cable from the rear case by gently lifting it away from beneath the microphone assembly.

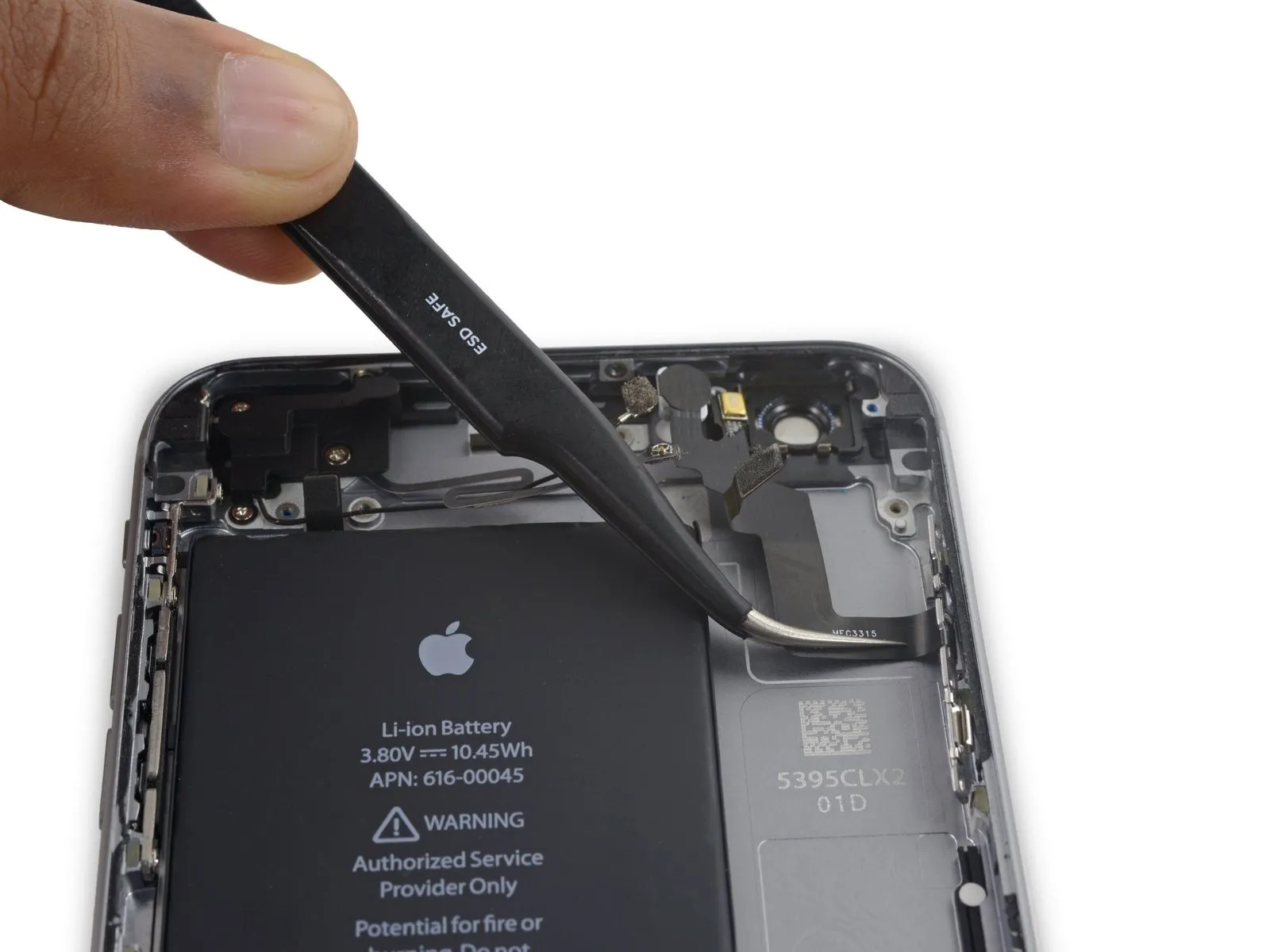

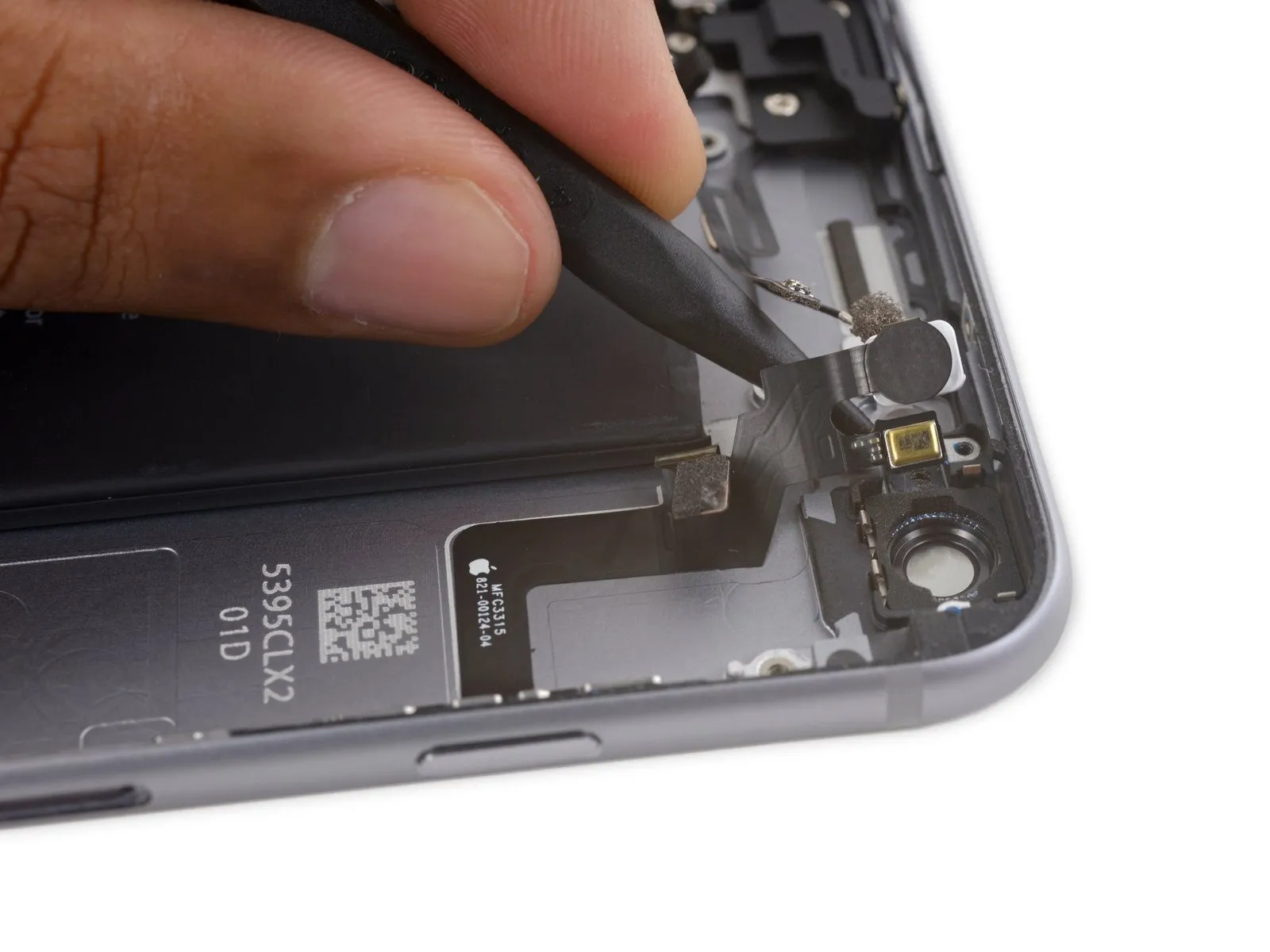

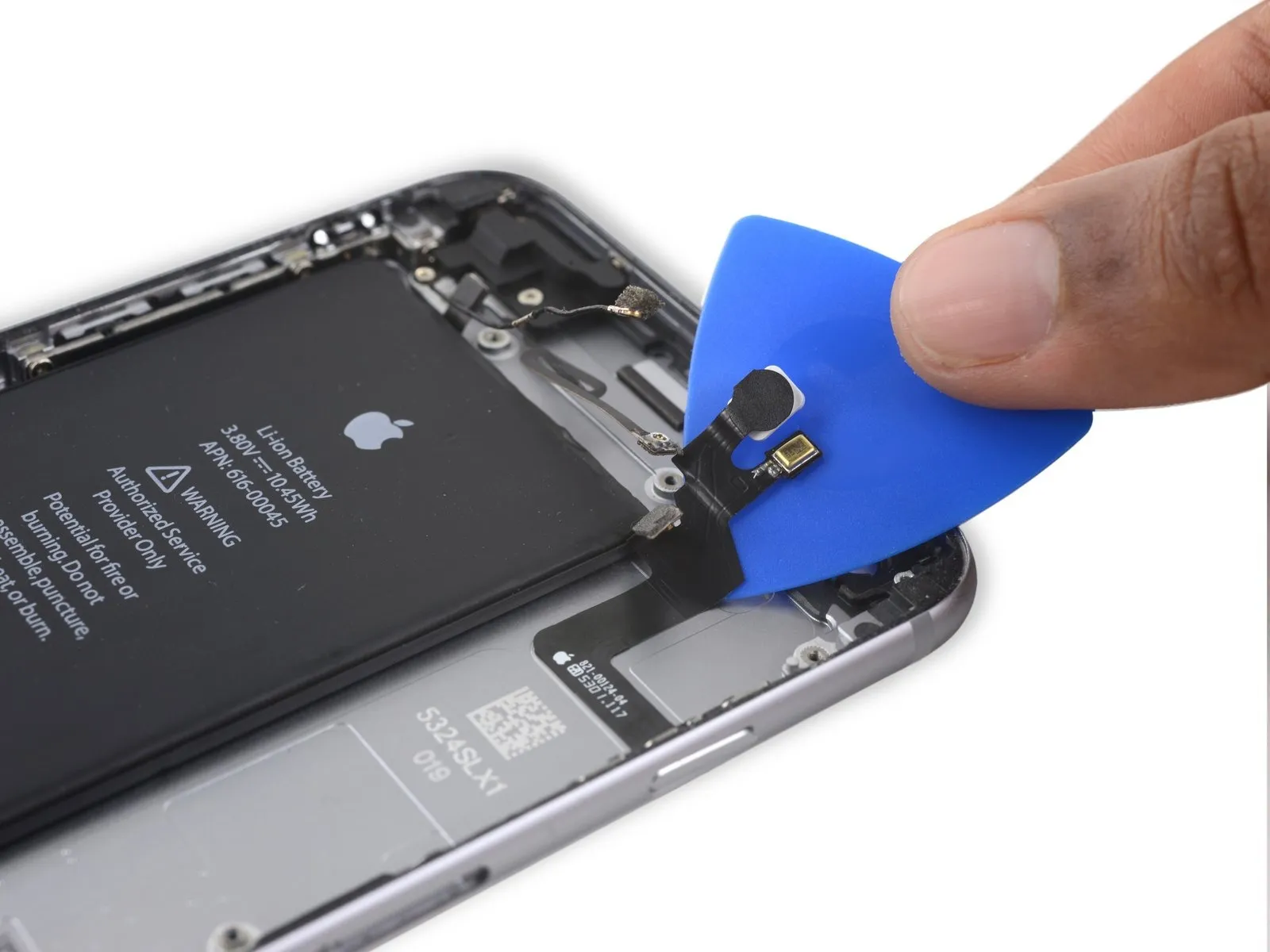

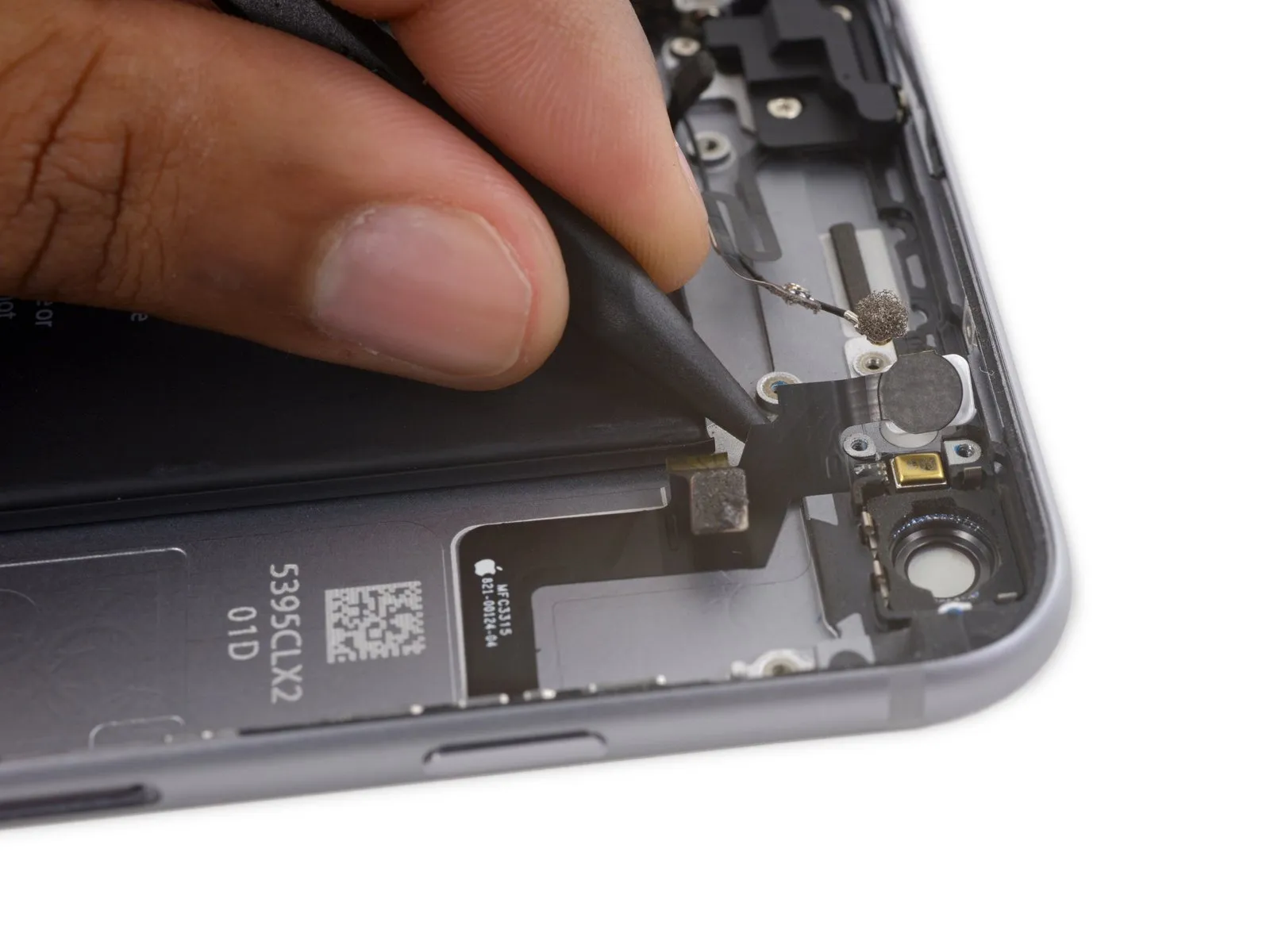

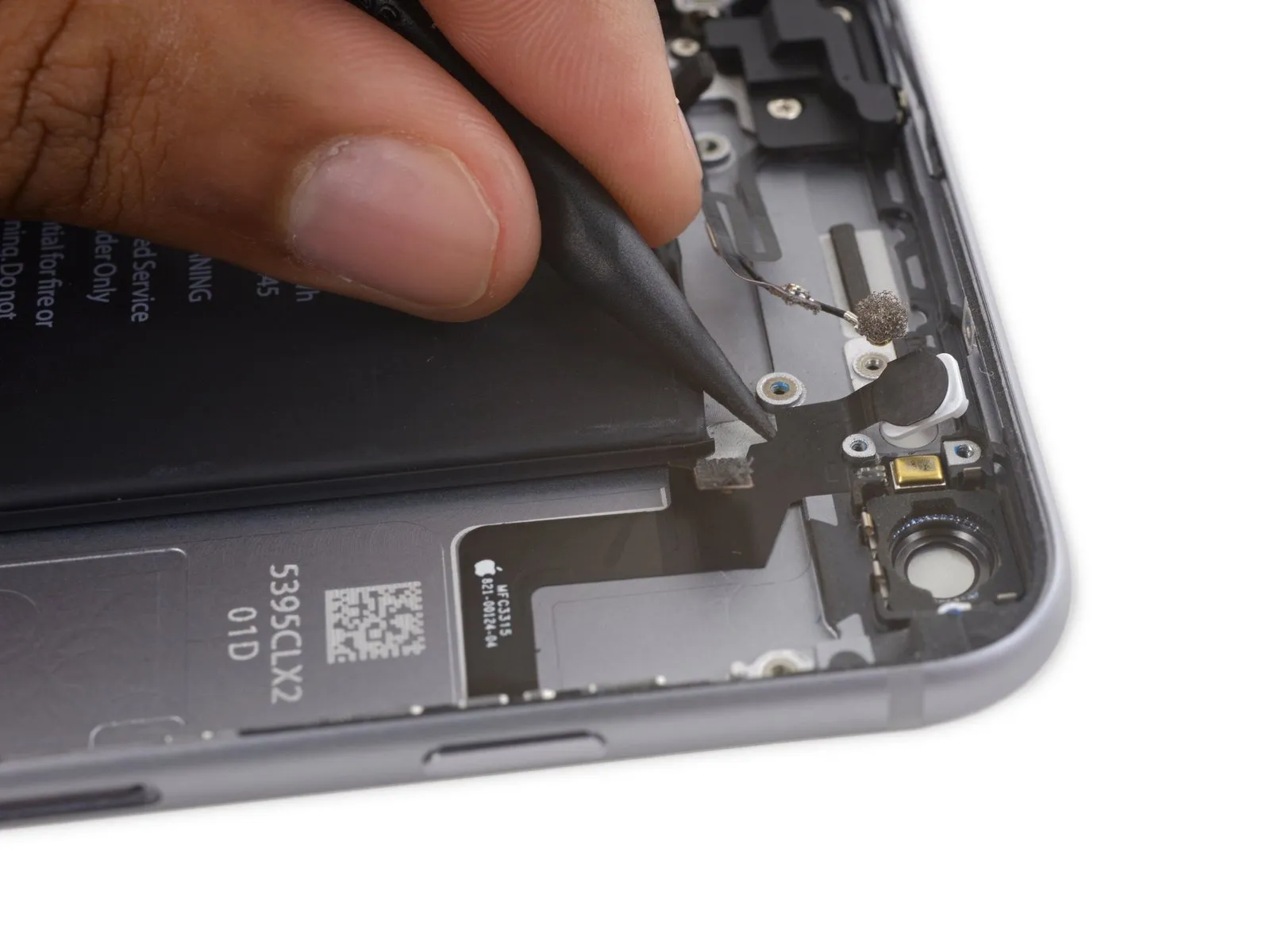

• Using an opening pick, carefully separate the power button flex cable from the rear case by gently levering it away.

• Carefully disconnect the power button flex cable assembly.
