iPhone 7 Home/Touch ID Sensor Replacement

The iPhone 7's home button is not a mechanical switch, but rather a solid-state sensor incorporating Touch ID, which provides fingerprint recognition functionality.The term "button" refers to this solid-state sensor.Due to compatibility restrictions, standard replacement home buttons are typically incompatible with the iPhone 7; therefore, meticulous verification is essential prior to commencing any repair work. The original home button is factory-linked to the device's logic board, and without Apple's specialized calibration method, even a legitimate replacement sourced from another iPhone will fail to operate correctly.

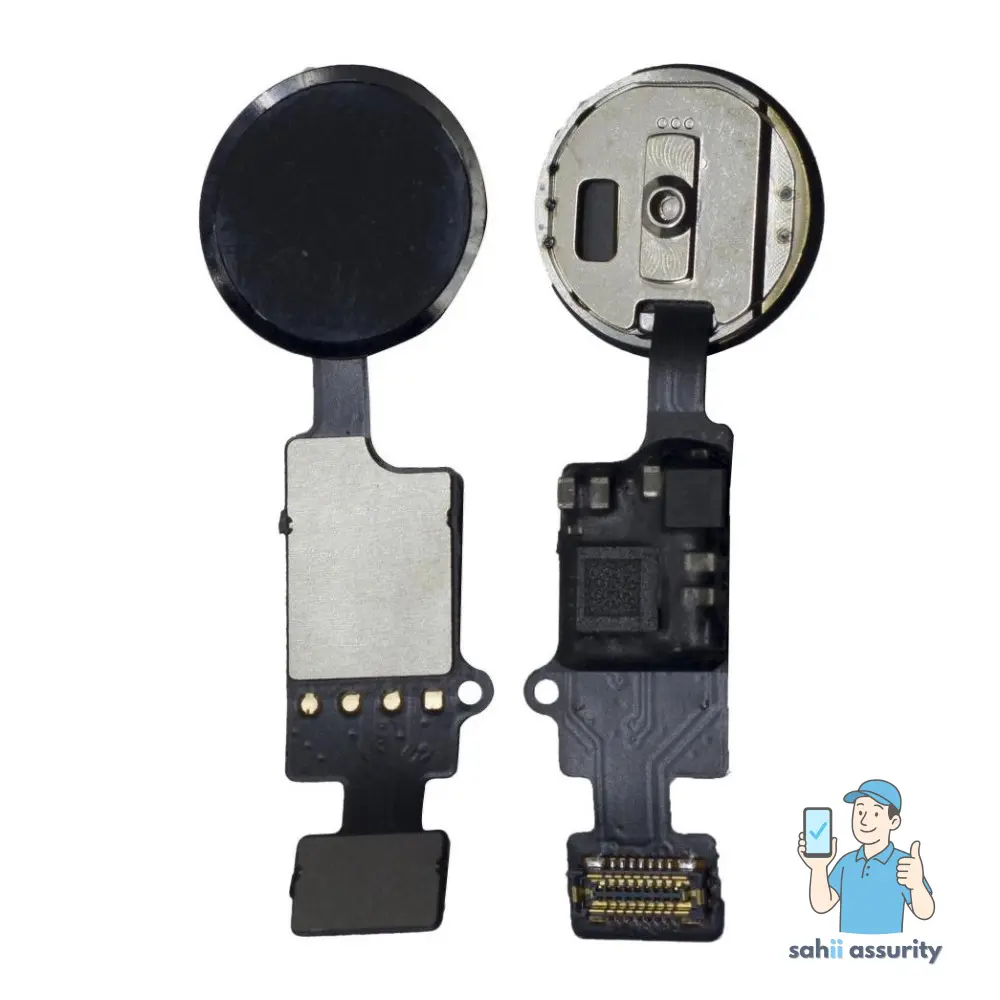

For a broken home button repair, a universal-style replacement is recommended. Be aware that these replacement units provide button functionality only; the Touch ID feature will be disabled.

If your repair involves solely replacing a damaged screen, this guide can be utilized to carefully remove and relocate your existing, functional home button to the new screen, thereby maintaining all original features, including Touch ID.

  • To prevent potential damage to the delicate display cables, it is advisable to fully disconnect the display assembly before undertaking any repairs on the home button or Touch ID sensor.
  • However, if you possess the necessary expertise, you may bypass the display assembly instructions and proceed directly to the home button/Touch ID sensor repair section.

Step 1 | Pentalobe Screws

Step 1 image
  • As a preliminary precaution, ensure your iPhone's battery has been depleted to a level below 25% prior to commencing the repair process.A fully charged lithium-ion batteryposes a risk of ignition and/or detonation if it sustains accidental physical damage, such as a puncture.
  • To prevent electrical hazards and potential damage, completely de-energize the iPhone by powering it down before starting the disassembly.
  • Utilizing a screwdriver compatible with 3.4 mm pentalobe fasteners, carefully unscrew and remove the two screws located on the lower edge of the iPhone's casing.
  • Separating the iPhone's display assembly will inevitably damage the integrated waterproof barriers; therefore, it is strongly advised to obtain replacement seals beforehand to maintain water resistance, or exercise extreme caution to prevent liquid ingress during reassembly if new seals are not used.

Step 2 | Mark your opening picks

Step 2 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  • To avoid potential harm to your device, ensure the opening pick isn't inserted beyond its intended depth; this procedure details how to mark the pick, mitigating the risk of damage.
  • Determine the measurement of3 mmfrom the pick's leading edge, then use a permanent marker to create a visible indicator on the opening pick.
  • For enhanced precision, consider marking additional corners of the pick with varying measurements to suit different needs.
  • As another option, affix a coin to the pick's shaft,3 mmaway from its tip.

Step 3 | Anti-Clamp instructions

Step 3 image
Thumbnail 1
Thumbnail 2
Thumbnail 3

The following three procedures illustrate the function of the Anti-Clamp, a specialized tool developed to simplify the initial opening process; if this tool is not available, proceed to the subsequent three steps for an alternative approach.

Detailed instructions regarding the Anti-Clamp's operation are available in a separate, dedicated guide.

  • To release the Anti-Clamp's gripping arms, draw the blue handle towards the rear.
  • Position the arms across either the left or right side of the iPhone's frame.
  • Place the suction cups close to the iPhone's lower edge, situated directly above the home button—one on the front face and one on the rear.
  • Apply pressure by compressing the cups together to establish a secure suction hold on the intended surface.
  • Should the iPhone's surface prove excessively slick, preventing the Anti-Clamp from maintaining a firm grip, applying adhesive tape can generate a more textured interface.

Step 4

Step 4 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  • To secure the arm assemblies, advance the blue handle in its direction of travel.
  • Rotate the handle in a clockwise direction,a full 360 degrees,or continue until the suction cups exhibit signs of deformation.
  • Maintain the precise alignment of the suction cups with one another; should they become misaligned, slightly release the suction cups and reposition the arms.

Step 5

Step 5 image
Thumbnail 1
Thumbnail 2
  • Apply warmth to aiOpenerand carefully guide it between the arms of theAnti-Clamp.
  • Alternative heat sources, such as a hair dryer, heat gun, or hot plate, are acceptable; however, excessive temperatures can potentially harm the display assembly and/or the internal battery, so exercise caution.
  • Position theiOpenerin a folded position, resting against the lower edge of the iPhone.
  • Allow a period of sixty seconds to permit the adhesive to soften and create a separation.
  • Introduce an opening tool into the newly formed space.
  • Should theAnti-Clampnot generate a large enough separation, increase the heat applied to the region and rotate the handle by ninety degrees.
  • Avoid rotating the handle beyond a ninety-degree increment at any point, and allow sixty seconds of rest time between rotations. Allow theAnti-Clampand time to facilitate the separation.

Step 6 | Heat the display

Step 6 image

The following three procedures detail the process of detaching the display assembly with the aid of a suction cup.

  • Applying heat to the bottom edge of the iPhone will assist in loosening the adhesive that holds the display in place, thereby simplifying the separation process.
  • Employ a hairdryer, or alternatively, prepare aniOpenerand apply it to the lower edge of the device for approximately 90 seconds to reduce the adhesive's tackiness.

Step 7 | Separate the display

Step 7 image
Thumbnail 1
Thumbnail 2

Securely affix a suction cup to the bottom portion of the front panel, positioning it directly over the home button area.

Ensure the suction cup's surface remains clear of the home button's location to guarantee a complete and airtight bond between the cup and the glass.

Step 8

Step 8 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  • Apply steady, forceful upward pressure to the suction cup to generate a small separation between the display assembly and the device's surrounding structure.
  • Carefully slide an opening tool into the newly formed space.
  • Because the screen is secured with a robust, waterproof sealant, establishing this initial separation requires considerable effort; should you encounter difficulty, apply additional heat and gently move the screen in an upward and downward motion to reduce the adhesive's strength, allowing for sufficient space to insert your tool.

Step 9

Step 9 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  • Begin separating the display assembly from the chassis by inserting a prying tool beneath the left side, initiating at the bottom edge and progressing upwards towards the volume controls and the silent switch, which will disrupt the adhesive seal.
  • Cease the separation process in the vicinity of the upper-left corner of the display.
  • Refrain from attempting to disengage the display's upper edge from the rear housing, because it is secured using fragile plastic retaining clips that are susceptible to damage.

Step 10 | Screen information

Step 10 image

Along the right side of your iPhone, you'll find sensitive wiring; avoid inserting any tools in this area to prevent potential cable damage.

Step 11

Step 11 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  • To release the adhesive, carefully reposition your tool at the lower-right edge of the iPhone, then maneuver it along the corner and up the right side, sliding it to detach the adhesive.
  • Avoid inserting your tool deeper than 3 mm, because doing so risks harming the delicate display cable connections.

Step 12

Step 12 image
Thumbnail 1
Thumbnail 2
  • Carefully elevate the display's lower border by applying upward force to the suction cup.
  • Avoid lifting the display beyond an angle of 15 degreesas exceeding this limit could potentially damage or sever the flexible ribbon cables that provide the display's electrical connections.
  • Detach the suction cup from the front panel by grasping and pulling on the small protrusion located on its surface.

Step 13

Step 13 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
Carefully insert a separation tool beneath the screen, initiating the process near the upper-left corner, and maneuver it along the top edge to release the remaining adhesive sealant.

Step 14

Step 14 image
Thumbnail 1
Thumbnail 2
To release the retaining clips securing the display assembly to the rear case, maneuver the display downwards, shifting it away from the phone's upper boundary.

Step 15

Step 15 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  • Initiate the iPhone's disassembly process by pivoting the screen upwards, originating from the left edge, mirroring the action of opening a book's cover.
  • Refrain from completely detaching the display assembly at this stage, because multiple delicate ribbon cables remain connected to the iPhone's main circuit board.
  • Secure the display in an upright position using a support to maintain access to the internal components during the repair procedure.

Step 16 | Battery Disconnection

Step 16 image
  • To detach the lower connector bracket, first extract the four Y000 tri-point screws that hold it in place, noting their specific dimensions.
  • Specifically, three screws measure 1.2 millimeters in length.
  • A single screw is 2.4 millimeters long.
  • During this repair process, meticulously organize and document the location of each screw, ensuring their correct reinstallation to prevent potential damage to your iPhone.

Step 17

Step 17 image
Detach the lower connector support bracket.

Step 18

Step 18 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  • Employ the tip of a spudger to disengage the battery connector from its corresponding receptacle on the logic board.spudgerGently elevate the connector cable a small amount to ensure it remains disconnected from the socket, thereby preventing power delivery to the device.
  • Bend the connector cable up slightly to prevent it from making contact with the socket and providing power to the phone.

Step 19 | Display Assembly

Step 19 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  • Prior to detaching or reattaching any wires in this procedure, ensure the battery is completely disconnected to prevent potential electrical hazards.
  • Employ a spudgeror a fingernail to release the two lower display connectors, lifting them vertically away from their corresponding ports on the logic board.
  • When reattaching these connectors, apply pressure to one end until you hear a distinct click, then repeat the process on the other end; avoid applying pressure to the central portion. Even minor misalignment during reconnection can result in bending, potentially leading to irreversible damage.
  • Should you observe a blank screen, the appearance of white lines on the display, or a partial or total absence of touch functionality after reassembly, attempt to carefully detach and reconnect both cables, verifying their complete and secure placement.

Step 20

Step 20 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  • Detach the pair of 1.3-millimeter Phillips #000 screwsthat hold the bracket in place, which covers the connector for the front panel sensor assembly.
  • Certain devices may exhibit a Y000screw type; Apple introduced this fastener during the product's operational history.

Step 21

Step 21 image
Thumbnail 1
Thumbnail 2
  • To prevent damage, detach the connector linking the front panel sensor assembly to the socket located on the logic board.
  • To reduce the potential for deformation, ensure this press-fit connector is reattached incrementally, engaging one end at a time.

Step 22

Step 22 image
  • Detach the display unit from the device.
  • When putting the device back together, halt at this stage should you decide to substitute the adhesive securing the display's perimeter.

Step 23 | Home/Touch ID Sensor

Step 23 image
  • To detach the bracket covering the home/Touch ID sensor, first eliminate the four Y000 screws that hold it in place.
    - A single 1.1-millimeter screw is required.
    - Subsequently, three 1.3-millimeter screws must also be removed.
  • When reattaching the bracket, exercise caution to avoid excessive tightening of these screws, as this could impair the functionality of the home button.

Step 24

Step 24 image
  • Detach the retaining clip that fastens the home button and Touch ID sensor assembly in place.

Step 25

Step 25 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  • Carefully detach the left side of the home button cable connector's connection by applying leverage underneath it.
  • Should the entire connector assembly lift unexpectedly without releasing, apply downward pressure to the cable's upper portion using the broad surface of yourspudger, concurrently maintaining upward pressure on the connector's left edge. Exercise extreme caution to prevent any harm to the cable or connector, as doing so will render the sensor inoperable.

Step 26

Step 26 image
Thumbnail 1
Thumbnail 2
  • Gently lift the connector situated beneath the components, ensuring it is displaced to allow access to the home/Touch ID cable.
  • Damage to the iPhone is highly probable if this procedure isn't executed with precision; proceed deliberately and exercise caution when using your tool. Any harm inflicted upon the Touch ID hardware necessitates replacement by Apple's authorized technicians.
  • Should the connector resist separation, apply heat using a hair dryer or iOpener to loosen the adhesive bond, then attempt separation again.
  • Avoid complete disconnection of the connector; instead, elevate it slightly to facilitate removal of the underlying home/Touch ID sensor cable.

Step 27

Step 27 image

Applying warmth to the region surrounding the home button and Touch ID sensor can loosen the adhesive securing its fragile cable, which will simplify the removal process and prevent damage.
Turn the display assembly so the reverse side faces up; then, utilize a hairdryer or an iOpener, directing heat to the lower display edge for approximately 90 seconds to reduce the adhesive's tackiness.

Step 28

Step 28 image
Thumbnail 1
Thumbnail 2
Thumbnail 3

Carefully disengage the adhesive securing the home/Touch ID sensor cable to the rear surface of the display panel, utilizing a specialized opening tool.

Step 29

Step 29 image
  • Detach thehome/Touch ID sensor assemblyby raising it from the front surface of the display panel.
  • During reassembly, initially route the cable through the opening located on the front of the display.
  • The new component you are using might already have a Y000 screw positioned to the right of the Home Button; discard this extra screw to facilitate proper reinstallation of the home button bracket.
  • Utilize this instructional document to affixreplacement display adhesiveto your screen.
