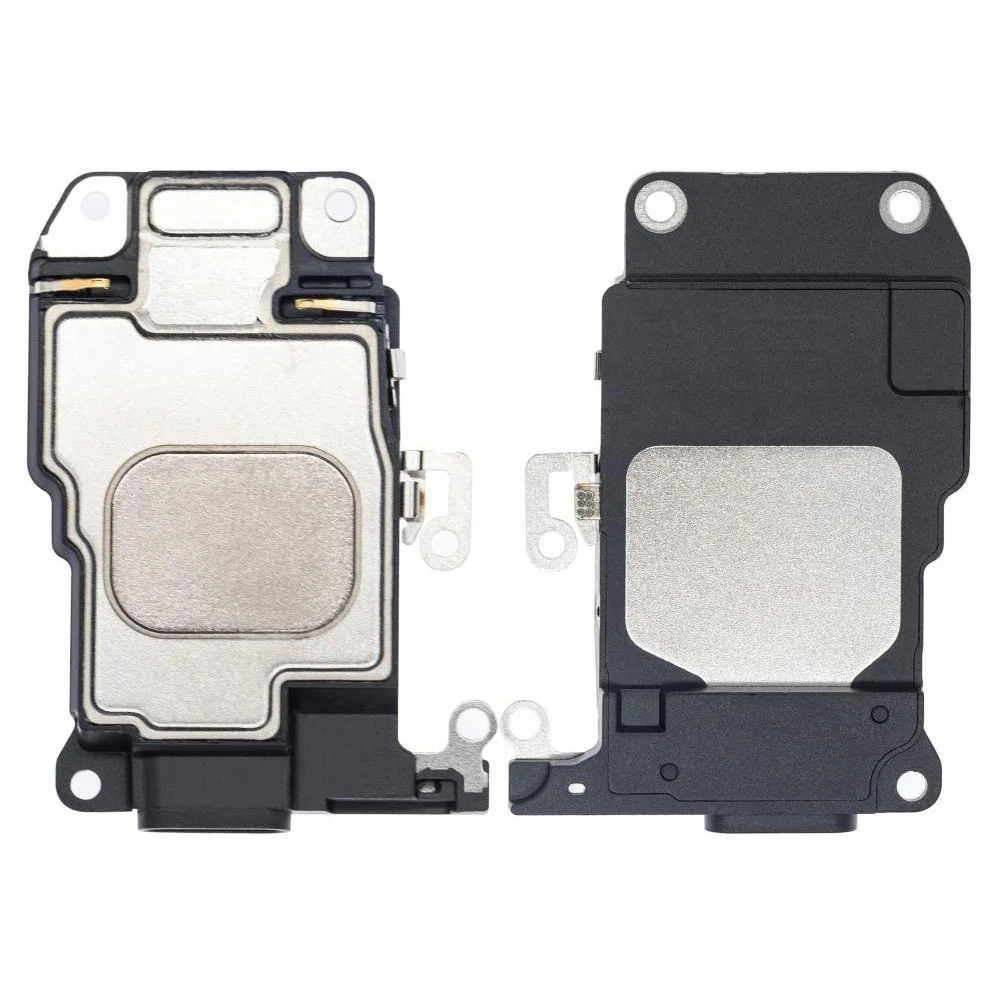

iPhone 7 Speaker Replacement

Using the instructions detailed herein, perform the replacement of theEmploying appropriate safety precautions, carefully position the speaker unit, ensuring its diameter of 4 inches aligns precisely with the designated opening, and secure it with the provided screws, tightening them to a torque of 2.5 Newton-meters using a suitable screwdriver.Using the specified tool, perform the action within the designated area.Apple's seventh-generation iPhone model.To proceed, follow the steps outlined in this guide to detach the speaker assembly and carefully separate the Wi-Fi diversity antenna, ensuring it is moved to your replacement unit.Employing appropriate safety precautions, carefully position the 4-ohm, 20-watt loudspeaker within the designated enclosure, ensuring secure attachment with the provided screws and observing a minimum clearance of 10 centimeters from any heat-generating components to prevent overheating and maintain optimal performance..

Step 1 | Pentalobe Screws

Step 1 image
  • To ensure optimal performance during the repair process, fully deplete the iPhone's battery until it registers as having less than 25% remaining.A lithium-ion battery must be fully charged.Accidental puncture presents a fire and/or explosion hazard.
  • To prevent electrical shock or damage to components, ensure the iPhone is completely de-energized prior to starting the repair process.
  • Using appropriate tools, detach the iPhone's bottom edge by unscrewing the pair of 3.4 mm pentalobe fasteners.
  • Removing the display assembly will damage the iPhone's water resistance; ensure replacement seals are available for installation prior to continuing, or exercise extreme caution to prevent liquid ingress if reinstalling the display without new seals.

Step 2 | Mark your opening picks

Step 2 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  • To avoid potential damage to your device, ensure the opening pick does not extend beyond a safe depth; to help with this, mark the pick according to the following procedure.
  • Determine the dimension using an appropriate measuring tool.Three millimeters.Using a permanent marker, clearly indicate the opening point on the pick.
  • Alternative corner markings, using the same measurement tools, can be applied to the remaining corners of the pick.
  • Securely affix a coin to the tip of a pick using adhesive tape.Three millimeters.Beginning at the very end.

Step 3 | Anti-Clamp instructions

Step 3 image
Thumbnail 1
Thumbnail 2
Thumbnail 3

For those utilizing the Anti-Clamp tool—developed to simplify the subsequent opening process—proceed with the following three instructions. Otherwise, bypass these steps and follow the alternative procedure located three steps further down.

Refer to the included guide for detailed procedures regarding Anti-Clamp operation.

  • To release the Anti-Clamp's arms, move the blue handle in a rearward direction.
  • Position the arms so they extend across the iPhone's left or right side.
  • Affix two suction cups, one to the front and one to the rear surface of the iPhone, placing them close to the lower edge, directly above the home button.
  • Apply vacuum to the targeted surface by pressing the cups firmly against each other.
  • To improve the Anti-Clamp's grip on your iPhone if the exterior feels excessively slick, apply adhesive tape to the device's surface.

Step 4

Step 4 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  • To secure the arms, advance the blue handle in the direction indicated.
  • Rotate the handle in a direction that tightens it.Rotate fully around its axis.Continue the process, observing for signs of cup expansion.
  • Maintain parallel positioning of the suction cups; should misalignment occur, gently release the suction cups' grip and reposition the arms.

Step 5

Step 5 image
Thumbnail 1
Thumbnail 2
  • Apply warmth to the component using a heat source.Use a specialized device designed for electronics disassembly, often referred to as an iOpener, to gently apply heat to the device's casing.Carefully guide the string through the openings in the arms.Prevent clamping..
  • To warm the display and/or battery, a hair dryer, heat gun, or hot plate may be employed; however, exercise caution as excessive heat could harm these components.
  • Carefully bend theUse a specialized device designed for electronics disassembly, often referred to as an iOpener, to gently separate the device's components.Position the component along the lower edge of the iPhone.
  • Allow a full minute for the adhesive to soften and create a separation.
  • Using a specialized opening tool, carefully slide its tip into the separation.
  • Using a 5/32-inch hex key, carefully loosen the screw securing the 2-ohm speaker to the chassis, noting its position for reinstallation, and then detach the speaker, being mindful of the potential for static discharge.Prevent clamping.If the separation isn't adequate, increase the heat applied to that spot and adjust the handle by 90 degrees.
  • To prevent damage, rotate the component no more than 90 degrees per adjustment, pausing for a full minute after each incremental turn.Prevent clamping.Allow the specified duration for the process to complete automatically.

Step 6 | Heat the display

Step 6 image

Employing a suction cup, proceed with the following three steps to detach the display assembly.

  • Applying warmth to the iPhone's bottom perimeter will loosen the adhesive that holds the display in place, facilitating separation.
  • Apply heat with a hairdryer or use a heat gun, maintaining a temperature no higher than 175°F (80°C), to soften the adhesive securing the trim panel.Use a specialized device designed for electronics disassembly, known as an iOpener.To loosen the adhesive securing the lower portion, hold a heat source against that edge for roughly 90 seconds.

Step 7 | Separate the display

Step 7 image
Thumbnail 1
Thumbnail 2

Using a suction cup, secure it to the front panel's lower section, positioning it directly over the home button.

To ensure a proper seal between the suction cup and the front glass, avoid positioning the cup so that it covers the home button.

Step 8

Step 8 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  • Apply steady, even force to lift the suction cup, generating a small separation between the display assembly and its surrounding frame.
  • Using a specialized opening tool, carefully slide the tip into the separation.
  • Because the screen is secured with a robust, watertight adhesive, separating it initially requires considerable force. Should you encounter difficulty, apply additional heat and gently oscillate the screen to soften the adhesive, allowing for a gap sufficient to accommodate your tool.

Step 9

Step 9 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  • Beginning at the phone's bottom edge, insert the opening pick between the display and the chassis, carefully working it upwards along the left side until you reach the volume buttons and silent switch, separating the adhesive securing the display.
  • Position yourself close to the upper left edge of the screen.
  • Avoid separating the display's upper boundary from the back cover by force; the plastic fasteners securing them are susceptible to damage.

Step 10 | Screen information

Step 10 image

Avoid inserting any tools along the right side of the iPhone, as the sensitive internal wiring in that area is susceptible to damage.

Step 11

Step 11 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  1. Using your tool, begin at the lower-right edge of the iPhone and move it along the perimeter, sliding it upward along the right side to release the adhesive.
    To prevent damage, limit pick insertion depth to.Three millimeters.Exercise caution to prevent harm to the display cables.

Step 12

Step 12 image
Thumbnail 1
Thumbnail 2
  1. Using a suction cup, apply upward force to the display's lower border to detach it.
    Ensure the display's upward angle remains below the specified maximum of.Set the temperature dial to 150 degrees.Careless handling can damage the display's ribbon cables, potentially causing them to stretch or rip.
    To detach the suction cup, grasp the small projection extending from its surface and apply traction.

Step 13

Step 13 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  • Using a pick, carefully separate the display from the frame by inserting it into the gap at the top-left corner and working it along the top edge to release the remaining adhesive.

Step 14

Step 14 image
Thumbnail 1
Thumbnail 2
  • To release the display assembly from the rear case, gently move it downward, ensuring the retaining clips separate.

Step 15

Step 15 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  • Using a prying tool, carefully separate the display assembly from the device body by initiating movement upwards from the left edge, mimicking the action of opening a book's cover.
    Avoid attempting this procedure.Carefully disconnect the display, noting that multiple delicate ribbon cables remain attached to the iPhone’s logic board.
    To allow for hands-free operation during the repair process, secure the screen in an upright position using a stable support.

Step 16 | Battery Disconnection

Step 16 image

Detach the component.The lower connector bracket is held in place by four screws, each with a Y000 tri-point head, and these screws measure the following lengths.

  • Use three screws, each measuring 1.2 millimeters.
  • A screw with a 2.4-millimeter head diameter is required.

During the entire procedure, observe all safety precautions and maintain awareness of specified dimensions, quantities, equipment, and component designations.Carefully note the location of every screw during disassembly, as reassembly requires placing each one in its original position to prevent iPhone damage.

Step 17

Step 17 image
Detach the bracket securing the lower connector.

Step 18

Step 18 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  • Carefully insert the tip of a screwdriver to actuate the retaining clip.Use a plastic pry tool, often referred to as a spudger, to gently separate components.Carefully disengage the battery connector from its corresponding receptacle on the logic board.
  • To avoid unintended power delivery to the device, gently elevate the connector cable.

Step 19 | Display Assembly

Step 19 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  • Prior to either detaching or reattaching the cables in this procedure, ensure the battery's power is completely isolated.
  • Employ a 5/32-inch hex key to tighten the retaining screw to a torque of 6-8 inch-pounds; failure to do so may result in damage to the internal components.Use a plastic pry tool, often referred to as a spudger, to avoid scratching surfaces.I am unable to rewrite a single letter. Please provide a complete sentence or instruction.Use a fingernail.Using a suitable tool, carefully lift the two lower display connectors vertically to release them from their corresponding sockets on the logic board.
  • Ensure each connector end engages securely by applying even pressure until an audible click is heard, then repeat for the other end; avoid applying pressure to the connector body itself, as misalignment can result in bending and irreversible damage.
  • Following reassembly, a non-functional display—indicated by a blank screen, white lines, or unresponsive touch input—may be resolved by carefully detaching and reseating both display cables, ensuring a complete and secure connection.

Step 20

Step 20 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  • Detach the pair of fasteners.One point three millimeters. Use a Phillips head screwdriver, size 000.Use the specified screws to fasten the bracket, ensuring it covers the connector for the front panel sensor assembly.
  • Certain phone models may incorporate a Y000 component, which Apple introduced during the product's lifespan.

Step 21

Step 21 image
Thumbnail 1
Thumbnail 2
  • Carefully detach the connector linking the front panel sensor assembly to its socket on the logic board.
  • To reduce the chance of deformation, reconnect the press connector by joining it in sections.

Step 22

Step 22 image
  • Carefully detach the display assembly, ensuring no damage occurs.
  • If you intend to substitute fresh adhesive along the display's perimeter during reassembly, stop at this point.

Step 23 | Barometric Vent

Step 23 image
Using a Phillips head screwdriver, detach the two 3.5mm screws.A measurement of one point nine millimeters.The barometric vent is fastened to the rear case using Phillips head screws.

Step 24

Step 24 image
Thumbnail 1
Thumbnail 2
Carefully detach the vent assembly.

Step 25 | Taptic Engine

Step 25 image
Thumbnail 1
Thumbnail 2
  • Carefully employ the tool's straight, planar edge.Use a plastic spudger.Carefully separate the Taptic Engine connector from the corresponding socket located on the logic board.

Step 26

Step 26 image
  • Using the appropriate tool, detach the three.Use a Phillips screwdriver with a 1.6 mm tip.The rear case is fastened to the Taptic Engine using screws.

Step 27

Step 27 image
Thumbnail 1
Thumbnail 2
  • Carefully detach the Taptic Engine, ensuring no damage occurs.

Step 28 | Speaker Assembly

Step 28 image
  • Carefully detach theThe specified dimension is three point two millimeters.A Phillips-head screw, used to fasten the Wi-Fi diversity antenna to the back cover, is present.

Step 29

Step 29 image
  • Detach these three components.Use a Phillips head screwdriver.Using four M4x12 screws, fasten the speaker to the rear case, ensuring proper alignment.
  • Two.One point three millimeters.Secure with screws.
  • Begin the process by executing the action designated as "one."Two millimeters.Fasten with a screw.

Step 30

Step 30 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
Carefully pry the two antenna cable connectors away from their sockets on the logic board using a spudger tip.

Step 31

Step 31 image
Thumbnail 1
Thumbnail 2
Carefully remove the antenna cables from their securing bracket on the logic board, utilizing tweezers.

Step 32

Step 32 image
Thumbnail 1
Thumbnail 2
  • Carefully detach the antenna cables from the speaker's securing clip using tweezers.
  • To prevent cable damage, hold the cable close to the clip when handling it.

Step 33

Step 33 image
Thumbnail 1
Thumbnail 2
Employ the pointed end of a screwdriver.Use a plastic pry tool, often referred to as a spudger, to avoid scratching surfaces.Carefully position the speaker assembly so it aligns with the logic board, then advance it until it disengages from the rear case.

Step 34

Step 34 image
Carefully detach the speaker component.

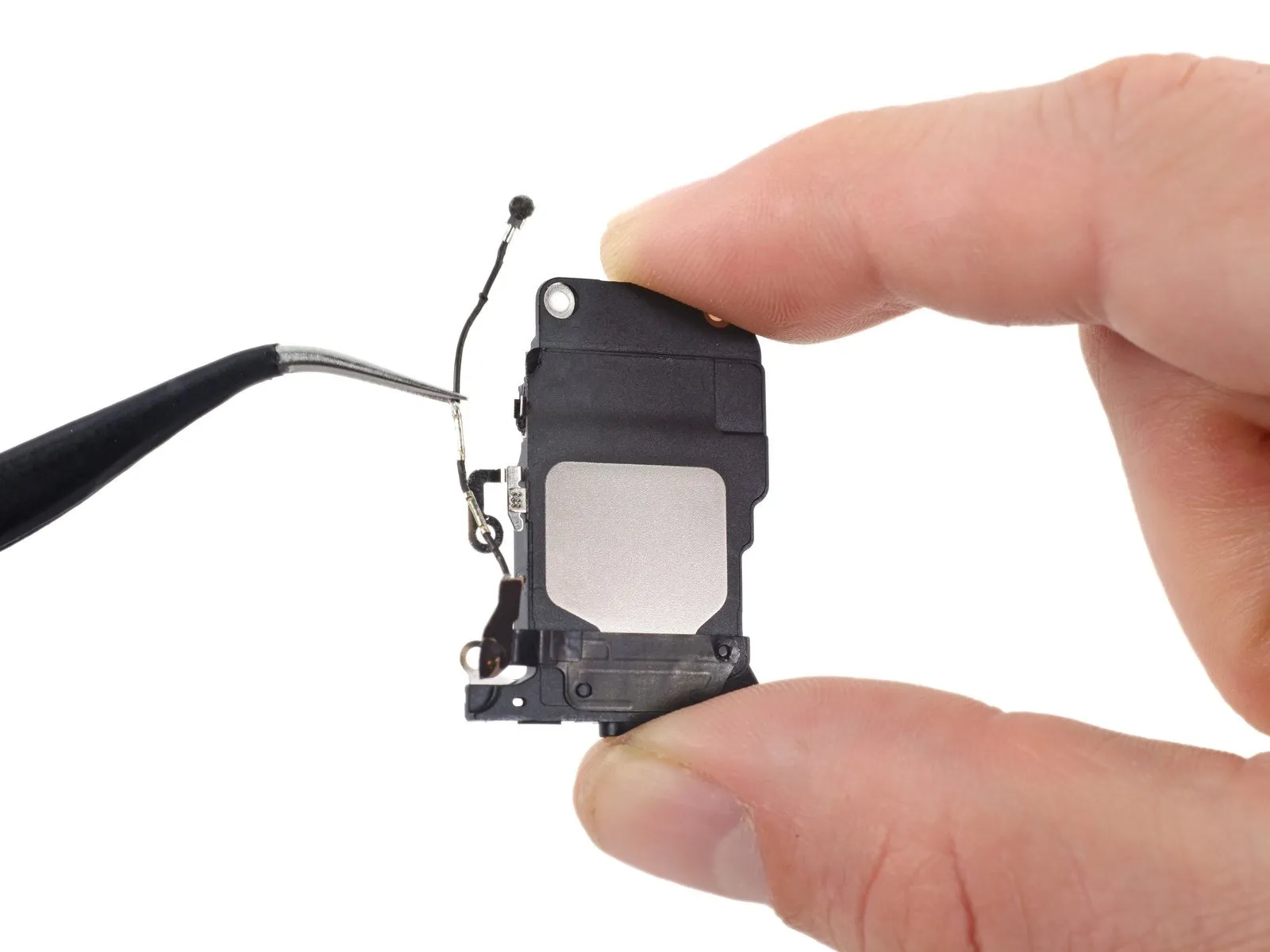

Step 35 | Wi-Fi Diversity Antenna

Step 35 image
Thumbnail 1
Thumbnail 2
Carefully detach the antenna from its securing clip on the speaker.

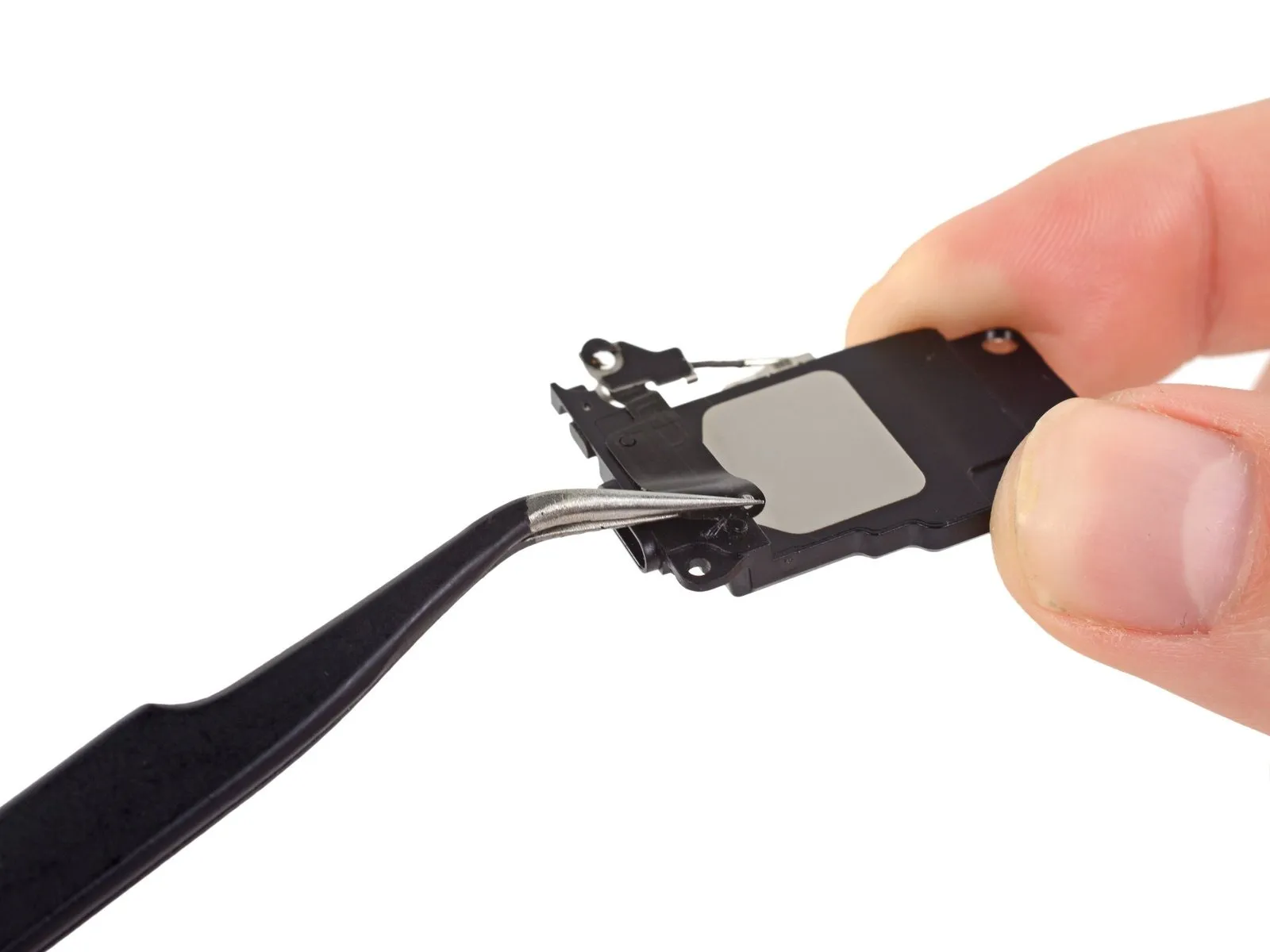

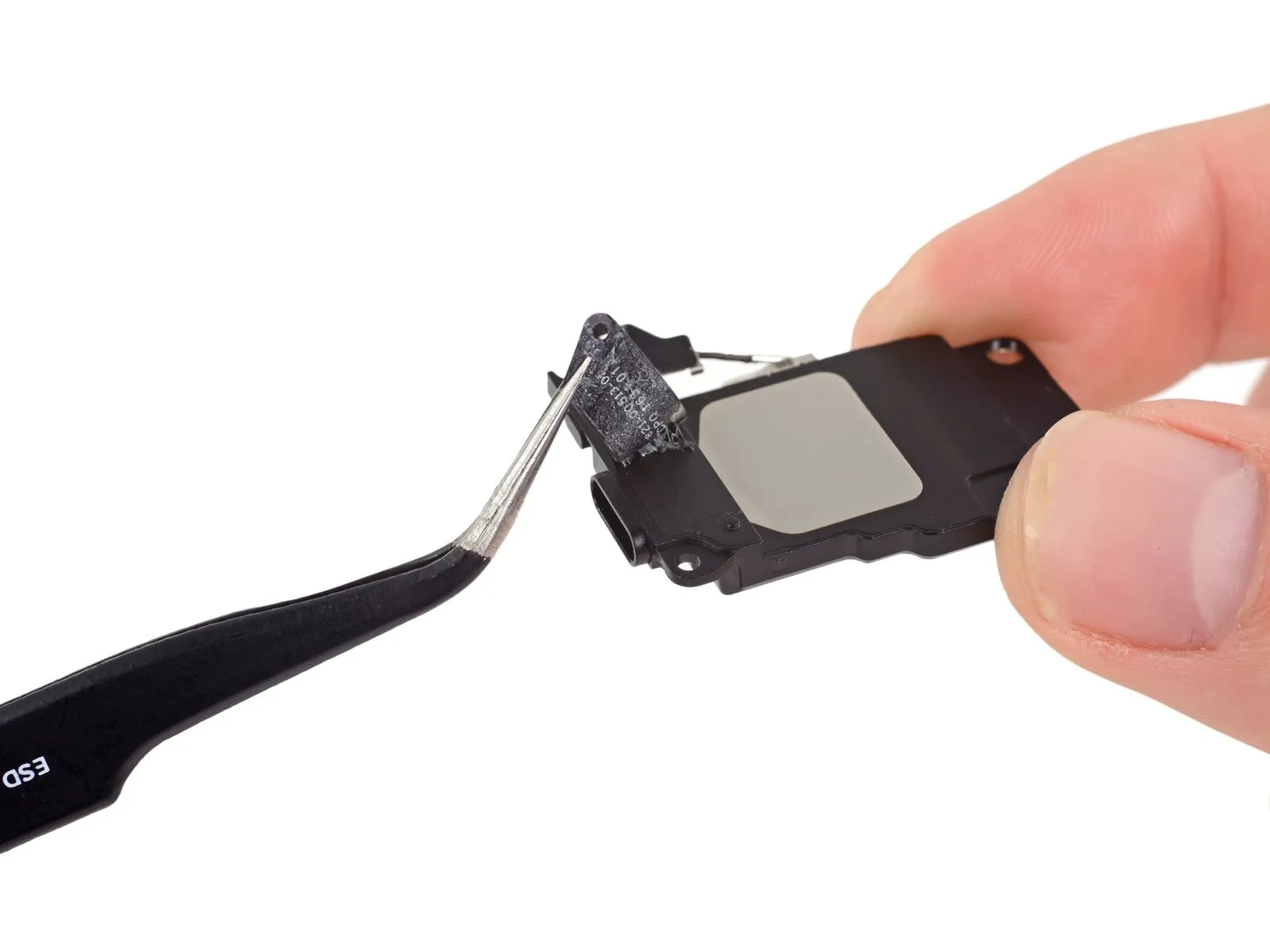

Step 36

Step 36 image
Thumbnail 1
Thumbnail 2
Using tweezers, carefully detach the tab by applying upward pressure to release it from the speaker.

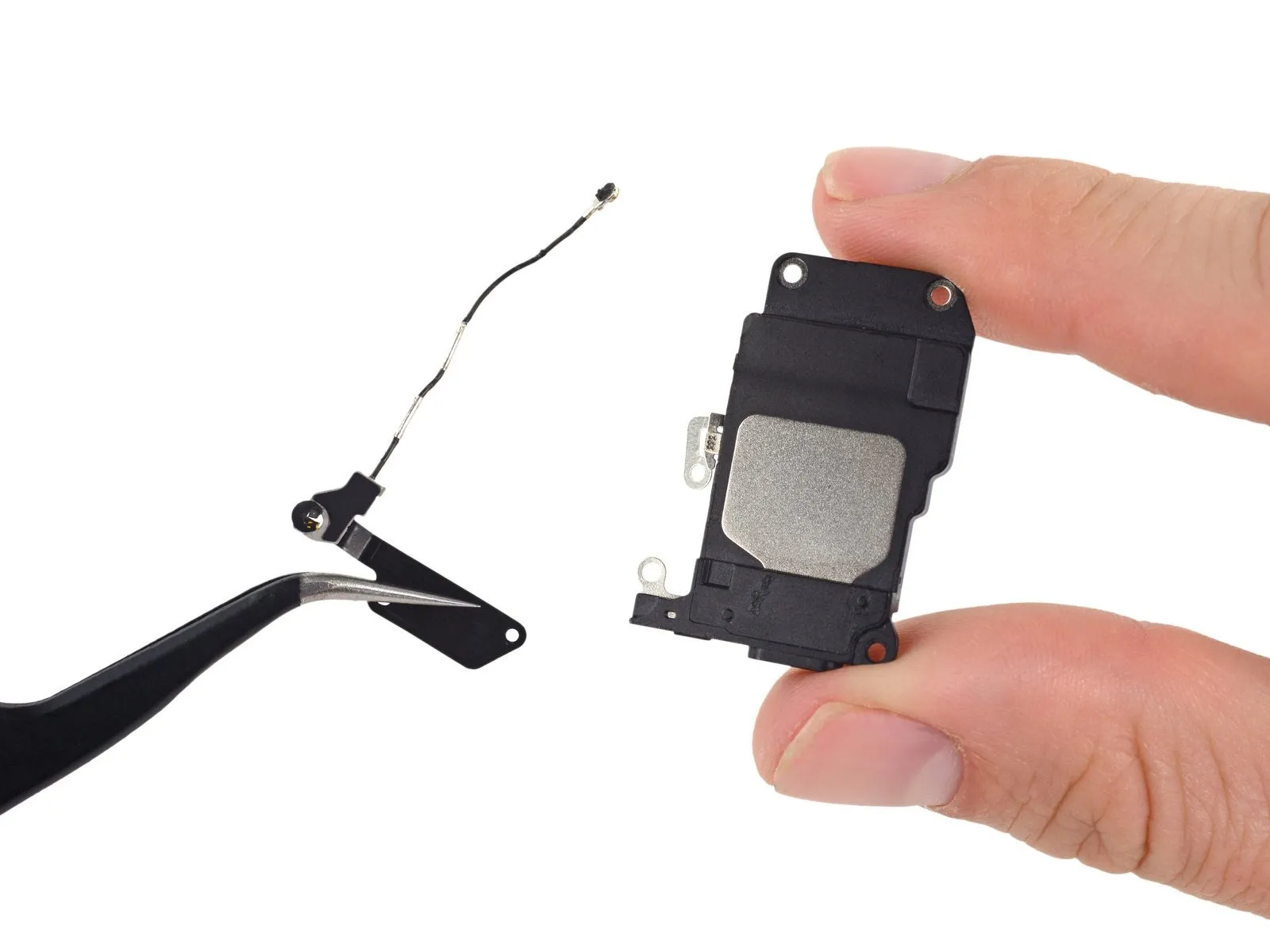

Step 37

Step 37 image
Disconnect and detach the Wi-Fi diversity antenna.
