iPhone 7 Taptic Engine Replacement

• As a preliminary precaution, ensure your iPhone's battery level is depleted to less than 25% prior to commencing the repair process.A fully charged lithium-ion batteryposes a significant fire and/or explosion hazard if it sustains accidental physical damage, such as a puncture.
• To prevent electrical shorts and potential damage, completely de-energize your iPhone by powering it down before starting the disassembly.
• Using a screwdriver, carefully unscrew and remove the pair of 3.4 mm pentalobe screws located along the iPhone's lower edge.
• Separating the iPhone's display assembly will inevitably damage the integrated waterproof seals; therefore, obtain replacement seals beforehand to maintain water resistance, or exercise extreme caution to prevent liquid ingress if you intend to reassemble the iPhone without new seals.

• To avoid potential harm to your device, ensure the opening pick isn't inserted beyond its intended depth; this procedure will help you identify a safe insertion point.
• Determine a length of3 mmfrom the pick's leading edge and use a permanent marker to create a visible indication on the opening pick.
• For enhanced precision, consider marking additional points on the pick's corners with varying measurements.
• As another option, affix a coin to the pick's shaft,3 mmaway from its tip.

The following three actions showcase the Anti-Clamp, a specialized tool developed to simplify the initial opening process; should you choose not to utilize this tool, proceed past three steps to an alternative approach.

Detailed instructions regarding the Anti-Clamp's operation are available in a separate, dedicated guide.

• To release the Anti-Clamp's gripping arms, retract the blue handle towards the rear.
• Carefully position the arms across either the left or right side of your iPhone.
• Place the suction cups close to the lower edge of the iPhone, situated directly above the home button—one on the front face and one on the rear.
• Apply suction to the intended area by compressing the cups together.
• Should the iPhone's surface prove excessively slick, preventing adequate adhesion by the Anti-Clamp, applying tape can provide a more textured interface for improved grip.

• To secure the arm assemblies, advance the blue handle in its direction.
• Rotate the handle in a clockwise directioncovering a full circle of 360 degreesor continue the rotation until the vacuum cups begin to expand.
• Maintain proper positioning of the suction cups relative to one another; should they become misaligned, gently release the suction cups and reposition the arm assemblies.

• Employ a heating device to warm aniOpenerand carefully guide it between the arms of theAnti-Clamp.
• Alternative heat sources, such as a hair dryer, heat gun, or hot plate, are acceptable; however, exercise caution as excessive temperatures may compromise the display or internal battery.
• Position theiOpenerto rest along the lower edge of the iPhone’s casing.
• Allow a period of sixty seconds to permit the adhesive to soften and create a separation.
• Introduce an opening tool into the newly formed space.
• Should theAnti-Clamp fail to generate an adequate separation, increase heat application to the region and rotate the handle by ninety degrees.
• Avoid exceeding a ninety-degree rotation at any point, and pause for sixty seconds between adjustments; allow theAnti-Clampand time to facilitate the separation process.

The following three procedures detail the process of detaching the display assembly with the aid of a suction cup.

• Applying heat to the bottom edge of the iPhone facilitates the loosening of the adhesive bonds holding the display in place, which simplifies the separation process.
• Employ a hairdryer, or alternatively prepare aniOpenerand apply it to the lower edge of the device for approximately 90 seconds to reduce the adhesive's tackiness.

Securely affix a suction cup to the bottom portion of the front panel, positioning it directly over the home button's location.

Ensure the suction cup's surface area remains clear of the home button to facilitate a complete and airtight bond between the cup and the glass.

• Apply steady, forceful upward pressure to the suction cup to generate a small separation between the display assembly and the device's surrounding structure.
• Carefully slide an opening tool into the newly formed space.
• Due to the robust, waterproof sealant securing the display, establishing this initial separation requires considerable effort; should you encounter difficulty, apply additional heat and gently oscillate the display in an upward and downward motion to reduce the adhesive's strength, enabling you to create a sufficient opening for tool insertion.

• Begin separating the phone's display assembly by inserting a separation tool beneath the left edge, initiating at the bottom and progressing upwards towards the volume controls and the silent switch, effectively disrupting the adhesive seal securing the display.
• Cease the separation process close to the upper-left corner of the display surface.
• Refrain from attempting to dislodge the display's upper edge from the rear casing, because it is secured with fragile plastic clips that are susceptible to breakage.

Along the right side of your iPhone, you'll find sensitive wiring; avoid inserting any tools in this area to prevent potential cable damage.

• Carefully reposition your tool at the lower-right edge of the iPhone, then maneuver it along the corner and up the right side to release the adhesive bond.
• Ensure your opening tool does not penetrate beyond 3 millimeters, to prevent potential harm to the delicate display cable connections.

• Carefully elevate the display's lower border by applying upward force to the suction cup.
• The display's elevation should not exceed 15 degreesto prevent potential damage or separation of the flexible ribbon cables that connect the display.
• Detach the suction cup from the front panel by grasping and pulling on the small protrusion located on its surface.

• A quantity of three1.2 millimeters fasteners
• A single2.4 millimeters fastener

• Employ the tip of a spudger to disengage the battery connector from its corresponding receptacle on the logic board.spudgerTo inhibit electrical contact and power delivery to the device, gently elevate the connector cable.
• Bend the connector cable up slightly to prevent it from making contact with the socket and providing power to the phone.

Prior to any cable manipulation, ensure the battery is completely disconnected.This precaution is essential before detaching or reattaching the cables detailed in this procedure.

• Employ a spudgeror a fingernail to release the two lower display connectors; achieve this by applying upward pressure directly above them to separate them from their corresponding positions on the logic board.
• To establish a secure connection for these cables, apply even pressure to one end until an audible click is heard, then repeat the process on the opposing end; avoid applying pressure to the central portion of the connector. Any slight misalignment during reconnection can result in bending, potentially leading to irreversible damage.

Should you observe a blank screen, the appearance of white lines on the display, or a diminished or absent touch response following reassembly, attempt to carefully detach and reconnect both cables, verifying their complete and proper engagement.

• Detach the pair of 1.3-millimeter Phillips #000 screwsthat fasten the bracket covering the connector for the front panel sensor assembly.
• In certain instances, these devices may requirea Y000 screwdriveras Apple introduced this tool type into production during the product's operational lifespan.

• To prevent damage, detach the connector linking the front panel sensor assembly to the socket located on the logic board.
• To reduce the likelihood of deformation, ensure this press-fit connector is reattached incrementally, connecting one end before the other.

• Detach the display assembly from the device.
• When putting the device back together, halt at this stage should you desire to substitute the adhesive securing the display's perimeter.

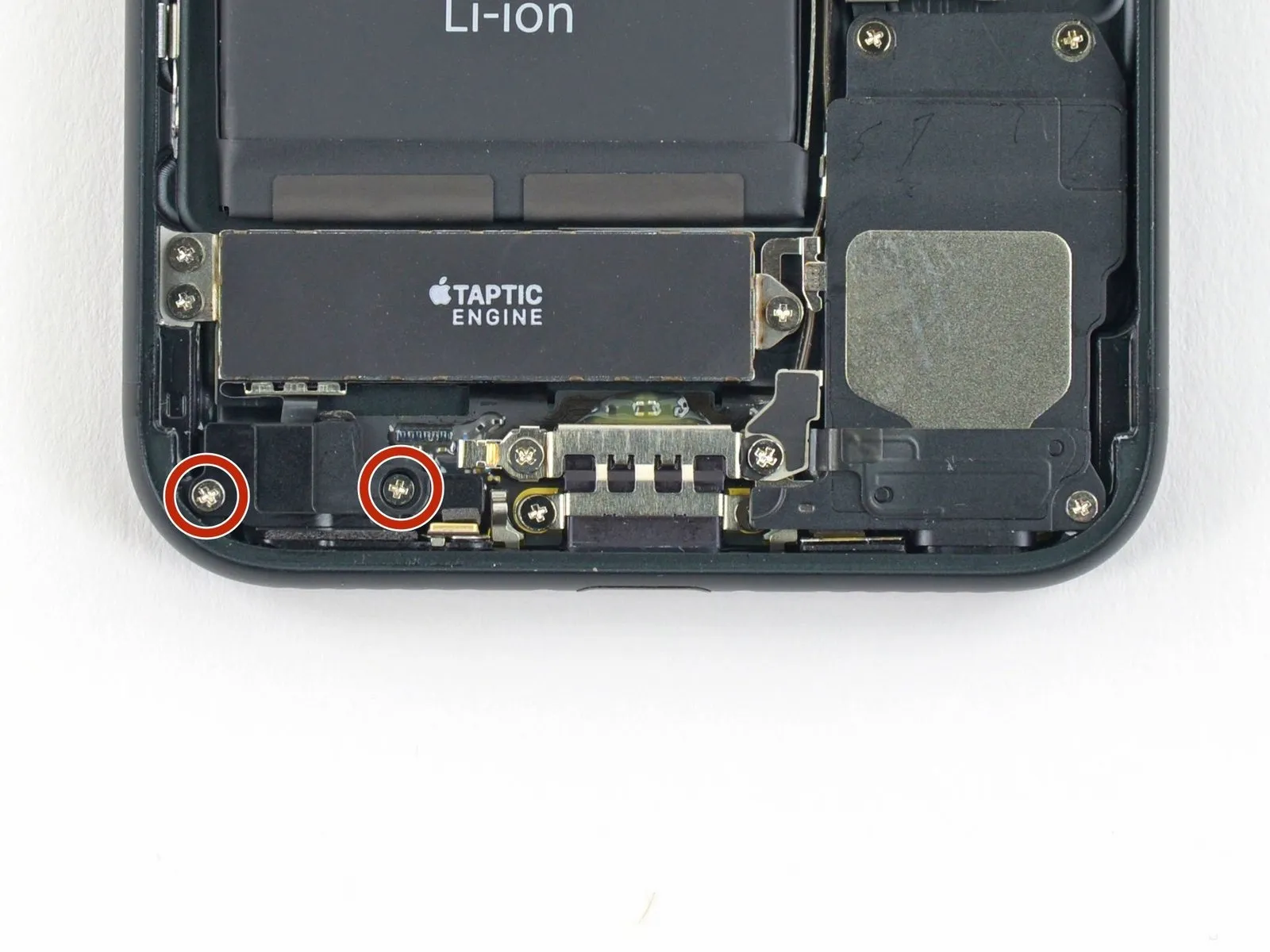

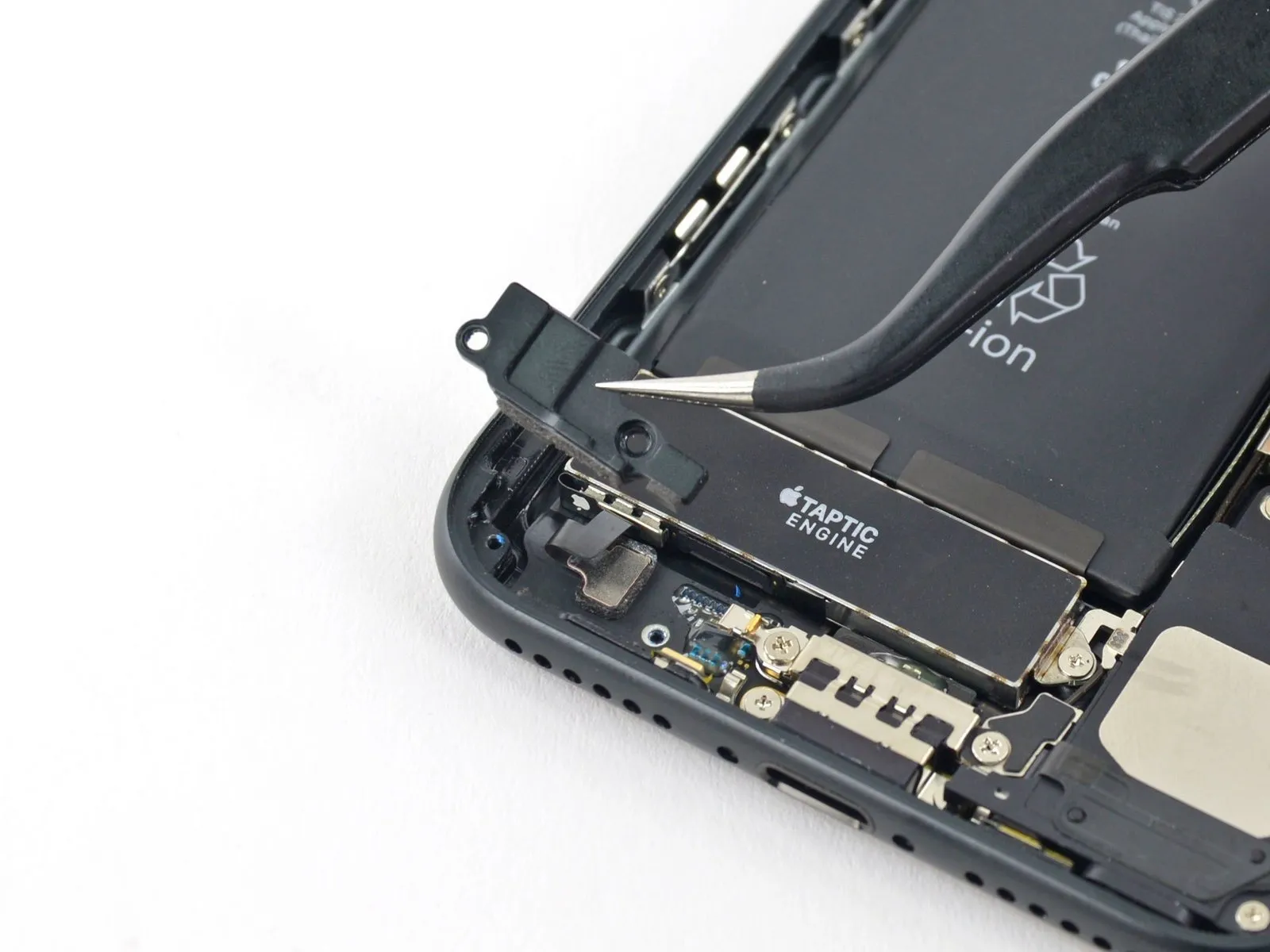

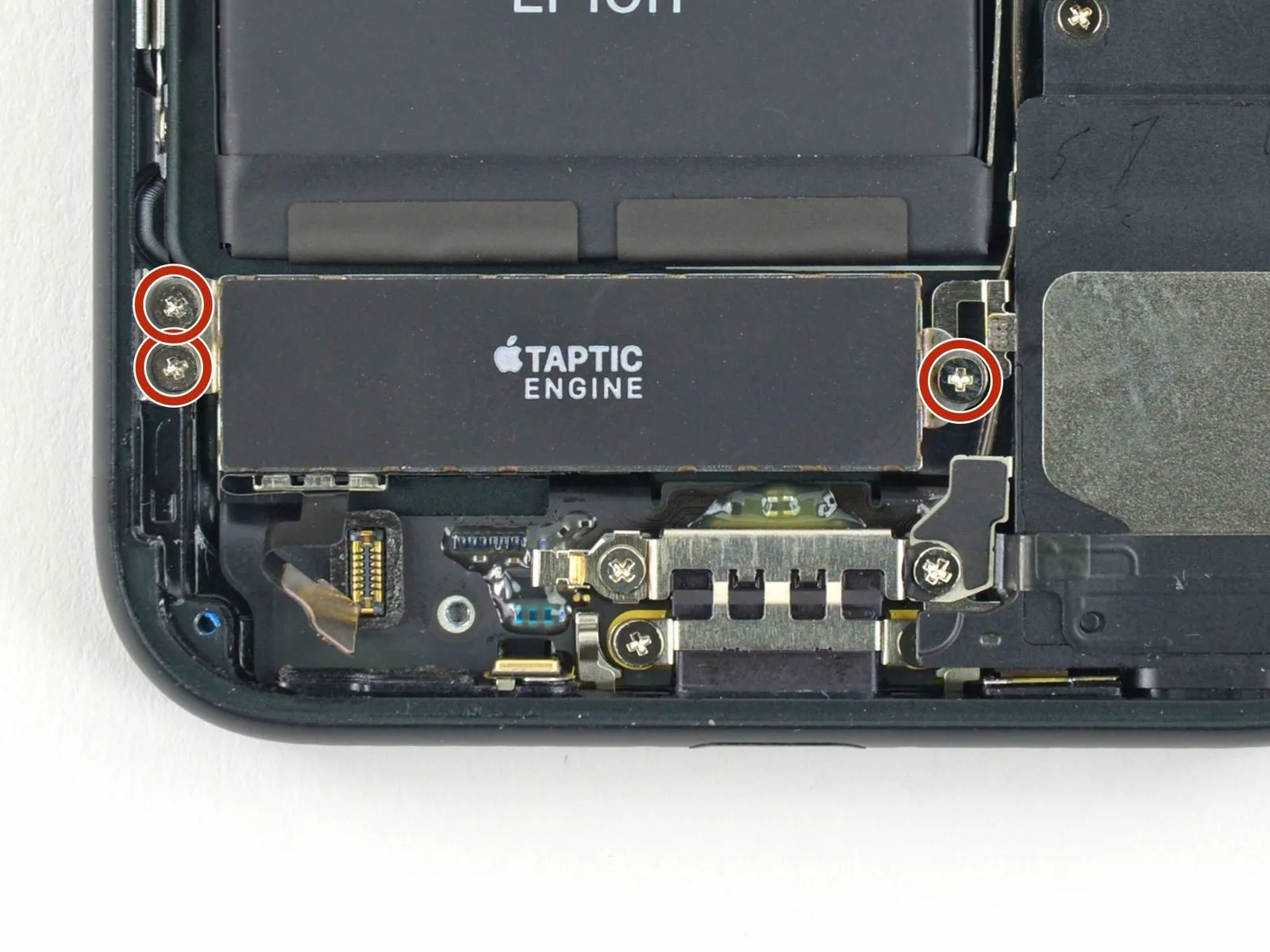

• To detach the Taptic Engine, begin by eliminating the three1.6 mm Phillips screws which hold the Taptic Engine in place on the rear case.

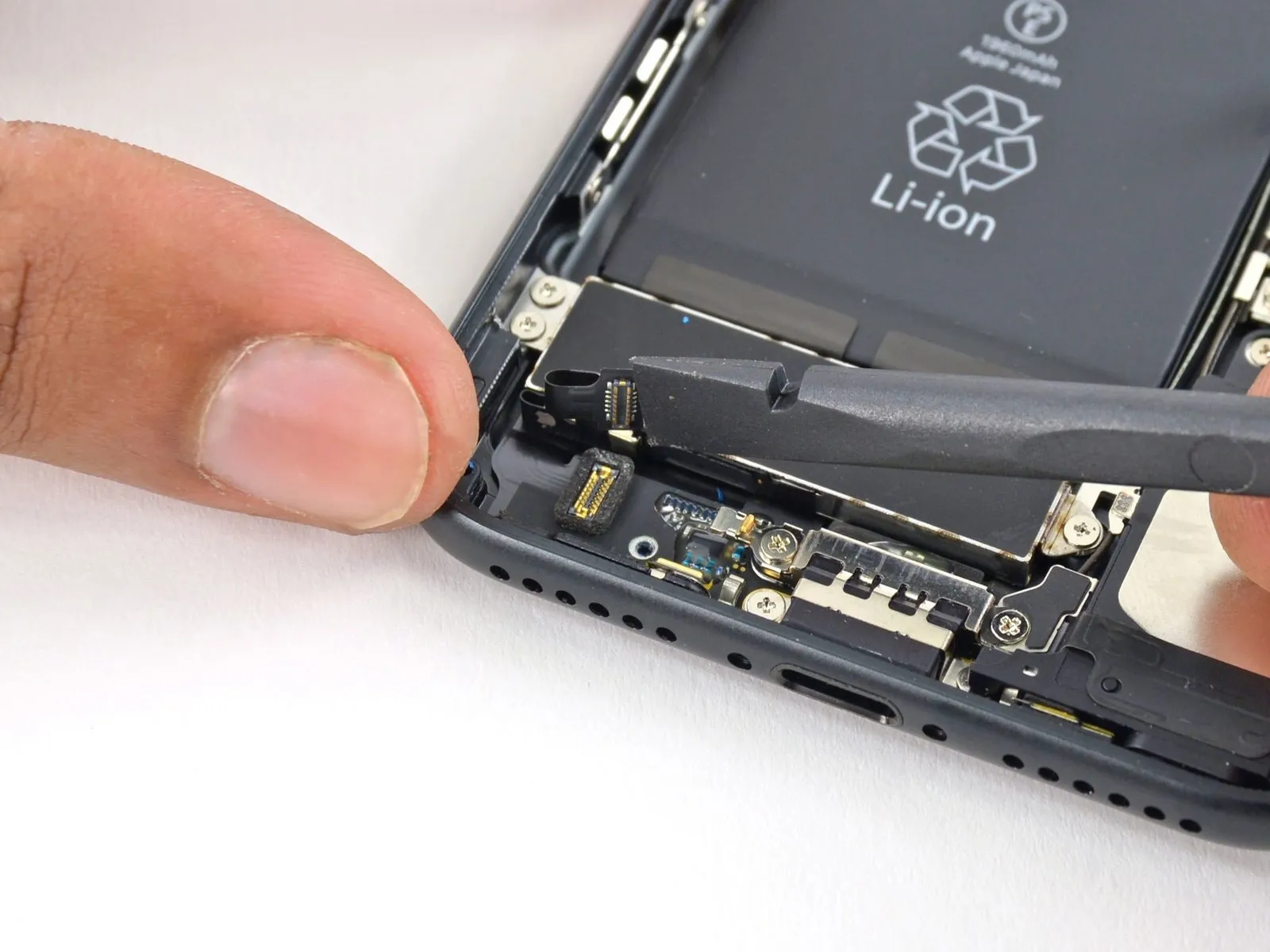

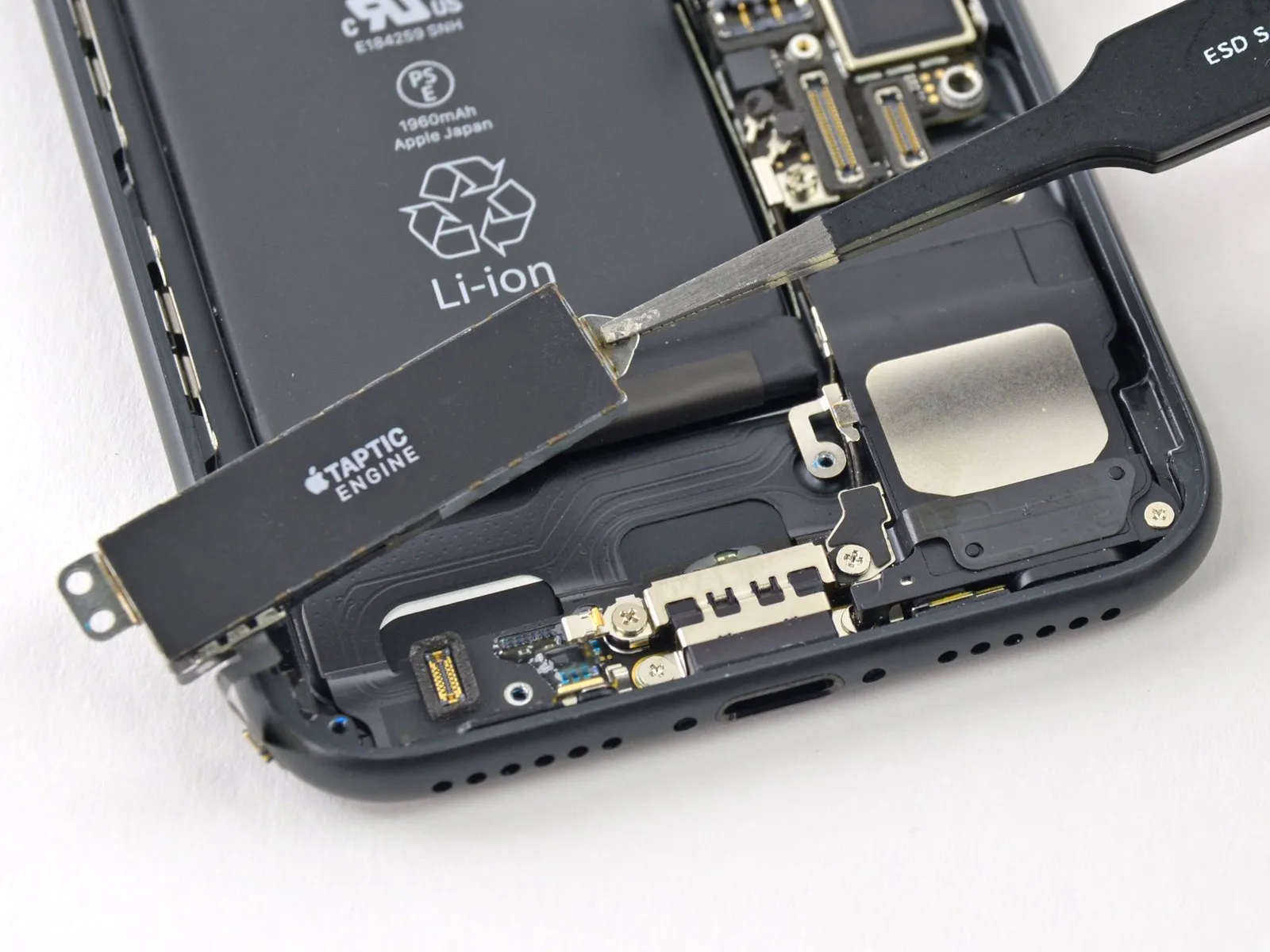

• Detach theforce-feedback actuatorcomponent.
