iPhone 7 Plus Front Camera and Sensor Cable Replacement

• To start the repair, ensure the iPhone's battery has been fully depleted to a state belowOne-quarter.Accidental puncture of a lithium-ion battery that is holding a charge presents a risk of fire and/or explosion.
• To prevent electrical shock or damage, ensure the iPhone is completely de-energized prior to starting the repair process.
• Using the appropriate size screwdriver, detach the two screws.Use a screwdriver with a 3.4 mm pentalobe bit to loosen the screws.Employing a P2 screwdriver bit, secure the screw located along the iPhone’s lower border.
• Because removing the display panel will damage the iPhone's water resistance, ensure you have new seals available for installation before continuing, or be extremely cautious to prevent moisture from entering the device if you reinstall the display without replacement.

• To avoid potential damage to your device, ensure the opening pick does not extend beyond a safe depth; to help with this, mark the pick's insertion limit.
• Determine the dimension using a measuring tool.A three-millimeter dimension.Using a permanent marker, clearly indicate the opening point on the pick, starting from its tip.
• Alternative corner markings, using the same measurement tools, can be added to the remaining corners of the pick.
• To create a makeshift tool, affix a coin to a pick, positioning the coin 3 millimeters from the pick's tip.

To simplify the opening process, the following three steps illustrate the use of the Anti-Clamp tool, a custom-designed aid; if you choose not to use this tool, proceed to the instructions three steps further down.

Refer to the included manual for detailed procedures regarding Anti-Clamp operation.

• To release the Anti-Clamp's arms, move the blue handle in a rearward direction.
• Position the arms so they extend across the iPhone's left or right side.
• Affix one suction cup to the front surface of the iPhone, close to the lower edge and directly over the home button, and secure a second suction cup to the rear surface in the same relative position.
• Apply vacuum by pressing the cups firmly against the surface needing treatment.
• To improve the Anti-Clamp's grip on your iPhone if the exterior feels excessively slick, apply adhesive tape to the device's surface.

• Moving the blue handle in a forward direction will engage the locking mechanism for the arms.
• Rotate the handle in a direction that tightens it.Rotate fully around its axis.Continue the process, observing for signs of cup expansion.
• Maintain parallel positioning of the suction cups; should misalignment occur, gently release the suction cups' grip and reposition the arms.

• Apply warmth to aUse the iOpener.Carefully guide the thread through the arm openings.Prevent clamping..
• Employing a hair dryer, heat gun, or hot plate to apply warmth is an option; however, exercise caution as excessive heat exposure may compromise the display panel and/or the internal battery.
• Carefully bend theUse a specialized device designed for electronics disassembly, often referred to as an iOpener, to gently warm the adhesive securing the display assembly.Position the component flush against the lower edge of the iPhone's casing.
• Allow a full 60 seconds for the adhesive to soften, creating a separation.
• Using a specialized opening tool, carefully introduce its tip into the separation.
• Carefully inspect the component, ensuring its dimensions remain precisely 1.5 inches by 0.75 inches, and that the serial number, 87654321, is legible, using a magnifying glass if necessary; proceed only if these criteria are met, and always wear safety glasses to protect against potential debris.Prevent clamping.If the separation isn't adequate, increase the heat applied to that spot and adjust the handle by 90 degrees.
• To prevent damage, rotate the component no more than 90 degrees, pausing for a full minute after each incremental adjustment.Prevent clamping.Allow the specified duration for the process to complete automatically.

To detach the display, proceed with the following three actions, utilizing a suction cup.

Applying heat to the phone's bottom perimeter with a heat gun or hairdryer will loosen the adhesive that holds the display in place, simplifying the separation process.

Apply heat with a hairdryer or use a heat gun to warm the adhesive securing the component, ensuring the temperature does not exceed 150°F (65°C).Use the iOpener to gently warm the adhesive securing the display assembly.To loosen the adhesive securing the bottom edge, hold a heat source against that area for approximately 90 seconds.

Using a suction cup, secure it to the front panel's lower section, positioned directly over the home button.

To ensure a proper seal between the suction cup and the front glass, avoid positioning the cup so that it covers the home button.

Apply steady, even force to lift the suction cup, generating a small separation between the display assembly and the device's surrounding frame.

Using a specialized opening tool, carefully create a small space between the components.

Because the screen is secured with a robust, watertight adhesive, separating it requires considerable force. Should you encounter difficulty, increase the heat applied and use a gentle rocking motion to soften the adhesive; this will allow you to create a sufficient gap for tool insertion.

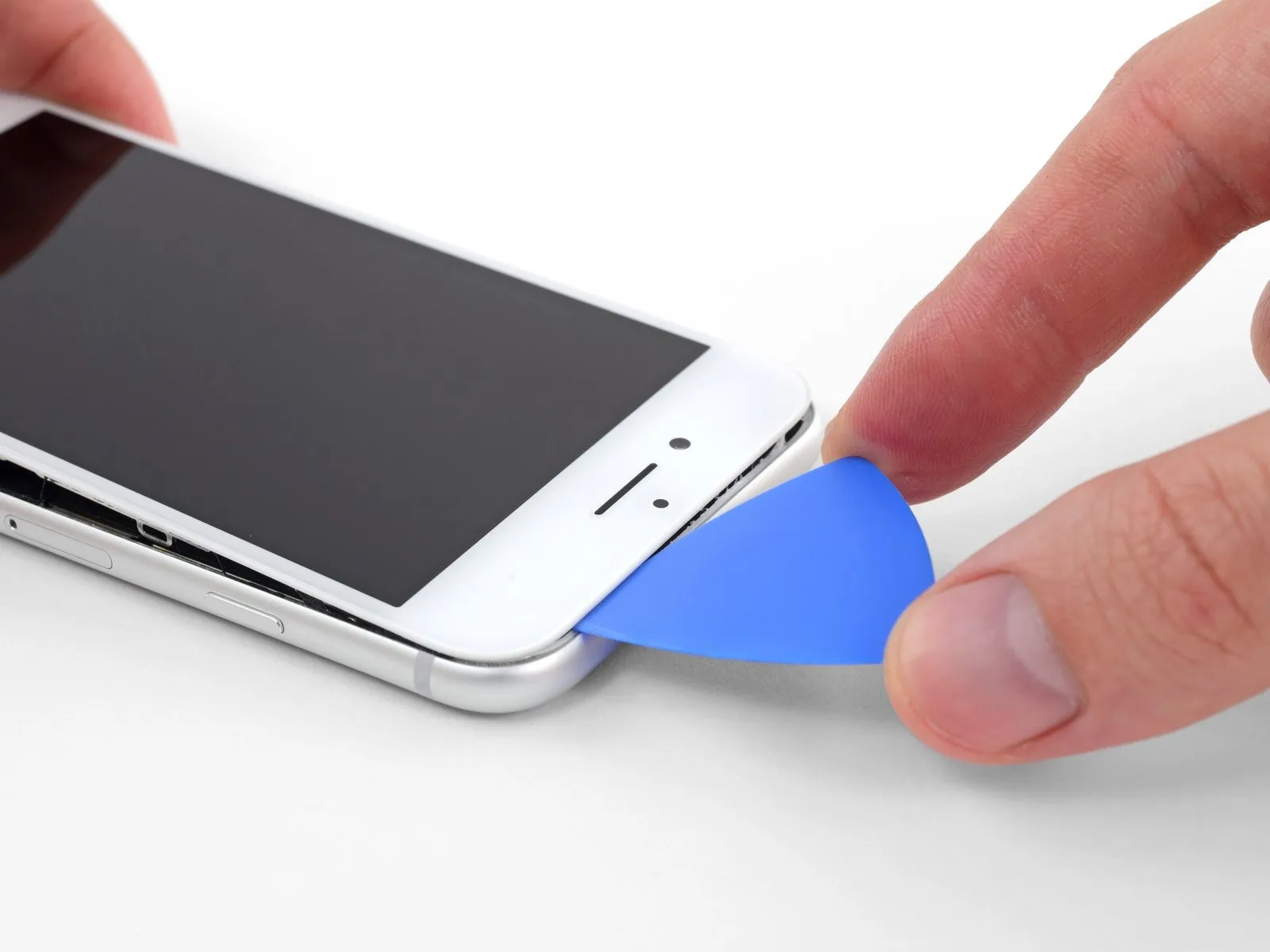

• Beginning at the phone's lower edge, carefully insert the opening pick between the display and the chassis, working upwards along the left side towards the volume buttons and silent switch to release the adhesive securing the display.
• Position yourself close to the upper left edge of the screen.
• Avoid separating the display's upper boundary from the rear case by force, because it is secured with fragile plastic fasteners that could fracture.

Avoid inserting opening tools along the right side of the iPhone, as the sensitive internal wiring located there is susceptible to damage.

• Using your tool, begin at the lower-right edge of the iPhone and move it along the perimeter, sliding it along the corner and up the right side to release the adhesive.
• Limit pick insertion depth to avoid damage.Three millimeters.Carefully proceed to avoid harming the display cables.

• Using a suction cup, apply upward force to the display's lower border to separate it.
• Ensure the display’s elevation remains below the specified maximum of.Set the temperature dial to 150 degrees.Careless handling could damage the display's ribbon cables, potentially causing them to stretch or rip.
• To detach the suction cup, grip the small projection extending from its surface and apply traction.

• Use three screws, each measuring 1.2 millimeters.
• A screw with a 2.6-millimeter head diameter is required.

• Carefully disengage the battery connector from its socket on the logic board by applying targeted pressure with a spudger tip.
• To avoid accidental power-up via the socket, gently raise the connector cable a small amount.

• Carefully separate the two display connectors from their sockets on the logic board by applying upward pressure with the flat edge of a spudger or a fingernail.
• Secure the connectors by applying even pressure to each end until an audible click confirms proper engagement; avoid applying pressure to the central portion, as misalignment can result in bending and irreversible damage.

• Using a Y000 tri-point screwdriver, detach the bracket that covers the front panel sensor assembly connector by unscrewing the three screws holding it in place.
• Begin the process by executing a single action.A screw with a diameter of 1.3 millimeters.
• Two.Use fasteners with a diameter of 1.0 millimeters.

• Carefully detach the connector linking the front panel sensor assembly to its socket on the logic board.
• To reduce the chance of deformation, reconnect the press connector by attaching one end at a time.

• Carefully detach the display assembly, ensuring no damage occurs.
• If you intend to substitute fresh adhesive along the display's perimeter during the reassembly process, stop at this stage.

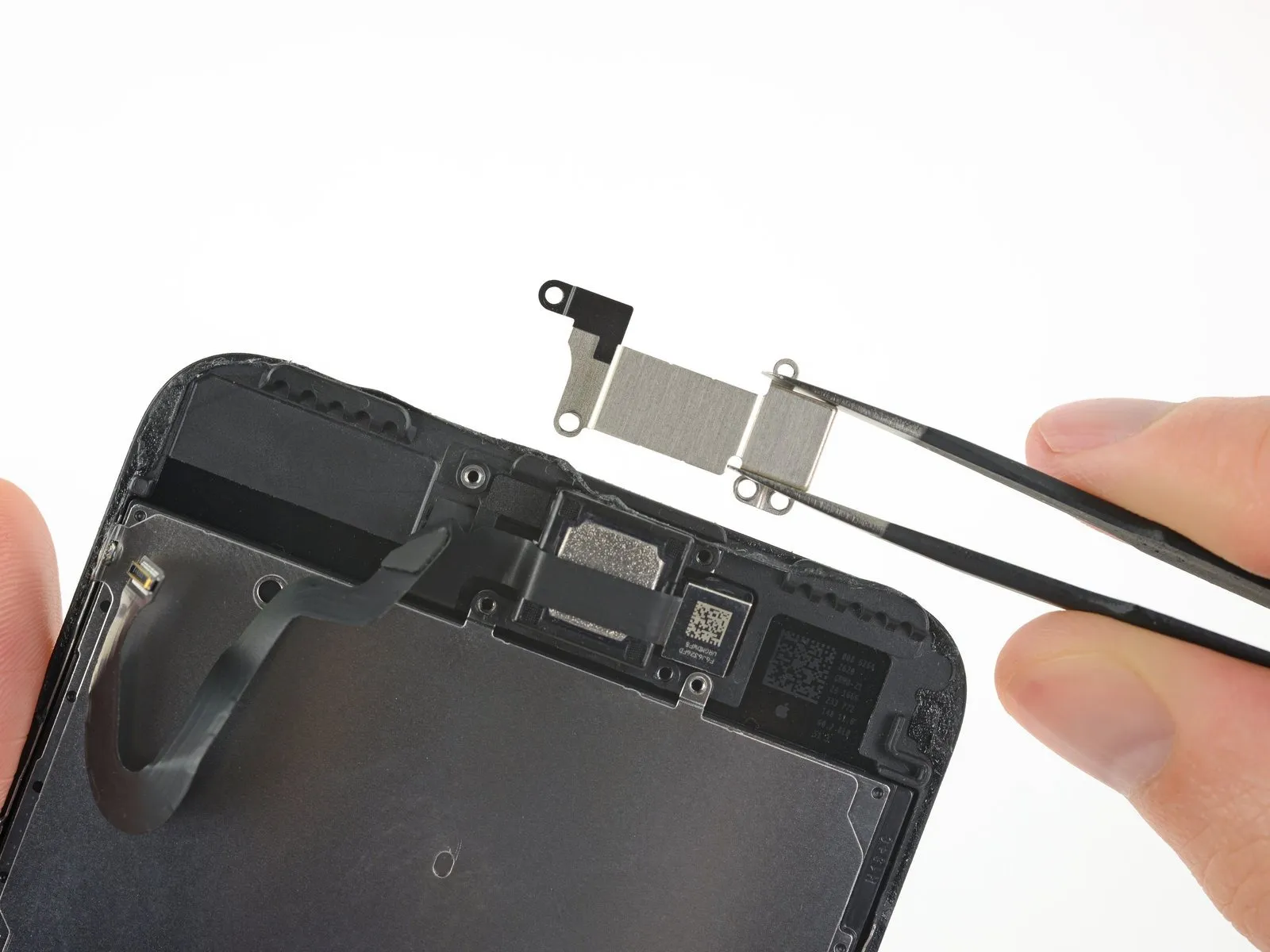

• Using a Phillips screwdriver, detach the earpiece speaker bracket by unscrewing the five screws that hold it in place.
• Use two screws, each measuring 1.8 mm.
• A screw with a 2.3 mm head diameter is required.
• A screw with a 2.4-millimeter head diameter is required.
• A screw with a 2.8 mm diameter is required.

• Carefully detach the bracket securing the earpiece speaker.

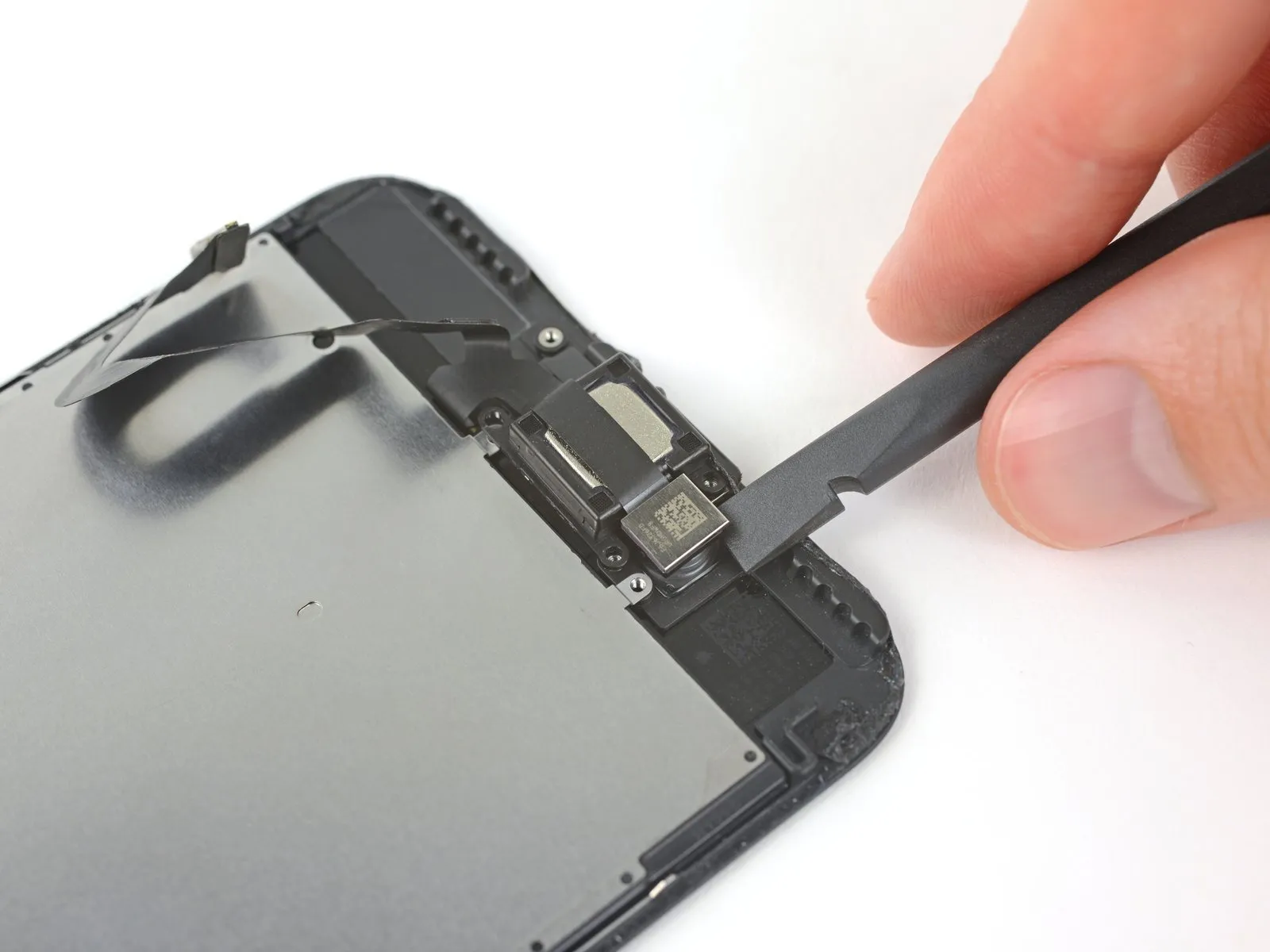

• Employ the tool's planar edge toUse a plastic pry tool, often referred to as a spudger.Carefully elevate the front camera assembly from its designated enclosure.
• Carefully maneuver the camera ribbon cable laterally to provide access to the earpiece speaker located directly below.

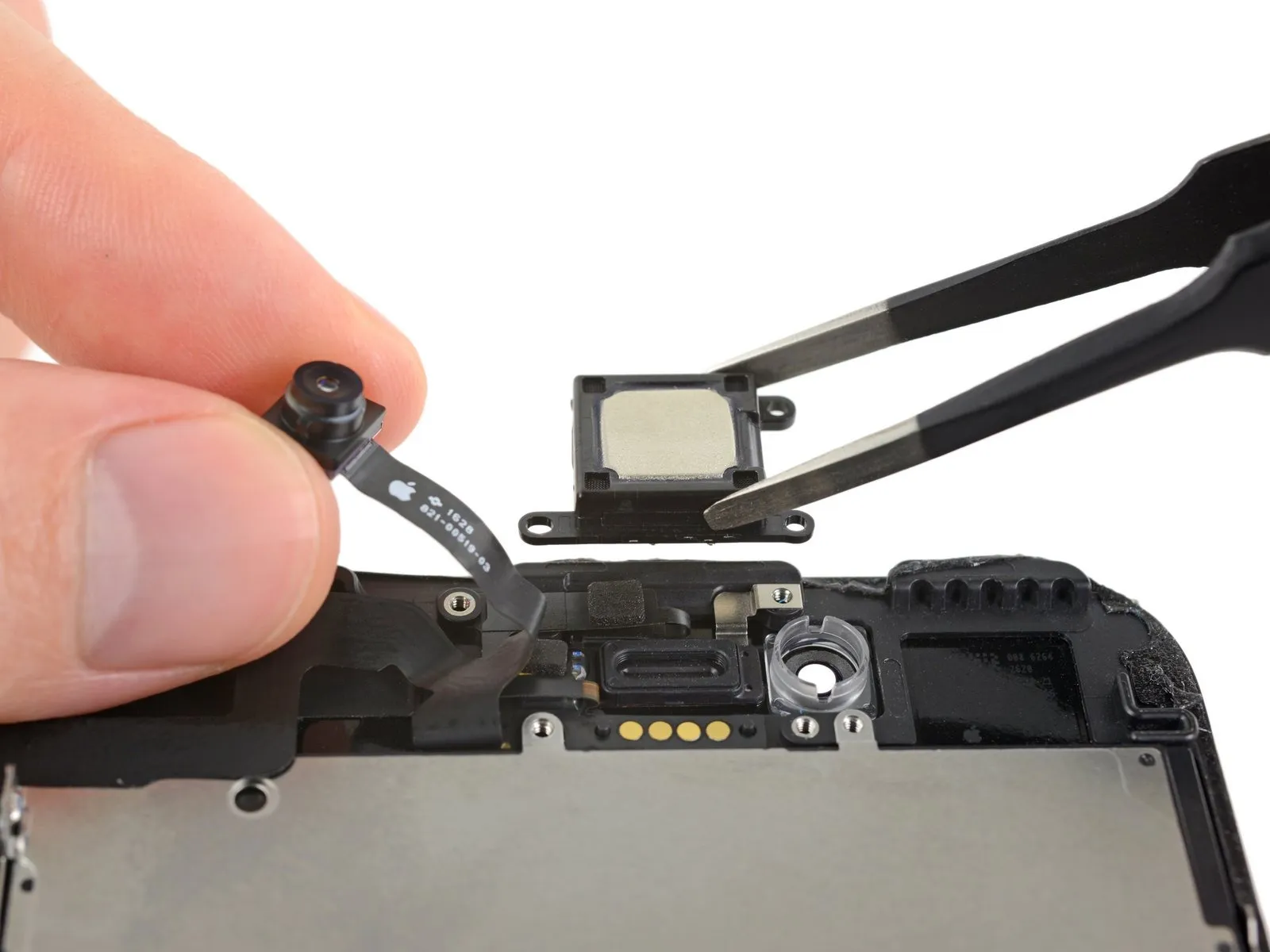

• Carefully detach the earpiece speaker component.
• To prevent operational issues, avoid direct contact with the four spring contacts using your hands; oils from your skin can interfere with their function. Should contact occur, carefully wipe the contacts clean using isopropyl alcohol.Ensure a minimum of 90% efficiency.).

Carefully maneuver the camera and its connected ribbon cable downwards within the iPhone's internal space to expose the underlying parts.

• Before attempting sensor removal, apply heat to the display's upper area using an iOpener or hair dryer to reduce fragility risk; as an alternative, introduce a small amount of isopropyl alcohol to soften the adhesive beneath the sensors to ease separation.
• Carefully position the component by moving it laterally.Use a plastic pry tool, often called a spudger, to gently separate components.Carefully detach the ambient light sensor’s flex cable and then gently raise the sensor from its enclosure.

Carefully insert the end of aUse a plastic pry tool, often referred to as a spudger, to gently separate components.Carefully detach the proximity sensor from its housing by gently raising it from beneath the flex cable.

• Carefully guide the pointed end of the component into its designated space.Use the iFixit opening tool.Locate the flex cable beneath the camera assembly, positioned on the device's side opposite the front-facing camera.
• Employing a specialized tool, you may need to proceed.Use a specialized device designed for electronics disassembly, often referred to as an iOpener, to gently warm the adhesive securing the display assembly.Apply heat to the display's upper section using a hair dryer to loosen the adhesive that holds the flex cable in place.
• Using a prying tool, carefully disengage the flex cable's edge from the display's rear surface.

Carefully guide the tip of theUse a plastic pry tool to gently separate.Carefully detach the flex cable from the area you previously freed it from.
Carefully detach the remaining flex cable section by gently pressing the spudger against the series of circular gold contacts located on the earpiece speaker.

Maintain the application of yourUse a plastic pry tool, often referred to as a spudger, to avoid scratching surfaces.Gently detach the flex cable from the display's rear surface, ensuring no damage occurs.

• Disconnect and detach the front camera and its associated sensor cable.
• A strip of black, double-sided insulating tape, intended to provide electrical isolation, is positioned between the display surface and a set of three parallel rows of copper contacts located on the rear side of the camera/sensor cable; this tape may adhere to either the display or detach with the cable itself.
• To ensure proper function during reassembly, confirm the presence of the tape; if absent, protect the cable’s rear contacts by applying a suitable tape.Use heat-resistant Kapton tape..
