iPhone 7 Plus LCD and Digitizer Replacement

• As a critical safety precaution prior to commencing the repair, ensure your iPhone's battery is depleted to a level below 25%; a fully charged lithium-ion battery presents a significant fire and/or explosion hazard if it sustains accidental physical damage.
• To ensure safety and prevent potential electrical shorts, completely de-energize the iPhone by powering it down before you start disassembling it.
• Utilizing a P2 screw bit, or a similar tool, carefully unscrew and remove the pair of 3.4 mm pentalobe fasteners located along the iPhone’s lower edge.
• Separating the iPhone’s display assembly from the chassis will inevitably damage the integrated waterproof barriers.To maintain the iPhone's water resistance, prepare replacement sealing components in advance; alternatively, exercise extreme caution to prevent liquid ingress if you intend to reassemble the device without installing new seals.

• To avoid potential harm to your device, ensure the opening pick does not extend beyond its intended depth; this procedure details how to identify a safe insertion point on the pick to mitigate such risks.
• Utilizing a permanent marker, create a visible indication on the opening pick precisely 3 millimeters from its tip.
• For enhanced precision, consider marking the remaining corners of the pick with varying distances.
• As an alternative method, securely affix a coin to the pick's tip, positioning it 3 millimeters from the end.

• To mitigate the risk of additional shattering and potential injury while performing the repair, secure any cracked display glass with tape to restrict further fragmentation.
• Apply multiple layers of transparent packing tape across the iPhone's screen, ensuring complete coverage of the display's surface.
• This taped layer serves to hold glass fragments in place and reinforces the display's structure during the prying and lifting processes.
• Always utilize safety glasses to shield your eyes from any loose glass particles that may become dislodged during the repair procedure.
• Should the broken glass impede the adhesion of a suction cup in subsequent steps, consider creating a handle from a robust tape (like duct tape) to facilitate display lifting.

• The following three procedures illustrate the function of the Anti-Clamp, a specialized tool developed to simplify the initial opening process; should you choose not to utilize this tool, proceed past three steps to access an alternative approach.
• Detailed instructions regarding the Anti-Clamp's operation are available in a separate, dedicated guide.
• To release the locking mechanism, retract the blue handle, which will disengage the Anti-Clamp's arms.
• Carefully position the arms across either the left or right side of your iPhone.
• Place the suction cups close to the lower edge of the iPhone, situated directly above the home button; one suction cup should be positioned on the front surface, and the other on the rear.
• Apply pressure by compressing the cups together to create a secure vacuum seal on the intended area.
• Should the iPhone's surface prove excessively slick, preventing adequate adhesion by the Anti-Clamp, applying adhesive tape can provide a more textured surface for improved grip.

• Rotate the handle a full 360 degrees, or continue turning until the suction cups begin to expand.
• Maintain the parallel positioning of the suction cups; should they become misaligned, slightly release the suction cups and readjust the arms.

1. Employing an iOpener, warmed to operating temperature, carefully guide it between the arms of the Anti-Clamp; alternative heating methods, such as a hair dryer, heat gun, or hot plate, are permissible, however, exercise caution as excessive heat poses a risk of damage to the display assembly and/or the internal battery.
2. Position the iOpener in a folded configuration, ensuring it rests along the lower edge of the iPhone’s casing.
   Allow a sixty-second interval to elapse, enabling the adhesive bond to weaken and facilitating the creation of a separation.
3. Introduce an opening pick into the newly formed separation.
4. Should the Anti-Clamp not generate an adequate separation, increase the localized heat and incrementally rotate the handle by ninety degrees.
   Avoid excessive rotation, limiting adjustments to ninety-degree increments, and observe a sixty-second pause between each rotation to allow the device and time to accomplish the separation.
5. Proceed past the following three procedural steps.

The following three procedures detail the process of detaching the display assembly with the aid of a suction cup.
Applying heat to the phone's bottom edge will assist in loosening the adhesive that holds the display in place, thereby simplifying the separation process.
Employing a hairdryer or utilizing an iOpener, direct heat to the lower edge of the device for approximately 90 seconds to reduce the adhesive's bonding strength.

Securely affix a suction cup to the bottom portion of the front panel, positioning it directly over the home button area.
Ensure the suction cup's surface remains clear of the home button's location, because contact will obstruct the creation of a proper bond between the suction device and the glass face.

Apply steady, consistent upward force to the suction cup to generate a small separation between the display assembly and the device's surrounding structure.

• Carefully slide an opening tool into the newly formed space.

1. Begin separating the display assembly from the device's frame by inserting a separation tool beneath the left edge, initiating the process at the bottom and progressing upwards towards the volume controls and the silent switch, effectively disrupting the adhesive bond securing the display.
   • Cease the separation process in the vicinity of the display's upper-left corner.
2. Refrain from attempting to dislodge the display's upper edge from the rear casing, because it is secured by fragile plastic retaining clips that are susceptible to damage.

Fragile wiring is situated along the right-hand side of your iPhone; avoid inserting any tools in this area to prevent potential cable damage.

Carefully reposition your repair tool at the lower-right edge of the iPhone, then maneuver it along the corner and upward along the right side to release the adhesive bond.

• Ensure your opening tool does not penetrate beyond a depth of 3 millimeters to prevent potential harm to the delicate display cable connections.

• Carefully elevate the display's lower boundary by applying upward force to the suction cup.
• Avoid lifting the display beyond an angle of 15 degreesas exceeding this limit could potentially damage or sever the flexible cable assemblies that interface with the display.
• Detach the suction cup from the front panel by grasping and pulling on the small protrusion located on its surface.

• To access the internal components, initiate the opening process by pivoting the display assembly upwards, originating from the left edge, mimicking the action of opening a book's cover.
• Refrain from completely disconnecting the display at this stage, because multiple delicate ribbon cables remain attached, linking it to the iPhone's main circuit board.
• Secure the display in an upright position using a support to prevent it from obstructing your work area during the repair.

• To detach the lower display cable bracket from the logic board, carefully extract the four screws described below.Y000The bracket is fastened with three screws, each measuring 1.2 millimeters in diameter.
• Three1.2 mmscrews
• Additionally, a single screw with a 2.6-millimeter diameter is also present.2.6 mmscrew

Detach the securing bracket that holds the lower display cable in place.

Employ the tip of a spudgerto disengage the battery connector from its corresponding receptacle on the logic board.
Gently elevate the connector cable a small amount to ensure it remains disconnected from the socket, thus preventing any electrical current from reaching the device.

Prior to any cable manipulation in this procedure, ensure the battery is completely disconnected.This precaution is essential before either detaching or reattaching the cables involved in this step.
Employ the planar edge of a spudgeror a fingernail to release the two lower display connectors; achieve this by applying upward pressure directly above their corresponding sockets on the logic board.
To secure the connectors during reassembly, apply downward force to one terminal until a distinct clicking sound is heard, then replicate this action on the remaining terminal. Avoid applying pressure to the central portion of the connector; even minor misalignment can result in bending, potentially leading to irreversible damage.
Should you observe a blank display, the appearance of white lines, or a deficiency in touch responsiveness – either partial or total – following reassembly, attempt to carefully detach and reconnect both cables, verifying their complete and proper seating.

• To detach the bracket that covers the connector for the front panel sensor assembly, initially extract the three screws utilizing a tri-pointY000 driverThese screws are responsible for maintaining the bracket's position.
  Subsequently, a1.3 mm screw
  Additionally, two1.0 mm screws
• Following screw removal, carefully lift the bracket away from the assembly.

• To prevent damage, detach the connector linking the front panel sensor assembly to the socket located on the logic board.
  To reduce the likelihood of deformation, ensure this press-fit connector is reattached incrementally, connecting one end before the other.

• Detach the display assembly from the device.
  If you intend to substitute the adhesive securing the display's perimeter during reassembly, halt the process at this juncture.

• To detach the earpiece speaker bracket, initially eliminate the five fastening screws.Utilize a Phillips screwdriver to remove these screws.These screws hold the earpiece speaker bracket in place.
  Two screws, each measuring 1.8 millimeters in diameter, are present.The diameter of these screws is 1.8 mm.
  Additionally, a single screw with a 2.3-millimeter diameter requires removal.A screw of 2.3 mm diameter is also included.
  Furthermore, a single screw with a 2.4-millimeter diameter must be taken out.A screw measuring 2.4 mm in diameter is also involved.
  Lastly, a single screw with a 2.8-millimeter diameter needs to be extracted.The final screw has a diameter of 2.8 mm.

• Detach the securing bracket that holds the earpiece speaker in place.

• Employ the planar edge of a spudger to disengage the front-facing camera assembly from its retaining structure.spudgerCarefully flex the camera's flexible circuit interface to create space for access to the earpiece speaker located directly beneath it.
  Gently bend the camera ribbon cable to the side to clear the way to the earpiece speaker underneath.

• Detach the earpiece speaker assembly.
  Avoid direct contact with the four spring contacts using your fingers, as oils from your skin could potentially lead to operational issues; should contact occur, carefully cleanse the contacts using isopropyl alcohol possessing a concentration of 90% or greater.

• To facilitate access to the underlying components, carefully maneuver the camera and the connected ribbon cable downwards within the iPhone's internal structure.

• Because the sensors located on this step are delicate, employing preventative measures can significantly reduce the likelihood of damage during removal; consider utilizing youriOpenerorhair dryerto gently warm the display's upper area prior to continuing the repair. As an alternative approach, introducing a small quantity, approximately one to two drops, of isopropyl alcohol and allowing it to seep beneath the sensors before attempting to lift them can also be effective.

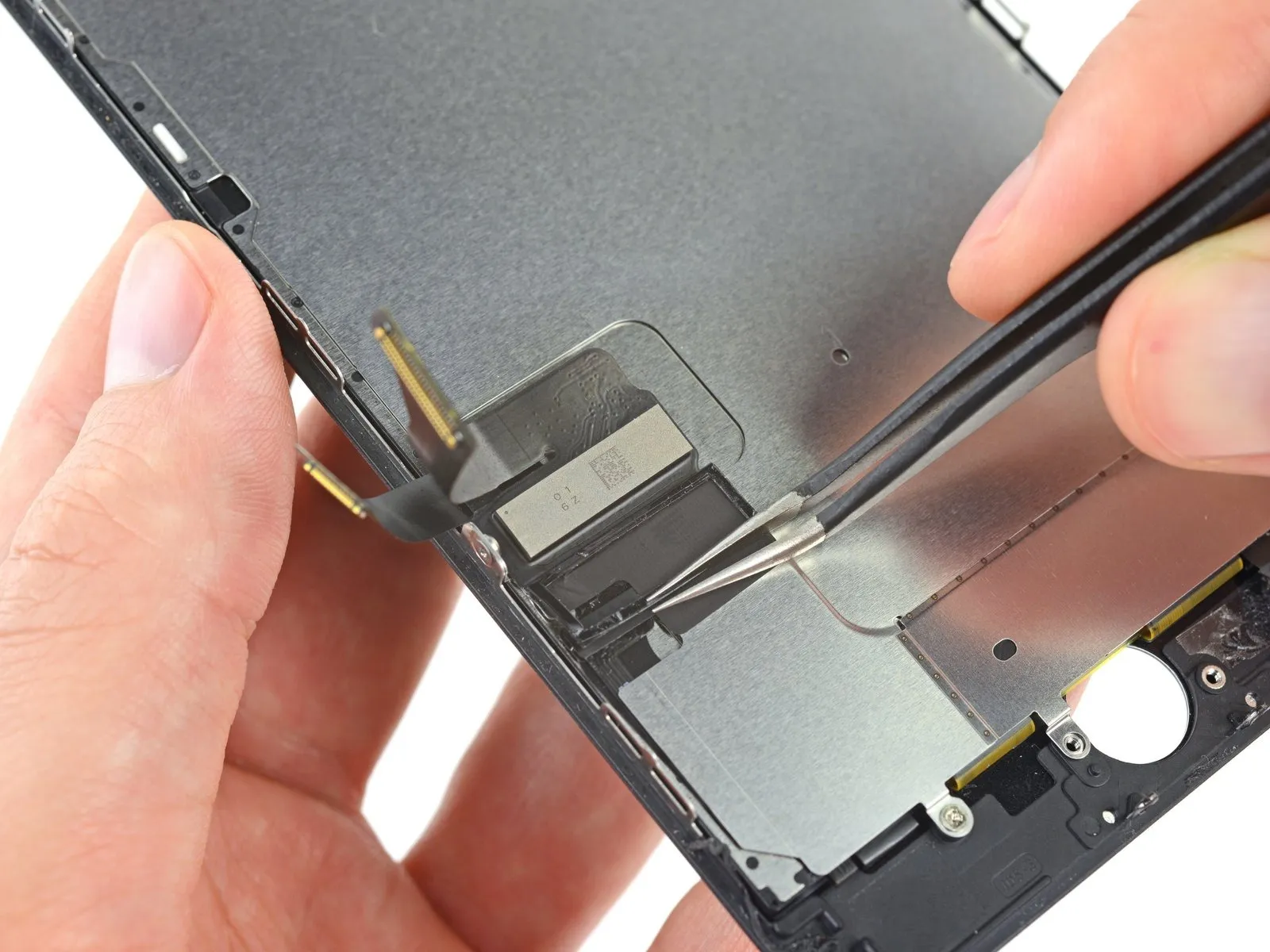

  • Carefully insert a spudger beneath the flex cable of the ambient light sensor and elevate the sensor from its enclosure.

• Carefully insert the pointed end of a spudger between the proximity sensor flex cable and its surrounding structure, then gently raise the sensor to disengage it from its mounting.

• Maintain utilization of yourspudgerto meticulously detach the remaining portion of the flexible circuit cable from the rear surface of the display assembly.

• Detach the front camera and its associated sensor cable assembly.

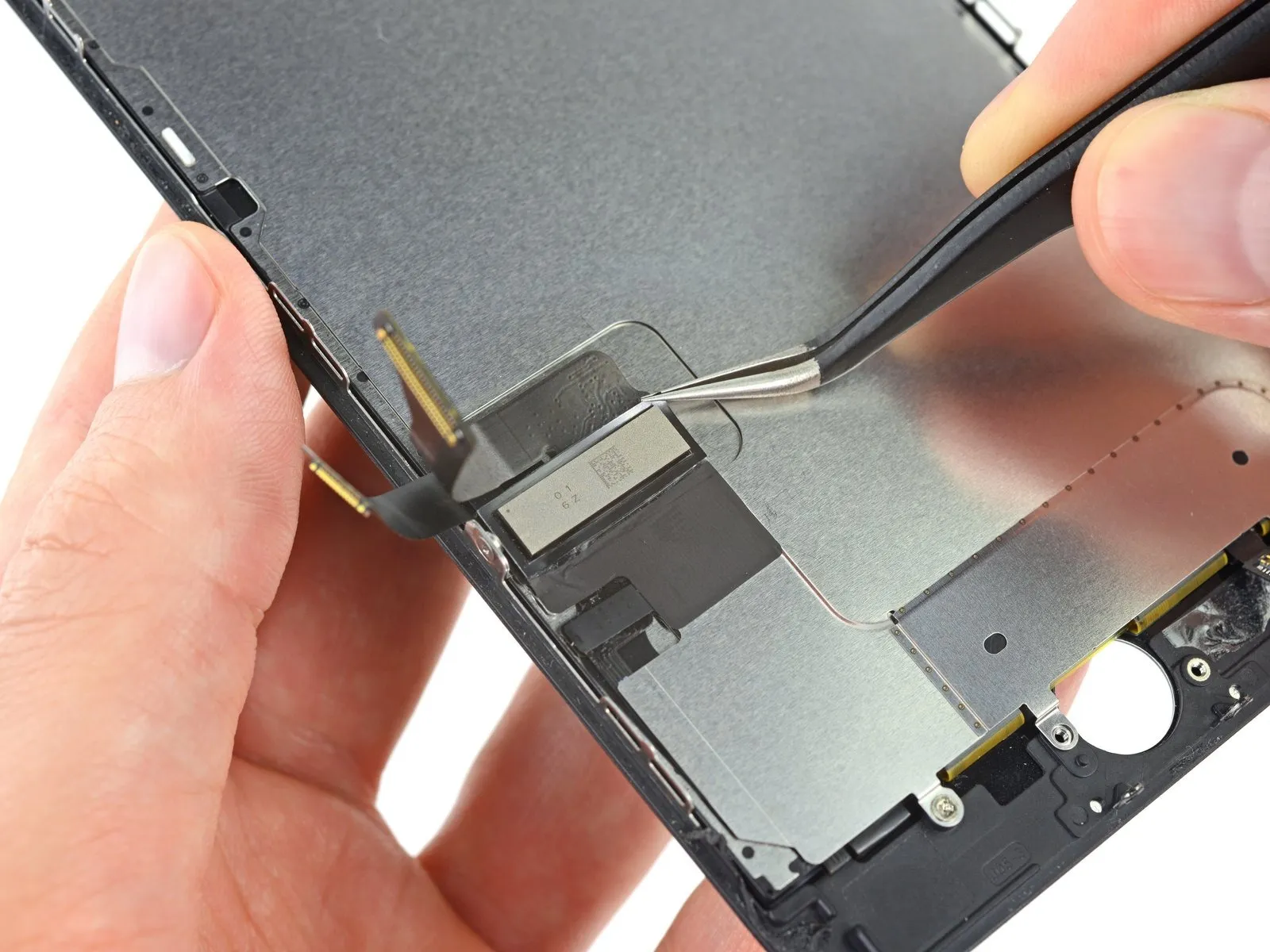

• A segment of black, double-sided insulating tape is situated between the display and a series of three rows of copper contacts located on the rear side of the camera/sensor cable; this tape might adhere to the display surface or detach alongside the cable.
• During reassembly, confirm the presence of this tape, or alternatively, protect the contacts on the cable's rear surface with a suitable substitute, likeKapton tape.

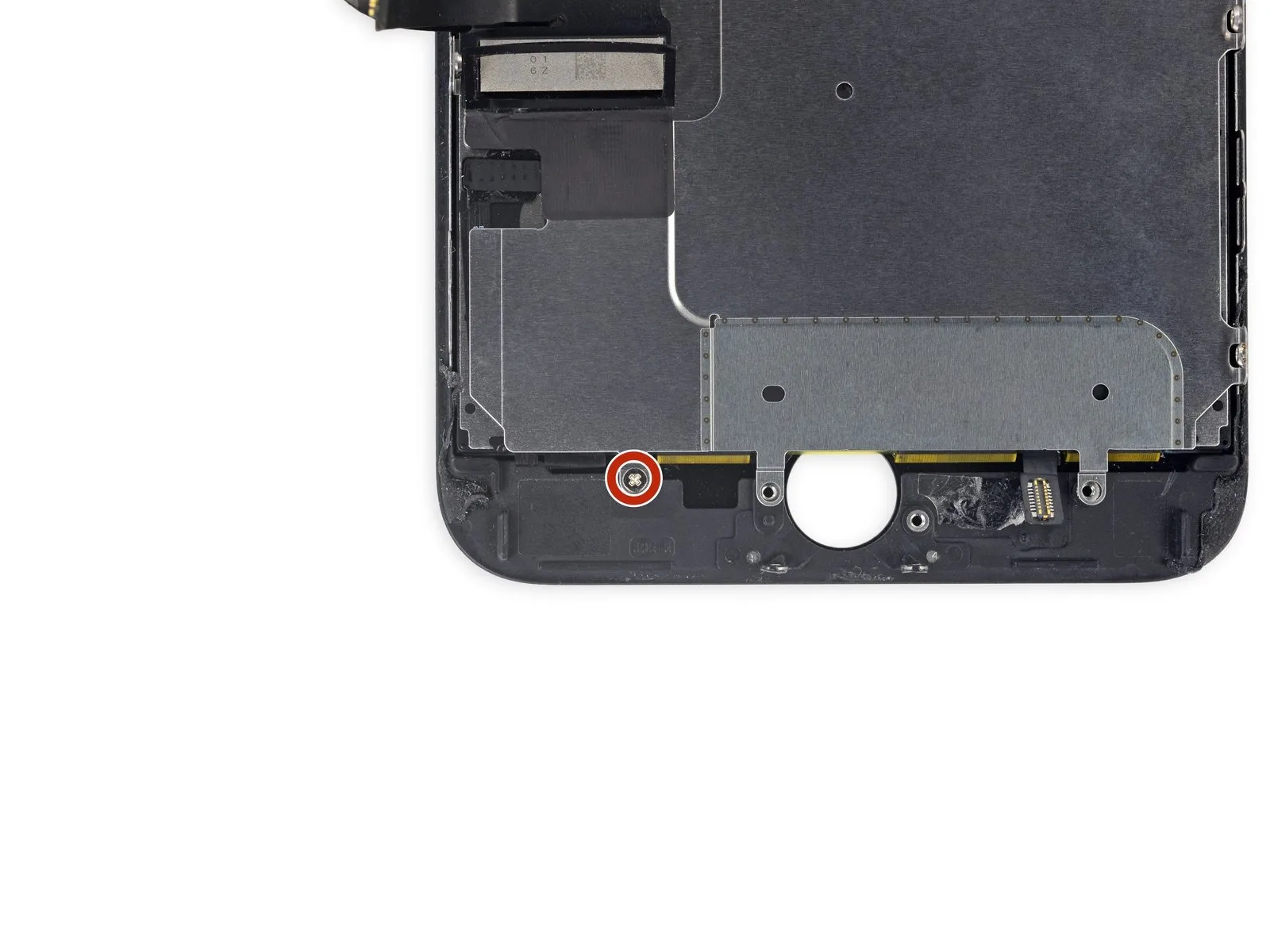

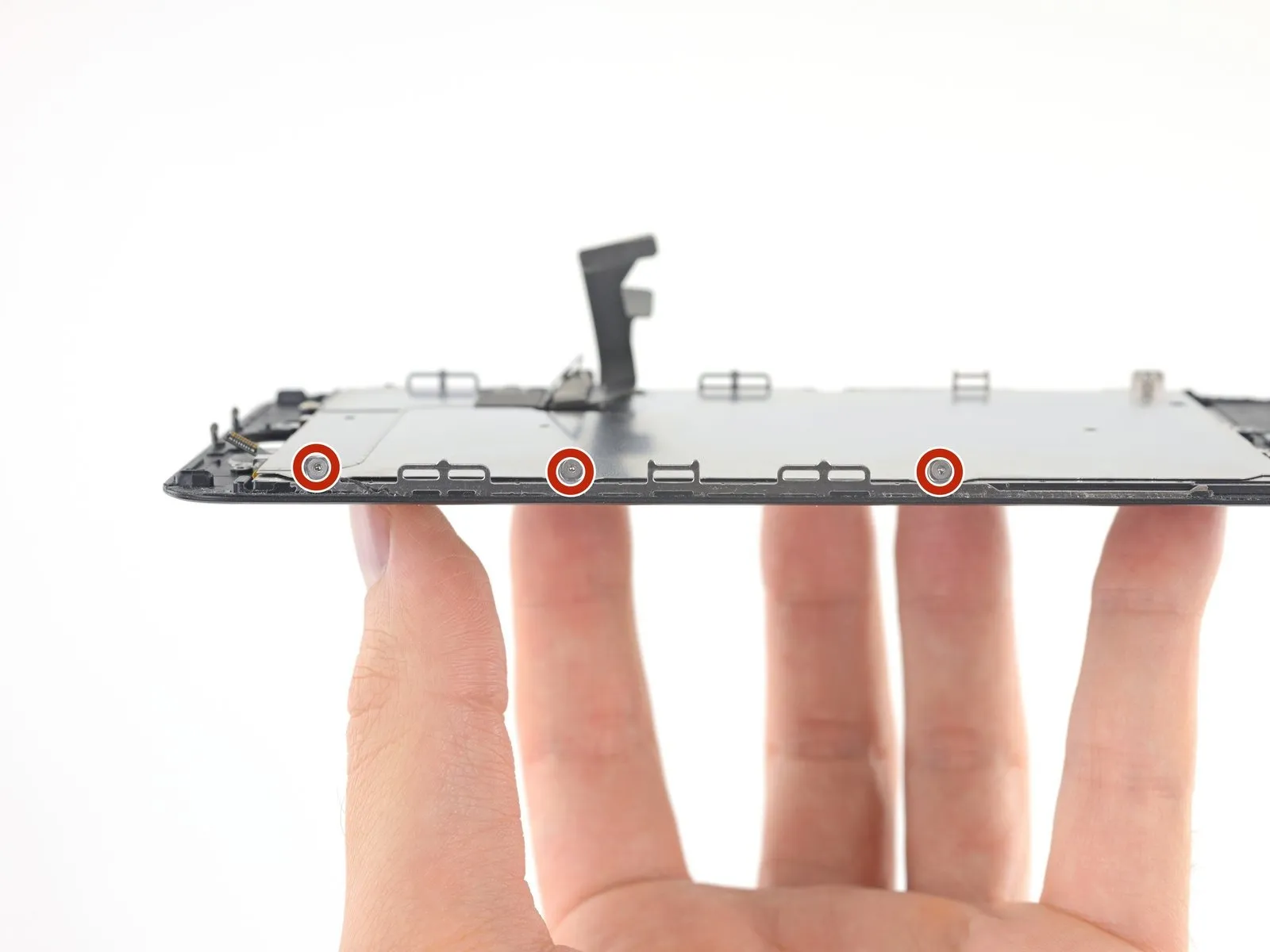

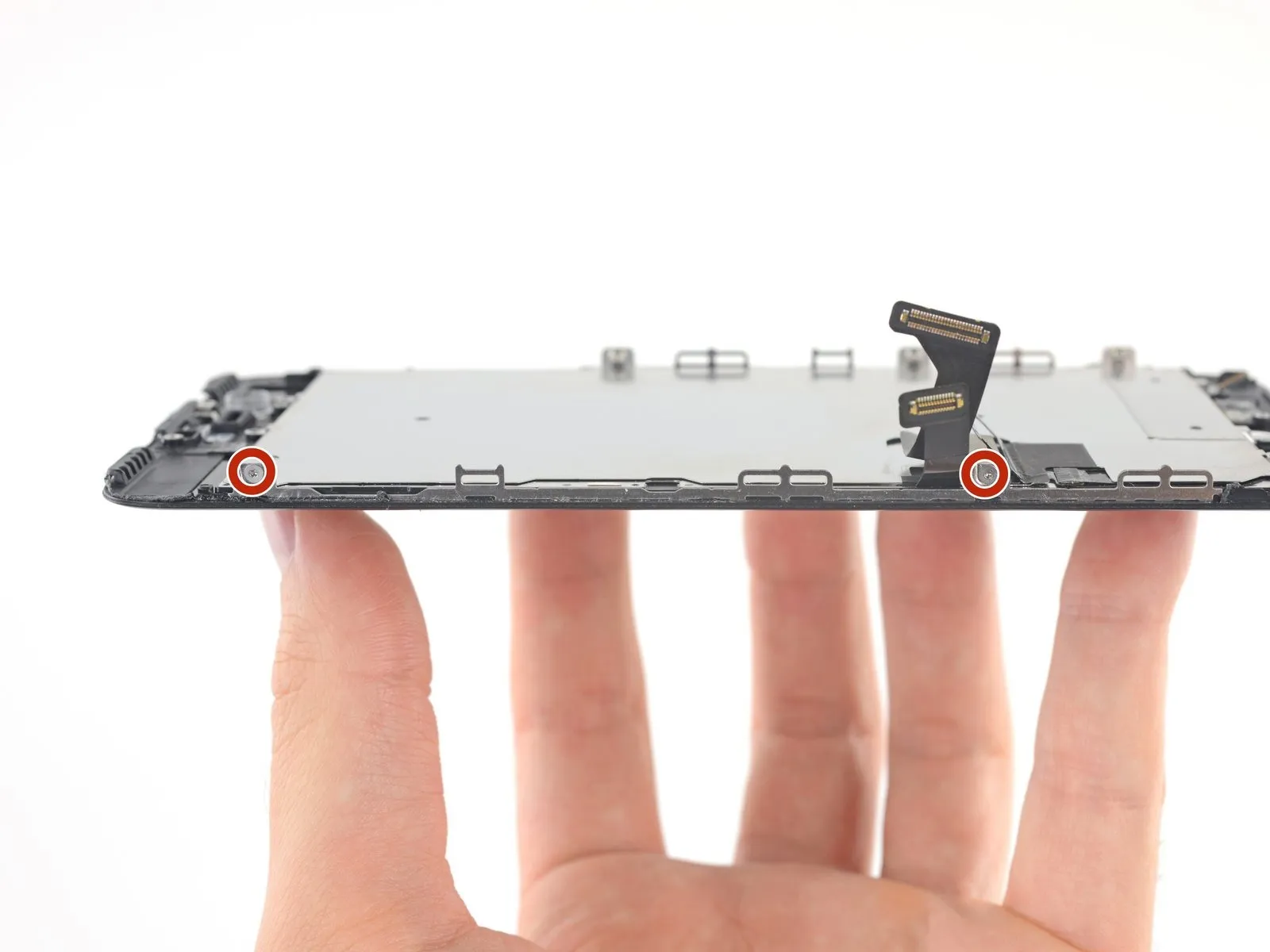

• Detach the bracket that covers the home/Touch ID sensor assembly by unscrewing the four Y000 fasteners it uses:
  A single 1.1-millimeter screw is utilized.
  Three fasteners with a 1.3-millimeter thread diameter are also present.
• When reattaching the bracket, exercise caution to avoid excessive tightening of these screws, as this could impair the functionality of the home button.

• Detach the retaining clip which fastens the home button and Touch ID sensor assembly in place.

• Carefully detach the left side of the home button cable connector's connection by applying leverage underneath it.
• Should the entire connector assembly lift unexpectedly without releasing, apply downward pressure to the cable's upper portion using the broad, flat surface of yourspudger, concurrently maintaining upward pressure on the connector's left edge. Exercise extreme caution to prevent any harm to the cable or connector, as doing so will render the sensor inoperable.

• Gently lift the connector situated beneath the assembly and reposition it to allow access to the home/Touch ID cable.
• Damage to your iPhone is highly probable if this procedure isn't performed with caution; proceed deliberately and exercise precision when using your tool. Any harm inflicted upon the Touch ID components necessitates replacement exclusively by Apple.
• Should the connector resist lifting, apply heat using a hair dryer or iOpener to loosen the adhesive holding it in place, then attempt separation again.
• Avoid complete disconnection of the connector; instead, elevate it slightly to facilitate removal of the underlying home/Touch ID sensor cable.

Applying warmth to the region surrounding the home button and Touch ID sensor can loosen the adhesive securing the fragile cable, facilitating a safer removal process.

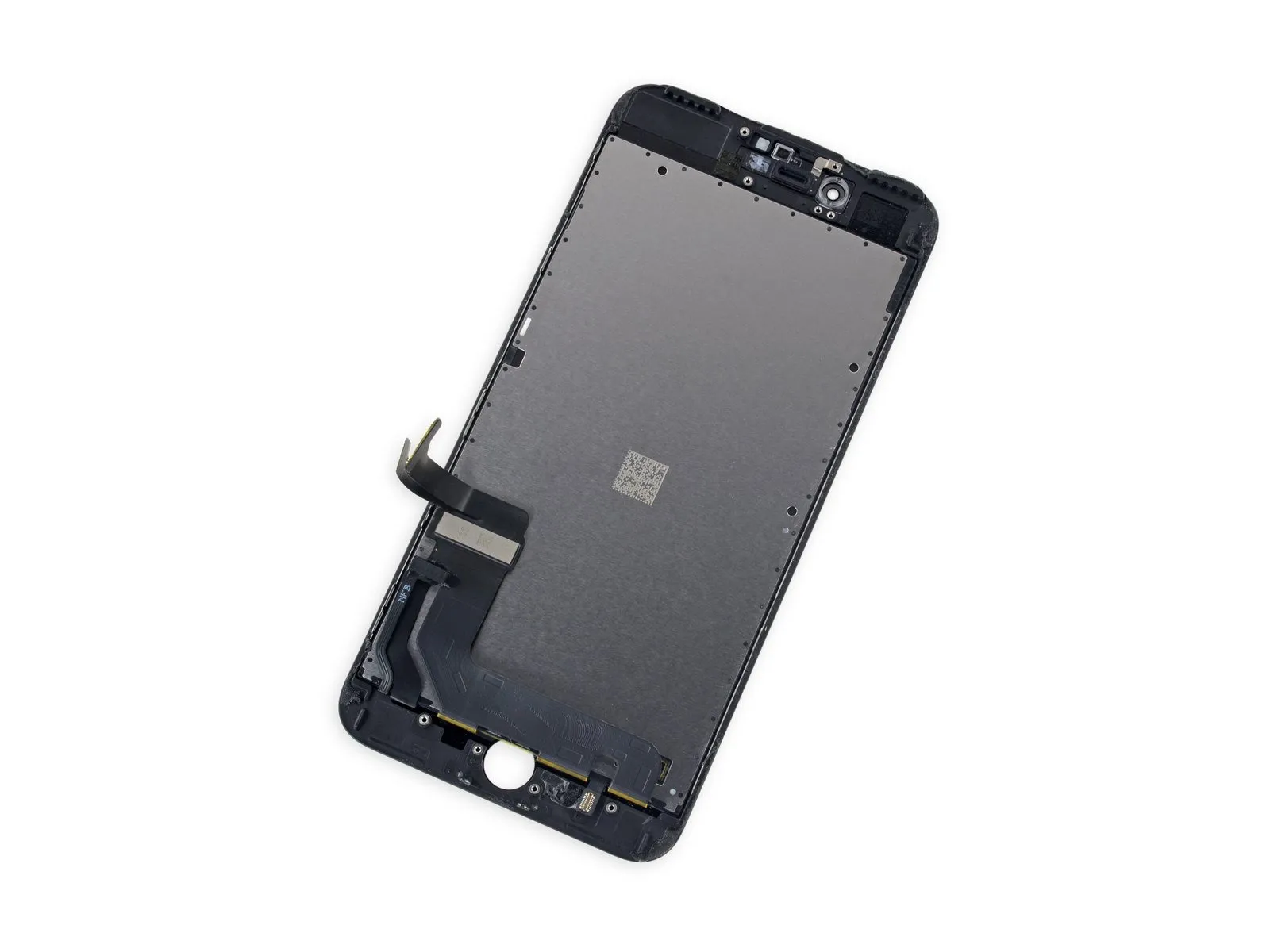

Turn the display assembly so the reverse side faces up; then, utilize a hairdryer or an iOpener, directing heat to the lower display edge for approximately 90 seconds to reduce the adhesive's tackiness.

Carefully disengage the adhesive securing the home/Touch ID sensor cable to the rear surface of the display assembly, utilizing a prying tool.

• For reassembly, initially route the connecting cable through the opening located on the front of the display.
• The newly acquired component might include a supplemental Y000 screw positioned to the right of the Home Button; discard this extra screw to facilitate proper reinstallation of the home button bracket.

• This added support will facilitate screw removal without risking clip damage.
• The clips are delicate and bending them can cause display failure.

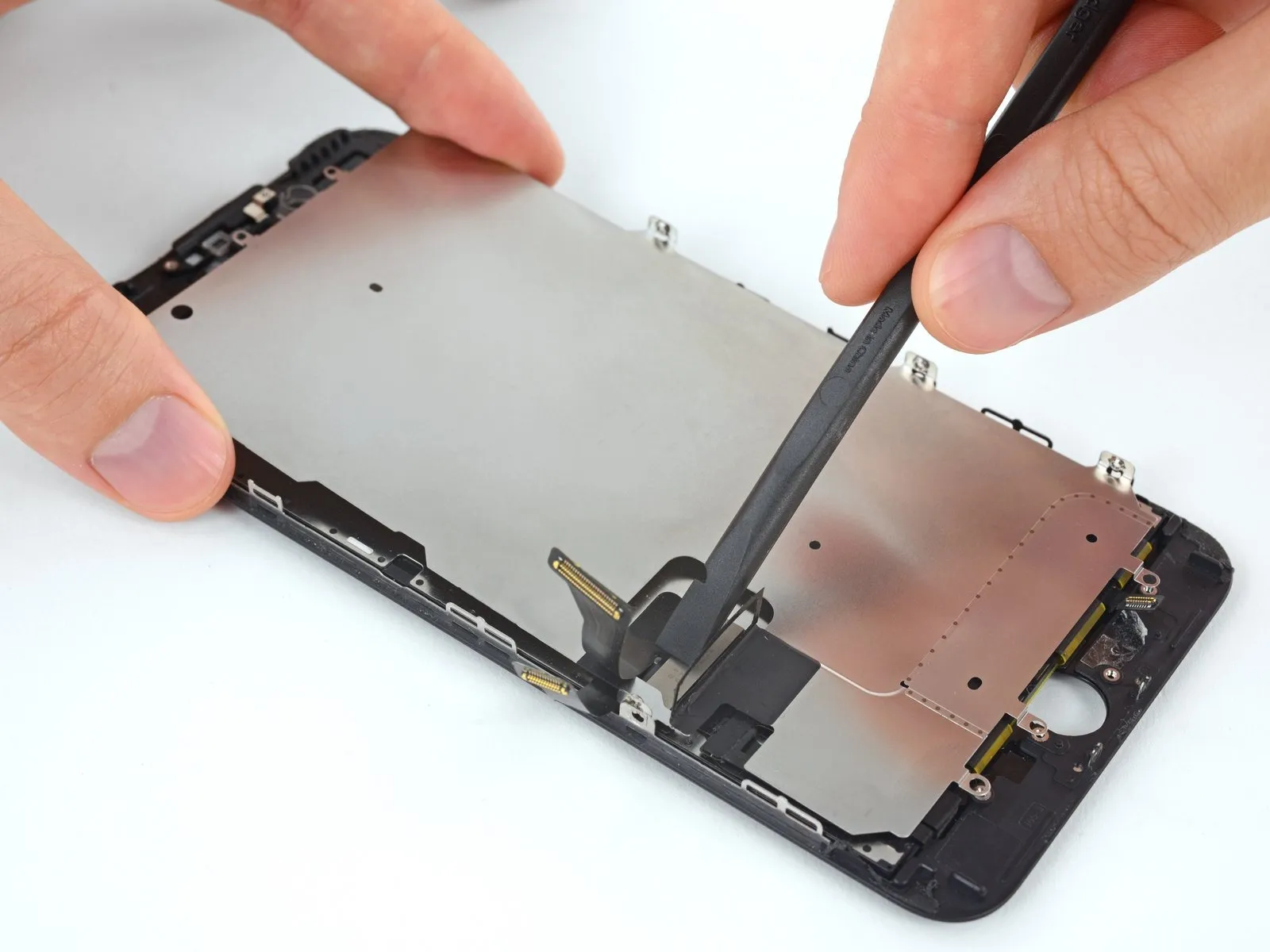

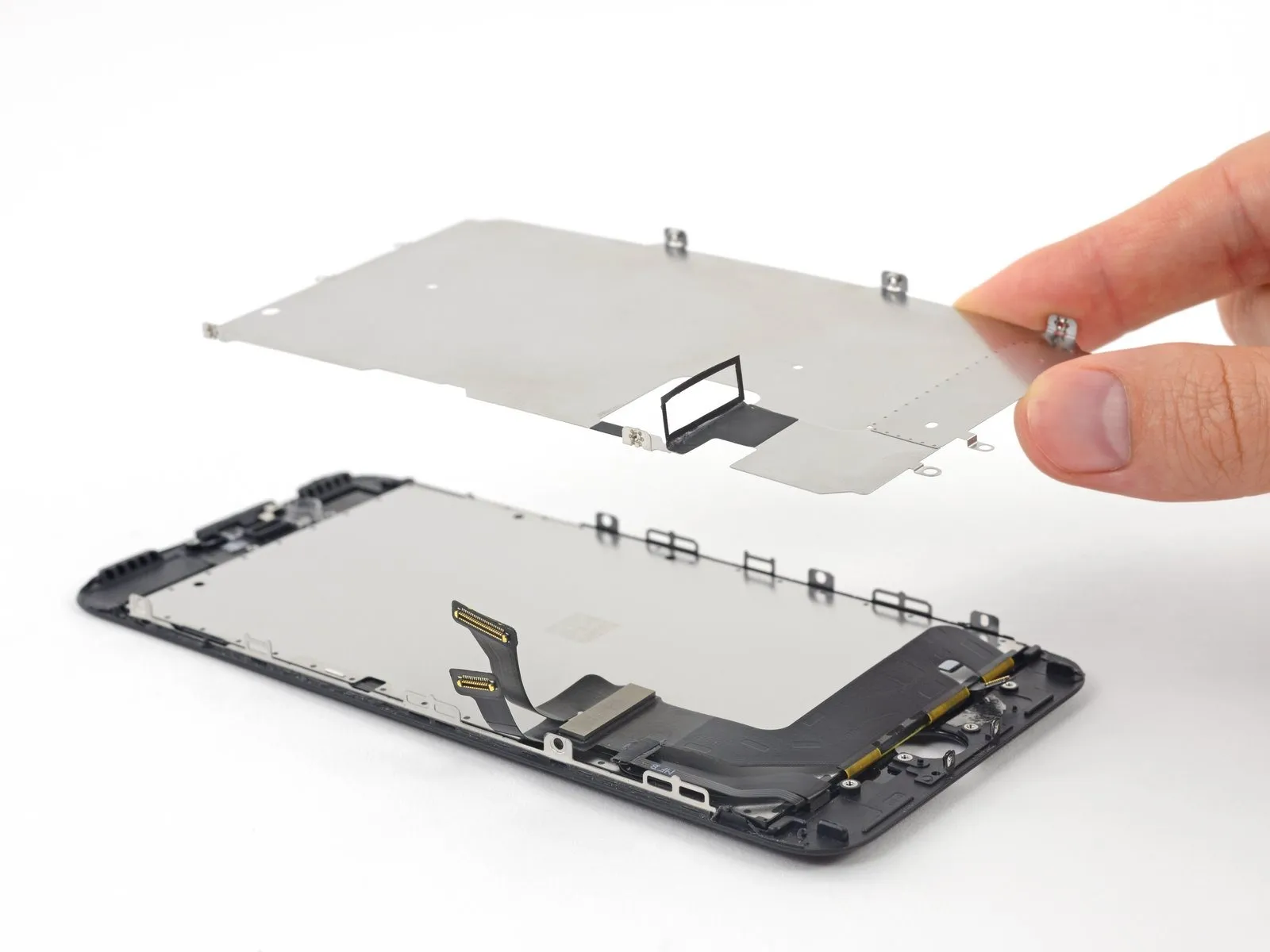

• Carefully raise the LCD shield plate.Simultaneously apply downward pressure to the flexible cable that is contained within its perimeter.
• Guide the flexible cable through the opening in the LCD shield plate, exercising caution to prevent any damage or catching.
